Novel High-Performance Functionalized and Grafted Bio-Based Chitosan Adsorbents for the Efficient and Selective Removal of Toxic Heavy Metals from Contaminated Water

by
Mohammad Monir
1,
Rasha E. Elsayed
1,
Rasha A. Azzam
2 and
Tarek M. Madkour
1,*
1
Department of Chemistry, School of Sciences and Engineering, The American University in Cairo, AUC Avenue, New Cairo, Cairo 11835, Egypt
2
Department of Chemistry, Faculty of Science, Helwan University, Cairo 11795, Egypt
*
Author to whom correspondence should be addressed.
Polymers 2024, 16(12), 1718; https://doi.org/10.3390/polym16121718
Submission received: 17 May 2024 / Revised: 5 June 2024 / Accepted: 14 June 2024 / Published: 16 June 2024
(This article belongs to the Section Polymer Chemistry)
Browse Figures
Versions Notes

Abstract

:
Novel functionalized and/or grafted crosslinked chitosan adsorbents were synthesized and used to remove several toxic heavy metal ions such as nickel, lead, chromium, and cadmium ions from contaminated water. The chitosan biopolymer was functionalized by maleic anhydride (CS_MA) acting also as a crosslinking agent. Glutaraldehyde-crosslinked chitosan (CS_GA) grafted with poly(methyl methacrylate) (CS_MMA) was also synthesized. The synthesized adsorbents were characterized using a variety of analytical techniques such as SEM, TGA, and FTIR, which confirmed their chemical structures and morphology. The adsorption capacity of the adsorbents was analyzed under various conditions of contact time, adsorbent dose, initial concertation, temperature, and pH and evaluated against those of pure chitosan (CS) and the crosslinked chitosan(CS_GA). The ultimate removal conditions were 0.5 g/100 mL adsorbent dose, an initial metal ion concentration of 50 ppm, a temperature of 45 °C, and pH 9. CS_MMA had the highest removal percentages for all metal ions, ranging from 92% to 94%. The adsorption was demonstrated to fit a pseudo-first-order model that followed a Langmuir adsorption isotherm. The results highlight the capacity of the synthesized polymers to efficiently remove major toxic contaminants at low cost from contaminated water, present especially in low-income areas, without harming the environment.

1. Introduction

The extensive use of different heavy metals in industrial applications and the discharge of industrial wastewater into water streams have resulted in major devastation of the health and environment of many communities, especially low-income ones [1,2]. Although heavy metals are commonly found in trace amounts in wastewater streams, such traces are still hazardous to the ecosystems [3,4]. The World Health Organization (WHO) listed eleven toxic heavy metal ions in wastewater effluents that are extremely harmful to human and animal health. Among these elements are nickel, lead, chromium, and cadmium, with maximum acceptable limits of 0.02, 0.01, 0.05, and 0.003 mg/L, respectively, in wastewater [5]. The toxicity level of these metals for the environment follows the order of Ni < Cr < Pb < Cd [5,6]. The toxic effects of these metals on human health range from gastrointestinal and kidney dysfunction to immune system dysfunction, and possibly cancer in some cases [7]. Accordingly, it is necessary to purify the discharged contaminated water before its discharge into the environment.
Over several decades, diverse traditional chemical and physical techniques have been developed for the removal of such heavy metals from wastewater [8,9,10,11]. Unfortunately, these traditional techniques have some drawbacks, such as low removal efficiency as well as high operational costs [12]. Consequently, new treatment methodologies have been developed for more efficient uptake of heavy metals, such as reverse osmosis [13], photocatalysis [14], and membrane separation [15]. Among these various treatment processes, adsorption presents the most common technique for removing heavy metals due to its efficiency in removing heavy metal ions at low concentrations, its operational flexibility, and its low cost [12,16].
Polymeric adsorbents have been among the important and prime choices for wastewater treatment applications due to their facile availability, cost-effectiveness, biocompatibility, and biodegradability [17]. Modified chitosan structures through crosslinking, grafting, and blending have been reported. For example, Vijaya et al. [18] investigated the efficacy of chitosan-coated silica (CCS) and chitosan-coated calcium alginate (CCCA) adsorbents on the removal of nickel ions from wastewater. On the other hand, successful attempts based on chitosan-based polymeric adsorbents were reported for the removal of lead ions from aqueous solutions [19,20]. Recently, Khanniri et al. [20] evaluated the potential of chitosan/bacterial yeast blends as biosorbents for lead removal. A novel pyridinium-functionalized magnetic chitosan adsorbent was synthesized through the amination of magnetic chitosan with diethylenetriamine, followed by quaternization of the product with pyridine for the magnetic separation of toxic hexavalent chromium in aqueous solutions [21]. An efficient removal of Cr(VI) was observed with a maximum capacity of 176 mg/g at a quite acidic pH value of 3. Chitosan/sulfhydryl-functionalized graphene oxide composites were found to be an effective adsorbent for Cd+2 ions uptake from aqueous solutions [22].
Modification of the chitosan surface via grafting copolymerization has also gained great attention lately for the effective removal of heavy metals and other contaminants from contaminated water. Shankar et al. [23] attempted to graft-copolymerize glutaraldehyde-crosslinked chitosan with acrylonitrile using cerium ammonium nitrate initiator for chromium (VI) adsorption. Bal et al. [24] employed crotonic acid as an alternative monomer in the grafting copolymerization of chitosan for the efficient removal of Cu(II) ions from water.
The aim of this research is to develop tailored-design chitosan-based polymeric adsorbents with low-cost, facile application techniques and superior adsorption efficiency of a host of toxic heavy metal ions from contaminated water.

2. Materials and Methods

2.1. Materials

Chitosan, with an average molecular weight (Mn) of 250 kDa and a deacetylation degree of 85%, was obtained from natural resources and purchased from Alpha Chemicals, Cairo, Egypt. Glutaraldehyde (GA), maleic anhydride (MA), and methyl methacrylate (MMA) were all purchased from El Nasr Pharmaceutical Chemicals, Cairo, Egypt. Ammonium persulfate and sodium hydroxide of analytical chemical grade were purchased from Delta Chemical Company, Cairo, Egypt. Acetic acid was purchased from Sigma Aldrich, Aachen, Germany. Ethanol was obtained from Carlo Erba, Paris, France. Ni(II), Pb(II), Cd(II), and Cr(VI) chlorides were brought from Loba Chemie, Delhi, India.

2.2. Methodology

2.2.1. Synthesis of Maleic Anhydride-Functionalized Chitosan (CS_MA)

To synthesize maleic anhydride-functionalized chitosan, 3 g of chitosan were dissolved in 100 mL aqueous acetic acid solution (1% v/v) and allowed to stir for 24 h. Parallel to that, 3 g of maleic anhydride was also allowed to dissolve in 100 mL of aqueous acetone solution (25% v/v). The maleic anhydride solution was then poured into the chitosan solution and allowed to stir for 24 h, Figure 1A. A 20-gauge syringe was used to formulate the polymeric beads in 1 L of 0.5 M sodium hydroxide solution. The chemical structure of the resultant polymeric sample (CS_MA) is shown in Figure 2. The beads were left for 24 h in the sodium hydroxide solution and were then washed multiple times using distilled water to remove any unreacted materials.

2.2.2. Chitosan Beads Crosslinked with Glutaraldehyde and Grafted with Methyl Methacrylate (CS_MMA)

Crosslinked chitosan beads were prepped by dissolving 3 g of chitosan in 100 mL aqueous acetic acid (1% v/v) and stirred constantly for 24 h until a homogeneous viscous solution was observed. The solution was then added dropwise into 1 M NaOH solution using a 20-gauge syringe needle and left overnight to neutralize the acid. The chitosan beads at this point were washed many times with distilled water to remove any unreacted materials and/or sodium hydroxide residues from the sample. The cross-linking process was performed using glutaraldehyde as the crosslinking agent by placing the wet beads in 2.5% glutaraldehyde with a ratio of 1:1.5 by weight. The reaction was then left to stir for 24 h, and the beads were filtered and washed again with distilled water to dispose of any unreacted glutaraldehyde. The glutaraldehyde-crosslinked chitosan was produced, as demonstrated in Figure 1B. The chemical structure of the resultant polymeric sample (CS_GA) is shown in Figure 2.
After the crosslinked chitosan was dried, 1 g of the beads was transferred along with 0.6 g of ammonium persulfate to a 250 mL three-necked flask equipped with a magnetic stirrer, gas inlet system, a reflux condenser, and nitrogen atmosphere. The mixture was stirred for one hour at 60 °C to facilitate radical formation of the chitosan chains (Figure 1). Three grams of methyl methacrylate was slowly added into the mixture with continuous stirring and a flow of oxygen-free nitrogen gas for two and a half hours (Figure 2). After the graft copolymerization was completed, the grafted beads, CS_MMA, were washed several times with distilled water to remove any unreacted reagents. The grafting of chitosan was evaluated based on the grafting yield (Y%) and grafting percentage (G%) and calculated as follows [25]:
G ( % ) = w 2 − w 1 w 1   ×   100
Y ( % ) = w 2 − w 1 w 3
where W1, W2, and W3 indicate the mass of crosslinked chitosan, grafted copolymer, and methyl methacrylate, respectively. In this research, the G% and Y% obtained for the grafted sample were 215% and 73%, respectively.

2.2.3. Characterization of the Modified Chitosan Beads

Characterization studies were conducted on the four prepared chitosan samples (CS, CS_MA, CS_GA, and CS_MMA). Morphological investigation was performed using SEM SUPRA 55 LEO SEM instrumentation by Carl Zeiss, Jena, Germany. Gold sputtering HUMMER 8.0 by Anatech LTD, Sparks, NV, USA, was used to cover the sample’s surfaces with cold to improve the images’ quality by making the sample more conductive. Gold sputtering was applied at 15 mA for one minute. To determine the thermal degradation behavior of the chitosan samples, thermogravimetric analysis was performed using Perkin Elmer TGA 7 Thermogravimetric Analyzer by PerkinElmer, Inc., Waltham, MA, USA. The mass of the sample was in the range of 10–12 mg. The sample pan was placed inside the balance system equipment, and the temperature was elevated from 25 to 750 °C at a heating rate of 5 °C per minute. The chemical composition of the chitosan samples was also studied using Fourier-transform infrared spectroscopy Thermo Scientific- NICOLET 380 FTIR spectrometer by Nicolet, Thermo Fisher Scientific, Waltham, MA, USA. The experiment was carried out at room temperature and utilized KBr pellets in the range of 4000–400 cm−1 with a spectral resolution of 4 cm−1.

2.2.4. Removal of Ni(II), Pb(II), Cd(II), and Cr(VI) Ions

The uptake of Ni2+, Pb2+, Cd2+, and Cr6+ ions in their individual aqueous solutions was studied under diverse conditions (initial concentration of the heavy metals, adsorbent dose, and temperature). Batch adsorption experiments were performed at pH 9, which represented the best pH that yielded maximum uptake for each heavy metal in the screening study. A pre-weighted sample of the modified chitosan beads was immersed in 100 mL heavy metal solution of a certain concentration and analyzed using high-pressure liquid chromatography (HPLC) for different time intervals. The equilibrium adsorption capacity for the metal ions was determined and calculated using the following equation:
q e = ( C 0 − C e )   V m
where qe is the equilibrium adsorption capacity (mg/g), C0 is the initial metal ion concentration (ppm), and Ce is the equilibrium heavy metal concentration (ppm). V is the volume of solution (mL), m is the molar mass of metal ion (g mol−1), and m is the mass of chitosan adsorbent (g) [26].
Removal efficiency (%R) of the modified chitosan beads was also calculated as follows:
% R = ( C 0 − C e )   C 0
In the initial concentration study, 0.5 g of the adsorbent was soaked in 100 mL of the various aqueous solutions of the different metal ions. The initial concentrations of 5, 20, 50, and 100 ppm were used to study the effect of the contaminant’s initial concentration on the percent removal. The study was carried out at pH 5.8 and a temperature of 25 °C. The influence of chitosan adsorbent dose on the adsorption and removal of the four metal ions was conducted with different adsorbent masses of 0.2, 0.5, 0.8, and 1 g in 100 mL of aqueous solutions of the metal ions. The initial concentration of the contaminants in this part of the study was chosen to be 50 ppm and at a temperature of 25 °C. The temperature effect on the adsorption of metal ions on the surface of the modified chitosan beads was carried out at different temperatures 25, 45, 65, and 85 °C.

2.2.5. Equilibrium Studies

Adsorption isotherms were fitted using three different isotherm models, namely, linear, Freundlich, and Langmuir models, using the following equations, respectively.
q e = K e C e
q e = K F C e 1 / n
q e = q m C e K e C e K e + 1
where Ke is the equilibrium constant for the adsorption process, Ce is the adsorbate concentration (ppm), qm is the maximum adsorption capacity, and Kf and n present Freundlich constants. Different measures were taken at 25, 45, 65, and 85 °C to determine the thermodynamic properties, including enthalpy (∆H), entropy (∆S), and Gibbs free energy (∆G). The equilibrium constant was obtained from the following equation [26]:
K d = q e C e
∆H, ∆S, and ∆G were calculated according to
∆G = −RT ln Kd
ln K d = Δ S R − Δ H R T
where T is the temperature in Kelvin, and R is the ideal gas constant. Based on the final equation, the plot of Kd versus 1/T should produce a straight line that has a slope of (∆H/RT) and intercept of (∆S/R).

2.2.6. Kinetic Modeling

Pseudo-first-order and pseudo-second-order kinetics models were investigated to predict the kinetic uptake profiles of the different metal ions according to [27,28]:
log ⁡ ( q e − q ) = log ⁡ q e − K 1 2.303 t
t q e = 1 K 2 q e 2 + 1 q e t
where K1 and K2 are the respective rate constants of the pseudo-first-order and pseudo-second-order models, and q is the uptake capacity at time t.
To explore the applicability of the mechanism for intra-particle diffusion, the Weber and Morris intra-particle diffusion model was examined [29].
q = K i d t 0.5 + c
where Kid is the constant of intra-particle diffusion, and c is a constant reflecting the boundary layer effect.

2.2.7. Validating the Effect of pH

As described earlier, the metal ion removal investigation was carried out at pH 9, which was determined to be the most suitable medium for the adsorption of the metal ions on the surface of the chitosan beads. To ensure that the alkaline medium at pH 9 had no impact on the removal of the metal ions from the aqueous solutions through the precipitation of the ions, four solutions of the different metal ions were prepared and adjusted for pH 9. The samples were then left for 24 h at 25 °C. The heavy metal ion concentrations were measured and found to be constant. This indicated that the pH did not cause any precipitation of the ions and, accordingly, it had no impact on the adsorption study.

2.2.8. Statistical Analysis

All experiments were conducted three times at a minimum, with the obtained data presented as mean standard deviation (SD). Statistical analysis was performed using a one-way ANOVA test, followed by Tukey’s multiple comparison test for all data obtained from the examination of the modified chitosan. All tests were calculated using GraphPad Prism Software Version 6 and presented as * p < 0.05, ** p < 0.01, *** p< 0.001, and **** p< 0.0001.

3. Results and Discussion

3.1. Chemical and Physical Characterization

3.1.1. SEM Imaging

Figure 3 demonstrates the SEM images of CS, CS_GU, CS_MA, and CS_MMA, respectively. For all the samples, images were taken prior to any adsorption experimentations at a magnification of 750. As is obvious from 3a, the sample exhibits smooth texture with no apparent pore formation. CS_GU demonstrated some random wavy points on the surface, while SEM of CS_MA showed a smoother morphology. SEM micrographs clarified the influence of grafting copolymerization of the prepared chitosan adsorbent CS_GU with methyl methacrylate. Interestingly, it was observed that the surface of the adsorbent became non-homogeneous with some cavities. This is probably due to hydrophilic interactions between water molecules with the grafted side chains [30]. After drying, the water molecules left such cavities on the surface of the dried beads.

3.1.2. TGA

TGA analysis of the four synthesized samples was performed, and the results are shown in Figure 4. This figure indicates the presence of two stages of weight loss for all samples. The first one shows a weight loss of approximately 10% in the range of 45–100 °C, which corresponds to moisture loss [31], while the second one takes place in the range of 200 to 300 °C, due to chitosan deacetylation and the elimination of volatile products with a weight loss of 35% [32]. A slight change in the decomposition temperature took place with the crosslinking of the chitosan sample as well as the grafting copolymerization of the sample, due to the increased thermal stability resulting from the formation of crosslinks between the chains. Interestingly, the type of crosslinking had no bearing on the change in the decomposition temperature since both CS_GU and CS_MA had very similar decomposition temperatures and profiles. Finally, a complete breakdown of the main backbone of chitosan has started at around 300 °C. It can be concluded from the figure that the CS_MMA sample has the highest thermal stability among all other samples and that all samples are particularly stable at room temperatures. This is important, since these highly biodegradable samples need to be stable during the treatment of contaminated water, while they may be easily degradable when discarded via biodegradation processes.

3.1.3. FTIR

As shown in Figure 5, the FTIR spectra of the chitosan samples showed several peaks. To elaborate, the peak at 570 cm−1 is assigned to the out-of-plane NH and C-O bonds, while the band at 1180 cm−1 is assigned to C-O-C stretching. Additionally, two noticeable peaks located at 2920 cm−1 and 3594 cm−1 were assigned to the CH2 and OH stretching, respectively [33]. The CS_GU spectra show a peak around 1630 cm−1, which represents the stretching vibrations of C=N moiety in the Schiff’s base resulting from the reaction of chitosan and glutaraldehyde [34]. The reaction between maleic anhydride and chitosan is confirmed by the peaks at 1600, 1260, and 1420 cm−1, representing a ring-opening reaction of the maleic anhydride unit [35]. Nevertheless, the absorption band at 1475 cm−1 represents the C=C alkenes [35]. The absorption band at 1720 cm−1 is due to C=O stretching vibration of the ester bonds formed during the reaction [36]. Finally, the peak around 2850 cm−1 confirms the grafting process of methyl methacrylate [36].

3.2. Contaminant Removal under Various Operating Conditions

The synthesized chitosan samples were investigated for their efficiency in removing four heavy metal ions (nickel, lead, chromium, and cadmium) under various operating conditions, namely, the initial metal ion concentration, adsorbent dose, and temperature. Equilibrium uptake capacity, qe, and percent removal (R%) of the metal ions were determined using the kinetic uptake profiles. The kinetic profiles were studied under each condition to obtain qe and R%, as represented in Figure 6, Figure 7 and Figure 8.

3.2.1. Impact of the Operating Temperature on qe and R%

The temperature influence on qe and R%, shown in Figure 6, is due to the kinetic energy activation of the metal ions, resulting in an acceleration of their mobilities, which enhances the ion adsorption on the surface of chitosan beads [37]. However, at higher temperatures, the metal ions become highly activated and easily collide with each other, resulting in a reduction in their ability to reach the adsorbent groups, which in turn diminishes both qe and R% [38]. It was noted that at 45 °C, all the samples achieved the greatest removal percentage, except for the CS_MMA, which had a minor increase in the removal percentage at 65 °C. The grafted chitosan sample (CS_MMA) showed a significant increment in the uptake when compared to the non-grafted sample (CS_GU) at 45 °C (** p < 0.01). Furthermore, the maleic anhydride-functionalized chitosan sample (CS_MA) also showed higher removal percentage as compared to the CS control sample (*** p < 0.001).

3.2.2. Impact of the Adsorbent Dose on qe and R%

The increase in the adsorbent dose initially increased R% while reducing qe. However, further dose increases caused a reduction in both qe and R% due to the agglomeration effect of the adsorbent beads [37]. Basically, as more material is added, a lower number of the surface-active sites become accessible to the metal ions, see Figure 7. The adsorbent dose of 0.5 g/100 mL was found to be the optimum dose in this study for the removal of all tested heavy metals. Upon using the optimum dose, either chitosan grafting or crosslinking had a noteworthy impact on the removal of the tested heavy metals (** p < 0.01). Meanwhile, CS _MMA exhibited a noticeable increase in the uptake when compared to CS_MA and CS_GU (** p < 0.01), whereas no significant effect was observed on the metal on removal between CS_MA and CS_GU.

3.2.3. Impact of the Initial Metal Ion Concentration on qe and R%

It can be noted from Figure 8 that the equilibrium uptake capacity of nickel, lead, chromium, and cadmium ions increased with the rise in the initial concentration, due to the increase in the driving force caused by the increase in the initial concentration [39,40]. Consequently, this should have led to a rise in R%. Nevertheless, the opposite was observed, as the increase in the initial concentration of the metal ions had an adverse impact on the percent removal. This could be explained on the basis that an enhanced adsorbent action results in attracting a greater number of the metal ions at higher initial ion concentrations, thus significantly covering the surface of the chitosan samples and resulting in a lower number of the surface-active sites able to adsorb the ions and remove them from the solution [41]. These results demonstrated that the initial ion concentration of 50 ppm corresponds to the optimum value of the percent removal. At such a concentration, functionalization of the chitosan adsorbents with maleic anhydride resulted in a significant increase in the uptake of the selected heavy metal when compared to the chitosan control (*** p < 0.001). Interestingly, the grafting of glutaraldehyde-crosslinked chitosan beads with methyl methacrylate noticeably affected on the removal of all tested heavy metals (*** p < 0.001). Therefore, CS_MMA samples exhibited the highest removal among all other chitosan samples, while no significant difference was observed between CS_MA and CS_MMA.

3.2.4. Ultimate Adsorption Condition and Statistical Analysis

Since the efficient removal of the various heavy metals in a cost-effective manner is the main purpose of this study, the best conditions for maximizing the uptake of these ions from contaminated water were determined to be an initial ion concentration of 50 ppm and an adsorbent dose of 0.5 g/100 mL, with a temperature of 45 °C (Figure 9).
The results of statistical data in Figure 7 demonstrated considerable significant differences in the removal percentage between the chitosan control sample and the rest of the prepared samples (up to **** p< 0.0001). After the chitosan crosslinking with glutaraldehyde, a significant increase in qe and R% of the tested heavy metal ions was observed (* p< 0.05). Surprisingly, graft copolymerization of the glutaraldehyde-crosslinked chitosan has appreciably affected qe and R% out of all the tested heavy metal ions (**** p< 0.0001). Similarly, the functionalization of chitosan with MA had a considerable effect on both qe and R% (up to *** p< 0.001).
Meanwhile, a significant difference between CS_MA and CS_MMA on the qe and R% of the nickel ions was observed (* p < 0.05), while in the case of lead, chromium, and cadmium, no significant change was observed (* p > 0.05). Based on the resultant statistical data, among all synthesized samples, methyl methacrylate-grafted chitosan (CS_MMA) showed the best performance as an adsorbent of nickel, lead, chromium, and cadmium heavy metal ions. Under these conditions, further kinetic and equilibrium studies were conducted.

3.3. Thermodynamic Analysis of the Adsorption Process

To elucidate the nature of the adsorption mechanism, various thermodynamic parameters, including the change in enthalpy (∆H), entropy (∆S), and Gibbs free energy (∆G), were calculated. Using the van ’t Hoff plot, Figure S1, the thermodynamic parameters of CS_MA and CS_MAA samples for the adsorption of the four heavy metals are demonstrated in Table 1, and thermodynamic parameters of the rest of the prepared samples CS and CS_GU are tabulated in Table S1. For the adsorption of the employed heavy metals using the different chitosan-based polymeric adsorbents, the negative free energy (ΔG) and the negative enthalpy (ΔH) indicate spontaneous exothermic processes for the CS and CS_GU systems [42]. Additionally, the negative free energy (ΔG) and the positive enthalpy (ΔH) indicate spontaneous endothermic processes for CS_MA and CS_MMA systems (Table 2). The small magnitude of ΔH implies that the adsorption of the metal ions on the surface of the different chitosan-based polymeric adsorbents took place through weak physisorption [43]. Furthermore, the equilibrium constants for the adsorption of the metal ions were more than unity, which indicates spontaneity. By inspecting the adsorption isotherms depicted in Figure S2, it can be concluded that these isotherms follow Langmuir isotherm behavior where multiple-layer surface coverage must have occurred.

3.4. Kinetic Study of the Adsorption of the Metal Ions

The kinetic uptake profile for the adsorption of nickel, lead, chromium, and cadmium metal ions on the surface of the different chitosan adsorbents is shown in Figure 10. It can be observed that the adsorption capacity of CS_MMA towards the metal ions was higher than that of the other chitosan adsorbents after 360 min. Accordingly, the intermolecular forces between the ions and CS_MMA are expected to be high enough to increase their removal percentages. For estimating a kinetics model for the adsorption processes, all the profiles were fitted to the pseudo-first-order and pseudo-second-order models. The resultant linear plots are shown in Figures S3–S5, respectively. Such figures were utilized to forecast the kinetic parameters for the prepared CS_MA and CS_MAA shown in Table 2. The kinetic parameters of the other two samples, CS and CS_GU, are presented in Table S2. By scrutinizing the correlation factor (R2) for each model, it can be confirmed that the pseudo-first-order model best fits the adsorption of the metal ions, since it had higher R2 values for all systems, see Table 2. Using this model, the expected kinetic rate constants for the metal ion adsorption were very analogous in values showing equal adsorption rates. Since all the profiles were linear, the adsorption can be concluded to occur via intra-particle diffusion (Figure S5).

3.5. Influence of pH on Metal Ion Adsorption and the Adsorption Mechanism

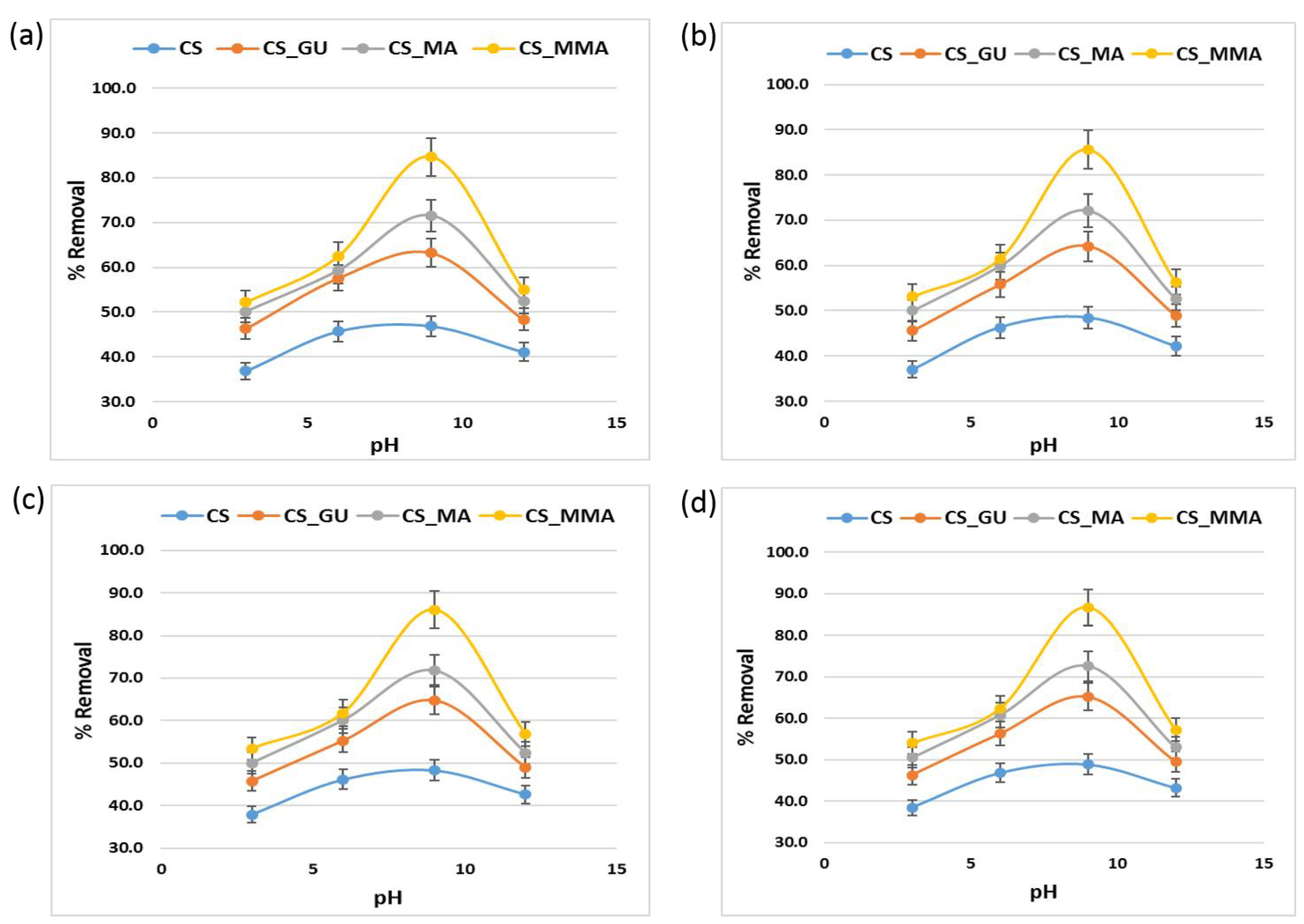

The pH value is a major factor in the adsorption of the metal ions on the surface of the various chitosan samples. At an acidic pH value below 5, the free amino and hydroxyl groups of the chitosan backbone become protonated (–OH2+, –NH3+), which causes the metal ion adsorption to decrease. As the pH value increases, the protonation degree of the functional groups decreases, and the formation of complex coordination bonds between the functional groups and the metal ions takes place [44]. It should be stated that there are many modes for coordination of the polymer with the metal ions. The best pH value for the adsorption was determined to be 9 for all the chitosan samples, as shown in Figure 11. In general, whether grafting chitosan with methyl methacrylate or functionalizing it with maleic acid, they both had a significant impact on the removal of the metal ions as presented in Figure 11, with CS-MMA showing the highest percent removal. To better illustrate the adsorption process, the possible mechanisms for the metal ion adsorption onto the surface of CS-MMA are depicted in Figure 12. The adsorption of positively charged metal ions Ni+2, Pd+2, Cd+2, and Cr+6 on CS _MA and CS_MAA at pH 9 is expected to be dominated by two possible interactions.

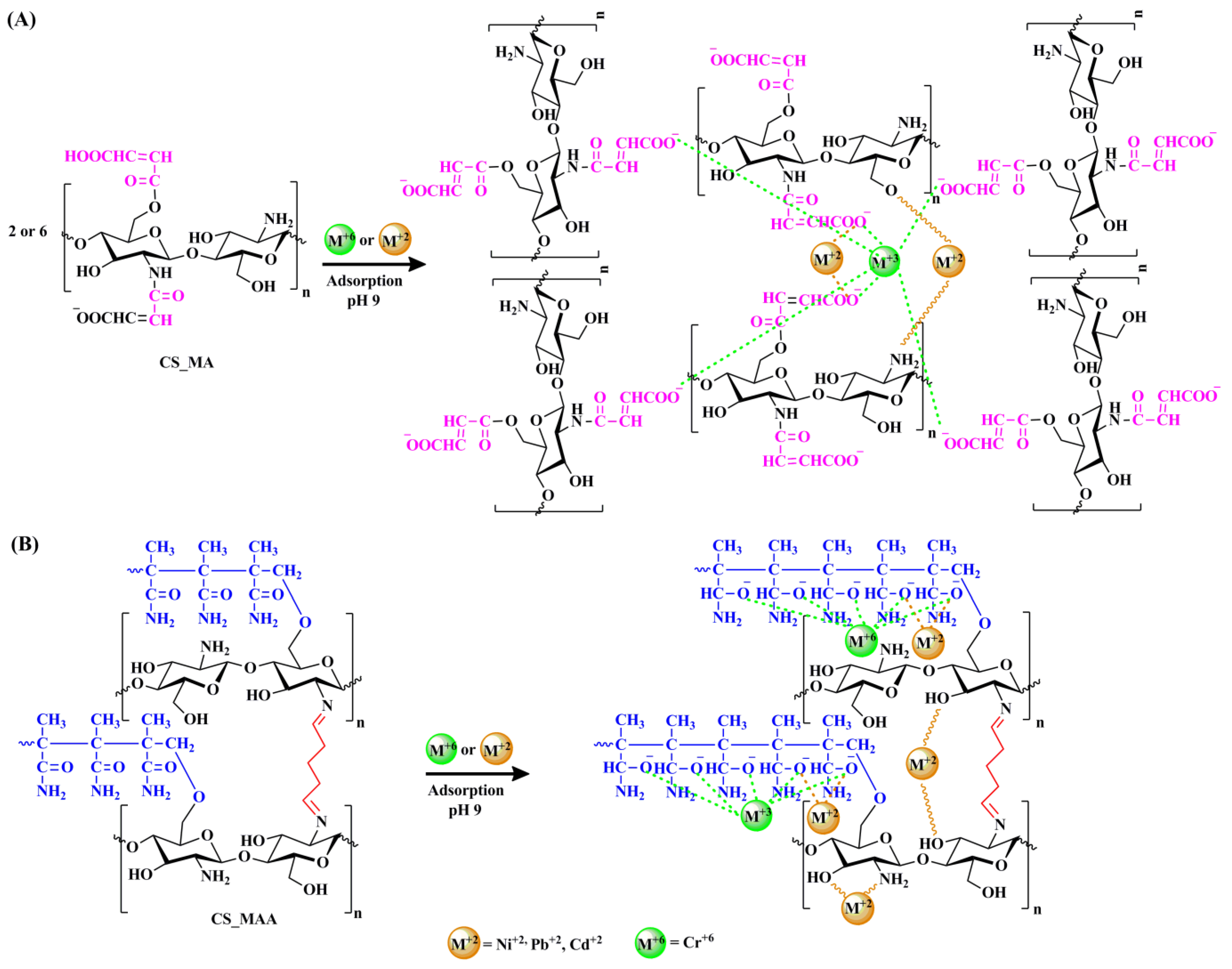

One possible mechanism of these interactions is the chelation between the nitrogen atoms of the free chitosan amino groups and the metal ions. The other is the electrostatic attraction between either the negatively charged carboxylate ions of the chitosan side chains, in the case of CS_MA, or the negatively charged grafted acrylamide ions of the chitosan side chains, in the case of CS_MMA with the positively charged metal ions.

3.6. Regeneration

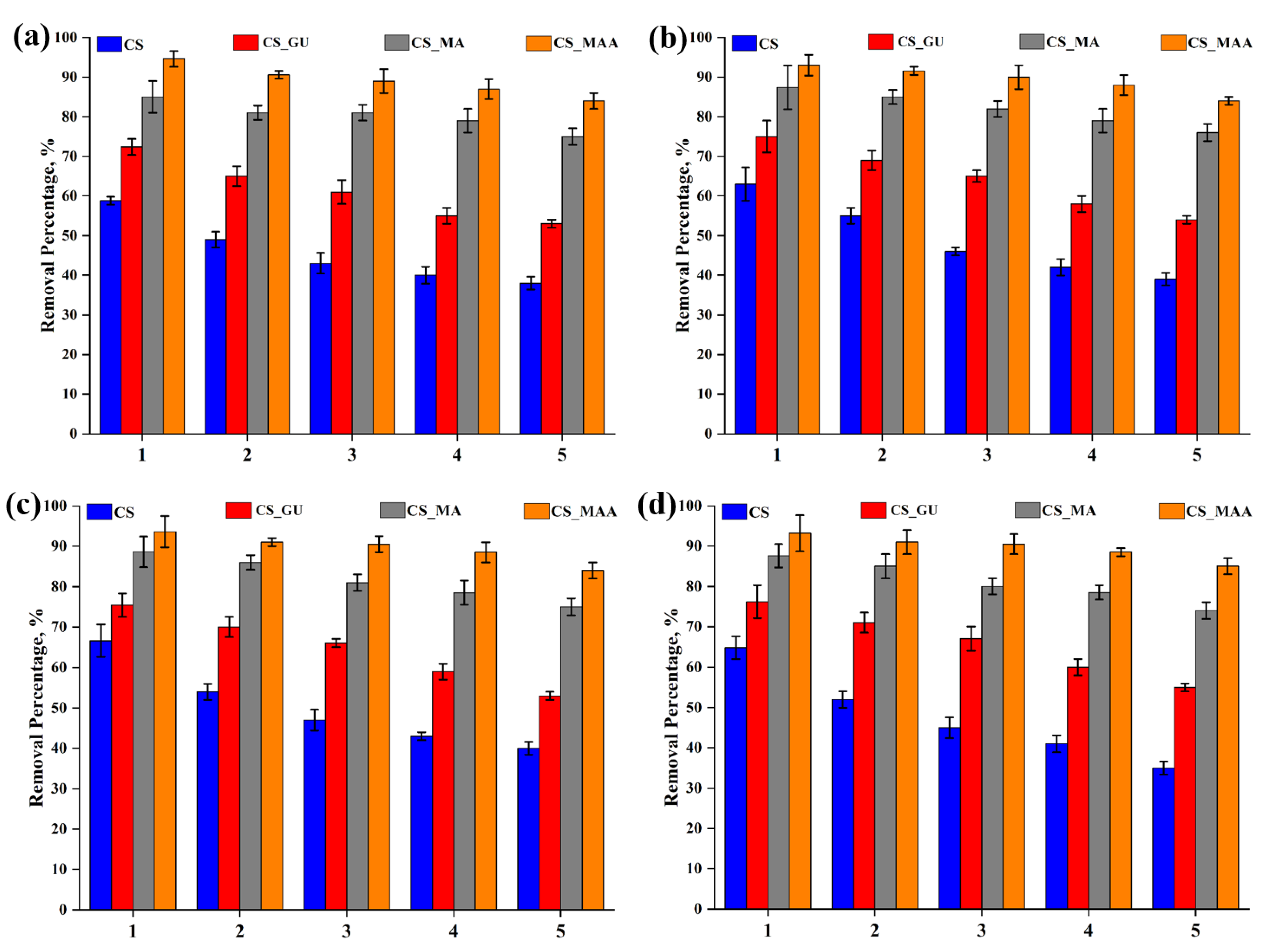

Regeneration of the various chitosan adsorbents confirmed their reuse for five consecutive cycles, with an average percent removal dropping by only around 21% in the fifth cycle (Figure 13). The adsorption efficiency of CS and CS_GU, however, declined significantly more than CS_MA and CS_MMA did, which indicates the positive impact both the functionalization and the grafting copolymerization have on the regeneration of these bio-based adsorbents.

4. Conclusions

Adsorption experiments of four metal ions by four different chitosan-based polymeric adsorbents were conducted under different conditions. It was found that CS_MMA attained the maximum removal and uptake efficiency among all other polymeric adsorbents, reaching removal percentages of over 92% for all metal ions under consideration. Furthermore, the grafting copolymerization had a major positive effect on the crosslinked chitosan, increasing the removal percentage of the crosslinked chitosan samples from about 49% to 94%. The equilibrium isotherms for the metal ion adsorption fitted with the Langmuir isotherm. The uptake profiles for the adsorption were all well-fitted to a pseudo-first-order kinetic model. At lower pH values, the chitosan hydroxyl and amino groups are protonated, and the chitosan becomes a soluble cationic polymer that has a high charge density, which limits its ability to adsorb and remove the metal ions. Regeneration of the various chitosan adsorbents confirmed their reuse for five consecutive cycles, with an average percent removal dropping by only around 21% in the fifth cycle.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym16121718/s1, Figure S1. Van’t Hoff plots for nickel (a), lead (b), chromium (c), and cadmium (d); Figure S2. The equilibrium isotherms for the adsorption of nickel (e), lead (f), chromium (g), and cadmium (h); Figure S3. Linear plots of the kinetic profiles for the uptake of nickel (a), lead (b), chromium (c), and cadmium (d) estimated using pseudo-first-order; Figure S4. Linear plots of the kinetic profiles for the uptake of nickel (a), lead (b), chromium (c), and cadmium (d) estimated using the pseudo-second-order; Figure S5. Linear plots of the kinetic profiles for the uptake of nickel (a), lead (b), chromium (c), and cadmium (d) estimated using the intra-particle diffusion model; Table S1: The thermodynamic parameters for the adsorption of nickel, lead, chromium and cadmium ions on the surface of the different chitosan-based polymeric adsorbents; Table S2: Kinetic parameters for the adsorption of the metal ions onto the surface of the different chitosan-based polymeric adsorbents using different kinetic models.

Author Contributions

Conceptualization, T.M.M.; data curation, M.M., R.E.E., R.A.A. and T.M.M.; formal analysis, M.M., R.E.E., R.A.A. and T.M.M.; funding acquisition, T.M.M.; investigation, M.M. and R.E.E.; methodology, M.M., R.E.E. and R.A.A.; project administration, T.M.M.; resources, R.A.A. and T.M.M.; supervision, R.A.A. and T.M.M.; writing—original draft, M.M., R.E.E., R.A.A. and T.M.M.; writing—review and editing, T.M.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the American University in Cairo (AUC) grant number: RG Ref # SSE-CHEM-T.M-FY22-RG-2022-Mar-01-18-33-53.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available within the manuscript and Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Fei, Y.; Hu, Y.H. Design, Synthesis, and Performance of Adsorbents for Heavy Metal Removal from Wastewater: A Review. J. Mater. Chem. A 2022, 10, 1047–1085. [Google Scholar] [CrossRef]
  2. El-Sayed, M.M.H.; Elsayed, R.E.; Attia, A.; Farghal, H.H.; Azzam, R.A.; Madkour, T.M. Novel Nanoporous Membranes of Bio-Based Cellulose Acetate, Poly(Lactic Acid) and Biodegradable Polyurethane in-Situ Impregnated with Catalytic Cobalt Nanoparticles for the Removal of Methylene Blue and Congo Red Dyes from Wastewater. Carbohydr. Polym. Technol. Appl. 2021, 2, 100123. [Google Scholar] [CrossRef]
  3. Ali, H.; Khan, E.; Ilahi, I. Environmental Chemistry and Ecotoxicology of Hazardous Heavy Metals: Environmental Persistence, Toxicity, and Bioaccumulation. J. Chem. 2019, 2019, 6730305. [Google Scholar] [CrossRef]
  4. Kim, J.-J.; Kim, Y.-S.; Kumar, V. Heavy Metal Toxicity: An Update of Chelating Therapeutic Strategies. J. Trace Elem. Med. Biol. 2019, 54, 226–231. [Google Scholar] [CrossRef] [PubMed]
  5. Shrestha, R.; Ban, S.; Devkota, S.; Sharma, S.; Joshi, R.; Tiwari, A.P.; Kim, H.Y.; Joshi, M.K. Technological Trends in Heavy Metals Removal from Industrial Wastewater: A Review. J. Environ. Chem. Eng. 2021, 9, 105688. [Google Scholar] [CrossRef]
  6. Cotruvo, J.A. WHO Guidelines for Drinking-Water Quality: Second Addendum. World Health Organ. Press 2008, 1, 17–19. [Google Scholar]
  7. Safiur Rahman, M.; Khan, M.D.H.; Jolly, Y.N.; Kabir, J.; Akter, S.; Salam, A. Assessing Risk to Human Health for Heavy Metal Contamination through Street Dust in the Southeast Asian Megacity: Dhaka, Bangladesh. Sci. Total Environ. 2019, 660, 1610–1622. [Google Scholar] [CrossRef] [PubMed]
  8. Dąbrowski, A.; Hubicki, Z.; Podkościelny, P.; Robens, E. Selective Removal of the Heavy Metal Ions from Waters and Industrial Wastewaters by Ion-Exchange Method. Chemosphere 2004, 56, 91–106. [Google Scholar] [CrossRef]
  9. Parambadath, S.; Mathew, A.; Barnabas, M.J.; Kim, S.Y.; Ha, C.-S. Concentration-Dependant Selective Removal of Cr(III), Pb(II) and Zn(II) from Aqueous Mixtures Using 5-Methyl-2-Thiophenecarboxaldehyde Schiff Base-Immobilised SBA-15. J. Sol-Gel Sci. Technol. 2016, 79, 426–439. [Google Scholar] [CrossRef]
  10. Beltrán Heredia, J.; Sánchez Martín, J. Removing Heavy Metals from Polluted Surface Water with a Tannin-Based Flocculant Agent. J. Hazard. Mater. 2009, 165, 1215–1218. [Google Scholar] [CrossRef]
  11. Zhang, Q.; Ye, X.; Li, H.; Chen, D.; Xiao, W.; Zhao, S.; Xiong, R.; Li, J. Cumulative Effects of Pyrolysis Temperature and Process on Properties, Chemical Speciation, and Environmental Risks of Heavy Metals in Magnetic Biochar Derived from Coagulation-Flocculation Sludge of Swine Wastewater. J. Environ. Chem. Eng. 2020, 8, 104472. [Google Scholar] [CrossRef]
  12. Raval, N.P.; Shah, P.U.; Shah, N.K. Adsorptive Removal of Nickel(II) Ions from Aqueous Environment: A Review. J. Environ. Manage. 2016, 179, 1–20. [Google Scholar] [CrossRef]
  13. Gu, J.; Liu, H.; Wang, S.; Zhang, M.; Liu, Y. An Innovative Anaerobic MBR-Reverse Osmosis-Ion Exchange Process for Energy-Efficient Reclamation of Municipal Wastewater to NEWater-like Product Water. J. Clean. Prod. 2019, 230, 1287–1293. [Google Scholar] [CrossRef]
  14. Wang, M.; Yao, H.; Zhang, L.; Zhou, X. Synthesis of Highly-Efficient Photocatalyst for Visible- Light-Driven Hydrogen Evolution by Recycling of Heavy Metal Ions in Wastewater. J. Hazard. Mater. 2020, 383, 121149. [Google Scholar] [CrossRef] [PubMed]
  15. Dutta, K.; De, S. Aromatic Conjugated Polymers for Removal of Heavy Metal Ions from Wastewater: A Short Review. Environ. Sci. Water Res. Technol. 2017, 3, 793–805. [Google Scholar] [CrossRef]
  16. Chai, W.S.; Cheun, J.Y.; Kumar, P.S.; Mubashir, M.; Majeed, Z.; Banat, F.; Ho, S.-H.; Show, P.L. A Review on Conventional and Novel Materials towards Heavy Metal Adsorption in Wastewater Treatment Application. J. Clean. Prod. 2021, 296, 126589. [Google Scholar] [CrossRef]
  17. Madkour, T.M.; Mark, J.E. Elastomeric properties of poly (dimethylsiloxane) networks having bimodal and trimodal distributions of network chain lengths. Macromol. Rep. 1994, 31, 153–160. [Google Scholar]
  18. Vijaya, Y.; Popuri, S.R.; Boddu, V.M.; Krishnaiah, A. Modified Chitosan and Calcium Alginate Biopolymer Sorbents for Removal of Nickel (II) through Adsorption. Carbohydr. Polym. 2008, 72, 261–271. [Google Scholar] [CrossRef]
  19. Keshvardoostchokami, M.; Babaei, L.; Zamani, A.A.; Parizanganeh, A.H.; Piri, F. Synthesized Chitosan/ Iron Oxide Nanocomposite and Shrimp Shell in Removal of Nickel, Cadmium and Lead from Aqueous Solution. Glob. J. Environ. Sci. Manag. 2017, 3, 267–278. [Google Scholar] [CrossRef]
  20. Khanniri, E.; Yousefi, M.; Mortazavian, A.M.; Khorshidian, N.; Sohrabvandi, S.; Arab, M.; Koushki, M.R. Effective Removal of Lead (II) Using Chitosan and Microbial Adsorbents: Response Surface Methodology (RSM). Int. J. Biol. Macromol. 2021, 178, 53–62. [Google Scholar] [CrossRef]
  21. Sakti, S.C.; Narita, Y.; Sasaki, T.; Tanaka, S. A Novel Pyridinium Functionalized Magnetic Chitosan with PH-Independent and Rapid Adsorption Kinetics for Magnetic Separation of Cr(VI). J. Environ. Chem. Eng. 2015, 3, 1953–1961. [Google Scholar] [CrossRef]
  22. Li, X.; Zhou, H.; Wu, W.; Wei, S.; Xu, Y.; Kuang, Y. Studies of Heavy Metal Ion Adsorption on Chitosan/Sulfydryl-Functionalized Graphene Oxide Composites. J. Colloid Interface Sci. 2015, 448, 389–397. [Google Scholar] [CrossRef]
  23. Shankar, P.S.; Gomathi, T.G.T.; Vijayalakshmi, K.V.K.; Sudha, P.N.S.P.N. Adsorption of Chromium (Vi) from Aqueous Solution Using Crosslinked Chitosan Graft Polyacrylonitrile Copolymer. Indian J. Appl. Res. 2011, 4, 62–65. [Google Scholar] [CrossRef]
  24. Bal, A.; Özkahraman, B.; Acar, I.; Özyürek, M.; Güçlü, G. Study on Adsorption, Regeneration, and Reuse of Crosslinked Chitosan Graft Copolymers for Cu(II) Ion Removal from Aqueous Solutions. Desalin. Water Treat. 2014, 52, 3246–3255. [Google Scholar] [CrossRef]
  25. Madkour, T.M.; Hamdi, M.S. Elastomers with two crosslinking systems of different lengths viewed as bimodal networks. J. Appl. Polym. Sci. 1996, 61, 1239–1244. [Google Scholar] [CrossRef]
  26. SiKhan, S.; Wong, A.; Zanoni, M.V.B.; Sotomayor, M.D.P.T. Electrochemical sensors based on biomimetic magnetic molecularly imprinted polymer for selective quantification of methyl green in environmental samples. Mater. Sci. Eng. C 2019, 103, 109825. [Google Scholar]
  27. Desta, M.B. Batch Sorption Experiments: Langmuir and Freundlich Isotherm Studies for the Adsorption of Textile Metal Ions onto Teff Straw (Eragrostis Tef) Agricultural Waste. J. Thermodyn. 2013, 2013, 375830. [Google Scholar] [CrossRef]
  28. Abd Al-Ghani, M.M.; Azzam, R.A.; Madkour, T.M. Design and Development of Enhanced Antimicrobial Breathable Biodegradable Polymeric Films for Food Packaging Applications. Polymers 2021, 13, 3527. [Google Scholar] [CrossRef] [PubMed]
  29. Pholosi, A.; Naidoo, E.B.; Ofomaja, A.E. Intraparticle Diffusion of Cr(VI) through Biomass and Magnetite Coated Biomass: A Comparative Kinetic and Diffusion Study. South Afr. J. Chem. Eng. 2020, 32, 39–55. [Google Scholar] [CrossRef]
  30. Kyzas, G.Z.; Siafaka, P.I.; Lambropoulou, D.A.; Lazaridis, N.K.; Bikiaris, D.N. Poly(itaconic acid)-Grafted Chitosan Adsorbents with Different Cross-Linking for Pb(II) and Cd(II) Uptake. Langmuir 2014, 30, 120–131. [Google Scholar] [CrossRef]
  31. Corazzari, I.; Nisticò, R.; Turci, F.; Faga, M.G.; Franzoso, F.; Tabasso, S.; Magnacca, G. Advanced Physico-Chemical Characterization of Chitosan by Means of TGA Coupled on-Line with FTIR and GCMS: Thermal Degradation and Water Adsorption Capacity. Polym. Degrad. Stab. 2015, 112, 1–9. [Google Scholar] [CrossRef]
  32. Beppu, M.M.; Vieira, R.S.; Aimoli, C.G.; Santana, C.C. Crosslinking of Chitosan Membranes Using Glutaraldehyde: Effect on Ion Permeability and Water Absorption. J. Memb. Sci. 2007, 301, 126–130. [Google Scholar] [CrossRef]
  33. Mauricio-Sánchez, R.A.; Salazar, R.; Luna-Bárcenas, J.G.; Mendoza-Galván, A. FTIR Spectroscopy Studies on the Spontaneous Neutralization of Chitosan Acetate Films by Moisture Conditioning. Vib. Spectrosc. 2018, 94, 1–6. [Google Scholar] [CrossRef]
  34. Martínez-Mejía, G.; Vázquez-Torres, N.A.; Castell-Rodríguez, A.; del Río, J.M.; Corea, M.; Jiménez-Juárez, R. Synthesis of New Chitosan-Glutaraldehyde Scaffolds for Tissue Engineering Using Schiff Reactions. Colloids Surf. A Physicochem. Eng. Asp. 2019, 579, 123658. [Google Scholar] [CrossRef]
  35. Madkour, T.M.; Mark, J.E. Simulations on crystallization in stereoblock poly (propylene). Idealized structures showing the effects of atactic block length. Macromol. Theory Simul. 1998, 7, 69–77. [Google Scholar] [CrossRef]
  36. Jaiswal, S.; Dutta, P.K.; Kumar, S.; Koh, J.; Pandey, S. Methyl Methacrylate Modified Chitosan: Synthesis, Characterization and Application in Drug and Gene Delivery. Carbohydr. Polym. 2019, 211, 109–117. [Google Scholar] [CrossRef] [PubMed]
  37. Lu, Y.; Wang, Z.; Ouyang, X.; Ji, C.; Liu, Y.; Huang, F.; Yang, L.-Y. Fabrication of Cross-Linked Chitosan Beads Grafted by Polyethylenimine for Efficient Adsorption of Diclofenac Sodium from Water. Int. J. Biol. Macromol. 2020, 145, 1180–1188. [Google Scholar] [CrossRef]
  38. Sutirman, Z.A.; Sanagi, M.M.; Abd Karim, K.J.; Wan Ibrahim, W.A. Preparation of Methacrylamide-Functionalized Crosslinked Chitosan by Free Radical Polymerization for the Removal of Lead Ions. Carbohydr. Polym. 2016, 151, 1091–1099. [Google Scholar] [CrossRef] [PubMed]
  39. Bayomie, O.S.; Kandeel, H.; Shoeib, T.; Yang, H.; Youssef, N.; El-Sayed, M.M.H. Novel Approach for Effective Removal of Methylene Blue Dye from Water Using Fava Bean Peel Waste. Sci. Rep. 2020, 10, 7824. [Google Scholar] [CrossRef]
  40. Kanwal, A.; Bhatti, H.N.; Iqbal, M.; Noreen, S. Basic Dye Adsorption onto Clay/MnFe2O4 Composite: A Mechanistic Study. Water Environ. Res. 2017, 89, 301–311. [Google Scholar] [CrossRef]
  41. Ge, H.; Hua, T.; Wang, J. Preparation and Characterization of Poly (Itaconic Acid)-Grafted Crosslinked Chitosan Nanoadsorbent for High Uptake of Hg2+ and Pb2+. Int. J. Biol. Macromol. 2017, 95, 954–961. [Google Scholar] [CrossRef] [PubMed]
  42. Mohammad, S.G.; El-Sayed, M.M.H. Removal of Imidacloprid Pesticide Using Nanoporous Activated Carbons Produced via Pyrolysis of Peach Stone Agricultural Wastes. Chem. Eng. Commun. 2021, 208, 1069–1080. [Google Scholar] [CrossRef]
  43. Kumar, P.; Prasad, B.; Mishra, I.M.; Chand, S. Decolorization and COD Reduction of Dyeing Wastewater from a Cotton Textile Mill Using Thermolysis and Coagulation. J. Hazard. Mater. 2008, 153, 635–645. [Google Scholar] [CrossRef] [PubMed]
  44. Gupta, A.; Chauhan, V.S.; Sankararamakrishnan, N. Preparation and Evaluation of Iron–Chitosan Composites for Removal of As(III) and As(V) from Arsenic Contaminated Real Life Groundwater. Water Res. 2009, 43, 3862–3870. [Google Scholar] [CrossRef] [PubMed]
Polymers 16 01718 g001

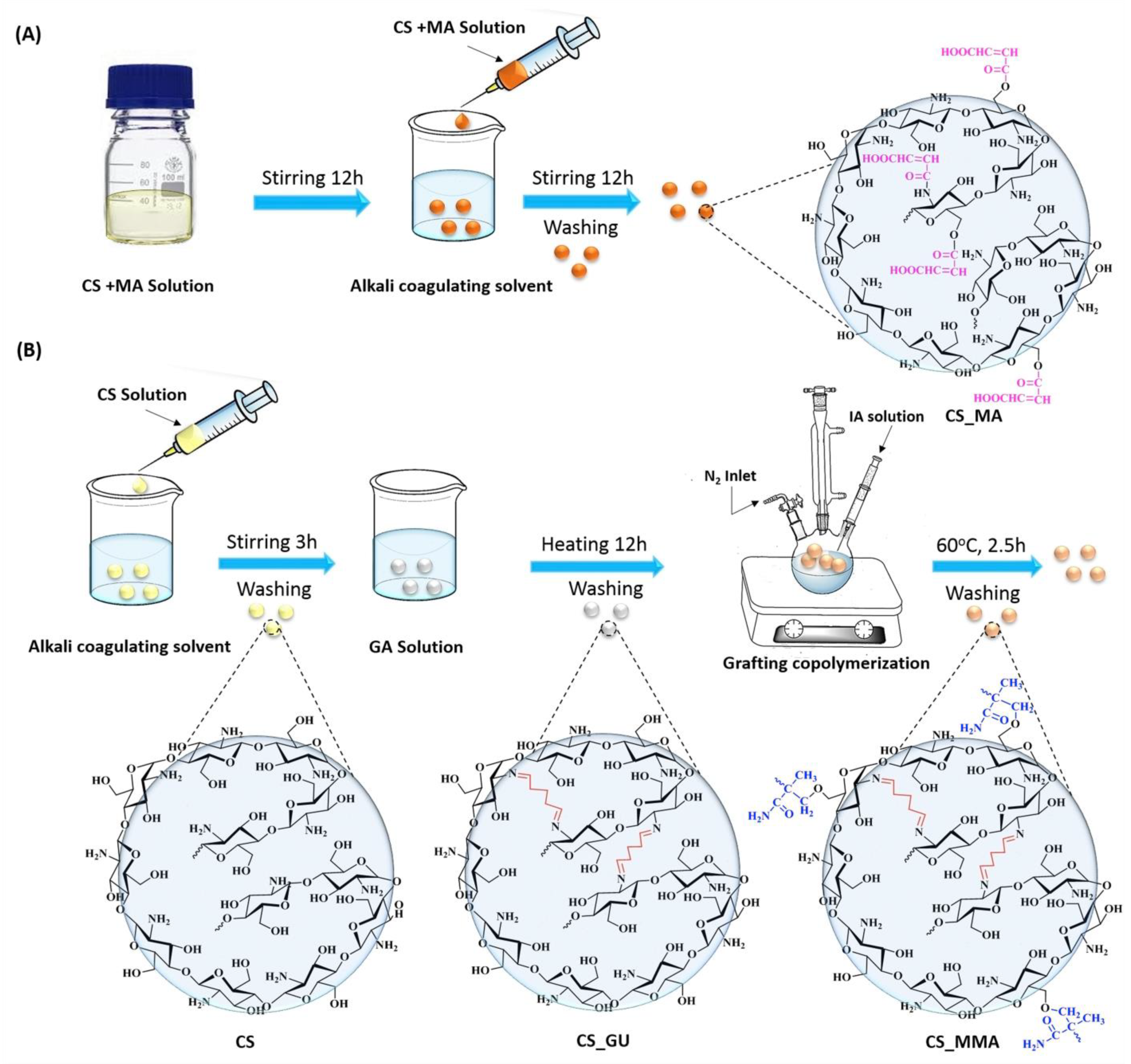

Figure 1. Schematic representation of the synthesis of (A) chitosan beads crosslinked and functionalized with maleic anhydride (CS_MA), and (B) chitosan beads crosslinked with glutaraldehyde (CS_GA), and graft copolymerized with poly(methyl methacrylate) (CS_MMA).
Figure 1. Schematic representation of the synthesis of (A) chitosan beads crosslinked and functionalized with maleic anhydride (CS_MA), and (B) chitosan beads crosslinked with glutaraldehyde (CS_GA), and graft copolymerized with poly(methyl methacrylate) (CS_MMA).
Polymers 16 01718 g001
Polymers 16 01718 g002
Figure 2. Synthetic pathway of MA-functionalized chitosan (CS_MA) and MMA-grafted chitosan (CS_MMA).
Figure 2. Synthetic pathway of MA-functionalized chitosan (CS_MA) and MMA-grafted chitosan (CS_MMA).
Polymers 16 01718 g002
Polymers 16 01718 g003
Figure 3. SEM Imaging of (a) CS, (b) CS_GA, (c) CS_MA, and (d) CS_MMA.
Figure 3. SEM Imaging of (a) CS, (b) CS_GA, (c) CS_MA, and (d) CS_MMA.
Polymers 16 01718 g003
Polymers 16 01718 g004

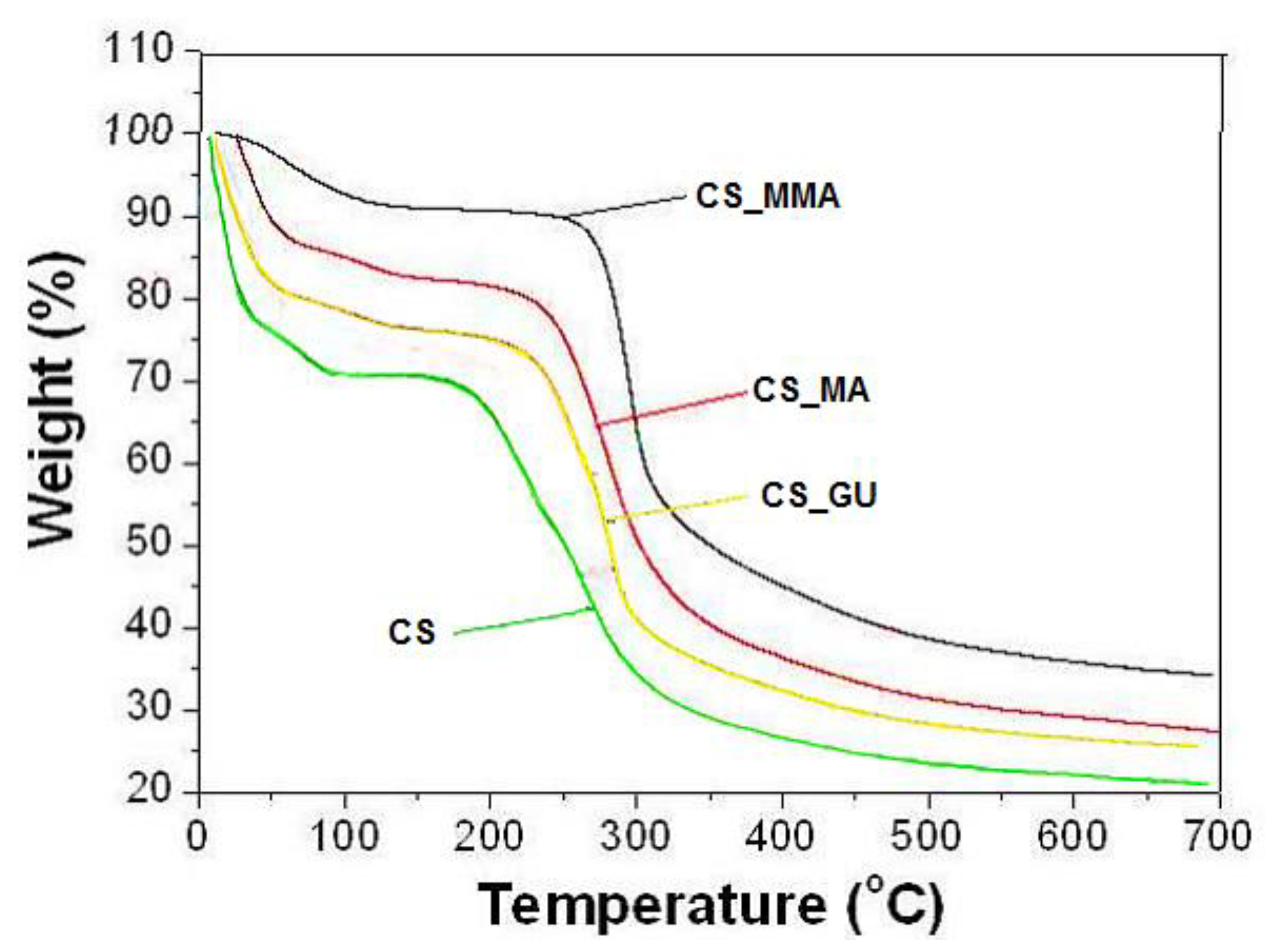

Figure 4. TGA of CS, CS_GU, CS_MA, and CS_MAA samples.
Figure 4. TGA of CS, CS_GU, CS_MA, and CS_MAA samples.
Polymers 16 01718 g004
Polymers 16 01718 g005

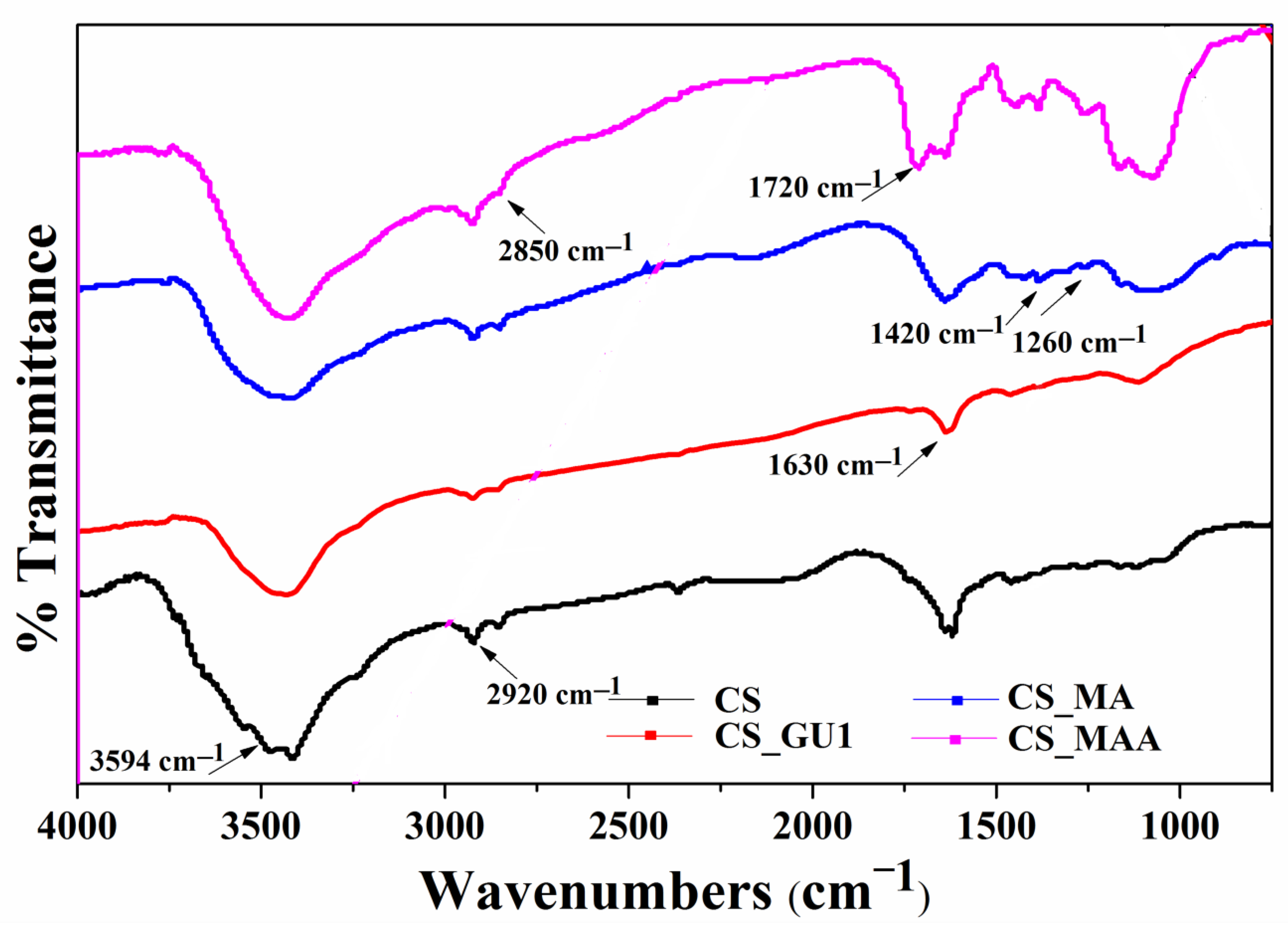

Figure 5. FTIR spectrums (a) of CS, CS_GU, CS_MA, and CS_MAA samples.
Figure 5. FTIR spectrums (a) of CS, CS_GU, CS_MA, and CS_MAA samples.
Polymers 16 01718 g005
Polymers 16 01718 g006

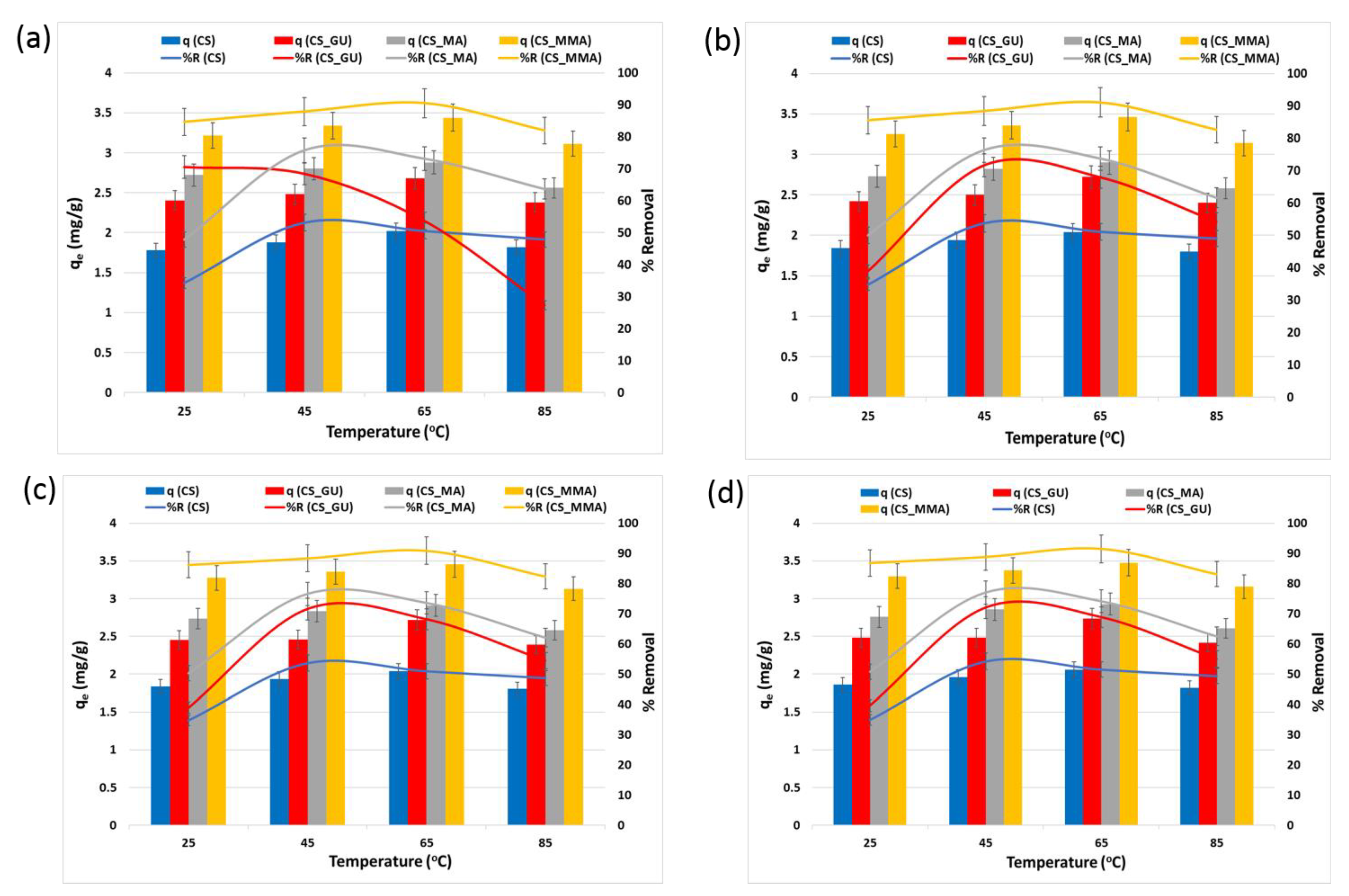

Figure 6. Equilibrium uptake capacity and percent removal of nickel (a), lead (b), chromium (c), and cadmium (d) at different temperatures. The experimental conditions were an ion concentration of 20 ppm and an adsorbent dose of 0.5 g/100 mL at pH 9.
Figure 6. Equilibrium uptake capacity and percent removal of nickel (a), lead (b), chromium (c), and cadmium (d) at different temperatures. The experimental conditions were an ion concentration of 20 ppm and an adsorbent dose of 0.5 g/100 mL at pH 9.
Polymers 16 01718 g006
Polymers 16 01718 g007

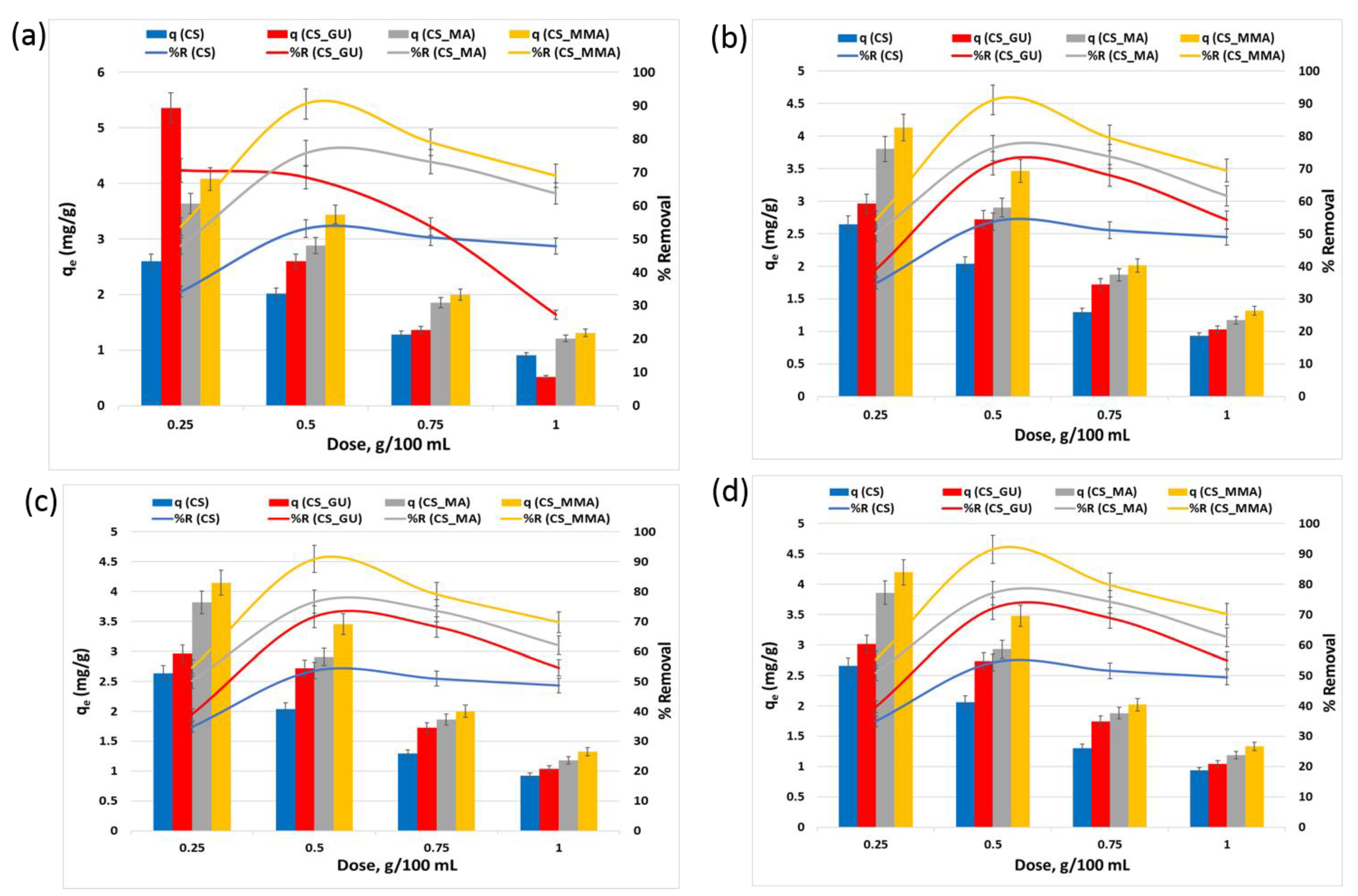

Figure 7. Equilibrium uptake capacity and percent removal of nickel (a), lead (b), chromium (c), and cadmium (d) at different adsorbent doses. The experimental conditions were an ion concentration of 20 ppm and a temperature of 45 °C at pH 9.
Figure 7. Equilibrium uptake capacity and percent removal of nickel (a), lead (b), chromium (c), and cadmium (d) at different adsorbent doses. The experimental conditions were an ion concentration of 20 ppm and a temperature of 45 °C at pH 9.
Polymers 16 01718 g007
Polymers 16 01718 g008

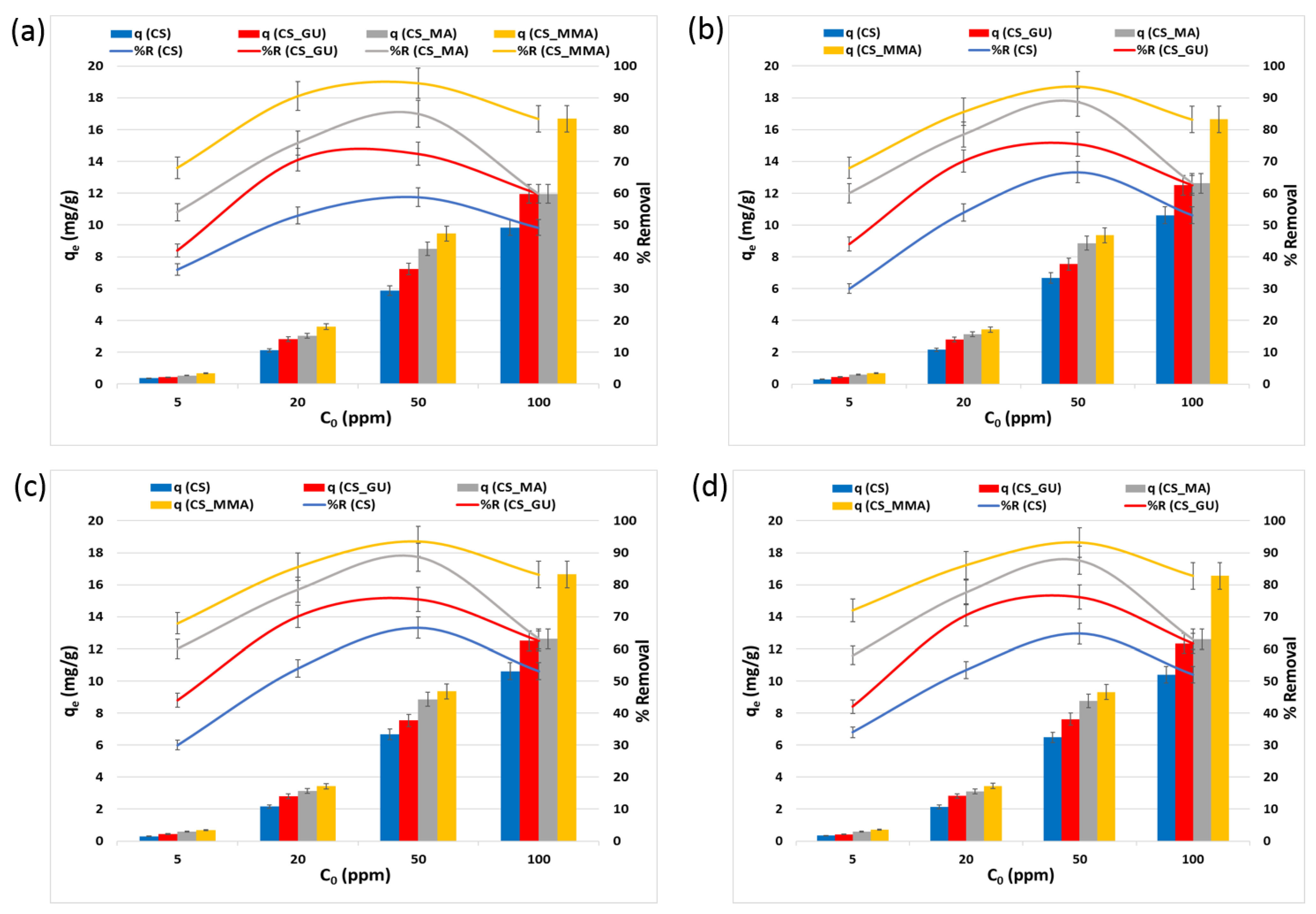

Figure 8. Equilibrium uptake capacity and percent removal of nickel (a), lead (b), chromium (c), and cadmium (d) at different initial concentrations. The experimental conditions were an adsorbent dose of 0.5 g/100 mL and a temperature of 45 °C at pH 9.
Figure 8. Equilibrium uptake capacity and percent removal of nickel (a), lead (b), chromium (c), and cadmium (d) at different initial concentrations. The experimental conditions were an adsorbent dose of 0.5 g/100 mL and a temperature of 45 °C at pH 9.
Polymers 16 01718 g008
Polymers 16 01718 g009

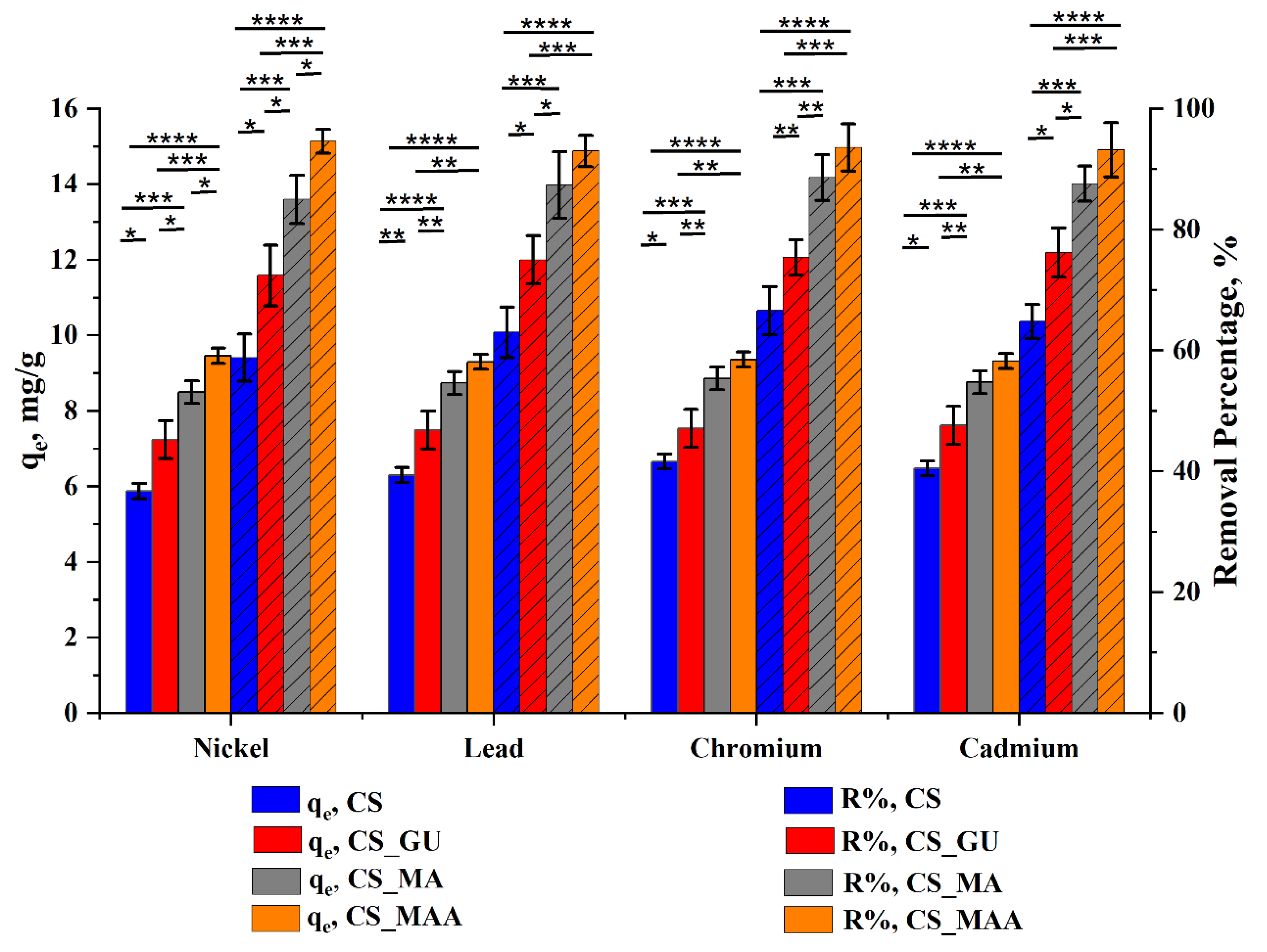

Figure 9. Optimum condition for maximum uptake of nickel, lead, chromium, and cadmium at an initial ion concentration of 50 ppm, an adsorbent dose of 0.5 g/100 mL, a temperature of 45 °C, and pH 9 (d). Data represent the mean ± SD. p values are for one-way ANOVA, followed by a Tukey’s multiple comparisons test (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).
Figure 9. Optimum condition for maximum uptake of nickel, lead, chromium, and cadmium at an initial ion concentration of 50 ppm, an adsorbent dose of 0.5 g/100 mL, a temperature of 45 °C, and pH 9 (d). Data represent the mean ± SD. p values are for one-way ANOVA, followed by a Tukey’s multiple comparisons test (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).
Polymers 16 01718 g009
Polymers 16 01718 g010

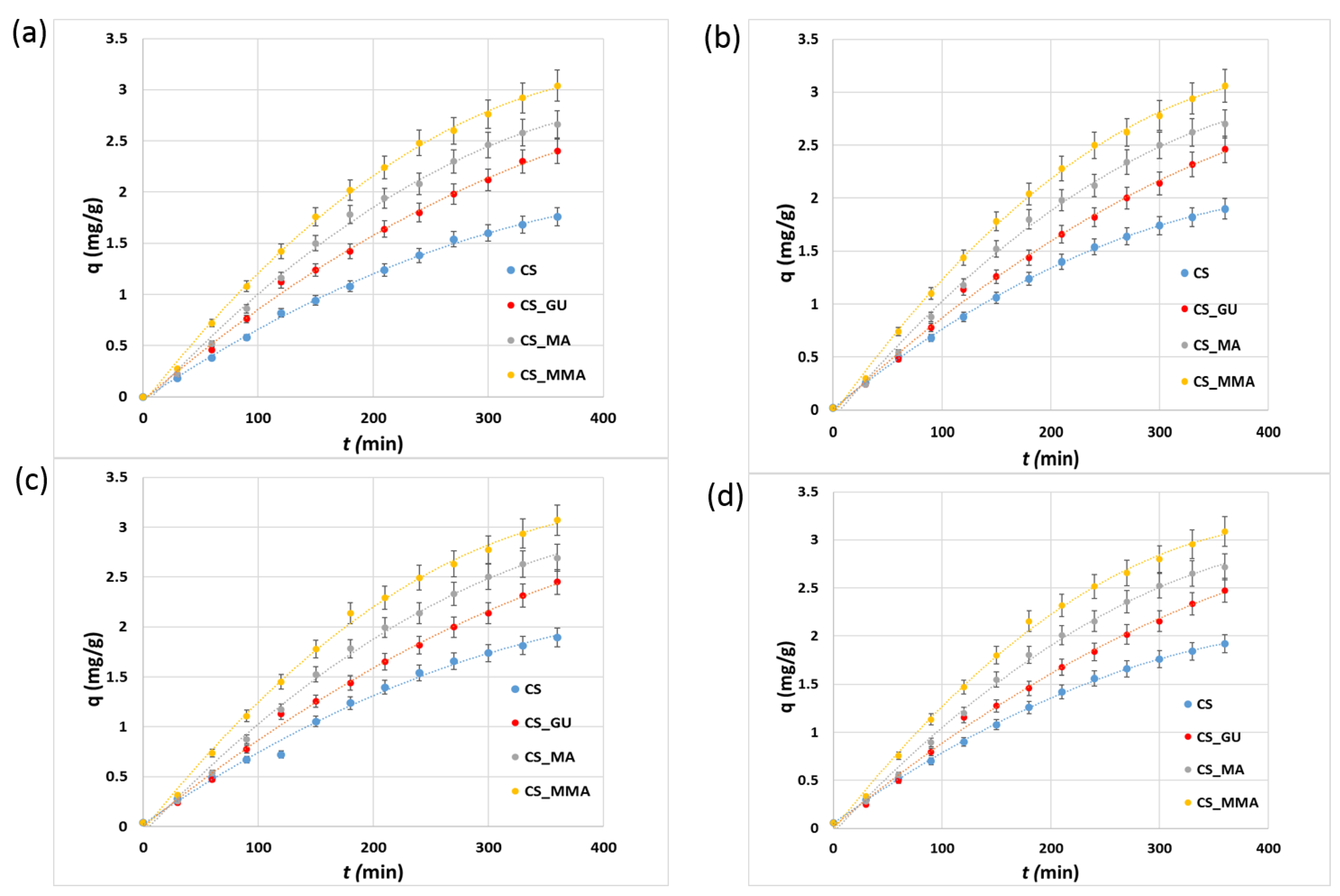

Figure 10. Kinetic profiles for the uptake of nickel (a), lead (b), chromium (c), and cadmium (d) by the different chitosan-based polymeric adsorbents.
Figure 10. Kinetic profiles for the uptake of nickel (a), lead (b), chromium (c), and cadmium (d) by the different chitosan-based polymeric adsorbents.
Polymers 16 01718 g010
Polymers 16 01718 g011
Figure 11. Influence of pH values on the percent removal of nickel (a), lead (b), chromium (c), and cadmium (d) using the different chitosan-based polymeric adsorbents.
Figure 11. Influence of pH values on the percent removal of nickel (a), lead (b), chromium (c), and cadmium (d) using the different chitosan-based polymeric adsorbents.
Polymers 16 01718 g011
Polymers 16 01718 g012
Figure 12. Possible interations between Ni+2, Pd+2, Cd+2, and Cr+6 heavy metals ions and CS_MA (A), and CS_MAA (B) at pH 9.
Figure 12. Possible interations between Ni+2, Pd+2, Cd+2, and Cr+6 heavy metals ions and CS_MA (A), and CS_MAA (B) at pH 9.
Polymers 16 01718 g012
Polymers 16 01718 g013
Figure 13. Cycles of the adsorption–desorption of nickel (a), lead (b), chromium (c), and cadmium (d) on the surface of poly(itaconic acid)-grafted chitosan beads.
Figure 13. Cycles of the adsorption–desorption of nickel (a), lead (b), chromium (c), and cadmium (d) on the surface of poly(itaconic acid)-grafted chitosan beads.
Polymers 16 01718 g013
Table 1. The thermodynamic parameters for the adsorption of nickel, lead, chromium and cadmium ions on the surface of the different chitosan-based polymeric adsorbents.
Table 1. The thermodynamic parameters for the adsorption of nickel, lead, chromium and cadmium ions on the surface of the different chitosan-based polymeric adsorbents.
CS
System		Thermodynamic Parameters for Nickel Ion Adsorption Thermodynamic Parameters for Lead Ion Adsorption
ΔH
(J/mol)		ΔS
(J/mol·K)		ΔG
(kJ/mol) 		KeqR2ΔH
(J/mol)		ΔS
(J/mol·K)		ΔG
(kJ/mol) 		KeqR2
CS_MA663.6337.60−11.8672.450.9637609.5737.35−11.8371.660.9494
CS_MAA359.3732.09−10.3341.660.9019593.5032.45−10.2139.970.905
CS
System		Thermodynamic parameters for chromium ion adsorptionThermodynamic parameters for cadmium ion adsorption
ΔH
(J/mol)		ΔS
(J/mol·K)		ΔG
(kJ/mol)		KeqR2ΔH
(J/mol)		ΔS
(J/mol·K)		ΔG
(kJ/mol)		KeqR2
CS_MA638.8937.40−11.8171.320.9501686.6937.43−11.7870.390.9547
CS_MAA1324.5934.67−10.2240.120.92651225.4034.03−10.1138.510.9209
Table 2. Kinetic parameters for the adsorption of the metal ions onto the surface of the best chitosan-based polymeric adsorbents CS_MA and CS_MMA using different kinetic models.
Table 2. Kinetic parameters for the adsorption of the metal ions onto the surface of the best chitosan-based polymeric adsorbents CS_MA and CS_MMA using different kinetic models.
Kinetic ModelKinetic ParametersNickel IonsLead IonsChromium IonsCadmium Ions
CS_MACS_MAACS_MACS_MAACS_MACS_MAACS_MACS_MAA
Pseudo-first-orderk1 (min−1)0.00740.0062−0.0078−0.0062−0.0064−0.0062−0.0064−0.0062
qe (calc) (mg/g)3.9874.1024.0964.0953.5074.0693.5194.059
R20.97770.99230.97470.99260.95920.99170.95680.9936
Pseudo-second-orderk2 (kg/mg·min−1)13.45010.93412.10010.04811.8609.46910.7628.869
qe (calc) (mg/g)0.0160.0190.0170.0200.0170.0210.0180.021
R20.93230.9550.93230.9550.94690.96720.95490.9717
Intra-particle diffusionKid (mg/(g·min0.5)0.1140.08580.11570.09460.11530.09370.11680.0960
R20.88620.89640.88980.92420.88840.90510.89380.9322
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Monir, M.; Elsayed, R.E.; Azzam, R.A.; Madkour, T.M. Novel High-Performance Functionalized and Grafted Bio-Based Chitosan Adsorbents for the Efficient and Selective Removal of Toxic Heavy Metals from Contaminated Water. Polymers 2024, 16, 1718. https://doi.org/10.3390/polym16121718

AMA Style

Monir M, Elsayed RE, Azzam RA, Madkour TM. Novel High-Performance Functionalized and Grafted Bio-Based Chitosan Adsorbents for the Efficient and Selective Removal of Toxic Heavy Metals from Contaminated Water. Polymers. 2024; 16(12):1718. https://doi.org/10.3390/polym16121718

Chicago/Turabian Style

Monir, Mohammad, Rasha E. Elsayed, Rasha A. Azzam, and Tarek M. Madkour. 2024. "Novel High-Performance Functionalized and Grafted Bio-Based Chitosan Adsorbents for the Efficient and Selective Removal of Toxic Heavy Metals from Contaminated Water" Polymers 16, no. 12: 1718. https://doi.org/10.3390/polym16121718

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
