Article

High-Velocity Impact Performance of Ballistic Fabric Using Core-Spun Compound Yarns

1
School of Materials Science and Engineering, Changzhou University, Changzhou 213164, China
2
National Experimental Demonstration Center for Materials Science and Engineering, Changzhou University, Changzhou 213164, China
*
Author to whom correspondence should be addressed.
Polymers 2024, 16(21), 2973; https://doi.org/10.3390/polym16212973
Submission received: 23 September 2024 / Revised: 13 October 2024 / Accepted: 15 October 2024 / Published: 23 October 2024
(This article belongs to the Special Issue Polymer-Based Composite Structures and Mechanical Metamaterials)

Abstract

:
In this paper, the usage of core-spun compound yarns in ballistic fabric to improve ballistic performance is considered, as with the use of core-spun compound yarns, the yarn friction inside the fabric is enhanced, and, therefore, the energy absorption capability of the fabric is expected to increase. Three types of fabric were developed and compared. Fa refers to a woven type made with 100% Kevlar® filament yarns. Fb was woven with core-spun compound aramid yarns, which were made of Kevlar® filament yarns spun with staple aramid fiber. Fc was woven with core-spun compound polyester yarns, which were made of Kevlar® filament yarns spun with staple polyester fiber. There were two main purposes for comparing these types. The first was to confirm if the ballistic performance could be improved with the usage of core-spun compound yarns instead of pure filament yarns. The second was to investigate if different compositions of spun fiber would influence ballistic performance. The research results are positive and quite interesting. They show that the usage of core-spun compound yarn could indeed help to increase ballistic performance and that core-spun compound aramid yarns are better than core-spun compound polyester yarns in this function. The research was carried out using both ballistic tests and FEA models.

1. Introduction

Conflicts and wars have always existed in the long history of the human world. Inadequate safety measures could place our frontline professionals at unnecessary risk and cause intolerable injury or harm. Various types of materials have been used to protect humans from injuries in battles and other dangerous situations throughout history [1]. Ancient tribes used animal skins and other natural materials to protect their bodies. The warriors of ancient Rome and medieval Europe covered their torsos in metal plates before entering battle. However, with the advent of more effective weapons, e.g., guns and cannons, most traditional materials seem unreliable or too heavy to be effective against firearms [2,3,4,5,6,7,8].
Currently, with the development of scientific research, high-performance materials, such as aramid yarn (the famous brand known as Kevlar®) and UHMWPE yarn (the famous brand known as Dyneema®), have been developed [9,10,11,12]. Fabrics made of these materials are important ballistic materials because of their high tenacity, high modulus, light weight, and other super advantages. Furthermore, structure plays a fundamental role in determining the ballistic performance of the whole ballistic fabric. As a highly recognized type, ballistic material with a woven structure has been widely researched [13,14,15,16,17].
When a projectile impacts woven fabric, two types of yarns are often distinguished and observed. One type is primary yarns, which are directly hit by the projectile and play a major role in absorbing ballistic energy. The other is secondary yarns, which are not directly hit by the projectile but also influenced because of their interaction with the primary yarns due to the friction function. When these yarns in the fabric are pressed against a projectile, the impact energy could be converted into various forms, including yarn failure, fiber pull-out, fiber fracture, cone formation on the back face of the target, and so on [17,18,19].
Impact energy conversion is governed by several factors, such as the material properties of the constituent fibers, the boundary conditions of the sample fabric, the projectile’s geometry, and so on. Among all these, the factor of friction is quite important. An increased interyarn friction may require more impact energy to overcome, which would, therefore, lead to an increase in the ability to absorb impact energy [20]. As a matter of fact, many researchers have investigated the influence of friction on ballistic performance [21,22,23,24].
Chu and Rahman found that higher interyarn friction in woven fabric could help with areas involved in ballistic energy absorption via both experimental and numerical methods [25,26]. Zhou and Sun developed a yarn-gripping method to increase the interyarn friction, which could improve the resulting fabric’s capabilities of ballistic energy absorption and dissipation [27,28]. Briscoe and Motamedi discovered that if the interyarn friction was high in woven fabric, the fabric’s absorption and dissipation of ballistic energy could be more effective [29,30]. Yogita et al. fabricated aligned Ag nanordos (AgNRs) on a Kevlar fabric surface to increase the interyarn friction, thereby improving ballistic performance [31]. Mukesh et al. used shear thickening fluid (STF) to increase the inter-yarn friction and thereby enlarge the bearing area of the fabric; the fabric’s ballistic energy absorption was correspondingly enhanced [32,33,34,35,36].

2. Fabrication

In this paper, core-spun compound (CSC) yarn was considered to enhance the friction, and therefore to increase the ballistic performance, of the whole fabric. As shown in Figure 1, this CSC yarn was made of filament aramid yarn as the core yarn and spun with coarse staple fiber. Better interyarn friction was expected in a structure composed of CSC yarns than in one composed of conventional smooth filament aramid yarns only. Additionally, different compositions of staple fiber were considered to observe if this factor would influence ballistic performance. Three types of woven fabrics were manufactured. Fa is a conventional woven fabric using Kevlar® 29 filament yarns. Fb was woven with CSC yarns, the coarse staple fiber of which was aramid. Fc was also woven with CSC yarns, but the coarse staple fiber was polyester. The manufactured Fa, Fb, and Fc are shown in Figure 2. Fa was very shiny, as it was made of 100% Kevlar® 29 filament yarn; Fb was not so shiny, as aramid staple fiber was used; and Fc was inclined to be white, as the polyester staple fiber was white. The specification of these fabrics is listed in Table 1.

3. Ballistic Test

The samples were ballistically tested at the impact velocity ranging from 230 m/s to 330 m/s in the ballistic laboratory. The ballistic apparatus consisted of a firing device with a 7.62 mm rifle barrel, the target holder and time detectors in an enclosed environment, as shown in Figure 3. Propelled by gunpowder, the rifle barrel fired the projectile, which penetrated the full-clamped fabric fixed on the target holder. The projectile was a 9 mm Parabellum FMJ bullet with a weight of 8 g. The time detectors picked up the travelling time of the projectile before and after it penetrated the fabric to calculate the impact velocity and the exit velocity. The loss in kinetic energy carried by the projectile after penetrating the fabric was calculated using the following equation: ΔE = 1/2 (mV02) − 1/2 (mV12), where ΔE is the loss of kinetic energy, m is the projectile mass, V0 is the impact velocity, and V1 is the exit velocity.
The ballistic appearance of the impacted fabrics is shown in Figure 4. The universal ballistic phenomenon such as yarn failure, yarn pulled-out, and yarn fracture also could be discovered on the fabrics of Fa, Fb, and Fc. A similar range of velocities from 220 m/s to 320 m/s was chosen to shoot Fa, Fb, and Fc to compare their ballistic performance in the same test conditions. In order to reduce the error of comparisons, their ballistic test results need to be normalized by the areal density.
In Figure 5a, it can be seen that the overall trend of impact velocity (marked as E 1 ) vs. exit velocity (marked as Δ E ) is similar among Fa, Fb, and Fc. This may indicate that with the increase in E 1 , Fa, Fb, and Fc show similar variations of Δ E . Additionally, Δ E increases following the tendency of E 1 , as the similar stable trend with no fluctuation is discovered for Fa, Fb, and Fc. It could be concluded that there is no certain special value that could apparently influence the results, as the difference in velocity before and after the fabric is shot is inclined to be unchanged.
In Figure 5b, the first eye-catching point is that Fb and Fc are better than Fa, and Fb is the highest, which indicates that Fb has the best energy absorption, and Fc ranks second while Fa is the lowest, regardless of whether under the low impact velocity or the high impact velocity. This may support the concept stated in the beginning of this paper that the usage of the core-spun compound (CSC) yarn could enhance the friction and therefore the ballistic performance of the whole fabric. The key factor is that, compared to 100% filament yarns, CSC yarns are apparently much coarser and more friction is expected. Fa is interlaced by Kevlar® 29 filament yarns, which are shiny and smooth. Fb is interlaced by CSC aramid yarns which are made by Kevlar® filament yarns spun with staple aramid fiber. Fc is interlaced by CSC polyester yarns which are made by Kevlar® filament yarns spun with staple polyester fiber. Regardless of whether staple aramid fiber or staple polyester fiber, they can increase the friction among the yarns inside the woven structure, especially in the interlacements or yarn-to-yarn conjunctions, and, therefore, they help improve the energy absorption. It is known that the frictional work dissipated at the yarn-to-yarn junctions is a critical factor in determining the static tensile yarn and transverse fabric stiffness [29,30]. Frictional processes within the fabric systems are important for both normal indentation and ballistic deformations as they control the effective stiffness of the material. The fabrics with high friction dissipated the larger amounts of energy relative to fabrics with lower friction.
Additionally, the different composition of staple fibers also can have a different influence on the energy absorption capability, as Fb is better than Fc. This may because the aramid staple fiber used in Fb has larger strength than the polyester staple fiber used in Fc. This may indicate that apart from the factor of friction between the staple fiber and the core filament yarn, the strength of staple fiber also affects the ballistic performance of the whole fabric.
In Figure 5b, it can be further seen that there is a general trend for all Fa, Fb, and Fc; more kinetic energy can be observed if the impact velocity is increased. This is because regardless whether it is Fa, Fb, or Fc, the main component composing the yarn is the Kevlar® 29 filament fiber. It has characteristics of high strength and high modulus, and has better capability of kinetic energy absorption under high-impact speed than that under low-impact speed.
This may be a good research conclusion to prove that the introduction of the core-spun compound (CSC) yarn is an ideal solution to increase the friction and, therefore, to provide better ballistic performance to the whole fabric.

4. FEA Model

Apart from the ballistic test, the ballistic performances of Fa, Fb, and Fc were further theoretically analyzed and compared in detail by establishing the full-size microstructure FEA models with the assistance of finite element software LS-DYNA R11.

4.1. Establishment of Geometrical Model with Mesh Scheme

It is well known that the basic component to establishing an FEA model is the geometrical model. In this project, the model of the projectile and the model of fabric are the two main parts of the geometrical model. The model of the projectile is built based on the parameters of 9 mm Parabellum FMJ bullet, provided by the Institute 53 of China Ordnance Industry Group in Jinan city of China. This is a kind of standard bullet verified by the international ballistic NIJ standard. The model of fabric is built based on assembling the models of warp and weft yarns. Because both the bullet and the fabric are axisymmetric structures, a 1/4 geometrical model is used in this project as it is enough to reflect the evaluated ballistic event as well as improve calculation efficiency.
The basic single-yarn model is illustrated as a three-dimensional solid object with an oval cross-section with certain crimp wave for both the warp yarn and the weft yarn, as shown in Figure 6. The major axis and the minor axis for the oval cross-section of single-yarn model are set as 0.6 mm and 0.15 mm, according to the observation. This basic single-yarn model is further wrapped by the tube with the thickness around 0.02 mm, representing the part of staple fiber spun tightly and wholly on the CSC yarn, which is further composed to form Fb and Fc.
The geometrical models were further meshed using Hypermesh software 2020. Hypermesh is one of the most popular softwares dealing with finite elements codes, because of its computational efficiency and strong robustness. There were 30,720 elements for the Fa model, 61,440 elements for the Fb model, and the same for the Fc model, as Fb and Fc are only different in the composition of staple fiber spun on the CSC yarn. The geometrical model of projectile was established based on the parameters of a 9 mm Parabellum FMJ bullet, which was then meshed with 435 hexahedron elements on the body and 199 tetrahedron elements at the bottom.
The meshed geometrical model was further processed to complete the establishment of the FEA model by setting definition of material properties, definition of section properties, and application of boundary conditions and velocity to the bullet. All the information was saved as K files in LS-DYNA software. The 1/4 FEA models for Fa, Fb, and Fc with a bullet are individually shown in Figure 7.

4.2. Verification of FEA Model

4.2.1. Observation of Phenomena

Figure 8 shows that fabrics under ballistic test were successfully illustrated by the FEA model. It could be discovered that yarn failure, yarn fracture, and yarn pull-out, which are major characteristics found in experimental testing, could also be clearly shown by the FEA model. This is because of the activities of two typical waves. According to the energy absorption mechanism, when the projectile hits the fabric, two types of waves (longitudinal wave and transverse wave) come out and propagate through primary yarns and secondary yarns. The longitudinal wave travels through primary yarns, which are directly hit by the projectile, and secondary yarns, which are not directly hit by the projectile but interact with primary yarns in the plane of the target plate. The transverse wave propagates outwards from the impact zone to make deformation in the perpendicular direction to the fabric plane, leading to the phenomena including yarn failure, yarn fracture, and yarn pull-out that could be observed at the location hit by the projectile.

4.2.2. Data Analysis

Excepted for the phenomena, a good agreement between the ballistic test result (shown in Table 2) and the FEA model result (shown in Table 3) was found. The trends of theoretical data are shown in Figure 9, which are also similar with the trends of experimental data shown in Figure 5.
Figure 9a illustrates the comparison between impact velocity (marked as E 1 ) and exit velocity (marked as Δ E ). The same E 1 is applied for both the ballistic test and the FEA model, and very close trends are found when Δ E is varied, which verifies the validation of the FEA model. Additionally, it was discovered that Δ E increases stably with the increase in E 1 . This may indicate that the variation of velocity before and after fabric penetrated tends to be stable and not influenced by a certain special value.
Figure 9b illustrates the comparisons between E 1 and V 1 , known as impact velocity and loss of kinetic energy, respectively, calculated by FEA models for three types of fabrics Fa, Fb, and Fc. The first eye-catching point is that the difference of trends between the ballistic test results, shown in Figure 5b, and the FEA model results, shown in Figure 9b, is quite tiny, which demonstrates, again, the validity of the FEA model. The reason for this tiny difference is that the real yarn has thousands of fibers but is simplified as a continuum surface with thickness in the FEA model. The non-simultaneous failure of each filament and complex interface friction may lead to a complicated energy absorption mechanism in the real experiment. Figure 9b also shows that Fb and Fc have better capability of energy absorption than Fa, and Fb is the best regardless of whether at low impact velocity or high impact velocity. This may theoretically prove that with the introduction of short fibers, the ballistic performance of the fabric could be apparently improved due to the enhancement of the friction. Apart from that, in Figure 9b, Fb is shown to be better than Fc, which also theoretically proves that the difference in composition of staple fiber can have an influence on the ballistic performance of the fabric. Compared to Fa, the superiorities of Fb and Fc are further theoretically analyzed from the aspects of energy absorption, penetration resistance, and stress distribution, which are mainly important to demonstrate the ballistic performance of fabrics.

4.3. Theoretical Discussion

4.3.1. Energy Absorption

The value of energy absorption is an important index to estimate the ballistic performance of a certain fabric and, further, to demonstrate the influence of structure difference on the ballistic performance. The energy carried by the bullet is transformed to the fabric through the form of yarn pull-out, yarn failure, or yarn fracture with the propagation of longitudinal wave and transverse wave when the projectile hits the fabric.
The energy absorption of the fabric can be calculated according to the following equation: ΔE = 1/2 (mV02) − 1/2 (mV12) and is mainly reflected in the energy absorbed by the warp and weft yarns. The samples of Fa with impact velocity 290.8 m/s, Fb with impact velocity 300.6 m/s, and Fc with impact velocity 297.8 m/s were chosen for comparison as they have similar impact velocities, but Fc and Fb have larger energy absorption than Fa, and Fb shows the highest, which demonstrates the overall trend, as shown in Figure 9. The comparisons among them may be more convincing. The main discoveries are found as follows:
The energy absorption of yarns in total for Fa, Fb, and Fc are compared to analyze if the introduction of CSC yarns could increase the ballistic performance during different times, as shown in Figure 10. The first apparent point is that regardless of which time, Fb and Fc are always higher than Fa apparently. The energy absorption in total shown in Figure 9b also demonstrates the same result. This may theoretically emphasize that Fb and Fc are superior to Fa in terms of ballistic performance with the usage of CSC yarns.
Secondly, Fb is better than Fc, as shown in Figure 10. This may indicate that aramid staple fiber is better than polyester staple fiber to form CSC yarns in the construction of ballistic woven fabric, as the former can not only provide friction among yarns in the structure, but can also give better strength than the latter at the same time.
Apart from that, for Fa, Fb, and Fc, the peak values of energy absorption in total are different, as shown in Figure 10. For Fa, the trend increases steeply, arrives at the peak value around 35 µs, and then decreases gradually. However, the whole procedure of Fa is still comparatively smoother, compared to Fb and Fc. The peak value of Fa is apparently lower than that of Fb and Fc. This may indicate that during the whole procedure against the projectile penetration, the capability of energy absorption of Fa is always weaker than Fb and Fc and cannot surpass them at any moment. For Fb and Fc, both increase steeply in the first period of 30 µs, then Fc stays at its peak value around 3.5 Jcm2/g around 35 µs and decreases gradually, while Fb fluctuates apparently and achieves its peak value around 5 Jcm2/g at 40 µs. The difference in the composition of staple fiber to form CSC yarns may be the reason for the difference between Fb and Fc.
As a matter of fact, the ballistic performance of the fabric is, indeed, influenced by the different outside staple fibers used in the CSC yarns though the same Kevlar® 29 filament yarn used inside. The composition of the outside staple fiber is aramid and polyester for Fb and Fc, respectively, and the corresponding energy absorption capability is varied differently. As can be seen in Figure 11a, the value of aramid staple fiber increases smoothly until 25 µs, then increases steeply at 40 µs and finally decreases, which demonstrates a similar trend as the total trend. In Figure 11b, the value of polyester staple fiber increases very stably until 35 µs and then decreases slowly, which is totally different from the trend of the value of aramid staple fiber shown in Figure 11a. In addition, it can be noticed that regardless of the staple fiber used, either aramid or polyester, the value of filament shows a similar trend in both Figure 11a,b; it increases slowly until at the top value around 2.5 Jcm2/g, and then decreases slowly. This may indicate that the difference in outside staple fiber may have little influence on the energy absorption capability of the inside filament.

4.3.2. Penetration Resistance

Apart from the energy absorption, the penetration resistance is another significant index to demonstrate the ballistic performance of the fabric. In this project, the situation of penetration resistance of Fa, Fb, and Fc is shown in Figure 12. It can be noticed that Fa, Fb, and Fc decrease sharply from the start to around 5–7 μs, and then remain unchanged. This may indicate that the projectile penetrates all types of fabrics quite successfully and completely. They show the similar trends which indicate that the same basic structure, namely, woven structure, is the fundamental factor to influence their ballistic performance though different yarns used. The woven structure is interlaced by warp and weft yarns. Both weft and warp yarns resist this penetration in the formation of stretching, deformation, pull-out, and fracture. After 7 μs, all whole structures have been completely penetrated. After that, very tiny and even no penetration resistance appears, and the velocity also tends to be unchanged and stable. The only difference is that Fb needs a little more time to achieve its lowest velocity (around 7 μs), compared to Fa and Fc (around 5 μs). This is because the staple fiber used for Fb is aramid staple, which can provide better friction than the polyester fiber used for Fc and no staple fiber for Fa to increase the interaction of ballistic mechanism in the structure.
The ballistic penetration of Fa, Fb, and Fc at these three typical times steps (3 μs, 7 μs, and 30 μs) is clearly illustrated in Figure 13.
In the first stage from the start point to 3 μs, the projectile hits the largest penetration resistance and is going to penetrate the whole structure. It can be noticed that stretching is the major formation in the structure to withstand the largest initial penetration in the beginning. All the related yarns are resisting this penetration in the formation of stretching, and some locations (especially the hit area) are further breaking. Though Fb and Fc are composed of CSC yarns with more complicated yarn structure, they demonstrate similar characteristics, as the outside staple and inside filament show similar responses to ballistic penetration.
In the second stage from 3 μs to 7 μs, the formation becomes quite varied. Cone deformation, yarn pull-out, and yarn fracture all become apparent and can be observed when the projectile further penetrates and tries to pass through Fa, Fb, or Fc.
In the third stage, for all fabrics, the impact velocity is inclined to be stable, as the fabric has been penetrated completely and the penetration resistance tends to disappear.
The characteristic of acceleration is an important index to reflect the details of ballistic performance. As shown in Figure 12, it can be noticed that the largest increasement of acceleration appears for all fabrics (including Fa, Fb, and Fc) during the first stage, namely, from the start point to around 3 μs. This is because in the beginning, the projectile has the largest energy to hit the fabric, and the yarn in the fabric receives the stress from the projectile and is inclined to offer penetration resistance.
In the second stage (from 3 μs to 7 μs), the acceleration for Fa, Fb, and Fc reduces apparently. This is because, during this time, the projectile has penetrated the fabric and passes through it. This may indicate that only the side surface of the projectile could have a little effect on a small area of the fabric which directly touches it; some phenomena such as broken or damaged yarns can be found in this area. The top of the projectile does not influence the fabric, though this part carries the most energy. Then comes the third stage; the acceleration reduces slightly and tends to zero.
The interesting point is that more time is needed for Fb than Fa and Fc to bounce back, i.e., around 7 μs for the front compared to 5 μs for the latter two. This tendency in the acceleration is due to the penetration resistance, which, again, proved the superiority of using staple fiber, especially aramid staple fiber, in the construction to improve the friction and therefore to enhance the interaction of the ballistic mechanism.

5. Conclusions

This paper aimed to enhance the ballistic performance of ballistic fabrics with the introduction of CSC yarns, and the results were quite positive. The energy absorption capability of the whole ballistic fabric could be apparently improved. Ballistic tests and FEA models were used to analyze the ballistic performance of these ballistic fabrics from the perspective of both experimental and theoretical views. The major contributions of this research are listed as follows:
(1)
Three different ballistic fabrics were successfully manufactured, including two new types with the usage of CSC yarns. Fa was the conventional woven type with the usage of Kevlar® 29 filament yarns. Fb was woven by CSC yarns with aramid staple fiber. Fc was also woven by CSC yarns with polyester staple fiber.
(2)
These three types of ballistic fabrics, Fa, Fb, and Fc, were ballistically tested. The experimental results showed that Fb and Fc have better ballistic performance than Fa as the energy absorbed by Fb and Fc is apparently higher than that absorbed by Fa. This may indicate that the usage of CSC aramid yarns could, indeed, have a positive influence in improving the capability of energy absorption in each woven type. In addition, Fb is better than Fc, which further indicates that aramid staple fiber is better than polyester staple fiber in the compound (CSC) yarn for providing better energy absorption capability. This may demonstrate that, except for the factor of friction, different composition of staple fiber could be another factor to influence the ballistic performance of the whole woven structure.
(3)
The details of energy absorption for these three different ballistic fabrics were further investigated by FEA models. The theoretical results show a good coincidence with experimental results: regardless of which time duration, Fb is always higher than Fc and Fa. The peak value of energy absorption in total for Fb is always stronger than Fb and Fc. In addition, Fb is better than Fc in the energy absorption in total. It could be clearly noticed that the introduction of CSC yarns could highly enhance the capacity of energy absorption. FEA models also show the comparisons between V0 and energy after normalization calculated by FEA models for Fa, Fb, and Fc. The results demonstrate that with the increase in V0, V1 increases correspondingly with no fluctuations, very similar to the trend illustrated from the experimental data. This may prove that the impact velocity before and after penetration is unlike to be influenced by a certain velocity, verified by both experimental and theoretical tests.
(4)
The penetration resistance of these fabrics was also theoretically analyzed in detail. For the overall trend of velocity variation, Fa, Fb, and Fc show the same trends: decreasing sharply in the beginning, bouncing back later, and remaining stable finally. The relationship between the acceleration and the time history was also investigated. The theoretical analysis shows that Fb and Fc have better penetration resistance than Fa, and Fb is the best due to the superiority of its structure and the usage of aramid staple fiber, which complies with the discovery in the research of energy absorption.

Author Contributions

Conceptualization, D.Y.; methodology, D.Y.; writing—original draft preparation, D.Y.; writing—reviewing and editing, D.Y.; software, S.L., K.Z. and Q.L.; data curation, S.L., K.Z. and Q.L.; visualization, W.Z. and G.Y.; investigation, W.Z. and G.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by School Start-up Fund Project of Changzhou University (grant number: ZMF21020365), by School Scientific Research Projects of Science and Engineering of Changzhou University (grant number: KYP2402093C), by 4th Leading Innovative Talents Cultivation Project of Changzhou City (grant number: CQ20210106), and the Research Project of MenBo High-tech Jiangsu Co., Ltd. (grant number: 2022K3071).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this published article.

Acknowledgments

The authors sincerely appreciate the support from the Top-notch Academic Programs Project of Jiangsu Higher Education Institutions (TAPP), and the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kordani, N. Materials, design and technology of body armor. In Advances in Healthcare and Protective Textiles; The Textile Institute Book Series; Woodhead Publishing: Sawston, UK, 2023; pp. 259–301. [Google Scholar]
  2. Abtew, M.A. A comprehensive review on advancements, innovations and applications of 3D warp interlock fabrics and its composite materials. Compos. Part B 2024, 278, 111395–111419. [Google Scholar] [CrossRef]
  3. Yang, D.; Wei, Q.S.; Xin, B.J.; Chen, X.G. Research on the creation of TA/LOI compound structure fabric and its ballistic performance for 3D curved-surface ballistic application. Compos. Part B 2020, 201, 108275–108290. [Google Scholar] [CrossRef]
  4. Fan, T.; Sun, Z.; Zhang, Y.Y.; Li, Y.Q.; Chen, Z.K.; Huang, P.; Fu, P.Y. Novel kevlar fabric composite for multifunctional soft body armor. Compos. Part B 2022, 242, 110106–110116. [Google Scholar] [CrossRef]
  5. Doddamani, S.; Kulkarni, S.M.; Joladarashi, S.; Mohan, K.T.S.; Gurjar, A.K. Analysis of light weight natural fiber composites against ballistic impact: A review. Int. J. Lightweight Mater. Manuf. 2023, 6, 450–468. [Google Scholar] [CrossRef]
  6. Mahesh, V.; Joladarashi, S.; Kulkarni, S.M. A comprehensive review on material selection for polymer matrix composites subjected to impact load. Def. Technol. 2021, 17, 257–277. [Google Scholar] [CrossRef]
  7. Naveen, K.; Jayakrishna, J.; Sultan, M.T.B.H.; Amir, S.M.M. Ballistic performance of natural fiber based soft and hard body armour—A mini review. Front. Mater. 2020, 7, 608139–608145. [Google Scholar] [CrossRef]
  8. Yi, R.C.; Yin, L.K.; Wang, J.R.; Chen, Z.G.; Hu, D.Q. Study on the performance of ceramic composite projectile penetrating into ceramic composite target. Def. Technol. 2017, 13, 295–299. [Google Scholar] [CrossRef]
  9. Deora, P.S.; Khurana, M.; Priya Muhal, R.A.; Upadhyay, D.; Goswami, C. A review on fibrous materials for body armor application. Mater. Today Proc. 2022, 60, 2230–2235. [Google Scholar] [CrossRef]
  10. Li, Y.Q.; Fan, H.L.; Gao, X.L. Ballistic helmets: Recent advances in materials, protection mechanisms, performance, and head injury mitigation. Compos. Part B 2022, 238, 109890–109917. [Google Scholar] [CrossRef]
  11. Zhang, R.; Han, B.; Zhou, Y.; Qiang, L.S.; Zhang, Q.; Zhang, Q.C.; Lu, T.J. Ballistic performance of ultralight multifunctional cellular sandwich plates with UHMWPE fiber metal laminate skins. Compos. Struct. 2023, 304, 116390–116402. [Google Scholar] [CrossRef]
  12. Zhao, Z.N.; Han, B.; Rui Zhang, R.; Zhang, Q.; Zhang, Q.C.; Ni, C.Y.; Lu, T.J. Enhancement of UHMWPE encapsulation on the ballistic performance of bi-layer mosaic armors. Compos. Part B 2021, 221, 109023–109035. [Google Scholar] [CrossRef]
  13. Yang, D.; Zhu, K.; Liu, S.D.; Fei, F.; Li, J.C.; Chen, X.G. Research on the creation of new UD laminates and its ballistic performance using CSC aramid yarns via experiments and FEA analysis. J. Ind. Text. 2024, 54, 15280837241246750. [Google Scholar] [CrossRef]
  14. Dogan, U.; Sunbuloglu, E. A novel simplified ballistic theory for woven composites. Int. J. Impact Eng. 2023, 177, 104530–104541. [Google Scholar] [CrossRef]
  15. Ingle, S.; Yerramalli, C.S.; Guha, A.; Mishra, S. Numerical investigation on hybridization of woven fabric armour enhance ballistic protection. Mech. Mater. 2022, 170, 104324–104337. [Google Scholar] [CrossRef]
  16. Bresciani, L.M.; Manes, A.; Giglio, M. An analytical model for ballistic impacts against plain-woven fabrics with a polymetric matrix. Int. J. Impact Eng. 2015, 78, 138–149. [Google Scholar] [CrossRef]
  17. Abtew, M.A.; Boussu, F.; Bruniaux, P.; Loghin, C.; Cristian, I. Ballistic impact mechanisms-a review on textiles and fibre-reinforced composites impact responses. Compos. Struct. 2019, 223, 110966–111037. [Google Scholar] [CrossRef]
  18. Bilisik, K.; Korkmaz, M. Multilayered and Multidirectional Stitched Aramid Woven Fabric Structures: Experimental Characterization of Ballistic Performance by Considering Yarn Pull–Out Test. Text. Res. J. 2010, 8, 1697–1720. [Google Scholar] [CrossRef]
  19. Bilisik, K.; Korkmaz, M. Single and multiple yarn pull-outs on aramid woven fabric structures. Text. Res. J. 2011, 81, 847–864. [Google Scholar] [CrossRef]
  20. Backman, M.E.; Goldsmith, W. The mechanics of penetration of projectiles into targets. Int. J. Eng. Sci. 1978, 16, 1–99. [Google Scholar] [CrossRef]
  21. Rao, M.P.; Duan, Y.; Keefe, M.; Powers, B.M.; Bogetti, T.A. Modeling the effects of yarn material properties and friction on the ballistic impact of a plain-weave fabric. Compos. Struct. 2009, 89, 556–566. [Google Scholar] [CrossRef]
  22. Bajya, M.; Majumdar, A.; Butola, B.S. Criticality of inter-yarn friction in high-performance fabrics for the design of soft body armour. Compos. Commun. 2022, 29, 100984–100989. [Google Scholar] [CrossRef]
  23. Hong, X.; Ma, Y.; Lei, Z.K.; Bai, R.X.; Bai, H.S.; Li, X.W.; Zou, J.C. Analysis of interfacial friction properties of multi-phase STF/Kevlar composite fabrics in yarn pullout test. Mater. Today Commun. 2023, 34, 105086–105099. [Google Scholar] [CrossRef]
  24. Han, F.L.; Zhang, Y.; Wang, C.H.; Wang, Z.Y.; Yue, H.Y.; Zong, L.S.; Wang, J.Y.; Jian, X.G. Analysis of ballistic performance and penetration damage mechanisms of aramid woven fabric reinforced polycarbonate composites with different matrix content. Chem. Eng. J. 2023, 453, 139470–139482. [Google Scholar] [CrossRef]
  25. Chu, Y.Y.; Rahman, M.D.R.; Min, S.N.; Chen, X.G. Experimental and numerical study of inter-yarn friction affecting mechanism on ballistic performance of Twaron fabric. Mech. Mater. 2020, 148, 103421–103434. [Google Scholar] [CrossRef]
  26. Chu, Y.Y.; Rahman, M.D.R.; He, H.N.; Huang, W.H.; Chen, X.G. Increasing inter-yarn friction to ultra-high molecular weight polyethylene yarns for ballistic application by sol-gel treatment. J. Ind. Text. 2022, 51, 4931S–4948S. [Google Scholar] [CrossRef]
  27. Zhou, Y.; Chen, X.; Wells, G. Influence of yarn gripping on the ballistic performance of woven fabrics from ultra-high molecular weight polyethylene fibre. Compos. Part B 2014, 62, 198–204. [Google Scholar] [CrossRef]
  28. Sun, D.M.; Chen, X.G.; Mrango, M. Investigating ballistic impact on fabric targets with gripping yarns. Fibers Polym. 2013, 14, 1184–1189. [Google Scholar] [CrossRef]
  29. Briscoe, B.J.; Motamedi, F. Role of interfacial friction and lubrication in yarn and fabric mechanics. Text. Res. J. 1990, 60, 697–708. [Google Scholar] [CrossRef]
  30. Briscoe, B.J.; Motamedi, F. The ballistic impact characteristics of aramid fabrics: The influence of interface friction. Wear 1992, 158, 229–247. [Google Scholar] [CrossRef]
  31. Maithani, Y.; Sagar Ingle, S.; Khan, J.A.; Bajya, M.; Yerramalli, C.S.; Majumdar, A.; Mehta, B.R.; Singh, J.P. Investigating the effect of aligned Ag nanorods on para-aramid woven fabric and anisotropy in inter-yarn friction. Compos. Part A 2023, 172, 107614–107624. [Google Scholar] [CrossRef]
  32. Bajya, M.; Majumdar, A.; Butola, B.S.; Verma, S.K.; Bhattacharjee, D. Design strategy for optimizing weight and ballistic performance of soft body armour reinforced with shear thickening fluid. Compos. Part B 2020, 183, 107721–107731. [Google Scholar] [CrossRef]
  33. Cao, S.S.; Pang, H.M.; Zhao, C.Y.; Xuan, S.H.; Gong, X.L. The CNT/PSt-EA/Kevlar composite with excellent ballistic performance. Compos. Part B 2020, 185, 107793–107802. [Google Scholar] [CrossRef]
  34. Park, Y.; Kim, Y.H.; Baluch, A.H.; Kim, C.G. Numerical simulation and empirical comparison of the high velocity impact of STF impregnated Kevlar® fabric using friction effects. Compos. Struct. 2015, 125, 520–529. [Google Scholar] [CrossRef]
  35. Park, Y.; Kim, Y.H.; Baluch, A.H.; Kim, C.G. Empirical study of the high velocity impact energy absorption characteristics of shear thickening fluid (STF) impregnated Kevlar® fabric. Int. J. Impact Eng. 2014, 72, 67–74. [Google Scholar] [CrossRef]
  36. Bai, R.X.; Ma, Y.; Lei, Z.K.; Feng, Y.; Liu, C. Energy analysis of fabric impregnated by shear thickening fluid in yarn pullout test. Compos. Part B 2019, 174, 106901–106912. [Google Scholar] [CrossRef]

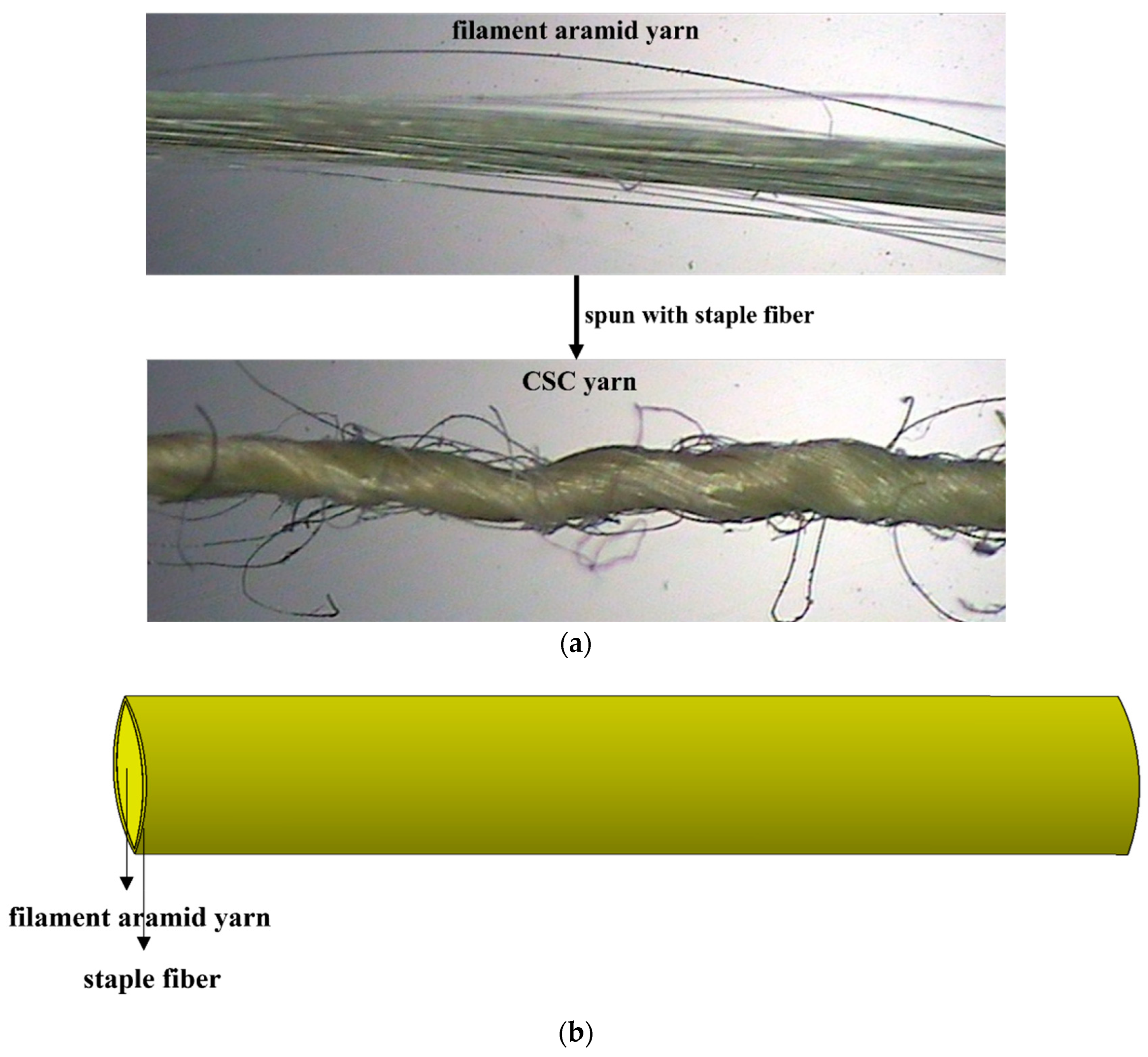

Figure 1. CSC yarn: (a) observation under SEM, (b) illustration.
Figure 1. CSC yarn: (a) observation under SEM, (b) illustration.
Polymers 16 02973 g001

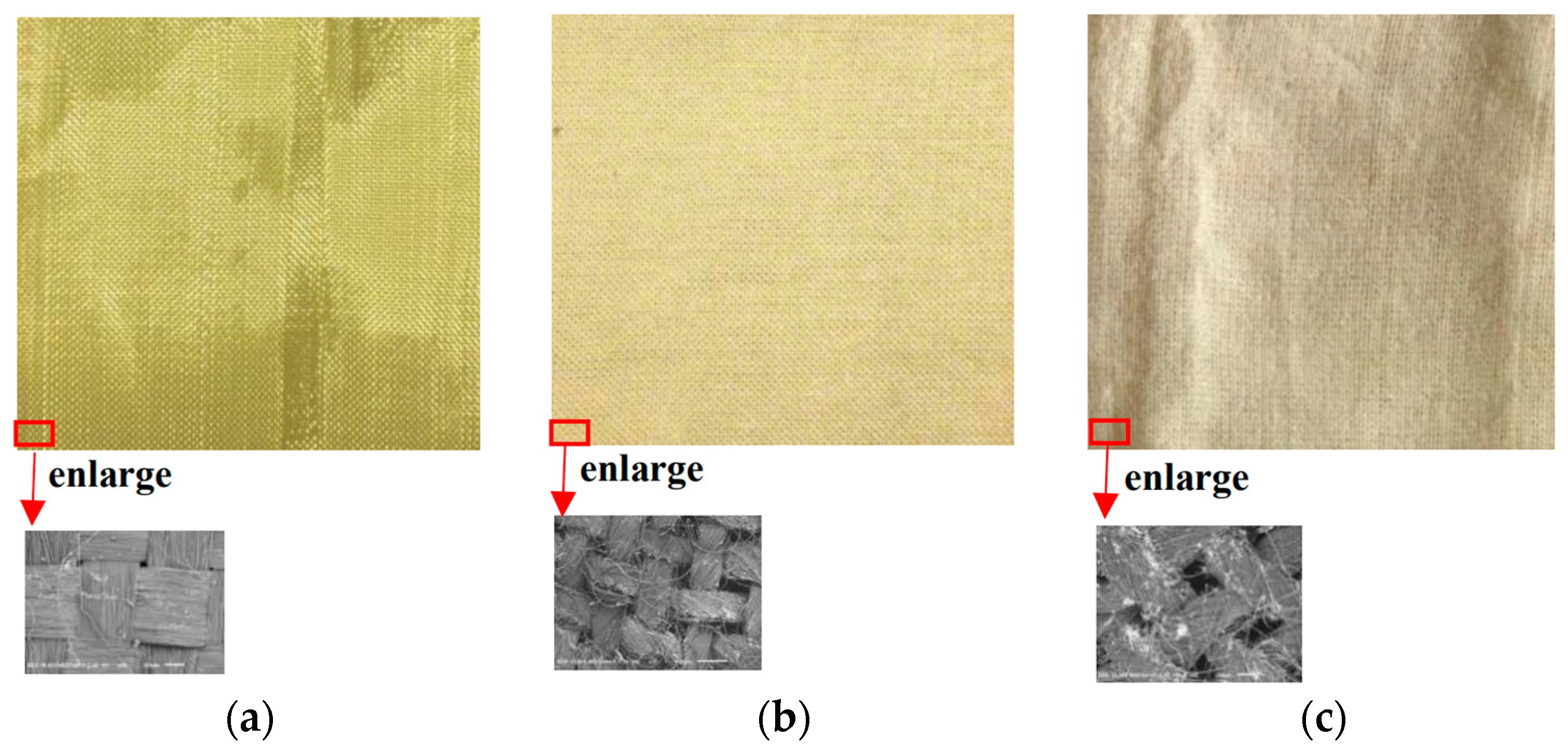

Figure 2. Manufactured fabrics: (a) Fa, (b) Fb, (c) Fc.
Figure 2. Manufactured fabrics: (a) Fa, (b) Fb, (c) Fc.
Polymers 16 02973 g002

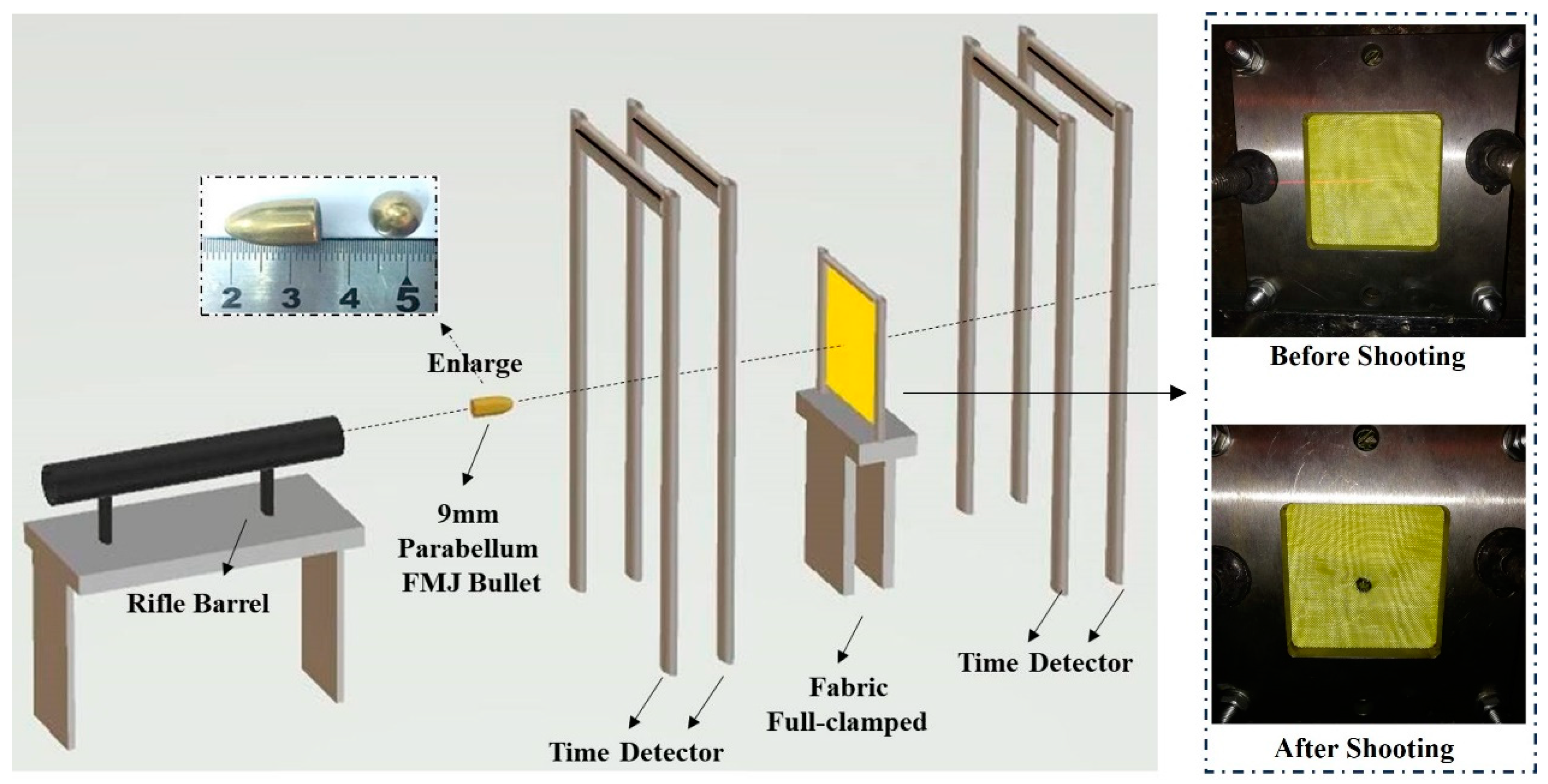

Figure 3. Schematic diagram of testing apparatus.
Figure 3. Schematic diagram of testing apparatus.
Polymers 16 02973 g003

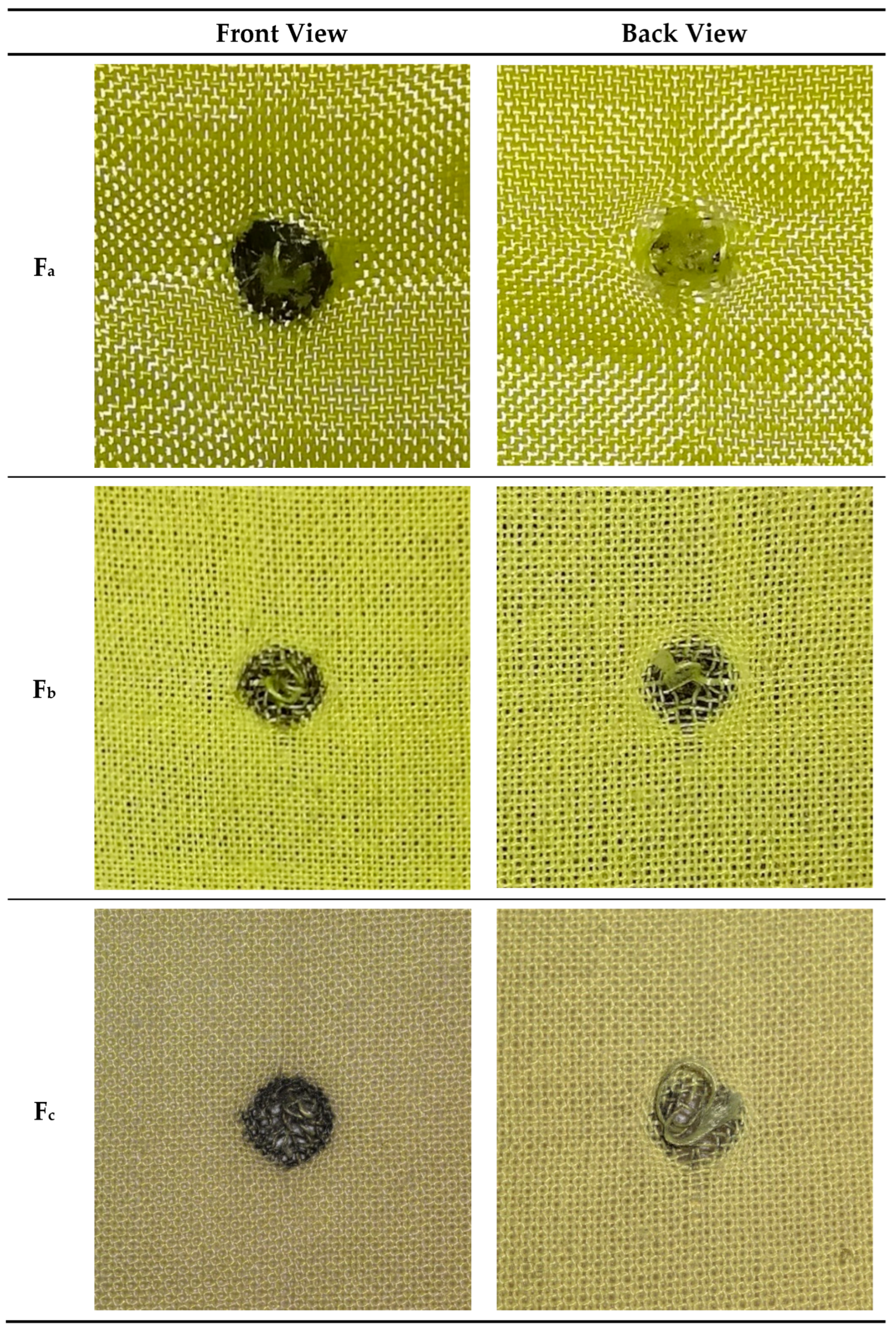

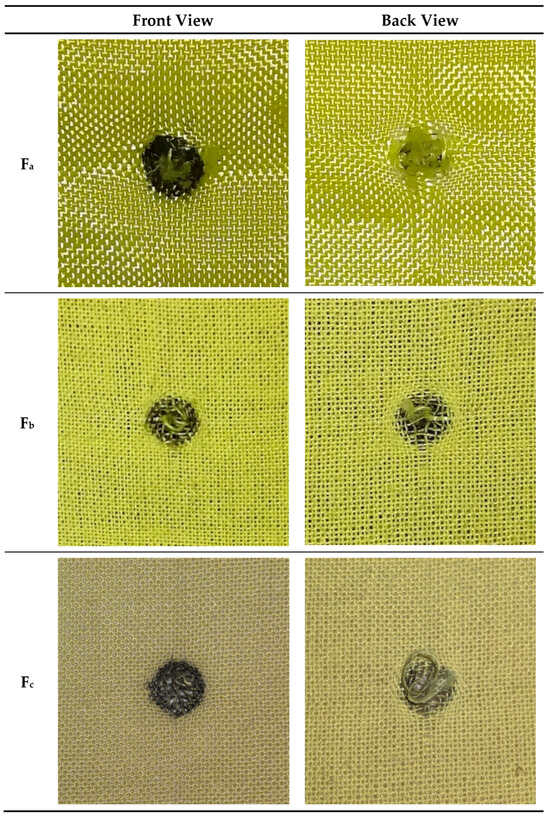

Figure 4. Appearance after fabrics ballistic tested.
Figure 4. Appearance after fabrics ballistic tested.
Polymers 16 02973 g004

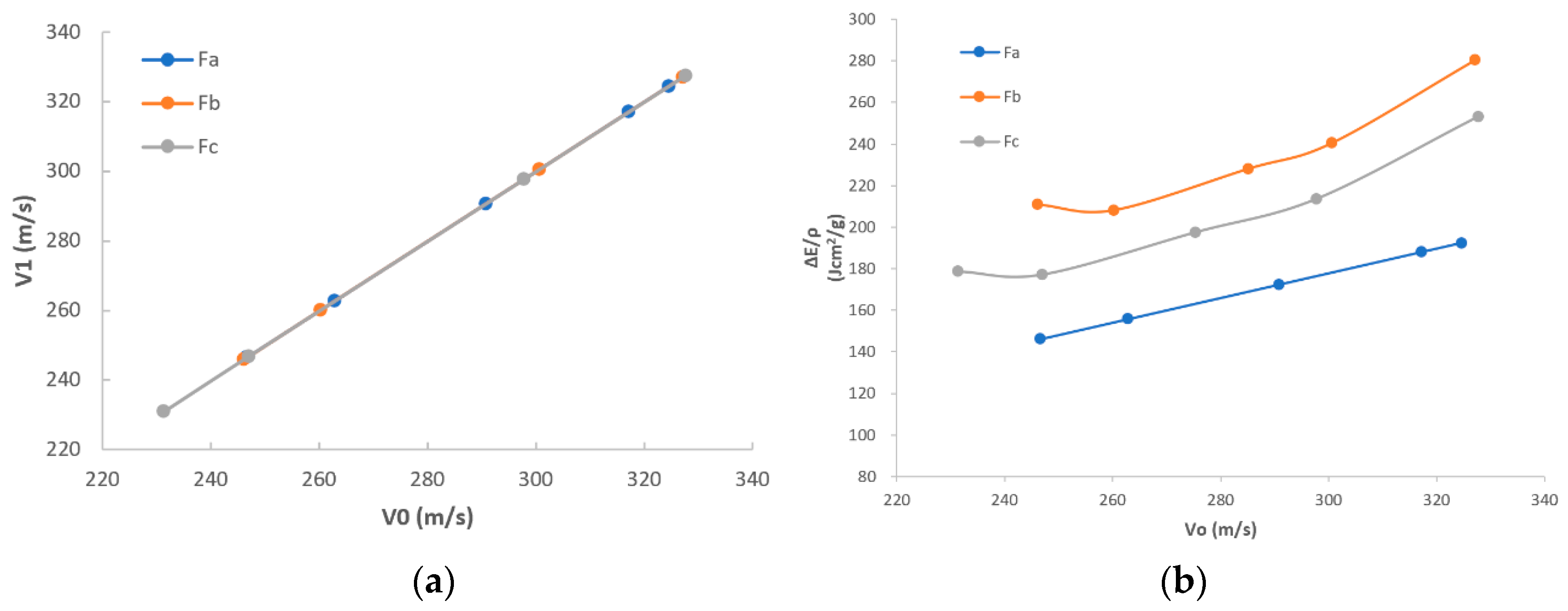

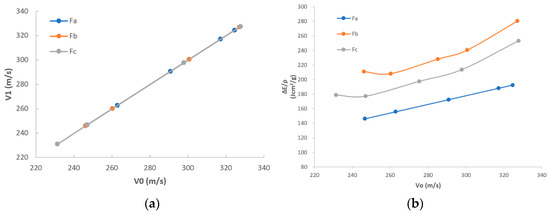

Figure 5. Comparisons among Fa, Fb, and Fc: (a) V0 vs. V1; (b) V0 vs. energy after normalization.
Figure 5. Comparisons among Fa, Fb, and Fc: (a) V0 vs. V1; (b) V0 vs. energy after normalization.
Polymers 16 02973 g005

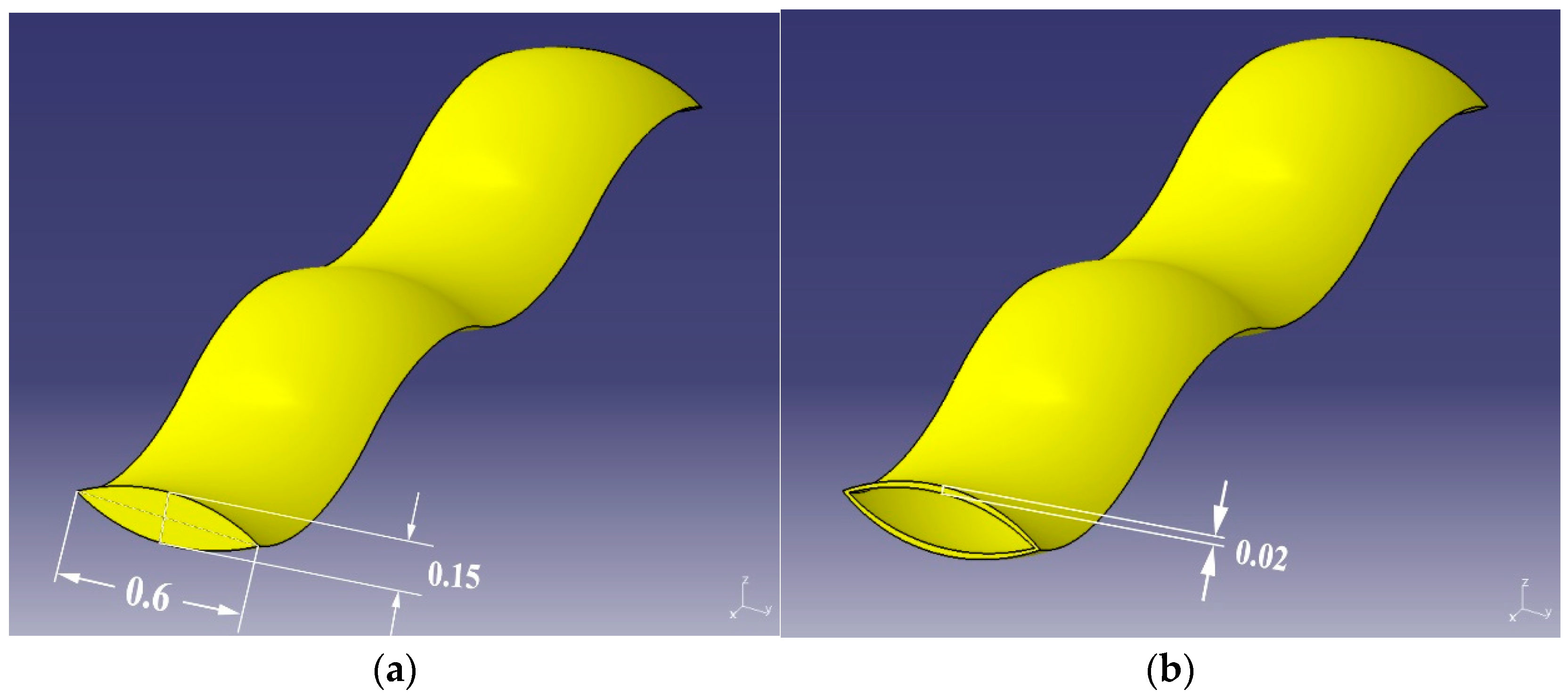

Figure 6. Basic model: (a) single-yarn, (b) tube.
Figure 6. Basic model: (a) single-yarn, (b) tube.
Polymers 16 02973 g006

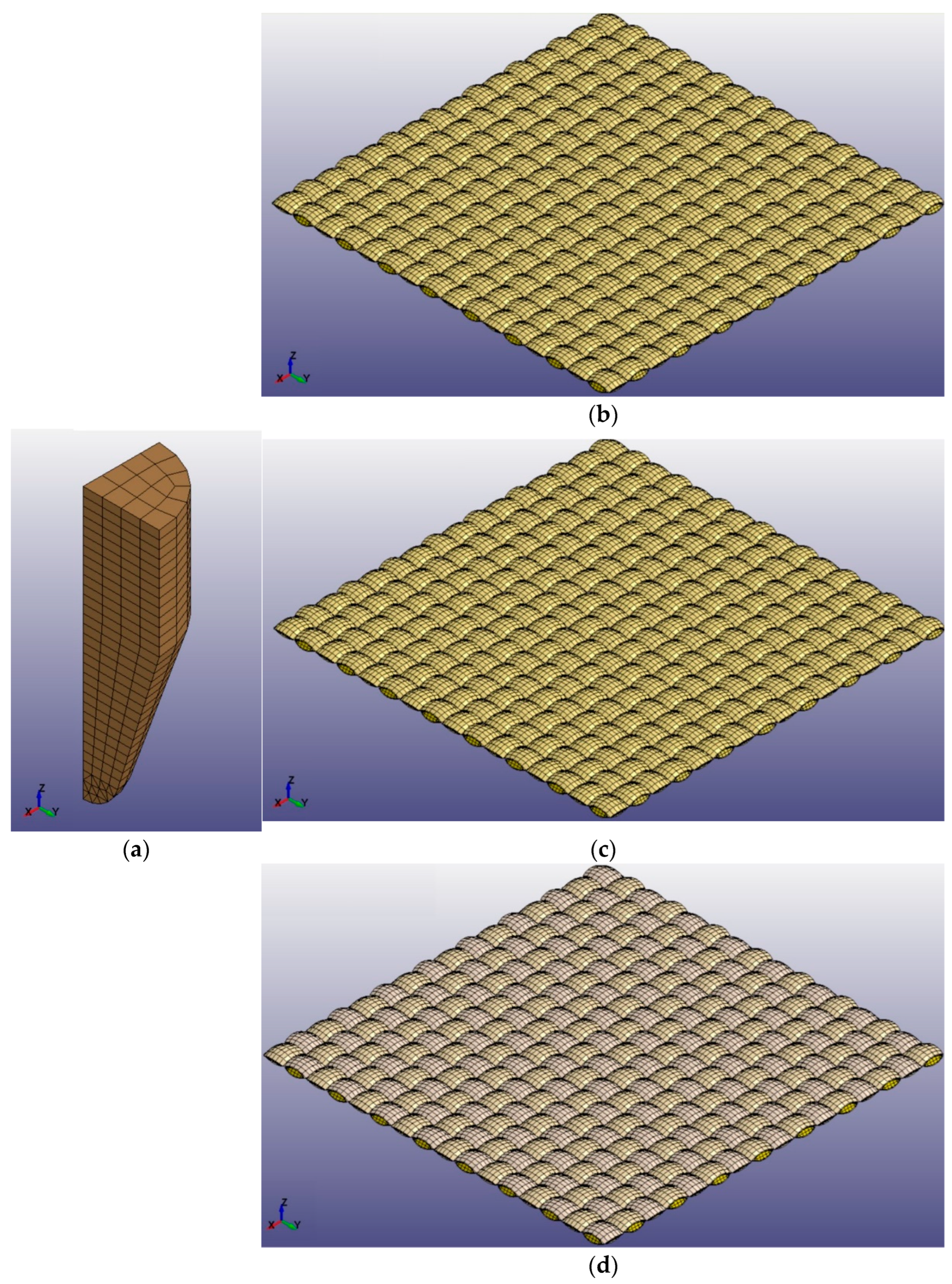

Figure 7. 1/4 FEA models: (a) bullet, (b) Fa, (c) Fb, (d) Fc.
Figure 7. 1/4 FEA models: (a) bullet, (b) Fa, (c) Fb, (d) Fc.
Polymers 16 02973 g007

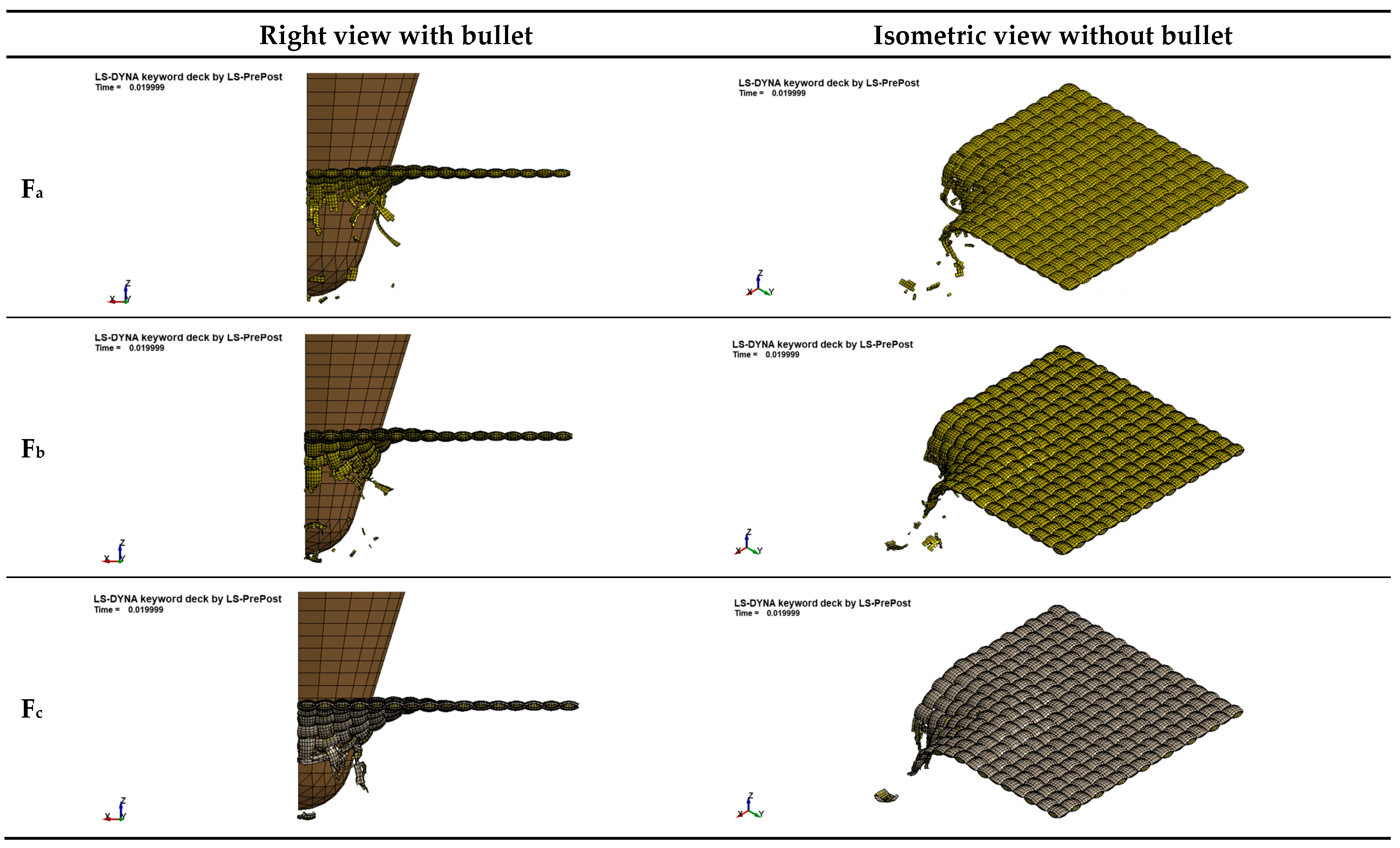

Figure 8. Illustration by FEA models.
Figure 8. Illustration by FEA models.
Polymers 16 02973 g008

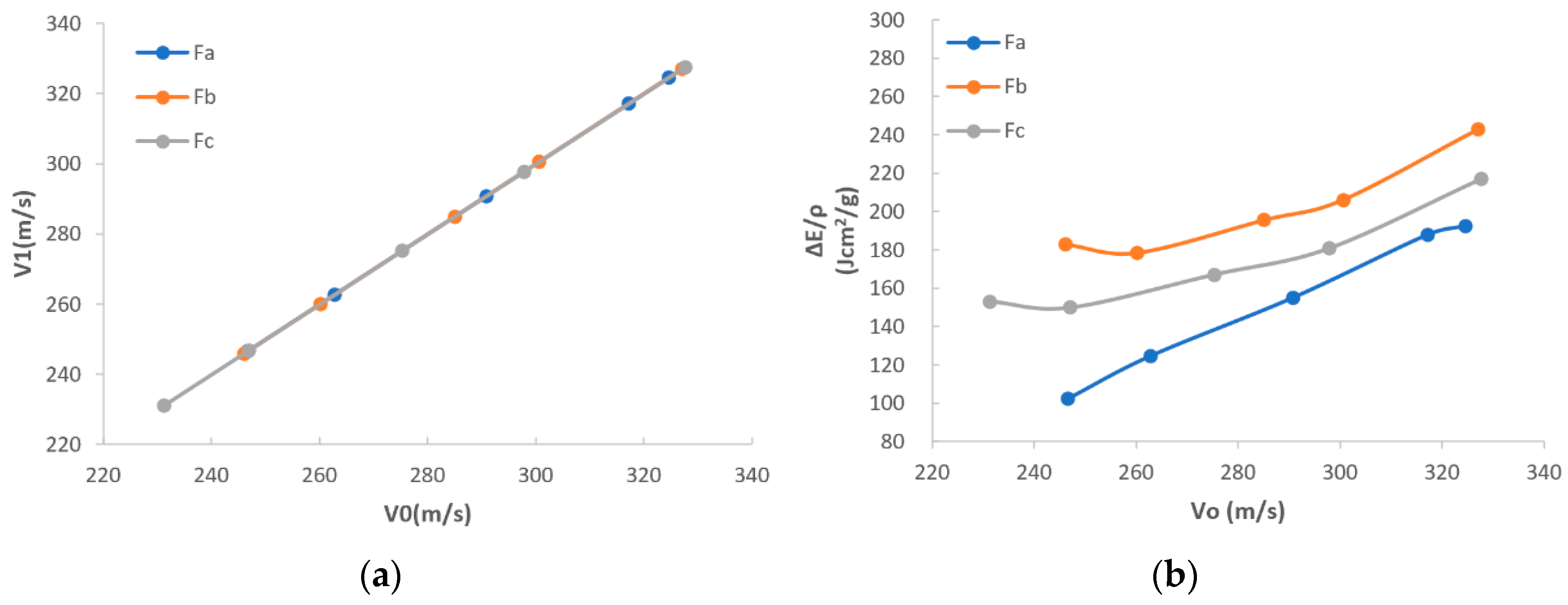

Figure 9. Comparisons among samples Fa, Fb, and Fc with theoretical data: (a) V0 vs. V1; (b) V0 vs. energy after normalization.
Figure 9. Comparisons among samples Fa, Fb, and Fc with theoretical data: (a) V0 vs. V1; (b) V0 vs. energy after normalization.
Polymers 16 02973 g009

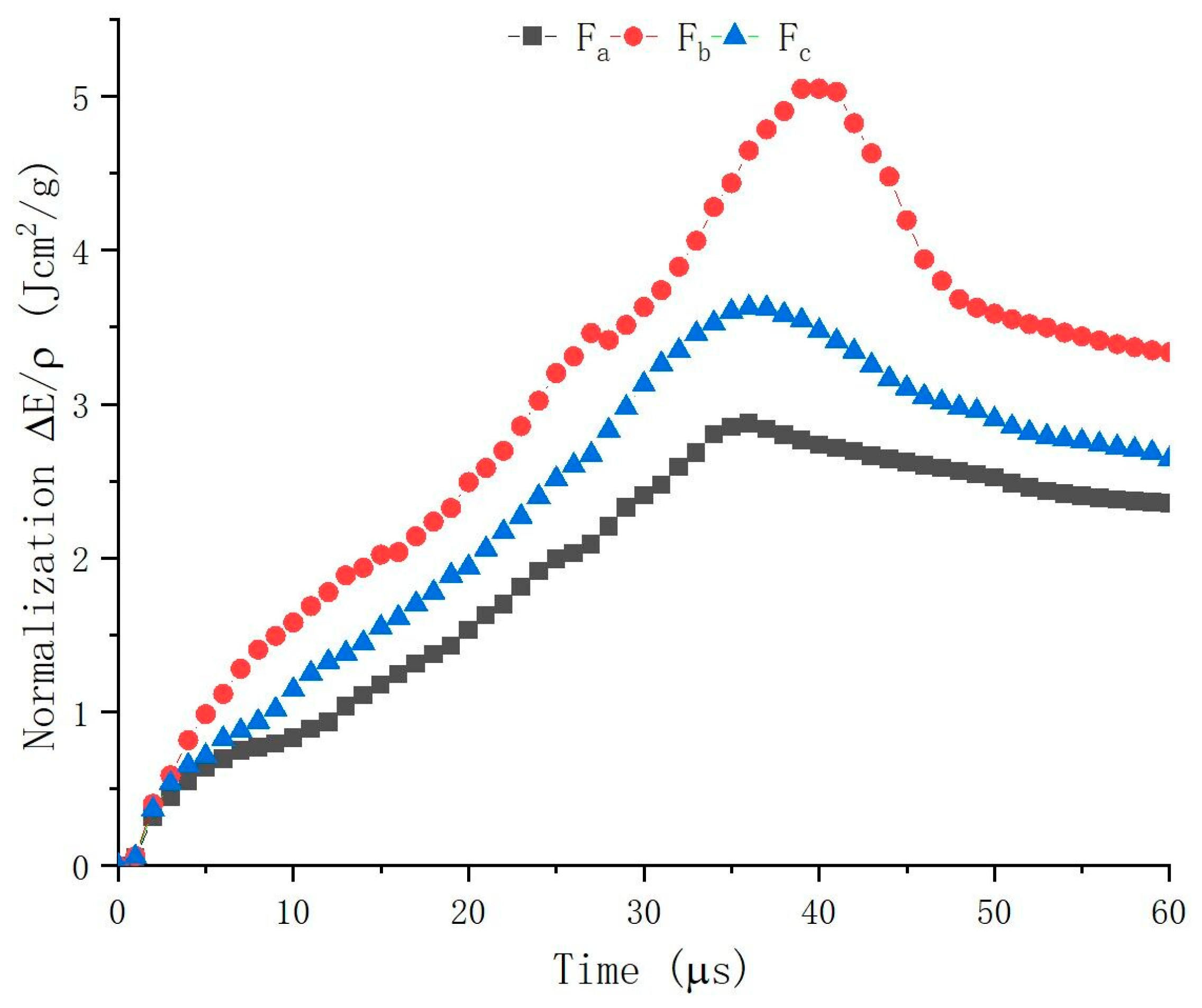

Figure 10. Comparisons of energy absorption in total.
Figure 10. Comparisons of energy absorption in total.
Polymers 16 02973 g010

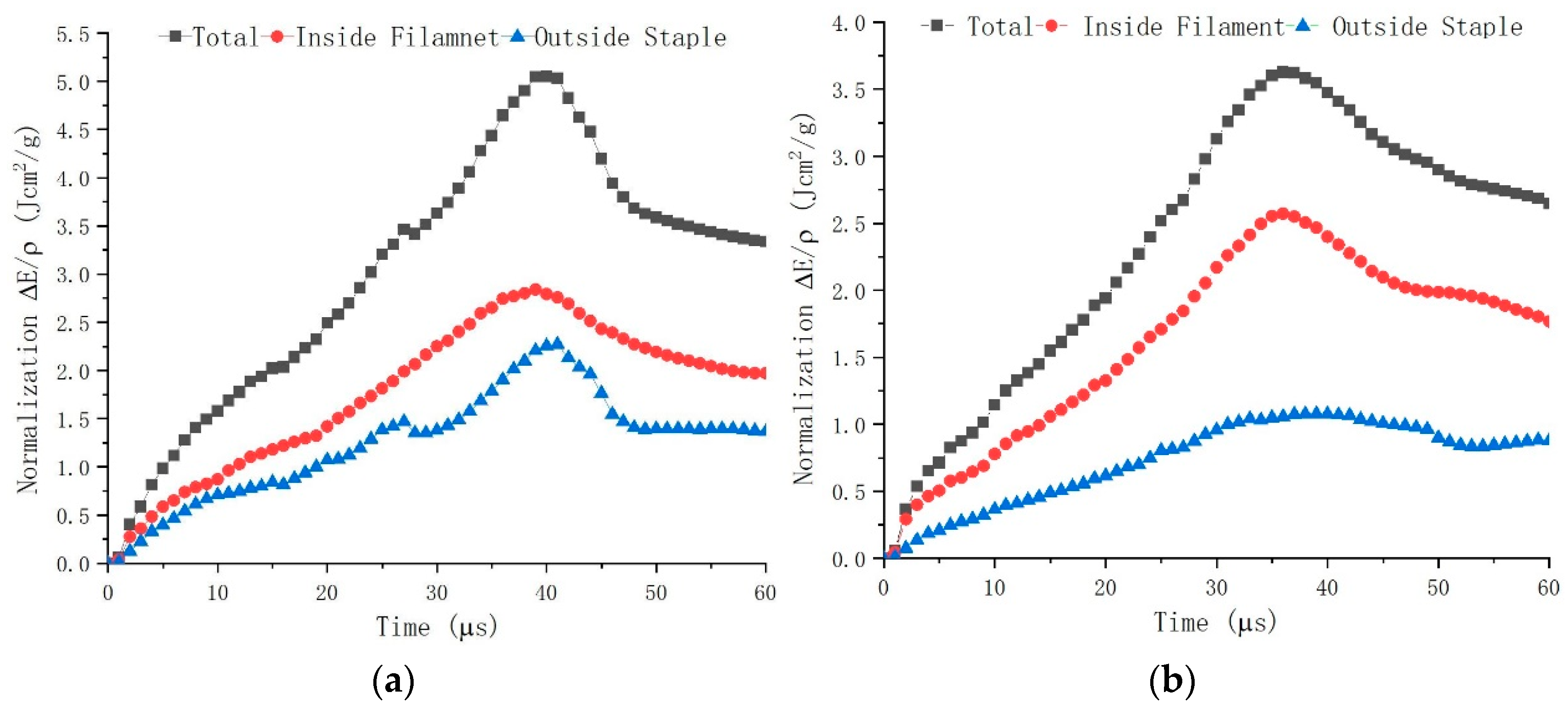

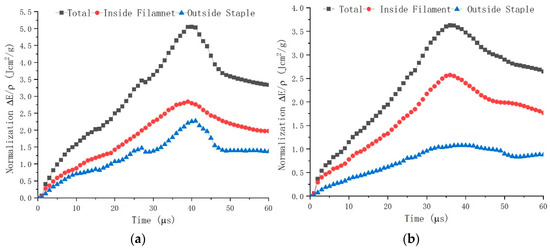

Figure 11. Analysis of energy absorption in different parts: (a) Fb, (b) Fc.
Figure 11. Analysis of energy absorption in different parts: (a) Fb, (b) Fc.
Polymers 16 02973 g011

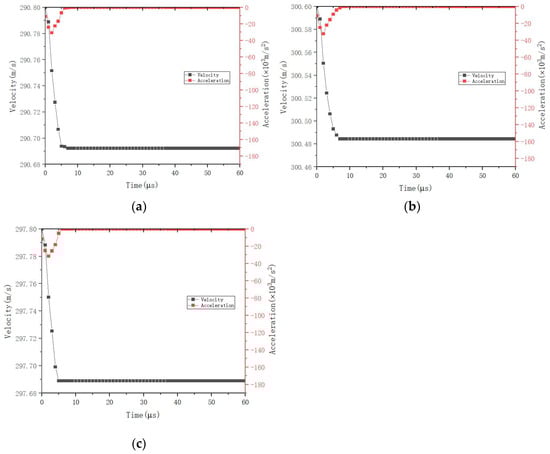

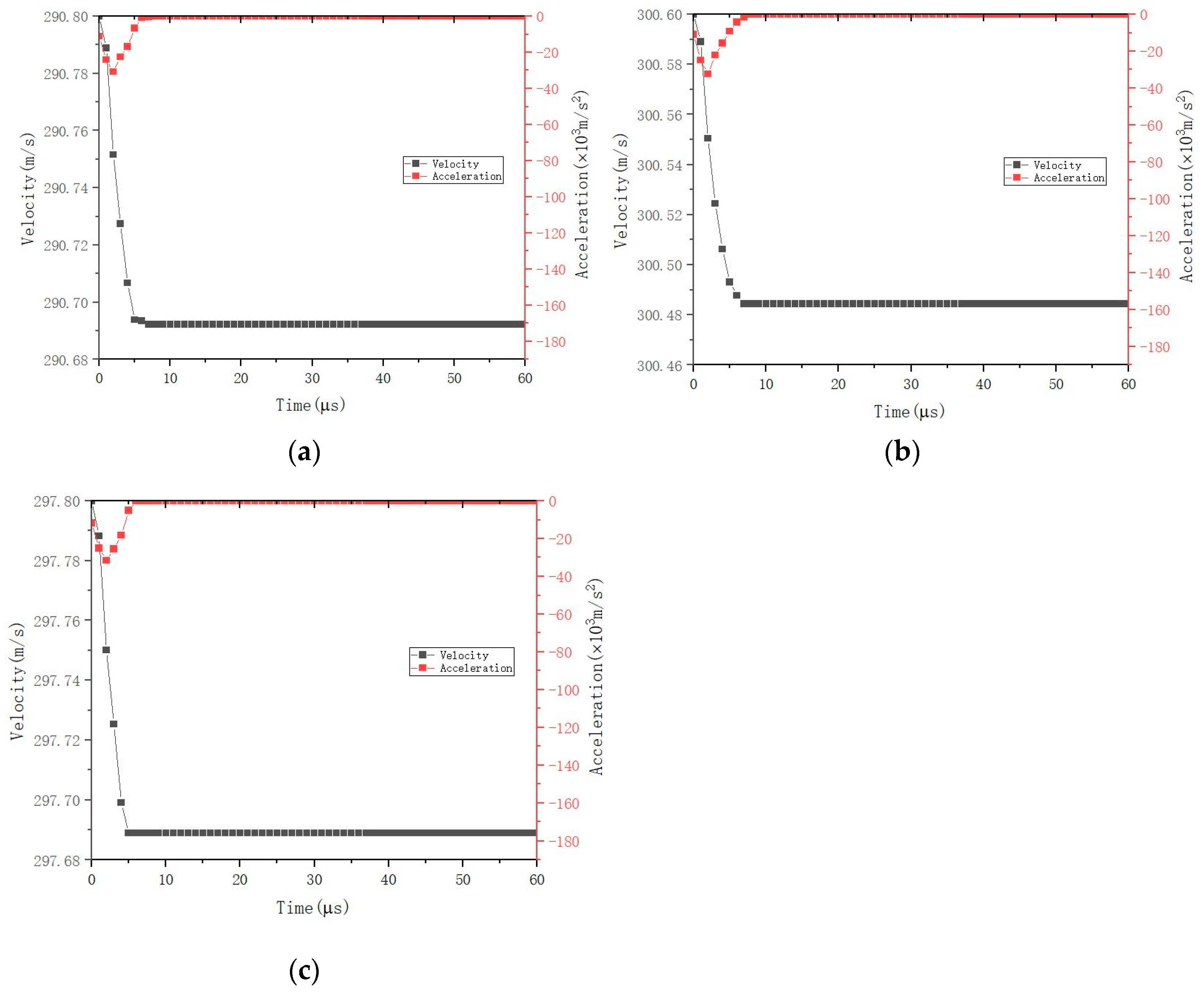

Figure 12. Velocity and acceleration vs. time history: (a) Fa, (b) Fb, (c) Fc.
Figure 12. Velocity and acceleration vs. time history: (a) Fa, (b) Fb, (c) Fc.
Polymers 16 02973 g012

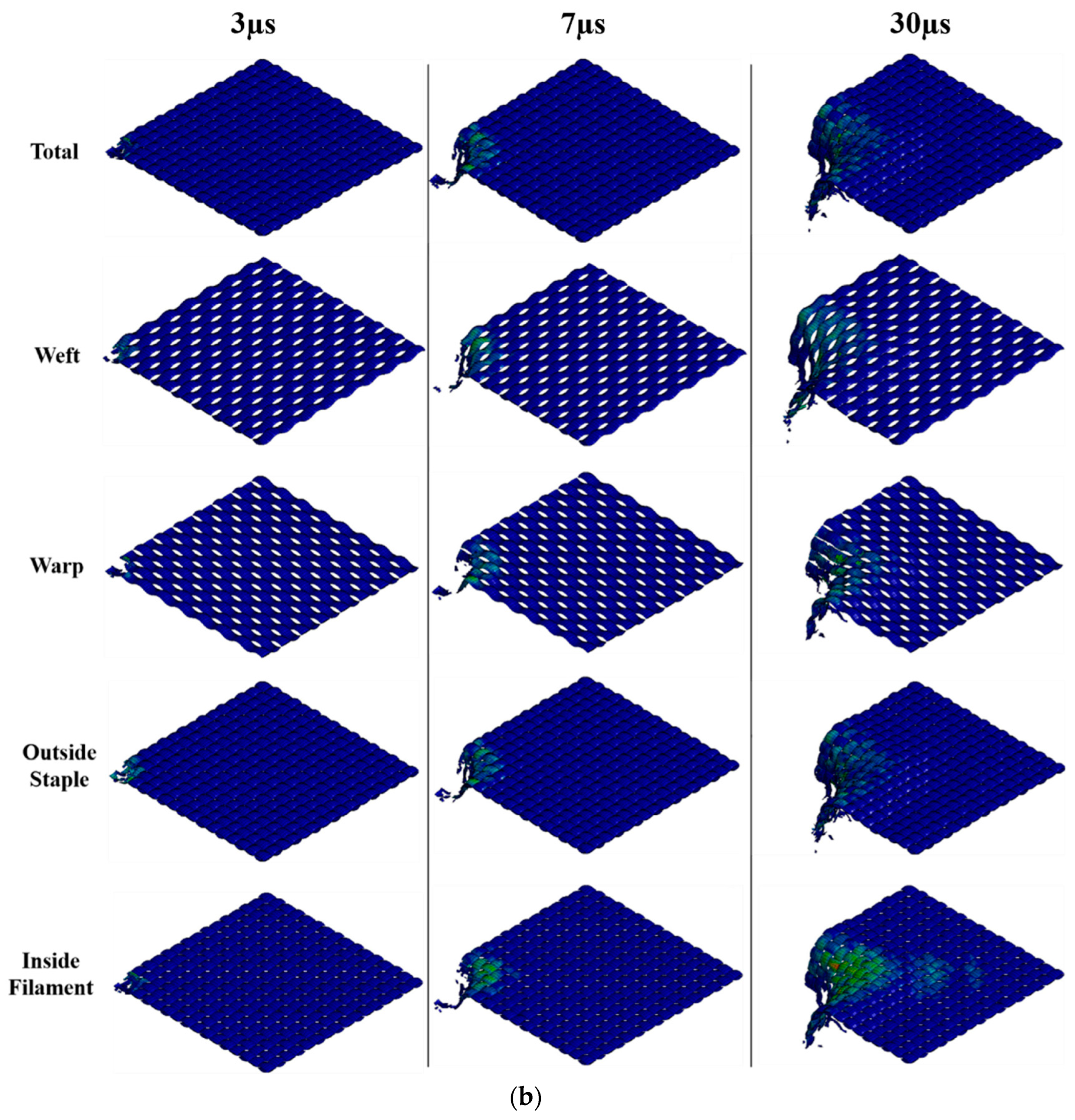

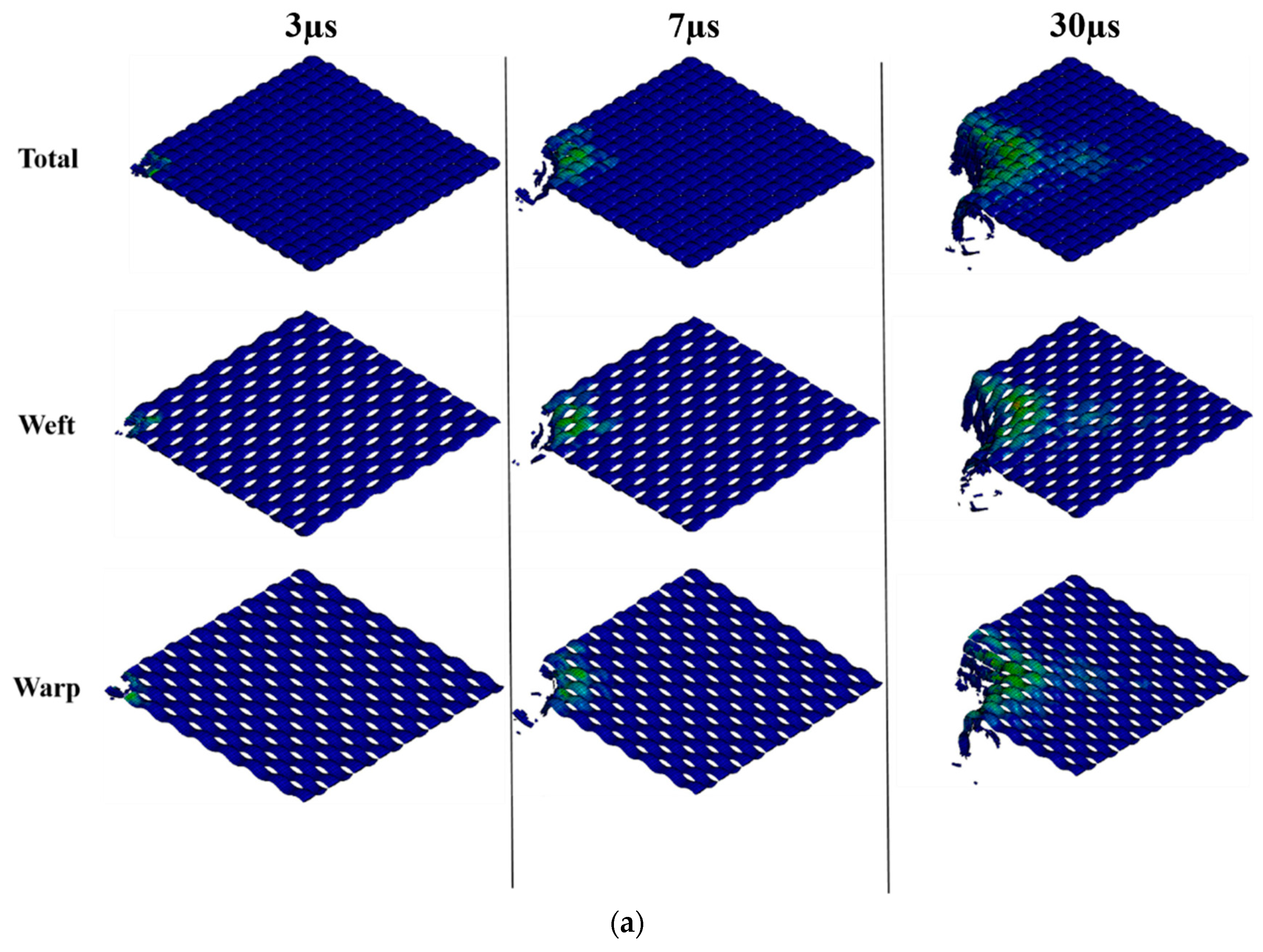

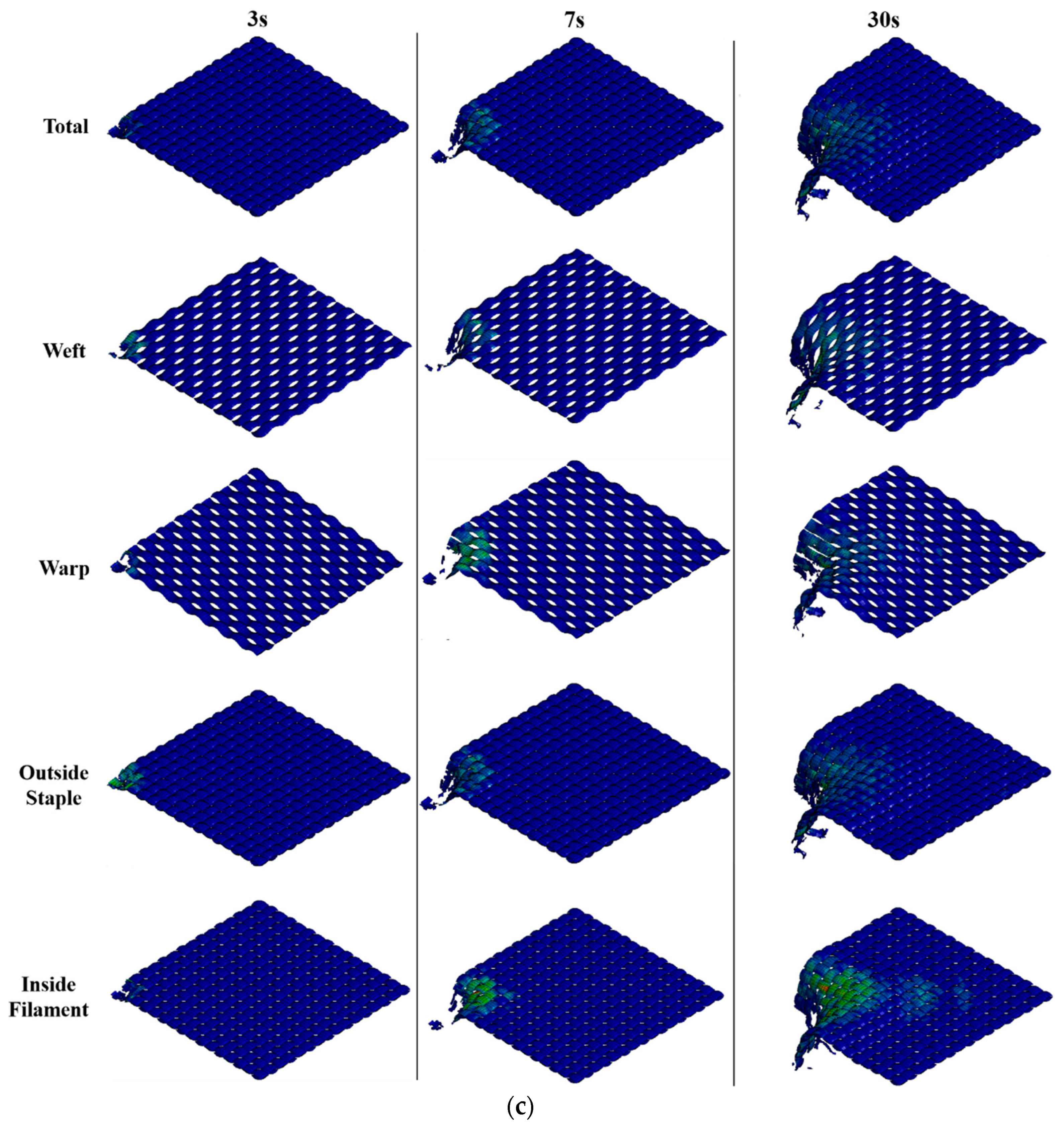

Figure 13. Ballistic penetration at three different time steps of 3 µs, 7 µs, and 30 µs: (a) Fa, (b) Fb, (c) Fc.
Figure 13. Ballistic penetration at three different time steps of 3 µs, 7 µs, and 30 µs: (a) Fa, (b) Fb, (c) Fc.
Polymers 16 02973 g013aPolymers 16 02973 g013bPolymers 16 02973 g013c
Table 1. Specification of ballistic fabrics.
Table 1. Specification of ballistic fabrics.
FabricsComposition of YarnStructureAreal Density
(Warp × Weft/cm2)
Weight
(g/m2)
FaKevlar® 29 filament yarnPlain14 × 14135
FbCSC yarn (core: Kevlar® 29 filament yarn; spun with: aramid staple fiber)Plain14 × 14140
FcCSC yarn (core: Kevlar® 29 filament yarn; spun with: polyester staple fiber)Plain14 × 14145
Table 2. Results of ballistic tests.
Table 2. Results of ballistic tests.
SampleImpact Velocity
V0 (m/s)
Exit Velocity
V1 (m/s)
Loss of Kinetic Energy ΔE (J)Areal Density
ρ (g/m2)
Normalization ΔE/ρ (Jcm2/g)
Fa-1246.6246.519.7135146.1
Fa-2262.8262.721155.7
Fa-3290.8290.723.3172.3
Fa-4317.2317.125.4187.9
Fa-5324.6324.526192.3
Fb-1246.124629.5140210.9
Fb-2260.2260.129.1208.1
Fb-3285.128531.9228
Fb-4300.6300.533.7240.4
Fb-5327.132739.2280.3
Fc-1231.3231.225.9145178.6
Fc-2247246.925.7177.1
Fc-3275.3275.228.6197.4
Fc-4297.8297.731213.5
Fc-5327.7327.636.7253.1
Remarks: Fa-1: No. 1 of single-layer Fa sample, Fb-1: No. 1 of single-layer Fb sample, Fc-1: No. 1 of single-layer Fc sample.
Table 3. Results calculated by FEA models.
Table 3. Results calculated by FEA models.
SampleImpact Velocity
V0 (m/s)
Exit Velocity
V1 (m/s)
Loss of Kinetic Energy ΔE (J)Areal Density
ρ (g/m2)
Normalization ΔE/ρ (Jcm2/g)
Fa-1246.6246.5313.8135102.3
Fa-2262.8262.7216.8124.6
Fa-3290.8290.7120.9155.1
Fa-4317.2317.125.4187.9
Fa-5324.6324.526192.3
Fb-1246.1245.9725.6140182.8
Fb-2260.2260.0825178.4
Fb-3285.1284.9827.4195.5
Fb-4300.6300.4828.9206.1
Fb-5327.1326.9734242.9
Fc-1231.3231.1822.2145153.1
Fc-2247246.8921.7149.9
Fc-3275.3275.1924.2167
Fc-4297.8297.6926.2180.7
Fc-5327.7327.5831.5216.9
Remarks: Fa-1: No. 1 of single-layer Fa sample, Fb-1: No. 1 of single-layer Fb sample, Fc-1: No. 1 of single-layer Fc sample.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yang, D.; Liu, S.; Zhang, W.; Liu, Q.; Yao, G.; Zhu, K. High-Velocity Impact Performance of Ballistic Fabric Using Core-Spun Compound Yarns. Polymers 2024, 16, 2973. https://doi.org/10.3390/polym16212973

AMA Style

Yang D, Liu S, Zhang W, Liu Q, Yao G, Zhu K. High-Velocity Impact Performance of Ballistic Fabric Using Core-Spun Compound Yarns. Polymers. 2024; 16(21):2973. https://doi.org/10.3390/polym16212973

Chicago/Turabian Style

Yang, Dan, Shengdong Liu, Weitian Zhang, Qian Liu, Gaozheng Yao, and Kai Zhu. 2024. "High-Velocity Impact Performance of Ballistic Fabric Using Core-Spun Compound Yarns" Polymers 16, no. 21: 2973. https://doi.org/10.3390/polym16212973

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
