Stress Analysis and Strength Prediction of Carbon Fiber Composite Laminates with Multiple Holes Using Cohesive Zone Models

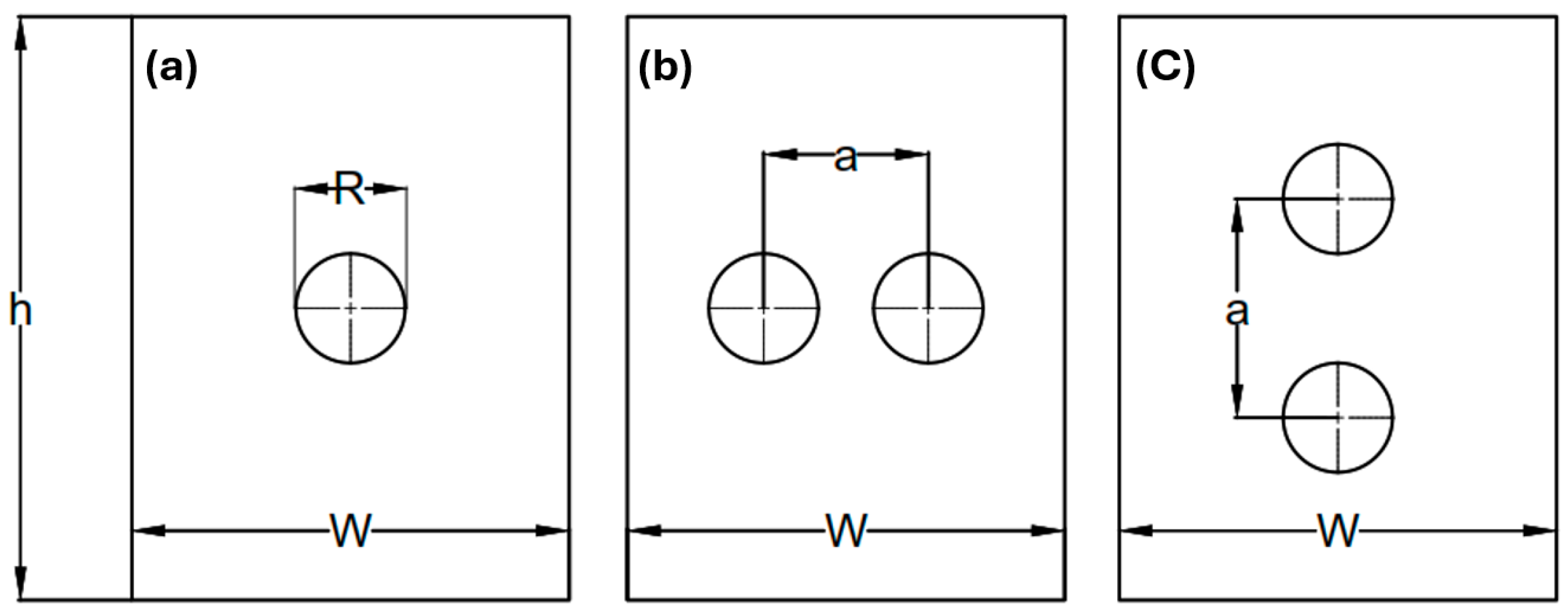

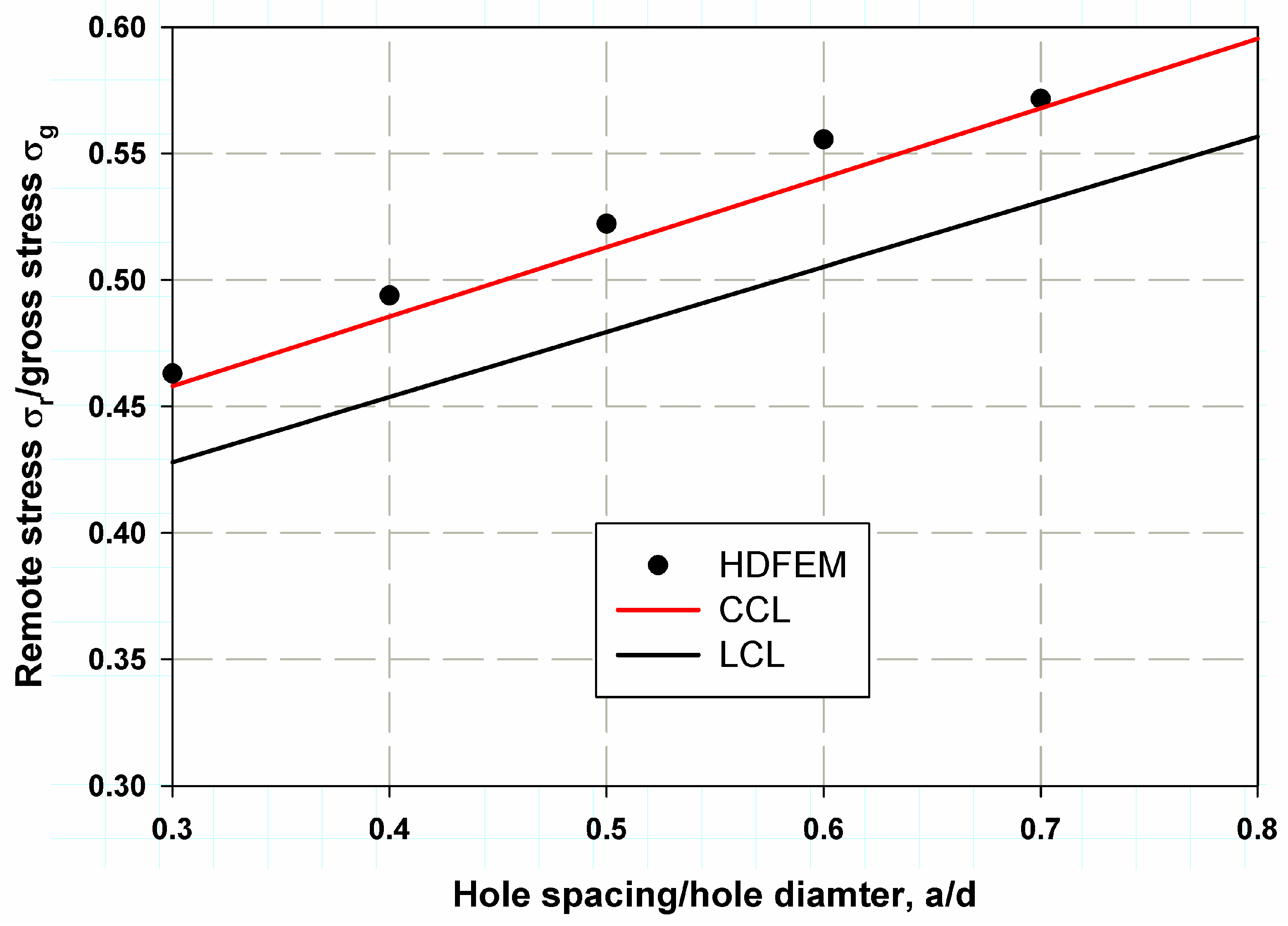

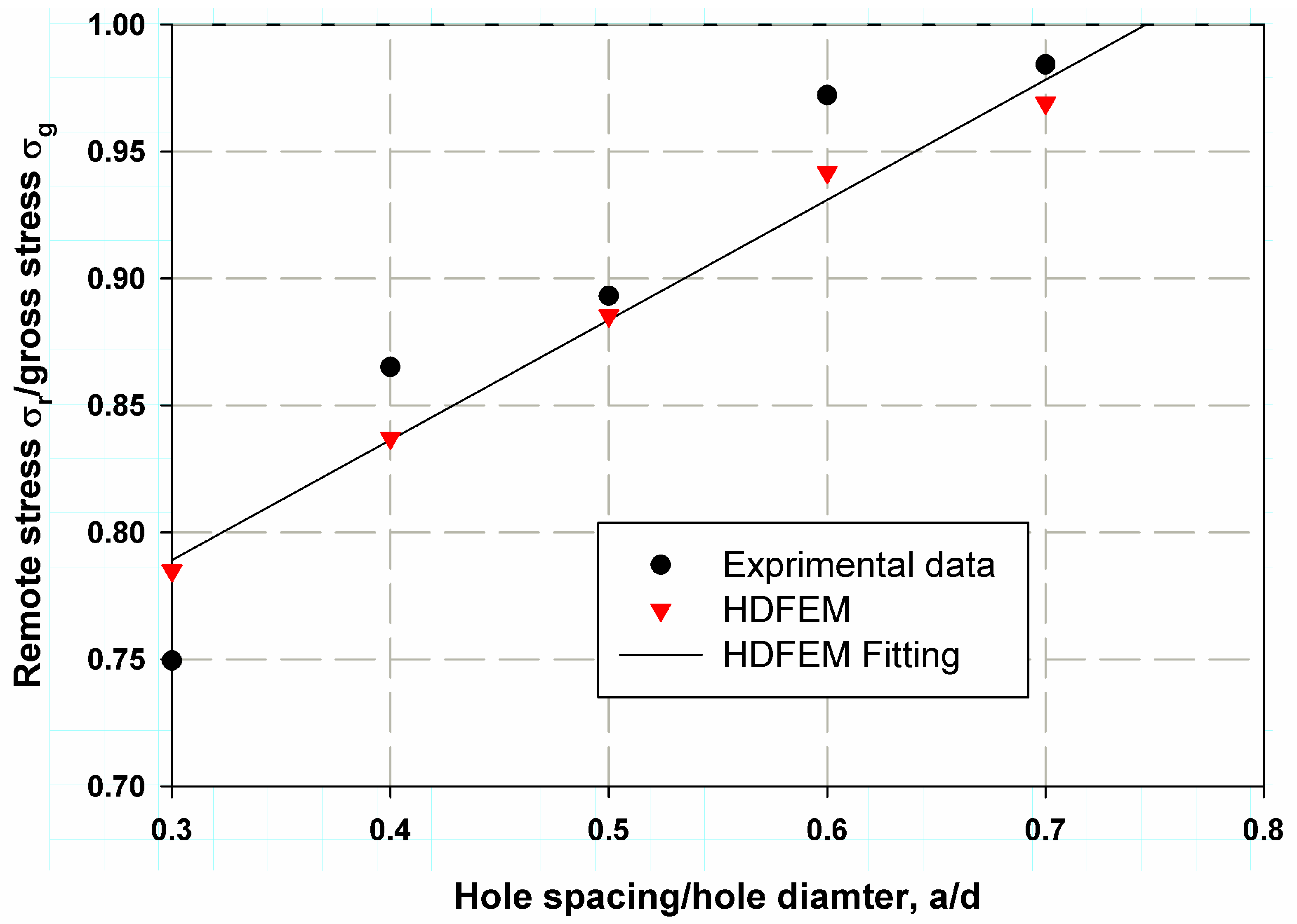

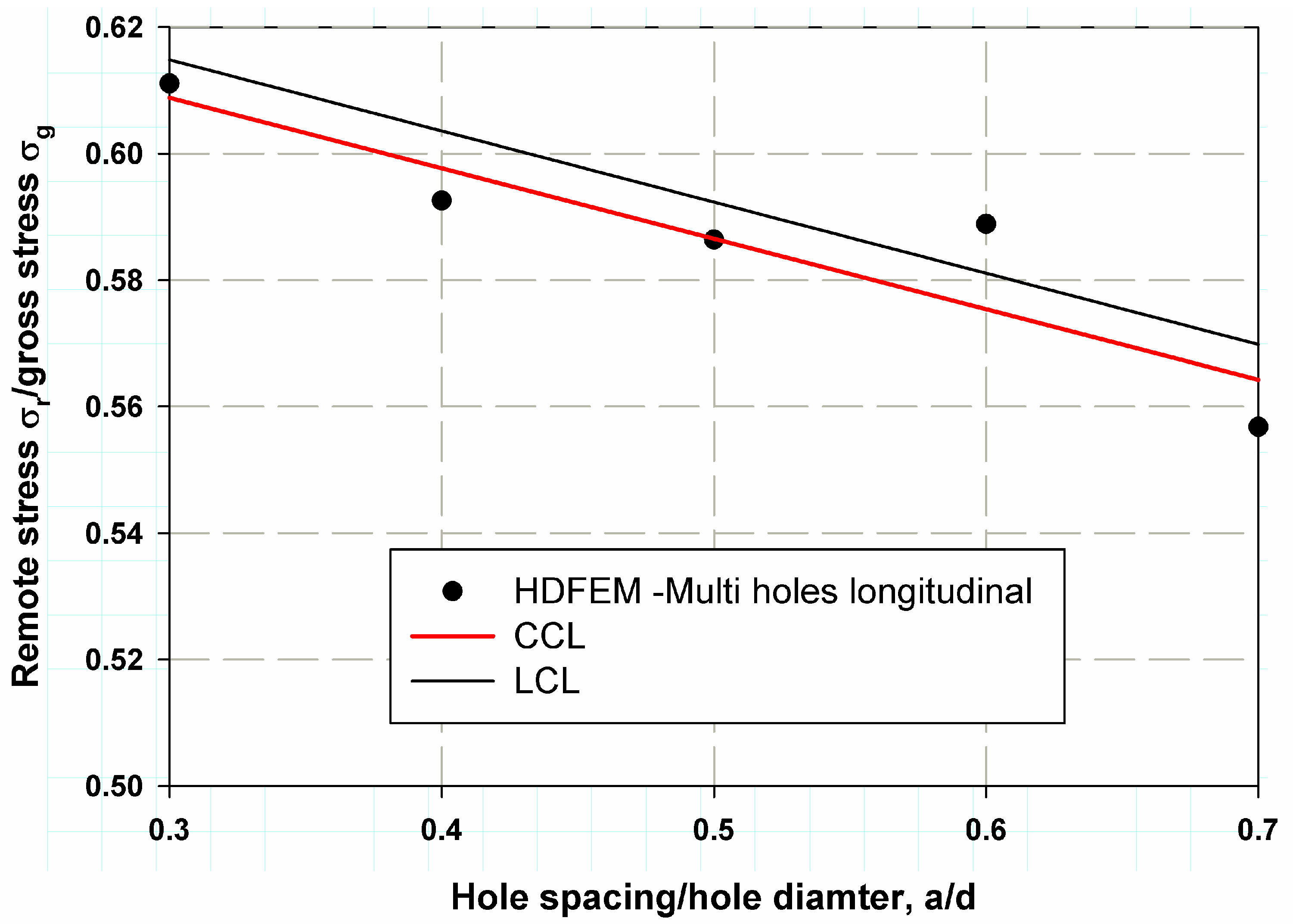

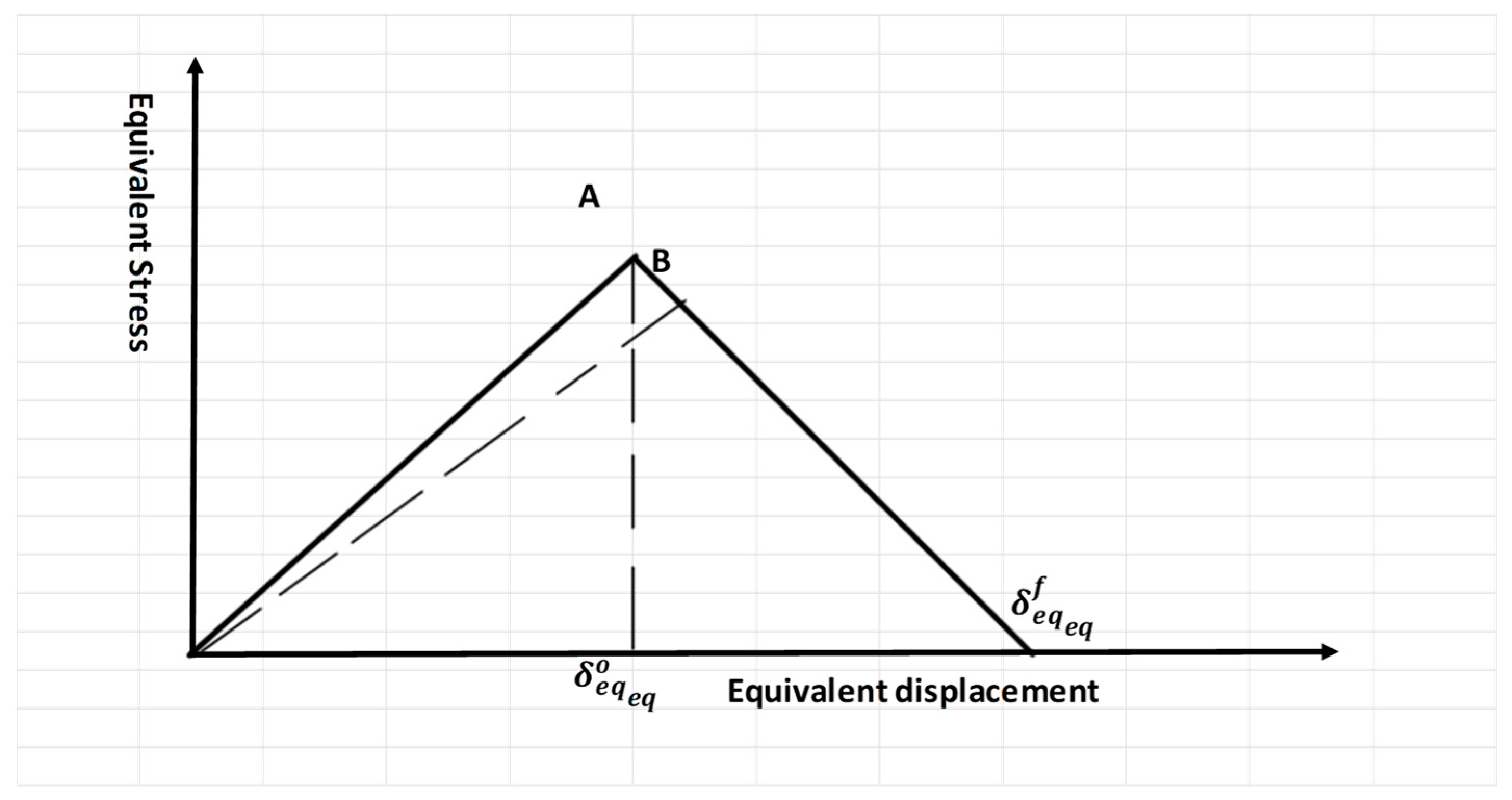

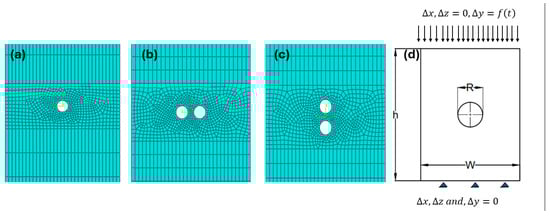

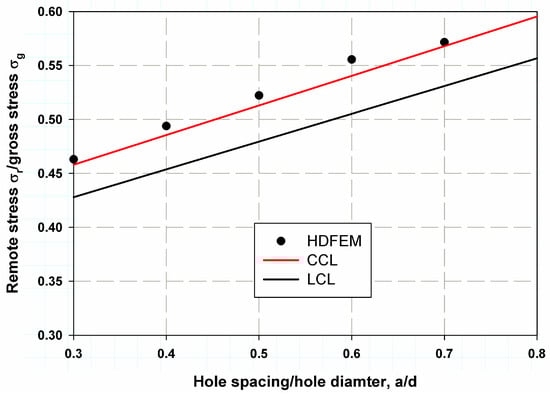

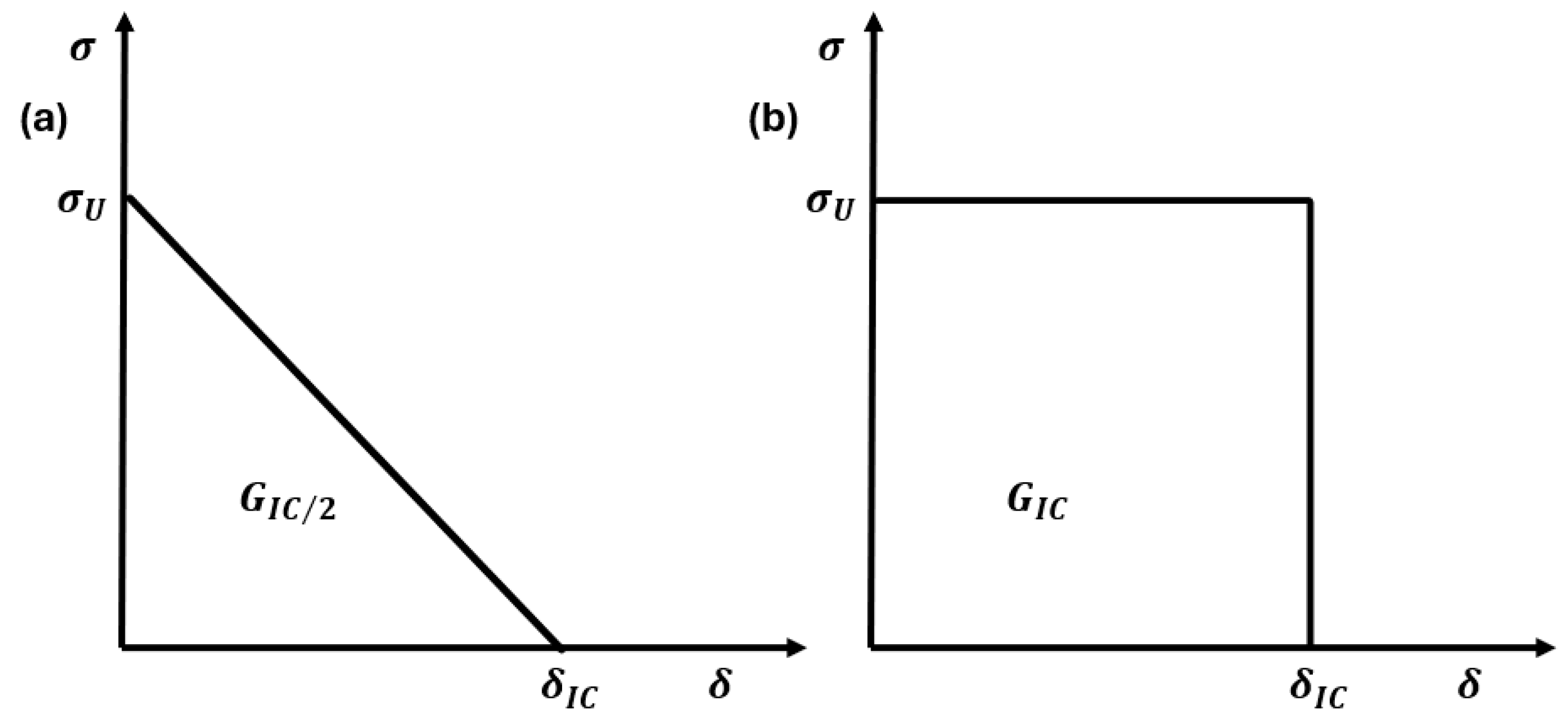

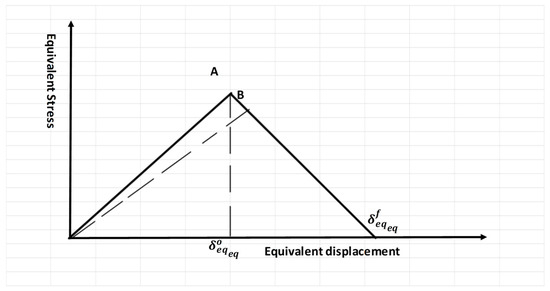

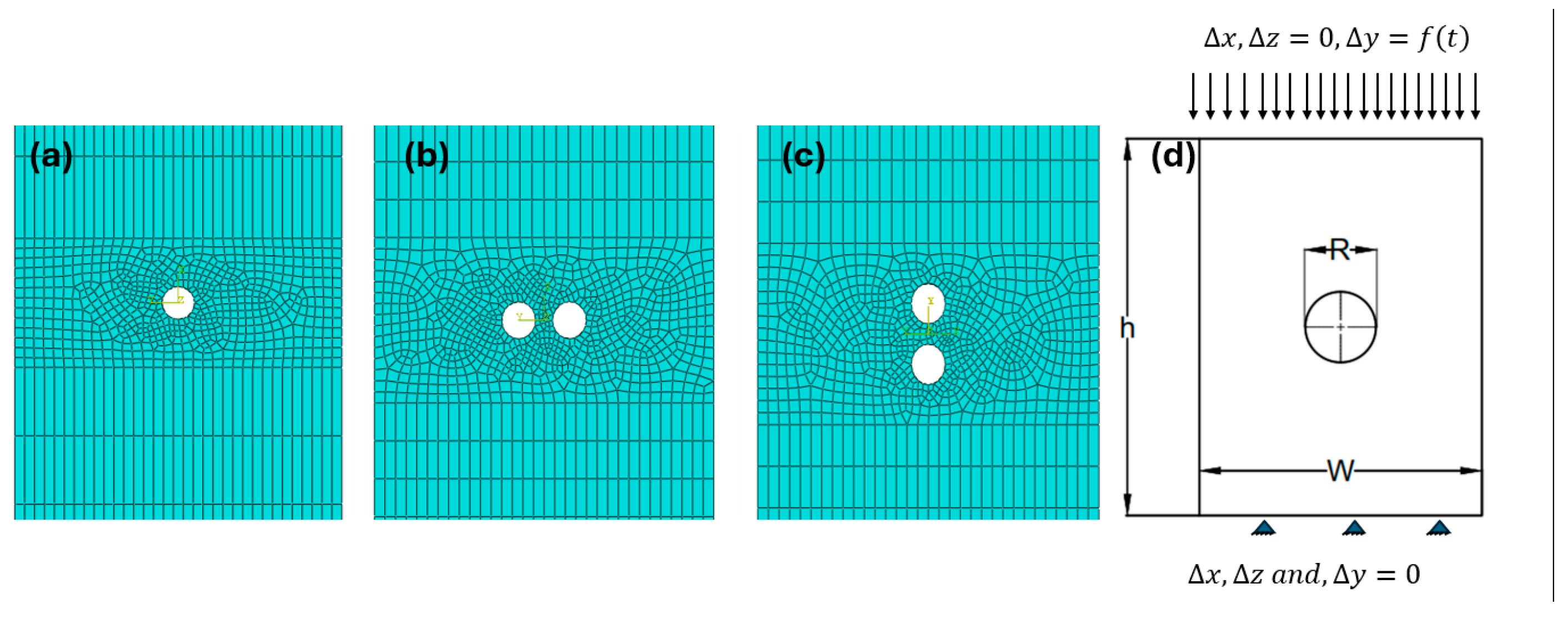

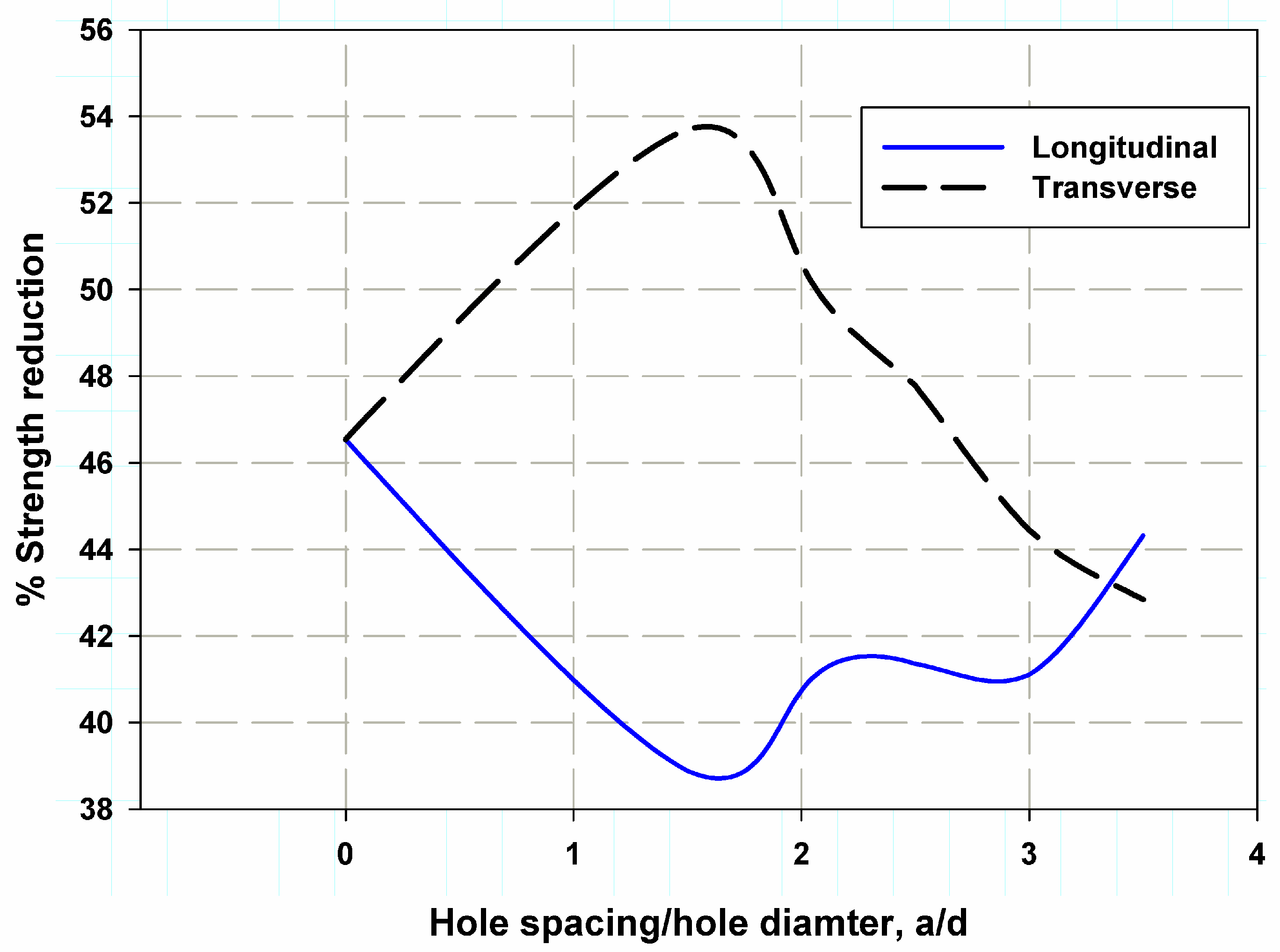

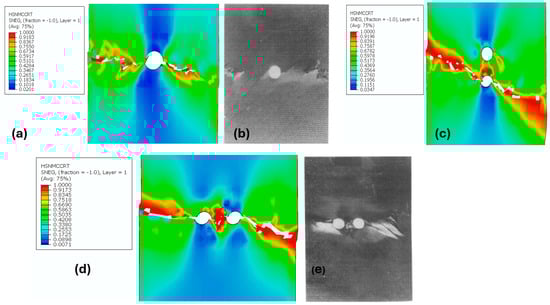

Composite materials play a crucial role in various industries, including aerospace, automotive, and shipbuilding. These materials differ from traditional metals due to their high specific strength and low weight, which reduce energy consumption in these industries. The damage behavior of such materials, especially when subjected to stress discontinuities such as central holes, differs significantly from materials without holes. This study examines this difference and predicts the damage behavior of carbon fiber composites with multiple holes using a progressive damage model through finite element analysis (FEM). Two holes were positioned along the central axis of symmetry in the longitudinal and transverse directions relative to the load. The presence of additional holes acts as a stress-relief factor, reducing stress by up to 17% when the holes are arranged in the longitudinal direction. A cohesive zone model with two parameters, including constant and linear shapes, was applied to develop a simple analytical model for calculating the nominal strength of multi-hole composite laminates, based on the unnotched plate properties of the material. The results closely match experimental findings. The data also provide design tables that can assist with material selection.
