3.2. Feasibility Verification of Displacement Equilibrium Evaluation Index

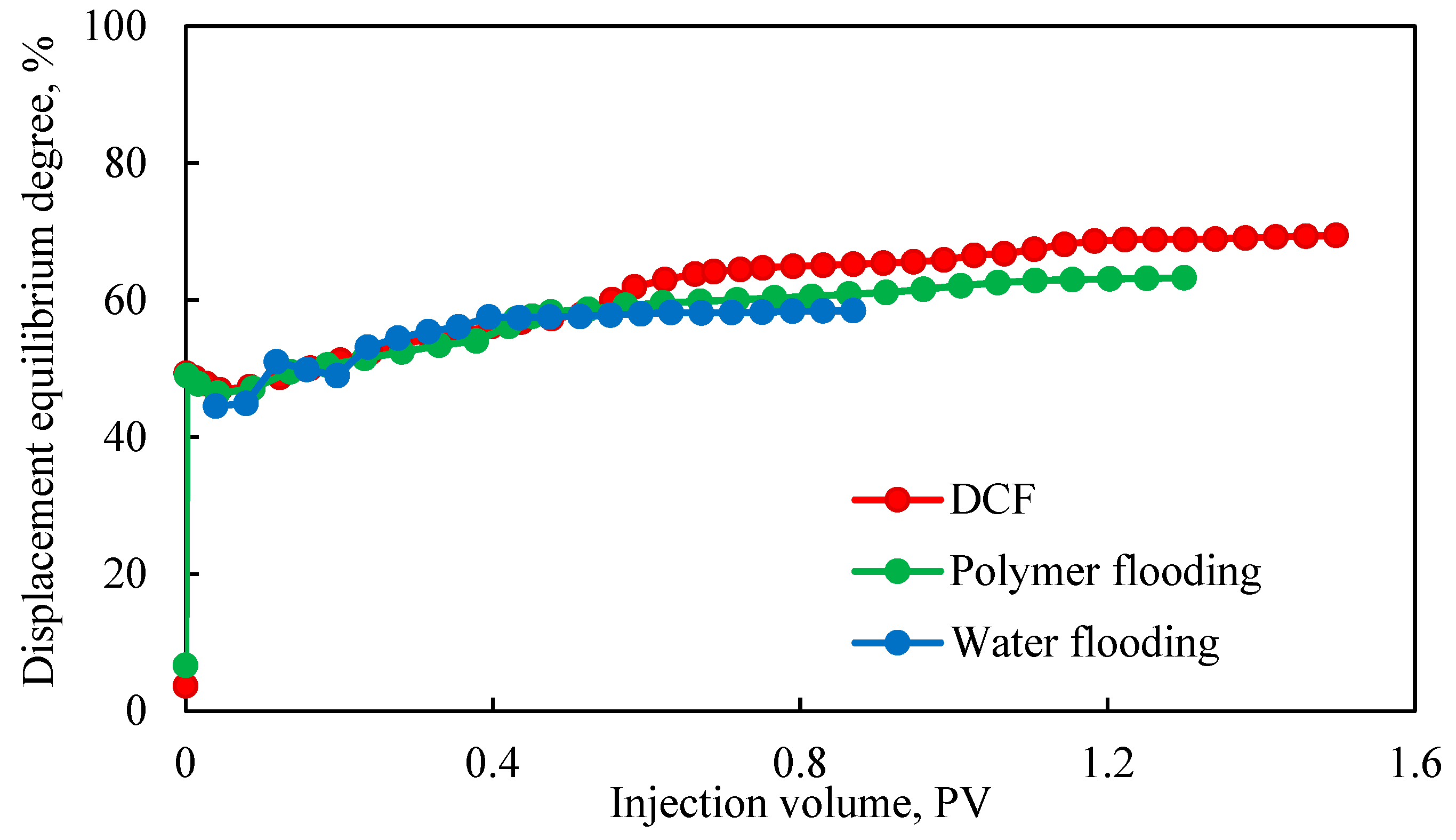

Figure 6 shows the displacement equilibrium curves for two-stage discontinuous displacement and continuous displacement. The overall curves exhibit a stepwise change: initially, only the high-permeability layers were activated, resulting in a control coefficient of 1/3, which caused the first point to be significantly lower. As displacement progressed, the medium- and low-permeability layers were subsequently activated, with a control coefficient of 1, leading to a jump in the second point. Observing
Figure 6, the equilibrium displacement degree did not show a significant increase in the water flooding scheme, yielding the smallest final equilibrium displacement degree and, consequently, the smallest corresponding recovery degree. In contrast, in the polymer flooding scheme, the equilibrium displacement degree exhibited an increase at an injection volume of 0.4 PV. The increase was because the chemical flooding started to take effect. During the DCF process, the equilibrium displacement degree showed two distinct steps at injection volumes of 0.5 PV and 1.1 PV. The injection of the second slug in DCF resulted in the reuse of the reservoir.
Table 9 presents key parameters from the three displacement experiments, revealing that discontinuous displacement can increase recovery by more than 8% compared to continuous polymer flooding, demonstrating significant enhancement effects. When comparing the final recovery and displacement equilibrium among the three experiments, it becomes evident that the recovery factor showed a more noticeable numerical difference than the displacement equilibrium, making it easier to compare the pros and cons of different schemes.
However, the displacement equilibrium index defined showed the activation of each layer through stepwise changes. As the number of small layers increased and the reservoir heterogeneity worsened, this advantage became more pronounced, making it suitable for the combined development of multilayer thick oil reservoirs offshore. Although the recovery factor showed more significant differences,
Table 8 also shows that the displacement equilibrium still had noticeable differences, though less obvious than the recovery factor, and it can still be used to compare different schemes. Therefore, the displacement equilibrium parameter proposed can be used for the subsequent optimization of discontinuous chemical flooding schemes.
3.3. Combination System Slug Size Design

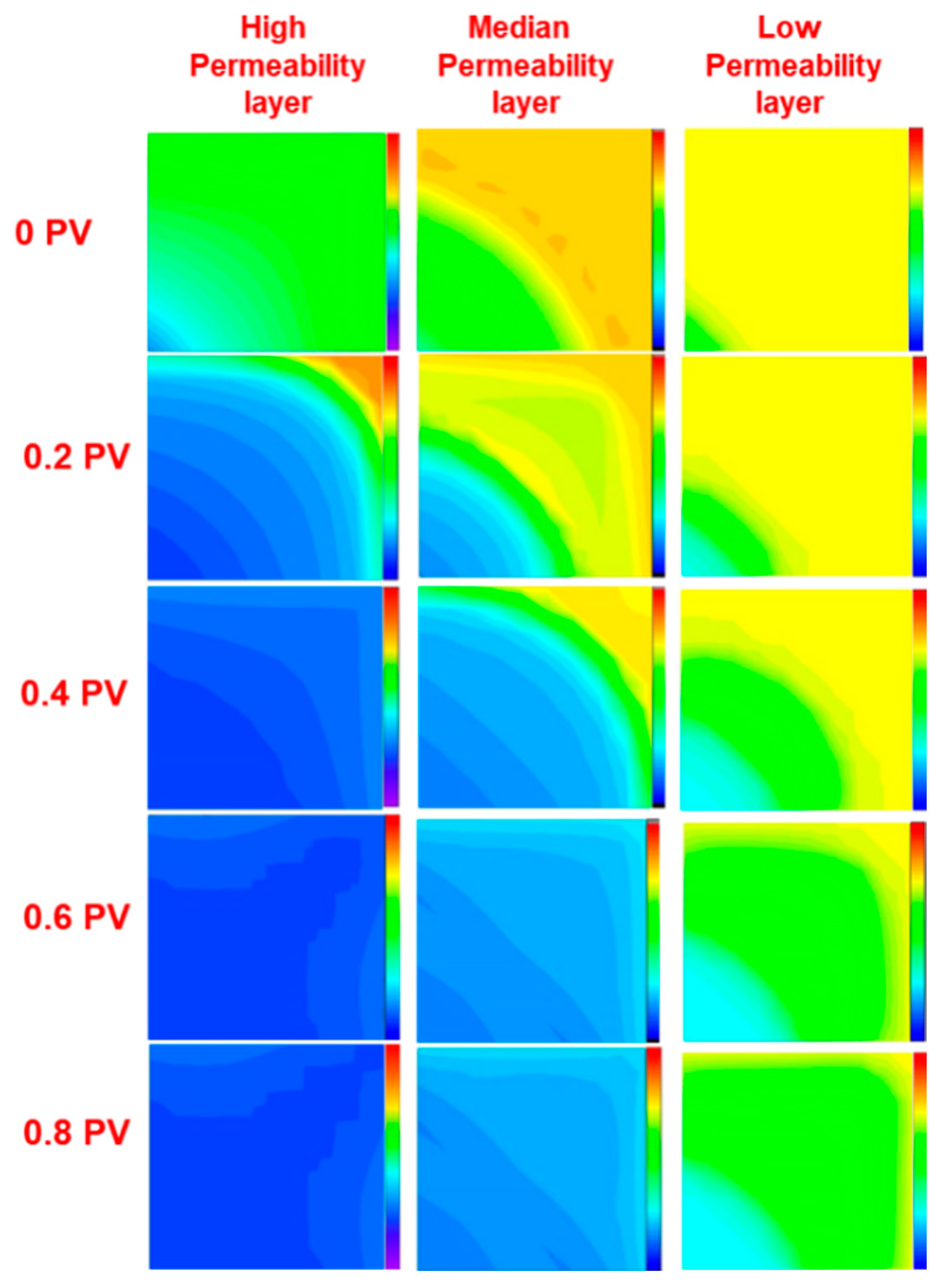

Figure 7 shows the oil saturation field maps at different injection pore volumes during the oil displacement experiment, as described in
Table 4. At 0.2 PV, the oil saturation at the outlet end of the high-permeability layer was higher compared to that at 0.1 PV. In the medium-permeability layer at 0.2 PV, the oil saturation in the main streamline exhibited a trend of increasing, slightly decreasing, and then increasing again. This trend was attributed to the accumulation of crude oil during the chemical flooding process and its gradual displacement. After 0.4 PV, dominant channels gradually formed in the high-permeability layer. Consequently, the average residual oil saturation in the high, medium, and low-permeability layers at 0.6 PV showed minimal variation compared to that at 0.8 PV, with a variation of less than 5‰. This was due to the significant development potential and high displacement efficiency observed in the early stages of polymer solution injection. However, with continued injection, the advantage of high-permeability channels became more pronounced, greatly reducing the potential sweep volume. Therefore, there was little difference in the remaining oil saturation field after 0.6 PV.
Considering that the discontinuous chemical flooding extended the effective displacement period, a slug size of 0.7 PV was chosen as the optimal injection volume for subsequent investigations. This selection maximizes the recovery improvement while mitigating resource waste.
3.4. Optimization of the Combination Method for the Profile Control System

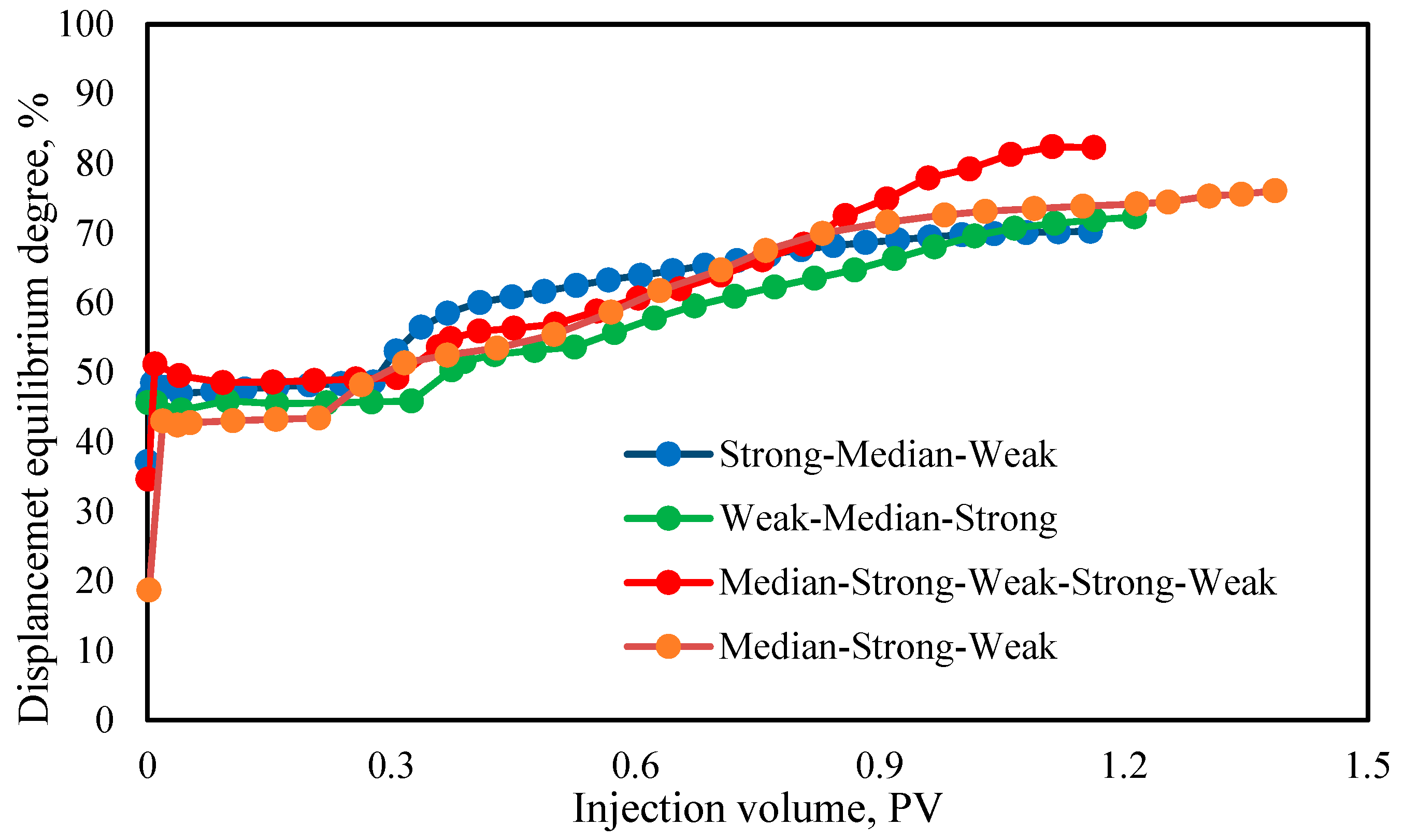

Figure 8 shows the displacement equilibrium degree curves under four different discontinuous chemical flooding combination methods. During the water flooding phase, the displacement equilibrium degree remained stable at around 50%. After the injection of the polymer solution, the displacement equilibrium degree rapidly increased and then stabilized again. Notably, each transition to a new polymer slug resulted in a discernible elevation in the displacement equilibrium degree.
For reservoirs with identical physical properties, they tended to have similar waterflooding development stages, including the affected formations and recovery degrees. Therefore, the displacement equilibrium degree during the waterflooding phase tended to be consistent among these reservoirs.
However, different chemical systems exhibited varying injectability in different formations, resulting in differential impacts on those formations when injected. Consequently, the displacement equilibrium degree exhibited varying trends.
For the strong–medium–weak combination, as the slug intensity decreased, the increase in the displacement equilibrium degree gradually weakened, due to the high-saturation oil wall formed by the strong slug during the initial stages of chemical flooding which hindered subsequent medium and weak slugs to re-coalesce the oil wall. Additionally, as production progressed, the remaining oil saturation gradually decreased, further complicating coalescence.
The displacement equilibrium degree for the medium–weak–strong combination exhibited two distinct steps. Initially, the chemical flooding coalesced the residual oil left by waterflooding, but, due to the weaker intensity of the chemical system, the growth rate was slower than that of the strong–medium–weak combination. Subsequently, the injection of the strong slug further enhanced the swept volume and coalesced the remaining oil. As production continued and the slug intensity decreased, the displacement equilibrium degree gradually stabilized.
Similarly, the weak–medium–strong combination also showed two distinct steps in the displacement equilibrium degree. Due to the different timing of slug injection, the results and growth rates of the displacement equilibrium degree differed from those of the medium–weak–strong combination.
Observing the medium–strong–weak–strong–weak combination, the displacement equilibrium degree exhibited three distinct steps. This characteristic was due to the secondary plugging of the high-permeability layer with a strong slug prior to breakthrough which facilitated the further development of the medium- and low-permeability layers, further increasing the displacement equilibrium degree.
By comparing the results of
Figure 6 and
Figure 8, the final displacement equilibrium degrees followed this order: five-stage > three-stage > two-stage discontinuous chemical flooding. Thus, the “medium-strong-weak-strong-weak” combination achieved the highest displacement equilibrium degree, indicating better displacement performance. The primary reason was that the five-stage displacement method advanced over the three-stage method by using smaller slug sizes of gel to effectively block high-permeability layers. This was subsequently followed by the utilization of polymer systems to efficiently displace oil from medium- and low-permeability layers. This approach avoids the problems of high pressure, low-permeability layer contamination, and long-term polymer channeling that could occur with large gel slugs.
The “strong-medium-weak” method resulted in the lowest displacement equilibrium degree, mainly because the gel’s blocking strength was too high, and injecting gel too early would hinder the full utilization of the remaining oil in the high-permeability layers.
The “medium-strong-weak-strong-weak” combination leveraged polymer A to fully displace high-permeability layers before using the gel to block them, allowing for the effective utilization of medium- and low-permeability layers. The alternation between strong and weak displacement helps avoid abnormal pressure increases caused by large gel slugs. Therefore, the optimal discontinuous chemical flooding combination was the “medium-strong-weak-strong-weak” configuration.
3.5. Optimization of the Best Switching Timing for the Profile Control System Combination

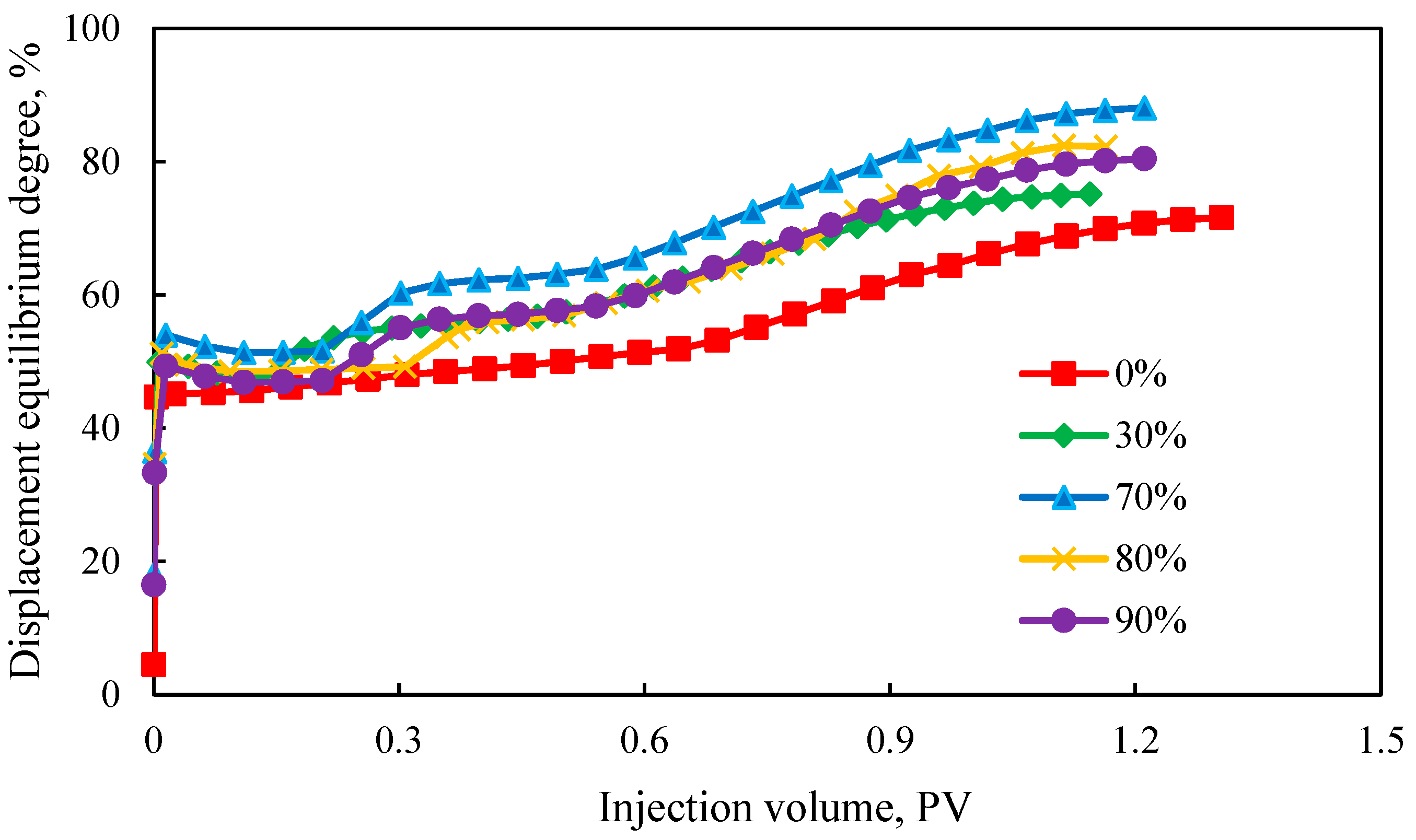

Figure 9 displays the displacement equilibrium degree curves under five distinct switching timings. The primary distinction among the various design schemes lied in the timing of chemical injection which resulted in varying residual oil saturation levels after waterflooding. However, the chemical systems and slug sizes remained consistent, leading to similar shapes in the displacement equilibrium degree curves. However, the rates of increase in the displacement equilibrium degree varied among different injection timings, due to the different distributions and saturation states of residual oil under different injection timings which affected the interaction and coalescence between the chemical agents and the crude oil. It can be observed that the highest displacement equilibrium degree, and, thus, the best displacement performance, occurred when the switching timing was at a 70% water cut. Conversely, the lowest displacement equilibrium degree, and the worst oil recovery factor, was observed when the switching occurred at a 0% water cut.
Switching to polymer flooding too early means that the full potential of water flooding is not exploited, resulting in a high oil saturation in the reservoir. This causes a rapid increase in injection pressure. Once channeling occurs in the high-permeability layers, mobilizing medium- and low-permeability layers becomes even more challenging. Additionally, switching too early significantly increases production costs. Conversely, switching too late results in a low oil saturation in the reservoir, with residual oil forming as oil films in small pores, making it difficult for the injected polymer solution to displace the oil.
Therefore, switching the polymer flooding system too early or too late is not beneficial for improving oil recovery. The optimal switching timing for discontinuous polymer flooding should be when the water cut is between 70% and 90%.
3.6. EOR Effect of Discontinuous Chemical Flooding

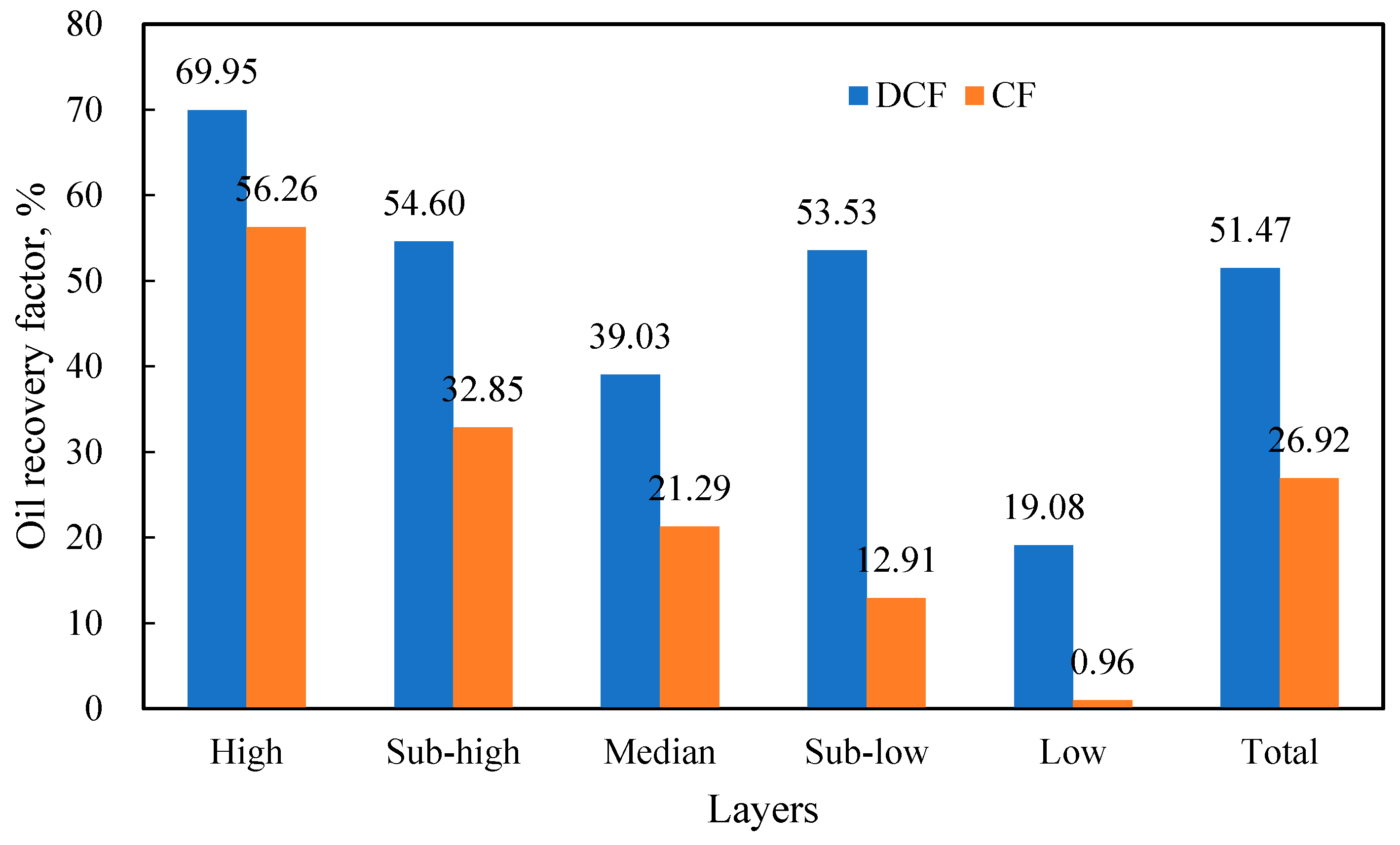

Figure 10 compares the recovery factor of various layers in the five-tube parallel flooding experiments, utilizing discontinuous chemical flooding (DCF) and continuous chemical flooding (CF). The DCF achieved a final oil recovery factor of 51.47%, representing an increase of 24.55% compared to CF. This enhancement was primarily attributed to improved mobilization in the medium- and low-permeability layers. CF primarily mobilized high and secondary high-permeability layers, whereas DCF not only enhanced the recovery in high-permeability layers, but also significantly improved the mobilization in medium- and low-permeability layers. Notably, in DCF, the recovery factor of the medium-permeability layer was lower than that of the second-lowest permeability layer, due to gel contamination. This indicates that stronger gel plugging should only be applied after sufficient mobilization of the medium-permeability layers to prevent channeling.
Analyzing the above in conjunction with
Figure 11, during the DCF process, the primary production phase for the sub-high permeability layer occurred during the initial slug injection. However, this initial strong slug effectively sealed off the sub-high permeability layer, resulting in suboptimal subsequent production. Conversely, the injection of two strong slugs blocked higher permeability layers, providing the sub-low permeability layer with two production opportunities. Consequently, the oil recovery of both layers is comparable.
Figure 11 compares the flow rate allocation between DCF and CF for each layer in the five-tube parallel flooding experiment. During the initial injection of polymer A, the flow rate in the high-permeability layer decreased to around 50%, enhancing mobilization in the medium- and low-permeability layers. However, continuing injection of a single slug system could revert the profile, with the high-permeability layer’s flow rate significantly increasing again. After the first gel slug injection in DCF, the flow rate in the medium-permeability layer improved significantly, but it subsequently fell below that of the second-lowest permeability layer. This observation supports the hypothesis of gel contamination in the medium-permeability layer. DCF effectively optimized the flow rate curves at each stage. Although no oil was ultimately recovered from any layer, the high-permeability layer’s flow rate remained below 80%, demonstrating its sustained effectiveness. The improvement of the injection and production profile in heterogeneous reservoirs is the key reason for the enhanced oil recovery achieved by DCF.
Upon injection of the chemical system in CF, the flow rate of the high-permeability layer decreased to approximately 50%. However, this effect was not sustained for a long period. The flow rate of the high-permeability layer significantly increased again at 0.4 PV, while the flow rates of the other layers remained below 15%. Based on this analysis, it is concluded that, in strongly heterogeneous multilayer reservoirs, the effectiveness of CF in improving the water injection profile is limited.

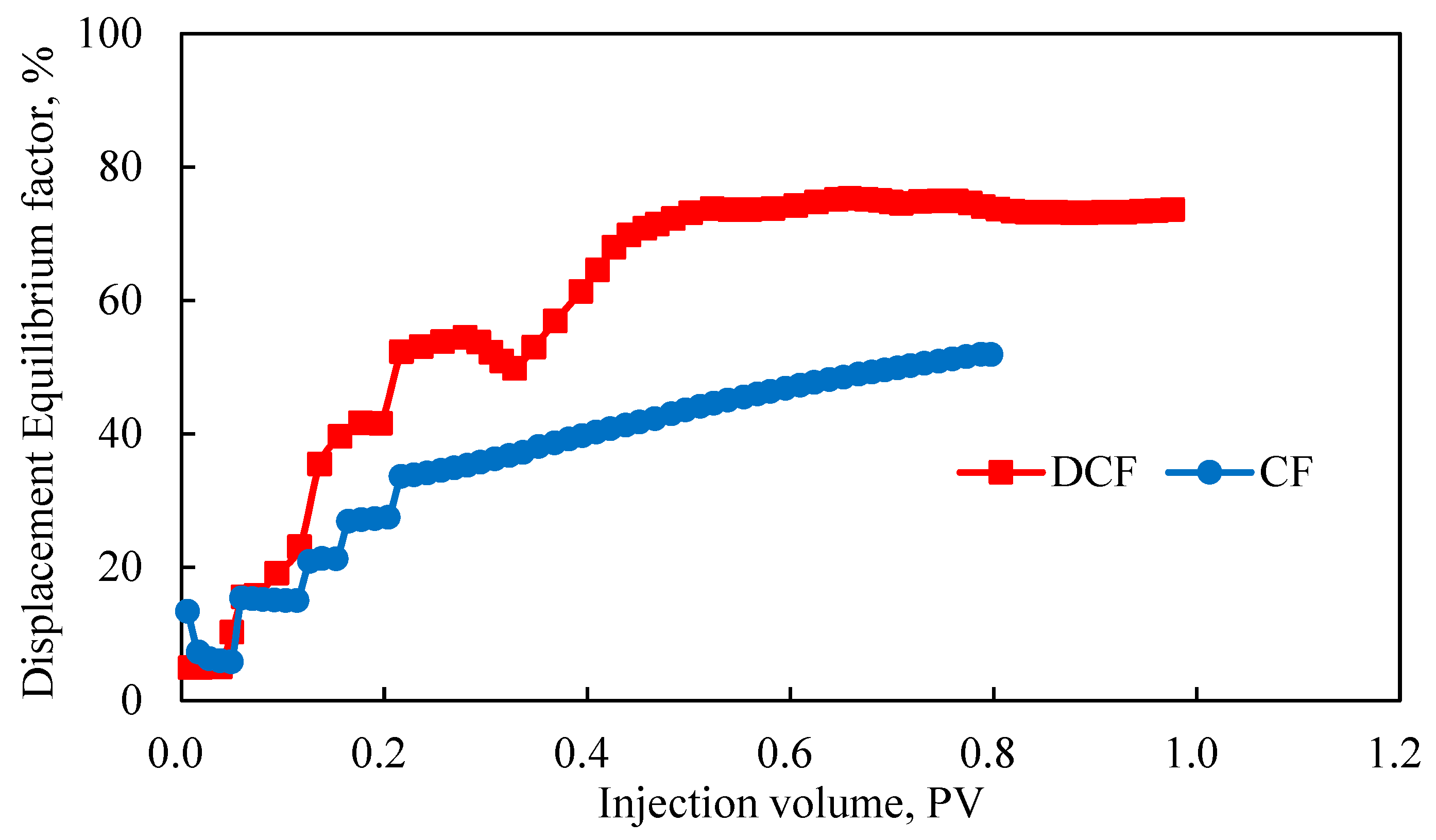

Figure 12 presents a comparison of the displacement equilibrium degree for DCF and CF. The stair step pattern in the displacement equilibrium was more pronounced in the five-tube parallel flooding experiment. These curves distinctly showcase the activation of each layer. Initially, both DCF and CF exhibited similar displacement equilibrium degrees. However, during the continuous injection of polymer A, CF’s equilibrium degree increased slowly, whereas DCF’s equilibrium degree improved significantly. The observed decline in DCF’s displacement equilibrium stemmed from the widening gap between the overall recovery factor and the maximum recovery factor which is linked to the rapid mobilization of the high-permeability layer. The displacement equilibrium degree was influenced by two factors: the number of mobilized layers and the variations in mobilization among these layers. Throughout the CF process, the displacement equilibrium was clearly delineated into five stages, aligning with the data presented in
Figure 11. These stages represent the sequential utilization of the five reservoir layers, leading to a gradual increase in the displacement equilibrium. As the displacement process progressed, the equilibrium exhibited a gradual increase before leveling off. This was mainly due to the oil recovery of the high-permeability layer, namely the maximum oil recovery, reaching over 50%, thereby constraining a further increase. Simultaneously, the growth rate of the comprehensive oil recovery also gradually decreased. These two factors interact, collectively shaping the final contour of the displacement equilibrium curve.
Ideally, all layers in DCF are mobilized (with the control coefficient of 1) and exhibit uniform recovery factors (with the homogeneity coefficient of 1), achieving a maximum equilibrium degree of 100%.
Figure 12 affirms that displacement equilibrium serves as a valuable tool for assessing the efficacy of various displacement schemes and underscores the notable advantages of DCF.
