Phenotypic Analysis of Germination Time of Individual Seeds Affected by Microenvironment and Management Factors for Cohort Research in Plant Factory

Abstract

Plant phenotyping plays a crucial role in understanding variations in the phenotype of individual plants affected by environment, management, and genotype. Measurement of seed germination is an important phenotyping stage as germination impacts on the whole plant growth process. However, germination measurement has been limited to germination percentage of a seed population. Understanding of the germination time, from sowing to outbreak of the radicle from seed coat, at a single seed level is essential. How individual germination time and further plant growth are affected by its microenvironment and management factors remains elusive. Plant phenotype measurement system was developed to assess individual germination time of romaine lettuce (Lactuca sativa L. var. longifolia), using time-series two-dimensional camera images, and to analyze how microenvironment (volumetric water percent in seed tray, individual seed surface temperature and air temperature) and management factors (coated/uncoated seeds) affect the germination time for plant cohort research, emphasizing practicality in commercial cultivation. Germination experiments were conducted to demonstrate the performance of the system and its applicability for a whole plant growth process in a plant factory for commercial production and/or breeding. The developed phenotyping platform revealed the effects of microenvironment and management factors on germination time of individual seeds.

1. Introduction

Understanding how microenvironment and management factors affect variations in germination time of individual seeds is an important step towards robust and consistent agricultural productions. Variations in the traits (i.e., phenotypes) of individual plants are attributable to mainly three factors: environment, genotype (specific to species and cultivar), and management (human and/or machine intervention), including seed treatments. Plant phenotyping plays a crucial role in understanding these interactions [1,2]. Plant phenotyping is a set of methodologies and protocols used to study plant growth, performance, architecture, and composition at different scales of organization, from organs to canopies, and it reveals the plant trait dynamics in a non-invasive and non-destructive manner [1,2,3,4]. These measured traits may display macro- and micro-environmental variations [5]. Over the past years, the focus has been put on developing high-throughput accurate and rapid phenotyping systems together with image processing algorithms, which possesses potential to be adapted also for the study under controlled environmental conditions [1,6,7].

Plant factory with artificial lighting (PFAL) is a closed plant production system, with an almost airtight and well-insulated structure, which allows increased resource utilization efficiency under a precisely controlled environment to produce high quantities of high quality plants year-round, completely independently of outdoor conditions [8,9,10,11,12,13,14]. However, despite the highly controlled environment in PFAL, the variations in plant individuals have been found specifically at the time of harvesting, urging the development of a new phenotypic analysis platform [2,15].

Seed germination is one of the most important initial stages of plant growth, and the ecophysiological status of germinated seeds has an impact on the subsequent plant growth process [2,16]. Germination is generally defined as emergence of the radicle through the surrounding structure after water uptake by the seed [17,18]. Germination time from sowing to outbreak of the radicle from seed coat (germination time hereafter) and its uniformity of seeds are essential for plant growth, as they consequently affect the productivity of plant production. Plant seeds have complex phenotypes that are difficult to quantitatively assess [19]. Therefore, measurement of seed germination is one of the important initial stages of plant phenotyping.

Measurement of seed germination has gained much attention from plant growers, seed scientists, and other plant biologists. Seeds from different individual plants, populations, seed lots and treatments all influence germination percentages, speed, and uniformity [16]. Germination time provides valuable information about the favorability of germination conditions [18]. In order to achieve uniform harvests, it is important to identify the causes of the variations in seed germination time and eliminate those factors that contribute to the variability [2]. The time course curves produced in seed germination tests provide considerable information about germination time and its uniformity of seeds [17].

However, measurement of seed germination has been limited to the germination percentage over a population of seeds that have completed germination at a given time, but not the germination time of an individual seed [17]. Indeed, the outputs of various measurement methods of seed germination that have been adopted for many years have been a mean or median of germination time or percentage of specific seed lots. The past studies have indicated the limitations of these methods [16,17,20,21]. To achieve accurate quantification of germination, there have been studies including high-throughput automatic scoring and evaluation of germination [22,23]. However, how microenvironment and management factors affect germination time of individual seeds and subsequent plant growth has not been investigated in detail. In order to elucidate the individual phenotype variations, it is essential to measure germination time of individual seeds and to analyze how microenvironment and management factors affect individual germination time and subsequent plant growth.

In this study, a plant phenotype measurement system was developed to assess germination time (GT) of individual seeds of romaine lettuce (Lactuca sativa L. var. longifolia) in seed trays each with 300 seeds, using time series data on two-dimensional (2D) camera images, and to analyze each germination time as affected by its surrounding microenvironment (volumetric water percent of the substrate in each tray, individual seed surface temperature and air temperature) and management factors (coated and uncoated seeds) of individual seeds. Using this system, plant cohort research was conducted in this study as an initial stage of the whole plant growth process. The modular system was designed with an emphasis on practicality and scalability in commercial plant production in PFALs. This system achieves low cost with small cameras and sensors, along with cultivation method similar to the one in commercial PFALs. Experiments on germination were conducted to demonstrate the performance of the system and its applicability for a whole plant growth process in a PFAL for large-scale commercial production and/or breeding. This present study is part of and will contribute to a broader plant cohort research project.

In the plant cohort research, the life cycle phenome history of individual plants can be measured continuously and noninvasively, and analyzed from seed sowing to harvesting by using phenotyping units, along with the time course data on environment, management, and resource inputs/outputs in PFAL [2,11,12,24]. Plant cohort refers to a relatively large group of plant individuals with a statistical factor (such as cultivar, planting density, and cultivation system) in common with the plants in a PFAL for commercial plant production and/or breeding [2,11,12,24]. For the plant cohort research, the time series data sets in the data warehouse (DWH) can be used, which leads to identification of an optimal set points of environmental factors for maximizing multi-objective function, and concurrently improve plant productivity and breed new cultivars in PFAL [2,11,12,24].

Through this study, germination time of individual seeds were obtained from time series 2D camera images by using the developed plant phenotype measurement system as an initial stage of the plant cohort research in PFALs. Furthermore, the phenotyping platform revealed the effects of microenvironment and management factors on germination time of individual seeds.

2. Materials and Methods

2.1. Description of the System

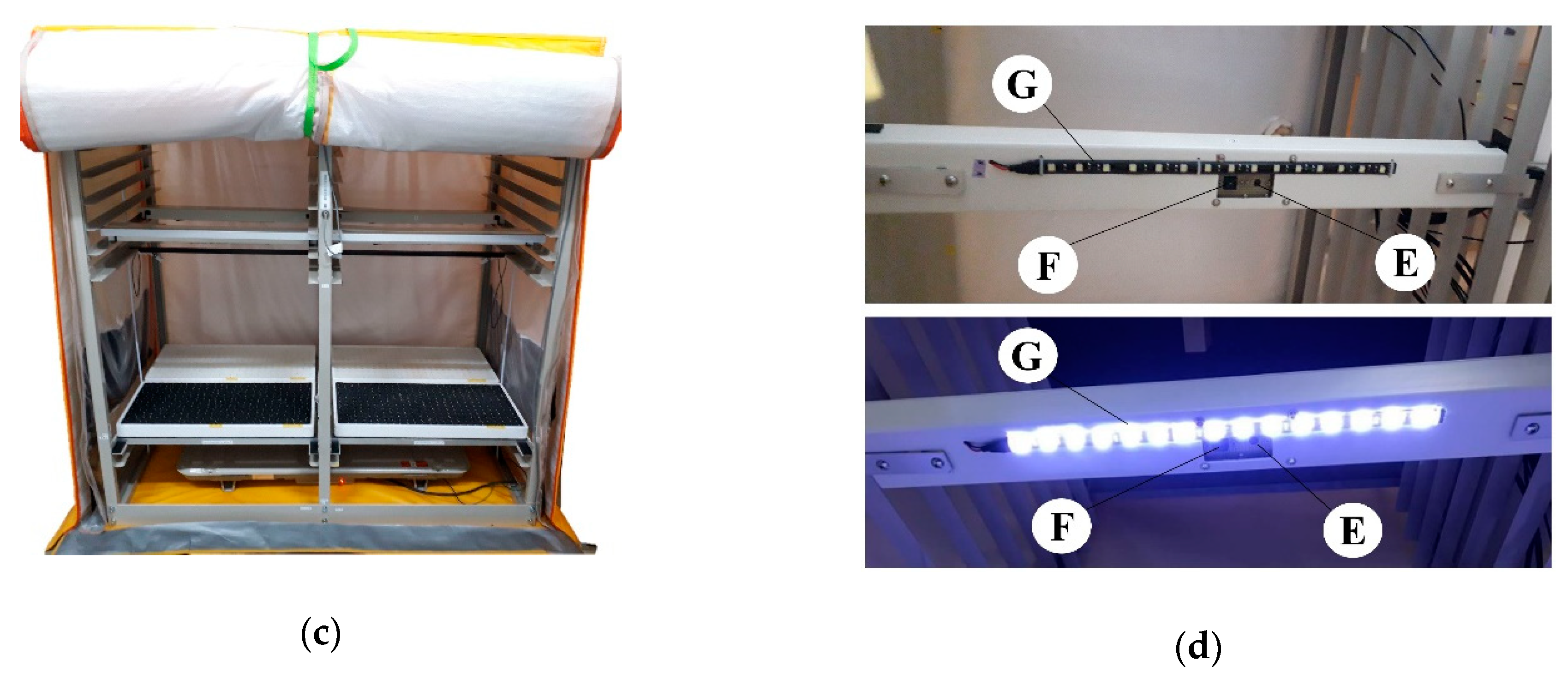

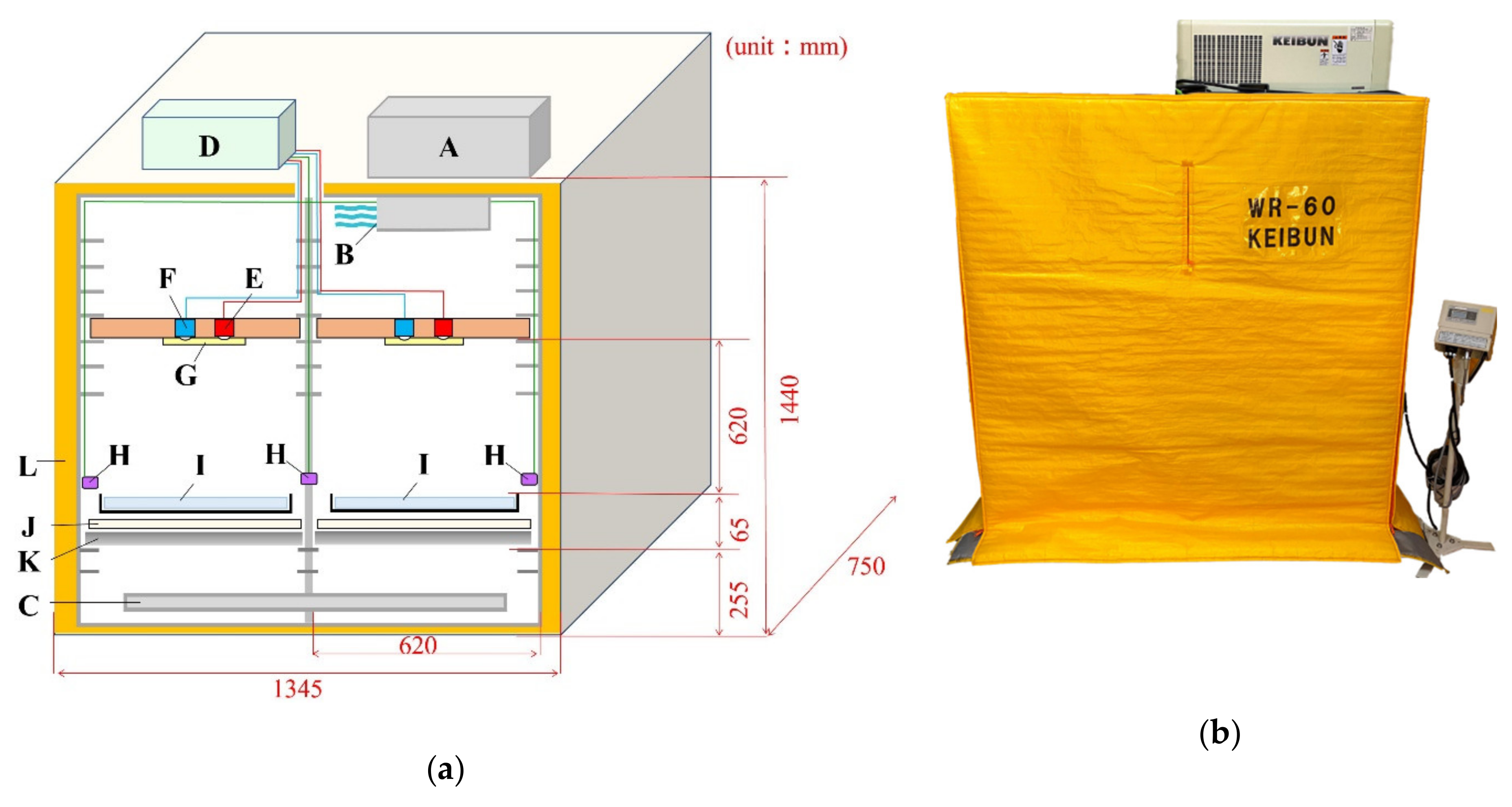

A germination container box (GCB) equipped with phenotyping and microenvironmental sensing units was designed and developed (Figure 1). GCB consists of five major units and parts: temperature control (A–C), phenotyping (D–G), sensors (H), cultivation (I–K), and an exterior box frame (L) (Figure 1a). The original GCB (WR-60CHL-S; Keibunsha Seisakusho, Hiroshima, Japan) was composed of an air conditioner, air outlet of air conditioner, and electric heater, which were built in an exterior box with frame (A, B, C, and L, respectively; Figure 1a,b).

Phenotyping and microenvironmental sensing and cultivation units were additionally installed to GCB; newly installed items include a control board (Raspberry Pi 3 Model B; Raspberry Pi Foundation, Cambridge, United Kingdom) (×4), red-green-blue (RGB) camera (Raspberry Pi Pi NoIR Camera Module V2; Raspberry Pi Foundation, Cambridge, United Kingdom) (×4), thermal camera (FLIR Lepton 3.5; FLIR Systems, Inc., Wilsonville, OR, USA) (×4), white light emitting diode (LED) for flash of RGB camera (15 white LED tape, 300 mm) (SOF-15W-30-3SMD; Tokulumi Co., Ltd., Kwai Chung, Hong Kong) (×4), air temperature/relative humidity sensor (AM2302; Guangzhou Aosong Electronics Co., Ltd., Guangzhou, China) (×4), seed tray with substrate (seed tray) (605 × 300 × 42 mm) (×4), acrylic plate (thickness: 3 mm), and reinforcement bar (thickness: 20 mm) (D, E, F, G, H, I, J, K; Figure 1a).

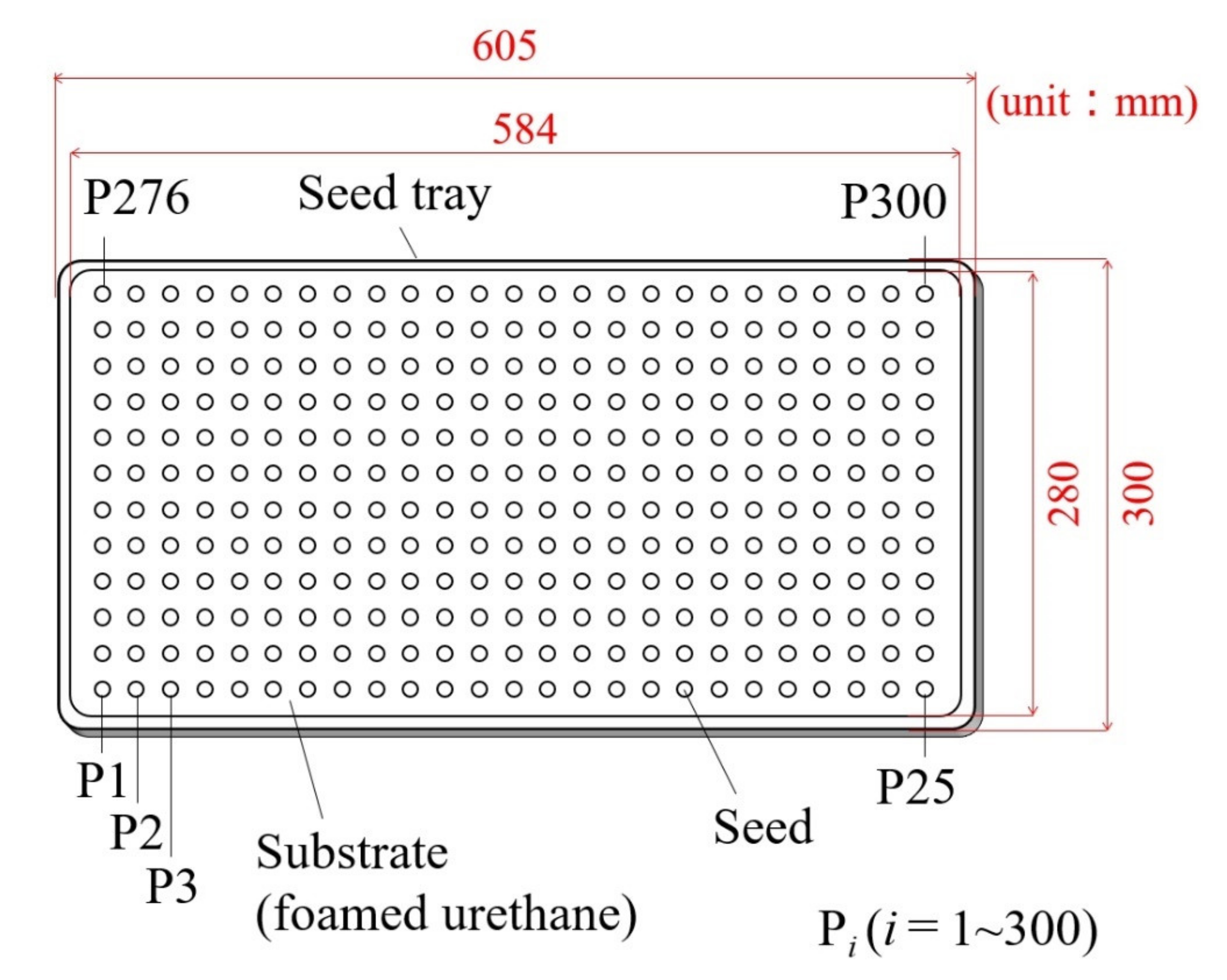

The phenotyping units, sets of RGB camera, thermal camera (160 × 120 pixel, with temperature measurement function), and LED were installed 620 mm above the surface of each seed tray (Figure 1c,d). As emphasizing the design principle for the phenotyping unit, cost-effectiveness and compactness were given priority for the selection of the cameras, with a vision to ultimately apply to commercial production in PFALs and breeding. Air temperature/relative humidity sensors were setup in the upper right/left of the cultivation trays. The cultivation unit contains space for four seed trays, designed to maintain consistency of each tray’s location. Each substrate in the seed tray consists of 300 (=25 × 12) foamed urethane cubes, each with a hole of 11.5 mm in diameter and 6 mm in depth. All seeds in each tray are numbered in accordance with the position in the seed tray (P_i (i = 1~300)) (Figure 2). By using the air conditioner and electric heater built in the GCB, air temperature inside the GCB can be controlled within the range of 10 to 40 °C.

2.2. Phenotyping and Microenvironmental Sensing Units

For unification and analysis of time series data, a DWH was built [25] and further modified to improve operability. Each RGB camera, thermal camera, LED, and air temperature/relative humidity sensor (phenotyping and microenvironmental sensing unit) is connected to each control board and designed to be activated at specified time intervals (the shortest possible period of every one minute). All data obtained from phenotyping and microenvironmental sensing units are automatically sent to the DWH through the control boards.

To derive GT of individual seeds, the RGB camera was used to acquire time series 2D image data. The thermal camera was applied to obtain time series data of seed surface temperature of individual seeds (SST). Prior to installing thermal cameras, calibration was performed using thermocouples. With the thermal camera, 19,200 pixels/surface temperatures of substrate per image are acquired. The system was programmed to extract SST (300 pixels per image/seed tray) automatically from the original thermal image. All SST data are assigned with consecutive seed numbers in the seed tray (P_i (i = 1~300)) (Figure 2).

2.3. Germination Time (GT) Acquired from RGB Image

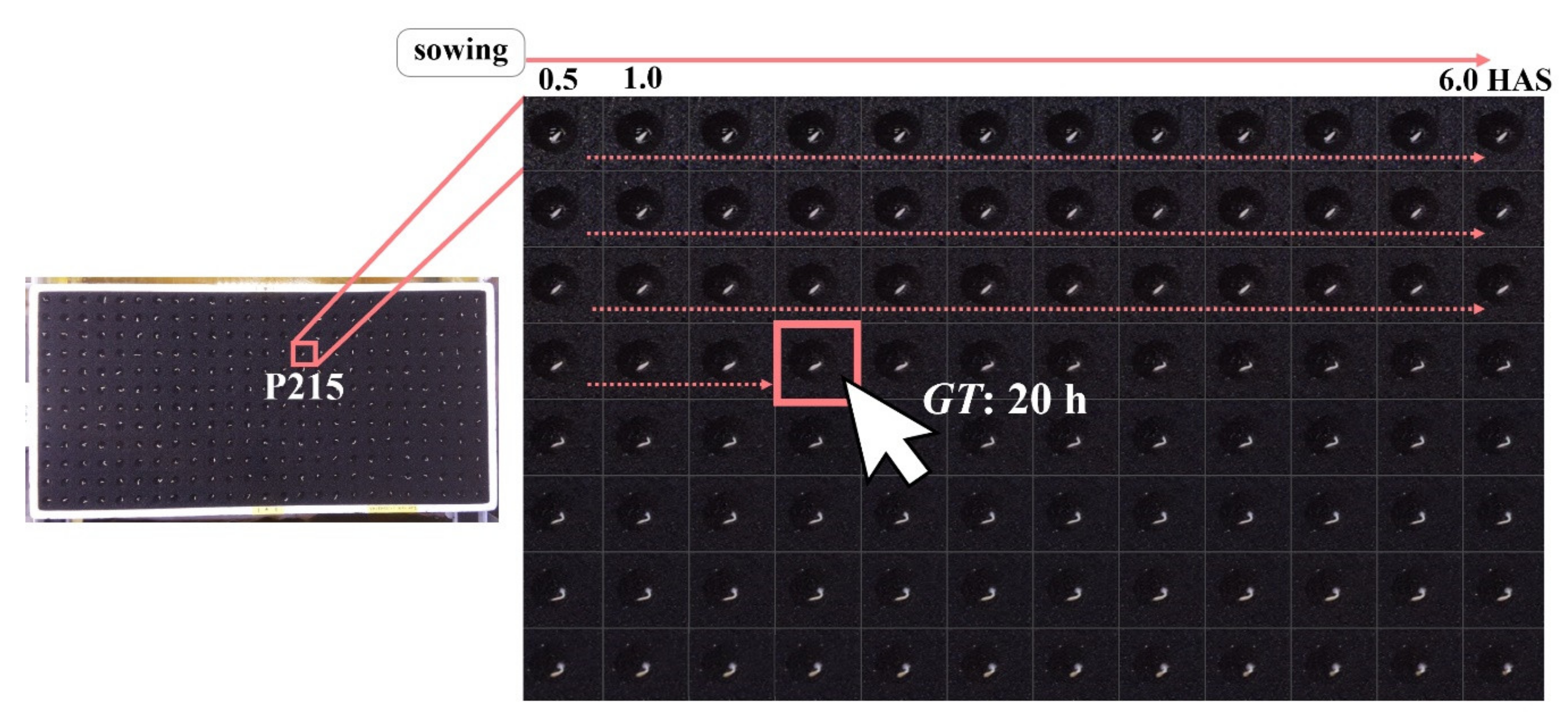

GT of individual seeds were acquired from time series RGB images. Figure 3 shows the process of deriving GT from RGB images. Representative images with 0.5 h intervals are shown. The time series RGB images of seed trays were continuously obtained from the RGB camera at set intervals and then sent automatically to the DWH (Figure 3). One RGB image covers one seed tray that contains 300 seeds on a foamed urethan substrate (Figure 3). Each RGB image of seed tray is processed to be divided into 300 images of individual seeds. Then, these time series RGB images of each individual seed are re-sequenced in a chronological order (Figure 3).

To determine GT, the RGB image of a germinated seed was selected among the time course images of each seed (Figure 3). Binary judgement was made to all the RGB images to identify the presence (T) or absence (F) of germination, i.e., annotation. The decision criteria for the presence of germination were set as when approximately 1-mm-long root/radicle, extending from the outer seed coat or cracked coating, was observed. In addition to determining germination by RGB images, ground truth measurements from all actual seeds at 48 h after sowing (HAS), hours of imbibition/water absorption, were conducted to confirm or correct the original binary classification/annotation. The GT and binary classification/annotation data together with RGB image data were output to CSV files as data sets along with environment and management data.

2.4. Experimental Design

2.4.1. Data Acquisition

To demonstrate the performance of GCB with phenotyping and microenvironmental sensing units, experiments were conducted from seed sowing to 48 HAS (germination stage). For this experiment, the actuation time of the RGB camera, air temperature/relative humidity sensor and thermal camera were set at every 0.5 h, 0.17 h (10 min), and 48 h, respectively.

During the single germination stage, 96 RGB images (0.5 h × 48 h) per seed tray were obtained by each RGB camera. Twenty-eight thousand and eight hundred data sets with RGB images (300 seeds/seed tray × 96 RGB images), together with annotation data, GT of 300 seeds, and microenvironment and management data can be obtained from the single seed tray from one germination experiment. If four seed trays were used at once in GCB, 115,200 data sets (28,800 × 4 seed trays) can be obtained from a single experiment.

2.4.2. Variables and Symbols

List of symbols and variable names are described in

Table 1. List of symbols, variable names with descriptions and units.

Symbol	Variable name/Description	Unit
AT	Air temperature inside the germination container box (GCB)	°C
$\overline{AT}$	Average AT at 48 h after sowing (HAS)
C	Coated seed	-
GP	Germination percentage per 300 seeds 48 HAS	%
GR	Hourly germination rate of individual seed (inverse of GT)	h−1
$\overline{GR}$	Average GR per 300 seeds (GP divided by $\overline{GT}$)	% h−1
GT	Germination time course (from seed sowing to outbreak of the radicle from seed coat) of individual seed	h
$\overline{GT}$	Average GT per 300 seeds
SST	Seed surface temperature of individual seed	°C
$\overline{SST}$	Average SST per 300 seeds 48 HAS
SAT	Setpoint air temperature of GCB	°C
U	Uncoated seed	-
VPNS	Volumetric percentage of nutrient solution in seed tray	%

. Besides GT and SST, average GT per 300 seeds in a seed tray ($\overline{GT}$), and average SST per 300 seeds in a seed tray 48 HAS ($\overline{SST}$) were calculated, respectively. Volumetric percentage of nutrient solution in seed tray (VPNS) was quantified, but not for each substrate for individual seeds in this study. Setpoint air temperature of GCB (SAT), air temperature inside the GCB (AT) and average AT at 48 HAS ($\overline{AT}$) were also collected. The germination percentage (GP) was calculated by the number of germinated seeds per 300 seeds in a seed tray 48 HAS. Furthermore, hourly germination rate (speed of germination) (GR) and average GR per 300 seeds in a seed tray 48 HAS ($\overline{GR}=GP/\overline{GT}$) were determined. For the data analysis of experimental results, software R, a language and environment for statistical computing and graphics, was used [26].

2.4.3. Plant Material and Culture Conditions

To analyze GT as effected by its surrounding microenvironment and management factors, experiments on seed germination were carried out with a focus on altering air temperature (SAT) and volumetric water/nutrient solution percent in seed tray (VPNS), considering the two major elements for germination to occur: temperature and water [17,20]. Thus, as shown in

Table 2. Experimental design (see Table 1 for abbreviations).

Treatments		Measured	Calculated
(1)	SAT: 12 °C, 16 °C, 20 °C, 24 °C, 28 °C, 32 °C, 36 °C, 40 °C	GT, $\overline{GT}$ SST, $\overline{SST}$ AT, $\overline{AT}$ GP	GR, $\overline{GR}$ CVt (St/$\overline{GT}$) CVt (St/$\overline{SST}$)
	VPNS: 86%
	Seed type: U and C
(2)	SAT: 20 °C
	VPNS: 77%, 82%, 86%
	Seed type: U and C

, two kinds of experiments, altering either (1) SAT or (2) VPNS during the germination stage, were conducted: (1) SAT of 12 °C, 16 °C, 20 °C, 24 °C, 28 °C, 32 °C, 36 °C, and 40 °C, whereas VPNS was fixed at 86%, with management factors of uncoated seed (U) and coated seed (C), i.e., 16 conditions, and (2) VPNS of 77%, 82% and 86% as SAT was fixed at 20 °C [27] for both U and C, i.e., 6 conditions.

As for management factors, two types of seeds (U and C) of romaine lettuce (Lactuca sativa L. var. longifolia, Lomaria, TLE487, offered by Takii & Co., Kyoto, Japan) were used. Substrates with color of black, made of flexible polyurethane foam (MIRAI Co., Ltd., Kashiwa, Japan, 584 × 280 × 28 mm, 300 wells, 12 mm in diameter × 6 mm deep), were used in the seed trays. For this study, black substrate, instead of white substrate, was chosen to facilitate an accurate detection of GT from RGB images.

For nutrient solution, Chiba University’s lettuce formula [28] was used, with nutrient solution temperature, pH and electrical conductivity of 20 °C, 6.5 and 1.9 mS cm⁻¹, respectively. In addition to automated data acquisition with phenotyping and microenvironmental sensing units and other environmental data, management data, such as culturist, time required for sowing, and identified numbers of germinated seeds from RGB images, were collected, along with seed type (U and C). The experiments were conducted under identical conditions: substrates were soaked in the set amount of nutrient solution and the same GCB was used.

Except when the flashes for RGB camera were on (10 s/time for photographing), inside the GCB was kept dark during the experiment: the photosynthetic photon flux density (PPFD) at the position of the seed tray was 0.03 to 0.05 μmol m⁻² s⁻¹. The GCB was placed inside the environmentally controllable cultivation room of PFAL, located at Kashiwanoha Campus of Chiba University, with air temperature, relative humidity and CO₂ concentrations inside the cultivation room of 20 °C, 80~100% and 1500 μmol mol⁻¹, respectively.

3. Results

A plant phenotype measurement system was developed to assess GT of romaine lettuce (L. sativa L. var. longifolia) in seed trays each with 300 seeds, using time series data on 2D camera images, and to analyze each GT as affected by its surrounding microenvironment (SST, VPNS, and air temperature) and management (U and C) factors of individual seeds for plant cohort research. Experiments on germination were conducted to demonstrate the performance of the system and its applicability for a whole plant growth process in a PFAL for large-scale commercial production and/or breeding.

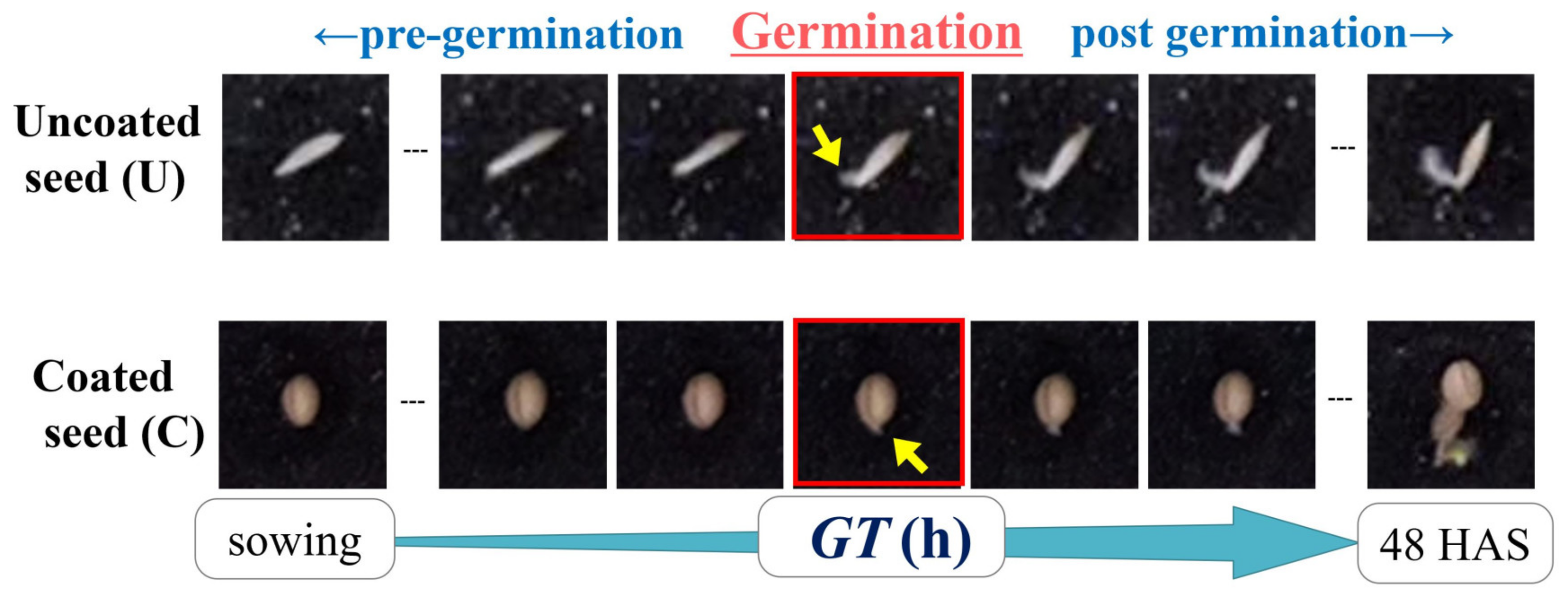

GT of individual seeds were acquired from time series RGB images (Figure 4). Figure 3 shows the process of deriving GT from RGB images. Representative images with 0.5 h intervals are shown. The time series RGB images of seed trays were continuously obtained from the RGB camera at set intervals and then sent automatically to the DWH (Figure 3). One RGB image covered one seed tray that contained 300 seeds on a foamed urethan substrate (Figure 3). Each RGB image of seed tray was processed to be divided into 300 images of individual seeds. Then, these time series RGB images of each individual seed were re-sequenced in a chronological order (Figure 3).

To determine GT, the RGB image of a germinated seed was selected among the time course images of each seed (Figure 3). Binary judgement was made to all the RGB images to identify the presence (T) or absence (F) of germination, i.e., annotation. The decision criteria for the presence of germination were set as when approximately 1-mm-long root/radicle, extending from the outer seed coat or cracked coating, was observed. In addition to determining germination by RGB images, ground truth measurements from all actual seeds at 48 HAS were conducted to confirm or correct the original binary classification/annotation. The GT and binary classification/annotation data together with RGB image data were output to CSV files as data sets along with environment and management data.

In addition to deriving GT of individual seeds from time series RGB camera, the thermal camera was applied to obtain time series data of seed surface temperature of individual seeds (SST). With the thermal camera, 19,200 pixels/surface temperatures of substrate per image were acquired. The system was programmed to extract SST (300 pixels per image/seed tray) automatically from the original thermal image. All SST data were assigned with consecutive seed numbers in the seed tray (P_i (i = 1~300)) (Figure 2).

Two kinds of experiments, either different (1) SAT or (2) VPNS during the germination stage for both U and C, were conducted. For the first experiment, different SAT every 4 °C from 12 to 40 °C with VPNS of 86% was identified; for the second experiment, VPNS of 77%, 82%, and 86% with SAT of 20 °C was identified (Table 2).

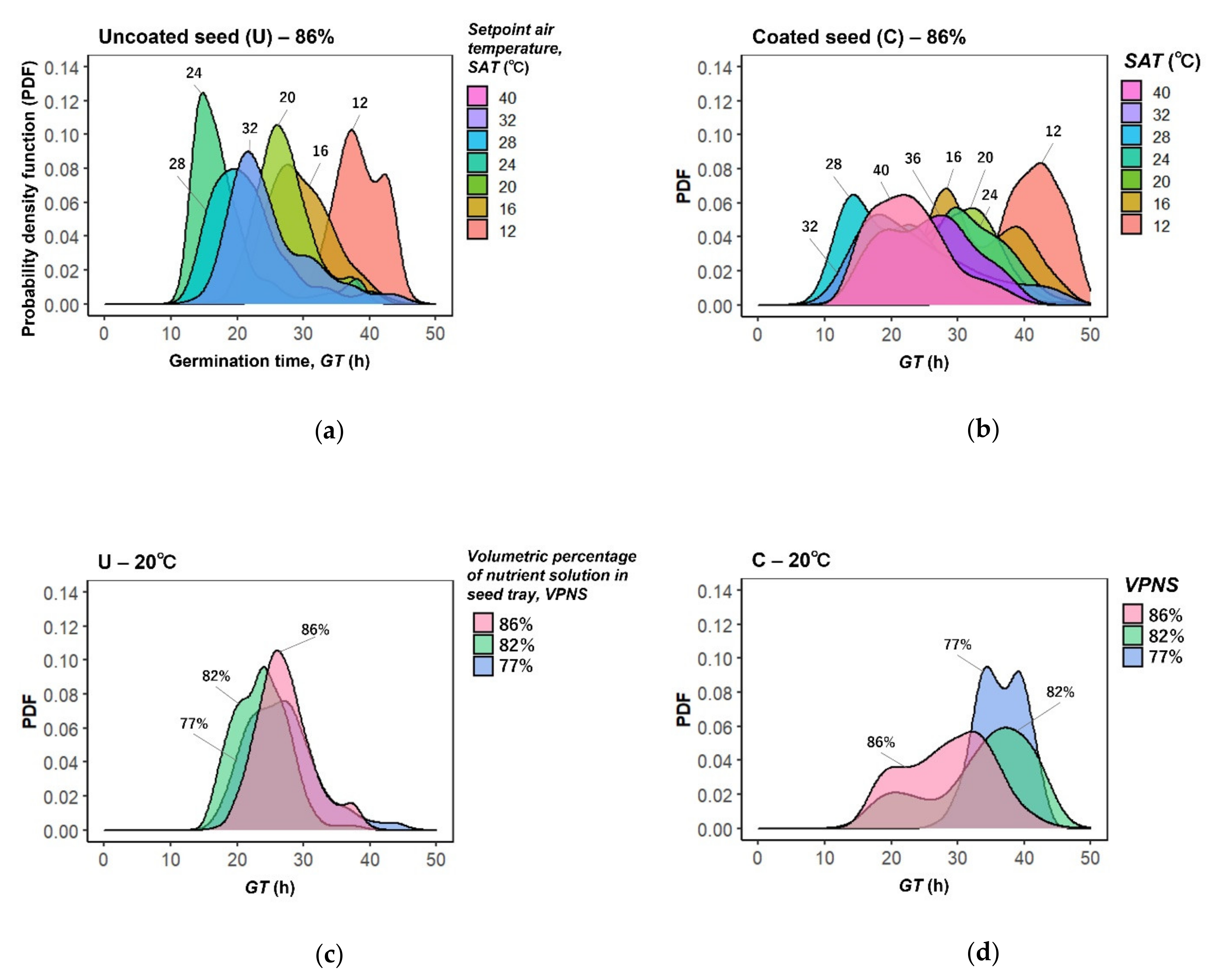

Figure 5 shows the probability density function (PDF) of GT to (1) different SAT with VPNS of 86% (Figure 5a,b) and (2) different VPNS with SAT of 20 °C (Figure 5c,d), using 300 seeds of U and C, respectively. Variance of GT was found for both U and C in accordance with variable microenvironments, SAT and VPNS, and management factors (Figure 5). Earlier and uniform germination are beneficial for the consistent production. For this experiment, SAT of 24 °C with VPNS of 86% and management factor U showed the earliest and most uniform germination (Figure 5a).

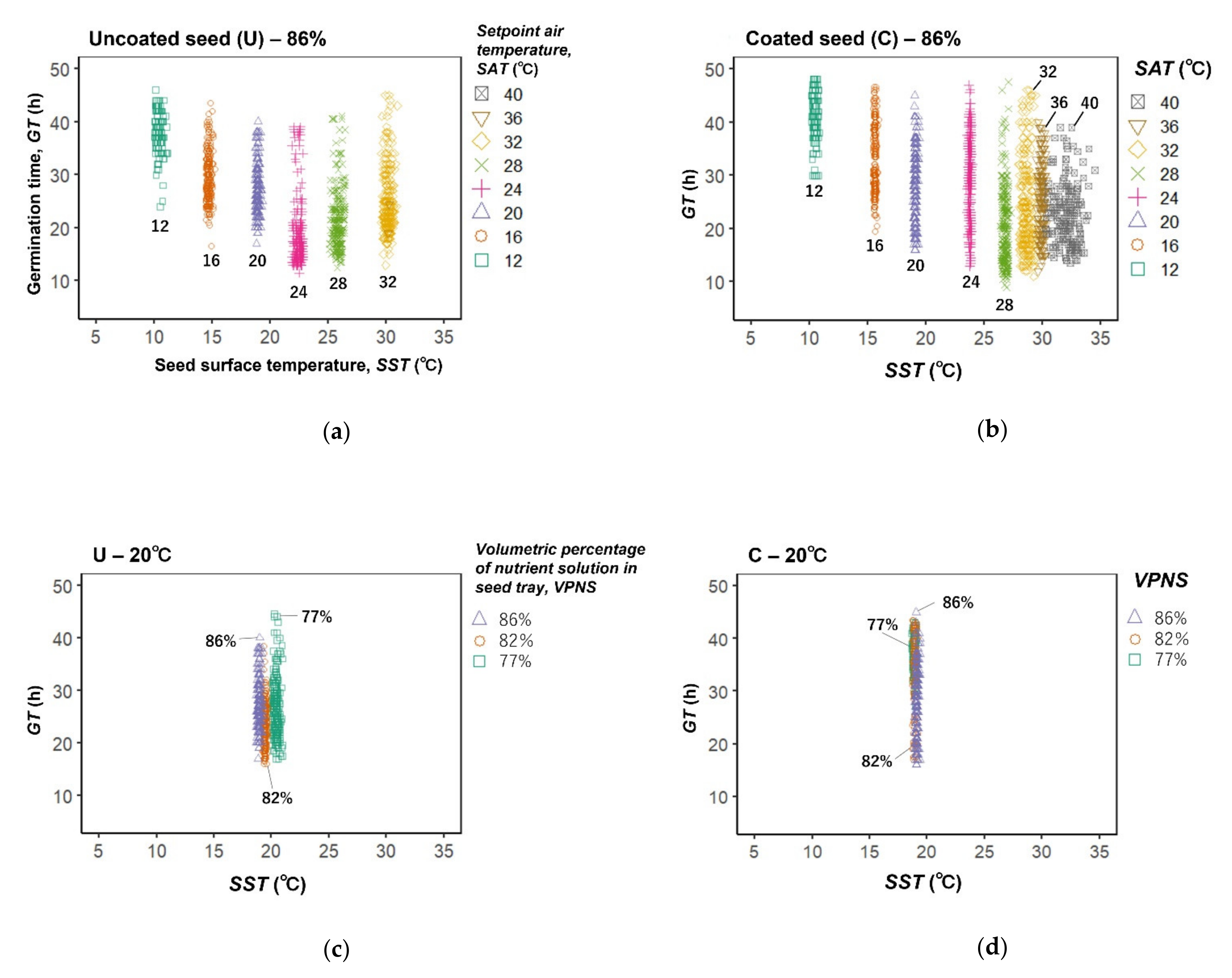

Figure 6 illustrates scatter diagrams of GT and SST under (1) different SAT with VPNS of 86% (Figure 6a,b) and (2) different VPNS with SAT of 20 °C (Figure 6c,d), each with both 300 of U and C. GT and SST of individual seeds were quantified in response to different SAT, VPNS and U/C (Figure 6). Variance of GT and SST differed depending on the microenvironment and management factor. In this experiment, for U with different SAT with fixed VPNS, overall germination was limited or not found with SAT of 36 °C and 40 °C (Figure 6a,

Table 3. Average air temperature ($\overline{AT}$), average germination time ($\overline{GT}$), average seed surface temperature ($\overline{SST}$)$,$ germination percentage per 300 seeds 48 h after sowing (GP), Identified percent, and coefficient of variation of germination time (CVt) and seed surface temperature (CVs) together with average hourly germination rate per 300 seeds ($\overline{GR}$)$,$ each with different volumetric percentage of nutrient solution in seed tray (VPNS), setpoint air temperature (SAT), and uncoated seed (U)/coated seed (C). (see Table 1 for abbreviations).

Seed Type	VPNS (%)	SAT (°C)	Measured Value					Calculated Value
			$\overline{\mathit{A}\mathit{T}}$1 (°C)	$\overline{\mathit{G}\mathit{T}}$ (h)	$\overline{\mathit{S}\mathit{S}\mathit{T}}$ (°C)	GP (%)	Identified Percent 2 (%)	$\mathit{C}\mathit{V}\mathit{t}$ $[\mathit{S}\mathit{t}/\overline{\mathit{G}\mathit{T}]}$	$\mathit{C}\mathit{V}\mathit{s}$ $[\mathit{S}\mathit{t}/\overline{\mathit{S}\mathit{S}\mathit{T}]}$	$\overline{\mathit{G}\mathit{R}}$ [GP/$\overline{\mathit{G}\mathit{T}}$] (% h−1)
U	86	40	39.4	25.0	33.3	0	-	-	0.04	0.00
		36	35.9	21.8	30.3	1	67	0.2	0.02	0.05
		32	31.9	24.9	30.2	81	98	0.2	0.01	3.25
		28	27.9	21.7	25.9	100	83	0.3	0.01	4.60
		24	24.0	18.6	22.5	100	77	0.3	0.01	5.38
		20	20.4	27.2	18.9	100	90	0.2	0.01	3.68
		16	16.4	29.7	14.7	100	79	0.2	0.01	3.36
		12	12.9	38.2	10.4	100	46	0.1	0.02	2.62
	82	20	19.9	23.6	19.4	100	86	0.2	0.00	4.23
	77	20	20.0	26.7	20.4	100	89	0.2	0.01	3.74
C	86	40	38.3	22.8	32.2	91	62	0.3	0.03	3.98
		36	35.2	25.6	30.0	86	83	0.3	0.01	3.36
		32	31.9	24.3	28.7	79	97	0.4	0.01	3.24
		28	27.9	20.2	26.8	99	95	0.4	0.01	4.93
		24	25.8	29.2	23.8	100	99	0.2	0.00	3.42
		20	20.4	28.5	19.1	100	86	0.2	0.00	3.51
		16	16.4	33.0	15.6	100	81	0.2	0.01	3.02
		12	12.3	41.1	10.4	100	47	0.1	0.02	2.43
	82	20	19.9	33.4	18.9	100	42	0.2	0.01	3.00
	77	20	19.9	36.5	18.7	48	83	0.1	0.01	1.32

¹ Some data of $\overline{AT}$ include the average temperature of shorter time period than 48 h. ² Identified percent: percentage of identified GT from red-green-blue (RGB) images per germinated seeds 48 HAS.

).

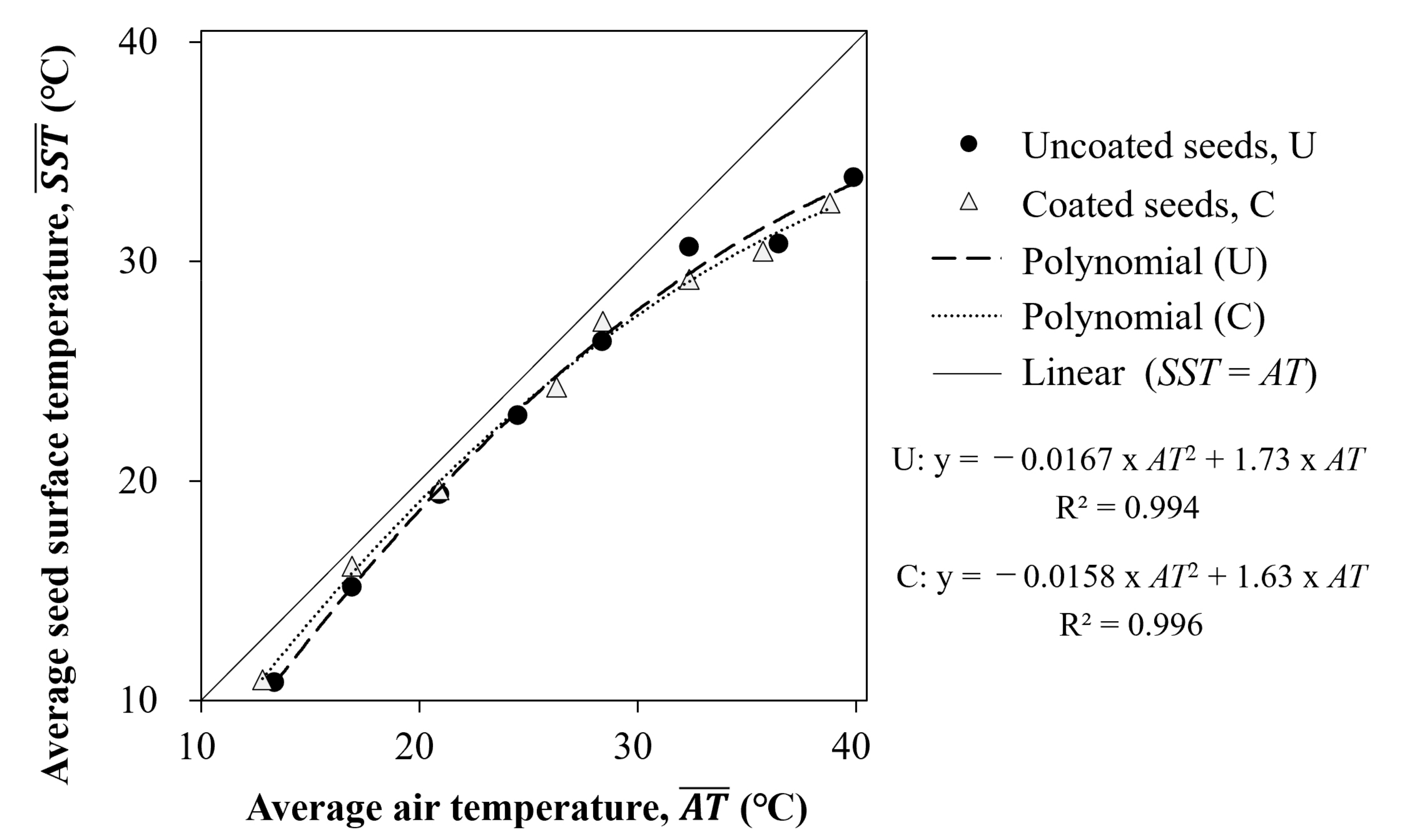

Figure 7 describes $\overline{SST}$ and $\overline{AT}$ under different SAT (12, 16, 20, 24, 28, 32, 36, 40 °C) with VPNS of 86%, each with 300 of both U and C. For both U and C, $\overline{SST}$ was lower than SAT at higher SAT, especially of 36 °C and 40 °C, whereas $\overline{AT}$ remained closer to SAT.

Table 3 shows $\overline{GT}$, $\overline{AT,}$ $\overline{SST}$, GP, $\overline{GR}$, Identified percent, coefficient of variation of GT (CVt) and SST (CVs), each with different VPNS, SAT, and U/C. In addition to $\overline{GT}$, $\overline{SST }$ and $\overline{AT,}$ GP was measured for each treatment. Identified percent is the percentage obtained by dividing the number of seeds of identified GT from RGB images by germinated seeds 48 HAS. The degree of uniformity of both GT and SST was quantified with CVt and CVs, respectively. Furthermore, $\overline{GR}$ was calculated and indicated the difference in average germination rate for each condition.

$$St=\sqrt{\frac{1}{n}{\displaystyle {\sum }_{i=1}^n}{\left(GT-\overline{GT}\right)}^2}.$$

(1)

4. Discussion

The objective of this study was to develop a plant phenotype measurement system to assess GT of individual seeds using time series data of 2D camera images and to analyze each GT as affected by its surrounding microenvironment and management factors of individual seeds for a wider plant cohort research project using the developed system. Experiments on germination were conducted to demonstrate the performance of the plant phenotype measurement system and its applicability for a whole plant growth process in a PFAL for large-scale commercial production and/or breeding.

Through the germination experiments of (1) different SAT with fixed VPNS and (2) different VPNS with fixed SAT each with U and C, GT of individual seeds were obtained from RGB images and were assessed for the effect of its surrounding microenvironment (SST, VPNS, and air temperature) and management factors (U and C) (Table 2). Our results together demonstrate the utility of the developed phenotyping unit for plant cohort research and future applications for further plant growth processes in PFAL for commercial production and/or breeding.

Traditional measurement of germination has been limited to the germination percentage of a seed population but not the germination time of individual seeds [17]. The result values of GP or $\overline{GT}$ shown in Table 3 represent an example of a previous germination measurement. Moreover, how microenvironment and management factors affect germination time of individual seeds and further plant growth had not been discussed in detail.

In this study, GT of individual seed could be obtained from time series data of 2D camera images, which were sent automatically and stored in the DWH together with other time course data captured from phenotyping and microenvironmental sensing units installed in GCB. Figure 6 illustrates GT of individual seeds sown in a seed tray each with 300 seeds under different treatments. Variance or uniformity of GT per 300 seeds was also demonstrated based on individual GT (Figure 5).

The results indicated that individual GT variations were affected by each microenvironment (SST, VPNS, and air temperature) and management factor such as seed type (U and C) (Figure 5, Figure 6). Each treatment with different air temperature or volumetric water/nutrient percent of the substrate, both with U and C, reflected the differing tendency of GT or variance of GT. In addition to microenvironmental factors, the results indicated that management factor (U and C) affected GT; GT itself and variance of GT varied in response to seed type (Figure 5, Figure 6).

Furthermore, this experiments showed differing GP, particularly SAT of 36 °C and 40 °C, between U and C; little or no germination occurred with U, whereas GP with C and SAT of 36 °C and 40 °C were 86% and 91%, respectively (Table 3). This result indicates that C was less affected by microenvironment of higher air temperature. While on the other hand, with smaller volumetric percent in nutrient solution (VPNS), especially at 77% with SAT of 20 °C, values of $\overline{GT}$, GP, and $\overline{GR}$ were all smaller with C than U (Table 3). This implies that C was more affected by microenvironment of smaller volumetric water/nutrient percent of the substrate.

Figure 7 and Table 3 explained that under higher SAT, especially at 36 °C and 40 °C, $\overline{SST}$ was lower than the SAT by approximately 6 to 8 °C, whereas $\overline{AT}$ remained closer to SAT (even at higher SAT). This implies that it is critical to observe the microenvironment, and more attention should be paid to analyzing the relationship between various factors of microenvironment, management, and dynamic phenotypes.

As Figure 6 demonstrated individual GT under different microenvironments of SST, VPNS and air temperature together with management factors of U and C, it is presumed that some outliers of individual seeds can be found. Therefore, time series data of its surrounding microenvironment, management factors, and possibly genotype can be used to analyze what has generated the particular outliers [2]. Such analysis will also help to identify the causes of variation in seed germination time, which enables to remove the particular causes of variation [2].

We acknowledge that there are several limitations in this study. First, there were indeed limitations to determine GT from time series data of 2D camera images that were used for this study. By comparing with ground truth data on germination 48 HAS, GT of some germinated seeds were not obtained from the RGB images as shown with identified percent in Table 3. This challenge will be addressed in the future studies by improving the phenotyping unit and incorporating artificial intelligence (AI) in the system for automated acquisition of GT.

Second, there is a possibility that the result was affected by additional microenvironment and management factors other than SST, VPNS, air temperature, and seed type. In particular, inclination of water surface, which was possibly caused by procedures for manually carrying the seed tray or soaking substrate in the water/nutrient solution, may have caused variation or 2D horizontal distribution of SST. For the future study, 2D horizontal distribution should be taken into account to analyze the effect of microenvironment and management factors. The 2D horizontal distribution of individual phenotype, microenvironment and management, such as water/nutrient solution, light, substrate, and other factors, may occur particularly with further plant growth [2].

Third, seed lots used for this study were different for each seed type of U and C. Ideally, the same seed population/lot should be used to compare the effect of management factor. In the future study, with the breeding and seed production in PFAL, this issue should be overcome by also tracing the seed production process and treatments.

In this study, the developed plant phenotype measurement platform revealed the effects of microenvironment and management factors on GT of individual seeds for plant cohort research. This indicates possibility of contributing to increasing in growth rate, plant quality and uniformity in plant production. In the future studies, additional conditions with multiple varieties/genotypes will be tested with this system. For the plant cohort research in PFALs, further study on plant growth stage is expected to continuously analyze individual phenotypes together with plant communities to assess interactions of plant phenotype dynamics with microenvironment, management, and genotype for life cycle history of individual plants to improve productivity of plant production and breeding in PFALs.

5. Conclusions

In this study, plant phenotype measurement system was developed to assess GT of individual seeds, using time-series 2D camera images, and to analyze how microenvironment and management factors affect the GT for plant cohort research. In particular, the low cost and compact modular system designed in this study emphasizes the practicality and scalability in commercial plant production in PFALs. Using this system, germination experiments were conducted to demonstrate the performance of the system and its applicability for a whole plant growth process in a PFAL for commercial production and/or breeding.

Through this study, GT of individual seeds were obtained from time series 2D camera images by using the developed modular plant phenotype measurement system as an initial stage of the plant cohort research in PFALs. Furthermore, the phenotyping platform revealed the effects of microenvironment and management factors on GT of individual seeds. Our modular plant phenotype measurement system should advance the commercial plant production in PFALs.

6. Patents

Chiba University; Japan Plant Factory Association. Plant cohort phenotyping system in plant factories with artificial lighting (PFALs) (in Japanese). No. 2019-027079, 19 February 2019.
