Nitrogen Availability in Biochar-Amended Soils with Excessive Compost Application

Abstract

Adding biochar to excessive compost amendments may affect compost mineralization rate and nitrogen (N) availability. The objective of this 371-day incubation study was to evaluate the effects of four proportions of woody biochar (0%, 0.5%, 1.0%, and 2.0%) from lead tree (Leucaena leucocephala (Lam.) de. Wit) biochar produced at 750 °C through dynamic mineral N and N mineralization rates in three rural soils (one Oxisol and two Inceptisols). In each treatment, 5% poultry–livestock manure compost was added to serve as an excessive application. The results indicated that the biochar decreased available total inorganic nitrogen (TIN) (NO₃⁻-N+NH₄⁺-N) by on average 6%, 9% and 19% for 0.5%, 1.0% and 2.0% treatments, respectively. The soil type strongly influenced the impact of the biochar addition on the soil nitrogen mineralization potential, especially the soil pH and clay content. This study showed that the co-application of biochar and excessive compost benefited the agricultural soils by improving NO₃⁻-N retention in agroecosystems. The application of biochar to these soils to combine it with excessive compost appeared to be an effective method of utilizing these soil amendments, as it diminished the net N mineralization potential and reduced the nitrate loss of the excessive added compost.

1. Introduction

Pyrolysis produces carbon (C)-rich biochar containing macronutrients, whereas composting produces compost that contains organic matter, C, and available macronutrients. Both processes can recycle nutrients from organic waste, residue, and purposefully grown catch crops [1], and are therefore useful tools to sustainably maintain or increase organic soil matter and to preserve and improve soil fertility and crop yield [2]. Soil organic matter (SOM) reduction and nutrient imbalances are major constraints in most tropical agricultural soils [3]. Nitrogen is the most common limiting nutrient in agricultural crop production [4], but is also highly susceptible to loss from the crop root zone. Due to the low N mineralization rate relative to chemical fertilizer [5] and relatively low levels of nutrients (10–20 g N/kg and less than 10 g P/kg) compared to complete fertilizer [6], farmers often apply excess compost to meet the N requirements of the crops and ensure adequate crop yield. Thereby, degrading soil and water quality and inhibiting crop growth [6] because excess N and P was lost from the soil and into the environment [7]. Improving soil fertility and productivity while simultaneously reducing negative environmental consequences is one of the greatest challenges in the management of the agricultural and horticultural production systems [8]. Identifying innovative ways to recycle macronutrients within agricultural systems while minimizing environmental impacts is of great importance in regard to achieving “circular economy” principles, i.e., “closing the loop”, by returning organic residue/waste to agricultural soils [9].

Although many studies report positive effects of a biochar–compost mix on soil properties and plant growth [1,2,10,11,12], biochar co-application with excessive compost has not been extensively studied, despite excessive compost already being commonly applied to agricultural soils where biochar application is also of interest. Thus, identification of the effects of biochar and excessive compost soil co-applications is important. Many studies [13,14,15] indicated that mixing biochar with manure at appropriate rates in land applications could potentially benefit manure-utilizing producers who also observe an increasing soil NO₃⁻-N pollution; co-application may lead to more efficient N fertilizer use. The accumulation of inorganic N in incubated, coarse-textured soils declined significantly as the biochar rate increased (0, 5, and 25 t/ha) in all three N treatments, namely, organic N applied as 500 kg/ha of wheat straw and pig manure compost, inorganic N applied as 100 kg/ha of NH₄NO₃, and the control (p < 0.001) [8]. When applied with manure (42 Mg/ha stockpiled dairy manure), the biochar (22.4 Mg/ha oak and hickory hardwood sawdust using fast pyrolysis at 500 °C) negatively influenced the seasonal mean and cumulative total net N mineralization in irrigated calcareous soil, however, this effect was less apparent during individual measurement periods [16]. When biochar was added to manured soil, rather than reduce the manure response, the biochar maximized net N mineralization and minimized the NH₄/NO₃ concentration ratio of the soil. The results of a 12-month incubation study [17] indicated that a 10% biochar application rate co-applied with a 2% manure application rate likely allowed for some net mineralization and nitrification of manure N, but limited excessive soil NO₃⁻-N accumulation in comparison to the 0%, 1%, and 2% biochar treatments. Throughout the incubation period, the co-application of the biochar (2% and 5% of pine chip-biochar produced at 700 °C) and paper mill biosolids (PB) (2.5%) resulted in significant decreases in NH₄⁺-N, NO₃⁻-N, the net mineralized N concentration, and the applied N mineralization rate of the soil in comparison with soil to which only PB was applied [18].

The notable soil erosion, nutrient leaching, and rapid decomposition of soil organic matter are common in Taiwanese rural soils because of the area’s high precipitation and warm temperature, which are the two major setbacks to Taiwan’s agricultural soils. Farmers in Taiwan are recommended to add at least 5% compost /ha/year to maintain appropriate soil organic carbon (SOC) content (4–6%); taking economic viability into consideration, manure compost doses in Taiwan are recommended to be between 1% and 2% [19]. However, some farmers apply more than 2%, even up to 5%, in intensive cultivation periods for short-term leafy crops to add more N. The 5% addition rate involves the addition of 90 tons/ha compost to the soil, as well as a large amount of 1800 kg N/ha and 900 kg P/ha. In a previous study, measurements regarding carbon dynamics and fertility in biochar-amended soils with excessive compost application were conducted [19]. Based on this, we suggested that the addition of 0.5% woody biochar to rural Taiwanese soils was reasonable and appropriate to retain more plant nutrients and increase carbon sequestration. However, reducing inorganic N (NO₃⁻ and NH₄⁺) loss from agricultural soils and to improve compost utilization efficiency for sustainable crop production are important in excessive compost applicated soils in Taiwan, for preventing environmental impacts, such as eutrophication (N and P) and acidification (N). There is a need to determine whether biochar’s addition to excessive compost-amended soils could impact the dynamics of soil N and reduce nitrate loss. The aim of our research was to evaluate the effects of the co-application of biochar and excessive compost on soil N dynamics. Our hypotheses were that co-applied biochar would modify the impact of excessive compost on soil NH₄⁺-N and NO₃⁻N, and that the influence of biochar co-application would depend on biochar rate and incubation time. From our results, farmers could gradually reduce the addition of compost over the next few years by adding biochar to reduce inorganic N loss, as well as maintaining appropriate SOC (4%–6%) in Taiwan.

2. Materials and Methods

2.1. Soils, Biochar, and Compost

The characterizations of the three studied soils (15 cm depth), biochar, and poultry–livestock manure compost were analyzed and described in previous studies (

Table 1. Characteristics of biochar, compost, and three studied soils.

	Biochar	Compost	Pc Soil	Eh Soil	An Soil
			(SAO)	(MAI)	(SAI)
pH	9.91	8.41	6.1/5.03	7.5/7.23	6.5/6.23
EC (dS/m)	0.771/1.362	3.791	0.45	2.21	0.81
Sand (%)	--	--	11	24	33
Silt (%)	--	--	30	36	33
Clay (%)	--	--	59	39	34
Soil Texture	--	--	Clay	Clay loam	Clay loam
Total C (%)	81.1	23.3	2.03	1.11 (0.81)4	0.94
Total N (g/kg)	8.36	22.6	2.71	2.32	1.58
Total P (g/kg)	0.55	10.2	1.16	0.98	0.77
Ex. K (cmol(+)/kg soil)	1.91	--	0.32	0.29	0.21
Ex. Na (cmol(+)/kg soil)	1.26	--	0.31	0.26	0.37
Ex. Ca (cmol(+)/kg soil)	3.62	--	4.85	2.94	2.24
Ex. Mg (cmol(+)/kg soil)	0.40	--	0.64	0.80	0.36
CEC (cmol(+)/kg soil)	5.20	--	8.58	11.5	14.2
BS6 (%)	138	--	71	37	22
M37-P (mg/kg)	96.6	6874	163	236	94.0
M3-K (mg/kg)	616	8911	68.4	108	94.1
M3-Ca (g/kg)	4.09	14.5	2.03	8.22	2.99
M3-Mg (mg/kg)	278	3972	143	344	401
M3-Fe (mg/kg)	65.5	396	524	589	1199
M3-Mn (mg/kg)	20.9	188	29.0	213	185
M3-Cu (mg/kg)	0.02	6.22	9.77	9.95	3.17
M3-Pb (mg/kg)	ND5	1.23	10.8	11.7	1.54
M3-Zn (mg/kg)	0.35	62.4	20.4	7.98	5.28

¹ The pH and electrical conductivity (EC) of biochar and compost were measured using 1:5 solid: solution ratio after shaking for 30 min in deionized water; ² Biochar EC was measured after shaking biochar-water mixtures (1:5 solid: solution ratio) for 24 h; ³ Soil pH was determined in soil-to-deionized water ratio of 1:1 (g/mL) and in soil-to-1N KCl ratio of 1:1 (g/mL); ⁴ carbonate content; ⁵ ND = not detected; ⁶ BS = base saturation; ⁷ M3 = Mehlich 3 extractable. Data from Tsai and Chang [19].

). Briefly, three studied rural soils were collected in spring 2011 from the upper layers (0–15 cm) of three fields in Taiwan, including Pingchen (Pc) soil (slightly acidic Oxisols (SAO)), Erhlin (Eh) soil (mildly alkaline Inceptisols (MAI)), and Annei (An) soil (slightly acidic Inceptisols (SAI)). The term “slightly acidic” indicates the soil pH ranging from 6.1 to 6.5, and “mildly alkaline” indicates the soil pH ranging from 7.4 to 7.8. Biochar produced from the stems and branches of the lead tree (Leucaena leucocephala (Lam.) de. Wit) in an earth kiln was constructed by the Forest Utilization Division, Taiwan Forestry Research Institute, Taipei, Taiwan. The charring for earth kilns typically requires several days and reaches temperatures up to 500–700 °C. The highest temperature in the kiln at the end of carbonization was above 750 °C. The biochars were homogenized and ground into a mesh of < 2 mm for analysis. The poultry–livestock manure compost used in this study is the commercial products (organic fertilizer) certified by the government and often used by farmers. The main raw materials (> 50%) of the studied compost were poultry manure (mostly chicken) and livestock manure (mostly swine), and the minor raw material was mushroom waste, which was completely decomposed after a composting period of 6 months. The dry matter content was higher than 65%, according to regulations.

2.2. Incubation Experiment

To investigate the effect of biochar on the N mineralization of excessive compost application to soils, 5% commercially available poultry-livestock manure compost was added as a soil fertilizer, twice the recommended amount of organic fertilizer in Taiwan. It should be noted that this is a highly unlikely scenario, given the economic unviability of 5% compost for most farmers.

In this study, the effects of four proportions (0%, 0.5%, 1.0%, and 2.0% w/w) of biochar co-applied with compost (5.0% w/w) on SAO, MAI, and SAI soils were investigated over 371 days of incubation, consistent with the study of C dynamic [19] but shorter incubation days. A laboratory incubation experiment was conducted with a total of four treatments for each studied soil, namely, biochar-unamended soil + 5% compost, soil + 5% compost + 0.5% biochar, soil + 5% compost + 1.0% biochar, and soil + 5% compost + 2.0% biochar. In total, twelve treatments were conducted in this study. Soil was removed from the top 15 cm of the three studied soils. For each treatment, biochar and compost were thoroughly mixed with the soils with a stirring rod for at least 30 min. After mixing, a 25 g soil mixture was placed in plastic containers, each with a volume of 30 mL. The experiment had a completely randomized block design with 12 treatments, and each treatment had 110 replicates for destructive sampling during the incubation. According to the annual mean air temperature in Taiwan (1981–2010), on average 23 °C and ranging from 19 to 25 °C, and in consideration of the optimizing reaction kinetics for N and facilitating the experimental processes, the containers were sealed and incubated at 25 °C for 371 days, consistent with the previous study [19,20,21]. The soil moisture contents were adjusted to 60% of field capacity before the start of the incubation, and were maintained throughout the experiment using repeated weighing. The moisture was adjusted twice a week by weighing the jars and adding deionized water as necessary. The soil samples were destructively sampled from five replicate jars for each treatments, a series of 60 jars (three soils × four amendments × five repetitions) was taken, at 1, 3, 7, 14, 21, 28, 35, 42, 49, 56, 63, 77, 91, 105, 119, 133, 161, 189, 217, 245, 308, and 371 day for analysis of NO₃⁻-N and NH₄⁺-N. The inorganic N (NO₃⁻-N and NH₄⁺-N) was determined by extracting 5 g (dry weight equivalent) of soil with 25 mL of 2 M KCl [22]. The NO₃⁻-N and NH₄⁺-N in the KCl soil extracts were determined colorimetrically using an automated flow injection analysis with O·I·Analytical Aurora Model 1030W (O.I. Corporation/Xylem, Inc., College Station, Texas, USA). Nitrate is determined by reduction to nitrite (NO₂-N) via a cadmium reactor, diazotized with sulfanilamide and is coupled to N-(1-Napthyl)-ethylenediamine dihydrochloride to form an azochromophore (red-purple in color) measured spectrophotometrically at 540 nm. Ammonium reacts with alkaline phenol and hypochlorite to form indophenol blue in an amount proportional to the ammonia concentration. The blue color is intensified with sodium nitroferricyanide, and the absorbance is measured at 640 nm. The total inorganic nitrogen (TIN) was calculated as the sum of extractable NO₃⁻-N and NH₄⁺-N. Nitrogen, nitrification, and TIN release rate were calculated at each sampling date by taking the concentrations of NH₄⁺-N, NO₃⁻-N, and TIN and dividing by the sampling date (1,3,7, etc.). The percentages of NO₃⁻N and NH₄⁺-N that decreased or increased due to the addition of the biochar were calculated using Equation (1) [23]

X (%) = [(C_n − C₀)/C₀] × 100

(1)

where X denotes the changes in the percentages of NO₃⁻-N and NH₄⁺-N, C₀ is the concentration in the control (mg/kg), and C_n is the concentration in the biochar-amended treatments (mg/kg).

2.3. Statistical Analysis

Statistical analyses (calculation of means and standard deviations, differences in means) were performed using Statistical Analysis System (SAS) 9.4 (SAS Institute Inc., SAS Campus Drive, Cary, NC, USA). The concentrations of inorganic N and available nutrients were averaged for each incubation time interval. A repeated measure multivariate analysis of variance (MANOVA) was used to test the changes in inorganic N concentrations according to the different biochar addition rates, soils, and incubation times. The addition rates and soils were the between-subject factors, and the incubation time was the within-subject factor. The repeated measure MANOVA was carried out using the general linear model (GLM) procedure. The results were analyzed by analysis of variance (one-way ANOVA) to test the effects of each treatment. The statistical significance was determined using least significant difference (LSD) tests based on a t-test at a probability level of 0.05. The values presented in the graphs and the text are the means ± 1 standard deviation (SD).

3. Results and Discussion

3.1. Available NH₄⁺-N in the Soils

When more compost was added, the biochar treatments resulted in a significant rate and soil × rate interaction for the NO₃⁻-N and the TIN concentrations in the soil (

Table 2. Significance (P value) of repeated-measures MANOVA results on soil nitrate (NO₃⁻-N), ammonium (NH₄⁺-N), and total inorganic N (NH₄⁺-N+ NO₃⁻-N) (TIN) in different soil series (Soil) and biochar application rates (Rate) in this study. The asterisks (*) indicate the significant difference at p < 0.0001.

Source of Variation	df1	NH4+-N	NO3−-N	TIN
Between subject effect
Soil	2	*	*	*
Rate	3	0.17	*	*
Soil×Rate	6	0.29	*	*
Within subject effect
Time	21	*	*	*
Time×Soil	42	*	*	*
Time×Rate	63	*	*	*
Time×Soil×Rate	126	*	*	*

¹: df = degree of freedom.

). The biochar treatments resulted in significant time, time × soil, time × rate, and time × soil × rate interactions for the NO₃⁻-N, NH₄⁺-N, and TIN concentrations in the soil. This significant influence explained the variable levels of these parameters during incubation. The initial soil concentrations of NH₄⁺-N in the biochar-amended soils were higher than the NO₃⁻-N concentrations for all three types of soil (Figure 1, Figure 2). Over the course of the incubation (Figure 1a,

Table 3. Soil NH₄⁺-N levels (mg/kg) in three studied soils during a 371-day incubation¹.

Treats	1d		3d		7d		14d		21d		28d		35d		42d		49d		56d		63d
SAO-0	34.3	a1	77.6	a	33.3	a	6.78	ab	5.78	a	0.94	ab	3.28	bcd	4.32	bc	3.40	ab	6.20	a	5.20	ab
SAO-0.5	33.7	a	75.9	a	31.0	a	6.08	abcd	6.12	a	1.68	ab	4.52	b	2.84	cd	3.00	abc	5.00	ab	3.80	bcd
SAO-1	30.1	b	68.9	b	30.6	a	7.28	a	5.26	ab	0.34	b	2.46	bcd	2.76	cd	4.20	a	5.00	ab	4.60	abc
SAO-2	28.2	bc	71.0	b	29.1	a	6.18	abc	3.84	c	1.60	ab	4.18	b	2.22	d	4.40	a	4.00	bcd	2.60	de
MAI-0	25.0	cde	0.10	f	0.00	b	3.82	ef	6.14	a	1.96	ab	3.72	bc	4.28	bc	0.00	e	0.60	f	4.00	bcd
MAI-0.5	22.6	def	0.06	f	0.00	b	4.41	cdef	4.38	bc	0.16	b	1.10	d	6.08	a	0.00	e	1.76	ef	3.91	bcd
MAI-1	19.6	fg	0.94	f	0.16	b	4.30	def	3.82	c	0.16	b	0.94	d	5.46	ab	0.00	e	3.40	bcde	5.80	a
MAI-2	18.9	g	1.44	f	1.12	b	6.82	ab	3.26	c	0.08	b	0.96	d	3.26	cd	0.80	de	4.40	abc	4.00	bcd
SAI-0	21.9	efg	21.3	cd	4.26	b	4.38	cdef	1.06	d	3.60	a	4.42	b	0.00	e	2.00	bcd	2.20	def	3.00	cde
SAI-0.5	25.4	cd	17.5	e	1.64	b	5.38	bcde	0.88	d	1.40	ab	6.94	a	0.00	e	2.20	bcd	2.80	cde	3.40	cd
SAI-1	25.7	cd	21.6	c	3.70	b	3.16	fg	0.16	d	3.72	a	3.86	bc	0.16	e	1.00	de	3.00	bcde	1.60	e
SAI-2	27.5	bc	17.9	de	5.14	b	2.04	g	0.00	d	3.54	a	1.54	cd	0.00	e	1.60	cde	4.40	abc	2.60	de
Treats	77d		91d		105d		119d		133d		161d		189d		217d		245d		308d		371d
SAO-0	5.20	a	2.20	cd	4.80	ab	3.20	a	2.60	b	2.00	bc	2.80	b	4.60	a	5.40	a	6.40	a	5.20	b
SAO-0.5	3.00	bcd	3.00	bc	6.00	a	4.40	a	2.20	b	3.40	a	3.40	b	4.60	a	4.20	b	6.20	a	7.00	ab
SAO-1	3.60	bcd	4.40	ab	4.80	ab	4.00	a	3.20	b	3.40	a	5.60	a	3.20	ab	4.00	bc	5.60	abcd	6.40	ab
SAO-2	3.80	abc	3.00	bc	5.80	a	4.00	a	3.00	b	2.60	ab	5.00	a	3.20	ab	3.80	bc	6.40	a	8.00	a
MAI-0	2.60	cd	0.80	de	3.40	bc	2.60	a	5.40	a	1.00	cd	2.60	b	3.60	ab	3.80	bc	4.60	de	3.20	c
MAI-0.5	2.13	d	0.40	e	3.54	bc	3.55	a	5.93	a	1.01	cd	3.14	b	3.72	ab	3.38	bc	3.77	e	3.00	c
MAI-1	3.40	bcd	1.20	de	3.60	bc	4.00	a	5.20	a	1.20	cd	3.60	b	4.60	a	3.80	bc	4.60	de	2.00	c
MAI-2	3.40	bcd	0.20	e	2.80	c	3.40	a	5.00	a	0.40	d	3.20	b	3.60	ab	3.40	bc	5.80	abc	2.60	c
SAI-0	3.20	bcd	3.00	bc	5.00	ab	4.00	a	2.40	b	2.00	bc	5.40	a	2.60	b	4.00	bc	6.00	ab	5.80	b
SAI-0.5	3.00	bcd	3.20	bc	2.60	c	3.60	a	2.80	b	2.80	ab	4.80	a	2.80	b	3.60	bc	4.80	cde	6.80	ab
SAI-1	3.40	bcd	5.00	a	4.80	ab	4.20	a	2.40	b	3.40	a	4.80	a	3.60	ab	3.60	bc	5.00	bcd	8.00	a
SAI-2	4.20	ab	4.00	ab	2.80	c	3.80	a	3.20	b	2.00	bc	5.20	a	3.00	b	3.00	c	4.60	de	5.80	b

^1. Means (n = 5) in a column by different lowercase letters are significantly difference at p < 0.05. 0 = 0% biochar, 0.5 = 0.5% biochar, 1 = 1% biochar, 2 = 2% biochar.

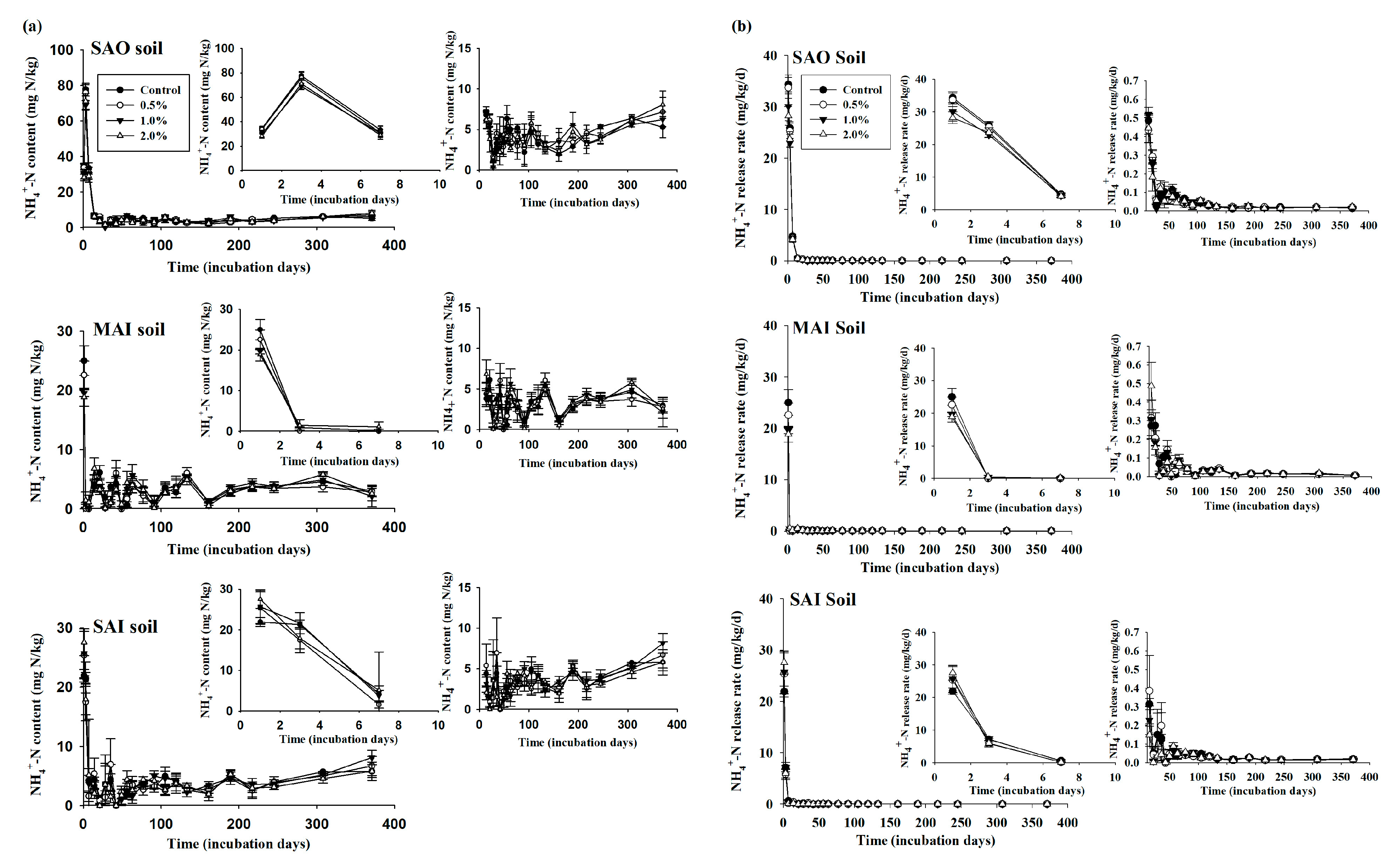

), the NH₄⁺-N concentrations increased and peaked at Day 3 (70–80 mg/kg in the SAO soil) and Day 1 (18–25 mg/kg in the MAI soil and 21–28 mg/kg in the SAI soil), indicating a small initial pulse of mineralized N, followed by a decline for the rest of the incubation period. The final NH₄⁺-N concentrations were about 5–8 mg/kg in the SAO and SAI soils and 2–3 mg/kg in the MAI soil. The NH₄⁺-N release rate was highest at Day 1, ranging from 28 to 34 mg/kg/d in the SAO soil, from 18 to 25 mg/kg/d in the MAI soil, and from 21 to 28 mg/kg/d in the SAI soil (Figure 1b). The NH₄⁺-N release rate sharply declined and diminished to less than 0.1 mg/kg/d after Day 42 (about 6 weeks), indicating little or no new NH₄⁺-N release from the biochar–compost mixed soils. Furthermore, the mean values of the NH₄⁺-N soil concentrations over the 371 days of incubation were in order of SAO soil > SAI soil > MAI soil, and there was no significant difference observed between the 12 treatments due to the highly variability in the ammonium content during the incubation period (Figure 3a). The mean NH₄⁺-N content values in the SAO soil decreased with increasing biochar addition, with similar effects observed after any biochar addition as when 0.5%–2.0% biochar was added to the MAI and SAI soils.

The initial soil concentrations of NH₄⁺-N in the three biochar-amended soils were higher than the NO₃⁻-N concentrations (Figure 1a, Figure 2a). Dou et al. [24] proposed that the predominance of NH₄⁺-N during the early stage of incubation was due to the inhibition of the nitrification process during that stage. In our study, the persistence of a high NH₄⁺-N concentration in the SAO soil until Day 7 seemed to be the cause of the slow increase in NO₃⁻-N in this soil, although this was only observed between Day 1 and Day 3 for the MAI and SAI soils. A study by Manirakiza et al. [18] using a co-application of biochar and paper mill biosolids found consistently high NH₄⁺-N concentrations in the Kamouraska clay soil until Day 28, probably due to the low aeration conditions in the Kamouraska clay soil (41% clay). The clay content (59%) of the SAO soil was higher than the Kamouraska clay soil (Table 1), indicating that the low aeration conditions also occurred in the SAO soil. The less persistence of this result observed in this study could be attributed to the large compost addition (5%) in comparison with Manirakiza et al. [18], who used 2.5% paper mill biosolids. In addition, when a 5% compost rate was applied, the NO₃⁻-N increased throughout all of biochar rates at 1–2 weeks and after 5–6 weeks, likely because of the available NO₃⁻-N release from the compost at 1–2 weeks and the mineralization and nitrification of the compost after 5–6 weeks. Previous studies regarding soil carbon dynamics [19,21] indicated that the C half-lives of SAO, MAI, and SAI soils, which were calculated based on a single first-order equation, were 42–44 days (–6 weeks), 54~60 days (–8 weeks), and 55–58 days (–8 weeks), respectively. Within the first year following the co-application of biochar and manure at 22.4 and 42 Mg/ha, respectively, to the same soil in a field study, Lentz and Ippolito [25] noted a decrease in NO₃⁻-N in this soil, followed by a slight increase in NO₃⁻-N, which was likely due to mineralization.

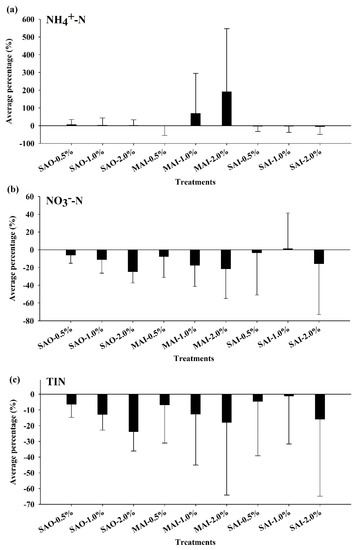

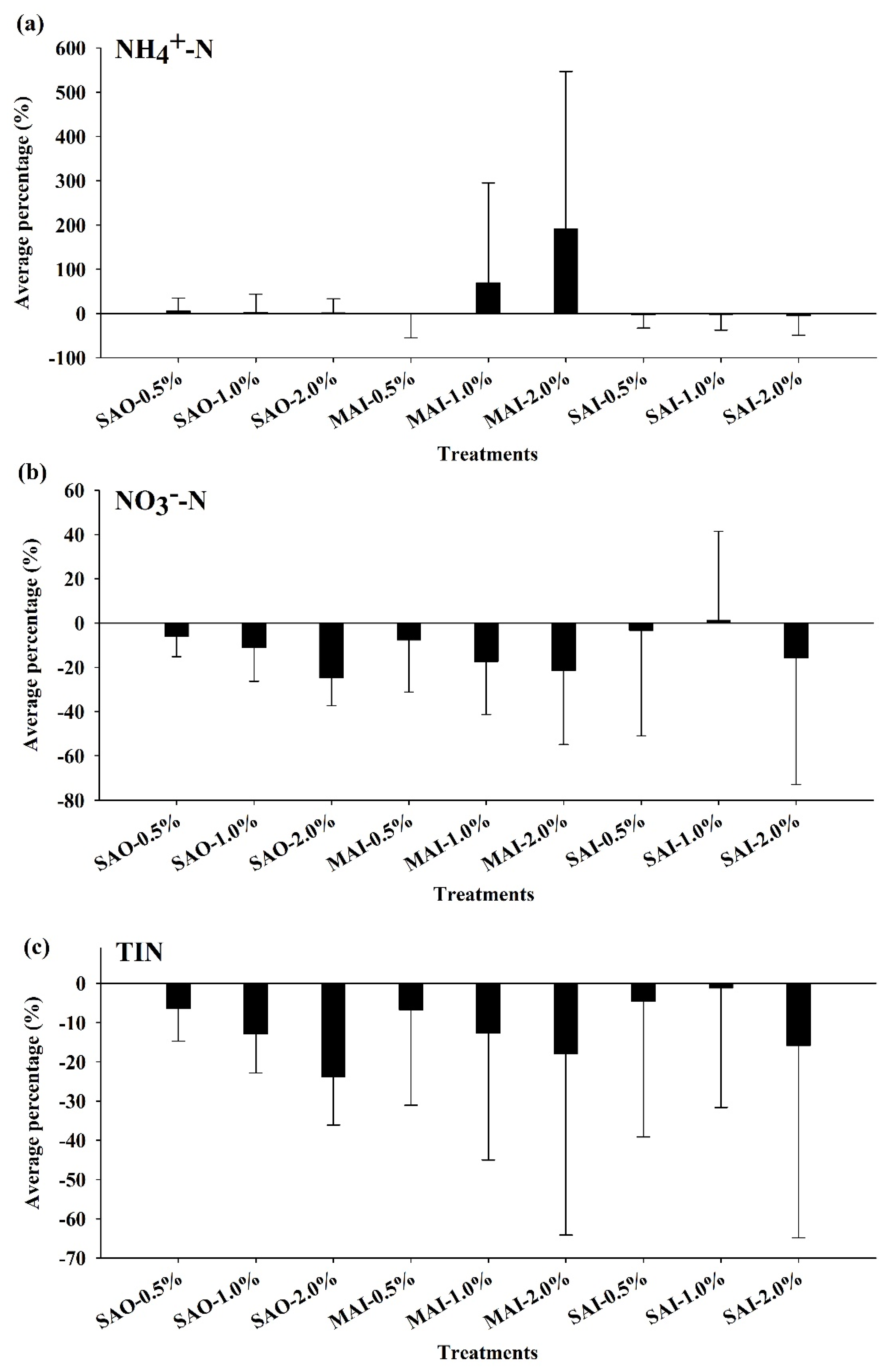

In our study, the biochar increased the content of the soil ammonium by 200% on average and declined by up to 6% (Figure 4a); in most cases the effect was insignificant and inconsistent in terms of time and rate of biochar application (Table 3), rendering it difficult to summarize the effects of biochar on the ammonium in the investigated soils. On the first day of incubation, significant declines in the ammonium contents of the SAO and MAI soils were noted for the 1.0% and 2.0% BC additions, which had considerably high contents of NH₄⁺-N (≥25 mg/kg) in comparison to the SAI soil. At the end of the incubation period, this effect was mostly nullified because the content of ammonium in the control treatment decreased to the same level as that observed when the biochar was added (<8 mg/kg in the SAO and SAI soils and <3 mg/kg in the MAI soil). The rationale generally given for the adsorption of NH₄⁺-N onto the biochar and the observed reductions in the NH₄⁺-N leaching is due to the cation exchange capacity (CEC) of the biochar [26]. Gai et al. [27] indicated that biochar with a CEC of 19.0–68.6 cmol/kg acquired a higher ammonium adsorption capacity than biochar with a CEC of 0.3–8.5 cmol/kg. The results of the soil incubation experiment in a coastal wetland soil indicated that the NH₄⁺-N content in 1% and 3% biochar treatments showed a downward trend throughout the incubation; the NH₄⁺-N content was very low (0.02–4.58 mg/kg) during the whole incubation period and close to zero (0.43–1.52 mg/kg) throughout all of the treatments at the end of incubation, and no effect (p < 0.05) was observed on NH₄⁺-N content throughout the incubation [28]. Four proportions of wood chip-based biochar (0.5%, 2%, 4%, and 8%) were added to ten different soils, with the results of the pot incubation experiment [23] indicating that the biochar increased the content of the soil ammonium by up to 184% and decreased it by up to 79%; however, in most cases the effect was insignificant and inconsistent in terms of the time and the rate of the biochar application. The authors also indicated that a significant decline in the content of the ammonium of the four soils was noted during the first week of incubation, showing that all samples had considerably high contents of NH₄⁺-N (≥15 mg/kg) in comparison to the other soils. At the 12th week of incubation, this effect was nullified as the content of ammonium in the control treatment decreased to the same level as the biochar addition. All the other soils presented insignificant changes, possibly due to their low NH₄⁺-N concentrations (≤6 mg/kg). This agrees with the findings of Hailegnaw et al. [23] and Jones et al. [29], who reported insignificant effects during biochar applications of 8% and 50 t/ha, respectively.

The high production temperature of biochar may have resulted in the low CEC of the biochar [23,27], which could be attributed to low polarity (low Oxygen/Carbon or O/C ratio) and the conversion of acidic functional groups on the biochar surface to neutral or basic-fused aromatic groups after losing their oxygen-containing functional groups. The CEC of biochar in this study was very low (5.2 cmol (+)/kg/soil) (Table 1), in association with a lower O:C molar ratio and fewer acidic functional groups [21]. The smallest decrease in inorganic N of the soils was observed in the woody biochar, which had a lower CEC value, less acidic functional groups, and lower labile C compounds than crop-derived and herbaceous biochar, thereby leading to lower N immobilization and N chemisorption [30]. The adsorption effects observed with the high-temperature biochar (700 °C) could be one of the reasons for the decline in the soil nitrate content. Several studies reported the adsorption of nitrate using a high-temperature biochar [8,15,23,31,32]. For a biochar to have any NO₃⁻ adsorption potential, the pyrolysis process must occur at a temperature of at least 600 °C [26]. In the biochar-amended composted manure, the mixed woody waste biochar produced at 600–700 °C was the only component that caused the capture of the nitrate and enabled its slow release [33].

3.2. Available NO₃⁻-N in the Soils

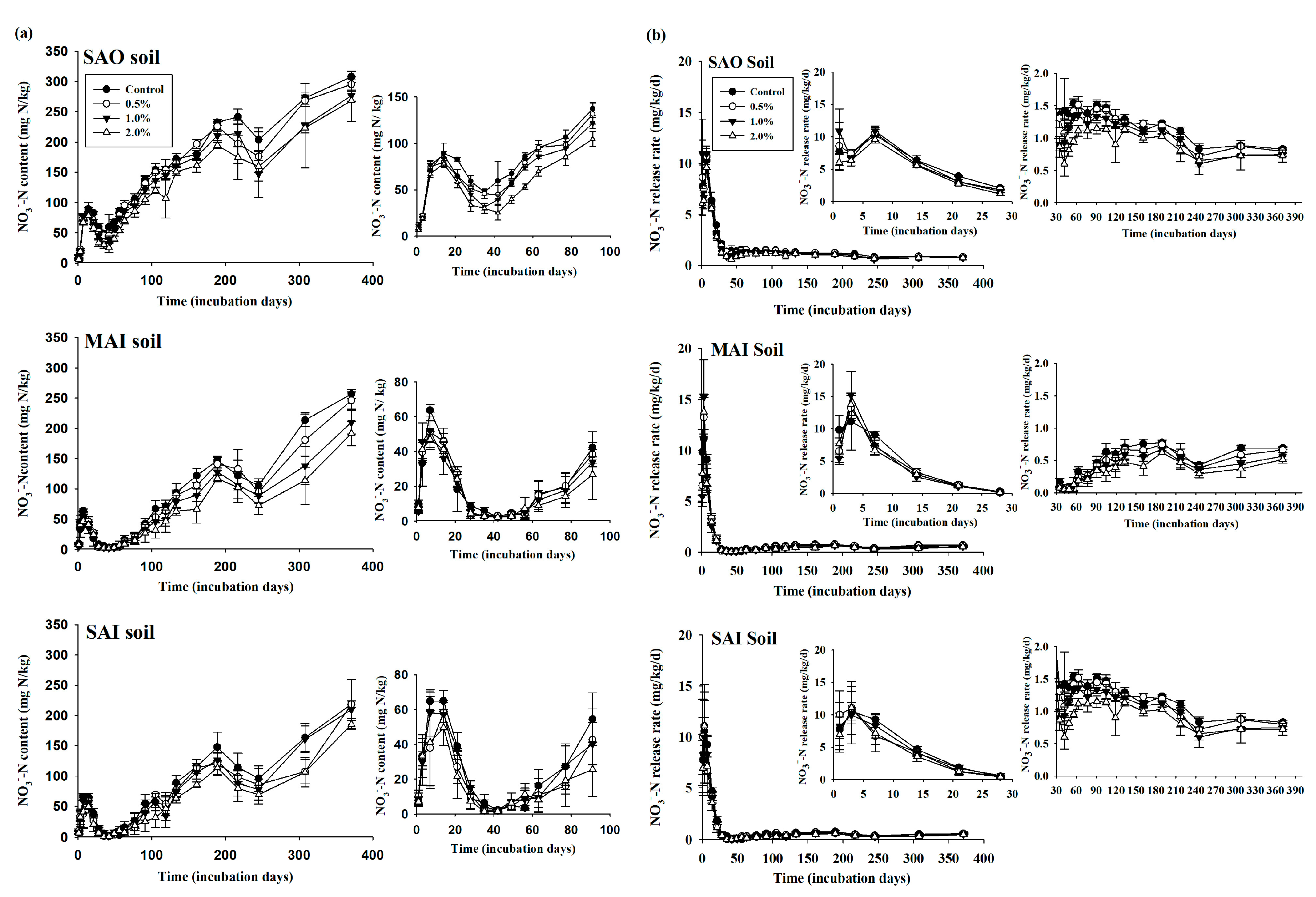

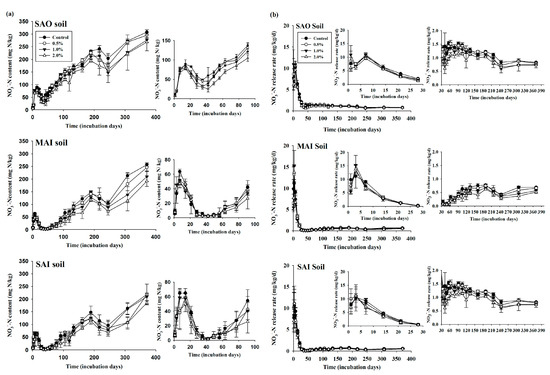

The NO₃⁻-N concentration increased throughout the course of the incubation and peaked on Day 14 in the SAO soil and on Day 7 in the MAI and SAI soils (Figure 2a,

Table 4. Soil NO₃⁻-N levels (mg/kg) in three studied soils during a 371-day incubation¹.

Treats	1d		3d		7d		14d		21d		28d		35d		42d		49d		56d		63d
SAO-0	7.74	abc1	22.4	cd	71.9	ab	89.3	a	82.8	a	59.3	a	47.6	a	59.8	a	67.4	a	86.0	a	95.2	a
SAO-0.5	8.60	abc	22.4	cd	74.8	ab	79.9	ab	65.0	b	51.6	b	45.8	a	45.1	b	57.0	b	79.4	b	95.6	a
SAO-1	10.9	a	20.1	d	76.5	a	88.0	a	64.8	b	45.0	c	31.5	b	39.3	b	57.2	b	74.2	b	85.4	b
SAO-2	6.08	bc	19.1	d	67.1	abc	78.3	b	57.9	b	33.4	d	30.3	b	25.3	c	39.8	c	53.4	c	70.0	c
MAI-0	9.82	ab	33.4	bc	63.8	abc	46.2	e	18.3	e	8.50	fg	5.84	cd	2.42	d	4.80	de	3.60	e	15.8	d
MAI-0.5	6.53	bc	39.7	ab	51.4	cde	45.8	e	27.9	de	3.40	g	3.14	cd	3.06	d	3.77	de	3.72	e	14.8	d
MAI-1	5.48	c	45.7	a	52.0	cde	36.1	f	23.1	e	5.10	fg	2.72	cd	2.20	d	2.80	e	5.40	de	12.2	d
MAI-2	7.70	abc	41.3	ab	47.0	de	41.2	ef	24.2	e	4.50	fg	2.66	cd	2.24	d	2.80	e	7.00	de	8.60	d
SAI-0	7.74	abc	31.6	bc	64.8	abc	65.0	c	38.9	c	8.92	efg	6.26	c	1.90	d	4.80	de	3.40	e	16.0	d
SAI-0.5	10.0	ab	33.2	bc	37.9	e	58.3	cd	27.0	de	10.7	ef	2.08	cd	2.24	d	4.00	de	9.80	d	10.6	d
SAI-1	8.22	abc	29.8	bcd	58.1	bcd	57.3	cd	36.7	cd	15.1	e	3.76	cd	2.22	d	7.40	d	8.40	de	9.40	d
SAI-2	6.94	bc	33.3	bc	41.1	e	49.5	de	21.4	e	7.30	fg	1.40	d	1.56	d	6.00	de	11.2	d	8.00	d
Treats	77d		91d		105d		119d		133d		161d		189d		217d		245d		308d		371d
SAO-0	107	a	138	a	154	a	155	a	172	a	179	b	233	a	242	a	204	a	273	a	308	a
SAO-0.5	98.6	ab	131	ab	150	ab	154	a	165	a	197	a	226	ab	197	bc	176	ab	268	a	295	ab
SAO-1	94.2	bc	122	b	137	b	145	a	161	ab	175	b	211	b	214	ab	147	b	227	b	277	bc
SAO-2	85.8	c	105	c	120	c	107	b	151	b	161	c	194	c	174	c	160	b	223	b	268	cd
MAI-0	19.4	de	42.0	de	67.0	d	71.0	c	93.8	c	122	d	147	d	122	de	105	c	214	bc	257	cd
MAI-0.5	20.1	de	38.6	def	53.4	de	63.2	c	88.9	cd	106	e	141	de	133	d	94.7	cd	181	cd	246	d
MAI-1	17.6	de	34.0	ef	45.8	ef	49.4	cd	78.6	d	89.4	f	128	ef	106	def	88.6	cd	138	de	210	ef
MAI-2	14.2	e	26.6	ef	31.6	f	46.8	cd	63.2	e	66.4	g	117	f	102	def	72.6	d	114	e	192	ef
SAI-0	27.2	de	54.6	d	57.0	de	51.2	cd	89.2	cd	116	de	148	d	114	def	96.0	cd	163	d	219	e
SAI-0.5	15.6	de	42.4	de	69.2	d	53.8	cd	76.6	de	114	de	120	f	98.4	def	86.0	cd	107	e	218	e
SAI-1	27.8	d	40.4	def	57.2	de	35.0	d	75.2	de	106	e	127	ef	88.2	ef	77.6	cd	161	d	210	ef
SAI-2	19.2	de	25.4	f	32.2	f	46.4	cd	63.2	e	85.6	f	113	f	79.6	f	68.8	d	106	e	185	f

^1. Means (n = 5) in a column by different lowercase letters are significantly difference at p < 0.05. 0 = 0% biochar, 0.5 = 0.5% biochar, 1 = 1% biochar, 2 = 2% biochar.

), indicating a small initial pulse of nitrification, followed by a sharp decline until Day 35 (30–48 mg kg⁻¹ in the SAO soil) and Day 42 (2–3 mg kg⁻¹ in the MAI soil and 1.5–2.2 mg kg⁻¹ in the SAI soil). Sharp increases in the NO₃⁻-N concentrations were observed from Day 35 in the SAO soil and Day 42 in the MAI and SAI soils. The NH₄⁺-N concentrations in the three soils diminished to very low levels by the end of the incubation and corresponded to increased NO₃⁻-N in the soils. The NO₃⁻-N release rate was highest on Day 7 in the SAO soil, ranging from 9.59 to 10.3 mg/kg/d and on Day 3 in the MAI and SAI soils, ranging from 11.1 to 15.2 mg/kg/d and 9.95 to 11.1 mg/kg/d, respectively (Figure 2b). The NO₃⁻-N release rate sharply declined, diminishing to less than 2 and 1 mg/kg/d for the SAO soil and MAI and SAI soils, respectively, after Day 28 (about four weeks). These results indicated that little nitrification occurred after four weeks in the biochar–compost mixed soils. The mean values of the NO₃⁻-N soil concentrations during 371 days of incubation were generally in the order of SAO soil > MAI soil > SAI soil (Figure 3b). The SAO soil showed a significantly higher mean nitrate content value than the MAI and SAI soils, but an insignificant difference between MAI and SAI soil. The nitrate content showed an obvious decrease when the biochar was added, increasing in all three soils. In addition, because the nitrate content was much higher than the ammonium content, the TIN (nitrate + ammonium) content was mostly attributed to the nitrate content. The soil TIN content showed similar changes regarding the nitrate contents (Table 3 and

Table 5. Soil inorganic N (NO₃⁻-N+ NH₄⁺-N) levels (mg/kg) in three studied soils during a 371-day incubation¹.

Treats	1d		3d		7d		14d		21d		28d		35d		42d		49d		56d		63d
SAO-0	42.1	a1	100	a	105	a	96.1	a	88.6	a	60.3	a	50.9	a	64.1	a	70.6	a	92.6	a	100	a
SAO-0.5	42.3	a	98.3	ab	106	a	86.0	bc	71.1	b	53.3	b	50.3	a	47.9	b	60.2	b	84.2	b	99.4	a
SAO-1	41.0	a	88.9	b	107	a	95.3	ab	70.0	b	45.4	c	34.0	b	42.1	b	61.4	b	79.6	b	90.2	b
SAO-2	34.3	bcd	90.1	ab	96.2	a	84.5	c	61.7	b	35.1	d	34.5	b	27.5	c	44.4	c	57.6	c	72.8	c
MAI-0	34.9	bc	33.5	e	63.8	bc	50.1	fg	24.4	ef	10.4	fg	9.58	c	6.70	d	4.80	def	4.40	g	19.8	d
MAI-0.5	29.1	de	39.7	de	51.3	cde	50.3	fg	32.2	cde	3.60	g	4.18	de	9.06	d	3.80	ef	5.60	fg	18.8	d
MAI-1	25.0	e	46.6	cd	52.1	cde	40.4	g	26.9	def	5.24	fg	3.68	e	7.68	d	3.00	f	8.40	efg	17.6	d
MAI-2	26.5	e	42.7	cde	48.1	de	48.0	fg	27.5	def	4.58	g	3.62	e	5.52	d	3.40	f	11.6	def	12.8	d
SAI-0	29.7	cde	53.0	c	69.0	b	69.4	d	40.0	c	12.5	ef	10.7	c	1.90	d	6.80	def	5.40	fg	19.4	d
SAI-0.5	35.4	b	50.7	c	39.6	e	63.7	e	27.9	def	12.1	ef	9.02	cd	2.24	d	6.40	def	12.6	de	14.2	d
SAI-1	34.0	bcd	51.5	c	61.8	bcd	60.6	de	36.8	cd	18.8	e	7.62	cde	2.40	d	8.40	d	11.0	defg	11.0	d
SAI-2	34.5	bcd	51.2	c	46.3	de	51.5	ef	21.4	f	10.8	fg	2.94	e	1.56	d	7.80	de	15.8	d	10.6	d
Treats	77d		91d		105d		119d		133d		161d		189d		217d		245d		308d		371d
SAO-0	112	a	140	a	159	a	158	a	175	a	181	b	235	a	246	a	209	a	279	a	329	a
SAO-0.5	102	ab	134	a	156	ab	158	a	167	ab	200	a	229	ab	202	bc	180	b	275	a	319	ab
SAO-1	98.0	b	126	a	142	b	149	a	164	ab	179	b	217	b	217	ab	151	b	233	b	299	bc
SAO-2	89.6	b	108	b	126	c	111	b	154	b	163	c	199	c	178	c	163	b	230	b	292	c
MAI-0	22.0	cd	43.0	cde	70.4	d	74.2	c	99.0	c	123	d	150	d	126	de	110	c	218	bc	275	cd
MAI-0.5	22.4	cd	39.0	de	56.8	de	67.2	c	95.0	cd	107	e	145	de	137	d	98.4	cd	184	cd	264	de
MAI-1	21.2	cd	35.2	de	49.4	ef	53.0	cd	83.8	def	90.8	f	132	ef	111	def	92.4	cd	143	de	228	fgh
MAI-2	17.4	d	26.8	e	34.6	f	50.2	cd	68.2	g	66.8	g	121	f	106	def	75.8	d	120	e	210	gh
SAI-0	30.4	cd	57.8	c	62.0	de	55.2	cd	92.0	cde	117	de	153	d	117	def	100	cd	169	d	240	ef
SAI-0.5	18.8	cd	45.8	cd	72.0	d	57.8	cd	79.6	efg	117	de	125	f	101	def	89.8	cd	112	e	240	ef
SAI-1	31.4	c	45.4	cd	61.8	de	39.4	d	77.2	fg	109	de	131	ef	91.4	ef	81.4	cd	166	d	233	fg
SAI-2	23.6	cd	29.4	de	35.0	f	50.2	cd	66.8	g	87.6	f	119	f	82.8	f	72.4	d	111	e	206	h

^1. Means (n = 5) in a column by different lowercase letters are significantly difference at p < 0.05. 0 = 0% biochar, 0.5 = 0.5% biochar, 1 = 1% biochar, 2 = 2% biochar.

).

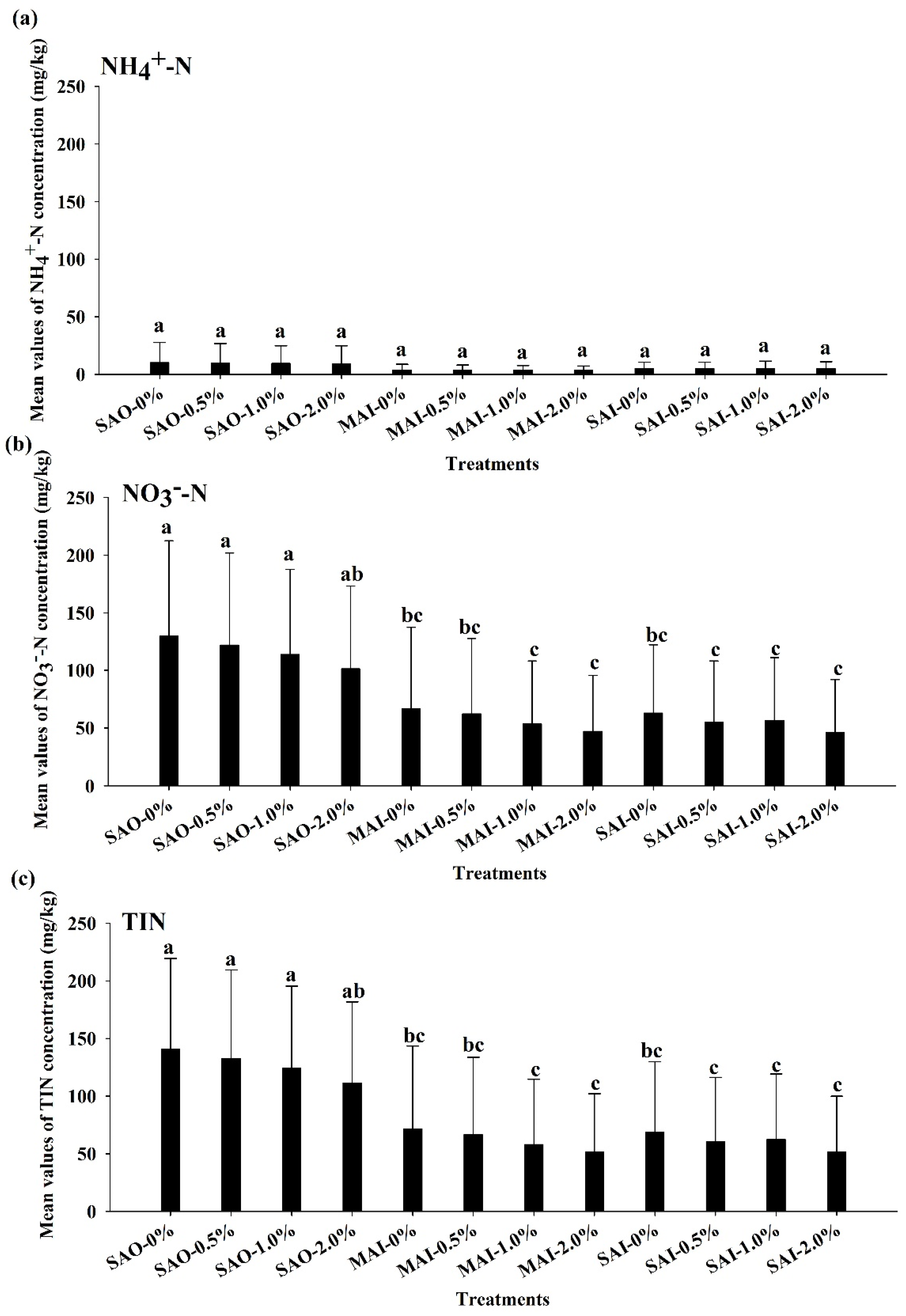

The soil NO₃⁻-N concentrations were significantly lower in the 2% biochar application compared to the other proportions (Figure 2a, Table 4) at most of the sampling times, which was likely due to microbial immobilization and a lower net mineralization:nitrification ratio [17]. During the incubation period, we presented the percentage of NO₃⁻-N change following biochar addition in three soils relative to NO₃⁻-N content of the control, as seen in Table 3. The negative effect of the biochar was prominent in almost all the investigated soils during the incubation period, with the rate of decline increasing as the rate of the biochar application increased from 0.5% to 2% (Figure 4b). The addition of the 0.5% biochar resulted in a decline in NO₃⁻-N, of 12% on average, in the SAI soil relative to the control. However, this decline was significant only during some of the incubation times (Table 4). The addition of 1.0% biochar induced a significant decline, of 17% on average, in the MAI soil relative to the control. The 2.0% biochar addition induced a significant decline in all the soils throughout the incubation period, with an average significant effect of 27% in the MAI and SAI soils. The study results of Dempster et al. [8] also indicated that the net nitrification rates decreased significantly when the added biochar increased (p < 0.001). The addition of biochar alone significantly (p < 0.05) reduced the NO₃⁻-N content after 25 days of incubation, but the addition rate had no significant effect on the NO₃⁻-N content [28]. The results of the pot incubation experiment [23] indicated that the additions of 0.5%, 2%, 4%, and 8% wood-chip-based biochar resulted in nitrate declining by up to 35%, 70%, 76%, and 81%, respectively, relative to the control. The study results of Yao et al. [32] identified a 34% reduction in nitrate leaching following the addition of biochar produced from pepperwood at 600 °C. Similarly, in N-rich soil, 2% and 4% of apple branch biochar reduced soil nitrate contents [34]. The decline of NO₃⁻-N in this study was lower because of the large amount of compost (5%) mixed into the study soils. Our results were consistent with those of Ippolito et al. [17], who observed a decrease in NO₃⁻-N soil content with the co-application of hardwood biochar (500 °C) and manure (2.0%) at a 10% biochar rate, suggesting that manure could mask the effects of 1% and 2% biochar on decreased NO₃⁻-N soil content by supplying sufficient inorganic N. Manirakiza et al. [18] co-applied biochar and paper mill biosolids and showed the same findings. Furthermore, the amounts of NO₃⁻-N adsorbed by biochar depended on the NO₃⁻-N soil concentration [28], but the effects of biochar on the soil adsorption capacity decreased over time after the biochar application [35]. Thus, the impact of the co-application of biochar and compost on N dynamics depended also on the incubation time in the three soils (Table 2), as suggested by Manirakiza et al. [18].

4. Conclusions

Our study showed that excessive compost-amended soils co-applied with woody biochar decreased the net mineralized N concentration. The co-application of excessive compost with the woody biochar drastically reduced the level of mineral N availability and led to the sequestration of released N. The mean values of the NH₄⁺-N and NO₃⁻-N soil concentrations over the 371 days of incubation were in the order of SAO soil > SAI soil > MAI soil, and SAO soil > MAI soil > SAI soil, respectively. The mean NH₄⁺-N content values in the SAO soil decreased with increasing biochar addition, with similar effects observed after any biochar addition, as when 0.5%–2.0% biochar was added to the MAI and SAI soils. The SAO soil showed a significantly higher mean nitrate content value than the MAI and SAI soils, but an insignificant difference between MAI and SAI soils. The nitrate content showed an obvious decrease when the biochar was added, increasing in all three soils. In addition, because the nitrate content was much higher than the ammonium content, the TIN (nitrate + ammonium) content was mostly attributed to the nitrate content. The soil TIN content showed similar changes regarding the nitrate contents. Previous research suggested that a biochar rate of 0.5% in rural Taiwanese soils was reasonable and appropriate to maintain high organic matter levels and carbon sequestration. However, when 0.5%, 1.0%, or 2.0% biochar was applied with 5% compost in the current study, the biochar decreased N availability by 5–8, 6–17 and 17–29 mg/kg, respectively. The average percentage over 22 times monitoring of mean relative value, expressed as the difference biochar amended treatments and un-amended control treatments, also indicated that the biochar decreased available TIN by 5%–7%, 1%–13% and 16%–24%, respectively. This finding may benefit producers, leading to more efficient compost N use. This method could serve as a slow N-release system with the possibility of enhancing the efficiency of excessive compost N use by reducing soil NO₃⁻-N erosion and loss risks, and could therefore be interesting for agricultural soil amendments. In addition, the soil type played an important role in the current study, in particular the pH and clay content of the soil.
