Article

Turnover of Urea in a Soil from the North China Plain as Affected by the Urease Inhibitor NBPT and Wheat Straw

by
Tobias Edward Hartmann
*,
Ivan Guzman-Bustamante
,
Reiner Ruser
and
Torsten Müller
Institute of Crop Science (340i), University of Hohenheim, 70593 Stuttgart, Germany
*
Author to whom correspondence should be addressed.
Agronomy 2020, 10(6), 857; https://doi.org/10.3390/agronomy10060857
Submission received: 24 March 2020 / Revised: 8 June 2020 / Accepted: 11 June 2020 / Published: 16 June 2020
(This article belongs to the Section Soil and Plant Nutrition)

Abstract

:
In the North China Plain (NCP), urea is applied to predominantly high-pH soils and high gaseous losses of N are observed in the forms of ammonia (NH3) and nitrous oxide (N2O). The production of N2O and N2 is further stimulated by the addition of fresh organic materials. The urease inhibitor (UI) N-(n-butyl) thiophosphoric triamide (NBPT) restricts the loss of N by reducing the rate of urea hydrolysis and limiting the substrates for NH3 and N2O emission. We investigated the turnover of N—as well as the emissions of NH3, N2O and CO2—as affected by the addition of wheat straw and urea +NBPT in an incubation experiment using soil from a farmer’s field, typical for the NCP. Added wheat straw prolonged the persistence of NH4+ after the application of both urea and urea +NBPT, while reducing the formation of nitrate. Wheat straw may therefore either act as a stimulant of hydrolysis or as an inhibitor of nitrification. Urea increased soil respiration and the emission of N2O, possibly acting as a primer for microbial activity as described in earlier studies. In combination with the application of organic C sources, this effect of urea may be a main driver of gaseous N loss.

1. Introduction

Since the late 1980s, the loss of nitrogen (N) to the environment has steadily increased in China [1], where the fertilization behavior of farmers and their attitude towards the overuse of chemical fertilizers has the biggest impact on the loss of reactive N [2,3,4]. The most common synthetic N source in China, the world’s largest producer and consumer of synthetic fertilizer, is urea. Under normal soil conditions, the urease enzyme catalyzes the hydrolysis of urea to ammonium (NH4) and carbonate within a few days [5]. In soil solution, there is a pH-dependent balance between ammonia (NH3), which is dominant in alkaline environments, and ammonium (NH4+). Only the latter is stable in the soil and dominates in acidic environments. Additionally, the formation of hydroxide ions (OH), when ammonia is hydrogenated, may lead to a further increase in pH and further increased ammonia volatilization [6].
It has been estimated that 95% of NH3 emissions from crop production in China are in the form of ammonia from urea and ammonium bicarbonate, the second most important N fertilizer in China [7]. A recent meta-analysis has shown that N loss as NH3 from urea ranges between 1.7 and 48% for East Asia and 0.9 and 64% globally [8].
A proven chemical agent for the inhibition of the urease enzyme is the chemical compound N-(n-butyl) thiophosphoric triamide (NBPT), which reduces the loss of ammonia and thereby increases the efficiency of urea-based fertilizers for a variety of crops [6,9,10,11], even though the effectiveness of the inhibitor with regard to yield increases must be regarded in light of the application rate [12].
While the urease inhibitor NBPT may potentially reduce the loss of N2O from agricultural soils by reducing the available substrate for denitrification [13], the results for the efficiency of NBPT in reducing N2O emissions are inconsistent [14,15].
Besides the risk of increased ammonia losses, N-fertilization with urea provides the substrate for nitrous oxide (N2O)-producing microorganisms in soils after the hydrolysis and subsequent nitrification of ammonium. N2O is a potent climate-relevant trace gas that accounts for approximately 7.9% of the anthropogenic greenhouse effect [16] and contributes to stratospheric ozone depletion [17]. Although some further processes are discussed as a source of N2O in soils, there is no doubt that nitrification and denitrification contribute substantially to N2O production in soils [18,19,20]. Nitrification is the autotrophic oxidation of ammonium in aerobic soil compartments, whereas nitrate is reduced to gaseous nitrogen oxides and N2 during heterotrophic denitrification in compartments with low oxygen partial pressure. It has been described that both nitrification and denitrification processes significantly contribute to the emission of N2O at lower soil moistures, while processes of denitrification are predominant when high soil moisture leads to anaerobic conditions [21,22].
Further, denitrification relies on organic carbon as an electron donator. It has been shown that, especially, the incorporation of fresh organic materials stimulates N2O production by favoring the anaerobic conditions for denitrification due to oxygen consumption during the respiration of the easily available carbon [23,24]. Especially, the combination of NO3 and carbon sources such as oat residues resulted in strongly increased N2O emissions as compared to the control treatments, which received only NO3 or only oat residues [25]. The assumption that denitrification was the major N2O source under such conditions with easily available C and NO3 was confirmed by Garcia-Ruiz and Baggs [25] using 15N tracers, even though this assumption is not automatically be valid for loess-derived soils of the North China Plain (NCP).
Pfab et al. [26] reported increasing N2O emissions from a chard field the closer the mineral N fertilization was temporally placed after the incorporation of the preceding green rye, suggesting that a reduction in N2O emission can be achieved if the temporal availability of C and NO3 can be successfully decoupled.
For Chinese soils under sub-humid climate conditions, it has been shown that N2O is mainly derived from nitrification. The main reason may be the lack of carbon for denitrifiers but also differences in the microbial population, as Northern Chinese soils characteristically have rapid nitrification rates and organic matter turnover, despite low carbon contents [27,28,29,30]. In a recent study, it has been shown that high urea application rates may shift the microbial community structure in soils towards rapid nitrifying communities [31].
Traditionally, straw residues are burnt in China to prepare fields for the following crops, even though the burning of straw significantly contributes to the emission of particulates [32,33], and recent studies suggest that the incorporation of straw may increase soil carbon contents [34]. As of yet, there is little information on how the simultaneous application of straw residues and urea influences N2O emissions, but it has been suggested that N2O emissions may increase as carbon is available for nitrifying communities [35]. Similarly, the simultaneous application of N and C may increase CO2 emissions, as the addition of N and external C primes the turnover of soil organic carbon (SOC) [36].
The objective of this article is to give an overview of how the application of the urease inhibitor NBPT affects NH3, N2O and CO2 emissions after the simultaneous application of wheat residues and urea, using soil taken from a farmer’s field in the county of Quzhou, Hebei Province. The soil has a history of over-application of N, as is common in the wheat–maize double cropping system of the NCP [37], and may therefore give valuable insight to the dynamics of gaseous N loss after N fertilizer application in the region.
Our first main hypotheses was that NBPT reduces the rate of urea hydrolysis, resulting in lower concentrations of ammonium-N in incubated soil and subsequently to lower concentrations of nitrate-N. NBPT therefore reduces the volatilization of ammonia-N and the emission of N2O, as the substrate for denitrification is reduced in concentration.
Our second hypothesis was that added wheat straw leads to lower concentrations of mineral-N in incubated soil but increases biological activity, measurable through CO2 respiration, and N2O loss as the decomposition of straw increases denitrifying processes.
We tested our hypotheses in an incubation experiment by observing the turnover of urea in soils amended with urea, wheat straw and NBPT and by measuring the gaseous emissions of NH3, N2O and CO2.

2. Materials and Methods

The soil used in this experiment was a homogenized sample taken from the Ap horizon of a farmer’s field, typical for the NCP (Quzhou County, Hebei Province, PRC, 115° E, 36° N, 40 m a.s.l.). The field was chosen as its history of N application to a wheat–maize double cropping system of the NCP lay in the median range of 550 kg (N) ha−1 a−1 [37]. According to the IUSS working group WRB, the soil can be classified as a Cambisol with a silt-loam texture. Soil analysis showed a total C concentration of 1.8%, a total N concentration of 0.1% and 110 mg of Olsen-P kg soil−1, and the pH (0.01 M CaCl2) was 7.5. Before transport, the soil was air-dried and homogenized after sieving through a 0.5 cm mesh sieve. In order to restore soil activity and avoid a nitrification flush on beginning the experiments, the soil water content was adjusted to 10% (gravimetric) using distilled H2O and stored in a cold room at 7 °C for a period of two months.
The wheat straw used in this experiment showed a C/N ratio of 70:1. Before transport and analysis, the plant material was oven-dried at 60 °C and homogenized using a rotating disc-mill to allow homogeneous incorporation into the soil.
Two N-fertilizers were used in this experiment, the first being pure urea with an N concentration of 46% and the second being the UTEC© product from Eurochem Agro, a urea-based fertilizer with an N concentration of 46% and 0.1% NBPT as a urease inhibitor (urea + UI).
The two experiments of the research described in this report were designed as 2-factorial experiments (Table 1) and were carried out under the same conditions to ensure the comparability of the results. The amount of wheat straw homogeneously mixed into the soil was calculated to reflect the addition of 5 Mg of straw ha−1 in a farmer’s field at a depth of 20 cm, corresponding to 1.92 g of wheat straw kg soil−1. For the fertilized treatments, granules of urea or urea + UI (UTEC) were applied to the soil surface in the incubation glasses. The addition of N was calculated to reflect the application of 250 kg N ha−1. For the determination of N turnover, the calculation was based on soil weight (40 mg urea 75 g soil−1); for the determination of gaseous flux, the application of urea was based on the surface area of the incubated soil (250 mg of urea 200 g soil1) (Table 1). Both experiments included 5 repetitions of each treatment to allow appropriate statistical analysis of the results.
Treatments for the determination of N turnover were prepared as described above. For each treatment, repetition and sampling date, an individual screw-top glass was filled with 75 g of soil and brought to a soil water content of 20% (gravimetric) using distilled H2O. Each glass was closed using plastic paraffin film to avoid evaporation while allowing gaseous exchange. The soil was incubated in a climate chamber at 18 °C for 19 days.
Sampling occurred on Days 0, 1, 3, 7, 11 and 19. For the extraction of mineral N from soil, 200 mL of 0.5 M K2SO4 were added to each screw-top glass and shaken at 180 rpm for 60 min. The concentrations of NH4-N and NO3-N of the extract were analyzed through micro-flow auto analysis (SEAL QuAAtro). The results were calculated as mg NH4-N and NO3-N kg soil−1. The apparent net N mineralization was calculated.
To investigate the effects of NBPT and the addition of plant residues on the flux of CO2, N2O and NH3, soil was incubated in a climate chamber at 18 °C for 16 days. Incubation bottles were closed with silicone plugs provided with an air inlet and outlet. Compressed air was continuously passed over the samples at a rate of 13 mL min−1 for each chamber individually. The air passed through a glass vial for the determination of CO2 and N2O flux rates and finally through an acid trap containing 200 mL of 0.2 M H2SO4 for the determination of the total NH3 emitted from the samples. Sampling occurred on Days 2, 4, 6, 8, 10, 12, 14 and 16. For each replicate treatment, 200 g of soil, without or with wheat residues as described in Table 1, were brought to a soil water-content of 20% (optimal, judged on experience) using distilled water (dH2O) and put into the incubation bottles. For the fertilized treatments, granules of Urea or UTEC were applied to the surface of the soil before the individual glasses were attached to the air-flow system. At sampling, the glass vials were removed, and their contents were analyzed for CO2 and N2O using gas chromatography (5890 series II, Hewlett Packard, CA, USA) with an electron capture detector (ECD); the ammonia concentration in the acid-traps was analyzed through micro-flow analysis (SEAL QuAAtro, Southampton, UK).
The gas fluxes of CO2 and N2O were calculated according to the following equation:
g a s f l u x C O 2 , N 2 O = k C O 2 , N 2 O × C O 2 , N 2 O i n C O 2 , N 2 O o u t × s A
where gas flux is the emission of CO2 in mg (CO2-C, N2O-N) m−2 h−1 and N2O in μg (CO2-C, N2O-N) m−2 h−1; k is the conversion constant for the mass conversion of CO2-C and N2O-N; [CO2,N2O]IN and [CO2,N2O]OUT are the concentrations of CO2-C and N2O-N before and after passing over the samples, respectively; s is the air flow rate of the system in mL min−1; and A is the inner diameter (surface area) of the incubation bottles.
NH3-N was calculated as the total amount of NH3-N emitted from the treatments at the point of sampling.
The experimental results were analyzed applying the R environment for statistical computing [38], using a linear, 2-factorial analysis of variance (ANOVA) for each individual sampling date. Differences between treatments were calculated using Tukey’s test for Honestly Significant Difference (Tukey-HSD) at a confidence interval of α = 0.05.

3. Results

3.1. N Turnover Experiment

There was a significant effect of added fertilizer (urea and urea + UI) on the concentrations of ammonium-N and nitrate-N in the soil (Figure 1). For ammonium-N, this effect was evident up to the 11th day of the experiment, after which no significant differences between treatments were observed.
Comparisons between the two fertilizers showed significantly higher concentrations of ammonium-N following the urea treatment compared to with urea + UI only for the first 7 days of the experiment, showing that UI reduces the appearance of ammonium-N, indicating inhibition of the urease enzyme.
The soil nitrate-N concentrations under both urea and urea + UI treatments increased over the entire experimental period. The nitrate-N concentrations with the urea treatment were higher compared to those with urea + UI up to the final day of sampling, at which no significant differences between the two fertilizer treatments were determined.
Regarding the main effect of added fertilizer, the concentration of mineral N at the conclusion of the experiment was 141.6 and 141.8 mg N kg soil−1 for urea and urea + UI, respectively (Table 2).
The incorporation of wheat straw showed a trend towards higher ammonium-N concentrations in the second week of the experiment both after the addition of urea and urea + UI (Figure 1A,B), with a significant main effect on the concentrations of ammonium N in the final two days of sampling (Days 11 and 19). By contrast, the addition of wheat straw led to a 35% lower concentration of nitrate-N, compared to that in soil without added wheat straw (Figure 1C,D).
Urea as the N-source led to peak concentrations of ammonium-N on the third day of the experiment (−wheat straw: 76 mg N kg soil−1; +wheat straw: 77 mg N kg soil−1). For urea + UI, peak concentrations of ammonium-N were observed on Day 3 (−wheat straw: 23 mg kg soil−1) and Day 11 (+wheat straw: 35 mg kg soil−1). These days must be regarded as the points in time where the rate of nitrification exceeded the rate of urea hydrolysis (Figure 1).
Nitrate-N concentrations continuously increased up to the final day of sampling. The observed values of mineral N (ammonium-N + nitrate-N) at the conclusion of the experiment are approximately 50% of those of the added fertilizer-N (Table 2).

3.2. Gaseous Flux Experiment

The addition of wheat straw led to a significant (P < 0.001) increase in CO2 respiration as compared to that under the treatments without added wheat straw over the entire course of the experiment. For the treatments without added wheat straw, the CO2 respiration rates under the fertilized treatments increased throughout the experiment, leading to peak CO2 respiration rates of 105 mg CO2-C m−2 h−1 (urea) and 54 mg CO2-C m−2 h−1 (urea + UI) on Day 16. For the treatments with added wheat straw, peak CO2 respiration was observed on Day 3 of the experiment with 180 and 170 mg CO2-C m−2 h−1 for urea and urea + UI, respectively.
The control in both instances (with and without wheat straw) showed similar CO2 dynamics compared to the fertilized treatments at lower concentrations (Figure 2A,B).
With regard only to the main effect of added wheat straw, total CO2 respiration increased from a mean of 13.4 to 46.2 g CO2-C m−2 over the experimental period. Furthermore, there was a significant effect of added fertilizer on CO2 respiration (control < urea + UI < urea, Table 2), in excess of the possible 5.8 g CO2-C m−2 that theoretically may be released from urea at the chosen application rates. There was no significant interaction between the main factors of the experiment (wheat straw x fertilizer).
The incorporation of wheat straw increased the emission of N2O in soil treated with urea and urea + UI. The observed effect of both fertilizers was evident from Day 3 onward and remained elevated compared to the control throughout the experiment. In the second week of sampling, a significant interaction between the main effect of added wheat straw and fertilizer became evident. This interaction was evident only for the treatments fertilized with urea, not urea + UI.
In all the fertilized treatments, the highest N2O emission rates were observed on the final day of sampling, and flux rates increased with the addition of wheat straw. With urea as the fertilizer, the N2O flux rates were 515 and 3390 µg N2O-N m−2 h−1; with urea + UI, the flux rates were 76 and 113 µg N2O-N m−2 h−1 without and with added wheat straw, respectively (Figure 2C,D).
There was a significant interaction effect between the factors of wheat straw and fertilizer on the emission of N2O, which is reflected in the calculated total emission of N2O for the duration of the experiment. For soil fertilized with urea, the total emission of N2O at 432.8 mg m−2 with added wheat straw was five times higher compared to that from soil without added wheat straw at 84.6 mg m−2. By contrast, N2O emission from soil fertilized with urea + UI remained at a low level, with total values of 14.3 mg m−2 without added wheat straw and 29.7 mg m−2 with added wheat straw (Table 2).
There was a response of ammonia volatilization only from treatments with urea fertilization. For both the control and urea + UI, only trace amounts of ammonia were determined in the sulfuric acid traps used in this experiment.
The peak volatilization rates of ammonia from soil fertilized with urea were observed on the eighth day of the experiment for soil without added wheat straw (19.3 mg NH3-N m−2 h−1) and on the sixth day for soil with added wheat straw (19.2 mg NH3-N m−2 h−1), after which the volatilization rates decreased until the conclusion of the experiment (Figure 2E,F).
The total cumulative ammonia losses over the experimental period (16 days) from soil fertilized with urea amounted to 2.9 and 3.5 g N m−2 for soil without and with added wheat straw, which corresponds to a loss of 12 and 14% of applied urea-N, respectively (Table 2).

4. Discussion

For treatments without added fertilizer, the N dynamics in the soil used for these experiments are consistent with previous research on the subject [39,40]. The non-amended soil showed a total apparent mineralization of about 21 mg N kg soil−1 over a 3-week period, which translates to about 20 kg (N) ha−1, taking a depth of 10 cm as the basis for calculation. By contrast, soil amended with wheat straw led to a net immobilization of 2 mg N kg soil−1. Similar results have been described by Mundra et al. [41], Nieder and Richter [42], and Mary et al. [39], who state that net immobilization takes place over a short-term period when organic material with a C/N ratio greater than 25:1 is incorporated into soil.
As expected, the addition of wheat straw led to a strong increase in CO2 respiration, i.e., microbial activity, over the first week of the experiment, before it gradually declined in the second week of the experiment. Similarly, without additional N, N2O flux rates were elevated only for the first few days of observation, before decreasing to levels similar to those observed in pure soil. These observations may indicate that microbial activity was limited by N as a substrate for microbial activity, as described by Zumft et al. [43].
The observations of the turnover of urea, especially the concentrations of ammonium-N, indicate that the hydrolysis of urea as catalyzed by the urease enzyme reached its maximum within 3 days after application and that nitrification was induced quickly. These dynamics of N were expected after urea application and are consistent with previous research on the subject [5,44].
The addition of wheat straw in this experiment led to a prolonged presence of ammonium-N in the soil and reduced concentrations of nitrate-N throughout the experiment. It is therefore possible that the addition of wheat straw either stimulated the activity of the urease enzyme or reduced the rate of nitrification, thereby acting as a nitrification inhibitor. This specific result in part contradicts observations by Marsh et al. [5], who stated that nitrification after urea application is induced quickly under a wide range of conditions, as urea acts as both a C and N source for ammonium-oxidizing bacteria. Concerning total mineral-N, the addition of wheat straw led to lower mineral N concentrations, which may be explained through an increase in the microbial-N fraction [39] during the decomposition of organic material [42].
As has been previously reported, the application of urea to neutral-to-alkaline soils may lead to a significant loss of N in the form of ammonia [27,45,46,47,48,49]. In our experiments, the loss of N through ammonia volatilization after the application of urea amounted to 2.9 g NH3-N m−2 without added wheat straw, and 3.5 g NH3-N m−2 with added wheat straw, which is 12 and 14% of the applied urea-N, respectively. These rates of volatilization are lower compared to those in research conducted by McKinnes et al. [45], Zhang et al. [27] and Soares et al. [10] but are similar to the results obtained by Sanz-Cobena et al. [13]. While indicating a strong effect of NBPT on the reduced volatilization of ammonia, higher volatilization may occur when higher air-exchange rates are chosen during experimental set-up. The addition of urea significantly increased CO2 respiration rates compared to the unfertilized treatments without and with added wheat straw. Taking the application rate of urea as a basis for calculation, only 5.8 g CO2-C m−2 can be explained by the hydrolysis of urea; CO2-emission above these values must be explained through background soil respiration (no added wheat straw) or the turnover of added organic material (wheat straw). These values indicate that there is a priming effect of urea on the activity of microbial organisms and, thereby, CO2-respiration, as described by Kuzyakov et al. [50] and Qiu et al. [36]. In this case, urea would act as both a N and C source for microbial organisms, leading to an increase in soil activity and the turnover of added organic material.
A similar priming effect must also be responsible for the increase in N2O flux rates observed in this experiment. The addition of urea increased the emission rates of N2O-N by a factor of 10 compared to those in soil without added fertilizer and without added wheat straw, and by a factor of 100 when wheat straw was incorporated. Generally, N2O emission is limited either by the absence of N as a substrate [51] or by C as a limiting factor for microbial activity [26]. Especially for soils of the NCP, N2O emissions are mainly derived from nitrification processes [27,28,29,30]. In the case of the research presented here, the addition of urea may act as both a C and N source [5], having a priming effect on microbial activity, thereby leading to the interactive effect of added urea and wheat straw on N2O emission.
Three principal points must be made when comparing urea + UI to urea. Firstly, the use of UI does effectively limit the rate of hydrolysis as catalyzed through the urease enzyme. However, while the appearance of ammonium-N is reduced in incubated soil and the subsequent appearance of nitrate-N is slightly reduced, the activity of the urease enzyme seems sufficient to provide ammonium-N as a substrate for nitrification.
Secondly, UI almost completely prevented the loss of N as ammonia in these experiments. The volatilization of NH3-N was undiscernibly higher compared to that in the unfertilized control over a period of 2 weeks. While the efficiency of NBPT concerning the volatilization of ammonia has previously been described [6,9,10,52], this near complete restriction of ammonia volatilization is surprising and should be confirmed using more sensitive methods of analysis.
Finally, UI strongly reduced the loss of N as N2O after the application of urea, which supports the suggestion of Ding et al. [53], who described that the loss of N2O may be reduced by the urease inhibitor NBPT.
In addition to the results for NH3 volatilization and N2O emission, the results further show that CO2 respiration is reduced through UI. In the context of N2O-emission, this result specifically may lead to either of two conclusions: UI may either simply act to restrict microbial activity in general, or the principal mechanisms of the urease inhibitor may prevent the priming effect of urea on soil microbial activity, as the C fraction of urea is not available as a substrate for microbial growth [5,50]. Further research on the subject, specifically on the effect of the urease inhibitor NBPT on the C and N turnover in soils, is therefore necessary and should use marker-based studies to observe the development of mineral and organic C and N fractions in soils.

Author Contributions

T.E.H. and I.G.-B. jointly carried out the experiments and evaluated the experimental data. T.E.H. wrote the manuscript text. R.R. and T.M. assisted in the planning of the experiments. All authors reviewed the manuscript. A previous version of this research article has been published by the University of Hohenheim as part of the doctoral thesis of T.E.H., “Evaluation and improvement of N fertilization strategies in the wheat/maize double-cropping system of the North China Plain” (URN: urn:nbn:de:bsz:100-opus-10726, 2015). This version has been updated to take recent scientific literature into account. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mathews, E. Nitrogenous fertilizers: Global distribution of consumption and associated emissions of nitrous oxide and ammonia. Glob. Biogeochem. Cycles 1994, 8, 411–439. [Google Scholar] [CrossRef]
  2. Li, X.; Hu, C.; Delgado, J.A.; Zhang, Y.; Ouyang, Z. Increased nitrogen use efficiencies as a key mitigation alternative to reduce nitrate leaching in north china plain. Agric. Water Manag. 2007, 89, 137–147. [Google Scholar] [CrossRef]
  3. Ju, X.-T.; Xing, G.-X.; Chen, X.-P.; Zhang, S.-L.; Zhang, L.-J.; Liu, X.-J.; Cui, Z.-L.; Yin, B.; Christie, P.; Zhu, Z.-L.; et al. Reducing environmental risk by improving N management in intensive Chinese agricultural systems. Proc. Natl. Acad. Sci. USA 2009, 106, 3041–3046. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Ti, C.; Pan, J.; Xia, Y.; Yan, X. A nitrogen budget of mainland China with spatial and temporal variation. Biogeochemistry 2012, 108, 381–394. [Google Scholar] [CrossRef]
  5. Marsh, K.L.; Sims, G.K.; Mulvaney, R.L. Availability of urea to autotrophic ammonia-oxidizing bacteria as related to the fate of 14C- and 15N-labeled urea added to soil. Biol. Fertil. Soils 2005, 42, 137. [Google Scholar] [CrossRef]
  6. Watson, C.J.; Stevens, R.J.; Laughlin, R.J. Effectiveness of the urease inhibitor NBPT (N-(n-butyl) thiophosphoric triamide) for improving the efficiency of urea for ryegrass production. Fertil. Res. 1990, 24, 11–15. [Google Scholar] [CrossRef]
  7. Yan, X.; Akimoto, H.; Ohara, T. Estimation of nitrous oxide, nitric oxide and ammonia emissions from croplands in East, Southeast and South Asia. Glob. Chang. Biol. 2003, 9, 1080–1096. [Google Scholar] [CrossRef]
  8. Pan, B.; Lam, S.K.; Mosier, A.; Luo, Y.; Chen, D. Ammonia volatilization from synthetic fertilizers and its mitigation strategies: A global synthesis. Agric. Ecosyst. Environ. 2016, 232, 283–289. [Google Scholar] [CrossRef]
  9. Kawakami, E.M.; Oosterhuis, D.M.; Snider, J.L.; Mozaffari, M. Physiological and yield responses of field-grown cotton to application of urea with the urease inhibitor NBPT and the nitrification inhibitor DCD. Eur. J. Agron. 2012, 43, 147–154. [Google Scholar] [CrossRef]
  10. Soares, J.R.; Cantarella, H.; de Campos Menegale, M.L. Ammonia volatilization losses from surface-applied urea with urease and nitrification inhibitors. Soil Biol. Biochem. 2012, 52, 82–89. [Google Scholar] [CrossRef]
  11. Silva, A.G.B.; Sequeira, C.H.; Sermarini, R.A.; Otto, R. Urease Inhibitor NBPT on Ammonia Volatilization and Crop Productivity: A Meta-Analysis. Agron. J. 2017, 109, 1–13. [Google Scholar] [CrossRef]
  12. Rose, T.J.; Wood, R.H.; Rose, M.T.; Zwieten, L.V. A re-evaluation of the agronomic effectiveness of the nitrification inhibitors DCD and DMPP and the urease inhibitor NBPT. Agric. Ecosyst. Environ. 2018, 252, 69–73. [Google Scholar] [CrossRef]
  13. Sanz-Cobena, A.; Misselbrook, T.H.; Arce, A.; Mingot, J.I.; Diez, J.A.; Vallejo, A. An inhibitor of urease activity effectively reduces ammonia emissions from soil treated with urea under Mediterranean conditions. Agric. Ecosyst. Environ. 2008, 126, 243–249. [Google Scholar] [CrossRef]
  14. Sanz-Cobena, A.; Sánchez-Martín, L.; García-Torres, L.; Vallejo, A. Gaseous emissions of N2O and NO and NO3—leaching from urea applied with urease and nitrification inhibitors to a maize (Zea mays) crop. Agric. Ecosyst. Environ. 2012, 149, 64–73. [Google Scholar] [CrossRef]
  15. Van der Weerden, T.J.; Luo, J.; Di, H.J.; Podolyan, A.; Phillips, R.L.; Saggar, S.; de Klein, C.A.M.; Cox, N.; Ettema, P.; Rys, G. Nitrous oxide emissions from urea fertiliser and effluent with and without inhibitors applied to pasture. Agric. Ecosyst. Environ. 2016, 219, 58–70. [Google Scholar] [CrossRef]
  16. Rogner, H.H.; Zhou, D.; Bradley, R.; Crabbé, P.; Edenhofer, O.; Hare, B.; Kuijpers, L.; Yamaguchi, M. Introduction. In Climate Change 2007: Mitigation. Contribution of Working Group III to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change; Metz, B., Davidson, O.R., Bosch, P.R., Dave, R., Meyer, L.A., Eds.; Cambridge University Press: Cambridge, UK, 2007. [Google Scholar]
  17. Crutzen, P.J. Atmospheric chemical processes of the oxides of nitrogen including nitrous oxide. In Denitrification, Nitrification and Atmospheric N2O; Delwiche, C.C., Ed.; John Wiley and Sons: Hoboken, NJ, USA, 1981; pp. 17–44. [Google Scholar]
  18. Granli, T.; Bøckman, O. Nitrous oxide from agriculture. Nor. J. Agri. Sci. 1994, 12, 1–128. [Google Scholar]
  19. Bremner, J.M. Sources of nitrous oxide in soils. Nutr. Cycl. Agroecosyst. 1997, 49, 7–16. [Google Scholar] [CrossRef]
  20. Buerkert, A.; Joergensen, R.; Ludwig, B.; Schlecht, E. Nutrient and Carbon Fluxes in Terrestrial Agro-Ecosystems. In Marschners Mineral Nutrition of Higher Plants; Marschner, P., Ed.; Elsevier Academic Press: Cambridge, MA, USA, 2012; pp. 473–482. [Google Scholar]
  21. Baggs, E.M. A review of stable isotope techniques for N2O source partitioning in soils: Recent progress, remaining challenges and future considerations. Rapid Commun. Mass Spectrom. 2008, 22, 1664–1672. [Google Scholar] [CrossRef]
  22. Kool, D.M.; Dolfing, J.; Wrage, N.; van Groenigen, J.W. Nitrifier denitrification as a distinct and significant source of nitrous oxide from soil. Soil Biol. Biochem. 2011, 43, 174–178. [Google Scholar] [CrossRef]
  23. Parkin, T.B. Soil Microsites as a Source of Denitrification Variability1. Soil Sci. Soc. Am. J. 1987, 51, 1194–1199. [Google Scholar] [CrossRef] [Green Version]
  24. Flessa, H.; Beese, F. Effects of Sugarbeet Residues on Soil Redox Potential and Nitrous Oxide Emission. Soil Sci. Soc. Am. J. 1995, 59, 1044–1051. [Google Scholar] [CrossRef]
  25. Garcia-Ruiz, R.; Baggs, E.M. N2O emission from soil following combined application of fertiliser-N and ground weed residues. Plant Soil 2007, 299, 263–274. [Google Scholar] [CrossRef]
  26. Pfab, H.; Palmer, I.; Buegger, F.; Fiedler, S.; Müller, T.; Ruser, R. Influence of a nitrification inhibitor and of placed N-fertilization on N2O fluxes from a vegetable cropped loamy soil. Agric. Ecosyst. Environ. 2012, 150, 91–101. [Google Scholar] [CrossRef]
  27. Zhang, Y.; Liu, J.; Mu, Y.; Pei, S.; Lun, X.; Chai, F. Emissions of nitrous oxide, nitrogen oxides and ammonia from a maize field in the North China Plain. Atmos. Environ. 2011, 45, 2956–2961. [Google Scholar] [CrossRef]
  28. Ju, X.-T.; Lu, X.; Gao, Z.; Chen, X.; Su, F.; Kogge, M.; Römheld, V.; Christie, P.; Zhang, F. Processes and factors controlling N2O production in an intensively managed low carbon calcareous soil under sub-humid monsoon conditions. Environ. Pollut. 2011, 159, 1007–1016. [Google Scholar] [CrossRef] [Green Version]
  29. Cui, F.; Yan, G.; Zhou, Z.; Zheng, X.; Deng, J. Annual emissions of nitrous oxide and nitric oxide from a wheat–maize cropping system on a silt loam calcareous soil in the North China Plain. Soil Biol. Biochem. 2012, 48, 10–19. [Google Scholar] [CrossRef]
  30. Huang, T.; Gao, B.; Hu, X.-K.; Lu, X.; Well, R.; Christie, P.; Bakken, L.R.; Ju, X.-T. Ammonia-oxidation as an engine to generate nitrous oxide in an intensively managed calcareous Fluvo-aquic soil. Sci. Rep. 2014, 4, 3950. [Google Scholar] [CrossRef]
  31. Staley, C.; Breuillin-Sessoms, F.; Wang, P.; Kaiser, T.; Venterea, R.T.; Sadowsky, M.J. Urea Amendment Decreases Microbial Diversity and Selects for Specific Nitrifying Strains in Eight Contrasting Agricultural Soils. Front. Microbiol. 2018, 9, 634. [Google Scholar] [CrossRef] [Green Version]
  32. Zhang, L.; Liu, Y.; Hao, L. Contributions of open crop straw burning emissions to PM2.5 concentrations in China. Environ. Res. Lett. 2016, 11, 014014. [Google Scholar] [CrossRef]
  33. Chen, J.; Li, C.; Ristovski, Z.; Milic, A.; Gu, Y.; Islam, M.S.; Wang, S.; Hao, J.; Zhang, H.; He, C.; et al. A review of biomass burning: Emissions and impacts on air quality, health and climate in China. Sci. Total Environ. 2017, 579, 1000–1034. [Google Scholar] [CrossRef] [Green Version]
  34. Wang, J.; Wang, X.; Xu, M.; Feng, G.; Zhang, W.; Lu, C. Crop yield and soil organic matter after long-term straw return to soil in China. Nutr. Cycl. Agroecosyst. 2015, 102, 371–381. [Google Scholar] [CrossRef]
  35. Gao, J.; Xie, Y.; Jin, H.; Liu, Y.; Bai, X.; Ma, D.; Zhu, Y.; Wang, C.; Guo, T. Nitrous Oxide Emission and Denitrifier Abundance in Two Agricultural Soils Amended with Crop Residues and Urea in the North China Plain. PLoS ONE 2016, 11, 1–15. [Google Scholar] [CrossRef] [PubMed]
  36. Qiu, Q.; Wu, L.; Zhu, O.; Li, B.; Xu, Y. Different effects of plant-derived dissolved organic matter (DOM) and urea on the priming of soil organic carbon. Environ. Sci. Process. Impacts 2016, 18, 330. [Google Scholar] [CrossRef] [PubMed]
  37. Hartmann, T.E.; Yue, S.; Schulz, R.; Chen, X.; Zhang, F.; Müller, T. Nitrogen dynamics, apparent mineralization and balance calculations in a maize–wheat double cropping system of the North China Plain. Field Crops Res. 2014, 160, 22–30. [Google Scholar] [CrossRef]
  38. Team, R.C. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2013. [Google Scholar]
  39. Mary, B.; Recous, S.; Darwis, D.; Robin, D. Interactions between decomposition of plant residues and nitrogen cycling in soil. Plant Soil 1996, 181, 71–82. [Google Scholar] [CrossRef]
  40. Gioacchini, P.; Ramieri, N.A.; Montecchio, D.; Marzadori, C.; Ciavatta, C. Dynamics of Mineral Nitrogen in Soils Treated with Slow-Release Fertilizers. Commun. Soil Sci. Plant Anal. 2006, 37, 1–12. [Google Scholar] [CrossRef]
  41. Mundra, M.C.; Bhandari, G.S.; Srivastava, O.P. Studies on mineralization and immobilization of nitrogen in soil. Geoderma 1973, 9, 27–33. [Google Scholar] [CrossRef]
  42. Nieder, R.; Richter, J. Die Bedeutung der Umsetzung von Weizenstroh im Hinblick auf den C- und N-Haushalt von Löß-Ackerböden. Z. Pflanz. Bodenkunde 1989, 152, 415–420. [Google Scholar] [CrossRef]
  43. Zumft, W.G. Cell biology and molecular basis of denitrification. Microbiol. Mol. Biol. Rev. 1997, 61, 533–616. [Google Scholar] [CrossRef]
  44. Fan, X.; Yin, C.; Yan, G.; Cui, P.; Shen, Q.; Wang, Q.; Chen, H.; Zhang, N.; Ye, M.; Zhao, Y.; et al. The contrasting effects of N-(n-butyl) thiophosphoric triamide (NBPT) on N2O emissions in arable soils differing in pH are underlain by complex microbial mechanisms. Sci. Total Environ. 2018, 642, 155–167. [Google Scholar] [CrossRef]
  45. McInnes, K.J.; Ferguson, R.B.; Kissel, D.E.; Kanemasu, E.T. Field Measurements of Ammonia Loss from Surface Applications of Urea Solution to Bare Soil1. Agron. J. 1986, 78, 192–196. [Google Scholar] [CrossRef]
  46. Sommer, S.G.; Jensen, C. Ammonia volatilization from urea and ammoniacal fertilizers surface applied to winter wheat and grassland. Fertil. Res. 1994, 37, 85–92. [Google Scholar] [CrossRef]
  47. Pacholski, A.; Cai, G.; Nieder, R.; Richter, J.; Fan, X.; Zhu, Z.; Roelcke, M. Calibration of a simple method for determining ammonia volatilization in the field—Comparative measurements in Henan Province, China. Nutr. Cycl. Agroecosyst. 2006, 74, 259–273. [Google Scholar] [CrossRef]
  48. Fenn, L.B.; Hossner, L.R. Ammonia Volatilization from Ammonium or Ammonium-Forming Nitrogen Fertilizers. In Advances in Soil Science; Stewart, B.A., Ed.; Springer: Berlin, Germany, 1985; pp. 123–169. [Google Scholar]
  49. Harrison, R.; Webb, J. A review of the effect of N fertilizer type on gaseous emissions. In Advances in Agronomy; Sparks, D.L., Ed.; Elsevier: Amsterdam, The Netherlands, 2001; Volume 73, pp. 65–108. [Google Scholar]
  50. Kuzyakov, Y.; Friedel, J.K.; Stahr, K. Review of mechanisms and quantification of priming effects. Soil Biol. Biochem. 2000, 32, 1485–1498. [Google Scholar] [CrossRef]
  51. Zebarth, B.J.; Rochette, P.; Burton, D.L.; Price, M. Effect of fertilizer nitrogen management on N2O emissions in commercial corn fields. Can. J. Soil Sci. 2008, 88, 189–195. [Google Scholar] [CrossRef]
  52. Gioacchini, P.; Nastri, A.; Marzadori, C.; Giovannini, C.; Antisari, L.V.; Gessa, C. Influence of urease and nitrification inhibitors on N losses from soils fertilized with urea. Biol. Fertil. Soils 2002, 36, 129–135. [Google Scholar] [CrossRef]
  53. Ding, W.X.; Yu, H.Y.; Cai, Z.C. Impact of urease and nitrification inhibitors on nitrous oxide emissions from fluvo-aquic soil in the North China Plain. Biol. Fertil. Soils 2011, 47, 91–99. [Google Scholar] [CrossRef]

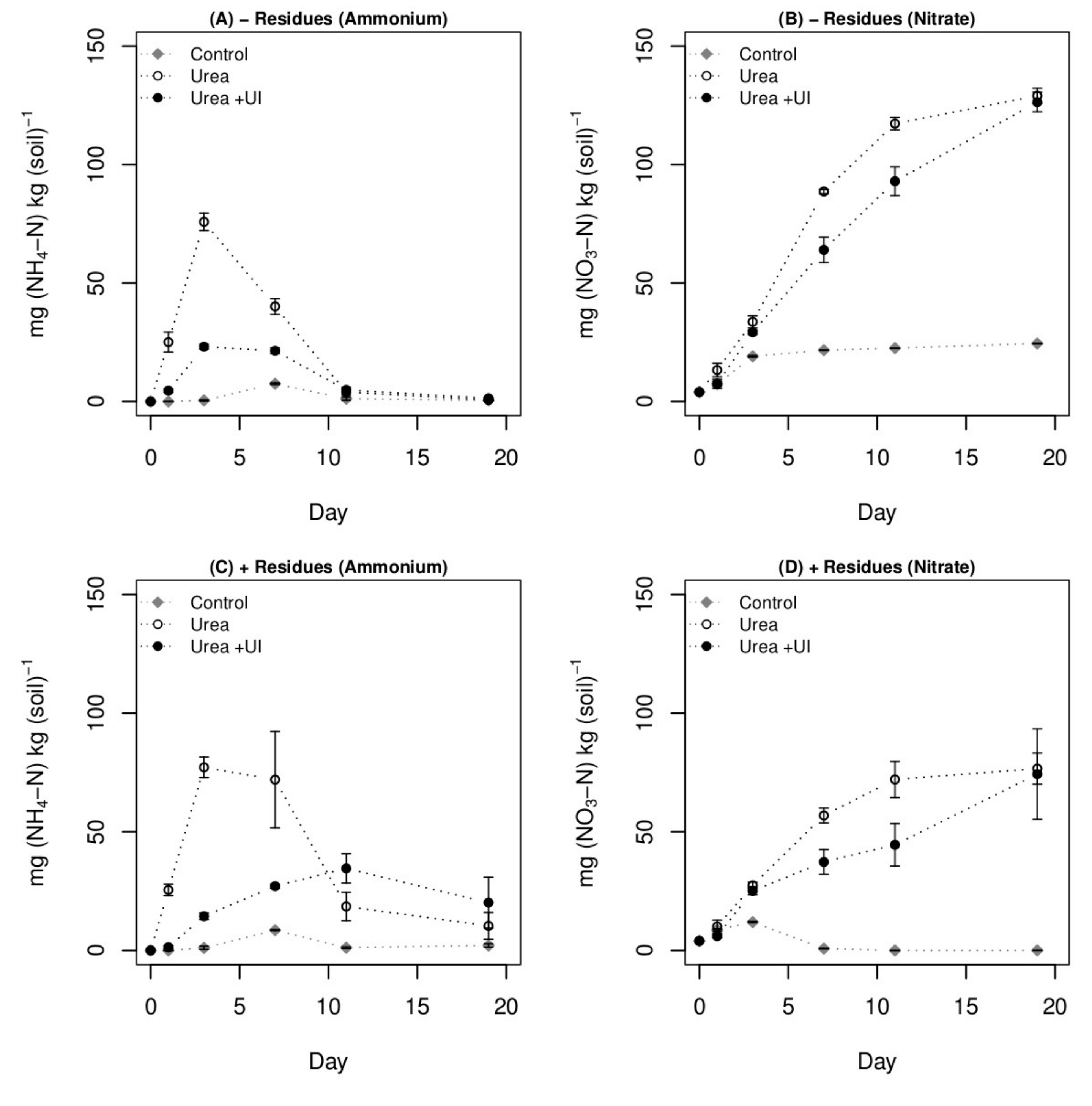

Figure 1. Turnover of ammonium-N (A,C) and nitrate-N (B,D) in alkaline soil of the North China Plain (NCP) after application of urea and urea + UI (N-(n-butyl) thiophosphoric triamide (NBPT)) without (A,B) and with (C,D) incorporated residues (wheat straw). Error bars indicate the standard errors of the mean.
Figure 1. Turnover of ammonium-N (A,C) and nitrate-N (B,D) in alkaline soil of the North China Plain (NCP) after application of urea and urea + UI (N-(n-butyl) thiophosphoric triamide (NBPT)) without (A,B) and with (C,D) incorporated residues (wheat straw). Error bars indicate the standard errors of the mean.
Agronomy 10 00857 g001

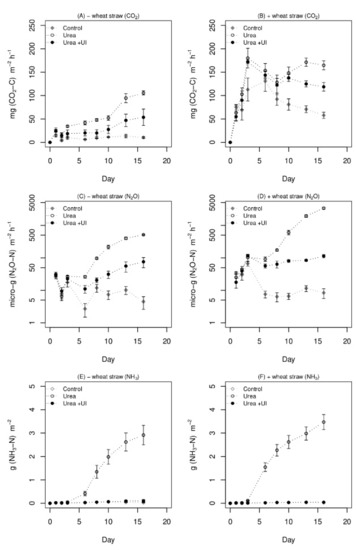

Figure 2. Flux rates of CO2-C (A,B) and N2O-N (C,D, logarithmic scale) and total loss of NH3-N (E,F) from alkaline soil of the NCP after application of urea and urea + UI (NBPT) without (left) and with (right) incorporated wheat straw.
Figure 2. Flux rates of CO2-C (A,B) and N2O-N (C,D, logarithmic scale) and total loss of NH3-N (E,F) from alkaline soil of the NCP after application of urea and urea + UI (NBPT) without (left) and with (right) incorporated wheat straw.
Agronomy 10 00857 g002
Table 1. 2-factorial design of treatments in the 1st (determination of mineralization) and 2nd (determination of gaseous flux) experiments. Wheat residues (ws) were incorporated into the soil, and fertilizer granules without or with urease inhibitor (UI) were applied to the surface of individual repetitions.
Table 1. 2-factorial design of treatments in the 1st (determination of mineralization) and 2nd (determination of gaseous flux) experiments. Wheat residues (ws) were incorporated into the soil, and fertilizer granules without or with urease inhibitor (UI) were applied to the surface of individual repetitions.
TreatmentResiduesFertilizer
−ws − NNoNo
−ws + ureaNourea
−ws + urea + UINourea + UI
+ws – NYesNo
+ws + ureaYesurea
+ws + urea + UIYesurea + UI
Table 2. Apparently net mineralized N (NH4-N + NO3-N), total CO2-C respiration, total N2O-N emission and total NH3-N volatilization at the conclusion of the experiments (2 weeks), showing the main effects of the 2-factorial experimental design (wheat straw x fertilizer) in the two experiments (Exp. 1 and Exp. 2). Letters behind values indicate significant differences between treatments for either the main factors or, where relevant, the interaction between main factors of the experiment.
Table 2. Apparently net mineralized N (NH4-N + NO3-N), total CO2-C respiration, total N2O-N emission and total NH3-N volatilization at the conclusion of the experiments (2 weeks), showing the main effects of the 2-factorial experimental design (wheat straw x fertilizer) in the two experiments (Exp. 1 and Exp. 2). Letters behind values indicate significant differences between treatments for either the main factors or, where relevant, the interaction between main factors of the experiment.
Net Mineralized NCO2-CN2O-NNH3-N
Treatmentmg kg−1 ± SEg m−2 ± SEmg m−2 ± SEg m−2 ± SE
−ws − N29.6 ± 0.13.9 ± 0.33.4 ± 0.4 c0.0 ± 0.0
−ws + urea170.3 ± 4.724.0 ± 1.084.6 ± 5.0 b2.9 ± 0.4
−ws + urea + UI167.7 ± 5.112.4 ± 3.914.3 ± 4.1 c0.1 ± 0.1
+ws − N−1.2 ± 1.033.2 ± 4.65.8 ± 0.4 c0.0 ± 0.0
+ws + urea112.9 ± 4.556.9 ± 3.9432.8 ± 33.0 a3.5 ± 0.3
+ws + urea + UI115.9 ± 9.048.6 ± 1.529.7 ± 2.0 bc0.0 ± 0.0
Factor A x Bn.s.n.s.***n.s.
−ws122.5 ± 17.7 a13.4 ± 2.5 b34.1 ± 9.8 b1.0 ± 0.4
+ws75.9 ± 14.9 b46.2 ± 3.2 a156.1 ± 53.3 a1.2 ± 0.4
Factor A*********n.s.
−N14.2 ± 5.2 b18.5 ± 5.4 c4.6 ± 0.5 c0.0 ± 0.0 b
urea141.6 ± 10.0 a40.4 ± 5.8 a258.7 ± 60.1 a3.2 ± 0.3 a
urea + UI141.8 ± 9.9 a30.5 ± 6.4 b22.0 ± 3.4 b0.1 ± 0.0 b
Factor B************
Tukey HSD: Significance Codes: p < 0.001: “***”; no difference: “n.s”. Net mineralized N: (NH4-N + NO3-N)End − (NH4-N + NO3-N)Start.
