Exogenous Application of Mg, Zn and B Influences Phyto-Nutritional Composition of Leaves and Fruits of Loquat (Eriobotrya japonica Lindl.)

by
Muhammad Moaaz Ali
1,
Raheel Anwar
2,
Muhammad Waleed Shafique
3,
Ahmed Fathy Yousef
1,4 and
Faxing Chen
1,*
1
College of Horticulture, Fujian Agriculture and Forestry University, Fuzhou 350002, China
2
Institute of Horticultural Sciences, University of Agriculture, Faisalabad 38040, Punjab, Pakistan
3
Department of Agronomy, University of New England, Armidale, NSW 2351, Australia
4
Department of Horticulture, College of Agriculture, University of Al-Azhar (Branch Assiut), Assiut 71524, Egypt
*
Author to whom correspondence should be addressed.
Agronomy 2021, 11(2), 224; https://doi.org/10.3390/agronomy11020224
Submission received: 9 December 2020 / Revised: 15 January 2021 / Accepted: 21 January 2021 / Published: 26 January 2021
(This article belongs to the Special Issue Mineral Nutrition of Fruit Trees)
Browse Figures
Versions Notes

Abstract

:
This study was conducted to analyze the effect of magnesium (Mg), zinc (Zn) and boron (B) on the level of macronutrients (Na, Mg, K, Ca), micronutrients (Zn, B, Mo, Mn, Fe, Co, Ni, Cu), and heavy metals (Cd, As, Hg, Pb) in loquat leaves and fruit tissues (peel, pulp, and seed) using inductively coupled plasma-mass spectrometry (ICP-MS). Fruits were obtained from a loquat orchard located in Fujian (Yun Xiao/Zhangzhou). The results revealed that the foliar application of Mg increased the concentrations of Mg, K, Ca, Zn, B, Mn, Ni, and Cu in leaves; Mg, Ca, Zn, B, Mo, and Mn in fruit pulp; and Na, K, B, Mo, Co, Ni, and Cu in seeds. Zinc increased Mg, K, Ca, Zn, B, Ni, and Cu in leaves; Fe, Co and Ni in fruit peel; K, B, Mn, Fe, and Co in fruit pulp; and Na and K in seeds. Similarly, B application increased the concentrations of Na, Mg, K, Ca, and B in leaves; Ca and Ni in fruit peel; Na, Mg, Ca, Zn, B, Mn, Fe, and Co in fruit pulp; and Na, K, Ca, Zn, B, Mo, Mn, Co, and Ni in loquat seeds. Overall, mineral concentrations detected in the leaves and fruit tissues of loquats were greatly influenced by the application of Mg, Zn and B. Although heavy metal concentrations in fruit pulp were increased by the foliar application of B, the fruits were under safe limits for human consumption.

1. Introduction

The loquat (Eriobotrya japonica Lindl.) is an evergreen fruit tree originating from the People’s Republic of China. It belongs to the family Rosaceae, subfamily Maloideae. It is a rich source of vitamin A, vitamin B6, potassium, magnesium, and dietary fiber [1]. It is a very beautiful orange-colored fruit with a mild sweet and sour taste [2]. It is most widely grown in Japan, Korea, India, Pakistan, and the south-central region of China. It is also grown as an ornamental shrub in California [3]. China is the leading producer and exporter of loquats, and grows it on more than 100,000 hectares. The annual production of loquats in China reaches up to 380,000 tons [4]. More than 30 species of loquat are being grown in temperate and subtropical regions of Asia [5].
Fruits and vegetables are low in energy content but have high nutritive value. They are a rich source of vitamins, fibers, and minerals, which are very essential for the human body [6]. The sufficient intake of fruits and vegetables can remove saturated fats and sugars from the body and enhance the consumption of healthy nutrients and dietary fiber [7]. To avoid certain cardiovascular diseases, a consumption of 440 g fresh fruits and vegetables per day is recommended [8]. Heavy metals (e.g., Hg, As, Cd, and Pb) can influence the functioning of the nervous system and cause mental illness by affecting the blood circulatory system [9]. Hence, it is very important to investigate the mineral contents of fruits and vegetables.
Fertilizer use is one of the main factors influencing the mineral contents of plants [10,11,12]. Foliar application of fertilizers is 10–20% more influential than soil application [13]. Magnesium helps the plants by strengthening cell walls, and it improves the uptake of certain nutrients (e.g., N, P, and S) [14]. Magnesium regulates the balance of cations and anions in cells and plays a significant role with K in maintaining cell turgor pressure [15,16]. There is 75% of leaf Mg involved in protein synthesis, and 15–20% has a significant role in chlorophyll pigmentation [17] and acts as a co-factor of a number of enzymes in photosynthetic metabolism [18,19,20]. Zinc is one of the essential micronutrients, and is crucial for mineral nutrition in plants. Zinc is involved in essential physiological functions in plant metabolism, influencing the growth and productivity of plants [21]. Boron nutrition affects nutrient status in plants by modulating the uptake and translocation of other nutrients [22]. For example, B plays a positive role in uptake of N, P, K, Cu, Zn, and Fe, whereas it negatively interacts with Ca, Mg, and Mn [23,24,25,26].
The quadrupole inductively coupled plasma mass spectrometer (ICP-MS) is the most suitable method for determining trace elements in fruits and vegetables, and has prevailed as the most appropriate practice for clinical quantification [27,28,29,30]. Element detection through ICP-MS has become a predominant methodology because of its rapidity, determination limits, and the sample quantity needed for analysis [31]. In the present experiment, the contents of macronutrients (Na, Mg, K, Ca), micronutrients (Zn, B, Mo, Mn, Fe, Co, Ni, Cu), and heavy metals (Cd, As, Hg, Pb) were analyzed in different loquat tissues (leaf blade, fruit peel, pulp, and seed) affected by the foliar application of Mg, Zn, and B via inductively coupled plasma-mass spectrometry (ICP-MS).

2. Materials and Methods

2.1. Plant and Soil Sampling

Twenty young loquat trees, growing in the subtropical area of Fujian province (Yun Xiao) (23°57′13.5″ N 117°20′36.0″ E), were selected and marked for periodic monitoring after foliar application of Mg, Zn, and B. Loquat trees were 4–5.5 m tall with canopy diameters of 4–5 m. The plantation distance among trees was 6 × 6 m, approximately. Loquat trees were systematically pruned and thinned, and fertilized with NPK (15:15:15) at concentrations of 5 kg per plant per season for three growing seasons. The experiment contained five treatments including the control (water spray) (T0), 2% MgSO4·7H2O (T1), 0.1% ZnSO4·7H2O (T2), 0.2% Na2B4O7·10H2O (T3), and T1+T2+T3 (1:1:1) (T4). The foliar application was carried out twice at the full bloom stage with a 3 week interval. Each tree was considered as one replicate of each treatment (four replicates per treatment).
Samples of the leaves and fruits were taken from the south-exposed tree canopy, at about 3–5 m height, at two different fruit maturity stages (i.e., mature green (MG) (40 days after foliar spray) and fully ripe (FR) (70 days after foliar spray). Samples were washed (for 10 s approximately) with a solution of phosphate-free detergent, then with a 0.1 N HCl solution, and finally with distilled water. Leaves, fruit peel, pulp, and seeds were dried at 70 °C, ground, and passed through a 500-µm stainless-steel sieve.
Soil samples were taken from the root zone of each tree, about 2 m from the trunk, and at two depths (0–25 and 25–40 cm) using a spiral auger with a 2.5 cm diameter. Three sub-samples around the trunk were taken to make a composite soil sample for each tree. Samples were transported to the laboratory (Institute of Subtropical Fruits, Fujian Agriculture and Forestry University), oven-dried at 40 °C, and crushed to pass through a 2-mm sieve, then ground to <60 µm for element determinations [32]. The soil’s structural type was sandy loam with electric conductivity and pH of 0.396 dS m−1 and 7.6, respectively. The electric conductivity and pH were recorded with an EC meter (HI-98,304, Hanna Instruments Inc., George Washington, RI, USA) and digital pH meter (Hanna, HI-98,107, Mauritius), respectively. Table 1 shows the level of mineral nutrients and heavy metals in loquat soil and plant tissues determined through ICP-MS before foliar application of Mg, Zn, and B.
The values in Table 1 show the mean of four replicates. The optimum ranges of mineral nutrients in loquat leaves are given after the findings of Quiñones et al. [33] and Reig et al. [34].

2.2. Chemical Analysis

2.2.1. Instrumentation and Reagents

The inductively coupled plasma mass spectrometer (Agilent7700X, Agilent, Santa Clara, CA, USA) used in this study was combined with a high-efficiency sample introduction desolvating system equipped with a quartz cyclonic spray chamber. Before each analysis, the instrument was tuned for daily performance using Agilent 7700X Sensitivity Detection Limit Solution, Agilent, USA. This is an aqueous multi-element standard solution of Li, Y, Co, Ce, and Tl for consistent sensitivity (7Li, 59Co, 89Y, 140Ce, 205Tl) and minimum doubly charged and oxide species levels (140Ce). The concentration of elements in the solution was 10 µg L−1. The internal standard solution (Agilent, USA) had a concentration of 0.01 µg ml−1 for each element (226Re, 115In, 73Ge, 45Sc).
Standard solution (1000 µg L−1) for each element (i.e., Na, Mg, K, Ca, Zn, B, Mo, Mn, Fe, Co, Ni, Cu, Cd, As, Hg, and Pb) was purchased from the National Standard Material Research Centre. Nitric acid (HNO3) used in the experiment was analytically pure, obtained from CNW Technologies GmbH, Germany. The deionized water (1.83 × 1010 mmhos) was prepared locally. In this experiment, the working parameters of the inductively coupled plasma mass spectrometer were optimized before the test, and the parameter settings are shown in Table 2.

2.2.2. Sample Preparation

After cleaning, glassware and a Pure Teflon (PTFE) digestion tank were soaked in 20% nitric acid (1 + 4, V + V) for more than 12 h, then rinsed with deionized water three times before use. After lyophilizing, 0.5 g of freeze-dried loquat tissue was added into a poly-tetra-fluoroethylene digestion tank. Then, 5 mL of concentrated nitric acid (analytical grade, CNW Technologies GmbH, Dusseldorf, Germany) was added. The digestion tank was gently shaken to completely immerse the sample, and microwave digestion (Mars5, HY−20−164, CEM, Matthews, NC, USA) occurred under the set conditions (Table 3). After microwave digestion, the solution was cooled naturally. The digestion solution was transferred to a 25-mL volumetric flask. The blank sample (control) was prepared simultaneously.

2.2.3. Determination

A single standard series solution was prepared. The mixed standard series solution and sample solution were measured by ICP−MS, and the standard curve method was used for quantification. The mixed internal standard was added to correct for matrix interference and instrument signal drift.

2.3. Statistical Data Analysis

Collected data were analyzed for analysis of variance (ANOVA) and Fisher’s least significance difference (LSD) method for the pair-wise comparison of mean values at a 5% significance level using the analytical software package ‘Statistix 8.1’. Principal component analysis (PCA) and correlation coefficient values were determined with the Pearson (n) method using XLSTAT Ver. 2019.

3. Results

3.1. Plant Leaves

3.1.1. Macronutrients

Sodium concentration in loquat leaves was reduced after foliar applications of T1, T2, and T4, while it increased with the application of T3. Leaves of plants treated with T4 showed the minimum level of sodium (Na) at the mature green stage (56.27 mg kg−1), whereas at the fully ripe stage the minimum Na (74.16 mg kg−1) was recorded in plants treated with T2. The maximum Na concentration occurred in the plants treated with T3 at both maturity stages. Regarding Mg, the plants treated with T1, T2, T3 and T4 showed increased concentrations of Mg as compared to the control, with the maximum Mg was observed in leaves of plants treated with T1 (MG−2694.88; FR−2745.70 mg kg−1) followed by T3, T2, and T4 at both maturity stages (MG and FR). Similarly, with the applications of T1, T2, T3, and T4, the K level in loquat leaves increased. The plants that received T2 showed a maximum K level (15,569.89 mg kg−1) at the mature green stage, whereas at the fully ripe stage the maximum K level (23,508.60 mg kg−1) was depicted in the plants treated with T3.
The loquat leaves that received foliar applications of T1, T2, T3, and T4 had enhanced Ca concentrations as compared to the leaves of the untreated plants (T0). Foliar application of T1 was proven better as compared to the other treatments in terms of increasing the level of Ca (16,944.45 mg kg−1) at the mature green stage, while at the fully ripe stage the plants treated with T4 showed their maximum Ca concentration (9950.87 mg kg−1) (Figure 1).

3.1.2. Micronutrients

Leaves of the plants that received foliar applications of T2, T3, or T4 showed decreases in the level of Zn as compared to the untreated plants (T0) (33.26 mg kg−1), while an increase in Zn was observed in plants treated with T1 (45.03 mg kg−1) at the mature green stage and in plants treated with T2 (103.45 mg kg−1) at the fully ripe stage. B concentrations increased in the leaves of the plants that received foliar applications of T1, T2, T3, and T4 as compared to T0. The maximum level of B (MG−19.83; FR−38.72 mg kg−1) was found in leaves of the plants treated with T4 followed by T2, T1, and T3 at both maturity stages. In contrast to B, the Mo level decreased with applications of T1, T2, T3, and T4. The minimum concentration of Mo (MG−70.98; FR−135.49 µg kg−1) was exhibited by plants treated with T3 followed by T1 and T2 at both maturity stages.
The maximum concentration of Mn (MG−349.63; FR−119.16 mg kg−1) was observed in plants treated with T1 at both maturity stages, while other treatments showed varying results. Similar to Mo, Fe concentrations also decreased with foliar applications of T1, T2, T3, and T4. The maximum concentration of Fe was recorded in the untreated plants (T0), whereas plants of the other treatments showed non-significant differences among each other with respect to Fe level. Similarly, the plants that received foliar applications of T1, T2, T3, and T4 exhibited decreases in Co concentration as compared to untreated plants (T0). Followed by the control (MG−3350.53; FR−2230.43 µg kg−1), the maximum concentration of Co was observed in plants treated with T2 (1096.18 µg kg−1) at the mature green stage, and T1 (798.54 µg kg−1) at the fully ripe stage.
Concentrations of Ni and Cu in leaves of a loquat were observed to increase with the applications of T1, T2, T3, and T4 at the mature green stage, whereas at the fully ripe stage the concentrations of Ni increased with applications of T1 and T2, and decreased with applications of T3 and T4. The concentrations of Cu recorded at the fully ripe stage decreased with the foliar applications of T1, T3, and T4, but not with T2 (Figure 1).

3.1.3. Heavy Metals

There were significant increases in Cd concentrations in loquat leaf blades with applications of T1, T2, T3, and T4 at the fully ripe stage, while at the mature green stage there were variations among treatments (increasing with T1 and T3, decreasing with T2 and T4). The maximum As level (MG−58,776.82; FR−42,313 µg kg−1) was recorded in the leaves of the untreated plants (T0) at both maturity stages, while with the applications of T1, T2, T3, and T4 the As level reduced significantly. Regarding Hg and Pb, concentrations reduced with the applications of T1, T2, T3, and T4 as compared to T0. The minimum concentrations of Hg and Pb were recorded in plants treated with T3 and T2, respectively, at the mature green stage (1.42 and 390.49 µg kg−1, respectively), while at the fully ripe stage, their concentrations in all treated plants remained non-significantly different (Figure 1).

3.2. Fruit Peel

3.2.1. Macronutrients

The Na concentrations in the loquat fruit’s peel were reduced by the foliar applications of T1 and T3, and increased with the applications of T2 and T4 at the mature green stage. The plants treated with T2 showed their maximum level of Na at the mature green stage (187.66 mg kg−1), whereas, at the fully ripe stage maximum Na (193.44 mg kg−1) was recorded in the plants treated with T3. Regarding Mg, the plants treated with T4 exhibited increased concentrations of Mg (1705.86 mg kg−1) as compared to the control (T0) at the mature green stage, whereas at the fully ripe stage Mg was reduced by the applications of T1, T3, and T4. Similarly, with the application of T4, K level in the loquat fruit’s peel was observed to increase at both maturity stages (MG−12,171.99; FR−26,687.45 mg kg−1). The loquat fruit’s peels that received foliar applications of T1 and T3 showed enhancement in Ca concentration as compared to the untreated plants (T0) at the mature green stage. The foliar application of T3 proved better than to other treatments, showing the maximum level of Ca (15,437.72 mg kg−1) at the mature green stage, while the Ca level was reduced at the fully ripe stage in plants treated with T1, T2, and T3 (Figure 2).

3.2.2. Micronutrients

The plants that received foliar applications showed increased levels of Zn as compared to the untreated plants (T0) (21.08 mg kg−1), except when treated with T1 (33.32 mg kg−1) and T2 (16.97 mg kg−1) at the mature green stage, and T4 (25.36 mg kg−1) at the fully ripe stage. The foliar applications of T1, T2, T3, and T4 on the loquat fruit’s peel showed that the B concentration was increased in the plants that received a foliar application of T4 as compared to untreated plants (T0) at the fully ripe stage, while at the mature green stage the B level was reduced by applications of T1, T2, and T4. In contrast with B, the Mo level decreased with the applications of T1 (107.09 µg kg−1) and T3 (76.09 µg kg−1), as compared to T0 (129.56 µg kg−1) at the mature green stage. Similarly, the plants that received foliar applications showed a decreased level of Mo at the fully ripe stage.
The plants that received the foliar applications showed a non-significant level of Mn as compared to the untreated plants (T0) (48.80 mg kg−1), except when treated with T1 (407.34 mg kg−1) and T2 (64.82 mg kg−1) at the mature green stage, and T2 (68.34 mg kg−1) at the fully ripe stage. Similarly, the plants treated with T2 showed a maximum concentration of iron at the mature green stage, whereas at the fully ripe stage the plants that received foliar applications showed a decrease in Fe level as compared to the control. The plants that received foliar applications of T2, T3, and T4 showed increases in Co concentration as compared to untreated plants (T0) at both maturity stages. As compared to the control (MG−414.93; FR−481.30 µg kg−1), the maximum concentration of Co was observed in the plants treated with T4 at both maturity stages (MG−1076.99; FR−1274.71 µg kg−1). The concentrations of Ni in the loquat fruit’s peel increased with applications of T2 and T4 at the mature green stage, whereas at the fully ripe stage the concentrations of Ni increased with applications of T1, T2, T3, and T4. The concentration of Cu recorded at the fully ripe stage decreased with the foliar applications (Figure 2).

3.2.3. Heavy Metals

There was a significant increase in Cd concentrations in the loquat fruit’s peel with applications of T1 and T3 at the mature green stage, while at the fully ripe stage the plants that received foliar applications showed a decrease in Cd level as compared to the control. The maximum As level (MG−123.01; FR−15.52 µg kg−1) was recorded in the fruit peels of the plants treated with T3 at both maturity stages. Regarding Hg, toxicity was significantly increased with applications of T1 and T3 at the mature green stage as compared to the control. Similarly, at the fully ripe stage, concentrations of Hg were reduced with foliar applications except in the plants treated with T4 (13.21 µg kg−1). Lead concentrations decreased with foliar applications of T1, T2, T3, and T4 at both stages. There was a significant decrease in Pb toxicity resulting from changes in the maturity stage (Figure 2).

3.3. Fruit Pulp

3.3.1. Macronutrients

The Na concentrations in the loquat fruits’ pulp were reduced with foliar applications of T1, T2, T3, and T4 at the mature green stage, while at the fully ripe stage they decreased except in the plants treated with T3. The plants treated with T1 showed a minimum level of Na at the mature green stage (75.57 mg kg−1), whereas, at the fully ripe stage, minimum Na (60.65 mg kg−1) was recorded in plants treated with T2 (Figure 3). Regarding Mg, the plants treated with T1, T2, T3, and T4 showed variations in concentrations of Mg, where the maximum Mg was observed in the plants treated with T2 (2594.59 mg kg−1) followed by T4, T3, and T1 at the mature green stage, and T3 (2543.08 mg kg−1) followed by T1, T2, and T4 at the fully ripe stage. Similarly, through the application of T1, T2, T3, and T4, the K level in the loquat fruits’ pulp was uplifted at the mature green stage. The plants that received T1 showed their maximum K level (13,135.76 mg kg−1) at the mature green stage, whereas the maximum K level (12,788.59 mg kg−1) was depicted at the fully ripe stage by the plants treated with T2. The plants that received foliar applications of T1, T2, T3, and T4 showed enhancement in Ca concentration as compared to the pulp of the untreated fruits (T0). The foliar application of T1 was proven to be better than other treatments, showing its maximum level of Ca (MG−10,214.13; FR−20,459.14 mg kg−1) at both maturity stages (Figure 3).

3.3.2. Micronutrients

The plants that received foliar applications of T2 and T4 showed decreased levels of Zn concentration as compared to the untreated plants (T0) at the mature green stage, while at the fully ripe stage there were variations among treatments (increased by T1 and T3 and decreased by T2 and T4). B concentrations increased in the fruit pulp of the plants that received foliar applications of T1, T2, T3, and T4 as compared to the untreated plants (T0) at the mature green stage. The maximum level of B (40.62 mg kg−1) was found in the plants treated with T1 followed by T2, T3, and T4 at the mature green stage, whereas at the fully ripe stage, the maximum value of B concentration was observed in plants treated with T2. Similarly, Mo level was also increased by application of T1 and T3 at the mature green stage, and T1 and T2 at the fully ripe stage. The maximum concentration of Mo was seen in the plants treated with T1 at the mature green stage and T2 at the fully ripe stage (Figure 3).
The maximum concentration of Mn was observed in plants treated with T3 (144.96 mg kg−1) at the mature green stage, while at the fully ripe stage the maximum Mn (436.99 mg kg−1) was observed in plants treated with T1. Similar to Mo, Fe concentrations decreased with foliar applications of T1, T2, T3, and T4 at the mature green stage. The maximum concentration of Fe was observed in the untreated plants (T0) at the mature green stage, while the minimum concentration of Fe was observed in plants treated with T4 at both maturity stages. Similarly, plants that received foliar applications of T1, T2, T3, and T4 showed increases in Co concentration as compared to the untreated plants (T0). The maximum concentration of Co was observed in plants treated with T4 (MG−961.51; FR−1034.41 µg kg−1) at both maturity stages. Concentrations of Ni and Cu in the loquat fruit pulp decreased with applications of T1, T2, T3, and T4 at both maturity stages. The minimum concentrations of Ni (MG−837.45; FR−486.52 µg kg−1) and Cu (MG−2641.07; FR−2143.71 µg kg−1) were observed in the plants treated with T1 at both maturity stages (Figure 3).

3.3.3. Heavy Metals

There were significant increases in Cd concentrations in the loquat fruit pulp following applications of T1 and T2, and decreases with applications of T3 and T4, at both maturity stages. The maximum As level (21.69 µg kg−1) was recorded in the leaves of the untreated plants (T0) at the mature green stage, whereas at the fully ripe stage the maximum As was observed in the pulp of the fruits treated with T3. Regarding Hg, toxicity increased with applications of T1, T2, T3, and T4 as compared to the control (T0). The maximum concentration was recorded in plants treated with T2 at the mature green stage (3.21 µg kg−1), while at the fully ripe stage the maximum concentration of Hg was recorded in the plants treated with T3. Pb concentration was reduced with the foliar application of T2 at both maturity stages (Figure 3).

3.4. Seed

3.4.1. Macronutrients

Na concentrations were reduced with foliar applications of T1 and T3 at the mature green stage, while they increased with foliar applications of T2 and T4. Na concentrations were universally reduced at the fully ripe stage, except in the plants treated with T3. The plants treated with T3 showed their minimum level of Na at the mature green stage (47.44 mg kg−1), whereas, at fully ripe stage, the minimum Na (73.63 mg kg−1) was recorded in the untreated plants (T0) (Figure 4). Regarding Mg, the plants treated with T1, T2, T3, and T4 showed variations in their concentrations of Mg, with the maximum Mg observed in plants treated with T4 (2959.40 mg kg−1) followed by the control (T0) and T2 at the mature green stage, and T3 (1241.59 mg kg−1) followed by T0, T1, T2, and T4 at the fully ripe stage. With the application of T3, K levels in loquat seeds were slightly uplifted at the mature green stage, but decreased with the application of other treatments as compared to the control. Plants that received T1 showed their maximum K level (22,396.23 mg kg−1) at the fully ripe stage. Loquat seeds indicated enhanced Ca concentrations in the plants that received foliar applications of T2 and T4 as compared to the untreated plants (T0). The foliar application of T4 proved better, however, showing its maximum level of Ca (22,752.88 mg kg−1) at the mature green stage, while T1 showed its maximum level at the fully ripe stage (Figure 4).

3.4.2. Micronutrients

The plants that received foliar applications of T1, T2, T3, and T4 showed decreased levels of Zn as compared to the untreated plants (T0) at the mature green stage, while at the fully ripe stage there were variations among treatments (increased by T1 and T3 and decreased by T2 and T4). B concentrations increased in the seeds of the plants that received foliar applications of T1 and T3 as compared to the untreated plants (T0) at both maturity stages. The maximum level of B (19.58 mg kg−1) was found in the plants treated with T1 followed by T3, T2, and T4 at the mature green stage, whereas at the fully ripe stage, the maximum value of B was observed in the plants treated with T3. Similarly, the Mo level also increased with applications of T1 and T3 at both maturity stages. The maximum concentration of Mo was seen in the plants treated with T3 at both maturity stages (MG−152.42; FR−235.82 µg kg−1). The maximum concentration of Mn was observed in the untreated plants (T0) (402.29 mg kg−1) at the mature green stage, while at the fully ripe stage the maximum Mn (102.43 mg kg−1) was observed in the plants treated with T1. Iron concentrations decreased with the foliar applications except in the plants treated with T2 at the mature green stage. The concentrations also decreased with a change in maturity stage. The plants that received foliar applications of T1 and T3 showed increases in Co concentration as compared to the untreated plants (T0) at the fully ripe stage, while the maximum level of Co (979.14 µg kg−1) was shown at the mature green stage by the seeds of those plants that were treated with T1. Concentrations of Ni and Cu increased with applications of T1 and T4 in loquat seeds at the mature green stage, whereas Ni concentrations increased with applications of T1 and T3 at the fully ripe stage and decreased when T2 and T4 were applied. Copper concentrations decreased with foliar applications at the fully ripe stage except when T1 and T2 were applied (Figure 4).

3.4.3. Heavy Metals

There was a significant increase in the Cd concentration in loquat seeds with an application of T4, and a decrease with T1 and T3 at the mature green stage. While at the fully ripe stage, the plants that received foliar applications of T1 and T3 showed increased Cd as compared to the untreated plants (T0). The maximum As (91.11 µg kg−1) was recorded in the seeds of the untreated plants (T0) at the mature green stage, whereas the maximum As was observed in the seeds of the plants at the fully ripe stage treated with T3 (87.24 µg kg−1). Regarding Hg, toxicity decreased with applications of T1 and T3 up to 1/2-fold and 1/3-fold, respectively, at the mature green stage. Similarly, at the fully ripe stage, the concentrations of Hg were reduced with the foliar applications except in the plants treated with T3 (3.14 µg kg−1). Lead concentrations decreased with foliar applications of T1, T2, T3, and T4 at both maturity stages. Toxicity was also reduced with a change in maturity stage from mature green to fully ripe except in the plants treated with T1 (Figure 4).

3.5. Principle Component Analysis

Principal component analysis (PCA) was applied to Mg, Zn, and B treatments (T0, T1, T2, T3 and T4) and phyto-nutritional element concentrations in loquat leaves and fruit peel, pulp, and seed (Figure 5). The macro- and micro-nutrients of leaves in the 2nd and 3rd quadrants demonstrated an inverse relationship with T0 and positive relationships with T1, T2, T3, and T4. This suggests that the application of Mg, Zn, and B increased the concentrations of macro- and micro-nutrients except for those near to T0 (Fe, Mo, and Co). A cluster of heavy metals (As, Hg, and Pb) located in the 1st quadrant was near to T0, indicating an association with the untreated plants. In the peel, phyto-nutrients in the 1st quadrant were found increased in the plants treated with T0. These elements included Mo, Fe, Cu, and Pb at the mature green stage and Ca, Zn, Mn, Mo, Cu, and Cd at the fully ripe stage, whereas the elements in the 4th quadrant had a direct relationship with T2 and T4. In the case of fruit pulp, T0 was in the 2nd quadrant, while T1 and T3 were in 1st, and T2 and T4 were in 3rd quadrant, indicating a significant difference between the treated and untreated plants. In loquat seeds, concentrations of Pb, Mn, Zn, Mg, and Hg increased in untreated plants at the green mature stage (2nd quadrant). The Ni, Co, and Cu concentrations were greatly influenced by the application of T1 at both maturity stages (1st quadrant). Similarly, the concentrations of Na, K, Ca, Zn, B, Mo, Cd, and Hg were positively influenced by T3 treatments. Thus, PCA delineated the effects of Mg, Zn, and B treatments on macro-nutrients, micro-nutrients, and heavy metals in the leaves and fruit tissues of loquats.

4. Discussion

There were differences in the concentrations of nutrients and heavy metals between the leaves and fruit tissues of loquats observed at two different maturity stages (i.e., mature green and fully ripe; Figure 1, Figure 2, Figure 3 and Figure 4). Our findings suggest that Na content in loquat leaves and fruit tissues were suppressed with an application of 2% magnesium sulphate at both maturity stages, while it was increased with a foliar application of 0.2% borax, whereas Mg, K, and Ca contents were increased with an application of 2% magnesium sulphate in leaves of loquat. The obtained results regarding the effects of magnesium sulphate on Mg, K, and Ca contents in loquat leaves are in line with the findings of Ahmed and Morsy [35] on Canino apricots; Mostafa et al. [36] on bananas; Fawzi et al. [37] on Le Conte pears and Hanafy Ahmed et al. [38] on Washington navel oranges. It has been reported that magnesium fertilizer improved leaf Mg content of the aforementioned fruit species. Furthermore, an adequate level of magnesium is required for photosynthesis and chlorophyll formation, which produces carbohydrates in leaves and leads to good yields and high fruit quality [39]. The foliar application of magnesium sulphate at 0.5–3.0% and boric acid at 0.20–1.0% has previously significantly raised percentages of K and Mg in the leaves of Canino apricot compared to a control [40]. Another study revealed that the application of magnesium−potassium based fertilizer decreased Mg and Ca level in leaves, and increased it in Fuji apple fruits [41], although no significant effect was observed of Mg application on the leaf Mg content of olive trees cv. Picual [42].
Loquat leaves have high medicinal value and have been used as folk medicines for thousands of years. Cough, inflammation, chronic bronchitis, cancer, and diabetes are treated with the extract of loquat leaves in Chinese folk medicine [43]. Loquat leaves are rich in phenolics and triterpenes [44]. Concerning human health, it is very important to investigate the effect of foliar-supplied nutrients on the phytonutritional compositions of loquat leaves, as the uptake of elements by plants can be associated with the availability of other elements. A foliar application of 0.1% zinc sulphate decreased the concentrations of Na in leaf blades and fruit pulps, but increased its amount in seeds and fruit peels at the green mature stage (Figure 1, Figure 2 and Figure 4). While at the fully ripe stage, concentrations of Na were found to be decreased in loquat leaves and fruit tissues but not their seeds (Figure 4). The decreased level of Na in loquat plants treated with zinc sulphate have been might be due to less uptake of Na by roots [45]. The concentrations of Mg, K, and Ca in loquat leaves increased as the result of the foliar application of 0.1% zinc sulphate (Figure 1), while Mg was found decreased in the seeds (Figure 4) and K and Ca were also decreased in the peel (Figure 2). Our findings are in line with the findings of Aboyeji et al. [46], who stated that the application of zinc at a concentration of 8 kg ha−1 can increase the K concentration, but that increasing the Zn concentration can lead to a decreased level of Ca in groundnut seeds. The increase in K and Mg could be due to the stimulating effect of Zn X K on wheat [47] and Zn X Mg on tung trees [48]. The reduction in Ca content of loquat seeds could be attributable to the antagonistic effect of Zn, which makes Ca unavailable to plants. Kalyanasundaram and Mehta [49] reported a reduced availability of Ca under high-Zn applications.
In a study, seven rootstocks of citrus were compared under a limited supply of boron, and it was found that the concentration of boron decreased in the leaves from 83.6% to 72.7% in all seedlings. Decreases in Ca, K, Mg, and Zn content and increases in Fe and Mn concentrations were observed in the leaf tissues of scion [50]. Our results also suggest that the loquat plants treated with 0.2% borax showed increased concentrations of Na, Mg, K, Ca, and B, with decreased concentrations of Mo, Mn, Fe, Co, Cu, As, Hg, and Pb in leaves (Figure 1). In accordance with our results (Figure 4), application of 900 mL B ha−1 significantly increased concentrations of Mg, K, and Ca in groundnut seeds [46].
The Zn concentration in the leaves significantly increased with the application of 0.1% zinc sulphate as compared to other treatments observed at the fully ripe stage (Figure 1). The foliar application of zinc sulphate significantly increased concentrations of zinc in the leaf tissues of mango, rice, and coffee, respectively [51,52,53]. The increase in Zn concentration was found at the fully ripe stage rather than the mature green stage, indicating a slow mobility of Zn in leaves (Figure 1). It has previously been reported that Zn has limited mobility in leaves, moving <25 mm from the application point after 24 h [54]. Our results suggest that the overall concentrations of Zn, Fe, and Cu in leaves and fruits were reduced with a change in maturity (from the mature green to the fully ripe stage). These results are supported by the findings of Madejon et al. [32], who reported that the concentrations of Zn, Fe, and Cu in the leaves, fruits, and seeds of oak and olive significantly reduce over time.
Boron is an essential element for plant growth that plays an important role in different metabolic processes (i.e., cell wall development, respiration, lignification, transport of sugar, phenolic metabolism, IAA metabolism, etc.) [55]. Moreover, it has a vital significance with respect to pollen tube development, the production of flower adhesive material, and pollen viability [56]. Boron concentration in the loquat leaves decreased with the application of borax as compared to the untreated plants (Figure 1). In contrast, the leaves of sweet orange treated with boric acid, zinc borate, and calcium borate showed increased concentrations of boron [57]. Boron concentration in the leaves of coconut palm increased in a dose-dependent manner when boron was applied (0–24 g/plant) [58]. The concentration of boron in the fruit tissues of loquat increased with the application of borax (Figure 2, Figure 3 and Figure 4). Similarly, the boron concentration in grains of wheat [59], rice [60], and sunflower tops [61] also increased with the application of boron in a dose-dependent manner. The concentration of Ni in the leaves and fruit pulp of loquat reduced with a change in maturity (Figure 1 and Figure 3). These results are supported by the findings of Madejon et al. [32], who reported that the concentrations of Ni in the leaves and fruit pulp of oak significantly reduced over time.
In order to maintain nutrient homeostasis, plants must regulate nutrient uptake and respond to changes in the soil as well as within the plant. Thus, plant species utilize various strategies for the mobilization and uptake of nutrients as well as chelation, the transport between the various cells and organs of the plant, and storage to achieve whole-plant nutrient homeostasis [62,63]. Following penetration of the cuticle, the uptake of solutes into the cell interior depends primarily on the electrochemical concentration gradient from outside into the cell, but also on the plasma membrane permeability coefficient of the molecule and the degree of cell-mediated active uptake. There are various fates of foliar-applied fertilizer nutrients including retention in the cuticle in solution in the lipoidal layer; penetration of the cuticle followed by movement into the aqueous phase of the apoplast and diffusion into the inner leaf structure; penetration of the cuticle followed by movement with the transpiration water into the mesophyll and symplast; and translocation out of the leaf via the petiole [64].
Schroeder and Balassa [65] were the first to identify that fertilizers are implicated in raising heavy metal concentrations in food crops, and since then researchers have been urged to investigate the impact of impurities in fertilizers on the crop uptake of potentially heavy metals. Studies of heavy metal uptake by plants have often revealed their accumulations at a level that is toxic to human health. More than 70% of cadmium intake by humans is sourced from fruits and vegetables [66]. According to the findings of various scientists, cadmium is a mobile element in the soil, whereas it is immobile in plants, which is why it is found abundantly in plant roots [67,68,69]. The results indicate a significant decrease in cadmium concentration in leaves (Figure 1) and fruits (Figure 2, Figure 3 and Figure 4) from the mature green to the ripening stage. A reduction in cadmium concentration over time in the leaves of holm oak and the fruit pulp of olives has also been reported [32]. The maximum concentration of cadmium was observed in plants treated with magnesium sulphate as compared to other treatments (Figure 1, Figure 2 and Figure 3). This might be due to a reduced translocation of cadmium in plant tissues resulting from the application of Mg [70].
Loquat is one of those fruit crops that is highly sensitive to the quality of irrigation water [71]. Arsenic (As) is a heavy metal that is present in the groundwater of many areas of the world and can contaminate fruits through irrigation water [72]. Many studies have reported on the high level of toxicity in fruits, vegetables, and cereal crops irrigated with arsenic-contaminated water [73]. Our findings show that the toxicity of arsenic concentrations in different loquat plant tissues was reduced with the progression from the mature green stage to the fully ripe stage. These results are in agreement with Madejon et al. [32], who reported a reduction in concentration of As with the passage of time in the leaves and fruits of olives and holm oak. Overall, results suggested that Mg, Zn, and B improved the nutritional composition of loquat leaves and fruit tissues and alleviated the toxicity of heavy metals.

5. Conclusions

Concerning human health, it is very important to investigate the effect of foliar-supplied nutrients on heavy metal accumulation in fruits, as the uptake of elements by plants can be associated with the availability of other elements. Therefore, this study was conducted to confirm the concentrations and availabilities of different phytonutrients in loquat leaves and fruit tissues under the influence of the foliar applications of Mg, Zn, and B. Exogenous application of Mg, Zn, and B proved to be successful for improving mineral nutrition in loquat, as evidenced from the increased macro- and micro-nutrients, and the decreased heavy metals in leaves and fruit tissues. There is need to further investigate Mg-, Zn-, and B-modulated molecular mechanisms regulating mineral uptake and accumulation in leaves and fruit tissues.

Author Contributions

Conceptualization, M.M.A. and F.C.; methodology, M.M.A.; data curation, M.M.A. and A.F.Y.; writing—original draft preparation, M.M.A.; writing—review and editing, R.A. and M.W.S.; supervision, F.C.; project administration, F.C.; funding acquisition, F.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by “Fujian Provincial Development and Reform Commission, grant number 2013−772”.

Acknowledgments

Authors would like to thank the remarkable efforts of laboratory staff of “Key laboratory of Loquat Germplasm Innovation and Utilization, Fujian Province University (Putian)”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Badenes, M.L.; Canyamas, T.; Romero, C.; Soriano, J.; Martinez, J.; Llacer, G. Genetic diversity in european collection of loquat (Eriobotrya japonica Lindl.). Acta Hortic. 2003, 620, 169–174. [Google Scholar] [CrossRef]
  2. Tian, S.; Qin, G.; Li, B. Loquat. In Postharvest Biology and Technology of Tropical and Subtropical Fruits; Woodhead Publishing Limited: Oxford, UK, 2011; p. 444. [Google Scholar]
  3. LaRue, R.G. Loquat Fact Sheet. Available online: http://fruitsandnuts.ucdavis.edu/dsadditions/Loquat_Fact_Sheet/ (accessed on 30 January 2020).
  4. Tian, S.; Li, B.; Ding, Z. Physiological properties and storage technologies of loquat fruit. Fresh Prod. 2007, 1, 76–81. [Google Scholar]
  5. Lu, Z.; Zhang, Z.; Wu, W.; Li, W. Effect of low temperatures on postharvest loquat fruit. Acta Hortic. 2007, 750, 483–486. [Google Scholar] [CrossRef]
  6. Slavin, J.L.; Lloyd, B. Health Benefits of Fruits and Vegetables. Adv. Nutr. 2012, 3, 506–516. [Google Scholar] [CrossRef] [Green Version]
  7. Pem, D.; Jeewon, R. Fruit and Vegetable Intake: Benefits and Progress of Nutrition Education Interventions- Narrative Review Article. Iran. J. Public Health 2015, 44, 1309–1321. [Google Scholar]
  8. WHO. WHO|Food Safety; WHO: Geneva, Switzerland, 2015. [Google Scholar]
  9. Hajeb, P.; Sloth, J.J.; Shakibazadeh, S.; Mahyudin, N.A.; Afsah-Hejri, L. Toxic Elements in Food: Occurrence, Binding, and Reduction Approaches. Compr. Rev. Food Sci. Food Saf. 2014, 13, 457–472. [Google Scholar] [CrossRef]
  10. Corelli-Grappadelli, L.; Lakso, A. Fruit development in deciduous tree crops as affected by physiological factors and environmental conditions (keynote). Acta Hortic. 2004, 636, 425–441. [Google Scholar] [CrossRef]
  11. Bálint, A.F.; Kovács, G.; Erdei, L.; Sutka, J. Comparison of the Cu, Zn, Fe, Ca and Mg contents of the grains of wild, ancient and cultivated wheat species. Cereal Res. Commun. 2001, 29, 375–382. [Google Scholar] [CrossRef]
  12. Hattori, H.; Chino, M. Growth, Cadmium, and Zinc Contents of Wheat Grown on Various Soils Enriched with Cadmium and Zinc. In Plant Nutrition; Springer: Berlin/Heidelberg, Germany, 2001; pp. 462–463. [Google Scholar]
  13. Zaman, Q.-U.; Schumann, A.W. Nutrient Management Zones for Citrus Based on Variation in Soil Properties and Tree Performance. Precis. Agric. 2006, 7, 45–63. [Google Scholar] [CrossRef]
  14. Guo, W.; Nazim, H.; Liang, Z.; Yang, D. Magnesium deficiency in plants: An urgent problem. Crop. J. 2016, 4, 83–91. [Google Scholar] [CrossRef] [Green Version]
  15. Marschner, P. Marschner’s Mineral Nutrition of Higher Plants; Elsevier: Amsterdam, The Netherlands, 2012; ISBN 9780123849052. [Google Scholar]
  16. Gerendás, J.; Führs, H. The significance of magnesium for crop quality. Plant Soil 2013, 368, 101–128. [Google Scholar] [CrossRef] [Green Version]
  17. White, P.J.; Broadley, M.R. Biofortification of crops with seven mineral elements often lacking in human diets—Iron, zinc, copper, calcium, magnesium, selenium and iodine. New Phytol. 2009, 182, 49–84. [Google Scholar] [CrossRef] [PubMed]
  18. Hermans, C.; Conn, S.J.; Chen, J.; Xiao, Q.; Verbruggen, N. An update on magnesium homeostasis mechanisms in plants. Metallomics 2013, 5, 1170–1183. [Google Scholar] [CrossRef] [PubMed]
  19. Cakmak, I.; Kirkby, E.A. Role of magnesium in carbon partitioning and alleviating photooxidative damage. Physiol. Plant. 2008, 133, 692–704. [Google Scholar] [CrossRef] [PubMed]
  20. Maathuis, F.J.M. Physiological functions of mineral macronutrients. Curr. Opin. Plant Biol. 2009, 12, 250–258. [Google Scholar] [CrossRef]
  21. Suri, V.K.; Choudhary, A.K.; Chander, G.; Verma, T.S. Influence of Vesicular Arbuscular Mycorrhizal Fungi and Applied Phosphorus on Root Colonization in Wheat and Plant Nutrient Dynamics in a Phosphorus-Deficient Acid Alfisol of Western Himalayas. Commun. Soil Sci. Plant Anal. 2011, 42, 1177–1186. [Google Scholar] [CrossRef]
  22. Shehzad, M.A.; Maqsood, M.; Wajid, S.A.; Anwar-Ul-Haq, M. Dry Matter Partitioning and Mineral Constitution Response of Sunflower (Helianthus annuus) to Integrated Nitrogen and Boron Nutrition in Calcareous Soils. Int. J. Agric. Biol. 2016, 18, 257–265. [Google Scholar] [CrossRef]
  23. Padbhushan, R.; Kumar, D. Yield and Nutrient Uptake of Green Gram (Vigna radiate L.) as Influenced by Boron Application in Boron-Deficient Calcareous Soils of Punjab. Commun. Soil Sci. Plant Anal. 2015, 46, 908–923. [Google Scholar] [CrossRef]
  24. López-Lefebre, L.R.; Rivero, R.M.; García, P.C.; Romero, L.; Sanchez, E.; Ruiz, J.M. Boron effect on mineral nutrients of tobacco. J. Plant Nutr. 2002, 25, 509–522. [Google Scholar] [CrossRef]
  25. Dursun, A.; Turan, M.; Ekinci, M.; Gunes, A.; Ataoglu, N.; Esringü, A.; Yildirim, E. Effects of Boron Fertilizer on Tomato, Pepper, and Cucumber Yields and Chemical Composition. Commun. Soil Sci. Plant Anal. 2010, 41, 1576–1593. [Google Scholar] [CrossRef]
  26. Sotiropoulos, T.E.; Therios, I.N.; Dimassi, K.N.; Bosabalidis, A.; Kofidis, G. Nutritional status, growth, CO2 assimilation, and leaf anatomical responses in two kiwifruit species under boron toxicity. J. Plant Nutr. 2002, 25, 1249–1261. [Google Scholar] [CrossRef]
  27. Bressy, F.C.; Brito, G.B.; Barbosa, I.S.; Teixeira, L.S.G.; Korn, M. Determination of trace element concentrations in tomato samples at different stages of maturation by ICP OES and ICP-MS following microwave-assisted digestion. Microchem. J. 2013, 109, 145–149. [Google Scholar] [CrossRef]
  28. Sahan, Y.; Basoglu, F.; Güçer, S. ICP-MS analysis of a series of metals (Namely: Mg, Cr, Co, Ni, Fe, Cu, Zn, Sn, Cd and Pb) in black and green olive samples from Bursa, Turkey. Food Chem. 2007, 105, 395–399. [Google Scholar] [CrossRef]
  29. Chudzinska, M.; Baralkiewicz, D. Application of ICP-MS method of determination of 15 elements in honey with chemometric approach for the verification of their authenticity. Food Chem. Toxicol. 2011, 49, 2741–2749. [Google Scholar] [CrossRef] [PubMed]
  30. Llorent-Martínez, E.; De Córdova, M.F.; Ruiz-Medina, A.; Ortega-Barrales, P. Analysis of 20 trace and minor elements in soy and dairy yogurts by ICP-MS. Microchem. J. 2012, 102, 23–27. [Google Scholar] [CrossRef]
  31. Bravo, I.D.B.; Castro, R.S.; Riquelme, N.L.; Díaz, C.T.; Goyenaga, D.A. Optimization of the trace element determination by ICP-MS in human blood serum. J. Trace Elem. Med. Biol. 2007, 21, 14–17. [Google Scholar] [CrossRef]
  32. Madejón, P.; Marañón, T.; Murillo, J.M. Biomonitoring of trace elements in the leaves and fruits of wild olive and holm oak trees. Sci. Total Environ. 2006, 355, 187–203. [Google Scholar] [CrossRef]
  33. Quiñones, A.; Soler, E.; Legaz, F. Determination of foliar sampling conditions and standard leaf nutrient levels to assess mineral status of loquat tree. J. Plant Nutr. 2013, 36, 284–298. [Google Scholar] [CrossRef]
  34. Reig, C.; Martínez-Fuentes, A.; Mesejo, C.; Agustí, M. Nutritional status in loquat trees by using the spad. Acta Hortic. 2011, 22, 139–142. [Google Scholar] [CrossRef]
  35. Ahmed, F.F.; Morsy, M.H. Response of “Canino” apricot trees grown in the new reclaimed land to application of some nutrients and ascorbic acid. In Proceedings of the Fifth Arabian Horticultural Conference, Ismailia, Egypt, 24 March 2001; pp. 27–34. [Google Scholar]
  36. Mostafa, E.A.M.; Saleh, M.M.S.; El-Migeed, M.M.M. Response of banana plants to soil and foliar application of magnesium. Am. J. Agric. Environ. Sci. 2007, 2, 141–146. [Google Scholar]
  37. Fawzi, M.I.F.; Shahin, F.M.; Daood, E.A.; Kandil, E.A. Effect of organic and biofertilizers and mangenesium sulphate on growth yield, chemical composition ond fruit quality of “L-conte” pear trees. Nat. Sci. 2010, 8, 273–280. [Google Scholar]
  38. Hanafy Ahmed, A.H.; Khalil, M.K.; Abd El-Rahman, A.M.; Nadia, A.M.H. Effect of magnesium, copper and growth regulators on growth, yield and chemical composition of Washington navel orange trees. J. Appl. Sci. Res. 2012, 8, 1271–1288. [Google Scholar]
  39. Salama, A.; El-Sayed, M.; Abdel-Hameed, A. Effect of Magnesium Fertilizer Sources and Rates on Yield and Fruit Quality of Date Palm cv. Hayany under Ras-Sudr Conditions. Res. J. Agric. Biol. Sci. 2014, 10, 118–126. [Google Scholar]
  40. Daood, E.Z.; Shahin, M. Effect of spraying magnesium, boron, ascorbic acid and vitamin B complex on yield and fruit quality of “canino” apricot. Arab. Univ. J. Agric. Sci. 2006, 14, 337–347. [Google Scholar] [CrossRef]
  41. Neilsen, G.H.; Neilsen, D. Consequences of potassium, magnesium sulphate fertilization of high density Fuji apple orchards. Can. J. Soil Sci. 2011, 91, 1013–1027. [Google Scholar] [CrossRef]
  42. Marcelo, M.; Jordão, P.; Soveral-Dias, J.; Matias, H.; Rogado, B. Effect of nitrogen and magnesium application on yield and leaf-N and mg concentrations of olive trees cv. picual. Acta Hortic. 2002, 64, 329–332. [Google Scholar] [CrossRef]
  43. Li, M.; Liang, Y. Li Shizhen and the Grand Compendium of Materia Medica. J. Tradit. Chin. Med. Sci. 2015, 2, 215–216. [Google Scholar] [CrossRef] [Green Version]
  44. Zhang, W.; Zhao, X.; Sun, C.; Li, X.; Chen, K. Phenolic Composition from Different Loquat (Eriobotrya japonica Lindl.) Cultivars Grown in China and Their Antioxidant Properties. Molecules 2015, 20, 542–555. [Google Scholar] [CrossRef]
  45. Aktaş, H.; Abak, K.; Öztürk, L.; Çakmak, I. The effect of zinc on growth and shoot concentrations of sodium and potassium in pepper plants under salinity stress. Turk. J. Agric. For. 2006, 30, 407–412. [Google Scholar] [CrossRef]
  46. Aboyeji, C.M.; Dunsin, O.; Adekiya, A.O.; Chinedum, C.; Suleiman, K.O.; Okunlola, F.O.; Aremu, C.O.; Owolabi, I.O.; Olofintoye, T.A.J. Zinc Sulphate and Boron-Based Foliar Fertilizer Effect on Growth, Yield, Minerals, and Heavy Metal Composition of Groundnut (Arachis hypogaea L.) Grown on an Alfisol. Int. J. Agron. 2019, 2019, 1–7. [Google Scholar] [CrossRef] [Green Version]
  47. Arif, M. Evaluation of Different Levels of Potassium and Zinc Fertilizer on the Growth and Yield of Wheat. Int. J. Biosens. Bioelectron. 2017, 3, 1–5. [Google Scholar] [CrossRef]
  48. Merrill, S.; Potter, G.F.; Brown, R.T. Responses of tung trees on Lakeland fine sand to less common elements. In Proceedings of the American Society of Horticultural Science; American Society for Horticultural Science: College Park, MD, USA, 1953; Volume 62, pp. 94–102. [Google Scholar]
  49. Kalyanasundaram, N.K.; Mehta, B.V. Availability of zinc, phosphorus and calcium in soils treated with varying levels of zinc and phosphate—A soil incubation study. Plant Soil 1970, 33, 699–706. [Google Scholar] [CrossRef]
  50. Zhou, G.F.; Peng, S.; Liu, Y.Z.; Wei, Q.J.; Han, J.; Islam, Z. The physiological and nutritional responses of seven different citrus rootstock seedlings to boron deficiency. Trees 2013, 28, 295–307. [Google Scholar] [CrossRef]
  51. Bahadur, L.; Malhi, C.S.; Singh, Z. Effect of foliar and soil applications of zinc sulphate on zinc uptake, tree size, yield, and fruit quality of mango. J. Plant Nutr. 1998, 21, 589–600. [Google Scholar] [CrossRef]
  52. Dwivedi, R.; Srivastva, P.C. Effect of zinc sulphate application and the cyclic incorporation of cereal straw on yields, the tissue concentration and uptake of Zn by crops and availability of Zn in soil under rice–wheat rotation. Int. J. Recycl. Org. Waste Agric. 2014, 3, 53. [Google Scholar] [CrossRef] [Green Version]
  53. Rossi, L.; Fedenia, L.N.; Sharifan, H.; Ma, X.; Lombardini, L. Effects of foliar application of zinc sulfate and zinc nanoparticles in coffee (Coffea arabica L.) plants. Plant Physiol. Biochem. 2019, 135, 160–166. [Google Scholar] [CrossRef]
  54. Doolette, C.; Read, T.L.; Li, C.; Scheckel, K.G.; Donner, E.; Kopittke, P.M.; Schjoerring, J.K.; Lombi, E. Foliar application of zinc sulphate and zinc EDTA to wheat leaves: Differences in mobility, distribution, and speciation. J. Exp. Bot. 2018, 69, 4469–4481. [Google Scholar] [CrossRef]
  55. Calonego, J.C.; Ocani, K.; Ocani, M.; Dos Santos, C.H. Adubação boratada foliar na cultura da soja. Colloq. Agrar. 2010, 5, 20–26. [Google Scholar] [CrossRef]
  56. Naz, T.; Akhtar, J.; Iqbal, M.M.; Haq, M.A.U.; Saqib, M. Boron Toxicity in Salt-Affected Soils and Effects on Plants. In Soil Science: Agricultural and Environmental Prospectives; Springer: Cham, Switzerland, 2016; pp. 259–286. [Google Scholar]
  57. Macedo, L.O.; Júnior, D.M.; Jacobassi, R.; Hippler, F.W.R.; Quaggio, J.A.; Boaretto, R.M. Efficiency of foliar application of sparingly soluble sources of boron and zinc in citrus. Sci. Agric. 2021, 78, 78. [Google Scholar] [CrossRef]
  58. Mathew, J.; Krishnakumar, V.; Srinivasan, V.; Bhat, R.; Namboothiri, C.N.; Haris, A.A. Standardization of critical boron level in soil and leaves of coconut palms grown in a tropical Entisol. J. Soil Sci. Plant Nutr. 2018, 18, 376–387. [Google Scholar] [CrossRef]
  59. Galindo, F.S.; Filho, M.T.; Buzetti, S.; Boleta, E.H.M.; Rodrigues, W.L.; Rosa, A.R.M. Do the application forms and doses of boron affect wheat crops? Rev. Bras. Eng. Agríc. Ambient. 2018, 22, 597–603. [Google Scholar] [CrossRef]
  60. Sarki, M.S.; Yusop, M.K.; Ishak, F.; Wahid, S.B.A.; Hafeez, B. Boron fertilizers borax and colemanite application on rice and their residual effect on the following crop cycle. Soil Sci. Plant Nutr. 2011, 57, 403–410. [Google Scholar] [CrossRef] [Green Version]
  61. Asad, A.; Blamey, F.P.C.; Edwards, D.G. Effects of Boron Foliar Applications on Vegetative and Reproductive Growth of Sunflower. Ann. Bot. 2003, 92, 565–570. [Google Scholar] [CrossRef] [Green Version]
  62. Morgan, J.B.; Connolly, E.L. Plant—Soil Interactions: Nutrient Uptake. In Nature Education Knowledge; Nature Education: Cambridge, MA, USA, 2013; Volume 4, p. 2. [Google Scholar]
  63. Stein, R.J.; Höreth, S.; De Melo, J.R.F.; Syllwasschy, L.; Lee, G.; Garbin, M.L.; Clemens, S.; Krämer, U. Relationships between soil and leaf mineral composition are element-specific, environment-dependent and geographically structured in the emerging model Arabidopsis halleri. New Phytol. 2016, 213, 1274–1286. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Oosterhuis, D. Foliar fertilization: Mechanisms and magnitude of nutrient uptake. In Proceedings of the Fluid Forum, Scottsdale, AZ, USA, 15–17 February 2009; pp. 1–4. [Google Scholar]
  65. Schroeder, H.A.; Balassa, J.J. Cadmium: Uptake by Vegetables from Superphosphate in Soil. Science 1963, 140, 819–820. [Google Scholar] [CrossRef]
  66. Chen, Y.; Li, T.; Han, X.; Ding, Z.-L.; Yang, X.-E.; Jin, Y.-F. Cadmium accumulation in different pakchoi cultivars and screening for pollution-safe cultivars. J. Zhejiang Univ. Sci. B 2012, 13, 494–502. [Google Scholar] [CrossRef] [Green Version]
  67. Rahman, M.A.; Hasegawa, H. High levels of inorganic arsenic in rice in areas where arsenic-contaminated water is used for irrigation and cooking. Sci. Total Environ. 2011, 409, 4645–4655. [Google Scholar] [CrossRef] [Green Version]
  68. Chary, N.S.; Kamala, C.; Raj, D.S.S. Assessing risk of heavy metals from consuming food grown on sewage irrigated soils and food chain transfer. Ecotoxicol. Environ. Saf. 2008, 69, 513–524. [Google Scholar] [CrossRef]
  69. Lebeau, T.; Bagot, D.; Jézéquel, K.; Fabre, B. Cadmium biosorption by free and immobilised microorganisms cultivated in a liquid soil extract medium: Effects of Cd, pH and techniques of culture. Sci. Total Environ. 2002, 291, 73–83. [Google Scholar] [CrossRef]
  70. Kudo, H.; Kudo, K.; Uemura, M.; Kawai, S. Magnesium inhibits cadmium translocation from roots to shoots, rather than the uptake from roots, in barley. Botany 2015, 93, 345–351. [Google Scholar] [CrossRef]
  71. Burló-Carbonell, F.; Carbonell-Barrachina, A.; Vidal-Roig, A.; Mataix-Beneyto, J. Effects of irrigation water quality on loquat plant nutrition: Sensitivity of loquat plant to salinity. J. Plant Nutr. 1997, 20, 119–130. [Google Scholar] [CrossRef]
  72. Heitkemper, D.; Kubachka, K.; Halpin, P.; Allen, M.; Shockey, N. Survey of total arsenic and arsenic speciation in US-produced rice as a reference point for evaluating change and future trends. Food Addit. Contam. Part B 2009, 2, 112–120. [Google Scholar] [CrossRef] [PubMed]
  73. Farid, A.T.M.; Roy, K.C.; Hossain, K.M.; Sen, R. A Study of Arsenic Contaminated Irrigation Water and its Carried Over Effect on Vegetable. In Proceedings of the International Symposium on Fate of Arsenic in the Environment, Dhaka, Bangladesh, January 2003; pp. 113–121. [Google Scholar]
Agronomy 11 00224 g001 550

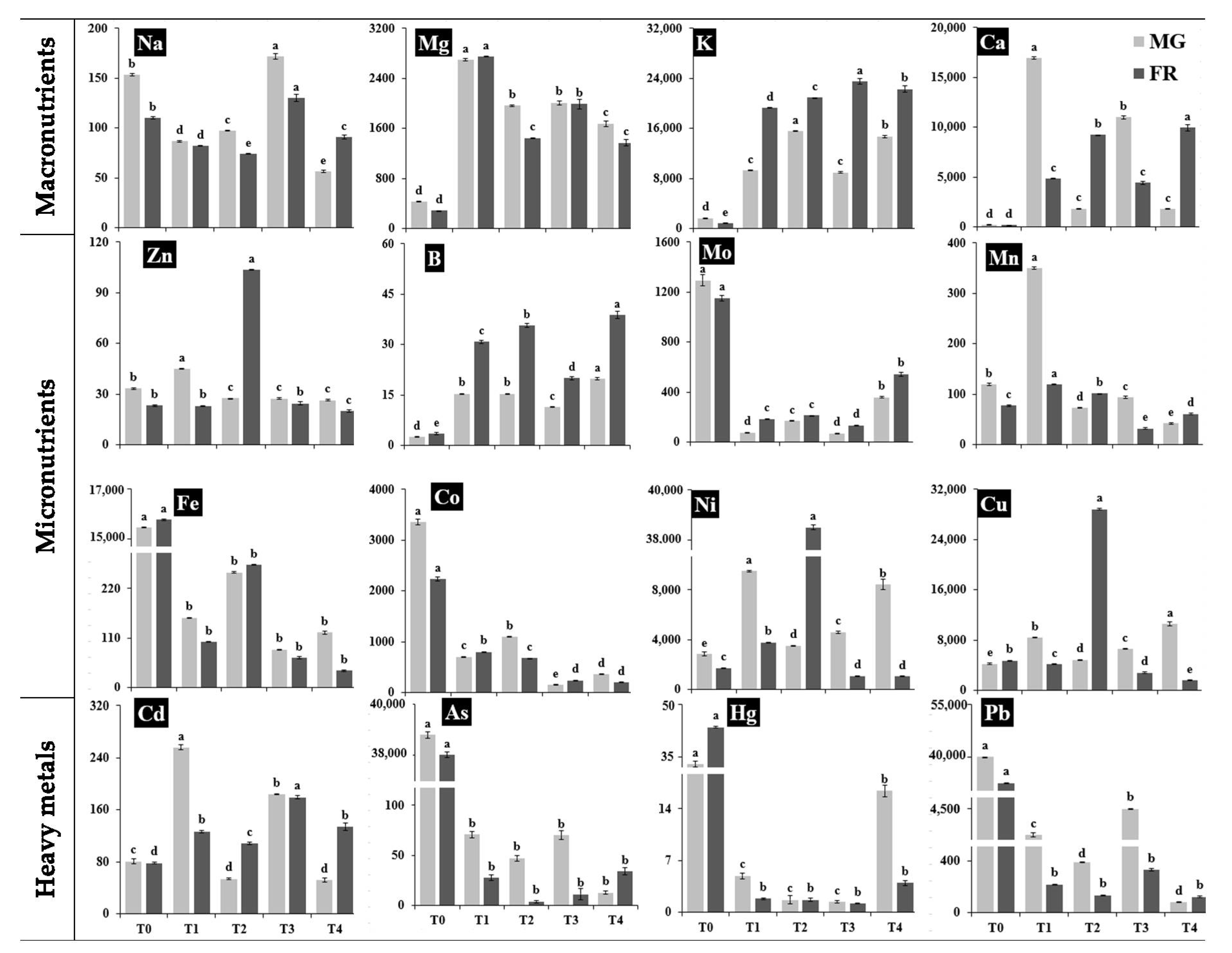

Figure 1. Level of mineral nutrients and heavy metals in the leaves of a loquat as affected by the exogenous application of Mg, Zn, and B. Different letters indicate a significant difference among treatments for each series according to Fisher’s least significant difference test at α = 0.05. Vertical bars indicate average ± standard error (four replicates, p ≤ 0.05). T0—control; T1—2% MgSO4·7H2O, T2—0.1% ZnSO4·7H2O, T3—0.2% Na2B4O7·10H2O and T4—T1+T2+T3 (1:1:1), MG—mature green stage, FR—fully ripe stage.
Figure 1. Level of mineral nutrients and heavy metals in the leaves of a loquat as affected by the exogenous application of Mg, Zn, and B. Different letters indicate a significant difference among treatments for each series according to Fisher’s least significant difference test at α = 0.05. Vertical bars indicate average ± standard error (four replicates, p ≤ 0.05). T0—control; T1—2% MgSO4·7H2O, T2—0.1% ZnSO4·7H2O, T3—0.2% Na2B4O7·10H2O and T4—T1+T2+T3 (1:1:1), MG—mature green stage, FR—fully ripe stage.
Agronomy 11 00224 g001
Agronomy 11 00224 g002 550

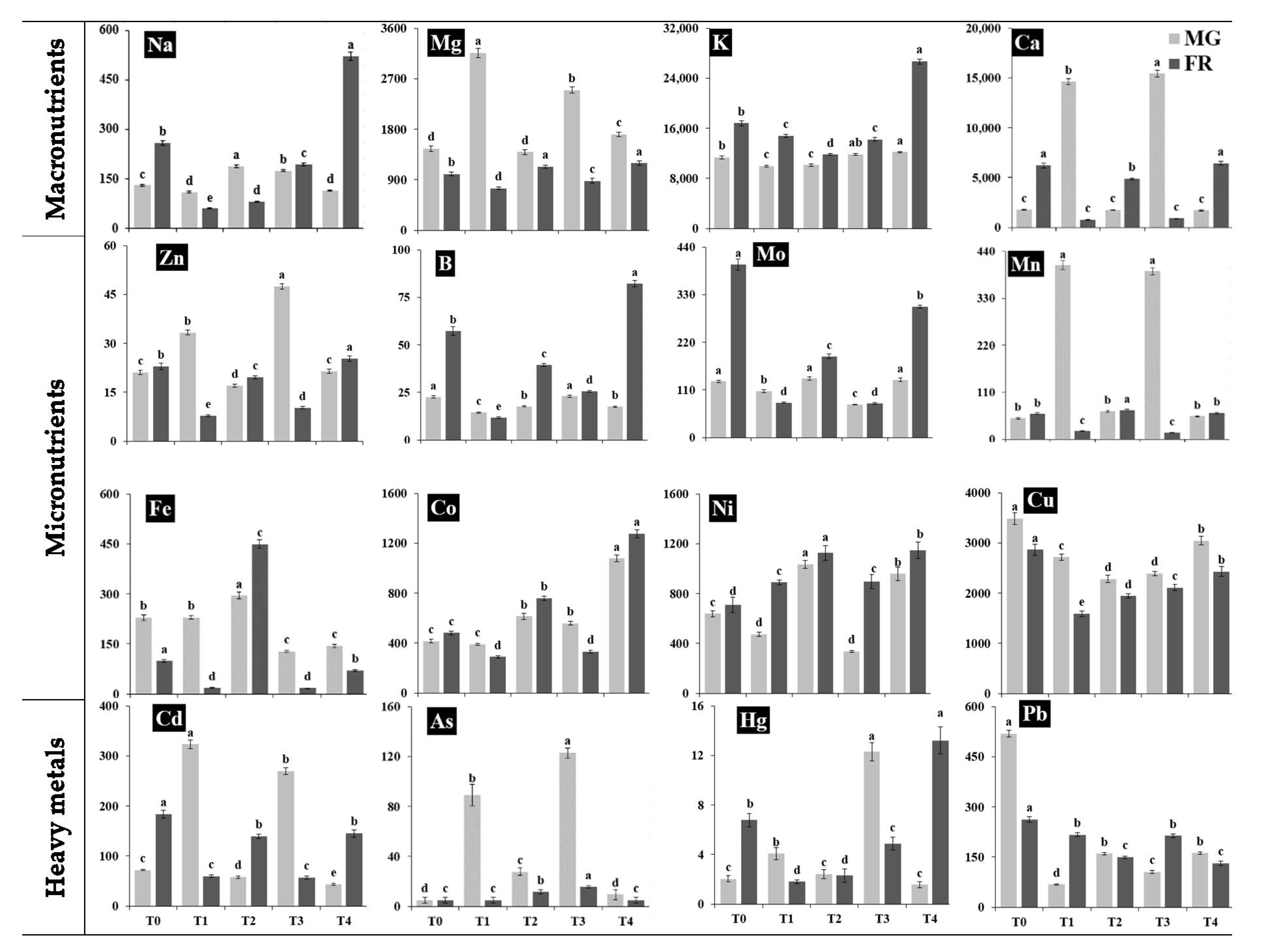

Figure 2. Level of mineral nutrients and heavy metals in loquat fruit’s peel as affected by the exogenous application of Mg, Zn, and B. Different letters indicate a significant difference among treatments for each series according to Fisher’s least significant difference test at α = 0.05. Vertical bars indicate average ± standard error (four replicates, p ≤ 0.05). T0—control; T1—2% MgSO4·7H2O, T2—0.1% ZnSO4·7H2O, T3—0.2% Na2B4O7·10H2O and T4—T1+T2+T3 (1:1:1), MG—mature green stage, FR—fully ripe stage.
Figure 2. Level of mineral nutrients and heavy metals in loquat fruit’s peel as affected by the exogenous application of Mg, Zn, and B. Different letters indicate a significant difference among treatments for each series according to Fisher’s least significant difference test at α = 0.05. Vertical bars indicate average ± standard error (four replicates, p ≤ 0.05). T0—control; T1—2% MgSO4·7H2O, T2—0.1% ZnSO4·7H2O, T3—0.2% Na2B4O7·10H2O and T4—T1+T2+T3 (1:1:1), MG—mature green stage, FR—fully ripe stage.
Agronomy 11 00224 g002
Agronomy 11 00224 g003 550
Figure 3. Level of mineral nutrients and heavy metals in loquat fruit pulp as affected by the exogenous application of Mg, Zn, and B. Different letters indicate a significant difference among treatments for each series according to Fisher’s least significant difference test at α = 0.05. Vertical bars indicate average ± standard error (four replicates, p ≤ 0.05). T0—control; T1—2% MgSO4·7H2O, T2—0.1% ZnSO4·7H2O, T3—0.2% Na2B4O7·10H2O and T4—T1+T2+T3 (1:1:1), MG—mature green stage, FR—fully ripe stage.
Figure 3. Level of mineral nutrients and heavy metals in loquat fruit pulp as affected by the exogenous application of Mg, Zn, and B. Different letters indicate a significant difference among treatments for each series according to Fisher’s least significant difference test at α = 0.05. Vertical bars indicate average ± standard error (four replicates, p ≤ 0.05). T0—control; T1—2% MgSO4·7H2O, T2—0.1% ZnSO4·7H2O, T3—0.2% Na2B4O7·10H2O and T4—T1+T2+T3 (1:1:1), MG—mature green stage, FR—fully ripe stage.
Agronomy 11 00224 g003
Agronomy 11 00224 g004 550

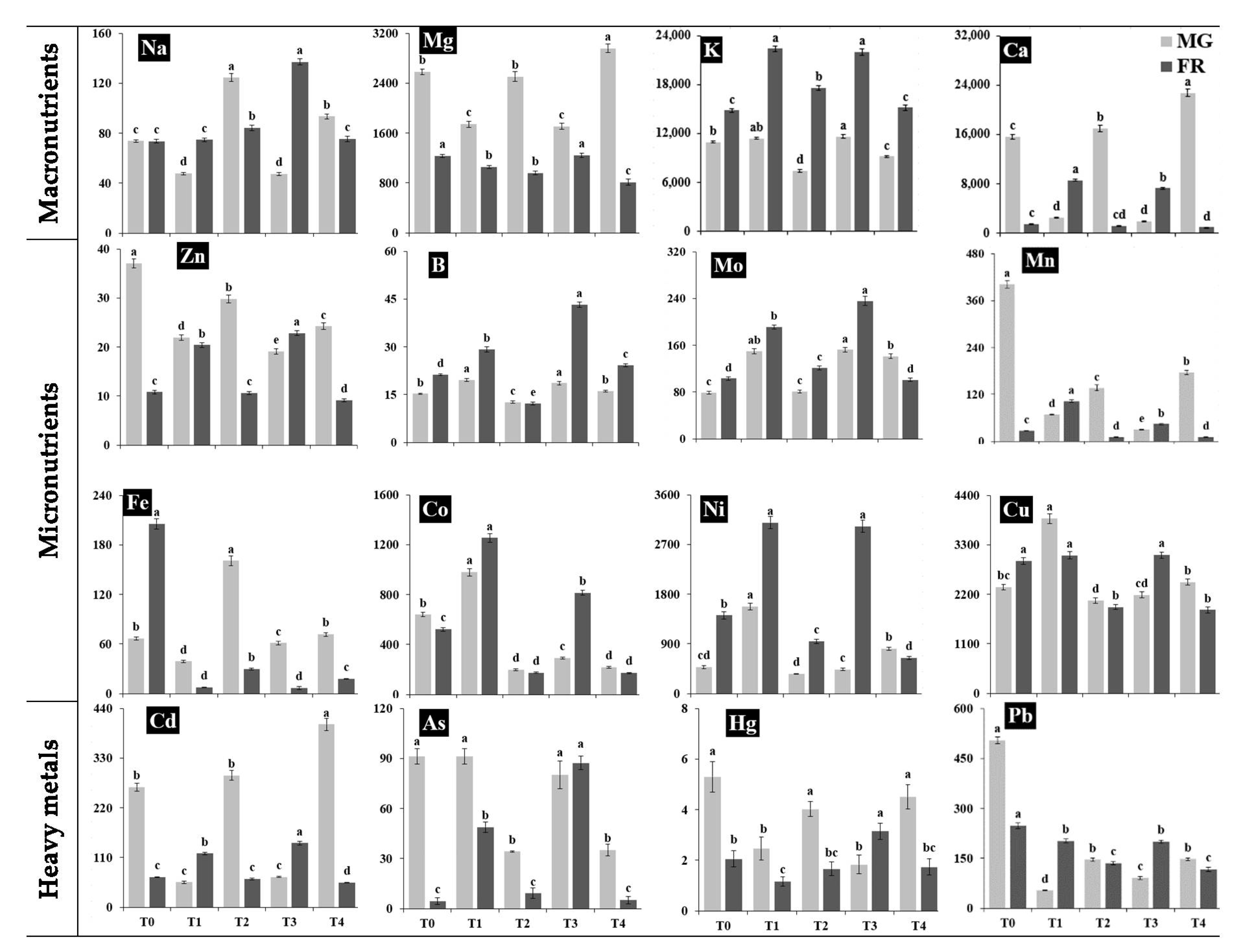

Figure 4. Level of mineral nutrients and heavy metals in loquat seeds as affected by exogenous applications of Mg, Zn, and B. Different letters indicate a significant difference among treatments for each series according to Fisher’s least significant difference test at α = 0.05. Vertical bars indicate average ± standard error (four replicates, p ≤ 0.05). T0—control; T1—2% MgSO4·7H2O, T2—0.1% ZnSO4·7H2O, T3—0.2% Na2B4O7·10H2O and T4—T1+T2+T3 (1:1:1), MG—mature green stage, FR—fully ripe stage.
Figure 4. Level of mineral nutrients and heavy metals in loquat seeds as affected by exogenous applications of Mg, Zn, and B. Different letters indicate a significant difference among treatments for each series according to Fisher’s least significant difference test at α = 0.05. Vertical bars indicate average ± standard error (four replicates, p ≤ 0.05). T0—control; T1—2% MgSO4·7H2O, T2—0.1% ZnSO4·7H2O, T3—0.2% Na2B4O7·10H2O and T4—T1+T2+T3 (1:1:1), MG—mature green stage, FR—fully ripe stage.
Agronomy 11 00224 g004
Agronomy 11 00224 g005 550
Figure 5. Principle component analyses (PCAs) comparing Mg, Zn, and B treatments (observations) and concentrations of phyto-nutritional elements in the leaves and fruit tissues of loquats. T0—control; T1—2% MgSO4·7H2O, T2—0.1% ZnSO4·7H2O, T3—0.2% Na2B4O7·10H2O and T4—T1+T2+T3 (1:1:1), MG—mature green stage, FR—fully ripe stage.
Figure 5. Principle component analyses (PCAs) comparing Mg, Zn, and B treatments (observations) and concentrations of phyto-nutritional elements in the leaves and fruit tissues of loquats. T0—control; T1—2% MgSO4·7H2O, T2—0.1% ZnSO4·7H2O, T3—0.2% Na2B4O7·10H2O and T4—T1+T2+T3 (1:1:1), MG—mature green stage, FR—fully ripe stage.
Agronomy 11 00224 g005
Table
Table 1. Mineral nutrients and heavy metal concentrations in loquat soil and plant tissues determined before the foliar application of Mg, Zn, and B.
Table 1. Mineral nutrients and heavy metal concentrations in loquat soil and plant tissues determined before the foliar application of Mg, Zn, and B.
NutrientsSoilFruit PulpSeedLeaf BladeOptimum Ranges (Leaves)
Na (mg kg−1)421.673.1692.83154.1561–115
Mg (mg kg−1)2935.562466.471350.65342.272700–3800
K (mg kg−1)21,499.125941.821,376.392823.177500–12,000
Ca (mg kg−1)2740.120,412.7510,651.17130.7719,000–28,900
Zn (mg kg−1)326.5641.7422.8323.1920–72
B (mg kg−1)57.2312.1318.722.4525–35
Mo (µg kg−1)738.5911,232.68307.3603.28-
Mn (mg kg−1)91.37283.5352.34126.5615–23
Fe (mg kg−1)6569.0768.9145.9611,390.0653–76
Co (µg kg−1)1360.8272.23231.014457.18-
Ni (µg kg−1)766,314.86493.581690.064052.05-
Cu (mg kg−1)205.932.521.812.855–7
Cd (µg kg−1)191.75298.08187.4363.16-
As (µg kg−1)333.5130.6287.2455,291.61-
Hg (µg kg−1)19.591.491.0916.13-
Pb (µg kg−1)623.184432.19160.23101,903.25-
Table
Table 2. The main working parameters of ICP-MS.
Table 2. The main working parameters of ICP-MS.
Working ParametersSet Value
Radio frequency power (W)1550
Plasma gas flow (L min−1)15
Carrier gas flow (L min−1)1.07
Compensation airflow (L min−1)0.00
Spray chamber temperature (°C)2
Octopole reaction cell modeHelium
Oxide (%)<3
Double charge (%)<1.5
Sampling cone and intercepting coneNickel
Sampling depth (mm)10.0
Table
Table 3. Parameters during the microwave digestion procedure.
Table 3. Parameters during the microwave digestion procedure.
StepPower (W)Heating Rate (°C/min)Temperature/°CHold Time (/min)
11200121205
21200301505
312001919035
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ali, M.M.; Anwar, R.; Shafique, M.W.; Yousef, A.F.; Chen, F. Exogenous Application of Mg, Zn and B Influences Phyto-Nutritional Composition of Leaves and Fruits of Loquat (Eriobotrya japonica Lindl.). Agronomy 2021, 11, 224. https://doi.org/10.3390/agronomy11020224

AMA Style

Ali MM, Anwar R, Shafique MW, Yousef AF, Chen F. Exogenous Application of Mg, Zn and B Influences Phyto-Nutritional Composition of Leaves and Fruits of Loquat (Eriobotrya japonica Lindl.). Agronomy. 2021; 11(2):224. https://doi.org/10.3390/agronomy11020224

Chicago/Turabian Style

Ali, Muhammad Moaaz, Raheel Anwar, Muhammad Waleed Shafique, Ahmed Fathy Yousef, and Faxing Chen. 2021. "Exogenous Application of Mg, Zn and B Influences Phyto-Nutritional Composition of Leaves and Fruits of Loquat (Eriobotrya japonica Lindl.)" Agronomy 11, no. 2: 224. https://doi.org/10.3390/agronomy11020224

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
