1. Introduction
Dairy farms in temperate regions including Canada often handle manure as a dilute liquid (hereafter called slurry). The slurry is collected from housing or hard pads and stored in large covered or uncovered vessels such as tanks or lagoons. The slurry is applied to nearby fields to provide nutrients, especially N and P, to crops and carbon (C) to improve soil quality. Fertilizer replacement value of slurry N is limited by its organic (mainly fecal) fraction which is not completely available to crops and by volatilization of readily available ammonia-N (NH
3-N) in the liquid (mainly urine) fraction soon after application [
1]. The inorganic N in stored slurry is mainly ammonia and ammonium (NH
4), referred to as Total Ammoniacal Nitrogen (TAN).
Several innovations and strategies developed to reduce losses of both N and P to the atmosphere and to water bodies improve crop uptake [
2,
3]. Among the most widely adopted low-cost methods, especially in jurisdictions with regulations that penalize N loss, are low-trajectory, band applicators such as trailing hoses and trailing shoes, or low-disturbance open slot injectors that penetrate the soil only a few cm and leave the manure band exposed. In some situations deep injectors that completely cover the manure channel can be used to more fully reduce NH
3 emissions but these methods are more costly and slow, and often are not well suited for use in standing crops or on stony, steep or hard soils [
4]. Furthermore, injection may lead to greater nitrous oxide (N
2O) emissions or possibly increased leaching, which is mitigated by greater crop N uptake [
5]. A rolling tine applicator that creates intermittent pockets rather than injection channels can reduce ammonia emissions and runoff by mechanically increasing soil infiltration and reducing surface flow [
6]. N volatilization can also be mitigated by rapidly incorporating manure into the soil but this can only be done where tillage is employed.
An alternative approach to reduce emissions and runoff is to facilitate infiltration into the soil by reducing slurry viscosity by adding water or removing solids. The thin liquid fraction after solids removal has more rapid soil infiltration which reduces ammonia losses and improves N use efficiency compared to the raw slurry [
1,
7]. The remaining thicker fraction contains more solids and has a higher C:N and P:N ratio and DM content; when slurry is undisturbed in vessels, the solids gradually settle to the bottom.
Normal farm practice is to mix the slurry, but the supernatant can be decanted and used for low disturbance application on grassland to improve N use efficiency and reduce ammonia emissions and P loading [
1]. Bittman et al. [
4,
8,
9] first proposed that slurry sludge can be precision-placed by injection close to corn rows (<10 cm) in order to completely replace commercial fertilizer which is routinely applied with the corn planter near corn seed at up to 30–40 kg P ha
−1 and 20 kg N ha
−1 as mono- or diammonium phosphate. Farmers apply starter to ensure good early growth of corn in cold soils irrespective of soil P status or manure applications. Provision of P and N to corn by precision placement of slurry has now been validated in Netherlands, Denmark and Germany [
10,
11,
12,
13]. Where slurry incorporation is not possible (e.g., reduced-tillage corn planting), the injected sludge has high availability of P, N and other nutrients such as K and S. The potential effect of injection on N
2O emissions and N leaching is mitigated by increased crop N uptake. Damage to corn by injected slurry has been reported in Denmark [
14], but injected sludge did not significantly modify corn yield, root growth or colonization by arbuscular mycorrhizae in British Columbia, Canada [
4].
The objective of this multi-year field study was to assess the effect of precision-injected separated dairy sludge relative to starter commercial fertilizer, on yield and nutrient (N and P) uptake by silage corn under no-till management.
3. Results and Discussion
The sludge analysis for each trial year is shown in
Table 2. The P concentration ranged from 0.35 in 2014 to 0.60 g kg
−1 in 2015 averaging 0.45 g kg
−1 and the N:P ratio varied from 3.67 in 2012 to 7.50 in 2013 averaging 5.87. Concentration of dry matter (DM) varied from 5.79% in 2011 to 9.5% in 2013 averaging 7.03%. Based on the N:P ratio, more settling separation occurred in 2013 than in 2012. Very efficient separation by settling is observed on farms with two stage lagoon systems connected by a weeping wall [
1,
19]. Since settling is the least expensive method for solid–liquid separation, protocols to improve consistency would be helpful. In all cases the sludge used in this trial and other studies [
1] was fluid enough to pump and would be somewhat cheaper to transport and inject (smaller trenches) than raw slurry due to lower water content.

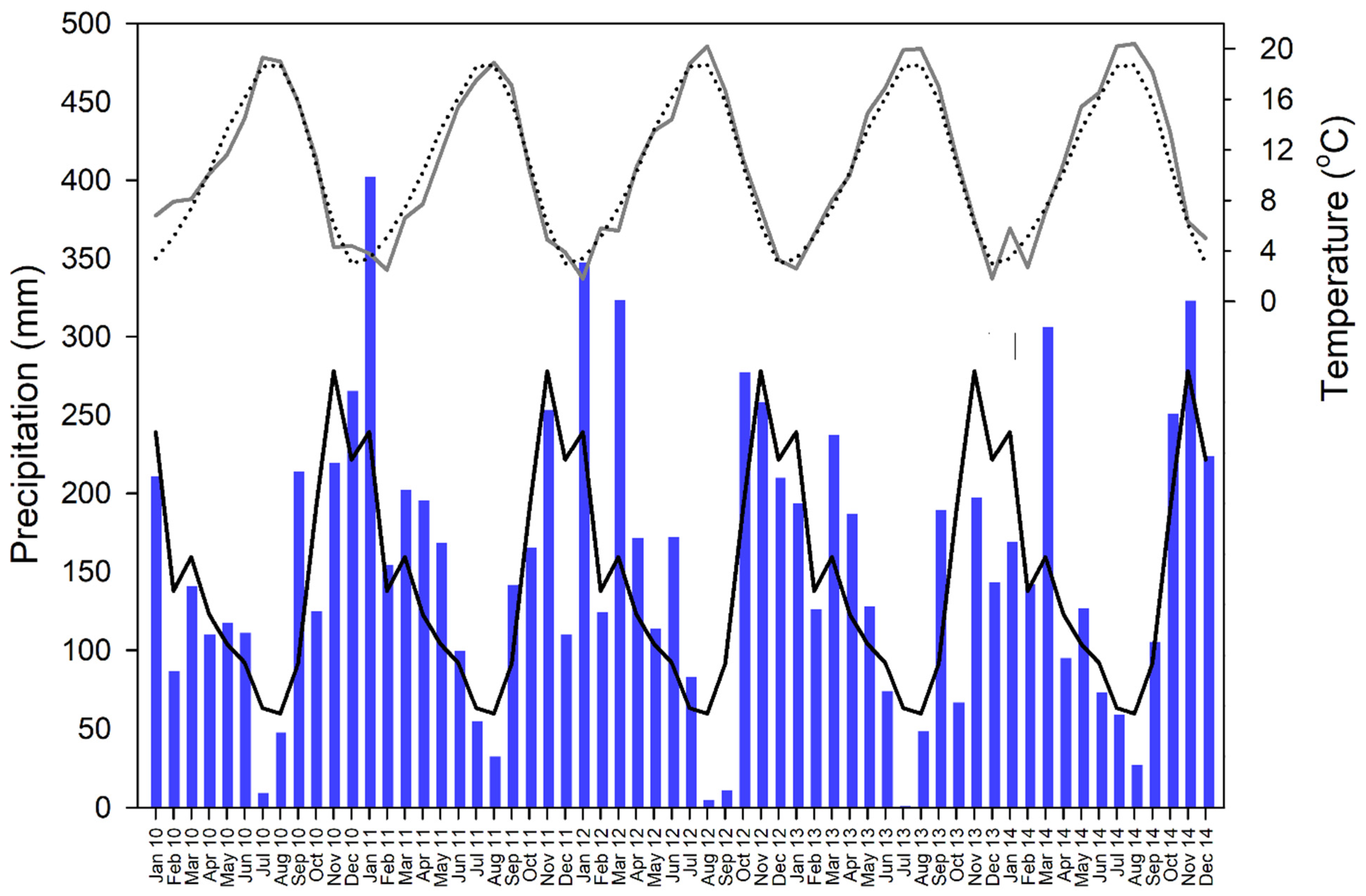

The growing conditions for the growing periods over the 5-year trial varied between 2766 and 2831 corn heat units and 287 to 470 mm precipitation (
Table 1). These ranges represent typical conditions for this location. Annual production is discussed below.
Whole crop biomass averaged over the 5 years responded to broadcast ammonium nitrate fertilizer (at 32 kg ha
−1 P) reaching maximum yields of 17.9 t DM ha
−1 at the 250 kg N ha
−1 rate compared to 5.6 t ha
−1 for the unfertilized control (
Table 4,
Figure 3). The maximum yield is consistent with long-term trials conducted at the research center and on local high intensity dairy farms (
https://farmwest.com/varieties/pacific-field-corn-association-testing/corn-hybrid-trials/2017-corn-silage-hybrids/late-agassiz-long-term-average/, accessed on 18 February 2021) with farm N inputs from manure and fertilizer likely between the test rates of 167 and 250 kg N ha
−1 application rates. These results show that the site is moderately responsive to N fertilizer. The yield of the high fertilizer N treatment with no P (15.1 t ha
−1) was significantly lower than the respective treatment (17.9 t ha
−1) receiving 32 kg ha
−1 P indicating that the site is also P responsive.
Precision application of sludge into injection furrows positioned 0–10 cm from the corn rows increased whole crop yield significantly compared to control, and the response was related to rate of application. Without commercial fertilizer, crop yields increased significantly from 5.6 for the control, to 10.4 and 14.3 t ha
−1 with the half and full P sludge rates (14.7 and 29.3 kg P ha
−1), respectively (
Table 4,
Figure 3). The yield was 1.8 t ha
−1 lower than equivalent rates of fertilizer N and P, but with the sludge having just slightly more than half the N in the form of TAN and the remainder in the less available organic form (
Table 3). Based on equivalent rates of min-N (167 kg N ha
−1), yields and N uptake with sludge and mineral fertilizer were similar (
Table 4,
Figure 4). To achieve an acceptable yield of 16.1 t ha
−1, the fertilizer treatment received 167 kg N ha
−1, whereas sludge, to achieve the same yield, would need an estimated 230 kg tot.-N ha
−1 or 63 kg ha
−1 more tot-N than with fertilizer (
Figure 3). For equivalent N uptake, the difference is around 73 kg N ha
−1 (
Figure 5). Since the manure was injected and covered, little of this surplus N is likely to have been lost as ammonia, it would probably be lost by leaching and denitrification, or sequestered (along with C) in the soil. The latter may be a positive outcome that warrants further testing.
The above comparisons were made with similar target rates of precision placed P, sludge P at 29.3 kg ha
−1 and fertilizer P at 32.1 kg ha
−1 (
Table 3), repeated annually, and so include both N and P from the current and previous applications, which is further discussed below. Since the injected manure is meant to replace starter mineral fertilizer applied typically at around 32 kg P ha
−1, we refer to this as the full sludge rate. At half the P sludge rate and with no additional N, yield was only 10.4 t ha
−1 (
Table 4). This treatment is of potential interest to farmers who have an abundance of land and would like to minimize losses and maximize apparent N use efficiency in corn production. However, to achieve high P recovery to avoid loading on already rich soils, the 50% P with 250N achieved almost complete apparent P recovery (99%) compared to about 50% for mineral and sludge P (
Table 5). Therefore, if the sludge is used primarily as a P source, its efficacy is enhanced by the added mineral N fertilizer, which promotes greater root growth and above-ground crop sink, and possibly by priming mineralization of organic matter [
20].
Nitrogen recovery was not significantly affected by sludge tot-N rate but declined with fertilizer N rate (not shown). Apparent N recovery was much lower for sludge that for fertilizer based on total applied N but similar based on applied mineral N (
Table 5). Fertilizer P application increased N uptake by 34 kg ha
−1 and apparent N uptake from 50 to 64 kg ha
−1, while the banded fertilizer P added to sludge did not affect apparent N recovery, although it greatly lowered apparent P recovery (
Table 4 and
Table 5). For the sludge treatment with no supplemental mineral N, uptake was 110 kg N ha
−1 at 191 kg ha
−1 or an efficiency of 60% (or 52% assuming 20 kg of atmospheric N deposition, [
21], which is a reasonable N recovery rate for sludge with almost 50% organic N. At a relatively similar N application rate for fertilizer (167 kg N ha
−1), N uptake was 151 kg N ha
−1, which is an uptake efficiency of 91% (81% with accounting for atmospheric deposition). When adjusted for control N uptake, the apparent N recovery was about 66% for mineral fertilizer and 37% from the sludge (
Table 5). Apparent N use efficiency for the fertilizer treatments declined with N application rate from 93 to 50 kg DM kg
−1 N. Most of the sludge treatments had apparent N use efficiency between 50 and 45 kg DM kg
−1 tot-N. However, based on comparable rates of applied mineral N, sludge treatments had significantly greater apparent N use efficiency than fertilizer (63–50 and 89–72 DM kg
−1 for fertilizer and sludge, respectively). This indicates that there are yield benefits derived from the non-mineral N constituents of the sludge such as mineralized organic N and other nutrients that might have been deficient in the fertilizer treatments. Sludge C injected into the untilled soil may have improved soil physical properties near the seed. The benefits of sludge warrant further investigation.
Differential responses to nutrient treatments were evident at the 6-leaf stage (V6) of corn. Side-banded P fertilizer significantly increased yield and nutrient uptake (0P vs. 32P at 250N, nominal) but there was no difference among the N rates with the side-banded P (
Table 6). However, yield values at V6 were significantly higher for sludge (223 and 242 kg DM ha
−1) than for fertilizer (173 and 167 kg DM ha
−1) at the 32P-167N and 32P-250N (nominal) rates, respectively. Similarly, uptake values for N were significantly greater for the sludge than for fertilizer treatments (9.1–10.5 vs. 7.5 kg N ha
−1) as was uptake of P (0.85–0.90 vs. 0.65–0.66 kg P ha
−1), as previously reported by [
4]. These results show that precision placed sludge is a more effective source of nutrients than mineral fertilizer N and P at the critical early stage when uptake of nutrients by corn roots, especially P, may be restricted by low soil temperatures, and P deficiencies are most likely to be observed [
22]. The increased yield and nutrient uptake responses of sludge plots receiving additional side-banded mineral P are difficult to understand given the very small amount of P uptake (approximately 1 kg ha
−1) at this stage, but help to explain the tendency of farmers to sideband mineral P in addition to manure. The effects of the added mineral P did not persist to final harvest, but vigorous early growth is valued by farmers concerned about plant pests and early maturity. The results at V6 suggest that there was no injury to corn roots, as recently reported [
14], or mycorrhizal colonization, which is needed for P uptake in corn, so the precision injected sludge can safely replace mineral starter fertilizer even at the highest sludge rate under cool moist conditions of this study.
The response of corn at V6 helps to explain the effect of nutrient treatments on DM concentrations, which is an indicator of crop development and a useful trait for farmers. At the 32P-250N nominal rate, DM% was significantly greater for sludge than fertilizer (36.6% and 31.5%, respectively,
Table 4). Early corn maturation is important for farmers, underlining the importance of early P nutrition provided by the sludge. Higher DM% allows earlier harvests with better ensiling potential, and favors the effective use of cover crops, which is therefore an important co-benefit of early nutrition by sludge.
While sludge P and N enhanced early growth and N and P uptake, nutrient source had no effect on final P uptake. Please note that N rate did affect P uptake from both fertilizer and sludge at both application rates and this was likely in part due to effect on yield. Maximum P uptake was around 25–26 kg ha (27 kg ha
−1 at very high P application rate of 61 kg ha
−1,
Table 4). Under similar N regimes, there is no difference in P uptake from mineral fertilizer or sludge and this is consistent with previous reports [
4,
9,
23]. Apparent recovery of applied fertilizer P at 32P increased with N rate from 37% to 53% (
Table 5), and apparent recovery rate of sludge P at 32P was similar at 36% to 52%, but at the low sludge P rate of 16P and with abundant N, the P recovery averaged 99% of applied P, which suggests a soil P equilibrium. The actual P recovery of 16P 250N treatment 24 kg ha
−1, which is 166% of applied P and suggests a strategy for removing excess P from contaminated soils.

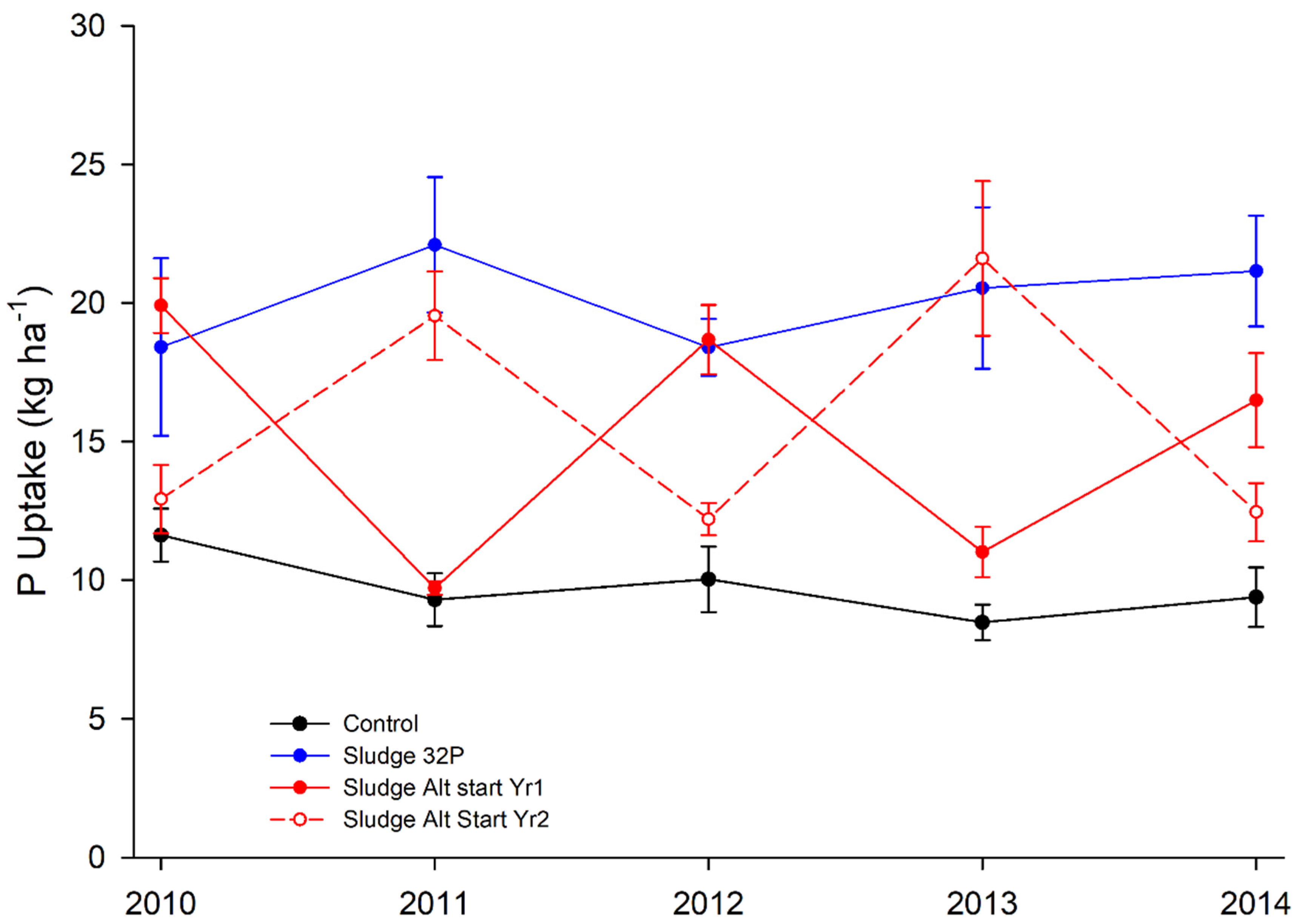

Figure 6 and
Figure 7 show the annual N and P uptake for the unfertilized control and the sludge 32P-190N treatments over the 5 trial years. The data shows fairly consistent annual values for both the control and the sludge treatments reflecting overall consistent crop growing conditions over the course of this trial (
Table 2,
Figure 1). For the sludge treatment, N uptake ranged from 100 to 123 kg ha
−1, while control ranged between 34 and 48 kg ha
−1, and there was no statistically significant upward or downward trend for these two treatments suggesting little discernable legacy effect from previous applications. The N uptake of treatments receiving sludge in alternating years also showed little effect of sludge treatments in the previous year. N and P uptake were similar in the treatment application year to the continuous treatment. In the non-treatment year, uptake of these nutrients was similar to the continuous control. Annual P uptake ranged from 18.4 to 22.1 for the sludge treatment and from 8.5 and 11.6 for the control. There was no significant annual trend, and like N, the values in the treatment years were similar to the comparable continuous treatment so there is little evidence of a short term legacy effect, except perhaps in the final year. Longer term assessments of legacy nutrient effects are warranted.
Corn response to available (inorganic) N from sludge and fertilizer is similar but there seems to be little benefit to the crop derived from the organic N fraction from either the current or from previous applications. There is evidence of greater N
2O emissions from the injected sludge, which is suggestive of denitrification, and some N might be lost by leaching, as it is mineralized over fall and winter [
24]. Other possibilities are N (and C) immobilization, which would add to the long-term fertility of the soil, which, as mentioned above, may require longer studies [
18,
25]. Thus, although injection is known to reduce N loss as ammonia emissions, in this multi-year trial it has not fully resolved the problem of efficient use of sludge N which therefore needs further investigation [
26]. Better N use is achieved when manure and fertilizer applications are combined [
1]. It is our hypothesis that the organic fraction of manure, including N, should be considered primarily a soil amendment rather than a fertilizer source due to a C:N ratio of 11.8 based on total N but up to 25.4 based on the non-labile organic N fraction mostly remaining in the soil (
Table 2).
