Flavonoids and Limonoids Profiles Variation in Leaves from Mandarin Cultivars and Its Relationship with Alternate Bearing

Abstract

Alternate bearing in citrus trees has been extensively studied as a key feature for citrus growers. Although the genetic and the biochemical process occurring during alternate bearing has been studied extensively, there is a lack of information identifying the presence of metabolic indicators during “on” and “off” years. In citrus plants, leaves play a central role in the metabolic pathway triggering the flowering induction process. To investigate the changes during this transition, a liquid chromatography coupled to tandem mass spectrometry (LC-MS/MS) analysis of the leaf profiles of 20 compounds (17 polyphenols, two limonoids, and one furanocoumarin), in bearing and non-bearing branches arising from four different mandarin genotypes, was performed. The same metabolites were found in all the genotypes at both stages: both limonoids and 11 polyphenols. Using these compounds, the chemotaxonomic differentiation between cultivars was assessed. The levels of flavanones and limonoids showed differences in both bearing stages and the transition from vegetative to flowering could be shown by the activation of the polyphenol biosynthetic pathway, from precursors like naringenin to metabolic end-points such as narirutin and polymethoxyflavones. Narirutin levels showed significant differences between both stages, suggesting it as a possible marker of the physiological status of the branch.

1. Introduction

Citrus is one of the main fruit crops worldwide with more than 143 million tons produced in 2019 [1]. Alternate bearing in Citrus is one of the major limiting factors affecting production profits and, thus, tackling the maximal potential benefits for the global citrus industry is essential. Therefore, the genetic, biochemical, and metabolic determinations of alternate bearing have been widely studied, aiming to gain knowledge about the regulatory process in the transition from bearing to non-bearing trees. However, the mechanism by which the developing crop influences blooming and fruit yield the forthcoming year has not been fully understood yet. One hypothesis holds that return bloom and yield are related to tree carbohydrate status and, thus, lack of carbohydrate in the “on” year directly or indirectly reduces flowering the following year [2]. Other authors claim that developing fruit produces an inhibitor that directly or indirectly reduces flowering in the spring following the “on” crop [2,3]. Although extensive research has been conducted to unravel the hormonal and genetic regulation of flowering induction in Citrus [4,5], there is still a lack of information describing metabolites’ changes (in terms of quality and quantity) occurring during “on” and “off” years as putative markers depicting this transition.

Flowering represents a transition phase from vegetative to reproductive growth and, thus, it is one of the most important events in the plant life cycle. During vegetative to reproductive transition, citrus undergoes metabolic regulations that have been extensively reported [6].

Flowering is regulated by endogenous and exogenous factors. The first one has been mainly attributed to the genetic and hormonal modulation of the LFY gen and Gibberellins metabolic pathway [7,8,9], identifying the fruit-mediated inhibition of flowering as the main cause of alternate bearing in citrus [10]. Similarly, carbon metabolism has also been reported to be involved in flower induction mediated by fruit presence in citrus [2]. Exogenous regulation of flowering has been mainly attributed to environmental stress factors including light intensity and wavelength, temperature, mineral and carbon nutrition, drought, low oxygen, crowding, root removal, and mechanical stimulation, as well as biotic stress factors such as infection by pests and pathogens [11,12,13].

A possible approach to find the metabolic changes involved in the process of alternate bearing is the study of the metabolome of the leaves in both stages. In this way, polyphenols and limonoids fulfill definite biological and ecological properties in plants [14]. As an example, when the carbon/nutrient ratio is high, photosynthesis is primarily diverted to the production of carbon-based metabolites such as phenolics [15,16] and, thus, high levels of phenolics are associated with in-excess accumulation of leaf carbohydrates. In this way, phenyl-propanoid biosynthesis serves as an ‘energy overflow’ mechanism by diverting photosynthate and cellular reducing power into stable product pools [17], preventing further oxidative damage during photoinhibition caused by high carbohydrates accumulation in leaves [18].

Polyphenols are a remarkably diverse group of secondary products with a vast array of biological functions. They protect plants from different biotic and abiotic stress and act as unique UV filters, signal molecules, allopathic compounds, phytoalexins, detoxifying agents and antimicrobial defensive molecules [19]. They are classified in to two major classes: flavonoids and nonflavonoids. The latter include structurally simple molecules such as phenolic acids (hydroxybenzoic acids and hydroxycinnamic acids) and stilbenes, along with highly complex molecules such as stilbene oligomers, tannins, and lignans [20]. The former is the most studied class of polyphenols, sharing the same general C6-C3-C6 structure. The most abundant have a flavan nucleus, consisting of two aromatic rings (A and B) linked by a pyran ring (C). Differences in the location of the B-ring to C-ring linkage make it possible to distinguish between flavonoids (2-phenylbenzopyrans), isoflavonoids (3-phenylbenzopyrans), and neoflavonoids (4-phenylbenzopyrans). The first one is by far the most abundant group and may be further divided into 3-hydroxyflavonoids (flavonols, flavanols, anthocyanidins, and dihydroflavonols), and flavonoids without substituent at C3 (flavanones and flavones). The flavonoids may be among the most important aromatic compounds. In this regard, they are the most ancient and widespread of the polyphenols, synthesized even in mosses and ferns, and have a wide range of potent physiological activities [21].

Citrus limonoids (CLs) are a crowded family of polycyclic secondary metabolites found mostly in seeds, fruits, and peel tissues of citrus fruits, including lemons, limes, oranges (both sour and sweet), pummels, grapefruits, bergamots, and mandarins [22]. CLs are highly oxygenated and modified triterpenes classified as tetranotriterpenoids, found as both free aglycones and their corresponding β-D-glycosides. Up to date, about 55 limonoid aglycones and 18 limonoid glycosides were identified in Citrus. Limonin is the most abundant aglycone in most citrus species followed by Nomilin, and limonin glycoside is the most representative limonoid glycoside [23]. CLs possess a wide array of biological activities [23], and have been acknowledged as high anti-insect activity compounds, both by their toxicity and antifeedant properties [22,24,25,26,27,28]. They probably protect leaflets from insects during bud development, justifying their abundancy in young leaves and fruit [29]. The first studies of CLs originate on the attempt to find bitter compounds in citrus fruit [30,31,32], but few reports on the occurrence of CLs in citrus tree leaves are found.

Metabolomic research strategies can be faced by two distinct approaches, untargeted and targeted, each with their own inherent advantages and disadvantages. Untargeted metabolomics is the comprehensive analysis of all measurable analytes in a sample. Although it offers the opportunity for novel target compounds discovery, the importance of rare molecules can be underestimated [33]. In contrast, the targeted approach is the precise and quantitative measurement of the concentrations of a defined group of chemically characterized metabolites. Hypothesis-driven targeted experiments can go together with the risk of losing the real natural products that are responsible for an observed biological property. For targeted analysis, sample preparation is optimized for obtaining a defined group of natural products.

Seeking the identification of possible representative phytomarkers of the transition from “on” to “off” bearing, the profiling of polyphenols and limonoids in leaves from bearing and non-bearing branches was studied using a targeted metabolomic approach.

2. Materials and Methods

2.1. Plant Material

The study was carried out at the National Agricultural Research Institute (INIA) of Uruguay, in Salto Province (31°16′ S; 57°53′ W, altitude: 47 m), on adult trees from cv. ‘Ellendale’ (Citrus reticulata Blanco), cv. ‘Satsuma’ (Citrus unshiu Marc.), cv. ‘Willowleaf’ (Citrus deliciosa Ten.), and cv. ‘Page’ (Citrus reticulata Blanco × Citrus paradisi Macf.) grafted onto Poncirus trifoliata (L.) Raf. rootstock, under accurate horticulture cares (irrigation and pest management). From each variety, five bearing and five non-bearing trees were sampled. Adult leaves between 6 and 12 months old (5 leaves/branch; 10 branches sampled) were collected from bearing (B) and non-bearing (NB) branches. In bearing branches, leaves were collected immediately below the fruits (5–20 cm from the peduncle) during full fruit color stage, whereas in non-bearing branches, leaves were selected to have the same characteristics and position as in bearing branches. All trees were located in the same orchard and growing conditions. Therefore, the differences in the composition between the varieties could not be ascribed to changes in the tree environment, but due to the genetic background and physiological state of each tree. In all the branches for sampling, leaves were taken randomly all around the outer part of the tree canopy, exposed to full sunlight, and immediately stored at −20 °C until extraction.

2.1.1. Reagents and Equipment

All mobile phases were prepared using High Performance Liquid Chromatography-grade solvents, supplied by Merck KGaA (Darmstadt, Germany), as well as analytical grade solvents used for extraction. Ultrapure water (Millipore Milli-Q^® Ultrapure Water Solutions Type 1 by Merckmillipore, Molsheim, France) was used for the extraction and HPLC analysis. All standards were selected based on previous studies of flavonoid content in mandarins [34] and purchased from PhytoLab GmbH & Co.KG (Vestenbergsgreuth, Germany).

Polyphenols and limonoids were analyzed in an Agilent 1200 LC system (Agilent Technologies, Palo Alto, CA, USA) coupled to a 4000 QTRAP^® LC-MS/MS System from AB SCIEX™ (Framingham, MA, USA). LC-Separation was performed on a Gold Aq-Hypersil (5 µm 150 × 4.6 mm) column from Thermo Scientific™ (USA). The injection volume was 5 μL. MS/MS detection was performed in the multiple reaction monitoring (MRM) mode using an electrospray ionization (ESI) interface in both positive and negative ion mode.

2.1.2. Standard Solutions Preparation

Individual standard solutions of the target compounds were prepared and stored at −20 °C. Each standard was weighed to approximately 20 mg and dissolved in 10.00 mL of HPLC-grade methanol, to obtain a 2000 mg/L stock solution. A working solution mix of all targeted compounds (20 mg/L) was prepared by appropriate dilution of the stock solutions in acetonitrile and used for the calibration curve construction. The selected concentrations for the curve were 10, 50, 100, 200, 400, 600, 800, 1000, and 1500 μg/L.

2.1.3. Sample Preparation

The extraction procedure for mandarin leaves was performed using an Ultrasound-assisted extraction (UAE) adapted from Safdar M.N. et al. [35]. A total of 50 g of freeze-dried leaves was pool together and ground using a cut mill for each variety. Then, 1 g of the powdered leaf samples was extracted with methanol 80% in a sample/solvent ratio 1:10 for 15 min in an Ultrasound bath (Transsonic 460; Elma, Wetzikon, Switzerland) at 35 kHz frequency. This procedure was repeated twice using fresh solvent. The extracts were combined and subjected to bulk filtration, solvent vacuum evaporation, and lyophilization, followed by redissolution in 80% methanol HPLC grade and filtration through 0.22 μm Polyvinylidene fluoride (PVDF) filters.

2.1.4. Chromatographic and MS/MS Conditions

The mobile phase was ultrapure water with 0.1% formic acid (A) and acetonitrile (B), with the subsequent gradient: 0–23 min 5% to 50% B, 23–26 min 50% to 100% B, 26–31 100% B, 31–33 min 100% to 5% B, 33–38 5% B, at 600 μL/min. The ionization voltage was 5000 V, the nebulizer and the curtain gases were nitrogen at 50 psi each. The solvent evaporation in the source was assisted by a drying gas (heated nitrogen at 500 °C per 50 psi).

A multiple reaction monitoring (MRM) mode method was used for quantification. The optimal MRM transitions, collision energies (CE), and declustering potentials (DP) for each investigated compound were determined infusing the standard solutions directly into the instrument at a constant flow, using a syringe.

2.1.5. Data Treatment

The statistical treatment was performed using Metaboanalyst 5.0 [36] and R-Studio software package (version 1.1.463). Each of the studied compounds were considered as a single variable and were included in all the treatments. Data were normalized using pareto scaling. ANOVA, Wilcoxon/Mann–Whitney, and multiple comparisons test using a Bonferroni correction were performed. Principal component analysis (PCA) and the supervised test partial least squares discriminant analysis (PLS-DA) were used for the classification of the varieties. The latter was validated to avoid overfitting using cross-validation and permutation test. Heatmap based on Student’s t-test was also performed.

3. Results and Discussion

3.1. Optimization of MS/MS Parameters of the Target Compounds

The acquisition method was ESI positive for limonoids and polymethoxyflavones, and negative for flavanones, flavone, and flavonols (

Table 1. Results of optimization parameters for each evaluated compound.

Analyte	[M-H]−	[M-H]− ⟶ m/z	DW	DP	EP	CE	CXP	Rt (min)
Protocatechuic acid	153	108.8	150	−40	−10	−22	−15	9.4
		90.7	150	−40	−10	−42	−1
Chlorogenic acid	353.7	190.8	150	−50	−10	−24	−31	11.1
		84.7	150	−50	−10	−68	−9
Caffeic acid	179	133.3	150	−45	−10	−40.7	−21.1	12.7
		88.7	150	−45	−10	−48	−14.1
Eriocitrin	595.2	286.6	150	−80	−10	−38	−9	14.5
		134.6	150	−80	−10	−90	−19
Narirutin	579.2	150.5	150	−95	−10	−75	−20.3	15.9
		270.8	150	−95	−10	−39.9	−8.4
Naringin	579.2	270.8	150	−105	−10	−54	−7	16.3
		150.7	150	−122.03	−10	−75.03	−21
Quercitrin	447.1	300.5	150	−90	−10	−36	−11	16.3
		270.8	150	−90	−10	−66	−41
Hesperidin	609.2	300.8	150	−85	−10	−46	−49	16.5
		285.8	150	−85	−10	−70	−41
		163.5	150	−85	−10	−88	−25
Neohesperidin	609.2	300.7	150	−115	−10	−56	−9.32	16.9
		285.7	150	−115	−10	−72.89	−42.3
		150.5	150	−115	−10	−100	−21
Didymin	593.2	284.8	150	−100	−10	−48	−45	19.8
		164	150	−100	−10	−92	−27
Poncirin	593.3	284.8	150	−120	−10	−54	−9	20.0
		163.4	150	−120	−10	−92	−23
Luteolin	285	150.6	150	−85	−10	−41.6	−20.9	20.5
		132.9	150	−85	−10	−54	−17
Quercetin	301	150.8	150	−75	−10	−36	−21	20.7
		178.7	150	−75	−10	−28	−27
		120.8	150	−75	−10	−44	−16.3
Kaempferol	284.9	92.9	150	−80	−10	−51.4	−14.1	23.1
		116.88	150	−80	−10	−67	−18.8
Naringenin	271	150.7	150	−60	−10	−28.87	−23.14	23.2
		118.7	150	−60	−10	−40.9	−16.7
		106.6	150	−60	−10	−37.8	−16.9
Analyte	[M-H]+	[M-H]+⟶ m/z	DW	DP	EP	CE	CXP	Rt (min)
Bergapten	217.2	202	150	64.1	10	30.9	10.9	25.8
		174.3	150	64.1	10	41.4	6.1
		90.1	150	64.1	10	57.9	3.1
Limonin	471.2	425.3	150	71	10	28.6	22	26.7
		161.1	150	71	10	37.7	12.7
Nobiletin	403.1	373.1	150	61	10	41	14	26.7
		388.1	150	61	10	31	16
Nomilin	515.2	469.3	150	44.9	10	20.18	11.4	27.9
		161.1	150	44.9	10	35.1	11.2
Tangeretin	372.97	343	150	71	10	39	26	28.4
		297.1	150	71	10	47	10
		211.1	150	71	10	60.87	7.3

M, molecular weight; m/z, selected ions monitored; DW, dwell time in msec; DP, declustering potential; EP, entrance potential; CE, collision energy; CXP, collision cell exit potential; and Rt, retention time.

). The chromatogram of the optimized compounds is shown in Supplementary Materials.

3.2. Identification and Quantification of Phytochemicals in Leaves

A total of 11 polyphenols were identified and quantified among the four genotypes, together with two limonoids. The identified phytochemicals were the flavanones didymin, eriocitrin, naringenin, hesperidin, and narirutin; two polimethoxyflavones, tangeretin and nobiletin; a flavonol, quercitrin, and the flavone luteolin, as well as the hydroxycinnamic acids chlorogenic and caffeic acid and the limonoids limonin and nomilin (Figure 1). The chromatogram of the identified compounds is shown in Supplementary Materials.

3.3. Chemotaxonomic Characterization of Bearing Branches

Leaves from bearing branches of the four studied genotypes contained high concentrations of hesperidin (2824.43 μg/g *), followed by nobiletin (583.71 μg/g *), tangeretin (326.60 μg/g *), narirutin (63.22 μg/g *), and eriocitrin (37.23 μg/g *). Meanwhile, the most abundant limonoid was limonin (0.69 μg/g *). The phytochemical concentration of each variety is displayed in

Table 2. Identified phytochemicals in bearing leaf of ‘Ellendale’ (B-END), ‘Willowleaf’ (B-WL), ‘Page’ (B-PG), and ‘Satsuma’ (B-SAT) and their concentration expressed in μg/g of dried leaf.

Compound	B-SAT	B-END	B-WL	B-PG
	(μg/g) *
Chlorogenic Acid	3.88 b ± 0.40	3.53 b ± 0.37	6.70 a ± 0.78	5.04 b ± 1.39
Caffeic Acid	3.87 b ± 0.21	4.34 ab ± 0.23	5.38 a ± 1.05	5.18 a ± 0.51
Didymin	10.57 b ± 1.11	20.19 a ± 3.27	3.30 c ± 0.43	21.17 a ± 3.76
Hesperidin	3008.58 a ± 151.89	2512.39 b ± 182.61	2624.31 b ± 114.09	3152.43 a ± 298.13
Eriocitrin	47.93 a ± 6.42	13.90 c ± 1.19	29.85 b ± 2.44	57.24 a ± 8.02
Luteolin	1.45 a ± 0.05	1.21 a ± 0.08	1.81 a ± 0.28	2.31 a ± 1.26
Naringenin	0.38 b ± 0.02	0.57 a ± 0.01	0.34 b ± 0.01	0.63 a ± 0.15
Narirutin	87.03 a ± 12.68	50.08 b ± 7.58	17.58 c ± 7.58	98.20 a ± 14.35
Quercitrin	2.29 b ± 0.07	2.43 b ± 0.13	2.98 ab ± 0.55	3.69 a ± 0.61
Nobiletin	258.17 c ± 16.48	1121.36 a ± 34.94	747.15 b ± 55.16	208.17 c± 13.63
Tangeretin	64.96 c ± 6.15	731.28 a ± 30.15	475.84 b ± 56.24	34.34 c ± 5.01
Limonin	0.45 c ± 0.04	0.88 a ± 0.08	0.72 b ± 0.12	0.76 ab ± 0.08
Nomilin	0.42 b ± 0.03	0.62 a ± 0.08	0.57 ab ± 0.13	0.52 ab ± 0.04

* In each row, means (5 replicates) ± SD followed by the same letter do not differ significantly using significance t-test with Bonferroni correction, p ≤ 0.05.

. * Average of the four genotypes.

A PCA was performed to check the grouping of the samples and detect similarities and differences between the four varieties. Figure 2a shows the 2D plot of the PCA, where PC1 and PC2 explain 97.7% of the total data variance. It shows a good classification of all genotypes, with ‘Page’ and ‘Satsuma’ being the ones that have the most similarities between each other.

After performing a PLS-DA, the top three scores of the Variables Importance in the Projection (VIP) are nobiletin for the differentiation of END-PG, tangeretin for END-PG, and didymin for PG-WL (Figure 2b).

3.4. Chemotaxonomic Characterization of Non-Bearing Branches

The same polyphenols and limonoids found in bearing branches were found in the non-bearing branches’ leaves but with different concentrations (

Table 3. Identified phytochemicals in non-bearing leaves of ‘Ellendale’ (NB-END), ‘Willowleaf’ (NB-WL), ‘Page’ (NB-PG), and ‘Satsuma’ (NB-SAT) and their concentration expressed in μg/g of dried leaf.

Compound	NB-SAT	NB-END	NB-WL	NB-PG
	(μg/g) *
Chlorogenic Acid	126.02 a ± 6.40	11.31 b ± 0.62	6.75 b ± 1.41	6.35 b ± 1.50
Caffeic Acid	2.32 a ± 0.12	2.00 b ± 0.09	0.12 c ± 0.04	0.04 c ± 0.02
Didymin	6.44 bc ± 0.47	17.40 a ± 2.97	5.03 c ± 2.56	14.07 ab ± 8.77
Hesperidin	2591.54 b ± 55.63	2433.21 b ± 179.79	4224.72 a ± 450.98	4270.21 a ± 400.09
Eriocitrin	132.39 a ± 15.01	17.09 d ± 1.82	39.62 c ± 5.34	69.98 b ± 17.91
Luteolin	3.16 c ± 0.60	2.13 c ± 0.15	2659.07 a ± 267.40	2023.38 b ± 121.10
Naringenin	0.32 b ± 0.02	0.68 b ± 0.12	509.61 a ± 100.14	574.03 a ± 101.15
Narirutin	97.45 c ± 8.08	62.85 c ± 5.04	10049.66 b ± 1005.64	42198.36 a ± 3700.22
Quercitrin	2.80 b ± 0.21	2.44 b ± 0.16	350.39 a ± 122.31	362.45 a ± 50.83
Nobiletin	290.48 e ± 24.07	1257.23 a ± 87.18	1028.88 b ± 151.80	228.71 c ± 12.86
Tangeretin	99.89 c ± 10.05	517.97 a ± 78.41	347.23 b ± 82.59	33.27 c ± 5.98
Limonin	3.40 a ± 0.44	0.77 c ± 0.05	1.30 b ± 0.09	1.28 b ± 0.03
Nomilin	0.6 ab ± 0.01	0.54 b ± 0.05	0.19 a ± 0.14	0.66 ab ± 0.03

* In each row, means (5 replicates) ± SD followed by the same letter do not differ significantly using significance t-test with Bonferroni correction, p ≤ 0.05.

). Narirutin was the principal flavonoid with the highest concentration for non-bearing ‘Page’ and ‘Willowleaf’ (42198.36 μg/g in NB-PG and 10049.66 μg/g in NB-WL, respectively). Hesperidin is the most abundant flavonoid for the non-bearing ‘Satsuma’ and ‘Ellendale’ (2591.54 μg/g in NB-SAT and 2433.21 μg/g in NB-END, respectively), as shown also in bearing branches.

Non-bearing branches of ‘Page’ were characterized by the highest luteolin, narirutin, and quercitrin levels, a situation which was also observed in ‘Willowleaf’. In ‘Satsuma’, eriocitrin and chlorogenic acid were characteristic of this genotype, whereas in ‘Ellendale’, the polymethoxyflavones tangeretin and nobiletin were the metabolites that characterize the leaves of non-bearing branches.

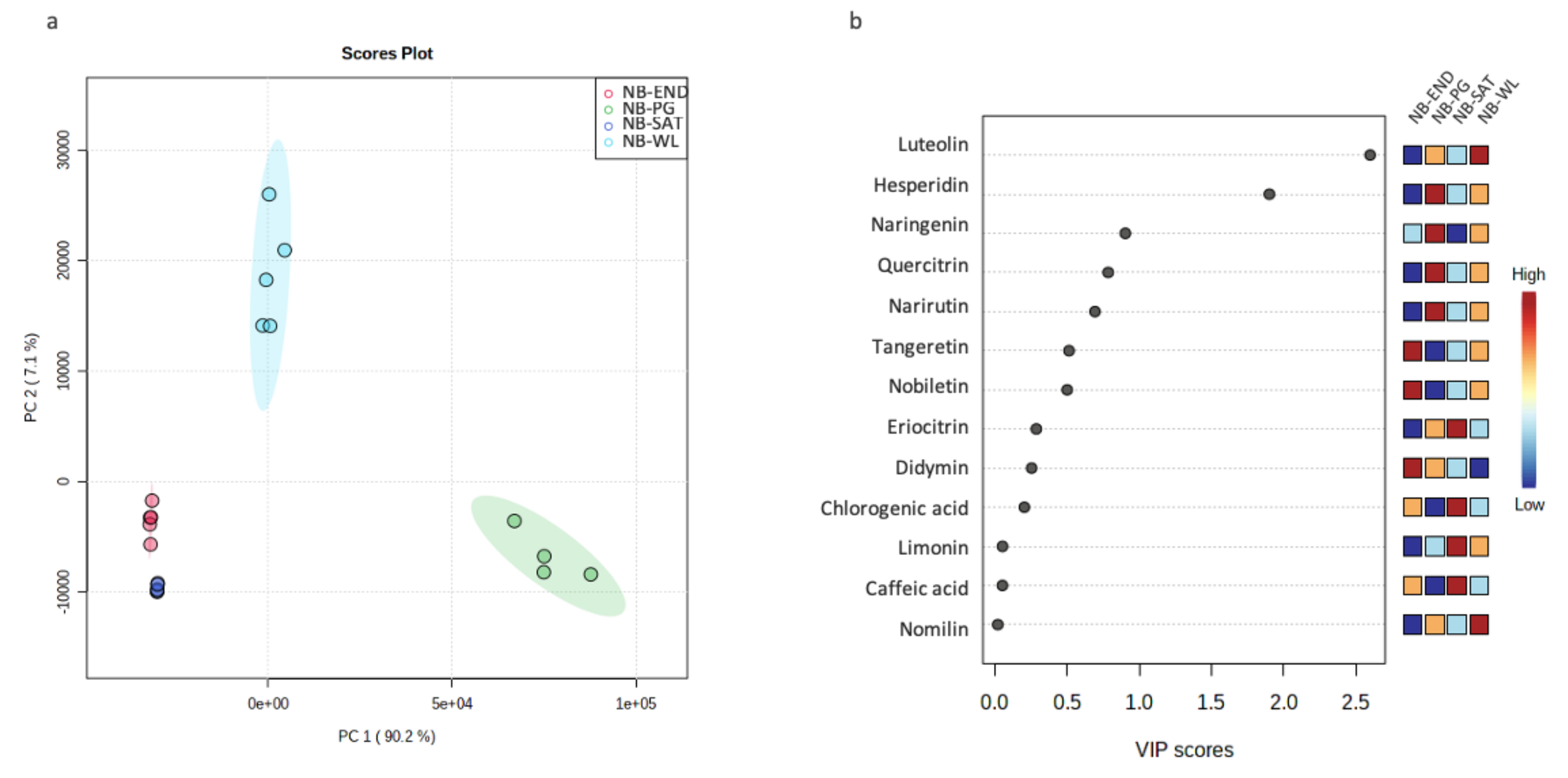

In the PCA plot, it can be seen that the four genotypes are well classified from each other. PC1 and PC2 accounted for the 97.3% of the observed variance (Figure 3a). ‘Willowleaf’ and ‘Page’ showed more dispersion compared to the other two varieties due to the variability in the levels of some flavonoids.

The concentration of both polymethoxyflavones were different, being highest to lowest: NB-END, NB-WL, NB-SAT, and NB-PG. The flavanone hesperidin was highest for the duad WL-PG; the same behavior was observed for flavanones naringin and naringenin, flavonols, and flavones. Didymin had high concentration values in NB-END and NB-PG, but not in NB-WL and NB-SAT. Hydroxycinnamic acids are present in the highest concentration in NB-SAT variety (Figure 3a, Table 2 and Table 3).

The most important compounds according to VIP scores include luteolin, hesperidin, and naringenin. (Figure 3b). ‘Willowleaf’ has the highest concentration of luteolin, and ‘Page’ of hesperidin and naringenin.

3.5. Metobolites’ Profile Comparison between Leaves from Bearing and Non-Bearing Branches

The chemotaxonomic characterization of the four genotypes in both bearing stages (“on” and “off”) allowed the identification of characteristic compounds that could differentiate between bearing stages. In order to determine if there is a significant difference between the means of these two groups, a Wilcoxon/Mann–Whitney test for each compound between bearing and non-bearing leaves was performed for each genotype. Figure 4 shows that nobiletin is not useful in differentiating between bearing and non-bearing stages, for any genotype. Hesperidin, luteolin, naringenin, narirutin, and quercitrin are the compounds that could differentiate between stages; however, it depends on the genotype considered. For example, narirutin is useful for differentiating all the genotypes except for ‘Satsuma’. Using this test, a set of compounds could not be selected to classify both stages for all the varieties, due to their high variability. Instead, a pairwise study of the “on”–“off” physiological situations of each cultivar showed significant differences between them. These facts could be ascribed to the different genetic origins of each genotype. Interestingly, there were significant differences in eriocitrin levels between both physiological stages for three of the genotypes excepting ‘Satsuma’.

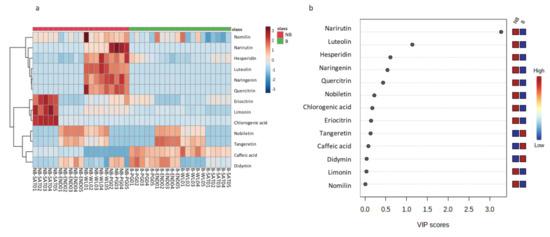

In order to identify the compounds responsible for the differentiation of stages in all the genotypes, other statistical approaches were performed and, thus, a Heatmap based on a Student’s t-test was developed and shown in Figure 5a. Narirutin, hesperidin, luteolin, naringenin, and quercitrin could be used to differentiate both stages in ‘Page’ and ‘Willowleaf’, as the non-bearing samples have the highest concentration of these compounds. Interestingly, caffeic acid is a common marker for the bearing branches of the other varieties. In Figure 5b, the VIP scores of the PLS-DA performed are shown. This analysis allowed the identification of the compounds responsible for the classification of the “on” an “off” bearing stages. Narirutin and luteolin are the variables with the highest VIP scores, and could be identified as candidate markers of alternate bearing.

‘Willowleaf’ and ‘Page’ showed clear differences in the concentration level of some metabolites between “on” and “off” phases, that could easily distinguish both bearing stages. Quercitrin presented two orders of magnitude higher concentration in “off” than in “on” phase. The ratio hesperidin/narirutin could be indicative of the bearing stage of ‘Willowleaf’ and ‘Page’, when it is <1 the tree is in the non-bearing phase, whereas when the quotient is >10, the tree is at the bearing stage.

Some differences in the metabolites’ profile detected between “on” and “off” mandarin branches are due to the position of the biosynthetic pathways of the prevailing metabolites found in them. For instance, nomilin is the biosynthetic precursor of Limonin [37,38]. Limonoids have not been studied as markers of alternate bearing in mandarin trees. In the case of the limonoid biosynthetic pathway the sequence Nomilin–Limonin reaches higher concentration levels during the non-bearing phase, indicating the possibility that the tree is preparing to protect itself against pest and insects before the flowering stage. Naringenin, which is the first polycyclic flavonoid skeleton, is found in trace amounts in leaves arising from non-bearing branches of cvs. ‘Satsuma’ and ‘Ellendale’, but in significant levels in ‘Page’ and “Willowleaf’ cultivars. In bearing branches naringenin was found in very low quantities in all four varieties. In the former case, the biosynthetic pathway to flavanones is favored by 7-O-glycosylation with hesperoside, a disaccharide [1→6]glucose-rhamnose producing narirutin, which is the prevailing flavanone in non-bearing leaves of ‘Page’ and ‘Willowleaf’ [39,40].

From naringenin, hesperidin and narirutin are formed. Narirutin seems to be a marker of non-bearing trees, as it showed significant differences between bearing and non-bearing samples, particularly in ‘Page’ and ‘Willowleaf’. The biosynthesis of both hesperosides (Figure 6) goes through the 7-O-glycosidation of naringenin, which is then specifically glycosidated in the position 6-O of the sugar moiety by a rhamonsyl residue. In the non-bearing phase, when the tree is recovering after the energy sink caused by fruiting, the glycosidation reaction yielded higher levels of the naringenin glycosides. When the fruit is developing, the metabolism is fully expressed and active, and all the naringenin is driven through the oxydation-methylation pathway to hesperidin, the most ubiquitous citrus flavonoid.

Interestingly Mou et al. [41], in an attempt to decipher the flavonoid biosynthetic pathway in C. reticulata, did not describe the pathway leading to narirutin, but they described the naringenin–naringin route. The mandarin species studied produce the tasteless narirutin instead of the bitter naringin. The difference between both compounds is the union between the rhamnose and the glucose moiety, in narirutin the link is (1→6) (rutinoside), whereas in naringin the link is (1→2) (neohesperoside).

Another route downstream of the flavonoid biosynthesis in mandarin trees leads to the polymethoxyflavones (PMF), suggested as markers of bearing stages [42,43]. Luteolin, an acknowledged precursor of PMF is also distinctive polyphenol of the non-bearing phase.

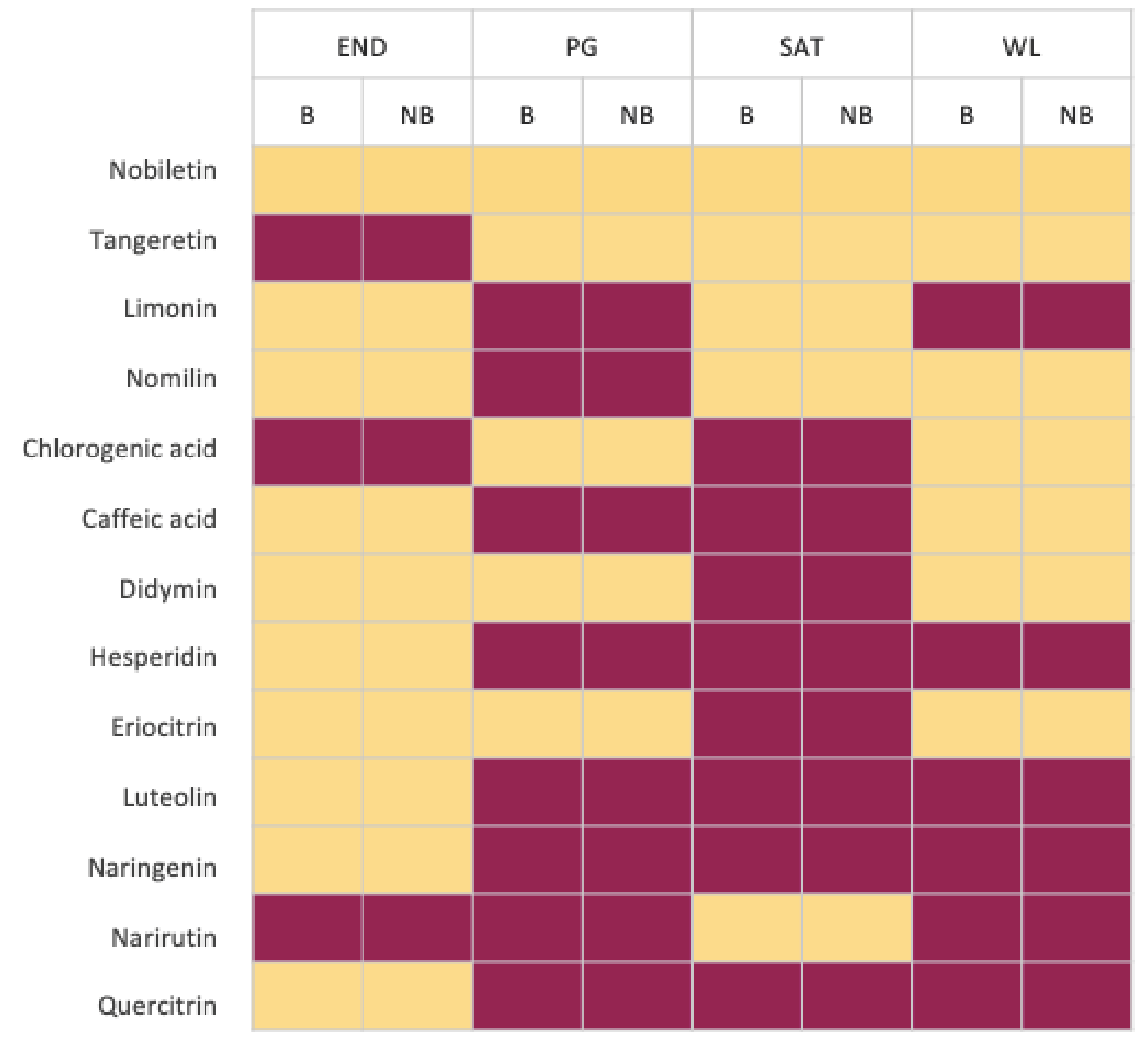

The general trend discussed above, allowed the assessment of qualitative and quantitative differences between the four genotypes, depending on the physiological status of the branch. Flavonoid biosynthesis in citrus is regulated by a combination of environmental, genetic, and hormonal factors. As the former is the same for all the individuals in this study, the two latter variables are the ones responsible for the observed differences. It has been accepted that in “off” branches, buds are directed to morph to leaves instead of flowers, enhancing primary and secondary metabolism, which confirms the general trend identified by Shalom et al. [2], that flavonoid biosynthesis is enhanced during the “off” phase in ‘Murcott’ mandarins. They found that the expression of all the enzymes of the flavonoid pathway were significatively higher in “off” branches, as well as the expression of mRNA from FT, AP1, and LFY related genes, which was correlated with the up-regulation effect of these genes in the “off” phase. The obtained results of our study in four different mandarin cultivars are in accordance with the expression of the genes described by Shalom [2]. Moreover, high levels of abscisic acid, which is high in buds, leaves, and fruits during autumn in ‘Murcott’ (“on” phase) and other alternating citrus varieties, have been shown to up regulate the flavonoid biosynthesis in another non-climateric fruits, such as blueberries and tomatoes [44,45].

Furthermore, Narirutin is identified as a possible marker of the “on/off” phase as it presents statistically different levels in all varieties during both stages. The only exception is ‘Satsuma’, a variety that does not present the typical alternate bearing behavior as exhibited by the rest of the studied varieties.

4. Conclusions

A specific analytical protocol using LC-MS-(QqQ)-MS, applying different acquisition modes, permitted the unambiguous determination of 13 secondary metabolites in leaves of mandarin trees. A chemosystematic study of the profile of these metabolites in leaves from non-bearing (“off”) and bearing (“on”) mandarin branches belonging to four different genotypes was performed. The different genotypes could be chemotaxonomically distinguished from each other at both developmental stages using multivariate data analysis and the representative metabolites were identified.

This study allowed the differentiation between leaves from non-bearing and bearing branches. Leaves from both physiological stages accumulated limonin, but nomilin showed an increased leaf concentration in non-bearing branches compared to bearing ones. “On” and “off” ‘Willowleaf’ and ‘Page’ mandarin trees can be distinguished due to the high narirutin content in leaves of non-bearing branches, and an easy relationship has been proposed to define each phase. One of the most important observations found is the increase of Narirutin content in non-bearing leaves for genotypes that show a typical alternate bearing behavior which could lead to the use of this compound as a biomarker of the stage of the branch. The presence of flavonoids as markers of the different physiological stages of mandarin trees also hints to possible new ways of crop management. Future studies should be performed following the developed methodology to control the levels of these compounds, specially Narirutin, during the ontogeny of mandarin branches along the plant growth.

The results reported in the present research can contribute towards a useful technology for growers and scientists to determine the physiological stage of a tree depicting the transition from “off” to “on” phase in Citrus.
