Training Systems for Sweet Cherry: Light Relations, Fruit Yield and Quality

Abstract

Semi-dwarfing rootstocks have enabled the adoption of high-density orchard systems for sweet cherry. Understanding the effects of training systems on light capture and fruit quality of lateral bearing cultivars early in tree/orchard establishment is lacking. The aim of this study was to investigate light interception and fruit quality over two seasons of 4–5 year-old ‘Kordia’ grafted to ‘Krymsk 5′ rootstock and trained to the 2D planar training systems of upright fruiting offshoot (UFO), super spindle axe (SSA), tall spindle axe (TSA), Bibaum (BB) and steep leader (SL). Average light interception over the two seasons was highest in UFO and SL (69%) followed by BB (66%). Average yield was highest for SSA (15.1 t ha⁻¹) followed by SL (14.5 t ha⁻¹) and UFO (12.7 t ha). There were negative correlations between crop load and fruit dry matter content (r² = 0.67 and 0.84) and total soluble solids (0.92 and 0.42) in 2019–2020 and 2020–2021, respectively. Our results indicate that sufficient space is required between uprights for lateral bearing cultivars when trained to a planar training system to achieve optimal light interception and fruit quality. This study provides improved understanding to enable the adoption of planar training systems for lateral fruiting cherry cultivars at high-density plantings.

1. Introduction

Development of dwarfing rootstocks for sweet cherry (Prunus avium) has enabled higher density planting with greater yield efficiencies driven, in part, by increased light interception [1]. In addition to the influence of planting density, light interception depends on cultivar, tree shape and height, row orientation, leaf area index (LAI) and the length of the growing season [2]. Training of the tree canopy can maximise light interception to ensure production of optimum yields of high-quality fruit [3,4,5]. In addition, sufficient within-canopy light penetration is crucial for fruit yield and quality, as excessive interior shading results in reduced fruitfulness and blind wood, a reduction in fruit weight, poor colour development, low fruit dry matter content (DMC) and low total soluble solids content (TSS) [6,7].

Maximum light interception and penetration can be achieved in various ways. The selection of training systems that are suited to the growing environment optimises light interception. Hedgerow systems such as Bibaum (BB) are adapted to regions of abundant light and high temperatures coupled with long growing seasons. Planar 2D training systems minimise canopy light exposures during the hours when it is most extreme (solar noon). This protects developing fruit from over-exposure of light in locations that experience long seasons with high temperatures; Zhang, et al. [8] reported light interceptions of approximately 31% for the Upright Fruiting Offshoot (UFO) training system in contrast to 78% in a Y-trellis system at 3pm, making planar training systems popular in the Po Valley in Italy [9]. Other methods of improving light interception and canopy penetration include pruning techniques and the precise structural placement of limbs early in tree establishment [9,10], resulting in increased tree precocity and improved fruit quality and yields [11]. The effect of precision branching and crop load has been considered in relation to optimising source sink relations and fruit quality [12]. It has been speculated that approximately 20 t ha⁻¹ is the optimal fruit yield-quality relationship for trees trained to the Kym Green Bush system at a density of 833 trees ha⁻¹ [13]. Negative correlations between increasing crop loads and fruit size, compression firmness and TSS, but not colour, have been reported in the cultivars ‘Sweetheart’ and ‘Van’ on ‘F12-1′ rootstocks [14]. Cittadini, et al. [15] reported linear decreases in mean fruit weight, titratable acidity, and TSS with an increase in fruit number to leaf area ratio on seven-year-old ‘Bing’ on ‘Mahaleb’ rootstock trained as a vase.

Training systems that enable increased tree density in other tree crops include the BB system in European pears [16], Tall Spindle Axe (TSA) in apples [17] and Palmette in nectarines [18]. These training systems are now being investigated in cherry orchards due to their improved light interception and within-canopy light distribution attributed to their 2D canopy structure. The training of cherry trees along a cordon wire in a planar structure has enabled high-density planting of trees, resulting in increased yields per hectare, and improved pruning and harvest efficiency due to the potential for reduced reliance on ladders and platforms [19,20].

Investigation of training systems, canopy light interception and subsequent fruit quality has received little attention in cherry cultivars on precocious, dwarfing rootstocks. Appropriate pruning and training of trees, suited to the soils and climate of the site, scion/rootstock vigour and planting density of the growing system, enables simplified orchard management practices as trees mature [18,21,22,23]. A mismatch of training system with the aforementioned factors can lead to less light interception, excessive vegetative vigour and increased within-canopy shading, resulting in an increase in blind wood, inter-tree competition for water and nutrients [24] and lost yield and fruit quality. Conversely, excess limbs may lead to excessive cropping, resulting in unsatisfactory fruit quality as well as triggering poorer tree health with regards to longevity and cropping capability [25]. Tree canopies that utilise light and space efficiently and do not require large scale pruning of blind wood seasonally will produce higher quality fruit over a greater period (K Breen 2019, pers. comm., 6 June).

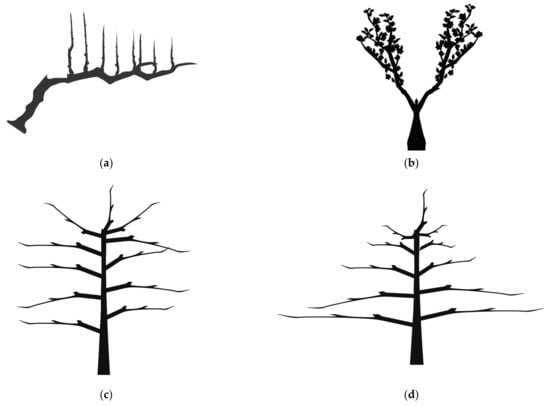

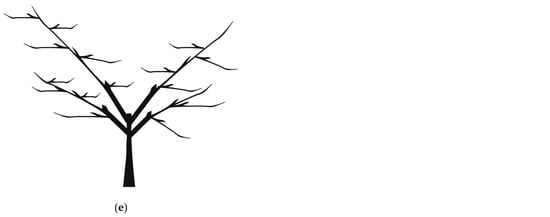

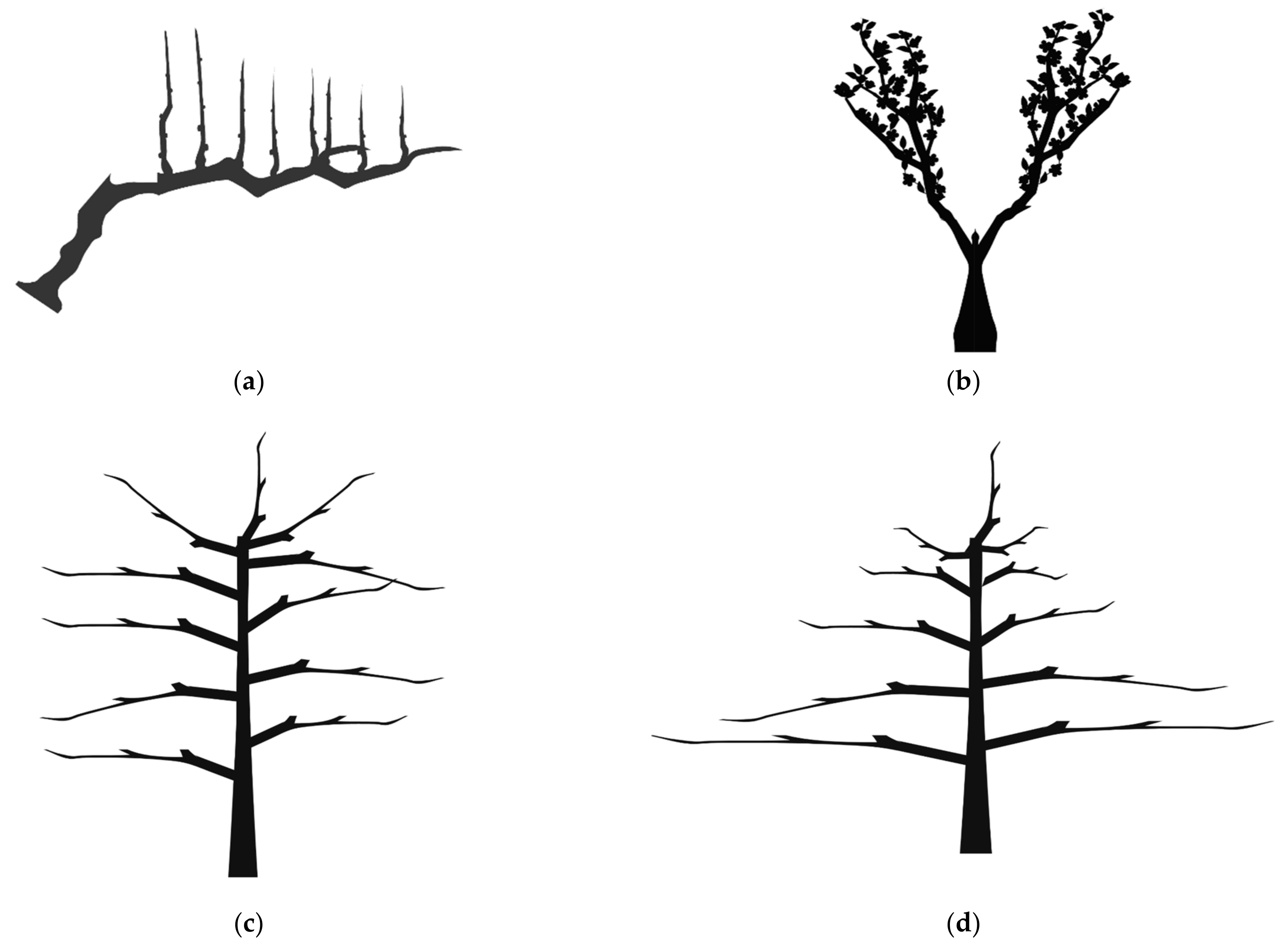

Canopy training systems investigated in this study include the UFO, Super Spindle Axe (SSA), TSA and BB, all trained along cordon wires, as well as a free-standing Steep Leader (SL) structure (Figure A1). The UFO training system is a narrow fruiting wall that produces fruit on renewable vertical shoots arising from a trunk or ‘cordon’ that is trained to near horizontal. This system has improved air flow, increased light penetration and harvest efficiency with high yields [26,27]. The SSA training system is suited to cultivars with good vigour and the capacity to produce fruit on basal buds of 1-year-old shoots. The SSA requires grafting to dwarfing and precocious rootstocks due to the high-density planting required to compensate for the relatively low production per tree [27,28]. Similar to the SSA training system, the TSA follows a central leader structure; however, greater lateral shoot growth is encouraged to form the tree into a conical shape. Planting distances between TSA trees are greater than that of SSA, enabling sufficient space for lateral growth to occur. Both training systems, once mature, provide a continuous fruiting wall with relatively improved light interception. Annual heading is required for vigour control while the pruning of old unproductive lateral branches is required to promote new growth; the only permanent fixture of the TSA training system is the central leader [20,27]. The BB training system is characterised by two symmetric leaders originating from a single trunk. The division of growth across the two leaders provides the advantages of a narrower fruiting wall, improved light interception and penetration and the simplification of orchard management. This training system is suited to cultivars that fruit on lateral wood that fills the space between the two vertical leaders [16]. The SL training system typically comprises three to four vertical leaders in a ‘vase’ shape with lateral branching encouraged from the leaders. Optimum fruiting sites occur from the temporary lateral wood, with regeneration of leaders occurring when insufficient laterals are being produced [27].

The aim of this study was to investigate the effect of the various training systems on light interception and fruit yield and quality in the early stages of orchard establishment when trees were at fourth and fifth leaf. The ‘Kordia’ cultivar, a lateral bearing sweet cherry cultivar, grafted onto the semi-dwarfing rootstock ‘Krymsk 5′ (K5), was selected for this study. Early yields are an important consideration for growers when they evaluate cultivars/rootstocks/training systems for new orchards. Greater understanding of each of these training systems in the early stages of their development will inform grower management practices, particularly those growing lateral bearing sweet cherry cultivars under protected cropping systems where optimal utilisation of space and light is vital for early and profitable yields.

2. Materials and Methods

The trial site was located at Jericho (42°22′ S, 147°16′ E) in the southern Midlands of Tasmania, Australia. It is considered a cool temperate climate with mild to warm summers and an average maximum temperature of 20 °C. Average rainfall is 547 mm (Australian Bureau of Meteorology). The trial was conducted over two seasons. The first season (2019–2020) studied four-year-old Kordia trees, the second season (2020–2021) five-year-old Kordia trees, all established within a 4 ha retractable roof greenhouse (Cravo Equipment Ltd., Canada) constructed in 2016. The Cravo greenhouse is a permanent structure with an automated roof and side wall system that protects trees from rainfall, high winds, and extreme solar radiation levels. The system was programmed to automatically close at temperatures below 10 °C, fully open between 10 and 26 °C and 50% closed at temperatures greater than 26 °C (shade mode); it was also programmed to completely close when any rainfall was detected throughout the entire growing season, re-opening when a period of five minutes had elapsed with no detected rainfall. The block was planted in a north-east/south-west orientation on sandy loam topsoils with a heavy clay subsoil. Topsoil was mounded along planting rows which were 3.2 m apart with grass established in the inter-row (

Table 1. Details of the different training systems for ‘Kordia’ sweet cherry trees utilised in the study.

Training System	Tree Spacing (m)	Row Width (m)	Trees/Hectare	Fruiting Branches per Hectare
UFO	1.8	3.2	1700	13,600
SSA	0.9	3.2	3440	3440
TSA	1.8	3.2	1700	1700
BB	1.8	3.2	1700	3400
SL	1.8	4.8	1100	4400

UFO = Upright Fruiting Offshoot, SSA = Super Spindle Axe, TSA = Tall Spindle Axe, BB = Bibaum, SL = Steep Leader.

).

Irrigation, fertigation and pest and weed control were per usual management practices for the orchard. Dual drip tube under each tree line with emitters every 0.6 m released 1 L h⁻¹ and was uniform for all training systems except under the SL trained trees where sprinklers with an application rate of 35 L h⁻¹ were deployed at the base of each tree.

2.1. Experimental Design

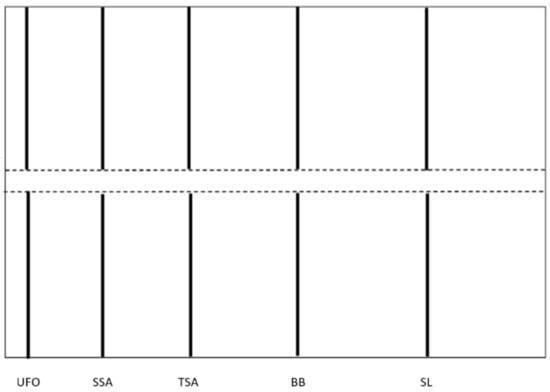

The sampling scheme for the data was defined by the pre-existing orchard layout and its established management practices. Thus, the sample is essentially observational, rather than “experimentally designed”. All observations come from a four-hectare “Trial Block” within the orchard, which contains rows of trees at various age, cultivar, training system and rootstock combinations. Five different training systems were chosen that had trees consistent in age, cultivar and rootstock. A diagram of the Trial Block and sampling scheme is in Figure 1. The basic sampling unit is a tree (where there are multiple measurements taken from a tree, the values are averaged). Six trees were randomly selected from each of the five training systems, with the selection of trees being different for both seasons. This means n = 30 for each season. The random tree selection was done with two constraints. First, the Trial Block was rendered in half by a path, so for each season, three trees on either side of the path were selected (this step was arbitrary and the side-of-path structure was not incorporated into any models). Secondly, the random selection was done such that each tree was at least two trees away from any other tree in the sample. In summary, within a training system and season, we treated the six trees as being randomly selected from the same “population”. For the ANOVA analysis, n = 30 for the one-way ANOVA linear models and n = 60 for the two-way ANOVA linear models (which incorporate a system-by-season interaction). There were no missing values.

2.2. Tree Measurements

Tree heights, trunk circumferences and limb lengths were measured in late winter and trunk cross-sectional area (TCSA) calculated for each tree. For training systems comprising multiple leaders/uprights (i.e., UFO, BB and SL), two leaders/uprights were selected and tagged, and lengths and circumference measured. Due to the intensive pruning required in the early stages of tree training for the UFO, BB and SL training systems between years one to three (2016–2018), it was agreed that trunk circumference above the graft union was not representative for measurements of TCSA in these systems. Therefore, flower and crop load data were calculated using upright/limb cross-sectional area measurements (LCSA) instead of TCSA. Flowers were counted on the selected upright/leaders at 60–80% bloom in late October and fruit set was counted prior to harvest in early January. Due to the nature of the SSA and TSA training systems, whole tree flower and fruit set counts were undertaken.

2.3. Light Interception

Light interception was measured using an AccuPAR LP–80 ceptometer (Decagon, Devices, Inc., Pullman, Washington), which considered latitude, longitude, international date, and standard local time in the calculation of zenith angle. The leaf distribution parameter was set to the default value (x = 1.0). Below-canopy readings were taken randomly for each training system by walking along the entire row inserting the ceptometer approximately 30 cm above ground level with the light bar extending into the mid row. Light measurements were taken randomly along the entire row, with measurement position determined by a random number generator. The measurements were taken throughout the season after the completion of canopy development, starting 44 days after full bloom (DAFB), at approximately 12 pm (±1.5 h) with a minimum of ten below-canopy measurements taken for each training system. Uninterrupted light measurements were taken midrow and at row ends in an open setting. Average photosynthetically active radiation (PAR) readings above and below the canopy were calculated to obtain light interception measurements for each training system. Due to factors outside the control of this study, one day of light interception measurements was captured for the first season and three days for the second season.

2.4. Leaf Area Index

Leaf area index (LAI) was measured with an LAI–2200C Plant Canopy Analyser (LI-COR Inc., Lincoln, NE, USA) with a fish-eye optical sensor (148° field-of-view) consisting of five concentric silicon ring detectors measuring five zenith angles (7°, 23°, 38°, 53° and 68°) from which light interception and LAI is estimated using a model of radiative transfer in vegetative canopies (LI-COR Manual). These measurements provide an approximation of LAI, due to the inability of the optical sensor to distinguish between green elements and other non-leaf elements of the canopy such as the projected stem and branch area, i.e., the wood area index (WAI). It is for this reason that Breda [29] coined the terminology ‘plant area index’ (PAI) which takes into consideration both WAI and LAI. Thus, PAI will be used henceforth. Measurements were taken on clear mornings (8 am ± 1 h) with a 90° view cap placed over the fish-eye lens to limit the azimuthal field of view to obscure the operator, compensate for gaps in the canopy and limit interference from nearby rows. The LAI-2200C automatically registered latitude as well as date and time to calculate the appropriate zenith angles. Physical tree measurements (height, width along cordon and extension into midrow) were taken for each training system and entered into the Li-COR computer software program (FV2200 ver 2.1.1). Measures of the 68° and occasionally the 53° zenith rings/angles were omitted depending on tree canopy shape to improve the PAI measurements by limiting the influence of incoming radiation that did not pass through the canopy. Light scatter correction equations were applied for each training system (LicCor manual). The LAI–2200C was only used in the 2020–2021 season to validate LAI readings recorded by the AccuPar LP-80. Calibration of the LAI-2200C was conducted prior to trial measurements. Multiple above and below-canopy measurements were required for PAI estimation to occur, with measurements taken 34 and 61 DAFB.

2.5. Fruit Quality and Yields

Fruit was harvested on commercial harvest dates (15 January 2020, 18 and 19 January 2021) for each training system, prior to midday in line with standard grower practice. All fruit on tagged limbs, and entire trees for the SSA and TSA training systems, were picked irrespective of fruit quality. Fruit was contained in labelled sealed bags and placed in the shade before being weighed in the field with electronic scales (Jastek, 5 kg electronic scales). Fruit was transported within two hours and immediately placed into refrigeration at 4 °C prior to grading within 24 h. Tagged trees in this study did not have fruit thinned by the orchard manager in either season to the best of our knowledge.

Average tree yield (kg) was determined by harvesting entire trees (SSA, TSA) or tagged limbs (UFO, BB and SL) and multiplying the limb weight by the average number of limbs for that training system, i.e., UFO had an average of eight uprights, BB two leaders and SL an average of four leaders. Total estimated yield in tonnes per hectare (t ha⁻¹) was obtained by multiplying the weight (kg) per tree and the tree density (trees ha⁻¹). Total fruit counts for each limb were recorded prior to fruit being graded into first class, second class and reject (rotten, severely cracked or damaged) fruit. First-class fruit were determined visually by size (>26 mm) and skin colour (≥3 according to the Australian cherry colour chart standards). A sample of thirty first-class fruit was randomly selected for fruit quality assessment (skin colour, diameter, weight, firmness, stem pull force, TSS and DMC). Skin colour measurements were obtained using a Konica Minolta, CR–400 Chroma Meter (Konica Minolta Sensing, Inc., Osaka, Japan), with two measurements per fruit, one on each cheek. Results were expressed in the CIELAB or L*a*b* format (a colour space defined by the International Commission on Illumination). Fruit diameter (mm) was measured across the widest points (cheeks) of the fruit using digital vernier calipers (Sidchrome, SCMT26226). Individual fruit weight (including stem) was measured using a Mettler Toledo scientific balance. Fruit compression firmness was estimated using a Firmtech 2 (Bioworks Inc., Stillwater, OK, USA) in g mm⁻¹. Due to the large size of the cherries, fruit were placed with the cheeks in a horizontal axis rather than a vertical axis. Fruit skin and flesh puncture force tests were completed for each cherry using a Güss GS-20 Fruit Firmness Analyser (Güss Manufacturing Ltd., Strand, South Africa) operating at a penetration speed of 10 mm s⁻¹ and a penetration depth of 4 mm. One side/cheek of the cherry had a small section of skin removed using a razor blade to measure flesh firmness while the other side/cheek was used to measure skin puncture force (kg). Stem pull force was measured in grams using a stand mounted Mark-10 Series 5 force gauge (Mark-10, NY, USA). All cherries were de-pipped and fifteen fruit from each sample dried at 68°C for a week for measurement of fruit DMC; the remaining fifteen fruit were juiced to measure TSS (°brix) using a PAL-1 digital hand-held refractometer (Atago, Japan).

2.6. Data Analysis

Data analysis was carried out with the statistical language R (version 4.1). All ANOVA analysis was derived from simple linear models (with different trees in each season so that no repeated measures were made). For each model, the residuals were checked for approximate normality. We made simple Bonferroni adjustments for multiple hypothesis testing in the fruit quality contrasts between training systems. The “n=” and “p-values” were not adjusted for multiple testing in each ANOVA table. Linear regression lines and R² values for the fruit quality correlation charts were generated using Microsoft Excel 365 software.

2.7. Meteorological Observations

Meteorological data were recorded by a weather station positioned centrally in the orchard block within 150 m of all training systems (Harvest, Masterton, New Zealand, ITU G2).

3. Results

3.1. Meteorological Observations

Average daily temperatures were 2 °C and 2.4 °C lower in December 2020 and January 2021 (season two) in contrast to season one (

Table 2. Mean monthly climate data for season one (2019–2020) and season two (2020–2021).

	Temperature (°C)		Solar Radiation (W m−2)		Rainfall (mm)
	S1	S2	S1	S2	S1	S2
September	9.1	8.4	13.2	13.0	31.4	20.4
October	10.0	9.4	17.5	15.4	13.6	99.0
November	11.7	13.3	20.3	21.9	37.8	18.2
December	14.3	12.3	25.0	20.2	14.8	50.4
January	16.9	14.5	20.4	20.3	25.4	26.8
February	13.7	14.6	16.8	19.4	14.0	43.6

S1 = Season 1 (2019–2020), S2 = Season 2 (2020–2021).

). Solar radiation was 4.8 W m⁻² lower in December of season two in contrast to the December in season one. Rainfall during flowering in season two (October 2020) (99.0 mm) was considerably higher than that in season one (October 2019) (13.6 mm).

3.2. Light Interception

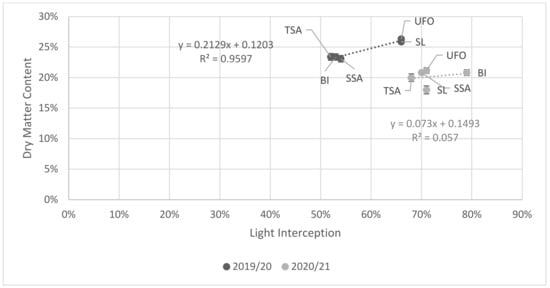

Mean light interception was highest for the SL and UFO training systems (66%) in 2019–2020 (

Table 3. Mean light interception and PAI values of the various training systems in the 2019–2020 and 2020–2021 seasons. Letters within columns illustrate significant differences between training systems (p ≤ 0.05).

Training System	Light Interception		PAI (Leaf + Branch Area m2/Ground Area m2)
	S1	S2	S1	S2
UFO	66%	71% a ± 11	1.8	3.0 a ± 0.5
SSA	54%	70% a ± 10	1.6	2.8 a ± 0.5
TSA	52%	68% a ± 11	1.5	3.1 a ± 0.8
BB	61%	79% a ± 10	1.9	3.5 a ± 0.7
SL	66%	71% a ± 7	2.2	2.8 a ± 0.4

S1 = Season 1 (2019–2020), S2 = Season 2 (2020–2021), UFO = Upright Fruiting Offshoot, SSA = Super Spindle Axe, TSA = Tall Spindle Axe, BB = Bibaum, SL = Steep Leader, PAI = plant area index.

). Light interception was higher in all training systems in season two relative to season one, with the BB training system having the highest light interception measurements in the 2020–2021 season with 79% of all light intercepted by the canopy, followed by UFO and SL (71%), and SSA (70%). All PAI measurements were similarly higher in 2020–2021, relative to the 2019–2020 season with BB having the highest PAI of 3.5 followed by TSA (3.1) and UFO (3.0) in the 2020–2021 season.

3.3. Fruit Set and Yield

Fruit set was significantly higher for TSA, SSA and BB trained trees (35%, 33% and 32%) in contrast to UFO (17%) in the first season; however, crop loads were not significantly different between these training systems. UFO crop load was significantly higher in contrast to all other training systems in the second season (44.6 fruit/cm²) due to a 130% increase in flower load from the first season (

Table 4. Flower load, fruit set, crop load and yields of sweet cherry cv. ‘Kordia’ on multiple training systems for the first (2019–2020) and second (2020–2021) seasons. Letters within columns illustrate significant differences between training systems (p ≤ 0.05).

Training System	Uprights per Hectare	Flower Load (Flowers per cm−2 LCSA)		Fruit Set (%)		Crop Load (# Fruit cm−2 LCSA)		Total Yield (t ha−1)
		S1	S2	S1	S2	S1	S2	S1	S2
UFO	13,600	107.5 b	246.8 c	17 a	18 a	19.2 ab	44.6 b	7.5 a ± 1.4	17.8 bc ± 1.2
SSA	3440	105.1 b	65.0 ab	33 b	28 a	34.5 b	16.5 a	18.8 c ± 2.2	11.2 ab ± 0.9
TSA	1700	95.2 ab	88.2 ab	35 b	22 a	32.7 b	15.9 a	14.5 bc ± 1.6	7.9 a ± 1.4
BB	3400	67.5 ab	78.5 a	32 b	19 a	20.6 ab	15.1 a	12.2 ab ± 1.4	10.1 ab ± 1.7
SL	4400	59.2 a	103.9 b	23 ab	20 a	13.7 a	19.5 a	8.4 ab ± 0.6	20.5 c ± 4

S1 = Season 1 (2019–2020), S2 = Season 2 (2020–2021), UFO = Upright Fruiting Offshoot, average 8 uprights; SSA = Super Spindle Axe, TSA = Tall Spindle Axe, BB = Bibaum, average 2 leaders; SL = Steep Leader, average 4 leaders. LCSA = Limb cross sectional area.

).

SSA trained trees had the largest estimated yields per hectare with an average of 15 t ha⁻¹ ± 1.5 over the two seasons followed by SL with 14.4 t ha⁻¹ ± 2.3 and UFO 12.7 t ha⁻¹ ± 1.3. Yield increased in the 2020–2021 season for SL and UFO trained trees up from 8.4 to 20.5 t ha⁻¹ (144% increase) and 7.5 to 17.8 t ha⁻¹ (137% increase), respectively. Higher yields for both SL and UFO were related to increased flower loads (103.9 and 246.8 flowers cm⁻² LCSA, respectively) with similar fruit sets to 2019–2020. Yield reductions of 46% occurred in TSA, 40% in SSA and 17% in BB in the 2020–2021 season.

3.4. Fruit Quality

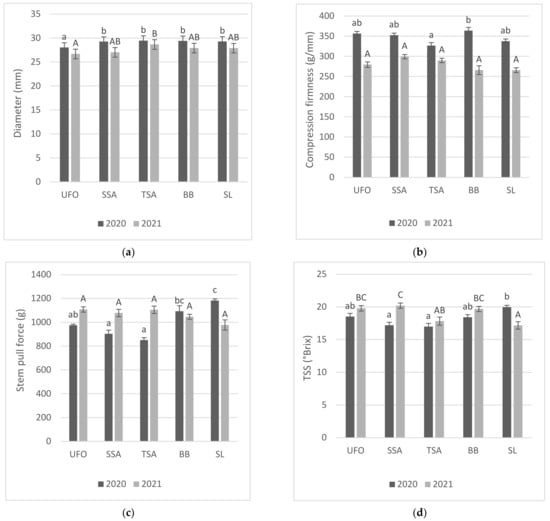

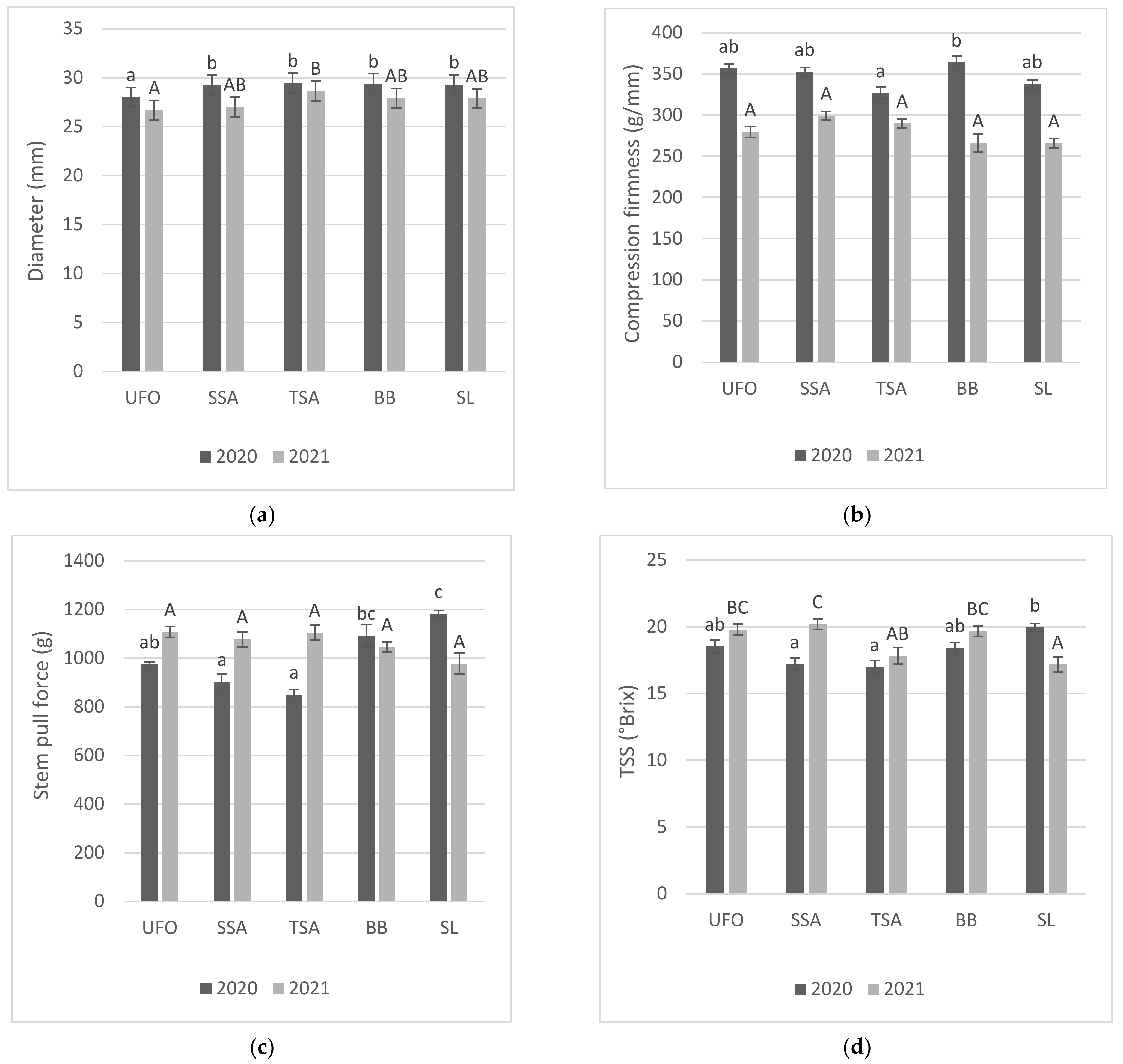

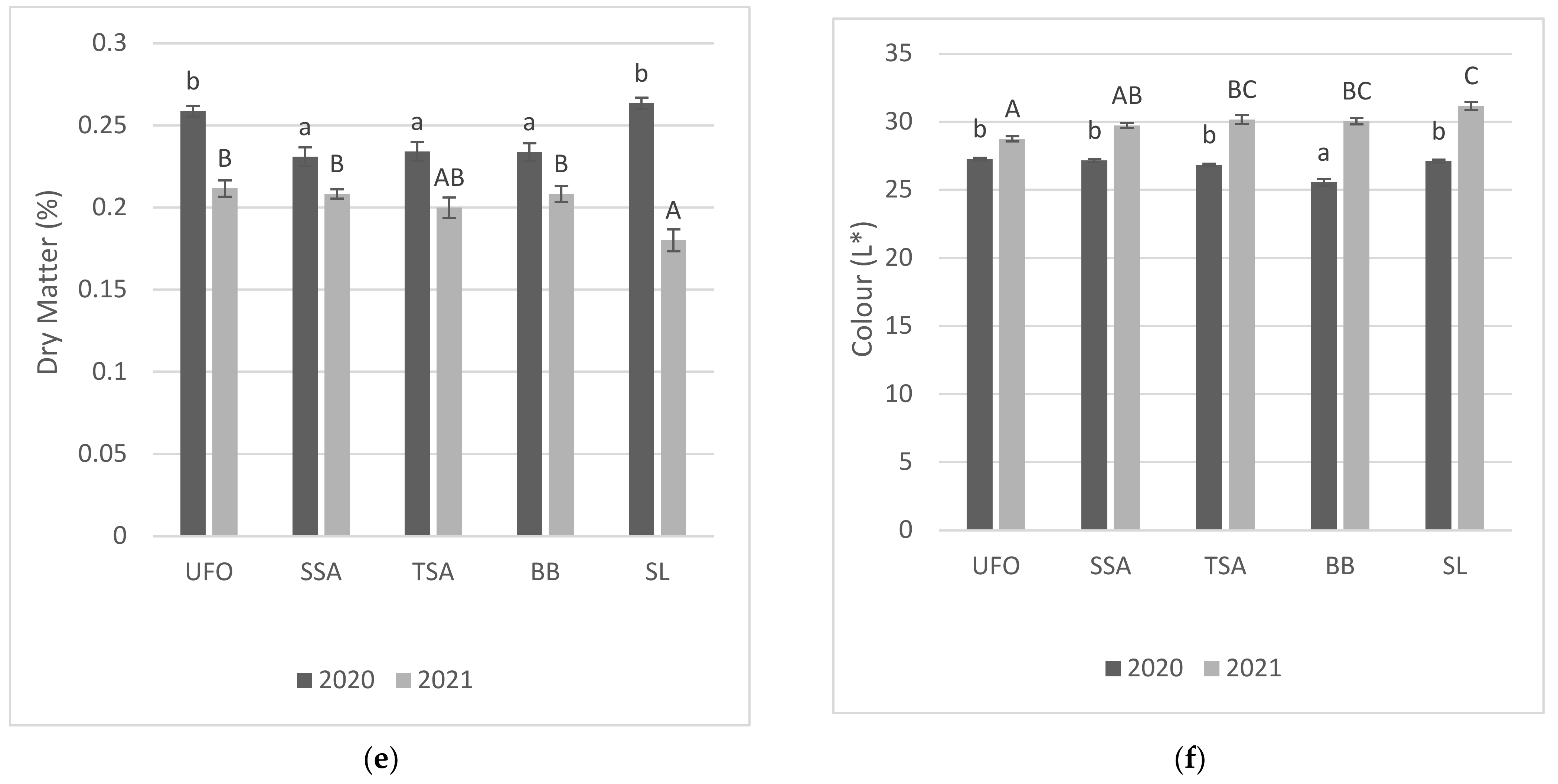

Of the first-class quality fruit analysed for fruit quality characteristics the TSA training system fruit were largest in diameter in each of the two seasons (Figure 2a). Observationally, fruit from the TSA training system were >26 mm (99%) followed by BB (98%) and SL (95%) over the two-year trial period (

Table 5. Descriptive percentage fruit diameters for first-class sweet cherry cv. ‘Kordia’ fruit on multiple training systems for the first (2019–2020) and second (2020–2021) seasons.

	UFO		SSA		TSA		BB		SL
Diameter	S1	S2	S1	S2	S1	S2	S1	S2	S1	S2
<26 mm	1	36	1	24	0	2	1	3	0	10
26–30 mm	97	62	71	75	59	82	66	94	72	84
>30 mm	2	2	28	1	41	16	33	3	28	6
Average mm	28	26.5	29.3	27	29.5	28.5	29.4	27.9	29.3	27.1

S1 = Season 1 (2019–2020), S2 = Season 2 (2020–2021), UFO = Upright Fruiting Offshoot, SSA = Super Spindle Axe, TSA = Tall Spindle Axe, BB = Bibaum, SL = Steep Leader.

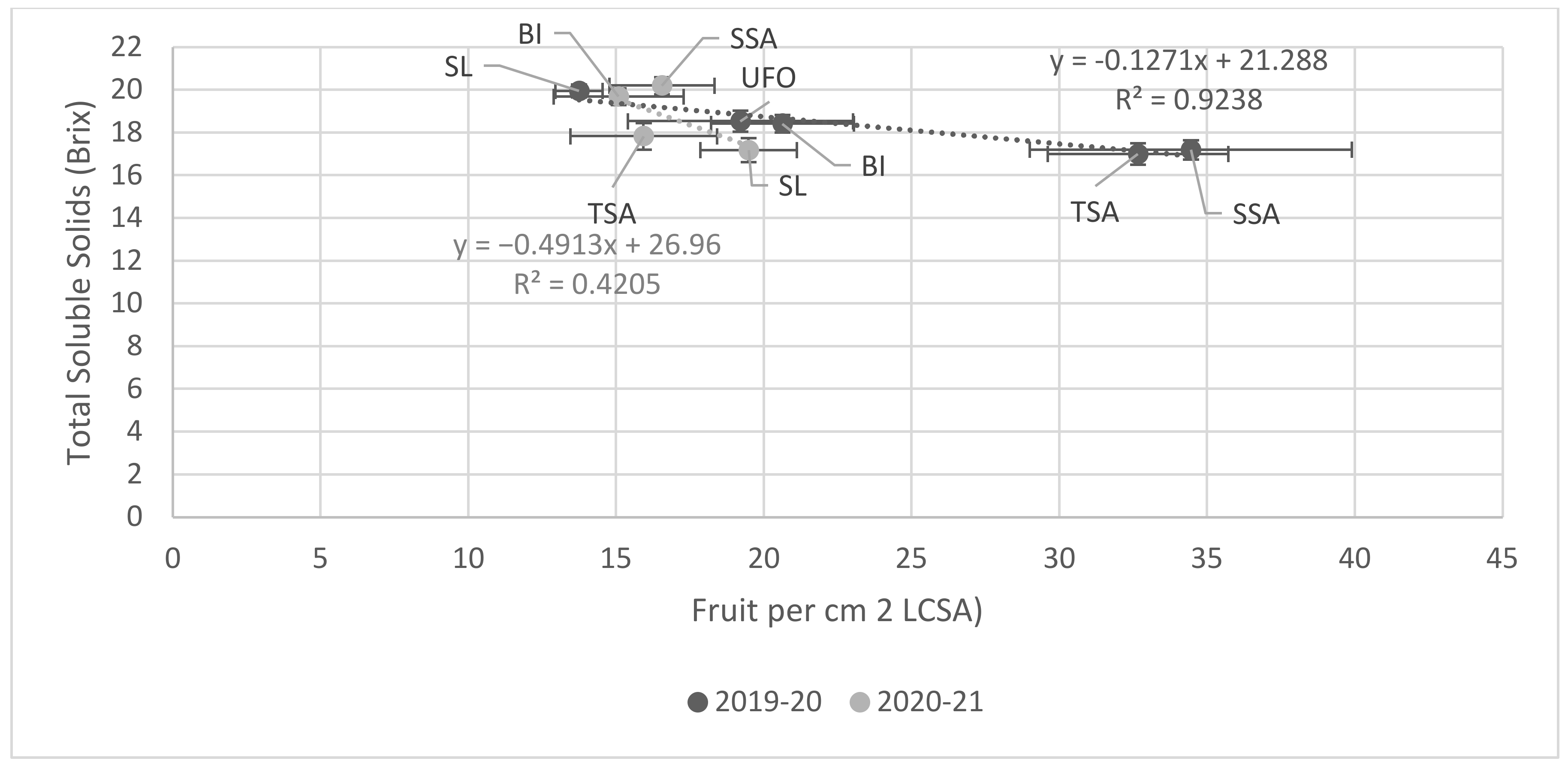

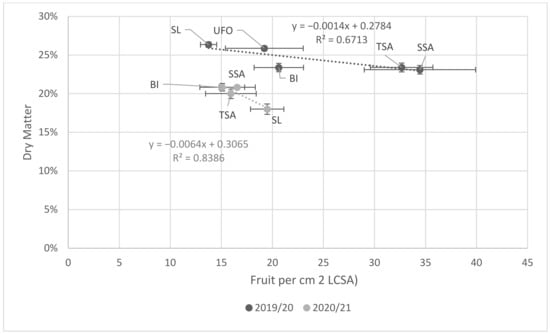

). The training systems with the highest average crop loads over the two seasons, UFO (31.9) and SSA (26.5), had the lowest fruit diameters.

In season one (2019–2020), the SSA and TSA training systems had the highest fruit sets (33% and 35%) and crop loads (34.5 and 32.7 fruit cm⁻² TCSA) (Table 4) but lowest TSS (17.2% and 17%) (Figure 2d), lowest DMC (23%) (Figure 2e), lowest average stem pull force values (903 g and 850 g) (Figure 1c). Full ANOVA results contrasting fruit quality characteristics between training systems are illustrated in Appendix A (

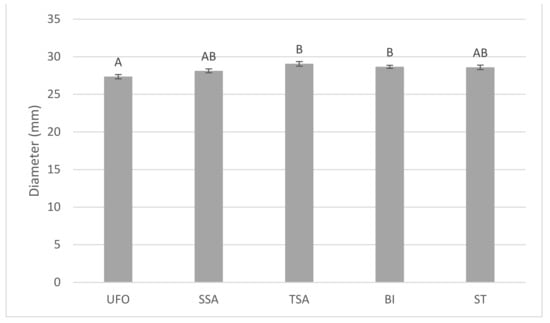

Table A1. Diameter.

2020
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	−0.156	0.341	−0.457	0.651	1.000	25	−0.858	0.546	0.651
STEEP LEADER—BIBAUM	−0.104	0.341	−0.307	0.762	1.000	25	−0.807	0.598	0.762
TSA—BIBAUM	0.058	0.341	0.171	0.866	1.000	25	−0.644	0.760	0.866
UFO—BIBAUM	−1.374	0.341	−4.032	0.000	0.005	25	−2.077	−0.672	0.000
STEEP LEADER—SSA	0.051	0.341	0.151	0.881	1.000	25	−0.651	0.753	0.881
TSA—SSA	0.214	0.341	0.628	0.535	1.000	25	−0.488	0.916	0.535
UFO—SSA	−1.219	0.341	−3.575	0.001	0.015	25	−1.921	−0.516	0.001
TSA—STEEP LEADER	0.163	0.341	0.478	0.637	1.000	25	−0.539	0.865	0.637
UFO—STEEP LEADER	−1.270	0.341	−3.725	0.001	0.010	25	−1.972	−0.568	0.001
UFO—TSA	−1.433	0.341	−4.203	0.000	0.003	25	−2.135	−0.731	0.000
2021
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	−0.901	0.552	−1.631	0.115	1.000	25	−2.039	0.237	0.115
STEEP LEADER—BIBAUM	−0.028	0.552	−0.051	0.959	1.000	25	−1.166	1.109	0.959
TSA –BIBAUM	0.748	0.552	1.354	0.188	1.000	25	−0.390	1.886	0.188
UFO—BIBAUM	−1.230	0.552	−2.226	0.035	0.352	25	−2.368	−0.092	0.035
STEEP LEADER—SSA	0.873	0.552	1.580	0.127	1.000	25	−0.265	2.011	0.127
TSA—SSA	1.649	0.552	2.986	0.006	0.063	25	0.512	2.787	0.006
UFO—SSA	−0.329	0.552	−0.595	0.557	1.000	25	−1.467	0.809	0.557
TSA—STEEP LEADER	0.777	0.552	1.406	0.172	1.000	25	−0.361	1.914	0.172
UFO—STEEP LEADER	−1.202	0.552	−2.175	0.039	0.393	25	−2.339	−0.064	0.039
UFO—TSA	−1.978	0.552	−3.581	0.001	0.014	25	−3.116	−0.840	0.001

,

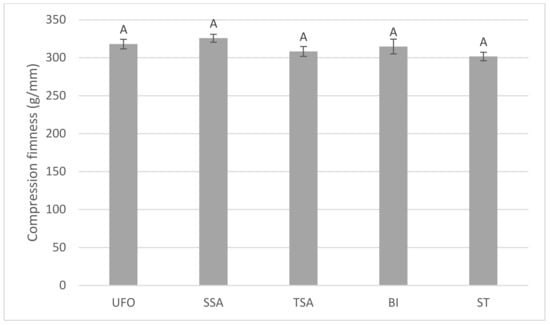

Table A2. Compression firmness.

2020
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	−11.166	10.016	−1.115	0.276	1.000	25	−31.794	9.462	0.276
STEEP LEADER—BIBAUM	−26.085	10.016	−2.604	0.015	0.153	25	−46.712	−5.457	0.015
TSA—BIBAUM	−36.878	10.016	−3.682	0.001	0.011	25	−57.505	−16.250	0.001
UFO—BIBAUM	−7.170	10.016	−0.716	0.481	1.000	25	−27.798	13.458	0.481
STEEP LEADER—SSA	−14.918	10.016	−1.490	0.149	1.000	25	−35.546	5.709	0.149
TSA—SSA	−25.712	10.016	−2.567	0.017	0.166	25	−46.339	−5.084	0.017
UFO—SSA	3.996	10.016	0.399	0.693	1.000	25	-16.632	24.624	0.693
TSA—STEEP LEADER	−10.793	10.016	−1.078	0.291	1.000	25	−31.421	9.835	0.291
UFO—STEEP LEADER	18.915	10.016	1.889	0.071	0.706	25	−1.713	39.542	0.071
UFO—TSA	29.708	10.016	2.966	0.007	0.065	25	9.080	50.336	0.007
2021
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	33.227	11.180	2.972	0.006	0.065	25	10.201	56.252	0.006
STEEP LEADER—BIBAUM	−0.101	11.180	−0.009	0.993	1.000	25	−23.126	22.925	0.993
TSA—BIBAUM	23.994	11.180	2.146	0.042	0.418	25	0.969	47.020	0.042
UFO—BIBAUM	13.606	11.180	1.217	0.235	1.000	25	−9.420	36.631	0.235
STEEP LEADER—SSA	−33.327	11.180	−2.981	0.006	0.063	25	−56.353	−10.302	0.006
TSA—SSA	−9.233	11.180	−0.826	0.417	1.000	25	−32.258	13.793	0.417
UFO—SSA	−19.621	11.180	−1.755	0.092	0.915	25	−42.646	3.404	0.092
TSA—STEEP LEADER	24.095	11.180	2.155	0.041	0.410	25	1.069	47.120	0.041
UFO—STEEP LEADER	13.706	11.180	1.226	0.232	1.000	25	−9.319	36.732	0.232
UFO—TSA	−10.388	11.180	−0.929	0.362	1.000	25	−33.414	12.637	0.362

,

Table A3. Stem pull force.

2020
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	−189.471	42.766	−4.430	0.000	0.002	25	−277.550	−101.392	0.000
STEEP LEADER—BIBAUM	90.018	42.766	2.105	0.046	0.455	25	1.939	178.097	0.046
TSA—BIBAUM	−241.674	42.766	−5.651	0.000	0.000	25	−329.753	−153.595	0.000
UFO—BIBAUM	−117.384	42.766	−2.745	0.011	0.110	25	−205.463	−29.305	0.011
STEEP LEADER—SSA	279.489	42.766	6.535	0.000	0.000	25	191.410	367.568	0.000
TSA—SSA	−52.203	42.766	−1.221	0.234	1.000	25	−140.282	35.876	0.234
UFO—SSA	72.087	42.766	1.686	0.104	1.000	25	−15.992	160.166	0.104
TSA—STEEP LEADER	−331.692	42.766	−7.756	0.000	0.000	25	−419.771	−243.613	0.000
UFO—STEEP LEADER	−207.402	42.766	−4.850	0.000	0.001	25	−295.481	−119.323	0.000
UFO—TSA	124.290	42.766	2.906	0.008	0.076	25	36.211	212.369	0.008
2021
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	31.605	47.337	0.668	0.510	1.000	25	−65.888	129.098	0.510
STEEP LEADER—BIBAUM	−68.950	47.337	−1.457	0.158	1.000	25	−166.443	28.543	0.158
TSA—BIBAUM	58.194	47.337	1.229	0.230	1.000	25	−39.299	155.687	0.230
UFO—BIBAUM	61.478	47.337	1.299	0.206	1.000	25	−36.015	158.971	0.206
STEEP LEADER—SSA	−100.555	47.337	−2.124	0.044	0.437	25	−198.048	−3.062	0.044
TSA—SSA	26.590	47.337	0.562	0.579	1.000	25	−70.903	124.083	0.579
UFO—SSA	29.873	47.337	0.631	0.534	1.000	25	−67.620	127.366	0.534
TSA—STEEP LEADER	127.144	47.337	2.686	0.013	0.127	25	29.651	224.637	0.013
UFO—STEEP LEADER	130.428	47.337	2.755	0.011	0.108	25	32.935	227.921	0.011
UFO—TSA	3.283	47.337	0.069	0.945	1.000	25	−94.210	100.776	0.945

,

Table A4. TSS.

2020
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	−1.217	0.672	−1.810	0.082	0.823	25	−2.601	0.168	0.082
STEEP LEADER—BIBAUM	1.533	0.672	2.281	0.031	0.313	25	0.149	2.918	0.031
TSA—BIBAUM	−1.417	0.672	−2.108	0.045	0.452	25	−2.801	−0.032	0.045
UFO—BIBAUM	0.117	0.672	0.174	0.864	1.000	25	−1.268	1.501	0.864
STEEP LEADER—SSA	2.750	0.672	4.092	0.000	0.004	25	1.366	4.134	0.000
TSA—SSA	−0.200	0.672	−0.298	0.768	1.000	25	−1.584	1.184	0.768
UFO—SSA	1.333	0.672	1.984	0.058	0.584	25	−0.051	2.718	0.058
TSA—STEEP LEADER	−2.950	0.672	−4.389	0.000	0.002	25	−4.334	−1.566	0.000
UFO—STEEP LEADER	−1.417	0.672	−2.108	0.045	0.452	25	−2.801	−0.032	0.045
UFO—TSA	1.533	0.672	2.281	0.031	0.313	25	0.149	2.918	0.031
2021
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	0.513	0.760	0.676	0.505	1.000	25	−1.051	2.078	0.505
STEEP LEADER—BIBAUM	−2.505	0.760	−3.298	0.003	0.029	25	−4.069	−0.941	0.003
TSA—BIBAUM	−1.860	0.760	−2.449	0.022	0.217	25	−3.424	−0.296	0.022
UFO—BIBAUM	0.107	0.760	0.140	0.889	1.000	25	−1.458	1.671	0.889
STEEP LEADER—SSA	−3.018	0.760	−3.974	0.001	0.005	25	−4.583	−1.454	0.001
TSA—SSA	−2.373	0.760	−3.125	0.004	0.045	25	−3.938	−0.809	0.004
UFO—SSA	−0.407	0.760	−0.535	0.597	1.000	25	−1.971	1.158	0.597
TSA—STEEP LEADER	0.645	0.760	0.849	0.404	1.000	25	−0.919	2.209	0.404
UFO—STEEP LEADER	2.612	0.760	3.439	0.002	0.021	25	1.047	4.176	0.002
UFO—TSA	1.967	0.760	2.589	0.016	0.158	25	0.402	3.531	0.016

,

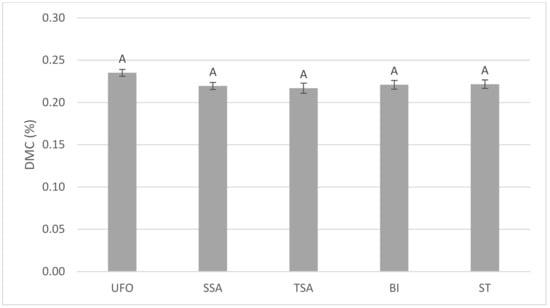

Table A5. DMC.

2020
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	−0.003	0.007	-0.383	0.705	1.000	25	−0.018	0.012	0.705
STEEP LEADER—BIBAUM	0.030	0.007	3.976	0.001	0.005	25	0.014	0.045	0.001
TSA—BIBAUM	0.000	0.007	0.022	0.983	1.000	25	−0.015	0.016	0.983
UFO—BIBAUM	0.025	0.007	3.342	0.003	0.026	25	0.010	0.040	0.003
STEEP LEADER—SSA	0.032	0.007	4.358	0.000	0.002	25	0.017	0.048	0.000
TSA—SSA	0.003	0.007	0.405	0.689	1.000	25	−0.012	0.018	0.689
UFO—SSA	0.028	0.007	3.725	0.001	0.010	25	0.012	0.043	0.001
TSA—STEEP LEADER	-0.029	0.007	−3.954	0.001	0.006	25	−0.045	−0.014	0.001
UFO—STEEP LEADER	−0.005	0.007	−0.634	0.532	1.000	25	−0.020	0.011	0.532
UFO—TSA	0.025	0.007	3.320	0.003	0.028	25	0.009	0.040	0.003
2021
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	0.003	0.008	0.393	0.698	1.000	25	−0.013	0.020	0.698
STEEP LEADER—BIBAUM	−0.030	0.008	−3.734	0.001	0.010	25	−0.047	−0.013	0.001
TSA—BIBAUM	−0.007	0.008	−0.862	0.397	1.000	25	−0.024	0.010	0.397
UFO—BIBAUM	0.002	0.008	0.291	0.774	1.000	25	−0.014	0.019	0.774
STEEP LEADER—SSA	−0.033	0.008	−4.126	0.000	0.004	25	−0.050	−0.017	0.000
TSA—SSA	−0.010	0.008	−1.255	0.221	1.000	25	−0.027	0.006	0.221
UFO—SSA	−0.001	0.008	−0.102	0.919	1.000	25	−0.017	0.016	0.919
TSA—STEEP LEADER	0.023	0.008	2.871	0.008	0.082	25	0.007	0.040	0.008
UFO—STEEP LEADER	0.032	0.008	4.024	0.000	0.005	25	0.016	0.049	0.000
UFO—TSA	0.009	0.008	1.153	0.260	1.000	25	−0.007	0.026	0.260

and

Table A6. Colour (L).

2020
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	1.610	0.225	7.155	0.000	0.000	25	1.147	2.074	0.000
STEEP LEADER—BIBAUM	1.556	0.225	6.912	0.000	0.000	25	1.092	2.019	0.000
TSA—BIBAUM	1.270	0.225	5.645	0.000	0.000	25	0.807	1.734	0.000
UFO—BIBAUM	1.713	0.225	7.610	0.000	0.000	25	1.249	2.176	0.000
STEEP LEADER—SSA	−0.055	0.225	-0.243	0.810	1.000	25	−0.518	0.409	0.810
TSA—SSA	−0.340	0.225	-1.510	0.143	1.000	25	−0.803	0.124	0.143
UFO—SSA	0.102	0.225	0.455	0.653	1.000	25	−0.361	0.566	0.653
TSA—STEEP LEADER	−0.285	0.225	−1.267	0.217	1.000	25	−0.749	0.178	0.217
UFO—STEEP LEADER	0.157	0.225	0.698	0.492	1.000	25	−0.306	0.621	0.492
UFO—TSA	0.442	0.225	1.965	0.061	0.606	25	−0.021	0.906	0.061
2021
	coefficients	sigma	tstat	p values	pval_bonferroni	df	ci95_low	ci95_high	p_val
SSA—BIBAUM	−0.320	0.390	−0.821	0.420	1.000	25	−1.124	0.483	0.420
STEEP LEADER—BIBAUM	1.122	0.390	2.875	0.008	0.081	25	0.318	1.925	0.008
TSA—BIBAUM	0.125	0.390	0.320	0.752	1.000	25	−0.679	0.928	0.752
UFO—BIBAUM	−1.300	0.390	−3.332	0.003	0.027	25	−2.104	−0.497	0.003
STEEP LEADER—SSA	1.442	0.390	3.696	0.001	0.011	25	0.638	2.246	0.001
TSA—SSA	0.445	0.390	1.140	0.265	1.000	25	−0.359	1.249	0.265
UFO—SSA	−0.980	0.390	−2.512	0.019	0.188	25	−1.784	−0.176	0.019
TSA—STEEP LEADER	−0.997	0.390	−2.555	0.017	0.171	25	−1.801	−0.193	0.017
UFO—STEEP LEADER	−2.422	0.390	−6.207	0.000	0.000	25	−3.226	−1.618	0.000
UFO—TSA	−1.425	0.390	−3.652	0.001	0.012	25	−2.229	−0.621	0.001

). Canopy light interception measurements for these training systems were also low (54% and 52%) in contrast to the other training systems measured (Table 3). However, fruit diameter was only significantly lower in UFO in the first season (2019–2020) (Figure 2a) which had higher light interception measurements (66%). This contrasts with SL and UFO which had the highest light interception for the first season (2019–2020), lowest crop loads (13.7 and 19 fruit cm⁻² LCSA), yet higher fruit TSS (20% and 18.5%) and DMC (26%).

Larger (Figure 2a), firmer (Figure 2b), and darker coloured fruit (Figure 2f) were produced in the warmer first season (2019–2020) in contrast to the cooler second season (2020–2021). Stem pull forces (Figure 2c) and TSS (Figure 2d) were higher in the second season (2020–2021) for the majority of training systems. Average UFO fruit diameter over the two seasons was significantly different compared to the TSA and BB training systems (Figure A2), there was no difference for all other fruit quality characteristics over the two-year study (Figure A3, Figure A4, Figure A5 and Figure A6).

3.5. Season, System, and Light Interception Effects on Fruit Quality

Summary of the ANOVA results showed the seasonal effect consistently explained more variation in the fruit quality data than training system or light interception (

Table 6. Two-way ANOVA results for either training system (Panel A) or light interception (Panel B), and their interaction with season, on fruit quality characteristics of sweet cherry cultivar ‘Kordia’. The cumulative r² (proportion of variation explained) accumulates from the season effect alone. The p-values are from standard ANOVA F-tests. The cumulative r² of the interaction column is the equivalent to the overall model’s r². Refer to the Appendix A for the full ANOVA tables (Table A6, Table A7, Table A8, Table A9, Table A10, Table A11, Table A12, Table A13, Table A14, Table A15, Table A16 and Table A17).

	r2	p-Value	Cumulative r2	p-Value	Cumulative r2	p-Value
Panel A: Two-way ANOVAs for Season and System
	Season		System		Interaction
Diameter	0.35	<0.01 **	0.56	<0.01 **	0.57	0.30 n.s.
Firmness	0.71	<0.01 **	0.73	0.03 *	0.79	<0.01 **
Stem Pull	0.05	<0.01 **	0.11	<0.01 **	0.59	<0.01 **
TSS	0.03	0.03 *	0.12	<0.01 **	0.44	<0.01 **
DMC	0.58	<0.01 **	0.59	0.03 *	0.77	<0.01 **
Colour (L*)	0.77	<0.01 **	0.82	<0.01 **	0.91	<0.01 **
Panel B: Two-way ANOVAs for Season and Light Interception
	Season		Light Interception		Interaction
Diameter	0.35	<0.01 **	0.38	0.08 n.s.	0.38	0.34 n.s.
Firmness	0.71	<0.01 **	0.71	0.32 n.s.	0.72	0.052 n.s.
Stem Pull	0.05	0.03 *	0.12	0.02 *	0.18	0.03 *
TSS	0.03	0.07 n.s.	0.18	0.01 **	0.17	0.84 n.s.
DMC	0.58	<0.01 **	0.68	<0.01 **	0.69	0.09 n.s.
Colour (L*)	0.77	<0.01 **	0.78	0.06 n.s.	0.78	0.31 n.s.

TSS = total soluble solids; DMC = dry matter content, * = p ≤ 0.05, ** = p ≤ 0.001, n.s. = non-significant.

and

Table 7. Overall increase in r² (proportion of variation explained) due to system and light interception variables, in respective two-way ANOVA models (season is the other variable in each model). The values shown are the effects of both the corresponding variable and its interaction with season, over and above the r² due to season alone. For example, the r² increase for the system of 0.22 shown in the first row of the table can be obtained from the values in Panel A of Table 6 corresponding to the “cumulative r²” value in the interaction column minus the “r²” of the season effect alone (0.57 − 0.35 = 0.22).

	System	Light Interception	Difference
Diameter	0.22	0.03	0.19
Firmness	0.08	0.01	0.07
Stem Pull	0.54	0.13	0.41
TSS	0.41	0.14	0.27
DMC	0.19	0.11	0.08
Colour (L)	0.14	0.01	0.13

TSS = total soluble solids; DMC = dry matter content.

). Variation was explained by season to the greatest extent for fruit colour (77%), compression firmness (71%) and DMC (58%). Although training system significantly (p < 0.01) accounted for variation in fruit stem pull force, TSS and colour, the greatest variation was accounted for fruit diameter (21%). Light interception explained variation in TSS (15%, p = 0.001), and DMC (10%, p ≤ 0.001) and stem pull force (7%, p = 0.02) across the two seasons (

Table A7. Diameter.

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	31.7806	31.7806	50.27576	4.33 × 10−9	0.365741	0.354806
System	4	20.34899	5.087248	8.047843	4.33 × 10−5	0.599924	0.56288
Season–System	4	3.157827	0.789457	1.248892	0.302499	0.636265	0.570793
Residuals	50	31.60628	0.632126	NA	NA	NA	NA

,

Table A8. Compression firmness.

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	67920.55	67920.55	200.9739	3.80 × 10−19	0.712161	0.707198
System	4	4072.161	1018.04	3.012336	0.026505	0.754859	0.73216
Season–System	4	6481.892	1620.473	4.794908	0.002367	0.822822	0.790931
Residuals	50	16897.85	337.9571	NA	NA	NA	NA

,

Table A9. Stem pull force.

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	58088.67	58088.67	9.515441	0.003315	0.066194	0.050094
System	4	101559	25389.76	4.159069	0.005512	0.181924	0.106176
Season–System	4	412670.7	103167.7	16.89978	7.96 × 10−9	0.652176	0.589568
Residuals	50	305233.7	6104.674	NA	NA	NA	NA

,

Table A10. Total soluble solid content.

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	7.725682	7.725682	5.007575	0.029722	0.047676	0.031257
System	4	23.26143	5.815357	3.769355	0.009343	0.191226	0.11634
Season–System	4	53.91696	13.47924	8.736874	1.99 × 10−5	0.523957	0.438269
Residuals	50	77.13995	1.542799	NA	NA	NA	NA

,

Table A11. Dry matter content.

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	0.02718	0.02718	150.3846	1.09 × 10−16	0.58265	0.575455
System	4	0.002118	0.00053	2.929963	0.029722	0.628058	0.593619
Season–System	4	0.008314	0.002078	11.49998	1.07 × 10−6	0.80628	0.77141
Residuals	50	0.009037	0.000181	NA	NA	NA	NA

,

Table A12. Colour (L).

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	152.0657	152.0657	499.6523	1.10 × 10−27	0.769929	0.765962
System	4	12.83645	3.209113	10.54439	2.84 × 10−6	0.834922	0.819637
Season–System	4	17.38681	4.346703	14.28225	7.64 × 10−8	0.922954	0.909085
Residuals	50	15.21715	0.304343	NA	NA	NA	NA

,

Table A13. Diameter.

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	31.7806	31.7806	34.62063	2.35 × 10−7	0.365741	0.354806
Light Interception	1	2.857416	2.857416	3.112765	0.083135	0.398625	0.377524
Season:Light Interception	1	0.849532	0.849532	0.92545	0.340184	0.408402	0.376709
Residuals	56	51.40615	0.917967	NA	NA	NA	NA

,

Table A14. Compression firmness.

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	67920.55	67920.55	150.7794	1.61 × 10−17	0.712161	0.707198
Light Interception	1	461.7478	461.7478	1.025051	0.315678	0.717003	0.707073
Season:Light Interception	1	1764.224	1764.224	3.916468	0.05274	0.735501	0.721331
Residuals	56	25225.93	450.4631	NA	NA	NA	NA

,

Table A15. Stem pull force.

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	58088.67	58088.67	4.739473	0.033709	0.066194	0.050094
Light Interception	1	71216.67	71216.67	5.810591	0.019238	0.147348	0.11743
Season:Light Interception	1	61890.89	61890.89	5.049698	0.028589	0.217875	0.175975
Residuals	56	686355.8	12256.35	NA	NA	NA	NA

,

Table A16. Total soluble solid content.

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	7.725682	7.725682	3.384622	0.07111	0.047676	0.031257
Light Interception	1	26.40458	26.40458	11.56785	0.001244	0.210623	0.182926
Season:Light Interception	1	0.089104	0.089104	0.039037	0.844092	0.211173	0.168915
Residuals	56	127.8247	2.282583	NA	NA	NA	NA

,

Table A17. Dry matter content.

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	0.02718	0.02718	110.7612	6.94 × 10−15	0.58265	0.575455
Light Interception	1	0.004995	0.004995	20.35446	3.34 × 10−5	0.689723	0.678837
Season:Light Interception	1	0.000732	0.000732	2.98324	0.089643	0.705417	0.689635
Residuals	56	0.013742	0.000245	NA	NA	NA	NA

and

Table A18. Colour (L).

	Df	Sum Sq	Mean Sq	F Value	Pr(>F)	r2	r2_adj
Season	1	152.0657	152.0657	202.8267	2.90 × 10−20	0.769929	0.765962
Light Interception	1	2.68112	2.68112	3.576103	0.063794	0.783504	0.775908
Season:Light Interception	1	0.774289	0.774289	1.032755	0.313883	0.787424	0.776036
Residuals	56	41.98501	0.749732	NA	NA	NA	NA

), (Table 6 and Table 7). The season–system interaction explained the variation in fruit quality characteristics to a greater extent than season-light interception as highlighted by the significant p-values for all but one of the fruit quality characteristics. All fruit quality characteristics, except for diameter, were significantly affected by the season–system interaction. In contrast only firmness and stem pull force were significantly impacted by the season-light interception interaction. Cumulative r² values are presented to illustrate the significance of each individual variable (i.e., season, system or season–system interaction).

A significant positive correlation between fruit DMC and light interception was found in the first season (2019–2020) (r² = 0.96; p < 0.01, Figure 3); TSS showed a similar correlation with light interception however was not significant (y = 13.068x + 10.614, r² = 0.62, p-value = 0.12). Similar trends were found in the second season (2020–2021), although they were not significant. Negative correlations were found between fruit TSS and crop loads with r² = 0.92 (p-value <0.01) in the first season and 0.42 (p-value = 0.35) in the second season when the UFO crop load data was removed due to disproportionate leverage (Figure 4). DMC was lowest in the second season for SL (18%) (Figure 2e), these results correlated with SL having the second highest crop load of 19.6 fruit cm⁻² TCSA and subsequently highest yield (20.5 t ha⁻¹) (Figure 5). Strong positive correlations were found in both the first and second seasons between TSS and DMC with r² values of 0.68 and 0.83, respectively (Figure 6).

4. Discussion

Variation in the number of uprights/leaders per hectare between the various training systems (Table 1) resulted in diverse light interception and PAI measurements across the two seasons in this study. Whilst the importance of number of uprights has been emphasised [30], the dual leader BB training system achieved the highest light interception with only 3440 leaders per hectare in contrast to 13,600 fruiting branches per hectare for UFO —suggesting that lateral wood, rather than upright limbs, was responsible for a large proportion of the light interception. This highlights that light interception of lateral bearing cultivars such as ‘Kordia’ is optimised in training systems such as BB that enable sufficient space for lateral growth whilst maintaining high planting densities. Further, high light interception for UFO and SL during the first (2019–2020) season (66%) in contrast to other training systems potentially improved floral bud development on two-year-old laterals in these training systems. This may explain the substantial increase in crop load and yield in second (2020–2021) season for these training systems. However higher yields were at the cost of fruit size, TSS and DMC, particularly for SL. Finally, the strong correlation between TSS and DMC in this study suggests that DMC could also be used as an attribute of quality for sweet cherry, as it contributes to consumer satisfaction for example in mango [31].

4.1. Light Interception and Yield

The increase in light interception and PAI from the first season to the second is likely a result of increased lateral wood within canopies given that trees were coming into their fifth leaf and still filling their canopies during this time. High light interception measurements for BB in season two (79%) (Table 3) without noticeable reduction in yields and fruit quality are in contradiction to the findings of Anthony, et al. [32], who suggested optimal fruit and yield production occurs at light interceptions of 66–68% in apples trained as a Spindle or perpendicular V training system with row spacings of 3 m. We suggest that this is due to the effective penetration of light into the BB trained trees of this study. Further to this conclusion, a recent study by Tustin [30] of an ultra-dense apple growing system of 1.5 to 2 m between row spacing and 3 m within-row spacing of a 2D ‘candelabra’ tree structure with approximately ten vertical fruiting branches per tree or 22 220 and 16 670 uprights ha⁻¹ developed a LAI of greater than three, light interceptions greater than 70% and yields of 236 t ha⁻¹ and 175 t ha⁻¹, respectively. Our PAI measurements of 3.0 and 3.5 for UFO and BB in the second year support the observation that the 2D fruiting walls of these training systems filled the horizontal space between adjacent trees/leaders with laterals (that ‘Kordia’ tend to flower and fruit on) more uniformly in comparison to the other training systems. This emphasises the importance of the horizontal component of the canopy, relative to the vertical components of tree size, on light interception [33]. This is driven not only by the number of leaders/uprights filling the vertical space per hectare, (UFO had approximately 13,600 uprights and BB 3400 leaders) but adequate space between these uprights to support lateral fruiting wood of the cultivar ‘Kordia’ used in our study. This resulted in similar or higher light interceptions in UFO and BB compared to that of SSA with fewer trees. These results suggest that high PAI in BB, with approximately 3440 leaders per hectare, are not indicative of excessive shading that may limit yield. Increased light interception for all training systems in the second season in contrast to the first did not result in an increase in yields for all training systems. A moderate increase in light interception that occurred for SL and UFO in the second season (+5%) was associated with a large yield increase from the previous season (+144% and +137%, respectively—associated with flower load, as discussed in the next section). This was in contrast to the large increase in light interception in the second season for the BB (+18%) that was associated with a slight reduction in yield. This highlights that additional (to light interception and PAI) key factors influenced yield in this study, and we believe that these include pruning for tree structure, fruit set and crop loads.

Lower yields in the first season for UFO and SL may have been a result of the intensive pruning required early in the development of these training systems. Tree training in these systems was completed at the beginning of fifth leaf (2020–2021 season, Orchard manager personal communication) with a greater proportion of second year wood enabling more resources to go to fruit production rather than vegetative growth as observed in the first season. This contrasts with SSA, TSA and BB training systems that required less intensive pruning early in tree development. This resulted in the faster development of fruiting branches in contrast to the UFO and SL training systems, relatively early canopy maturity and higher yields.

4.2. Flower Load and Fruit Set

Although fruit sets were similar across the two seasons for UFO (17 and 18%), a 230% increase in flower load in the second season resulted in a large crop load of 44.6 fruit cm⁻² LCSA. Similarly, a high crop load for SL in the second season can be explained by the 175% increase in flower load with a similar fruit set percentage to the first season. The increased flower and subsequent crop load may be a result of improved floral bud formation at the end of the first season due to high levels of light interception across the whole 2D planar training system in contrast to SSA and TSA which had poorer light interception measurements in the first season, resulting in a reduction in flower loads in the second season, as well as the development of more two-year-old lateral wood in the canopy.

The general occurrence of lower fruit set across most training systems in the second season relative to the first may be the result of a combination of lower average daily temperature and solar radiation levels and a significant increase in rainfall increasing humidity levels during flowering, as European honeybees do not leave the hive during humid conditions (R. Warren personal communication).

4.3. Crop Load and Fruit Quality

The influence of climate on photosynthate availability, fruit development and final quality is clearly demonstrated in this study. Despite larger crop loads in the first season, fruit quality on SSA, TSA and BB was better than in the second season, reflecting the influence of the higher temperatures and solar radiation levels supporting greater levels of photosynthates for fruit development. However, higher crop loads were associated with relatively low TSS and DMC in fruit of both UFO and SL in the second season, consistent with greater competition for photoassimilates among developing fruit [34,35]. Bound, et al. [14] preferred sweet cherry fruit quality attributes at crop loads of approximately 10 fruit cm⁻² LCSA for ‘Sweetheart’ and ‘Van’ cultivars on F-12/1 trained as a Kym-Green-Bush. Neilsen, et al. [36] determined that ‘Lapins’ on Gisela 5 with approximately 45 fruit cm⁻² TCSA were high crop loads that developed fruit weights of <10 g, whereas low crop loads of approximately 10 fruit cm⁻² TCSA developed average fruit weights >14 g. Taking these findings into account, crop load in the second season of the current study would be considered mid to high for UFO and SL. Measham, et al. [37] reported that crop load in Southern Tasmania rarely exceeded 15 fruit cm⁻² TCSA, but these trees were grafted to Colt which is less precocious than K5. In both the UFO and SL training systems lower crop loads in the first season produced heavier fruit with increased firmness and DMC. These results confirm that regardless of the relatively favourable growing conditions in the first season, excessive crop loads lead to relatively (to appropriate crop loads) poorer fruit quality.

Overall, UFO had the highest average light interception (69%) across the two seasons, but lowest percentage of fruit greater than 26 mm (81.5%) with average fruit size measuring 27.4 mm (Figure A2). This is in contrast with the TSA training system which had the lowest average light interception (60%) yet produced the highest percentage of fruit greater than 26 mm (99%) with an average size of 29.1 mm, highlighting the importance of crop load thresholds above which fruit quality diminishes. In the relatively warm first season, TSS was lower at higher crop loads (r² = 0.92) in contrast to no correlation (r² = 0.08) in the second season. Similar negative correlations were found for DMC with increased crop loads, with an r² = 0.67 in the first season in contrast to an r² = 0.10 in the second season. Removal of UFO crop load data from the second season resulted in an r² = 0.84. This highlights that the regulation of crop loads to obtain optimal fruit quality relies on the prior knowledge of crop load thresholds at which size diminishes for each cultivar/rootstock combination [14]. We suggest that, due to distinct light interception characteristics, these thresholds also depend on the training system adopted. The amount of fruiting wood and overall canopy shape that intercepts incoming light to support fruit development varies between the training systems and therefore requires an understanding of crop load/quality relationships between training system, cultivar, and rootstock combinations.

4.4. Light Interception and Fruit Quality

Independent of crop load, strong positive correlations were observed between light interception and TSS and fruit DMC in the first season, with training systems that intercepted less light (SSA 54% and TSA 52%) producing fruit low in TSS (17.2% and 17%) and DMC (both 23%). Improved canopy light interception that drives an increase in fruit TSS was reported by Stefanelli, et al. [38] in peach on Tatura trellis relative to the vertical axis training system. These results are consistent with the findings of Grafe, et al. [39] and Pedisić, et al. [40] in sour cherry and Whiley, et al. [41] in mango. Low DMC in fruit can cause customer dissatisfaction [42] and reduce rates of repurchase [43]. Therefore, given the correlation found between TSS and DMC in this study, we suggest that consumer preference for high TSS cherries [44] may be contributed to by DMC. The results in Table 7 suggest, but do not prove, that training systems have significantly more influence on fruit quality than can be summarised by the respective system effects on light interception. We note here that we cannot disentangle the effects of system from light interception with linear regression models; a particular problem is that light interception measurements are made on an overall “per system” basis in each season (hence we had to rely on comparing r² from different models). In further research, it would make sense to try and measure light interception at different height-levels and possibly not aggregate measurements to a single “system” value.

5. Conclusions

This study highlights the relationships between training systems, light interception, yield and fruit quality of the lateral-bearing ‘Kordia’ cultivar grafted to the dwarfing K5 rootstock early in orchard development. As orchard growing systems evolve towards high-density planar training systems with reduced row spacings, tree structures that optimise light interception will be crucial in achieving high yields of premium quality fruit. Results from this study indicate that when trees were at fourth and fifth leaf, the BB, TSA and SL training systems provided sufficient space between uprights that allowed for the growth of lateral fruiting wood suited to the lateral-bearing ‘Kordia’. While the ideal crop load for ‘Kordia’ grafted on K5 is yet to be determined, our results show that it varies with training system, as lateral wood production may be limited depending on stage of development and final tree structure. We conclude from this study that, based on the loss of fruit quality, ideal crop load will be less than 44 fruit cm⁻² LCSA in the UFO system and less than 19.5 fruit cm⁻² LCSA in the SL system in trees of approximately five years of age. However, trade-offs may be required to obtain optimal financial return, i.e., higher yields with lower fruit quality in contrast to reduced yields with improved fruit quality [19]. Seasonal variation had an over-riding effect in the second season with relatively cool temperatures, high rainfall and reduced solar radiation during flowering and fruit development negatively impacting fruit yield and quality. However, within a season, variation in light interception associated with the training systems and crop load related to yield and attributes of cherry quality (size, firmness, TSS, DMC and colour). It is acknowledged that longer-term research is required to gain a greater understanding of the benefits and draw backs of lateral bearing cultivars trained to various training systems. Nevertheless, this study has highlighted novel and interesting findings for training systems in the early stages of their development applied to lateral bearing ‘Kordia’ regarding light interception, fruit quality and yields.
