Strong Fitness Costs of Fall Armyworm Resistance to Dual-Gene Bt Maize Are Magnified on Less-Suitable Host-Crop Cultivars

by
Oscar F. Santos-Amaya
1,*,
Clébson S. Tavares
2,3,
João Victor C. Rodrigues
3,
Eugênio E. Oliveira
3,
Raul Narciso C. Guedes
3 and
Eliseu José G. Pereira
3,4,*
1
Department of Agronomy, Universidad de Pamplona, Pamplona 543057, Colombia
2
Department of Entomology, University of Florida, Gainesville, FL 32611, USA
3
Department of Entomology, Universidade Federal de Viçosa, Vicosa 36570-900, Brazil
4
National Institute of Science and Technology in Plant-Pest Interactions, Universidade Federal de Viçosa, Vicosa 36570-900, Brazil
*
Authors to whom correspondence should be addressed.
Agronomy 2022, 12(3), 682; https://doi.org/10.3390/agronomy12030682
Submission received: 6 February 2022 / Revised: 4 March 2022 / Accepted: 7 March 2022 / Published: 11 March 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
We examined the fitness costs of resistance to transgenic Cry1A.105+Cry2Ab2 Bacillus thuringiensis (Bt) maize in the fall armyworm, Spodoptera frugiperda, a globally invasive pest species. Using Bt-resistant and -susceptible populations of similar genetic backgrounds, we compared insect life-history traits and population growth rates on the foliage of Bt or non-Bt cultivars of maize, soybean, and cotton. We found that (i) the resistance alleles led to a major reduction in insect fitness on seven of the eight cultivars of three host crops studied; (ii) developmental time was the life-history trait that accounted for most of the fitness variation of the armyworm, and (iii) the magnitude of fitness reduction of the resistant individuals was stronger on cotton foliage, on which the insects did not pass the resistance alleles to subsequent generations. These results show that fall armyworm resistance to Cry1A.105+Cry2Ab2-expressing Bt maize comes with strong fitness costs, which were magnified on less-suitable host plants for the insects. Thus, natural selection may help maintain or even restore the insect susceptibility to the pesticidal proteins and perhaps is a significant factor helping manage fall armyworm resistance to Cry1A.105+Cry2Ab2 Bt maize. These findings indicate that fitness costs of insect resistance to multi-toxin Bt crops can be strong, and host plants or conditions that magnify the fitness differential of susceptible insects could be specifically deployed with refuge to improve resistance management to Bt crops.

1. Introduction

Transgenic crops producing pesticidal proteins (or toxins) from the soil bacterium Bacillus thuringiensis (Bt) are an integral tool in the management of agricultural insect pests, adopted globally in more than 100 million ha [1,2]. As a state-of-the-art agrobiotechnology, Bt crop cultivars generally have remarkably high yield potential and high specificity to target pests, warranting their perceived value as economically and environmentally beneficial [1,3]. Nevertheless, some of these benefits are diminished as pests evolve resistance [4,5]. There are several cases of field-relevant resistance to specific Bt traits across major target pest species [5].
Some crop management strategies are recommended to delay the faster-than-expected development of Bt resistance in pest populations [6]. Bt crop cultivars are generally designed to produce a high dose of insecticidal protein in plant tissues; only very few resistant insects are expected to survive, producing susceptible offspring when mating with susceptible insects from a nearby non-Bt area (referred to as refuge) [6]. Additionally, modern Bt crop cultivars may carry pyramided traits by producing pesticidal Bt proteins of different biochemical sites of action in the target insect midgut epithelia [7]. Nevertheless, the risk of losing pest susceptibility to Bt traits continues as insect pest populations can evolve resistance to Bt-pyramided crops [8,9,10,11,12]. The problem may occur faster than expected when resistance is not a recessive trait and has no disadvantage to the resistant insect in the absence of the toxicant, unfavorable conditions to maintain the pest susceptibility [13]. The competence to manage resistance evolution can be improved by better understanding its evolutionary ecology [4,6,14]. More specifically, data on the relative fitness of resistant and susceptible near-isogenic target insects on near-isogenic Bt and non-Bt crop cultivars and its inheritance [15,16,17] are valuable to inform resistance management programs [1,18,19].
The fall armyworm, Spodoptera frugiperda (Lepidoptera: Noctuidae), is a model species to study speciation, migration, and the evolutionary ecology of resistance to dual-gene Bt crops. This highly polyphagous herbivore exhibits host-plant-associated races and is the primary migratory maize pest in North America [20,21]. The fall armyworm was introduced in Africa in the last decade, later invading Asia and Oceania [22,23,24,25,26,27,28]. The armyworm is notorious for holding several cases of field-relevant resistance to single-gene Bt maize [29,30,31,32,33]. Given the species’ remarkable capacity for adaption to population control measures [34], the gene pyramiding strategy in Bt crops to preserve fall armyworm susceptibility to Bt traits could be more efficacious if resistance to multi-Bt-trait cultivars comes at a high fitness cost to the individuals [9,17,35,36,37].
Fitness costs affect resistance evolution by selecting against resistant individuals in the absence of the selecting agent, where the individuals carrying resistance alleles have lower fitness than susceptible individuals [4,17,37]. Fitness costs of resistance to Bt crops can delay resistance by selecting against resistant insects in natural or structured refuges planted near the Bt crop and can even reverse resistance development if the cost magnitude is sufficiently large [38,39]. Previously, resistance to single-gene Bt crops carried minor or no detectable fitness costs [15,17,40,41,42]. In contrast, resistance to pyramided crops is more likely to be associated with fitness costs as it might evolve from mutations in more than one gene. The strength of the fitness costs may be magnified by ecological factors, such as host-plant quality to the insect herbivore [43,44]. Thus, information on the interaction of fitness costs of Bt resistance and the insect performance when feeding on different host plant species and varieties are informative for devising better resistance management [4,37,45].
Here we used a fall armyworm population resistant to Cry1A.105 + Cry2Ab2 Bt maize [9] to test the hypothesis of a positive association between two-toxin resistance and fitness costs and their increased magnitude by host crops less suitable for the herbivore. We compared life-history traits and population growth rates between Bt-resistant and -susceptible populations maintained on Bt and non-Bt cultivars of cotton, maize, and soybean to determine the potential pleiotropic effects of the resistance alleles. We found adverse effects on the fitness of the resistant insects for seven of the eight plant genotypes assessed, and the magnitude of the fitness costs was higher on host crops less suitable for the herbivore. These findings provide novel and exciting information helpful to refine current insect resistance management strategies for pyramided Bt crops.

2. Materials and Methods

2.1. Insect Populations

The susceptible fall armyworm population (Bahia-Cv) was collected in 2013 from Cry1F Bt maize fields in Luís Eduardo Magalhães, in Bahia, Brazil, and maintained in the laboratory without exposure to pesticides since its establishment [9]. No individual of the fall armyworm rice strain was found using molecular markers [46]. The resistant population (Bahia-Bt) was derived from the Bahia-Cv population by selecting for resistance to Cry1A.105+Cry2Ab2 Bt maize [9]; the resistance trait is recessive and confers cross-resistance to Cry1F but not to Vip3Aa Bt toxins [9,47]. The insects were reared using standard rearing conditions at 27 ± 2 °C, 70 ± 15% r.h., and photoperiod of 14:10 h light: dark [48].

2.2. Plants, Growth Conditions, and Foliage for Assays

We used eight cultivars of the main Bt crops grown worldwide, including cotton, maize, and soybean [2]. Some cultivars express cry Bt transgenes, but not the selecting agents Cry1A.105 and Cry2Ab2 (Table 1). In the greenhouse, we planted five seeds of each cultivar in 14-L pots containing standard potting soil mixture. After two weeks, we thinned the seedlings to three plants per pot. We irrigated and fertilized the soil for optimal plant growth and used no pesticide for plant protection. We tested the expression of cry1A and cry1F transgenes in the plants using kits STX 10301/0050 or STX 06200/0050 according to the manufacturer’s instructions (Agdia Inc., Elkhart, IN, USA). The plants used as the source of foliage for the experiment were in the mid-vegetative V4–V8 growth stages of maize and soybean and the early reproductive stages of cotton plants, between flowering and boll formation. We selected only healthy plants and excised the leaves from the maize whorl or the upper canopy of cotton and soybean. To help maintain turgidity, we immediately placed the leaf bases or petioles in a bucket with water to be taken to the laboratory until being placed in the experimental units.

2.3. Life-History Costs in the Immature Stage

The eight plant genotypes and two insect populations were assayed in an entirely randomized longitudinal experiment, conducted in the same controlled conditions as previously described for rearing the insects. There were ten replications, each one consisting of a 16-well polyvinylchloride tray (Advento Pásticos, Diadema, São Paulo, Brazil). We assigned the foliage of each plant genotype to 20 trays, 10 for each insect population. The foliage placed in the tray well consisted of 3–4-cm sections of maize whorl leaves, half or two-thirds of a fully expanded cotton leaf, or leaflets of a trifoliate soybean. In total, there were 16 fall armyworms per replicate or tray, 160 per plant genotype, and 1280 of each population in the eight plant genotypes. We replaced the foliage every other day and recorded the survival rate until pupation. We also recorded the developmental time (i.e., duration of the larval stage). The pupae were weighed within 24 h after pupation, sexed, and transferred to plastic containers lined with paper-towel tissue misted with distilled water to avoid desiccation.

2.4. Fitness Costs to Population Growth

Using the pupae from the above cohorts according to plant genotype and insect population, we calculated the sex ratio and set twenty male-female pairs. Each pair was placed in a polyvinyl chloride cage (10 cm height × 10 cm Ø) and maintained at the previously described conditions. Moth food based on 10% honey solution in water was added to the cages. To estimate fertility, we recorded the number of egg masses laid by each female daily until the end of the egg-laying period (i.e., seven days). Egg masses were individually transferred to 200-mL plastic pots for hatching, and the number of neonates produced in each egg mass was recorded. The population growth potential was estimated using the life-table format [49,50]. Population growth parameters calculated were the net reproductive rate (i.e., the number of times a population will multiply per generation, R0), the generation time (the mean period between the birth of individuals of a generation and that of the next generation, T), and the intrinsic rate of population increase (daily female offspring production per parental female, rm). More details on algorithms used for the calculations are in the data analysis section below.

2.5. Dominance of Fitness Costs

Reciprocal crosses between the resistant and susceptible populations (i.e., s♀ × r♂ and s♂ × r♀) were conducted to test whether the fitness costs were apparent on the heterozygotes when reared on non-Bt maize. The procedures for the crosses were the same as described elsewhere [9,48], and the population growth potential was determined as described above.

2.6. Ranking Host-Crop Cultivars That Magnified the Fitness Costs

To compare larval performance and host plant suitability, we calculated a ‘fitness index’ (fi) using the formula [51] fi = lx × mx ÷ ti, where lx is the percentage of pupation, mx is mean pupal mass, and ti is the duration of the immature stage. Using the index according to host-crop cultivar, we estimated the relative fitness of the Bt-resistant insects to the susceptible ones for each experimental replicate. To obtain insight into the strength of fitness costs to constrain the numbers of resistant insects in relation to susceptible ones, we simulated scenarios of fall armyworm population sizes using the intrinsic rate of population increase as estimated for the resistant and susceptible insects. We assumed that the population has exponential growth described in the model Nt = N0 × erm × t, where Nt is the size of the population at time t (e.g., generation 5, 10, 15, and 20), N0 is the initial size of the population (initial number of individuals), and rm is the estimate of the intrinsic rate of increase [49] for each combination of population and cultivar. These procedures allowed us to estimate the percentage of population growth suppression of Bt-resistant individuals at generation t = 5, 10, 15, and 20, using the formula %PGsup = 100 × (1 − (NtRES/NtSUS)).

2.7. Statistical Analysis

Linear statistical modeling was used to compare life-history traits (i.e., survival, development time, and body size in the pupa stage) between resistant and susceptible armyworms for each host-crop cultivar. The data set for each response variable met the assumptions of normality and homoscedasticity, as indicated by residual analyses (proc mixed followed by proc univariate and proc gplot) [52]. Likewise, the relative fitness indexes of resistant insects in each host-crop cultivar were subjected to analysis of variance, and similar means were grouped using Scott-Knott post-hoc procedure (p < 0.05).
Population growth parameters and their associated variances were estimated [53,54] with suitable algorithms in SAS [55]. This procedure produced p-values for a one-tailed t-test on the hypothesized reduced fitness of resistant insects, which were adjusted using Bonferonni correction. In addition, path analysis using proc calis [52] to was used to test the hypothesized relationships between the effects of the environment without the selection agents (i.e., food plants lacking Cry1A.105+Cry2Ab2) on crucial life-history traits and life-table parameters of the fall armyworm populations.

3. Results

Fitness components of fall armyworms showing differential resistance to dual-gene Bt maize were measured in eight host-crop cultivars, and in seven of them, we observed substantial life-history costs to larval survival, development time, and body size (i.e., pupal weight) (Figure 1 and Figure 2). No delay in development time or reduced survival of the resistant larvae was found when they were reared on Cry1Ab maize foliage (Figure 1C); on Cry1Ab+Cry1F maize, only development time was reduced (Figure 1D). Strikingly, only one resistant larva completed development on non-Bt cotton foliage (Figure 2A), showing its strong effect on the fitness costs of the resistance.
When comparing the population growth potential (i.e., population fitness), we found reduced net reproductive rate (R0) and intrinsic rate of population increase (rm), as well as longer generation time, for the resistant population on all host-crop cultivars, except Cry1Ab maize (Figure 3, Table 2). In contrast, the intrinsic rate of population increases of insects heterozygous for the resistance was not significantly different of the susceptible population, indicating that the fitness cost of the resistance was inherited as a recessive trait (Figure 4).
We hypothesized that low host-plant quality for fall armyworm larvae would magnify fitness costs of resistance. On non-Bt cotton and soybean as well as on Cry1Ac cotton, the resistant insects had relative fitness values lower than on Cry1Ab maize (p < 0.05), host-crop cultivar on which the costs were least apparent (Figure 5). In addition, both non-Bt and Bt cotton suppressed the population growth of the resistant individuals, whereas the other host-crop cultivars caused a lower suppressive effect, particularly Cry1Ab maize (Figure 6). Hence, the data supported our hypothesis and cultivars of cotton and soybean most magnified the fitness costs of resistance (Figure 5 and Figure 6).
Larval fitness components that most influenced the population growth potential of fall armyworm were investigated using path analysis (Figure 7 and Table 3). We expected that environments without the selecting agents (i.e., host-plant foliage not producing Cry1A.105 and Cry2Ab2) directly influenced larval weight and developmental time determining pupal weight and survival, potentially leading to indirect effects on generation time and reproduction (T and R0). These life-table parameters, T and R0, would directly determine the population growth rate (rm). The hypothesized path diagram was suitable, as indicated by the non-significant departures from expected covariance matrices (χ2 = 13.21, df = 8, p = 0.10). In the diagram, larval weight and developmental time correlated negatively. Larval weight positively affected pupal weight, while developmental time had the opposite effect. Developmental time also negatively affected survival and net reproductive rate (R0) but positively affected generation time (T). Pupal weight had a direct, negative effect on generation time but no significant effect (p > 0.05) on the net reproductive rate. The population growth potential (i.e., intrinsic rate of population increase, rm) was affected mainly by the net reproductive rate, followed by the generation time with indirect contributions of survival, pupal (and larval) weight, and development time. This latter life-history trait is most affected by the other traits in the path diagram, as indicated by its higher total effects than the other variables (Figure 7, Table 3).

4. Discussion

Using the fall armyworm as a model system to study insect resistance to a pyramided Bt crop, we have shown evidence of substantial fitness costs of resistance to Cry1A.105+Cry2Ab2-expressing Bt maize in seven host-plant cultivars of cotton, soybean, and maize. The life-history costs manifested as delayed developmental time and reduced survival rate and pupal weight. At the population level, the individual disadvantages translated into substantial costs to the net reproductive rate, generation time, and intrinsic rate of population increase. Strong fitness costs and incomplete resistance to dual-gene Bt maize [9] favor the durability of pyramided Bt crops [35,36,56,57]. In terms of evolutionary ecology applied to Bt crops, fitness costs increase the selection coefficient for susceptible individuals in refuges, and incomplete resistance reduces the fitness of resistant individuals on Bt crops [4,37,38]. Our findings help explain the relatively sustained efficacy of Cry1A.105+Cry2Ab2 maize against fall armyworms in Brazil. After more than a decade of the commercial release of the MON89034 transgenic maize event, which produces both Cry1A.105 and Cry2Ab2 toxins, no reduced efficacy or evolution of field resistance to this dual-gene Bt maize have been documented so far [34,58,59], despite the high risk of cross-resistance between Cry1 toxins concurrently used [8,9] and variable control efficacy depending on the situation [34,58,59,60]. Pyramided Bt cultivars provide crop protection against the pest complex and may help maintain their susceptibility to the Bt pesticidal proteins aided by the individual fitness penalties associated with the incomplete resistance that may be selected [4,6,9]. Pleiotropic effects of resistance alleles, as shown here, can impair the fitness of resistant insects, delaying the development of resistance or even restoring the susceptibility in the absence of selection pressure for resistance.
Because the fitness costs of multi-toxin resistance were enhanced on less-suitable host plants, refuges with specific host plants or cultivars may maximize fitness costs of resistance, which would increase the coefficient of selection for susceptible individuals in refuges [61], therefore, reducing the heritability of resistance [4,6,62]. This practice could work even better if the fitness costs are dominant [4,37] and merit further research to exploit the refuge as a reservoir of beneficial genes to slow the selection of insect resistance to Bt crops [43,61,63,64,65]. For example, when the resistant moths lay eggs on cotton plants, their offspring may not pass the resistance alleles to subsequent generations. Hence, cotton fields could help delay or prevent the spreading of the resistance alleles more efficiently than soybean and maize fields, deserving attention for its feasibility for resistance management of fall armyworm to Bt maize. In complex agricultural landscapes, such as in Brazil and the United States, soybeans could also help attract fall armyworm females to lay eggs in crops that offer additional challenges for pest development. Behavioral manipulation and environmental stressors, such as temperature and biotic interactions [66,67] should also be investigated to identify and quantify factors that may exaggerate fitness costs of fall armyworm resistance to Bt pesticidal proteins used in pest management.
Developmental time played a significant role in the fitness profile of the armyworm, negatively affecting pupal weight, net reproductive rate, survival, generation time, and the intrinsic rate of population increase of the fall armyworm. Mechanistically, delayed development in Bt-resistant insects may be caused by mutations in receptor proteins affecting nutrient uptake [68]. In the field settings, more extended development affects the rate of resistance evolution depending on complex interactions [69], including increased risk of natural mortality, decreased population growth rates, and increased likelihood of assortative mating. Most resistance management strategies assume random mating between resistant and susceptible moths [6]. We found that susceptible adults emerged 3–4 days before resistant ones, and developmental time was the life-history trait that accounted for most of the fitness variation of the armyworm. More research is needed to determine whether developmental asynchrony does not compromise the random mating assumption [6] and, consequently, the efficacy of refuge for resistance management [40,70].
The variation in the expression of the fitness costs of dual-toxin Bt resistance across host plants seems minor than that observed for single-toxin resistance [37,38,63]. This smaller phenotypic plasticity (apparent independently of other variables) may be related to the high strength of the costs, which were consistently observed in various rearing environments (i.e., host-plant cultivars), contrasting with the more variable costs of insect resistance to single Bt toxin [37,43,63,64,71,72]. Notably, fitness costs more visible to selection independently of the ecological conditions are more valuable for resistance management [73].
The host-crop cultivar influenced the magnitude of the fitness costs; it was lower on Cry1Ac cotton than on the non-Bt cultivar, a pattern observed for soybean but not for Cry1Ab maize. These results are likely associated with low inherent susceptibility of fall armyworm to Cry1A Bt toxins [30,31,69,74,75], although stimulatory effects of sublethal-toxin exposure and differences in plant quality for the herbivore cannot be ruled out [76,77]. The resistance costs were lower for the fall armyworms on the foliage of maize and soybean than cotton. Maize seems to be the optimal (i.e., preferred) host plant of S. frugiperda in relation to soybean and cotton, on which the resistant insects had the lowest fitness indices and null life-table statistics (i.e., cohort extinction). Low quality of cotton foliage for fall armyworm larvae were previously reported [40] and may be due to gossypol, a phenolic compound toxic to many insect herbivores [78,79,80] that can affect many life-history traits [75] and amplify the fitness costs of Bt resistance [43,64,71,81]. Mutations associated with Bt resistance may interfere with the functional or structural integrity of the insect gut [37,40,43,68,82], favoring gossypol penetration and its adverse effects [43].
Our findings contrast with the lack of fitness costs of fall armyworm resistance to single-gene Bt maize or the singular pesticidal proteins Cry1A.105 and Cry2Ab2 [15,40,41,42,83,84] but are consistent with the prediction of greater costs of multiple-toxin resistance [4,82]. Our findings partially agree with those reported for fall armyworms selected for resistance to Bt maize producing Cry1A.105, Cry1F, and Cry2Ab2 after F2-screen procedures [11,85]. In such studies, however, the resistance trait carried fitness costs of magnitude lower than the substantial fitness costs we observed here. In this study, the resistant population was field derived from collections in 2013 in a region of intensive agriculture, with complaints of control failure of fall armyworm by Cry1F maize and concurrent Cry1A.105+Cry2Ab2 maize adoption. When we established the base population in the laboratory, the larval survival rate on Cry1A.105+Cry2Ab2 maize was above 20% [9], indicating its past field-selection, which must have been aggravated by the positive cross-resistance between Cry1 Bt toxins in fall armyworm [8,9,47,57].
Two distinct mutant alleles likely confer the resistance to Cry1A.105 and Cry2Ab2 in the fall armyworm. Cry1 and Cry2 pesticidal proteins seem to bind to different sites and have distinct receptor-mediated resistance mechanisms, with no cross-resistance documented so far [8,9,86,87,88]. Lack of fitness costs of single-gene resistance to Cry1A.105 and Cry2Ab2 have been described [83,84]. In contrast, there were measurable fitness costs when the fall armyworms carried resistance alleles to both Cry1A.105 (or Cry1F) and Cry2Ab2 [11,85]. This observation is in line with the hypothesis that the higher the number of mutated resistance genes, the higher the expected fitness costs, owing to pleiotropic effects [4,82], although there could be the selection of less costly alleles or fitness modifying genes that may mitigate the fitness costs [89]. We identified substantial fitness costs when the fall armyworms were reared in different Bt cultivars, and in some of them, the strong fitness costs were magnified even more, suggesting favorable conditions for managing resistance of fall armyworm to Bt crops.
In summary, this research shows that the Cry1A.105+Cry2Ab2 resistance allele(s) have strong pleiotropic effects, reducing the fitness in the resistant fall armyworms in the absence of the pesticide proteins. Developmental time was the life-history trait accounting for most of the insect fitness profile. The lower-quality host-crop cultivars of cotton and soybean enhanced the fitness differential between the resistant and susceptible insects, highlighting host-plant quality as a significant modulating stressor affecting insect resistance management in the agroecosystem. If the substantial fitness costs of resistance to multi-toxin Bt maize occur in the field populations of fall armyworm, the costs may enhance the effect of the refuge and gene pyramiding strategies to delay genetic adaptation to Bt crops by this notorious pest of worldwide importance in agriculture.

Author Contributions

Conceptualization, O.F.S.-A. and E.J.G.P.; Methodology, O.F.S.-A., C.S.T., J.V.C.R. and E.J.G.P.; Software, E.E.O. and R.N.C.G.; Validation, O.F.S.-A. and C.S.T. Formal Analysis, O.F.S.-A. Investigation, O.F.S.-A. Resources, E.E.O., E.J.G.P. and R.N.C.G.; Data Curation, O.F.S.-A. and E.J.G.P.; Writing—Original Draft Preparation, O.F.S.-A.; Writing—Review & Editing, E.J.G.P., E.E.O. and R.N.C.G.; Visualization, E.E.O.; Supervision, E.J.G.P.; Project Administration, E.J.G.P.; Funding Acquisition, E.J.G.P. and E.E.O. All authors have read and agreed to the published version of the manuscript.

Funding

Financial support was provided by the National Council of Scientific and Technological Development (CNPq; ID#: 430701/2016-0; 150434/2017-0) from the Brazilian Ministry of Science and Technology, the CAPES Foundation from the Brazilian Ministry of Education (Finance code 001), and the Minas Gerais State Foundation for Research Aid (FAPEMIG).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available on request from the corresponding author. The data are not publicly available due to privacy or ethical restrictions.

Acknowledgments

We thank the research assistants in the Laboratory of Insect-Plant Interactions for assisting with plant cultivation, insect rearing, and lab maintenance. The thoughtful comments of two anonymous reviewers helped improve the manuscript.

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. National Academies of Sciences|Engineering|Medicine. Genetically Engineered Crops: Experiences and Prospects; National Academies Press: Washington, DC, USA, 2016. [Google Scholar]
  2. ISAAA. Global Status of Commercialized Biotech/GM Crops in 2019: Biotech Crops Drive Socio-Economic Development and Sustainable Environment in the New Frontier. ISAAA Brief No. 55; ISAAA: Ithaca, NY, USA, 2019; p. 21. [Google Scholar]
  3. Klümper, W.; Qaim, M. A meta-analysis of the impacts of genetically modified crops. PLoS ONE 2014, 9, e111629. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Carrière, Y.; Crowder, D.W.; Tabashnik, B.E. Evolutionary ecology of insect adaptation to Bt crops. Evol. Appl. 2010, 3, 561–573. [Google Scholar] [CrossRef] [PubMed]
  5. Tabashnik, B.E.; Carrière, Y. Surge in insect resistance to transgenic crops and prospects for sustainability. Nat. Biotechnol. 2017, 35, 926–935. [Google Scholar] [CrossRef] [PubMed]
  6. Gould, F. Sustainability of transgenic insecticidal cultivars: Integrating pest genetics and ecology. Annu. Rev. Entomol. 1998, 43, 701–726. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Tabashnik, B.E.; Brevault, T.; Carrière, Y. Insect resistance to Bt crops: Lessons from the first billion acres. Nat. Biotechnol. 2013, 31, 510–521. [Google Scholar] [CrossRef]
  8. Bernardi, D.; Salmeron, E.; Horikoshi, R.J.; Bernardi, O.; Dourado, P.M.; Carvalho, R.A.; Martinelli, S.; Head, G.P.; Omoto, C. Cross-resistance between Cry1 proteins in fall armyworm (Spodoptera frugiperda) may affect the durability of current pyramided Bt maize hybrids in Brazil. PLoS ONE 2015, 10, e0140130. [Google Scholar] [CrossRef] [Green Version]
  9. Santos-Amaya, O.F.; Rodrigues, J.V.C.; Souza, T.C.; Tavares, C.S.; Campos, S.O.; Guedes, R.N.C.; Pereira, E.J.G. Resistance to dual-gene Bt maize in Spodoptera frugiperda: Selection, inheritance, and cross-resistance to other transgenic events. Sci. Rep. 2015, 5, 18243. [Google Scholar] [CrossRef]
  10. Downes, S.; Parker, T.; Mahon, R. Incipient resistance of Helicoverpa punctigera to the Cry2Ab Bt toxin in Bollgard II (R) cotton. PLoS ONE 2010, 5, e12567. [Google Scholar] [CrossRef] [Green Version]
  11. Bernardi, D.; Bernardi, O.; Horikoshi, R.J.; Salmeron, E.; Okuma, D.M.; Farias, J.R.; do Nascimento, A.R.B.; Omoto, C. Selection and characterization of Spodoptera frugiperda (Lepidoptera: Noctuidae) resistance to MON 89034 × TC1507 × NK603 maize technology. Crop. Prot. 2017, 94, 64–68. [Google Scholar] [CrossRef]
  12. Zhu, C.; Niu, Y.; Zhou, Y.; Guo, J.; Head, G.P.; Price, P.A.; Wen, X.; Huang, F. Survival and effective dominance level of a Cry1A.105/Cry2Ab2-dual gene resistant population of Spodoptera frugiperda (J.E. Smith) on common pyramided Bt corn traits. Crop. Prot. 2019, 115, 84–91. [Google Scholar] [CrossRef]
  13. Huang, F. Resistance of the fall armyworm, Spodoptera frugiperda, to transgenic Bacillus thuringiensis Cry1F corn in the Americas: Lessons and implications for Bt corn IRM in China. Insect Sci. 2021, 28, 574–589. [Google Scholar] [CrossRef]
  14. Taylor, K.L.; Hamby, K.A.; DeYonke, A.M.; Gould, F.; Fritz, M.L. Genome evolution in an agricultural pest following adoption of transgenic crops. Proc. Natl. Acad. Sci. USA 2021, 118, e2020853118. [Google Scholar] [CrossRef] [PubMed]
  15. Santos-Amaya, O.F.; Tavares, C.S.; Rodrigues, J.V.C.; Campos, S.O.; Guedes, R.N.C.; Alves, A.P.; Pereira, E.J.G. Fitness costs and stability of Cry1Fa resistance in Brazilian populations of Spodoptera frugiperda. Pest Manag. Sci. 2017, 73, 35–43. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Padovez, F.E.O.; Kanno, R.H.; Omoto, C.; Guidolin, A.S. Fitness costs associated with chlorantraniliprole resistance in Spodoptera frugiperda (Lepidoptera: Noctuidae) strains with different genetic backgrounds. Pest Manag. Sci. 2021, 78, 1279–1286. [Google Scholar] [CrossRef] [PubMed]
  17. Huang, F. Dominance and fitness costs of insect resistance to genetically modified Bacillus thuringiensis crops. GM Crops Food 2021, 12, 192–211. [Google Scholar] [CrossRef]
  18. Onstad, D.W. Insect Resistance Management: Biology, Economics, and Prediction; Academic Press: Boston, MA, USA, 2014. [Google Scholar]
  19. Soberón, M.; Gao, Y.; Bravo, A. Bt Resistance: Characterization and Strategies for GM Crops Producing Bacillus thuringiensis Toxins; CABI: Wallingford, UK, 2015; Volume 4. [Google Scholar]
  20. Westbrook, J.K.; Nagoshi, R.N.; Meagher, R.L.; Fleischer, S.J.; Jairam, S. Modeling seasonal migration of fall armyworm moths. Int. J. Biometeorol. 2016, 60, 255–267. [Google Scholar] [CrossRef]
  21. Buntin, G.D. A Review of plant response to fall armyworm, Spodoptera frugiperda (Smith, J.E.), injury in selected field and forage crops. Fla. Entomol. 1986, 69, 549–559. [Google Scholar] [CrossRef]
  22. Goergen, G.; Kumar, P.L.; Sankung, S.B.; Togola, A.; Tamò, M. First report of outbreaks of the fall armyworm Spodoptera frugiperda (J E Smith) (Lepidoptera, Noctuidae), a new alien invasive pest in West and Central Africa. PLoS ONE 2016, 11, e0165632. [Google Scholar] [CrossRef] [Green Version]
  23. Sharanabasappa; Kalleshwaraswamy, C.M.; Asokan, R.; Swamy, H.M.M.; Maruthi, M.S.; Pavithra, H.B.; Hegbe, K.; Navi, S.; Prabhu, S.T.; Goergen, G.E. First report of the Fall armyworm, Spodoptera frugiperda (J E Smith) (Lepidoptera: Noctuidae), an alien invasive pest on maize in India. Pest Manag. Hortic. Ecosyst. 2018, 24, 23–29. [Google Scholar]
  24. Otim, M.H.; Tay, W.T.; Walsh, T.K.; Kanyesigye, D.; Adumo, S.; Abongosi, J.; Ochen, S.; Sserumaga, J.; Alibu, S.; Abalo, G.; et al. Detection of sister-species in invasive populations of the fall armyworm Spodoptera frugiperda (Lepidoptera: Noctuidae) from Uganda. PLoS ONE 2018, 13, e0194571. [Google Scholar] [CrossRef] [Green Version]
  25. Wild, S. Invasive pest hits africa. Nature 2017, 495, 13–14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Nagoshi, R.N.; Koffi, D.; Agboka, K.; Tounou, K.A.; Banerjee, R.; Jurat-Fuentes, J.L.; Meagher, R.L. Comparative molecular analyses of invasive fall armyworm in Togo reveal strong similarities to populations from the eastern United States and the Greater Antilles. PLoS ONE 2017, 12, e0181982. [Google Scholar] [CrossRef] [Green Version]
  27. Sun, X.-X.; Hu, C.-X.; Jia, H.-R.; Wu, Q.-L.; Shen, X.-J.; Zhao, S.-Y.; Jiang, Y.-Y.; Wu, K.-M. Case study on the first immigration of fall armyworm Spodoptera frugiperda invading into China. J. Integr. Agric. 2021, 20, 664–672. [Google Scholar] [CrossRef]
  28. Maino, J.L.; Schouten, R.; Overton, K.; Day, R.; Ekesi, S.; Bett, B.; Barton, M.; Gregg, P.C.; Umina, P.A.; Reynolds, O.L. Regional and seasonal activity predictions for fall armyworm in Australia. Curr. Res. Insect Sci. 2021, 1, 100010. [Google Scholar] [CrossRef]
  29. Farias, J.R.; Andow, D.A.; Horikoshi, R.J.; Sorgatto, R.J.; Fresia, P.; dos Santos, A.C.; Omoto, C. Field-evolved resistance to Cry1F maize by Spodoptera frugiperda (Lepidoptera: Noctuidae) in Brazil. Crop Prot. 2014, 64, 150–158. [Google Scholar] [CrossRef]
  30. Storer, N.P.; Babcock, J.M.; Schlenz, M.; Meade, T.; Thompson, G.D.; Bing, J.W.; Huckaba, R.M. Discovery and characterization of field resistance to Bt maize: Spodoptera frugiperda (Lepidoptera: Noctuidae) in Puerto Rico. J. Econ. Entomol. 2010, 103, 1031–1038. [Google Scholar] [CrossRef]
  31. Huang, F.; Qureshi, J.A.; Meagher, R.L.; Reisig, D.D.; Head, G.P.; Andow, D.A.; Ni, X.Z.; Kerns, D.; Buntin, G.D.; Niu, Y.; et al. Cry1F resistance in fall armyworm Spodoptera frugiperda: Single gene versus pyramided Bt maize. PLoS ONE 2014, 9, e112958. [Google Scholar] [CrossRef] [Green Version]
  32. Omoto, C.; Bernardi, O.; Salmeron, E.; Sorgatto, R.J.; Dourado, P.M.; Crivellari, A.; Carvalho, R.A.; Willse, A.; Martinelli, S.; Head, G.P. Field-evolved resistance to Cry1Ab maize by Spodoptera frugiperda in Brazil. Pest Manag. Sci. 2016, 72, 1727–1736. [Google Scholar] [CrossRef]
  33. Chandrasena, D.I.; Signorini, A.M.; Abratti, G.; Storer, N.P.; Olaciregui, M.L.; Alves, A.P.; Pilcher, C.D. Characterization of field-evolved resistance to Bacillus thuringiensis-derived Cry1F δ-endotoxin in Spodoptera frugiperda populations from Argentina. Pest Manag. Sci. 2018, 74, 746–754. [Google Scholar] [CrossRef] [Green Version]
  34. Fatoretto, J.C.; Michel, A.P.; Silva Filho, M.C.; Silva, N. Adaptive potential of fall armyworm (Lepidoptera: Noctuidae) limits Bt trait durability in Brazil. J. Integr. Pest Manag. 2017, 8, 17. [Google Scholar] [CrossRef]
  35. Roush, R.T. Two-toxin strategies for management of insecticidal transgenic crops: Can pyramiding succeed where pesticide mixtures have not? Philos. Trans. R. Soc. B 1998, 353, 1777–1786. [Google Scholar] [CrossRef] [Green Version]
  36. Zhao, J.Z.; Cao, J.; Collins, H.L.; Bates, S.L.; Roush, R.T.; Earle, E.D.; Shelton, A.M. Concurrent use of transgenic plants expressing a single and two Bacillus thuringiensis genes speeds insect adaptation to pyramided plants. Proc. Natl. Acad. Sci. USA 2005, 102, 8426–8430. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Gassmann, A.J.; Carriere, Y.; Tabashnik, B.E. Fitness costs of insect resistance to Bacillus thuringiensis. Annu. Rev. Entomol. 2009, 54, 147–163. [Google Scholar] [CrossRef]
  38. Carrière, Y.; Tabashnik, B.E. Reversing insect adaptation to transgenic insecticidal plants. Proc. R. Soc. B Biol. Sci. 2001, 268, 1475–1480. [Google Scholar] [CrossRef] [Green Version]
  39. Paddock, K.J.; Hibbard, B.E.; Barry, J.; Sethi, A.; Mueller, A.L.; Shelby, K.S.; Pereira, A.E. Restoration of susceptibility following removal of selection for Cry34/35Ab1 resistance documents fitness costs in resistant population of western corn rootworm, Diabrotica virgifera virgifera. Pest Manag. Sci. 2021, 77, 2385–2394. [Google Scholar] [CrossRef]
  40. Jakka, S.R.K.; Knight, V.R.; Jurat-Fuentes, J.L. Fitness costs associated with field-evolved resistance to Bt maize in Spodoptera frugiperda (Lepidoptera: Noctuidae). J. Econ. Entomol. 2014, 107, 342–351. [Google Scholar] [CrossRef] [PubMed]
  41. Horikoshi, R.J.; Bernardi, O.; Bernardi, D.; Okuma, D.M.; Farias, J.R.; Miraldo, L.L.; Amaral, F.S.; Omoto, C. Near-isogenic Cry1F-resistant strain of Spodoptera frugiperda (lepidoptera: Noctuidae) to investigate fitness cost associated with resistance in Brazil. J. Econ. Entomol. 2016, 109, 854–859. [Google Scholar] [CrossRef]
  42. Vélez, A.M.; Spencer, T.A.; Alves, A.P.; Crespo, A.L.B.; Siegfried, B.D. Fitness costs of Cry1F resistance in fall armyworm, Spodoptera frugiperda. J. Appl. Entomol. 2014, 138, 315–325. [Google Scholar] [CrossRef]
  43. Carrière, Y.; Ellers-Kirk, C.; Biggs, R.; Higginson, D.M.; Dennehy, T.J.; Tabashnik, B.E. Effects of gossypol on fitness costs associated with resistance to Bt cotton in pink bollworm. J. Econ. Entomol. 2004, 97, 1710–1718. [Google Scholar] [CrossRef]
  44. Janmaat, A.F.; Myers, J.H. The cost of resistance to Bacillus thuringiensis varies with the host plant of Trichoplusia ni. Proc. R. Soc. B Biol. Sci. 2005, 272, 1031–1038. [Google Scholar] [CrossRef] [Green Version]
  45. Crowder, D.W.; Carrière, Y. Comparing the refuge strategy for managing the evolution of insect resistance under different reproductive strategies. J. Theor. Biol. 2009, 261, 423–430. [Google Scholar] [CrossRef] [PubMed]
  46. Nagoshi, R.N.; Silvie, P.; Meagher, R.L. Comparison of haplotype frequencies differentiate fall armyworm (Lepidoptera: Noctuidae) corn-strain populations from Florida and Brazil. J. Econ. Entomol. 2007, 100, 954–961. [Google Scholar] [CrossRef] [PubMed]
  47. Tavares, C.S.; Santos-Amaya, O.F.; Oliveira, E.E.; Paula-Moraes, S.V.; Pereira, E.J.G. Facing Bt toxins growing up: Developmental changes of susceptibility to Bt corn hybrids in fall armyworm populations and the implications for resistance management. Crop Prot. 2021, 146, 105664. [Google Scholar] [CrossRef]
  48. Santos-Amaya, O.F.; Tavares, C.S.; Monteiro, H.M.; Teixeira, T.P.M.; Guedes, R.N.C.; Alves, A.P.; Pereira, E.J.G. Genetic basis of Cry1F resistance in two Brazilian populations of fall armyworm, Spodoptera frugiperda. Crop Prot. 2016, 81, 154–162. [Google Scholar] [CrossRef]
  49. Birch, L.C. The intrinsic rate of natural increase of an insect population. J. Anim. Ecol. 1948, 17, 15–26. [Google Scholar] [CrossRef]
  50. Carey, J.R. Applied Demography for Biologists with Special Emphasis on Insects; Oxford University Press, Inc.: York, NY, USA, 1993. [Google Scholar]
  51. Jallow, M.F.; Zalucki, M.P. Relationship between oviposition preference and offspring performance in Australian Helicoverpa armigera (Hubner) (Lepidoptera: Noctuidae). Aust. J. Entomol. 2003, 42, 343–348. [Google Scholar] [CrossRef]
  52. SAS Institute Inc. Base SAS 9.3 Procedures Guide: Statistical Procedures; SAS Institute Inc.: Cary, NC, USA, 2011. [Google Scholar]
  53. Efron, B. The Jackknife, the Bootstrap and Other Resampling Plans; Society for Industrial and Applied Mathematics: Philadelphia, PA, USA, 1982. [Google Scholar]
  54. Meyer, J.S.; Ingersoll, C.G.; Mcdonald, L.L.; Boyce, M.S. Estimating uncertainty in population growth rates: Jackknife vs Bootstrap techniques. Ecology 1986, 67, 1156–1166. [Google Scholar] [CrossRef] [Green Version]
  55. Maia, A.H.N.; Luiz, A.J.B.; Campanhola, C. Statistical inference on associated fertility life table parameters using jackknife technique: Computational aspects. J. Econ. Entomol. 2000, 93, 511–518. [Google Scholar] [CrossRef]
  56. Gould, F.; Cohen, M.B.; Bentur, J.S.; Kennedy, G.G.; Van Duyn, J. Impact of small fitness costs on pest adaptation to crop varieties with multiple toxins: A heuristic model. J. Econ. Entomol. 2006, 99, 2091–2099. [Google Scholar] [CrossRef]
  57. Tabashnik, B.E.; Unnithan, G.C.; Masson, L.; Crowder, D.W.; Li, X.C.; Carriere, Y. Asymmetrical cross-resistance between Bacillus thuringiensis toxins Cry1Ac and Cry2Ab in pink bollworm. Proc. Natl. Acad. Sci. USA 2009, 106, 11889–11894. [Google Scholar] [CrossRef] [Green Version]
  58. Souza, C.S.F.; Silveira, L.C.P.; Pitta, R.M.; Waquil, J.M.; Pereira, E.J.G.; Mendes, S.M. Response of field populations and Cry-resistant strains of fall armyworm to Bt maize hybrids and Bt-based bioinsecticides. Crop Prot. 2019, 120, 1–6. [Google Scholar] [CrossRef]
  59. Moscardini, V.F.; Marques, L.H.; Santos, A.C.; Rossetto, J.; Silva, O.A.B.N.; Rampazzo, P.E.; Castro, B.A. Efficacy of Bacillus thuringiensis (Bt) maize expressing Cry1F, Cry1A.105, Cry2Ab2 and Vip3Aa20 proteins to manage the fall armyworm (Lepidoptera: Noctuidae) in Brazil. Crop Prot. 2020, 137, 105269. [Google Scholar] [CrossRef]
  60. Gonçalves, J.; Rodrigues, J.V.C.; Santos-Amaya, O.F.; Paula-Moraes, S.V.; Pereira, E.J.G. The oviposition behavior of fall armyworm moths is unlikely to compromise the refuge strategy in genetically modified Bt crops. J. Pest Sci. 2020, 93, 965–977. [Google Scholar] [CrossRef]
  61. Maino, J.L.; Renton, M.; Hoffmann, A.A.; Umina, P.A. Field margins provide a refuge for pest genes beneficial to resistance management. J. Pest Sci. 2019, 92, 1017–1026. [Google Scholar] [CrossRef]
  62. Carrière, Y.; Deland, J.P.; Roff, D.A.; Vincent, C. Life-history costs associated with the evolution of insecticide resistance. Proc. R. Soc. B Biol. Sci. 1994, 258, 35–40. [Google Scholar] [CrossRef]
  63. Bird, L.J.; Akhurst, R.J. Effects of host plant species on fitness costs of Bt resistance in Helicoverpa armigera (Lepidoptera: Noctuidae). Biol. Control. 2007, 40, 196–203. [Google Scholar] [CrossRef]
  64. Williams, J.L.; Ellers-Kirk, C.; Orth, R.G.; Gassmann, A.J.; Head, G.; Tabashnik, B.E.; Carriere, Y. Fitness cost of resistance to Bt cotton linked with increased gossypol content in pink bollworm larvae. PLoS ONE 2011, 6, e21863. [Google Scholar] [CrossRef] [Green Version]
  65. Pittendrigh, B.R.; Gaffney, P.J.; Huesing, J.E.; Onstad, D.W.; Roush, R.T.; Murdock, L.L. “Active” refuges can inhibit the evolution of resistance in insects towards transgenic insect-resistant plants. J. Theor. Biol. 2004, 231, 461–474. [Google Scholar] [CrossRef]
  66. Becker, J.M.; Liess, M. Biotic interactions govern genetic adaptation to toxicants. Proc. R. Soc. B Biol. Sci. 2015, 282, 20150071. [Google Scholar] [CrossRef]
  67. Zhang, L.J.; Wu, Z.L.; Wang, K.F.; Liu, Q.; Zhuang, H.M.; Wu, G. Trade-off between thermal tolerance and insecticide resistance in Plutella xylostella. Ecol. Evol. 2015, 5, 515–530. [Google Scholar] [CrossRef]
  68. Pigott, C.R.; Ellar, D.J. Role of receptors in Bacillus thuringiensis crystal toxin activity. Microbiol. Mol. Biol. Rev. 2007, 71, 255–281. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Sousa, F.F.; Mendes, S.M.; Santos-Amaya, O.F.; Araújo, O.G.; Oliveira, E.E.; Pereira, E.J.G. Life-history traits of Spodoptera frugiperda populations exposed to low-dose Bt maize. PLoS ONE 2016, 11, e0156608. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Gryspeirt, A.; Gregoire, J.C. Lengthening of insect development on Bt zone results in adult emergence asynchrony: Does it influence the effectiveness of the high dose/refuge zone strategy? Toxins 2012, 4, 1323–1342. [Google Scholar] [CrossRef] [Green Version]
  71. Carrière, Y.; Ellers-Kirk, C.; Biggs, R.; Degain, B.; Holley, D.; Yafuso, C.; Evans, P.; Dennehy, T.J.; Tabashnik, B.E. Effects of cotton cultivar on fitness costs associated with resistance of pink bollworm (Lepidoptera: Gelechiidae) to Bt cotton. J. Econ. Entomol. 2005, 98, 947–954. [Google Scholar] [CrossRef]
  72. Raymond, B.; Sayyed, A.H.; Wright, D.J. Genes and environment interact to determine the fitness costs of resistance to Bacillus thuringiensis. Proc. R. Soc. B Biol. Sci. 2005, 272, 1519–1524. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Hackett, S.C.; Bonsall, M.B. Type of fitness cost influences the rate of evolution of resistance to transgenic Bt crops. J. Appl. Ecol. 2016, 53, 1391–1401. [Google Scholar] [CrossRef] [Green Version]
  74. Vélez, A.M.; Spencer, T.A.; Alves, A.P.; Moellenbeck, D.; Meagher, R.L.; Chirakkal, H.; Siegfried, B.D. Inheritance of Cry1F resistance, cross-resistance and frequency of resistant alleles in Spodoptera frugiperda (Lepidoptera: Noctuidae). Bull. Entomol. Res. 2013, 103, 700–713. [Google Scholar] [CrossRef] [Green Version]
  75. Waquil, J.M.; Vilella, F.M.F.; Siegfried, B.D.; Foster, J.E. Biological activity of Bt toxins, Cry1Ab and Cry1F on Spodoptera frugiperda (Smith) (Lepidoptera: Noctuidae). Rev. Bras. De Milho E Sorgo 2004, 3, 161–171. [Google Scholar] [CrossRef]
  76. Guedes, R.N.C.; Smagghe, G.; Stark, J.D.; Desneux, N. Pesticide-induced stress in arthropod pests for optimized integrated pest management programs. Annu. Rev. Entomol. 2016, 61, 43–62. [Google Scholar] [CrossRef] [Green Version]
  77. Barros, E.M.; Torres, J.B.; Ruberson, J.R.; Oliveira, M.D. Development of Spodoptera frugiperda on different hosts and damage to reproductive structures in cotton. Entomol. Exp. Appl. 2010, 137, 237–245. [Google Scholar] [CrossRef]
  78. Mao, Y.B.; Cai, W.J.; Wang, J.W.; Hong, G.J.; Tao, X.Y.; Wang, L.J.; Huang, Y.P.; Chen, X.Y. Silencing a cotton bollworm P450 monooxygenase gene by plant-mediated RNAi impairs larval tolerance of gossypol. Nat. Biotechnol. 2007, 25, 1307–1313. [Google Scholar] [CrossRef] [PubMed]
  79. Meisner, J.; Wysoki, M.; Telzak, L. Gossypol as phagodeterrent for Boarmia (Ascotis) Selenaria larvae (Lepidoptera: Geometridae). J. Econ. Entomol. 1976, 69, 683–685. [Google Scholar] [CrossRef]
  80. Stipanovic, R.D.; Lopez, J.D.; Dowd, M.K.; Puckhaber, L.S.; Duke, S.E. Effect of racemic, (+)- and (-)-gossypol on survival and development of Heliothis virescens larvae. Environ. Entomol. 2008, 37, 1081–1085. [Google Scholar] [CrossRef]
  81. Carrière, Y.; Yelich, A.J.; Degain, B.A.; Harpold, V.S.; Unnithan, G.C.; Kim, J.H.; Mathew, L.G.; Head, G.P.; Rathore, K.S.; Fabrick, J.A.; et al. Gossypol in cottonseed increases the fitness cost of resistance to Bt cotton in pink bollworm. Crop Prot. 2019, 126, 104914. [Google Scholar] [CrossRef]
  82. Cao, G.; Feng, H.; Guo, F.; Wu, K.; Li, X.; Liang, G.; Desneux, N. Quantitative analysis of fitness costs associated with the development of resistance to the Bt toxin Cry1Ac in Helicoverpa armigera. Sci. Rep. 2014, 4, 5629. [Google Scholar] [CrossRef] [Green Version]
  83. Acharya, B.; Head, G.P.; Price, P.A.; Huang, F. Fitness costs and inheritance of Cry2Ab2 resistance in Spodoptera frugiperda (J.E. Smith). J. Invertebr. Pathol. 2017, 149, 8–14. [Google Scholar] [CrossRef]
  84. Niu, Y.; Head, G.P.; Price, P.A.; Huang, F. Inheritance and fitness costs of Cry1A.105 resistance in two strains of Spodoptera frugiperda (J.E. Smith). Crop Prot. 2018, 110, 229–235. [Google Scholar] [CrossRef]
  85. Garlet, C.G.; Muraro, D.S.; Godoy, D.N.; Cossa, G.E.; Hanich, M.R.; Stacke, R.F.; Bernardi, O. Assessing fitness costs of the resistance of Spodoptera frugiperda (Lepidoptera: Noctuidae) to pyramided Cry1 and Cry2 insecticidal proteins on different host plants. Bull. Entomol. Res. 2022, 1–9. [Google Scholar] [CrossRef]
  86. Hernández-Rodríguez, C.S.; Hernández-Martínez, P.; Van Rie, J.; Escriche, B.; Ferré, J. Shared midgut binding sites for Cry1A.105, Cry1Aa, Cry1Ab, Cry1Ac and Cry1Fa proteins from Bacillus thuringiensis in two important corn pests, Ostrinia nubilalis and Spodoptera frugiperda. PLoS ONE 2013, 8, e68164. [Google Scholar] [CrossRef]
  87. Jakka, S.R.K.; Gong, L.; Hasler, J.; Banerjee, R.; Sheets, J.J.; Narva, K.; Blanco, C.A.; Jurat-Fuentes, J.L. Field-evolved mode 1 resistance of the fall armyworm to transgenic Cry1Fa-expressing corn associated with reduced Cry1Fa toxin binding and midgut alkaline phosphatase expression. Appl. Environ. Microbiol. 2016, 82, 1023–1034. [Google Scholar] [CrossRef] [Green Version]
  88. Tay, W.T.; Mahon, R.J.; Heckel, D.G.; Walsh, T.K.; Downes, S.; James, W.J.; Lee, S.F.; Reineke, A.; Williams, A.K.; Gordon, K.H. Insect resistance to Bacillus thuringiensis toxin Cry2Ab is conferred by mutations in an ABC transporter subfamily A protein. PLoS Genet. 2015, 11, e1005534. [Google Scholar] [CrossRef] [PubMed]
  89. Coustau, C.; Chevillon, C.; ffrench-Constant, R. Resistance to xenobiotics and parasites: Can we count the cost? Trends Ecol. Evol. 2000, 15, 378–383. [Google Scholar] [CrossRef]
Agronomy 12 00682 g001 550

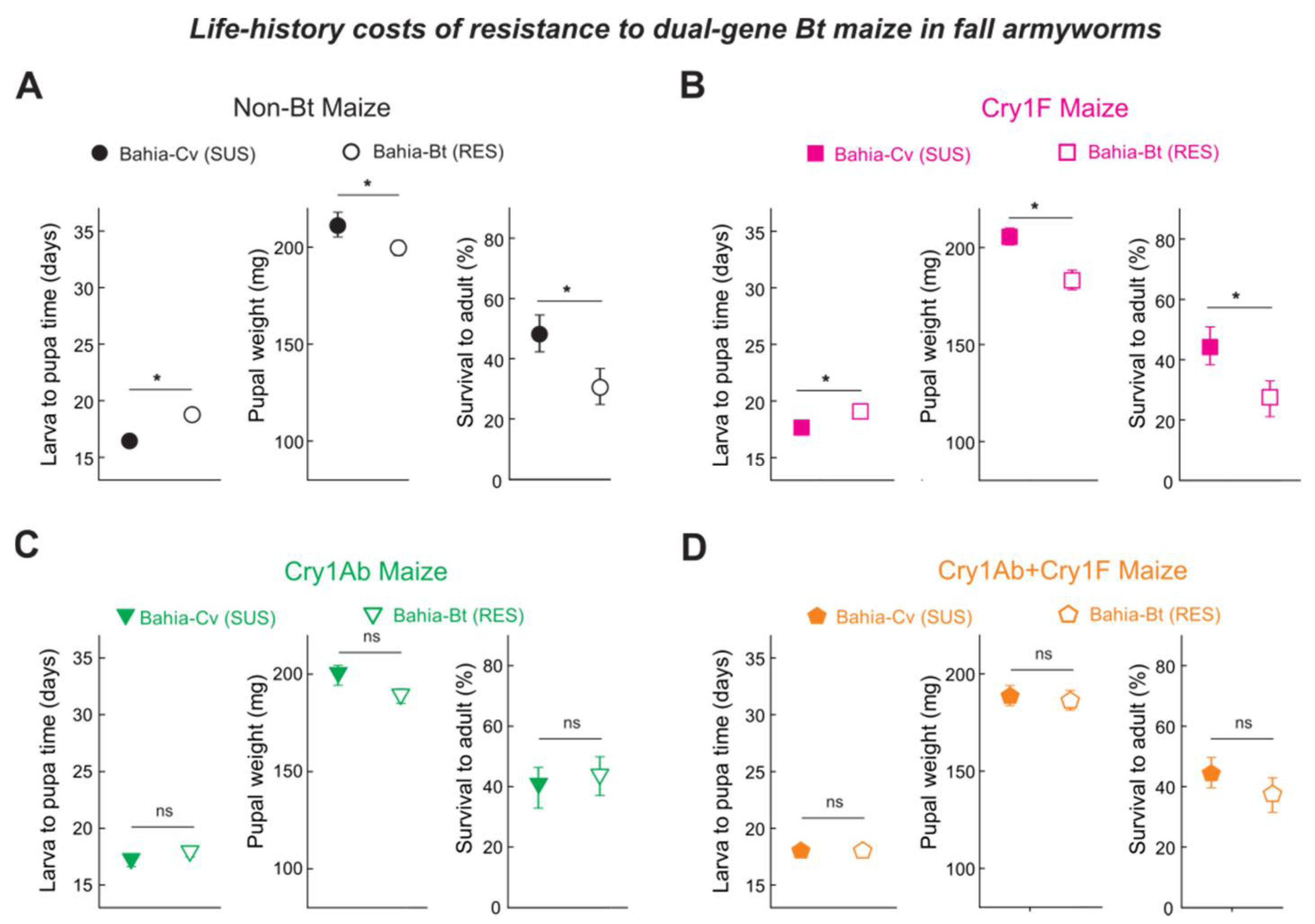

Figure 1. Life-history costs of resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2) in the invasive fall armyworm (Spodoptera frugiperda). Larvae (n = 160) of a Bt-resistant population (Bahia-Bt, black symbols) and susceptible population (Bahia-Cv, white symbols) were reared on the foliage of four maize cultivars (panels A–D), and their life-history traits were recorded. Data are means ± standard errors. Asterisks indicate significant differences (ANOVA, p < 0.05) between the insect populations. ns: Not Significant.
Figure 1. Life-history costs of resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2) in the invasive fall armyworm (Spodoptera frugiperda). Larvae (n = 160) of a Bt-resistant population (Bahia-Bt, black symbols) and susceptible population (Bahia-Cv, white symbols) were reared on the foliage of four maize cultivars (panels A–D), and their life-history traits were recorded. Data are means ± standard errors. Asterisks indicate significant differences (ANOVA, p < 0.05) between the insect populations. ns: Not Significant.
Agronomy 12 00682 g001
Agronomy 12 00682 g002 550

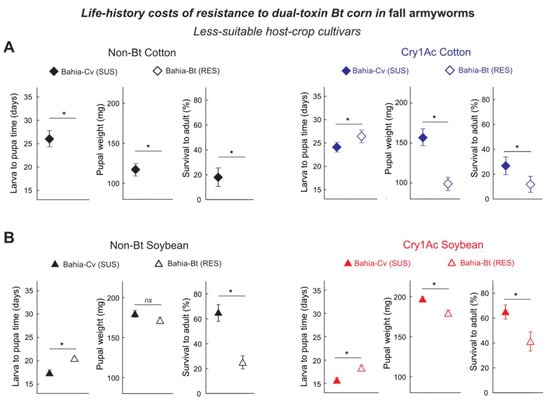

Figure 2. Influence of less-suitable host plants on the life-history costs of resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2) in the invasive fall armyworm (Spodoptera frugiperda). Larvae (n = 160) of a Bt-resistant population (Bahia-Bt, black symbols) and susceptible population (Bahia-Cv, white symbols) were reared on the foliage of cultivars of (A) cotton and (B) soybean, and their life-history traits were recorded. Data are means ± standard errors. Asterisks indicate significant differences (ANOVA, p < 0.05) between the insect populations. ns: Not Significant.
Figure 2. Influence of less-suitable host plants on the life-history costs of resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2) in the invasive fall armyworm (Spodoptera frugiperda). Larvae (n = 160) of a Bt-resistant population (Bahia-Bt, black symbols) and susceptible population (Bahia-Cv, white symbols) were reared on the foliage of cultivars of (A) cotton and (B) soybean, and their life-history traits were recorded. Data are means ± standard errors. Asterisks indicate significant differences (ANOVA, p < 0.05) between the insect populations. ns: Not Significant.
Agronomy 12 00682 g002
Agronomy 12 00682 g003 550

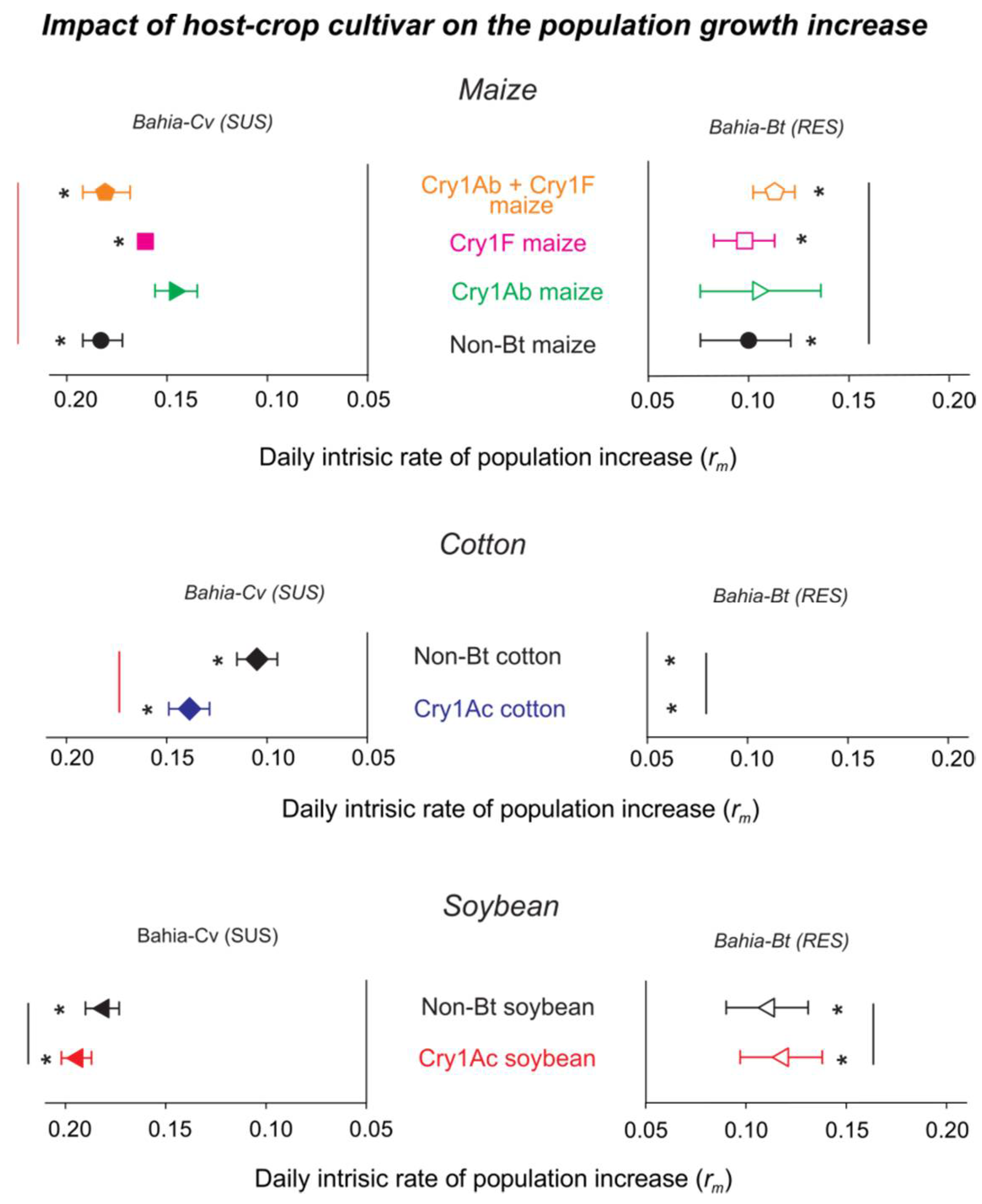

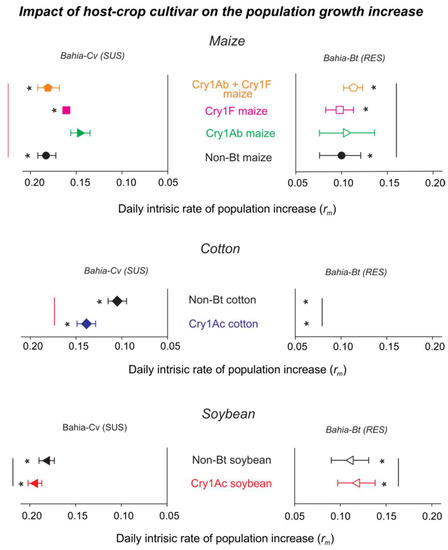

Figure 3. Population fitness costs of fall armyworm (Spodoptera frugiperda) resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2). Shown are intrinsic rates of population increase for Bt-resistant and -susceptible fall armyworms reared on the foliage of eight host-plant cultivars (n = 12–17 families per insect population per host-plant cultivar). Data are means and standard errors. * Reduced population fitness (p < 0.05), one-tailed t-test using jackknife-estimated variances. Values under the same vertical line are not significantly different (p < 0.05) using Bonferonni correction.
Figure 3. Population fitness costs of fall armyworm (Spodoptera frugiperda) resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2). Shown are intrinsic rates of population increase for Bt-resistant and -susceptible fall armyworms reared on the foliage of eight host-plant cultivars (n = 12–17 families per insect population per host-plant cultivar). Data are means and standard errors. * Reduced population fitness (p < 0.05), one-tailed t-test using jackknife-estimated variances. Values under the same vertical line are not significantly different (p < 0.05) using Bonferonni correction.
Agronomy 12 00682 g003
Agronomy 12 00682 g004 550

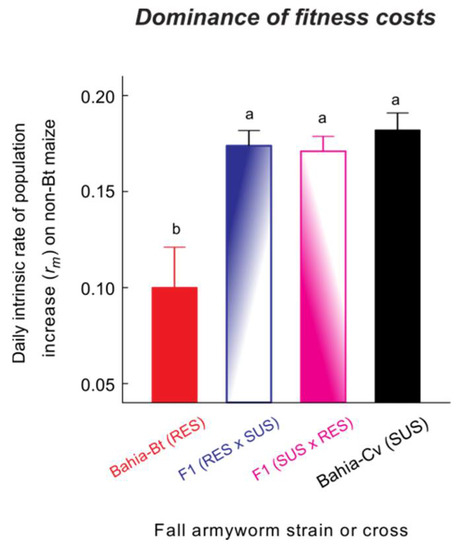

Figure 4. Dominance of the fitness costs associated with resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2) in the invasive fall armyworm (Spodoptera frugiperda). Shown are intrinsic rates of population increase (rm) for the susceptible and resistant populations and for the offspring of their reciprocal crosses, all of them reared on leaves of non-Bt maize. Means ± standard errors followed by the same letter are not significantly different (p > 0.05, t-test using the jackknife estimate of variance with α correction using Bonferonni procedure).
Figure 4. Dominance of the fitness costs associated with resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2) in the invasive fall armyworm (Spodoptera frugiperda). Shown are intrinsic rates of population increase (rm) for the susceptible and resistant populations and for the offspring of their reciprocal crosses, all of them reared on leaves of non-Bt maize. Means ± standard errors followed by the same letter are not significantly different (p > 0.05, t-test using the jackknife estimate of variance with α correction using Bonferonni procedure).
Agronomy 12 00682 g004
Agronomy 12 00682 g005 550

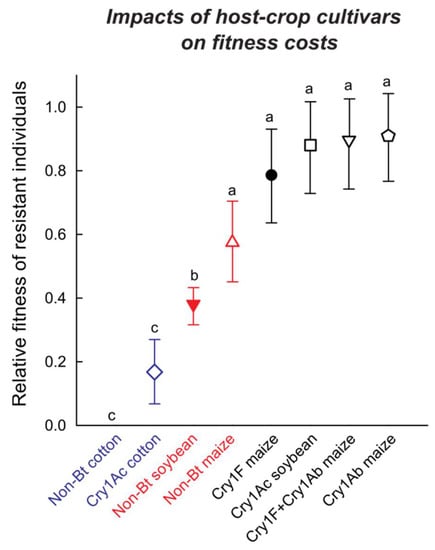

Figure 5. Effect of host-crop cultivars on the fitness costs of resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2) in the invasive fall armyworm (Spodoptera frugiperda). The relative fitness index was calculated by dividing the fitness index value of the Bt-resistant population by the fitness index value of the susceptible population. Means ± standard errors followed by the same letter are not significantly different (Scott-Knott test, p > 0.05).
Figure 5. Effect of host-crop cultivars on the fitness costs of resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2) in the invasive fall armyworm (Spodoptera frugiperda). The relative fitness index was calculated by dividing the fitness index value of the Bt-resistant population by the fitness index value of the susceptible population. Means ± standard errors followed by the same letter are not significantly different (Scott-Knott test, p > 0.05).
Agronomy 12 00682 g005
Agronomy 12 00682 g006 550

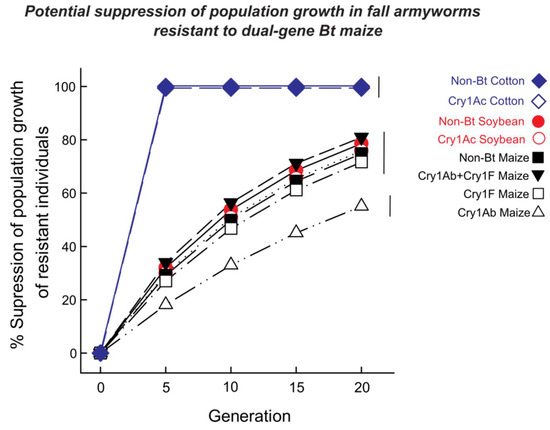

Figure 6. Potential suppression of population growth of a Cry1A.105+Cry2Ab2-resistant population of the fall armyworm (Spodoptera frugiperda) in the foliage of eight host-plant cultivars due to fitness costs of the resistance. The population size (Nt) for the Bt-resistant and Bt-susceptible population was estimated using the exponential growth model for each cultivar; at generation t, the population size value of the Bt-resistant population was divided by the population size value of the Bt-susceptible population (see Section 2).
Figure 6. Potential suppression of population growth of a Cry1A.105+Cry2Ab2-resistant population of the fall armyworm (Spodoptera frugiperda) in the foliage of eight host-plant cultivars due to fitness costs of the resistance. The population size (Nt) for the Bt-resistant and Bt-susceptible population was estimated using the exponential growth model for each cultivar; at generation t, the population size value of the Bt-resistant population was divided by the population size value of the Bt-susceptible population (see Section 2).
Agronomy 12 00682 g006
Agronomy 12 00682 g007 550

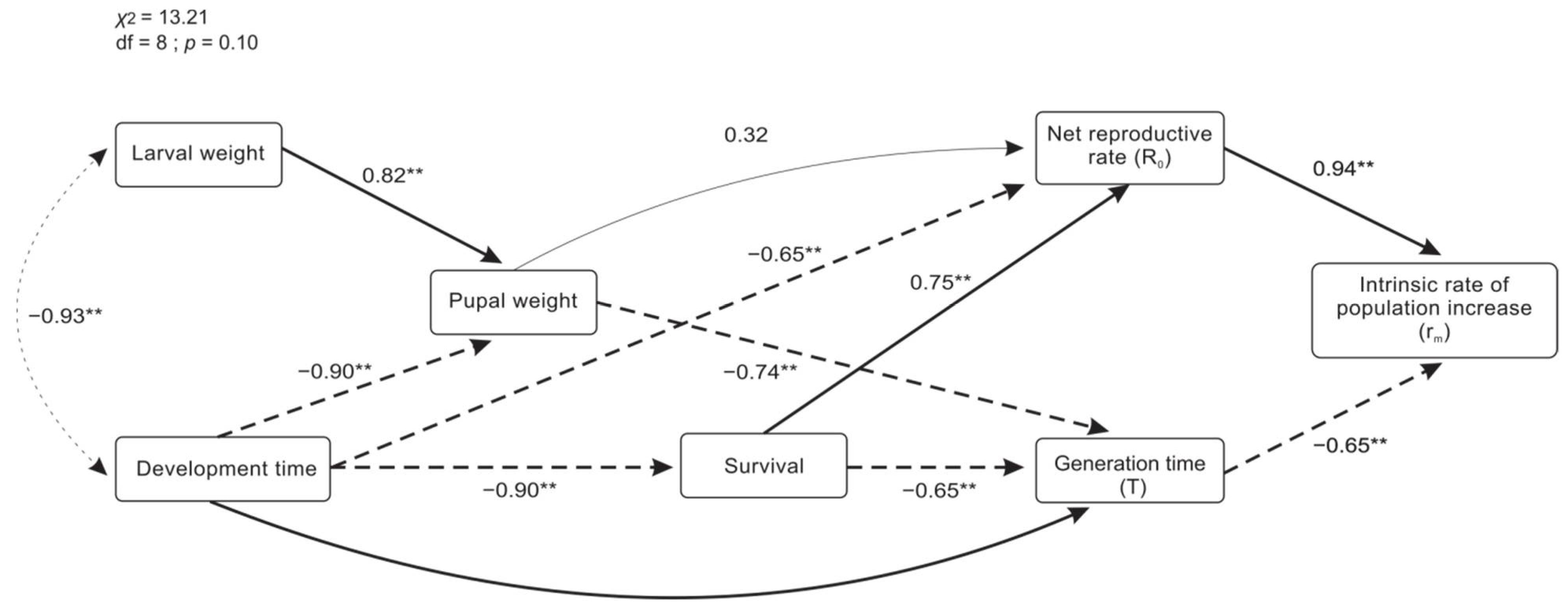

Figure 7. Path analysis diagram of the influence of Bt-toxin-free environment (i.e., maize, cotton, and soybean foliage) on life-history traits and population fitness of fall armyworm populations showing differential resistance to Cry1A.105+Cry2Ab2 Bt toxins. The result of χ2 goodness-of-fit for the path model is indicated. One-headed arrows indicate causal relationships (regression), while doubled-headed arrows indicate the correlation between the variables. Asterisks represent significance levels (** p < 0.01), and the thickness of each line is proportional to the strength of the relationship. Solid arrows indicate positive relationships, while dashed arrows indicate negative relationships. Direct, indirect, and total values for path coefficients are shown in Table 3.
Figure 7. Path analysis diagram of the influence of Bt-toxin-free environment (i.e., maize, cotton, and soybean foliage) on life-history traits and population fitness of fall armyworm populations showing differential resistance to Cry1A.105+Cry2Ab2 Bt toxins. The result of χ2 goodness-of-fit for the path model is indicated. One-headed arrows indicate causal relationships (regression), while doubled-headed arrows indicate the correlation between the variables. Asterisks represent significance levels (** p < 0.01), and the thickness of each line is proportional to the strength of the relationship. Solid arrows indicate positive relationships, while dashed arrows indicate negative relationships. Direct, indirect, and total values for path coefficients are shown in Table 3.
Agronomy 12 00682 g007
Table
Table 1. Non-Bt and Bt crop cultivars used in the study.
Table 1. Non-Bt and Bt crop cultivars used in the study.
Host CropTraitAbbreviationCultivar, Transgenic Event, and Seed CompanyBt Toxin
MaizeNon-BtNon-Bt maize30F53, Isogenic hybrid, Corteva AgriscienceNon-Bt
MaizeBtCry1F maize30F53H, TC1507, Corteva AgriscienceCry1F
MaizeBtCry1Ab maize30F53Y, MON810, Corteva AgriscienceCry1Ab
MaizeBtCry1F+Cry1Ab maize30F53HY, TC1507 × MON810, Corteva AgriscienceCry1Ab, Cry1F
SoybeanNon-BtNon-Bt soybeanMSOY8866, Near-isogenic cultivar, Monsoy BayerNon-Bt
SoybeanBt + Glyphosate resistanceCry1Ac soybeanM8330IPRO, MON87701 × MON89788, Monsoy BayerCry1Ac
CottonNon-BtNon-Bt cottonDelta Opal, Isogenic cultivar), D&PL BrazilNon-Bt
CottonBtCry1Ac cottonNuOpal MON531, D&PL BrazilCry1Ac
The same abbreviations were used throughout the text, tables, and figures. Expression/non-expression of Bt proteins was confirmed using ELISA-based assays (EnviroLogix, Quantiplate kits, Portland, ME).
Table
Table 2. Fitness costs of fall armyworm resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2). Shown are population growth statistics for Bt-resistant and -susceptible fall armyworms reared on the foliage of eight host-plant cultivars (n = 12–17 families per insect population per host-plant cultivar).
Table 2. Fitness costs of fall armyworm resistance to dual-gene Bt maize (Cry1A.105+Cry2Ab2). Shown are population growth statistics for Bt-resistant and -susceptible fall armyworms reared on the foliage of eight host-plant cultivars (n = 12–17 families per insect population per host-plant cultivar).
Host-Plant CultivarPopulation Growth
Parameter 1		Fall Armyworm Populationp
SusceptibleResistant
Cry1Ac cottonrm0.139 ± 0.010ndnd
R072.1 ± 21.8ndnd
T31.0 ± 1.2ndnd
Non-Bt cottonrm0.105 ± 0.010ndnd
R025.1 ± 9.5ndnd
T31.3 ± 0.8ndnd
Non-Bt soybeanrm0.195 ± 0.0070.118 ± 0.020<0.01
R0189.4 ± 35.622.2 ± 10.6<0.01
T27.0 ± 0.327.3 ± 0.50.28
Cry1Ac soybeanrm0.182 ± 0.0080.111 ± 0.020<0.01
R0106.4 ± 22.321.4 ± 11.3<0.01
T25.9 ± 0.229.1 ± 0.1<0.01
Non-Bt maizerm0.183 ± 0.0090.100 ± 0.021<0.01
R0130.6 ± 34.115.5 ± 7.9<0.01
T26.8 ± 0.528.1 ± 1.20.08
Cry1Ab maizerm0.146 ± 0.0100.106 ± 0.0300.08
R048.8 ± 18.317.0 ± 11.70.07
T27.0 ± 0.528.1 ± 0.90.12
Cry1Ab+Cry1F maizerm0.182 ± 0.0100.113 ± 0.010<0.01
R0131.8 ± 32.524.0 ± 8.8<0.01
T26.9 ± 0.428.6 ± 0.3<0.01
Cry1F maizerm0.161 ± 0.0010.098 ± 0.015<0.01
Ro79.2 ± 20.615.9 ± 6.20.01
T27.7 ± 0.528.9 ± 1.20.13
1 R0, net reproductive rate (the number of times the population multiplies per generation); rm, intrinsic rate of population increase (per day); T, mean generation time (days) (see Materials and Methods). nd, Not determined due to death or lack of reproduction of the resistant insects, indicating strong fitness costs of the resistance. Data are means ± SE and p values for one-tailed t-tests on the hypothesized reduced fitness (i.e., reduced rm and R0; increased T) of resistant insects.
Table
Table 3. Direct (D), indirect (I), and total (T) effects in the path diagram of Figure 7 for the model on the influence of resistance to Cry1A.105+Cry2Ab2 on life-history traits and their potential consequences for population growth of the fall armyworm.
Table 3. Direct (D), indirect (I), and total (T) effects in the path diagram of Figure 7 for the model on the influence of resistance to Cry1A.105+Cry2Ab2 on life-history traits and their potential consequences for population growth of the fall armyworm.
VariablePupal WeightSurvivalNet Reproductive Rate (R0)Generation Time
(T)		Intrinsic Rate of Increase
(rm)
DITDITDITDITDIT
Larval weight−0.014-−0.014-0.0030.003-0.0400.040-2 × 10–42 × 10–4-1.7 × 10–51.7 × 10–5
Development time−12.64-−12.64−7.762.67−5.09−39.1622.39−11.770.40.1400.540-−9 × 10–3−9 × 10–3
Pupal weight---−0.21-−0.21−2.26−0.25−2.51−0.1201−0.001−0.013-−1 × 10–3−1 × 10–3
Survival------1.2-1.200.004-4 × 10–3-6 × 10–46 × 10–4
R0------------−5 × 10–3-−5 × 10–3
T------------5 × 10–3-5 × 10–3
R20.66 0.83 0.61 0.63 0.93
p<0.01 <0.01 0.02 0.01 <0.01
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Santos-Amaya, O.F.; Tavares, C.S.; Rodrigues, J.V.C.; Oliveira, E.E.; Guedes, R.N.C.; Pereira, E.J.G. Strong Fitness Costs of Fall Armyworm Resistance to Dual-Gene Bt Maize Are Magnified on Less-Suitable Host-Crop Cultivars. Agronomy 2022, 12, 682. https://doi.org/10.3390/agronomy12030682

AMA Style

Santos-Amaya OF, Tavares CS, Rodrigues JVC, Oliveira EE, Guedes RNC, Pereira EJG. Strong Fitness Costs of Fall Armyworm Resistance to Dual-Gene Bt Maize Are Magnified on Less-Suitable Host-Crop Cultivars. Agronomy. 2022; 12(3):682. https://doi.org/10.3390/agronomy12030682

Chicago/Turabian Style

Santos-Amaya, Oscar F., Clébson S. Tavares, João Victor C. Rodrigues, Eugênio E. Oliveira, Raul Narciso C. Guedes, and Eliseu José G. Pereira. 2022. "Strong Fitness Costs of Fall Armyworm Resistance to Dual-Gene Bt Maize Are Magnified on Less-Suitable Host-Crop Cultivars" Agronomy 12, no. 3: 682. https://doi.org/10.3390/agronomy12030682

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
