Root Characterization of Myanmar Upland and Lowland Rice in Relation to Agronomic and Physiological Traits under Drought Stress Condition

by
Moe Myint Sandar
1,
Mathurada Ruangsiri
2,
Cattleya Chutteang
3,
Anuruck Arunyanark
3,
Theerayut Toojinda
2 and
Jonaliza L. Siangliw
2,*
1
Master of Science Agricultural Research and Development, Faculty of Agriculture at Kamphaeng Saen, Kasetsart University, Kamphaeng Saen, Nakhon Pathom 73140, Thailand
2
National Center for Genetic Engineering and Biotechnology, National Science and Technology Development Agency (NSTDA), Phahonyothin, Khlong Nueng, Khlong Luang, Pathum Thani 12120, Thailand
3
Department of Agronomy, Faculty of Agriculture at Kamphaeng Saen, Kasetsart University, Kamphaeng Saen, Nakhon Pathom 73140, Thailand
*
Author to whom correspondence should be addressed.
Agronomy 2022, 12(5), 1230; https://doi.org/10.3390/agronomy12051230
Submission received: 4 April 2022 / Revised: 6 May 2022 / Accepted: 16 May 2022 / Published: 21 May 2022
Browse Figures
Versions Notes

Abstract

:
Lowland and upland rice are the two most important rice ecotypes and are grown under different ecosystems of contrasting soil water conditions. The study aimed to characterize root morphological, anatomical, and architectural traits and shoot physiological traits related to agronomic traits in Myanmar lowland and upland rice under drought conditions. Drought experiments were conducted in the field and in the greenhouse. The reduction in root traits under drought was observed in both lowland and upland rice except for the stele and xylem area. Stele area and xylem area were increased under drought in lowland rice while stele area in upland rice was decreased and was not changed in the xylem area. A positive relationship between agronomic traits and root traits of lowland rice was observed including the total number of nodal roots, root number per tiller, and a negative relationship in lateral root density more than anatomical traits. While upland rice illustrated the relationship between root anatomical traits and agronomic traits. In addition, a negative contribution to biomass by photosynthesis rate, stomatal conductance, and transpiration rate was observed in lowland and upland rice. These findings can help improve drought tolerance in rice by selecting the optimal root trait for each rice ecosystem.

1. Introduction

Drought is the main important abiotic stress that negatively influences plant growth and development. Drought stress can reduce 30–50% of crop yield. It is especially sensitive to drought stress during reproductive growth and even moderate stress can result in a drastic reduction in grain yield [1,2,3]. Rice is one of the most important staple food crops and it is grown in 7.2 million hectares representing 34% of the total cultivated area in Myanmar. The drought area is estimated to be 67,700 square kilometers and it constitutes 10 percent of the total area of Myanmar. Farmers in central Myanmar are facing difficulties in rice growing as there is a shortage of water due to drought [4]. Rice is vulnerable to drought stress at all stages of growth, especially reproductive stage leading to a significant reduction in grain yield [5,6]. Improving drought resistance is the one of main targets in the future.
Upland and lowland rice are the two most important ecotypes. Upland rice is mainly cultivated in non-bunded fields without any irrigation facilities. Upland rice varieties are an important genetic resource due to their water-saving ability and drought-resistant characters [7]. Lowland rice has the greatest water requirement of all cereal crops [8]. Moreover, lowland rice plants often experience drought in rainfed environments when rainfall is not sufficient to maintain flooded paddy conditions. Because rice is adapted to saturated soils, the physiology and drought response of lowland rice are different from those of other crops.
Root traits have been claimed to be critical for increasing yield under soil-related stresses [9,10]. The root system of rice is very poor when compared with other cereal crops [11]. The rice root system is divided into three different classes including seminal roots, mesocotyl roots, and nodal roots. Lateral roots emerge from each of these classes. These three classes differ in origin, anatomy, and function [12]. The ability of roots to uptake water and nutrients mainly depends on root morphological and anatomical traits [13]. Extensive studies on rice roots have identified many root traits that provide drought resistance. Rice genotypes that have deep, coarse roots with a high ability of branching and penetration and higher root to shoot ratio are reported as component traits of drought avoidance [14,15,16]. Increased lateral root formation under drought stress was suggested as a potentially useful adaption to drought in lowland rice [17,18]. Xylem vessels traits (number, diameter, and area) affect axial water conductance while cortical traits and the presence of suberized cell layers may affect radial conductance. Larger xylem vessels and thicker roots are characteristic of upland rice and associated with improved drought tolerance [16]. Moreover, plants with deep rooting can access water from deeper soil layers, which enables the plants to avoid drought stress [19,20,21]. A well-developed root system will help the plant in maintaining high plant water status [22]. Under drought stress, upland rice develops deep and thick root systems to improve the hydraulic properties of its roots [19,23]. These features greatly enhance the drought resistance of upland rice varieties by allowing the absorption of more water stored in deep soil layers [20,24,25].
The objective of this study was to characterize root morphological, architectural, and anatomical traits of Myanmar upland and lowland rice related to agronomic and physiological traits under drought treatment in lowland environment.

2. Materials and Methods

2.1. Plant Materials, Growth Conditions, and Drought Treatment

Seven upland and fourteen lowland rice varieties were obtained from Myanmar and one Thai lowland rice variety was used as a drought resistance check (Table S1). In the first experiment, all 21 varieties were grown under well-watered and drought conditions in the field to examine root morphological and anatomical traits. The seeds were germinated on 16 August 2019, in the rice nursery field and seedlings were transplanted 30 days after sowing (DAS) with 25 × 25 cm distance between hills and rows. The experiment was conducted using factorial in RCBD. This experiment was conducted with 3 replications. Water was supplied and maintained at a level of 5 to 10 cm above the soil surface. At 45 DAS, water was drained, and stressing was implemented at maximum tillering stage with soil water potential of −40 to −50 kPa (55–65 DAS) and soil water potential fluctuated from −40 to −70 kPa at booting stage for 9 days (67–75 DAS) (Figure S1A). No re-watering was carried out until harvest for the drought condition. The field soil moisture content was monitored using tensiometers (Daiki soil and moisture, Daiki Rika Kogyo Co., Saitama, Japan) and a weather station was also installed to monitor the air temperature and humidity.
The pot experiment was conducted in the greenhouse to screen root architectural, morphological, and physiological traits. The rice seeds were germinated directly in the plastic pot (20 cm in height and 25 cm in diameter) on 17 August 2020. Each plastic pot was filled with mixed 2.5 kg of dry clay and 2.5 kg of dry sand. Plastic baskets (25 cm diameter and 5 cm height) with 2 mm2 pore size were buried in the middle of the plastic pot to screen root architectural traits using the basket method [25]. The experimental design was factorial in CRD with 3 replications and 2 conditions including well-watered and drought. Water was maintained in every pot and was poured out at 45 DAS to develop the drought condition. Drought stress was carried out for 15 days, and soil water potential was −40 kPa at day 4 and dropped to −70 kPa at day 8 after the stress (Figure S1B). Then, shoots and roots were harvested at 60 DAS. The two experiments were conducted at Innovative Plant Biotechnology and Precision Agriculture Research Team (APBT), Kasetsart University, Kamphaeng Saen Campus, Nakhon Pathom, Thailand.

2.2. Shoot Measurements

In the field experiment, 50% flowering time (FD) was determined in each plot. Leaf rolling (LR) and leaf drying (LD) were recorded using a standard evaluation system for rice (IRRI, 2002). Plant height (PH) and tiller number (TN) were recorded by measuring the height of the plant from the soil to the tip of the tallest leaf and counting the tillers manually before harvesting shoots and roots at booting stage (65 DAS). Shoot samples were separated from the roots by cutting from base and sun-dried for 14 days before recording the biomass (BIO). Samples for the yield component were harvested from the other plants without root sampling at maturity. One thousand grain weight (1000GW) was obtained by weighing 1000 filled grains and expressing the weight in grams and percent filled grain by weight (FG) was collected by weighing all filled grains in all panicles in a plant and divided by the total number of grains per plant and multiplied by 100.
The physiological traits were performed in a pot experiment. Photosynthesis rate (PR), transpiration rate (TR), and stomatal conductance (SC) were measured using LI-6400 Portable Photosynthesis System (LiCor, Lincoln, NE, USA) at 9:00 a.m.–11:30 a.m. Chlorophyll content was measured by Chlorophyll Meter SPAD-502Plus (Konica Minolta, Inc., Tokyo, Japan). All physiological traits mentioned above were collected at 45, 50, and 55 DAS. Plant height, tiller number, and biomass were collected at 60 DAS with similar protocol as in the field experiment.

2.3. Root Measurements

In the field experiment, root samples were collected at flowering stage (65 DAS) using the same plant collected for biomass. The root systems were extracted from soil using monolith stainless cylinder (20 cm diameter and up to 20 cm soil depth). The roots were washed with water and stored in 70% ethanol for further measurements. The number of nodal roots (NR) was manually counted. Total number of nodal roots was divided by number of tillers to access nodal root number per tiller (NPT). Three 10 cm (from base to tip) nodal roots form each sample were randomly selected and spread on a transparent tray without over lapping. Root images were captured using scanner (EPSON Perfection V700 Photo, Nagano, Japan) at 600 dpi resolution. The lateral root density (LR) was manually counted from 10 cm length nodal root images. For anatomical traits, nodal roots were cut at 5 cm below the base to ensure that the anatomy to view in each sample is at the same positions. Cross sections were generated 20 times with 100 µm thickness using Leica Fully Automatic Vibrating blade microtome (VT 1000S) (Leica Biosystems Division of Leica Microsystems Inc., Buffalo Grove, IL, USA). Three root sections were selected and imaged as representative sub-samples using Leica compound microscopes (4 × magnification). Root thickness (RT), root cortex (RC), stele area (SA), xylem area (XA), and xylem number (XN) was determined using image analysis GIMP software [26].
In the pot experiment, root distribution was evaluated by counting the number of nodal roots that penetrated throughout the basket pores. The angle (in degrees) of each pore of the basket was identified. Percent of nodal roots at 50–90 degrees (%50–90) was classified as vertical root distribution [25,27,28] and calculated by counting the number of nodal roots at 50–90 degrees divided by the total number of nodal roots and multiplying by one hundred. Root samples were washed by water and stored in 70% ethanol after counting the roots from the baskets. The root morphological traits were measured using the same process which was used in the field experiment.

2.4. Statistical Analysis

Genstat 21st Software [29] was used for statistical tests including analysis of variance (ANOVA), mean comparisons by the least significant difference (LSD) test at significant levels of p < 0.05, and Pearson’s correlation coefficient. The principal component analysis was performed using ‘foctoextra’ R package [30]. The bulk analysis based on biomass was analyzed using ‘tidyr’, ‘plyr’, ‘dplyr’ R packages to investigate effect of plants with high or low biomass performed in agronomic, physiological, root morphological, and root anatomical traits under drought stress. Path analysis was analyzed using ‘lavaan’ R package [31].

3. Results

3.1. Field Experiment

The agronomic traits of lowland rice varieties, such as plant height, tiller number, percent filled grain, one thousand grain weight, and biomass showed significant differences among rice varieties in both well-watered and drought conditions. All these shoot traits were reduced under the drought condition (Figure 1A,B). Plant height and tiller number were reduced by 22.5% and 41.7%, respectively. One thousand grain weight was reduced by 13.8% and percent filled grain was reduced by 3.3%. Biomass was reduced by 26.3% (Table 1). Similarly, in upland rice, plant height, tiller number, one thousand grain weight, and biomass were reduced in the drought condition by 29%, 40.9%, 24.8%, and 30.7%, respectively (Figure 1B,C; Table 2). Percent filled grain did not show a significant difference between the two conditions.
Significant genetic variations in root traits of lowland rice varieties were observed in nodal root number per tiller in the well-watered condition. Total number of nodal roots and xylem area were significantly different in both the well-watered and drought conditions (Figure 1A, Table 1). Variation in stele area and percent of aerenchyma were genetically significant in the drought condition. For root morphological traits, nodal roots per tiller, total number of nodal roots, and lateral root density were reduced in the drought condition by 49.4%, 71.5%, and 63.9%, respectively. Additionally, root anatomical traits, such as root thickness, cortex area, and xylem number were decreased under the drought condition by 18.2%, 25.0%, and 8.0%, respectively. However, the stele and xylem area were increased under the drought condition by 25% and 40%, respectively (Table 1).
There was significant genetic variation in upland rice in nodal root number per tiller and total number of nodal roots under the well-watered condition (Figure 1C). Xylem number showed significant genetic variation in the drought condition. Both root morphological and anatomical traits showed significant reduction in the drought condition except for the xylem number and xylem area which were not affected by the stress (Table 2). In addition, the comparisons of root characters between lowland and upland rice in field experiment were presented in Figure S2 that monitored the nodal root number per tiller and percent of aerenchyma of lowland rice has higher than upland rice, significantly.

3.2. Pot Experiment

Physiological, root morphological, and root architectural traits were investigated in the pot experiments (Figure 1D). For lowland rice, plant height showed significant genetic variations in well-watered and drought conditions while tiller number only showed significant difference in the well-watered condition. No significant genetic variation was found for biomass in both well-watered and drought conditions. Significant differences between conditions were observed in tiller number and biomass, which reduced under the drought condition by 33.3% and 20.0%, respectively. There were significant differences among genotypes for root morphological traits including nodal roots per tiller in the well-watered condition, total number of nodal roots in both conditions and lateral root density in the drought condition. Nodal root number per tiller and total number of nodal roots were decreased under drought by 28.6% and 52.4%, respectively. Percent of nodal roots at 50°–90° differed among genotypes in the drought stress condition but there was no significant treatment effect (Table 3). Moreover, percent of nodal roots at 50°–90° of lowland rice was higher than upland rice (Figure S3).
In upland rice, significant differences among genotypes for shoot traits were observed in plant height in well-watered and drought conditions and tiller number in the well-watered condition. Tiller number was reduced by 29.3% under the drought condition (Table 4). There were no genetic variations in biomass in both conditions, but the conditions were significantly different. Root traits such as nodal root number per tiller was found significantly different in both conditions. Lateral root density and percent of nodal roots at 50°–90° only showed significant genetic variations for the drought stress condition while the total number of nodal roots was only significant in the well-watered condition.
Physiological traits including chlorophyll content, photosynthesis rate, stomatal conductance, and transpiration rate were measured at 0, 4, and 8 days after stress (or 45, 49, and 53 days after sowing). The photosynthesis rate, stomatal conductance, and transpiration rates were decreased after drought stress occurred in both lowland and upland rice, but the net photosynthesis rate was more reduced in upland rice compared with lowland rice. For the chlorophyll content, lowland and upland rice showed an increase in content 8 days after stress compared to the well-watered treatment, but lowland rice has a more pronounced increase than the upland rice (Figure 2).

3.3. Correlation of Root Traits and Other Traits under Drought

Correlation matrices indicated that the root traits of lowland rice under the drought condition such as nodal root number per tiller (0.85 *) and total number of nodal root (0.97 **) has a significant and positive correlation with biomass. Xylem area (−0.88 **) was negatively correlated with tiller number. Cortical area was positively correlated with root thickness (0.99 **) and stele area (0.94 **). Stele area was also positively correlated with root thickness (0.92 **) (Figure 3A).
Negative correlation was observed between xylem number (−0.86 *) and tiller number in upland rice under the drought condition. It was also observed that cortical area was positively correlated with root thickness (0.96 **) and stele area (0.94 **). Stele area was also positively correlated with root thickness (0.90 **) (Figure 3B).
The correlations between shoot, physiological, and root traits were performed in a greenhouse study. Biomass was found to be positively correlated with the total nodal root number (0.89 **) in lowland rice. On the other hand, the total nodal root number was negatively correlated with net photosynthesis rate (0.59 *), stomatal conductance (0.66 *), and transpiration rate (0.68 *). Tiller number was also negatively correlated with net photosynthesis rate (0.63 *), stomatal conductance (0.68 *), transpiration rate (0.69 *), and percent of nodal roots at 50°–90° (0.63 *) (Figure 3C).
Total number of nodal roots was positive correlated with tiller number (0.89 **) and biomass (0.97 **) for upland rice under the drought condition. Moreover, total number of nodal roots (0.97 **) and nodal roots per tiller (0.92 **) were significantly correlated with biomass. Percent of nodal roots at 50°–90° (−0.86 *) was negative correlated with biomass, total number of nodal roots (0.83 **), and nodal roots per tiller (0.85 **). Lateral root density (0.82 *) was positively correlated with chlorophyll content (Figure 3D).

3.4. Principal Component Analysis (PCA)

The principal component analysis was performed on both field and pot experiments under drought stress. In field study, the first four components in PCA analysis with Eigen value >1 contributed 97% of the total variation under drought stress for lowland rice. Six traits contributed in PC1 accounting for 40% of the variation and four characteristics contributed in PC2 accounting for 29.9%. Plant height (0.84), nodal root per tiller (0.83), root thickness (0.93), cortex area (0.90), stele area (0.78), and xylem area (0.72) were positively contributed in PC1 while biomass (0.86) has the same loading directions (negative) with tiller number (0.82), filled grain weight (0.91), and total number of nodal roots (0.80) (Figure 4A, Table S2).
For upland rice, the first four components with Eigen value >1 of upland rice under drought stress accounted for 92% of the total variation. PC1 accounted for 33.9% of the variance. High positive loading was observed in days to 50% flowering days (0.80), one thousand grain weight (0.80), and percent of filled grain (0.80). Lateral root density (−0.77), root thickness (−0.91), cortex area (−0.82), and stele area (−0.71) contributed negatively in PC1. Meanwhile, plant height (0.69) and xylem number (0.84) contributed positively in PC2 accounting for 28.5% and opposite directions were found for tiller number (−0.86), nodal root number per tiller (−0.46), and total number of nodal roots (−0.77) (Figure 4B, Table S3).
In the pot experiment, PCA included shoot, physiological, and root traits in lowland and upland rice under drought stress (Figure 4C,D). The greater Eigen value of more than one was composed by the first four components in lowland rice (83.7%) and the first three in upland rice (90.4%). In lowland rice, PC1 accounted for 46% of the variation and high positive loading score was observed in the percent of nodal roots at 50°–90° (0.67), net photosynthesis rates (0.82), stomatal conductance (0.84), and transpiration rates (0.84). The negative loading score in PC1 was contributed by tiller number (−0.92), biomass (−0.78), and total number of nodal roots (−0.92). PC2 of lowland rice accounted for 15.4% of the variance which was related to two characteristics namely plant height (0.68) and nodal root number per tiller (0.75) (Figure 3C, Table S4). For upland rice under drought stress, PC1 accounted for 50% of the variance which was characterized by tiller number (−0.86), biomass (−0.94), nodal root number per tiller (−0.91), total number of nodal root (−0.98), percent of nodal roots at 50°–90° (0.91), stomatal conductance (0.71), and transpiration rates (0.69). High loading score in PC2 contributing 27.8% of the variation was characterized by plant height (−0.66), lateral root density (0.99), and chlorophyll content (0.85) (Figure 4D, Table S5).

3.5. Bulk Analysis

Bulk segregant analysis was used to identify the traits that affected biomass under the drought condition by selecting the first two individuals with the highest and lowest biomass. The first two top lowland rice varieties, Yeanelo-1 and Pyi Myanmar Sein, had high biomass in the drought condition in the field study. In contrast, Y329-UBN and Yeanelo-5 had the lowest biomass (Table 5). However, no significant difference for the other traits was observed between low and high biomass but the group with high biomass showed a greater tiller number, nodal root number per tiller, and total number of nodal roots (Figure S4). Nga Ywan Nu and Yar Kyaw were grouped into high biomass for upland rice while Yar-8 and Kauk Yin showed the lowest biomass. Significant difference between these two groups was observed for lateral root density. The high biomass group for upland rice showed less lateral root development (Figure S5).
In the pot experiment, Yeanelo-3 and Pyi Myanmar Sein were the best performing lowland rice varieties and Yeanelo-2 and Sin Thwe Lat were the lowest (Table 6). High biomass varieties showed a higher tiller number and total number of nodal roots, significantly. Higher chlorophyll content was observed in high biomass varieties, but in contrast, a decrease in photosynthesis rate, stomatal conductance, and transpiration rate was also seen (Figure S6). For upland rice, Yar-8 and Ba Ma Htar had the highest biomass and Yar-4 and Nga Ywan Nu had the lowest. Higher nodal root number per tiller and number of nodal roots were found in high biomass varieties. Moreover, high biomass varieties showed a lower percent of nodal roots at 50°–90°, stomatal conductance, and transpiration rate (Figure S7).

3.6. Path Analysis

Generally, the valid contribution of traits towards biomass is not represented by a simple correlation. Hence, the path coefficient analysis given by Dewey and Lu [32] provides a view into interrelationships by further separating the correlation coefficients into direct and indirect effects of characters. For lowland rice in the field experiment, plant height (0.86 ***) and tiller number (0.7 **) showed positive direct effects on biomass. In contrast, lateral root density (−0.25 *) showed a negative direct effect on biomass. Xylem area (−0.24 ***), total number of nodal roots (1.14 ***), nodal root number per tiller (−0.98 ***), cortex area (0.45 ***), and stele area (−0.25 *) exhibited indirect effects on biomass via tiller number. Xylem area (0.66 ***) also showed a positive indirect effect on biomass via plant height (Figure 5A). In upland rice under drought stress, the result revealed that the cortex area (2.04 ***) showed a positive direct effect on biomass while xylem number (−0.58 ***) and root thickness (−1.85 ***) showed negative direct effects. Lateral root density (0.36 ***) and stele area (0.78 ***) had positive indirect effects on biomass via root thickness (Figure 5B).
In the pot experiment, tiller number (−0.65 **) and total number of nodal roots (1.49 ***) had high direct contributions on the biomass of lowland rice. Percent of nodal root number at 50°–90° and nodal root number per tiller (−0.35 ***) showed negative indirect effects on biomass via tiller number. Photosynthesis rate (−0.64) showed a negative indirect effect on biomass via total number of nodal roots (Figure 5C). For upland rice, the positive direct effects on biomass were contributed by stomatal conductance (0.26 ***), photosynthesis rate (0.13 ***), tiller number (0.27 ***), and total number of nodal roots (0.71 ***). While the percent of nodal root number at 50°–90° showed a negative direct effect on biomass (−0.2 ***). The indirect effect was contributed by nodal root number per tiller via tiller number and total number of nodal roots (0.67 * and 0.93 ***, respectively) (Figure 5D).

4. Discussion

Water deficit is a major constraint to rice production especially in upland and rainfed lowlands. The results in this study illustrated that drought stress affected agronomic traits in both lowland and upland rice such as tiller number, biomass, and plant height. Singh et al. [33] observed the reduction in several traits including plant height, tiller number, spikelet fertility, and grain yield per panicle. Laude [34] observed the reduction in biomass and tiller abortion. The decrease in one thousand grain weight is the most common characteristic of rice under drought stress [35]. Ruangsiri et al. [28] also found the reduction in biomass and 100 grain weight in KDML105-CSSLs population. This indicates that water deficit at the flowering stage is the most serious stress causing yield reduction [36]. Roots are important plant organs. They absorb water and nutrients from the soil and translocate them to plant tops [37,38,39,40]. Roots also give mechanical support to plants and supply hormones that affect many physiological and biochemical processes associated with growth and development [41]. In this study, we observed the reduction of root traits such as total number of nodal roots, nodal root number per tiller, lateral root density, cortex area, and root thickness in both lowland and upland rice. Hazman and Brown [42] also found a reduction in nodal roots under drought conditions. Gao and Lynch [43] suggested that a fewer nodal root number can improve deep rooting, stomatal conductance, and photosynthesis under drought stress in maize. In addition, the decrease in nodal root number and lateral root branching was observed in Kato and Okami’s [44] experiment under aerobic condition indicating rice roots had responded to aerobic soil as though they were under drought stress. Moreover, reduced lateral root density is important for drought tolerance because this phenotype determines the balance between the mobile and immobile resources [45] and decrease competition for water among roots of the same plant [46]. Drought significantly increased stele area and xylem area in lowland rice. In another study, stele area was observed to increase during drought in lowland rice [17,42]. Conservative stele area under drought could be beneficial for maintaining root penetration ability. Greater stele and xylem area may lead to higher plant water status under water deficit due to higher hydraulic conductivity [47]. Yambao et al. [48] stated that larger xylem diameters were associated with higher axial conductance, thereby enhancing water uptake capacity in rice.
In general, root thickness is considered an important root characteristic contributing to drought resistance [49,50]. In this study, we found that root thickness was decreased under drought stress in both lowland and upland rice. Thick roots have larger xylem vessels, persist longer, produce more and larger branch roots, and thereby increase root length density and water uptake capacity in rice [51]. However, in this study, we observed the reduction under drought stress in both lowland and upland rice. Previously, some research supported that plants with large root thickness or root diameter with large diameter xylem vessels had greater hydraulic conductivity, but less conservative water uses and greater risk of cavitation than those with small diameter vessels [52,53,54,55,56].
In the pot experiment, drought significantly affected the total number of nodal roots and nodal root number per tiller which is similar to the field experiment in both lowland and upland rice. In contrast, drought did not significantly affect lateral root density and the percent of nodal roots at 50°–90° degrees but there is tendency observed that lateral root density increased and the percent of nodal roots at 50°–90° degrees decreased. Lateral roots typically constitute the major portion of root systems, accounting for approximately 90% of the total root length [57,58]. The increased lateral root density in response to drought was observed in several previous studies [42,59,60,61]. The physiological characters were decreased during drought stress. Drought stress caused a significant reduction in the rate of photosynthesis [62] and the decrease in the transpiration rate as a form of adaptation of plants to drought stress is by closing and reducing the number of stomata so that the transpiration rate can be reduced [63]. Interestingly, chlorophyll content was increased in lowland rice and the same observations were found in potato [64] and sweet potato [65,66]. Delay senescence is the result of a stress-response mechanism characterized by slower chlorophyll degradation over time [67,68,69].
In lowland rice, we observed that the total number of nodal roots, nodal root per tiller, and xylem area were related to tiller number and biomass under drought conditions. Principal component confirmed the contribution of these traits in lowland rice in both the field and pot experiment (Figure 3A,C). Many studies supported that plants with large diameter xylem vessel resulting in a large xylem area have greater hydraulic conductivity, but less conservative water use and greater risk of cavitation than those with small diameter vessels [52,53,55,56,70]. The relationship among nodal root and tiller number is always connected. Tillering pattern may play a part in genetic variation in assimilating the supply to root growth [21]. Moreover, bulk analysis result showed the groups with a higher biomass always had a higher total number of nodal roots and nodal root number per tiller except in upland rice in the field experiment. Sanhu et al. [71] suggested that a greater number of nodal roots provided yield stability and prevented yield reduction under wet and dry conditions. Path analysis illustrated the large effects contributing to the biomass of lowland rice were lateral root density, nodal root number per tiller, and total number of nodal roots that we found in both field and pot experiments. These finding were observed in Ruangsiri et al. [28]. The higher total number of nodal roots increased the productivity in lowland rice more significantly while the reduction in lateral root density was related to the increase in biomass in lowland rice. Lynch [45] stated that the reduction in lateral roots that was mentioned above is related to the decrease in competition for water among roots.
Root anatomical traits such as cortex area, root thickness, and xylem number had the largest effects on the biomass of upland rice. Reduction in the xylem number and root thickness can improve rice productivity. A decrease in the xylem number could reduce the risk of water losses by xylem leakage [72]. Upland rice varieties which are more drought tolerant, typically have smaller root thickness [16]. Some anatomical traits such as the cortex area also showed the same positive effect in lowland rice. Percent of nodal roots at 50°–90° had a negative effect on biomass in both lowland and upland rice (Figure 3C,D). Additionally, it also showed a negative indirect effect via the tiller number of lowland rice in the pot experiment (Figure 4). Several studies [73,74,75,76,77,78] indicated that roots are in the topsoil layer and very few roots are found below 30 cm. Vertical deep root penetration would help rice avoid drought stress; however, root penetration is often restricted by the presence of hardpan and our experiment was conducted in pots limiting root penetration. In addition, photosynthesis rate, stomatal conductance, and transpiration rate negatively contributed to the biomass and nodal root number except for the photosynthesis rate in upland rice. This observation was similar to Gao and Lynch’s [43] experiment, which found that a low crown root number in maize (nodal root in rice) had a small portion of plant carbon balance devoted to greater water acquisition and better plant water status and greater stomatal conductance and photosynthesis, growth, and yield than high crown root genotype.

5. Conclusions

The study showed that root characters related to agronomic and physiological traits differ in lowland and upland rice. Drought stress experiments were conducted in the field and in a greenhouse and there were different root characters between upland and lowland rice in response to drought stress and the relationship between agronomic and physiological traits. Lowland rice showed a positive relationship between agronomic traits and root traits such as total number of nodal roots and root number per tiller, and a negative relationship with lateral root density more than anatomical traits. While upland rice expressed a relationship between root anatomical traits, such as root thickness, cortex area, xylem number, and anatomical traits. In addition, the photosynthesis rate, stomatal conductance, and transpiration rate negatively contributed to biomass in lowland and upland rice. These finding can help improve drought tolerance in rice by selecting the optimal root trait for each rice ecosystem.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy12051230/s1, Table S1: Myanmar rice materials. Table S2: Principal component analysis of lowland rice under drought stress in the field experiment. Table S3: Principal component analysis of upland rice under drought stress in the field experiment. Table S4: Principal component analysis of lowland rice under drought stress in the pot experiment. Table S5 Principal component analysis of upland rice under drought stress in the pot experiment. Figure S1: Soil water potential monitoring by tensiometer. Figure S2: Comparison of upland (U) and lowland (L) rice root characters under drought stress in the field experiment. Figure S3: Comparison of upland and lowland rice root characters under drought stress in the pot experiment. Figure S4: Bulk analysis of lowland rice in the field experiment. Figure S5: Bulk analysis of upland rice in the field experiment. Figure S6: Bulk analysis of upland rice in the pot experiment. Figure S7: Bulk analysis of upland rice in the pot experiment.

Author Contributions

Conceptualization, J.L.S., T.T. and C.C.; methodology, M.M.S. and M.R.; data curation, M.M.S. and M.R.; formal analysis, M.M.S., M.R, J.L.S. and A.A.; Investigation, J.L.S., M.R., M.M.S. and T.T.; writing—original draft preparation, M.M.S., M.R. and J.L.S.; writing—review and editing, J.L.S., M.R. and C.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Thailand Graduate Institute of Science and Technology (TGIST) Scholarship (Grant No. TG-BT-KU-62-039M), NSTDA, Thailand. This work was also funded by Innovation for Sustainable Agriculture (ISA) Rainfed Lowland Project, NSTDA, Thailand (Grant no. P1950205).

Data Availability Statement

Data is contained within the article or supplementary material. The data presented in this study are available in [Agronomy 2022, 12, 1230].

Acknowledgments

We are very thankful to the staff and students of the Department of Agronomy, Faculty of Agriculture at Kamphaeng Saen, Kasetsart University, Kamphaeng Saen, Nakhon Pathom, Thailand for their enormous support during the experiments and to the staff of Innovative Plant Biotechnology and Precision Agriculture Research Team (APBT), BIOTEC, Kasetsart University, Kamphaeng Saen Campus, Nakhon Pathom, Thailand.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hsiao, T.C.; O’Toole, J.C.; Yambao, E.B.; Turner, N.C. Influence of Osmotic Adjustment on Leaf Rolling and Tissue Death in Rice (Oryza sativa L.). Plant Physiol. 1984, 75, 338–341. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. O’Toole, J. Adaptation of rice to drought-prone environments. In Drought Resistance in Crops, with Emphasis on Rice; International Rice Research Institute: Manila, PA, USA, 1982; pp. 195–213. [Google Scholar]
  3. Venuprasad, R.; Cruz, M.S.; Amante, M.; Magbanua, R.; Kumar, A.; Atlin, G. Response to two cycles of divergent selection for grain yield under drought stress in four rice breeding populations. Field Crop. Res. 2008, 107, 232–244. [Google Scholar] [CrossRef]
  4. Myint, U.T.; Thaw, S.H.; Nyein, Y.Y. Overview of droughts in Myanmar. In Droughts in Asian Monsoon Region; Emerald Group Publishing Limited: West Yorkshire, UK, 2011. [Google Scholar]
  5. Kamoshita, A.; Babu, R.C.; Boopathi, N.M.; Fukai, S. Phenotypic and genotypic analysis of drought-resistance traits for development of rice cultivars adapted to rainfed environments. Field Crop. Res. 2008, 109, 1–23. [Google Scholar] [CrossRef]
  6. Palanog, A.D.; Swamy, B.M.; Shamsudin, N.A.A.; Dixit, S.; Hernandez, J.E.; Boromeo, T.H.; Cruz, P.C.S.; Kumar, A. Grain yield QTLs with consistent-effect under reproductive-stage drought stress in rice. Field Crop. Res. 2014, 161, 46–54. [Google Scholar] [CrossRef]
  7. Bernier, J.; Atlin, G.N.; Serraj, R.; Kumar, A.; Spaner, D. Breeding upland rice for drought resistance. J. Sci. Food Agric. 2008, 88, 927–939. [Google Scholar] [CrossRef]
  8. Bouman, B. Water Management in Irrigated Rice: Coping with Water Scarcity; Int. Rice Res. Inst.: Metro Manila, PA, USA, 2007. [Google Scholar]
  9. Lynch, J.P. Roots of the Second Green Revolution. Aust. J. Bot. 2007, 55, 493–512. [Google Scholar] [CrossRef]
  10. Serraj, R.; Krishnamurthy, L.; Kashiwagi, J.; Kumar, J.; Chandra, S.; Crouch, J. Variation in root traits of chickpea (Cicer arietinum L.) grown under terminal drought. Field Crop. Res. 2004, 88, 115–127. [Google Scholar] [CrossRef] [Green Version]
  11. Fukai, S.; Inthapan, P. Growth and yield of rice cultivars under sprinkler irrigation in south-eastern Queensland. 3. Water extraction and plant water relations dash comparison with maize and grain sorghum. Aust. J. Exp. Agric. 1988, 28, 249–252. [Google Scholar] [CrossRef]
  12. Marschner, H. Soil-Root Interface: Biological and Biochemical Processes. Soil Chem. Ecosyst. Health 1998, 52, 191–231. [Google Scholar]
  13. Lynch, J. Root Architecture and Plant Productivity. Plant Physiol. 1995, 109, 7–13. [Google Scholar] [CrossRef]
  14. Samson, B.; Hasan, M.; Wade, L. Penetration of hardpans by rice lines in the rainfed lowlands. Field Crop. Res. 2002, 76, 175–188. [Google Scholar] [CrossRef]
  15. Wang, H.; Yamauchi, A. Growth and function of roots under abiotic stress soils. In Plant-Environmental Interactions, 3rd ed.; Huang, B., Ed.; CRC Press: New York, NY, USA, 2006; pp. 271–320. [Google Scholar]
  16. Gowda, V.R.; Henry, A.; Yamauchi, A.; Shashidhar, H.; Serraj, R. Root biology and genetic improvement for drought avoidance in rice. Field Crop. Res. 2011, 122, 1–13. [Google Scholar] [CrossRef]
  17. Henry, A.; Cal, A.J.; Batoto, T.C.; Torres, R.O.; Serraj, R. Root attributes affecting water uptake of rice (Oryza sativa) under drought. J. Exp. Bot. 2012, 63, 4751–4763. [Google Scholar] [CrossRef] [PubMed]
  18. Morita, M.; Kato, T.; Nagafusa, K.; Saito, C.; Ueda, T.; Nakano, A.; Tasaka, M. Involvement of the Vacuoles of the Endodermis in the Early Process of Shoot Gravitropism in Arabidopsis. Plant Cell 2002, 14, 47–56. [Google Scholar] [CrossRef] [Green Version]
  19. Fukai, S.; Cooper, M. Development of drought-resistant cultivars using physiomorphological traits in rice. Field Crop. Res. 1995, 40, 67–86. [Google Scholar] [CrossRef]
  20. Uga, Y.; Okuno, K.; Yano, M. Dro1, a major QTL involved in deep rooting of rice under upland field conditions. J. Exp. Bot. 2011, 62, 2485–2494. [Google Scholar] [CrossRef] [Green Version]
  21. Yoshida, S.; Hasegawa, S. The rice root system: Its development and function. Drought Resist. Crops Emphas. Rice 1982, 10, 97–134. [Google Scholar]
  22. Kato, Y.; Kamoshita, A.; Yamagishi, J. Preflowering abortion reduces spikelet number in upland rice (Oryza sativa L.) under water stress. Crop Sci. 2008, 48, 2389–2395. [Google Scholar] [CrossRef]
  23. Lipiec, J.; Doussan, C.; Nosalewicz, A.; Kondracka, K. Effect of drought and heat stresses on plant growth and yield: A review. Int. Agrophys. 2013, 27, 463–477. [Google Scholar] [CrossRef]
  24. Fukai, S.; Pantuwan, G.; Jongdee, B.; Cooper, M. Screening for drought resistance in rainfed lowland rice. Field Crop. Res. 1999, 64, 61–74. [Google Scholar] [CrossRef]
  25. Uga, Y.; Sugimoto, K.; Ogawa, S.; Rane, J.; Ishitani, M.; Hara, N.; Kitomi, Y.; Inukai, Y.; Ono, K.; Kanno, N.; et al. Control of root system architecture by DEEPER ROOTING 1 increases rice yield under drought conditions. Nat. Genet. 2013, 45, 1097–1102. [Google Scholar] [CrossRef] [PubMed]
  26. GIMP—GNU Image Manipulation Program. Available online: https://www.gimp.org/ (accessed on 8 March 2022).
  27. Kato, Y.; Abe, J.; Kamoshita, A.; Yamagishi, J. Genotypic Variation in Root Growth Angle in Rice (Oryza sativa L.) and its Association with Deep Root Development in Upland Fields with Different Water Regimes. Plant Soil 2006, 287, 117–129. [Google Scholar] [CrossRef]
  28. Ruangsiri, M.; Vejchasarn, P.; Saengwilai, P.; Lynch, J.; Bennett, M.J.; Brown, K.M.; Chutteang, C.; Boonruangrod, R.; Shearman, J.; Toojinda, T.; et al. Genetic control of root architectural traits in KDML105 chromosome segment substitution lines under well-watered and drought stress conditions. Plant Prod. Sci. 2021, 24, 512–529. [Google Scholar] [CrossRef]
  29. Payne, R.W. GenStat. Wiley Interdiscip. Rev. Comput. Stat. 2009, 1, 255–258. [Google Scholar] [CrossRef]
  30. Cluster Analysis in R: Practical Guide. Available online: www.sthda.com/english/articles/25-clusteranalysis-in-r-practical-guide (accessed on 9 December 2017).
  31. Rosseel, Y. lavaan: An R package for structural equation modeling. J. Stat. Softw. 2012, 48, 1–36. [Google Scholar] [CrossRef] [Green Version]
  32. Dewey, D.R.; Lu, K.H. A Correlation and Path-Coefficient Analysis of Components of Crested Wheatgrass Seed Production 1. Agron. J. 1959, 51, 515–518. [Google Scholar] [CrossRef]
  33. Singh, A.; Mall, A.; Singh, P.; Verma, O. Interrelationship of genetics parameters for quantitative and physiological traits in rice under irrigated and drought conditions. Oryza-Int. J. Rice 2010, 47, 142–147. [Google Scholar]
  34. Laude, H.M. Drought Influence on Physiological Processes and Subsequent Growth. Drought Inj. Resist. Crops 1971, 2, 45–56. [Google Scholar]
  35. Sahebi, M.; Hanafi, M.M.; Rafii, M.; Mahmud, T.; Azizi, P.; Osman, M.; Abiri, R.; Taheri, S.; Kalhori, N.; Shabanimofrad, M. Improvement of drought tolerance in rice (Oryza sativa L.): Genetics, genomic tools, and the WRKY gene family. BioMed Res. Int. 2018, 3158474. [Google Scholar] [CrossRef] [Green Version]
  36. Sarkarung, S. Breeding rice cultivars suitable for rainfed lowland environments: A farmers participatory approach for eastern India. Particip. Plant Breed. 1995, 26, 123. [Google Scholar]
  37. Merrill, S.D.; Black, A.L.; Bauer, A. Conservation Tillage Affects Root Growth of Dryland Spring Wheat under Drought. Soil Sci. Soc. Am. J. 1996, 60, 575–583. [Google Scholar] [CrossRef]
  38. Merrill, S.D.; Tanaka, D.L.; Hanson, J.D. Root length growth of eight crop species in Haplustoll soils. Soil Sci. Soc. Am. J. 2002, 66, 913–923. [Google Scholar] [CrossRef]
  39. Sainju, U.M.; Singh, B.P.; Whitehead, W.F. Tillage, Cover Crops, and Nitrogen Fertilization Effects on Cotton and Sorghum Root Biomass, Carbon, and Nitrogen. Agron. J. 2005, 97, 1279–1290. [Google Scholar] [CrossRef] [Green Version]
  40. Stone, P.; Wilson, D.R.; Jamieson, P.; Gillespie, R. Water deficit effects on sweet corn. II. Canopy development. Aust. J. Agric. Res. 2001, 52, 115–126. [Google Scholar] [CrossRef]
  41. Zobel, R.W. Root growth and development. In The Rhizosphere and Plant Growth; Springer: Berlin/Heidelberg, Germany, 1991; pp. 61–71. [Google Scholar]
  42. Hazman, M.; Brown, K.M. Progressive drought alters architectural and anatomical traits of rice roots. Rice 2018, 11, 1–16. [Google Scholar] [CrossRef] [PubMed]
  43. Gao, Y.; Lynch, J.P. Reduced crown root number improves water acquisition under water deficit stress in maize (Zea mays L.). J. Exp. Bot. 2016, 67, 4545–4557. [Google Scholar] [CrossRef] [Green Version]
  44. Kato, Y.; Okami, M. Root morphology, hydraulic conductivity and plant water relations of high-yielding rice grown under aerobic conditions. Ann. Bot. 2011, 108, 575–583. [Google Scholar] [CrossRef]
  45. Lynch, J.P. Steep, cheap and deep: An ideotype to optimize water and N acquisition by maize root systems. Ann. Bot. 2013, 112, 347–357. [Google Scholar] [CrossRef] [Green Version]
  46. Postma, J.A.; Dathe, A.; Lynch, J.P. The Optimal Lateral Root Branching Density for Maize Depends on Nitrogen and Phosphorus Availability. Plant Physiol. 2014, 166, 590–602. [Google Scholar] [CrossRef] [Green Version]
  47. Phoura, Y.; Kamoshita, A.; Norisada, M.; Deshmukh, V. Eco-physiological evaluation of Stele Transversal Area 1 for rice root anatomy and shoot growth. Plant Prod. Sci. 2020, 23, 202–210. [Google Scholar] [CrossRef] [Green Version]
  48. Yambao, E.B.; Ingram, K.T.; Real, J.G. Root Xylem Influence on the Water Relations and Drought Resistance of Rice. J. Exp. Bot. 1992, 43, 925–932. [Google Scholar] [CrossRef]
  49. Chang, T.; Armenta-Soto, J.; Mao, C.; Peiris, R.; Loresto, G. Genetic studies on the components of drought resistance in rice (Oryza sativa L.). In IRRI (Ed) Rice Genetics; Int Rice Res Inst: Los Baños, PA, USA, 1986; pp. 387–398. [Google Scholar]
  50. Ekanayake, I.J.; O’Toole, J.C.; Garrity, D.P.; Masajo, T.M. Inheritance of Root Characters and their Relations to Drought Resistance in Rice 1. Crop Sci. 1985, 25, 927–933. [Google Scholar] [CrossRef]
  51. Ingram, K.; Bueno, F.; Namuco, O.; Yambao, E.; Beyrouty, C. Rice root traits for drought resistance and their genetic variation. In Rice Roots: Nutrient and Water Use; Kirk, G.J.D., Ed.; International Rice Research Institute: Manila, PA, USA, 1994. [Google Scholar]
  52. Richards, R.; Passioura, J. A breeding program to reduce the diameter of the major xylem vessel in the seminal roots of wheat and its effect on grain yield in rain-fed environments. Aust. J. Agric. Res. 1989, 40, 943–950. [Google Scholar] [CrossRef]
  53. Sperry, J.S.; Saliendra, N.Z. Intra- and inter-plant variation in xylem cavitation in Betula occidentalis. Plant Cell Environ. 1994, 17, 1233–1241. [Google Scholar] [CrossRef]
  54. Tyree, M.T.; Yang, S.; Cruiziat, P.; Sinclair, B. Novel Methods of Measuring Hydraulic Conductivity of Tree Root Systems and Interpretation Using AMAIZED (A Maize-Root Dynamic Model for Water and Solute Transport). Plant Physiol. 1994, 104, 189–199. [Google Scholar] [CrossRef] [Green Version]
  55. Alder, N.; Sperry, J.; Pockman, W. Root and stem xylem embolism, stomatal conductance, and leaf turgor in Acer grandidentatum populations along a soil moisture gradient. Oecologia 1996, 105, 293–301. [Google Scholar] [CrossRef]
  56. Gallardo, M.; Jackson, L.; Thompson, R. Shoot and root physiological responses to localized zones of soil moisture in cultivated and wild lettuce (Lactuca spp.). Plant Cell Environ. 1996, 19, 1169–1178. [Google Scholar] [CrossRef]
  57. Pierret, A.; Doussan, C. Spatio-temporal Variations in Axial Conductance of Primary and First-order Lateral Roots of a Maize Crop as Predicted by a Model of the Hydraulic Architecture of Root Systems. Plant Soil 2006, 282, 117–126. [Google Scholar] [CrossRef]
  58. Zobel, R.W.; Kinraide, T.B.; Baligar, V.C. Fine root diameters can change in response to changes in nutrient concentrations. Plant Soil 2007, 297, 243–254. [Google Scholar] [CrossRef]
  59. Henry, A.; Gowda, V.R.; Torres, R.O.; McNally, K.; Serraj, R. Variation in root system architecture and drought response in rice (Oryza sativa): Phenotyping of the OryzaSNP panel in rainfed lowland fields. Field Crop. Res. 2011, 120, 205–214. [Google Scholar] [CrossRef]
  60. Kameoka, E.; Suralta, R.R.; Mitsuya, S.; Yamauchi, A. Developmental Plasticity of Rice Root System Grown under Mild Drought Stress Condition with Shallow Soil Depth; Comparison between Nodal and Lateral roots. Plant Prod. Sci. 2016, 19, 411–419. [Google Scholar] [CrossRef] [Green Version]
  61. Kano-Nakata, M.; Inukai, Y.; Wade, L.J.; Siopongco, J.D.; Yamauchi, A. Root Development, Water Uptake, and Shoot Dry Matter Production under Water Deficit Conditions in Two CSSLs of Rice: Functional Roles of Root Plasticity. Plant Prod. Sci. 2011, 14, 307–317. [Google Scholar] [CrossRef]
  62. Akram, W.; Anjum, T.; Ali, B.; Ahmad, A. Screening of native bacillus strains to induce systemic resistance in tomato plants against fusarium wilt in split root system and its field applications. Int. J. Agric. Biol. 2013, 15, 1289–1294. [Google Scholar]
  63. Oukarroum, A.; El Madidi, S.; Schansker, G.; Strasser, R.J. Probing the responses of barley cultivars (Hordeum vulgare L.) by chlorophyll a fluorescence OLKJIP under drought stress and re-watering. Environ. Exp. Bot. 2007, 60, 438–446. [Google Scholar] [CrossRef]
  64. Rolando, J.L.; Ramírez, D.A.; Yactayo, W.; Monneveux, P.; Quiroz, R. Leaf greenness as a drought tolerance related trait in potato (Solanum tuberosum L.). Environ. Exp. Bot. 2015, 110, 27–35. [Google Scholar] [CrossRef]
  65. Smit, N.E. The effect of the indigenous cultural practices of in-ground storage and piecemeal harvesting of sweetpotato on yield and quality losses caused by sweetpotato weevil in Uganda. Agric. Ecosyst. Environ. 1997, 64, 191–200. [Google Scholar] [CrossRef]
  66. Bararyenya, A.; Olukolu, B.A.; Tukamuhabwa, P.; Grüneberg, W.J.; Ekaya, W.; Low, J.; Ochwo-Ssemakula, M.; Odong, T.L.; Talwana, H.; Badji, A.; et al. Genome-wide association study identified candidate genes controlling continuous storage root formation and bulking in hexaploid sweetpotato. BMC Plant Biol. 2020, 20, 1–16. [Google Scholar] [CrossRef] [Green Version]
  67. Thomas, H.; Howarth, C.J. Five ways to stay green. J. Exp. Bot. 2000, 51 (Suppl. 1), 329–337. [Google Scholar] [CrossRef] [Green Version]
  68. Abdelrahman, M.; El-Sayed, M.; Jogaiah, S.; Burritt, D.J.; Tran, L.-S.P. The “STAY-GREEN” trait and phytohormone signaling networks in plants under heat stress. Plant Cell Rep. 2017, 36, 1009–1025. [Google Scholar] [CrossRef]
  69. Rivero, R.M.; Kojima, M.; Gepstein, A.; Sakakibara, H.; Mittler, R.; Gepstein, S.; Blumwald, E. Delayed leaf senescence induces extreme drought tolerance in a flowering plant. Proc. Natl. Acad. Sci. USA 2007, 104, 19631–19636. [Google Scholar] [CrossRef] [Green Version]
  70. Tyree, M.T.; Davis, S.D.; Cochard, H. Biophysical perspectives of xylem evolution: Is there a tradeoff of hydraulic efficiency for vulnerability to dysfunction? IAWA J. 1994, 15, 335–360. [Google Scholar] [CrossRef] [Green Version]
  71. Sandhu, N.; Raman, K.A.; Torres, R.O.; Audebert, A.; Dardou, A.; Kumar, A.; Henry, A. Rice Root Architectural Plasticity Traits and Genetic Regions for Adaptability to Variable Cultivation and Stress Conditions. Plant Physiol. 2016, 171, 2562–2576. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. De Bauw, P.; Vandamme, E.; Lupembe, A.; Mwakasege, L.; Senthilkumar, K.; Drame, K.N.; Merckx, R. Anatomical root responses of rice to combined phosphorus and water stress—Relations to tolerance and breeding opportunities. Funct. Plant Biol. 2019, 46, 1009. [Google Scholar] [CrossRef] [PubMed]
  73. Hasegawa, S.; Thangaraj, M.; O’Toole, J. Root behavior: Field and laboratory studies for rice and nonrice crops. In Soil Physics and Rice; International Rice Research Institute: Manila, PA, USA, 1985; pp. 383–395. [Google Scholar]
  74. Sharma, P.K.; De Datta, S.K.; Redulla, C.A. Root Growth and Yield Response of Rainfed Lowland Rice to Planting Method. Exp. Agric. 1987, 23, 305–313. [Google Scholar] [CrossRef]
  75. Mambani, B.; De Datta, S.; Redulla, C. Land preparation requirements for rainfed rice as affected by climatic water balance and tillage properties of lowland soils. Soil Tillage Res. 1989, 14, 219–230. [Google Scholar] [CrossRef]
  76. Nabheerong, N. Root growth and nutrient uptake of rice as affected by planting methods and green manures. Agric. Nat. Resour. 1993, 27, 358–368. [Google Scholar]
  77. Pantuwan, G.; Ingram, K.; Sharma, P. Rice root systems development under rainfed conditions, Physiology of Stress Tolerance in Rice. In Proceedings of the International Conference on Stress Physiology in Rice, International Rice Research Centre, Manila, PA, USA, 28 February–5 March 1994; pp. 198–206. [Google Scholar]
  78. Samson, B. Examining genotypic variation in root traits for drought resistance, Fragile Lives in Fragile Ecosystems. In Proceedings of the International Rice Research Conference, Manila, PA, USA, 13–17 February 1995; pp. 521–534. [Google Scholar]
Agronomy 12 01230 g001 550
Figure 1. Shoot and root performances, comparing well-watered and drought conditions. (A) Lowland rice. (B) Drought stress in field experiment. (C) Upland rice. (D) Plant performances in the pot experiment, comparing drought (left) and well-watered conditions (right).
Figure 1. Shoot and root performances, comparing well-watered and drought conditions. (A) Lowland rice. (B) Drought stress in field experiment. (C) Upland rice. (D) Plant performances in the pot experiment, comparing drought (left) and well-watered conditions (right).
Agronomy 12 01230 g001
Agronomy 12 01230 g002 550
Figure 2. Physiological traits in the pot experiment at day 0, day 4, and day 8 after stress: A comparison between well-watered and drought stress conditions.
Figure 2. Physiological traits in the pot experiment at day 0, day 4, and day 8 after stress: A comparison between well-watered and drought stress conditions.
Agronomy 12 01230 g002
Agronomy 12 01230 g003 550

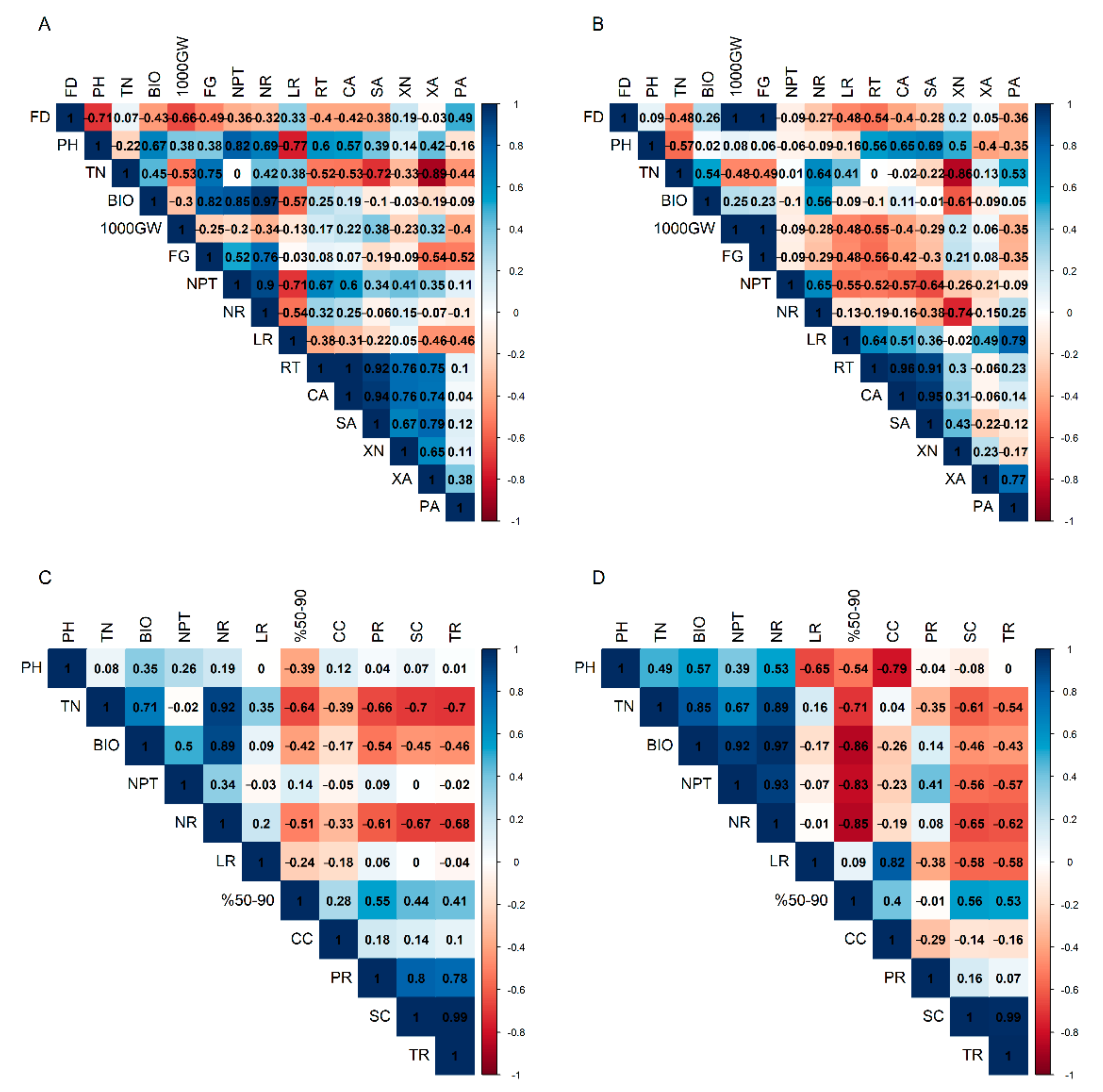

Figure 3. Correlation matrix under drought stress. (A) Lowland rice in field experiment, (B) upland rice in field experiment, (C) lowland rice in pot experiment, and (D) upland rice in pot experiment. PH, plant height (cm); TN, tiller number (number); FG, percent of filled grain (%); 1000GW, one thousand grain weight; BIO, biomass (g); NPT, nodal root per tiller (no./tiller); NR, total nodal root number (no.); LR, lateral root density (no./10 cm); RT, root thickness (mm); CA, cortex area (cm2); SA, stele area (cm2); XN, xylem number (no.); XA, xylem area (cm2); PA, percent of aerenchyma (%); 50–90, percent of nodal roots at 50–90 degrees (%); CC, chlorophyll content (nmol cm−2); PR, photosynthesis rate (CO2 m−2s−1); SC, stomatal conductance (mmol m−2s−1); TR, transpiration rate (mm min−1).
Figure 3. Correlation matrix under drought stress. (A) Lowland rice in field experiment, (B) upland rice in field experiment, (C) lowland rice in pot experiment, and (D) upland rice in pot experiment. PH, plant height (cm); TN, tiller number (number); FG, percent of filled grain (%); 1000GW, one thousand grain weight; BIO, biomass (g); NPT, nodal root per tiller (no./tiller); NR, total nodal root number (no.); LR, lateral root density (no./10 cm); RT, root thickness (mm); CA, cortex area (cm2); SA, stele area (cm2); XN, xylem number (no.); XA, xylem area (cm2); PA, percent of aerenchyma (%); 50–90, percent of nodal roots at 50–90 degrees (%); CC, chlorophyll content (nmol cm−2); PR, photosynthesis rate (CO2 m−2s−1); SC, stomatal conductance (mmol m−2s−1); TR, transpiration rate (mm min−1).
Agronomy 12 01230 g003
Agronomy 12 01230 g004 550

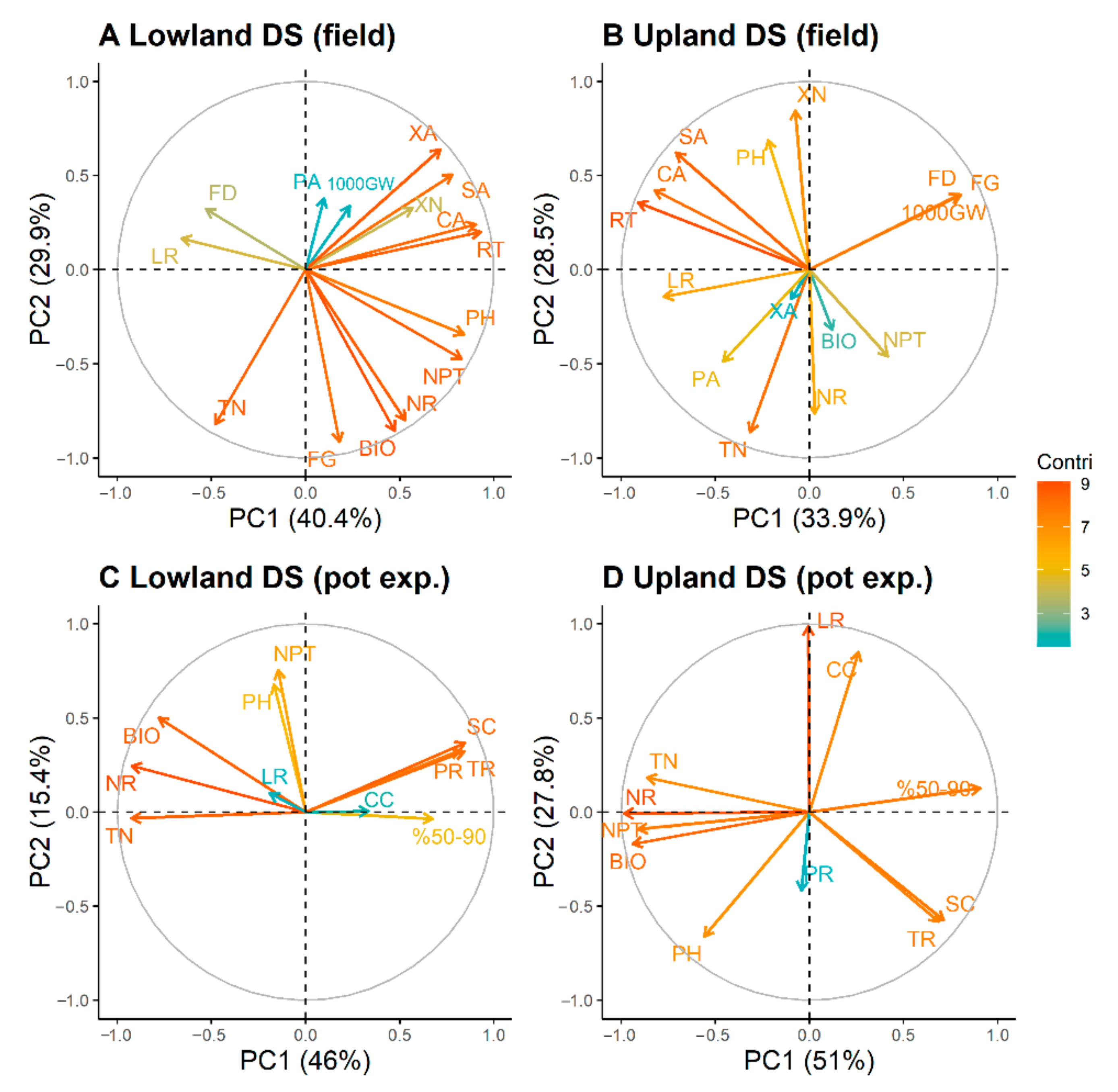

Figure 4. Principal component of phenotypic traits under drought stress. (A) Lowland rice in field experiment, (B) upland rice in field experiment, (C) lowland rice in pot experiment, and (D) upland rice in pot experiment. PH, plant height (cm); TN, tiller number (number); FG, percent of filled grain (%); 1000GW, one thousand grain weight; BIO, biomass (g); NPT, nodal root per tiller (no./tiller); NR, total nodal root number (no.); LR, lateral root density (no./10 cm); RT, root thickness (mm); CA, cortex area (cm2); SA, stele area (cm2); XN, xylem number (no.); XA, xylem area (cm2); PA, percent of aerenchyma (%); 50–90, percent of nodal roots at 50–90 degrees (%); CC, chlorophyll content (nmol cm−2); PR, photosynthesis rate (CO2 m−2s−1); SC, stomatal conductance (mmol m−2s−1); TR, transpiration rate (mm min−1).
Figure 4. Principal component of phenotypic traits under drought stress. (A) Lowland rice in field experiment, (B) upland rice in field experiment, (C) lowland rice in pot experiment, and (D) upland rice in pot experiment. PH, plant height (cm); TN, tiller number (number); FG, percent of filled grain (%); 1000GW, one thousand grain weight; BIO, biomass (g); NPT, nodal root per tiller (no./tiller); NR, total nodal root number (no.); LR, lateral root density (no./10 cm); RT, root thickness (mm); CA, cortex area (cm2); SA, stele area (cm2); XN, xylem number (no.); XA, xylem area (cm2); PA, percent of aerenchyma (%); 50–90, percent of nodal roots at 50–90 degrees (%); CC, chlorophyll content (nmol cm−2); PR, photosynthesis rate (CO2 m−2s−1); SC, stomatal conductance (mmol m−2s−1); TR, transpiration rate (mm min−1).
Agronomy 12 01230 g004
Agronomy 12 01230 g005 550

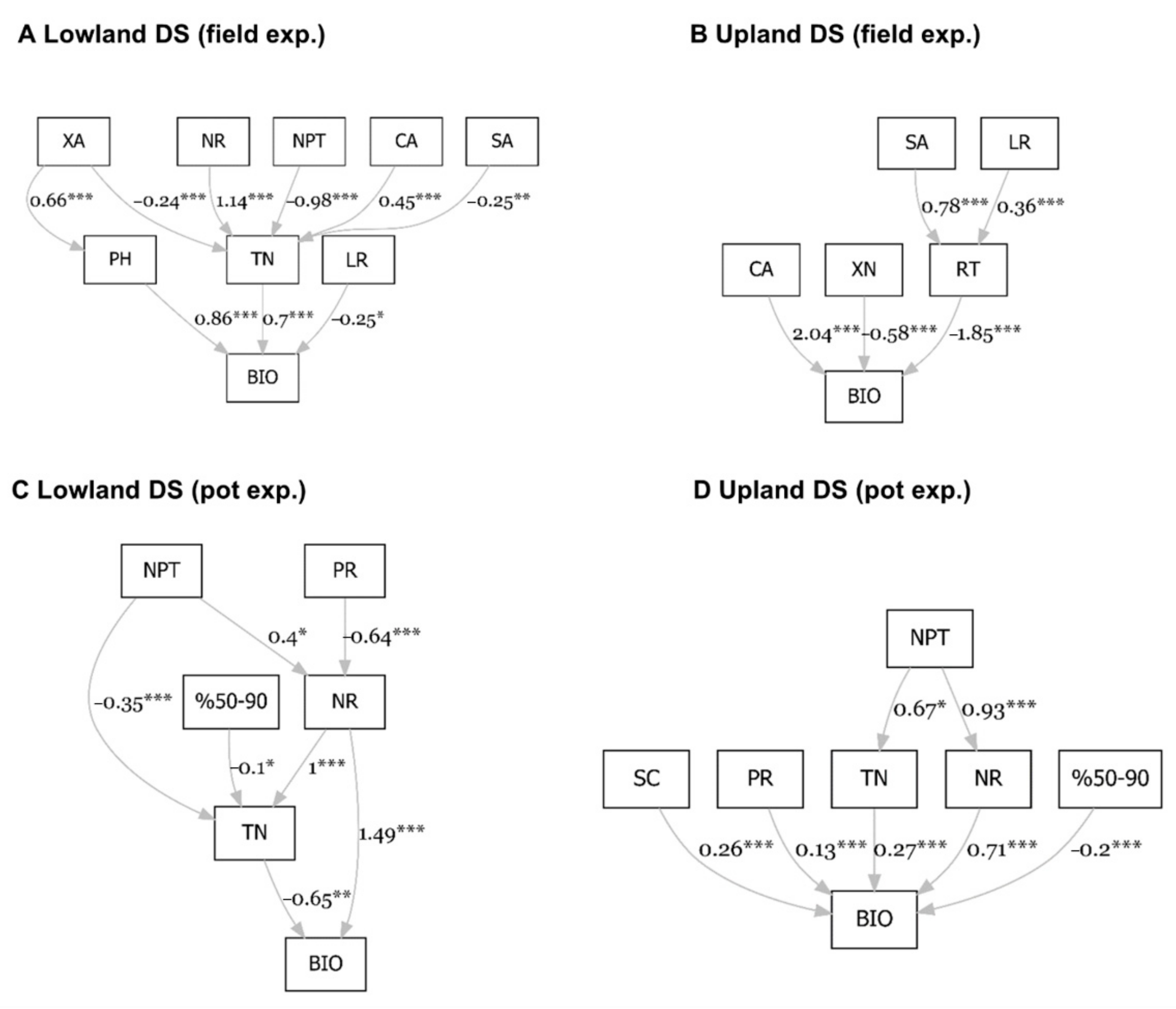

Figure 5. Path analysis. (A) Lowland rice in field experiment, (B) upland rice in field experiment, (C) lowland rice in pot experiment, and (D) upland rice in pot experiment. PH, plant height (cm); TN, tiller number (number); BIO, biomass (g); NPT, nodal root per tiller (no./tiller); NR, total nodal root number (no.); LR, lateral root density (no./10 cm); RT, root thickness (mm); CA, cortex area (cm2); SA, stele area (cm2); XN, xylem number (no.); XA, xylem area (cm2); %50–90, percent of nodal roots at 50–90 degrees (%); PR, photosynthesis rate (CO2 m−2s−1); SC, stomatal conductance (mmol m−2s−1); TR, transpiration rate (mm min−1). *, ** and *** indicate significant levels at 0.05, 0.01 and 0.001, respectively.
Figure 5. Path analysis. (A) Lowland rice in field experiment, (B) upland rice in field experiment, (C) lowland rice in pot experiment, and (D) upland rice in pot experiment. PH, plant height (cm); TN, tiller number (number); BIO, biomass (g); NPT, nodal root per tiller (no./tiller); NR, total nodal root number (no.); LR, lateral root density (no./10 cm); RT, root thickness (mm); CA, cortex area (cm2); SA, stele area (cm2); XN, xylem number (no.); XA, xylem area (cm2); %50–90, percent of nodal roots at 50–90 degrees (%); PR, photosynthesis rate (CO2 m−2s−1); SC, stomatal conductance (mmol m−2s−1); TR, transpiration rate (mm min−1). *, ** and *** indicate significant levels at 0.05, 0.01 and 0.001, respectively.
Agronomy 12 01230 g005
Table
Table 1. ANOVA, mean, least significant difference (LSD), and range of lowland rice in the field experiment.
Table 1. ANOVA, mean, least significant difference (LSD), and range of lowland rice in the field experiment.
TraitsConditionMean ± SDLSDMinMax%
Change		G
Effect		T
Effect		GxT
Effect
FDWW105±12.83.785129−17.1*****
DS87±4.33.98296 **
PHWW78.5±13.03.942.3105.3−22.5*****
DS60.8±10.26.547.784.3 **
TNWW24±7.68.51544−41.7****ns
DS14±3.94.2822 **
FGWW90±5.24.977.294.4−3.3***ns
DS87±5.59.278.690.6 ns
1000GWWW23.6±2.61.618.926.8−13.8****ns
DS20.3±11.42.816.522.8 *
BIOWW30.4±3.65.424.438.1−26.3***
DS22.4±3.93.116.831.5 **
NPTWW17.8±4.93.711.829.9−49.4***ns
DS9.0±2.84.36.712.5 ns
NRWW386±92.963227530.3−71.5****ns
DS110±45.539.360.6200.5 **
LRWW89.1±20.340.545.5122.5−63.9ns*ns
DS32.2±8.218.616.846.9 ns
RTWW1.35±0.140.481.051.56−11.9ns*ns
DS1.19±0.250.510.811.6 ns
CAWW1.1±0.120.490.831.29−18.2ns*ns
DS0.9±0.210.470.631.3 ns
SAWW0.04±0.010.020.030.0525.0ns*ns
DS0.05±0.010.010.030.07 **
XNWW5.0±0.61.0545−8.0ns*ns
DS4.6±0.91.2835 ns
XAWW0.005±0.0010.0020.0030.00740.0****
DS0.007±0.0030.0030.0020.011 **
PAWW32.1±8.526.719.445.12−2.8nsnsns
DS31.2±11.713.111.949.64 **
LRSDS5.6±0.6 1.51.564.92 ns
LDSDS3.0±1.2 0.72.674.75 *
FD, 50% days to flowering (DAS); PH, plant height (cm); TN, tiller number (number); FG, percent of filled grain (%); 1000GW, one thousand grain weight; BIO, biomass (g); NPT, nodal root per tiller (no./tiller); NR, total nodal root number (no.); LR, lateral root density (no./10 cm); RT, root thickness (mm); CA, cortex area (cm2); SA, stele area (cm2); XN, xylem number (no.); XA, xylem area (cm2); PA, percent of aerenchyma (%), LRS, leaf rolling score (score), LDS, leaf drying score (score); G effect, genotype effect; T effect, treatment effect; GxT effect, interaction of genotype and treatment effect. *, **, and ns represent the significant differences at 0.05, 0.01 levels and no significant difference, respectively.
Table
Table 2. ANOVA, mean, least significant difference (LSD), and range of upland rice in the field experiment.
Table 2. ANOVA, mean, least significant difference (LSD), and range of upland rice in the field experiment.
TraitsConditionMean ± SDLSDMinMax%
Change		G
Effect		T
Effect		GxT
Effect
FDWW104±11.31.6187119−10.6***ns
DS93±0.702.879293 ns
PHWW82.7±13.36.7569.3102.5−29.0******
DS58.7±6.748.9651.067.4 **
TNWW22±10.47.001546−40.9*****
DS13±4.234.65920 **
FGWW91.8±1.371.7589.393.7−11.3**nsns
DS81.4±5.3756.677.685.2 ns
1000GWWW23.8±1.271.9022.525.8−24.8ns*ns
DS17.9±0.427.8617.618.2 ns
BIOWW30.9±5.009.9125.037.3−30.7ns**ns
DS21.4±1.524.0719.523.4 ns
NPTWW16.7±6.235.3011.229.4−53.9******
DS7.7±1.775.875.19.6 ns
NRWW360±100104190505−74.2*****
DS93±8.6847.480.3104.7 ns
LRWW94.2±30.562.053.3140.4−56.2ns***
DS41.3±17.9633.327.479.5 **
RTWW1.32±0.190.681.091.63−23.5ns*ns
DS1.01±0.291.310.681.44 ns
CAWW1.05±0.160.570.861.34−30.5ns**ns
DS0.73±0.220.910.471.06 ns
SAWW0.043±0.0080.030.0300.050−11.6ns**ns
DS0.038±0.0070.050.0310.052 ns
XNWW5±0.181.50550.00nsnsns
DS5±0.641.5545 **
XAWW0.005±0.00030.0030.0040.0050.00nsnsns
DS0.005±0.0010.010.0040.007 ns
PAWW37.1±6.5136.829.647.5−23.7ns*ns
DS28.3±8.2445.516.039.3 ns
LRSDS2.2±0.81.401.533.5 ns
LDSDS3.1±0.40.802.253.6 ns
FD, 50% days to flowering (DAS); PH, plant height (cm); TN, tiller number (number); FG, percent of filled grain (%); 1000GW, one thousand grain weight; BIO, biomass (g); NPT, nodal root per tiller (no./tiller); NR, total nodal root number (no.); LR, lateral root density (no./10 cm); RT, root thickness (mm); CA, cortex area (cm2); SA, stele area (cm2); XN, xylem number (no.); XA, xylem area (cm2); PA, percent of aerenchyma (%), LRS, leaf rolling score (score), LDS, leaf drying score (score); G effect, genotype effect; T effect, treatment effect; GxT effect, interaction of genotype and treatment effect. *, **, and ns represent the significant differences at 0.05, 0.01 levels and no significant difference, respectively.
Table
Table 3. ANOVA, mean, least significant difference (LSD), and range of lowland rice in the pot experiment.
Table 3. ANOVA, mean, least significant difference (LSD), and range of lowland rice in the pot experiment.
TraitsConditionMean ± SDLSDMinMax%
Change		G
Effect		T
Effect		GxT
Effect
PHWW84.7±6.4811.672.594.4−2.6**nsns
DS82.5±10.721.054.997.1 **
TNWW15±4.8610.5924−33.3****ns
DS10±3.175.02615 ns
BIOWW21.5±2.567.1416.525.5−20.0ns**ns
DS17.2±1.803.6614.820.2 ns
NPTWW18.2±2.655.5813.923.0−28.6****ns
DS13.0±2.065.9210.016.5 ns
NRWW269±65.0152160359−52.4****ns
DS128±47.672.180.0213 *
LRWW153.0±36.711592.02255.0nsnsns
DS160.7±48.625.072.7230 *
%50–90WW33.3±7.7715.316.744.3−3.6nsnsns
DS32.1±6.725.9311.143.3 **
LRSDS5.90±2.325.9039 ns
LDSDS3.40±2.664.5019 *
PH, plant height (cm); TN, tiller number (number); BIO, biomass (g); NPT, nodal root per tiller (no./tiller); NR, total nodal root number (no.); LR, lateral root density (no./10 cm); %50–90, percent of nodal roots at 50–90 degrees (%); LRS, leaf rolling score (score); LDS, leaf drying score (score); G effect, genotype effect; T effect, treatment effect; GxT effect, interaction of genotype and treatment effect. *, **, and ns represent the significant differences at 0.05, 0.01 levels and no significant difference, respectively.
Table
Table 4. ANOVA, mean, least significant difference (LSD), and range of upland rice in the pot experiment.
Table 4. ANOVA, mean, least significant difference (LSD), and range of upland rice in the pot experiment.
TraitsConditionMean ± SDLSDMinMax%
Change		G
Effect		T
Effect		GxT
Effect
PHWW88.3±12.313.964.0100.1−2.9**nsns
DS85.7±13.314.664.2107.6 **
TNWW15±4.726.63820−29.3****ns
DS11±2.297.05714 ns
BMWW24.7±3.1613.620.727.9−26.0ns**ns
DS18.3±1.975.3515.520.6 ns
NPTWW18.8±4.633.9312.624.3−25.3****ns
DS14.0±3.175.5510.019.5 *
NRWW283±91.593.79564−45.6****ns
DS154±59.1109380218 ns
LRWW148.0±37.30133.0081.72056.1nsnsns
DS157.0±46.0025.00113.0251 **
%50–90WW26.1±5.4411.7020.337−4.6nsnsns
DS24.9±4.075.9319.733 *
LRSDS7.3±1.305.1049 ns
LDSDS5.4±1.905.601.77 *
PH, plant height (cm); TN, tiller number (number); BIO, biomass (g); NPT, nodal root per tiller (no./tiller); NR, total nodal root number (no.); LR, lateral root density (no./10 cm); %50–90, percent of nodal roots at 50–90 degrees (%); LRS, leaf rolling score (score); LDS, leaf drying score (score); G effect, genotype effect; T effect, treatment effect; GxT effect, interaction of genotype and treatment effect. *, **, and ns represent the significant differences at 0.05, 0.01 levels and no significant difference, respectively.
Table
Table 5. Bulk analysis of lowland and upland rice in field experiment.
Table 5. Bulk analysis of lowland and upland rice in field experiment.
EcosystemVarietiesGroupBIO (DS)BIO (WW)PHTN1000GWFGNPTNRLRCASAXNXAPART
LowlandY329-UBNbottom21.638.167.8920.99.48.97622.31.070.0605.30.011501.37
Yeanelo-5bottom23.936.070.31222.712.87.010126.40.640.0373.70.007320.83
Yeanelo-1top31.533.284.31219.616.916.820116.81.170.0535.30.009401.53
Pyi Myanmar Seintop25.030.060.01416.516.18.812231.80.790.0405.30.006391.03
p-value (bottom vs. top)nsnsnsnsnsnsnsnsnsnsnsnsnsnsns
UplandYar-8bottom19.529.155.7130.007.9111.842.80.590.0374.70.004261.00
Kauk Yinbottom19.928.963.5100.008.580.340.31.060.08350.004141.43
Nga Ywan Nutop23.435.466.51117.65.18.8107.527.40.860.0604.70.004171.07
Yar Kyawtop23.137.351200.005.4104.729.30.660.044.30.006220.87
p-value (bottom vs. top)***nsnsnsnsnsns*nsnsnsnsnsns
BIO, biomass (g); PH, plant height (cm); TN, tiller number (no.); 1000GW, one thousand grain weight (g); FG, percent of filled grain (%); NPT, nodal root number per tiller (no./tiller); NR, total number of nodal root (no.); LR, lateral root density (no./10 cm); CA, cortex area (cm2); SA, stele area (cm2); XN, xylem number (no.); PA, percent of arenchyma (%); RT, root thickness (mm). *, **, and ns represent the significant differences at 0.05, 0.01 levels and no significant difference, respectively.
Table
Table 6. Bulk analysis of lowland and upland rice in the pot experiment.
Table 6. Bulk analysis of lowland and upland rice in the pot experiment.
EcosystemVarietiesGroupBIO (DS)BIO (WW)PHTNNPTNRLRD%50–90CCPRSCTR
LowlandYeanelo-2bottom15.022.684.7714.5871162940.69.70.090.0018
Sin Thwe Latbottom15.524.679.5910.0911383940.813.60.160.0029
Yeanelo-3top20.323.288.71514.12062042141.81.50.040.0010
Pyi Myanmar Seintop20.222.285.81415.3214983243.85.40.020.0005
p-value (bottom vs. top)**nsns*ns**nsnsnsnsnsns
UplandYar-4bottom15.527.680.2710.0641133339.48.20.110.0023
Nga Ywan Nubottom16.722.988.7911.311114824361.20.070.0015
Yar-8top20.628.090.61119.52181282035.811.80.060.0012
Ba Ma Htartop20.325.589.71315.42001362341.22.20.080.0017
p-value (bottom vs. top)*nsnsnsns*nsnsnsnsnsns
BIO, biomass (g); PH, plant height (cm); TN, tiller number (no.); NPT, nodal root number per tiller (no./tiller); NR, total number of nodal root (no.); LR, lateral root density (no./10 cm); %50–90, percent of nodal roots at 50–90 degrees (%); CC, chlorophyll content (nmol cm−2); PR, photosynthesis rate (CO2 m−2s−1); SC, stomatal conductance (mmol m−2s−1); TR, transpiration rate (mm min−1). *, **, and ns represent the significant differences at 0.05, 0.01 levels and no significant difference, respectively.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sandar, M.M.; Ruangsiri, M.; Chutteang, C.; Arunyanark, A.; Toojinda, T.; Siangliw, J.L. Root Characterization of Myanmar Upland and Lowland Rice in Relation to Agronomic and Physiological Traits under Drought Stress Condition. Agronomy 2022, 12, 1230. https://doi.org/10.3390/agronomy12051230

AMA Style

Sandar MM, Ruangsiri M, Chutteang C, Arunyanark A, Toojinda T, Siangliw JL. Root Characterization of Myanmar Upland and Lowland Rice in Relation to Agronomic and Physiological Traits under Drought Stress Condition. Agronomy. 2022; 12(5):1230. https://doi.org/10.3390/agronomy12051230

Chicago/Turabian Style

Sandar, Moe Myint, Mathurada Ruangsiri, Cattleya Chutteang, Anuruck Arunyanark, Theerayut Toojinda, and Jonaliza L. Siangliw. 2022. "Root Characterization of Myanmar Upland and Lowland Rice in Relation to Agronomic and Physiological Traits under Drought Stress Condition" Agronomy 12, no. 5: 1230. https://doi.org/10.3390/agronomy12051230

APA Style

Sandar, M. M., Ruangsiri, M., Chutteang, C., Arunyanark, A., Toojinda, T., & Siangliw, J. L. (2022). Root Characterization of Myanmar Upland and Lowland Rice in Relation to Agronomic and Physiological Traits under Drought Stress Condition. Agronomy, 12(5), 1230. https://doi.org/10.3390/agronomy12051230

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
