Crop Yield and Nutrient Efficiency under Organic Manure Substitution Fertilizer in a Double Cropping System: A 6-Year Field Experiment on an Anthrosol

by
Yan Han
†,
Fenglian Lv
†,
Xiaoding Lin
,
Caiyun Zhang
,
Benhua Sun
,
Xueyun Yang
* and
Shulan Zhang
*
Key Laboratory of Plant Nutrition and the Agri-Environment in Northwest China, Ministry of Agriculture and Rural Affairs/College of Natural Resources and Environment, Northwest A&F University, Xianyang 712100, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Agronomy 2022, 12(9), 2047; https://doi.org/10.3390/agronomy12092047
Submission received: 25 June 2022 / Revised: 13 August 2022 / Accepted: 24 August 2022 / Published: 27 August 2022
(This article belongs to the Special Issue Maximizing Crop Yield and Resource Use Efficiency: Innovative Agronomic Practices)
Browse Figures
Review Reports Versions Notes

Abstract

:
The combination of organic manure and inorganic fertilizer plays a role in increasing crop yield and nutrient efficiency, but such effectiveness varies with crop, soil, management, and climate. Here, a 6-year field experiment was conducted to evaluate the effects of substituting organic manure with inorganic fertilizer on crop yield, grain protein content, and nitrogen and phosphorus efficiency under a winter wheat-summer maize cropping system on Anthrosol. Five treatments were included: recommended nitrogen (N), phosphorus (P) and potassium (K) fertilizers (NPK), 75% NPK + 25% organic manure (M), 50% NPK + 50% M, 25% NPK + 75% M, and 100% M, respectively. Wheat, maize, and annual yield were 1643–8438 kg ha−1, 4847–11,104 kg ha−1, and 10,007–17,496 kg ha−1. Organic manure treatments produced the same crop yield as NPK treatment except for 100% M. Grain protein content of wheat and maize was 7.9–15.1% and 5.6–12.6%. Organic manure treatments yielded significantly lower wheat grain protein content but had no significant effect on maize grain protein content relative to NPK treatment. Nitrogen uptake efficiency and nitrogen use efficiency at the cropping system level were 0.67–1.16 and 35.7–60.5 kg kg−1. Phosphorus uptake efficiency and phosphorus use efficiency were 0.28–0.75 and 167–531 kg kg−1. Compared with NPK treatment, 50% M, 75% M, and 100% M improved nitrogen use efficiency but decreased nitrogen uptake efficiency and phosphorus efficiencies. Annual N and P budgets were −1.3–79.1 kg ha−1 a−1 and 25.6–100.1 kg ha−1a−1, and both increased with the increase in organic manure input. Based on crop yield, grain protein content, nitrogen, and phosphorus efficiency and their budget, substitution of 25% inorganic fertilizer with organic manure is the rational combination under the winter wheat–summer maize system on an Anthrosol.

1. Introduction

Fertilization is a routine measure to ensure crop yield, but overfertilization remains a common problem in China. For example, with wheat, around 64% of farmers in the Fenhe Plain of Shanxi Province apply excessive N, and 78% apply excessive P relative to the recommended levels [1]. At the national scale, 75% of farmers use more fertilizers than the optimum for rice, wheat, and maize, which causes low N and P use efficiencies [2], increases soil N and P accumulation [3], and results in soil acidification and degradation [4,5], nitrate pollution of groundwater, eutrophication of surface waters, and greenhouse gas emissions [6,7]. To reduce these adverse effects, while maintaining crop yields and improving N and P efficiencies, the Chinese government released the zero-growth policy in fertilizer use in 2015 [8] and also highlighted greater recycling of agricultural byproducts, particularly organic manure. The total organic manure (ca. 2800 Mt in 2010, fresh weight) could provide about 16.4 Mt N and 5.3 Mt P in the country [9]. However, just 30–40% of manure is currently recycled into croplands, while the rest is discarded and results in N and P pollution of the atmosphere and water [9,10,11]. Thus, making full use of organic manure can achieve multiple goals, including mitigating non-point source pollution [12], improving soil fertility, increasing crop yield, improving grain quality [13,14,15], and achieving the zero-growth policy in fertilizer use.
Many studies have demonstrated that the combination of organic manure and mineral fertilizer is best for achieving high crop yield [13,14,16]. Nevertheless, variable yield responses to the optimum combination of inorganic fertilizer with organic manure have been reported under different cropping systems and soils. For example, substituting 50% of inorganic N with organic manure maintained grain yield in the intensive maize–wheat, double cropping system on a silty loam [17] or obtained similar or increased maize yield on a silty-clay loam relative to NPK alone [18]. Long-term experiments (>30 years) on red clay soil have revealed that substitution of inorganic N with 30–70% with organic N increases crop yield in a double rice cropping system, and substitution of 70% inorganic N has shown the best performance [19,20]. In contrast, seven long-term experiments (12–15 years) found that replacement of inorganic fertilizer with organic manure significantly reduced rice yield in the rice–wheat system on sandy loam, silt loam, and clay soils [21]. These results reflect that the sound combination of organic manure with inorganic fertilizer requires further investigation for a given soil type and cropping system.
Application of organic manure impacts nutrient efficiency, but the results are inconsistent. A meta-analysis found that application of organic manure increased N and P uptake of rice, thus improving both N and P use efficiency (grain yield/nutrient uptake) [22]. Others have documented that organic manure combined with inorganic fertilizer reduced both N and P uptake efficiency (nutrient uptake/nutrient input) under the double rice system [23] and reduced P uptake efficiency compared with inorganic fertilizer alone under both wheat–fallow and wheat–maize systems [24]. Analyzing 15-year field experiments under the wheat–maize double cropping system at four sites in China, Duan et al. [25] reported that substituting 70% of inorganic N with organic manure maintained or improved N uptake efficiency relative to inorganic fertilizer alone. The differences among studies may be related to cropping system, soil type, and climate conditions that affect mineralization of organic manure and subsequently nutrient supply and nutrient uptake, etc. [22,24,25].
The Anthrosol, derived from loess material, is one of the major soil types in the Guanzhong Plain of northern China. It covers an area of up to 97.6 × 104 ha [26] and accounts for 34% of the arable land in Shaanxi Province [27]. The winter wheat–summer maize double cropping system is the main cropping system cultivated on Anthrosol and produces more than 70% of wheat and maize for Shaanxi Province. Previous studies have evaluated crop yield and N and P uptake efficiencies, under substituting 70% of inorganic N with organic manure in long-term experiments [24,25], as well as crop yield and nitrous oxide emission under various substitution proportions of inorganic fertilizer with organic manure through the combination of short-term experiments with long-term simulation [28]. However, there is a lack of information about the dynamics of crop yield, grain protein, and N and P efficiencies under various substitution proportions of inorganic fertilizer with organic manure under this cropping system. This study, therefore, investigated crop yield, grain protein content, N and P efficiencies, and N and P balance in response to various substitution ratios of inorganic fertilizer with organic manure in a 6-year field experiment. Our results provide a reference for organic substitution of inorganic fertilizer to achieve high yield and greater efficiency and low environmental footprint for similar soil and cropping systems.

2. Materials and Methods

2.1. Experimental Site

A field experiment was conducted in Yangling (34°17′51″ N, 108°00′48″ E, 534 m asl), Guanzhong Plain, Shaanxi Province, China, during 2014–2020, where a winter wheat–summer maize (Triticum aestivum L., Zea mays L.), double cropping system was implemented. This region displays a typical warm temperate continental monsoon climate, with a mean annual temperature of 12.9 °C, annual precipitation of 550–600 mm, and annual evaporation of 993 mm. Approximately 60% of precipitation occurs from July to September. The soil at the site is a silty-clay loam soil (clay 16%, silt 52%, and sand 32%), derived from loess material, and is classified as Eumorthic Anthrosol [29]. At the beginning of this experiment, the general soil properties in the topsoil layer (0–20 cm) were as follows: bulk density of 1.34 g cm−3, pH (1:1 soil: water) approximately 8.6, soil organic matter content of 15.1 g kg−1, total nitrogen content 0.68 g kg−1, available phosphorus 10.1 mg kg−1, and available potassium 165.6 mg kg−1.

2.2. Experimental Design

The experiment was executed on 30 m2 (7.5 m × 4 m) plots in triplicate using a randomized complete block design. Five treatments were applied in this study: (1) 100% of inorganic N, P and K fertilizers (NPK), (2) 75% NPK plus 25% organic manure (25% M), (3) 50% NPK plus 50% organic manure (50% M), (4) 25% NPK plus 75% organic manure (75% M), and (5) 100% organic manure (100% M). The nutrient application rates on NPK treatment were locally recommended for the cropping system. The detailed nutrient input for treatments is given in Table 1. Nitrogen fertilizer was applied in the form of urea before sowing wheat and at 6 leaf stages in the maize season. Organic manure and P and K fertilizers were applied in the form of dairy manure, calcium superphosphate, and potassium sulfate before wheat sowing. The mean contents of organic C, N, P, and K in the manure were 347.2 g kg−1, 12.1 g kg−1, 7.9 g kg−1, and 11.8 g kg−1, respectively, from 2014 to 2019, and manure rate was based on its N concentration. Thus, P and K inputs were different between treatments (Table 1).
The varieties for wheat and maize were Xiaoyan 22 and Zhengdan 958. The rainfall and temperature during the experiment period (2014–2020) are shown in Figure 1. Irrigation was conducted 0–1 times in the wheat season and 0–4 times in the maize season. Depending on the pattern of precipitation, each irrigation was about 80 mm. The vegetative stages of maize in 2017 and the whole growth period of wheat in 2019 were very dry; additionally, wheat in spring in 2018 suffered from frost. The chemicals were applied to control weeds, diseases, and insects based on recommendations.

2.3. Sampling and Measurements

Wheat and maize were sampled at maturity every year (sample area was 8 m2 for wheat and 20 m2 for maize) to determine grain yield and aboveground biomass. Subsamples of grain and straw were dried and milled to analyze N and P concentrations. Nitrogen content was determined following the method reported by Lv et al. [30], and phosphorus content was determined by the molybdenum blue colorimetric method [31].

2.4. Calculation and Statistical Analysis

Grain protein content (GPC, %) was calculated as follows [32]:
GPC (%) = Ngrain (%) × FN−Pro
where Ngrain is the N concentration of grain, FN−Pro is the nitrogen-to-protein conversion factor, and wheat and maize are 5.70 and 6.25, respectively [32].
Nitrogen (phosphorus) uptake efficiency (N(P)PE) and nitrogen (phosphorus) use efficiency (N(P)UE, kg kg−1) were calculated as follows [33,34]:
N(P)PE = (UWN(P) + UMN(P)) (kg ha−1)/AN(P) (kg ha−1)
N(P)UE (kg kg−1) = (YW + YM) (kg ha−1)/(UWN(P) + UMN(P)) (kg ha−1)
where UWN(P) and UMN(P), indicate N(P) uptake of wheat and maize, respectively; AN(P) is the annual N(P) application rate; and YW and YM are grain yields of wheat and maize.
N or P budget (N(P)b, kg ha−1) was calculated as the difference between total N(P) input (FN(P), kg ha−1) and N(P) uptake by the crop (UN(P), kg ha−1), as described by Khan et al. [24].
N(P)b = FN(P) − UN(P)
The effects of season, treatment, and their interactions on crop yield, grain protein content, nitrogen uptake and use efficiency, and phosphorus uptake and use efficiency were tested using repeated measures ANOVA (general linear model). When F-values were significant, multiple comparisons of means were performed using the least significant difference method (LSD) at 0.05 probability. All statistical analysis was performed with SPSS 18.0.

3. Results

3.1. Crop Yield

Wheat yield varied from 1643 to 8438 kg ha−1 during six experimental seasons (Figure 2). ANOVA indicated significant seasonal effects on wheat yield as follows: 2018 < 2019 < 2020 < 2015 and 2016. Compared with 25% M, 100% M significantly reduced wheat yield, while other treatments showed similar yield to the above two treatments. Season significantly interacted with treatment impacting wheat yield; for example, both 25% M and 50% M treatments showed similar or higher yield relative to NPK treatment in 2016, 2017, 2018, and 2019, but the opposite was true in other seasons.
Maize yield ranged from 4847 to 11,104 kg ha−1 (Figure 3). Maize yield in 2018 was significantly higher than that in the remaining seasons, and it was also higher in 2016, 2019, and 2020 than in 2015 and 2017. Additionally, season and treatment presented a significant interactive effect on maize yield. For example, organic manure treatments showed distinctly lower yield than NPK treatment in 2016 and 2017, but no difference was observed in the other four seasons.
Annual yield (wheat plus maize) ranged from 10,007 to 17,496 kg ha−1 (Figure 4). Season, treatment, and their interaction affected annual yield. It was significantly lower in 2017, 2018, and 2019 than in the remaining seasons, and the annual yield in 2020 was also lower than that in 2016. Both NPK and 25% M treatments presented significantly greater annual yield compared to 100% M treatment. In 2015, 2016, and 2019, 25% M, 50% M, and 75% M treatments showed higher crop yield relative to NPK treatment, whereas lower values were observed in other seasons, especially in 2017.

3.2. Grain Protein Content

Grain protein content in wheat ranged from 7.9% to 15.1% (Figure 5). Compared with NPK, substitution of inorganic fertilizer with organic manure significantly decreased wheat grain protein content by 9.7–16.4%. Grain protein content was significantly higher in 2019 than in the other seasons. Season and treatment interaction affected grain protein content; for example, all treatments presented similar grain protein content in 2018, but organic manure treatments generally gave lower values in other seasons.

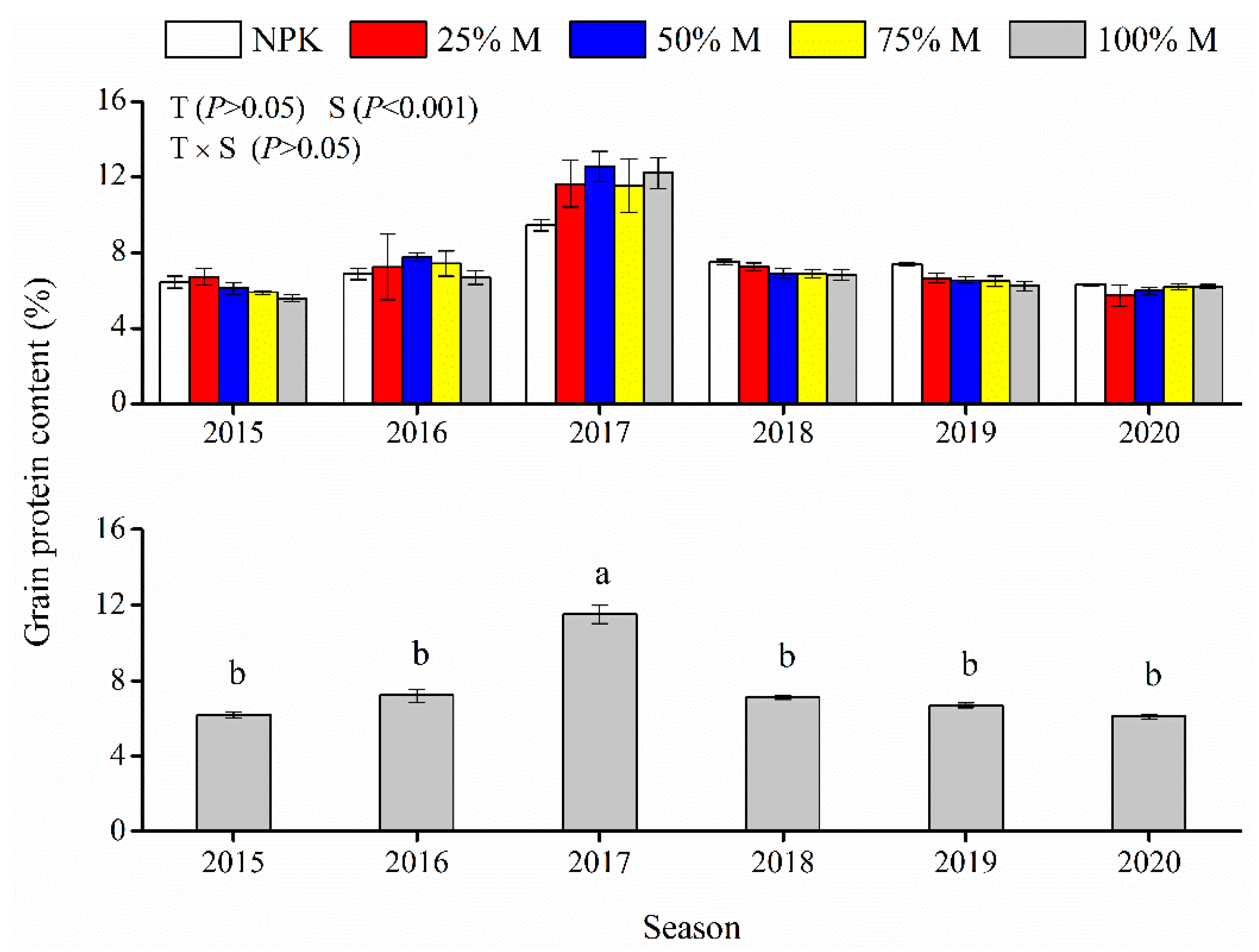

Grain protein content in maize ranged from 5.6% to 12.6% (Figure 6). Season affected maize grain protein content with a significantly higher value in 2017 than in other seasons.

3.3. Nitrogen and Phosphorus Efficiency

The NPE of the cropping system ranged from 0.67 to 1.16 (Table 2). Treatment and season significantly affected NPE. Compared with NPK, 50% M, 75% M and 100% M treatments reduced NPE by 13.0%, 15.0%, and 23.0%, respectively. The NPE was significantly higher in 2014–2015 and 2015–2016 than in other seasons (except for 2016–2017). Treatment and season interaction affected NPE, for example, 50% M, 75% M, and 100% M showed similar NPE values relative to NPK treatment in 2014–2015 and 2015–2016, while lower values were observed in other seasons.
The NUE of the cropping system ranged from 35.7 to 60.5 kg kg−1 (Table 2). Season and treatment significantly affected NUE. Compared with NPK, 50% M, 75% M and 100% M increased NUE by 12.7%, 15.1% and 17.4%, respectively. The NUE was highest in 2019–2020 and lowest in 2016–2017.
The range of PPE was 0.28 to 0.75 (Table 2). Compared with NPK, organic manure treatments decreased PPE by 18.0–39.3%. The PPE was lower in 2015–2016 than in the 2016–2017 and 2019–2020 seasons. Additionally, 25% M, 50% M, 75% M and 100% M treatments showed similar or higher PPE values than NPK treatment in 2016–2017, but the opposite was true in the other seasons.
The range of PUE was 167 to 531 kg kg−1 (Table 2). Relative to NPK treatment, 50% M, 75% M, and 100% M treatments remarkably decreased PUE by 14.0%, 23.8%, and 31.6%, respectively. The PUE showed lower values in 2017–2018, 2018–2019, and 2019–2020 seasons than in the remaining seasons.

3.4. Nitrogen and Phosphorus Budget

Nitrogen budget was from −1.3 kg ha−1 a−1 on NPK treatment to 79.1 kg ha−1 a−1 on 100% M treatment (Table 3). Phosphorus budget was from 25.6 to 100.1 kg ha−1 a−1, the lowest on NPK, and the highest on 100% M treatment (Table 4).

4. Discussion

4.1. Response of Crop Yield and Grain Protein Content to Organic Manure Substitution

The six-year experiment found that the 25% organic manure replacement had the best effect on crop yield on the Anthrosol tested. This is consistent with studies on similar soils, which showed that the substitution of 25% inorganic fertilizer with organic manure maintained crop yield under a wheat–maize cropping system while substituting 30–100% inorganic fertilizer with organic manure reduced crop yield [13,35]. Long-term experiments (14–22 years) also demonstrated that the replacement of 50% to 100% inorganic fertilizer with organic manure risked lower yields in the beginning years but maintained/increased crop yields in the later years under both wheat–fallow and wheat–maize rotations on alkaline soils [25,36,37]. On acidic soils, replacement of 50–100% inorganic fertilizer with organic manure significantly reduced wheat yield and maintained/increased rice yield under a wheat-rice rotation system based on 1–6 years of experiments [15,38]. Long-term experiments revealed that substituting 30–70% inorganic fertilizer with organic manure could maintain or increase crop yield under wheat–maize, wheat-rice, and double rice cropping systems, and 70% M treatment was the best [19,20,25,39]. A meta-analysis found that substitution of inorganic fertilizer less than 30% with organic manure could increase wheat yield, when substitution exceeds 30%, wheat yield increase can be detected after more than 10 years or on acidic soils [16]. Overall, the substitution of inorganic fertilizer with organic manure in a low proportion generally maintains or increases crop yield on alkaline soils, which could be ascribed to: (1) other mineral nutrients apart from N, P, and K added by organic manure [40,41]; (2) improvement of soil physical properties [36,42], which improve the supply and retention capacity of water and nutrients, and thus root penetration and nutrient and water uptake [43,44]; (3) improving soil enzyme activity [45,46] and soil microbial diversity and community, thus increasing soil productivity [47,48]. The high proportion of organic manure substituting inorganic fertilizer generating yield penalty as observed in this study is possibly related to low available nutrient content caused by the slow mineralization rate of organic manure under suboptimal environmental conditions (e.g., soil hydrothermal status), thus, limiting crop growth [49,50].
Protein is an important part of grain quality. Substitution of inorganic fertilizer by manure decreased wheat grain protein content and had no effect on maize grain protein content compared with inorganic fertilizer alone. Similarly, rice grain protein content decreased following the increase in the proportion of organic manure application [51]. Wang et al. [52] documented that 30–100% biogas slurry replacing inorganic fertilizer did not affect wheat grain protein content. Others have found that the replacement of inorganic fertilizer with organic manure (25% M or 30% M) increased grain protein content compared with inorganic fertilizer alone [12,53]. The variability of the results among studies might be related to N supply and uptake. The proportion of N translocation at pre-anthesis accounted for 51–91% of grain N content in wheat [54,55]. The lack of available N supply in the early crop growth may affect the N uptake and translocation [51]. The organic manure with a C/N ratio >25 applied in this study might induce competition from microbial decomposers for available N. The availability of mineral N for crop growth might be lower in the manure treatments compared to NPK treatment [36], especially for winter wheat that grows at low temperature at the early stage, which could impact the mineralization of manure. Considering the protein content of grains, the proportion of organic manure replacing inorganic fertilizer should not be high, especially at the beginning of the experiment. With the improvement of soil fertility, nutrient supply capacity is enhanced, and the proportion of organic manure application can be gradually increased [36]. Foliar fertilization of N after anthesis might be a viable measure to increase grain protein concentration [56].

4.2. Response of Nitrogen Efficiency to Organic Manure Substitution

Nitrogen use efficiency refers to the proportion of nitrogen absorbed by the plants to be converted to grain yield [57]. Organic manure substitution exceeding 25% significantly increased the NUE of the cropping system compared to the sole NPK (Table 2), which was similar to results obtained under a single rice system on an Entisol [58]. Other short- and long-term studies (1–30 years) documented that the substitution of organic manure for inorganic fertilizer increased NUE in both single and double rice cropping systems [15,51,59,60]. Li et al. [61] documented that most organic manure substitution treatments presented similar NUE to inorganic fertilizer alone under the winter wheat–summer maize cropping system based on a one-year study on light loam soil. The variation among studies is probably associated with the soil and climate conditions, crop type, and experiment duration, which affect the mineralization of organic manure [36]. The possible reasons for the improvement/maintenance of NUE by substituting inorganic fertilizer with organic manure include (1) the availability of N in organic manure is low, especially the replacement ratio of organic manure is high, which reduces the N accumulation in stem and leaf during the vegetative growth stage [51,60,61]; (2) organic manure application improves post-anthesis N supply, promotes post-anthesis dry matter accumulation, compensates N deficiency pre-anthesis to some extent, and subsequently maintains crop yield [62,63], thus improving NUE.
Nitrogen uptake efficiency reflects the level of N management [64]. If NPE = 1, it means that the input nutrient can exactly meet the nutrient requirement of the crop; NPE < 1 indicates that N uptake is less than N input, and the unremoved N by the crop may store in the soil or enter into the environment; NPE > 1 means that the N removed is greater than the N input, indicating depletion of soil N, thereby a decrease in soil fertility. NPE in our study (0.77–1.00) was similar to the international recommended value of 0.5–0.9 [65], which was also the value reflected by the low N budget from −1.3 to 79.1 kg ha−1 a−1, less than the recommended 80 kg ha−1 a−1 [65]. These results highlight that the application rate of inorganic N recommended in this experiment is appropriate under the cropping system.
The 25% M had similar NPE to the NPK while other manure treatments presented lower values. This was in agreement with Li et al. [61], who showed that 25% cow manure plus 75% inorganic N had similar NPE to the inorganic fertilizer alone, and 50%, 75%, and 100% cow manure substitution reduced NPE from one year experiment under same cropping system. Results from 15-year experiments on different soils indicated that substituting 70% of inorganic N with organic manure improved NPE in acidic soil and maintained NPE in other alkaline soils under a wheat–maize cropping system [25]. However, substitutions with pig manure or chicken manure with various proportions (25–100%) showed the same NPE as inorganic fertilizer alone under a winter wheat–summer maize cropping system on an alkaline soil [61]. Hou et al. [59] also reported that organic manure (applied as A. sinicus L. and swine) replacing 30%, 50%, and 70% of the inorganic fertilizer had no significant effect on NPE under a double rice cropping system on an acidic soil based on a 30-year field experiment. The inconsistent results might be related to the factors that influence the mineralization of organic manure and N uptake as discussed above and manure types with different properties [25,59,61].

4.3. Response of Phosphorus Efficiency to Organic Manure Substitution

The PUE was lower following the substitution of organic manure for inorganic fertilizer (Table 2). Khan et al. [24] also reported that compared with inorganic fertilizer alone, a combination of organic manure and inorganic fertilizer reduced PUE in both winter wheat–summer fallow and winter wheat–summer maize systems on the same soil. Similarly, Xin et al. [66] reported that both 50% and 100% compost substitution of inorganic fertilizer had significantly lower PUE under the wheat–maize system. Lu et al. [67] found that organic manure combined with inorganic fertilizer treatment increased PUE in the double rice cropping system. The reduction of PUE is partly due to the excessive P input caused by organic manure whose input has been based on N concentration in many experiments like the current study, leading to the excessive P input and luxury P uptake by crops (Table 4) [24]. The reason for the improvement of PUE is consistent with that of NUE because the slow mineralization rate of organic manure reduces crop P uptake at the early stage but increases P uptake at the late stage, thus ensuring crop yield and improving PUE [67].
Phosphorus uptake efficiency reflects the management of P. The PPE observed in the current study (0.37–0.61) was similar to the range of 0.20–0.54 reported in China [24], but lower than the value of 0.5–0.7 observed in England [34]. Low PPE in this study was also reflected by high values of P budget (25.6–100 kg ha−1 a−1), indicating the excessive application of P, especially in the treatment with organic manure. Previous studies have shown that each 100 kg P ha−1 surplus would increase the Olsen-P by 2–6 mg P kg−1 [68,69,70], which means long-term excessive application of P would eventually lead to a large quantity of P accumulation with high availability and thus increase potential environmental problems of P leaching and resource losses [24].
Substitution of inorganic fertilizer with organic manure reduced PPE (Table 2). On the same soil, Khan et al. [24] found that 70% organic manure substitution of inorganic N significantly decreased PPE under both wheat–maize and wheat–fallow (rain–fed) systems. Under the rice–lentil cropping system, Pradhan et al. [71] reported lower PPE was in treatment receiving inorganic fertilizer in combination with farmyard manure (50% farmyard manure) on neutral soil (pH ≈ 7). On the contrary, Lu et al. [67] reported that substituting inorganic fertilizer with pig manure has no effect on PPE under a double rice cropping system on acidic soil. Additionally, replacing inorganic fertilizer with pig manure or compost (mixture of wheat straw, oil rapeseed cake, and cottonseed cake) has been reported to increase PPE under a double rice cropping system on acidic soil [72] or wheat–maize double cropping system on an alkaline soil [66]. The difference among studies might mainly be associated with the amount of P input, environmental condition (e.g., soil and climate), crop type, and property of organic manure. Considering the limited P resources and potential risk of P release to the water body, organic manure substitution for fertilizers should be based on both N and P in the future.

5. Conclusions

The present study demonstrated that 75% inorganic fertilizer combined with 25% organic manure sustained crop yield, maintained maize grain protein content, and generally achieved similar nitrogen and phosphorous efficiency to the recommended inorganic fertilizers alone. Considering the reduction of wheat grain protein content, foliar nitrogen application might be an efficient measure to be adopted to improve grain protein content. Due to the high quantity of phosphorous left in soil, organic manure substitution for inorganic fertilizer should be simultaneously considered both nitrogen and phosphorous in the future to efficiently use organic resources and protect phosphate resources.

Author Contributions

Data analysis, Y.H., F.L., X.L., C.Z., X.Y. and S.Z.; data collection, Y.H., F.L., X.L. and C.Z.; figures, Y.H. and F.L.; funding acquisition, X.Y. and S.Z.; investigation, Y.H. and F.L.; study design, B.S., X.Y. and S.Z.; proofread the final version of the manuscript, B.S., X.Y. and S.Z.; writing—original draft, Y.H. and F.L.; writing—review and editing, B.S., X.Y. and S.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was sponsored by the Ministry of Agriculture and Rural Affairs of China under Special funds for the Operation and Maintenance of Scientific Research Facilities (G2022-07-2) and the Natural Science Foundation of Shaanxi Province, China (2022JQ-288).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Acknowledgments

We are incredibly grateful to all the staff involved in the running and managing of the experiment. The authors also greatly acknowledge Victor Sadras for his comments and language check, who is supported by the Foreign Expert Introduction Program sponsored by the Ministry of Science and Technology (F2011322005).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Han, Y.; Zheng, J.; Lu, H.; Wang, Y.; Luo, C.; Du, W.; Lei, T.; Zhang, R.; Xu, J.; Hu, C.; et al. Investigation and analysis of nitrogen and phosphorus input for winter wheat in Fenwei Plain. J. Triticeae Crops 2020, 40, 1382–1388. (In Chinese) [Google Scholar]
  2. Zhang, F.; Wang, J.; Zhang, W.; Cui, Z.; Ma, W.; Chen, X.; Jiang, R. Nutrient use efficiencies of major cereal crops in China and measures for improvement. Acta. Pedol. Sin. 2008, 45, 915–924. (In Chinese) [Google Scholar]
  3. Zhen, L.; Cui, Z.; Chen, X.; Zhang, F.; Kou, C.; Ju, X.; Kang, C.; Wang, W.; Wang, Y.; Zhu, T. The changes of nutrient balances driven by adjusting crop structure at county level during 25 years—A case study in Huimin County, Shandong Province. Plant Nutr. Fertil. Sci. 2007, 13, 213–222. (In Chinese) [Google Scholar]
  4. Blanco-Canqui, H.; Schlegel, A.J. Implications of Inorganic Fertilization of Irrigated Corn on Soil Properties: Lessons Learned after 50 Years. J. Environ. Qual. 2013, 42, 861–871. [Google Scholar] [CrossRef]
  5. Guo, J.H.; Liu, X.J.; Zhang, Y.; Shen, J.L.; Han, W.X.; Zhang, W.F.; Christie, P.; Goulding, K.W.T.; Vitousek, P.M.; Zhang, F.S. Significant Acidification in Major Chinese Croplands. Science 2010, 327, 1008–1010. [Google Scholar] [CrossRef] [PubMed]
  6. Ju, X.-T.; Xing, G.-X.; Chen, X.-P.; Zhang, S.-L.; Zhang, L.-J.; Liu, X.-J.; Cui, Z.-L.; Yin, B.; Christie, P.; Zhu, Z.-L.; et al. Reducing environmental risk by improving N management in intensive Chinese agricultural systems. Proc. Natl. Acad. Sci. USA 2009, 106, 3041–3046. [Google Scholar] [CrossRef]
  7. Prasad, R.; Shivay, Y.S.; Kumar, D. Current Status, Challenges, and Opportunities in Rice Production. In Rice Production Worldwide; Chauhan, B.S., Jabran, K., Mahajan, G., Eds.; Springer International Publishing: Cham, Switzerland, 2017; pp. 1–32. [Google Scholar]
  8. Wang, L.; Li, Q.; Coulter, J.A.; Xie, J.; Luo, Z.; Zhang, R.; Deng, X.; Li, L. Winter wheat yield and water use efficiency response to organic fertilization in northern China: A meta analysis. Agric. Water Manag. 2020, 229, 105934. [Google Scholar] [CrossRef]
  9. Chadwick, D.; Jia, W.; Tong, Y.; Yu, G.; Shen, Q.; Qing, C. Improving manure nutrient management towards sustainable agricultural intensification in China. Agric. Ecosyst. Environ. 2015, 209, 34–36. [Google Scholar]
  10. Bai, Z.H.; Ma, L.; Jin, S.Q.; Ma, W.Q.; Velthof, G.L.; Oenema, O.; Liu, L.; Chadwick, D.; Zhang, F.S. Nitrogen, Phosphorus, and Potassium Flows through the Manure Management Chain in China. Environ. Sci. Technol. 2016, 50, 13409–13418. [Google Scholar] [CrossRef]
  11. Bai, Z.; Li, X.; Lu, J.; Wang, X.; Velthof, G.L.; Chadwick, D.; Luo, J.; Ledgard, S.; Wu, Z.; Jin, S.; et al. Livestock Housing and Manure Storage Need to Be Improved in China. Environ. Sci. Technol. 2017, 51, 8212–8214. [Google Scholar] [CrossRef]
  12. Xia, L.; Lam, S.K.; Yan, X.; Chen, D. How Does Recycling of Livestock Manure in Agroecosystems Affect Crop Productivity, Reactive Nitrogen Losses, and Soil Carbon Balance? Environ. Sci. Technol. 2017, 51, 7450–7457. [Google Scholar] [CrossRef]
  13. Li, Z.; Ding, N.; Guo, L.; Meng, J.; Li, J.; Li, X.; Zheng, Y.; Wu, G.; Zen, Y.; Jiang, G. Effects of different ratios of organic manure and chemical fertilizer on growth, yield and quality of winter wheat and summer maize. Shandong Agric. Sci. 2013, 45, 71–77. (In Chinese) [Google Scholar]
  14. Liu, M.; Li, Z.-P.; Zhang, T.-L.; Jiang, C.-Y.; Che, Y.-P. Discrepancy in Response of Rice Yield and Soil Fertility to Long-Term Chemical Fertilization and Organic Amendments in Paddy Soils Cultivated from Infertile Upland in Subtropical China. Agric. Sci. China 2011, 10, 259–266. [Google Scholar] [CrossRef]
  15. Xie, Z.; Tu, S.; Shah, F.; Xu, C.; Chen, J.; Han, D.; Liu, G.; Li, H.; Muhammad, I.; Cao, W. Substitution of fertilizer-N by green manure improves the sustainability of yield in double-rice cropping system in south China. Field Crop. Res. 2016, 188, 142–149. [Google Scholar] [CrossRef]
  16. Li, Y.; Bai, N.; Tao, Z.; Mi, X.; He, G.; Wang, Z. Rethinking application of animal manure for wheat production in China. J. Clean. Prod. 2021, 318, 128473. [Google Scholar] [CrossRef]
  17. Li, S.; Wu, J.; Wang, X.; Ma, L. Economic and environmental sustainability of maize-wheat rotation production when substituting mineral fertilizers with manure in the North China Plain. J. Clean. Prod. 2020, 271, 122683. [Google Scholar] [CrossRef]
  18. Guo, S.; Pan, J.; Zhai, L.; Khoshnevisan, B.; Wu, S.; Wang, H.; Yang, B.; Liu, H.; Lei, B. The reactive nitrogen loss and GHG emissions from a maize system after a long-term livestock manure incorporation in the North China Plain. Sci. Total Environ. 2020, 720, 137558. [Google Scholar] [CrossRef]
  19. Chen, D.; Yuan, L.; Liu, Y.; Ji, J.; Hou, H. Long-term application of manures plus chemical fertilizers sustained high rice yield and improved soil chemical and bacterial properties. Eur. J. Agron. 2017, 90, 34–42. [Google Scholar]
  20. Dai, X.; Song, D.; Zhou, W.; Liu, G.; Liang, G.; He, P.; Sun, G.; Yuan, F.; Liu, Z.; Yao, Y.; et al. Partial substitution of chemical nitrogen with organic nitrogen improves rice yield, soil biochemical indictors and microbial composition in a double rice cropping system in south China. Soil Tillage Res. 2021, 205, 104753. [Google Scholar] [CrossRef]
  21. Yadav, R.L.; Dwivedi, B.S.; Prasad, K.; Tomar, O.K.; Shurpali, N.J.; Pandey, P.S. Yield trends, and changes in soil organic-C and available NPK in a long-term rice—Wheat system under integrated use of manures and fertilisers. Field Crop. Res. 2000, 68, 219–246. [Google Scholar] [CrossRef]
  22. Liu, L.; Li, H.; Zhu, S.; Gao, Y.; Zheng, X.; Xu, Y. The response of agronomic characters and rice yield to organic fertilization in subtropical China: A three-level meta-analysis. Field Crop. Res. 2021, 263, 108049. [Google Scholar] [CrossRef]
  23. Muhammad, Q.; Huang, J.; Waqas, A.; Li, D.; Liu, S.; Zhang, L.; Cai, A.; Liu, L.; Xu, Y.; Gao, J.; et al. Yield sustainability, soil organic carbon sequestration and nutrients balance under long-term combined application of manure and inorganic fertilizers in acidic paddy soil. Soil Till. Res. 2020, 198, 104569. [Google Scholar]
  24. Khan, A.; Lu, G.; Ayaz, M.; Zhang, H.; Wang, R.; Lv, F.; Yang, X.; Sun, B.; Zhang, S. Phosphorus efficiency, soil phosphorus dynamics and critical phosphorus level under long-term fertilization for single and double cropping systems. Agric. Ecosyst. Environ. 2018, 256, 1–11. [Google Scholar] [CrossRef]
  25. Duan, Y.; Xua, M.; Gao, S.; Yang, X.; Huang, S.; Liu, H.; Wang, B. Nitrogen use efficiency in a wheat-corn cropping system from 15 years of manure and fertilizer applications. Field Crops Res. 2014, 157, 47–56. [Google Scholar]
  26. Guo, Z.Y. Shaanxi Soil; Science Press: Beijing, China, 1992; p. 37. (In Chinese) [Google Scholar]
  27. Yao, T. Analysis of cultivated land change in Shaanxi province and its influencing factors. Guangdong Agric. Sci. 2013, 9, 229–232. (In Chinese) [Google Scholar]
  28. Lv, F.; Song, J.; Giltrap, D.; Feng, Y.; Yang, X.; Zhang, S. Crop yield and N2O emission affected by long-term organic manure substitution fertilizer under winter wheat-summer maize cropping system. Sci. Total Environ. 2020, 732, 139321. [Google Scholar] [CrossRef] [PubMed]
  29. IUSS Working Group WRB. World Reference Base for Soil Resources 2014, Update 2015 International Soil Classification System for Naming Soils and Creating Legends for Soil Maps; World Soil Resources Reports No. 106; FAO: Rome, Italy, 2015. [Google Scholar]
  30. Lv, F.L.; Hou, M.M.; Zhang, H.T.; Qiang Jiu, C.R.; Zhou, Y.T.; Lu, G.Y.; Zhao, B.Q.; Yang, X.Y.; Zhang, S.L. Replacement ratio of chemical fertilizer nitrogen with manure under the winter wheat-summer maize rotation system in Lou soil. J. Plant Nutr. Fertil. 2018, 24, 22–32. (In Chinese) [Google Scholar]
  31. Bao, S.D. Analysis of Soil and Agricultural Chemistry; Chinese Agricultural Press: Beijing, China, 2005. [Google Scholar]
  32. Mariotti, F.; Tomé, D.; Mirand, P.P. Converting Nitrogen into Protein-Beyond 6.25 and Jones’ Factors. Crit. Rev. Food Sci. 2008, 48, 177–184. [Google Scholar]
  33. Ahmad, A.; Khan, I.; Abrol, Y.P.; Iqbal, M. Genotypic variation of nitrogen use efficiency in Indian mustard. Environ. Pollut. 2008, 154, 462–466. [Google Scholar] [CrossRef]
  34. Syers, J.K.; Johnston, A.E.; Curtin, D. Efficiency of Soil and Fertilizer Phosphorus Use. In Reconciling Changing Concepts of Soil Phosphorus Behaviour with Agronomic Information; FAO Fertilizer and Plant Nutrition Bulletin 18; Food and Agriculture Organization of the United Nations: Rome, Italy, 2008. [Google Scholar]
  35. Xing, P.F.; Gao, S.C.; Ma, M.C.; Zhou, X.L.; Zhao, T.K.; Sun, J.D.; Shen, D.L. Impact of organic manure supplement chemical fertilizer partially on soil nutrition, enzyme activity and crop yield in the north China Plain. Soil Fertil. Sci. China 2016, 7, 98–104. (In Chinese) [Google Scholar]
  36. Yang, X.; Li, P.; Zhang, S.; Sun, B.; Chen, X. Long-term-fertilization effects on soil organic carbon, physical properties, and wheat yield of a loess soil. J. Plant Nutr. Soil Sci. 2011, 174, 775–784. [Google Scholar]
  37. Lin, Z.A.; Zhao, B.Q.; Yuan, L.; Hwat, B.S. Effects of organic manure and fertilizers long-term located application on soil fertility and crop yield. Sci. Agric. Sin. 2009, 42, 2809–2819. (In Chinese) [Google Scholar]
  38. Li, X.; Li, B.; Chen, L.; Liang, J.; Huang, R.; Tang, X.; Zhang, X.; Wang, C. Partial substitution of chemical fertilizer with organic fertilizer over seven years increases yields and restores soil bacterial community diversity in wheat—Rice rotation. Eur. J. Agron. 2022, 133, 126445. [Google Scholar] [CrossRef]
  39. Subehiat, S.K.; Sepehyas, S.; Rana, S.S.; Negi, S.C.; Sharma, S.K. Long-term effect of organic and inorganic fertilizers on rice (Oryza sativa L.)-wheat (Triticum aestivum L.) yield, and chemical properties of an acidic soil in the western Himalayas. Expl Agric. 2013, 49, 382–394. [Google Scholar]
  40. Gil, M.V.; Carballo, M.T.; Calvo, L.F. Fertilization of maize with compost from cattle manure supplemented with additional mineral nutrients. Waste Manag. 2008, 28, 1432–1440. [Google Scholar] [CrossRef] [PubMed]
  41. Singh, D.K.; Pandey, P.C.; Nanda, G.; Gupta, S. Long-term effects of inorganic fertilizer and farmyard manure application on productivity, sustainability and profitability of rice-wheat system in Mollisols. Arch. Agron. Soil Sci. 2019, 65, 139–151. [Google Scholar] [CrossRef]
  42. Zhang, S.L.; Yang, X.Y.; Wiss, M.; Grip, H.; Lövdahl, L. Changes in physical properties of a loess soil in China following two long-term fertilization regimes. Geoderma 2006, 136, 579–587. [Google Scholar] [CrossRef]
  43. Su, Y.-Z.; Wang, F.; Suo, D.-R.; Zhang, Z.-H.; Du, M.-W. Long-term effect of fertilizer and manure application on soil-carbon sequestration and soil fertility under the wheat–wheat–maize cropping system in northwest China. Nutr. Cycl. Agroecosystems 2006, 75, 285–295. [Google Scholar] [CrossRef]
  44. Liu, E.K.; Yan, C.R.; Mei, X.R.; He, W.Q.; Bing, S.H.; Ding, L.P.; Liu, Q.; Liu, S.; Fan, T.L. Long-term effect of chemical fertilizer, straw, and manure on soil chemical and biological properties in northwest China. Geoderma 2010, 158, 173–180. [Google Scholar] [CrossRef]
  45. Du, Y.; Cui, B.; Zhang, Q.; Wang, Z.; Sun, J.; Niu, W. Effects of manure fertilizer on crop yield and soil properties in China: A meta-analysis. CATENA 2020, 193, 104617. [Google Scholar] [CrossRef]
  46. Ren, J.; Liu, X.; Yang, W.; Yang, X.; Li, W.; Xia, Q.; Li, J.; Gao, Z.; Yang, Z. Rhizosphere soil properties, microbial community, and enzyme activities: Short-term responses to partial substitution of chemical fertilizer with organic manure. J. Environ. Manag. 2021, 299, 113650. [Google Scholar] [CrossRef]
  47. Yan, D.Z.; Wang, D.J.; Yang, L.Z. Long-term effect of chemical fertilizer, straw, and manure on labile organic matter fractions in a paddy soil. Biol. Fertil. Soils 2007, 44, 93–101. [Google Scholar] [CrossRef]
  48. Liang, W.J.; Lou, Y.L.; Li, Q.; Zhong, S.; Zhang, X.K.; Wang, J.K. Nematode faunal response to long-term application of nitrogen fertilizer and organic manure in Northeast China. Soil Biol. Biochem. 2009, 41, 883–890. [Google Scholar] [CrossRef]
  49. Chen, Y.; Xiao, C.; Chen, X.; Li, Q.; Zhang, J.; Chen, F.; Yuan, L.; Mi, G. Characterization of the plant traits contributed to high grain yield and high grain nitrogen concentration in maize. Field Crop. Res. 2014, 159, 1–9. [Google Scholar] [CrossRef]
  50. Masunga, R.H.; Uzokwe, V.N.; Mlay, P.D.; Odeh, I.; Singh, A.; Buchan, D.; De Neve, S. Nitrogen mineralization dynamics of different valuable organic amendments commonly used in agriculture. Appl. Soil Ecol. 2016, 101, 185–193. [Google Scholar] [CrossRef]
  51. Zhou, J.M. Effect of combined application of organic and mineral fertilizers on yield, quality and nitrogen uptake of rice. Plant Nutr. Fertil. Sci. 2012, 18, 234–240. (In Chinese) [Google Scholar]
  52. Wang, G.L.; Zhang, J.H.; Wang, S.H.; Kou, X.M.; Xu, R.; Han, G.M.; Tang, H.J.L.; Zhu, L.Y.; Bi, J.H.; Wu, L.M. Effects of chemical fertilizer nitrogen substitution by biogas slurry on yield, quality and growth characteristics of winter wheat. J. Agric. Resour. Environ. 2018, 35, 467–475. (In Chinese) [Google Scholar]
  53. Qu, H.; Zhao, B.Q.; Chen, Y.H.; Liu, H.; Li, X.Y.; Zhang, F.D. Effect of long-term fertilization on wheat quality and yield in grey desert soil. Plant Nutr. Fertil. Sci. 2004, 10, 12–17. (In Chinese) [Google Scholar]
  54. Cox, M.C.; Qualset, C.O.; Rains, D.W. Genetic Variation for Nitrogen Assimilation and Translocation in Wheat. II. Nitrogen Assimilation in Relation to Grain Yield and Protein. Crop. Sci. 1985, 25, 435–440. [Google Scholar] [CrossRef]
  55. Van Sanford, D.A.; MacKown, C.T. Cultivar Differences in Nitrogen Remobilization during Grain Fill in Soft Red Winter Wheat. Crop. Sci. 1987, 27, 295–300. [Google Scholar] [CrossRef]
  56. Zuo, Y.; Ma, D.; Ma, Y.; Zhang, B.; Guo, T. Effects of spraying nitrogen and zinc fertilizers after flowering on grain weight and nutritional quality of winter wheat. Agric. Sci. Technol. 2013, 14, 630–634, 650. [Google Scholar]
  57. Agegnehu, G.; Nelson, P.N.; Bird, M.I. The effects of biochar, compost and their mixture and nitrogen fertilizer on yield and nitrogen use efficiency of barley grown on a Nitisol in the highlands of Ethiopia. Sci. Total Environ. 2016, 569–570, 869–879. [Google Scholar] [CrossRef]
  58. Xie, J.; Shi, X.; Zhang, Y.; Wan, Y.; Hu, Q.; Zhang, Y.; Wang, J.; He, X.; Evgenia, B. Improved nitrogen use efficiency, carbon sequestration and reduced environmental contamination under a gradient of manure application. Soil Tillage Res. 2022, 220, 105386. [Google Scholar] [CrossRef]
  59. Hou, H.; Ji, J.; Liu, X.; Lv, Z.; Lan, X.; Liu, Y. Effect of long-term combined application of organic and inorganic fertilizers on rice yield, nitrogen uptake and utilization in red soil area of China. Soils 2020, 52, 758–765. (In Chinese) [Google Scholar]
  60. Shi, X.R.; Ren, B.B.; Jiang, L.L.; Fan, S.X.; Cao, Y.L.; Ma, D.R. Effects of organic manure partial substitution for chemical fertilizer on the photosynthetic rate, nitrogen use efficiency and yield of rice. Chin. J. Appl. Ecol. 2021, 32, 154–162. (In Chinese) [Google Scholar]
  61. Li, Y.Q.; Wen, Y.C.; Lin, Z.A.; Zhao, B.Q. Effect of different organic manures combined with chemical fertilizer on nitrogen use efficiency and soil fertility. J. Plant Nutr. Fertil. 2019, 25, 1669–1678. (In Chinese) [Google Scholar]
  62. Han, M.; Li, W.; Chen, J.; Li, Y. Effects of straw returning and nitrogen application rate on grain yield and nitrogen use efficiency of winter wheat. Shandong Agric. Sci. 2017, 49, 95–100, 106. (In Chinese) [Google Scholar]
  63. Xu, M.G.; Li, D.C.; Li, J.M.; Qin, D.Z.; Kazuyuki, Y.; Yasukazu, H. Effects of organic manure application combined with chemical fertilizers on nutrients absorption and yield of rice in Hunan of China. Sci. Agric. Sin. 2008, 41, 3133–3139. (In Chinese) [Google Scholar]
  64. Ju, X.; Gu, B. Indexes of nitrogen management. Acta. Pedol. Sin. 2017, 2, 281–296. (In Chinese) [Google Scholar]
  65. EU Nitrogen Expert Panel. Nitrogen Use Efficiency (NUE)—An Indicator for the Utilization of Nitrogen in Agriculture and Food Systems; EU Nitrogen Expert Panel: Wageningen, The Netherlands, 2015. [Google Scholar]
  66. Xin, X.; Qin, S.; Zhang, J.; Zhu, A.; Yang, W.; Zhang, X. Yield, phosphorus use efficiency and balance response to substituting long-term chemical fertilizer use with organic manure in a wheat-maize system. Field Crop. Res. 2017, 208, 27–33. [Google Scholar] [CrossRef]
  67. Lu, Y.; Gao, Y.; Nie, J.; Liao, Y.; Zhu, Q. Substituting chemical P fertilizer with organic manure: Effects on double-rice yield, phosphorus use efficiency and balance in subtropical China. Sci. Rep. 2021, 11, 8629. [Google Scholar] [CrossRef]
  68. Shepherd, M.A.; Withers, P.J. Applications of poultry litter and triple superphosphate fertilizer to a sandy soil: Effects on soil phosphorus status and profile distribution. Nutr. Cycl. Agroecosystems 1999, 54, 233–242. [Google Scholar] [CrossRef]
  69. Aulakh, M.S.; Garg, A.K.; Kabba, B.S. Phosphorus accumulation, leaching and residual effects on crop yields from long-term applications in the subtropics. Soil Use Manag. 2007, 23, 417–427. [Google Scholar] [CrossRef]
  70. Tang, X.; Li, J.; Ma, Y.; Hao, X.; Li, X. Phosphorus efficiency in long-term (15 years) wheat—maize cropping systems with various soil and climate conditions. Field Crop. Res. 2008, 108, 231–237. [Google Scholar] [CrossRef]
  71. Pradhan, S.N.; Ghosh, A.K.; Nema, A.K.; Ram, S.; Pal, Y. Changes in soil phosphorus forms in a long-term cropping system as influenced by fertilization and tillage. Arch. Agron. Soil Sci. 2020, 67, 822–835. [Google Scholar] [CrossRef]
  72. Jiang, B.; Shen, J.; Sun, M.; Hu, Y.; Jiang, W.; Wang, J.; Li, Y.; Wu, J. Soil phosphorus availability and rice phosphorus uptake in paddy fields under various agronomic practices. Pedosphere 2021, 31, 103–115. [Google Scholar] [CrossRef]
Agronomy 12 02047 g001 550

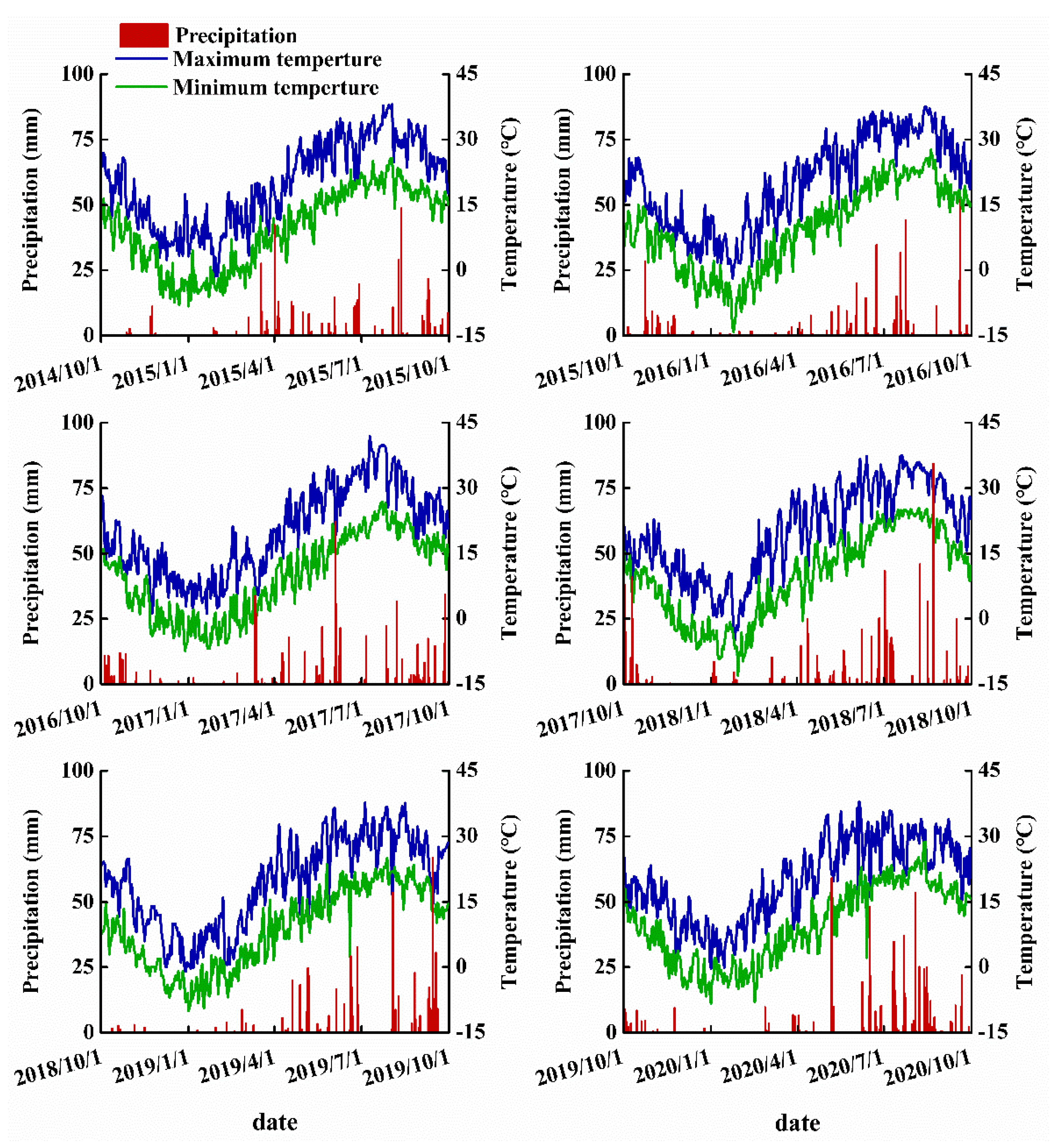

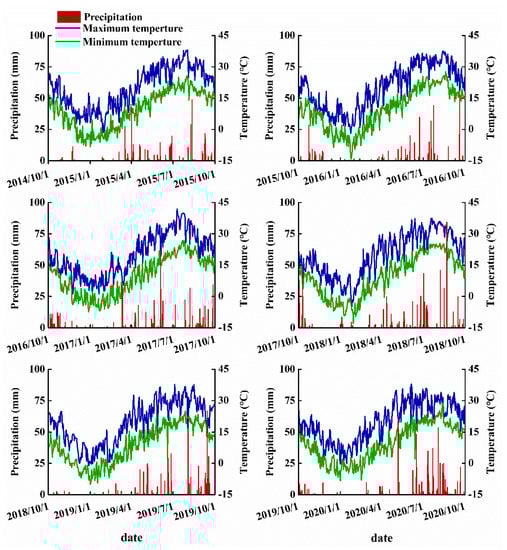

Figure 1. Daily maximum and minimum temperatures and precipitation during 2014–2020. Source: National Meteorological Observing Station in Yangling, Shaanxi Province, China.
Figure 1. Daily maximum and minimum temperatures and precipitation during 2014–2020. Source: National Meteorological Observing Station in Yangling, Shaanxi Province, China.
Agronomy 12 02047 g001
Agronomy 12 02047 g002 550

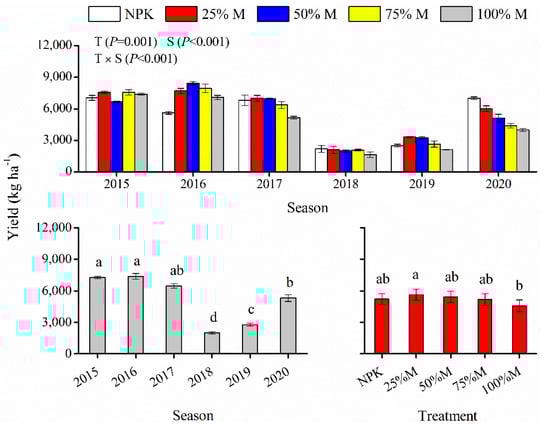

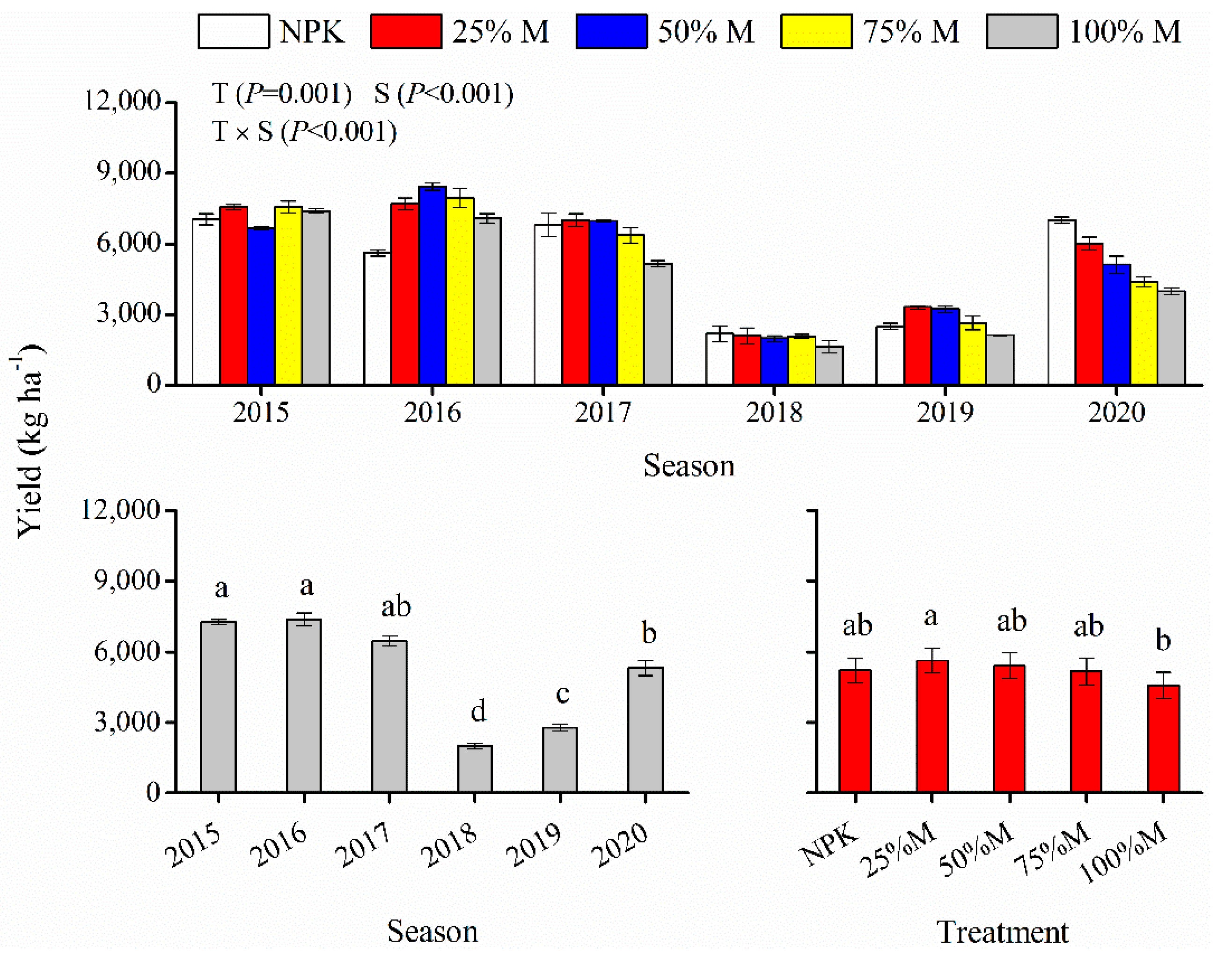

Figure 2. Wheat grain yield under different treatments of winter wheat–summer maize cropping system during 2014–2020. Bars represent standard error. Different letters above bars are significantly different between treatments or years at P < 0.05.
Figure 2. Wheat grain yield under different treatments of winter wheat–summer maize cropping system during 2014–2020. Bars represent standard error. Different letters above bars are significantly different between treatments or years at P < 0.05.
Agronomy 12 02047 g002
Agronomy 12 02047 g003 550

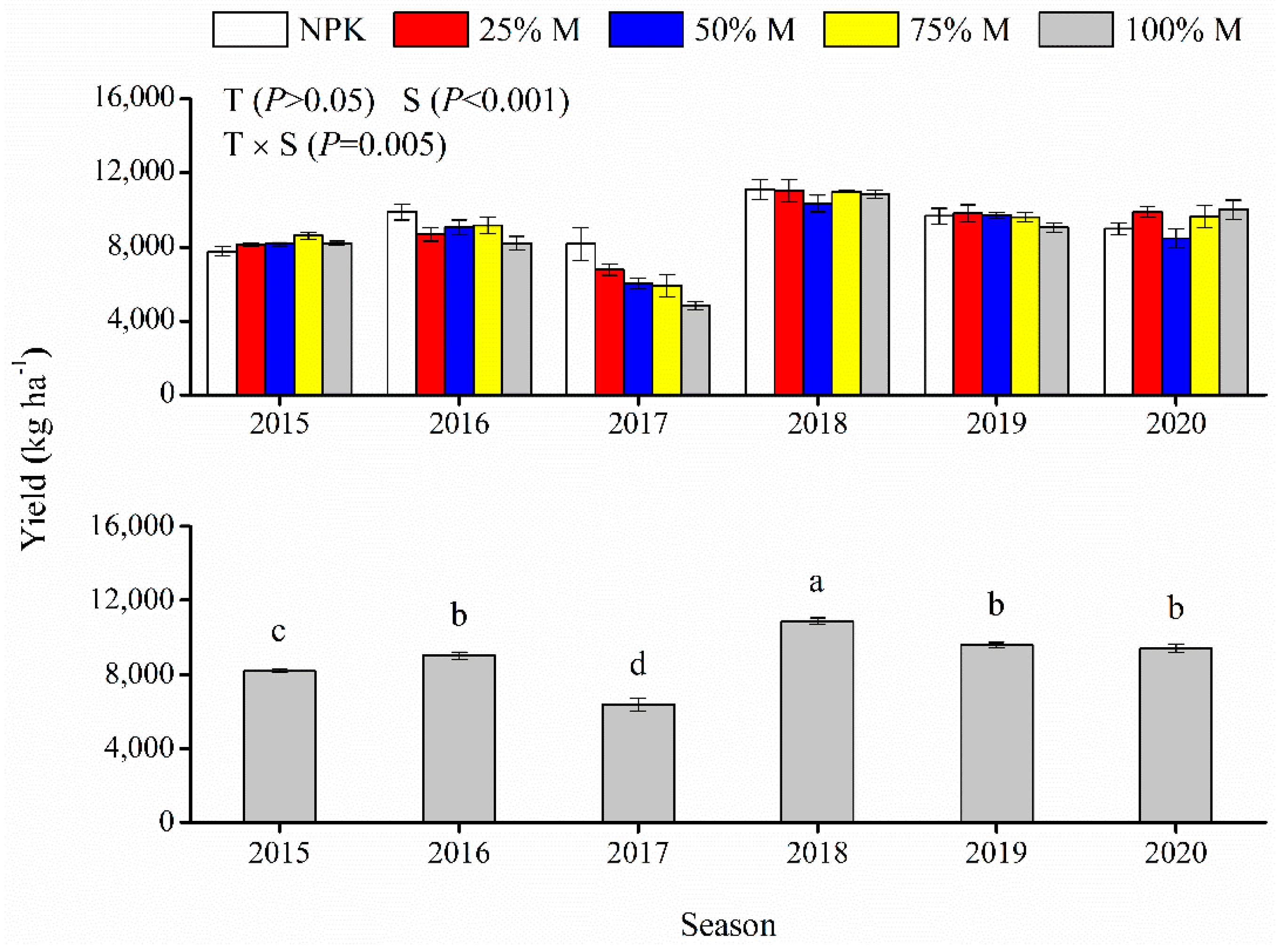

Figure 3. Maize grain yield under different treatments of winter wheat–summer maize cropping system during 2014–2020. Bars represent standard error. Different letters above bars are significantly different between treatments or years at P < 0.05.
Figure 3. Maize grain yield under different treatments of winter wheat–summer maize cropping system during 2014–2020. Bars represent standard error. Different letters above bars are significantly different between treatments or years at P < 0.05.
Agronomy 12 02047 g003
Agronomy 12 02047 g004 550

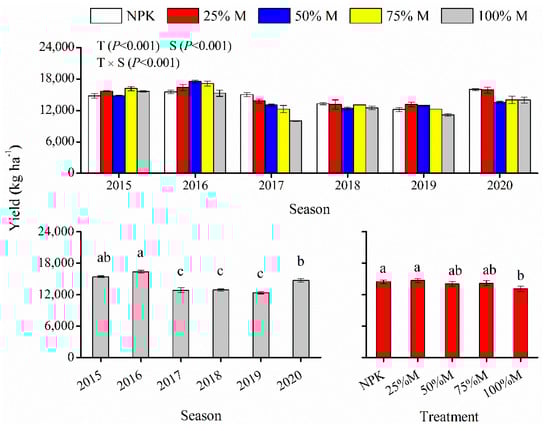

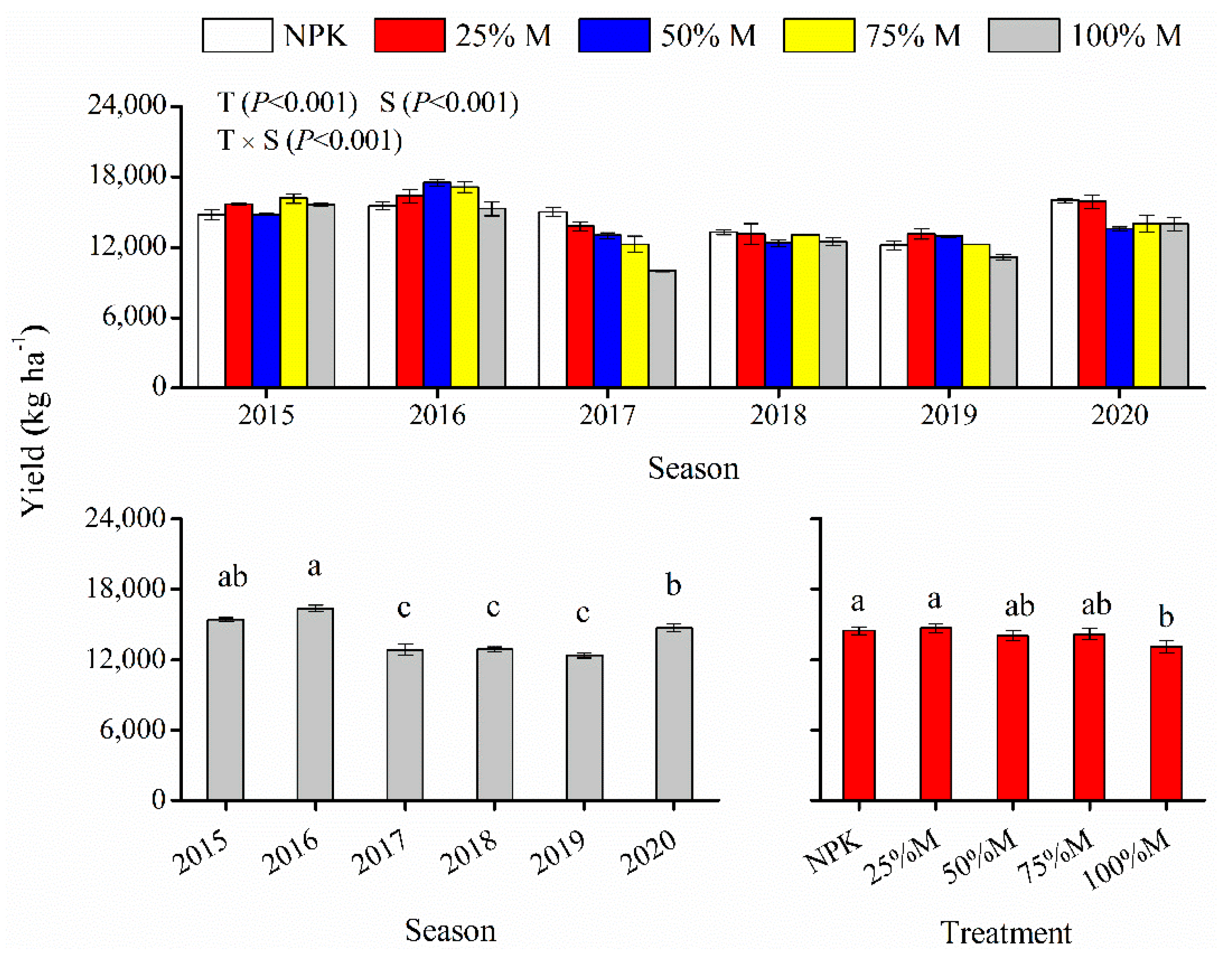

Figure 4. Annual grain yield under different treatments of winter wheat–summer maize cropping system during 2014–2020. Bars represent standard error. Different letters above bars are significantly different between treatments or years at P < 0.05.
Figure 4. Annual grain yield under different treatments of winter wheat–summer maize cropping system during 2014–2020. Bars represent standard error. Different letters above bars are significantly different between treatments or years at P < 0.05.
Agronomy 12 02047 g004
Agronomy 12 02047 g005 550

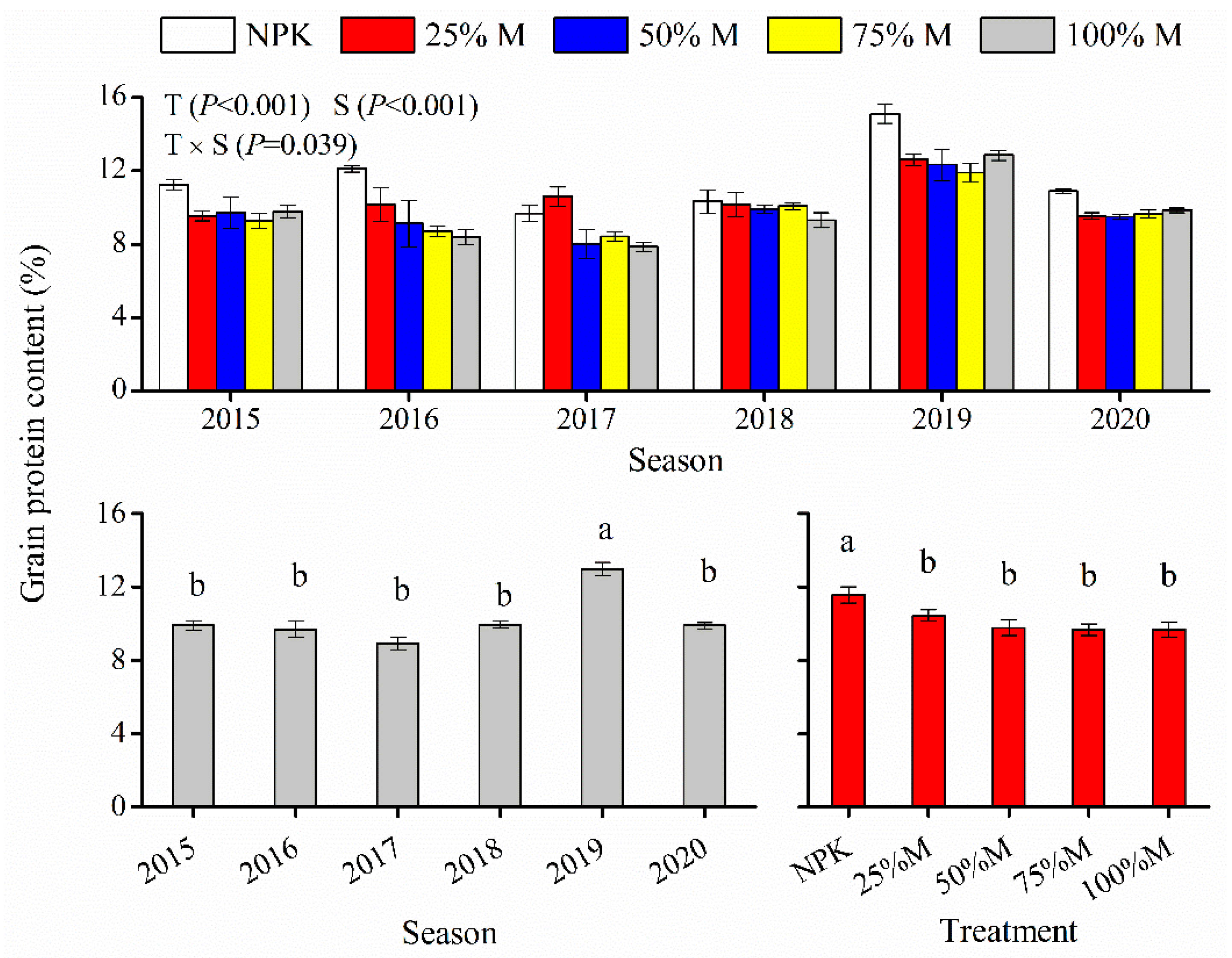

Figure 5. Wheat grain protein content under different treatments of winter wheat–summer maize cropping system during 2014–2020. Bars represent standard error. Different letters above bars are significantly different between treatments or years at P < 0.05.
Figure 5. Wheat grain protein content under different treatments of winter wheat–summer maize cropping system during 2014–2020. Bars represent standard error. Different letters above bars are significantly different between treatments or years at P < 0.05.
Agronomy 12 02047 g005
Agronomy 12 02047 g006 550
Figure 6. Maize grain protein content under different treatments of winter wheat–summer maize cropping system during 2014–2020. Bars represent standard error. Different letters above bars are significantly different between treatments or years at P < 0.05.
Figure 6. Maize grain protein content under different treatments of winter wheat–summer maize cropping system during 2014–2020. Bars represent standard error. Different letters above bars are significantly different between treatments or years at P < 0.05.
Agronomy 12 02047 g006
Table
Table 1. Details of fertilizer treatments and fertilizer rates for winter wheat–summer maize cropping system (kg ha−1).
Table 1. Details of fertilizer treatments and fertilizer rates for winter wheat–summer maize cropping system (kg ha−1).
TreatmentsWinter WheatSummer MaizeTotal
NPKNPKNPK
NPK165 + 065 + 075 + 0180003456575
25% M124 + 8649 + 3856 + 25135003458781
50% M83 + 17233 + 7638 + 50900034510988
75% M41 + 25916 + 11419 + 75450034513194
100% M0 + 3450 + 1530 + 100000345153100
Note: The number after “+” represents the amount of N, P and K from organic manure.
Table
Table 2. Effect of year and treatment on nitrogen uptake efficiency (NPE), nitrogen use efficiency (NUE), phosphorus uptake efficiency (PPE) and phosphorus use efficiency (PUE), of winter wheat–summer maize cropping system during 2014–2020.
Table 2. Effect of year and treatment on nitrogen uptake efficiency (NPE), nitrogen use efficiency (NUE), phosphorus uptake efficiency (PPE) and phosphorus use efficiency (PUE), of winter wheat–summer maize cropping system during 2014–2020.
SeasonTreatmentNPENUEPPEPUE
(kg kg−1)
2014–2015NPK1.07 ± 0.07 a40.46 ± 2.29 b0.56 ± 0.02 a405.35 ± 8.31 a
25% M0.98 ± 0.03 a46.38 ± 1.28 a0.45 ± 0.03 b401.54 ± 25.51 a
50% M0.94 ± 0.06 a45.93 ± 2.80 ab0.37 ± 0.04 bc377.51 ± 43.86 a
75% M0.97 ± 0.04 a48.28 ± 0.67 a0.37 ± 0.02 c340.61 ± 6.37 a
100% M0.90 ± 0.02 a50.31 ± 1.37 a0.32 ± 0.01 c327.07 ± 10.81 a
2015–2016NPK1.03 ± 0.07 ab44.14 ± 2.48 a0.45 ± 0.01 a530.61 ± 6.09 a
25% M1.11 ± 0.02 a42.80 ± 2.13 a0.39 ± 0.02 b470.71 ± 3.96 b
50% M1.16 ± 0.03 a43.99 ± 1.91 a0.36 ± 0.01 c437.97 ± 8.87 c
75% M1.06 ± 0.08 a47.27 ± 2.40 a0.32 ± 0.00 d398.09 ± 8.91 d
100% M0.87 ± 0.03 b50.93 ± 1.90 a0.28 ± 0.00 e340.09 ± 13.79 e
2016–2017NPK1.11 ± 0.05 a39.37 ± 0.95 a0.53 ± 0.02 b433.76 ± 7.46 a
25% M1.11 ± 0.07 a36.17 ± 2.27 a0.56 ± 0.03 b381.33 ± 18.52 a
50% M0.89 ± 0.01 b42.23 ± 0.90 a0.54 ± 0.04 b377.26 ± 20.85 a
75% M0.84 ± 0.03 b42.54 ± 2.11 a0.65 ± 0.03 a293.66 ± 23.51 b
100% M0.68 ± 0.02 c42.62 ± 1.66 a0.56 ± 0.04 b281.29 ± 22.29 b
2017–2018NPK0.92 ± 0.01 a42.08 ± 0.73 a0.72 ± 0.01 a284.96 ± 10.36 a
25% M0.88 ± 0.05 ab43.21 ± 1.36 a0.51 ± 0.03 b261.11 ± 3.84 ab
50% M0.73 ± 0.04 c49.04 ± 2.05 a0.36 ± 0.01 c259.83 ± 11.8 ab
75% M0.80 ± 0.01 bc47.53 ± 0.33 a0.32 ± 0.02 cd251.55 ± 14.58 b
100% M0.79 ± 0.04 bc46.53 ± 3.75 a0.29 ± 0.00 d213.74 ± 7.16 c
2018–2019NPK0.99 ± 0.04 a35.74 ± 1.36 b0.62 ± 0.03 a301.14 ± 4.13 a
25% M0.85 ± 0.05 b44.97 ± 1.29 a0.49 ± 0.01 b283.97 ± 1.95 a
50% M0.81 ± 0.01 bc46.24 ± 0.71 a0.42 ± 0.01 bc250.28 ± 6.56 a
75% M0.76 ± 0.06 bc47.01 ± 3.21 a0.38 ± 0.04 c213.04 ± 21.05 ab
100% M0.71 ± 0.01 c45.68 ± 1.36 a0.37 ± 0.02 c167.46 ± 5.40 b
2019–2020NPK0.91 ± 0.01 a50.80 ± 0.94 b0.75 ± 0.01 a326.83 ± 7.20 a
25% M0.78 ± 0.02 b58.83 ± 1.71 a0.61 ± 0.03 b294.65 ± 2.94 b
50% M0.69 ± 0.04 c57.20 ± 2.78 a0.47 ± 0.01 c259.32 ± 3.93 c
75% M0.70 ± 0.02 bc58.06 ± 2.22 a0.43 ± 0.02 cd241.65 ± 4.19 d
100% M0.67 ± 0.04 c60.48 ± 2.93 a0.38 ± 0.01 d231.46 ± 5.24 d
Season2014–20150.97 ± 0.02 a46.27 ± 1.12 b0.23 ± 0.02 bc679.51 ± 28.27 ab
2015–20161.04 ± 0.03 a45.83 ± 1.14 b0.36 ± 0.02 c435.49 ± 17.56 a
2016–20170.93 ± 0.05 ab40.59 ± 0.92 c0.57 ± 0.02 a353.46 ± 17.05 b
2017–20180.82 ± 0.02 b45.68 ± 1.04 b0.44 ± 0.04 bc254.24 ± 7.29 c
2018–20190.82 ± 0.03 b43.93 ± 1.30 b0.46 ± 0.03 bc243.18 ± 13.52 c
2019–20200.75 ± 0.03 b57.08 ± 1.23 a0.53 ± 0.04 ab270.78 ± 9.62 c
TreatmentNPK1.00 ± 0.02 a42.10 ± 1.26 b0.57 ± 0.04 a429.53 ± 37.72 a
25% M0.95 ± 0.03 ab45.39 ± 1.75 ab0.47 ± 0.03 b407.42 ± 41.56 ab
50% M0.87 ± 0.04 bc47.44 ± 1.37 a0.39 ± 0.03 c371.84 ± 37.44 bc
75% M0.85 ± 0.03 cd48.45 ± 1.34 a0.38 ± 0.04 c345.93 ± 39.38 cd
100% M0.77 ± 0.02 d49.42 ± 1.59 a0.34 ± 0.03 c309.18 ± 37.26 d
Source
Season (S) <0.001<0.001<0.001<0.001
Treatment (T) <0.001<0.001<0.001<0.001
S × T 0.0010.279<0.0010.063
Note: different lowercase letters in the same column represent significant difference between treatments in the same season or between seasons across treatments or treatments across seasons (P < 0.05).
Table
Table 3. Apparent nitrogen balance of winter wheat–summer maize cropping system under different fertilization treatments during 2014–2020.
Table 3. Apparent nitrogen balance of winter wheat–summer maize cropping system under different fertilization treatments during 2014–2020.
Item (kg ha−1) NPK25% M50% M75% M100% M
N inputManure N0517103515522070
Fertilizer N2070155310355180
N output2014–2015368.8338.6325.1335.2311.0
2015–2016354.2383.3398.7365.5300.5
2016–2017381.8384.0308.1288.5235.4
2017–2018316.1303.9252.7275.0271.0
2018–2019341.7292.8280.3263.3244.5
2019–2020315.0270.1238.7241.6232.8
sum2077.71972.61803.71769.11595.2
N budget −7.797.4266.3300.9474.8
Annual N budget −1.316.244.450.179.1
Table
Table 4. Apparent phosphorus balance of winter wheat–summer maize cropping system under different fertilization treatments during 2014–2020.
Table 4. Apparent phosphorus balance of winter wheat–summer maize cropping system under different fertilization treatments during 2014–2020.
Item (kg ha−1) NPK25% M50% M75% M100% M
P inputManure P0229458687916
Fertilizer P390293195980
P output2014–201536.639.340.447.547.9
2015–201629.234.840.043.145.0
2016–201734.636.334.842.035.9
2017–201846.750.347.652.358.5
2018–201940.546.251.858.866.9
2019–202049.054.052.458.060.6
sum236.6261.0267.0301.8314.8
P budget 153.4260.4385.8482.4600.8
Annual P budget 25.643.464.380.4100.1
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Han, Y.; Lv, F.; Lin, X.; Zhang, C.; Sun, B.; Yang, X.; Zhang, S. Crop Yield and Nutrient Efficiency under Organic Manure Substitution Fertilizer in a Double Cropping System: A 6-Year Field Experiment on an Anthrosol. Agronomy 2022, 12, 2047. https://doi.org/10.3390/agronomy12092047

AMA Style

Han Y, Lv F, Lin X, Zhang C, Sun B, Yang X, Zhang S. Crop Yield and Nutrient Efficiency under Organic Manure Substitution Fertilizer in a Double Cropping System: A 6-Year Field Experiment on an Anthrosol. Agronomy. 2022; 12(9):2047. https://doi.org/10.3390/agronomy12092047

Chicago/Turabian Style

Han, Yan, Fenglian Lv, Xiaoding Lin, Caiyun Zhang, Benhua Sun, Xueyun Yang, and Shulan Zhang. 2022. "Crop Yield and Nutrient Efficiency under Organic Manure Substitution Fertilizer in a Double Cropping System: A 6-Year Field Experiment on an Anthrosol" Agronomy 12, no. 9: 2047. https://doi.org/10.3390/agronomy12092047

APA Style

Han, Y., Lv, F., Lin, X., Zhang, C., Sun, B., Yang, X., & Zhang, S. (2022). Crop Yield and Nutrient Efficiency under Organic Manure Substitution Fertilizer in a Double Cropping System: A 6-Year Field Experiment on an Anthrosol. Agronomy, 12(9), 2047. https://doi.org/10.3390/agronomy12092047

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
