Subchronic Toxicological Evaluation of Xiushui 134Bt Transgenic Insect-Resistant Rice in Rats
by
and
Ruifang Yang
1,
Zhongze Piao
1,
Jianhao Tang
1,
Changzhao Wan
1,
Gangseob Lee
2 and
Jianjiang Bai
1,* 1
Key Laboratory of Germplasm Innovation and Genetic Improvement of Grain and Oil Crops (Co-Construction by Ministry and Province), Ministry of Agriculture and Rural Affairs, Crop Breeding and Cultivation Research Institute, Shanghai Academy of Agricultural Sciences, Shanghai 201403, China
2
Department of Agricultural Biotechnology, National Institute of Agricultural Sciences, Rural Development Administration, Jeonju 54874, Republic of Korea
*
Author to whom correspondence should be addressed.
Agronomy 2023, 13(3), 826; https://doi.org/10.3390/agronomy13030826
Submission received: 7 February 2023
/
Revised: 7 March 2023
/
Accepted: 9 March 2023
/
Published: 11 March 2023
(This article belongs to the Section Crop Breeding and Genetics)
Abstract
:In this study, Xiushui 134Bt, a highly insect-resistant rice transgenic material with stable expression of CryIAc1 gene in rice plants and no significant changes in main agronomic traits, was obtained by means of Agrobacterium-mediated transformation method using japonica rice Xiushui 134 as receptor material. Biosecurity of the transgenic rice Xiushui 134Bt was assessed by rat feeding experiments. Wistar rats were fed a nutritionally balanced diet supplemented with 35% Genetically Modified (LGM) or 70% Genetically Modified (HGM) Xiushui 134Bt, respectively, for 90 days. Compared with the wild-type group (Xiushui 134), there were no significant differences in body weight, total food intake, food conversion rate, relative organ weight, blood routine, blood physiological or biochemical parameters, or histopathological examination between LGM and HGM Bt groups (p > 0.05). These results indicate that the transgenic rice Xiushui 134Bt is non-toxic in laboratory animals and provide guidance for the future commercial release of the transgenic rice Xiushui 134Bt in China.
1. Introduction
Rice is an important staple crop and is seriously vulnerable to pest infestations. Previous reports indicate that plant diseases and insect pests can cause global annual yield losses of up to 37% for crops, with 13% of these losses attributed to insects [1]. In order to address the global food crisis, it is necessary to promote the industrialization of the breeding of genetically modified organisms in an orderly manner. Various strategies, such as pesticides, have been proposed to perform crop protection against these pests. Applications of pesticides initially played a significant role in controlling the occurrence of diseases and insect pests; however, their abuse also results in environmental pollution and negatively affects food safety and human health [2]. Therefore, breeding new rice varieties with insect resistance is an important way to control rice insect pests, which is of great significance to ensure food security.
Bacillus thuringiensis (Bt) is a Gram-positive bacterium widely distributed in nature [3]. During the spore-forming phase, one or more companion crystals of different shapes are produced in the bacteria. Bt genes can be encoded with the insecticidal activity of specific protein toxins, which have specific insecticidal activity against a variety of insects, such as Lepidoptera, Diptera, and Coleoptera, as well as nematodes, waxes, and protozoa. With the development of biotechnology, Bt genes encoded into plants have many advantages, such as resistance to insects, strong selection, less investment, and quick effect, which greatly improve the economic benefit and environmental significance through reducing pesticide use [4]. As one of the most important economic crops, the cultivation of rice transgenic Bt crops has received increasing attention. For example, the genes of cryIA(b)/cryIA(c), cryIA(b), cryIA(c), and cryIC have been successfully transferred and expressed in rice via various pathways, e.g., protoplast fusion, Agrobacterium-mediated, pollen tube channel, and gene bombardment [5,6,7,8]. GM rice Xiushui 134Bt is a transgenic line with a single copy Cry1Ac1 gene derived from Agrobacterium-mediated genetic transformation using conventional rice variety Xiushui 134 as the acceptor material and the Bar gene as the marker gene, which has the advantage of being both insect- and herbicide-resistant (Supplementary Figure S1) [4]. The insertion site of both borders in Xiushui 134Bt was located at positions 20856153 to 20856229 of rice chromosome 2 (Supplementary Figure S2). It was not inserted into the coding region of known genes, and the major agronomic traits were not significantly altered by the survey and analysis of the agronomic traits in the field.
Food safety assessments are important for the early stages of commercial planting of GM crops. GM crops must be shown to be as safe as those derived from conventional crops, which have an established history of safe use [9]. This principle was originally referred to as substantial equivalence but is now more typically referred to as comparative safety assessment [10]. The assessments of GM crops are based mainly on safety evaluation according to the cultivation performance index of crops, the comprehensive analysis of known nutrients, anti-nutrients and toxic substances of the crop variety, and the analysis of crop-specific components. The comparison between GM crops and their most closely related traditional similar crops is based mainly on safety evaluation. The toxicological experiment in rats is an important method for safety evaluation of genetically modified crops and their products [10,11,12,13,14]. A number of studies have found that Bt transgenic crops are as safe as corresponding conventional crops, and no adverse effect was found in groups consuming diets containing fractions from GM crops as compared with those from non-GM Bt crops [15,16]. One example is transgenic rice with the Bar gene, which serves as one material to study the effects of transgenic rice on the life activities of mice, showing no significant abnormalities, indicating that the Bar gene was also relatively safe [17]. In this study, transgenic rice Xiushui 134Bt and its non-transgenic parent control Xiushui 134 were added to the formulated feed at rates of 35% and 70%, respectively. A 90-day feeding trial was conducted on Wistar rats to assess the potential toxicity of GM rice 134Bt using clinical manifestations, blood biochemistry indicators, blood routine, urine indicators, and organ pathology analysis. The aim was to assess the safety of the transgenic rice 134Bt.
2. Materials and Methods
According to the standards of the Ministry of Agriculture and Rural Affairs of China No. 323-27-2020 (Food safety detection of genetically modified plant and derived products 90-day feeding test in rats), the dose group was designed, and related indexes were determined. The experiment commissioned by the Shanghai Academy of Agricultural Sciences was conducted and completed in the Ministry of Agriculture and Rural Affairs Crop and Food Safety Supervision, Inspection and Testing Center (Tianjin), China, with license number TJCDCLL2021004.
2.1. Diet Formulation
The dietary level for experimental animal nutrition needs to conform to the standards listed in GB 14924-2010 (Chinese Standard methods). Based on nutrition balance, the maximum dosage in the feed was taken as the high dose group, and the dose in the low dose group was not lower than the expected intake of the human body. Rats were fed conventional basal diet Formula Design feed formula for the framework. The feed should be full of protein, fat, carbohydrates, vitamins and minerals, and other nutrients for the growth of the pods. Factors such as the variety and characteristics of transgenic plants and the proportion of transgenic plants in the dietary composition of the population were considered. Based on the results of the compositional analysis, transgenic 134Bt rice and xiushui 134 non-transgenic rice were added to the formulated feed in 35% (low dose group) and 70% (high dose group) proportions, respectively. The diet groups were defined as follows: (i) feeding with oral diet (the control); (ii) feeding with compound diets containing 35% non-transgenic Xiushui 134 (LP); (iii) feeding with compound diets containing 70% non-transgenic Xiushui 134 (HP); (iv) c (LT); and (v) feeding with compound diets containing 70% transgenic Xiushui 134Bt (HT). The level of the main nutrients is processed into pellet feed. After 60Co-γ radiation sterilization, the feed can reach a clean level. The moisture, ash, fat, protein, crude fiber, and other components of the feed were measured to ensure that the feed of the transgenic group, the non-transgenic group, and the levels of nutrients in the basal diet were the same, all of which met the needs of growth and development of rats (Table 1).
2.2. Animals and Housing
A total of 100 SPF (Specific Pathogen Free, SPF) healthy Wistar rats were divided into male and female in the barrier environmental animal laboratory of center for safety evaluation of traditional Chinese medicine (Tianjin, China) with license number TJCDCLL2021004. Animal conditions were maintained in the environment with a temperature of 20–25 °C, relative humidity of 40–70%, a 12 h light/12 h dark cycle, and air change of 15 times/h. The animals were provided with unlimited tap water throughout the study.
2.3. Experimental Design
All animals were acclimatized for 5 days prior to the start of the study; during that time, they were supplied food and filtered tap water. The animals were randomly divided into 5 groups according to sex and body weight, with 20 animals in each group and half male and half female. All rats were then provided with the corresponding diets and observed for 13 weeks. Body weight and food consumption were measured each week.
2.4. Clinical Evaluation, Body Weight Gain, and Food Consumption
During the experiment, the rats’ daily activity levels (such as gait, posture, response to handling, rigidity or spasm activity, stereotyped responses, and abnormal behavior), coat condition, respiratory system, nervous system, autonomous activity (such as tearing, piloerection, pupil size, and abnormal breathing), food and excretion patterns, as well as the onset and duration of poisoning symptoms and death were observed. The rats’ growth and development were monitored, and their food intake and body weight were recorded weekly. At the end of the experiment, the weekly food intake, body weight, food efficiency ratio, total food intake, and body weight gain were calculated. Ocular examinations (including cornea, lens, conjunctiva, and iris) were conducted on the high-dose group and control group experimental animals before and after the experiment.
2.5. Hematology and Serum Chemistry Assays
At the terminal experiment, the rats were anesthetized with 50 mg/kg·BW pentobarbital sodium after they fasted for 16 h. The blood samples were collected from the rat aorta abdominals, in which the parts in the presence of anticoagulant were used for evaluation for mean corpuscular volume (MCV), platelet count (PLT), red blood cell count (RBC), white blood cell count (WBC), hemoglobin (HGB), hematocrit (HCT), prothrombin time (PT), activated partial thromboplastin time (APTT), neutrophils (NEU), monocytes (Mon), eosinophils (EOS), and basophils (BAS) with a Sysmex (Japan) XT-2000iv hematology analyzer.
For serum chemistry assays, following centrifugation, the blood samples without anticoagulant were used to examine alanine aminotransferase (ALT), aspartate aminotransferase (AST), alkaline phosphatase (ALP), total protein (TP), albumin (ALB), glucose (GLU), urea nitrogen (BUN), creatinine (CRE), cholesterol (CHO), triglycerides (TG), glutamyl transpeptidase (GGT), potassium (K+), sodium (Na+), and chloride (Cl-) levels with a TOSHIBA (Japan) TBA-40FR Full-automatic biochemical analyzer.
2.6. Urinalysis Examination
Urinalysis examinations were conducted with the collected urine samples from metabolism cages and detected by using a DIRUI (China) H-500 H500 urine analyzer to determine the leukocyte (LEU), ketone bodies (KET), urobilinogen (UBG), bilirubin (BIL), specific gravity, occult blood (BLD), protein (PRO), glucose (GLU), nitrite (NIT), and pH.
2.7. Pathological Analysis
To perform a complete gross pathology inspection of all rats during the necropsy, the rats were examined for gross pathology by dissection, and the absolute weights of the brain, heart, thymus, adrenals, liver, kidneys, spleen, testes, epididymis, uterus, and ovaries were measured. Organ relative weight (organ-to-body ratio) was calculated. At the end of the experiment, the brain, pituitary gland, heart, liver, lungs, spleen, kidneys, prostate, adrenals, stomach and duodenum, jejunum, ileum, colon, cecum, rectum, pancreas, mesenteric lymph nodes, bladder, thyroid, thymus, testes and epididymis, ovaries, and uterus were dissected from the rats. For microscopic observation, after being fixed with 10% formalin, above paraffin-embedded tissues were sectioned to 5–6 μm thick and stained with hematoxylin and eosin (H&E) before a microscope examination.
2.8. Statistical Analysis
All statistical analyses were performed using SPSS 22.0 software package (Chicago, IL, USA USA), and all data were expressed as means ± standard deviations. The comparison between groups was tested for homogeneity of variances. If the variances had homogeneity, one-way ANOVA was conducted. If the variance was not uniform, a nonparametric test was performed. Each dose of the transgenic group was compared with the corresponding dose of the non-transgenic group, and each experimental group was compared with the basal diet group. Fisher’s test, Chi-square test, and rank sum test were used for classification data. All differences were considered statistically significant if p < 0.05.
3. Results
3.1. Effects of GM on Clinical Observation, Body Weight, and Food Consumption in Rats
All investigated animals survived and were evaluated as possessing a healthy status throughout the trial duration. During the experiment, the animals in each group moved freely, the coat was glossy, and there were no abnormal secretions in the nose, eyes, or mouth. No abnormality was found in the examination, and no poisoning death occurred. No adverse signs of clinical effects were observed in behavior, activity, posture, or mental state, regardless of GM and/or gender.
The weekly body weight showed no statistically significant differences among rat groups (p > 0.5) (Figure 1). In addition, pairwise comparisons showed no remarkable differences in food consumption, including total body weight gain, total food intake, and food utilization rates (Table 2). Despite higher values of indexes being detected in male rats than in females, there was no tight association with the GM feedings (Table 2).
3.2. Effects of GM on the Blood Routine
There were no significant differences detected in the hematology values, except that RBC and MON in both groups of HP, LT in males, and EOS in females’ LT group showed differences as compared with the control (Table 3). RBC in HP, as well as MON in HP and LT, had a statistically remarkable decrease as compared with the control and the HT group (p < 0.05), but no noticeable changes were observed between the HT groups and the control group. Similarly, despite significantly higher EOS rates that were observed in LT than in other groups, no difference was detected among the HT, LP, HP, or the control groups (Table 3). Therefore, these differences in both males and females are within the control range rather than associated with the feeding of genetically modified plants.
3.3. Effects of GM on the Blood Physiological and Biochemical Parameters
There were some statistical differences in blood physiological and biochemical parameters, such as Cl- in males and ALT and K+ in females (p < 0.05) (Table 4). Although lower values of Cl- in males and K+ in females were observed in HP and LP groups as compared to the control, respectively, statistically similar values existed in both LT and HT and the control ones (Table 4). In addition, the difference of ALT in females was observed in the LP and HP relative to the control (Table 4). Aside from these differences, no remarkable changes were detected in other serum chemistry values (Table 4). All these results support the conclusion of no adverse effects of GM on the serum chemistry values.
3.4. Effects of GM on the Urinalysis
There was no statistical difference detected in the urinalysis profiles among all the groups, except that specific gravity in LT was lower than in the control for female rats. These differences were within the control range rather than associated with the feeding of genetically modified plants (Table 5).
3.5. Effects of GM on the Organ Weights and Histopathological Examinations in Rats
No statistically noticeable difference was detected on the relative organ weight ratios, except testicles in males and thymus in females (Table 6). Despite higher testicle and lower thymus ratios being observed in males and females, respectively, no statistical significance was related to the GM treatment (i.e., LT and HT), which had no significant difference with the control ones (Table 6).
Moreover, no adverse effects of treatment-related histopathology changes were observed in the investigated tissues, including brain, heart, thymus, liver, spleen, kidney, adrenal, testicles, epididymis, and so on (Table 7), suggesting no damage due to GM on the changes of histopathology and specific damages.
4. Discussion
With the increasing demand for food supplies, increasingly more strategies have been developed to increase crop productivity, such as the enhancement of cereal starch through GM lines [18]. Since first produced in 1983, the GM plants have gone through a history of nearly 40 years and gained rapid development up until the present, which shows potential in improvement of rice yields for alleviating the food crisis. Increasingly more attention has been paid to the safety of GM crops. At present, there have been many reports on the safety evaluation methods of GM crops [10,15,19,20]. Substantial homogeneity evaluation is currently the international standard for the safety evaluation of GM food [21]. The evaluation of the safety of GM crops and recipient parents on human health includes mainly toxicological safety evaluation, allergic studies, anti-nutritional factors, nutritional components, and the impact on human and food safety, among others. [22]. The toxicological evaluation methods can be divided into acute toxicity tests, subchronic toxicity tests, reproductive genotoxicity tests, and other toxicity tests. The subchronic toxicity evaluation of GM crops is conducted mainly on rodents fed for 30 or 90 days. Most existing studies showed that there was no difference in the effects of transgenic rice and non-transgenic rice on experimental animals. In some studies, there were significant differences in individual indicators, but some researchers interpreted them as having no biological significance [9,23,24].
In GM rice Xiushui 134Bt, green tissue-specific promoter Rbcs3 (Os12g0291100) was used to induce the expression of the Bt gene, and the Bt toxin proteins were concentrated in the stem and leaf of rice, but it was reduced or not expressed in rice grains [4]. It has become a feasible strategy to use tissue-specific promoters or chemically induced promoters to drive the expression of target genes in specific tissues, organs, or periods to improve the biosafety of transgenic rice. The expression of Bt toxin protein in Xiushui 134Bt rice at different growth stages and tissues was studied by double-antibody sandwich enzyme-linked immunoassay (ELISA). Our previous results showed that Bt toxin protein was expressed in all tissues, but the expression levels were significantly different in different organs. The expression level of Bt toxin protein was the highest in leaves, followed by leaf sheath, and was relatively low in roots, stems, and spikelets, but hardly detected in mature seeds [25].
Herein, the aim is to evaluate the potential effect of Xiushui 134Bt on rats. The transgenic Xiushui 134Bt rice and Xiushui 134 non-transgenic rice were added to the formulated diet at 35% and 70%, respectively, and fed to rats for 90 days. During the experiment, the animals in each group were free in activities, with shiny coats, no abnormal secretions in nose, eyes, or mouth, and no poisoning or death. During the experiment, there were no significant differences in body weight, feed intake, total weight gain, total feed intake, or total food utilization ratio between groups and the control group (p > 0.05). The relative organ weight of some transgenic Xiushui 134Bt rice group was significantly different from that of Xiushui 134 non-transgenic rice group (p < 0.05), there was no dose–response relationship and no biological significance. There were no significant differences in organ weight or relative weight between the other groups and the control group (p > 0.05). Part of the blood biochemical indexes, blood routine, and urine indexes of the transgenic Xiushui 134Bt rice group and Xiushui 134 non-transgenic rice group had statistical significance as compared with those of the conventional basal diet group (p < 0.05). Moreover, some transgenic Xiushui 134Bt rice group and corresponding parental control group had statistical significance (p < 0.05), all of which were within the normal range of the detection unit, and there was no dose–response relationship or biological significance. In addition, no abnormality during animal dissection was observed. No typical histopathological changes or specific lesions were found in experimental animals caused by transgenic samples.
In general, the subchronic toxicity evaluation of Bt transgenic rice was primarily conducted on rodents fed for 30 or 90 days, and the existing research results did not find significant effects on half of the physiological characteristics of rodents fed on Bt transgenic rice. Our results are consistent with those of previous studies. Currently, studies on the edible safety of Bt rice focus mainly on small rodents, and scarce research has been revealed on primates with high genetic homology. Nonetheless, the safety of transgenic food is vital for human health, and therefore, subchronic toxicity studies on non-rodent animals should be increased to comprehensively investigate the safety of GM rice for mammals.
5. Conclusions
This study was conducted to investigate the safety of GM rice with the Bt gene and Bar gene. Our results showed that there were no adverse dose-related effects on the growth and development of Wistar rats consuming diets formulated with Bt GM rice Xiushui 134Bt as compared with the control, demonstrating that Xiushui 134Bt was as safe as conventional non-GM rice Xiushui 134.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy13030826/s1, Figure S1: T-DNA region of transformation construct pZTRT-Bt; Figure S2: Schematic diagram of the insertion site of the foreign T-DNA.
Author Contributions
Conceptualization, R.Y. and Z.P.; methodology, Z.P.; software, J.T.; validation, R.Y., Z.P. and J.B.; formal analysis, R.Y.; investigation, R.Y.; resources, G.L.; data curation, C.W.; writing—original draft preparation, R.Y.; writing—review and editing, R.Y., J.T. and J.B.; visualization, C.W.; Z.P. and G.L.; project administration, Z.P. and J.B.; funding acquisition, G.L. All authors have read and agreed to the published version of the manuscript.
Funding
The work is funded by a grant from Agriculture Research System of Shanghai, China (Grant No. 202303), SAAS Excellent Research Team (2022A006), and International Cooperation Project of China and South Korea (PJ015782).
Institutional Review Board Statement
The animal study protocol was approved by the Biomedical Ethics Committee of Tianjin Center for Disease Control and Prevention (TJCDCLL2021004).
Informed Consent Statement
Not applicable.
Data Availability Statement
Data are contained within the article.
Acknowledgments
The authors would like to thank the Ministry of Agriculture and Rural Affairs Crop and Food Safety Supervision, Inspection and Testing Center (Tianjin), China.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.
References
- Bakhsh, A.; Khabbazi, S.D.; Baloch, F.S.; Demirel, U.; Zkan, H. Insect-resistant transgenic crops: Retrospect and challenges. Turk. J. Agric. For. 2015, 39, 531–548. [Google Scholar] [CrossRef] [Green Version]
- Deng, Y.W.; Liu, Y.Q.; Wang, J.; Chen, X.W.; He, Z.H. Strategic thinking and research on crop disease and pestresistance in China. Sci. Sin. Vitae 2021, 51, 1435–1446. (In Chinese) [Google Scholar] [CrossRef]
- Sanchis, V.; Bourguet, D. Bacillus thuringiensis: Applications in agriculture and insect resistance management. A review. Agron. Sustain. Dev. 2008, 28, 11–20. [Google Scholar] [CrossRef] [Green Version]
- Yang, R.F.; Bai, J.; Piao, Z.; Lee, G.S. Development of insect-resistant transgenic rice with cry1ac1 gene. Mol. Plant Breed. 2014, 12, 1103–1111. (In Chinese) [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Cheng, X.; Sardana, R.; Kaplan, H.; Altosaar, I. Agrobacterium-transformed rice plants expressing synthetic cryIA(b) and cryIA(c) genes are highly toxic to striped stem borer and yellow stem borer. Proc. Natl. Acad. Sci. USA 1998, 95, 2767–2772. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Fujimoto, H.; Itoh, K.; Yamamoto, M.; Kyozuka, J.; Shimamoto, K. Insect resistant rice generated by introduction of a modified delta-endotoxin gene of Bacillus thuringiensis. Nat. Biotechnol. 1993, 11, 1151–1155. [Google Scholar] [CrossRef]
- Tu, J.; Zhang, G.; Datta, K.; Xu, C.; He, Y.; Zhang, Q.; Khush, G.S.; Datta, S.K. Field performance of transgenic elite commercial hybrid rice expressing Bacillus thuringiensis δ-endotoxin. Nat. Biotechnol. 2000, 18, 1101–1104. [Google Scholar] [CrossRef]
- Lee, D.K.; Park, S.H.; Seong, S.Y.; Kim, Y.S.; Jung, H.; Do Choi, Y.; Kim, J.K. Production of insect-resistant transgenic rice plants for use in practical agriculture. Plant. Biotechnol. Rep. 2016, 10, 391–401. [Google Scholar] [CrossRef]
- Zheng, M.; Wei, W.; Ji, L.L. Food safety assessment of transgenic rice. J. Mt. Agric. Biol. 2013, 32, 56–65. (In Chinese) [Google Scholar]
- Bartholomaeus, A.; Parrott, W.; Bondy, G.; Walker, K. The use of whole food animal studies in the safety assessment of genetically modified crops: Limitations and recommendations. Crit. Rev. Toxicol. 2013, 43, 1–24. [Google Scholar] [CrossRef] [Green Version]
- Bai, H.; Wang, Z.; Hu, R.; Kan, T.; Li, Y.; Zhang, X.; Zhang, J.; Lian, L.; Han, H.; Lian, Z. A 90-day toxicology study of meat from genetically modified sheep overexpressing TLR4 in Sprague-Dawley rats. PLoS ONE 2015, 10, e0121636. [Google Scholar] [CrossRef]
- Bernstein, D.M.; Toth, B.; Rogers, R.A.; Kunzendorf, P.; Phillips, J.I.; Schaudien, D. Final results from a 90-day quantitative inhalation toxicology study evaluating the dose-response and fate in the lung and pleura of chrysotile-containing brake dust compared to TiO2, chrysotile, crocidolite or amosite asbestos: Histopathological examination, confocal microscopy and collagen quantification of the lung and pleural cavity. Toxicol. Appl. Pharmacol. 2021, 424, 115598. [Google Scholar] [CrossRef]
- Phillips, B.W.; Schlage, W.K.; Titz, B.; Kogel, U.; Sciuscio, D.; Martin, F.; Leroy, P.; Vuillaume, G.; Krishnan, S.; Lee, T.; et al. A 90-day OECD TG 413 rat inhalation study with systems toxicology endpoints demonstrates reduced exposure effects of the aerosol from the carbon heated tobacco product version 1.2 (CHTP1.2) compared with cigarette smoke. I. Inhalation exposure, clinical pathology and histopathology. Food. Chem. Toxicol. 2018, 116 (Pt B), 388–413. [Google Scholar] [CrossRef]
- Zhou, X.H.; Dong, Y.; Xiao, X.; Wang, Y.; Xu, Y.; Xu, B.; Shi, W.D.; Zhang, Y.; Zhu, L.J.; Liu, Q.Q. A 90-day toxicology study of high-amylose transgenic rice grain in Sprague-Dawley rats. Food. Chem. Toxicol. 2011, 49, 3112–3118. [Google Scholar] [CrossRef]
- Schroder, M.; Poulsen, M.; Wilcks, A.; Kroghsbo, S.; Miller, A.; Frenzel, T.; Danier, J.; Rychlik, M.; Emami, K.; Gatehouse, A.; et al. A 90-day safety study of genetically modified rice expressing Cry1Ab protein (Bacillus thuringiensis toxin) in Wistar rats. Food. Chem. Toxicol. 2007, 45, 339–349. [Google Scholar] [CrossRef]
- Wang, E.H.; Yu, Z.; Hu, J.; Xu, H.B. Effects of 90-day feeding of transgenic Bt rice TT51 on the reproductive system in male rats. Food. Chem. Toxicol. 2013, 62, 390–396. [Google Scholar] [CrossRef] [PubMed]
- Huang, Y.; Sun, Y.B.; Duan, Y.H.; Fu, L.N.; Liu, J.; Yan, H.M. Food Safety Assessment by Feeding Mice with Bar-transgenic Rice. Hybrid Rice 2012, 27, 59–65. (In Chinese) [Google Scholar]
- Li, R.; Tan, Y.; Zhang, H. Regulators of Starch Biosynthesis in Cereal Crops. Molecules 2021, 26, 7092. [Google Scholar] [CrossRef] [PubMed]
- He, X.Y.; Tang, M.Z.; Luo, Y.B.; Li, X.; Cao, S.S.; Yu, J.J.; Delaney, B.; Huang, K.L. A 90-day toxicology study of transgenic lysine-rich maize grain (Y642) in Sprague-Dawley rats. Food. Chem. Toxicol. 2009, 47, 425–432. [Google Scholar] [CrossRef]
- Szymczyk, B.; Szczurek, W.; Swiatkiewicz, S.; Kwiatek, K.; Sieradzki, Z.; Mazur, M.; Bednarek, D.; Reichert, M. Results of a 16-week Safety Assurance Study with Rats Fed Genetically Modified Bt Maize: Effect on Growth and Health Parameters. J. Vet. Res. 2018, 62, 555–561. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Gong, C.Y.; Wang, T. Proteomic evaluation of genetically modified crops: Current status and challenges. Front. Plant. Sci. 2013, 4, 41. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kuiper, H.A.; Kleter, G.A.; Noteborn, H.P.; Kok, E.J. Assessment of the food safety issues related to genetically modified foods. Plant J. 2010, 27, 503–528. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Cao, S.; He, X.; Xu, W.; Luo, Y.; Yuan, Y.; Liu, P.; Cao, B.; Shi, H.; Huang, K. Safety assessment of transgenic Bacillus thuringiensis rice T1c-19 in Sprague-Dawley rats from metabonomics and bacterial profile perspectives. IUBMB Life 2012, 64, 242–250. [Google Scholar] [CrossRef] [PubMed]
- Oraby, H.; Kandil, M.; Shaffie, N.; Ghaly, I. Biological impact of feeding rats with a genetically modified-based diet. Turk. J. Biol. 2015, 39, 1–11. [Google Scholar] [CrossRef]
- Bai, J.J.; Zhang, J.M.; Piao, Z.; Fang, J.; Yang, R.F.; Lee, G.S. temporal and spatial expression of Bt toxic protein in transgenic insect-resistant rice Xiushui 134-Bt. Aata Agric. Shanghai 2018, 34, 50–53. (In Chinese) [Google Scholar]

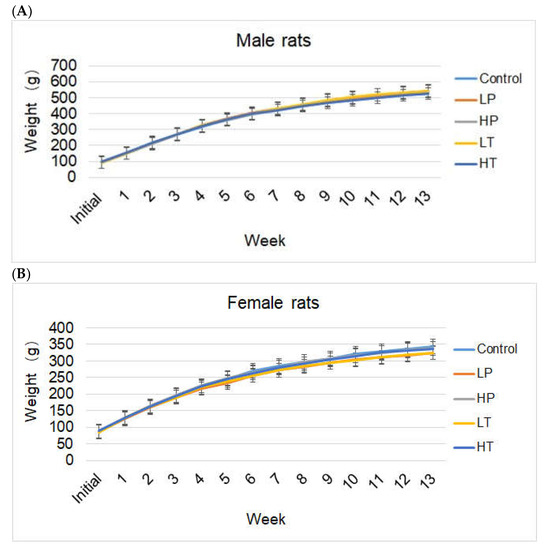

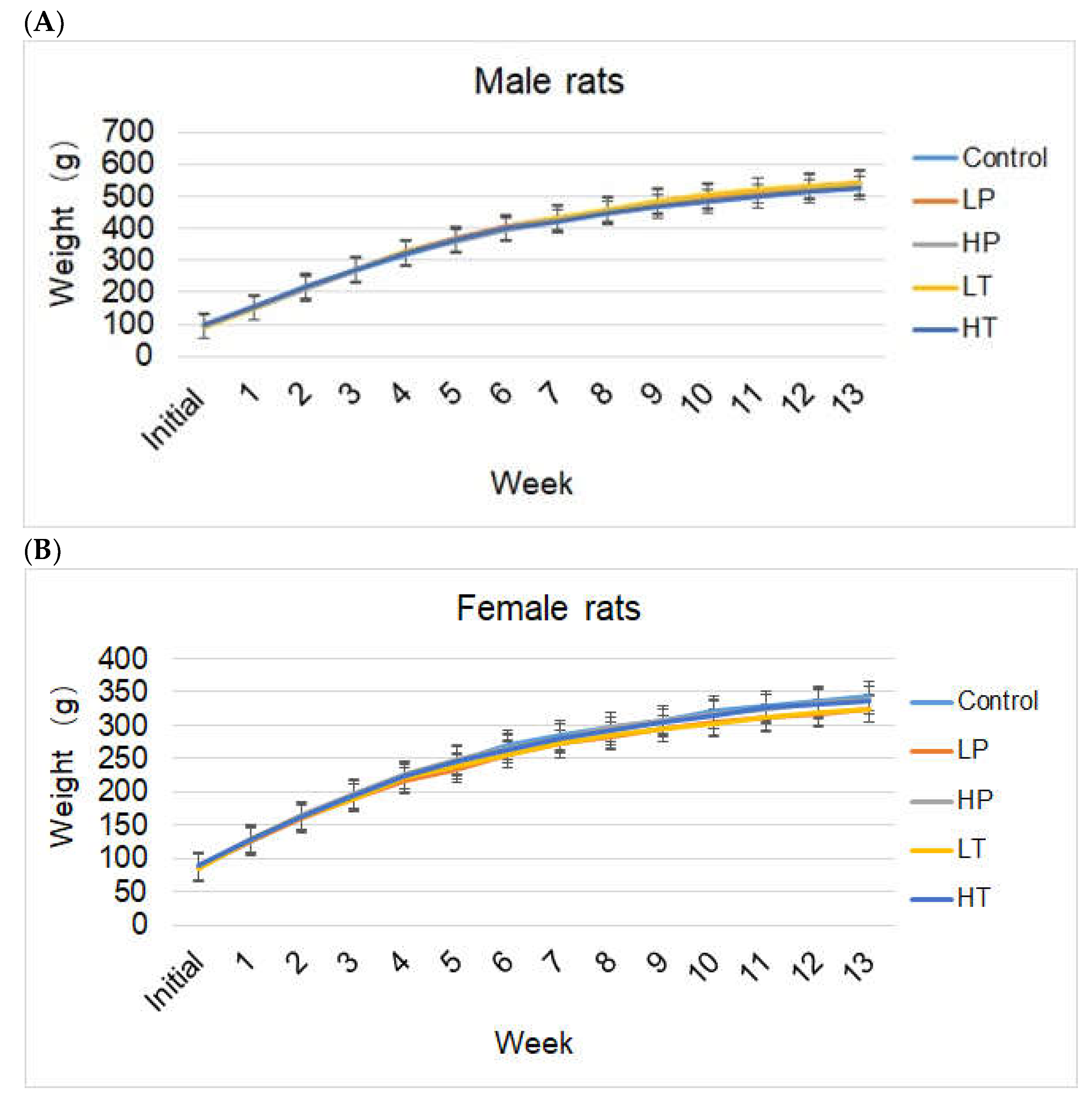

Figure 1.
Changes in body weight of male (A) and female (B) rats.
Table 1.
Nutritional composition of diets (%).
| Item | Control | LP | HP | LT | HT | Detection Method |
|---|---|---|---|---|---|---|
| crude protein | 18.67 | 18.77 | 18.1 | 18.4 | 18.06 | GB/T6432-2018 |
| crude fat | 6.4 | 7 | 6.8 | 7.4 | 7 | GB/T6433-2006 |
| crude fibre | 4.6 | 4.6 | 4.8 | 4.7 | 4.4 | GB/T6434-2006 |
| moisture | 6.2 | 6.5 | 6 | 6.8 | 6.2 | GB/T6435-2014 |
| ash content | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | GB/T6438-2007 |
LP, feeding with compound diets containing 35% non-transgenic Xiushui 134. HP, feeding with compound diets containing 70% non-transgenic Xiushui 134. LT, feeding with compound diets containing 70% transgenic Xiushui 134. HT, eeding with compound diets containing 70% transgenic Xiushui 134Bt.
Table 2.
Total body weight gain, total food consumption, and food utilization rates in rats (n = 10).
Table 2.
Total body weight gain, total food consumption, and food utilization rates in rats (n = 10).
| Gender | Group | Total Increment (g) | Total Food Intake (g) | Food Utilization Rate (%) |
|---|---|---|---|---|
| Male | Control | 442 ± 75 | 2069 ± 193 | 21.3 ± 2.0 |
| LP | 446 ± 38 | 2111 ± 146 | 21.1 ± 0.8 | |
| HP | 434 ± 46 | 2009 ± 133 | 21.5 ± 1.3 | |
| LG | 450 ± 36 | 2057 ± 73 | 21.9 ± 1.3 | |
| HG | 430 ± 39 | 2018 ± 128 | 21.3 ± 1.3 | |
| p-value | 0.877 | 0.491 | 0.797 | |
| Female | Control | 256 ± 48 | 1619 ± 171 | 15.8 ± 1.8 |
| LP | 236 ± 30 | 1568 ± 147 | 15.0 ± 1.0 | |
| HP | 250 ± 29 | 1587 ± 113 | 15.8 ± 1.6 | |
| LG | 238 ± 28 | 1527 ± 112 | 15.6 ± 1.0 | |
| HG | 248 ± 37 | 1558 ± 145 | 15.8 ± 1.3 | |
| p-value | 0.694 | 0.662 | 0.695 |
Table 3.
Hematology values mean ± SD (n = 10).
| Item | Control | LP | HP | LT | HT | p-Value |
|---|---|---|---|---|---|---|
| Males | ||||||
| WBC (×109/L) | 5.28 ± 1.70 | 5.91 ± 1.52 | 6.26 ±2.10 | 4.87 ± 1.26 | 6.28 ± 2.67 | 0.386 |
| RBC (×1012/L) | 8.48 ± 0.27 | 8.38 ± 0.35 | 8.08 ± 0.34 * | 8.32 ± 0.30 | 8.29 ± 0.32 | 0.096 |
| HGB (g/L) | 146.0 ± 4.0 | 147.4 ± 6.7 | 143.4 ± 4.5 | 144.7 ± 3.8 | 146.0 ± 8.8 | 0.62 |
| HCT (%) | 40.4 ± 1.1 | 41.0 ± 1.7 | 40.3 ± 1.4 | 40.2 ± 1.0 | 41.0 ± 2.7 | 0.775 |
| PLT (×109/L) | 1144.5 ± 139.2 | 1102.3 ± 93.6 | 1157.5 ± 137.1 | 1129.3 ± 59.0 | 1107.9 ± 107.4 | 0.687 |
| PT (s) | 9.0 ± 0.9 | 9.0 ± 0.3 | 8.5 ± 0.4 | 9.1 ± 0.6 | 8.7 ± 0.5 | 0.111 |
| APTT (s) | 26.6 ± 3.3 | 25.1 ± 3.2 | 24.3 ± 2.6 | 25.5 ± 3.2 | 26.2 ± 3.8 | 0.535 |
| NEU (%) | 19.8 ± 4.7 | 18.9 ± 4.8 | 18.4 ± 5.7 | 17.1 ± 3.9 | 16.4 ± 6.0 | 0.575 |
| LYM (%) | 73.2 ± 5.9 | 74.9 ± 5.8 | 76.0 ± 7.0 | 77.2 ± 4.2 | 77.5 ± 6.8 | 0.499 |
| MON (%) | 4.4 ± 0.9 | 3.8 ± 0.9 | 3.5 ± 1.5 * | 3.2 ± 0.9 * | 3.9 ± 0.8 | 0.095 |
| EOS (%) | 2.58 ± 1.43 | 2.54 ± 0.66 | 2.09 ± 0.53 | 2.50 ± 0.71 | 2.29 ± 0.72 | 0.691 |
| BAS (%) | 0.00 ± 0.00 | 0.00 ± 0.00 | 0.00 ± 0.00 | 0.00 ± 0.00 | 0.00 ± 0.00 | / |
| Females | ||||||
| WBC (×109/L) | 3.77 ± 1.38 | 3.25 ± 1.50 | 3.34 ± 0.93 | 3.02 ± 1.37 | 2.59 ± 1.38 | 0.386 |
| RBC (×1012/L) | 7.66 ± 0.37 | 7.44 ± 0.38 | 7.64 ± 0.33 | 7.54 ± 0.47 | 7.40 ± 0.36 | 0.456 |
| HGB (g/L) | 139.0 ± 6.4 | 136.1 ± 5.7 | 138.9 ± 4.7 | 138.4 ± 6.7 | 133.8 ± 7.9 | 0.302 |
| HCT (%) | 38.7 ± 1.4 | 38.2 ± 1.4 | 38.8 ± 1.2 | 38.6 ± 1.7 | 37.9 ± 1.9 | 0.406 |
| PLT (×109/L) | 1078.0 ± 113.3 | 1015.6 ± 88.6 | 1113.3 ± 124.4 | 1024.3 ± 148.5 | 1052.4 ± 142.2 | 0.685 |
| PT (s) | 8.1 ± 0.2 | 8.0 ± 0.3 | 8.3 ± 0.3 | 8.1 ± 0.2 | 8.3 ± 0.5 | 0.175 |
| APTT (s) | 16.8 ± 1.7 | 16.6 ± 1.8 | 16.0 ± 1.7 | 16.7 ± 1.6 | 17.7 ± 1.9 | 0.319 |
| NEU (%) | 15.0 ± 3.7 | 19.3 ± 9.2 | 14.8 ± 3.3 | 18.8 ± 6.2 | 17.2 ± 5.0 | 0.297 |
| LYM (%) | 79.0 ± 5.3 | 76.3 ± 9.6 | 79.7 ± 4.7 | 75.0 ± 6.5 | 77.8 ± 5.8 | 0.504 |
| MON (%) | 3.5 ± 1.5 | 2.8 ± 0.7 | 3.2 ± 1.5 | 3.1 ± 1.2 | 2.5 ± 1.2 | 0.443 |
| EOS (%) | 2.52 ± 1.20 | 1.63 ± 0.98 | 2.28 ± 1.18 | 3.09 ± 1.17 b | 2.47 ± 0.92 | 0.074 |
| BAS (%) | 0.00 ± 0.00 | 0.00 ± 0.00 | 0.00 ± 0.00 | 0.000 ± 0.000 | 0.00 ± 0.00 | / |
* Compared with the control group, p < 0.05; b Compared with the LP group, p < 0.05.
Table 4.
Blood biochemical values mean ± SD (n = 10).
| Item | Control | LP | HP | LT | HT | p-Value |
|---|---|---|---|---|---|---|
| Males | ||||||
| ALT (U/L) | 46.6 ± 4.2 | 44.7 ± 6.3 | 46.9 ± 7.8 | 47.2 ± 5.7 | 44.6 ± 5.1 | 0.778 |
| AST (U/L) | 67.1 ± 14.4 | 64.7 ± 15.0 | 71.7 ± 10.7 | 75.5 ± 10.6 | 65.2 ± 12.2 | 0.275 |
| TP (g/L) | 57.3 ± 2.5 | 57.8 ± 3.0 | 55.8 ± 2.2 | 55.7 ± 3.3 | 55.7 ± 2.6 | 0.278 |
| ALB (g/L) | 35.3 ± 1.2 | 35.6 ± 1.5 | 35.1 ± 1.7 | 34.3 ± 2.2 | 34.5 ± 1.9 | 0.431 |
| GGT (U/L) | 0.67 ± 0.37 | 0.52 ± 0.34 | 0.63 ± 0.27 | 0.82 ± 0.31 | 0.70 ± 0.42 | 0.339 |
| ALP (U/L) | 67.2 ± 13.1 | 72.4 ± 16.4 | 68.5 ± 13.7 | 69.3 ± 21.7 | 78.5 ± 14.9 | 0.549 |
| GLU (mmol/L) | 7.24 ± 0.9 | 7.88 ± 0.92 | 7.52 ± 0.95 | 7.79 ± 0.93 | 7.42 ± 0.37 | 0.454 |
| BUN (mmol/L) | 4.68 ± 0.44 | 4.78 ± 0.47 | 4.98 ± 0.61 | 4.89 ± 0.41 | 4.87 ± 0.51 | 0.693 |
| CHO (mmol/L) | 2.18 ± 0.51 | 2.27 ± 0.41 | 2.34 ± 0.18 | 2.00 ± 0.31 | 2.28 ± 0.34 | 0.285 |
| CRE (μmol/L) | 27.2 ± 2.3 | 27.5 ± 2.7 | 27.1 ± 1.4 | 27.4 ± 3.5 | 26.6 ± 2.1 | 0.938 |
| TG (mmol/L) | 0.44 ± 0.13 | 0.48 ± 0.14 | 0.42 ± 0.09 | 0.38 ± 0.11 | 0.41 ± 0.09 | 0.396 |
| Na+ (mmol/L) | 136.6 ± 1.4 | 136.3 ± 1.0 | 136.3 ± 0.9 | 137.1 ± 0.8 | 137.0 ± 0.6 | 0.251 |
| K+ (mmol/L) | 3.96 ± 0.54 | 3.87 ± 0.65 | 3.94 ± 0.14 | 3.98 ± 0.30 | 3.93 ± 0.16 | 0.981 |
| Cl− (mmol/L) | 106.8 ± 0.8 | 106.6 ± 0.9 | 105.6 ± 1.5 * | 106.6 ± 1.2 | 106.1 ± 1.3 | 0.191 |
| Females | ||||||
| ALT (U/L) | 45.1 ± 6.7 | 38.4 ± 5.8 * | 38.0 ± 7.6 * | 41.5 ± 4.6 | 40.3 ± 9.8 | 0.187 |
| AST (U/L) | 59.0 ± 10.0 | 52.2 ± 7.7 | 59.5 ± 8.4 | 60.1 ± 16.7 | 62.6 ± 13.9 | 0.383 |
| TP (g/L) | 61.3 ± 3.1 | 59.6 ± 3.2 | 58.5 ± 3.9 | 59.4 ± 5.1 | 58.7 ± 3.1 | 0.498 |
| ALB (g/L) | 39.3 ± 1.8 | 38.9 ± 1.9 | 38.5 ± 2.6 | 38.2 ± 3.1 | 37.4 ± 2.9 | 0.526 |
| GGT (U/L) | 0.72 ± 0.38 | 0.71 ± 0.33 | 0.77 ± 0.46 | 0.65 ± 0.43 | 0.77 ± 0.55 | 0.973 |
| ALP (U/L) | 47.1 ± 11.8 | 43.6 ± 8.8 | 44.7 ± 7.3 | 40.3 ± 16.9 | 47.9 ± 12.0 | 0.628 |
| GLU (mmol/L) | 7.68 ± 1.30 | 7.95 ± 1.98 | 7.87 ± 1.14 | 7.82 ± 1.35 | 7.85 ± 1.56 | 0.997 |
| BUN (mmol/L) | 5.57 ± 0.94 | 4.91 ± 0.71 | 5.16 ± 0.78 | 5.62 ± 0.61 | 5.42 ± 1.03 | 0.29 |
| CHO (mmol/L) | 1.93 ± 0.24 | 1.94 ± 0.49 | 1.93 ± 0.65 | 1.83 ± 0.52 | 1.74 ± 0.33 | 0.846 |
| CRE (μmol/L) | 20.9 ± 1.6 | 20.2 ± 1.6 | 20.8 ± 2.8 | 20.7 ± 4.6 | 21.0 ± 5.3 | 0.989 |
| TG (mmol/L) | 0.46 ± 0.08 | 0.39 ± 0.09 | 0.42 ± 0.13 | 0.45 ± 0.20 | 0.39 ± 0.19 | 0.726 |
| Na+ (mmol/L) | 136.3 ± 1.7 | 136.7 ± 0.7 | 136.7 ± 1.3 | 136.7 ± 1.9 | 136.8 ± 1.3 | 0.961 |
| K+ (mmol/L) | 3.54 ± 0.17 | 3.40 ± 0.32 | 3.59 ± 0.25 | 3.65 ± 0.17 * | 3.50 ± 0.31 | 0.257 |
| Cl− (mmol/L) | 105.7 ± 1.3 | 105.8 ± 2.7 | 106.2 ± 0.9 | 106.8 ± 1.8 | 107.1 ± 1.3 | 0.311 |
* Compared with the control group, p < 0.05.
Table 5.
Urine index record table of rats (positive number/total number).
| Item | Control | LP | HP | LT | HT | p-Value |
|---|---|---|---|---|---|---|
| Males | ||||||
| Specific gravity | 1.020 ± 0.004 | 1.018 ± 0.005 | 1.020 ± 0.0047 | 1.017 ± 0.003 | 1.012 ± 0.004 | 0.824 |
| pH | 7.30 ± 0.48 | 7.05 ± 0.83 | 7.10 ± 0.66 | 7.20 ± 0.54 | 7.00 ± 0.53 | 0.497 |
| Female | ||||||
| Specific gravity | 1.023 ± 0.003 | 1.018 ± 0.005 * | 1.020 ± 0.005 | 1.018 ± 0.003 * | 1.019 ± 0.007 | 0.207 |
| pH | 7.10 ± 0.57 | 7.00 ± 0.33 | 6.90 ± 0.57 | 6.65 ± 0.53 | 6.85 ± 0.58 | 0.393 |
* Compared with the control group, p < 0.05.
Table 6.
Organ/body relative weight ratio mean ± SD (n = 10).
| Items | Control | LP | HP | LT | HT | p-Value |
|---|---|---|---|---|---|---|
| Males | ||||||
| Brain | 0.422 ± 0.036 | 0.406 ± 0.050 | 0.417 ± 0.036 | 0.422 ± 0.032 | 0.437 ± 0.047 | 0.564 |
| Heart | 0.299 ± 0.024 | 0.296 ± 0.030 | 0.293 ± 0.024 | 0.298 ± 0.020 | 0.293 ± 0.014 | 0.973 |
| Thymus | 0.131 ± 0.038 | 0.129 ± 0.037 | 0.136 ± 0.031 | 0.124 ± 0.032 | 0.120 ± 0.023 | 0.811 |
| Liver | 2.471 ± 0.171 | 2.482 ± 0.163 | 2.583 ± 0.180 | 2.428 ± 0.139 | 2.437 ± 0.165 | 0.243 |
| Spleen | 0.196 ± 0.028 | 0.178 ± 0.023 | 0.226 ± 0.038 | 0.206 ± 0.043 | 0.205 ± 0.036 | 0.049 |
| Kidney | 0.662 ± 0.039 | 0.650 ± 0.061 | 0.633 ± 0.039 | 0.653 ± 0.045 | 0.643 ± 0.036 | 0.683 |
| Adrenal | 0.017 ± 0.006 | 0.016 ± 0.002 | 0.016 ± 0.005 | 0.018 ± 0.005 | 0.019 ± 0.003 | 0.512 |
| Testicles | 0.793 ± 0.067 | 0.727 ± 0.080 | 0.709 ± 0.255 | 0.761 ± 0.054 | 0.835 ± 0.120 * | 0.260 |
| Epididymis | 0.308 ± 0.082 | 0.294 ± 0.027 | 0.292 ± 0.058 | 0.327 ± 0.136 | 0.320 ± 0.061 | 0.571 |
| Females | ||||||
| Brain | 0.598 ± 0.085 | 0.620 ± 0.090 | 0.626 ± 0.053 | 0.630 ± 0.054 | 0.626 ± 0.058 | 0.859 |
| Heart | 0.337 ± 0.056 | 0.334 ± 0.038 | 0.334 ± 0.036 | 0.325 ± 0.030 | 0.342 ± 0.023 | 0.888 |
| Thymus | 0.152 ± 0.045 | 0.179 ± 0.039 | 0.180 ± 0.033 | 0.141 ± 0.020 * | 0.151 ± 0.036 | 0.054 |
| Liver | 2.598 ± 0.288 | 2.501 ± 0.140 | 2.540 ± 0.280 | 2.526 ± 0.179 | 2.546 ± 0.141 | 0.892 |
| Spleen | 0.235 ± 0.048 | 0.224 ± 0.036 | 0.253 ± 0.030 | 0.246 ± 0.028 | 0.261 ± 0.049 | 0.247 |
| Kidney | 0.677 ± 0.093 | 0.651 ± 0.065 | 0.638 ± 0.055 | 0.649 ± 0.055 | 0.646 ± 0.058 | 0.734 |
| Adrenal | 0.029 ± 0.006 | 0.032 ± 0.007 | 0.031 ± 0.004 | 0.034 ± 0.006 | 0.032 ± 0.008 | 0.602 |
| Uterus | 0.186 ± 0.044 | 0.179 ± 0.035 | 0.201 ± 0.066 | 0.168 ± 0.027 | 0.200 ± 0.055 | 0.490 |
| Ovary | 0.065 ± 0.015 | 0.075 ± 0.018 | 0.072 ± 0.020 | 0.066 ± 0.011 | 0.068 ± 0.016 | 0.600 |
* Compared with the control group, p < 0.05.
Table 7.
Pathological nonspecific changes recorded in rats.
| Organ | Lesion Type | Control | HT | HP |
|---|---|---|---|---|
| Heart | Myocardial interstitial inflammatory cell infiltration, vacuolar degeneration, and fibrous tissue hyperplasia | 1/20 | 1/20 | 1/20 |
| Liver | There was a small amount of inflammatory cell infiltration in the portal area | 3/20 | 3/20 | 4/20 |
| Kidney | Renal tubular dilatation, vacuolar degeneration, protein cast: renal tubular atrophy | 2/20 | 2/20 | 0/20 |
| There was a small amount of inflammatory cell infiltration in the renal interstitium | 5/20 | 4/20 | 4/20 | |
| Lung | Mild or focal interstitial pneumonia; perivascular inflammatory cell infiltration | 3/20 | 3/20 | 2/20 |
| Adrenal glands | The medullary organs were dilated | 2/20 | 2/20 | 0/20 |
| Thyroid gland | Follicular epithelial hyperplasia and vacuolization | 1/20 | 0/20 | 0/20 |
| Pituitary gland | Cystic change | 2/20 | 0/20 | 0/20 |
| Testicles | There were fewer or no sperm in the lumen | 1/10 | 0/10 | 0/10 |
HT, feeding with compound diets containing 70% transgenic Xiushui 134Bt. HP, feeding with compound diets containing 70% non-transgenic Xiushui 134.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Yang, R.; Piao, Z.; Tang, J.; Wan, C.; Lee, G.; Bai, J. Subchronic Toxicological Evaluation of Xiushui 134Bt Transgenic Insect-Resistant Rice in Rats. Agronomy 2023, 13, 826. https://doi.org/10.3390/agronomy13030826
AMA Style
Yang R, Piao Z, Tang J, Wan C, Lee G, Bai J. Subchronic Toxicological Evaluation of Xiushui 134Bt Transgenic Insect-Resistant Rice in Rats. Agronomy. 2023; 13(3):826. https://doi.org/10.3390/agronomy13030826
Chicago/Turabian StyleYang, Ruifang, Zhongze Piao, Jianhao Tang, Changzhao Wan, Gangseob Lee, and Jianjiang Bai. 2023. "Subchronic Toxicological Evaluation of Xiushui 134Bt Transgenic Insect-Resistant Rice in Rats" Agronomy 13, no. 3: 826. https://doi.org/10.3390/agronomy13030826
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
