Article

Optimizing the Incorporated Amount of Chinese Milk Vetch (Astragalus sinicus L.) to Improve Rice Productivity without Increasing CH4 and N2O Emissions

by
Nannan Zhou
1,
Tengfei Jiang
1,
Jiajia Wang
2,
Yujiao Chen
1,
Wenbin Yang
1,
Shan Tang
2,
Shang Han
2 and
Ying Wang
1,2,3,*
1
Collaborative Innovation Center of Recovery and Reconstruction of Degraded Ecosystem in Wanjiang Basin Co-Founded by Anhui Province and Ministry of Education, School of Ecology and Environment, Anhui Normal University, Wuhu 241002, China
2
Anhui Provincial Key Laboratory of Nutrient Recycling, Resources and Environment, Institute of Soil and Fertilizer, Anhui Academy of Agricultural Sciences, Hefei 230031, China
3
Anhui Laboratory of Molecule-Based Materials, Anhui Normal University, Wuhu 241002, China
*
Author to whom correspondence should be addressed.
Agronomy 2023, 13(6), 1636; https://doi.org/10.3390/agronomy13061636
Submission received: 3 May 2023 / Revised: 6 June 2023 / Accepted: 16 June 2023 / Published: 19 June 2023
(This article belongs to the Section Farming Sustainability)
Browse Figures
Review Reports Versions Notes

Abstract

:
Chinese milk vetch (CMV) is a leguminous green manure that is commonly cultivated in paddy fields and can partially substitute synthetic nitrogen fertilizer. However, the impacts of incorporating CMV on CH4 and N2O emissions are still a subject of controversy. Therefore, we conducted a field experiment over three years to investigate emissions under different substitution ratios: urea only (CF); incorporating a traditional amount of CMV (MV); and with incorporation ratios of 1/3 (MV1/3), 2/3 (MV2/3), and 4/3 (MV4/3) of MV for partial urea substitution. Compared with CF, MV2/3, MV, and MV 4/3 resulted in increased yields. MV and MV4/3 reduced N2O emissions but increased CH4 emissions by 28.61% and 85.60% (2019), 32.38% and 103.19% (2020), and 28.86% and 102.98% (2021), respectively, resulting in an overall increase in total global warming potential (except for MV in 2021). MV2/3 exhibited a low greenhouse gas intensity value ranging from 0.46 to 0.47. Partial least-squares-path model results showed that CH4 and N2O emissions were influenced by substitution ratios, which indirectly regulated the gene abundances of mcrA and nosZ. Overall, the impact of CMV on CH4 and N2O emissions was determined by substitution ratios. MV2/3, which involved partial substitution of synthetic N fertilizer with 15.0 t ha−1 of CMV, resulted in improved rice productivity without increasing CH4 and N2O emissions, making it a recommended approach in the study area.

1. Introduction

Rice is a fundamental food source for over 50% of the world’s population, and with a harvest area of 1.46 × 108 ha, it accounts for more than 30% of the worldwide cereal cultivation area [1]. However, paddy fields are some of the most significant sources of greenhouse gases (GHGs), especially methane (CH4) and nitrous oxide (N2O) emissions, accounting for 11% and 10% of anthropogenic emissions, respectively [2]. Therefore, balancing the food supply and environmental benefits of rice production is a challenging and important research topic.
To improve soil quality and increase rice productivity, the combined application of green manure and synthetic fertilizer in paddy fields is encouraged [3]. In agroecosystems, the production and consumption of CH4 and N2O are usually driven by microorganisms associated with the carbon (C) and nitrogen (N) cycles in farmlands, such as methanogenic archaea, methanotrophic bacteria, ammonia oxidizers, and denitrifiers [4]. The combination of organic material and synthetic fertilizer affects the above-mentioned microorganisms by changing the substrate composition, soil nutrients, pH, and redox potential, which will likely alter CH4 and N2O emissions from paddy fields [5]. Therefore, confirming the specific impacts of the combined application on GHGs is significant for determining the application value of green manure.
Chinese milk vetch (Astragalus sinicus L.; CMV) is a leguminous green manure and winter cover crop that is widely grown in paddy fields in most Asian countries and is an important N source that can partially substitute for synthetic fertilizer [3]. Because CMV plays an important role in N management and yield increases in paddy fields, many studies have recently focused on the impacts of CMV incorporation on GHG emissions from paddy fields [6,7]. However, the current conclusions are ambiguous, limiting the promotion of CMV.
Some reported results have indicated that CMV incorporation does not significantly stimulate CH4 emissions compared to treatments without residue amendment [8,9,10]. CMV shows a low C/N ratio (~15) and has a much weaker impact on CH4 emissions than green manure with a high C/N ratio, such as ryegrass (~36) and oilseed rape (~25). The cumulative emissions under CMV treatments are 57.36–64.42% and 73.11–78.86% of those under ryegrass and rape treatments, respectively [10,11]. However, some studies have suggested that CMV incorporation remarkably increases CH4 emissions by 24.66–508.68% compared with chemical fertilizer treatment, which may be due to the rich substrates provided by CMV and suitable environmental conditions for soil methanogenic archaea [12,13,14].
N2O emissions are related to nitrification–denitrification processes and are directly influenced by the inorganic N applied during agricultural cultivation [15]. Water management in paddy fields, such as flooding and drainage, will shift the balance between nitrification and denitrification and then affect N2O emissions [16]. Soil temperature is another nonnegligible factor affecting N2O emissions [17]. Moreover, the mineralization process of organic amendments produces N2O [18]. CMV has typically been considered to restrict N2O emissions by partially replacing inorganic N fertilizer and due to its relatively slow mineralization rate [7,19]. However, other studies indicate that CMV incorporation does not affect N2O emissions compared with the application of only chemical fertilizer, but the microprocesses related to N2O emissions after green manure incorporation are still unclear [20,21,22].
In addition to the type of green manure, paddy soil properties are also directly affected by the incorporation volume of green manure. The incorporation volume regulates soil pH and SOC stocks, which elicit alterations in the composition and abundance of soil microorganisms, especially the functional genera related to C and N cycling [23,24]. Thus, the inconsistent conclusions above may have been caused by the single organic-inorganic fertilizer substitution ratio utilized in most studies. The influence of different proportions of organic and inorganic fertilizers on CH4 and N2O emissions is meaningful for the application of CMV and needs to be further verified. The current study is expected (1) to assess the CH4 and N2O emissions from paddies with different incorporation amounts of CMV to substitute synthetic N fertilizer, (2) to reveal the microbial mechanisms that affect CH4 and N2O emissions, and (3) to explore a rational incorporated amount of CMV that is beneficial for improving rice productivity without increasing CH4 and N2O emissions.

2. Materials and Methods

2.1. Experimental Site

The experimental field plots were located in Yijiang town, Wuhu city, China (30°55′ N 118°29′ E), which has a subtropical monsoon climate. Monthly precipitation and daily ambient data were collected by a tintype meteorological station (Weather Hawk Station; Campbell Scientific, Logan, UT, USA) and are presented in Figure S1. The experimental soil is classified as Gleyi-Stagnic Anthrosol (CRGCST 2001). The soil background values (0–20 cm) were as follows: pH 5.91, soil organic carbon (SOC) 16.90 g·kg−1, dissolved organic carbon (DOC) 102.26 mg·kg−1, total nitrogen (TN) 1.73 g·kg−1, alkaline hydrolysis nitrogen (AN) 130.27 mg·kg−1, available phosphorus (AP) 9.31 mg·kg−1, and available potassium (AK) 70.38 mg kg−1.

2.2. Experimental Description

A field experiment was conducted from 2019 to 2021. CMV was planted in the fallow season (winter) and then incorporated into the soil before transplanting in the following season. There were five treatments with three replications in this experiment: urea only (CF); incorporating a traditional amount of CMV (sowing seeds with 30 kg ha−1 and incorporating CMV with 22.5 t ha−1 fresh weight) to partially substitute for urea (MV); and incorporating 1/3 (MV1/3), 2/3 (MV2/3), and 4/3 (MV4/3) of MV to partially substitute for urea (Table 1). CF is a common management approach in paddy fields, and MV has been repopularized in recent years. The other treatments are newly developed methods that need to be further explored. Before incorporation, CMV samples were collected to test the actual fresh weight in each plot. When the fresh weight in a plot was deficient, CMV was supplemented from other fields. When it was superfluous, some CMV was removed. The urea application amounts were designed based on the N inputs of CMV incorporation to ensure that the total N input was equal among treatments. Substitution ratios of synthetic N fertilizer with CMV were represented by the ratios of N from CMV to N from urea. The dosages of P2O5 (80 kg ha−1) and K2O (120 kg ha−1) remained the same for all treatments. All inorganic fertilizers were applied as basic fertilizer before transplanting. Fifteen experimental plots (10 m × 4 m) were established using a randomized complete block design separated by a 35 cm high ridge with an impermeable membrane. The CMV and mono-rice varieties were “Yijiang zi” and “Y Liangyou 957”, respectively.

2.3. Gas Sampling and Analysis

CH4 and N2O emissions were measured using static chamber-gas chromatography [11]. Gases were sampled once every seven days during the rice season from 2019 to 2021. The sampling frequency was appropriately increased during the peak emission period. The gas emission rates were calculated from four continuous sample concentrations collected every 10 min. The gas fluxes were calculated using Equation (1) [10].
F = ρ   ×   h   ×   Δ C Δ T   ×   273 273 + T
where ρ is the density of gas under a standard state (kg m−3), h is the height of the chamber (m), Δ C Δ T is the change rate of gas concentration per unit time in the chamber (mg m−3 h−1), and T is the temperature in the chamber (°C).
The cumulative emissions were calculated using Equation (2) [10].
E = ∑ i = 1 n F i + F i + 1 2   ×   24   ×   D i
where Fi and Fi+1 represent two consecutive days of gas fluxes (g m−2 h−1) and Di stands for two consecutive sampling intervals (days).
The global warming potential (GWP) and greenhouse gas intensity (GHGI) were calculated according to Equations (3) and (4), respectively [7].
GWP = 29 . 8   ×   CH 4 + 273   ×   N 2 O
GHGI   =   GWP Yield

2.4. Soil Sampling and Analysis

At the rice tillering stage in 2021, soils (0–20 cm) were collected from each plot using a five-point sampling method. After removing the roots and impurities, the soils were thoroughly mixed to form a composite sample. The soil sample was then divided into two portions, one for chemical analysis and the other for microbiological analysis.
Soil pH was detected by a pH meter (water:soil: 1:2.5) (DZS-708, Leici, China). SOC, DOC, and TN were measured as described by Lin, et al. [25] using an elemental analyzer (Elementar Vario MAX; Elementar Scientific Instruments, Hanau, Germany). AN, AP, and AK were determined as described by Cai, et al. [26].
The total soil genomic DNA was extracted from 0.5 g of fresh soil using the Fast DNA spin method with the Soil Toolkit (MP Biomedical, LLC, OH, USA). The expression of functional genes was analyzed by polymerase chain reaction (q-PCR). The PCR primers of mcrA, pmoA, AOA-amoA, AOB-amoA, nirS, nirK, and nosZ were MLf/MLr, A189F/mb661R, nirS-cd3aF/nirS-R3cd, nirK-F1aCu/nirK-R3Cu, and nosZ-2F/nosZ-2R, respectively. Detailed information can be found in Li, et al. [27] and Wang, et al. [28].

2.5. Rice Yield Determination

At the mature stage every year, rice plants were harvested in each plot. The grains were separated from straw by a plot thresher. After sun drying, rice grains were weighed to determine the yield in each plot.

2.6. Statistical Analysis

SPSS version 20.0 (SPSS INC, Armonk, New York, NY, USA) was used for statistical analysis. Mean values for each variable under different treatments were compared by one-way ANOVA, followed by an LSD test (p < 0.05). Pearson’s correlations were analyzed to assess the relationships between the abundances of functional genes and soil nutrients. Partial least-squares-path modeling (PLS-PM) is a useful statistical method for exploring the cause-effect relationships among observed and latent variables [29]. Estimates of the path coefficients and the coefficients of determination (R2) in the current path model were validated using SmartPLS 4 (SmartPLS GmbH, Oststeinbek, Schleswig-Holstein, Germany).

3. Results

3.1. Rice Yields and Soil Properties

Compared with the CF treatment, the MV2/3, MV, and MV4/3 treatments significantly increased rice yields during the experimental period (2019–2021) (Figure 1). The differences between the MV2/3 and MV treatments were not statistically significant and the two treatments increased yields by 38.29% and 40.92% (2019), 28.37% and 25.13% (2020), and 26.82% and 28.76% (2021), respectively, compared to the yield in the CF treatment. There were slight decreases in yields under the MV4/3 treatment compared with those under the MV treatment in 2019 and 2020. The results indicated that partial substitution of synthetic N fertilizer with a certain amount of CMV could increase the rice yield. Decreasing the traditionally applied amount of CMV (MV) to two thirds (MV2/3) did not affect its yield-increasing effect.
After the different fertilization treatments, the soil pH, SOC, DOC, AP, and AK concentrations showed an upward trend with increasing CMV incorporation (Table 2). Different fertilization management practices did not significantly affect the soil TN and AN concentrations. The results indicated that incorporating a certain amount of CMV could ameliorate soil acidification and benefit soil nutrients.

3.2. CH4 and N2O Emissions

The dynamics of CH4 emission fluxes were similar among the different treatments in different years (Figure 2). The CH4 fluxes exhibited obvious seasonal variations, reaching a peak at the tillering stage. The peaks under the MV and MV4/3 treatments were observed to be higher than those under the other treatments. Seasonal patterns of N2O emissions were consistent across all treatments during the rice growing season (Figure 3). N2O fluxes peaked at the ineffective tillering stage; however, the peak value varied. The N2O fluxes showed a small peak 90 days after transplanting in 2021 under the CF, MV1/3, and MV2/3 treatments (Figure 3c).
Compared to the cumulative emissions of CH4 under the CF treatments, those under the MV1/3 and MV2/3 treatments did not show a significant change, but those under the MV and MV4/3 treatments increased by 28.61% and 85.60% (2019), 32.38% and 103.19% (2020), and 28.86% and 102.98% (2021), respectively (Figure 4). The results suggested that when the CMV incorporation amounts were equal to or higher than the traditional incorporation levels (MV), the paddy soils promoted CH4 emissions. However, the increased emissions were mitigated when the incorporated amounts decreased to one third (MV1/3) or two thirds (MV2/3). The cumulative emissions of N2O ranked in the following order: CF ≈ MV1/3 > MV2/3 > MV ≈ MV4/3 (2019–2020) and CF ≈ MV1/3 > MV2/3 ≈ MV > MV4/3 (2021) (Figure 5). N2O emissions tended to decrease with increasing CMV incorporation.

3.3. Global Warming Potential and Greenhouse Gas Intensity

The contribution of CH4 emissions to the total GWP (92.38–98.23%) was much higher than that of N2O emissions (1.77–7.62%) (Table 3). Although the MV and MV4/3 treatments significantly decreased the N2O-induced GWP compared to the CF treatment, the former two treatments significantly increased the CH4-induced GWP, leading to a higher total GWP (except for the MV treatment in 2021). There was no significant difference in the total GWP among the CF, MV1/3, and MV2/3 treatments. However, due to the higher grain yield, the GHGI under the MV2/3 treatment showed a low value, ranging from 0.46 to 0.47 (Figure 1, Table 3).

3.4. Abundances of Functional Genes

Compared with the CF treatment, the MV and MV4/3 treatments significantly increased the mcrA gene abundances by 143.84% and 174.04%, respectively (Figure 6a). Moreover, the two treatments significantly increased the pmoA gene abundances by 61.01% and 57.80%, respectively (Figure 6b). The copy numbers of mcrA were more than ten times higher than those of pmoA in all the treatment groups, indicating that methanogens were dominant in paddy soils. The MV and MV4/3 treatments significantly decreased the copy numbers of AOA by 63.03% and 62.43%, respectively, compared to those in the CF treatment (Figure 6c). Compared with the CF treatment, CMV incorporation treatments did not significantly affect the copy numbers of AOB (Figure 6d), nirK (Figure 6e), and nirS (Figure 6f), whereas the MV2/3, MV, and MV4/3 treatments increased the nosZ gene abundances by 159.42%, 250.50%, and 338.26%, respectively (Figure 6e).

3.5. Partial Least-Squares-Path Model and Correlation Analysis

To explore the cause-effect relationships among the substitution ratios of urea with CMV, soil properties, abundances of functional genes, and GHG emissions, a partial least-squares-path model (PLS-PM) was constructed (Figure 7). The model was assessed using a goodness-of-fit (GoF) statistic, and the GoF value was 0.721, indicating that the model fit well. The results showed that mcrA gene abundances rather than the pomA gene had a strong and positive effect (0.930) on CH4 emissions. The nosZ gene abundances negatively regulated N2O emissions (−0.878). The mcrA, pmoA, and nosZ gene abundances were positively affected by soil nutrients with path coefficients of 0.592, 0.437, and 0.640, respectively. Moreover, mcrA and nirS gene abundances were positively affected by the soil pH, with path coefficients of 0.365 and 0.437, respectively. CMV-urea ratios positively regulated the pH (0.827) and soil nutrients (0.889). Overall, by directly affecting the soil pH and nutrients, the partial substitution of urea with CMV indirectly regulated the mcrA and nosZ gene abundances and thus affected CH4 and N2O emissions.
A Pearson correlation was performed to reveal the relationships between the abundances of functional genes and soil nutrients (Figure S2). The mcrA gene abundances were positively associated with DOC, TN, AP, and AK. The pmoA gene abundances were positively correlated with DOC, TN, and AP. The nosZ gene abundances were positively correlated with SOC, DOC, AP, and AK.

4. Discussion

4.1. Optimizing the Substitution Ratios of Urea with CMV to Improve Rice Productivity without Increasing GHG Emissions

The incorporation of green manure improves rice productivity and soil nutrients [30], which the current study confirmed (Figure 1, Table 2). Possible reasons for the enhancement of rice yield are as follows: (1) CMV increases soil nutrient availability and rice nutrient uptake [31]. (2) Although CMV did not affect the AN concentration in the soil in the present study (Table 2), CMV incorporation can prolong N availability and synchronize N release with rice demands [32]. (3) Substituting chemical fertilizer with green manure enhances various physiological indicators of the rice leaves (such as chlorophyll contents, leaf area indexes, and net photosynthetic rates) and promotes the accumulation of photosynthetic products and their transportation to grains [30].
The CH4 and N2O emissions in all treatments peaked at the rice tillering stage (Figure 2 and Figure 3), which was consistent with the results of other paddy field experiments [21,33,34]. The emission characteristics suggested that GHG mitigation strategies in paddy fields should be focused on this stage. The results from the current study indicated that a relatively high CMV-urea substitution ratio promoted CH4 emissions and mitigated N2O emissions, but a low ratio did not affect emissions (Figure 4 and Figure 5). This may be the reason why the previous research results were inconsistent. The results also suggested that it was feasible to improve rice productivity without increasing GHG emissions by substituting synthetic N fertilizer with a suitable amount of green manure. Moreover, previous studies observed a trade-off correlation between CH4 and N2O in paddies [35,36], which was confirmed by our results (Figure S3).
The GWP is considered an important indicator of the relative importance of CH4 and N2O. The CH4-induced GWP accounted for more than 90% of the total GWP (Table 3), confirming that CH4 is the dominant GHG emitted from paddies [37]. To further mitigate GHG emissions, future research should focus on reducing CH4 emissions. Substitution of synthetic N fertilizer with a great amount of CMV increased the total GWP because the deleterious effects of increased CH4 emissions exceeded the beneficial effects of decreased N2O emissions (Table 3). Although MV and MV4/3 significantly increased rice yields compared with CF, the two treatments significantly increased CH4 emissions and the total GWP (except for MV in 2021) (Figure 1 and Figure 4, Table 3). MV1/3 did not significantly increase the total GWP, but its effect on rice yield was unsatisfactory compared with other CMV incorporation treatments. MV2/3 presented an excellent yield-increasing effect and did not increase GHG emissions, which consequently resulted in a low GHGI value, ranging from 0.46 to 0.47. Therefore, incorporating CMV at 15.0 t ha−1 as a substitute for 77.1 kg ha−1 of urea (MV2/3) seems to be the optimal nutrient management strategy in the study area.
Incorporation of CMV with 22.5 t ha−1 in the MV treatment is also utilized in many other regions in China. A similar incorporation level (25.8 t ha−1) has been reported in South Korea [8,31]. Therefore, the present results may provide a reference for these regions. However, GHG emissions from paddies are affected by many factors, such as climate, soil properties, rice variety, fertilizer type, and water management [38,39]. Therefore, the optimal incorporation amount of CMV (15.0 t ha−1) should be validated in these regions. Considering that the decomposition rate and products of other cover crops differ from those of CMV, further experiments are needed to confirm whether the substitution ratio affects GHG emissions.

4.2. Effects of Substituting Urea with CMV on Soil Properties and Functional Gene Abundances

Urea application can acidify paddy soils due to the processes of nitrification and nitrate leaching [40,41]. This study confirmed that CMV incorporation can ameliorate acidification (Table 2, Figure 7) because (1) urea application was reduced and (2) the organic residue possessed a high pH buffering capacity [42,43]. The return of green manure has long been advocated and practiced to enhance soil fertility and increase soil C. External application of CMV can directly contribute to soil C input, increasing SOC and DOC content [44]. Moreover, the application of organic residues benefits rice growth and causes rice root exudates enriched with DOC to be secreted into the soil [14]. CMV roots secrete organic acids to activate soil-insoluble p, and the abundant root surfaces have a great attraction for K ions, converting unavailable K into available K [31], which explains the increased AP and AK values under the CMV treatments in this study (Table 2).
Soil acidification can inhibit soil microbial communities [45]. The PLS-PM results showed that a relatively high pH resulted in an increased gene abundance of mcrA and nirS (Figure 7). Methanogenic archaea are sensitive to increases in the pH of acidic paddy soil, and even a small increase from 6.3 to 6.6 will enhance the abundance of methanogens and stimulate CH4 production [46,47], which was consistent with our results (Table 2, Figure 6a). Another study also reported that the increasing pH in soil under organic amendment positively regulates the gene abundance of mcrA [48]. The nirS-type denitrifiers were dominant and were sensitive to soil pH (Figure 6f and Figure 7), and a significantly positive direct effect of pH on the nirS gene was also observed in a structural equation model study [49].
In the current study, soil nutrients had positive effects on the gene abundances of mcrA, pmoA, and nosZ (Figure 7). The abundance of methanogens was associated with DOC (Figure S2), indicating that this abundance was regulated by substrate availability. DOC contributes abundant C sources for methanogenic growth, and the decomposition of exogenous organic matter under flooding conditions accelerates the decrease in redox potential in paddy fields, which provides suitable environmental conditions for the rapid reproduction of methanogenic archaea [50]. As an important external source of DOC in paddies, organic residues positively regulate the dynamics of methanogens [51]. Other studies have similarly observed a significant relationship between DOC and methanotrophs [52,53], possibly because DOC promotes the proliferation of methanogens, increasing CH4 production, and CH4 is the sole C and energy source for methanotrophs [14,54]. Plant residue incorporation increases the assembly of nitrous oxide reductase (expression of the nosZ gene) by supplying labile carbon, an essential energy source for denitrifying bacteria [55]. Moreover, AP was another factor driving the increased gene abundances of mcrA, pmoA, and nosZ (Figure S2). As an indispensable element for nucleotides and adenosine triphosphate, the soil AP status affects microorganism proliferation [45,47,56]. We found that AK increased mcrA and nosZ gene abundances, probably because K plays a limiting factor in microorganism growth in terms of enzyme activity and cell osmotic pressure maintenance [45].

4.3. Effects of Functional Gene Abundances on GHG Emissions

CH4 is the final product of methanogens. The mcrA gene encodes the alpha subunit of the enzyme methyl coenzyme M reductase, which catalyzes the terminal step in biogenic methane production. Therefore, gene copies of mcrA are widely used to reflect methanogen abundances and methanogenesis potentials [57]. Conversely, CH4 can be utilized or oxidized by methanotrophs to produce organic tissue or CO2. The pmoA gene encodes the subunit of the particulate methane monooxygenase that is found in all methanotrophs. Therefore, gene copies of pmoA are widely used to reflect the methanotroph abundances and CH4 oxidation potentials [58]. The significant increases in both mcrA and pmoA gene abundances with higher CMV inputs implied enhanced methanogenesis and methane oxidation potentials in the paddy soil (Figure 6a,b). However, CH4 emissions depend on the balance between methanogenesis and methane oxidation [54]. The PLS-PM results revealed that the gene abundance of mcrA rather than that of pmoA had important direct effects on CH4 emissions (Figure 7), indicating that CH4 production that masked CH4 consumption was directly responsible for CH4 emissions. Furthermore, the direct effects reported above were also observed in other studies [14,23], suggesting that the gene abundance of mcrA could be used as a predictor for CH4 emissions in paddies with CMV incorporation. Moreover, in addition to the functional gene abundances, the community composition of methanogens and methanotrophs may affect CH4 emissions, which needs to be further explored [14].
Nitrite reduction is the critical and rate-limiting step in the denitrification process. Nitrite reductase is divided into soluble copper-containing enzymes and cytochrome enzymes, encoded by nirK and nirS genes, respectively. Nitrous oxide reductase converts the greenhouse gas N2O to harmless N2 and determines the end product of denitrification, encoded by nosZ genes [59]. The nosZ/(nirK + nirS) ratio indicates the proportion of N2O that is reduced to N2 [60]. Under CMV incorporation, nirK and nirS gene abundances were not affected, while nosZ gene abundances increased (Figure 6e–g), suggesting fewer N2O emissions. The PLS-PM results confirmed that nosZ gene abundances negatively regulated N2O emissions (Figure 7). This finding indicated that the substitution of synthetic N fertilizer with CMV enhanced the capability of denitrifying bacteria to transform the greenhouse gas N2O into N2.

5. Conclusions

The impacts of CMV on rice productivity and GHG emissions were associated with substitution ratios. In conclusion, the partial substitution of synthetic N fertilizer with a large amount of CMV improved grain yield, ameliorated soil acidification, and benefited soil nutrients. However, relatively high substitution ratios indirectly increased the gene abundances of mcrA and nosZ, which stimulated CH4 emissions and mitigated N2O emissions. The increase in total GWP was mainly due to stimulated CH4 emissions. Therefore, to improve rice productivity while mitigating GHG emissions in the study area, incorporating CMV at 15.0 t ha−1 to substitute for 77.1 kg ha−1 of urea is a more desirable practice than the common approach of using only synthetic fertilizer or the traditional CMV application rate (22.5 t ha−1).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy13061636/s1, Figure S1: Monthly precipitation and daily ambient temperature during the experimental period. Figure S2: Pearson’s correlations between the abundances of functional genes and soil nutrients.

Author Contributions

Conceptualization, N.Z. and Y.W.; methodology, Y.W.; software, T.J. and Y.C.; validation, J.W.; formal analysis, S.T.; investigation, N.Z. and W.Y.; data curation, S.H.; writing—original draft preparation, N.Z.; writing—review and editing, T.J. and Y.W.; visualization, Y.W.; supervision, Y.W.; project administration, Y.W.; funding acquisition, Y.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key Research and Development Program of China (2021YFD1700200), the Natural Science Foundation of Anhui Province (1708085QD88, 2008085QD162), the University Synergy Innovation Program of Anhui Province (GXXT-2020-075), the Foundation of Anhui Laboratory of Molecule-Based Materials (fzj19012), and the Anhui Provincial Key Laboratory of Nutrient Recycling (no number).

Data Availability Statement

When requested, the authors will make available all data used in this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zou, M.; Zhou, S.; Zhou, Y.; Jia, Z.; Guo, T.; Wang, J. Cadmium pollution of soil-rice ecosystems in rice cultivation dominated regions in China: A review. Environ. Pollut. 2021, 280, 116965. [Google Scholar] [CrossRef]
  2. Yu, H.; Zhang, G.; Ma, J.; Wang, T.; Song, K.; Huang, Q.; Zhu, C.; Jiang, Q.; Zhu, J.; Xu, H. Elevated atmospheric CO2 reduces CH4 and N2O emissions under two contrasting rice cultivars from a subtropical paddy field in China. Pedosphere 2022, 32, 707–717. [Google Scholar] [CrossRef]
  3. Chen, J.; Qin, W.; Chen, X.; Cao, W.; Qian, G.; Liu, J.; Xu, C. Application of Chinese milk vetch affects rice yield and soil productivity in a subtropical double-rice cropping system. J. Integr. Agric. 2020, 19, 211–2126. [Google Scholar] [CrossRef]
  4. Li, M.; Xue, L.; Zhou, B.; Duan, J.; He, Z.; Wang, X.; Xu, X.; Yang, L. Effects of domestic sewage from different sources on greenhouse gas emission and related microorganisms in straw-returning paddy fields. Sci. Total Environ. 2020, 718, 137407. [Google Scholar] [CrossRef]
  5. Lan, T.; Li, M.; Han, Y.; Deng, O.; Tang, X.; Luo, L.; Zeng, J.; Chen, G.; Yuan, S.; Wang, C.; et al. How are annual CH4, N2O, and NO emissions from rice–wheat system affected by nitrogen fertilizer rate and type? Appl. Soil Ecol. 2020, 150, 103469. [Google Scholar] [CrossRef]
  6. Aljerib, Y.M.; Geng, M.; Xu, P.; Li, D.; Rana, M.S.; Zhu, Q. Equivalent incorporation of Chinese milk vetch and rice straw enhanced nutrient mineralization and reduced greenhouse gas emissions. Soil Sci. Plant Nutr. 2022, 68, 167–174. [Google Scholar] [CrossRef]
  7. Yang, W.; Yao, L.; Zhu, M.; Li, C.; Li, S.; Wang, B.; Dijkstra, P.; Liu, Z.; Zhu, B. Replacing urea-N with Chinese milk vetch (Astragalus sinicus L.) mitigates CH4 and N2O emissions in rice paddy. Agric. Ecosyst. Environ. 2022, 336, 108033. [Google Scholar] [CrossRef]
  8. Kim, S.Y.; Gutierrez, J.; Kim, P.J. Considering winter cover crop selection as green manure to control methane emission during rice cultivation in paddy soil. Agric. Ecosyst. Environ. 2012, 161, 130–136. [Google Scholar] [CrossRef]
  9. Cai, Z.; Tsuruta, H.; Rong, X.; Xu, H.; Yuan, Z. CH4 emissions from rice paddies managed according to farmer’s practice in Hunan, China. Biogeochemistry 2001, 56, 75–91. [Google Scholar] [CrossRef]
  10. Hou, P.; Xue, L.; Wang, J.; Petropoulos, E.; Deng, X.; Qiao, J.; Xue, L.; Yang, L. Continuous milk vetch amendment in rice-fallow rotation improves soil fertility and maintains rice yield without increasing CH4 emissions: Evidence from a long-term experiment. Agric. Ecosyst. Environ. 2022, 325, 107774. [Google Scholar] [CrossRef]
  11. Zhong, C.; Liu, Y.; Xu, X.; Yang, B.; Aamer, M.; Zhang, P.; Huang, G. Paddy-upland rotation with Chinese milk vetch incorporation reduced the global warming potential and greenhouse gas emissions intensity of double rice cropping system. Environ. Pollut. 2021, 276, 116696. [Google Scholar] [CrossRef] [PubMed]
  12. Liu, Y.; Tang, H.; Muhammad, A.; Huang, G. The effects of Chinese milk vetch returning with nitrogen fertilizer on rice yield and greenhouse gas emissions. Greenh. Gases Sci. Technol. 2019, 9, 743–753. [Google Scholar] [CrossRef]
  13. Ma, Q.; Li, J.; Aamer, M.; Huang, G. Increasing methane (CH4) emissions and altering rhizosphere microbial diversity in paddy soil by combining Chinese milk vetch and rice straw. PeerJ 2020, 8, e9653. [Google Scholar] [CrossRef]
  14. Zhou, G.; Gao, S.; Xu, C.; Dou, F.; Shimizu, K.-Y.; Cao, W. Rational utilization of leguminous green manure to mitigate methane emissions by influencing methanogenic and methanotrophic communities. Geoderma 2020, 361, 114071. [Google Scholar] [CrossRef]
  15. Fan, Y.; Hao, X.; Carswell, A.; Misselbrook, T.; Ding, R.; Li, S.; Kang, S. Inorganic nitrogen fertilizer and high N application rate promote N2O emission and suppress CH4 uptake in a rotational vegetable system. Soil Tillage Res. 2021, 206, 104848. [Google Scholar] [CrossRef]
  16. Ishii, S.; Ikeda, S.; Minamisawa, K.; Senoo, K. Nitrogen cycling in rice paddy environments: Past achievements and future challenges. Microbes Environ. 2011, 26, 282–292. [Google Scholar] [CrossRef] [Green Version]
  17. Xu, X.; Zhang, M.; Xiong, Y.; Shaaban, M.; Yuan, J.; Hu, R. Comparison of N2O emissions from cold waterlogged and normal paddy fields. Front. Environ. Sci. 2021, 9, 660133. [Google Scholar] [CrossRef]
  18. Uchida, Y.; Moriizumi, M.; Shimotsuma, M. Effects of rice husk biochar and soil moisture on the accumulation of organic and inorganic nitrogen and nitrous oxide emissions during the decomposition of hairy vetch (Vicia villosa) mulch. Soil Sci. Plant Nutr. 2019, 65, 409–418. [Google Scholar] [CrossRef]
  19. Zhu, B.; Yi, L.; Hu, Y.; Zeng, Z.; Tang, H.; Yang, G.; Xiao, X. Effects of Chinese milk vetch (Astragalus sinicus L.) residue incorporation on CH4 and N2O emission from a double-rice paddy soil. J. Integr. Agric. 2012, 11, 1537–1544. [Google Scholar] [CrossRef]
  20. Xiong, Z.Q.; Xing, G.X.; Tsuruta, H.; Shen, G.Y.; Shi, S.L.; Du, L.J. Measurement of nitrous oxide emissions from two rice-based cropping systems in China. Nutr. Cycl. Agroecosyst. 2002, 64, 125–133. [Google Scholar] [CrossRef]
  21. Li, J.; Wang, S.; Shi, Y.; Zhang, L.; Wu, Z. Do fallow season cover crops increase N2O or CH4 emission from paddy soils in the mono-rice cropping system? Agronomy 2021, 11, 199. [Google Scholar] [CrossRef]
  22. Raheem, A.; Zhang, J.; Huang, J.; Jiang, Y.; Siddik, M.A.; Deng, A.; Gao, J.; Zhang, W. Greenhouse gas emissions from a rice-rice-green manure cropping system in South China. Geoderma 2019, 353, 331–339. [Google Scholar] [CrossRef]
  23. Zhou, G.; Gao, S.; Lu, Y.; Liao, Y.; Nie, J.; Cao, W. Co-incorporation of green manure and rice straw improves rice production, soil chemical, biochemical and microbiological properties in a typical paddy field in southern China. Soil Tillage Res. 2020, 197, 104499. [Google Scholar] [CrossRef]
  24. Hwang, H.Y.; Kim, G.W.; Lee, Y.B.; Kim, P.J.; Kim, S.Y. Improvement of the value of green manure via mixed hairy vetch and barley cultivation in temperate paddy soil. Field Crops Res. 2015, 183, 138–146. [Google Scholar] [CrossRef]
  25. Lin, S.; Wang, W.; Peñuelas, J.; Sardans, J.; Fernández-Martínez, M.; Su, C.; Xu, X.; Singh, B.P.; Fang, Y. Combined slag and biochar amendments to subtropical paddy soils lead to a short-term change of bacteria community structure and rise of soil organic carbon. Appl. Soil Ecol. 2022, 179, 104593. [Google Scholar] [CrossRef]
  26. Cai, Q.; Xu, M.; Ma, J.; Zhang, X.; Yang, G.; Long, L.; Chen, C.; Wu, J.; Song, C.; Xiao, Y. Improvement of cadmium immobilization in contaminated paddy soil by using ureolytic bacteria and rice straw. Sci. Total Environ. 2023, 874, 162594. [Google Scholar] [CrossRef]
  27. Li, D.; Li, H.; Chen, D.; Xue, L.; He, H.; Feng, Y.; Ji, Y.; Yang, L.; Chu, Q. Clay-hydrochar composites mitigated CH4 and N2O emissions from paddy soil: A whole rice growth period investigation. Sci. Total. Environ. 2021, 780, 146532. [Google Scholar] [CrossRef]
  28. Wang, J.; Zhang, L.; Lu, Q.; Raza, W.; Huang, Q.; Shen, Q. Ammonia oxidizer abundance in paddy soil profile with different fertilizer regimes. Appl. Soil Ecol. 2014, 84, 38–44. [Google Scholar] [CrossRef]
  29. Rodrigues, V.S.; do Valle Júnior, R.F.; Sanches Fernandes, L.F.; Pacheco, F.A.L. The assessment of water erosion using Partial Least Squares-Path Modeling: A study in a legally protected area with environmental land use conflicts. Sci. Total Environ. 2019, 691, 1225–1241. [Google Scholar] [CrossRef]
  30. Islam, M.M.; Urmi, T.A.; Rana, M.S.; Alam, M.S.; Haque, M.M. Green manuring effects on crop morpho-physiological characters, rice yield and soil properties. Physiol. Mol. Biol. Plants 2019, 25, 303–312. [Google Scholar] [CrossRef]
  31. Fan, Q.; Xu, C.; Zhang, L.; Xie, J.; Zhou, G.; Liu, J.; Hu, F.; Gao, S.; Cao, W. Application of milk vetch (Astragalus sinicus L.) with reduced chemical fertilizer improves rice yield and nitrogen, phosphorus, and potassium use efficiency in southern China. Eur. J. Agron. 2023, 144, 126762. [Google Scholar] [CrossRef]
  32. Zhu, B.; Yi, L.; Hu, Y.; Zeng, Z.; Lin, C.; Tang, H.; Yang, G.; Xiao, X. Nitrogen release from incorporated 15N-labelled Chinese milk vetch (Astragalus sinicus L.) residue and its dynamics in a double rice cropping system. Plant Soil 2014, 374, 331–344. [Google Scholar] [CrossRef]
  33. Wang, Z.H.; Wang, L.H.; Liang, H.; Peng, T.; Xia, G.P.; Zhang, J.; Zhao, Q.Z. Methane and nitrous oxide emission characteristics of high-yielding rice field. Environ. Sci. Pollut. Res. 2021, 28, 15021–15031. [Google Scholar] [CrossRef]
  34. Dong, D.; Li, J.; Ying, S.; Wu, J.; Han, X.; Teng, Y.; Zhou, M.; Ren, Y.; Jiang, P. Mitigation of methane emission in a rice paddy field amended with biochar-based slow-release fertilizer. Sci. Total Environ. 2021, 792, 148460. [Google Scholar] [CrossRef]
  35. Cai, Z.; Xing, G.; Yan, X.; Xu, H.; Tsuruta, H.; Yagi, K.; Minami, K. Methane and nitrous oxide emissions from rice paddy fields as affected by nitrogen fertilisers and water management. Plant Soil 1997, 196, 7–14. [Google Scholar] [CrossRef]
  36. Yao, Z.; Zheng, X.; Dong, H.; Wang, R.; Mei, B.; Zhu, J. A 3-year record of N2O and CH4 emissions from a sandy loam paddy during rice seasons as affected by different nitrogen application rates. Agric. Ecosyst. Environ. 2012, 152, 1–9. [Google Scholar] [CrossRef]
  37. Yang, W.; Yao, L.; Ji, X.; Zhu, M.; Li, C.; Li, S.; Wang, B.; Liu, Z.; Zhu, B. Does replacing chemical fertilizer with ryegrass (Lolium multiflorum Lam.) mitigate CH4 and N2O emissions and reduce global warming potential from paddy soil? Plant Soil 2023, 483, 71–83. [Google Scholar] [CrossRef]
  38. Wang, W.; Sardans, J.; Wang, C.; Zeng, C.; Tong, C.; Asensio, D.; Peñuelas, J. Relationships between the potential production of the greenhouse gases CO2, CH4 and N2O and soil concentrations of C, N and P across 26 paddy fields in southeastern China. Atmos. Environ. 2017, 164, 458–467. [Google Scholar] [CrossRef] [Green Version]
  39. Win, E.P.; Win, K.K.; Bellingrath-Kimura, S.D.; Oo, A.Z. Influence of rice varieties, organic manure and water management on greenhouse gas emissions from paddy rice soils. PLoS ONE 2021, 16, e0253755. [Google Scholar] [CrossRef]
  40. Fageria, N.K.; dos Santos, A.B.; Moraes, M.F. Influence of urea and ammonium sulfate on soil acidity indices in lowland rice production. Commun. Soil Sci. Plant Anal. 2010, 41, 1565–1575. [Google Scholar] [CrossRef]
  41. Guo, J.H.; Liu, X.J.; Zhang, Y.; Shen, J.L.; Han, W.X.; Zhang, W.F.; Christie, P.; Goulding, K.W.; Vitousek, P.M.; Zhang, F.S. Significant acidification in major Chinese croplands. Science 2010, 327, 1008–1010. [Google Scholar] [CrossRef] [Green Version]
  42. Wang, Y.; Liu, X.; Butterly, C.; Tang, C.; Xu, J. pH change, carbon and nitrogen mineralization in paddy soils as affected by Chinese milk vetch addition and soil water regime. J. Soils Sediments 2013, 13, 654–663. [Google Scholar] [CrossRef]
  43. Fang, C.; Gao, Y.; Zhang, J.; Lu, Y.; Liao, Y.; Xie, X.; Xiao, J.; Yu, Z.; Liu, F.; Yuan, H.; et al. Combined utilization of Chinese milk vetch, rice straw, and lime reduces soil available Cd and Cd accumulation in rice grains. Agronomy 2023, 13, 910. [Google Scholar] [CrossRef]
  44. Yu, Q.; Hu, X.; Ma, J.; Ye, J.; Sun, W.; Wang, Q.; Lin, H. Effects of long-term organic material applications on soil carbon and nitrogen fractions in paddy fields. Soil Tillage Res. 2020, 196, 104483. [Google Scholar] [CrossRef]
  45. Zhang, W.; Sheng, R.; Zhang, M.; Xiong, G.; Hou, H.; Li, S.; Wei, W. Effects of continuous manure application on methanogenic and methanotrophic communities and methane production potentials in rice paddy soil. Agric. Ecosyst. Environ. 2018, 258, 121–128. [Google Scholar] [CrossRef]
  46. Wang, Z.P.; DeLaune, R.D.; Patrick, W.H., Jr.; Masscheleyn, P.H. Soil redox and pH effects on methane production in a flooded rice soil. Soil Sci. Soc. Am. J. 1993, 57, 382–385. [Google Scholar] [CrossRef]
  47. Kim, C.; Walitang, D.I.; Roy Choudhury, A.; Lee, Y.; Lee, S.; Chun, H.; Heo, T.Y.; Park, K.; Sa, T. Changes in soil chemical properties due to long-term compost fertilization regulate methane turnover related gene abundances in rice paddy. Appl. Sci. 2022, 12, 2652. [Google Scholar] [CrossRef]
  48. Wu, Z.; Zhang, X.; Dong, Y.; Xu, X.; Xiong, Z. Microbial explanations for field-aged biochar mitigating greenhouse gas emissions during a rice-growing season. Environ. Sci. Pollut. Res. 2018, 25, 31307–31317. [Google Scholar] [CrossRef]
  49. Liang, Y.; Wu, C.; Wei, X.; Liu, Y.; Chen, X.; Qin, H.; Wu, J.; Su, Y.; Ge, T.; Hu, Y. Characterization of nirS- and nirK-containing communities and potential denitrification activity in paddy soil from eastern China. Agric. Ecosyst. Environ. 2021, 319, 107561. [Google Scholar] [CrossRef]
  50. Luo, D.; Li, Y.; Yao, H.; Chapman, S.J. Effects of different carbon sources on methane production and the methanogenic communities in iron rich flooded paddy soil. Sci. Total Environ. 2022, 823, 153636. [Google Scholar] [CrossRef]
  51. Ye, R.; Horwath, W.R. Influence of rice straw on priming of soil C for dissolved organic C and CH4 production. Plant Soil 2017, 417, 231–241. [Google Scholar] [CrossRef]
  52. Seo, J.; Jang, I.; Gebauer, G.; Kang, H. Abundance of methanogens, methanotrophic bacteria, and denitrifiers in rice paddy soils. Wetlands 2014, 34, 213–223. [Google Scholar] [CrossRef]
  53. Xu, X.; Zhang, M.; Xiong, Y.; Yuan, J.; Shaaban, M.; Zhou, W.; Hu, R. The influence of soil temperature, methanogens and methanotrophs on methane emissions from cold waterlogged paddy fields. J. Environ. Manag. 2020, 264, 110421. [Google Scholar] [CrossRef]
  54. Murrell, J.C.; McDonald, I.R.; Bourne, D.G. Molecular methods for the study of methanotroph ecology. FEMS Microbiol. Ecol. 1998, 27, 103–114. [Google Scholar] [CrossRef]
  55. Pan, F.; Chapman, S.J.; Li, Y.; Yao, H. Straw amendment to paddy soil stimulates denitrification but biochar amendment promotes anaerobic ammonia oxidation. J. Soils Sediments 2017, 17, 2428–2437. [Google Scholar] [CrossRef]
  56. Sheng, R.; Chen, A.; Zhang, M.; Whiteley, A.S.; Kumaresan, D.; Wei, W. Transcriptional activities of methanogens and methanotrophs vary with methane emission flux in rice soils under chronic nutrient constraints of phosphorus and potassium. Biogeosciences 2016, 13, 6507–6518. [Google Scholar] [CrossRef] [Green Version]
  57. Morris, R.L.; Tale, V.P.; Mathai, P.P.; Zitomer, D.H.; Maki, J.S. mcrA Gene abundance correlates with hydrogenotrophic methane production rates in full-scale anaerobic waste treatment systems. Lett. Appl. Microbiol. 2016, 62, 111–118. [Google Scholar] [CrossRef]
  58. McDonald, I.R.; Murrell, J.C. The particulate methane monooxygenase gene pmoA and its use as a functional gene probe for methanotrophs. FEMS Microbiol. Lett. 1997, 156, 205–210. [Google Scholar] [CrossRef]
  59. Wang, H.; Zheng, T.; Yang, X. Molecular ecology research progress for soil denitrification and research status for its influencing factors. J. Agro-Environ. Sci. 2013, 32, 1915–1924. [Google Scholar]
  60. Li, S.; Liang, H.; Wang, Y.; Zhang, Z.; Zhang, L.; Zhou, G.; Gao, S.; Cao, W. Responses of functional genes involved in nitrogen cycling to green manuring in different paddy soils in south China. Plant Soil 2022, 478, 519–532. [Google Scholar] [CrossRef]
Agronomy 13 01636 g001 550

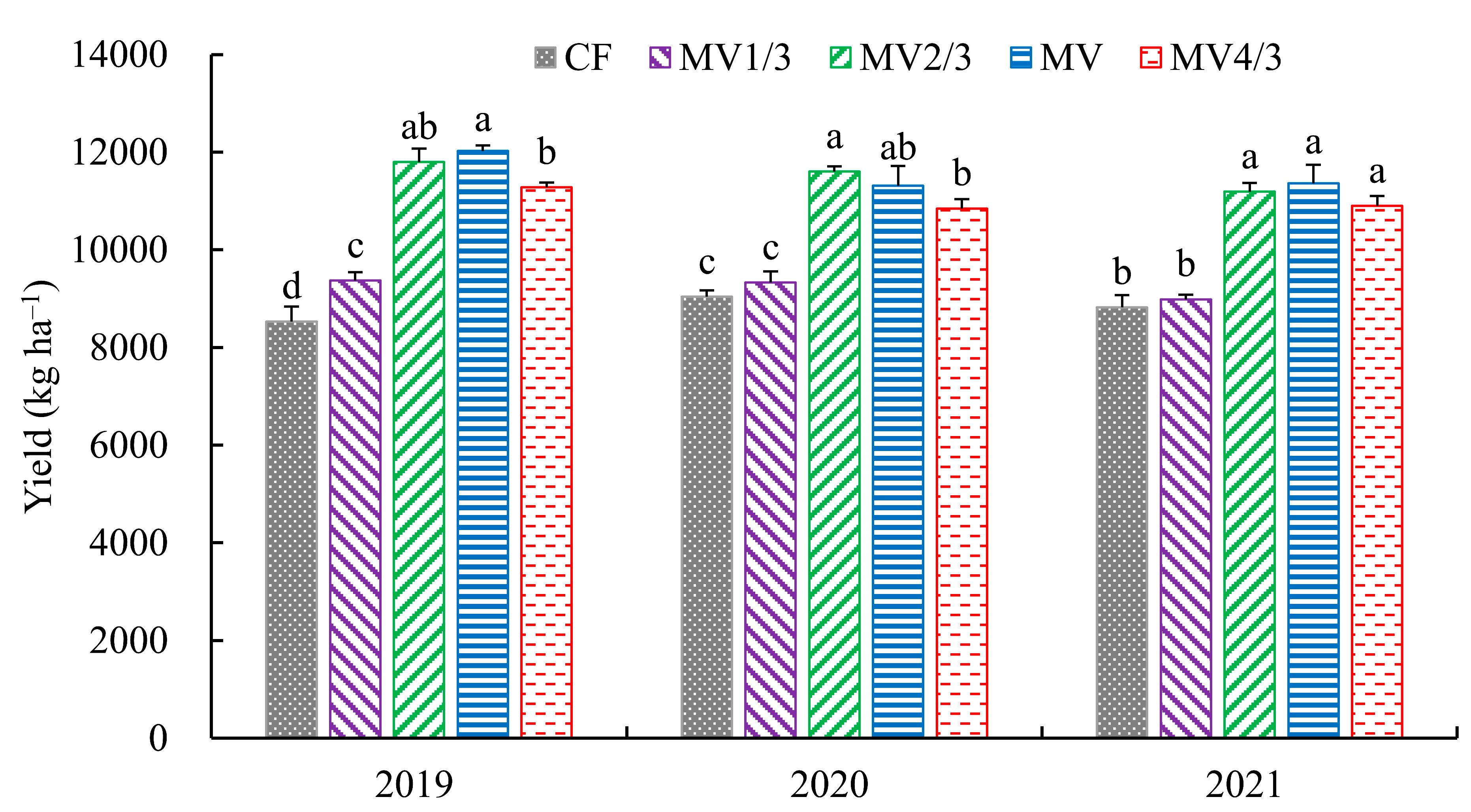

Figure 1. Rice yields affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. The vertical bars denote the standard errors of the means (n = 3). The different lowercase letters indicate significant differences among the means under different treatments in the same year (p < 0.05). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Figure 1. Rice yields affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. The vertical bars denote the standard errors of the means (n = 3). The different lowercase letters indicate significant differences among the means under different treatments in the same year (p < 0.05). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Agronomy 13 01636 g001
Agronomy 13 01636 g002 550

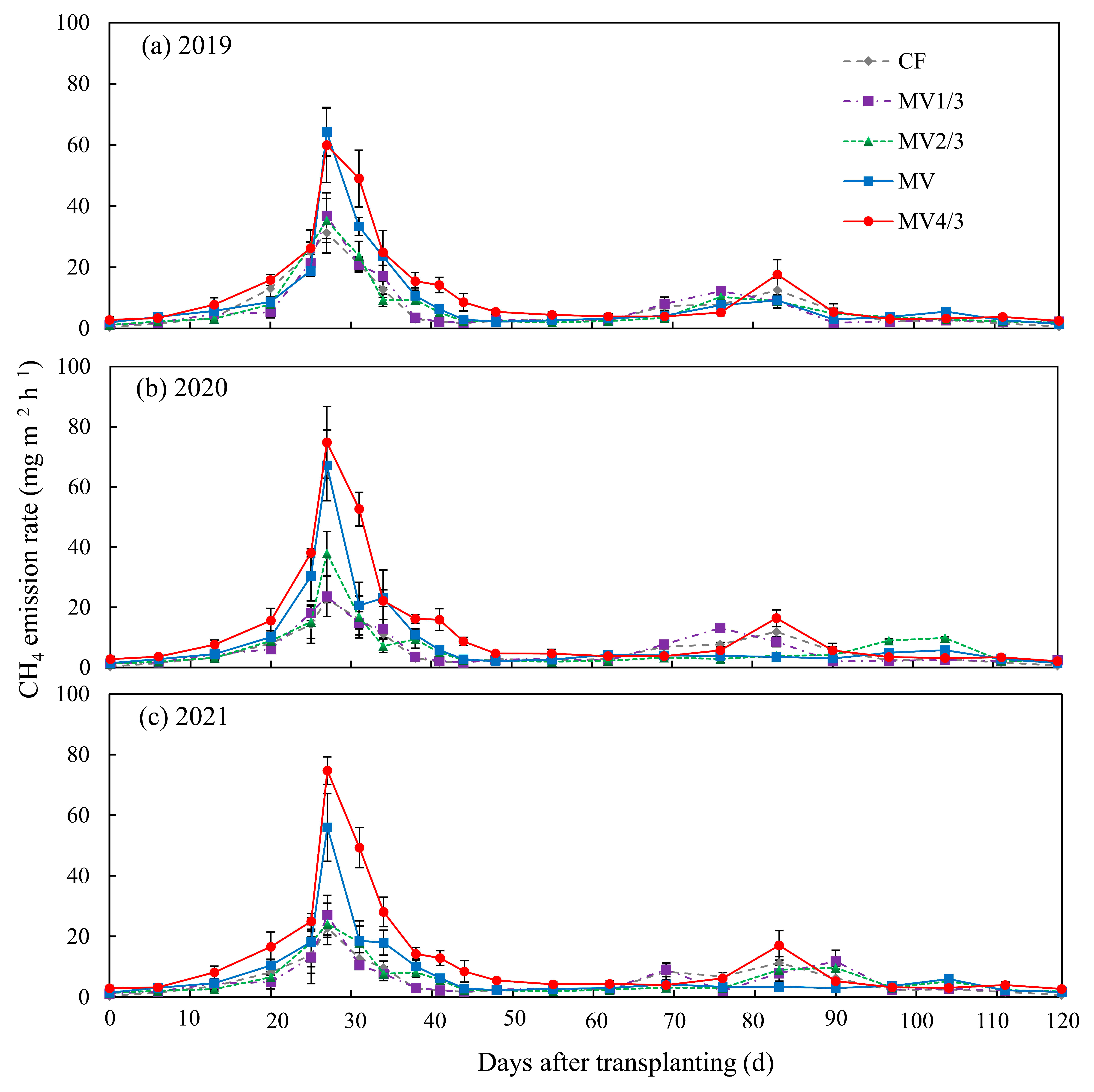

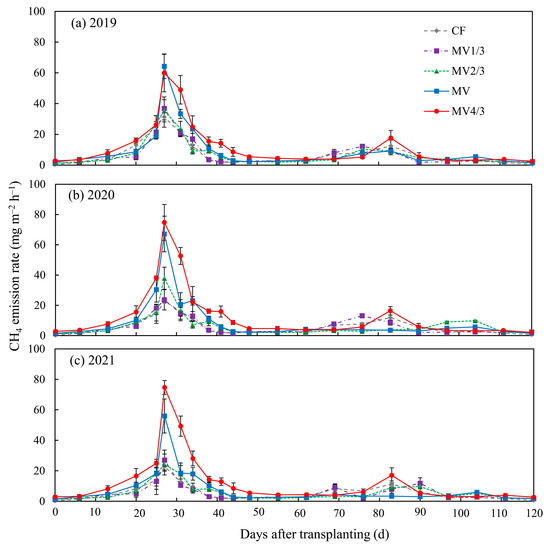

Figure 2. CH4 emission rate affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. The vertical bars denote the standard errors of the means (n = 3). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Figure 2. CH4 emission rate affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. The vertical bars denote the standard errors of the means (n = 3). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Agronomy 13 01636 g002
Agronomy 13 01636 g003 550

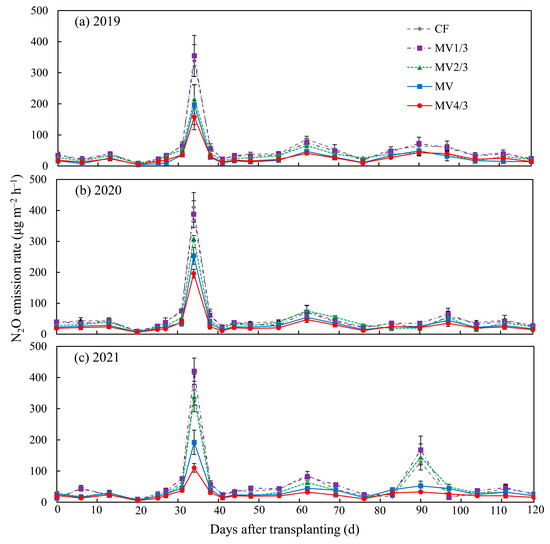

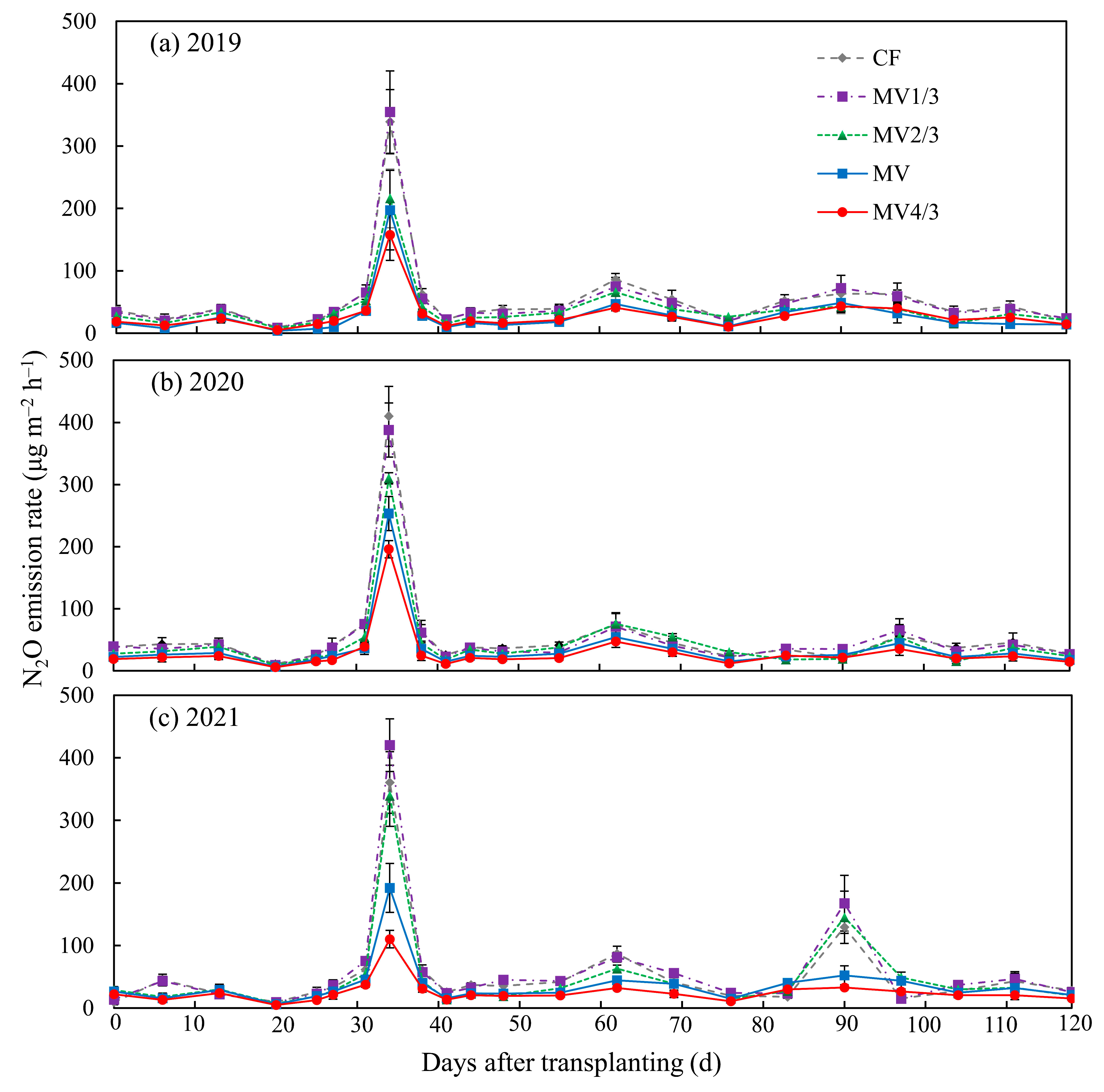

Figure 3. N2O emission rate affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. The vertical bars denote the standard errors of the means (n = 3). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Figure 3. N2O emission rate affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. The vertical bars denote the standard errors of the means (n = 3). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Agronomy 13 01636 g003
Agronomy 13 01636 g004 550

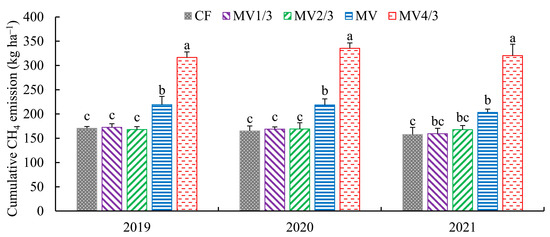

Figure 4. Cumulative emissions of CH4 affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. The vertical bars denote the standard errors of the means (n = 3). Different lowercase letters indicate significant differences among the means under different treatments in the same year (p < 0.05). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Figure 4. Cumulative emissions of CH4 affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. The vertical bars denote the standard errors of the means (n = 3). Different lowercase letters indicate significant differences among the means under different treatments in the same year (p < 0.05). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Agronomy 13 01636 g004
Agronomy 13 01636 g005 550
Figure 5. Cumulative emissions of N2O affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. Vertical bars denote the standard error of the mean (n = 3). Different lowercase letters indicate significant differences among the means under different treatments in the same year (p < 0.05). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Figure 5. Cumulative emissions of N2O affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. Vertical bars denote the standard error of the mean (n = 3). Different lowercase letters indicate significant differences among the means under different treatments in the same year (p < 0.05). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Agronomy 13 01636 g005
Agronomy 13 01636 g006 550

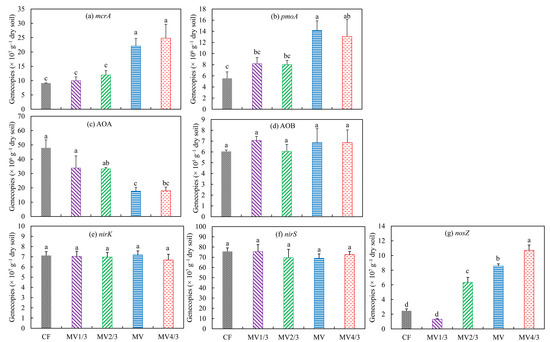

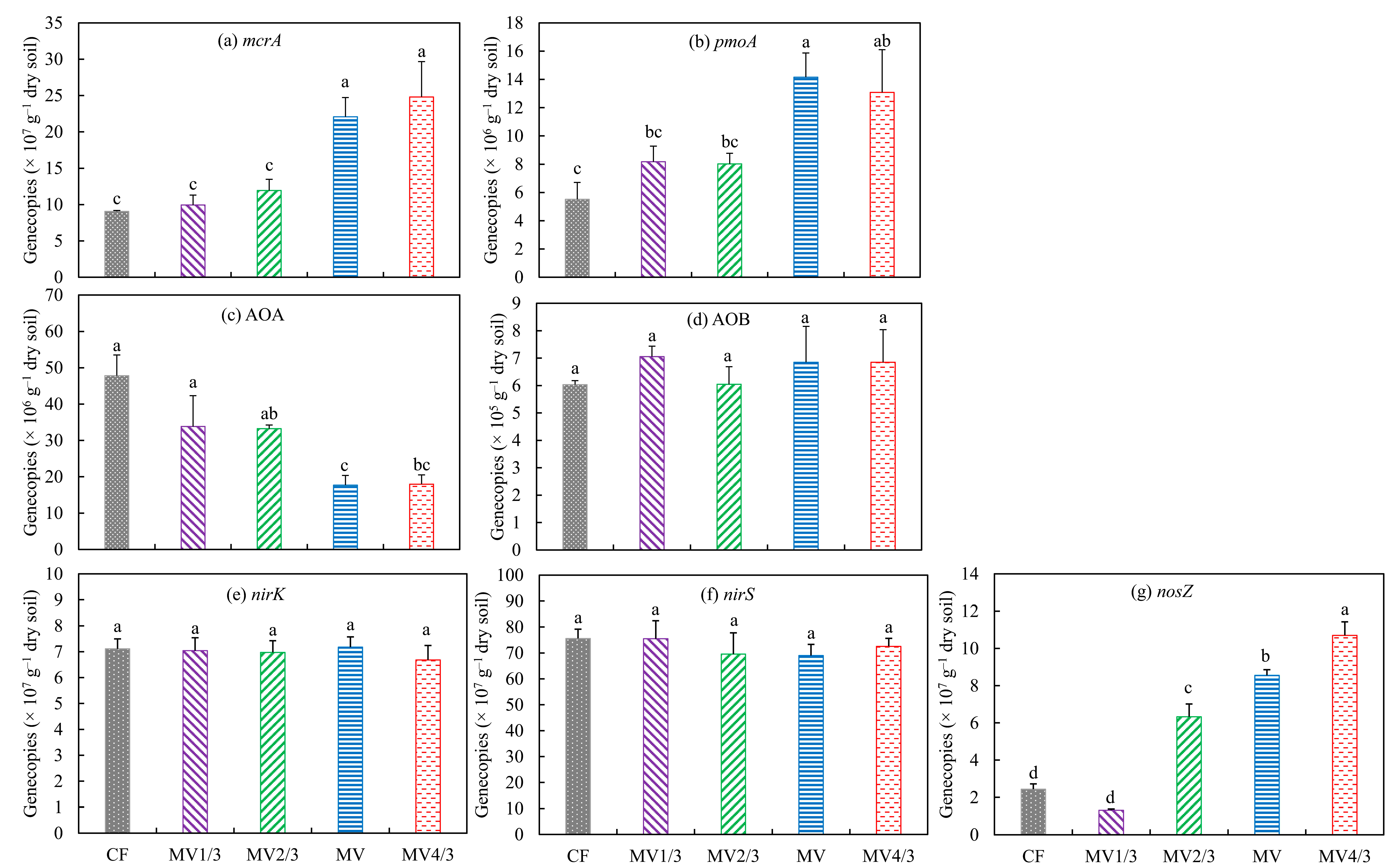

Figure 6. Abundances of the functional genes affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. Samples were collected in 2021. The vertical bars denote the standard errors of the means (n = 3). Different lowercase letters indicate significant differences among the means under different treatments (p < 0.05). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Figure 6. Abundances of the functional genes affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch. Samples were collected in 2021. The vertical bars denote the standard errors of the means (n = 3). Different lowercase letters indicate significant differences among the means under different treatments (p < 0.05). CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Agronomy 13 01636 g006
Agronomy 13 01636 g007 550

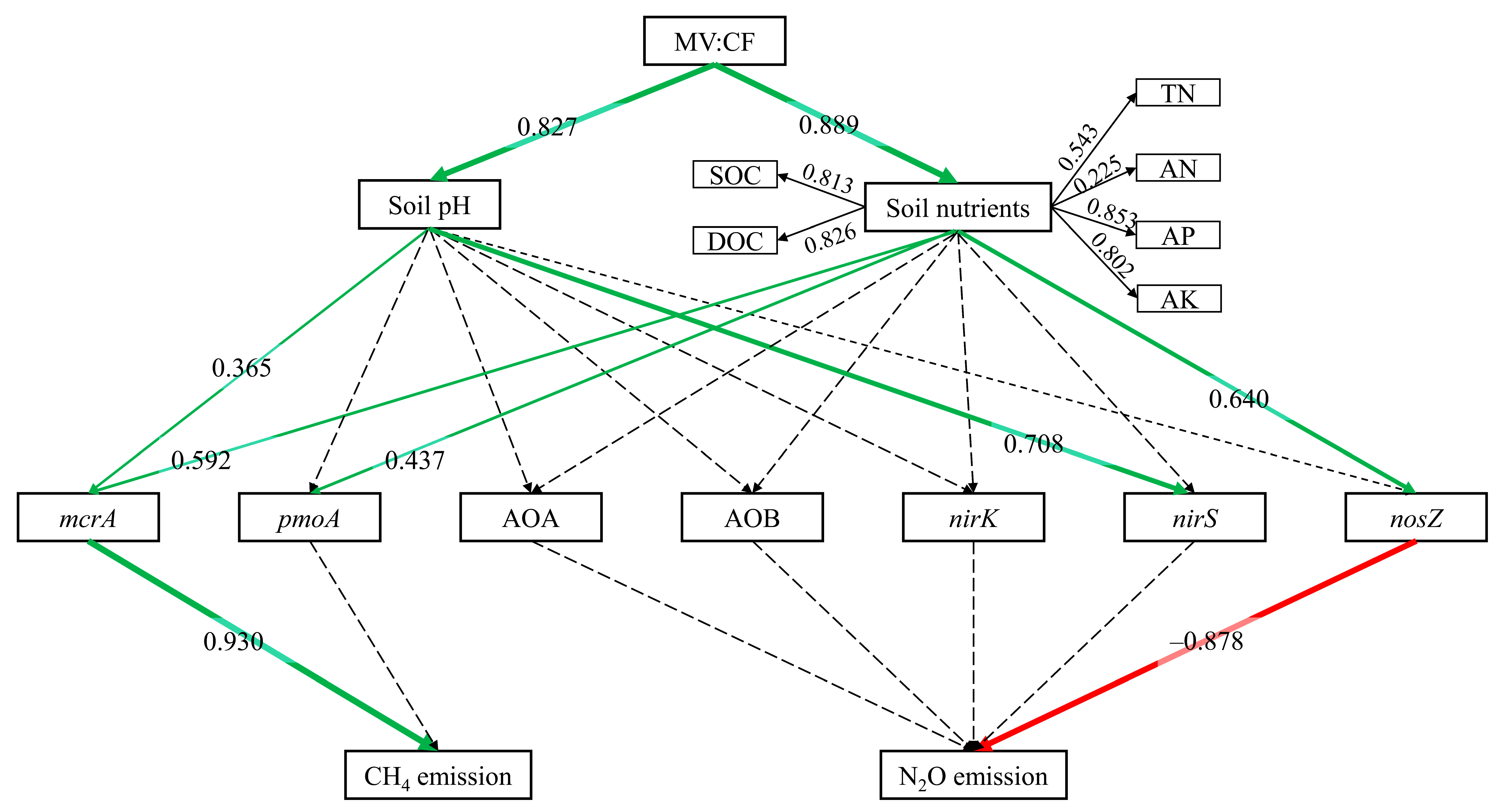

Figure 7. Directed graph of the partial least-squares-path model. MV:CF denotes the ratio of N from Chinese milk vetch to N from urea. SOC: soil organic carbon, DOC: dissolved organic carbon, TN: total nitrogen, AN: available nitrogen, AP: available phosphorus, AK: available potassium. Each box denotes an observed or latent variable. SOC, DOC, TN, AN, AP, and AK were loaded for the latent variable of soil nutrients. The numbers on the arrows and the arrow widths represent the path coefficients. The green and red arrows reflect positive and negative effects, respectively (p < 0.05). The dashed arrows indicate that the coefficients do not differ significantly from 0 (p > 0.05).
Figure 7. Directed graph of the partial least-squares-path model. MV:CF denotes the ratio of N from Chinese milk vetch to N from urea. SOC: soil organic carbon, DOC: dissolved organic carbon, TN: total nitrogen, AN: available nitrogen, AP: available phosphorus, AK: available potassium. Each box denotes an observed or latent variable. SOC, DOC, TN, AN, AP, and AK were loaded for the latent variable of soil nutrients. The numbers on the arrows and the arrow widths represent the path coefficients. The green and red arrows reflect positive and negative effects, respectively (p < 0.05). The dashed arrows indicate that the coefficients do not differ significantly from 0 (p > 0.05).
Agronomy 13 01636 g007
Table
Table 1. Incorporation amounts of Chinese milk vetch and N inputs under different treatments.
Table 1. Incorporation amounts of Chinese milk vetch and N inputs under different treatments.
TreatmentCMVUreaTotal N (kg ha−1)MV:CF (%)
Application Rate (t ha−1)N Input
(kg ha−1)		Application Rate (kg ha−1)Substituted by CMV (kg ha−1)N Input
(kg ha−1)
CF0.00.0480.00.0220.8220.80.0
MV257.517.7441.438.6203.1220.88.7
MV5015.035.5402.977.1185.3220.819.1
MV7522.553.2364.3115.7167.6220.831.7
MV10030.070.9325.8154.2149.9220.847.3
CMV denotes Chinese milk vetch. MV:CF denotes the ratio of N from Chinese milk vetch to N from urea.
Table
Table 2. Soil properties affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch.
Table 2. Soil properties affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch.
TreatmentpHSOC 1
(g kg−1)		DOC
(mg kg−1)		TN
(g kg−1)		AN
(mg kg−1)		AP
(mg kg−1)		AK
(mg kg−1)
CF6.03 ± 0.07 c16.11 ± 0.78 c98.29 ± 13.13 c1.88 ± 0.12 a159.31 ± 4.23 a11.28 ± 0.66 b74.2 ± 2.05 b
MV1/36.14 ± 0.06 bc18.17 ± 0.53 bc104.19 ± 6.32 c1.86 ± 0.09 a159.38 ± 10.46 a14.21 ± 0.53 b80.42 ± 4.26 ab
MV2/36.17 ± 0.09 bc20.77 ± 1.34 ab142.10 ± 24.01 bc1.95 ± 0.1 a155.7 ± 5.13 a15.63 ± 1.8 ab88.16 ± 3.85 a
MV6.31 ± 0.02 ab20.83 ± 1.08 ab173.55 ± 8.15 ab2.08 ± 0.03 a157.61 ± 14.77 a18.64 ± 2.16 a89.78 ± 5.45 a
MV4/36.44 ± 0.07 a21.53 ± 1.25 a218.92 ± 30.41 a2.00 ± 0.25 a164.44 ± 13.19 a19.16 ± 1.00 a91.46 ± 2.99 a
Samples were collected in 2021. Values are reported as means ± SEs. Different lowercase letters indicate significant differences (p < 0.05) in the variable means among treatments in the same year. 1 SOC: soil organic carbon, DOC: dissolved organic carbon, TN: total nitrogen, AN: available nitrogen, AP: available phosphorus, AK: available potassium. CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Table
Table 3. Global warming potential and greenhouse gas intensity affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch.
Table 3. Global warming potential and greenhouse gas intensity affected by the substitution of synthetic N fertilizer with different amounts of Chinese milk vetch.
TreatmentCH4-Induced GWPN2O-Induced GWPTotal GWP
(T CO2 eq ha−1)		GHGI
(kg CO2 eq kg−1 Yield)
GWP
(T CO2 eq ha−1)		Account for Total GWP (%)GWP
(T CO2 eq ha−1)		Account for Total GWP (%)
2019
CF5.08 c93.470.36 a6.535.44 c0.64 b
MV1/35.14 c93.810.34 ab6.195.48 c0.58 b
MV2/35.01 c94.720.28 b5.285.29 c0.47 c
MV6.54 b97.270.19 c2.736.72 b0.56 bc
MV4/39.43 a97.940.20 c2.069.63 a0.82 a
2020
CF4.92 c92.770.38 a7.235.3 c0.59 b
MV1/35.15 c93.350.36 ab6.655.39 c0.58 b
MV2/35.04 c93.980.32 b6.025.36 c0.46 c
MV6.35 b96.340.25 c3.666.76 b0.60 b
MV4/310 a97.990.21 c2.0110.2 a0.94 a
2021
CF4.70 c92.380.38 a7.625.08 b0.58 b
MV1/34.75 bc92.690.37 a7.315.13 b0.57 b
MV2/34.99 bc94.320.30 b5.685.29 b0.47 b
MV6.06 b96.210.24 b3.796.3 b0.56 b
MV4/39.54 a98.230.17 c1.779.71 a0.89 a
Different lowercase letters indicate significant differences in the variable means among treatments in the same year at p < 0.05. CF, MV1/3, MV2/3, MV, and MV4/3 indicate incorporating 0, 7.5, 15.0, 22.5, and 30.0 t ha−1 of Chinese milk vetch, respectively, to partially substitute for urea.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhou, N.; Jiang, T.; Wang, J.; Chen, Y.; Yang, W.; Tang, S.; Han, S.; Wang, Y. Optimizing the Incorporated Amount of Chinese Milk Vetch (Astragalus sinicus L.) to Improve Rice Productivity without Increasing CH4 and N2O Emissions. Agronomy 2023, 13, 1636. https://doi.org/10.3390/agronomy13061636

AMA Style

Zhou N, Jiang T, Wang J, Chen Y, Yang W, Tang S, Han S, Wang Y. Optimizing the Incorporated Amount of Chinese Milk Vetch (Astragalus sinicus L.) to Improve Rice Productivity without Increasing CH4 and N2O Emissions. Agronomy. 2023; 13(6):1636. https://doi.org/10.3390/agronomy13061636

Chicago/Turabian Style

Zhou, Nannan, Tengfei Jiang, Jiajia Wang, Yujiao Chen, Wenbin Yang, Shan Tang, Shang Han, and Ying Wang. 2023. "Optimizing the Incorporated Amount of Chinese Milk Vetch (Astragalus sinicus L.) to Improve Rice Productivity without Increasing CH4 and N2O Emissions" Agronomy 13, no. 6: 1636. https://doi.org/10.3390/agronomy13061636

APA Style

Zhou, N., Jiang, T., Wang, J., Chen, Y., Yang, W., Tang, S., Han, S., & Wang, Y. (2023). Optimizing the Incorporated Amount of Chinese Milk Vetch (Astragalus sinicus L.) to Improve Rice Productivity without Increasing CH4 and N2O Emissions. Agronomy, 13(6), 1636. https://doi.org/10.3390/agronomy13061636

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
