Article

Eco-Physiological and Genetic Basis of Drought Response Index in Rice—Integration Using a Temperate Japonica Mapping Population

by
Poornima Ramalingam
1,2,
An Thi Ha Nguyen
1 and
Akihiko Kamoshita
1,*
1
Asian Research Center for Bio-Resources and Environmental Sciences, Graduate School of Agricultural and Life Sciences, The University of Tokyo, Tokyo 188-0002, Japan
2
Department of Plant Biotechnology, Tamil Nadu Agricultural University, Coimbatore 641003, India
*
Author to whom correspondence should be addressed.
Agronomy 2024, 14(10), 2256; https://doi.org/10.3390/agronomy14102256
Submission received: 3 August 2024 / Revised: 16 September 2024 / Accepted: 23 September 2024 / Published: 29 September 2024
(This article belongs to the Topic Crop Ecophysiology: From Lab to Field, 2nd Volume)
Browse Figures
Versions Notes

Abstract

:
The drought response index (DRI) is an indicator of drought tolerance after adjustment for variation in flowering date and potential yield under well-watered conditions. Using a temperate japonica mapping population of 97 recombinant inbred lines from a cross between Otomemochi (OTM) and Yumenohatamochi (YHM), we evaluated DRI during the reproductive stage under very severe drought in one year and under severe drought in the next year. DRI under very severe drought (−6.4 to 15.9) and severe drought (−3.9 to 8.3) positively correlated with grain dry weight under drought. Three QTLs for DRI were identified: RM3703–RM6911–RM6379 and RM6733–RM3850 both on chromosome 2 in both years combined; and RM8120–RM2615–RM7023 on chromosome 6 in the second year. The latter collocated with putative genes for signaling and defense mechanisms (e.g., PIN1B, BZIP46) revealed by database analysis. Top DRI lines retained root dry weight and had bigger steles. QTL-by-environment interaction had a greater relative contribution than the main effects of QTLs. Comparison with three previous studies revealed that the QTLs for DRI were unique to each experiment and/or population; most of them closely colocalized with reported drought-yield QTLs.

1. Introduction

Strengthening plant stress tolerance under unfavorable growing conditions, such as drought, has gained attention with increasing limitations in available resources and unpredictable weather. However, appropriate phenotypic quantification of drought tolerance has been extremely difficult and neglected.
Firstly, drought tolerance is one element of drought resistance [1,2,3,4], defined as the capacity of a plant to tolerate a defined level of internal water status, but few studies actually quantify plant internal water status in the genotypic comparison. Without additional efforts of measurement of relative water content or plant tissue water potential, drought resistance can be quantified as compounded with drought avoidance but drought tolerance per se is not precisely determined [5]. Secondly, grain yield under water-limiting environments is sometimes incorrectly referred to as drought tolerance, but it is actually substantially influenced by genotypic variation in both phenology and yield potential [6,7]. To assess drought tolerance in field experiments, measuring yield under both well-watered and drought conditions is required, so that yield under drought could be adjusted by taking into account the potential yield under well-watered conditions. Further, because even a slight variation in phenology affects plant performance under drought in the field [8], phenological adjustment of yield is needed.
The drought response index (DRI) is an indicator of drought tolerance determined in field experiments; a high DRI indicates drought tolerance. DRI is calculated as the portion of variation of grain yield under drought adjusted by yield potential and time of flowering, and hence DRI is considered more appropriate as drought tolerance than grain yield under water-limiting environments. DRI has been reported in rice [9], pearl millet [10] and chickpea [11]; DRI is effectively used for comparing genotypes with different phenology and it may be useful in crop breeding. However, its ecophysiological and genetic bases are not sufficiently understood.
Many genetic and physiological studies tended to choose to phenotype drought tolerance in vitro or in small pots or containers for easiness [3,4]. Considering differences between small-scale phenotyping systems and large-scale phenotyping environments, any genetic and physiological mechanisms of indicative drought tolerance detected under the former may be carefully interpreted with the ones detected under the latter. It is needed to determine drought tolerance under field phenotyping environments by quantifying DRI.
In rice, main-effect QTLs for DRI have been reported on chromosomes 1, 2, 6, 8, 9, and 10 in two types of soil (sandy and paddy) in the population from a paddy rice Zhenshan 97 (indica) and an upland rice IRAT109 (tropical japonica) [12], on chromosomes 7 and 11 in the population from CT9993-5-10-1-M (abbreviated as CT9993), an upland japonica from Colombia and IR62266-42-6-2 (abbreviated as IR62266), a lowland indica from the Philippines [13], and on chromosome 12 in the population from Vandana (Aus/japonica) and Way Rarem (the upland cultivars) [14]. However, no report is available in populations obtained from temperate japonica crosses or by comprehensive eco-physiological and genetic assessment of DRI genomic information. Furthermore, it is unclear whether the drought-tolerant yield QTLs (qDTY) and QTLs for DRI are connected to one another [15].
DRI should indicate drought tolerance of a genotype, but different drought tolerance mechanisms might be involved in crop production to different degrees depending on the type of drought [16]. As the duration and intensity of drought stress can vary greatly, the genomic regions for DRI may also interact with drought conditions, but no information is available on QTL-by-environment interaction for DRI. The past success of conventional breeding owed much to multi-environmental trials of breeding lines and consequent analysis of genotype-by-environment interaction [17,18]. Since drought environments were diverse with different drought types [16], it would be reasonable to assume interaction between genetic basis and drought intensities, including QTL-by-drought interaction [19]. Drought resistance of rice has been studied using mapping populations, mostly indica × japonica [16] and to a lesser extent japonica × japonica, partly because of smaller chances of polymorphism. However, differences in putative drought resistance traits such as root architecture or root anatomy have been reported even within japonica ecotypes [20,21]. We can start by comparing QTLs for DRI from various genetic origins with the use of mapping populations developed from genotypes of temperate japonica. Moreover, a significant portion of studies on drought improvement were conducted during late or early droughts, such as those in semi-arid tropical regions or Mediterranean climates (e.g., [11,22,23,24]). These conditions differ greatly from mid-season water scarcity in Japan’s moderate monsoon environment (e.g., [25]).
The current study aimed to explore the genetic basis of DRI by using a mapping population obtained from two temperate japonica cultivars under mid-season upland drought in Japanese temperate monsoon climate conditions. The first objective was to estimate the main-effect QTLs for DRI in this population. The second objective was to estimate QTL-by-environment interaction for DRI. Earlier data on DRI QTLs from the other three mapping populations [12,13,14] were thoroughly analyzed, along with the analysis of potential qDTY.

2. Materials and Method

2.1. Plant Materials

A population of 97 recombinant inbred lines (RILs) of the F8 generation was selected from the 212 RILs derived from a cross between two japonica waxy cultivars, lowland Otomemochi (OTM; early maturity) and upland Yumenohatamochi (YHM; intermediate maturity), at the Plant Biotechnology Institute, Ibaraki Agricultural Center, Japan. OTM has a short stature, is resistant to rice blast, and is drought susceptible, whereas YHM has a deeper root system, is drought resistant, and is well adapted to upland conditions [25,26,27].

2.2. Experimental Condition

The experiments were conducted in upland fields at the Institute for Sustainable Agro-Ecosystem Services, The University of Tokyo (U Tokyo ISAS), Nishitokyo, Japan (35°43′ N, 39°32′ E), from late April to early November in 2011 (Experiment 1) and 2012 (Experiment 2) (Table S1). The soil was a volcanic ash soil of the Kanto loam type (humic Andosol). The progeny and the two parental cultivars of the mapping population (OY population) were planted in both irrigated and drought fields, each of which had three replications of an 11 × 11 Latin square design with the two parents at least once in each row and column (11 replications).
The drought field was covered by a polyvinyl rainout shelter to exclude rainfall (Figure S1). The drought continued from 5 July to 3 September in Experiment 1 (60 days, very severe drought) and from 19 July to 2 September in Experiment 2 (45 days, severe drought). Crops were rewatered and recovered from drought. In the control fields, irrigation was provided 12 times, for a total of 150 mm in Experiment 1 and 175 mm in Experiment 2 during the drought.

2.3. Growth Conditions

Maximum and minimum daily air temperatures, total daily solar radiation, and daily rainfall (Figure S2) were measured by a weather station (WatchDog 2900ET, Spectrum Technologies Inc., Aurora, IL, USA) installed at the side of the field. Average daily solar radiation from May to October was 11.6 ± 5.3 MJ m−2 in Experiment 1 and 16.0 ± 6.8 MJ m−2 in Experiment 2.
The daily minimum and maximum air temperatures were 19.5 ± 4.9 °C (mean ± standard deviation) and 28.8 ± 5.7 °C, respectively, in Experiment 1, and 19.3 ± 4.7 °C and 29.2 ± 5.3 °C in Experiment 2 (Figure S1a,b). The total amount of rainfall was 926 mm in Experiment 1 and 916 mm in Experiment 2.
In Experiment 1, seeds were soaked in cups on 23 April 2011, transferred to a nursery box on 28 April, and transplanted on 22 May (Table S1). Hill spacing was 20 cm × 20 cm. Basal fertilizer (12% N, 16% P2O5, 18% K2O) and calcium silicate were applied at 50 and 100 g/m2, respectively, on 13 May, and urea fertilizer was applied at 4.3 g/m2 on 3 July.
In Experiment 2, seeds were soaked on 24 April 2012, transferred on 1 May, and transplanted on 25 May as in Experiment 1. Fertilizers were applied as in Experiment 1, with urea applied on 5 July.

2.4. Measurements to Determine Drought Intensity

Soil Water Conditions

We used a time-domain reflectometer (TDR, FieldScout TDR 300 moisture meter, Spectrum Technologies, Inc., Aurora, IL, USA) at a depth of 0–12 cm to monitor the soil volumetric water content (VWC) around the panicle initiation and flowering stages in both years. TDR readings were calibrated with VWC (%) obtained from the core sampling of the soils in the same zone:
VWC = 1.3665 TDR + 7.63
Soil water potential at 10 and 40 cm soil depth was measured by tensiometers (DIK 8333, Daiki Rika Kogyo Co., Ltd., Saitama, Japan) in drought and control fields.

2.5. Relative Water Content of the Leaf Blade

The relative water content (RWC) of the leaf blade was calculated as:
RWC (%) = [(FW − DW)/(TW − DW)] × 100
where FW is fresh weight, TW is turgid fresh weight, and DW is dry weight of the samples. A single leaf from each parent was collected between 0600 and 0900 on 7 August from both drought and control fields. The sampled leaves were immediately weighed in the field to determine FW, then wrapped immediately in zip lock covers, placed in an ice box to minimize respiration loss, and quickly carried to a refrigerator in the laboratory. They were stored in deionized water overnight in the fridge (4 °C), water was gently removed from the leaf surface, and the leaves were weighed to determine TW. The leaves were oven-dried for 3 days at 80 °C to determine DW.

2.6. Phenotypic Evaluation

Flowering date was determined by daily monitoring as the date when about half of the panicles were flowering. Flowering delay under drought in comparison with the control was calculated for each genotype in each replication. Leaf rolling and drying scores under drought ranged from 1 (no leaf rolling/drying) to 9 (complete rolling and drying of all leaves on a plant) according to the Standard Evaluation System (SES) of rice [28]. Plant height was recorded, and its reduction under drought in comparison with the control was also calculated. At maturity, one plant per replication was harvested and oven-dried at 80 °C for 2–3 days to determine grain and aboveground dry weights per hill. Grain dry weight was calculated per area and used as a proxy for grain yield. In Experiment 1, grain dry weight was determined separately for panicles emerging before rewatering and after rewatering. Root dry weight was determined only in Experiment 1.
The drought response index (DRI) was used as a measure of the magnitude of genotypic response; the grain yield of each genotype under drought was adjusted for flowering date and potential yield of the respective control. DRI was calculated [10,29] as:
DRI = (Yact − Yest)/SD of Yest
where Yact is the actual grain yield of each line in each replication under drought, Yest is the estimated grain yield of each line, and SD of Yest is the standard deviation of the estimated grain yield of all lines. Yest was derived by multiple regression as:
(Yest)i = a(Yp)i + b(FL)i + c
where (Yp)i is the potential grain yield in the control, (FL)i is the time to 50% flowering in the control, and a, b, and c are the regression parameters.

2.7. Phenotypic Data Analysis

Phenotypic data were analyzed by both general ANOVA and an unbalanced design taking row–column effects into account according to the Latin square design (GenStat 16.0, VSN International Ltd., Hertfordshire, UK). Parental values were compared by Duncan’s multiple range test (significance at p < 0.05).

2.8. QTL Analysis

The genetic map of the OY population was established at the Plant Biotechnology Institute, using 106 simple sequence repeat (SSR) markers to genotype the 212 RILs [30]. Composite interval mapping was conducted in QTL Cartographer v. 2.5 software [31] for each year and both years combined. Putative QTLs with LOD scores > 2.5 (p = 0.05; 1000 permutations) were selected in principle. The linkage map with the QTL locations was constructed in MapChart v. 2.32 software [32]. QTL-by-environment interaction was analyzed in QTLMapper v. 1.6 software [33] to compare the additive and additive-by-environment interaction effects.

2.9. Comparison between Top and Bottom DRI Progeny

Top and bottom DRI lines (10 each) were marked in each year and in combined average, and overall 10 lines were selected. Lines with top DRI in one year but negative and low values in the other year were rejected. A t-test was conducted between the two groups for phenology, growth and productivity traits, leaf rolling, and root dry weight change from the control to drought in Experiment 1. The population was phenotyped for root vascular traits such as stele transversal area (STA) and its proportion to root transversal area (%STA) [34]. These root vascular traits were also compared between the two groups.

2.10. Review of Rice DRI QTL Papers

We extracted the experimental conditions, chromosomal regions, and allelic contributions reported in three papers on QTLs for DRI in rice [12,13,14,15]. QTL positions from different studies were clarified by using the Gramene database “https://archive.gramene.org/markers/ (accessed on 22 September 2024)”, although only approximate positions could be identified. Collocation of previously reported QTLs for yield under drought [15,35,36,37,38,39] and meta-QTLs for drought response [40] were analyzed.

2.11. Selection of Putative Genes for Drought Resistance

We searched the Rice Annotation Project Database (RAP-DB) “https://rapdb.dna.affrc.go.jp/ (accessed on 22 September 2024)”, Q-TARO “https://dbarchive.biosciencedbc.jp/en/qtaro/desc.html (accessed on 18 March 2022)” and Oryzabase “https://shigen.nig.ac.jp/rice/oryzabase (accessed on 22 September 2024)” databases to select putative genes related to plant growth, grain development, or drought responses within the markers flanking the key genomic regions for DRI reported here. The start and end (bp) of the key genomic regions were extracted from the Gramene Markers Database “https://archive.gramene.org/markers/ (accessed on 22 September 2024)”.

3. Results

3.1. Soil Water Conditions and Relative Water Content of the Leaf Blade

In Experiment 1, VWC declined to 19.3% ± 1.7% (N = 170) on 31 August. In Experiment 2, it was maintained at 49% in the control, but declined to 28% under drought. Soil moisture content in the drought trial increased to 42% after rewatering but did not reach the control value.
At 41 days of drought in 2011 (15 August), RWC was 93% ± 2% for OTM and 88% ± 2% for YHM in the control, and 68% ± 2% for OTM and 75% ± 11% for YHM under drought. At 41 days of drought in 2012 (29 August), RWC was 83% ± 3% for OTM and 83% ± 1% for YHM in the control, and 67% ± 6% for OTM and 75% ± 12% for YHM under drought.

3.2. Phenotypic Analysis

3.2.1. Grain Dry Weight and Drought Response Index

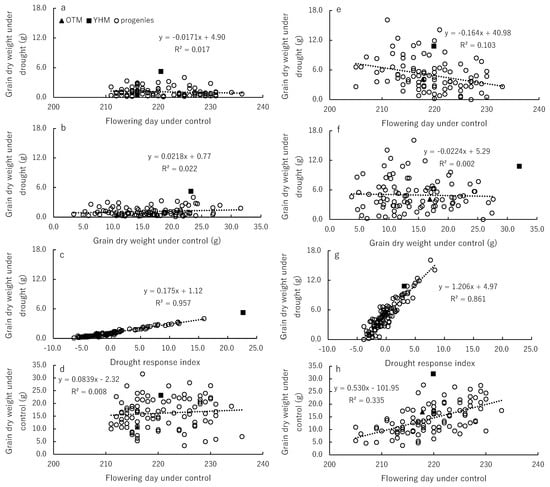

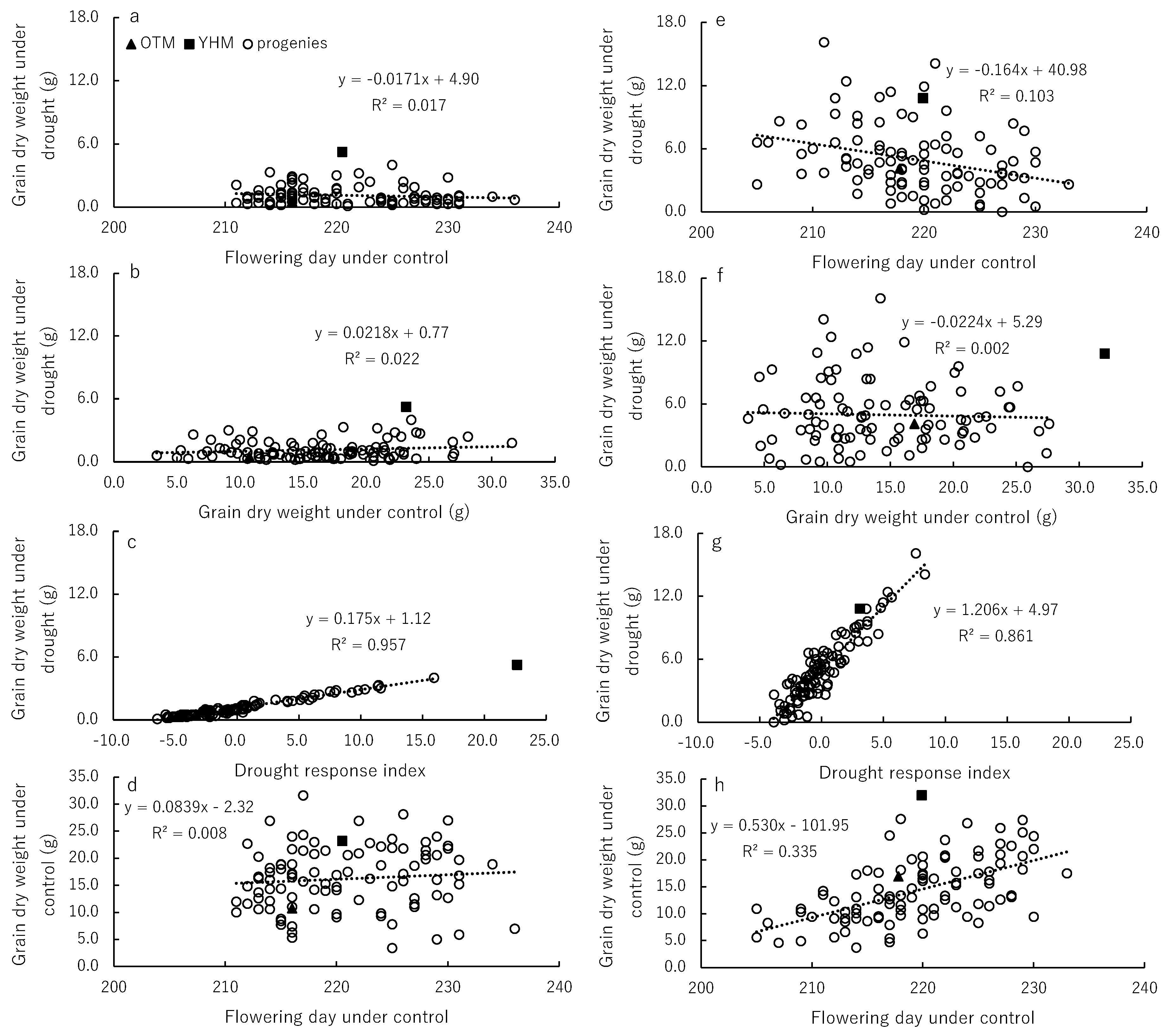

In Experiment 1, grain dry weight under drought was not related to either 50% flowering date in the control (Figure 1a) or grain dry weight in the control (Figure 1b) but was strongly positively related to DRI (Figure 1c). DRI was −3.6 for OTM and 22.6 for YHM, and −6.4 to 15.9 for their progeny (Table 1). Grain dry weight in the control was related to 50% flowering date in the control (Figure 1d) because of the poor grain filling of a few late-flowering progeny.
In Experiment 2, grain dry weight under drought was negatively related to 50% flowering date in the control (Figure 1e) but not to grain dry weight in the control (Figure 1f). Grain dry weight under drought was strongly positively related to DRI (Figure 1g). DRI was −1.26 for OTM and 3.61 for YHM, and −3.9 to 8.3 for their progeny (Table 1). Grain dry weight in the control was related to 50% flowering date in the control (Figure 1h).

3.2.2. Yield Formation

Data on traits related to yield formation are shown in Table 1. In both controls, OTM reached 50% flowering a few days earlier than YHM in early August, and that of their progeny ranged from late July to late August. In Experiment 1, flowering was more than 5 weeks later under drought than in the control in OTM, YHM, and their progeny. YHM was taller than OTM in the control and drought in both years. Drought reduced the height of both cultivars in Experiment 1 but of only OTM in Experiment 2. Grain dry weight was higher in YHM than in OTM in the control in both years. Grain dry weight was lower under drought than in the control; the effect was more remarkable in Experiment 1 than in Experiment 2. Grain dry weight under drought was higher in YHM than OTM in both
DRI was positively correlated with grain dry weight and harvest index in both experiments and with total dry weight in Experiment 1 (Table 2). In Experiment 1, grain dry weight from panicles produced after rewatering had a greater positive effect on DRI than that from panicles developed before rewatering. In Experiment 1, DRI was correlated weakly positively with root dry weight and negatively with leaf rolling. In Experiment 2, DRI was correlated weakly negatively with flowering delay.

3.3. Genomic Analysis

3.3.1. Main-Effect QTLs for DRI

In Experiment 1, 22 main-effect QTLs (control, 6; drought, 16), in Experiment 2, 16 QTLs (control, 4; drought 12), and in combined analysis, 12 QTLs (control, 4; drought, 8) were identified (Table S2). Among the 20 key genomic regions (Figure 2), the following regions repeatedly showed the QTLs for production traits; RM1332–RM3029 on chromosome 3 collocated with QTLs for grain dry weight and harvest index under drought; with their positive allelic effects from YHM (Table S2). RM216–RM467 on chromosome 10 collocated with QTLs for grain and total dry weight in the control, with their positive allelic effects from YHM. QTLs for leaf rolling score were found in RM3475–RM1297–RM6696 on chromosome 1 (Experiment 2), in RM6379–RM6933–RM3857 on chromosome 2 (both years and the combined analysis), in RM1388–RM5503 on chromosome 4 (Experiment 2), and in the short arm tip ~–RM247 on chromosome 12 (Experiment 1). QTLs for 50% flowering date were found in ~–RM4853 on chromosome 3, in ~–RM2010 on chromosome 5, and in RM536–RM206 on chromosome 11.

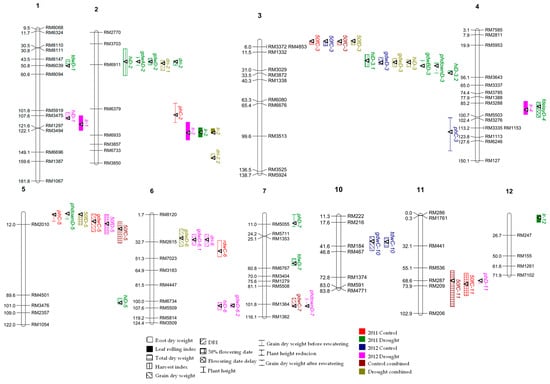

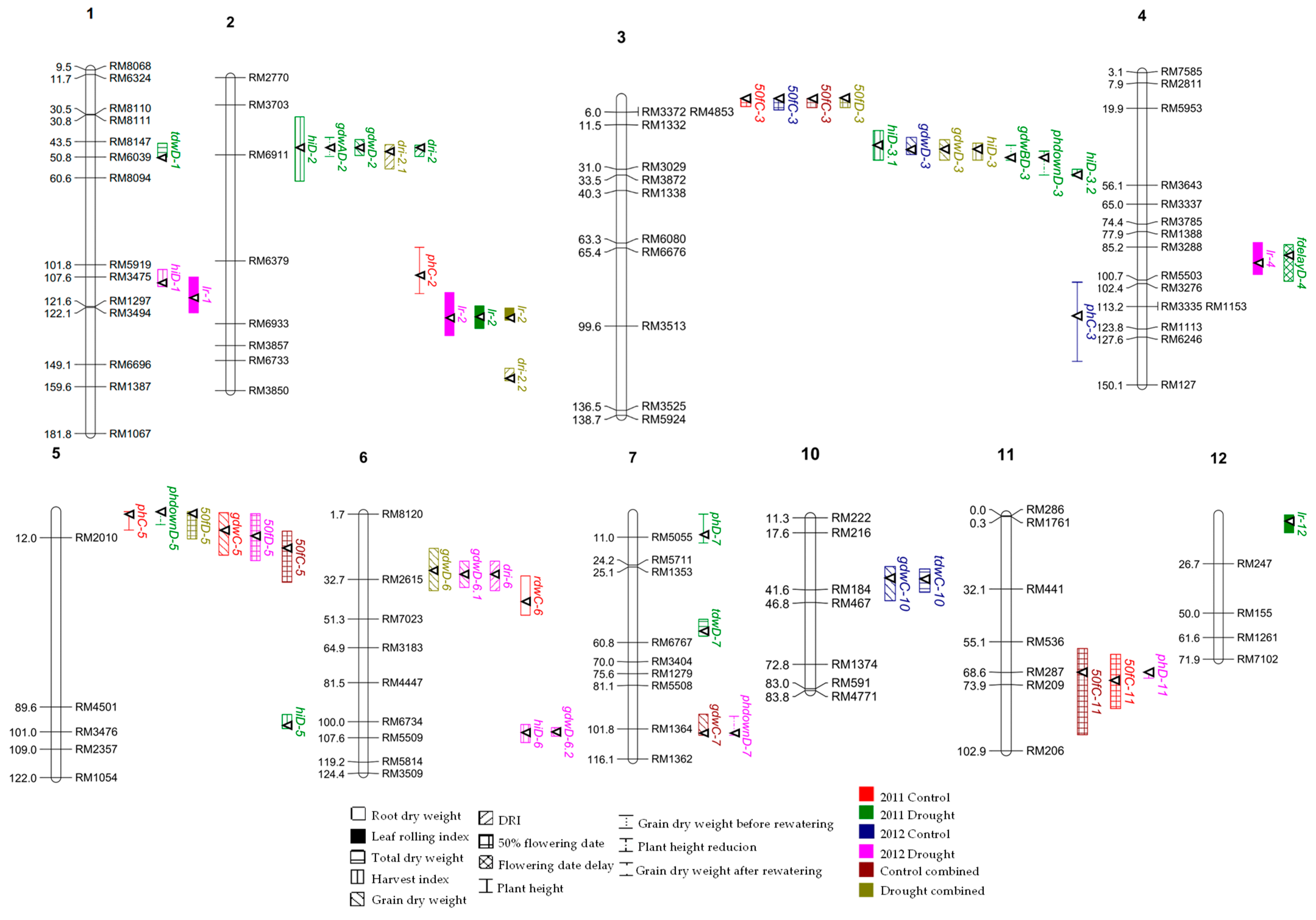

QTLs for DRI were identified in three genomic regions (Table 3, Figure 2): (1) RM3703–RM6911–RM6379 on chromosome 2 (Experiment 1 and combined analysis), collocated with QTLs for grain dry weight after rewatering, grain dry weight, and harvest index in Experiment 1; (2) RM6733–RM3850 on chromosome 2 (combined analysis); and (3) RM8120–RM7023 on chromosome 6 (Experiment 2), collocated with QTLs for grain dry weight under drought (Experiment 2 and the combined analysis) and root dry weight in the control (Experiment 1).

3.3.2. QTL-by-Environment Interaction

The additive effect was higher for the QTL-by-environment interaction (0.16) than for the putative QTLs (0.08) for DRI (Table 4), but the main effect was higher for 50% flowering date and leaf rolling. In spite of minor differences, the QTLs detected in each experiment were mostly consistent with those from the combined analysis.

3.3.3. Performances of Top and Bottom 10 DRI Lines

Top DRI lines (4.7) and bottom DRI lines (−3.7) did not differ in phenology, plant height, or grain dry weight in the control, but the former had a significantly higher grain dry weight under drought (Table 5). Flowering time under drought was similar, while the top group tended to have a lower leaf rolling score (p < 0.1). The bottom group reduced root dry weight under drought but the top group increased it. The top group also had higher STA and %STA than the bottom group.

3.3.4. Review of Previous Studies on QTLs for DRI

We also analyzed the published data on QTLs for DRI in the crosses of Vandana/Way Rarem [14], CT9993/IR62266 [13], and Zhenshan 97/IRAT109 [12] (Table 6). The effect of flowering time on grain yield under drought differed among the studies. For DRI, 7 QTLs (2 in paddy soil and 5 in sandy soil [12]) and 1 to 3 QTLs [13,14] have been identified. RM6733–RM3850, the second region on chromosome 2 in OTM/YHM, was relatively close to RM573–RM318 on chromosome 2 in Zhenshan 97/IRAT109; these are possibly collocated with a QTL for grain yield under drought, qDTY2,3. However, all the other reported QTLs were specific to each study and each population. Interestingly, a QTL on chromosome 12 [14] was collocated with the drought yield QTL on chromosome 12, qDTY12,1, and some other QTLs for DRI were found to be located close to the drought yield QTLs.

3.3.5. Putative Genes for Drought Resistance

Within the markers flanking the three key genomic regions for DRI, putative genes related to plant growth, grain development, or drought responses were selected from the databases (Table 7). In the first region on chromosome 2, GW2 encodes a RING-type E3 ubiquitin ligase, which decreases grain width and weight [41,42]. EP3 encodes a protein that controls erect panicles and their branching, as well as culm mechanical strength [43,44]. OsGTE4 encodes a bromo-domain-containing protein homologous to Arabidopsis GTE4, which maintains root meristem and regulates the cell cycle [45,46,47]. AIM1 encodes 3-hydroxyacyl-CoA dehydrogenase, which maintains root meristem activity [46,48]. RPBF [49,50] and PYL/RCAR3 [51] encodes a transcription factor and PYL/RCAR3 [51] encodes an abscisic acid (ABA) receptor.
In the second region on chromosome 2, MGD2 encodes monogalactosyldiacylglycerol synthase, which enhances salt, drought, and submergence stress tolerance [52]. PIP1;3 encodes a plasma membrane intrinsic protein, which promotes plant tolerance to water deficit [53,54]. SMG1 encodes mitogen-activated protein kinase 4 involved in defense response, cell proliferation, and grain growth [55,56]. LGS1 encodes a basic helix-loop-helix transcription factor, which regulates grain size [57,58]. BLS1 encodes DUF640 and ALOG domain-containing protein, which regulates plant height, floral development, grain yield, and spikelet morphogenesis [59,60]. LKR/SDH encodes lysine ketoglutarate reductase/saccharopine dehydrogenase in developing grain [49,50].
In the third region (chromosome 6), BZIP46 encodes a bZIP transcription factor, which promotes ABA signaling and drought tolerance [61,62]. P1N1B encodes PIN protein, which is an auxin efflux carrier involved in auxin transport and signaling and in the development of root, shoot, and inflorescence [63,64]. KRP2 encodes cyclin-dependent kinase inhibitor 2 [65]. SK2 encodes shikimate kinase 2, involved in defense response and panicle development [66,67]. MADS55, which encodes a short vegetative phase (SVP)-group MADS-box protein [68], and BU1 [69,70], both regulate plant development through brassinosteroids.
Table 7. Putative genes related to drought stress in the three key genomic regions for DRI identified in this study. The genes were retrieved from RAP-DB “https://rapdb.dna.affrc.go.jp/ (accessed on 22 September 2024)”, Q-TARO “https://dbarchive.biosciencedbc.jp/en/qtaro/desc.html (accessed on 18 March 2022)”, and Oryzabase “https://shigen.nig.ac.jp/rice/oryzabase (accessed on 22 September 2024)”. Only genes located between the flanking markers are listed.
Table 7. Putative genes related to drought stress in the three key genomic regions for DRI identified in this study. The genes were retrieved from RAP-DB “https://rapdb.dna.affrc.go.jp/ (accessed on 22 September 2024)”, Q-TARO “https://dbarchive.biosciencedbc.jp/en/qtaro/desc.html (accessed on 18 March 2022)”, and Oryzabase “https://shigen.nig.ac.jp/rice/oryzabase (accessed on 22 September 2024)”. Only genes located between the flanking markers are listed.
GeneChr.Encoded Proteins and Their Functions StartEndLocationConditions and References
GW22RING-type E3 ubiquitin ligase, Negative regulation of grain width and size81152238121651LOC_Os02g14720.1-2[41]
Paddy [42]
OsGTE42Bromo-domain-containing protein, Homologous to Arabidopsis GTE4, Maintenance of root meristem, Cell cycle regulation84903928498003LOC_Os02g15220.1Petri dish, 1/2 strength MS [47]
7-day-old plantlets [45]
RPBF2Dof zinc finger transcription activator (factor), Grain filling, GA response in aleurone cell85903188593735LOC_Os02g15350.1Greenhouse [49,50]
PYL/RCAR32ABA receptor, Pyrabactin resistance-like (PYL) ABA receptor family protein, Survival rate under cold and drought stress, ABA-mediated inhibition of seed germination88013258805273LOC_Os02g15640.13 weeks after sowing, water withhold for 10 days, rehydrated for 7 days (drought) and cold treatment [51]
EP32Erect panicle, Panicle branching, Tillering, Culm mechanical strength90711329075127LOC_Os02g15950.1Greenhouse and field [43]
Paddy standard condition [44]
AIM123-Hydroxyacyl-CoA dehydrogenase, Salicylic acid biosynthesis, Maintenance of root meristem activity, Beta-oxidation of fatty acids1000154310010228LOC_Os02g17390.1Continuous illumination [48]Hydroponic in JA, DIECA, CA BA [46]
LKR/SDH2Lysine ketoglutarate reductase/saccharopine dehydrogenase, Lysine-degrading enzyme in developing grain3325338633264913LOC_Os02g54254.1-4Greenhouse [49,50]
SMG12Mitogen-activated protein kinase 4, Defense response, Cell proliferation, Grain growth3344207033443948LOC_Os02g54600.1Field, natural condition [55,56]
MGD22Monogalactosyldiacylglycerol synthase, upregulated under stress3422373834227369LOC_Os02g55910.1-2Pot with salt, submerged, drought, cold treatments [52]
LGS12Basic helix-loop-helix transcription factor, Regulation of grain size3435373034356787LOC_Os02g56140.1Field, natural conditions [57,58]
BLS12DUF640 domain-containing protein, ALOG domain-containing nuclear protein, Regulation of plant height, floral development and grain yield, Spikelet morphogenesis3468762434689723LOC_Os02g56610.1Field, natural conditions [59]
Paddy, natural conditions [60]
PIP1;32Plasma membrane intrinsic protein, Higher water potential and root hydraulic conductivity under water stress, Taller plants with more leaves3534967335351221LOC_Os02g57720.1Water deficit at −0.82 MPa [53]
Water deficit at SRWC 85% [54]
BZIP466bZIP transcription factor, Positive regulator of ABA signaling, Survival rate56771575681985LOC_Os06g10880.1-3Growth chamber, 3-week-old with drought, salinity, oxidative stress [61]
Pot, drought, cold, and heat stress [62]
KRP26Cyclin-dependent kinase inhibitor 2, KIP-related protein, Grain filling, Seed germination, Seed morphogenesis57914665795810LOC_Os06g11050.1Greenhouse, 60–70% relative humidity [65]
MADS556Short vegetative phase group MADS-box protein, Negative regulation of brassinosteroid responses, Dwarfism, Leaf angle, Brassinosteroid sensitivity59525995963309LOC_Os06g11330.1Paddy field, glasshouse
BL, GA, BR treatment [68]
SK26Shikimate kinase 2, Defense response, Development (panicle)64952126497797LOC_Os06g12150.1-2Medium with elicitor (N-acetylchitoheptaose) treatment [66,67]
BU16Leaf angle, Grain size, Brassinosteroid sensitivity65566976557748LOC_Os06g12210.1Greenhouse [69]
Field, natural conditions [70]
PIN1B6PIN protein, Auxin efflux carrier, Auxin transport and signaling, Development (root, shoot, and inflorescence)68663936869521LOC_Os02g50960.1-2Hydroponic [63] Greenhouse and N, P deficit treatment [64]

4. Discussion

4.1. Phenotypic Assessment of DRI

This study tested DRI in a japonica × japonica mapping population in two 1-year field experiments with severe or very severe drought during the reproductive stage up to flowering (July to early September). The rainfall at the study site is generally sufficient during the rice vegetative stage (before early July) and after flowering (from early September). Owing to the extreme severity of the imposed drought, no significant link was detected in Experiment 1 between grain dry weight under drought and the 50% flowering date, nor between the grain dry weights under drought and in the control. The reduction in yield was greater in Experiment 1 than in Experiment 2 because of its extended period of very severe drought. We found that the plant’s capacity to respond to rewatering was positively correlated with both DRI and grain dry weight under drought; this capacity was expressed as grain dry weight derived from panicles formed after rewatering. This is the first demonstration of a link between DRI and the capacity to respond to rewatering. Prior DRI research on rice was carried out in semi-arid tropics during late-season drought, where phenology accounted for a larger portion of the fluctuation in yield during drought [9,22,23,24]. Our study site is located in a temperate monsoon climate, with drought mainly from mid-July to late August; in September, when many lines and cultivars were in the middle of the grain-filling period, the water supply was good. Experiment 1 revealed that the recovery capacity following rewatering was more important than phenology.
Genotype rankings of neither DRI nor grain dry weight under drought were consistent in 2 years, showing genotype-by-year interaction. The DRI range among the progeny was larger in Experiment 1 (from −6.4 to +15.9) than in Experiment 2 (from −3.9 to +8.3). A genotype-by-drought environment interaction has been reported for DRI [22,23]. However, the existence of genotypes with consistently high DRI was reported [9,35], and hence it is possible to select a few progeny with consistently high DRI. Such genotypes should have consistently high harvest indexes and associated traits for yield formation. Such efforts may gradually attain superior rice genotypes under drought-prone upland environments.

4.2. Genetic Assessment of DRI with QTLs for Other Yield-Related Traits and Drought Resistance Genes

In the temperate japonica population, three genetic sites (two on chromosome 2 and one on chromosome 6) for DRI QTLs affecting field drought tolerance were identified for the first time. Both regions on chromosome 2 were collocated with either the reported DRI QTL [12] or drought yield QTLs qDTY2,2 [15,36] and qDTY2,3 [37]. QTLs for DRI and yield under drought can be considered as genetic bases for field drought tolerance, and collocation of the QTL for DRI and qDTY12,1 on chromosome 12 have been reported [14]. However, qDTYs could be still linked to phenology, as in the case of DTY2,1 and qDTY2,2 [38,39]. Since the DRI equation takes into account and minimizes influences of both phenology and yield potential, genetic analysis of DRI could be more useful as an indicator of drought tolerance and may supplement direct investigation of qDTYs. The third region (chromosome 6) was uniquely identified in the temperate japonica population in this study. This uniqueness may be related to the different combinations of rice ecotypes (Table 6) together with the different experimental settings including yield level, yield–phenology interaction, and drought intensity and duration.
The effects of these three genomic regions on responses to different stress intensities were assessed. The first region on chromosome 2 was detected in Experiment 1 and in the combined data; the YHM allele had a positive contribution. Together with more productive panicles and grains, the QTL collocation suggested that this region controls drought resistance by improving drought recovery after rewatering, maintaining a greater harvest index and yield under drought. This region was adjacent to a large-effect QTL for yield under drought, RM236–RM555 (qDTY2,2; Aday Sel × IR64 population under both lowland and upland drought [15,36]). A somewhat close but differently located QTL for DRI, RM279–RM555, has been found (indica Zhenshan 97 × tropical japonica IRAT109 under severe drought [12]), which is close to another large-effect QTL for yield under drought, RM3549–RM324 (qDTY2,1; Swarna × Apo population under lowland drought [36]). This region encodes stress-responsive transcription factors such as RPBF, a Dof zinc finger transcriptional activator and transcription factor [49,50], and PYL/RCAR3, a pyrabactin resistance-like (PYL) ABA receptor family protein with cold and drought stress tolerance [51], as well as GW2, a negative regulator of grain width and size [41,42] (Table 7). In Experiment 1, recovery of the capacity to produce grains after rewatering may have overridden the effect of drought.
In the same region, a QTL for root vascular traits was identified in the OY population [34]. STA and % STA of roots are important for the maintenance of leaf water potential and grain yield under water-limiting conditions [71]; they were larger in the 10 top DRI lines than in the 10 bottom DRI lines. The 10 top DRI lines showed superior drought response to the 10 bottom DRI lines through incremental root growth under drought, less leaf rolling, and less reduction in yield. Genes to maintain root meristem activity such as OsGTE4 and AIM1 were identified in this region [45,46]. Stele size measured under upland water-limiting conditions may be important as a drought adaptation. Stele size may be to some extent constitutive, but responsive to water deficit and depends on genotype. A drought resistance gene, DROUGHT1, is expressed in vascular bundles within stele; it is directly repressed by ERF3 and activated by ERF71 in rice (both drought-responsive transcription factors), which could adjust cell wall structure by increasing cellulose content and maintaining cellulose crystallinity [72].
The second region for DRI on chromosome 2 was collocated with a QTL for DRI detected in the Zhenshan 97 × IRAT109 population in RM573–RM318 under mild drought [12]. This region was also collocated with qDTY2,3, a QTL for yield under drought in the Kali Aus × IR64 population [37]. This region had its allelic contribution from OTM and Zhenshan 97, the drought-susceptible lowland parents. It includes stress-tolerance and stress-responsive genes for defense such as MGD2 [52] and PIP1;3 [53,54], and genes for grain growth such as LKR/SDH [49], SMG1 [55,56], LGS1 [57,58], and BLS1 [59,60]. Three QTLs for yield under drought on chromosome 2 [3,15,36,37] and 2 meta-QTLs (107.52 cM, MQTL 2.1; 132.4 cM, MQTL 2.2) for drought response have been reported on chromosome 2 [40]. MQTL 2.1 (319 genes) encodes proteins involved in protein phosphorylation, DNA integration, and RNA-dependent DNA biosynthesis, and a locus linked to ABA and mitochondrion termination factor (MTERF). MQTL 2.2 (19 genes) includes 5 genes for water transport (e.g., aquaporins PIP1 and PIP2) and isoprenoid biosynthesis (i.e., heterodimeric geranylgeranyl pyrophosphate synthase small subunit protein). These might be candidate genes for the two putative QTLs for DRI on chromosome 2 in the OY population under severe upland drought conditions in this study.
The third region for DRI (chromosome 6) was collocated with QTLs for grain dry weight under drought and root dry weight under control, with OTM allelic contribution. This region was not close to the reported QTL for DRI on chromosome 6 [12]. QTLs for root number, root-to-shoot ratio, and index of drought resistance (defined as yield under drought relative to those in lowland treatments) have been reported in the IRAT109 × Yuefu population (tropical japonica and temperate japonica) in upland conditions [73]. Two meta-QTLs for root traits (25.86 cM) and for yield and flowering (33.84 cM) have been identified [40] relatively close to this region. Putative genes for defense (e.g., KRP2, SK2), signaling (BZIP46, P1N1B), and development associated with brassinosteroids (e.g., MADS55, BU1), a bZIP transcription factor gene that positive regulates ABA signaling and drought tolerance (BZIP46) [61,62], and a PIN protein gene for auxin transport and signaling for root development (PIN1B) [63,64], are located in this region. A transcription factor for tolerance to phosphate starvation, OsPTF1, increases rice phosphorus content [74]; as drought could lead to the immobilization of phosphate in soils, this region might be linked to better uptake or utilization of phosphate. Genes/QTLs for heading and flowering dates (e.g., Hd-3, qFL-6, RFT1) have been also identified near this region [75,76,77]. This region was identified only in Experiment 2; it contained genes involved in the regulation of drought-responsive hormones, such as auxin, ABA, and brassinosteroids. The nexus of these genes to drought tolerance traits would be anticipated.
The putative genes in the three DRI regions encode proteins with the functions of (1) enhancing cell defense or (2) signal transmission such as plant hormone signaling or transcription factors, and (3) regulating spikelet and grain development (Table 7). The QTL for DRI found on chromosome 2 under severe water deficit collocated with several genes regulating grain development. Varying the magnitude of drought severity may lead not only to the identification of different genomic regions but also different categories of drought-tolerance genes. Detection of year-specific QTLs for DRI (the first region for severe prolonged drought, the third one for shorter drought) suggests that different genomic regions may be important depending on the environmental conditions. The third QTL associated with root traits may be linked to the mechanisms of resource acquisition (see [16]), which would be possible under short drought but not under very prolonged drought. The larger effect of QTL-by-environment interaction than the additive effect also supports the importance of drought severity. The additive effect was largest in the first region (2.24, 19.9% of PVE, Experiment 1; 1.42, 26.3% of PVE, combined) followed by the second region (−0.87, 10.3%) and the third region (−0.9, 12.4%). This is understandable since the effects of drought tolerance are larger as the stress becomes more severe, as in Experiment 1. The difference in drought intensity is likely to affect DNA transcription and RNA translation, and a number of microRNAs (small noncoding regulatory RNAs that modulate gene expression during abiotic stress) have been identified that mediate drought resistance in rice [3,78]. The importance of QTL-by-environment interaction for maize shoot and root growth under well-watered and drought environments has been also reported [79].
This study adopted the database analysis to qualify and strengthen the key findings experimentally derived from one mapping population. We consider our argument is reasonable but considering the genetic diversity of rice germplasm and different types of drought environments, further studies of DRI using rice core collection for GWAS may be of interest. Simulation studies may be useful to predict plant performance with given improvement of genetic gains under simulated drought environments. This study demonstrates the complexity of field drought tolerance and opens up new possibilities for the genetic analysis of DRI in rice. The magnitude of drought intensities and its timing and duration would involve different genetic and physiological mechanisms of drought tolerance, as was seen in large QTL-by-drought environments, and hence prediction of the occurrence of drought incidences in the target environments would be needed to further elucidate and improve the genetic architecture of drought tolerance in rice.

5. Conclusions

The drought response index (DRI) as an indicator of drought tolerance was evaluated by field experiments in a temperate japonica mapping population (Otomemochi × Yumenohatamochi) under very severe drought in one year and under severe drought in the next year, as well as by database analysis. DRI under very severe drought (−6.4 to 15.9) and under severe drought (−3.9 to 8.3) positively correlated with grain dry weight under drought, which was not affected by both 50% flowering date nor grain dry weight under control (i.e., potential yield). Three QTLs for DRI were identified: RM3703–RM6911–RM6379 and RM6733–RM3850 both on chromosome 2 in both years combined; and RM8120–RM2615–RM7023 on chromosome 6 in the less severe drought in the second year. The latter on chromosome 6 collocated with root dry weight and with putative genes for signaling and defense mechanisms (e.g., PIN1B, BZIP46) whereas the formers on chromosome 2 collocated with grain dry weight after rewatering and with several genes regulating grain development (e.g., GW2, SMG1); these indicated different genetic and physiological mechanisms for field-level drought tolerance depending on the length and severity of drought. QTL-by-environment interaction for DRI had a greater relative contribution than the main effects of QTLs. Top 10 DRI lines in the mapping population of Otomemochi × Yumenohatamochi had unique root characters as to compare with the bottom 10 DRI lines; the former retained more root dry weight under drought while the latter reduced it under drought, and the former had bigger stele size than the latter. Comparison with three previous DRI studies on rice revealed that the QTLs for DRI were unique to each study and each population but most of them closely colocalized with reported drought-yield QTLs. This study qualified some of the reported drought-yield QTLs collocated with QTLs for DRI in rice, clarified study- and population- specific nature of QTLs for DRI, and indicated importance of magnitude of drought severity for identification of drought tolerant genomic regions and genetic and physiological mechanisms for drought tolerance in rice.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy14102256/s1, Figure S1: Experimental upland fields used for (a) control and (b) drought treatments of the Otomemochi × Yumenohatamochi population at Nishitokyo, Japan; Figure S2: Maximum and minimum daily air temperature and daily rainfall. Timing of transplanting, drought imposition, rewatering, and periods of 50% flowering for genotypes in control and drought treatments are indicated; Table S1: Summary of phenotyping experiments with the Otomemochi × Yumenohatamochi population (OY); Table S2: Putative QTLs for drought response index (DRI) and production traits for the Otomemochi × Yumenohatamochi (OY) population. Experiment 1: 22 main-effect QTLs (control, 6; drought, 16). Experiment 2: 16 QTLs (control, 4; drought 12). Combined analysis: 12 QTLs (control, 4; drought, 8).

Author Contributions

Conceptualization, A.K.; Formal analysis, P.R.; Investigation, P.R. and A.T.H.N.; Data curation, A.T.H.N.; Writing—original draft, P.R.; Writing—review & editing, A.K.; Supervision, A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by a Grant in-Aid for Scientific Research (No. 23380011) from the Ministry of Education, Culture, Sports, Science and Technology, Japan.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Acknowledgments

Seeds of the Otomemochi × Yumenohatamochi population were provided by Tohru Manabe, Ibaraki Agricultural Center. The experimental fields were prepared by technical staff of ISAS, Graduate School of Agricultural and Life Sciences, University of Tokyo.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Blum, A. Drought resistance, water-use efficiency, and yield potential—Are they compatible, dissonant, or mutually exclusive? Aust. J. Agric. Res. 2005, 56, 1159–1168. [Google Scholar] [CrossRef]
  2. Levitt, J. Responses of Plants to Environmental Stresses; Academic Press: New York, NY, USA, 1972; 697p. [Google Scholar]
  3. Panda, D.; Mishra, S.S.; Behera, P.K. Drought tolerance in rice: Focus on recent mechanisms and approaches. Rice Sci. 2021, 28, 119–132. [Google Scholar] [CrossRef]
  4. Varshney, R.K.; Tuberosa, R.; Tardieu, F. Progress in understanding drought tolerance: From alleles to cropping systems. J. Exp. Bot. 2018, 69, 3175–3179. [Google Scholar] [CrossRef]
  5. Blum, A.; Tuberosa, R. Dehydration survival of crop plants and its measurement. J. Exp. Bot. 2018, 69, 975–981. [Google Scholar] [CrossRef] [PubMed]
  6. Fukai, S.; Cooper, M. Development of drought-resistant cultivars for rainfed lowland rice: Experience from northeast Thailand and surrounding areas. In The Impact of Agricultural Research for Development in Southeast Asia, Proceedings of the International Conference Held at the Cambodian Agricultural Research and Development Institute, Phnom Penh, Cambodia, 24–26 October 2000; Cox, P., Chhay, R., Eds.; Cambodian Agricultural Research & Development Institute: Phnom Penh, Cambodia, 2001; pp. 185–194. [Google Scholar]
  7. Fischer, K.S.; Lafitte, R.; Fukai, S.; Atlin, G.; Hardy, B. Breeding Rice for Drought-Prone Environments; International Rice Research Institute: Los Baños, Philippines, 2003; 98p. [Google Scholar]
  8. Sahoo, S.K.; Dash, G.K.; Kumar, A.; Lal, M.K.; Guhey, A.; Baig, M.J.; Swain, P. Phenological and yield responses for the identification of both vegetative and reproductive stages drought-tolerant rice genotypes for future breeding. Cereal Res. Commun. 2024, 52, 655–669. [Google Scholar] [CrossRef]
  9. Ouk, M.; Basnayake, J.; Tsubo, M.; Fukai, S.; Fischer, K.S.; Cooper, M.; Nesbitt, H. Use of drought response index for identification of drought tolerant genotypes in rainfed lowland rice. Field Crops Res. 2006, 99, 48–58. [Google Scholar] [CrossRef]
  10. Bidinger, F.; Mahalakshmi, V.; Rao, G. Assessment of drought resistance in pearl millet (Pennisetum americanum (L.) Leeke). II. Estimation of genotype response to stress. Aust. J. Agric. Res. 1987, 38, 49–59. [Google Scholar] [CrossRef]
  11. Silim, S.N.; Saxena, M.C. Adaptation of spring-sown chickpea to the Mediterranean Basin. I. Response to moisture supply. Field Crops Res. 1993, 34, 121–136. [Google Scholar] [CrossRef]
  12. Yue, B.; Xiong, L.; Xue, W.; Xing, Y.; Luo, L.; Xu, C. Genetic analysis for drought resistance of rice at reproductive stage in field with different types of soil. Theor. Appl. Genet. 2005, 111, 1127–1136. [Google Scholar] [CrossRef]
  13. Sellamuthu, R.; Liu, G.F.; Ranganathan, C.B.; Serraj, R. Genetic Analysis and validation of quantitative trait loci associated with reproductive-growth traits and grain yield under drought stress in a doubled haploid line population of rice (Oryza sativa L.). Field Crops Res. 2011, 124, 46–58. [Google Scholar] [CrossRef]
  14. Bernier, J.; Kumar, A.; Ramaiah, V.; Spaner, D.; Atlin, G. A Large-effect QTL for grain yield under reproductive-stage drought stress in upland rice. Crop Sci. 2007, 47, 507–518. [Google Scholar] [CrossRef]
  15. Kumar, A.; Dixit, S.; Ram, T.; Yadaw, R.B.; Mishra, K.K.; Mandal, N.P. Breeding high-yielding drought-tolerant rice: Genetic variations and conventional and molecular approaches. J. Exp. Bot. 2014, 65, 6265–6278. [Google Scholar] [CrossRef]
  16. Kamoshita, A.; Babu, R.C.; Boopathi, N.M.; Fukai, S. Phenotypic and genotypic analysis of drought-resistance traits for development of rice cultivars adapted to rainfed environments. Field Crops Res. 2008, 109, 1–23. [Google Scholar] [CrossRef]
  17. Cooper, M.; Rajatasereekul, S.; Immark, S.; Fukai, S.; Basnayake, J. Rainfed lowland rice breeding strategies for Northeast Thailand.: I. Genotypic variation and genotype × environment interactions for grain yield. Field Crops Res. 1999, 64, 131–151. [Google Scholar] [CrossRef]
  18. Cooper, M.; Technow, F.; Messina, C.; Gho, C.; Totir, L.R. Use of crop growth models with whole-genome prediction: Application to a maize multienvironment trial. Crop Sci. 2016, 56, 2141–2156. [Google Scholar] [CrossRef]
  19. Vargas, M.; van Eeuwijk, F.A.; Crossa, J.; Ribaut, J.M. Mapping QTLs and QTL × environment interaction for CIMMYT maize drought stress program using factorial regression and partial least squares methods. Theor. Appl. Genet. 2006, 112, 1009–1023. [Google Scholar] [CrossRef]
  20. Lafitte, H.R.; Champoux, M.C.; McLaren, G.; O’Toole, J.C. Rice root morphological traits are related to isozyme group and adaptation. Field Crops Res. 2001, 71, 57–70. [Google Scholar] [CrossRef]
  21. Ikeda, H.; Kamoshita, A.; Manabe, T. Genetic analysis of rooting ability of transplanted rice (Oryza sativa L.) under different water conditions. J. Exp. Bot. 2007, 58, 309–318. [Google Scholar] [CrossRef]
  22. Pantuwan, G.; Fukai, S.; Cooper, M.; Rajatasereekul, S.; O’Toole, J.C. Yield Response of Rice (Oryza Sativa L.) Genotypes to different types of drought under rainfed lowlands part 1. Grain yield and yield components. Field Crops Res. 2002, 73, 153–168. [Google Scholar] [CrossRef]
  23. Pantuwan, G.; Fukai, S.; Cooper, M.; Rajatasereekul, S.; O’Toole, J.C. Yield Response of Rice (Oryza Sativa L.) Genotypes to drought under rainfed lowlands 2. Selection of drought resistant genotypes. Field Crops Res. 2002, 73, 169–180. [Google Scholar] [CrossRef]
  24. Pantuwan, G.; Fukai, S.; Cooper, M.; Rajatasereekul, S.; O’Toole, J.C.; Basnayake, J. Yield response of rice (Oryza Sativa L.) genotypes to drought under rainfed lowlands: 3. Plant factors contributing to drought resistance. Field Crops Res. 2004, 89, 281–297. [Google Scholar] [CrossRef]
  25. Kato, Y.; Abe, J.; Kamoshita, A.; Yamagishi, J. Genotypic variation in root growth angle in rice (Oryza sativa L.) and its association with deep root development in upland fields with different water regimes. Plant Soil 2006, 287, 117–129. [Google Scholar] [CrossRef]
  26. Hirasawa, H.; Nemoto, H.; Suga, R.; Ishihara, M.; Hirayama, M.; Okamoto, K.; Miyamoto, M. Breeding of a new upland rice variety ‘Yumenohatamochi’ with high drought resistance and good eating quality. Breed. Sci. 1998, 48, 415–419. [Google Scholar] [CrossRef]
  27. Kato, Y.; Kamoshita, A.; Yamagishi, J.; Imoto, H.; Abe, J. Growth of rice (Oryza sativa L.) cultivars under upland conditions with different levels of water supply 3. root system development, soil moisture change and plant water status. Plant Prod. Sci. 2007, 10, 3–13. [Google Scholar] [CrossRef]
  28. IRRI Standard Evaluation System (SES) for Rice, International Rice Research Institute. 2002, p. 56. Available online: http://www.knowledgebank.irri.org/images/docs/rice-standard-evaluation-system.pdf (accessed on 23 March 2024).
  29. Bidinger, F.R.; Mahalakshmei, V.; Talukdar, B.S.; Alagarswamy, G. Improvement of drought resistant in pearl millet. In Drought Resistance in Crops with Emphasis on Rice; IRRI: Los Banos, Philippines, 1982; pp. 357–375. [Google Scholar]
  30. Manabe, T.; Hirayama, M.; Miyamoto, M.; Okamoto, K.; Okano, K.; Ishii, T. Mapping of quantitative trait loci associated with deep root dry weight in rice. In Proceedings of the 10th International Congress of SABRAO 2005, Tsukuba, Japan, 22–23 August 2005; p. D-18. [Google Scholar]
  31. Wang, S.; Basten, C.J.; Zeng, Z.B. Windows QTL Cartographer 2.5; Department of Statistics, North Carolina State University: Raleigh, NC, USA, 2012; Available online: https://brcwebportal.cos.ncsu.edu/qtlcart/WQTLCart.htm (accessed on 22 September 2024).
  32. Voorrips, R.E. Mapchart: Software for the graphical presentation of linkage maps and QTLs. J. Hered. 2002, 93, 77–78. [Google Scholar] [CrossRef]
  33. Wang, D.L.; Zhu, J.; Li, Z.K.; Paterson, A.H. Mapping QTLs with epistatic effects and QTL × environment interactions by mixed linear model approaches. Theor. Appl. Genet. 1999, 99, 1255–1264. [Google Scholar] [CrossRef]
  34. Thi Nguyen, H.A.; Kamoshita, A.; Ramalingam, P.; Phoura, Y. Genetic analysis of root vascular traits in a population from two temperate japonica rice ecotypes. Plant Prod. Sci. 2022, 25, 320–336. [Google Scholar] [CrossRef]
  35. Henry, A.; Gowda, V.R.P.; Torres, R.O.; McNally, K.L.; Serraj, R. Variation in root system architecture and drought response in rice (Oryza sativa): Phenotyping of the OryzaSNP panel in rainfed lowland fields. Field Crops Res. 2011, 120, 205–214. [Google Scholar] [CrossRef]
  36. Dixit, S.; Swamy, B.P.M.; Vikram, P.; Ahmed, H.U.; Sta Cruz, M.T.; Amante, M.; Atri, D.; Leung, H.; Kumar, A. Fine mapping of QTLs for rice grain yield under drought reveals sub-QTLs conferring a response to variable drought severities. Theor. Appl. Genet. 2012, 125, 155–169. [Google Scholar] [CrossRef]
  37. Palanog, A.D.; Swamy, B.P.M.; Shamsudin, N.A.A.; Dixit, S.; Hernandez, J.E.; Boromeo, T.H.; Cruz, P.C.S.; Kumar, A. Grain yield QTLs with consistent-effect under reproductive-stage drought stress in rice. Field Crops Res. 2014, 161, 46–54. [Google Scholar] [CrossRef]
  38. Venuprasad, R.; Dalid, C.O.; Del Valle, M.; Zhao, D.; Espiritu, M.; Sta Cruz, M.T.; Amante, M.; Kumar, A.; Atlin, G.N. Identification and characterization of large-effect quantitative trait loci for grain yield under lowland drought stress in rice using bulk-segregant analysis. Theor. Appl. Genet. 2009, 120, 177–190. [Google Scholar] [CrossRef]
  39. Swamy BP, M.; Ahmed, H.U.; Henry, A.; Mauleon, R.; Dixit, S.; Vikram, P.; Tilatto, R.; Verulkar, S.B.; Perraju, P.; Mandal, N.P.; et al. Genetic, physiological, and gene expression analyses reveal that multiple QTL enhance yield of rice mega-variety IR64 under drought. PLoS ONE 2013, 8, 719–729. [Google Scholar] [CrossRef]
  40. Selamat, N.; Nadarajah, K.K. Meta-analysis of quantitative traits loci (QTL) identified in drought response in rice (Oryza sativa L.). Plants 2021, 10, 716. [Google Scholar] [CrossRef]
  41. Song, X.J.; Huang, W.; Shi, M.; Zhu, M.Z.; Lin, H.X. A QTL for rice grain width and weight encodes a previously unknown RING-Type E3 ubiquitin ligase. Nat. Genet. 2007, 39, 623–630. [Google Scholar] [CrossRef]
  42. Yamaguchi, K.; Yamamoto, T.; Segami, S.; Horikawa, M.; Chaya, G.; Kitano, H.; Iwasaki, Y.; Miura, K. Gw2 mutation increases grain width and culm thickness in rice (Oryza sativa L.). Breed. Sci. 2020, 70, 456–461. [Google Scholar] [CrossRef]
  43. Piao, R.; Jiang, W.; Ham, T.H.; Choi, M.S.; Qiao, Y.; Chu, S.H.; Park, J.H.; Woo, M.O.; Jin, Z.; An, G.; et al. Map-based cloning of the ERECT PANICLE 3 gene in rice. Theor. Appl. Genet. 2009, 119, 1497–1506. [Google Scholar] [CrossRef]
  44. Li, M.; Tang, D.; Wang, K.; Wu, X.; Lu, L.; Yu, H.; Gu, M.; Yan, C.; Cheng, Z. Mutations in the F-Box gene LARGER PANICLE improve the panicle architecture and enhance the grain yield in rice. Plant Biotechnol. J. 2011, 9, 1002–1013. [Google Scholar] [CrossRef]
  45. Coudert, Y.; Bès, M.; Van Anh Le, T.; Pré, M.; Guiderdoni, E.; Gantet, P. Transcript profiling of Crown Rootless 1 mutant stem base reveals new elements associated with crown root development in rice. BMC Genom. 2011, 12, 387. [Google Scholar] [CrossRef]
  46. Xu, L.; Zhao, H.; Ruan, W.; Deng, M.; Wang, F.; Peng, J.; Luo, J.; Chen, Z.; Yi, K. ABNORMAL INFLORESCENCE MERISTEM 1 functions in salicylic acid biosynthesis to maintain proper reactive oxygen species levels for root meristem activity in rice. Plant Cell 2017, 29, 560–574. [Google Scholar] [CrossRef]
  47. Airoldi, C.A.; Della Rovere, F.; Falasca, G.; Marino, G.; Kooiker, M.; Altamura, M.M.; Citterio, S.; Kater, M.M. The Arabidopsis BET bromodomain factor GTE4 is involved in maintenance of the mitotic cell cycle during plant development. Plant Physiol. 2010, 152, 1320–1334. [Google Scholar] [CrossRef]
  48. Richmond, T.A.; Bleecker, A.B. A defect in β-oxidation causes abnormal inflorescence development in Arabidopsis. Plant Cell 1999, 11, 1911–1923. [Google Scholar] [CrossRef] [PubMed]
  49. Kawakatsu, T.; Takaiwa, F. Differences in transcriptional regulatory mechanisms functioning for free lysine content and seed storage protein accumulation in rice grain. Plant Cell Physiol. 2010, 51, 1964–1974. [Google Scholar] [CrossRef]
  50. Goto, F.; Yoshihara, T.; Shigemoto, N.; Toki, S.; Takaiwa, F. Iron fortification of rice seed by the soybean Ferritin gene. Nat. Biotechnol. 1999, 17, 282–286. [Google Scholar] [CrossRef] [PubMed]
  51. Tian, X.; Wang, Z.; Li, X.; Lv, T.; Liu, H.; Wang, L.; Niu, H.; Bu, Q. Characterization and functional analysis of Pyrabactin resistance-like abscisic acid receptor family in rice. Rice 2015, 8, 28. [Google Scholar] [CrossRef]
  52. Qi, Y.; Yamauchi, Y.; Ling, J.; Kawano, N.; Li, D.; Tanaka, K. Cloning of a Putative Monogalactosyldiacylglycerol Synthase gene from rice (Oryza Sativa L.) plants and its expression in response to submergence and other stresses. Planta 2004, 219, 450–458. [Google Scholar] [CrossRef]
  53. Lian, H.L.; Yu, X.; Ye, Q.; Ding, X.S.; Kitagawa, Y.; Kwak, S.S.; Su, W.A.; Tang, Z.C. The role of Aquaporin RWC3 in drought avoidance in rice. Plant Cell Physiol. 2004, 45, 481–489. [Google Scholar] [CrossRef] [PubMed]
  54. Liu, S.; Fukumoto, T.; Gena, P.; Feng, P.; Sun, Q.; Li, Q.; Matsumoto, T.; Kaneko, T.; Zhang, H.; Zhang, Y.; et al. Ectopic expression of a rice plasma membrane intrinsic protein (OsPIP1;3) promotes plant growth and water uptake. Plant J. 2020, 102, 779–796. [Google Scholar] [CrossRef] [PubMed]
  55. Duan, P.; Rao, Y.; Zeng, D.; Yang, Y.; Xu, R.; Zhang, B.; Dong, G.; Qian, Q.; Li, Y. SMALL GRAIN 1, which encodes a mitogen-activated protein kinase 4, influences grain size in rice. Plant J. 2014, 77, 547–557. [Google Scholar] [CrossRef]
  56. Xu, R.; Duan, P.; Yu, H.; Zhou, Z.; Zhang, B.; Wang, R.; Li, J.; Zhang, G.; Zhuang, S.; Lyu, J.; et al. Control of grain size and weight by the OsMKKK10-OsMKK4-OsMAPK6 signaling pathway in rice. Mol. Plant 2018, 11, 860–873. [Google Scholar] [CrossRef]
  57. Yang, X.; Ren, Y.; Cai, Y.; Niu, M.; Feng, Z.; Jing, R.; Mou, C.; Liu, X.; Xiao, L.; Zhang, X.; et al. Overexpression of OsbHLH107, a member of the basic helix-loop-helix transcription factor family, enhances grain size in rice (Oryza sativa L.). Rice 2018, 11, 41. [Google Scholar] [CrossRef]
  58. Chen, X.; Jiang, L.; Zheng, J.; Chen, F.; Wang, T.; Wang, M.; Tao, Y.; Wang, H.; Hong, Z.; Huang, Y.; et al. A missense mutation in Large Grain Size 1 increases grain size and enhances cold tolerance in rice. J. Exp. Bot. 2019, 70, 3851–3866. [Google Scholar] [CrossRef] [PubMed]
  59. Ren, D.; Rao, Y.; Wu, L.; Xu, Q.; Li, Z.; Yu, H.; Zhang, Y.; Leng, Y.; Hu, J.; Zhu, L.; et al. The pleiotropic ABNORMAL FLOWER AND DWARF 1 affects plant height, floral development and grain yield in rice. J. Integr. Plant Biol. 2016, 58, 529–539. [Google Scholar] [CrossRef]
  60. Peng, P.; Liu, L.; Fang, J.; Zhao, J.; Yuan, S.; Li, X. The rice TRIANGULAR HULL1 protein acts as a transcriptional repressor in regulating lateral development of spikelet. Sci. Rep. 2017, 7, 13712. [Google Scholar] [CrossRef] [PubMed]
  61. Hossain, M.A.; Cho, J.I.; Han, M.; Ahn, C.H.; Jeon, J.S.; An, G.; Park, P.B. The ABRE-binding BZIP transcription factor OsABF2 is a positive regulator of abiotic stress and ABA signaling in rice. J. Plant Physiol. 2010, 167, 1512–1520. [Google Scholar] [CrossRef]
  62. Tang, N.; Zhang, H.; Li, X.; Xiao, J.; Xiong, L. Constitutive activation of transcription factor OsbZIP46 improves drought tolerance in rice. Plant Physiol. 2012, 158, 1755–1768. [Google Scholar] [CrossRef]
  63. Xu, M.; Zhu, L.; Shou, H.; Wu, P. A PIN1 Family Gene, OsPIN1, involved in auxin-dependent adventitious root emergence and tillering in rice. Plant Cell Physiol. 2005, 46, 1674–1681. [Google Scholar] [CrossRef]
  64. Sun, H.; Tao, J.; Bi, Y.; Hou, M.; Lou, J.; Chen, X.; Zhang, X.; Luo, L.; Xie, X.; Yoneyama, K.; et al. OsPIN1b is involved in rice seminal root elongation by regulating root apical meristem activity in response to low nitrogen and phosphate. Sci. Rep. 2018, 8, 13014. [Google Scholar] [CrossRef]
  65. Barrôco, R.M.; Peres, A.; Droual, A.M.; De Veylder, L.; Nguyen, L.S.L.; De Wolf, J.; Mironov, V.; Peerbolte, R.; Beemster, G.T.S.; Inzé, D.; et al. The cyclin-dependent kinase inhibitor Orysa;KRP1 plays an important role in seed development of rice. Plant Physiol. 2006, 142, 1053–1064. [Google Scholar] [CrossRef] [PubMed]
  66. Kasai, K.; Kanno, T.; Akita, M.; Ikejiri-Kanno, Y.; Wakasa, K.; Tozawa, Y. Identification of three shikimate kinase genes in rice: Characterization of their differential expression during panicle development and of the enzymatic activities of the encoded proteins. Planta 2005, 222, 438–447. [Google Scholar] [CrossRef]
  67. Nojiri, H.; Sugimori, M.; Yamane, H.; Nishimura, Y.; Yamada, A.; Shibuya, N.; Kodama, O.; Murofushi, N.; Omori, T. Involvement of jasmonic acid in elicitor-induced phytoalexin production in suspension-cultured rice cells. Plant Physiol. 1996, 110, 387–392. [Google Scholar] [CrossRef]
  68. Lee, S.; Choi, S.C.; An, G. Rice SVP-group MADS-box proteins, OsMADS22 and OsMADS55, are negative regulators of brassinosteroid responses. Plant J. 2008, 54, 93–105. [Google Scholar] [CrossRef] [PubMed]
  69. Tanaka, A.; Nakagawa, H.; Tomita, C.; Shimatani, Z.; Ohtake, M.; Nomura, T.; Jiang, C.J.; Dubouzet, J.G.; Kikuchi, S.; Sekimoto, H.; et al. Brassinosteroid Upregulated 1, encoding a helix-loop-helix protein, is a novel gene involved in brassinosteroid signaling and controls bending of the lamina joint in rice. Plant Physiol. 2009, 151, 669–680. [Google Scholar] [CrossRef] [PubMed]
  70. Dong, H.; Zhao, H.; Li, S.; Han, Z.; Hu, G.; Liu, C.; Yang, G.; Wang, G.; Xie, W.; Xing, Y. Genome-wide association studies reveal that members of BHLH subfamily 16 share a conserved function in regulating flag leaf angle in rice (Oryza Sativa). PLoS Genet. 2018, 14, e1007323. [Google Scholar] [CrossRef] [PubMed]
  71. Phoura, Y.; Kamoshita, A.; Norisada, M.; Deshmukh, V. Eco-physiological evaluation of stele transversal area 1 for rice root anatomy and shoot growth. Plant Prod. Sci. 2020, 23, 202–210. [Google Scholar] [CrossRef]
  72. Sun, X.; Xiong, H.; Jiang, C.; Zhang, D.; Yang, Z.; Huang, Y.; Zhu, W.; Ma, S.; Duan, J.; Wang, X.; et al. Natural Variation of DROT1 confers drought adaptation in upland rice. Nat. Commun. 2022, 13, 4265. [Google Scholar] [CrossRef]
  73. Li, Z.; Mu, P.; Li, C.; Zhang, H.; Li, Z.; Gao, Y.; Wang, X. QTL Mapping of root traits in a doubled haploid population from a cross between upland and lowland japonica rice in three environments. Theor. Appl. Genet. 2005, 110, 1244–1252. [Google Scholar] [CrossRef]
  74. Yi, K.; Wu, Z.; Zhou, J.; Du, L.; Guo, L.; Wu, Y.; Wu, P. OsPTF1, a novel transcription factor involved in tolerance to phosphate starvation in rice. Plant Physiol. 2005, 138, 2087–2096. [Google Scholar] [CrossRef]
  75. Monna, L.; Lin, H.X.; Kojima, S.; Sasaki, T.; Yano, M. Genetic dissection of a genomic region for a quantitative trait locus, Hd3, into two loci, Hd3a and Hd3b, controlling heading date in rice. Theor. Appl. Genet. 2002, 104, 772–778. [Google Scholar] [CrossRef] [PubMed]
  76. Begum, H.; Spindel, J.E.; Lalusin, A.; Borromeo, T.; Gregorio, G.; Hernandez, J.; Virk, P.; Collard, B.; McCouch, S.R. Genome-wide association mapping for yield and other agronomic traits in an elite breeding population of tropical rice (Oryza sativa). PLoS ONE 2015, 10, e0119873. [Google Scholar] [CrossRef]
  77. Courtois, B.; Ahmadi, N.; Khowaja, F.; Price, A.H.; Rami, J.F.; Frouin, J.; Hamelin, C.; Ruiz, M. Rice root genetic architecture: Meta-analysis from a drought QTL database. Rice 2009, 2, 115–128. [Google Scholar] [CrossRef]
  78. Singh, S.; Kumar, A.; Panda, D.; Modi, M.K.; Sen, P. Identification and characterization of drought responsive miRNAs from a drought tolerant rice genotype of Assam. Plant Gene 2020, 21, 100213. [Google Scholar] [CrossRef]
  79. Li, P.; Zhang, Y.; Yin, S.; Zhu, P.; Pan, T.; Xu, Y.; Wang, J.; Hao, D.; Fang, H.; Xu, C.; et al. QTL-by-environment interaction in the response of maize root and shoot traits to different water regimes. Front. Plant Sci. 2018, 9, 229. [Google Scholar] [CrossRef] [PubMed]
Agronomy 14 02256 g001
Figure 1. Relationship of grain dry weight under drought with (a,e) time of 50% flowering in the control, (b,f) grain dry weight in the control, and (c,g) drought response index (DRI); (d,h) relationship of grain dry weight in the control with time of 50% flowering in the control in the Otomemochi × Yumenohatamochi (OY) population in Experiment 1 (a–d) and Experiment 2 (e–h).
Figure 1. Relationship of grain dry weight under drought with (a,e) time of 50% flowering in the control, (b,f) grain dry weight in the control, and (c,g) drought response index (DRI); (d,h) relationship of grain dry weight in the control with time of 50% flowering in the control in the Otomemochi × Yumenohatamochi (OY) population in Experiment 1 (a–d) and Experiment 2 (e–h).
Agronomy 14 02256 g001
Agronomy 14 02256 g002
Figure 2. Twenty key genomic regions for drought response index (DRI) and production traits for Otomemochi × Yumenohatamochi (OY) population under very severe drought intensity in Experiment 1 and severe drought.
Figure 2. Twenty key genomic regions for drought response index (DRI) and production traits for Otomemochi × Yumenohatamochi (OY) population under very severe drought intensity in Experiment 1 and severe drought.
Agronomy 14 02256 g002
Table 1. Phenotypic data of growth and production traits of Otomemochi × Yumenohatamochi (OY) population in (a) Experiment 1 and (b) Experiment 2.
Table 1. Phenotypic data of growth and production traits of Otomemochi × Yumenohatamochi (OY) population in (a) Experiment 1 and (b) Experiment 2.
(a) Experiment 1
TraitOtomemochiYumenohatamochiProgeny
AverageMinimumMaximumNSDp Value
Control
Date of 50% flowering4 August 2011
(98)		9 August 2011
(103)		9 August 2011
(103)		31 July 2011
(94)		24 August 2011
(118)		976.3<0.001
Grain dry weight per hill (g)10.823.216.23.431.6975.8<0.001
Estimated yield (g/m2)2695804079279097145<0.001
Total dry weight per hill (g)28.846.648.115.981.99714.2<0.001
Harvest index0.390.500.340.120.58970.07<0.001
Plant height (cm)7994805796978.0<0.001
Dry root weight (g)2.72.72.80.96.5971.1<0.001
Drought
Date of 50% flowering14 September 2011
(139)		20 September 2011
(145)		13 September 2011
(138)		1 August 2011
(95)		25 September 2011
(150)		9712<0.001
Grain dry weight per hill (g)0.96.21.50.16.5971.2<0.001
Estimated yield (g/m2)231543711629731<0.001
Grain dry weight after rewatering (g)0.74.91.10.06.4971.01<0.001
Total dry weight per hill (g)9.924.817.35.035.2976.4<0.001
Harvest index0.050.210.070.010.21970.04<0.001
Plant Height (cm)5666614776976.1<0.001
Root dry weight (g)2.52.42.71.25.5970.92<0.001
Leaf rolling score6.21.43.10.09.2972.2<0.001
Flowering delay (days)−41−42−350−529711<0.001
Plant height reduction (cm)−23−28−18−344978<0.001
Drought response index−3.622.60.0−6.415.9974.7–
(b) Experiment 2
TraitOtomemochiYumenohatamochiProgeny
AverageMinimumMaximumNSDp value
Control
Date of 50% flowering5 August 2012
(103)		7 August 2012
(105)		6 August 2012
(104)		23 July 2012
(90)		20 August 2012
(118)		976.3<0.001
Grain dry weight per hill (g)16.932.014.33.727.6975.8<0.001
Estimated yield (g/m2)4228003579269097145<0.001
Total dry weight per hill (g)46.573.336.19.673.69712.3<0.001
Harvest index0.440.370.390.220.56970.08<0.001
Plant height (cm)77968870112979.5<0.001
Drought
Date of 50% flowering5 August 2012
(103)		7 August 2012
(105)		7 August 2012
(105)		28 July 2012
(95)		23 August 2012
(121)		976.6<0.001
Grain dry weight per hill (g)4.110.85.0016.1973.2<0.001
Estimated yield (g/m2)10227012504029780<0.001
Total dry weight per hill (g)36.459.337.512.763.19710.8<0.001
Harvest index0.110.180.1400.47960.09<0.001
Plant height (cm)6682674889978.4<0.001
Leaf rolling6.24.45.52.48.3971.30.02
Flowering delay (days)−001−1110974<0.001
Plant height reduction (cm)−314−20−46109713<0.001
Drought response index−1.33.60.0−3.98.3972.5<0.001
Table 2. Correlation coefficients between drought response index (DRI) and production traits under drought in Otomemochi × Yumenohatamochi (OY) population.
Table 2. Correlation coefficients between drought response index (DRI) and production traits under drought in Otomemochi × Yumenohatamochi (OY) population.
Experiment50% FloweringPlant HeightTotal Dry WeightHarvest IndexGrain Dry WeightGrain Weight before RewateringGrain Weight after RewateringRoot Dry WeightLeaf RollingFlowering DelayPlant Height Reduction
Experiment 10.040.100.48 **0.77 **0.98 **0.42 **0.76 **0.28 *−0.34 **0.040.22
Experiment 2−0.130.130.030.72 **0.93 **––-−0.05−0.23 *0.03
**, *: significance p < 0.01, 0.05, respectively.
Table 3. Putative QTLs for drought response index (DRI) in Otomemochi × Yumenohatamochi (OY) population.
Table 3. Putative QTLs for drought response index (DRI) in Otomemochi × Yumenohatamochi (OY) population.
Experiment(s)Chr.TraitMarker Interval aPosition bLOD cR2 dA e
12DRIRM3703–RM691137.45.919.92.24
26DRIRM8120–RM702331.03.612.4−0.90
1 + 2 combined2DRIRM3703–RM637940.45.126.31.42
1 + 2 combined2DRIRM6733–RM3850151.53.310.3−0.87
a Markers flanking the 1-LOD confidence interval. b Position of LOD peak in centimorgans from the short arm of the chromosome. c Peak LOD score obtained from composite interval mapping. d Percentage of phenotypic variance explained by the given QTL. e Positive (negative) value indicates a positive effect of the Yumenohatamochi (Otomemochi) allele on the trait.
Table 4. QTL-by-environment interaction for drought response index (DRI) and other production traits in Otomemochi × Yumenohatamochi (OY) population in Experiments 1 and 2 combined.
Table 4. QTL-by-environment interaction for drought response index (DRI) and other production traits in Otomemochi × Yumenohatamochi (OY) population in Experiments 1 and 2 combined.
TraitChr.IntervalLODApH2AE
Drought response index2RM6911–RM63797.961.080.330.080.16
50% flowering C3RM3372–RM48539.08−2.580.000.230.02
11RM536–RM2873.40−1.560.00
Plant height C5RM2010–RM45014.10−1.900.290.040.06
Total dry weight C10RM216–RM1843.693.690.110.070.04
Harvest index C6RM2615–RM70233.960.020.030.050.02
Grain yield C10RM216–RM1844.141.630.240.080.09
Plant height D11RM536–RM2875.80−1.560.490.040.15
Harvest index D11RM441–RM5363.390.020.200.060.06
Grain yield D3RM1332–RM30292.600.510.150.060.08
6RM4447–RM67344.34−0.560.41
Leaf rolling D1RM1387–RM10672.44 †−0.270.300.140.09
2RM6933–RM385711.56−0.700.09
4RM3288–RM55032.64−0.350.00
Chr., chromosome number. LOD, the LOD scores inferred from likelihood ratio values. A, additive genetic effects estimated at the testing points. p, the two-tail probabilities of Student’s t-values for testing the additive effects. H2, relative contributions from the additive effects of the putative QTLs. AE, additive-by-environment interaction effects. † Included as an indicative QTL in Table 4.
Table 5. Characteristics of 10 top drought response index (DRI) and 10 bottom DRI lines: phenology, production, and adaptive traits in OY population.
Table 5. Characteristics of 10 top drought response index (DRI) and 10 bottom DRI lines: phenology, production, and adaptive traits in OY population.
GroupDRIControl (Combined)Drought (Combined)ΔRDW (g)[34]
50FPH (cm)GDW (g)50FPH (cm)GDW (g)LRSTA
(μm2)		%STA
Top DRI lines4.72208316.7240665.53.70.6952.76.4
Bottom DRI lines−3.42208516.4239641.45.0−0.4939.45.4
p**nsnsnsnsns**†***
DRI; drought response index, 50F; 50% flowering day, PH; plant height, GDW; grain dry weight, LR; leaf rolling, ΔRDW; root dry weight change under drought in Experiment 1, STA; stele transversal area, %STA; ratio of STA to root transversal area. **, *, †, ns; significance at p < 0.01, 0.05, 0.10 and not significant, respectively.
Table 6. Genomic information of main effect QTLs for drought response index (DRI) in 4 rice mapping populations (our study and [12,13,14]).
Table 6. Genomic information of main effect QTLs for drought response index (DRI) in 4 rice mapping populations (our study and [12,13,14]).
ChMarker Interval #PositionLODR2AContributing ParentYear-Wise AnalysisIndicative Collocated Meta-QTL, qDTYCollocated QTLs for Other Traits
Otomemochi/Yumenohatamochi (this study)
DRI −6.4–+15.9 (2011), −3.9–+8.3 (2012), Yield D no correlation (2011) and weak negative correlation (2012) with phenology.
Flowering (94–118 C2011, 95–150 D2011, 35 days delay in flowering under D2011, 90–118 C2012, 95–121 D2012, 1 day delay in flowering under D2012).
2RM3703-RM6911-RM637937.4, 40.45.9, 5.119.9, 26.32.24, 1.42Yumenohatamochi2011, 2-year combinedqDTY2,2 (Aday Sel, N22) [15,36]Harvest index D, grain yield D, grain yield D after rewatering
2RM6733-RM3850151.53.310.3−0.87Otomemochi2-year combinedqDTY2,3 (Kali Aus) [37], MQTL2.2 [40]–
6RM8120-RM2615-RM702331.03.612.4−0.90Otomemochi2012 Root dry weight C, grain yield D (2012, 2 years combined)
Vandana/Way Rarem [14]
DRI −2.39–4.78, Yield D negatively correlated with phenology (−0.59 C, −0.73 D)
Flowering (62–96 C, 59–109 D, 1.9 days delay in flowering under D)
12RM28048-RM28130-RM5115139.037.00.89Way Raem2-year combinedqDTY12.1Grain yield D, biomass D, harvest index D, plant height D, panicle number D, flowering delay, days to flowering
CT9993/IR62266 [13]
DRI −1.19–2.28, Yield D and phenology no correlation
Flowering (79–107 C, 79–121 D, 14 days delay in flowering under D)
7CD0381424.222.70.32CT99932007MQTL7.3 [40]Harvest index D, flowering delay
11ME2_6603.719.80.33CT99932007MQTL11.1 [40]Grain yield C
Zhenshan97/IRAT109 [12]
DRI −2.07~1.57, Relative yield D positively correlated with phenology (0.3)
Flowering (20–50 C, synchronize, 6.6 and 6.2 days delay in floweing under D, paddy soil and sandy soil experiments, respectively)
1RM237-RM403145.4–153.83.09.3−0.22Zhenshan97Paddy soilqDTY1.1 [15]Relative yield, days to flowering
2RM279-RM55511.2–22.33.812.1−0.25Zhenshan97Paddy soilqDTY2,1 (Apo) [36]Canopy temperature
2RM573-RM318131.8–136.93.712.3−0.47Zhenshan97Sandy soilqDTY2,3 (Kali Aus) [37], MQTL2.2 [40]
6RM176-RM494137.4–143.42.99.00.38IRAT109Sandy soil Canopy temperature
8RM339-RM34250.2–63.65.319.1−0.53Zhenshan97Sandy soil Canopy temperature
9RM160-RM21561.3–71.02.44.90.28IRAT109Sandy soilqDTY9.1 (Aday Sel) [36]Days to flowering
10RM596-RM27134.8–41.74.515.5−0.5Zhenshan97Sandy soilqDTY10.1 (Aday Sel) [15]
R2, relative contribution of a QTL. A, allelic contribution of a QTL. qDTY, drought yield QTL; QTLs for other traits are also shown.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ramalingam, P.; Nguyen, A.T.H.; Kamoshita, A. Eco-Physiological and Genetic Basis of Drought Response Index in Rice—Integration Using a Temperate Japonica Mapping Population. Agronomy 2024, 14, 2256. https://doi.org/10.3390/agronomy14102256

AMA Style

Ramalingam P, Nguyen ATH, Kamoshita A. Eco-Physiological and Genetic Basis of Drought Response Index in Rice—Integration Using a Temperate Japonica Mapping Population. Agronomy. 2024; 14(10):2256. https://doi.org/10.3390/agronomy14102256

Chicago/Turabian Style

Ramalingam, Poornima, An Thi Ha Nguyen, and Akihiko Kamoshita. 2024. "Eco-Physiological and Genetic Basis of Drought Response Index in Rice—Integration Using a Temperate Japonica Mapping Population" Agronomy 14, no. 10: 2256. https://doi.org/10.3390/agronomy14102256

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
