Article

Genotype-by-Environment Interaction and Stability of Canola (Brassica napus L.) for Weed Suppression through Improved Interference

by
Md Asaduzzaman
1,2,*,
Hanwen Wu
1,3,
Gregory Doran
1,2 and
Jim Pratley
1
1
Gulbali Institute, Charles Sturt University, Locked Bag 588, Boorooma Street, Wagga Wagga, NSW 2650, Australia
2
School of Agricultural, Environmental and Veterinary Sciences, Locked Bag 588, Boorooma Street, Wagga Wagga, NSW 2650, Australia
3
Weed Research Unit, New South Wales Department of Primary Industries and Regional Development, Pine Gully Road, Wagga Wagga, NSW 2650, Australia
*
Author to whom correspondence should be addressed.
Agronomy 2024, 14(9), 1965; https://doi.org/10.3390/agronomy14091965 (registering DOI)
Submission received: 2 August 2024 / Revised: 20 August 2024 / Accepted: 28 August 2024 / Published: 30 August 2024
(This article belongs to the Special Issue Weed Biology and Ecology: Importance to Integrated Weed Management)
Browse Figures
Review Reports Versions Notes

Abstract

:
Canola (Brassica napus L.) is a profitable grain crop for Australian growers. However, weeds remain a major constraint for its production. Chemical herbicides are used for weed control, but this tactic also leads to the evolution of herbicide resistance in different weed species. The suppression of weeds by crop interference (competition and allelopathic) mechanisms has been receiving significant attention. Here, the weed suppressive ability and associated functional traits and stability of four selected canola genotypes (PAK85388-502, AV-OPAL, AV-GARNET, and BAROSSA) were examined at different locations in NSW, Australia. The results showed that there were significant effects of canola genotypes and of genotypes by crop density interaction on weed growth. Among the tested genotypes, PAK85388-502 and AV-OPAL were the most weed suppressive and, at a plant density of 10 plants/m2, they reduced the weed biomass of wild radish, shepherd’s purse, and annual ryegrass by more than 80%. No significant differences were found in the primary root lengths among canola varieties; however, plants of the most weed-suppressive genotype PAK8538-502 exhibited a 35% increase in lateral root number relative to plants of the less weed-suppressive genotype BAROSSA. The analysis of variance revealed a significant influence of genotypes with PAK85388-502 and AV-OPAL performing the best across all the research sites. Results showed that canola genotypes PAK85388-502 and AV-OPAL were more weed suppressive than AV-GARNET and BAROSSA and may release specific bioactive compounds in their surroundings to suppress neighboring weeds. This study provides valuable information that could be utilised in breeding programs to select weed-suppressive varieties of canola in Australia. Thus, lateral root number could be a potential target trait for weed-suppressive varieties. Additionally, other root architecture traits may contribute to the underground allelopathic interaction to provide a competitive advantage to the crop.

1. Introduction

Canola (Brassica napus L.) is an oil seed crop belonging to the Brassicaceae family. It results from the natural hybridisation between Brassica oleracea L. and Brassica rapa L. Australia is the world’s second-largest exporter of canola [1]. Canola grown in Australia meets the high expectations of exporters, domestic crushers, and intensive livestock producers. However, weeds are an important biotic constraint on canola production, resulting in yield and quality losses [2,3]. Grass weeds such as annual ryegrass (Lolium rigidum), vulpia (Vulpia myuros), and wild oat (Avena fatua) are the most abundant weed species in canola crops of south-eastern Australia [4]. Weeds from Brassicaceae can contaminate canola seed samples, which leads to increased levels of erucic acid and glucosinolates with the consequent reduction in canola quality due to their contamination [2,3,4,5].
Chemical herbicides and mechanical weeding have been the most frequently used methods to control weeds [6,7] and have served to keep weed infestations low, thereby improving crop productivity. Despite the significant contribution of these methods, there are also certain associated challenges. Mechanical weed control requires extra soil turnover, which can disturb soil structure and deplete soil fertility [8]. Additionally, it is not always effective and can be expensive and lack durability [9]. Similarly, herbicide-resistant weeds, health effects, and environmental concerns are the major constraints for repeated use of herbicides [10,11]. In Australia, non-chemical weed control options are highly sought after for incorporation into improved integrated weed management systems (IWMS) to overcome herbicide resistance.
Crop plant interference against weeds involves the combined effects of plant competition and allelopathy. Competition is the negative interaction between two or more plant species for resources within a limited space and is distinct from plant allelopathic interaction [12]. The competitiveness of a plant is influenced by various morphological, phenological, and agronomic traits [13,14,15]. Increasing crop seeding rates is one of the simplest agronomic ways to enhance crop competitiveness [16], as it increases crop canopy development and hastens nutrient use, thereby denying these resources to weeds and thus reducing weed pressure [17,18]. In contrast to competition, allelopathy is the exudation of compounds by plant roots that can suppress the growth of neighbouring plants and affect seeds and seedlings of other species located within a limited range [19]. Although most plant species, including crops, can produce and release biologically active root exudates (allelochemicals), relatively few have strong allelopathic properties. Several bioactive compounds were isolated from strongly allelopathic canola genotypes such as AV-OPAL and PAK85388-502 [20]. These phytotoxic or signalling chemicals presumably resulted in the observed inhibitory effects on annual ryegrass (L. rigidum) under laboratory conditions and may also be responsible for the significant suppression of other weed species in the field [20]. Allelochemical concentrations are a function of the density of the allelopathic crop [21,22]. This suggests that density may be an important factor in enhancing canola allelopathic activity. Recent research further highlighted that crop performance against weeds can be improved by taking account both competitiveness and allelopathy. Assessing crop allelopathy in the field is challenging; however, research work is beginning in this direction [23,24].
Crop species and genotypes within the species differ in root traits and their ability to compete for below-ground resources, which can in turn influence aboveground traits and yield [25,26]. Root and shoot architecture including length, biomass, number of lateral roots, and growth play a crucial role in competition and crop performance [27,28,29,30]. Hence, screening crop varieties with plant functional traits may offer new insights into plant allelopathy. Furthermore, plants can perceive different external and internal signals from their surroundings, while changes in environmental conditions can subsequently affect plant allelopathy and its functional traits [31,32]. Huang et al. [33] demonstrated that Merremia boisiana can adjust its resource allocation to allelopathy and leaf functional traits to adapt to varying environments. As one of the key factors affecting plant allelopathy and functional traits, environmental changes have long been assumed to be critical. However, the link between canola allelopathy and its functional traits has received little attention.
Understanding how crop genotypes respond differently to changing environmental conditions is crucial and it is a significant step in developing improved crop varieties [33]. When genotypes are assessed across various locations or years, their yield and individual traits’ performances may vary significantly. The presence of substantial genotype-by-environment (G × E) interactions can further complicate comparisons and recommendations for adaptable genotypes [34]. To identify stable genotypes, it is essential to break down the G × E interaction into stability statistics assigned to each genotype across different environments. Various stability indices have enabled researchers to pinpoint widely adapted genotypes for breeding programs or enhance recommendations to growers [35]. A genotype is considered most stable when it exhibits minimal fluctuation across diverse environments [36]. The present research aimed to examine (1) the functional traits and weed-suppressive ability of four selected canola genotypes and (2) the stability of canola genotypes for weed suppression over different temporal and spatial conditions.

2. Materials and Methods

2.1. Experimental Site

Three field sites were chosen in southern New South Wales (NSW) in 2016, one each at Wagga Wagga Agricultural Institute (WWAI) (−35.04591 E, 147.3676 S), Temora (−34.3779 E, 147.4878 S), and Marrar (−34.8270 E, 147.3528 S) of NSW in Australia, respectively. Prior to that, a field study was conducted in 2013 at WWAI [2]. The Wagga Wagga sites had a high population of L. rigidum (annual ryegrass) (80 plants/m2) and the Marrar site was severely affected by Raphanus raphanistrum (wild radish).

2.2. Canola Genotypes and Sowing Density

Four canola genotypes, namely PAK85388-502, AV-OPAL, AV-GARNET, and BAROSSA, were selected, based on a previous study by Asaduzzaman et al. [2,37]. The genotypes are open-pollinated; PAK85388-502 is a breeding line and AV-GARNET is a competitive cultivar reported by Lemerle et al. [38]. AV-OPAL and PAK85388-502 were categorised as allelopathic canola genotypes [20]. A previous laboratory experiment with several canola genotypes showed that canola densities played a major role in its allelopathic activity in suppressing annual ryegrass root growth [5]. Hence, for each genotype, four different sowing rates (15, 30, 60, and 120 seeds/m2) were used in 1.8 m × 10 m plots with 4, 5, and 5 replications for Marrar 2016, Temora 2016, and Wagga Wagga 2016 sites, respectively. The Wagga Wagga 2013 field site had 6 replications [39]. The purpose was to determine canola density effects on weed growth and reproductive development.

2.3. Pre-Sowing Knockdown Herbicide and Sowing

Glyphosate (450 g/L Glyphosate) at 2 L/ha was applied at all sites as a pre-planting approach and no other herbicides were used during the experiment. The crop was sown with a plot seeder together with a basal fertilizer of Croplift 15 (Incitec Pivot Fertilisers™) at 120 kg/ha. This basal fertilizer was applied below the canola seed at sowing and canola seeds were treated with Jockey® (167 g/L fluquinconazole) at the recommended rate (2 L/100 kg seed) to control blackleg (Leptosphaeria maculans).

2.4. Data Collection to Assess Weed Suppressive Ability of Canola Genotypes

Weed numbers and biomass (as an indicator of weed seed bank replenishment), botanical compositions of weeds with respective genotypes, and shoot and root architecture were considered the most important metrics for allelopathic and interference effects in Wagga Wagga 2016 and Marrar 2016 sites (Table 1). Weed numbers were assessed using two quadrats (0.5 m × 0.5 m) per plot at the Wagga Wagga 2013, 2016, and Marrar 2016 sites. Quadrats were placed at random within each plot, but obvious weed patches were avoided. Weed biomass assessment was undertaken using the two quadrats per plot when canola biomass was estimated to be maximal, corresponding with early flowering in canola at Wagga Wagga 2013 and 2016, Temora 2016, and Marrar 2016 sites. Canola root and shoot measurements were taken just prior to biomass cut by measuring 20 random plants per genotype at Wagga Wagga 2016 and Marrar 2016 sites. A total of 20 plants were randomly selected and carefully dug up and the lengths of the canola root and shoot were measured. Then, plants were transported to a shaded area of WWAI where the number of lateral roots was counted. The relative root growth (RRG) of 20 plants for each genotype was calculated as follows: RRYP = Rij/Rii, where Rii is the canola root biomass in the weeds-free condition and Rij is the biomass of canola roots collected from heavily weed-infested plots. Leaf Area Index (LAI) and Photosynthetic Active Radiation (PAR) were calculated based on Ceptometer data, where Transmitted PAR = Below-canopyPAR/Above-canopy PAR. The NDVI and Ceptometer readings were measured from the treatment plots at 60 plant density/m2 for each genotype, just before canola flower initiation.
The Stem-Specific Density (SSD) (g cm−3 or kg dm−3) was measured at canola flowering time. Briefly, the main stem oven-dry mass (at 70 °C for 72 h) of a canola plant was measured and divided by the volume of the same section. Where the volume of a canola stem was determined simply by measuring its total length and its diameter in three places along the freshly harvested stem using calipers, SSD is emerging as a core functional trait because of its importance for the stability, defence, architecture, C gain, and growth potential of plants. A low stem density (with large vessels) leads to fast growth, whereas a high stem density (with small vessels) leads to a high survival, because of biomechanical and hydraulic safety [38].

2.5. Statistical Analysis

The field experiments were conducted with randomised complete block designs. The broad-leaf weed numbers were not analysed separately but all broad-leaf weeds were included in the weed biomass calculations. Weed biomass production in response to different crop densities were analysed in the liner regression model. A multivariate correlation matrix analysis was conducted to see the relations among the observed variables. To identify the most successful genotype for weed suppression within each environmental effect, R packages including metan [40] were used intensively for data analysis. A joint ANOVA was performed by using the following formula.
yijk = µ + αi + τj + (ατ) ij + γjk + εijk
where yijk is the response variable (e.g., weed biomass) observed in the kth block of the ith genotype in the jth environment (i = 1, 2, …, g; j = 1, 2, …, e; k = 1, 2, …, b); µ is the grand mean; αi is the effect of the ith genotype; τj is the effect of the jth environment; (ατ)ij is the interaction effect of the ith genotype with the jth environment; γjk is the effect of the kth block within the jth environment; and εijk is the random error. The stability analysis was conducted using ANOVA, incorporating the non-parametric Shukla’s stability variance parameter [41] to assess the general superiority of genotypes across different locations. Additionally, the commonly used regression model proposed by Eberhart and Russell [42] for stability analysis of genotypes was employed where the dependent variable is predicted as a function of an environmental index, according to the following model:
Yij = β0i + β1iIj + δij + εij
where β0i is the grand mean of the genotype i(i = 1, 2, …, I); β1i is the linear response (slope) of the genotype i to the environmental index Ij (j = 1, 2, …, e); δij is the deviation from the regression line for the i-th genotype in the j-th environment, indicating the specific interaction between genotype and environment; and εij is the random error. Finally, the additive main effects and multiplicative interaction (AMMI) biplot was used (G × E) to visually represent genotype performances and environmental interactions on weed biomass production.

3. Results

3.1. Canola and Weed Biomass

The composition of weed species differed between sites. Trial sites at Temora and Wagga Wagga 2013 and 2016 were mainly infested by annual ryegrass and, at the early seedling stage of canola, there was no significant (p > 0.005) difference between genotypes in annual ryegrass densities. The Marrar site was affected mostly by wild radish [WR] followed by shepherd’s purse [SP], annual ryegrass [ARG], and other broadleaf weeds [BW]. Also, the total weed densities [WR+SP+ARG+BW] at the early growth stage of canola were not significantly (p > 0.05) different between genotypes. There was a significant (p < 0.001) interaction effect between canola density and genotype on total weed biomass (Figure 1). A significant negative correlation was observed between weed biomass and canola densities (Figure 1). At 10 canola plants/m2, the total weed dry biomass was only 17 g and 10 g/m2 for the genotype PAK85388-502 and 25 g and 22 g for AV-OPAL at Wagga Wagga 2016 and Marrar 2016 sites, respectively. Genotype BAROSSA was less suppressive on weed growth; this genotype, even at high density (10 canola plants/m2), produced double the weed biomass (48 g) of AV-OPAL at the Wagga Wagga 2016 site.

3.2. Plant Functional Traits

The multivariate pair analysis showed that canola root length was not significantly different among genotypes. Significant negative relationships between the number of lateral canola roots (r = −0.18*) or specific canola stem density (r = −0.19*) and weed biomass were observed (Figure 2). Genotype PAK85388-502 had the most lateral root/plant followed by AV-OPAL and Barossa, whereas AV-GARNET and BAROSSA had the most Relative Root Growth (RRG) in both experimental sites (Table 2). The stem density of canola did not differ significantly between genotypes (p = 0.12), environments (p = 0.58), and G × E (p = 0.89). Stem length (p < 0.05) and SSD (p = 0.005) were significantly different between genotypes where PAK85388-502 had the longest stem followed by AV-GARNET, while BAROSSA had the largest SSD value.
The fractional ground cover (estimated by the NDVI) showed that genotype effects were not significant (p = 0.06). Additionally, the LAI and transmitted PAR were not significant (p > 0.05) among the genotypes (Table 2). Numerically, the highest leaf area (1.2) was produced by BAROSSA followed by the competitive and allelopathic genotypes AV-GARNET and PAK85388-502, respectively. The light interception capability was higher in AV-OPAL (0.54) followed by AV-GARNET and PAK85388-502.

3.3. Environmental Effect and Stability of Genotypes for Weed Suppression

The interactions between genotypes and environments measure the spatial (locations) and temporal (years) separation and/or combination of these factors. The combined analysis of variance across environments showed that variances due to genotypes (G), environments (E), and G × E were highly significant (p <  0.001) for weeds biomass. So, it was appropriate to explore such interaction including ANOVA and linear regression-based stability analysis. Table 3 shows that weed biomass was six and five times higher under unfavourable conditions than under favourable conditions for BAROSSA and AV-GARNET, respectively. For PAK85388-502 and AV-OPAL, weed biomass was five and four and a half times higher under unfavourable conditions compared with favorable conditions. The best weed suppressive genotypes for both favourable and unfavourable conditions were PAK85388-502 followed by AV-OPAL. Genotype BAROSSA was the least weed-suppressive in either condition. The regression model shows that slopes (b1) of both AV-OPAL and PAK85388-502 were flatter than the other two varieties. The low coefficient (b0) value and significant differences between these two genotypes (AV-OPAL and PAK85388-502) were due mostly to the genotypic effect rather than the environmental effect.
The top genotypes for weed suppression were PAK85388-502 and AV-OPAL at all four sites (Table 3 and Figure 3). The computed genotype-environment effects or genotype plus genotype-environment effects showed no clear change except Shukla ranking in the rank order of genotypes across environments. PAK85388-502 and AV-OPAL were the most stable genotypes for weed suppression across different environments.
Among the locations, the Temora 2015 site achieved the most weed suppression by the four canola genotypes, and they adapted very well compared to the other three sites (Figure 3). The Wagga 2013 site was the least weed-suppressive and the adaptability of the genotypes varied. The two weed-suppressive canola genotypes (AV-OPAL and PAK85388-502) tended to be clustered together. They were placed closer than the other two canola genotypes (AV-GARNET and BAROSSA) and produced less weed biomass in their plots across the different locations. The Wagga 2013 site had the highest weed biomass.

4. Discussions

The study of plant interference is increasingly popular although the current systems of plant breeding largely ignore the abilities of a variety to exercise control over its weed challengers. The difficulty in studying interactions between plants is due to the complex nature of plant interference, defined as the combined effect of competition and allelopathy. However, the development of crops with the capability to exert allelopathic effects on weeds through root exudates is an attractive prospect [43]. Research has shown this potential in wheat [44], barley [45,46], rice [47,48,49], and canola [39]. In this study, genotypes such as AV-OPAL, PAK85388-502, AV-GARNET, and BAROSSA produced similar crop biomass but the genotypes PAK85388-502 and AV-OPAL tended to result in weed biomass lower than even the strongly competitive genotype (cv. AV-GARNET). Therefore, weed-suppressing genotypes have the potential for integrated weed management and further work is needed to produce a genotype with combined competitive ability and allelopathy. Bertholdsson [50] found that early weed biomass was significantly lower in the highly allelopathic wheat lines compared with the non-allelopathic lines. These wheat varieties produced lower yields, indicating that both yield and weed-suppressive allelopathic capability are independent traits [50]. Also, our research revealed that weed biomass was suppressed during the early growth stages of allelopathic canola genotypes, resulting in significantly less weed biomass harvested at the end of the experiment.
Four Brassica genotypes (AV-OPAL, AV-GARNET, BAROSSA, and PAK85388-502) showed similar patterns in the density–response curve for weed growth and there was a density by genotype interaction. This indicates that crop density plays a role in canola weed suppression. These results were consistent with previous research in rice [47,51] and in wheat [52]. The aboveground canopy of all tested genotypes had similar contributions to weed control. However, beyond that, an additional mechanism such as the allelopathy of AV-OPAL and PAK85388-502 might have played a role in their neighbouring weed suppression. AV-OPAL was identified as a less vigorous genotype with shorter plant height among other canola genotypes [2]. Asaduzzaman et al. [37] collected 70 international rapeseed varieties and evaluated their allelopathic potential by growing them in close proximity to L. rigidum. Rapeseed was sown at 10, 20, and 30 plants/m2 against 15 plants/m2 of annual ryegrass. Generally, the higher density of rapeseed resulted in higher suppression of L. rigidum. The varieties with strong allelopathic activity were PAK85388-502, AV-OPAL, BLN3343CO0402, and RIVETTE. Many of these genotypes, categorised as allelopathic, can release a range of allelochemicals through their root exudates of canola, with key chemicals being sinapyl alcohol, p-hydroxybenzoic acid, and 3,5,6,7,8-pentahydroxy flavones [20]. Furthermore, in Canada, canola competitiveness was improved by choice of variety and use of higher seeding rates [53,54]. The negative relationships between root (number of lateral roots) and shoot (stem density and stem length) functional traits and weed biomass suggest that these traits are important components for weed suppression by canola genotypes. Therefore, their simultaneous selection will be a good approach to increasing weed suppressive ability. This same relationship was observed by Afuape et al. [55]. Genetic variability is essential for selection [56]. However, a wide range of varieties should be evaluated at different locations to further verify such relationships.
The stability analysis aims at helping breeders identify which genotypes have specific and/or general adaptability to various production environments. Additionally, stability analysis helps determine the test environments for future evaluations of canola production with self-weeding capability. Three locations (excluding Wagga 2013) clustered in the same quadrants, indicating that these locations share similarities in terms of weed growth and canola genotype performance. The Temora environment and Wagga 2016 were higher-performing environments for weed suppression compared with others. This result means that testing data from one location can represent the performance of the same materials in other similar locations. Therefore, conducting a stability analysis with a large set of canola genotypes will further help identify specific genotypes for both locations, as well as a stable genotype that can be cultivated across multiple locations, particularly locations that share similar attributes to the test locations. Understanding the environmental conditions in which canola varieties are tested is crucial for accurately interpreting results and extrapolating findings to diverse geographical locations or growing conditions. Highlighting higher-performing environments for weed suppression, such as the Temora environment and Wagga 2016, underscores the need for a comprehensive description of these locations’ environmental characteristics. To address this gap, future research should prioritise conducting stability analyses with a diverse range of canola genotypes across various locations. This approach would enable breeders to identify specific genotypes suited for different environments and stable genotypes adaptable to multiple locations, facilitating informed decision making in canola allelopathic variety cultivation.
The weed-suppressive ability of a specific canola variety might be weed-specific and likely associated with a genetic as well as an environmental component of variance; breeding will be required for its maintenance [57]. Combining a variety’s capability in reducing specific weed pressure with optimal agronomic practices that facilitate crop health will generally enhance cropping system sustainability and allow growers to extend the life of valuable herbicides [58]. However, the feasibility of using a variety for specific weed management may not be useful for economic outcomes because canola crops are infested naturally by a range of weed species [5]. However, a competitive variety of canola could be developed by incorporating traits such as increased lateral roots and stem length and density without compromising other desirable traits such as grain yield, quality, or disease resistance [14]. Canola weed suppressiveness can be optimised to reduce specific weed growth and reproduction through farming practices that allow the implementation of a variety of cultural techniques such as sowing crops with different planting dates to reduce other weed pressure [18]. In addition, the ability of crops to suppress weeds appears to be strongly variety-dependent [59,60,61].
Here, the experiments reported reinforce the need for the preservation of the older varieties such as AV-OPAL and PAK85388-502 (highly allelopathic) and AV-GARNET (highly competitive [15]) so that these benefits can be incorporated into new varieties. Also, this research highlights the need for new varieties to be evaluated for their interference capabilities in weedy field plots without herbicides. The information obtained in this future research will allow producers to broaden their armory against herbicide resistance by choosing weed-suppressive varieties, thereby helping manage herbicide-resistant weeds that threaten productivity, profitability, and food-security. The capability of crop variety to suppress weeds is being considered as a preferred criterion for cultivar selection in many parts of the world [62]. However, further research should focus on characterising crop competition in detail by measuring relevant traits, assessing allelopathic potential through controlled experiments by quantifying allelochemicals in the field, and employing multiple regression models to determine the impact of each trait on weed regulation [23,63]. The enhanced interference (competitive and allelopathic) potential of crop varieties can contribute to their self-weeding capabilities. By reducing weed infestation, self-weeding crops can enhance the effectiveness of other weed control methods and optimise resource utilisation.

5. Conclusions

The current study demonstrated considerable variation among the canola genotypes across the studied traits. The observed genotype-by-environment (G × E) effects influenced the average ranks of genotypes in different environments, highlighting the necessity for multi-environment testing before making informed decisions. Furthermore, the G × E biplot analysis identified two distinct mega-environments (Wagga Wagga 2013 vs. others), indicating significant interactions between genotypes and environments that affect trait expression for evaluating canola genotypes in Australia and identified PAK85388-502 and AV-OPAL as the best-performing genotypes for weed suppression. These genotypes were stable and adaptable across test environments and could be used as parental materials for further genetic improvement through plant breeding. BAROSSA and AV-GARNET were more competitive but might be less allelopathic and the other two varieties might be more allelopathic but less competitive. Therefore, two separate traits could potentially be combined through breeding programs. The current study determined the magnitude of genotype by environment interaction and stability for weed suppression ability of canola genotypes. Since most grain crop breeding programs are often tailored toward the development of high-yielding, biotic, and abiotic resistance and/or tolerance, this work has identified novel genotypes that could be used to breed weed-suppressive varieties in the future.

Author Contributions

M.A.: Conceptualization; data curation; formal analysis; investigation; writing—original draft; and writing—review and editing. H.W.: Funding acquisition; investigation; and writing—review and editing. G.D.: Funding acquisition; investigation; and writing—review and editing. J.P.: Writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

The research team acknowledges the financial support (Research Centre Fellowship) of Graham Centre, CSU.

Data Availability Statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding author.

Acknowledgments

We acknowledge the input of technical assistance provided by Adam Shephard and Michael Hopwood, NSWDPI. David Officer and Bernie Dominiak reviewed a pre-submission version of the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Australian Oilseeds Federation (AOF). The State of Oilseed Industry in Australia: Annual Report 2023. Available online: https://www.graincentral.com/news/aof-forecasts-new-crop-canola-area-at-3-2mha/ (accessed on 20 August 2024).
  2. Asaduzzaman, M.; Luckett, D.J.; Cowley, R.B.; An, M.; Pratley, J.E.; Lemerle, D. Canola cultivar performance in weed-infested field plots confirms allelopathy ranking from in vitro testing. Biocontrol Sci. Technol. 2014, 24, 1394–1411. [Google Scholar] [CrossRef]
  3. Salisbury, P.A.; Potter, T.D.; Gurum, A.M.; Mailer, R.J.; Williams, W.M. Potential impact of weedy Brassicaceae on oil and meal quality of oilseed rape (Canola) in Australia. Weed Res. 2018, 58, 200–209. [Google Scholar] [CrossRef]
  4. Lemerle, D.; Blackshaw, R.E.; Smith, A.B.; Potter, T.D.; Marcroft, S.J. Comparative survey of weeds surviving in triazine-tolerant and conventional canola crops in south-eastern Australia. Plant Prot. Q. 2001, 16, 37–40. [Google Scholar]
  5. Asaduzzaman, M.; Pratley, J.E.; Luckett, D.; Lemerle, D.; Wu, H. Weed Management in canola (Brassica napus L.): A review of Current Constraints and Future Strategies for Australia. Arch. Agron. Soil Sci. 2019, 66, 427–444. [Google Scholar] [CrossRef]
  6. Chauvel, B.; Guillemin, J.P.; Gasquez, J.; Gauvrit, C. History of chemical weeding from 1944 to 2011 in France: Changes and evolution of herbicide molecules. Crop Prot. 2012, 42, 320–326. [Google Scholar] [CrossRef]
  7. Harker, K.N.; O’Donovan, J.T. Recent weed control, weed management, and integrated weed management. Weed Technol. 2013, 27, 1–110. [Google Scholar] [CrossRef]
  8. Smith, A.N.; Reberg-Horton, S.C.; Place, G.T.; Meijer, A.D.; Arellano, C.; Paul, J. Rolled rye mulch for weed suppression in organic no-tillage soybeans. Weed Sci. 2011, 59, 224–231. [Google Scholar] [CrossRef]
  9. Bond, W.; Grundy, A.C. Non-chemical weed management in organic farming systems. Weed Res. 2001, 41, 383–405. [Google Scholar] [CrossRef]
  10. Beckie, H.J.; Harker, K.N.; Legere, A.; Morrison, M.J.; Swartz, G.S.; Falk, K.C. GM canola: The Canadian experience. Farm. Pol. 2011, 8, 43–49. [Google Scholar]
  11. Starling, A.P.; Umbach, D.M.; Kamel, F.; Long, S.; Sandler, D.P.; Hoppin, J.A. Pesticide use and incident diabetes among wives of farmers in the agricultural health study. Occup. Environ. Med. 2014, 71, 629–635. [Google Scholar] [CrossRef]
  12. Zimdahl, R.L. Weed-Crop Competition: A Review; Blackwell Publishing: Ames, Iowa, 2004. [Google Scholar]
  13. Harker, K.N.; Clayton, G.W.; Blackshaw, R.E.; O’Donovan, J.T.; Stevenson, F.C. Seeding rate, herbicide timing and competitive hybrids contribute to integrated weed management in canola (Brassica napus). Can. J. Plant Sci. 2003, 83, 433–440. [Google Scholar] [CrossRef]
  14. Lemerle, D.; Luckett, D.J.; Lockley, P.; Koetz, E.; Wu, H. Competitive ability of Australian canola (Brassica napus L.) genotypes for weed management. Crop Pasture Sci. 2014, 65, 1300–1310. [Google Scholar] [CrossRef]
  15. Lemerle, D.; Luckett, D.J.; Wu, H.; Widderick, M.J. Agronomic interventions for weed management in canola (Brassica napus L.)—A review. J. Crop Protect. 2017, 95, 69–73. [Google Scholar] [CrossRef]
  16. Mohler, C.L. Enhancing the competitive ability of crops. In Ecological Management of Agricultural Weeds; Liebman, M., Ed.; Cambridge University Press: Cambridge, UK, 2001; pp. 302–305. [Google Scholar]
  17. Berkowitz, A.R. Competition for resources in weed-crop mixtures. In Weed Management in Agroecosystems: Ecological Approaches; Altieri, M.A., Liebman, M., Eds.; CRC Press Inc: Boca Raton, FL, USA, 1988; pp. 89–119. [Google Scholar]
  18. Vencill, W.K.; Nicholes, R.L.; Webster, T.M.; Soteres, J.K. Herbicide resistance: Toward an understanding of resistance development and the impact of herbicide-resistant crops. Weed Sci. 2012, 60, 2–30. [Google Scholar] [CrossRef]
  19. Rice, E.L. Allelopathy; Academic Press: Orlando, FL, USA, 1984. [Google Scholar]
  20. Asaduzzaman, M.; Pratley, J.E.; An, M.; Luckett, D.J.; Lemerle, D. Metabolomics differentiation in canola genotypes: Towards an understanding of canola allelochemicals. Front. Plant Sci. 2015, 5, 765. [Google Scholar] [CrossRef]
  21. Asaduzzaman, M.; Pratley, J.E.; Min, A.; Luckett, D.J.; Lemerle, D. Canola Interference for Weed Control. Springer Sci. Rev. 2014, 2, 63–74. [Google Scholar] [CrossRef]
  22. Belz, R.G.; Hurle, K. Differential exudation of two benzoxazinoids: Some of the determining factors for seedling allelopathy of Triticeae species. J. Agric. Food Chem. 2005, 53, 250–261. [Google Scholar] [CrossRef]
  23. Debaeke, P.; Perronne, R.; Colbach, N.; Moreau, D.; Barre, P.; Lecouviour, F.; Durand-Tardif, M. Non-chemical weed management: Which crop functions and traits to improve through breeding? Crop Prot. 2024, 179, 106631. [Google Scholar] [CrossRef]
  24. Mahé, I.; Chauvel, B.; Colbach, N.; Cordeau, S.; Gfeller, A.; Reiss, A.; Moreau, D. Deciphering Field-Based Evidences for Crop Allelopathy in Weed Regulation: A Review. Agron. Sustain. Dev. 2022, 42, 50. [Google Scholar]
  25. Auger, B.; Pouvreau, J.B.; Pouponneau, K.; Yoneyama, K.; Montiel, G.; Le Bizec, B.; Simier, P. Germination Stimulants of Phelipanche ramosa in the Rhizosphere of Brassica napus Are Derived from the Glucosinolate Pathway. Mol. Plant-Microbe Interact. 2012, 25, 993–1004. [Google Scholar] [CrossRef]
  26. Chen, Y.T.; Wang, Y.; Yeh, K.C. Role of root exudates in metal acquisition and tolerance. Curr. Opin. Plant Biol. 2017, 39, 66–72. [Google Scholar] [CrossRef]
  27. York, L.M.; Nord, E.A.; Lynch, J.P. Integration of root phenes for soil resource acquisition. Front. Plant Sci. 2013, 4, 355. [Google Scholar] [CrossRef] [PubMed]
  28. Asseng, S.; Fillery, I.R.P.; Anderson, G.C.; Dolling, P.J.; Dunin, F.X.; Keating, B.A. Use of the APSIM wheat model to predict yield, drainage, and NO3-leaching for a deep sand. Aust. J. Agric. Res. 1998, 49, 363–377. [Google Scholar] [CrossRef]
  29. Gahoonia, T.S.; Nielsen, N.E. Root traits as tools for creating phosphorus efficient crop varieties. Plant Soil 2004, 260, 47–57. [Google Scholar] [CrossRef]
  30. De Dorlodot, S.; Forster, B.; Pages, L.; Price, A.; Tuberosa, R.; Draye, X. Root system architecture: Opportunities and constraints for genetic improvement of crops. Trends Plant Sci. 2007, 12, 474–481. [Google Scholar] [CrossRef]
  31. Rogers, E.D.; Benfey, P.N. Regulation of plant root system architecture: Implications for crop advancement. Curr. Opin. Biot. 2015, 32, 93–98. [Google Scholar] [CrossRef]
  32. Rivoal, A.; Fernandez, C.; Greff, S.; Montes, N.; Vila, B. Does competition stress decrease allelopathic potential? Biochem. Syst. Ecol. 2011, 39, 401–407. [Google Scholar] [CrossRef]
  33. Huang, Z.; Xu, W.; Yu, K. Bidirectional LSTM-CRF models for sequence tagging. arXiv 2015, arXiv:1508.01991. [Google Scholar]
  34. Sabri, R.S.; Rafii, M.Y.; Ismail, M.R.; Yusuff, O.; Chukwu, S.C.; Hasan, N.A. Assessment of agro-morphologic performance, genetic parameters and clustering pattern of newly developed blast resistant rice lines tested in four environments. Agronomy 2020, 10, 1098. [Google Scholar] [CrossRef]
  35. Moussa, O.A.; Bil-Assanou, I.H.; Mahamane, A.; Mamane, S.; Zaman-Allah, M. Agro-Morphological Evaluation of Three Exotic Maize Genotypes (Zea mays L.) in the Sahelian Context: Prospects for Improving Local Production. Int. J. Pure Appl. Biosci. 2019, 7, 1–9. [Google Scholar] [CrossRef]
  36. Reckling, M. Methods of yield stability analysis in long-term field experiments. A review. Agron. Sustain. Dev. 2021, 41, 27. [Google Scholar] [CrossRef]
  37. Asaduzzaman, M.; An, M.; Pratley, J.E.; Luckett, D.; Lemerle, D. Canola (Brassica napus) germplasm shows variable allelopathic effects against annual ryegrass (Lolium rigidum). Plant Soil 2014, 380, 47–56. [Google Scholar] [CrossRef]
  38. Lemerle, D.; Verbeek, B.; Coombes, N.; Loss, S.; van Burgel, A. Impact of weeds on crop production in Australia. Weed Technol. 2011, 25, 195–202. [Google Scholar]
  39. Moussa, A.A.; Salako, V.K.; Gbemavo, C.; Zaman-Allah, M.; Kakaï, R.G.; Bakasso, Y. Performances Agro-Morphologiques Des Variétés Locales Et Améliorées de Maïs Au Sud-Ouest Du Niger. Afr. Crop Sci. J. 2018, 26, 157–173. [Google Scholar] [CrossRef]
  40. Smith, J.; Jones, A.; Doe, B. A gravimetric method for measuring stem-specific density in forestry research. J. Frost Sci. 2018, 15, 123–135. [Google Scholar]
  41. Olivoto, T.; Lucio, A.D.C. Metan: An R package for multi-environment trial analysis. Methods Ecol. Evol. 2020, 11, 783–789. [Google Scholar] [CrossRef]
  42. Shukla, G.K. Some statistical aspects of partitioning genotype-environmental components of variability. Heredity 1972, 29, 238–245. [Google Scholar] [CrossRef]
  43. Eberhart, S.A.; Russell, W.A. Stability parameters for comparing varieties. Crop Sci. 1966, 6, 36–40. [Google Scholar] [CrossRef]
  44. Olofsdotter, M.; Navarez, D.; Rebulanan, M.; Streibig, J.C. Weed-Suppressing Rice Cultivars—Does Allelopathy Play a Role? Weed Res. 1999, 39, 441–454. [Google Scholar] [CrossRef]
  45. Wu, H.; Haig, T.; Pratley, J.; Lemerle, D.; An, M. Allelochemicals in wheat (Triticum aestivum L.): Variation of phenolic acids in shoot tissues. J. Chem. Ecol. 2001, 27, 125–135. [Google Scholar] [CrossRef]
  46. Bertholdsson, N.O. Breeding spring wheat for improved allelopathic potential. Weed Res. 2010, 50, 49–57. [Google Scholar] [CrossRef]
  47. Bertholdsson, N.O. Early vigour and allelopathy—Two useful traits for enhanced barley and wheat competitiveness with weeds. Weed Res. 2005, 45, 94–102. [Google Scholar] [CrossRef]
  48. Seal, A.N.; Pratley, J.E.; Haig, T.; Lewin, L.G. Screening rice varieties for allelopathic potential against arrowhead (Sagittaria montevidensis), an aquatic weed infesting Australian Riverina rice crops. Aust. J. Agric. Res. 2004, 55, 673–680. [Google Scholar] [CrossRef]
  49. Dilday, R.H.; Gealy, D.R.; Mattice, J.D.; Moldenhauer, K.A. Allelopathy in rice as a weed control strategy. In Abstracts of the 3rd International Weed Science Congress; International Weed Science Society: Foz do Iguassu, Brazil, 2000; pp. 33–34. [Google Scholar]
  50. Dilday, R.H.; Mattice, J.D.; Moldenhauer, K.A.; Yan, W. Allelopathic potential in rice germplasm against ducksalad, redstem and barnyard grass. J. Crop Prod. 2001, 4, 287–301. [Google Scholar] [CrossRef]
  51. Bertholdsson, N.O. Use of multivariate statistics to separate allelopathic and competitive factors influencing weed suppression ability in winter wheat. Weed Res. 2011, 51, 273–283. [Google Scholar] [CrossRef]
  52. Olofsdotter, M. Allelopathy in Rice. In Proceedings of the Workshop on Allelopathy in Rice; International Rice Research Institute: Manila, Philippines, 1998. [Google Scholar]
  53. Li, Y.; Allen, V.G.; Chen, J.; Hou, F.; Brown, C.P.; Green, P. Allelopathic influence of a wheat or rye cover crop on growth and yield of no-till cotton. Agron. J. 2013, 105, 1581–1587. [Google Scholar] [CrossRef]
  54. Beckie, H.J.; Johnson, E.N.; Blackshaw, R.E.; Gan, Y. Weed Suppression by Canola and Mustard Cultivars. Weed Technol. 2008, 22, 182–185. [Google Scholar] [CrossRef]
  55. Afuape, S.O.; Okocha, P.I.; Njoku, D. Multivariate assessment of the agro-morphological variability and yield components among sweet potato [Ipomoea batatas (L.) Lam] landraces. Afr. J. Plant Sci. 2011, 5, 123–132. [Google Scholar]
  56. Blackshaw, R.E.; Beckie, H.J.; Molnar, L.J.; Entz, T.; Moyer, J.R. Combining Agronomic Practices and Herbicides Improves Weed Management in Wheat-Canola Rotations within Zero-Tillage Production Systems. Weed Sci. 2005, 53, 528–535. [Google Scholar] [CrossRef]
  57. Sarif, H.M.; Rafii, M.Y.; Ramli, A.; Oladosu, Y.; Musa, H.M.; Rahim, H.A.; Zuki, Z.M.; Chukwu, S.C. Genetic diversity and variability among pigmented rice germplasm using molecular marker and morphological traits. Biotechnol. Biotechnol. Equip. 2020, 34, 747–762. [Google Scholar] [CrossRef]
  58. Bertholdsson, N.O. Varietal Variation in Allelopathic Activity in Wheat and Barley and Possibilities for Use in Plant Breeding. Allelopath. J. 2007, 19, 193–202. [Google Scholar]
  59. Harker, K.N.; O’Donovan, J.T.; Turkington, T.K.; Blackshaw, R.E.; Lupwayi, N.Z.; Smith, E.G.; Klein-Gebbinck, H.; Dosdall, L.M.; Hall, L.M.; Willenborg, C.J.; et al. High-yield no-till canola production on the Canadian prairies. Can. J. Plant Sci. 2012, 92, 221–233. [Google Scholar] [CrossRef]
  60. Bertin, C.; Yang, X.; Weston, L.A. The role of root exudates and allelochemicals in the rhizosphere. Plant Soil. 2003, 256, 67–83. [Google Scholar] [CrossRef]
  61. Jabran, K.; Mahajan, G.; Sardana, V.; Chauhan, B.S. Allelopathy for weed control in agricultural systems. Crop Prot. 2015, 72, 57–65. [Google Scholar] [CrossRef]
  62. Wu, H.; Pratley, J.; Lemerle, D.; Haig, T. Crop cultivars with allelopathic capability. Weed Res. 1999, 39, 171–180. [Google Scholar] [CrossRef]
  63. Worthington, M.; Reberg-Horton, C. Breeding cereal crops for enhanced weed suppression: Optimizing allelopathy and competitive ability. J. Chem. Ecol. 2013, 39, 213–231. [Google Scholar] [CrossRef] [PubMed]
Agronomy 14 01965 g001

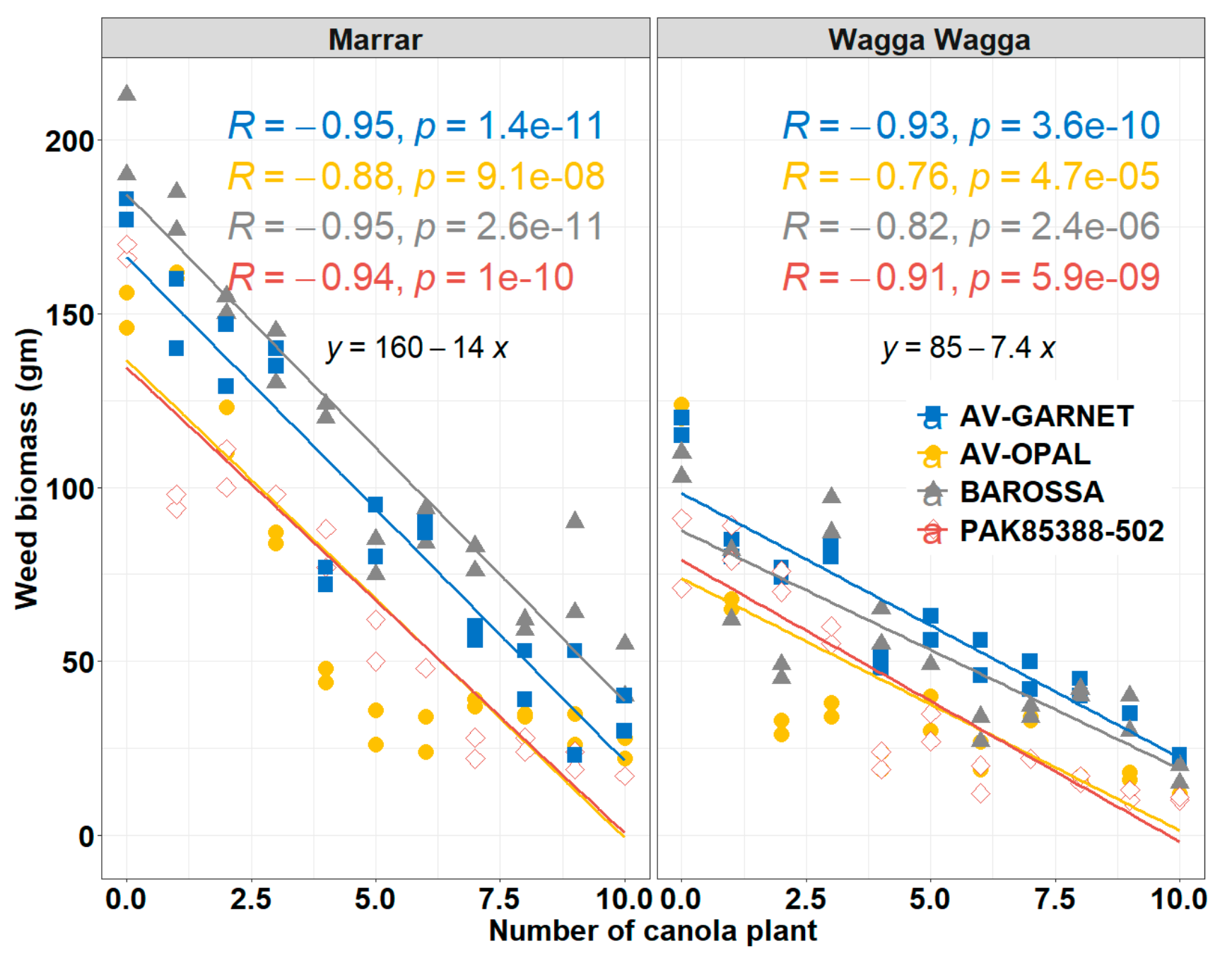

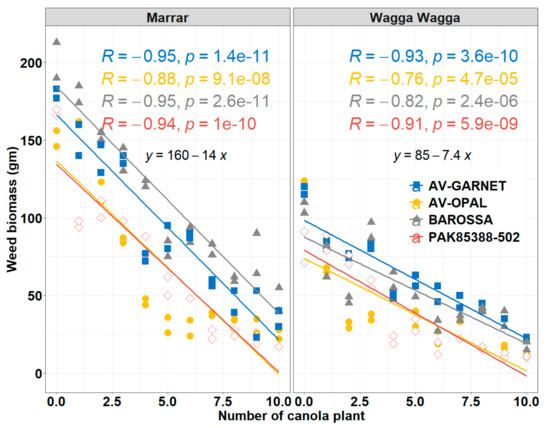

Figure 1. Negative linear relationship between canola plant density and weed biomass (m2) with correlation coefficient values (R) and respective p-values. The data were collected from Marrar 2016 and Wagga Wagga 2016 experimental sites.
Figure 1. Negative linear relationship between canola plant density and weed biomass (m2) with correlation coefficient values (R) and respective p-values. The data were collected from Marrar 2016 and Wagga Wagga 2016 experimental sites.
Agronomy 14 01965 g001
Agronomy 14 01965 g002

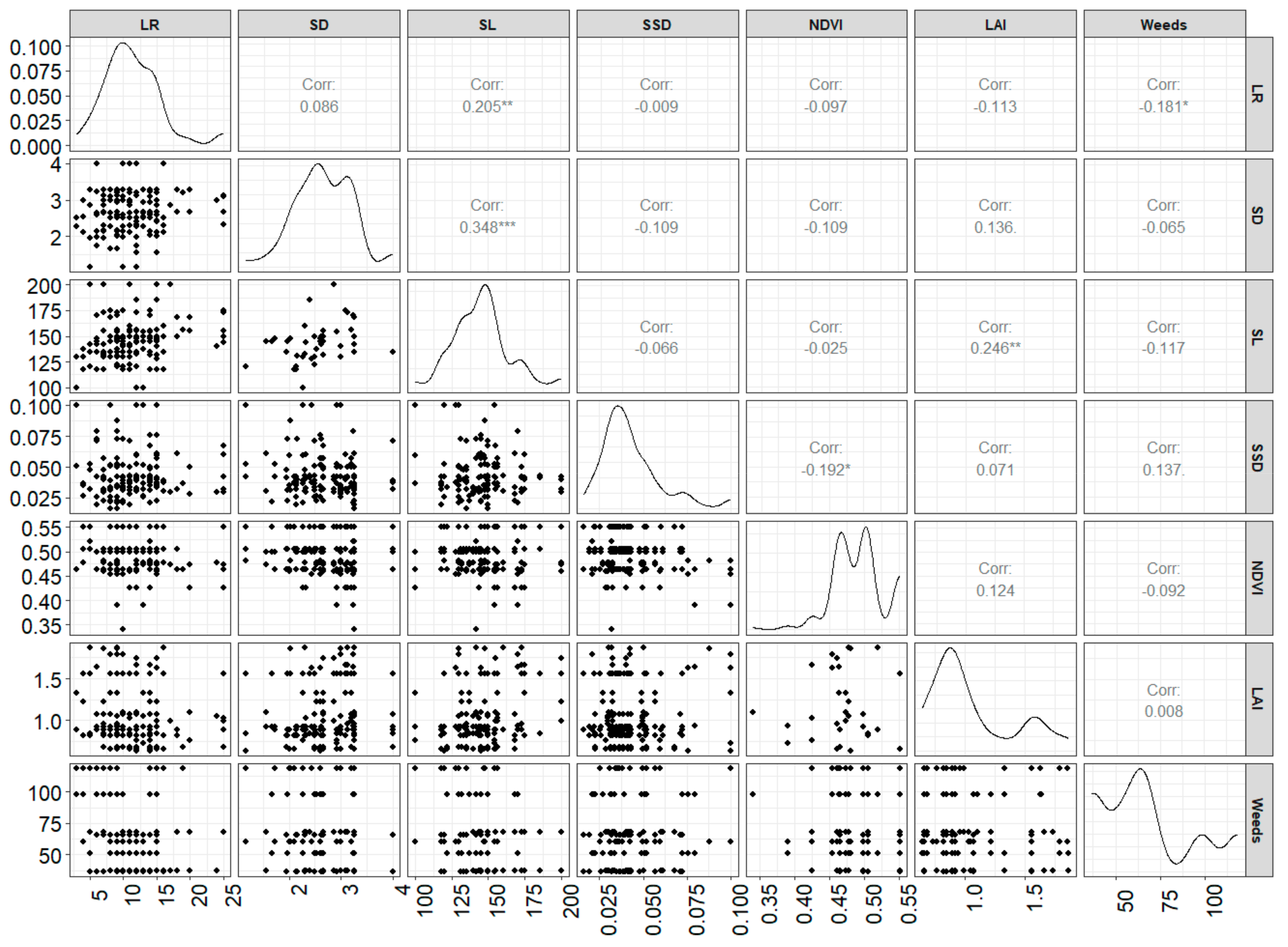

Figure 2. Correlation matrix among canola traits with weed biomass. Here, LR is the number of lateral roots/plants, SD is the stem density, SL is the stem length, SSD is the stem-specific density, NDVI is the normalised differential vegetation index, LAI is the leaf area index, and Weeds is total weed biomass. *, **, and *** indicate statistical significance at the 0.05; 0.01, and 0.001 level, respectively.
Figure 2. Correlation matrix among canola traits with weed biomass. Here, LR is the number of lateral roots/plants, SD is the stem density, SL is the stem length, SSD is the stem-specific density, NDVI is the normalised differential vegetation index, LAI is the leaf area index, and Weeds is total weed biomass. *, **, and *** indicate statistical significance at the 0.05; 0.01, and 0.001 level, respectively.
Agronomy 14 01965 g002
Agronomy 14 01965 g003

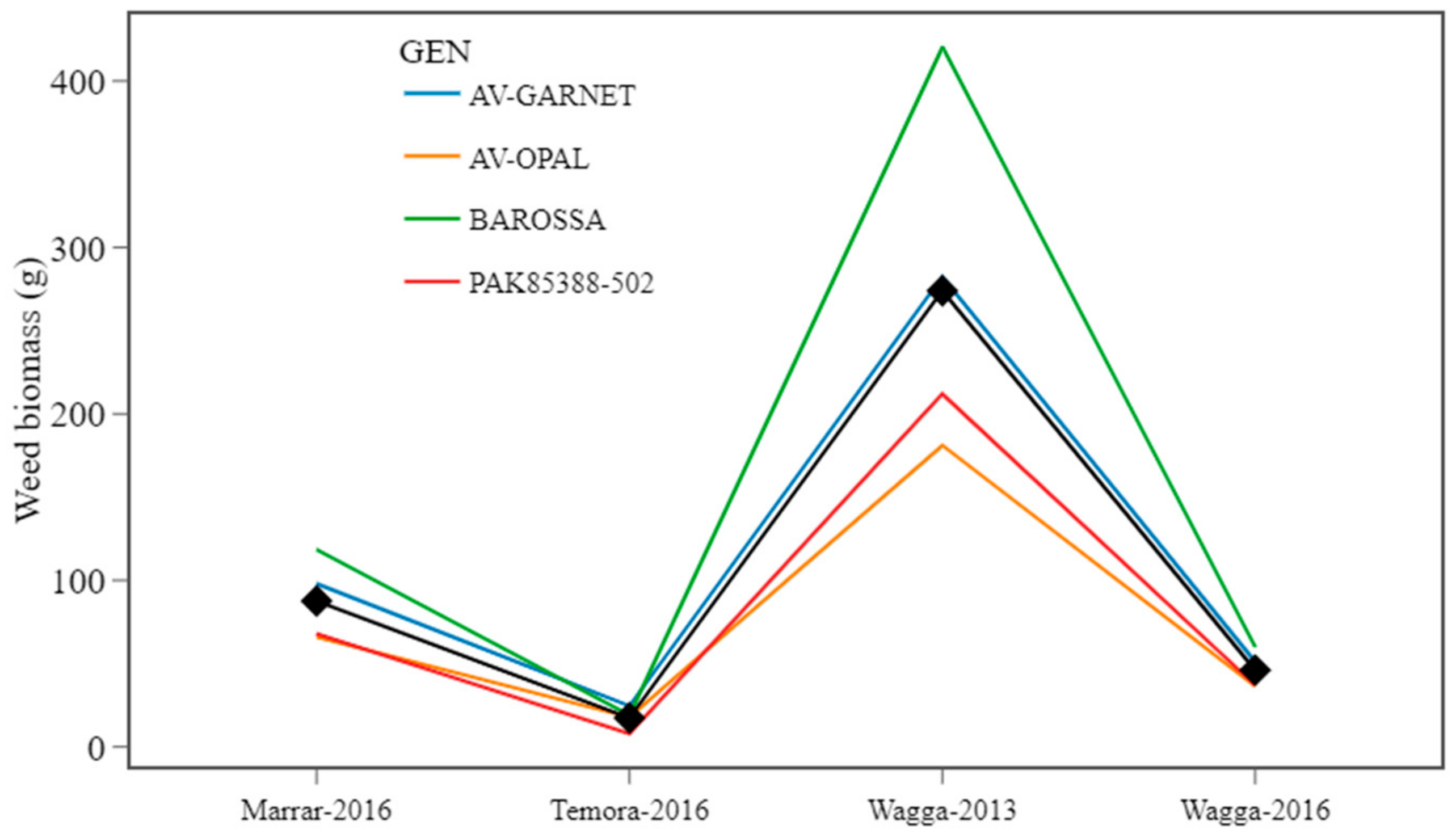

Figure 3. Performance and adaption of canola genotypes for weed suppression. The black solid line shows the average weed suppression at different locations.
Figure 3. Performance and adaption of canola genotypes for weed suppression. The black solid line shows the average weed suppression at different locations.
Agronomy 14 01965 g003
Table 1. Data measurements for four different field experiments.
Table 1. Data measurements for four different field experiments.
NameUnitsWhere MeasuredSite
Weed numberplants/m22 × quads (0.5 m × 0.5 m per plotWagga Wagga 2016 and 2013 and Temora 2016
Weed biomass (drymatter)g/m22 × quads (0.5 m × 0.5 m per plotWagga Wagga 2016 and 2013 and Temora 2016
NDVI (greenness index)unit lessWhole plot lengthWagga Wagga 2016 and Marrar 2016
Ceptometer
(LAI and PAR)		unit lessWhole plot lengthWagga Wagga 2016 and Marrar 2016
Canola root length, lateral roots and relative root growth cm, no/plant20 plants/genotypeWagga Wagga 2016 and Marrar 2016
Canola shoot length, diameter and stem-specific densitycm, g cm−320 plants/genotypeWagga Wagga 2016 and Marrar 2016
Note: Weed counting and weed biomass (dry matter) were measured in two 0.5 m × 0.5 m quadrants per plot in Wagga Wagga (2016 and 2013) and Temora (2016).
Table 2. Mean number of lateral roots (LR), relative root growth (RRG), shoot length (SL), stem specific density (SSD), NDVI, LAI, and PAR of four canola genotypes at Wagga Wagga (W) and Marrar sites (M) 2016.
Table 2. Mean number of lateral roots (LR), relative root growth (RRG), shoot length (SL), stem specific density (SSD), NDVI, LAI, and PAR of four canola genotypes at Wagga Wagga (W) and Marrar sites (M) 2016.
GenotypeLRRRGSL (cm)SSDNDVILAIPAR
AV-GARNET9.80 (±0.63)2.50 (±0.40) M
3.0 (±0.34) W		142.60 (±3.47)0.04 (±0.002)0.46 M
0.49 W		1.100.54
AV-OPAL12.60 (±0.60)1.10 (±0.19) M
1.80 (±0.24) W		137.60 (±4.00)0.04 (±0.002)0.49 M
0.46 W		1.000.53
BAROSSA10.55 (±0.63)3.18 (±0.49) M
2.00 (±0.21) W		136.73 (±6.50)0.05 (±0.003)0.45 M
0.49 W		1.200.50
PAK85388-50214.35 (±0.58)2.37 (±0.25) M
1.92 (±0.25) W		164.00 (±4.80)0.03(±0.002)0.47 M
0.51 W		1.100.48
Table 3. Stability and adaptability of four canola genotypes for weed suppression at different environments and two different years.
Table 3. Stability and adaptability of four canola genotypes for weed suppression at different environments and two different years.
Genotype Analysis for all Environments Analysis for Unfavourable Environments Analysis for Favourable Environments Shukla Stability Regression Parameters
Weed biomass (g)RankWeed biomass (g)RankWeed biomass (g)RankRankb0b1R2RMSE
AV-GARNET1143282357.8331141.011.001.87
AV-OPAL75.31181140.12275.30.630.991.45
BAROSSA155.04420465.9441551.580.994.15
PAK85388-50281.32212237.71181.30.780.992.42
Favourable environments: these are environmental conditions that are conducive to the optimal growth and development of the genotypes. Unfavorable environments: these conditions are less ideal for the genotypes, often causing stress or suboptimal growth. A low b0 value suggests less variability observed in genotypes for suppression among environment conditions, while a low RMSE value indicates that the regression model fitted very well. The data range for weed biomass is 769 − 2 = 767, and 1% of this range is 7.67, which is considered a threshold for a low RMSE value.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Asaduzzaman, M.; Wu, H.; Doran, G.; Pratley, J. Genotype-by-Environment Interaction and Stability of Canola (Brassica napus L.) for Weed Suppression through Improved Interference. Agronomy 2024, 14, 1965. https://doi.org/10.3390/agronomy14091965

AMA Style

Asaduzzaman M, Wu H, Doran G, Pratley J. Genotype-by-Environment Interaction and Stability of Canola (Brassica napus L.) for Weed Suppression through Improved Interference. Agronomy. 2024; 14(9):1965. https://doi.org/10.3390/agronomy14091965

Chicago/Turabian Style

Asaduzzaman, Md, Hanwen Wu, Gregory Doran, and Jim Pratley. 2024. "Genotype-by-Environment Interaction and Stability of Canola (Brassica napus L.) for Weed Suppression through Improved Interference" Agronomy 14, no. 9: 1965. https://doi.org/10.3390/agronomy14091965

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
