Vegetable Intercropping in a Small-Scale Aquaponic System

Abstract

This paper reports the results of the first study of an aquaponic system for Pangasianodon hypophthalmus production that uses Lactuca sativa L. (lettuce) and Cichorium intybus L. rubifolium group (red chicory) intercropping in the hydroponic section. The experiment was conducted in a greenhouse at the Zurich University of Applied Sciences, Wädenswil, Switzerland, using nine small-scale aquaponic systems (each approximately 400 L), with the nutrient film technique (NFT). The intercropping of vegetables did not influence the water temperature, pH, electric conductivity (EC), oxidation–reduction potential, nor O₂ content. Intercropping with red chicory increased the lettuce sugar content (+16.0% and +25.3% for glucose and fructose, respectively) and reduced the lettuce caffeic acid content (−16.8%). In regards to bitter taste compounds (sesquiterpene lactones), intercropping reduced the concentrations of dihydro-lactucopicrin + lactucopicrin (−42.0%) in lettuce, and dihydro-lactucopicrin + lactucopicrin (−22.0%) and 8-deoxy–lactucin + dihydro-lactucopicrin oxalate (−18.7%) in red chicory, whereas dihydro-lactucin content increased (+40.6%) in red chicory in regards to monoculture. A significantly higher organic nitrogen content was found in the lettuce (3.9%) than in the red chicory biomass (3.4%), following the intercropping treatment. Anion and cation contents in vegetables were affected by species (Cl⁻, NO₃⁻, PO₄³⁻, SO₄²⁻, and Ca²⁺), intercropping (K⁺ and Mg²⁺), and species × intercropping interactions (NO₂⁻ and NH₄⁺). Experimental treatments (monoculture vs intercropping and distance from NFT inlet) did not exert significant effects on leaf SPAD (index of relative chlorophyll content) values, whereas the red coloration of the plants increased from the inlet to the outlet of the NFT channel. Intercropping of lettuce and red chicory affected the typical taste of these vegetables by increasing the sweetness of lettuce and changing the ratio among bitter taste compounds in red chicory. These results suggest intercropping as a possible solution for improving vegetable quality in aquaponics. Although the results are interesting, they have been obtained in a relatively short period, thus investigations for longer periods are necessary to confirm these findings. Further studies are also needed to corroborate the positive effect of the presence of red chicory in the system on fish production parameters.

1. Introduction

During the last decades, global aquaculture production has expanded at an average annual rate of 6.2%, and accounted for 44.1% of total production (including for non-food uses) in 2014 [1]. The large-scale application of aquaculture, however, is limited by land and water availability as well as by environmental concerns due to emissions and waste [2]. Thus, further expansion of aquaculture depends on the development and application of new technologies that intensify fish cultivation while maximizing water and nutrient reuse, and minimizing environmental impacts [3]. A possible solution to these concerns is aquaponics, which is an ingenious combination of aquaculture and hydroponics—fish excreta provide nutrients for plant growth, and the treated water can be reused in the system. Aquaponics has been gaining popularity during the last decade, and the number of publications on a variety of aquaponic systems (different setup, different plant and different fish species) is increasing exponentially [4].

In this paper, we report the results of the first study of an aquaponic system that uses intercropping of two vegetables in its hydroponic section. Intercropping has potential to allow yield gains without increased inputs, and/or greater stability of yield with decreased inputs. Thus, it could be one route to deliver sustainable intensification [5].

While there are studies of intercropping in hydroponic cultivation, there are none that we are aware of in aquaponics. Ding et al. [6] determined the allelopathic potential of garlic on the growth of pepper plants in a floating hydroponic system. The response of the pepper plants depended on the number of garlic plants included in the co-culture system, indicating an association between pepper growth and the garlic root exudate concentration. When grown together, the pepper plant height, chlorophyll content, and peroxidase, catalase and phenylalanine ammonia–lyase activities were significantly increased; in contrast, a reduction in methane dicarboxylic aldehyde content was observed. On the other hand, Shibli and Smith [7] compared hydroponically grown tomatoes and potatoes, and reported that monocultures of both species grew better than intercropped species. In the intercropped cultures, tissue mineral content decreased, medium pH became more acidic, osmotic potential decreased and electrical conductivity increased, as compared to monocultures. A lettuce seedling bioassay did not indicate evidence of allelopathic compounds accumulating in the hydroponic intercropped system. Mortley et al. [8] compared peanuts and sweet potatoes in monocultured and intercropped, recirculating hydroponic systems, using the nutrient film technique (NFT). Whilst the number of storage roots per sweet potato plant was similar for both, monoculture and intercropping, the storage root fresh and dry masses were higher (29% and 36% higher, respectively), in intercropped plants. On the other hand, peanut total dry mass, pod dry mass, mature and total seed dry mass, and fibrous root dry mass were all higher in monoculture than in intercropping, while the useful biomass/total biomass ratio was similar for both arrangements.

As reviewed above, somewhat contradictory results were obtained in terms of vegetable yield and product quality in experiments with different species, indicating a species–specific response. Furthermore, an effect of intercropping on water quality in hydroponic systems has been reported [7], implicating also a possible positive effect on the fish growing in intercropping aquaponic systems. A fundamental aspect of intercropping is that it avoids unfavorable intra- or interspecific competition, whilst fostering interspecific facilitation, in which plants increase the growth and survival of their neighbors [9]. Methods for selecting intercropping partners have not been developed yet. There exists certain knowledge that has accumulated over centuries, e.g., the advantage of nitrogen transfer between legumes and non-leguminous plants in field conditions. Unfortunately, there is no information available about plant competition or facilitation when intercropping is used in novel production systems like aquaponics.

Red chicory is known for its high polyphenol content as compared to lettuce [10] and, in particular, for the presence of antioxidants and bioactive molecules in its root tissue [11]. These can be released in the nutrient solution through root exudates, the amount of which reaches 20% of a plant’s aboveground production [12].

With this in mind, this work was carried out in order to test the hypothesis that the intercropping of lettuce and red chicory will have positive effects on the yield and quality of both vegetables, and possibly even on the growth of fish in aquaponic systems, due to the positive effect of red chicory root exudates.

2. Results

2.1. Water Quality

The water temperature did not show marked variation between treatments, with an average value of 21.8 ± 2.1 °C, whereas significant variations were observed during the trial (Figure 1). The pH, electric conductivity (EC), oxidation–reduction potential (ORP), O₂ content and temperature were not influenced (ANOVA, p > 0.05) by the treatments (Figure 1). In regards to NH₄⁺–N and NO₂⁻–N, on average (between monitoring dates), contents in water were different among treatments, with significantly (ANOVA, p < 0.01) lower values in the system with red chicory (0.094 ± 0.038 mg L⁻¹ and 0.107 ± 0.042 mg L⁻¹ for NH₄⁺–N and NO₂⁻–N, respectively) compared to the lettuce alone, and red chicory and lettuce intercropped (which showed average contents of 0.143 ± 0.066 mg L⁻¹ and 0.153 ± 0.073 mg L⁻¹ mg L⁻¹ in the water, for NH₄⁺–N and NO₂⁻–N, respectively).

A treatment effect on PO₄³⁻ water content was also found, with a significantly (ANOVA, p < 0.05) higher content with intercropping treatment (6.5 ± 3.1 mg L⁻¹) than the other two treatments, which showed an average concentration of 4.7 ± 1.6 mg L⁻¹. No significant differences (ANOVA, p > 0.05) were detected among treatments for Na⁺ (grand mean 98.2 ± 17.1 mg L⁻¹), Mg²⁺ (grand mean 112.4 ± 13.2 mg L⁻¹), K⁺ (grand mean 33.6 ± 28.2 mg L⁻¹), Ca²⁺ (grand mean 37.5 ± 2.5 mg L⁻¹), Cl⁻ (grand mean 95.0 ± 43.1 mg L⁻¹), NO₃⁻ (grand mean 200.1 ± 141.9 mg L⁻¹), or SO₄²⁻ (grand mean 47.5 ± 12.2 mg L⁻¹).

2.2. Plant Production

Experimental treatments (monoculture vs intercropping, and distance from NFT inlet) did not exert significant effects (ANOVA, p > 0.05) on morpho-biometric characteristics, SPAD values (index of relative chlorophyll content), plant weights or dry matter content, with differences between species (

Table 1. Morpho-biometric and physiological characteristics of plants in monoculture, and in intercropping treatments. Different letters (a, b) indicate significant differences (p < 0.05) among treatments for each parameter, according to the Tukey’s Honest Significant Difference (HSD) test. ns = not significant differences.

Parameters		Treatments
		L		L+		R		R+
Head height (cm)		9.5 ± 2.2	a	10.2 ± 2.7	a	7.6 ± 1.3	b	7.5 ± 0.9	b
Head width (cm)		18.8 ± 2.8	ns	19.8 ± 2.7	ns	19.9 ± 1.7	ns	18.5 ± 2.0	ns
Head FW (g)		36.3 ± 16.8	a	37.3 ± 12.4	a	24.2 ± 6.9	b	24.1 ± 8.4	b
Root FW (g)		3.6 ± 1.6	ns	3.1 ± 1.5	ns	2.3 ± 1.4	ns	3.3 ± 2.6	ns
Head DM (%)		5.9 ± 0.4	b	5.8 ± 0.3	b	6.7 ± 0.6	a	6.7 ± 0.5	a
Root DM (%)		4.1 ± 0.4	b	4.2 ± 0.4	b	5.0 ± 1.2	a	4.9 ± 0.9	a
Head:root DW ratio		14.2 ± 2.1	ns	19.2 ± 7.4	ns	18.3 ± 8.3	ns	15.2 ± 11.6	ns
SPAD		7.8 ± 2.3	b	9.6 ± 2.4	b	15.3 ± 4.9	a	14.4 ± 5.1	a
Color parameters	L*	63.7 ± 3.5	a	62.1 ± 3.2	a	45.1 ± 2.9	b	46.1 ± 4.1	b
	a*	−11.0 ± 2.6	b	−11.3 ± 2.3	b	6.7 ± 4.5	a	6.1 ± 4.5	a
	b*	22.8 ± 3.9	a	22.5 ± 3.2	a	5.2 ± 3.5	b	6.2 ± 4.8	b

L = lettuce; R = red chicory; L+ = lettuce intercropped with red chicory; R+ = red chicory intercropped with lettuce; FW = fresh weight; DM = dry matter; SPAD = index of relative chlorophyll content.

). In regards to the color of leaves, no significant differences (ANOVA, p > 0.05) were found for lightness (L*) or blue-yellow components (b*), whereas the a* value (green-red components) significantly (ANOVA, p < 0.05) increased from the inlet (−3.806) to the outlet (−0.596) of the NFT channel. The high differences that were recorded between species are related to the intrinsic color characteristic of the two crops considered. Lettuce does not have red tones, and consequently, the a* values are always negative in contrast to what is recorded for chicory, a typical vegetable with red colored leaves. Intercropping with red chicory significantly increased (ANOVA, p > 0.05) the sugar content in lettuce (+16.0% and +25.3% for glucose and fructose, respectively) (

Table 2. Sugars and phenolic acid content in the dry biomasses of the monocultured and intercropped lettuces. Different letters indicate significant differences (p < 0.05) among treatments for each parameter, according to the Tukey’s HSD test. ns = not significant differences.

Compounds	Treatments
	L		L+
Glucose (g kg−1)	14.88 ± 1.75	b	17.26 ± 1.94	a
Fructose (g kg−1)	18.51 ± 3.26	b	23.19 ± 1.86	a
Chlorogenic acid (mg kg−1)	317.1 ± 26.8	ns	356.3 ± 31.9	ns
Caffeic acid (mg kg−1)	10.7 ± 0.7	a	8.9 ± 0.7	b

L = lettuce; L+ = lettuce intercropped with red chicory.

). Intercropping exerted no effect (ANOVA, p < 0.05) on the sugar content of red chicory (

Table 3. Sugars and phenolic acid content in the dry biomasses of monocultured and intercropped red chicory. Different letters indicate significant differences (p < 0.05) among treatments for each parameter, according to the Tukey’s HSD test. ns = not significant differences.

Compounds	Treatments
	R		R+
Glucose (g kg−1)	18.56 ± 0.20	ns	14.76 ± 2.17	ns
Fructose (g kg−1)	22.96 ± 3.40	ns	25.76 ± 2.76	ns
Chlorogenic acid (g kg−1)	2.97 ± 0.17	ns	2.64 ± 0.19	ns
Chicoric acid (g kg−1)	1.56 ± 0.34	ns	1.07 ± 0.26	ns

R = red chicory; R+ = red chicory intercropped with lettuce.

).

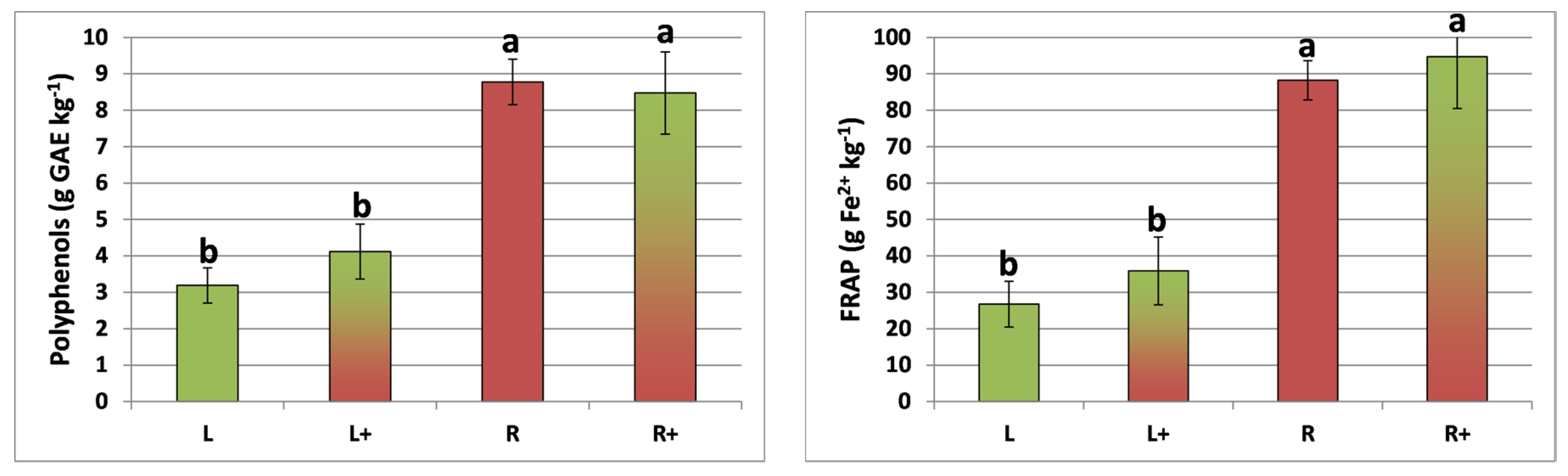

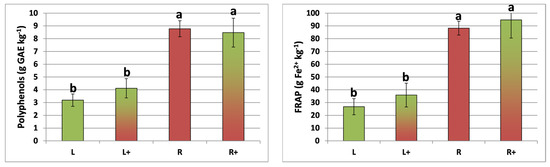

The total phenol content and total antioxidant activity of lettuce and red chicory were not influenced (ANOVA, p > 0.05) by intercropping, and were significantly (ANOVA, p < 0.01) higher in red chicory (Figure 2). Chlorogenic acid was detected in both plant species, whereas caffeic acid was detected only in lettuce, with a significantly (ANOVA, p < 0.05) lower value (−16.8%) in the intercropped system (Table 2). Chicoric acid was found only in red chicory plants, with no treatment effect (ANOVA, p > 0.05) (Table 3).

The two plant species were characterized by different bitter taste compounds (sesquiterpene lactones). In lettuce, intercropping significantly reduced (ANOVA, p < 0.05) the concentration (−42.0%) of dihydro-lactucopicrin + lactucopicrin (

Table 4. Main bitter taste chemical compounds (mg kg⁻¹) in the dry biomasses of monocultured and intercropped lettuce. Different letters indicate significant differences (p < 0.05) among treatments for each parameter, according to the Tukey’s HSD test. ns = not significant differences.

Compounds	Treatments
	L		L+
Dihydrolactucin	12.5 ± 3.1	ns	15.0 ± 1.1	ns
Lactucin	3.9 ± 0.5	ns	3.2 ± 0.9	ns
Dihydro-lactucopicrin + lactucopicrin	26.9 ± 2.0	a	15.6 ± 1.1	b

L = lettuce; L+ = lettuce intercropped with red chicory.

). Specific bitter taste compounds in red chicory responded to intercropping with a significant (ANOVA, p < 0.05) increase (+40.6%) in dihydrolactucin and a significant reduction in dihydro-lactucopicrin + lactucopicrin (−22.0%), and 8-deoxy-lactucin + dihydro-lactucopicrin oxalate (−18.7%) (

Table 5. Main anthocyanidins and bitter taste chemical compounds (mg kg⁻¹) in the dry biomasses of monocultured and intercropped red chicory. Different letters indicate significant differences (p < 0.05) among treatments for each parameter, according to the Tukey’s HSD test. ns = not significant differences.

Anthocyanidin Compounds	Treatments
	R		R+
Cyanidin-3-glucoside	67.2 ± 11.8	ns	76.3 ± 11.6	ns
Cyanidin-3-malonyl–glucoside	1323.7 ± 7.8	ns	1391.8 ± 117.8	ns
Bitter taste compounds
Dihydrolactucin	16.0 ± 1.7	b	22.5 ± 1.2	a
Lactucin	28.7 ± 2.4	ns	29.7 ± 1.4	ns
Dihydro-lactucopicrin + lactucopicrin	29.6 ± 3.2	a	23.1 ± 2.1	b
8-deoxy-lactucin + dihydro-lactucopicrin oxalate	30.0 ± 2.0	a	24.4 ± 1.5	b
Jaquinellin	10.6 ± 0.8	ns	11.7 ± 1.3	ns

R = red chicory; R+ = red chicory intercropped with lettuce.

). Total organic nitrogen in the biomass was not significantly different (ANOVA, p > 0.05) between lettuce and red chicory when they were cultivated alone, with an average concentration of 3.7%. In the intercropping systems, lettuce had a significantly (ANOVA, p < 0.05) higher organic nitrogen content (3.9%) than red chicory (3.4%). Anion and cation contents in the dry biomasses of lettuce and red chicory were affected (ANOVA, p < 0.05) by the species (Cl⁻, NO₃⁻, PO₄³⁻, SO₄²⁻, and Ca₂⁺), the intercropping treatment (K⁺ and Mg²⁺), and the species x intercropping treatment interactions (NO₂⁻ and NH₄⁺) (

Table 6. Anion and cation contents in the dry biomasses of monocultured and intercropped lettuce and red chicory. Different letters indicate significant differences (p < 0.05) among treatments for each parameter, according to the Tukey’s HSD test. ns = not significant differences.

Parameters	Treatments
	L		L+		R		R+
Cl− (g kg−1)	11.37 ± 0.88	b	11.95 ± 1.76	b	41.96 ± 4.59	a	48.16 ± 5.02	a
NO2− (g kg−1)	0.04 ± 0.03	b	0.00 ± 0.00	b	0.37 ± 0.23	b	0.98 ± 0.43	a
NO3− (g kg−1)	58.82 ± 2.96	a	48.49 ± 7.58	a	29.05 ± 3.83	b	24.98 ± 6.90	b
PO43− (g kg−1)	14.36 ± 1.54	b	13.41 ± 0.52	b	18.63 ± 0.56	a	17.93 ± 1.12	a
SO42− (g kg−1)	4.04 ± 0.42	b	3.49 ± 0.59	b	15.47 ± 3.64	a	15.55 ± 6.42	a
Na+ (g kg−1)	6.56 ± 2.04	ns	7.02 ± 0.94	ns	7.06 ± 0.55	ns	6.72 ± 1.30	ns
NH4+ (g kg−1)	0.94 ± 0.15	bc	0.78 ± 0.02	c	1.12 ± 0.06	ab	1.45 ± 0.32	a
K+ (g kg−1)	32.37 ± 5.01	c	31.04 ± 3.15	c	58.39 ± 2.09	b	66.64 ± 3.17	a
Mg2+ (g kg−1)	9.60 ± 0.51	a	8.85 ± 0.25	a	6.22 ± 0.52	b	4.99 ± 0.30	c
Ca2+ (g kg−1)	41.35 ± 1.71	a	39.01 ± 1.76	a	21.69 ± 2.36	b	21.34 ± 2.00	b

L = lettuce; R = red chicory; L+ = lettuce intercropped with red chicory; R+ = red chicory intercropped with lettuce.

).

2.3. Fish Production

Pangasius (Pangasianodon hypophthalmus) mortality was zero, thus showing that no acute negative effect on fish health was exerted by the plants. During the experiments, the pangasius fish in each system consumed, on average, 386 g of feed. Fish production parameters are listed in

Table 7. Pangasius production parameters (average ± standard deviation). ns = not significant differences.

Parameters	Treatments
	L		R		L + R
Fish (number)	16.0 ± 0.0	ns	16.3 ± 0.6	ns	16.0 ± 0.0	ns
Initial fish weight (g)	539.7 ± 41.1	ns	544.0 ± 22.6	ns	559.7 ± 46.1	ns
Final fish weight (g)	766.7 ± 64.3	ns	820.0 ± 52.9	ns	820.0 ± 52.9	ns
Weight gain (%)	42.0 ± 1.9	ns	51.2 ± 15.7	ns	46.8 ± 6.6	ns
SGR (%)	0.82 ± 0.03	ns	0.95 ± 0.25	ns	0.89 ± 0.10	ns
DGR (g d−1)	5.28 ± 0.57	ns	6.42 ± 1.75	ns	6.05 ± 0.64	ns
FCR	1.71 ± 0.17	ns	1.48 ± 0.47	ns	1.49 ± 0.17	ns
FER	0.59 ± 0.06	ns	0.72 ± 0.20	ns	0.67 ± 0.07	ns

L = lettuce; R = red chicory; L+R = intercropping of lettuce and red chicory; SGR = specific growth rate DGR = daily growth rate; FCR = feed conversion ratio; FER = feed efficiency ratio.

. The obtained results, although without significant differences (ANOVA, p > 0.05), suggest a positive effect of red chicory presence on fish growth. Specific growth rate (SGR) was always below 1% (Table 7).

3. Discussion

3.1. Water Quality

pH is an important parameter in aquaponics because it influences both fish and plants, the former through nitrification rates and the fraction of toxic unionized ammonia in the system, and the latter through the nutrients’ availabilities [13]. Although aquaponic systems can tolerate a wide range of pH values (from 6.0 to 9.0) [14], literature data indicate that the optimum water pH range for nitrifying bacteria is between 7.0 and 8.5 [15,16], whereas lower pH values (from 5.5 to 7.2) result in better availability of plant nutrients [17,18,19] because the precipitation of Fe, Mn, P, Ca, and Mg to insoluble and unavailable salts is avoided [13]. A compromise between nitrification and nutrient availability is reached in aquaponic systems by maintaining pH values close to 7 [20]. In this study, the pH value was optimal, ranging between 6.5 and 8.5, showing a constant decrease during the monitoring period. This decrease can be attributed to the bacteria-mediated nitrification [21] and to the accumulation of CO₂ that reacts with water and thus produces carbonic acid [22].

EC values increased over the experimental period, indicating the accumulation of ions, due to the ions released from the fish feed and the ions derived from the mineralization of accumulated organic matter [23]. We assume that the increase in EC is attributable mainly to the ions that are not readily absorbed by plants (Na⁺, Cl⁻, SO₄²⁻), suggesting that water exchange should be scheduled for the system over the medium–long term in order to prevent possible toxic effects to the plants and/or to the fish.

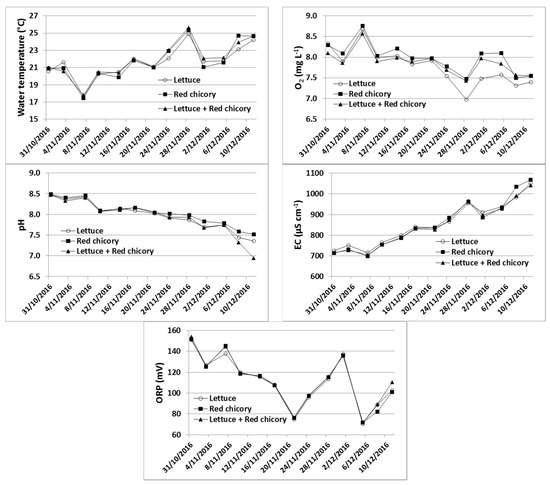

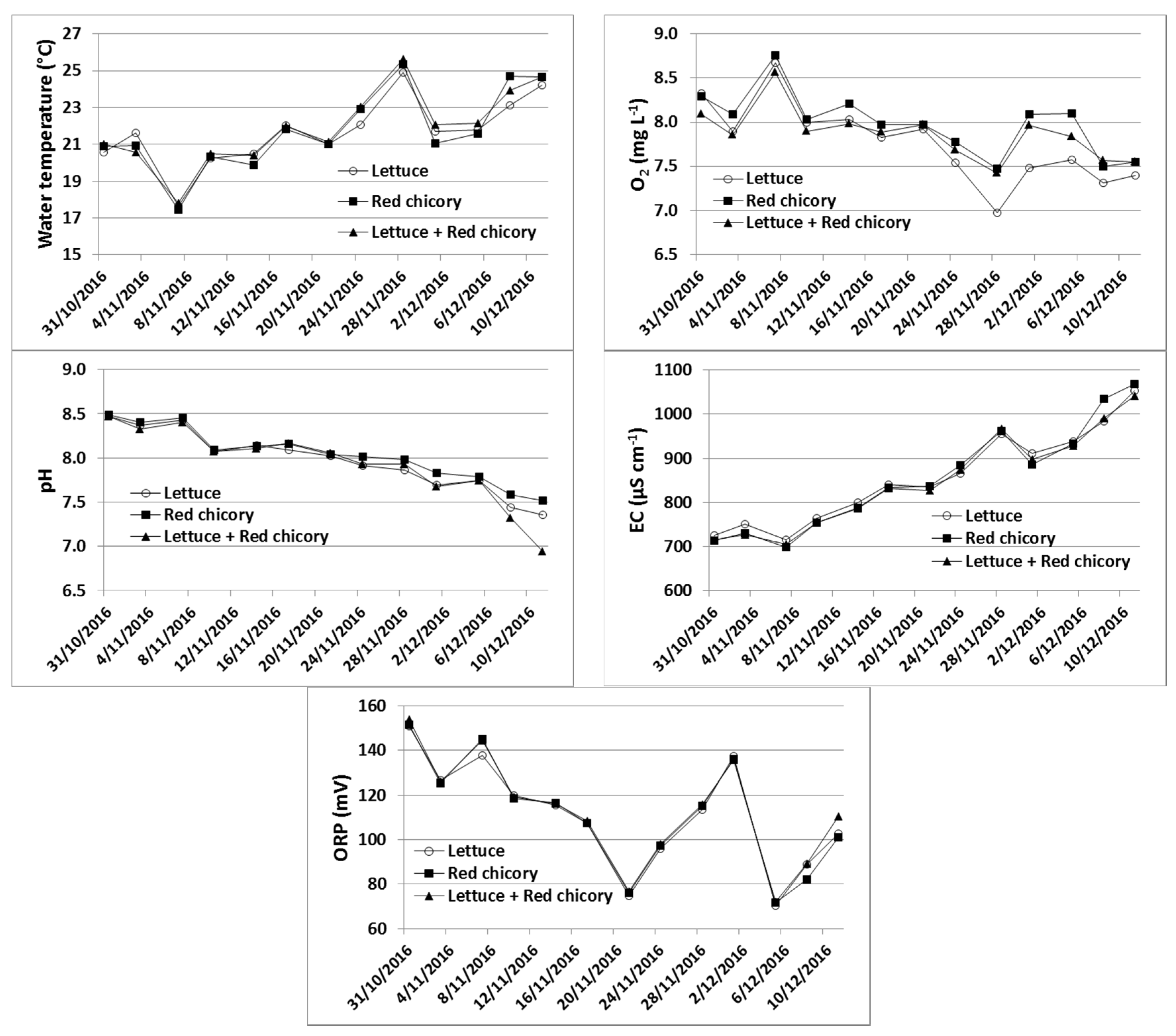

Water ORP values varied during the experiment (Figure 1) showing, independently from the date and the treatment type, an average value of 111.6 ± 24.1 mV, indicating oxidative conditions in the systems that enable complete nitrification. This is confirmed by the water O₂ content that showed an average value of 7.9 ± 0.4 mg L⁻¹, which was within the optimal range (5 to 8 mg L⁻¹) suggested for aquaponic systems [24].

3.2. Plant Production

Plant weight was very low (5 to 10 times lower) when compared to other studies from both greenhouse and open field conditions [25,26,27]. This was due to both the short experimental period, due to the red chicory cultivar being characterized by a growth cycle of about 50 days, and the environmental conditions. In particular, the low temperature reduced fish feed consumption, which in turn affected nutrient levels in the water.

Considering the color coordinates, the a* value variation indicated that, from the inlet to the outlet of the NFT channel, the color profile of the vegetables decreased in the green, and increased in the red fraction. This suggested that plants positioned further from the inlet of the NFT channel, were more stressed—probably due to the depletion of nutrients in the water flow—and responded to stress by producing more anthocyanins.

It is difficult to explain the increased lettuce sugar content following intercropping with red chicory, because of the limited availability of experiments in this field. Nevertheless, it is possible to hypothesize the mechanisms that have led to this result by referring to intercropping experiments in soil , albeit with different species. Ahmad et al. [28] showed that the chlorophyll content in pepper (Capsicum annuum L.) increased when intercropped with garlic (Allium sativum L.). Any variation in chlorophyll content is expected to bring changes in photosynthesis rates. Consequently, the higher content of sugars in lettuce may be due to the higher content of chlorophylls, as evidenced, though not significantly, by the SPAD values.

The levels of chlorogenic acid and chicoric acid in red chicory plants in aquaponics were much higher when compared to other types of radicchio (Cichorium intybus L., group Rubifolium) [29], which probably reflects higher stress levels. Also, chemical compounds responsible for bitter taste were higher than those found in other studies [30]. Moreover, if we consider each sesquiterpene lactone’s sensory threshold [31], the bitter taste of red chicory cultivated in aquaponic systems could be easily perceived. Variations in anion and cation contents in lettuce and red chicory dry biomasses are linked to the different nutritional needs of the species, but also to the ionic equilibria present in the cultivation system. For example, the high levels of nitrate in lettuce are mainly due to the greater capacity of lettuce to absorb nitric nitrogen, as opposed to red chicory [32]. Conversely, the lower Mg²⁺ content found in R+ (red chicory intercropped with lettuce) is related to the known antagonistic effect of K⁺, which is highly absorbed in R+. This result is in turn linked to the presence of Ca²⁺, which may have antagonistic effects against K⁺. In fact, the lower Ca²⁺ content in R (red chicory) and R+, mainly due to the higher absorption capacity of Ca²⁺ by lettuce, exerts a greater assimilation of K⁺ by the red chicory itself.

3.3. Fish Production

Fish SGR was influenced by the feed composition, and values ranging from 0.93% to 2.28% have been previously reported [33,34,35,36]. Feed conversion ratios (FCR) ranged from 1.48 to 1.71, with lower values in the systems with red chicory. Literature data showed FCR values ranging from 1.49% to 3.80% [33,34,35,36]. The better fish performance in the systems with red chicory was probably due to the better water quality, in terms of NH₄⁺ and NO₂⁻ levels. This is indirectly confirmed by the findings of Lam et al. [37] who reported higher fish growth at higher hydroponics/aquaculture ratios because the higher plant presence to absorb the fish waste provides better water quality conditions for the fish.

4. Materials and Methods

4.1. Experimental Design

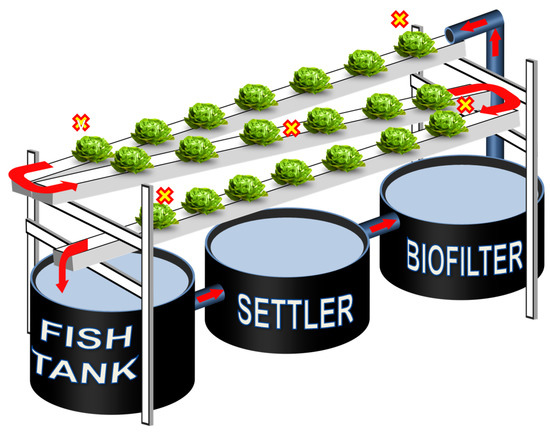

The experiment was conducted from 31 October to 12 December 2016 (6 weeks) in a double plastic-covered greenhouse at the Zurich University of Applied Sciences (ZHAW) in Wädenswil, Switzerland. Nine small-scale aquaponics systems were used and arranged in a randomized block experimental design; each consisting of a fish tank, a settling tank, a biofilter and a 7.5 m long NFT channel (Figure 3). The total volume of each system was approximately 400 L. Aeration into the sump and the biofilter was provided via compressed air using AL-80 air pumps (Alita Industries, Arcadia, CA, USA) (one pump for every three systems) and air stone diffusers, to assure suitably dissolved oxygen (DO) levels, as well as proper, continuous mixing of biochips in the biofilter. A water pump (Aquarius Universal Eco 4000, Oase GmbH, Hörstel, Germany) with an approximate flow rate of 62 L h⁻¹ directed water flow from the biofilter to the NFT channels. Three heaters (NEWA Therm pro 300W, NEWA Tecno Industrial Srl, Loreggia, Italy) were installed in the biofilter to maintain constant temperatures in the system (26.5 ± 1.5 °C). No additional lighting was used. Water evapotranspiration of systems was reintegrated 7 times during the experiment, adding 3.0 ± 0.5 L system⁻¹ day⁻¹ (0.75% of system water).

The tanks were stocked with pangasius (Pangasianodon hypophthalmus). The fish were manually fed ad libitum with a swimming pelleted feed (Pre Grower-15 EF, 2.0 mm, 50% protein, 1.35% total phosphorus) three times per day. The NFT channels of the three systems each were planted with (i) lettuce (Lactuca sativa L.) alone, (ii) red chicory (Cichorium intybus L. rubifolium group) alone and (iii) an intercropping of these two species.

4.2. Water Quality Monitoring

The system water was monitored twice a week by measuring temperature, dissolved oxygen (DO), pH, and electric conductivity (EC) with a portable multi-parameter meter (HQ40d Portable Multi-Parameter Meter, Hach Lange GmbH, Germany). Once a week, the levels of ammonium nitrogen (NH₄⁺–N) and nitrite nitrogen (NO₂⁻–N) were determined photometrically (cuvette tests, Hach Lange GmbH, Germany). Quantitative determination of Na⁺, Mg²⁺, K⁺, Ca²⁺, Cl⁻, NO₃⁻, PO₄³⁻, and SO₄²⁻ was carried out by ion chromatography at the end of experiment on frozen samples taken six times from the third to the sixth experimental weeks.

4.3. Fish Monitoring

The fish mortality was monitored daily. All fish from each tank were weighed together at the beginning and at the end of experiment, and the following parameters were determined:

$$\mathrm{Weight}\mathrm{gain}(\%)=\frac{\mathrm{final}\mathrm{weight}-\mathrm{initial}\mathrm{weight}}{\mathrm{initial}\mathrm{weight}}\times 100$$

(1)

$$\mathrm{Specific}\mathrm{growth}\mathrm{rate}\left({\mathrm{SGR}\%\mathrm{d}}^{-1}\right)=\frac{\ln \mathrm{final}\mathrm{weight}-\ln \mathrm{initial}\mathrm{weight}}{\mathrm{culture}\mathrm{days}}\times 100$$

(2)

$$\mathrm{Daily}\mathrm{growth}\mathrm{rate}\left({\mathrm{DGR}\mathrm{g}\mathrm{d}}^{-1}\right)=\frac{\mathrm{final}\mathrm{weight}\left(\mathrm{g}\right)-\mathrm{initial}\mathrm{weight}\left(\mathrm{g}\right)}{\mathrm{culture}\mathrm{period}\left(\mathrm{d}\right)}$$

(3)

$$\mathrm{Feed}\mathrm{conversion}\mathrm{ratio}\left(\mathrm{FCR}\right)=\frac{\mathrm{total}\mathrm{weight}\mathrm{of}\mathrm{feed}\mathrm{given}\left(\mathrm{g}\right)}{\mathrm{total}\mathrm{fish}\mathrm{weight}\mathrm{gain}\left(\mathrm{g}\right)}$$

(4)

$$\mathrm{Feed}\mathrm{efficiency}\mathrm{ratio}\left(\mathrm{FER}\right)=\frac{\mathrm{total}\mathrm{fish}\mathrm{weight}\mathrm{gain}\left(\mathrm{g}\right)}{\mathrm{total}\mathrm{weight}\mathrm{of}\mathrm{feed}\mathrm{given}\left(\mathrm{g}\right)}$$

(5)

4.4. Plant Harvest and Biomass Analysis

Thirty seedlings per system were transplanted into NFT channels on 31 October 2016 and were harvested on 12 December 2016, by removing two plants at five points on each NFT channel (Figure 3), for a total of 10 and 20 plants for each monoculture and intercropping system, respectively. Monitoring of plants is schematized in Figure 4.

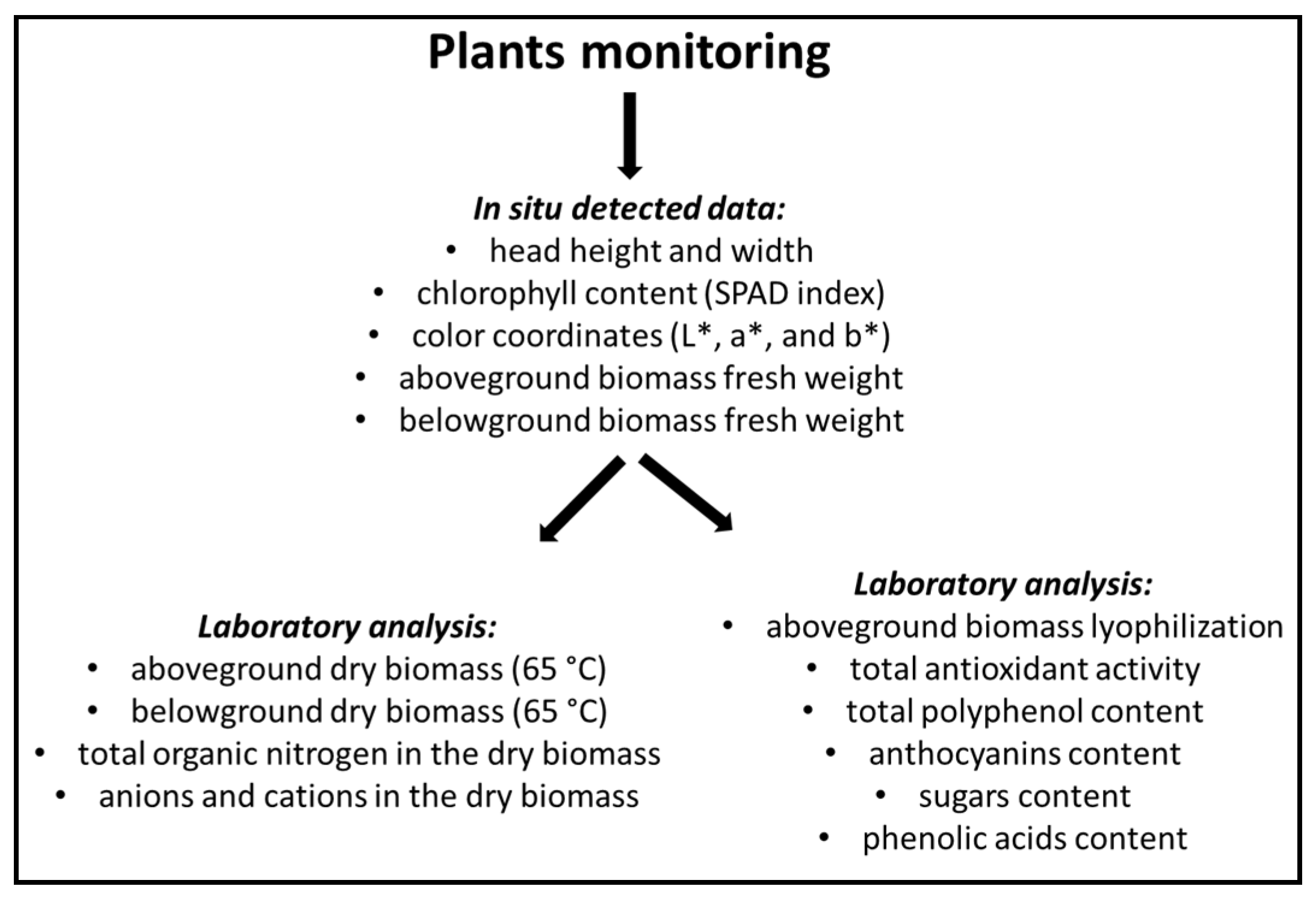

Plants selected for sampling were morpho-biometrically characterized for head height and width, chlorophyll content (SPAD index), and color coordinates (L*, a*, and b*—explained in Section 4.4.1), one day before harvest. At harvest time, one plant per sampling point (in total 5 and 10 plants for each monoculture and intercropping system, respectively) was divided into aboveground and belowground biomasses, and the fresh weights of both were determined. The dry matter content was determined by drying samples in a thermo-ventilated oven at 65 °C until a constant weight was achieved (i.e., two days). Total organic nitrogen (Kjeldahl method), anion and cation contents (method explained in Section 4.4.5) in the dry biomasses were measured. Another plant per sampling point (in total 5 and 10 plants for each monoculture and intercropping system, respectively) was lyophilized and analyzed to determine total antioxidant activity, polyphenol content, anthocyanins, sugars and phenolic acid content.

4.4.1. SPAD Index and Plant Color

The leaf chlorophyll content was indirectly measured through the SPAD index, with three readings per plant, using a portable chlorophyll meter (SPAD-502, Minolta, Japan). For both species leaf color was measured via a Minolta colorimeter CR-300 (Minolta Camera Co., Osaka, Japan) to obtain L*, a* and b* values. L* indicated lightness, read from 0 (completely opaque or “black”) to 100 (completely transparent or “white”). A positive a* value indicated redness (−a* is greenness) and a positive b* value indicated yellowness (−b* is blueness) on the hue-circle. Measurements were made in the distal parts of leaves, avoiding leaf veins.

4.4.2. Extraction and Analysis of Phenols

Plant tissues (0.2 g) were homogenized in methanol (20 mL) with an Ultra Turrax T25, until reaching uniform consistency, at 13,500 rpm. Samples were filtered (filter paper, 589 Schleicher) and appropriate aliquots of extracts were assayed by the Folin–Ciocalteau (FC) assay for total phenol content. For the HPLC analysis, extracts were further filtered through cellulose acetate syringe filters (0.45 µm). For each sample, triplicate extractions and analyses were carried out. Results are reported on a dry matter basis.

The content of total phenols was determined by the FC assay [38], with gallic acid as the calibration standard, using a Shimadzu UV-1800 spectrophotometer (Columbia, MD, USA). The FC assay was carried out by pipetting 200 µL of plant tissue extract into a 10 mL PP tube. This was followed by the addition of 1 mL FC reagent (Labochimica s.r.l.). The mixture was vortexed for 20–30 s and 800 µL of filtered 20% sodium carbonate solution was added 8 minutes after the addition of the FC reagent. This was recorded as time zero; the mixture was then vortexed for 20–30 s. After 2 h at room temperature, the absorbance of the colored reaction product was measured at 765 nm. Total phenol content in the extracts was calculated from a standard calibration curve, built with different concentrations of gallic acid, ranging from 0 to 400 µg mL⁻¹ (correlation coefficient: R² = 0.9988). Results were expressed as milligrams of gallic acid equivalent per kg (mg GAE kg⁻¹) of dry matter.

Phenolic acids were separated and quantified by an HPLC diode array detection using a Jasco X-LC system, consisting of a model PU-2080 pump, a multi-wavelength detector (model MD-2015), autosampler (model AS-2055) and column oven (model CO-2060). ChromNAV Chromatography Data System software was used for the analysis of results. The separation of phenolic acids was achieved on a Tracer Extrasil OSD2 column (5 µm, 250 × 4.6 mm), operating at 35 °C, at a flow rate of 1 mL min⁻¹. The mobile phase consisted of two solvents: 0.1% formic acid (A) and methanol (B). Gradient elution was as follows: 0–100% B over 50 min and held at 100% B for an additional 10 min to clean up the column. Two wavelengths (310 and 325 nm), were used to detect eluent composition. HPLC analysis at 325 nm was used for the quantification of chlorogenic acid, caffeic acid, and ferulic acid. Quantification of p-coumaric acid was performed at 310 nm. Phenolic acids were quantified following a calibration method. Four standards ranging from 0.3 to 30 mg L⁻¹ of chlorogenic acid hemihydrate, p-coumaric acid, caffeic acid, and ferulic acid were used.

4.4.3. Determination of Antioxidant Activity by Ferric Reducing Antioxidant Power (FRAP)

The assay was based on the methodology of Benzie and Strain [39]. The FRAP reagent was prepared fresh so that it contained 1 mm 2,4,6-tripyridyl-2-triazine (TPTZ) and 2 mm ferric chloride in 0.25 m sodium acetate at pH 3.6. A 100 µL aliquot of the methanol extract prepared as above was added to 1900 µL FRAP reagent and thoroughly mixed. After leaving the mixture at 20 °C for 4 min, the absorbance at 593 nm was determined. Data were determined by using a calibration curve (0–6000 µg mL⁻¹ ferrous ion), produced by the addition of freshly prepared ammonium ferrous sulfate. FRAP values were calculated as µg mL⁻¹ ferrous ion (ferric reducing power) from three determinations and are presented as mg kg⁻¹ Fe²⁺E (ferrous ion equivalent).

4.4.4. Quantitative Determination of Sugars by HPLC

The sugar content was determined by liquid chromatography. The Jasco X-LC system consisted of a pump (model PU-2080), refractive index detector (RI-2031), autosampler (AS-2055) and column (CO-2060). The software used was a ChromNAV Chromatography Data System. The separation of sugars was achieved on a HyperRez XP Carbohydrate Pb⁺⁺ analytical column (7.7 × 300 mm; Thermo Scientific, Milan), operating at 80 °C. Isocratic elution was effected using water at a flow rate of 0.6 mL min⁻¹. d-(+)-glucose and d-(−)-fructose were quantified following a calibration method. The calibration curves were generated with concentrations of standards ranging from 100 to 1000 mg L⁻¹.

4.4.5. Quantitative Determination of Anions and Cations by Ion Chromatography (IC)

IC was performed using an ICS-900 system (Dionex Corp., Milan). Chromeleon 6.5 Chromatography Management software was used for system control and data processing. A Dionex IonPac AS23 analytical column (4 × 250 mm) and guard column (4 × 50 mm) were used for anion separation, whereas a Dionex IonPac CS12A analytical column (4 × 250 mm) and guard column (4 × 50 mm) were used for cation separation. The eluent consisted of 4.5 mmol L⁻¹ sodium carbonate and 0.8 mmol L⁻¹ sodium bicarbonate at a flow rate of 1 mL min⁻¹ for anions and of 20 mmol L⁻¹ methanesulfonic acid for cations at the same flow rate. For the calibration, Dionex solutions containing seven anions at different concentrations and five cations were taken as standards and the calibration curves were generated with concentrations ranging respectively from 0.4 to 20 mg L⁻¹ and 0.5 to 50 mg L⁻¹.

4.5. Statistical Analysis

Statistical analysis was performed according to a randomized block design with three treatments in triplicate. Data were normally distributed (Shapiro–Wilk’s W test), and so they were analyzed by analysis of variance (ANOVA). In the case of a significant F-value, the means were compared using Tukey’s Honest Significant Difference (HSD) test.

5. Conclusions

This paper tested the hypothesis that intercropping lettuce and red chicory in aquaponic systems would have a positive effect on vegetable yields and quality, and on the growth of fish. No significant effect due to intercropping was observed on the vegetables' yield whereas species-specific responses on the vegetables’ qualitative traits were observed. In particular, intercropping increased the glucose and fructose contents and reduced the caffeic acid content in the lettuce. No unique response for red chicory with intercropping cultivation was obtained in regards to the main bitter taste chemical compounds, with a significant increase in dihydrolactucin and decrease in dihydro-lactucopicrin + lactucopicrin and 8-deoxy-lactucin + dihydro-lactucopicrin oxalate in intercropped plants. There was a positive effect from the presence of red chicory in aquaponic system on fish growth parameters. Our results suggest that: (1) the intercropping technique is a possible solution to improve vegetable quality in aquaponic systems; (2) intercropping of lettuce and red chicory affects the typical taste of these vegetables (sweetness and bitter taste for lettuce and red chicory, respectively). Although the results are interesting they have been obtained in a relatively short period; further studies for a longer period are needed to confirm our findings and to validate the observed effects on fish growth.
