Article

Tight Interplay between Replication Stress and Competence Induction in Streptococcus pneumoniae

by
Vanessa Khemici
1,2,†,
Marc Prudhomme
1,2,† and
Patrice Polard
1,2,*
1
Laboratoire de Microbiologie et Génétique Moléculaires (LMGM), Centre de Biologie Integrative (CBI), Centre National de la Recherche Scientifique (CNRS), 31062 Toulouse, France
2
Université de Toulouse, Université Paul Sabatier, 31062 Toulouse, France
*
Author to whom correspondence should be addressed.
†
These authors equally contributed to this work.
Cells 2021, 10(8), 1938; https://doi.org/10.3390/cells10081938
Submission received: 28 May 2021 / Revised: 15 July 2021 / Accepted: 20 July 2021 / Published: 30 July 2021
(This article belongs to the Special Issue DNA Repair, Genome Stability/Diversity, and Oxidative Stress and Aging, from Bacteria to Human Cells: A Themed Issue in Honor of Prof. Miroslav Radman)
Browse Figures
Review Reports Versions Notes

Abstract

:
Cells respond to genome damage by inducing restorative programs, typified by the SOS response of Escherichia coli. Streptococcus pneumoniae (the pneumococcus), with no equivalent to the SOS system, induces the genetic program of competence in response to many types of stress, including genotoxic drugs. The pneumococcal competence regulon is controlled by the origin-proximal, auto-inducible comCDE operon. It was previously proposed that replication stress induces competence through continued initiation of replication in cells with arrested forks, thereby increasing the relative comCDE gene dosage and expression and accelerating the onset of competence. We have further investigated competence induction by genome stress. We find that absence of RecA recombinase stimulates competence induction, in contrast to SOS response, and that double-strand break repair (RexB) and gap repair (RecO, RecR) initiation effectors confer a similar effect, implying that recombinational repair removes competence induction signals. Failure of replication forks provoked by titrating PolC polymerase with the base analogue HPUra, over-supplying DnaA initiator, or under-supplying DnaE polymerase or DnaC helicase stimulated competence induction. This induction was not correlated with concurrent changes in origin-proximal gene dosage. Our results point to arrested and unrepaired replication forks, rather than increased comCDE dosage, as a basic trigger of pneumococcal competence.

1. Introduction

All genomes are susceptible to potentially life-threatening damage, of both environmental and endogenous origin. To confront this challenge to their survival, organisms have evolved a range of repair pathways, notably those inducible by the damage itself. The first program found to be triggered in response to DNA damage was the SOS response of Escherichia coli [1,2]. It is set in motion when some mishap generates single-stranded DNA on which the RecA protein polymerizes; the resulting nucleofilament activates autoproteolysis of the transcriptional repressor LexA and thus expression of the LexA-controlled genes that provide DNA repair functions.
The SOS system is widespread in bacteria but not universal, and some species have evolved other responses to genome damage [3]. A prominent example is Streptococcus pneumoniae (the pneumococcus), which does not encode a LexA homologue but responds to genotoxic agents by developing the distinct physiological state of competence [4]. Competence provides the cells with new properties, including the well-known horizontal gene transfer process of genetic transformation [5]. Many species share this ability to convert to competence for transformation, as well as a similarity of mechanism in the importing of external DNA across the cell membrane and integration into the genome by RecA-directed homologous recombination [5]. On the other hand, regulation of competence appears specific to each species, reflecting the distinct integration of the genetic program into each bacterial lifestyle [6]. Here, we report our analysis of pneumococcal competence induction in response to various types of genome stress that disrupt DNA recombination and replication dynamics.
The core of pneumococcal competence control is a two-component system (TCS) consisting of the histidine kinase ComD and the transcription regulator ComE [6,7]. The ComDE TCS is modulated by a competence-stimulating peptide (CSP), encoded by the comC gene in the form of a pre-CSP that is matured and exported through the cell membrane by the ABC transporter ComAB. These elements define a positive feedback loop, termed the ComABCDE core sensing system, which integrates various kinds of stress and coordinates development of competence in the population (Figure 1A; [8]). In liquid cultures, competence induction occurs only during the exponential phase of growth and after a time delay characteristic of the strain and growth conditions (a ‘pre-competence’ period referred to as XA; Figure 1A [9]). Induction of competence results in two successive transcriptional waves, termed early and late. The early wave is initiated by ComE upon its phosphorylation by ComD [8,10]. Phosphorylated ComE activates about 20 early competence (com) genes, including comX whose product, the sigma factor σX, primes the late wave by governing the transcription of about 60 other com genes. The σX regulon includes DprA that, in addition to mediating RecA-directed recombination during transformation [11], interacts with phosphorylated ComE to shut off competence [12]. Thus, the shift to competence as measured by com gene expression is transient, lasting for roughly one generation (referred to as the XB period [9]; Figure 1A). A feature of pneumococcal competence is that it develops only during the exponential phase of growth, during which the replicative state of the chromosome renders it particularly sensitive to damage or disruption.
A previous study showed pneumococcal competence to be induced by drugs that alter genome integrity or replication [13]. Competence was proposed to substitute for the SOS system in the pneumococcus, which does not possess a LexA homologue [4,14]. This raised the question of how replication stress signals are conveyed to the ComDE-mediated competence induction system. It was observed that these stresses were correlated with increased abundance of transcripts originating from the ori-proximal comCDE operon whose gene dosage had risen as a result of deceleration of the replication forks [15]. Here, we have further studied the signaling that triggers competence development following genome damage in the pneumococcus. We first found that RecA and the main homologous recombination pathways RexAB and RecFOR are not involved in this signaling. Rather, RecA prevents competence development via its recombinational repair activity. While we also observed a link between fork arrest and competence development, our results do not support the notion that signaling stems from a comCDE gene dosage effect. Instead, they suggest that arrested and unrepaired replication forks are the trigger for competence induction.

2. Material and Methods

2.1. Pneumococcal Strains, Cell Growth, Competence Recording, and Transformation Procedures

Streptococcus pneumoniae strains used in this study are listed in Table S1. They are all derivatives of R800, which derives from the unencapsulated R6 strain originating from D39 lineage [9].
All strains were stored at −70 °C in the form of stock cultures, which were used to inoculate liquid fresh medium to measure competence development under the distinct conditions described in the text and/or the figures legends. Stock cultures were prepared at 37 °C in liquid C+Y medium [16] at pH 6.8 to impede spontaneous competence development. Cells were grown to OD550 = 0.2, centrifuged at 6000 rpm for 5 min at 4 °C to discard the medium, resuspended with fresh C+Y medium containing 15% glycerol to OD550 = 0.4, and kept frozen at −70 °C. In the case of ePlac::dnaA, ePlac::dnaE, and ePlac::dnaC strains, C+Y medium was supplemented with 10 µM IPTG, which is the concentration that results in a WT growth rate and ori/ter ratio value.
Competence was monitored in real time over the growth of the cell population by using a transcriptional fusion between the luc firefly luciferase gene and the comC promoter (in the case of the recA− and rexB− strains, along with the isogenic WT (wild type) strain) or ssbB promoter (in all other mutant strains, along with the isogenic WT strain), as listed in Table S1. Cultures were started by diluting the stock cultures 50- or 100-fold in C+Y medium adjusted to the desired pH and supplemented with luciferin in a 96-well white NBS micro plate (Corning) [17]. Relative luminescence units (RLU) and OD492 values were recorded every 5 to 10 min (depending on the experiment) during growth at 37 °C with no shaking in a Varioskan Flash luminometer (Thermo Fisher Scientific Waltham, MA, USA).
HPUra (6(p-Hydroxyphenylazo)-uracil), MMC (mitomycin-C) and IPTG were added to the growth medium at the final concentrations indicated in the figures. OD492 values and luminescence values reported as RLU/OD492 ratio were measured in real time over the growth of each strain under the different conditions described in the figures. Each figure reports a representative experiment or a mean (and standard deviation) of at least three independent experiments, which gave rise to similar results.
For the plating tests, stock cultures were 10-fold serially diluted, spotted on CAT-agar [18] containing 2% horse blood, 500 units/mL of catalase and IPTG (as indicated), and incubated overnight at 37 °C.
Genome modifications were performed by natural transformation with the use of chromosomal or PCR fragments as transforming DNA (tDNA), following the procedure described previously [19]. Briefly, freshly inoculated stock cells were treated at 37 °C for 10 min with synthetic Competence-Stimulating Peptide (CSP1; 100 ng mL−1) to induce competence for genetic transformation. Next, tDNA was added to the competent cells, which were further incubated for 20 min at 30 °C before plating on CAT-agar plates supplemented with 4% horse blood and, when required, with the appropriate concentration of the following antibiotics and after phenotypic expression for 120 min at 37 °C: kanamycin (Kn; 500 µg mL−1), spectinomycin (Spc; 200 µg mL−1), and chloramphenicol (Cm; 9 µg mL−1). Constructs obtained with PCR fragments as tDNA were checked by PCR and sequencing.

2.2. Pneumococcal Strain Constructions

2.2.1. recA, recO, recR, recF, and rexB Strains

The recA− R3309 strain was constructed by transformation of the R825 strain with genomic DNA of the R209 strain that contains the recA::cm allele. The recO− strain R2411 was constructed by transformation of the R895 strain with genomic DNA of the R2372 strain that contains the recO:: spc13C allele (Johnston et al. 2015). The recR− strain R2412 was constructed by transformation of the R895 strain with genomic DNA of the R2373 strain that contains the recR:: kan15C allele (Johnston et al. 2015). The rexB− strain R4036 was constructed by transformation of the R825 strain with genomic DNA of the DPH14 strain that contains the rexB:: spc allele [20].

2.2.2. CEP-Plac::yabA Strain

The CEP-Plac::yabA strain (R3319) derives from the R895 and R3310 strains. The R3310 strain comprises the Chromosomal Expression Platform (CEP)-Plac, which is inserted at the amiF locus and is composed of a Kn-resistance gene, the lacI gene, the IPTG-inducible Plac promoter, and the luc coding sequence as previously described [21]. The CEP-Plac::yabA (R3319) strain was generated by transforming the R895 strain with a SOEing PCR product composed of the CEP-Plac::yabA sequence framed by the amiF-lacI-Plac and kan-treP sequences and obtained from the three PCR products: amiF-lacI-Plac (primers OVK134 and OVK169 using R3310 genomic DNA as a template), yabA (primers OVK229 and OVK230 using R895 genomic DNA as a template), and kan-treP (primers OVK172 and OVK139 using R3310 genomic DNA as a template).

2.2.3. CEP-Plac::dnaA Strain

The CEP-Plac::dnaA strain (R3318) was obtained by transformation of the R895 strain with plasmid pVKCEP-Plac::dnaA, which includes the lacI-Plac::dnaA-kan construct framed by amiF and treP sequences constructed by the SOEing with the pUC19 plasmid backbone. This plasmid derives from the plasmid pVKCEP-Plac::I-sceI constructed as follows: first, a CEP-Plac::I-sceI strain (R3312) was constructed by transformation of R825 with a SOEing-PCR fragment assembled from three PCR products corresponding to amiF-lacI-Plac (primers OVK134 and OVK169 and genomic DNA from R3310 as a template), I-sceI (primers OVK170 and OVK208 and plasmid pUC19-I-SceI as a template), and kan-treP (primers OVK172 and OVK139 using genomic DNA of R3310 as a template (the I-sceI coding sequence was synthesized with codons optimized for S. pneumoniae as defined by the OptimumGene™ algorithm and cloned into the pUC19 vector by Genscript USA to generate plasmid pUC19-I-sceI); second, a PCR fragment corresponding to CEP-Plac::I-sceI (primers OVK301 and OVK304 using genomic DNA from R3313 strain) digested PstI/EcoRI was cloned into pUC19(NdeI) (pUC19(NdeI) is a pUC19 derivative mutated for its NdeI site); third, to generate the pVKCEP-Plac::dnaA plasmid, a PCR fragment encompassing dnaA coding sequence, generated with OVK214 and OVK3 primers and using R895 as a template, was digested by NdeI and BamHI and substituted for the I-SceI coding sequence into pVKCEP-Plac::I-sceI digested by NdeI and BamHI.

ePlac::dnaA, ePlac::dnaE, and ePlac::dnaC Strains

To construct these strains, we first designed a construct allowing the targeted insertion of the Plac promoter at any endogenous locus of the pneumococcal chromosome and defined as ePlac hereafter (with e indicating endogenous). This construct derived from the CEP-Plac::luc ectopic construct of the R3110 strain [21], with a Spc-resistance gene (aad9) substituting the Kn-resistance gene to give the R3311 strain. This substitution was achieved by transformation of the R3110 strain with a SOEing-PCR product between three PCR products corresponding to lacI (primers OVK136 and OVK213 using genomic DNA of R3310 as a template), aad9 (primers OVK210 and OVK28 on plasmid pR412 [22], and Plac::luc (primers OVK214 and OVK215 using genomic DNA of R3310 as a template), as well as selecting for SpcR KnS clones.
The ePlac::dnaA strain (R3317) was obtained by transformation of R895 with a SOEing PCR fragment generated from three overlapping PCR products made of the 5′-dnaA sequence (primers OVK196 and OVK218 using genomic DNA of R895 as a template), the lacI and Plac promoter sequences up to the ATG initiation codon (primers OVK136 and OVK169 using genomic DNA of R3311 as a template), and the dnaA coding sequence (primers OVK219 and OVK199 using genomic DNA of R895 as a template), as well as selection for SpcR clones. Of note, the natural TTG start codon of dnaA has been maintained in this synthetic construct and is preceded by the ATG codon from the Plac promoter.
The ePlac::dnaC (R3316) strain was obtained by transformation of R895 with a SOEing PCR product generated from three overlapping PCR products made of the 5′-dnaC sequence (primers OVK245 and OVK246 using genomic DNA of R895 as a template), the lacI and Plac promoter sequences up to the ATG initiation codon (primers OVK136 and OVK237 using genomic DNA of R3311 as a template), and the dnaC coding sequence (primers OVK247 and OVK248 using genomic DNA of R895 as a template).
The ePlac::dnaE (R3315) strain was constructed by transformation of R895 with a SOEing-PCR product generated from three overlapping PCR products made of the 5′-dnaE sequence (primers OVK251 and OVK252 using genomic DNA of R895 as a template), the lacI and Plac promoter sequences up to the ATG initiation codon (primers OVK136 and OVK237 using genomic DNA of R3311 as a template), and the dnaE sequence (primers OVK256 and OVK254 using genomic DNA of R895 as a template). Of note, an extra sequence of seven nucleotides was found inserted between the Shine-Dalgarno and the ATG of the Plac promoter in this synthetic ePlac::dnaE construct.
These SpcR strains were selected on solid THY medium (Thodd Hewitt broth supplemented with 2% yeast extract (Difco)) supplemented by IPTG (10 μM). Next, clones were screened for their IPTG dependency for growth, and the genomic region encompassing the fused PCR fragments was fully sequenced.

2.3. ori/ter Ratio Measurement

Genomic DNAs were prepared using a DNeasy DNA extraction kit (Qiagen). Quantitative realtime PCR was performed on a Realplex thermocycler device using Sybergreen dye (iQ SYBR Green Supermix, Biorad, Hercules, CA, USA) to amplify specific origin or terminus sequences. Oligonucleotides used for PCR amplification were chosen by using the ‘eprimer3′ program (http://bioweb.pasteur.fr (accessed on 27 Feburary 2013)). The amplified origin sequence corresponds to a 129-bp-long PCR product obtained by using primers OVK36 and OVK37 that target the 7594–7722 region of the S. pneumoniae chromosome (Figure S2). The terminus sequence is a 125-bp-long PCR product obtained by using primers OVK46 and OVK47 that amplify the 1,046,843–1,046,967 region of the S. pneumoniae chromosome (Figure S2). These two pairs of primers, defined as ori and ter, respectively, exhibited 98% amplification efficiency. The ori/ter ratio was measured at different time points of the cell growth as indicated in the text and/or in the legend of the figures. Each ori/ter measurement was performed using at least two independent cell cultures.

3. Results

3.1. RecA-Mediated Recombination Prevents Competence Development in S. pneumoniae

To compare competence development in wild-type (WT) and recA mutant (recA−) strains, we monitored the expression of a competence-induced gene (comC) fused to the firefly luciferase gene, as reported previously ([17]; see Material and methods). In this assay, light emitted by the growing cells is recorded in real time as relative luminescence units (RLU) normalized to cell density expressed as OD492 (see Material and methods; Figure 1A). Under conditions appropriate for competence development, this gives rise to a characteristic, transient peak of competence gene expression during exponential growth. This expression, and competence development itself, declines progressively as the initial pH of the medium used is acidified (Figure S1; [23,24]). Conditions that stimulate or depress competence induction, such as certain mutations and drugs, can overcome the pH effect and thus cause the return or disappearance of the expression peak, changes termed hereafter competence-up (‘cup’) and competence-down (‘cdo’) phenotypes, respectively. We observed that a recA- mutant exhibits a cup phenotype, as it develops spontaneous competence at a pH at which the WT strain does not (Figure 1B). This result implies that the RecA protein impedes pneumococcal competence development.
As pneumococcal competence is known to be induced by various types of DNA damage [13,15], the cup phenotype of the recA strain could stem from types of damage that are no longer efficiently corrected by RecA recombination activity. RecA-mediated maintenance of genome integrity is known to proceed by distinct recombination pathways, triggered by distinct types of damage and involving specific sets of effectors [25,26,27]. Early effectors of these pathways promote the formation of the RecA presynaptic recombination filaments on ssDNA, upon which RecA then executes the DNA strand-exchange reactions that restore the genome. Two distinct recombination effectors are involved in genome maintenance in bacteria. One is the RecF–RecO–RecR triad that acts at DNA gaps [27]; the other is the RecBCD complex in E. coli [27], termed RexAB in S. pneumoniae [20], which acts at double-strand breaks (DSB). To evaluate the relative importance for competence of these two recombinational pathways in S. pneumoniae, we monitored competence induction in recO−, recR−, and rexB− mutants by recording the expression of a luc transcriptional fusion with the ssbB competence gene. Each mutant exhibited a cup phenotype (Figure 1B). These results show that impairment of recombinational pathways that repair the genome is a potential source of competence induction.

3.2. The Cup Phenotype of the recA− Mutant Is Exacerbated by the DNA Damaging Agent Mytomycin-C in a Dose-Response Manner

To further verify that the cup phenotype of the recA− mutant results from a deficiency in repairing genome damage, we compared competence development of WT and recA− strains in the presence of increasing amounts of MMC, a DNA damaging agent known to induce pneumococcal competence when added at concentrations impacting growth and cell viability [13]. Here, the pH of the medium was adjusted to prevent spontaneous competence development in recA− cells. Under these conditions, competence of the WT strain was readily induced by MMC at 30 ng·mL−1 and above (Figure 2). Competence was also induced by MMC in the recA− strain, but at much lower concentrations of the drug (Figure 2). Furthermore, the competence peak of the recA− strain occurred earlier during growth than for the WT strain at all MMC concentrations tested, concomitant with an increase in the induction level in proportion to MMC concentration. This result is likely to be a consequence of a gradual accumulation of unrepaired DNA lesions that foster competence development. In WT cells, most of these DNA lesions would be efficiently repaired by RecA recombination pathways, avoiding competence development until the extent of damage exceeds the capacity for efficient repair. Thus, these results support the notion that signaling leading to competence induction is a quantitative response, developing in proportion to the damage suffered by the DNA.

3.3. Competence Induction by Replication Inhibitor HPUra Is Independent of Gene Dosage Changes

Several drugs that inhibit replication have been reported to induce competence in Pneumococcus [13,15]. Chromosome replication in S. pneumoniae is initiated bidirectionally from the origin, oriC, situated between the two closely linked competence control operons, comCDE and comAB, and terminates diametrically opposite in the terC region (Figure S2). An analysis of transcription levels in cells treated with replication inhibitors suggested that the increased gene dosage of origin-proximal genes resulting from continued initiation on chromosomes with paused replication forks would raise the relative rate of comCDE gene expression enough to activate the ComABCDE positive feedback loop, leading to competence induction [15]. In this study, however, replication drugs were used at only one concentration, leaving open the possibility that other mechanisms might not have come to light.
We explored competence development over a range of concentrations of the replication damaging agent, HPUra, a nucleotide derivative that specifically blocks PolC polymerase progression by competing with dGTP [28]. The addition of increasing amounts of HPUra to the WT strain gradually reduced the growth rate of WT cells (Figure 3A). We monitored competence development over this range of HPUra concentrations in a medium adjusted to a pH that does not allow spontaneous competence development without the drug. Figure 3A shows that ssbB::luc expression increased steadily with HPUra concentration up to 300 ng·mL−1, at which point the competence of the population was fully developed. We next determined the effect of HPUra concentration on relative oriC gene dosage, by qPCR measurement of the ori/ter ratio (see Figure S2A and Section 2). Figure S2B shows the time course of ori/ter response to addition of HPUra at 50 ng·mL−1 in comparison with the ori/ter ratio of cells grown without the drug. In the absence of HPUra, the ori/ter ratio remained constant at 1.6 (Figure S2B), corresponding to the value obtained by sequencing of chromosomal DNA extracted from exponentially growing pneumococcal cells [29]. In the presence of HPUra, the ori/ter ratio gradually increased over time (Figure S2B). Based on this calibration, we measured the ori/ter ratio over the whole range of HPUra concentration, in samples taken at the last time-point in the series (60 min). As shown in Figure 3B, the correlation between the ori/ter ratio and HPUra concentration broke down above 100 ng mL−1, whereas competence gene expression continued to rise. Indeed, at the highest HPUra concentration (1000 ng mL−1), the ori/ter ratio was nearly identical to that in the absence of drug (Figure 3B) despite inducing the highest level of competence (Figure 3A).
In light of these results, we also measured the ori/ter ratio of WT cells grown in the presence of increasing amounts of MMC. In this case, the ori/ter ratio increased proportionally with the dose of MMC, with an inducible value of competence development above 40 ng·mL−1 (Figure S2C).
These results show that an increase in the ori/ter ratio resulting from replication impediments, even massive, is not necessarily correlated with induction of competence. This implies that increased com gene dosage at oriC is not a sufficient, or perhaps even necessary, signal for competence development. Rather, competence gene expression is readily induced at levels of HPUra that provoke replication fork arrest, as seen by the sharply decreased ori/ter ratio and of growth rate at the highest HPUra concentrations tested. These findings indicate that competence development is poised to respond to disruptions in DNA replication. We further explored this idea by examining the induction of competence in response to other essential replication effectors.

3.4. Modulation of Competence Development by Altering DnaA Concentration

DnaA is the widely conserved master regulator of chromosomal DNA replication initiation in bacteria. Its activity is regulated by several mechanisms, some species-specific, which combine to coordinate replication with the cell-cycle. One key parameter known to affect replication in B. subtilis is overexpression of dnaA from its native locus, which leads to DNA stresses and ends up in SOS induction [30].
To investigate whether artificial modulation of DnaA concentration in the cell could influence pneumococcal competence development, we replaced the promoter region of dnaA with a synthetic IPTG-inducible Plac promoter (see Material and methods). Growth of the resulting ePlac-dnaA strain was IPTG-dependent, as shown by the spot test assay presented in Figure 4A. Cell growth was severely and progressively retarded at ≤2.5 μM IPTG, and scarcely any colony was detected with none. Above 5 μM IPTG, colonies were identical in shape and number to those of the WT, but at the highest IPTG concentration tested (100 μM), colonies appeared smaller, indicating that dnaA overexpression is detrimental to the cell cycle. The measured ori/ter ratios were correlated with colony-forming ability: oriC was under-replicated below 2.5 µM IPTG, replicated at WT frequency at 5–10 µM, and over-replicated at 100 µM (Figure 4C). We then analyzed competence development in the ePlac-dnaA strain grown in liquid medium with this range of IPTG concentrations and at different pH values. Cells grown at the highest dnaA expression level exhibited a cup phenotype in comparison with cells grown between 5 and 10 μM IPTG (Figure 4B). In contrast, when grown in competence-permissive medium to allow a more graded observation of competence response, the ePlac-dnaA strain developed competence later and less strongly at inducer concentrations below 2.5 µM than when induced at levels enabling normal growth (5–10 µM). We also noted that the XA time taken to induce competence gradually decreased between 2.5 and 10 µM, while the ori/ter ratio was effectively constant (Figure 4B). These results point to a correlation between the dnaA expression level and the tendency of cells to develop competence, independently of relative gene dosage.
The dnaA gene is the first gene of an operon whose second gene is dnaN, which encodes the DNA polymerase processivity factor of the replisome [30]. Consequently, DnaN concentration will also be modulated by IPTG concentration in the ePlac-dnaA strain, and this in turn could impact replication and the propensity of the cells to develop competence. Indeed, inhibition of DNA synthesis in B. subtilis by overproduction of DnaA was shown to result from DnaA-mediated repression of the dnaA-dnaN operon and the consequent depletion of the DnaN protein [30]. Accordingly, we performed the same experiment in S. pneumoniae to explore how over-expression of DnaA alone affects competence development. We inserted an IPTG-inducible Plac-dnaA construct at an ectopic position on the chromosome (see Section 2). The resulting CEP-Plac-dnaA strain was grown with 100 μM IPTG in a medium adjusted to a pH non-permissive for competence development without IPTG. As shown in Figure S3, DnaA over-expression readily induced competence and also hindered growth more severely than in the case of the ePlac-dnaA strain at the same IPTG concentration (see Figure 4B). Thus, increasing the concentration of DnaA itself induces competence development.
We then investigated the cdo phenotype shown by the ePlac-dnaA strain upon growth without IPTG (Figure 4B). For this, we used a (S. pneumoniae) strain overproducing a close homologue of the B. subtilis YabA protein, which has been demonstrated to down-regulate replication initiation at oriC by interacting with DnaA [31,32,33]. Importantly, B. subtilis YabA has been shown not to interfere with transcriptional regulation by DnaA [34]. As shown in Figure S4, we found that IPTG-induced expression of pneumococcal YabA from an ectopic Plac-yabA construct led to a cdo phenotype. This result strongly supports the notion that a reduced rate of DnaA-mediated replication initiation at oriC depresses spontaneous competence development. This cdo phenotype could stem from diminished expression of the comCDE operon, resulting from reduction of the ori/ter ratio due to altered timing of replication from oriC. To explore this possibility, we determined whether ePlac-dnaA cells grown without IPTG could develop competence upon addition of synthetic CSP to the growth medium. As shown in Figure S5, CSP added at any time during growth led to immediate induction of competence in ePlac-dnaA cells cultivated without IPTG or with 5 μM IPTG (in a medium of pH not permitting spontaneous competence development in the latter case). This indicates that DnaA-depleted cells maintained ComD and ComE basal levels above the threshold needed for CSP sensing and competence induction.
Taken together, these results support the idea of a cause-and-effect relationship between DnaA concentration and spontaneous development of pneumococcal competence. They also indicate that the relationship is based on the rate of initiation from oriC rather than on the regulatory properties of DnaA.

3.5. Aborted Replicative DNA Synthesis Fosters Competence Development

The experiments until this point revealed that alterations in the active concentrations of PolC and DnaA influenced spontaneous competence development. Previous experiment with HPUra revealed that reducing the active concentration of PolC resulted in a cup phenotype, most probably as a consequence of replication fork arrest and/or collapse. To delve further into this correlation, we used the same approach to examine the consequences of varying availability of the replicative helicase DnaC [35] and the replisome polymerase DnaE [36,37], both being essential for cell viability. In B. subtilis, DnaC and DnaE intervene, in that order, prior to DnaN and PolC in the assembly of replication forks at oriC and in re-initiation at interrupted forks, respectively [38]. Thus, depletion of either enzyme is expected to severely impede replication, at the initiation and the elongation steps, in both cases leading to the accumulation of arrested forks. We constructed two strains to enable IPTG-dependent modulation of dnaC and dnaE expression at their native chromosomal loci. As expected, growth of these strains was IPTG-dependent (Figure 5A and Figure 6A). Notably, however, depletion of these proteins was not complete, as inferred from the increase in the cell density of cultures even without IPTG (Figure 5B and Figure 6B). Growth under these conditions below 1 μM IPTG was, however, not sufficient to generate visible colonies in solid medium (Figure 5A and Figure 6A). To measure spontaneous competence development in these strains over a range of IPTG concentrations, we used cells initially cultured at an IPTG concentration permitting WT growth rate and the ori/ter ratio and at a pH preventing induction of competence. Under these conditions, both the ePlac-dnaE and ePlac-dnaC strains exhibited a cup phenotype when grown below 1 μM IPTG (Figure 5B and Figure 6B). The ori/ter ratio increased slightly in the ePlac-dnaE strain under these conditions (Figure 5C). In stark contrast, the ori/ter ratio fell markedly in the ePlac-dnaC strain grown below 1 μM IPTG (Figure 6C), i.e., under the conditions leading to competence development.
Taken together, these results reinforce the notion that replication fork arrest and collapse are major triggers of competence development in S. pneumoniae.

4. Discussion

In this study, we have investigated the causal relationship between damage to the integrity or replication of the genome and competence induction in S. pneumoniae. We observed that deficiencies in RecA-directed repair stimulated competence development and conclude that competence induction stems from the sensing of injuries that are continuously generated during growth but normally repaired. Interestingly, competence in Helicobacter pylori, recorded by transformation efficiency, was reported to be improved in DNA repair mutants [39]. Recombinational DNA repair pathways are known to buttress chromosomal DNA replication by promoting the rescue of damaged forks via mechanisms that differ according to the type of injury suffered [27,40]. Thus, the cup phenotype of the recA, recO, recR, and rexA mutants would reflect their failure to efficiently repair damage at replication forks (Figure 1B). Supporting this proposal, a cdo phenotype appears upon inhibition of DnaA-mediated initiation (by overexpression of the YabA replication repressor; Figure S4): the lower initiation rate would reduce the frequency of forks and hence of fork failure and the signals triggering competence. Failure of repair was not the only source of damage signals: increasing damage frequency by addition of replication inhibitors, such as MMC and HPUra, also accelerated competence development. Common to all the disruptions of replication that lead to competence development are unrepaired replication forks.

4.1. How Does Replication Stress Induce Competence?

Previous studies that linked replication stress to pneumococcal competence induction used exogenous drugs to specifically alter either a replication protein, the dNTP pool, or DNA integrity [13,15]. Among these drugs, the most specific for the replication process is HPUra, which effectively reduces the concentration of active replisomal PolC DNA polymerase in a dose-response manner. Here, we constructed strains that express the DnaC helicase and the DnaE DNA polymerase of the replisome in proportion to the concentration of added IPTG. The diminution of the active pool of DnaC and of DnaE molecules led to the induction of competence, mirroring the effect of high concentrations of HPUra on WT cells (Figure 3, Figure 5 and Figure 6).
It was previously proposed that the replication defect caused by HPUra was converted into a competence-inducing signal as a consequence of the higher relative dosage of the ori-proximal comCDE operon resulting from deceleration of the replication forks. HPUra-treated cells were shown to express the comCDE operon at higher levels than untreated cells, and this was proposed to activate the ComABCDE positive feedback loop and turn on competence [15]. A central parameter of this mechanism is the ori/ter ratio, which should increase under replication stress and be correlated with competence induction. We found instances in which this correlation does not hold. An extreme case was that of the ePlac-dnaC strain, which exhibited a cup phenotype when grown with concentrations of IPTG at which the ori/ter ratio gradually declined (Figure 6). Indeed, the ori/ter ratio varied for each replication stress and was not correlated with the propensity of the cells to develop competence. Thus, a high ori/ter ratio, >3, was found with HPUra at 50 ng·mL−1, which, however, was not followed by competence induction (Figure 3). By contrast, almost no change in the ori/ter ratio was found for WT cells grown with 1000 ng·mL−1 HPUra (Figure 3) or for the ePlac-dnaE cells grown without IPTG (Figure 5), although competence was readily induced in both situations. Thus, rather than increased comCDE gene dosage and expression, the factor common to all situations of replication stress that foster competence induction was the arrest of replication forks.
In several cases, the propensity of the cells to develop competence was found to be proportional to the intensity of the stress applied. The gradualness of the response was manifested by a change in timing of competence induction, i.e., the more stress, the shorter the period (XA) preceding the peak of expression of competence genes. This was observed in experiments with increasing concentrations of MMC applied to recA− cells (Figure 2), and to ePlac-dnaE and ePlac-dnaC cells grown with 1 μM and 0 μM IPTG (Figure 5 and Figure 6). Importantly, this dose-response effect should be considered in the light of the two-phase development of competence in pneumococcal populations and the mechanism underlying its coordination between cells. We previously provided genetic evidence that competence of a pneumococcal population develops in a self-activating (autocrine) stage, followed by a wholesale propagation (paracrine) stage (Figure 1A; [9]). During the initial phase, there is a steady increase in the number of individual cells that undergo physiological stress of a kind that induces the ComABCDE feedback loop. When the fraction of such cells rises to a certain level, CSP-mediated induction of neighboring cells through cell-to-cell contact becomes frequent enough to thrust the population into the second phase where competence spreads throughout, as seen by a peak upon monitoring of competence gene expression. The proportional response of competence induction to replication stress reported here is readily explained in this scenario. Lowering IPTG concentrations in cultures of ePlac-dnaE and ePlac-dnaC strains would be expected to progressively reduce DnaE and DnaC levels and increase the frequency of fork stalling. The fraction of individual cells that switch to competence would thus rise faster, leading to the shorter XA periods observed. Similarly, addition of increasing amounts of MMC to recA− cells will raise the fraction of cells accumulating unrepaired damaged DNA, thus progressively reducing the period of competence development (Figure 2). Notably, this gradual response is not observed for WT cells treated with the same range of MMC concentrations (Figure 2). In this case, recombinational repair is fully active up to a limit of the MMC concentration above which competence is induced, reflecting a saturation of repair capacity and leading to a maximal XA value. The same reasoning applies to ePlac-dnaA cells grown at low IPTG concentrations. A gradual reduction of the replication initiation rate at oriC resulted in an extended XA period of spontaneous competence development (Figure 4). The same effect was obtained with WT cells by overexpression of the replication inhibitor YabA (Figure S4). In both cases, the gradual diminution of the fraction of cells undergoing active replication exerts a corresponding delay in competence development.

4.2. Comparison of Pneumococcal Competence with the SOS Response

Unlike many bacteria, Pneumococcus does not have an SOS system to respond to DNA damage. Competence, similar to the SOS response, involves the induction a large set of genes that confer altered properties on the cell, but except for a small subset of proteins for DNA repair and recombination, there is little similarity in the competence and SOS regulons. Indeed, recA is the only gene induced in both systems. Nevertheless, our study of competence development in response to DNA damage reinforces the notion that competence is the functional equivalent of SOS. Both systems induce a cell division inhibitor that provides a delay to enable cells to repair DNA breaks before division. In the case of the Pneumococcus, the ComM division inhibitor induced during competence was shown to be crucial for maintaining genome integrity during natural transformation [41]. Competence for transformation itself has been reported to improve survival to exposure to MMC [42], underlining the functional parallel of cell rescue between competence and SOS.

4.3. Concluding Remarks

This study focuses on the relationship between the induction of competence in Pneumococcus by replication stress. The underlying signaling mechanism appears not to depend on an increase in the copy number of the oriC-proximal comCDE operon following replication slowdown, as proposed previously [15]. This leaves open the question of the molecular mechanism that links genome damage to the induction of pneumococcal competence. Aborted replication forks appear to be essential and presumably trigger the signaling pathway that ultimately induces the ComABCDE positive feedback loop. Competence was shown also to be induced in response to genome damage in two other naturally transformable species, Legionella pneumophila and Helicobacter pylori, neither of them encoding a LexA homologue or possessing an SOS system [14]. The regulatory circuit controlling competence in these species is poorly defined, but distinct from the pneumococcal one. Thus, it will be interesting to establish whether a common mechanism leads to competence development in response to genome stress in these species regardless of the particulars of the pathway controlling competence gene expression.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/cells10081938/s1. Figure S1: Monitoring pneumococcal competence development. Figure S2: Determination of the ori/ter ratio. Figure S3: dnaA overexpression slows growth and induces competence. Figure S4: yabA overexpression represses competence induction. Figure S5: Response to CSP addition during reduction in dnaA expression. Table S1: Streptococcus pneumoniae strains and primers.

Author Contributions

V.K. and M.P., Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing—original draft, P.P. Conceptualization, Investigation, Writing—original draft, review and editing, Supervision, Funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Agence Nationale de la Recherche (Grants ANR-10-BLAN-1331 and ANR-13-BSV8-0022).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data supporting the findings of this study are available within the article or from the corresponding author upon reasonable request.

Acknowledgments

We particularly thank Dave Lane for critical reading and helpful editing of the manuscript, as well as Mathieu Bergé, Calum Johnston, and Nathalie Campo for their critical reading of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Radman, M. SOS Repair Hypothesis: Phenomenology of an Inducible DNA Repair Which is Accompanied by Mutagenesis. Mol. Mech. Repair DNA 1975, 5A, 355–367. [Google Scholar] [CrossRef]
  2. Witkin, E.M. Ultraviolet mutagenesis and inducible DNA repair in Escherichia coli. Bacteriol. Rev. 1976, 40, 869–907. [Google Scholar] [CrossRef]
  3. Erill, I.; Campoy, S.; Barbé, J. Aeons of distress: An evolutionary perspective on the bacterial SOS response. FEMS Microbiol. Rev. 2007, 31, 637–656. [Google Scholar] [CrossRef] [Green Version]
  4. Claverys, J.-P.; Prudhomme, M.; Martin, B. Induction of Competence Regulons as a General Response to Stress in Gram-Positive Bacteria. Annu. Rev. Microbiol. 2006, 60, 451–475. [Google Scholar] [CrossRef]
  5. Dubnau, D.; Blokesch, M. Mechanisms of DNA Uptake by Naturally Competent Bacteria. Annu. Rev. Genet. 2019, 53, 217–237. [Google Scholar] [CrossRef]
  6. Johnston, C.; Martin, B.; Fichant, G.; Polard, P.; Claverys, J.-P. Bacterial transformation: Distribution, shared mechanisms and divergent control. Nat. Rev. Microbiol. 2014, 12, 181–196. [Google Scholar] [CrossRef]
  7. Johnston, C.; Campo, N.; Bergé, M.J.; Polard, P.; Claverys, J.-P. Streptococcus pneumoniae, le transformiste. Trends Microbiol. 2014, 22, 113–119. [Google Scholar] [CrossRef]
  8. Martin, B.; Soulet, A.-L.; Mirouze, N.; Prudhomme, M.; Mortier-Barrière, I.; Granadel, C.; Noirot-Gros, M.-F.; Noirot, P.; Polard, P.; Claverys, J.-P. ComE/ComE∼P interplay dictates activation or extinction status of pneumococcal X-state (competence). Mol. Microbiol. 2012, 87, 394–411. [Google Scholar] [CrossRef]
  9. Prudhomme, M.; Berge, M.; Martin, B.; Polard, P. Pneumococcal Competence Coordination Relies on a Cell-Contact Sensing Mechanism. PLoS Genet. 2016, 12, e1006113. [Google Scholar] [CrossRef] [Green Version]
  10. Martin, B.; Granadel, C.; Campo, N.; Hénard, V.; Prudhomme, M.; Claverys, J.-P. Expression and maintenance of ComD-ComE, the two-component signal-transduction system that controls competence of Streptococcus pneumoniae. Mol. Microbiol. 2010, 75, 1513–1528. [Google Scholar] [CrossRef] [PubMed]
  11. Mortier-Barrière, I.; Velten, M.; Dupaigne, P.; Mirouze, N.; Pietrement, O.; McGovern, S.; Fichant, G.; Martin, B.; Noirot, P.; Le Cam, E.; et al. A Key Presynaptic Role in Transformation for a Widespread Bacterial Protein: DprA Conveys Incoming ssDNA to RecA. Cell 2007, 130, 824–836. [Google Scholar] [CrossRef] [Green Version]
  12. Mirouze, N.; Bergé, M.A.; Soulet, A.-L.; Mortier-Barrière, I.; Quentin, Y.; Fichant, G.; Granadel, C.; Noirot-Gros, M.-F.; Noirot, P.; Polard, P.; et al. Direct involvement of DprA, the transformation-dedicated RecA loader, in the shut-off of pneumococcal competence. Proc. Natl. Acad. Sci. USA 2013, 110, E1035–E1044. [Google Scholar] [CrossRef] [Green Version]
  13. Prudhomme, M.; Attaiech, L.; Sanchez, G.; Martin, B.; Claverys, J.-P. Antibiotic Stress Induces Genetic Transformability in the Human Pathogen Streptococcus pneumoniae. Science 2006, 313, 89–92. [Google Scholar] [CrossRef]
  14. Charpentier, X.; Polard, P.; Claverys, J.-P. Induction of competence for genetic transformation by antibiotics: Convergent evolution of stress responses in distant bacterial species lacking SOS? Curr. Opin. Microbiol. 2012, 15, 570–576. [Google Scholar] [CrossRef]
  15. Slager, J.; Kjos, M.; Attaiech, L.; Veening, J.-W. Antibiotic-Induced Replication Stress Triggers Bacterial Competence by Increasing Gene Dosage near the Origin. Cell 2014, 157, 395–406. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Mortier-Barrière, I.; Polard, P.; Campo, N. Direct Visualization of Horizontal Gene Transfer by Transformation in Live Pneumococcal Cells Using Microfluidics. Genes 2020, 11, 675. [Google Scholar] [CrossRef]
  17. Prudhomme, M.; Claverys, J.P.; Hakenbeck, R.; Chhatwal, G.S. The Molecular Biology of Streptococci. 2007. Available online: https://scholar.google.com/scholar_lookup?hl=en&publication_year=2007&;pages=519-524&author=M.+Prudhomme&author=J.P.+Claverys&title=The+Molecular+Biology+of+Streptococci (accessed on 26 May 2021).
  18. Martin, B.; García, P.; Castanié, M.P.; Glise, B.; Claverys, J.P. The recA gene of Streptococcus pneumoniae is part of a competence-induced operon and controls an SOS regulon. Dev. Boil. Stand. 1995, 85, 293–300. [Google Scholar]
  19. Martin, B.; Prudhomme, M.; Alloing, G.; Granadel, C.; Claverys, J.-P. Cross-regulation of competence pheromone production and export in the early control of transformation in Streptococcus pneumoniae. Mol. Microbiol. 2000, 38, 867–878. [Google Scholar] [CrossRef]
  20. Halpern, D.; Gruss, A.; Claverys, J.-P.; El Karoui, M. rexAB mutants in Streptococcus pneumoniae. Microbiology 2004, 150, 2409–2414. [Google Scholar] [CrossRef] [Green Version]
  21. Johnston, C.; Mortier-Barriere, I.; Khemici, V.; Polard, P. Fine-tuning cellular levels of DprA ensures transformant fitness in the human pathogen Streptococcus pneumoniae. Mol. Microbiol. 2018, 109, 663–675. [Google Scholar] [CrossRef] [Green Version]
  22. Johnston, C.; Hauser, C.; Hermans, P.W.M.; Martin, B.; Polard, P.; Bootsma, H.J.; Claverys, J.-P. Fine-tuning of choline metabolism is important for pneumococcal colonization. Mol. Microbiol. 2016, 100, 972–988. [Google Scholar] [CrossRef] [Green Version]
  23. Weyder, M.; Prudhomme, M.; Bergé, M.; Polard, P.; Fichant, G. Dynamic Modeling of Streptococcus pneumoniae Competence Provides Regulatory Mechanistic Insights into Its Tight Temporal Regulation. Front. Microbiol. 2018, 9, 1637. [Google Scholar] [CrossRef]
  24. Chen, J.-D.; Morrison, D.A. Modulation of Competence for Genetic Transformation in Streptococcus pneumoniae. Microbiology 1987, 133, 1959–1967. [Google Scholar] [CrossRef] [Green Version]
  25. Cox, M.M. Regulation of Bacterial RecA Protein Function. Crit. Rev. Biochem. Mol. Biol. 2007, 42, 41–63. [Google Scholar] [CrossRef] [PubMed]
  26. Kowalczykowski, S.C. An Overview of the Molecular Mechanisms of Recombinational DNA Repair. Cold Spring Harb. Perspect. Biol. 2015, 7, a016410. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Michel, B.; Leach, D. Homologous Recombination—Enzymes and Pathways. EcoSal Plus 2012, 5. [Google Scholar] [CrossRef] [PubMed]
  28. Brown, N.C. 6-(p-Hydroxyphenylazo)-uracil: A Selective Inhibitor of Host DNA Replication in Phage-Infected Bacillus subtilis. Proc. Natl. Acad. Sci. USA 1970, 67, 1454–1461. [Google Scholar] [CrossRef] [Green Version]
  29. Johnston, C.; Caymaris, S.; Zomer, A.; Bootsma, H.J.; Prudhomme, M.; Granadel, C.; Hermans, P.W.M.; Polard, P.; Martin, B.; Claverys, J.-P. Natural Genetic Transformation Generates a Population of Merodiploids in Streptococcus pneumoniae. PLoS Genet. 2013, 9, e1003819. [Google Scholar] [CrossRef] [Green Version]
  30. Ogura, Y.; Imai, Y.; Ogasawara, N.; Moriya, S. Autoregulation of the dnaA-dnaN Operon and Effects of DnaA Protein Levels on Replication Initiation in Bacillus subtilis. J. Bacteriol. 2001, 183, 3833–3841. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Noirot-Gros, M.-F.; Velten, M.; Yoshimura, M.; McGovern, S.; Morimoto, T.; Ehrlich, S.D.; Ogasawara, N.; Polard, P.; Noirot, P. Functional dissection of YabA, a negative regulator of DNA replication initiation inBacillus subtilis. Proc. Natl. Acad. Sci. USA 2006, 103, 2368–2373. [Google Scholar] [CrossRef] [Green Version]
  32. Merrikh, H.; Grossman, A.D. Control of the replication initiator DnaA by an anti-cooperativity factor. Mol. Microbiol. 2011, 82, 434–446. [Google Scholar] [CrossRef] [Green Version]
  33. Soufo, C.D.; Soufo, H.J.D.; Noirot-Gros, M.-F.; Steindorf, A.; Noirot, P.; Graumann, P.L. Cell-Cycle-Dependent Spatial Sequestration of the DnaA Replication Initiator Protein in Bacillus subtilis. Dev. Cell 2008, 15, 935–941. [Google Scholar] [CrossRef] [Green Version]
  34. Goranov, A.I.; Breier, A.M.; Merrikh, H.; Grossman, A.D. YabA ofBacillus subtiliscontrols DnaA-mediated replication initiation but not the transcriptional response to replication stress. Mol. Microbiol. 2009, 74, 454–466. [Google Scholar] [CrossRef] [Green Version]
  35. Velten, M.; McGovern, S.; Marsin, S.; Ehrlich, S.D.; Noirot, P.; Polard, P. A Two-Protein Strategy for the Functional Loading of a Cellular Replicative DNA Helicase. Mol. Cell 2003, 11, 1009–1020. [Google Scholar] [CrossRef]
  36. Seco, E.M.; Ayora, S. Bacillus subtilis DNA polymerases, PolC and DnaE, are required for both leading and lagging strand synthesis in SPP1 origin-dependent DNA replication. Nucleic Acids Res. 2017, 45, 8302–8313. [Google Scholar] [CrossRef] [Green Version]
  37. Rannou, O.; Le Chatelier, E.; Larson, M.A.; Nouri, H.; Dalmais, B.; Laughton, C.; Jannière, L.; Soultanas, P. Functional interplay of DnaE polymerase, DnaG primase and DnaC helicase within a ternary complex, and primase to polymerase hand-off during lagging strand DNA replication in Bacillus subtilis. Nucleic Acids Res. 2013, 41, 5303–5320. [Google Scholar] [CrossRef] [Green Version]
  38. Sanders, G.M.; Dallmann, H.G.; McHenry, C.S. Reconstitution of the B. subtilis Replisome with 13 Proteins Including Two Distinct Replicases. Mol. Cell 2010, 37, 273–281. [Google Scholar] [CrossRef] [PubMed]
  39. Marsin, S.; Lopes, A.; Mathieu, A.; Dizet, E.; Orillard, E.; Guérois, R.; Radicella, J.P. Genetic dissection of Helicobacter pylori AddAB role in homologous recombination. FEMS Microbiol. Lett. 2010, 311, 44–50. [Google Scholar] [CrossRef] [Green Version]
  40. Michel, B.; Sinha, A.K.; Leach, D.R.F. Replication Fork Breakage and Restart in Escherichia coli. Microbiol. Mol. Biol. Rev. 2018, 82, 00013. [Google Scholar] [CrossRef] [Green Version]
  41. Bergé, M.; Mercy, C.; Mortier-Barrière, I.; VanNieuwenhze, M.S.; Brun, Y.; Grangeasse, C.; Polard, P.; Campo, N. A programmed cell division delay preserves genome integrity during natural genetic transformation in Streptococcus pneumoniae. Nat. Commun. 2017, 8, 1621. [Google Scholar] [CrossRef] [PubMed]
  42. Engelmoer, D.J.P.; Rozen, D.E. Competence Increases Survival during Stress in Streptococcus pneumoniae. Evolution 2011, 65, 3475–3485. [Google Scholar] [CrossRef] [PubMed]
Cells 10 01938 g001 550

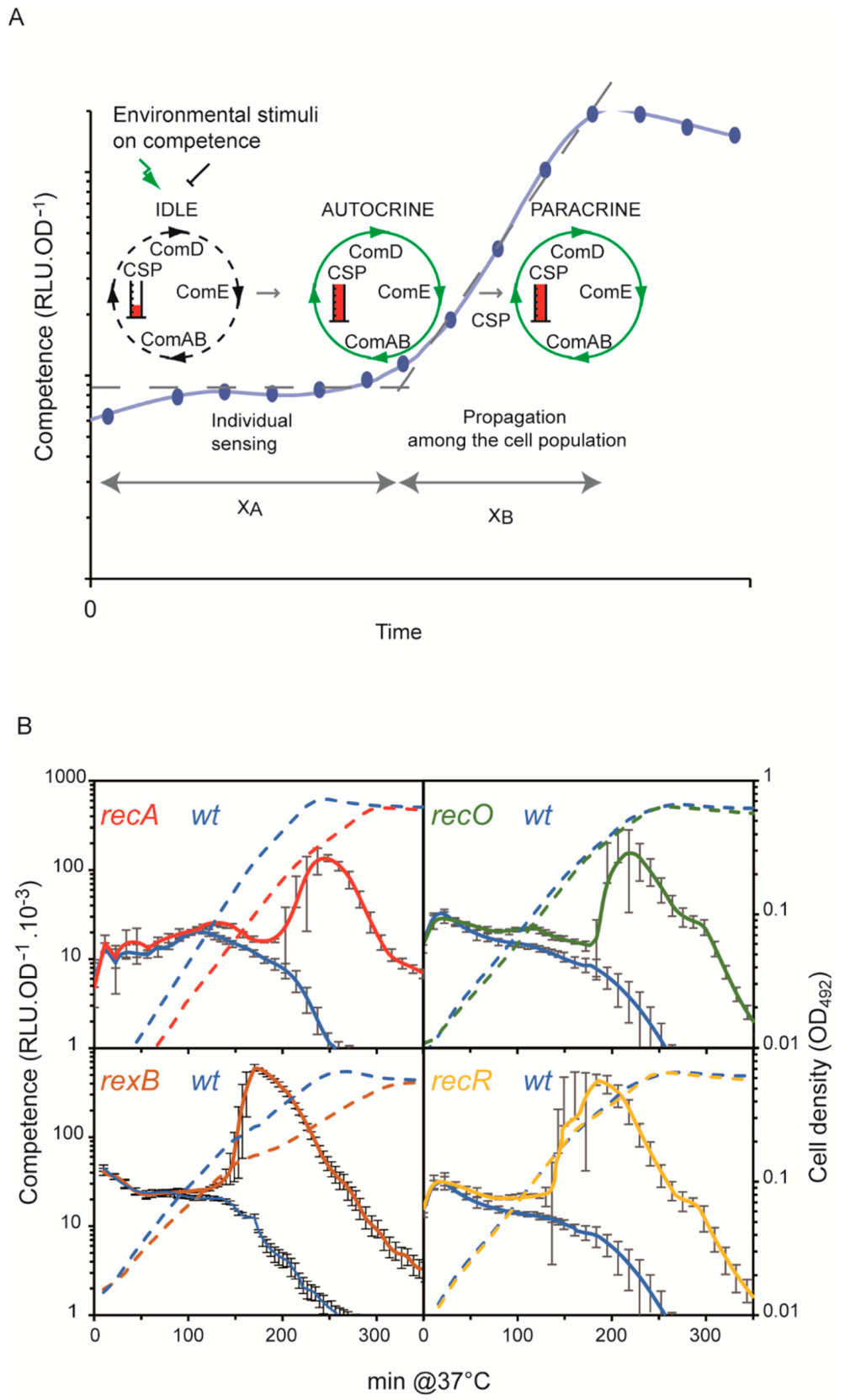

Figure 1. Pneumococcal competence development cycle: effect of repair–deficiency mutations. (A): Model of competence development in S. pneumoniae. The blue dots/blue line shows the development of competence in an exponentially growing culture measured by a transcriptional fusion of the luciferase gene in specific activity (Relative luminescence units (RLU) divided by the cell density (OD)); the growth curve is omitted for clarity. The core sensing and regulatory machinery of competence are composed of the comA, comB, comC (CSP), comD, and comE gene products, which define a positive feedback loop referred to as ComABCDE. The green arrow and the black T-bar represent external positive and negative inputs, which balance the idling of the core sensing machinery. At some point, growth conditions will provide enough positive input to activate the ComABCDE positive feedback loop in an autocrine mode in some of the cells. Next, this fraction of cells propagates competence within the population in a paracrine mode by transmitting the CSP via cell-to-cell contact. In this model, the autocrine and paracrine modes of competence development proceed in two distinct periods defined as XA and XB, respectively [9]. XB is followed by shut-off of competence gene expression. The dashed grey lines represent competence gene expression during the XA and XB periods. (B): RecA recombination repair pathways prevent competence development. Cells were grown in C+Y medium with initial pH adjusted with HCl to inhibit competence development of the reference strains R825 or R895 (blue curves); see also Figure S1. Competence of the population is shown as solid lines (RLU.OD492−1 × 103) and cell density as dashed lines (OD492). Each panel shows a comparison of competence development of the WT strain with that of the mutant strains recA− (R3309; red), rexB− (R4036; light brown), recO− (R2411; dark green), and recR− (R2412; orange) with that of their respective isogenic WT (wild type) strain (R825 for recA− and rexB− strains, and R895 for the others). Data are the means of at least five independent experiments, with standard deviations shown for the RLU.OD492−1 measurements.
Figure 1. Pneumococcal competence development cycle: effect of repair–deficiency mutations. (A): Model of competence development in S. pneumoniae. The blue dots/blue line shows the development of competence in an exponentially growing culture measured by a transcriptional fusion of the luciferase gene in specific activity (Relative luminescence units (RLU) divided by the cell density (OD)); the growth curve is omitted for clarity. The core sensing and regulatory machinery of competence are composed of the comA, comB, comC (CSP), comD, and comE gene products, which define a positive feedback loop referred to as ComABCDE. The green arrow and the black T-bar represent external positive and negative inputs, which balance the idling of the core sensing machinery. At some point, growth conditions will provide enough positive input to activate the ComABCDE positive feedback loop in an autocrine mode in some of the cells. Next, this fraction of cells propagates competence within the population in a paracrine mode by transmitting the CSP via cell-to-cell contact. In this model, the autocrine and paracrine modes of competence development proceed in two distinct periods defined as XA and XB, respectively [9]. XB is followed by shut-off of competence gene expression. The dashed grey lines represent competence gene expression during the XA and XB periods. (B): RecA recombination repair pathways prevent competence development. Cells were grown in C+Y medium with initial pH adjusted with HCl to inhibit competence development of the reference strains R825 or R895 (blue curves); see also Figure S1. Competence of the population is shown as solid lines (RLU.OD492−1 × 103) and cell density as dashed lines (OD492). Each panel shows a comparison of competence development of the WT strain with that of the mutant strains recA− (R3309; red), rexB− (R4036; light brown), recO− (R2411; dark green), and recR− (R2412; orange) with that of their respective isogenic WT (wild type) strain (R825 for recA− and rexB− strains, and R895 for the others). Data are the means of at least five independent experiments, with standard deviations shown for the RLU.OD492−1 measurements.
Cells 10 01938 g001
Cells 10 01938 g002 550

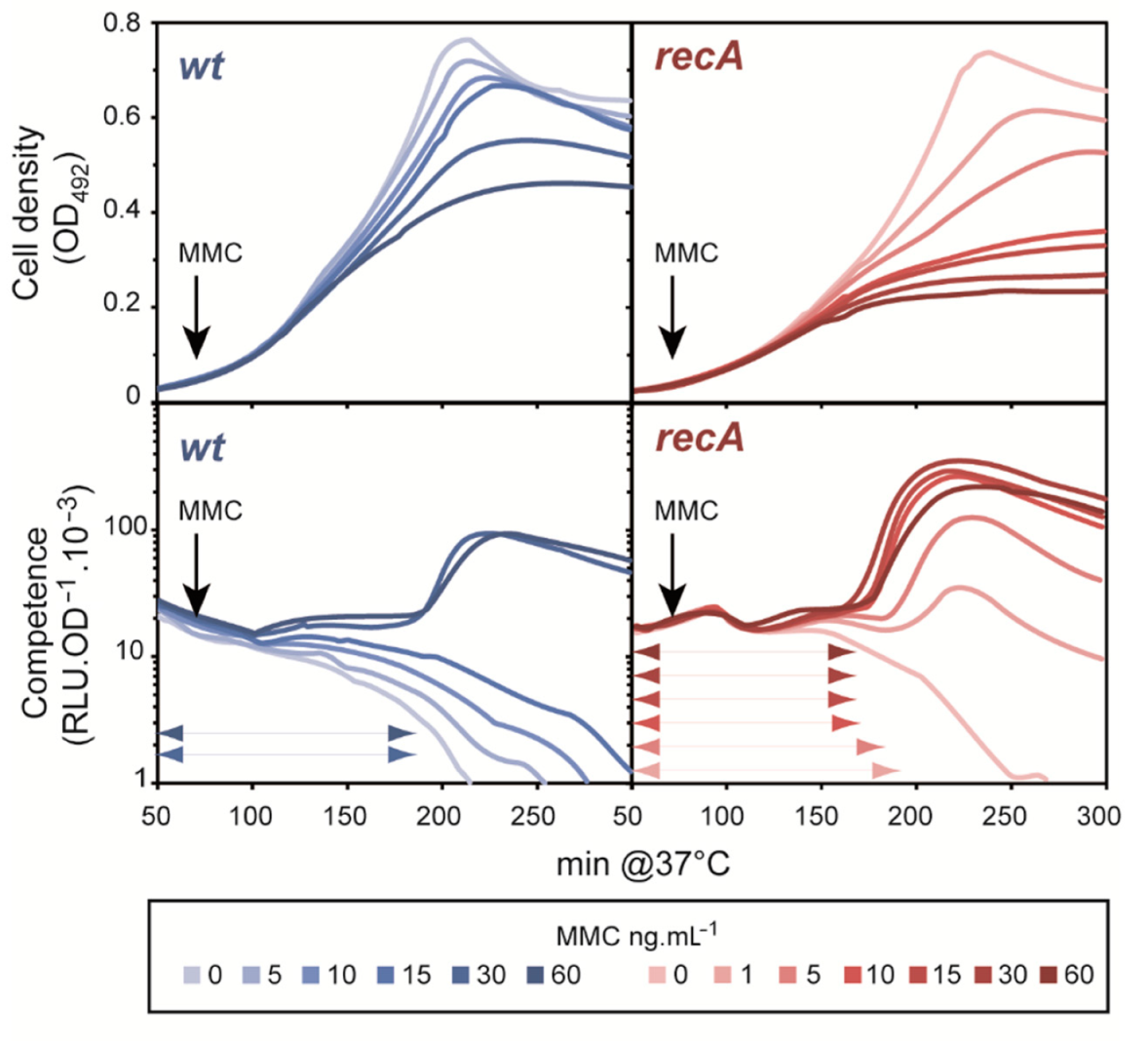

Figure 2. The lack of RecA exacerbates MMC-mediated competence induction. WT and recA− cells were cultivated in C+Y medium adjusted to a pH non-permissive for spontaneous competence development. Cell density (OD492) is shown in the upper panels and competence gene expression (RLU.OD492−1 × 103) in the lower panels recorded every 10 min. After 70 min of growth, MMC was added at the indicated concentrations, shown as light grey-blue to dark grey-blue for WT cells and light brown to dark brown for recA− cells. The curves represent the mean of two replicates. Standard deviations are omitted for clarity. Double arrowheads depict the XA period.
Figure 2. The lack of RecA exacerbates MMC-mediated competence induction. WT and recA− cells were cultivated in C+Y medium adjusted to a pH non-permissive for spontaneous competence development. Cell density (OD492) is shown in the upper panels and competence gene expression (RLU.OD492−1 × 103) in the lower panels recorded every 10 min. After 70 min of growth, MMC was added at the indicated concentrations, shown as light grey-blue to dark grey-blue for WT cells and light brown to dark brown for recA− cells. The curves represent the mean of two replicates. Standard deviations are omitted for clarity. Double arrowheads depict the XA period.
Cells 10 01938 g002
Cells 10 01938 g003 550

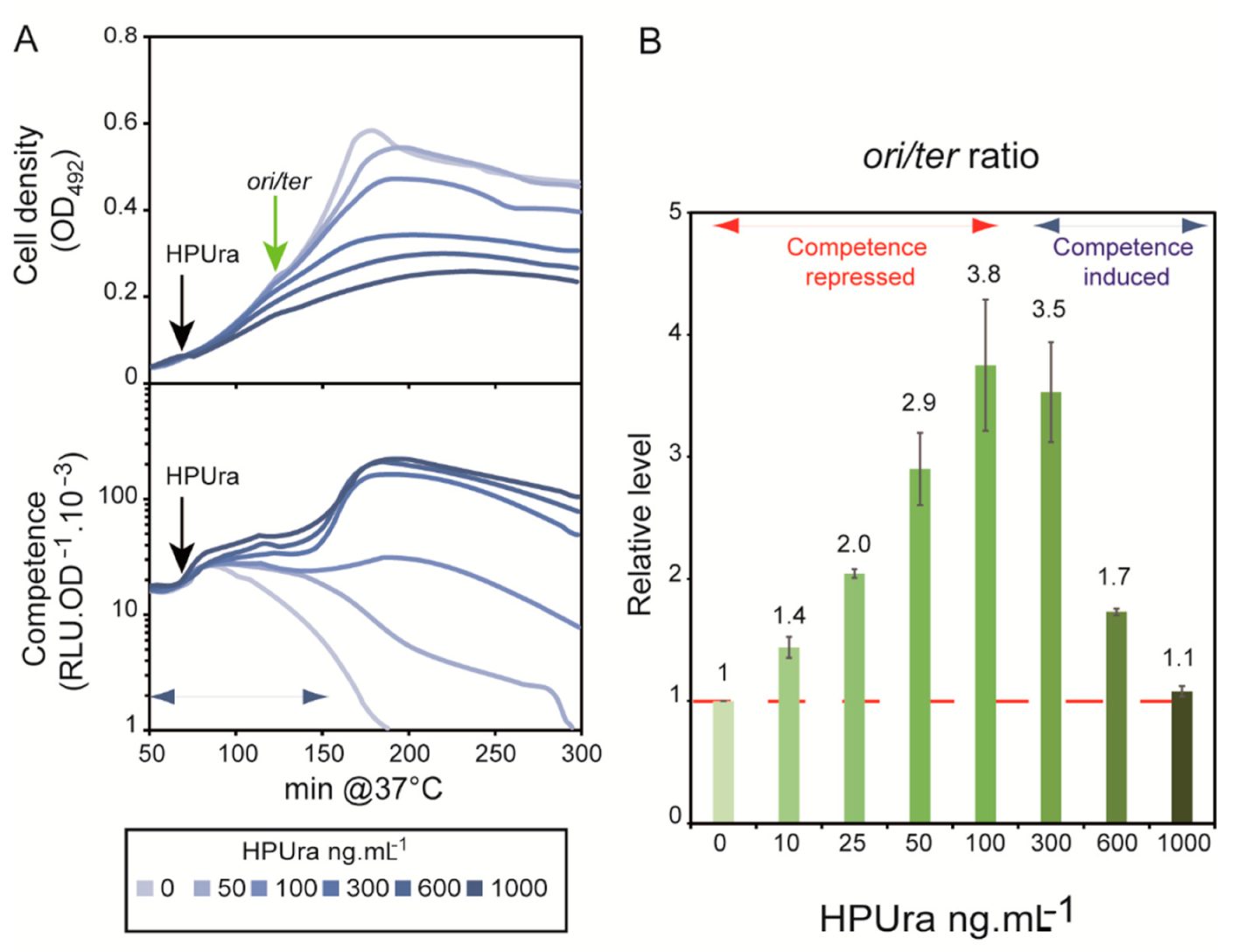

Figure 3. HPUra induces competence independently of its effect on the ori/ter ratio. (A): R895 cells were grown at a pH non-permissive for spontaneous development of competence. After 70 min of growth, HPUra was added at 0, 50, 100, 300, 600, and 1000 ng mL−1, light grey-blue to dark grey-blue, respectively. Cell density and competence plots are as in Figure 2. Curves represent the mean of three replicates for each condition. Standard deviations are omitted for clarity. (B): ori/ter ratios measured by qPCR on total DNA extracted from the WT R825 strain 1 h after HPUra addition at 0, 10, 25, 50, 100, 300, 600, and 1000 ng mL−1 (shown as light green to dark green respectively; see also Figure S1). The ori/ter ratio obtained for cells grown without HPUra was set to 1 and used as the reference for ori/ter ratios of cells at each HPUra concentration. The competence development status of each assay is indicated by the blue (induced) and red (basal level) double arrowheads. The means and standard deviations were derived from two replicates.
Figure 3. HPUra induces competence independently of its effect on the ori/ter ratio. (A): R895 cells were grown at a pH non-permissive for spontaneous development of competence. After 70 min of growth, HPUra was added at 0, 50, 100, 300, 600, and 1000 ng mL−1, light grey-blue to dark grey-blue, respectively. Cell density and competence plots are as in Figure 2. Curves represent the mean of three replicates for each condition. Standard deviations are omitted for clarity. (B): ori/ter ratios measured by qPCR on total DNA extracted from the WT R825 strain 1 h after HPUra addition at 0, 10, 25, 50, 100, 300, 600, and 1000 ng mL−1 (shown as light green to dark green respectively; see also Figure S1). The ori/ter ratio obtained for cells grown without HPUra was set to 1 and used as the reference for ori/ter ratios of cells at each HPUra concentration. The competence development status of each assay is indicated by the blue (induced) and red (basal level) double arrowheads. The means and standard deviations were derived from two replicates.
Cells 10 01938 g003
Cells 10 01938 g004 550

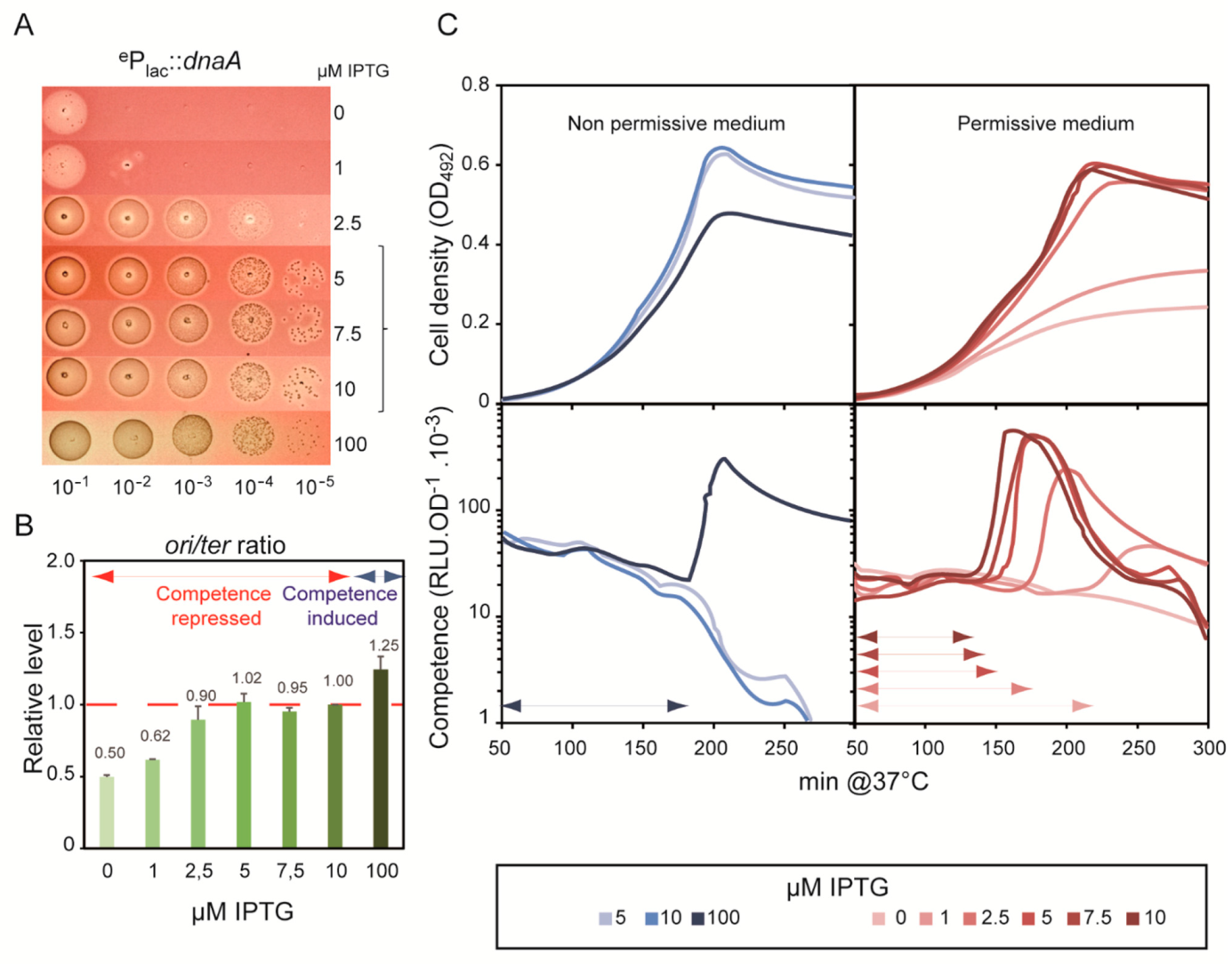

Figure 4. Differential control of competence development by modulated dnaA expression. In strain R3317, the endogenous dnaA promoter has been replaced by the inducible Plac promoter (ePlac::dnaA, see Section 2). (A): Growth assay. R3317 cells were grown to OD550 = 0.3 and were serially diluted and spotted on plates containing the indicated IPTG concentrations. The bracket covers IPTG concentrations enabling the mutant to mimic WT growth. (B): ori/ter ratios measured by qPCR on total DNA extracts from the R3317 strain (ePlac::dnaA) cultivated at the indicated IPTG concentrations and normalized to the ori/ter ratio of cells grown with 10 µM IPTG. The latter ratio also corresponds to the ori/ter ratio of the isogenic WT strain (red horizontal dotted line). The competence development status of each assay is indicated by the blue (induced) and red (repressed) double arrowheads (see Material and methods). The means and standard deviations were based on two replicates. (C): Growth (upper graphs) and competence gene expression (lower graphs) of the ePlac::dnaA strain were monitored in media non-permissive (left panels) or permissive (right panels) for competence development of this strain grown at 10 mM IPTG. Double arrowheads specify the XA period. Curves represent the mean of two replicates. Standard deviations are omitted for clarity.
Figure 4. Differential control of competence development by modulated dnaA expression. In strain R3317, the endogenous dnaA promoter has been replaced by the inducible Plac promoter (ePlac::dnaA, see Section 2). (A): Growth assay. R3317 cells were grown to OD550 = 0.3 and were serially diluted and spotted on plates containing the indicated IPTG concentrations. The bracket covers IPTG concentrations enabling the mutant to mimic WT growth. (B): ori/ter ratios measured by qPCR on total DNA extracts from the R3317 strain (ePlac::dnaA) cultivated at the indicated IPTG concentrations and normalized to the ori/ter ratio of cells grown with 10 µM IPTG. The latter ratio also corresponds to the ori/ter ratio of the isogenic WT strain (red horizontal dotted line). The competence development status of each assay is indicated by the blue (induced) and red (repressed) double arrowheads (see Material and methods). The means and standard deviations were based on two replicates. (C): Growth (upper graphs) and competence gene expression (lower graphs) of the ePlac::dnaA strain were monitored in media non-permissive (left panels) or permissive (right panels) for competence development of this strain grown at 10 mM IPTG. Double arrowheads specify the XA period. Curves represent the mean of two replicates. Standard deviations are omitted for clarity.
Cells 10 01938 g004
Cells 10 01938 g005 550

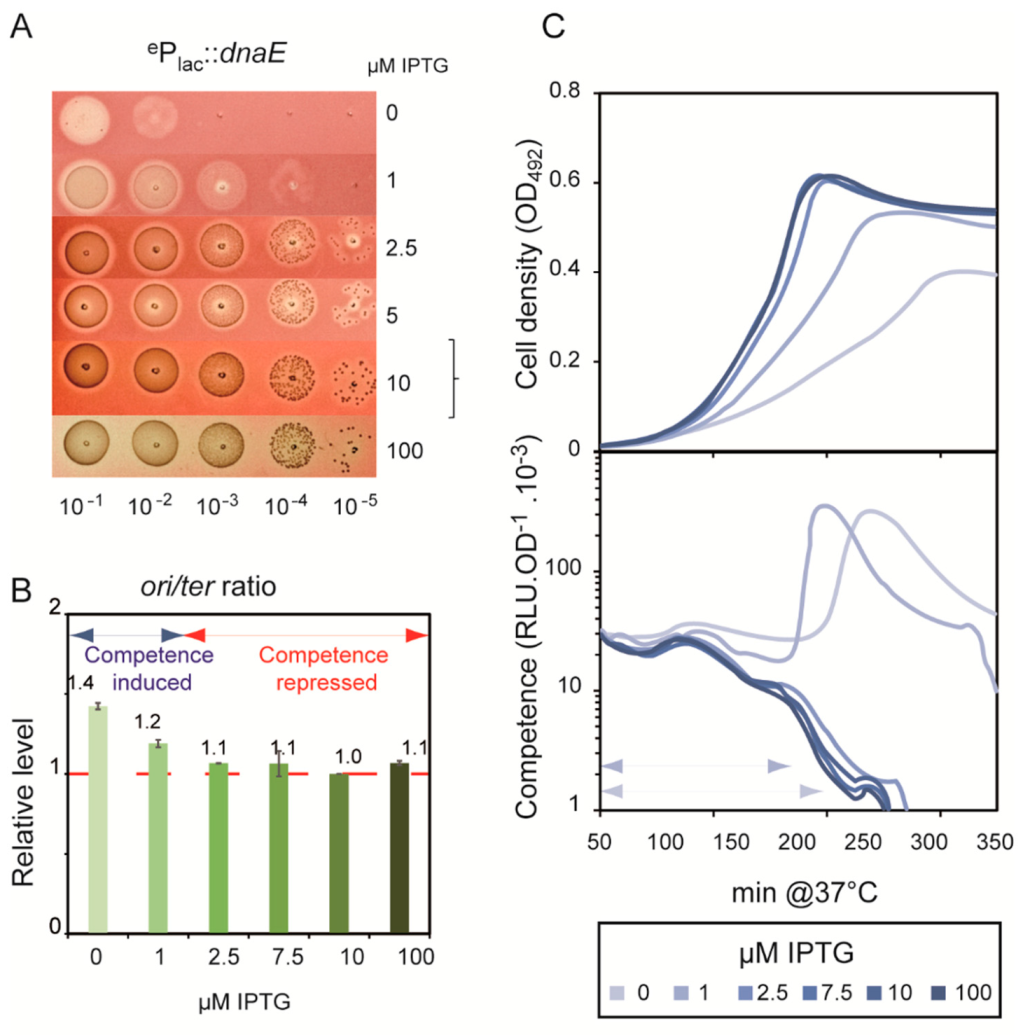

Figure 5. Reduction of dnaE expression induces competence. In strain R3315, the endogenous dnaE promoter has been replaced by the inducible Plac promoter (ePlac::dnaE, see Section 2). (A): Growth assay. R3315 cells were grown to OD550 = 0.3 and then diluted and spotted on medium containing the indicated IPTG concentrations. The bracket covers IPTG concentrations enabling the mutant to mimic wt growth. (B): ori/ter ratios measured by qPCR on total DNA extracted from the R3315 strain (ePlac::dnaE) cultivated at the indicated IPTG concentrations. The ori/ter ratio obtained for cells grown with 10 µM IPTG was used as the reference ratio to calculate the relative level (y-axis); it corresponds to the ori/ter ratio of the isogenic WT strain (red horizontal dotted line). The relative ori/ter ratio at each IPTG concentration is indicated, with standard deviations: values are the means of two replicates. The competence development status of each assay is indicated by the blue (induced) and red (repressed) double arrows. (C): Competence expression of the ssbB::luc transcriptional fusion in R3315 was monitored in C+Y medium adjusted at an initial pH non permissive for competence development when cells are cultivated with 10 µM IPTG, which fully complemented growth as WT cells. Curves represent the mean of four replicates for each growth condition performed at the indicated IPTG values. Standard deviations are omitted for clarity. Double arrowheads specify the XA period.
Figure 5. Reduction of dnaE expression induces competence. In strain R3315, the endogenous dnaE promoter has been replaced by the inducible Plac promoter (ePlac::dnaE, see Section 2). (A): Growth assay. R3315 cells were grown to OD550 = 0.3 and then diluted and spotted on medium containing the indicated IPTG concentrations. The bracket covers IPTG concentrations enabling the mutant to mimic wt growth. (B): ori/ter ratios measured by qPCR on total DNA extracted from the R3315 strain (ePlac::dnaE) cultivated at the indicated IPTG concentrations. The ori/ter ratio obtained for cells grown with 10 µM IPTG was used as the reference ratio to calculate the relative level (y-axis); it corresponds to the ori/ter ratio of the isogenic WT strain (red horizontal dotted line). The relative ori/ter ratio at each IPTG concentration is indicated, with standard deviations: values are the means of two replicates. The competence development status of each assay is indicated by the blue (induced) and red (repressed) double arrows. (C): Competence expression of the ssbB::luc transcriptional fusion in R3315 was monitored in C+Y medium adjusted at an initial pH non permissive for competence development when cells are cultivated with 10 µM IPTG, which fully complemented growth as WT cells. Curves represent the mean of four replicates for each growth condition performed at the indicated IPTG values. Standard deviations are omitted for clarity. Double arrowheads specify the XA period.
Cells 10 01938 g005
Cells 10 01938 g006 550
Figure 6. Reduction of dnaC expression induces competence and decreases the ori/ter ratio. In strain R3316, the endogenous dnaC promoter has been replaced by the inducible Plac promoter (ePlac::dnaC, see Section 2). (A): Growth assay. R3316 cells were serially diluted and spotted on medium containing the indicated IPTG concentrations. The bracket covers IPTG concentrations enabling the mutant to mimic WT growth. (B): ori/ter ratios measured by qPCR on total DNA extracted from the R3316 strain (ePlac::dnaC) cultivated at the indicated IPTG concentrations. The ori/ter ratio obtained for cells grown with 10 µM IPTG was arbitrarily set to 1 and used as a reference ratio (relative level), which corresponds to the ori/ter ratio of the isogenic WT strain (red horizontal dotted line). The relative ori/ter ratio measured in each condition is indicated. The competence development status of each assay is indicated by the blue (induced) and red (repressed) double arrows lines. The mean and standard deviation were generated from two replicates. (C): Expression of the ssbB::luc transcriptional fusion in the WT strain R895 (blue) and its isogenic ePlac::dnaC strain R3316 (orange). Cell density (OD492) is presented as dotted lines and competence (RLU.OD492−1 × 103) as plain lines recorded every 5 min. Cells were cultivated at 37 °C in C+Y medium with 0, 5 or 10 μM IPTG at a pH non-permissive for spontaneous development of competence for R3316 grown with 10 μM IPTG (as well as for the isogenic WT strain). Double arrowheads specify the XA period.
Figure 6. Reduction of dnaC expression induces competence and decreases the ori/ter ratio. In strain R3316, the endogenous dnaC promoter has been replaced by the inducible Plac promoter (ePlac::dnaC, see Section 2). (A): Growth assay. R3316 cells were serially diluted and spotted on medium containing the indicated IPTG concentrations. The bracket covers IPTG concentrations enabling the mutant to mimic WT growth. (B): ori/ter ratios measured by qPCR on total DNA extracted from the R3316 strain (ePlac::dnaC) cultivated at the indicated IPTG concentrations. The ori/ter ratio obtained for cells grown with 10 µM IPTG was arbitrarily set to 1 and used as a reference ratio (relative level), which corresponds to the ori/ter ratio of the isogenic WT strain (red horizontal dotted line). The relative ori/ter ratio measured in each condition is indicated. The competence development status of each assay is indicated by the blue (induced) and red (repressed) double arrows lines. The mean and standard deviation were generated from two replicates. (C): Expression of the ssbB::luc transcriptional fusion in the WT strain R895 (blue) and its isogenic ePlac::dnaC strain R3316 (orange). Cell density (OD492) is presented as dotted lines and competence (RLU.OD492−1 × 103) as plain lines recorded every 5 min. Cells were cultivated at 37 °C in C+Y medium with 0, 5 or 10 μM IPTG at a pH non-permissive for spontaneous development of competence for R3316 grown with 10 μM IPTG (as well as for the isogenic WT strain). Double arrowheads specify the XA period.
Cells 10 01938 g006
