Systematic Analysis of Kelch Repeat F-box (KFB) Protein Family and Identification of Phenolic Acid Regulation Members in Salvia miltiorrhiza Bunge

by
Haizheng Yu
1,2,
Mengdan Jiang
3,
Bingcong Xing
1,2,
Lijun Liang
1,2,
Bingxue Zhang
1,2 and
Zongsuo Liang
1,2,3,*
1
Institute of Soil and Water Conservation, Chinese Academy of Sciences & Ministry of Water Resource, Yangling 712100, China
2
University of the Chinese Academy of Sciences, Beijing 100049, China
3
Zhejiang Province Key Laboratory of Plant Secondary Metabolism and Regulation, College of Life Sciences and Medicine, Zhejiang Sci-Tech University, Hangzhou 310018, China
*
Author to whom correspondence should be addressed.
Genes 2020, 11(5), 557; https://doi.org/10.3390/genes11050557
Submission received: 10 April 2020 / Revised: 7 May 2020 / Accepted: 12 May 2020 / Published: 16 May 2020
(This article belongs to the Section Plant Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:
S. miltiorrhiza is a well-known Chinese herb for the clinical treatment of cardiovascular and cerebrovascular diseases. Tanshinones and phenolic acids are the major secondary metabolites and significant pharmacological constituents of this plant. Kelch repeat F-box (KFB) proteins play important roles in plant secondary metabolism, but their regulation mechanism in S. miltiorrhiza has not been characterized. In this study, we systematically characterized the S. miltiorrhiza KFB gene family. In total, 31 SmKFB genes were isolated from S. miltiorrhiza. Phylogenetic analysis of those SmKFBs indicated that 31 SmKFBs can be divided into four groups. Thereinto, five SmKFBs (SmKFB1, 2, 3, 5, and 28) shared high homology with other plant KFBs which have been described to be regulators of secondary metabolism. The expression profile of SmKFBs under methyl jasmonate (MeJA) treatment deciphered that six SmKFBs (SmKFB1, 2, 5, 6, 11, and 15) were significantly downregulated, and two SmKFBs (SmKFB22 and 31) were significantly upregulated. Tissue-specific expression analysis found that four SmKFBs (SmKFB4, 11, 16, and 17) were expressed preferentially in aerial tissues, while two SmKFBs (SmKFB5, 25) were predominantly expressed in roots. Through a systematic analysis, we speculated that SmKFB1, 2, and 5 are potentially involved in phenolic acids biosynthesis.

1. Introduction

S. miltiorrhiza, which belongs to the family Labiate, is a well-known Chinese herb. The dried roots and rhizomes of this plant are known as Danshen in The Pharmacopoeia of The People’s Republic of China, and they are widely used in the clinical treatment of cardiovascular and cerebrovascular diseases in China and, to a lesser degree, in Japan, The United States, and other European countries [1]. Phenolic acids and tanshinones are major pharmaceutical components and secondary metabolites in S. miltiorrhiza. There are more than 40 lipophilic tanshinones (tanshinone I, tanshinone IIA, cryptotanshinone, dihydrotanshinone I, and so on), and 20 hydrophilic phenolic acids (salvianolic acid B, rosmarinic acid, dihydroxyphenyllactic acid, and lithospermic acid) have been identified and/or isolated from S. miltiorrhiza [2]. In China, many pharmaceutical dosage forms of Danshen are commercially available, such as dripping pills, tablets, injectables, oral liquids, and granules. Among all the available dosage forms, the Fufang Danshen dripping pill and Fufang Danshen tablets are the two most widely used in China. Notably, the Danshen dripping pill has entered into the healthcare market of the United States, Netherlands, Britain, South Korea, and Russia (www.tasly.com). Not only that, but the Fufang Danshen dripping pill was the first Chinese traditional medicine approved by the Food and Drug Administration (FDA) for clinical tests, and it has now completed Phase III clinical trials [3].
Due to good curative effect of Danshen, market demand has been increasing in recent years. This requires us to improve the production of tanshinones and phenolic acids via modern biotechnology. Completion of genomic sequencing of S. miltiorrhiza [4,5] has provided comparatively perfect information about the genes involved in the tanshinones and phenolic acids biosynthetic pathway [6,7]. Many transcription factors (TFs), such as WRKY, myeloblastosis (MYB), the basic helix–loop–helix (bHLH), and ethylene response factor (ERF), acting as positive or negative regulators, and modulating transcription of biosynthetic enzymes, have been reported [8,9,10,11,12,13,14,15] in recent years. However, less is known about the multifaceted regulatory mechanism controlling tanshinones and phenolic acids biosynthesis beyond the transcriptional level.
The ubiquitination-26s proteasome system (UPS) is one of protein post-translational modifying manners and is involved in modulating nearly all aspects of plant biological processes, including cell division, plant growth and development, hormone signaling, response to both abiotic and biotic stresses, and secondary metabolism regulation [16,17]. UPS begins with the sequential action of three enzymes, E1 (ubiquitin (Ub)-activating enzyme), E2 (Ub-conjugating enzyme), and Ub ligases (E3). Ubiquitin is activated by E1 in an ATP-dependent manner and conjugated to E2. The Ub-E2 intermediate then transfers Ub to a Lys residue of the substrate protein via the E3 recognition element. The ubiquitinated proteins are recognized and degraded by the 26s proteasome [18]. Among these three enzyme families, the most important are the E3s that are in charge of substrate specificity. A total of over one thousand E3s have been identified so far from the genomes of different plant species, which are classified into different families on the basis of their mode of action and subunit composition [19]. One of the best characterized E3s in plants are the Skp1-Cullin-F-box (SCF) protein complexes [20]. SCF E3 complex consists of S-phase kinase-associated protein 1 (SKP1), Cullin 1 (CUL1), RING-box1 (RBX1), and an F-box protein [20]. Among these components, the F-box protein charges the specificity of the SCF complex by selective recruitment of target proteins through the protein–protein interaction domain [21].
F-box proteins constitute a large family in plants and are characterized by a conserved F-box motif (approximately 40~50 amino acids) at their N-terminus, which interacts with Skp1. The C-terminus of F-box proteins generally contains one of several highly variable protein interaction domains, such as the WD40 repeat, tetratricopeptide repeat (TPR), leucine-rich repeat (LRR), armadillo (Arm), jumonji (Jmj)—C domains, Tub, actin, DEAD-like helicase, and the Kelch repeat that interacts with specific protein substrates via UPS degradation [22]. The F-box protein family is further divided into several subfamilies based on a different protein–protein interaction domain at the C-terminus. In this study, we focused on the F-box protein which contains several Kelch motifs at C-terminus, called Kelch repeat F-box (KFB) proteins. Several KFB proteins have been characterized to be regulators of plant secondary metabolism. For example, AtKFB01, AtKFB20, AtKFB50, AtKFB39, and AtKFBCHS participate in the regulation of the phenylpropanoid biosynthetic pathway of Arabidopsis thaliana [23,24,25]. CmKFB is identified as a negative regulator of naringenin chalcone biosynthesis [26]. In rice, Borah et al. have found that OsFBK1 affects anther and root secondary cell wall lignin biosynthesis by mediating turnover of cinnamoyl-CoA reductase (CCR), which is the first committing enzyme in lignin biosynthesis [27]. All of above cases show that KFB proteins play an important role in phenylpropanoid biosynthesis by mediating corresponding enzyme degradation. Plant genomes contain a large number of KFB genes. For example, A. thaliana and Populus trichocarpa contain at least 103 and 68 KFB genes, respectively [28]. However, little information is available for illuminating KFB genes of S. miltiorrhiza.

2. Materials and Methods

2.1. Identification and Cloning of SmKFB Gene Family Members

The most recent annotated version of cDNAs from S. miltiorrhiza were downloaded from the respective genome and transcriptome sequence sites [4,5,29]. Published A. thaliana KFB protein sequences [28] were used as first queries for BLAST searches against those S. miltiorrhiza databases. The sequences were selected as candidate sequences for further study if their E value was ≤ e−10. Candidate sequences were confirmed for presence of F-box and Kelch domains by use of the HMMER 3.3 [30] and verified via the online Tool of Conserved Domains [31] and SMART [32]. The KFB-like sequences confirmed by HMMER search in the S. miltiorrhiza database were in turn used reiteratively to search the SmKFBs until no new sequences were found. The KFB sequences in different databases were blasted using Cluster 3.0 software to remove repeat sequences. Full-length open reading frames (ORFs) of SmKFBs were amplified by PCR using the primers listed in Supplementary Table S1. The primers were designed using Premier 5.0 software. The cDNA obtained from S. miltiorrhiza roots or flowers were used as the template for the gene clone. KOD-Plus-Neo polymerase (TOYOBO, Osaka, Japan) was used for the PCR reaction. The PCR reaction was performed in the Mastercycler® Nexus PCR (Eppendorf, Hamburg, Germany) for 2 min at 94 °C, then for 30 cycles for 10 s at 98 °C, 30 s at 58 °C, and then 60 s at 68 °C. After the final cycle, the amplification was extended for 5 min at 68 °C. The PCR products were gel-purified using the MiniBEST Agarose Gel DNA Extraction Kit (Takara, Dalian, China), ligated to the pClone007 Blunt Vector (TsingKe, Beijing, China), transformed to Escherichia coli DH5α, and then sequenced (TsingKe company, Hangzhou, China). The theoretical isoelectric point (pI) and molecular weight (Mw) of the full-length coding sequence (CDS) of SmKFBs were predicted using the Compute pI/Mw tool in the BioEdit software (version 7.0.5.3, Sydney, Australia).

2.2. Multiple Sequence Alignment, Phylogenetic Analysis

Multiple sequence alignment of the KFBs from S. miltiorrhiza, A. thaliana, and Oryza sativa, which were performed using CLUSTALW, and phylogenetic trees were constructed via the neighbor-joining method (bootstrap test was replicated 1000 times) using MEGA 6.0 software [33]. All the SmKFBs were analyzed by MEME online software [34] for conversed motif prediction with the following criteria: 20 motifs, with an optimum motif width between 8 and 50 residues, with any number of repetitions. The sequences for phylogenetic trees and conversed motif analysis were shown in Supplementary Table S2.

2.3. Plant Materials and Growth Conditions

The plants of S. miltiorrhiza were grown in the field of the Zhejiang Sci-Tech University Medicinal Herb Garden for 2 years. The roots, stems, leaves, and flowers were collected in May, 2019. The fresh organs were frozen in liquid nitrogen and stored at −80 °C until use. The hairy roots culture system of S. miltiorrhiza was referred to by Xing et al. [35]. Samples of the fresh hairy roots of S. miltiorrhiza weighing 0.2 g were inoculated into a 100 mL triangular flask containing 50 mL of hormone-free 6, 7-V liquid medium. The triangular flasks containing the hairy roots were the placed in an orbital shaker at 110 rpm and incubated at 25 °C in the dark [36]. Methyl jasmonate (MeJA, Sigma-Aldrich, St. Louis, MO, USA) was diluted with ethanol to a concentration of about 100 mM, and then sterilized through 0.22 μm filters. The MeJA treatment was performed on the 18th day after inoculation. The MeJA was added to the medium to make the final MeJA concentration about 100 μM. Hairy roots treated with pure ethanol were designated as the control. Hairy roots were sampled at 0, 1, 2, 4, 8, 12, and 24 h after treatment. The fresh hairy roots were immediately frozen in liquid nitrogen and stored at −80 °C for RNA extraction.

2.4. Transcriptional Analysis by Real-Time Quantitative PCR (RT-qPCR)

Total RNA was extracted from liquid stored sample of S. miltiorrhiza using the RNAprep pure Plant Kit (Tiangen, Beijing, China). and then reversely transcribed according to the manufacturer’s instruction of PrimeScriptTM RT reagent Kit (Takara, Dalian, China). RNA integrity was analyzed on 1.0% agarose gel. RNA quantity was determined using a NanoDrop 2000 Spectrophotometer (Thermo Scientific, Woburn, USA). The obtained cDNA was used as a template for the RT-qPCR analysis using the QuantStudioTM Flex6 System (ABI, Alexandria, America) with SYBR® green reagents (Takara, Dalian, China). The primers are listed in Supplementary Table S3. SmUBQ10 was used as an internal control [8]. The RT-qPCR reaction for target gene transcript amplification was carried out in a final volume of 20 μL containing 10 μL TB Green Premix Ex Taq (Takara, Dalian, China), 0.4 μM each forward and reverse primers, and 2 μL (about 100 ng) diluted cDNA. RT-qPCR was performed according to the following conditions: 30 s predenaturation at 95 °C, and 40 cycles for 5 s at 95 °C and 30 s at 58 °C. Experiments were performed in triplicate for each bio-repeat and tech-repeat, and the results were represented by their means ± SD. Quantification of gene expression was done with the 2−ddCt method [37].

3. Results

3.1. Molecular Cloning of 31 SmKFB Genes from S. Miltiorrhiza

A total of 103 AtKFB genes have been identified from Arabidopsis genome. To identify the S. miltiorrhiza SmKFB gene, AtKFB sequences were used as queries to blast against the current assembly of the S. miltiorrhiza genome. A total of 49 genes were predicted for SmKFBs. Then, we submitted those putative SmKFBs to HMMER 3.0, the online Tool of Conserved Domains, and SMART for further analysis. Among 49 putative SmKFBs, F-box or Kelch motif were absent in 18 genes. Hence, 31 SmKFBs were used for further analysis. To verify the predicted gene models and correct the errors of sequences, PCR amplification was done on the CDS (coding sequence) of all 31 SmKFBs genes using the primers listed in Supplementary Table S1, and then cloned and sequenced. As shown in Table 1, the sequence analysis of 31 identified SmKFB genes demonstrated deduced amino acid (AA) numbers from 342 to 478. SmKFB showed a wide range of isoelectric points (pI) from 4.76 to basic 9.72, indicating extensive distribution in different subcellular areas. Molecular weights (Mw) of these proteins ranged from 37898.69 to 54239.94 Da. Among the 31 SmKFBs, 11 contain a single Kelch motif, six have two Kelch motifs, 12 have three Kelch motifs, one has four Kelch motifs, and the remaining one has five Kelch motifs. The different number of Kelch motifs in SmKFB proteins indicate that those SmKFBs may interact with a variety of proteins to regulate the physiological process.

3.2. Phylogenetic Analysis and Conserved Motifs Identification of the S. Miltiorrhiza KFB Family

To get a detailed knowledge of the evolutionary relationship and topological structure of the S. miltiorrhiza KFB protein family, a neighbor-joining (NJ) phylogenetic tree was constructed from 31 S. miltiorrhiza KFB proteins, 103 A. thaliana KFB proteins, 46 O. sativa KFB proteins, two Chlamydomonas reinhardtii KFB proteins, one Homo sapiens KFB protein, and one Mus musculus KFB protein. All plant KFB protein clades were separated from animal KFB clades (Figure 1). Due to the absence of KFB protein in Charophyceaes, a small group of predominantly freshwater green algae represents the most recent common ancestor of land plants [27]; we rooted the tree with human KFB, M. musculus KFB, and two C. reinhardtii KFB proteins. According to the well-supported bootstrap data, the phylogenetic tree divided the KFBs into five clades, named from Groups I to V.
Group I was the largest group with 69 plant KFB proteins, of which, 67 were from A. thaliana. The result is consistent with previous reports showing that A. thaliana KFB proteins have been expanded when various eudicot species diverged from their respective most recent common ancestor [27]. Group II, III, and IV KFB proteins did not reflect any species specificity, as their KFB proteins have orthologs in other analyzed species. It is conceivable that those KFBs may perform functions in developmental or physiological processes conserved in land plants. Group IV is the second smallest group after Group V, consisting of 10 plant KFB proteins, which might resemble the ancestral plant KFB. There are two reasons for supporting this idea. Firstly, phylogenetic results indicate that Group IV is phylogenetically closed with Group V, which is the root clade of KFBs. Secondly, AT1G68050/FKF1, AT2G18925/LKP2, and AT5G57360/ZTL proteins contain the N-terminal light–oxygen–voltage (LOV) motif, which was also identified in several proteins of archaea, eubacteria, and eukaryotes [38]. The LOV motif binds to flavin mononucleotide (FMN) to constitute blue light sensors. The blue light photoreceptor is the first and originating photoreceptor system found in all kingdoms of life [39,40], further supporting the idea that Group IV might be the ancestral proteins, and could be important in the evolutionary history of plants from eukaryotic algae to towering trees.
In order to understand the similarity and diversity motif of SmKFBs within the same group, 31 SmKFB amino acid sequences were analyzed by MEGA6.0 for phylogenetic tree construction, and MEME online software was used to predicate the conserved motif. There were 20 distinct motifs which were identified. As shown in Figure 2, most of the SmKFBs in the same group had similar motif composition and some motifs were absent in all sequences. For example, motifs 1 and 3 were shared by each group, while some motifs (4, 6, 7, and so on) were only distributed in a specific group. In addition, motif 2 was usually distributed more than once in some sequences.

3.3. Differential Expression of SmKFB Genes in Response to MeJA

Jasmonic acid, and its derivative methyl jasmonate (MeJA), are collectively known as jasmonates (JAs). JAs can serve as a key elicitor in regulation of a wide array of secondary metabolites, including terpenoids, phenylpropanoids, and alkaloids [41,42]. Hence, JA-responsive genes may be a regulator of secondary metabolism. In order to test whether SmKFBs were responsive to MeJA treatment in S. miltiorrhiza, the expression level of SmKFBs in hair root treated with MeJA was analyzed using the RT-PCR method.
As shown in Figure 3a, all of the 31 SmKFBs having expression profiles were roughly clustered into three groups based on their expression pattern. Of the three groups, the genes in Cluster I were mainly downregulated after MeJA treatment. For example, SmKFB1, SmKFB2, and SmKFB6 were markedly downregulated by MeJA treatment with a similar expression pattern (Figure 3b). The gene expression of SmKFB5 decreased by about 2 times with the MeJA treatment. In addition, the gene expression pattern of SmKFB11 was slowly downregulated along with the sample points. However, the transcript level of SmKFB15 was slowly upregulated within 3 h after treatment.
In Cluster II, 23 SmKFB transcripts were probably insensitive to MeJA. Detailed gene expression information is available in Supplementary Table S4. As shown in Figure 3a, members of this group were divided into: (1) the slightly upregulated subgroup; and (2) the slightly downregulated subgroup. Six SmKFB genes (SmKFB4, 10, 14, 17, 23, and 28) were slightly upregulated, while 17 were downregulated by MeJA treatment at the sampling time point. In Cluster III, the gene expression of SmKFB22 and SmKFB31 was upregulated by MeJA, suggesting their potential participation in the degradation of some repressed proteins, which blocked JA signal transduction.

3.4. Tissue-Specific Expression of SmKFBs

Tanshinones and phenolic acids are mainly distributed in the root of S. miltiorrhiza. However, tanshinones were not detected in the aerial parts of S. miltiorrhiza [43]. There was an uneven distribution of tanshinones and phenolic acids in S. miltiorrhiza tissue, indicating those secondary metabolism related genes have tissue-specific gene expression. Therefore, in this study, we examined 31 SmKFBs gene profiles from different tissues of this plant. As shown in Figure 4, all of the 31 SmKFBs genes were expressed in all analyzed tissue but with a differential expression pattern.
Four SKFBs (SmKFB4, 11, 16, and 17) showed predominant expression in all the aerial tissues. Four SmKFBs (SmKFB7, 8, 18, 31) showed only higher expression in flowers. Eleven SmKFBs (SmKFB3, 9, 10, 12, 13, 14, 22, 24, 26, 28, 29) were mainly expressed in the stem and leaf, while SmKFB1 and SmKFB6 were expressed at a lower level in the stem and leaf. The other nine SmKFBs showed a slight change in all analyzed tissues, suggesting these genes are likely to play a ubiquitous role in S. miltiorrhiza. Some phylogenetically closed SmKFBs showed different expression patterns. For example, SmKFB2 and SmKFB3 were closely related in the phylogenetical tree. However, SmKFB2 was expressed at lower levels in leaf, while SmKFB3 showed higher expression levels in stem, indicating that SmKFBs within a common phylogenetic clade can be differentially regulated at the mRNA level, and therefore independently mediate the same physiological process under different conditions.

3.5. Identification of Candidate SmKFB Genes Related to Phenolic Acid Biosynthesis

It has been reported that several plant KFBs were identified to function as regulators of phenylpropanoid biosynthesis. For example, six KFB proteins form A. thaliana (KFB01/AT1G15670, KFB20/AT1G80440, KFB39/AT2G44130, KFB50/AT3G59940, KFB07/AT1G23390, and SAGL1/AT1G55270)-regulated phenylpropanoid or flavonoid biosynthetic pathways by controlling the degradation of phenylalanine ammonia lyase (PAL) or chalcone synthase (CHS) enzymes [23,24,25,44]. The phenylpropanoid biosynthetic pathway is upstream of phenolic acid production [45]. Therefore, there may be some SmKFBs regulating phenolic acids biosynthesis. Genes having a rather close relationship in the phylogenetic tree may have similar function. Meanwhile, the gene expression pattern is usually related to the gene’s function [46]. Therefore, we used the phylogenetic tree and gene expression pattern to predict the candidate SmKFB genes which might involve phenolic acid biosynthesis of S. miltiorrhiza. As shown in Figure 1, SmKFB1 and SmKFB5 were phylogenetically related to AtKFB01, 20, 39, and 50, while SmKFB28 and SAGL1 were clustered together with a bootstrap of 100, indicating SmKFB1, 5, and 28 could have similar function in PAL ubiquitination and degradation. In addition, SmKFB2 and SmKFB3 were clustered with AtKFB7 (AtKFBCHS) in the phylogenetic tree, suggesting that SmKFB2 and SmKFB3 may be involved in flavonoid biosynthesis. In general, the gene expression patterns appear to be consistent with their function. Phenolic acids were distributed primarily in the roots and enhanced biosynthesis by MeJA [7,47,48]. According to the gene expression pattern, SmKFB1 and SmKFB5 were expressed relatively highly in the root and were strongly suppressed by MeJA (Figure 3b). Therefore, MeJA may suppress gene expression of SmKFB1 and SmKFB5 to decrease the degradation of SmPAL and enhance the production of phenolic acids in S. miltiorrhiza. Flavonoids are widely distributed throughout the plant kingdom and play an important role in the process of plant physiology. For example, flavonoid functions as a photoprotectant, an ultraviolet ray protectant, and confers flower pigments to attract pollinators. There have been reports that flavonoids were only detected in the aerial parts of S. miltiorrhiza [43]. Referring to the gene expression of SmKFB2, which showed the lowest expression in the leaf and was suppressed by MeJA, we regard SmKFB2 as regulating of flavonoid biosynthesis in S. miltiorrhiza. Based on the above analysis, SmKFB1, 2, and 5 are most likely involved in phenolic acid biosynthesis.

4. Discussion

S. miltiorrhiza is a well-known Chinese herb; tanshinones and phenolic acids are the key secondary metabolites and bioactive compounds of this plant. Thus, to identify the biosynthesis and regulation mechanism of the S. miltiorrhiza secondary metabolite is the basis of Danshen quality control. Substantial research has focused on the transcriptional regulation of phenolic acids biosynthesis, but less is known about the protein post-translational modification controlling phenolic biosynthesis. Production of secondary metabolites is influenced greatly by environmental stimuli. Generally, production of secondary metabolites is enhanced when a plant undergoes stresses, which cost energy, photosynthate, and nutrients [49]. This overproduction might cease at the removal of stress. Hence, turning on and turning off the biosynthetic pathway play equally important roles in the plant’s life cycle. As one of protein post-translation modifying manner, the ubiquitin–proteasome system plays an important role in turning off the biosynthetic pathway by mediating the degradation of target proteins such as transcription factors or biosynthetic enzymes. For example, under cold stress, excessive generation of reactive oxygen species (ROS) lead to oxidative damage. Production of proanthocyanins effectively scavenges ROS and facilitates cold tolerance. In apple, MdMYB23 is a low temperature stable molecule, and activates the transcription of MdANR, which promotes biosynthesis of proanthocyanin in apple. On the other hand, MdMYB23 can be degraded by MdBT2 mediating UPS, but the gene expression of MdBT2 is repressed under low temperatures. So MdMYB23 is stable to regulate MdANR gene expression at low temperature. On the contrary, when temperature become suitable, MdBT2 mediating UPS is activated again and suppresses MdANR which, in turn, terminates proanthocyanin biosynthesis [50].
KFB proteins are in charge of the specificity of the SCF E3 Ub ligase complex by selective recruitment of target proteins through the protein–protein interaction domain. KFB proteins are widespread and have been identified for A. thaliana, Vitis vinifera, O. sativa, P. trichocarpa, and other plants. To date, for A. thaliana, V. vinifera, O. sativa, and P. trichocarpa, 103, 36, 39, and 68 KFB genes were identified, respectively [28]. However, we only identified 31 SmKFB genes in the S. miltiorrhiza genome, which may not represent all KFBs in S. miltiorrhiza. One reason for this is the Kelch motif is rather weakly conserved at the sequence level [28]. This is because the Kelch repeat is an ancient motif of 44–56 amino acid residues and is largely defined by the conserved double glycine, tyrosine, tryptophan, and arginine residues. These conserved sites are interspersed with other amino acid residues [51,52]. So, the existence of additional yet undetected SmKFBs is likely. Kelch repeats follow a degenerate F-box motif and function as substrate recognition. Individual Kelch motifs form four-stranded β-sheets that assemble together to create a β-propeller tertiary structure [53,54]. It has been reported that analysis of approximately 400 different plant KFB proteins indicated that 65% of plant KFB proteins contain only one or two Kelch motifs [28]. However, only about 55% (17/31) SmKFBs contain less than three Kelch motifs in S. miltiorrhiza. In addition, we have found that SmKFB27 and SmKFB31 contain four and five Kelch repeats, suggesting they may recognize multiple substrates.
The biosynthesis and accumulation of secondary metabolites are usually tissue- and developmental stage-specificity [55]. Therefore, the gene expression patterns usually correlate with their function. For example, OsFBK1was a F-box Kelch repeat motif protein in rice. Gene expression of OsFBK1 indicated that it had high transcript abundance in the late anther development stage, and transcript accumulated in increasing order of anther development. Gene function identification of OsFBK1 showed its involvement in anther cell wall thickenings by mediating turnover of cinnamoyl-CoA reductase in anther [27]. Similarly, A. thaliana F-box protein cold temperature-germinating (CTG)-10 is expressed predominantly in hypocotyl, and its overexpression accelerates seed germination [56]. SmKFB31 transcript level is displayed higher in the flower. As shown in Figure 1, SmKFB31 is closely related with AtFBK1 and OsFBK1. It has been reported that AtFBK1 and OsFBK1 (Os11g34460) functioned as a key regulator in flowering [57], further supporting that SmKFB31 may be a regulator of flowering of S. miltiorrhiza. In addition, SmKFB5 and SmKFB25 shared similar expression patterns with higher expression in roots. There is a closely phylogenetic relation of SmKFB5 with AtKFB39 and SmKFB50, suggesting its function in regulating phenylpropanoid biosynthesis. Furthermore, phenolic acids are also predominately accumulated in roots. Hence, SmKFB5 could be a candidate gene for studying the mechanism of phenolic acid biosynthesis. In addition, SmKFB5 is also closely related with AT3G27150, which is a responsive gene under phosphate starvation [58]. Our lab has already reported that phosphate starvation promotes the biosynthesis and accumulation of phenolic acids in S. miltiorrhiza [59]; however, its detailed molecular mechanism has not been proven. Thus, SmKFB5 may be a key regulator in mediating phosphate starvation regulating phenolic acid biosynthesis.
As a key elicitor, JAs have been described to be regulators of a wide array of secondary metabolites, including terpenoids, phenylpropanoids, and alkaloids [60,61]. It is conceivable that JAs might obey diversity regulatory modules to regulate secondary metabolic biosynthesis. Generally, the biosynthesis of tanshinones and phenolic acids were regulated by Jas, usually via controlling the gene expression of JA-responsive transcription factors (such as WRKY, bHLH, MYB, MYC) and biosynthetic pathway genes [9,14,35,62]. However, little is known about the role of MeJA in regulating secondary metabolism on protein post-translational modification level. Some KFB proteins as key subunit of E3 protein ligase have been identified as a regulator in secondary metabolism. In this study, we have found that gene expression of SmKFB1, 2, and 5 was suppressed by MeJA. Those MeJA-repressed SmKFB genes are more likely involved in the regulation of tanshinones and phenolic acid biosynthesis, as KFB protein works as a negative regulator to mediate biosynthetic enzyme degradation. In other hand, JAs have been described as positive regulators to promote tanshinones and phenolic acids production [8,48]. Therefore, we speculate that JAs repress SmKFB gene expression to decrease the degradation of SmKFB targeting biosynthetic enzymes. This might be another molecular mechanism of JAs promoting secondary metabolite biosynthesis.
In future study, we will look into whether MeJA suppresses SmKFBs transcripts to maintain the stable of biosynthetic enzyme proteins. If we can illustrate the function of those MeJA-repressed SmKFBs in phenolic acid biosynthesis, there will be a new mechanism of JA signal regulating secondary metabolite biosynthesis.

5. Conclusions

In this study, 31 SmKFB genes were identified and cloned from the S. miltiorrhiza genome. To predict the candidate SmKFB genes which may regulate S. miltiorrhiza secondary metabolite biosynthesis, phylogenetic tree and gene expression analysis were constructed. Based on these analyses, integration of the phylogenetic tree and gene expression analysis, SmKFB1, 2 and 5 were most likely involved in phenolic acid biosynthesis and those functions will be identified in our future study. In addition, this study could be used as a resource for post-translation level regulating secondary metabolite biosynthesis of S. miltiorrhiza.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/11/5/557/s1. Table S1: List of cloning primers used for SmKFB cloning; Table S2: List of sequences used for phylogenetic tree construction; Table S3: List of RT-qPCR primers used for SmKFB expression studies; Table S4: SmKFB expression data after MeJA treatment.

Author Contributions

H.Y. and Z.L. conceived and designed this study. H.Y., M.J., and B.X. conducted experiments. B.Z. and L.L. contributed the analytical tool. H.Y. wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Natural Science Foundation of China (grant number 81773835).

Acknowledgments

We would like to thank Muhammad Qasim at Zhejiang Sci-Tech University for the help with study suggestion. This study was supported by grants from the National Natural Science Foundation of China (81773835).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhou, L.; Zuo, Z.; Chow, M.S.S. Danshen: An overview of its chemistry, pharmacology, pharmacokinetics, and clinical use. J. Clin. Pharmacol. 2005, 45, 1345–1359. [Google Scholar] [CrossRef]
  2. Wang, X.; Morris-Natschke, S.L.; Lee, K.-H. New developments in the chemistry and biology of the bioactive constituents of Tanshen. Med. Res. Rev. 2007, 27, 133–148. [Google Scholar] [CrossRef]
  3. Study of Compound Danshen Dripping Pills to Treat Acute Mountain Sicknes. Available online: https://clinicaltrials.gov/ct2/show/NCT03270787?cond=Danshen+dripping+pills&rank=1 (accessed on 20 February 2020).
  4. Zhang, G.; Tian, Y.; Zhang, J.; Shu, L.; Yang, S.; Wang, W.; Sheng, J.; Dong, Y.; Chen, W. Hybrid de novo genome assembly of the Chinese herbal plant danshen (Salvia miltiorrhiza Bunge). GigaScience 2015, 4, 62. [Google Scholar] [CrossRef] [Green Version]
  5. Xu, H.; Song, J.; Luo, H.; Zhang, Y.; Li, Q.; Zhu, Y.; Xu, J.; Li, Y.; Song, C.; Wang, B.; et al. Analysis of the Genome Sequence of the Medicinal Plant Salvia miltiorrhiza. Mol. Plant 2016, 9, 949–952. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Wang, B.; Sun, W.; Li, Q.; Li, Y.; Luo, H.; Song, J.; Sun, C.; Qian, J.; Zhu, Y.; Hayward, A.; et al. Genome-wide identification of phenolic acid biosynthetic genes in Salvia miltiorrhiza. Planta 2015, 241, 711–725. [Google Scholar] [CrossRef] [PubMed]
  7. Ma, Y.; Yuan, L.; Wu, B.; Li, X.; Chen, S.; Lu, S. Genome-wide identification and characterization of novel genes involved in terpenoid biosynthesis in Salvia miltiorrhiza. J. Exp. Bot. 2012, 63, 2809–2823. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Yu, H.Z.; Guo, W.L.; Yang, D.F.; Hou, Z.N.; Liang, Z.S. Transcriptional Profiles of SmWRKY Family Genes and Their Putative Roles in the Biosynthesis of Tanshinone and Phenolic Acids in Salvia miltiorrhiza. Int. J. Mol. Sci. 2018, 19, 1593. [Google Scholar] [CrossRef] [Green Version]
  9. Cao, W.; Wang, Y.; Shi, M.; Hao, X.; Zhao, W.; Wang, Y.; Ren, J.; Kai, G. Transcription Factor SmWRKY1 Positively Promotes the Biosynthesis of Tanshinones in Salvia miltiorrhiza. Front. Plant Sci. 2018, 9, 554. [Google Scholar] [CrossRef] [Green Version]
  10. Ding, K.; Pei, T.; Bai, Z.; Jia, Y.; Ma, P.; Liang, Z. SmMYB36, a Novel R2R3-MYB Transcription Factor, Enhances Tanshinone Accumulation and Decreases Phenolic Acid Content in Salvia miltiorrhiza Hairy Roots. Sci. Rep. 2017, 7, 5104. [Google Scholar] [CrossRef] [Green Version]
  11. Hao, G.P.; Jiang, X.Y.; Feng, L.; Tao, R.; Li, Y.L.; Huang, L.Q. Cloning, molecular characterization and functional analysis of a putative R2R3-MYB transcription factor of the phenolic acid biosynthetic pathway in S. miltiorrhiza Bge. f. alba. Plant Cell Tissue Organ. Cult. 2016, 124, 151–168. [Google Scholar] [CrossRef]
  12. Zhang, S.; Ma, P.; Yang, D.; Li, W.; Liang, Z.; Liu, Y.; Liu, F. Cloning and characterization of a putative R2R3 MYB transcriptional repressor of the rosmarinic acid biosynthetic pathway from Salvia miltiorrhiza. PLoS ONE 2013, 8, e73259. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Yang, N.; Zhou, W.; Su, J.; Wang, X.; Li, L.; Wang, L.; Cao, X.; Wang, Z. Overexpression of SmMYC2 Increases the Production of Phenolic Acids in Salvia miltiorrhiza. Front. Plant Sci. 2017, 8, 1804. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Zhou, Y.; Sun, W.; Chen, J.; Tan, H.; Xiao, Y.; Li, Q.; Ji, Q.; Gao, S.; Chen, L.; Chen, S.; et al. SmMYC2a and SmMYC2b played similar but irreplaceable roles in regulating the biosynthesis of tanshinones and phenolic acids in Salvia miltiorrhiza. Sci. Rep. 2016, 6, 22852. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Deng, C.; Hao, X.; Shi, M.; Fu, R.; Wang, Y.; Zhang, Y.; Zhou, W.; Feng, Y.; Makunga, N.P.; Kai, G.J.P.S. Tanshinone production could be increased by the expression of SmWRKY2 in Salvia miltiorrhiza hairy roots. Plant Sci. 2019, 284, 1–8. [Google Scholar] [CrossRef]
  16. Sadanandom, A.; Bailey, M.; Ewan, R.; Lee, J.; Nelis, S. The ubiquitin-proteasome system: Central modifier of plant signalling. New Phytol. 2012, 196, 13–28. [Google Scholar] [CrossRef]
  17. Zhang, X.; Gonzalez-Carranza, Z.H.; Zhang, S.; Miao, Y.; Liu, C.-J.; Roberts, J.A. F-Box Proteins in Plants. In Annual Plant Reviews Online; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2019; pp. 1–21. [Google Scholar]
  18. Miura, K.; Hasegawa, P.M. Sumoylation and other ubiquitin-like post-translational modifications in plants. Trends Cell Biol. 2010, 20, 223–232. [Google Scholar] [CrossRef]
  19. Mazzucotelli, E.; Belloni, S.; Marone, D.; De Leonardis, A.; Guerra, D.; Di Fonzo, N.; Cattivelli, L.; Mastrangelo, A. The E3 Ubiquitin Ligase Gene Family in Plants: Regulation by Degradation. Curr. Genom. 2006, 7, 509–522. [Google Scholar] [CrossRef] [Green Version]
  20. Xu, G.; Ma, H.; Nei, M.; Kong, H. Evolution of F-box genes in plants: Different modes of sequence divergence and their relationships with functional diversification. Proc. Natl. Acad. Sci. USA 2009, 106, 835–840. [Google Scholar] [CrossRef] [Green Version]
  21. Cardozo, T.; Pagano, M. The SCF ubiquitin ligase: Insights into a molecular machine. Nat. Rev. Mol. Cell Biol. 2004, 5, 739. [Google Scholar] [CrossRef]
  22. Gagne, J.M.; Downes, B.P.; Shiu, S.-H.; Durski, A.M.; Vierstra, R.D. The F-box subunit of the SCF E3 complex is encoded by a diverse superfamily of genes in Arabidopsis. Proc. Natl. Acad. Sci. USA 2002, 99, 11519–11524. [Google Scholar] [CrossRef] [Green Version]
  23. Zhang, X.; Abrahan, C.; Colquhoun, T.A.; Liu, C.J. A Proteolytic Regulator Controlling Chalcone Synthase Stability and Flavonoid Biosynthesis in Arabidopsis. Plant Cell 2017, 29, 1157–1174. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Zhang, X.; Gou, M.; Liu, C.J. Arabidopsis Kelch repeat F-box proteins regulate phenylpropanoid biosynthesis via controlling the turnover of phenylalanine ammonia-lyase. Plant Cell 2013, 25, 4994–5010. [Google Scholar] [CrossRef] [Green Version]
  25. Zhang, X.; Gou, M.; Guo, C.; Yang, H.; Liu, C.J. Down-regulation of Kelch domain-containing F-box protein in Arabidopsis enhances the production of (poly)phenols and tolerance to ultraviolet radiation. Plant Physiol. 2015, 167, 337–350. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Feder, A.; Burger, J.; Gao, S.; Lewinsohn, E.; Katzir, N.; Schaffer, A.A.; Meir, A.; Davidovich-Rikanati, R.; Portnoy, V.; Gal-On, A.; et al. A Kelch Domain-Containing F-Box Coding Gene Negatively Regulates Flavonoid Accumulation in Muskmelon. Plant Physiol. 2015, 169, 1714–1726. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Borah, P.; Khurana, J.P. The OsFBK1 E3 Ligase Subunit Affects Anther and Root Secondary Cell Wall Thickenings by Mediating Turnover of a Cinnamoyl-CoA Reductase. Plant Physiol. 2018, 176, 2148–2165. [Google Scholar] [CrossRef] [PubMed]
  28. Schumann, N.; Navarro-Quezada, A.; Ullrich, K.; Kuhl, C.; Quint, M. Molecular evolution and selection patterns of plant F-box proteins with C-terminal kelch repeats. Plant Physiol. 2011, 155, 835–850. [Google Scholar] [CrossRef] [Green Version]
  29. Shao, Y.X.; Wei, J.B.; Wu, F.L.; Zhang, H.H.; Yang, D.F.; Liang, Z.S.; Jin, W.B. DsTRD: Danshen Transcriptional Resource Database. PLoS ONE 2016, 11, e0149747. [Google Scholar] [CrossRef] [Green Version]
  30. HMMER. Available online: http://hmmer.org/ (accessed on 20 February 2020).
  31. Conserved Domain. Available online: https://www.ncbi.nlm.nih.gov/cdd (accessed on 20 February 2020).
  32. SMART. Available online: http://smart.embl-heidelberg.de/ (accessed on 20 February 2020).
  33. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S.J. MEGA6: Molecular evolutionary genetics analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [Green Version]
  34. MEME Online Software. Available online: http://meme-suite.org/tools/meme (accessed on 20 February 2020).
  35. Xing, B.C.; Yang, D.F.; Yu, H.Z.; Zhang, B.X.; Yan, K.J.; Zhang, X.M.; Han, R.L.; Liang, Z.S. Overexpression of SmbHLH10 enhances tanshinones biosynthesis in Salvia miltiorrhiza hairy roots. Plant Sci. 2018, 276, 229–238. [Google Scholar] [CrossRef]
  36. Yang, D.; Huang, Z.; Jin, W.; Xia, P.; Jia, Q.; Yang, Z.; Hou, Z.; Zhang, H.; Ji, W.; Han, R.J.I.C.; et al. DNA methylation: A new regulator of phenolic acids biosynthesis in Salvia miltiorrhiza. Ind. Crops Prod. 2018, 124, 402–411. [Google Scholar] [CrossRef]
  37. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2-ddCt Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  38. Suetsugu, N.; Wada, M. Evolution of three LOV blue light receptor families in green plants and photosynthetic stramenopiles: Phototropin, ZTL/FKF1/LKP2 and aureochrome. Plant Cell Physiol. 2013, 54, 8–23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Losi, A.; Gartner, W. The evolution of flavin-binding photoreceptors: An ancient chromophore serving trendy blue-light sensors. Ann. Rev. Plant Biol. 2012, 63, 49–72. [Google Scholar] [CrossRef] [Green Version]
  40. Fortunato, A.E.; Annunziata, R.; Jaubert, M.; Bouly, J.P.; Falciatore, A. Dealing with light: The widespread and multitasking cryptochrome/photolyase family in photosynthetic organisms. J Plant Physiol. 2015, 172, 42–54. [Google Scholar] [CrossRef] [PubMed]
  41. Zhao, J.; Davis, L.C.; Verpoorte, R. Elicitor signal transduction leading to production of plant secondary metabolites. Biotechnol. Adv. 2005, 23, 283–333. [Google Scholar] [CrossRef] [PubMed]
  42. Pauwels, L.; Inzé, D.; Goossens, A. Jasmonate-inducible gene: What does it mean? Trends Plant Sci. 2009, 14, 87–91. [Google Scholar] [CrossRef] [PubMed]
  43. Zeng, H.; Su, S.; Xiang, X.; Sha, X.; Zhu, Z.; Wang, Y.; Guo, S.; Yan, H.; Qian, D.; Duan, J. Comparative Analysis of the Major Chemical Constituents in Salvia miltiorrhiza Roots, Stems, Leaves and Flowers during Different Growth Periods by UPLC-TQ-MS/MS and HPLC-ELSD Methods. Molecules 2017, 22, 771. [Google Scholar] [CrossRef]
  44. Yu, S.I.; Kim, H.; Yun, D.J.; Suh, M.C.; Lee, B.H. Post-translational and transcriptional regulation of phenylpropanoid biosynthesis pathway by Kelch repeat F-box protein SAGL1. Plant Mol. Biol. 2019, 99, 135–148. [Google Scholar] [CrossRef]
  45. Petersen, M.; Simmonds, M.S. Rosmarinic acid. Phytochemistry 2003, 62, 121–125. [Google Scholar] [CrossRef]
  46. He, Q.; Jones, D.C.; Li, W.; Xie, F.; Ma, J.; Sun, R.; Wang, Q.; Zhu, S.; Zhang, B. Genome-Wide Identification of R2R3-MYB Genes and Expression Analyses During Abiotic Stress in Gossypium raimondii. Sci. Rep. 2016, 6, 22980. [Google Scholar] [CrossRef] [Green Version]
  47. Di, P.; Zhang, L.; Chen, J.; Tan, H.; Xiao, Y.; Dong, X.; Zhou, X.; Chen, W. 13C tracer reveals phenolic acids biosynthesis in hairy root cultures of Salvia miltiorrhiza. ACS Chem. Biol. 2013, 8, 1537–1548. [Google Scholar] [CrossRef] [PubMed]
  48. Xing, B.; Yang, D.; Liu, L.; Han, R.; Sun, Y.; Liang, Z. Phenolic acid production is more effectively enhanced than tanshinone production by methyl jasmonate in Salvia miltiorrhiza hairy roots. Plant Cell Tissue Organ. Cult. 2018, 134, 119–129. [Google Scholar] [CrossRef]
  49. Waterman, P.G. Roles for secondary metabolites in plants. In Ciba Foundation Symposium—Bilharziasis; Wiley: Chichester, UK, 2007; pp. 255–277. [Google Scholar]
  50. An, J.P.; Li, R.; Qu, F.J.; You, C.X.; Wang, X.F.; Hao, Y.J. R2R3-MYB transcription factor MdMYB23 is involved in the cold tolerance and proanthocyanidin accumulation in apple. Plant J. Cell Mol. Biol. 2018, 96, 562–577. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. ul Hassan, M.N.; Zainal, Z.; Ismail, I. Plant kelch containing F-box proteins: Structure, evolution and functions. RSC Adv. 2015, 5, 42808–42814. [Google Scholar] [CrossRef]
  52. Adams, J.; Kelso, R.; Cooley, L. The kelch repeat superfamily of proteins: Propellers of cell function. Trends Cell Biol. 2000, 10, 17–24. [Google Scholar] [CrossRef]
  53. Somers, D.E.; Schultz, T.F.; Milnamow, M.; Kay, S.A. ZEITLUPE encodes a novel clock-associated PAS protein from Arabidopsis. Cell 2000, 101, 319–329. [Google Scholar] [CrossRef] [Green Version]
  54. Andrade, M.A.; Gonzalez-Guzman, M.; Serrano, R.; Rodriguez, P.L. A combination of the F-box motif and kelch repeats defines a large Arabidopsis family of F-box proteins. Plant Mol. Biol. 2001, 46, 603–614. [Google Scholar] [CrossRef]
  55. Yang, C.Q.; Fang, X.; Wu, X.M.; Mao, Y.B.; Wang, L.J.; Chen, X.Y. Transcriptional regulation of plant secondary metabolism. J. Integr Plant Biol. 2012, 54, 703–712. [Google Scholar] [CrossRef]
  56. Majee, M.; Kumar, S.; Kathare, P.K.; Wu, S.; Gingerich, D.; Nayak, N.R.; Salaita, L.; Dinkins, R.; Martin, K.; Goodin, M.; et al. KELCH F-BOX protein positively influences Arabidopsis seed germination by targeting PHYTOCHROME-INTERACTING FACTOR1. Proc. Natl. Acad. Sci. USA 2018, 115, E4120–E4129. [Google Scholar] [CrossRef]
  57. Han, S.H.; Yoo, S.C.; Lee, B.D.; An, G.; Paek, N.C. Rice FLAVIN-BINDING, KELCH REPEAT, F-BOX 1 (OsFKF1) promotes flowering independent of photoperiod. Plant Cell Environ. 2015, 38, 2527–2540. [Google Scholar] [CrossRef]
  58. Hsieh, L.C.; Lin, S.I.; Shih, A.C.; Chen, J.W.; Lin, W.Y.; Tseng, C.Y.; Li, W.H.; Chiou, T.J. Uncovering small RNA-mediated responses to phosphate deficiency in Arabidopsis by deep sequencing. Plant Physiol. 2009, 151, 2120–2132. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Liu, L.; Yang, D.; Liang, T.; Zhang, H.; He, Z.; Liang, Z. Phosphate starvation promoted the accumulation of phenolic acids by inducing the key enzyme genes in Salvia miltiorrhiza hairy roots. Plant Cell Rep. 2016, 35, 1933–1942. [Google Scholar] [CrossRef] [PubMed]
  60. Wasternack, C.; Strnad, M. Jasmonates are signals in the biosynthesis of secondary metabolites—Pathways, transcription factors and applied aspects—A brief review. New Biotechnol. 2019, 48, 1–11. [Google Scholar] [CrossRef] [PubMed]
  61. Zhou, M.; Memelink, J. Jasmonate-responsive transcription factors regulating plant secondary metabolism. Biotechnol. Adv. 2016, 34, 441–449. [Google Scholar] [CrossRef] [PubMed]
  62. Li, S.; Wu, Y.; Kuang, J.; Wang, H.; Du, T.; Huang, Y.; Zhang, Y.; Cao, X.; Wang, Z. SmMYB111 Is a Key Factor to Phenolic Acid Biosynthesis and Interacts with Both SmTTG1 and SmbHLH51 in Salvia miltiorrhiza. J. Agric. Food Chem. 2018, 66, 8069–8078. [Google Scholar] [CrossRef]
Genes 11 00557 g001 550

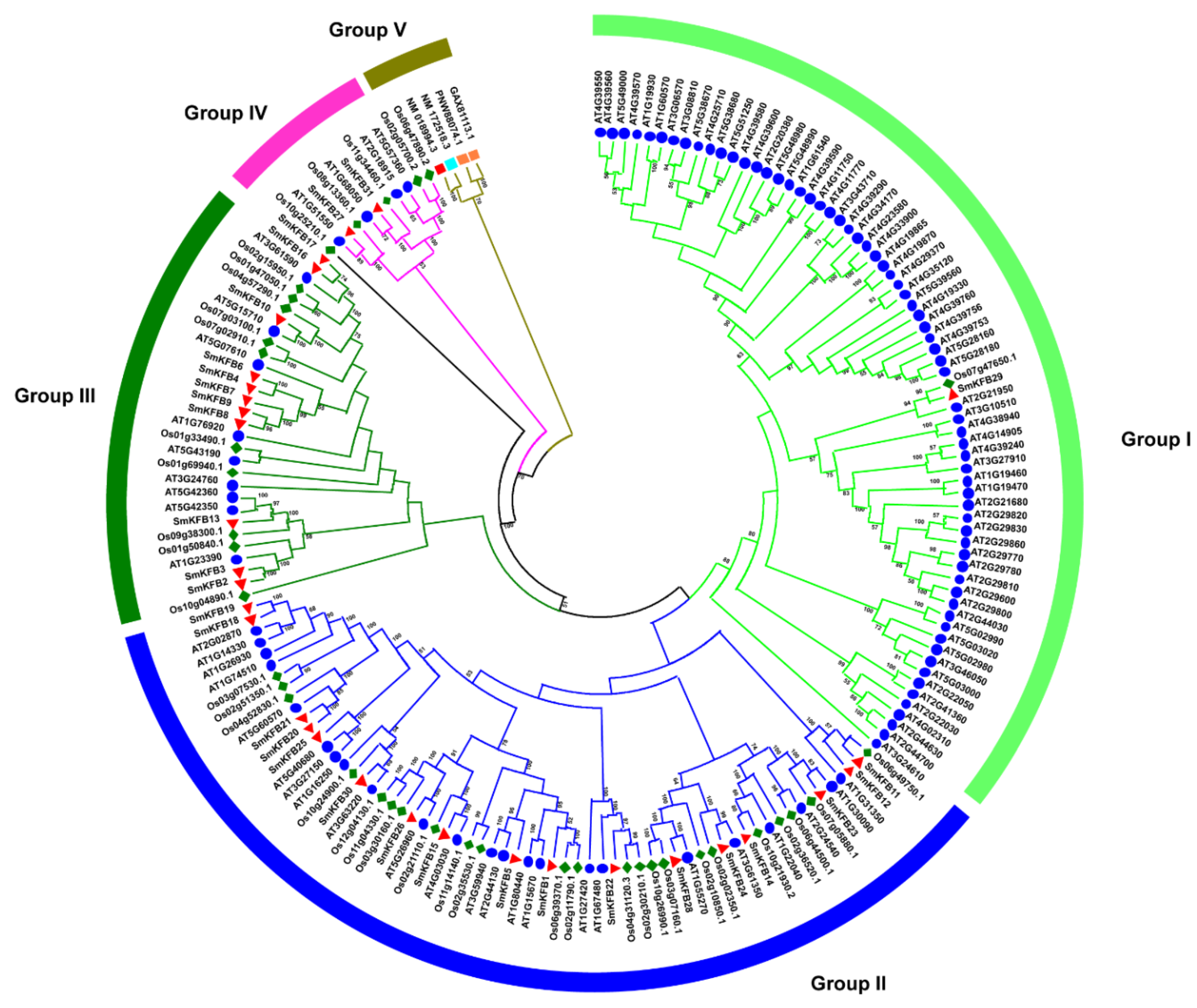

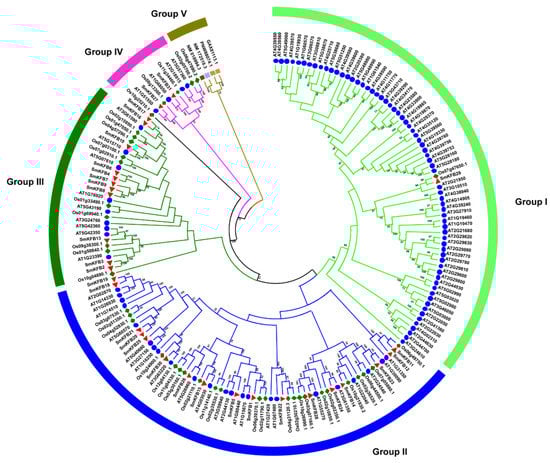

Figure 1. Phylogenetic analysis of Kelch repeat F-box (KFB) proteins from S. miltiorrhiza and other organisms. The tree was constructed from amino sequences using MEGA 6.0 via the neighbor-joining (NJ) method with 1000 bootstrap replicated. The blue circles, red triangles, dark green diamonds, red squares, orange pale squares, and blue squares represent KFBs from A. thaliana, S. miltiorrhiza, O. sativa, Homo sapiens, M. musculus, and C. reinhardtii, respectively. Clades with different colors represent diverse groups.
Figure 1. Phylogenetic analysis of Kelch repeat F-box (KFB) proteins from S. miltiorrhiza and other organisms. The tree was constructed from amino sequences using MEGA 6.0 via the neighbor-joining (NJ) method with 1000 bootstrap replicated. The blue circles, red triangles, dark green diamonds, red squares, orange pale squares, and blue squares represent KFBs from A. thaliana, S. miltiorrhiza, O. sativa, Homo sapiens, M. musculus, and C. reinhardtii, respectively. Clades with different colors represent diverse groups.
Genes 11 00557 g001
Genes 11 00557 g002 550

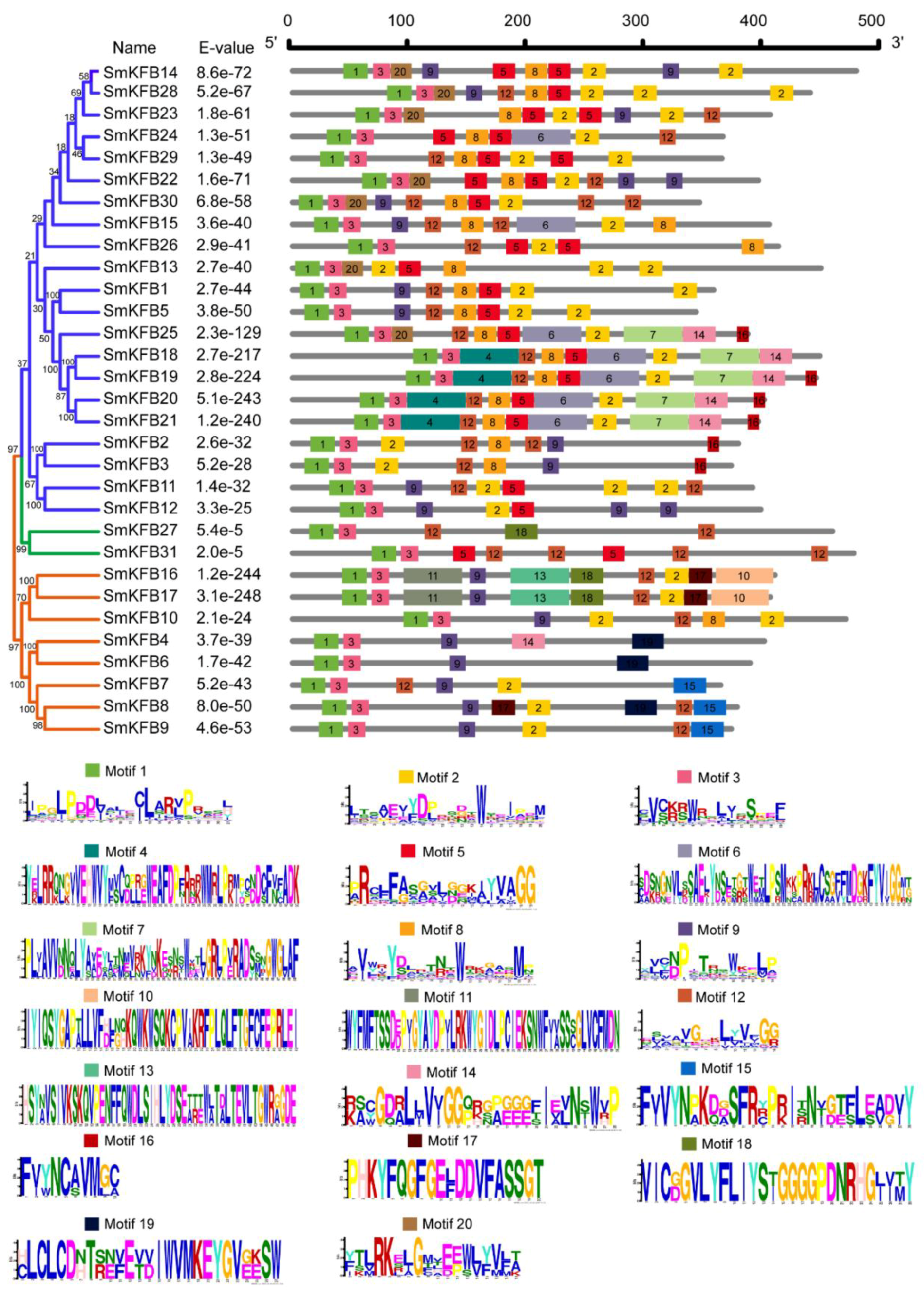

Figure 2. Schematic diagram of conserved motifs in SmKFB proteins of S. miltiorrhiza. The different colored boxes represent different motifs and the box size indicates the length of the motif. Sequence logos are shown on the base side of the figure.
Figure 2. Schematic diagram of conserved motifs in SmKFB proteins of S. miltiorrhiza. The different colored boxes represent different motifs and the box size indicates the length of the motif. Sequence logos are shown on the base side of the figure.
Genes 11 00557 g002
Genes 11 00557 g003 550

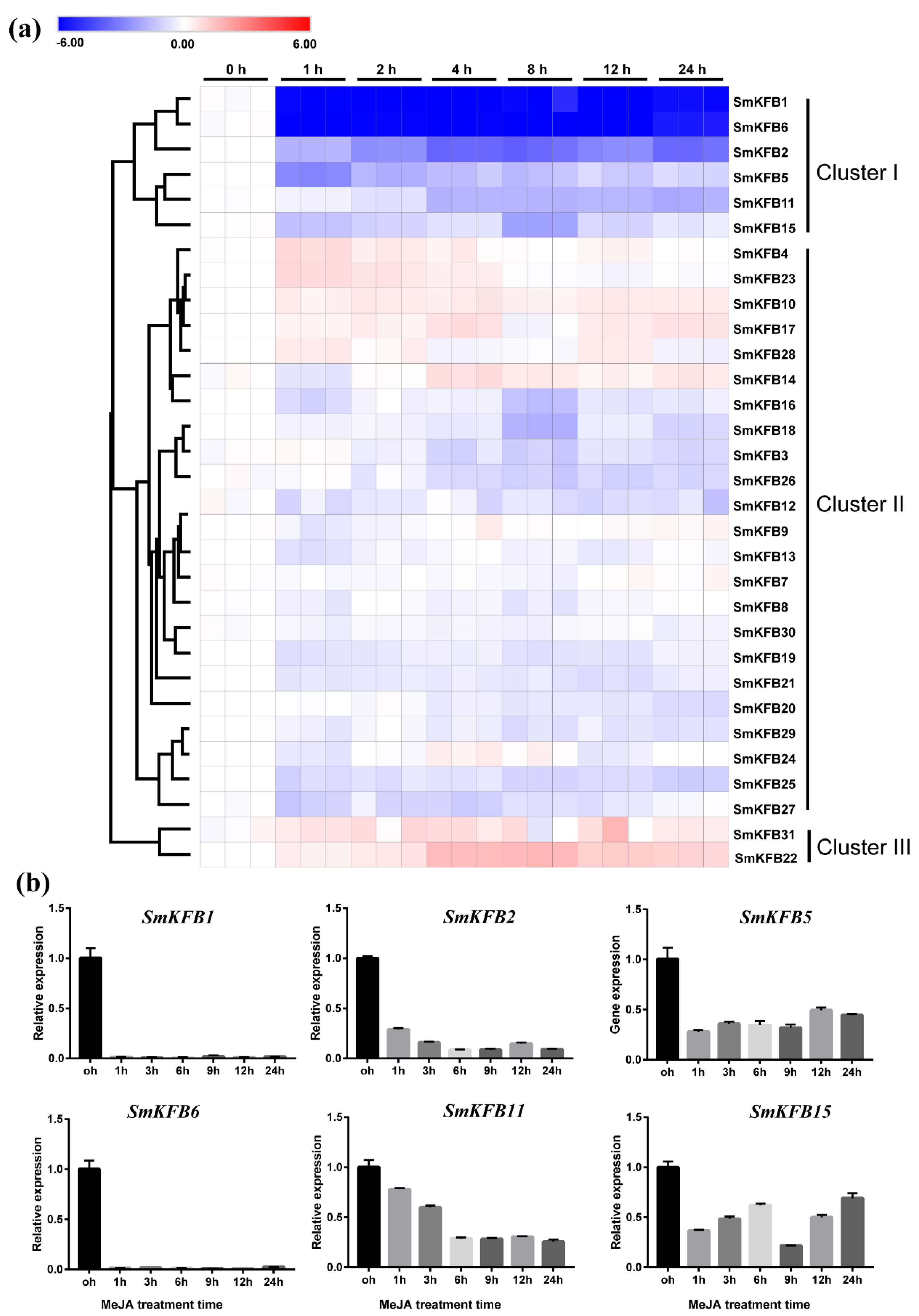

Figure 3. Expression patterns of 31 SmKFB genes in hair roots treated with methyl jasmonate (MeJA). (a) The gene expression level was detected via RT-qPCR. The transcripts at the 0 h time point were used as control. Fold change in transcript abundance is illustrated as a heat map on a natural log scale. Blocks with colors indicate low/down expression (blue), high/up expression (red), and non-expression/no change (white). (b) Expression patterns of six selected genes in response to MeJA.
Figure 3. Expression patterns of 31 SmKFB genes in hair roots treated with methyl jasmonate (MeJA). (a) The gene expression level was detected via RT-qPCR. The transcripts at the 0 h time point were used as control. Fold change in transcript abundance is illustrated as a heat map on a natural log scale. Blocks with colors indicate low/down expression (blue), high/up expression (red), and non-expression/no change (white). (b) Expression patterns of six selected genes in response to MeJA.
Genes 11 00557 g003
Genes 11 00557 g004 550

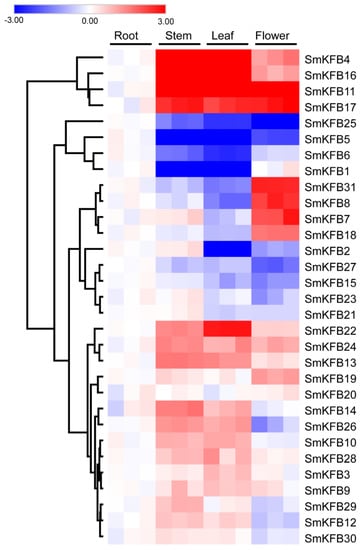

Figure 4. Expression of SmKFB genes in different tissues of the S. miltiorrhiza plant. The transcript levels in roots were used as control. The blue block indicates lower expression than root, and the red block represents higher expression than root. The color depth of blocks indicates the transcript abundance.
Figure 4. Expression of SmKFB genes in different tissues of the S. miltiorrhiza plant. The transcript levels in roots were used as control. The blue block indicates lower expression than root, and the red block represents higher expression than root. The color depth of blocks indicates the transcript abundance.
Genes 11 00557 g004
Table
Table 1. Sequence features of SmKFBs in S. miltiorrhiza.
Table 1. Sequence features of SmKFBs in S. miltiorrhiza.
NameGene IDAA lenpIMw (Da)Number of KelchGroup
SmKFB1MN2591243585.1639075.012II
SmKFB2MN2591253784.7641891.051III
SmKFB3MN2591263725.0840804.41III
SmKFB4MN2591274005.8645334.581III
SmKFB5MN2591283425.4337898.693II
SmKFB6MN2591293885.5643460.151III
SmKFB7MN2591303637.4741147.431III
SmKFB8MN2591313779.0342693.251III
SmKFB9MN2591323726.1241910.271III
SmKFB10MN2591334699.7254239.942III
SmKFB11MN2591343908.7642944.12II
SmKFB12MN2591353976.644204.992II
SmKFB13MN2591364488.7550471.462III
SmKFB14MN2591374786.0552462.133II
SmKFB15MN2591384048.9145252.133II
SmKFB16MN2591394095.3945846.321III
SmKFB17MN2591404055.3946165.921III
SmKFB18MN2591414506.5750274.373II
SmKFB19MN2591424445.6649289.823II
SmKFB20MN2591434006.1444619.63II
SmKFB21MN2591443955.9643973.23II
SmKFB22MN2591453956.1243520.033II
SmKFB23MN2591464058.3245413.613II
SmKFB24MN2591473655.8541120.892II
SmKFB25MN2591483865.8643279.923II
SmKFB26MN2591494129.0144729.431II
SmKFB27MN2591504588.2250422.574IV
SmKFB28MN2591514399.6249696.453II
SmKFB29MN2591523647.5940315.141I
SmKFB30MN2591533456.4638533.553II
SmKFB31MN2591544766.6752134.895IV
