Article

Susceptibility of Field-Collected Nyssorhynchus darlingi to Plasmodium spp. in Western Amazonian Brazil

by
Diego Peres Alonso
1,2,*,
Marcus Vinicius Niz Alvarez
1,
Paulo Eduardo Martins Ribolla
1,
Jan E. Conn
3,4,
Tatiane Marques Porangaba de Oliveira
2 and
Maria Anice Mureb Sallum
2
1
Biotechnology Institute and Bioscience Institute, Sao Paulo State University UNESP, Botucatu 18618-689, Brazil
2
Departamento de Epidemiologia, Faculdade de Saúde Pública, Universidade de São Paulo, São Paulo 05508-060, Brazil
3
Wadsworth Center, New York State Department of Health, Albany, NY 12159, USA
4
Department of Biomedical Sciences, School of Public Health, State University of New York, Albany, NY 12222, USA
*
Author to whom correspondence should be addressed.
Genes 2021, 12(11), 1693; https://doi.org/10.3390/genes12111693
Submission received: 30 August 2021 / Revised: 12 October 2021 / Accepted: 19 October 2021 / Published: 25 October 2021
(This article belongs to the Special Issue Evolutionary Genetics and Phylogenetics of Mosquito Species)
Browse Figures
Versions Notes

Abstract

:
Mosquito susceptibility to Plasmodium spp. infection is of paramount importance for malaria occurrence and sustainable transmission. Therefore, understanding the genetic features underlying the mechanisms of susceptibility traits is pivotal to assessing malaria transmission dynamics in endemic areas. The aim of this study was to investigate the susceptibility of Nyssorhynchus darlingi—the dominant malaria vector in Brazil—to Plasmodium spp. using a reduced representation genome-sequencing protocol. The investigation was performed using a genome-wide association study (GWAS) to identify mosquito genes that are predicted to modulate the susceptibility of natural populations of the mosquito to Plasmodium infection. After applying the sequence alignment protocol, we generated the variant panel and filtered variants; leading to the detection of 202,837 SNPs in all specimens analyzed. The resulting panel was used to perform GWAS by comparing the pool of SNP variants present in Ny. darlingi infected with Plasmodium spp. with the pool obtained in field-collected mosquitoes with no evidence of infection by the parasite (all mosquitoes were tested separately using RT-PCR). The GWAS results for infection status showed two statistically significant variants adjacent to important genes that can be associated with susceptibility to Plasmodium infection: Cytochrome P450 (cyp450) and chitinase. This study provides relevant knowledge on malaria transmission dynamics by using a genomic approach to identify mosquito genes associated with susceptibility to Plasmodium infection in Ny. darlingi in western Amazonian Brazil.

1. Introduction

Nyssorhynchus darlingi (formerly Anopheles (Nyssorhynchus) darlingi) is the main malaria vector in the Neotropics throughout most of its distribution from Mexico to Argentina and, therefore, is the dominant malaria vector in the Brazilian Amazon River basin where transmission remains continuous and persistent, representing more than 99% of the country’s malaria burden [1,2]. In Brazil, 90% of malaria cases are caused by Plasmodium vivax, but in the Amazon Region, there is a proportion of cases caused by Plasmodium falciparum, which is associated with higher morbidity and mortality. The occurrence of P. falciparum malaria reflects pockets of heterogeneous malaria transmission with high infection rates in human and mosquito populations [3,4]. Nyssorhynchus darlingi possesses two major behaviors that are crucial in defining pathogen transmission to humans: anthropophily, i.e., the preference of a mosquito to take a blood meal on human hosts over other animals, depending on host availability and biomass; and endophagy—mosquito preference for blood-feeding indoors—although this adaptive species also feeds outdoors (exophagy) frequently [5,6,7,8,9]. In addition, Ny. darlingi is highly susceptible to human Plasmodium with a natural infection rate that varies between 0.24 and 3.96% in northern Brazil [10].
Mosquito susceptibility to Plasmodium infection is of paramount importance for malaria occurrence and sustainable transmission. Therefore, understanding the genetic features underlying Ny. darlingi susceptibility to infection is pivotal for investigating entomological components of malaria transmission dynamics in endemic areas. This knowledge can lead to the development of molecular tools for more precise vector surveillance and more effective interventions for malaria control.
Genetic structuring among natural populations of anopheline vectors at both the macro- and microgeographic scales leads to a high degree of nucleotide variation throughout the genome, a feature that ultimately influences both parasite transmission and the infection status of a mosquito vector [11,12,13,14]. Moreover, in the major African malaria vector Anopheles gambiae, several studies have used a gene candidate approach to identify factors that regulate mosquito-pathogen interactions, immunity, and parasite infection [13,15,16]. Despite a general lack of studies regarding genetic structuring and variation at the genomic scale in Neotropical malaria vectors, Ny. darlingi in the Amazon region has substantial variability in genetic structure and population divergence even at the microgeographic scale [12,17,18]. In addition, the genome of Ny. darlingi has a high level of nucleotide polymorphism with reported frequencies of up to 50 single nucleotide polymorphisms (SNPs) per 1000 base pairs in intronic and intergenic regions [19]. Based on these general concepts, genome-wide association studies can be performed to detect SNPs markers linked to genes predicted to modulate Plasmodium infection susceptibility in natural populations of Ny. darlingi.
The development of new strategies and advanced technologies related to whole-genome sequencing (WGS) has resulted in dramatic reductions in sequencing cost and effort. Nevertheless, studies that require sequencing a large number of samples remain costly and thus are not currently feasible. Reduced representation of the genome-sequencing protocols such as Nextera-tagmented, reductively amplified DNA (NextRAD) and derivative approaches that generate SNP datasets are powerful technologies for the assessment of a large number of SNPs on a genome-wide scale in anophelines with considerably lower cost that can represent up to a 40-fold decrease in economical effort for library construction and sequencing [12,17,19]. Here, we report a genome-wide association study using NextRAD-derived SNP markers to identify mosquito genes predicted to modulate the susceptibility of natural populations of Ny. darlingi to Plasmodium infection in the western Amazon.

2. Materials and Methods

2.1. Study Sites and Adult Mosquito Collection

Females of the subfamily Anophelinae were collected from a total of 11 houses distributed in five municipalities in the Brazilian Amazon states of Acre, Amazonas, and Rondônia. The municipalities of Cruzeiro do Sul and Mâncio Lima are in the region of the Juruá River basin, western Acre state. Machadinho D’Oeste is situated in the Machadinho River basin along highway BR-364 in Rondônia state. For the Amazonas municipalities, Lábrea is alongside the Boa Água River—a tributary of the Purus River west of the BR-230 Brazilian Trans-Amazonian highway. Itacotiatiara is in the metropolitan region of Manaus along the Amazon River (Figure 1).
Female collections were conducted from April 2015 to October 2015, except the collection in Itacoatiara municipality, Amazonas state, which was in November 2016. Field collections were carried out during the wet–dry transition as well as in the dry season (Table S1). Mosquitoes were collected outdoors in the peridomestic environment within ~ 5 m of each of 11 houses. Human landing catch and barrier screen interception collections were performed for one night in each house from 18:00 to midnight [10], except in Cruzeiro do Sul and Mancio Lima, Acre state, where collections were performed from 18:00 to 06:00 am (Table S1). Every hour, female mosquitoes were euthanized with ethyl acetate (C4H8O2) vapors in the field and stored immediately in silica gel separated by date, location, house, and hour of collection. Specimens were morphologically identified to species level, and Ny. darlingi were labeled and stored individually with silica gel at room temperature for subsequent analysis. Regarding study design, Ny. darlingi female samples were paired as infected and uninfected by locality and hour of collection whenever it was possible. Afterwards, we randomly selected uninfected individuals of the same localities totaling 36 infected and 29 non-infected females.

2.2. Mosquito Processing and NextRAD

Genomic DNA was extracted from the thorax/head of Ny. darlingi adult females using Qiagen DNeasy Blood & Tissue Kit (Hilden, Germany). Nyssorhynchus darlingi DNA samples were tested for Plasmodium spp. infection following [20,21], except for the DNA pools of three individuals containing equal amounts of gDNA. If a pool was positive for real-time PCR amplification, all three individuals that originally composed the pool were tested separately [10], using both Plasmodium spp. positive and several negative controls in each run. In addition, all individuals employed in the study that tested negative for Plasmodium were individually double-checked by RT-PCR. Each PCR reaction contained 1× PerfeCTa qPCR ToughMix, Uracil N-glycosylase (UNG), ROX (Quanta Biosciences, USA), 0.3 μM of each primer, ultrapure water, and 2 μL genomic DNA for a total volume of 20 µL. Cycling conditions were as follows: 5 min UNG-activation at 45 °C and a denaturation step for 10 min at 95 °C followed by 50 cycles of 95 °C denaturation for 15 s and 60 C annealing/elongation for 1 min. For the NextRAD protocol, DNA samples of the thorax/head of females were sent to SNPsaurus LLC (Eugene, OR) for library preparation and NGS sequencing. To construct DNA libraries, genomic DNA (~10 ng) was first fragmented with Nextera transposase (Illumina, San Diego, CA), which also ligated short adapter sequences to the ends of the fragments. DNA fragments were then amplified with two primers matching adaptor sequences with one of the primers extending an additional nine nucleotides (GTGTAGAGC) as the selective sequence at the 3′ end. Thus, only fragments that could be hybridized to the selective sequence were efficiently amplified. The libraries were sequenced on an Illumina HiSeq2000 with 1 × 150 bp configuration to generate ~50 X coverage.

2.3. Variant Calling

The Ny. darlingi reference genome is available in the VectorBase database. Version AdarC3 [22] was used to align raw NextRAD reads. Alignments were performed with Burrows-Wheeler Aligner (BWA) software [23], and variant calling used SamTools and BcfTools [24]. A genotypes panel was generated in VCF 4.2 format. VCF quality control was applied with VCFtools [25]. Genotypes were removed if DP < 5 and GQ < 20, and SNPs were filtered for MAF > 0.1 and MD < 0.8 within case and control groups.

2.4. Genome-Wide Association Study (GWAS)

The genetic association analysis was performed using Fisher’s Exact test with PLINK 1.9 package tool [26]. Case and control categories were the Plasmodium-infected (regardless of their species) and Plasmodium non-infected mosquitoes, respectively. The false discovery rate (FDR) multiple test correction method was applied to control for false positives assuming statistical significance with a corrected p-value < 0.05. Manhattan Plot images were generated using Rstudio for R language [27]. Adjacent protein-coding genes up to 80 kb from FDR-significant SNPs were investigated using AdarC3 from the annotated Ny. darlingi genome available in the gff3 format in VectorBase.

2.5. Genetic Structure Testing

In order to evaluate any possible bias produced by a significant genetic structure signature on the GWAS analysis, we conducted a Fst pairwise analysis using Arlequin 3.5 [28] for the five localities and also for Plasmodium-infected (regardless of their species) and Plasmodium non-infected mosquitoes.

2.6. Protein Sequence Comparisons

Following SNP identification adjacent to protein-coding genes by GWAS analysis, we performed a sequence comparison of these gene products with all correlated proteins found in An. gambiae, since there are numerous studies regarding gene functions and characterization for this species. We used Blastp to search all available proteins sequences in GenBank, restricted to taxid 7165 that represents An. gambiae and taxid 180, 454 that represents An. gambiae str. PEST using non-redundant protein sequences as the database.

3. Results

Following species identification, all Ny. darlingi females selected for the study (n = 65) were submitted to DNA extraction and RT-PCR tested for Plasmodium spp. infection. There were 36 specimens infected: 26 with P. vivax and 10 with P. falciparum. Additionally, 29 specimens from the same collection sites were PCR-negative for Plasmodium and used for the genomic analysis (Table 1).
From a total of 48 Gigabases of sequence data, ~5 million 150 bp reads were obtained from each Ny. darlingi female NextRAD library.
After applying the sequence alignment protocol, generating the variant panel, and filtering variants, 202,837 SNPs were obtained and present in all individuals analyzed. These SNPs were used for a genome-wide association study comparing the pool of SNP variants present in Ny. darlingi infected with Plasmodium (cases) with the pool obtained from mosquitoes that did not show any evidence of infection by the parasite (controls). Fisher’s exact test was performed to compare Plasmodium-infected and Plasmodium non-infected mosquitoes. The results of the analyses disclosed two different scaffolds with significantly associated SNPs separated less than 80 Kb from cyp450 (ADAC009195) and chitinase (ADAC002977) genes (Figure 2). The results of Fisher’s allelic association test with post hoc FDR showed that the frequencies of the SNPs of interest and the genes adjacent to the SNPs were statistically related to Plasmodium infection (Table 2). To further investigate the association of SNPs with infection status, we repeated the GWAS analysis using only P. vivax infected mosquitoes as the case group. Likewise, a GWAS analysis was also undertaken using, this time, only P. falciparum as the case group. Interestingly, for the P. vivax analysis, the SNP associated with cyp450 was retained while the chitinase SNP was no longer present. Conversely, in the P. falciparum analysis, the results obtained did not show any SNP associated with the infection status (Figure S1). This result indicates that despite not effectively contributing to the observed correlation with the SNP linked to cyp450, Ny. darlingi infected with P. falciparum, to some extent, took part in the disclosure of the chitinase-associated SNP. The fact that there was no such observed association in the analysis that used only P. falciparum-infected mosquitoes is probably due to the low number of samples analyzed.
Importantly, no significant genetic structure was detected for localities or group assignment (case/control) by Fst estimation (Table S2). In fact, significant Fst pairwise values were detected for Lábrea versus Machadinho D’Oeste populations, and for Cruzeiro do Sul versus Itacoatiara populations. However, the Fst value found is extremely low for the Lábrea versus Machadinho D’Oeste comparison. Because the Itacoatiara population is composed of only two females, the estimate of a real Fst pairwise difference was irrelevant.
Nyssorhynchus darlingi versus An. gambiae protein sequence comparisons for cyp450 and chitinase, returned, respectively, the following well-characterized genes for the top five blastp hits: CYP6Z2, CYP6Z3, and AgCht6, AgCht8, and AgCht9 (Table S3).

4. Discussion

The results of the genome-wide association analyses verified the genetic association of Plasmodium infection and showed two statistically significant variants (Figure 1). The investigation of genes adjacent to the significantly associated loci identified two important genes that might play a major role in Ny. darlingi infection with Plasmodium: cytochrome P450 (cyp450) and chitinase (chitinase). The cytochrome P450 gene superfamily is composed of more than 70 families consisting of a major metabolic system responsible for the regulation of endogenous compounds such as hormones, fatty acids, and steroids. In addition, P450 is linked to the catabolism and anabolism of xenobiotics such as drugs and pesticides in distinct groups of organisms such as plants, mammals, birds, and insects [29]. The cytochrome P450 genes are associated with insecticide resistance through increased metabolism of insecticides in Culex quinquefasciatus, Aedes aegypti, and Anopheles funestus [30,31,32,33]. In An. gambiae, five genes of the superfamily were demonstrated to be linked to pyrethroid resistance: CYP6Z1, CYP325A3, CYP6Z2, and CYP6M2 [34,35]. In Ny. darlingi, cyp450 led to 73% protein sequence similarity with CYP6Z2 of An. gambiae. Interestingly, in this latter vector species, CYP6Z2 is expressed at high levels in the larvae but is also expressed in adults suggesting that it is potentially involved in pyrethroid resistance in the adult stage. Moreover, the CYP6Z2 gene product is localized in Malpighian tubules and in the midgut of insecticide-resistant mosquitoes: These are the first tissues of the mosquito to interact with Plasmodium after a blood meal [36,37].
Considering the biological function of the cyp450 gene, it is clear that the presence of an adjacent SNP can be linked to the use of pyrethroid insecticides in indoor residual spraying (IRS) and long-lasting insecticidal nets (LLINs) inside dwellings as vector control interventions. In this scenario, polymorphisms in individuals that are more resistant to insecticides might lead to a greater chance of survival in an environment with high exposure to insecticide. In Plasmodium infection, it is tempting to propose a hypothesis wherein the parasite can indirectly exploit the phenotypic behavioral adaptation of anophelines to improve transmission to humans. Considering that female Ny. darlingi can feed on blood both indoors and outdoors [7,38], they must be able to survive inside houses that are treated with IRS. Consequently, the number of infective bites may increase in a situation where females are tolerant to residual insecticide. This capacity allows the anopheline female to have a high contact rate with both infectious and susceptible human hosts because of mosquito feeding behavior and tolerance to insecticide.
Chitinases are hydrolytic enzymes that break down glycosidic bonds in chitin. They are found in several organisms, including vertebrates, microorganisms, and plants [39]. In insects, chitin is associated with proteins to form the cuticular exoskeleton and peritrophic matrix (PM) in the midgut lumen. Insect chitinases have been suggested to have multiple functions, including defense, digestion, and molting [40,41,42]. The chitinase gene (chitinase) is essential for the correct metabolism and processing of chitin, and it is ubiquitous in anophelines with more than 20 variants already described [43]. The chitinase enzyme plays a key role in the degradation and stabilization of the PM in anophelines and insects in general [44]. The Ny. darlingi chitinase gene identified here showed 43% protein sequence similarity with the AgCht8 of An. gambiae. This gene is mainly expressed in the pupal and adult stages [43]; this enzyme is the fifth most abundant protein in An. gambiae PM [44].
The first step for the invasion of the parasite in the mosquito vector is to successfully invade the PM that, at the time of invasion separates the food bolus from the midgut epithelium of the mosquito. This pivotal degradation process is normally carried out by a chitinase secreted by the parasite. Interestingly, chitinase inhibitors and anti-chitinase antibodies are known to reduce parasite transmission from the vertebrate host to the mosquito, thus suggesting that the peritrophic matrix chitin is a critical feature related to Plasmodium penetration of the midgut [45,46,47]. Considering the major roles of chitinases in the crucial processes of the Plasmodium invasion, it is reasonable to presume that genetic variants of mosquito chitinases can be responsible for the integrity and variable thicknesses of the PM. Interactions between anopheline chitinases and Plasmodium chitinases might effectively interfere with the process of invasion of the midgut epithelium with a substantial impact on the success of Plasmodium infection.
Taken together, these data suggest two classes of metabolically important genes—cyp450 and chitinase—are likely to be related to Plasmodium infection in the Brazilian Amazon. The results of the allelic association test performed in this study showed that the frequencies of the SNP variants for cyp450 and chitinase (Table 2) were significantly higher in Ny. darlingi infected with Plasmodium. This may partially explain the genetic background related to Plasmodium susceptibility in Ny. darlingi.
There is a scarcity of studies on the association of genetic polymorphisms with natural resistance to Plasmodium infection in anophelines, with only a couple of publications in recent years addressing this complex host-parasite interaction [48,49]. It is noteworthy that these studies disclosed SNPs only in loci responsible for coding immune genes of An. gambiae, such as TOLL11, TOLL6, AgMDL1, and CEC1. Moreover, all experiments were carried out in lab-reared mosquitoes with artificial Plasmodium infection approaches, which, in turn, lead to extreme phenotypes with unrealistic loads of parasites, ultimately representing a scenario extremely far from natural. The major drawback of such studies is that they are unable to evaluate genetic traits influencing physiological or behavioral resistance to Plasmodium infection, where genes related to blood-feeding behavior, resting behavior, host-seeking, and differential longevity might play a major role in the infection process. In fact, in a study conducted with several field-collected An. gambiae populations in Africa, the authors reported that two La inversion alleles are associated with natural malaria infection levels and in wild-captured vectors. Besides that, mosquitoes carrying the more susceptible allele (2L+a) are also behaviorally less likely to be found inside houses [50].

5. Conclusions

To our knowledge, the study presented here, with all its intrinsic limitations (e.g., limited sample size, low marker density, low overall genome linkage disequilibrium) is the first to use field-collected Ny. darlingi to assess natural susceptibility to Plasmodium infection. Further studies are needed to better characterize the functions of cyp450 and chitinase genes as key factors that regulate mosquito-parasite interactions. Finally, reduced representation in the genome-sequencing protocols associated with genome-wide genetic association analysis may enhance the development of molecular tools to better understand the genetic traits of Ny. darlingi to improve vector surveillance and malaria control.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/genes12111693/s1, Table S1: Description of all specimens collected and used in the study. Table S2: Pairwise Fst values for population and case/controls comparisons. Table S3: Top 5 blastp results for chitinase and cyp450 gene products. Figure S1: Fisher test results for P. vivax vs. non-infected and P. falciparum vs. non-infected comparisons.

Author Contributions

M.A.M.S., P.E.M.R., T.M.P.d.O. and D.P.A. performed the laboratory research; M.V.N.A., P.E.M.R. and D.P.A. analyzed data. D.P.A. wrote the manuscript with contributions from M.A.M.S., P.E.M.R., J.E.C. and M.V.N.A. All authors actively contributed to the interpretation of the findings and development of the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP; grant 2014/26229-7), Conselho Nacional de Pesquisa—CNPq no. 301877/2016-5 to MAMS and US National Institutes of Health Grant 2R01AI110112-06A1 to JEC.

Institutional Review Board Statement

Ethical review and approval were waived for this study because only the professionally trained authors conducted HLC and use of this method to collect anopheline mosquitoes this was considered to be a risk management issue, not a human subjects issue. All normal safety precautions were taken.

Data Availability Statement

The datasets generated and analyzed during the current study have been deposited at NCBI Bi-oProject database under the accession number PRJNA773638.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ferreira, M.U.; Castro, M.C. Challenges for Malaria Elimination in Brazil. Malar. J. 2016, 15, 284. [Google Scholar] [CrossRef] [PubMed]
  2. SVS Secretaria de Vigilância em Saúde: Boletins Epidemiológicos. 2017. Available online: http://portalms.saude.gov.br/saude-de-a-z/malaria (accessed on 20 June 2021).
  3. Prussing, C.; Emerson, K.J.; Bickersmith, S.A.; Sallum, M.A.M.; Conn, J.E. Minimal Genetic Differentiation of the Malaria Vector Nyssorhynchus darlingi Associated with Forest Cover Level in Amazonian Brazil. PLoS ONE 2019, 14, e0225005. [Google Scholar] [CrossRef] [PubMed]
  4. WHO. Technical Document. Malaria Country Profile: Brazil. 2018. Available online: https://cdn.who.int/media/docs/default-source/malaria/country-profiles/2018/profile_bra_en.pdf (accessed on 30 August 2021).
  5. Barbosa, L.M.C.; Souto, R.N.P.; Dos Anjos Ferreira, R.M.; Scarpassa, V.M. Behavioral Patterns, Parity Rate and Natural Infection Analysis in Anopheline Species Involved in the Transmission of Malaria in the Northeastern Brazilian Amazon Region. Acta Trop. 2016, 164, 216–225. [Google Scholar] [CrossRef] [PubMed]
  6. Moreno, M.; Saavedra, M.P.; Bickersmith, S.A.; Prussing, C.; Michalski, A.; Tong Rios, C.; Vinetz, J.M.; Conn, J.E. Intensive Trapping of Blood-Fed Anopheles darlingi in Amazonian Peru Reveals Unexpectedly High Proportions of Avian Blood-Meals. PLoS Negl. Trop. Dis. 2017, 11, e0005337. [Google Scholar] [CrossRef]
  7. Montoya-Lerma, J.; Solarte, Y.A.; Giraldo-Calderón, G.I.; Quiñones, M.L.; Ruiz-López, F.; Wilkerson, R.C.; González, R. Malaria Vector Species in Colombia: A Review. Mem. Inst. Oswaldo Cruz 2011, 106 (Suppl. 1), 223–238. [Google Scholar] [CrossRef]
  8. Naranjo-Díaz, N.; Conn, J.E.; Correa, M.M. Behavior and Population Structure of Anopheles darlingi in Colombia. Infect. Genet. Evol. 2016, 39, 64–73. [Google Scholar] [CrossRef]
  9. Prussing, C.; Moreno, M.; Saavedra, M.P.; Bickersmith, S.A.; Gamboa, D.; Alava, F.; Schlichting, C.D.; Emerson, K.J.; Vinetz, J.M.; Conn, J.E. Decreasing Proportion of Anopheles darlingi Biting Outdoors between Long-Lasting Insecticidal Net Distributions in Peri-Iquitos, Amazonian Peru. Malar. J. 2018, 17, 86. [Google Scholar] [CrossRef] [Green Version]
  10. Sallum, M.A.M.; Conn, J.E.; Bergo, E.S.; Laporta, G.Z.; Chaves, L.S.M.; Bickersmith, S.A.; de Oliveira, T.M.P.; Figueira, E.A.G.; Moresco, G.; Olívêr, L.; et al. Vector Competence, Vectorial Capacity of Nyssorhynchus darlingi and the Basic Reproduction Number of Plasmodium Vivax in Agricultural Settlements in the Amazonian Region of Brazil. Malar. J. 2019, 18, 117. [Google Scholar] [CrossRef] [Green Version]
  11. della Torre, A.; Fanello, C.; Akogbeto, M.; Dossou-yovo, J.; Favia, G.; Petrarca, V.; Coluzzi, M. Molecular Evidence of Incipient Speciation within Anopheles gambiae S.s. in West Africa. Insect Mol. Biol. 2001, 10, 9–18. [Google Scholar] [CrossRef]
  12. Campos, M.; Conn, J.E.; Alonso, D.P.; Vinetz, J.M.; Emerson, K.J.; Ribolla, P.E.M. Microgeographical Structure in the Major Neotropical Malaria Vector Anopheles darlingi Using Microsatellites and SNP Markers. Parasites Vectors 2017, 10, 76. [Google Scholar] [CrossRef] [Green Version]
  13. Morlais, I.; Ponçon, N.; Simard, F.; Cohuet, A.; Fontenille, D. Intraspecific Nucleotide Variation in Anopheles gambiae: New Insights into the Biology of Malaria Vectors. Am. J. Trop. Med. Hyg. 2004, 71, 795–802. [Google Scholar] [CrossRef] [PubMed]
  14. Holt, R.A.; Subramanian, G.M.; Halpern, A.; Sutton, G.G.; Charlab, R.; Nusskern, D.R.; Wincker, P.; Clark, A.G.; Ribeiro, J.M.C.; Wides, R.; et al. The Genome Sequence of the Malaria Mosquito Anopheles gambiae. Science 2002, 298, 129–149. [Google Scholar] [CrossRef] [PubMed]
  15. Christophides, G.K.; Zdobnov, E.; Barillas-Mury, C.; Birney, E.; Blandin, S.; Blass, C.; Brey, P.T.; Collins, F.H.; Danielli, A.; Dimopoulos, G.; et al. Immunity-Related Genes and Gene Families in Anopheles gambiae. Science 2002, 298, 159–165. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Riehle, M.M.; Markianos, K.; Niaré, O.; Xu, J.; Li, J.; Touré, A.M.; Podiougou, B.; Oduol, F.; Diawara, S.; Diallo, M.; et al. Natural Malaria Infection in Anopheles gambiae Is Regulated by a Single Genomic Control Region. Science 2006, 312, 577–579. [Google Scholar] [CrossRef] [Green Version]
  17. Campos, M.; Alonso, D.P.; Conn, J.E.; Vinetz, J.M.; Emerson, K.J.; Ribolla, P.E.M. Genetic Diversity of Nyssorhynchus (Anopheles) darlingi Related to Biting Behavior in Western Amazon. Parasites Vectors 2019, 12, 242. [Google Scholar] [CrossRef] [PubMed]
  18. Altamiranda-Saavedra, M.; Conn, J.E.; Correa, M.M. Genetic Structure and Phenotypic Variation of Anopheles darlingi in Northwest Colombia. Infect. Genet. Evol. 2017, 56, 143–151. [Google Scholar] [CrossRef] [PubMed]
  19. Marinotti, O.; Cerqueira, G.C.; de Almeida, L.G.P.; Ferro, M.I.T.; da Loreto, E.L.S.; Zaha, A.; Teixeira, S.M.R.; Wespiser, A.R.; Almeida, E.; Silva, A.; et al. The Genome of Anopheles darlingi, the Main Neotropical Malaria Vector. Nucleic Acids Res. 2013, 41, 7387–7400. [Google Scholar] [CrossRef]
  20. Bickersmith, S.A.; Lainhart, W.; Moreno, M.; Chu, V.M.; Vinetz, J.M.; Conn, J.E. A Sensitive, Specific and Reproducible Real-Time Polymerase Chain Reaction Method for Detection of Plasmodium vivax and Plasmodium falciparum Infection in Field-Collected Anophelines. Mem. Inst. Oswaldo Cruz 2015, 110, 573–576. [Google Scholar] [CrossRef] [Green Version]
  21. Laporta, G.Z.; Burattini, M.N.; Levy, D.; Fukuya, L.A.; de Oliveira, T.M.P.; Maselli, L.M.F.; Conn, J.E.; Massad, E.; Bydlowski, S.P.; Sallum, M.A.M. Plasmodium falciparum in the Southeastern Atlantic Forest: A Challenge to the Bromeliad-Malaria Paradigm? Malar. J. 2015, 14, 181. [Google Scholar] [CrossRef] [Green Version]
  22. Giraldo-Calderón, G.I.; Emrich, S.J.; MacCallum, R.M.; Maslen, G.; Dialynas, E.; Topalis, P.; Ho, N.; Gesing, S.; Madey, G.; VectorBase Consortium; et al. VectorBase: An Updated Bioinformatics Resource for Invertebrate Vectors and Other Organisms Related with Human Diseases. Nucleic Acids Res. 2015, 43, D707–D713. [Google Scholar] [CrossRef]
  23. Li, H.; Durbin, R. Fast and Accurate Short Read Alignment with Burrows-Wheeler Transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef] [Green Version]
  24. Li, H. A Statistical Framework for SNP Calling, Mutation Discovery, Association Mapping and Population Genetical Parameter Estimation from Sequencing Data. Bioinformatics 2011, 27, 2987–2993. [Google Scholar] [CrossRef] [Green Version]
  25. Danecek, P.; Auton, A.; Abecasis, G.; Albers, C.A.; Banks, E.; DePristo, M.A.; Handsaker, R.E.; Lunter, G.; Marth, G.T.; Sherry, S.T.; et al. The Variant Call Format and VCFtools. Bioinformatics 2011, 27, 2156–2158. [Google Scholar] [CrossRef]
  26. Purcell, S.; Neale, B.; Todd-Brown, K.; Thomas, L.; Ferreira, M.A.R.; Bender, D.; Maller, J.; Sklar, P.; de Bakker, P.I.W.; Daly, M.J.; et al. PLINK: A Tool Set for Whole-Genome Association and Population-Based Linkage Analyses. Am. J. Hum. Genet. 2007, 81, 559–575. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. R Development Core Team. The R Reference Manual: Base Package; Network Theory Limited: Surrey, UK, 2003; ISBN 9780954612009. [Google Scholar]
  28. Excoffier, L.; Lischer, H.E.L. Arlequin suite ver 3.5: A new series of programs to perform population genetics analyses under Linux and Windows. Mol. Ecol. Resour. 2010, 10, 564–567. [Google Scholar] [CrossRef] [PubMed]
  29. Scott, J.G. Cytochromes P450 and Insecticide Resistance. Insect Biochem. Mol. Biol. 1999, 29, 757–777. [Google Scholar] [CrossRef]
  30. Ranson, H.; Claudianos, C.; Ortelli, F.; Abgrall, C.; Hemingway, J.; Sharakhova, M.V.; Unger, M.F.; Collins, F.H.; Feyereisen, R. Evolution of Supergene Families Associated with Insecticide Resistance. Science 2002, 298, 179–181. [Google Scholar] [CrossRef] [PubMed]
  31. Yang, T.; Li, T.; Feng, X.; Li, M.; Liu, S.; Liu, N. Multiple Cytochrome P450 Genes: Conferring High Levels of Permethrin Resistance in Mosquitoes, Culex quinquefasciatus. Sci. Rep. 2021, 11, 9041. [Google Scholar] [CrossRef]
  32. Tchouakui, M.; Mugenzi, L.M.J.; Wondji, M.J.; Tchoupo, M.; Njiokou, F.; Wondji, C.S. Combined over-Expression of Two Cytochrome P450 Genes Exacerbates the Fitness Cost of Pyrethroid Resistance in the Major African Malaria Vector Anopheles funestus. Pestic. Biochem. Physiol. 2021, 173, 104772. [Google Scholar] [CrossRef]
  33. Zoh, M.G.; Gaude, T.; Prud’homme, S.M.; Riaz, M.A.; David, J.-P.; Reynaud, S. Molecular Bases of P450-Mediated Resistance to the Neonicotinoid Insecticide Imidacloprid in the Mosquito Aedes aegypti. Aquat. Toxicol. 2021, 236, 105860. [Google Scholar] [CrossRef]
  34. David, J.-P.; Strode, C.; Vontas, J.; Nikou, D.; Vaughan, A.; Pignatelli, P.M.; Louis, C.; Hemingway, J.; Ranson, H. The Anopheles Gambiae Detoxification Chip: A Highly Specific Microarray to Study Metabolic-Based Insecticide Resistance in Malaria Vectors. Proc. Natl. Acad. Sci. USA 2005, 102, 4080–4084. [Google Scholar] [CrossRef] [Green Version]
  35. Müller, P.; Donnelly, M.J.; Ranson, H. Transcription Profiling of a Recently Colonised Pyrethroid Resistant Anopheles gambiae Strain from Ghana. BMC Genom. 2007, 8, 36. [Google Scholar] [CrossRef] [Green Version]
  36. Nikou, D.; Ranson, H.; Hemingway, J. An Adult-Specific CYP6 P450 Gene Is Overexpressed in a Pyrethroid-Resistant Strain of the Malaria Vector, Anopheles gambiae. Gene 2003, 318, 91–102. [Google Scholar] [CrossRef]
  37. Ingham, V.A.; Pignatelli, P.; Moore, J.D.; Wagstaff, S.; Ranson, H. The Transcription Factor Maf-S Regulates Metabolic Resistance to Insecticides in the Malaria Vector Anopheles gambiae. BMC Genom. 2017, 18, 669. [Google Scholar] [CrossRef]
  38. Hiwat, H.; Bretas, G. Ecology of Anopheles darlingi Root with Respect to Vector Importance: A Review. Parasit. Vectors 2011, 4, 177. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Zhang, J.; Zhang, X.; Arakane, Y.; Muthukrishnan, S.; Kramer, K.J.; Ma, E.; Zhu, K.Y. Identification and Characterization of a Novel Chitinase-like Gene Cluster (AgCht5) Possibly Derived from Tandem Duplications in the African Malaria Mosquito, Anopheles gambiae. Insect Biochem. Mol. Biol. 2011, 41, 521–528. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Filho, B.P.D.; Lemos, F.J.A.; Secundino, N.F.C.; Páscoa, V.; Pereira, S.T.; Pimenta, P.F.P. Presence of Chitinase and Beta-N-Acetylglucosaminidase in the Aedes aegypti. a Chitinolytic System Involving Peritrophic Matrix Formation and Degradation. Insect Biochem. Mol. Biol. 2002, 32, 1723–1729. [Google Scholar] [CrossRef]
  41. Zheng, Y.; Zheng, S.; Cheng, X.; Ladd, T.; Lingohr, E.J.; Krell, P.J.; Arif, B.M.; Retnakaran, A.; Feng, Q. A Molt-Associated Chitinase cDNA from the Spruce Budworm, Choristoneura fumiferana. Insect Biochem. Mol. Biol. 2002, 32, 1813–1823. [Google Scholar] [CrossRef]
  42. Zhu, Q.; Arakane, Y.; Beeman, R.W.; Kramer, K.J.; Muthukrishnan, S. Functional Specialization among Insect Chitinase Family Genes Revealed by RNA Interference. Proc. Natl. Acad. Sci. USA 2008, 105, 6650–6655. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Zhang, J.; Zhang, X.; Arakane, Y.; Muthukrishnan, S.; Kramer, K.J.; Ma, E.; Zhu, K.Y. Comparative Genomic Analysis of Chitinase and Chitinase-Like Genes in the African Malaria Mosquito (Anopheles gambiae). PLoS ONE 2011, 6, e19899. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Dinglasan, R.R.; Devenport, M.; Florens, L.; Johnson, J.R.; McHugh, C.A.; Donnelly-Doman, M.; Carucci, D.J.; Yates, J.R., 3rd; Jacobs-Lorena, M. The Anopheles gambiae Adult Midgut Peritrophic Matrix Proteome. Insect Biochem. Mol. Biol. 2009, 39, 125–134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Patra, K.P.; Kaur, H.; Kolli, S.K.; Wozniak, J.M.; Prieto, J.H.; Yates, J.R.; Gonzalez, D.J.; Janse, C.J.; Vinetz, J.M. A Hetero-Multimeric Chitinase-Containing Plasmodium falciparum and Plasmodium gallinaceum Ookinete-Secreted Protein Complex Involved in Mosquito Midgut Invasion. Front. Cell. Infect. Microbiol. 2021, 10, 615343. [Google Scholar] [CrossRef] [PubMed]
  46. Viswanath, V.K.; Gore, S.T.; Valiyaparambil, A.; Mukherjee, S.; Lakshminarasimhan, A. Plasmodium Chitinases: Revisiting a Target of Transmission-Blockade against Malaria. Protein Sci. 2021, 30, 1493–1501. [Google Scholar] [CrossRef]
  47. Huber, M.; Cabib, E.; Miller, L.H. Malaria Parasite Chitinase and Penetration of the Mosquito Peritrophic Membrane. Proc. Natl. Acad. Sci. USA 1991, 88, 2807–2810. [Google Scholar] [CrossRef] [Green Version]
  48. Harris, C.; Lambrechts, L.; Rousset, F.; Abate, L.; Nsango, S.E.; Fontenille, D.; Morlais, I.; Cohuet, A. Polymorphisms in Anopheles gambiae immune genes associated with natural resistance to Plasmodium falciparum. PLoS Pathog. 2010, 16, e1001112. [Google Scholar] [CrossRef] [Green Version]
  49. Redmond, S.N.; Eiglmeier, K.; Mitri, C.; Markianos, K.; Guelbeogo, W.M.; Gneme, A.; Isaacs, A.T.; Coulibaly, B.; Brito-Fravallo, E.; Maslen, G.; et al. Association mapping by pooled sequencing identifies TOLL 11 as a protective factor against Plasmodium falciparum in Anopheles gambiae. BMC Genom. 2015, 16, 779. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Riehle, M.M.; Bukhari, T.; Gneme, A.; Guelbeogo, W.M.; Coulibaly, B.; Fofana, A.; Pain, A.; Bischoff, E.; Renaud, F.; Beavogui, A.H.; et al. The Anopheles gambiae 2La chromosome inversion is associated with susceptibility to Plasmodium falciparum in Africa. elife 2017, 23, e25813. [Google Scholar] [CrossRef] [PubMed]
Genes 12 01693 g001 550
Figure 1. Collection region of Brazilian Amazon. Map depicting Acre, Amazonas and Rondônia states with the 11 collection sites distributed in the municipalities of Mâncio Lima, Cruzeiro do Sul, Machadinho D’Oeste, Lábrea and Itacoatiara.
Figure 1. Collection region of Brazilian Amazon. Map depicting Acre, Amazonas and Rondônia states with the 11 collection sites distributed in the municipalities of Mâncio Lima, Cruzeiro do Sul, Machadinho D’Oeste, Lábrea and Itacoatiara.
Genes 12 01693 g001
Genes 12 01693 g002 550

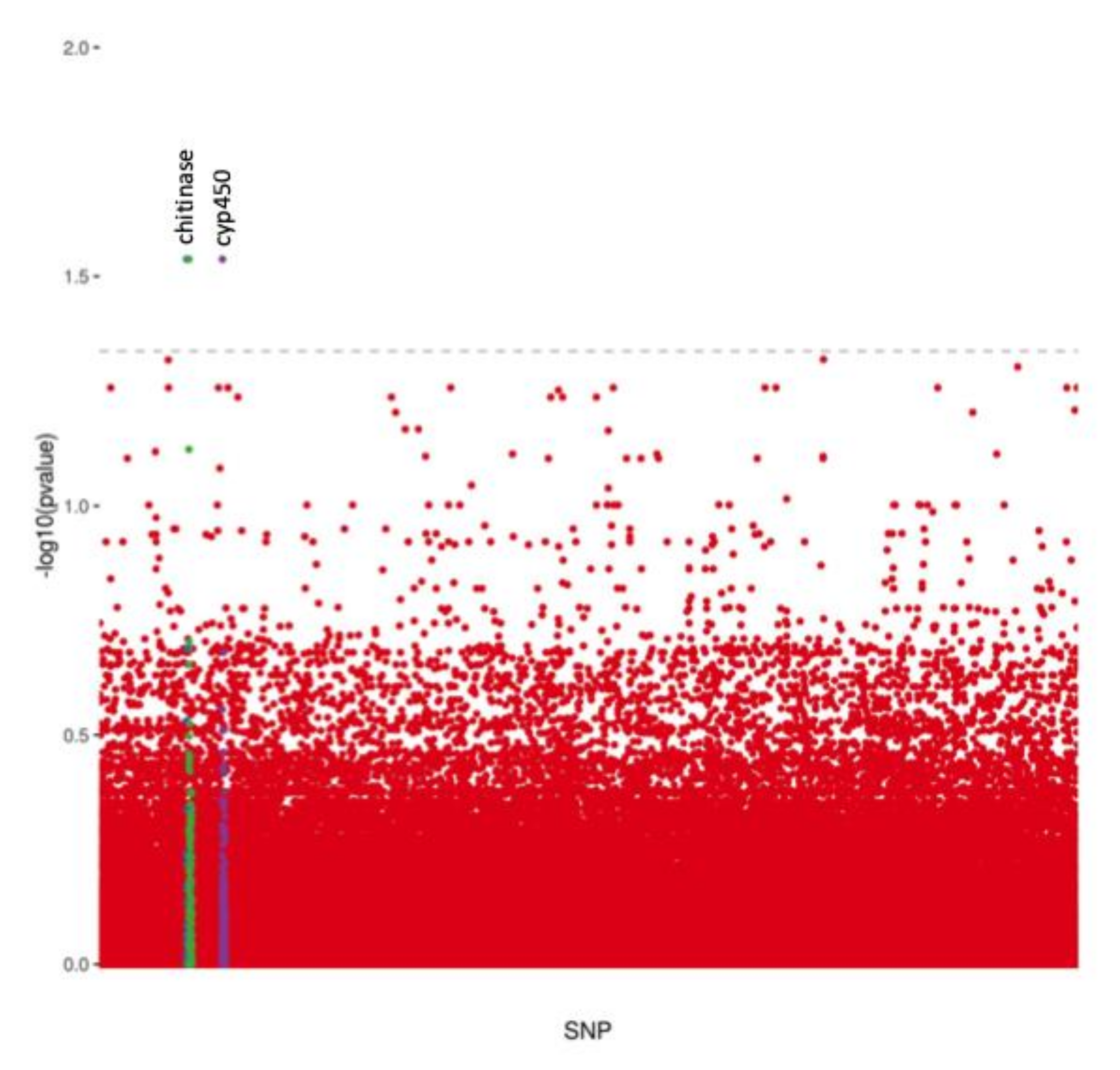

Figure 2. GWAS analysis results for Plasmodium infection. Horizontal dashed line represents the significance threshold of 0.05 for the FDR-corrected p-value. Highlighted colors represent the scaffolds containing significantly associated SNPs.
Figure 2. GWAS analysis results for Plasmodium infection. Horizontal dashed line represents the significance threshold of 0.05 for the FDR-corrected p-value. Highlighted colors represent the scaffolds containing significantly associated SNPs.
Genes 12 01693 g002
Table
Table 1. List of adult Ny. darlingi females used in the study by locality and infection status.
Table 1. List of adult Ny. darlingi females used in the study by locality and infection status.
MunicipalityStateP. vivaxP. falciparumNegativeTotal
Cruzeiro do SulAcre17-1734
Mâncio LimaAcre-112
LábreaAmazonas39618
Machadinho D’OesteRondônia5-49
ItacoatiaraAmazonas1-12
Total2626102965
Table
Table 2. List of statistically significant markers (pFDR < 0.05) and adjacent genes in GWAS for Plasmodium infection. Adjacent genes located in a maximum range of 80 kb are described.
Table 2. List of statistically significant markers (pFDR < 0.05) and adjacent genes in GWAS for Plasmodium infection. Adjacent genes located in a maximum range of 80 kb are described.
ScaffoldPositionRefAltAdjacent GenesDistance to Adjacent Gene
(bp)		pFDR
ADMH0200071610,949GCcyp450560.029
ADMH0200209810,391TAChitinase71,6550.029
Ref: reference allele. Alt: alternative allele. pFDR: false discovery rate corrected p-value.
