Genome-Wide Analysis of Specific PfR2R3-MYB Genes Related to Paulownia Witches’ Broom

by
Xiaogai Zhao
1,†,
Bingbing Li
1,†,
Xiaoqiao Zhai
2,*,
Haifang Liu
1,
Minjie Deng
1 and
Guoqiang Fan
1,3,*
1
Institute of Paulownia, Henan Agricultural University, Zhengzhou 450002, China
2
Forestry Academy of Henan, Zhengzhou 450002, China
3
College of Forestry, Henan Agricultural University, 95 Wenhua Road, Jinshui District, Zhengzhou 450002, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Genes 2023, 14(1), 7; https://doi.org/10.3390/genes14010007
Submission received: 14 November 2022 / Revised: 17 December 2022 / Accepted: 18 December 2022 / Published: 20 December 2022
(This article belongs to the Special Issue Genetics of Abiotic Stress Tolerance in Plants)
Browse Figures
Review Reports Versions Notes

Abstract

:
Paulownia witches’ broom (PaWB), caused by phytoplasmas, is the most devastating infectious disease of Paulownia. R2R3-MYB transcription factors (TF) have been reported to be involved in the plant’s response to infections caused by these pathogens, but a comprehensive study of the R2R3-MYB genes in Paulownia has not been reported. In this study, we identified 138 R2R3-MYB genes distributed on 20 chromosomes of Paulownia fortunei. These genes were classified into 27 subfamilies based on their gene structures and phylogenetic relationships, which indicated that they have various evolutionary relationships and have undergone rich segmental replication events. We determined the expression patterns of the 138 R2R3-MYB genes of P. fortunei by analyzing the RNA sequencing data and found that PfR2R3-MYB15 was significantly up-regulated in P. fortunei in response to phytoplasma infections. PfR2R3-MYB15 was cloned and overexpressed in Populus trichocarpa. The results show that its overexpression induced branching symptoms. Subsequently, the subcellular localization results showed that PfR2R3-MYB15 was located in the nucleus. Yeast two-hybrid and bimolecular fluorescence complementation experiments showed that PfR2R3-MYB15 interacted with PfTAB2. The analysis of the PfR2R3-MYB15 gene showed that it not only played an important role in plant branching, but also might participate in the biosynthesis of photosystem elements. Our results will provide a foundation for future studies of the R2R3-MYB TF family in Paulownia and other plants.

1. Introduction

Transcription factors (TFs) are DNA-binding proteins that inhibit or activate the transcription of their target genes and form complex regulatory networks [1]. The MYB TFs comprise a large TF family and play important roles in the life cycle of plants [2]. In 1982, MYBs were first discovered in the avian leukosis virus [3], and subsequently were found in Zea mays (corn) [4], Arabidopsis thaliana (A. thaliana) [5], Gossypium (cotton) [6], Glycine max (soybean) [7], Populus trichocarpa (populus) [8] and Ziziphus jujube (Chinese jujube) [9]. MYB’s domain commonly includes one to four incomplete repeats (R), which consist of 50–53 conserved amino acid residues [10]. Based on the number of R repeats, the MYB proteins can be divided into four types, including 1R (R1, R2 and R3-MYB), 2R (R2R3-MYB), 3R (R1R2R3-MYB) and 4R (R1R2R2R1 and R1R2R2R2-MYB) proteins, of which the R2R3-MYB is the most common type in plants [10].
R2R3-MYBs regulate morphogenesis [10], growth and development [11], hormone response [12,13], and resistance to stress [14]. R2R3-MYB genes have been identified and analyzed in many plants. In A. thaliana, AtMYB59 was shown to negatively regulate cell cycle and root growth. Compared to the wild type, the overexpression of AtMYB59 produced shorter and fewer roots, and the deletion mutant AtMYB59-1 had longer roots [15]. AtMYB5 and AtMYB123 are involved in tannin biosynthesis [16]. The overexpression of AtMYB30 in A. thaliana enhanced its hypersensitive response (HR) and tolerance to pathogen attacks [17]. Further research found that resistance against different bacterial pathogens and HR cell death are strongly decreased in antisense AtMYB30 lines [17]. Furthermore, AtMYB96 enhanced the resistance to drought stress by integrating auxin and abscisic acid signals in A. thaliana [18], and AtMYB38 was found to be involved mainly in the formation of axillary meristem during plant branch development [19]. Many studies have shown that R2R3-MYBs play essential roles in corn, A. thaliana, rice, cotton and poplar, but their roles in Paulownia have not been reported so far.
Paulownia fortunei (P. fortunei) is a fast-growing tree species that has been planted worldwide for its high economic and ecological value [4,20]. Paulownia witches’ broom (PaWB), which is caused by phytoplasma belonging to the aster yellows’ group ‘Candidatus Phytoplasma asteris’, can result in great losses in the forest industry [21]. Witches’ brooms and the yellowing of leaves are the main symptom of PaWB [22]. In order to study the role of the MYB family in the pathogenesis of PaWB, we identified 138 R2R3-MYB TFs in P. fortunei and analyzed their structure, functions, phylogenetic relationships, and the expression patterns of the R2R3-MYB genes of PaWB. We found that PfR2R3-MYB15 was significantly up-regulated in P. fortunei in response to phytoplasma infestations by analyzing RNA sequencing (RNA-Seq) data. To study the relationship between PfR2R3-MYB15 and PaWB, transgene, subcellular localization, yeast two-hybrid (Y2H) screening, and bimolecular fluorescence complementation (BiFC) were used to identify the function of PfR2R3-MYB15. Our results will provide a basis for future studies of the R2R3-MYB family and contribute toward our understanding of the important role of PfR2R3-MYB15 in plant branching.

2. Materials and Methods

2.1. Plant Materials

The tissue-cultured seedlings used in this study were from the Institute of Paulownia, Henan Agricultural University, Zhengzhou, Henan Province, China. Healthy P. fortunei seedlings (PF), phytoplasma-infected P. fortunei seedlings (PFI), and wild-type P. trichocarpa (WT) were cultured as described by Zhai et al. (2010) [22]. PF and PFI were collected at 30 days, immediately frozen in liquid nitrogen, and stored at −80 °C for further study.

2.2. Identification PfR2R3-MYB Genes in P. fortunei

The P. fortunei genome data were obtained from the NCBI genome database (https://www.nc-bi.nlm.nih.gov, accessed on 16 June 2021). PfR2R3-MYB genes were identified in accordance with Jin et al. (1999) [23]. R2R3-MYB genes in the P. fortunei genome were respectively identified using the Hidden Markov model (HMM) file of the MYB DNA-binding domain (PF00249) [24] and a local BLAST analysis (based on the A. thaliana R2R3-MYB gene sequences) (https://www.arabidopsis.org, accessed on 16 June 2021). The results from the two methods were compared to identify PfR2R3-MYB genes. The Conserved Domain Database (https://www.ncbi.nl-m.nih.gov/Structure/bwrpsb/bwrpsb.cgi, accessed on 18 June 2021) and Pfam were used to confirm the PfR2R3-MYBs. Then, the physical and chemical properties of PfR2R3-MYB proteins were analyzed using ExPASy tools (https://web.expasy.org/protparam/, accessed on 18 June 2021). Plant-mPLoc (http://www.csbio.sjtu.edu.cn/bioinf/plantmulti/, accessed on 18 June 2021) was used to predict the subcellular localization of the PfR2R3-MYB proteins.

2.3. Chromosomal Location and Collinear Evolution Analysis of PfR2R3-MYB Genes

Chromosome locations and lengths of the PfR2R3-MYB genes were obtained using graphics of TBtools software (https://github.com/CJ-Chen/TBtools, accessed on 20 June 2021) [25]. Subsequently, the genes were named on the basis of their position and order on the chromosomes. Then, fragment repetition events and collinearity relationships of the R2R3-MYB genes in P. fortunei and A. thaliana were determined using dual synteny plot on TBtools platform (https://github.com/CJ-Chen/TBtools, accessed on 20 June 2021). Non-synonymous/synonymous substitution ratios (Ka/Ks) of PfR2R3-MYB homologous gene pairs were calculated using MCScan on TBtools (https://github.com/CJ-Chen/TBtools, accessed on 20 June 2021) [25,26].

2.4. Phylogenetic and Conserved Motif Domain Analysis of PfR2R3-MYB Genes

To determine the phylogenetic relationships among the PfR2R3-MYB proteins, we compared their amino acid sequences (https://www.ncbi.nlm.nih.gov, accessed on 22 June 2021) with those of A. thaliana (https://www.arabidopsis.org/, accessed on 22 June 2021). A phylogenetic tree was constructed using the neighbor-joining (NJ) adjacency method in MEGA7.0 described by Dubos et al. (2006). NCBI CD-Search (https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi, accessed on 22 June 2021) described by Zhou et al. (2006) was used to determine the conserved motifs of the PfR2R3-MYBs.

2.5. Gene Structure and Promoter Cis-Acting Element Analysis of PfR2R3-MYB Genes

The exon and intron structures for individual PfR2R3-MYB genes were checked by aligning the cDNA sequences to the corresponding genomic DNA sequences [26]. The gene structures of the PfR2R3-MYBs were visualized using the online software GSDS (http://gsds.cbi.pku.edu.cn/ accessed on 18 June 2021). Plant CARE (http://bioinformatics.psb.ugent.be/webtoo-ls/plantc-are/html/, accessed on 24 June 2021) was used to predict promoter cis-acting element [27].

2.6. Expression Pattern Analysis of PfR2R3-MYB Genes Responsive to Phytoplasma and qRT-PCR Verification

In previous studies, our research group found that the phytoplasma content decreased in PFI treated with 100 mg·L−1 of rifampin (Rif) with the extension in treatment time, and the plant morphologically showed reduction in branching and gradually reached a healthy state [28]. To further understand the role of PfR2R3-MYB genes in the occurrence of PaWB, we downloaded the RNA-seq data (https://www.ncbi.nlm.nih.gov/sra/?term=Paulownia, accessed on 27 June 2021), including PF and PFI, as well as PFI treated with 100 mg·L−1 Rif for 5, 10 and 20 days (PFI100-5, PFI100-10, and PFI100-20) (SRR11787883, SRR11787894, SRR11787905, and SRR11787912, and SRR11787921). Clean reads were aligned to the P. fortunei genome using BWA software. Gene expression levels were quantified by RSEM (RNASeq by expectation maximization) software package. The fragments per kb per million reads (FPKM) values were used to calculate the expression of genes. The heat map was generated using heatmap on TBtools. To validate the sequencing data, qRT-PCRs were performed to detect the expression patterns of eight differentially expressed genes (DEGs). We designed mRNA and universal reverse primer using Primer5 (Supplementary Materials: Table S1). The qRT-PCRs were performed on a CFX 96 Touch RT-PCR detection system (Bio-Rad, Hercules, CA, USA) with SYBR Green Real-time PCR Master Mix (Toyobo, Osaka, Japan) as described previously [29]. Expression levels were calculated by the 2−ΔΔCT method [30]. Actin (Forward primer: AATGGAATCTGCTGGAAT, Reverse primer: ACTGAGGACAATGTTACC) was used as the internal reference gene. Three biological replicates were used.

2.7. Vector Construction and Agrobacterium Tumefaciens Transformation

The PfR2R3-MYB15 gene primers were as follows: forward primer was 5′-ATGGGAA GAGCACCTTGCTG-3′ and reverse primer was 5′-CAAATATCAACAGAAAGTTCTGAGTTTC-3′. The PfR2R3-MYB15 gene was driven by the cauliflower mosaic virus (CaMV) 35S promoter and was transformed into Agrobacterium tumefaciens (A. tumefaciens) by the freeze–thaw method [31]. WT was cultured on 1/2 woody plant medium (WPM) for 30 days, then stems were infected with A. tumefaciens GV3101 harboring the PfR2R3-MYB15 gene using cultures with an OD at 600 nm of 0.6; the details of this method referred to Song et al. (2006).

2.8. Detection of Transgenic Seedlings

PCR was used to identify the transgenic seedlings. The primer sequences designed by Primer Premier 5.0 were as follows: forward primer was 5′-GGATCCATGGGAAGAGCACC-3′ and reverse primer was 5′-GAGCTCCTATTTGTACAATT-3′. The PCR cycling conditions were 95 °C for 3 min followed by 35 cycles of 95 °C for 30 s, 52 °C for 30 s, and 72 °C for 90 s, and melting at 72 °C for 10 min. QRT-PCR was used to validate OE-PfR2R3-MYB15. The method is the same as that in Section 2.6. Ribosomal PtActin RNA was used as the reference gene. The primer sequences were designed by Primer Premier 5.0 (Supplementary Materials: Table S1).

2.9. Subcellular Localization of PfR2R3-MYB15 Protein

To verify the subcellular localization of the PfR2R3-MYB15 protein, we constructed pBI121 vectors carrying 35S::CDS PfR2R3-MYB15-GFP and 35S::GFP. The primer sequences were designed and are listed in Supplementary Materials: Table S2. The 35S::PfR2R3-MYB15-GFP and 35S::GFP were transfected into Nicotiana benthamiana (N. benthamiana) cells, as described by Xie et al. (2020).

2.10. Yeast Two-Hybrid Assays

The coding region of PfR2R3-MYB15 was cloned into pGBKT7 as the bait. Toxic and auto-activation tests were performed. PFI cDNA libraries were screened using pGBKT7–PfR2R3-MYB15 prey plasmids [28]. The coding regions of Paulownia_LG3G001014 (protein TAB2 homolog, PfATAB2) were cloned into pGADT7 (Supplementary Materials: Table S3). PGADT7-largeT/pGBKT7-laminC (negative control), pGADT7-largeT/pGBKT7-p53 (positive control) and PfR2R3-MYB15 (pGBKT7)/PfTAB2 were transfected into AH109 using a Yeast-Maker yeast transformation system. Plasmid isolation, yeast transformation, mating, and interaction test were performed using a Matchmaker GAL4TM Two-Hybrid System 3 in accordance with the manufacturer’s instructions.

2.11. Bimolecular Fluorescence Complementation Assays

Bimolecular fluorescence complementation (BiFC) assays were performed by constructing pNC-ENN-PfR2R3-MYB15 and pNC-ECN-PfATAB2 using a Nimble cloning system. Vector transformation, N. benthamiana injection, and fluorescent observation were conducted as described by Xin et al. (2020).

2.12. Data Availability Statement

All the raw read data will be provided during review.

3. Results

3.1. Genome-Wide Identification of PfR2R3-MYB in P. fortunei

We identified 245 MYB genes in the P. fortunei genome; 101 were R1-MYBs, 6 were R1R2R3-MYBs and 138 were R2R3-MYBs (Supplementary Materials: Table S4). On the basis of their chromosome localization, we named the 138 PfR2R3-MYB genes from PfR2R3-MYB1 to PfR2R3-MYB138 (Supplementary Materials: Table S5). The length of PfR2R3-MYB CDSs varied from 582 bp (PfR2R3-MYB41) to 3516 bp (PfR2R3-MYB115), and the size of the proteins ranged from 193 (PfR2R3-MYB41) to 1171 (PfR2R3-MYB115) amino acids (Supplementary Materials: Table S5). The isoelectric points (PIs) of the proteins ranged from 4.75 (PfR2R3-MYB29) to 9.58 (PfR2R3-MYB83), and the relative molecular mass was from 22,252.21 (PfR2R3-MYB41) to 129,740.84 D (PfR2R3-MYB115) (Supplementary Materials: Table S5). The PfR2R3-MYB proteins were predicted to be located in the cell nucleus, which is consistent with the location of R2R3-MYB proteins in Arabidopsis [2] and poplar [8].

3.2. Localization, Gene Replication and Collinearity Analysis

The 138 PfR2R3-MYB genes were assigned to the 20 chromosomes of P. fortunei (Figure 1a), and their distribution on the chromosomes was scattered and widespread, which was consistent with the distribution of the PtR2R3-MYB genes on the poplar chromosomes [8]. Sixteen PfR2R3-MYBs were on chromosome 6, eleven each on chromosomes 11 and 13, six each on chromosomes 4, 8, 12, 14, 16, and 20, five each on chromosomes 10, 15, 17, and 19, four each on chromosomes 5 and 8, and three on chromosome 1.
Gene duplication is important for gene family formation and extension in plants [3]. In this study, we performed a collinearity analysis of the PfR2R3-MYB genes and identified 92 PfR2R3-MYB repeat pairs (Figure 1b). The PfR2R3-MYB gene duplication events were fragment duplications in all the P. fortunei chromosomes, implying that 92 fragment duplications played important roles in the evolution of the PfR2R3-MYB gene family (Supplementary Materials: Table S6). To assess the limiting factors of the evolution of the PfR2R3-MYB gene family, we calculated the Ka/Ks ratios of the 92 repeat pairs and found that they ranged from 0.071 (PfR2R3-MYB76/PfR2R3-MYB86) to 0.546 (PfR2R3-MYB58/PfR2R3-MYB103) (Supplementary Materials: Table S6). The ratio was much less than 1, which indicated that the PfR2R3-MYB gene family had undergone gene purification and selection in the evolutionary process.
To further investigate the evolution of the R2R3-MYB gene family in P. fortunei and A. thaliana, we constructed a collinearity map of 138 PfR2R3-MYBs and 126 AtR2R3-MYBs, which represented 182 PfR2R3-MYB orthologous gene pairs (Supplementary Materials: Figure S1). The results showed that the PfR2R3-MYBs had common ancestors and were highly conserved during the evolutionary process.

3.3. Analysis of Chromosomal Location and Synteny of PfR2R3-MYB Genes

To clarify the classification of PfR2R3-MYB proteins, we constructed an NJ rootless phylogenetic tree using 138 PfR2R3-MYB and 126 AtR2R3-MYB protein sequences from P. fortunei and A. thaliana (Figure 2). The 138 PfR2R3-MYB proteins were divided into 27 subfamilies (named I–XXVII), most of which were consistent with those of A. thaliana in Figure 2. However, none of the PfR2R3-MYB proteins were found in subfamily XVII, suggesting that some R2R3-MYB genes may have been lost during the long-term evolution of the P. fortunei genome. Subfamilies I and XXIII each had twelve PfR2R3-MYBs, accounting for 8.63% of the total P. fortunei PfR2R3-MYB family, whereas subfamily XXVII had only one PfR2R3-MYB. Based on the evolutionary relationship of R2R3-MYB proteins in P. fortunei and poplar, we found that the 138R2R3-MYB and 192 MYB proteins mostly clustered in a branch, showing a sister-group relationship (Supplementary Figure S1).

3.4. Conserved Domains and Gene Structure Analyses of PfR2R3-MYBs

We identified 10 conserved motifs in the 138 PfR2R3-MYBs (Figure 3b, Supplementary Materials: Figure S2). The motifs were widely distributed in the PfR2R3-MYBs. Motifs 1, 2, 3, 4, 5, 8 and 10 were detected in PfR2R3-MYB128, 136, 133, 127, 103, 138 and 117, respectively, and motifs 6, 7 and 9 were detected in PfR2R3-MYB59, 30 and 27, respectively. Motifs 4, 6 and 9 had one highly conserved tryptophan site, motifs 1 and 10 had two highly conserved tryptophan sites, and motifs 3 and 5 had three highly conserved tryptophan sites. The conserved motifs are consistent with those found in poplar R2R3-MYBs [8].
The intron and exon positions of the PfR2R3-MYB genes were visualized using the GSDS software. Significant differences and diversity were observed in the PfR2R3-MYB genes’ structure (Figure 3c). Eight PfR2R3-MYBs had no introns (PfR2R3-MYB2, PfR2R3-MYB18, PfR2R3-MYB43, PfR2R3-MYB81, PfR2R3-MYB82, PfR2R3-MYB98, PfR2R3-MYB113, PfR2R3-MYB137), whereas most of the PfR2R3-MYBs had three exons and two introns, and PfR2R3-MYB46 had the highest number of introns (11) and exons (12). This result indicated that the functions of some PfR2R3-MYBs might change during the evolution of the PfR2R3-MYB family.

3.5. Prediction of Cis-Regulatory Elements in PfR2R3-MYB Gene Family

To better understand the potential functions of the PfR2R3-MYBs, we detected cis-regulatory elements in the 2-kb upstream sequences of the PfR2R3-MYB genes using the PLACE database. We found that most of the cis-acting elements were light-responsive elements, whereas others were defense- and stress-responsive as well as hormone-responsive elements. Some common cis-acting elements were also found in the promoter regions of the PfR2R3-MYB genes (Figure 4, Supplementary Materials: Figure S3). The regulation of gene expression is mainly dependent on the presence of cis-regulatory elements in the gene promoter regions [32]. The presence of light-responsive, stress-responsive and hormone-responsive elements in the upstream sequences leads us to speculate that they may have important roles in the PfR2R3-MYB gene family.

3.6. PfR2R3-MYBs Involved in the Phytoplasma Interaction and Verification of qRT-PCR

We analyzed the expression patterns of the 138 PfR2R3-MYBs in phytoplasma-infected P. fortunei via RNA-Seq. The results showed that 119 PfR2R3-MYBs responded to phytoplasma infestation (Figure 5a) and 26 (15 down-regulated and 11 up-regulated) of them were significantly differentially expressed in PF versus PFI (Table S7), indicating that these genes may actively respond to the PaWB phytoplasma. In previous studies, our research group found that the phytoplasma content decreased in PFI treated with 100 mg·L−1 of Rif with an extension of the treatment time, and the plant morphologically showed a reduction in branching and gradually reached a healthy state [28]. The 26 PfR2R3-MYBs actively responded to the PaWB phytoplasma in Rif 100-5/PFI, Rif100-10/PFI and Rif100-20/PFI (Figure 5a).
To validate the accuracy of the RNA-Seq results, we randomly selected eight PfR2R3-MYB differentially expressed genes in PFI vs. PF for the qRT-PCR analysis. The trends of their expression were similar, which indicated that the RNA-Seq data were reliable (Figure 5b–i).

3.7. Morphological Change of P. trichocarpa Overexpressing PfR2R3-MYB15

In order to analyze the function of PfR2R3-MYB15, PfR2R3-MYB15 was cloned and overexpressed in P. trichocarpa via a agrobacterium-mediated method. To confirm that PfR2R3-MYB15 was integrated into the genome of P. trichocarpa, we used three traditional methods to identify three over-expressed strains (OE-PfR2R3-MYB15-1, OE-PfR2R3-MYB15-2 and OE-PfR2R3-MYB15-3). The root morphology, PCR and qRT-PCR methods were used to detect OE-PfR2R3-MYB15 (Figure 6a,b). The results showed that OE-PfR2R3-MYB15-1, OE-PfR2R3-MYB15-2 and OE-PfR2R3-MYB15-3 were positive.
To further study the functions of PfR2R3-MYB15, the positive seedlings were transplanted into pots. When the plants were cultured up to 90 days, the phenotypic characteristics showed that OE-PfR2R3-MYB15 had obvious branches compared with WT (Figure 6). The results show that PfR2R3-MYB15 plays an important role in plant branching symptoms, which lays a foundation for future studies of the R2R3-MYB family in other plants.

3.8. PfR2R3-MYB15 Located in the Nucleus

To verify the predicted nucleus location of the PfR2R3-MYB15 protein, 35S::PfR2R3-MYB15-GFP was transfected into N. benthamiana cells. The fluorescence signal of MYB15-GFP was detected in the nucleus, whereas GFP (the positive control) was in the full cell. The results confirmed that PfR2R3-MYB15 was located in the nucleus (Figure 7), which was consistent with the Plant-mPLoc prediction.

3.9. The Discovery of Related Proteins with PfR2R3-MYB15 as Bait

PfR2R3-MYB15 self-activating activity was detected by Y2H screening. The results showed that 30 mM 3-AT can inhibit the autoactivation of PfR2R3-MYB15 (Figure 8a,c). To explore the molecular mechanism of PfR2R3-MYB15, a Y2H screen was performed to identify the potential binding partners of the PfR2R3-MYB15 protein. A total of 24 proteins from the cDNA library of PFI were found to interact with PfR2R3-MYB15 (Supplementary Materials: Table S7). Among them, it has been verified by Y2H screening and BiFC that PFR2R3-MYB15 interacted with PfTAB2 (Paulownia_LG3G001014) (Figure 8c). ATAB2 was involved in the biogenesis of photosystem I (PSI) and II (PSII) [33]. We speculate that PfR2R3-MYB15 may be involved in the biosynthesis of the photosystem elements, but this needs to be further verified in future studies.

4. Discussion

R2R3-MYBs play important roles in plant growth and development, morphogenesis and resistance to stress [11,12,13]. The R2R3-MYB family has been widely studied in plants. In A. thaliana, 126 R2R3-MYBs in 25 subfamilies have been identified and their functions have been predicted by phylogenetic and RNA-Seq analyses [2,34]. In maize, 157 R2R3-MYB TFs with diverse expression patterns and different functions have been reported [35]. In Solanum lycopersicum, 121 R2R3-MYB TFs were found, and the RNA interference of pGSMyb12 was shown to decrease the lateral meristems [36]. Despite their important roles in other plants, this study is the first to report R2R3-MYBs in the P. fortunei genome and analyze their physicochemical properties, structure and evolution. Furthermore, we analyzed the expression patterns of the R2R3-MYB genes in PF and PFI and focused on the functional validation of the significantly overexpressed gene PfR2R3-MYB15. Our results provide new perspectives on the roles of PfR2R3-MYB TFs in plants’ responses to PaWB infestations.
We identified 138 PfR2R3-MYB genes in the P. fortunei genome (Figure 1), which is more than those in A. thaliana [5], but less than those in Populus [8]. We speculated that the number of gene family members may be related to the genome size (Figure 1 and Figure 2). Phylogenetic trees based on the R2R3-MYB protein sequences of P. fortunei and A. thaliana showed that the 138 PfR2R3-MYB genes clustered into 27 subfamilies (named I–XXVII), most of which contained A. thaliana R2R3-MYB TFs. Some exceptions were the XXI subfamily, which did not have any AtR2R3-MYBs, and the XVII subfamily, which did not have any PfR2R3-MYBs, implying that the R2R3-MYB gene family had undergone great differentiation in the evolution of these species. The most closely related genes likely have similar functions. For example, in A. thaliana, the overexpression of AtRAX2 resulted in an increased number of branches compared with the wild type, whereas the number of branches decreased in the AtRAX2 mutant. In the XXIII subfamily, PfR2R3-MYB15 was most closely related to At2g36890 (RAX2), suggesting that PfR2R3-MYB15 may have similar functions to AtRAX2.
Plant genomes are known to undergo whole-genome replication, segmental replication and tandem repetition events which contribute to the expansion of distinct gene families. Gene duplication involves three mechanisms: tandem replication, segmental duplication and transposition events [37]. Fragment and tandem duplication are the main evolutionary mechanisms for gene family expansion and evolution in plants [37]. In this study, the chromosome distribution analysis showed that the PfR2R3-MYBs were unevenly distributed on the 20 chromosomes. The collinearity analysis indicated that 92 fragment duplication events had occurred. These results suggested that fragment duplication played an important role in the evolution of the PfR2R3-MYB gene family. We also found that the Ka/Ks ratios of the P. fortunei segmental repeat pairs were much less than one, implying that the PfR2R3-MYB family experienced strong purification selection during its evolution. The collinear relationship of the R2R3-MYB genes in A. thaliana and P. fortunei showed that 105 PfR2R3-MYBs and 99 AtR2R3-MYBs formed 182 lineal homologous gene pairs (Figure 1c). AtRAX1 (MYB37) proteins interact with CUC2 to further regulate axillary meristems’ expression and control lateral bud production [38]. RAX1, RAX2 (AtMYB38) and RAX3 (AtMYB84) have obvious effects on branch development in A. thaliana. Plants overexpressing RAX2 showed lateral bud symptoms, whereas RAX2 knockout mutants had fewer lateral buds than the wild type. Furthermore, the knockout line RAX1/RAX2/RAX3 was shown to have significantly reduced branches [19]. Together, our results provide new ideas for studying the evolutionary relationships of the PfR2R3-MYB gene family in P. fortunei.
Numerous studies have shown that members of the PfR2R3-MYB family play important roles in plant branching, so we analyzed the expression patterns of the PfR2R3-MYB genes in PF and PFI by RNA-Seq. We detected 119 PfR2R3-MYB genes that responded to PaWB phytoplasma infestationS, and 26 (15 down-regulated and 11 up-regulated) of them were significantly differentially expressed in PF versus PFI (FC ≥ 2.0, false discovery rate < 0.01) (Figure 5a). We focused on PfR2R3-MYB15, which was significantly up-regulated in PF versus PFI. To confirm its function, PfR2R3-MYB15 was cloned and transfected into P. trichocarpa, and its overexpression induced lateral bud symptoms (Figure 6b). Y2H and BiFC experiments demonstrated that PfR2R3-MYB15 interacted with PfTAB2 (Paulownia_LG3G001014). Barneche et al. (2006) found PfTAB2 was the localization of the chloroplast. It may be due to the localization of PfTAB2 that PfR2R3-MYB15 interacted with PfTAB2 in the cell membrane and nucleus via BiFC. Previous studies have shown that ATAB2 is involved in the biogenesis of photosystems I (PSI) and II (PSII) among the PfRAX2-related proteins that are involved in photosynthesis [33]. In this study, we speculate that PfR2R3-MYB15 might participate in the biosynthesis of the photosystem by influencing PfTAB2. These results provide a valuable resource to explore the potential functions of PfR2R3-MYB genes and provide a foundation for future studies of the R2R3-MYB TF family in Paulownia and other plants.

5. Conclusions

In this study, we identified 138 P. fortunei R2R3-MYB TFs, which were distributed on 20 chromosomes and were divided into 27 groups. Their gene structure, phylogenetic relationship, cis-regulatory elements, evolutionary relationships and rich segmental replication events were analyzed. By combining RNA-seq data, we profiled the expression patterns of the 138 PfR2R3-MYB members in phytoplasma-infected seedlings of P. fortunei. We found that PfR2R3-MYB15 is significantly up-regulated in infected P. fortunei. The overexpression of PfR2R3-MYB15 induced branching symptoms in P. trichocarpa. The yeast two-hybrid screening and bimolecular fluorescence complementation showed that PfR2R3-MYB15 interacted with PfTAB2. Our results will provide a foundation for future studies of the R2R3-MYB TF family in Paulownia.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/genes14010007/s1, Table S1: The primers used for qRT-PCR in PF and PFI. Table S2: Primers of 35S::PfR2R3-MYB15-GFP and 35S::GFP were designed. Table S3: Primers of Paulownia_LG3G001014 were designed on Primer Premier 5.0. Table S4: List of 192 identified P. fortunei R2R3-MYB transcription factors. Table S5: Identification of R2R3-MYB gene family members of Paulownia and analysis of their physicochemical properties. Table S6: The KA/KS analysis of PfR2R3-MYB genes. Table S7: 26 PfR2R3-MYB genes respond to phytoplasma infestations in PF versus PFI. Figure S1: Synteny analysis of PfR2R3-MYB genes between A. thaliana and P. fortunei. The blue line represents the gene pair of PfR2R3-MYB. Figure S2: The predictive motif information of R2R3-MYB transcription factors in P. fortunei. Figure S3: Cis-regulatory elements analysis of the promoter region of PfR2R3-MYB genes.

Author Contributions

Data curation, X.Z. (Xiaogai Zhao); formal analysis, B.L. and X.Z. (Xiaoqiao Zhai); investigation, B.L.; methodology, M.D. and H.L.; resources, G.F.; Writing—original draft, X.Z. (Xiaogai Zhao) and B.L.; Writing—review and editing X.Z. (Xiaoqiao Zhai). All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Academic Scientist Fund for Zhongyuan Scholars of Henan Province (Grant No. 2018(185)) and Project of Central Plains Science and Technology Innovation Leading Talents of Henan Province (224200510010).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the sequencing data from P. fortunei transcriptome used in this study are available from the SRA-Archive (http://www.ncbi.nlm.nih.gov/sra accessed on 27 June 2021) of NCBI under the study accession numbers SRR11787883, SRR11787894, SRR11787905 and SRR11787912-SRR11787921.

Acknowledgments

We thank Jennifer Smith for editing the English text of a draft of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nakabayashi, R.; Yonekura-Sakakibara, K.; Urano, K.; Suzuki, M.; Yamada, Y.; Nishizawa, T.; Matsuda, F.; Kojima, M.; Sakakibara, H.; Shinozaki, K.; et al. Enhancement of oxidative and drought tolerance in Arabidopsis by overaccumulation of antioxidant flavonoids. Plant J. 2013, 77, 367–379. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Dubos, C.; Stracke, R.; Grotewold, E.; Weisshaar, B.; Martin, C.; Lepiniec, L. MYB transcription factors in Arabidopsis. Trends Plant Sci. 2010, 15, 573–581. [Google Scholar] [CrossRef]
  3. Klempnauer, K.-H.; Gonda, T.J.; Bishop, J.M. Nucleotide sequence of the retroviral leukemia gene v-myb and its cellular progenitor c-myb: The architecture of a transduced oncogene. Cell 1982, 31, 453–463. [Google Scholar] [CrossRef] [PubMed]
  4. Katiyar, A.; Smita, S.; Lenka, S.K.; Rajwanshi, R.; Chinnusamy, V.; Bansal, K.C. Genome-wide classification and expression analysis of MYB transcription factor families in rice and Arabidopsis. BMC Genom. 2012, 13, 544. [Google Scholar] [CrossRef] [Green Version]
  5. Paz-Ares, J.; Ghosal, D.; Wienand, U.; Peterson, P.A.; Saedler, H. The regulatory c1 locus of Zea mays encodes a protein with homology to myb proto-oncogene products and with structural similarities to transcriptional activators. EMBO J. 1987, 6, 3553–3558. [Google Scholar] [CrossRef] [PubMed]
  6. Salih, H.; Gong, W.; He, S.; Sun, G.; Sun, J.; Du, X. Genome-wide characterization and expression analysis of MYB transcription factors in Gossypium hirsutum. BMC Genet. 2016, 17, 129. [Google Scholar] [CrossRef] [Green Version]
  7. Du, H.; Yang, S.-S.; Liang, Z.; Feng, B.-R.; Liu, L.; Huang, Y.-B.; Tang, Y.-X. Genome-wide analysis of the MYB transcription factor superfamily in soybean. BMC Plant Biol. 2012, 12, 106. [Google Scholar] [CrossRef] [Green Version]
  8. Zhou, F.; Chen, Y.; Wu, H.; Yin, T. Genome-Wide Comparative Analysis of R2R3 MYB Gene Family in Populus and Salix and Identification of Male Flower Bud Development-Related Genes. Front. Plant Sci. 2021, 12, 721558. [Google Scholar] [CrossRef]
  9. Qing, J.; Dawei, W.; Jun, Z.; Yulan, X.; Bingqi, S.; Fan, Z. Genome-wide characterization and expression analyses of the MYB superfamily genes during developmental stages in Chinese jujube. PeerJ 2019, 7, e6353. [Google Scholar] [CrossRef] [Green Version]
  10. Feller, A.; Machemer, K.; Braun, E.L.; Grotewold, E. Evolutionary and comparative analysis of MYB and bHLH plant transcription factors. Plant J. 2011, 66, 94–116. [Google Scholar] [CrossRef]
  11. Liu, L. The roles of MYB transcription factors on plant defense responses and its molecular mechanism. Hereditas 2008, 30, 1265–1271. [Google Scholar] [CrossRef] [PubMed]
  12. Xie, S.; Lei, Y.; Chen, H.; Li, J.; Chen, H.; Zhang, Z. R2R3-MYB Transcription Factors Regulate Anthocyanin Biosynthesis in Grapevine Vegetative Tissues. Front. Plant Sci. 2020, 11, 527. [Google Scholar] [CrossRef]
  13. Wei, X.; Lu, W.; Mao, L.; Han, X.; Wei, X.; Zhao, X.; Xia, M.; Xu, C. ABF2 and MYB transcription factors regulate feruloyl transferase FHT involved in ABA-mediated wound suberization of kiwifruit. J. Exp. Bot. 2019, 71, 305–317. [Google Scholar] [CrossRef] [PubMed]
  14. Yuan, Y.; Zhang, J.; Liu, X.; Meng, M.; Wang, J.; Lin, J. Tissue-specific transcriptome for Dendrobium officinale reveals genes involved in flavonoid biosynthesis. Genomics 2019, 112, 1781–1794. [Google Scholar] [CrossRef] [PubMed]
  15. Xie, Z.; Lee, E.; Lucas, J.R.; Morohashi, K.; Li, D.; Murray, J.A.; Sack, F.D.; Grotewold, E. Regulation of Cell Proliferation in the Stomatal Lineage by the Arabidopsis MYB FOUR LIPS via Direct Targeting of Core Cell Cycle Genes. Plant Cell 2010, 22, 2306–2321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Jin, H.; Cominelli, E.; Bailey, P.; Parr, A.; Mehrtens, F.; Jones, J.; Tonelli, C.; Weisshaar, B.; Martin, C. Transcriptional repression by AtMYB4 controls production of UV-protecting sunscreens in Arabidopsis. EMBO J. 2000, 19, 6150–6161. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Vailleau, F.; Daniel, X.; Tronchet, M.; Montillet, J.-L.; Triantaphylidès, C.; Roby, D. A R2R3-MYB gene, AtMYB30, acts as a positive regulator of the hypersensitive cell death program in plants in response to pathogen attack. Proc. Natl. Acad. Sci. USA 2002, 99, 10179–10184. [Google Scholar] [CrossRef] [Green Version]
  18. Seo, P.J.; Xiang, F.; Qiao, M.; Park, J.-Y.; Na Lee, Y.; Kim, S.-G.; Lee, Y.-H.; Park, W.J.; Park, C.-M. The MYB96 Transcription Factor Mediates Abscisic Acid Signaling during Drought Stress Response in Arabidopsis. Plant Physiol. 2009, 151, 275–289. [Google Scholar] [CrossRef] [Green Version]
  19. Müller, D.; Schmitz, G.; Theres, K. Blind Homologous R2R3 Myb Genes Control the Pattern of Lateral Meristem Initiation in Arabidopsis. Plant Cell 2006, 18, 586–597. [Google Scholar] [CrossRef] [Green Version]
  20. Sugio, A.; MacLean, A.M.; Kingdom, H.N.; Grieve, V.M.; Manimekalai, R.; Hogenhout, S.A. Diverse Targets of Phytoplasma Effectors: From Plant Development to Defense Against Insects. Annu. Rev. Phytopathol. 2011, 49, 175–195. [Google Scholar] [CrossRef]
  21. Ipekci, Z.; Gozukirmizi, N. Direct somatic embryogenesis and synthetic seed production from Paulownia elongata. Plant Cell Rep. 2003, 22, 16–24. [Google Scholar] [CrossRef] [PubMed]
  22. Zhai, X.Q.; Cao, X.; Fan, B.G.Q. Growth of Paulownia witches broom seedlings treated with methylmethane sulphonate and SSR analysis. Sci. Silvae Sin. 2010, 46, 176–181. [Google Scholar]
  23. Jin, H.; Martin, C. Multifunctionality and diversity within the plant MYB-gene family. Plant Mol. Biol. 1999, 41, 577–585. [Google Scholar] [CrossRef] [PubMed]
  24. Potter, S.C.; Luciani, A.; Eddy, S.R.; Park, Y.; López, R.; Finn, R.D. HMMER web server: 2018 update. Nucleic Acids Res. 2018, 46, W200–W204. [Google Scholar] [CrossRef] [Green Version]
  25. Wang, Y.; Tang, H.; DeBarry, J.D.; Tan, X.; Li, J.; Wang, X.; Lee, T.-H.; Jin, H.; Marler, B.; Guo, H.; et al. MCScanX: A toolkit for detection and evolutionary analysis of gene synteny and collinearity. Nucleic Acids Res. 2012, 40, e49. [Google Scholar] [CrossRef] [Green Version]
  26. Wang, Y.; Huang, J.; Li, E.; Xu, S.; Zhan, Z.; Zhang, X.; Yang, Z.; Guo, F.; Liu, K.; Liu, D.; et al. Phylogenomics and Biogeography of Populus Based on Comprehensive Sampling Reveal Deep-Level Relationships and Multiple Intercontinental Dispersals. Front. Plant Sci. 2022, 13, 813177. [Google Scholar] [CrossRef]
  27. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouzé, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef]
  28. Cao, Y.; Sun, G.; Zhai, X.; Xu, P.; Ma, L.; Deng, M.; Zhao, Z.; Yang, H.; Dong, Y.; Shang, Z.; et al. Genomic insights into the fast growth of paulownias and the formation of Paulownia witches’ broom. Mol. Plant 2021, 14, 1668–1682. [Google Scholar] [CrossRef]
  29. Pei, M.; Niu, J.; Li, C.; Cao, F.; Quan, S. Identification and expression analysis of genes related to calyx persistence in Korla fragrant pear. BMC Genom. 2016, 17, 132. [Google Scholar] [CrossRef] [Green Version]
  30. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  31. Holsters, M.; De Waele, D.; Depicker, A.; Messens, E.; Van Montagu, M.; Schell, J. Transfection and transformation of Agrobacterium tumefaciens. 1978, 163, 181–187. [CrossRef]
  32. Hu, B.; Jin, J.; Guo, A.-Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [Green Version]
  33. Barneche, F.; Winter, V.; Crèvecœur, M.; Rochaix, J.-D. ATAB2 is a novel factor in the signalling pathway of light-controlled synthesis of photosystem proteins. EMBO J. 2006, 25, 5907–5918. [Google Scholar] [CrossRef] [PubMed]
  34. Stracke, R.; Werber, M.; Weisshaar, B. The R2R3-MYB gene family in Arabidopsis thaliana. Curr. Opin. Plant Biol. 2001, 4, 447–456. [Google Scholar] [CrossRef] [PubMed]
  35. Du, H.; Feng, B.-R.; Yang, S.-S.; Huang, Y.-B.; Tang, Y.-X. The R2R3-MYB Transcription Factor Gene Family in Maize. PLoS ONE 2012, 7, e37463. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Zhao, P.; Li, Q.; Li, J.; Wang, L.; Ren, Z. Genome-wide identification and characterization of R2R3MYB family in Solanum lycopersicum. Mol. Genet. Genom. 2014, 289, 1183–1207. [Google Scholar] [CrossRef] [PubMed]
  37. He, X.; Zhang, J. Rapid Subfunctionalization Accompanied by Prolonged and Substantial Neofunctionalization in Duplicate Gene Evolution. Genetics 2005, 169, 1157–1164. [Google Scholar] [CrossRef] [Green Version]
  38. Keller, T.; Abbott, J.; Moritz, T.; Doerner, P. Arabidopsis REGULATOR OF AXILLARY MERISTEMS1 Controls a Leaf Axil Stem Cell Niche and Modulates Vegetative Development. Plant Cell 2006, 18, 598–611. [Google Scholar] [CrossRef]
Genes 14 00007 g001 550

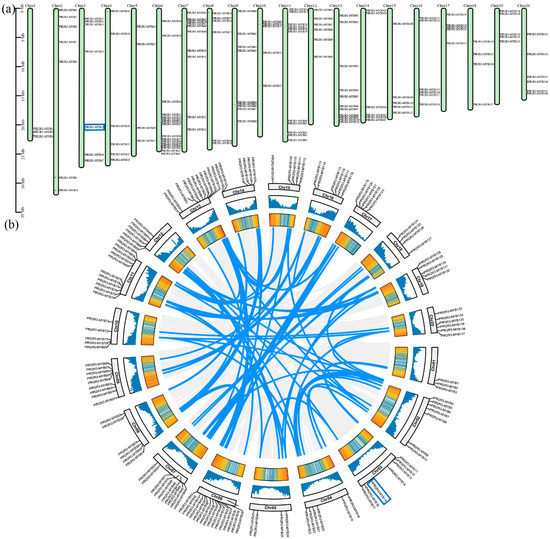

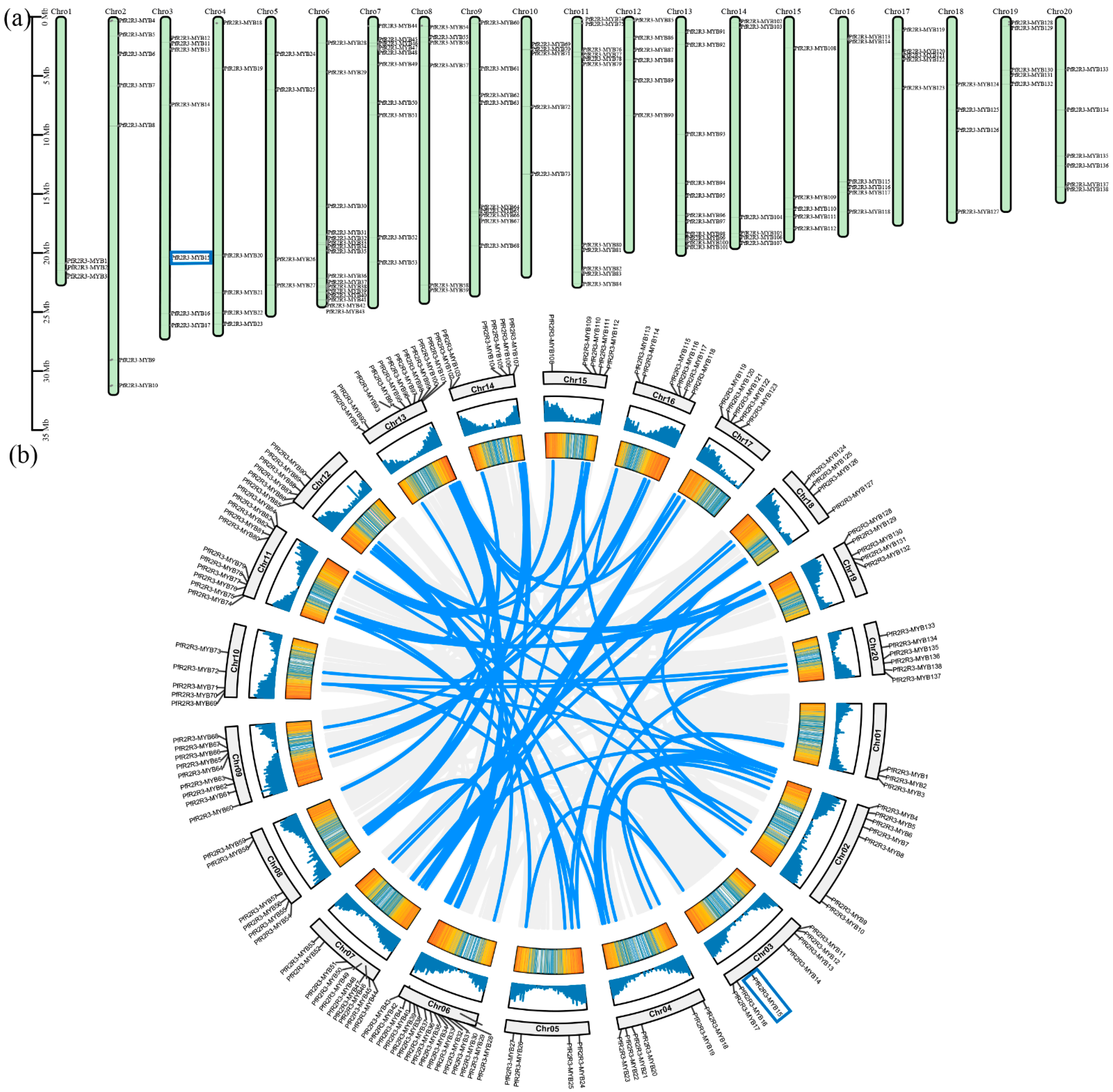

Figure 1. Localization and collinearity analysis of PfR2R3-MYBs. (a) 138 PfR2R3-MYB genes were randomly distributed on P. fortunei chromosomes. (b) The duplicated PfR2R3-MYB gene relationship. The blue line represents the gene pair of PfR2R3-MYB.
Figure 1. Localization and collinearity analysis of PfR2R3-MYBs. (a) 138 PfR2R3-MYB genes were randomly distributed on P. fortunei chromosomes. (b) The duplicated PfR2R3-MYB gene relationship. The blue line represents the gene pair of PfR2R3-MYB.
Genes 14 00007 g001
Genes 14 00007 g002 550

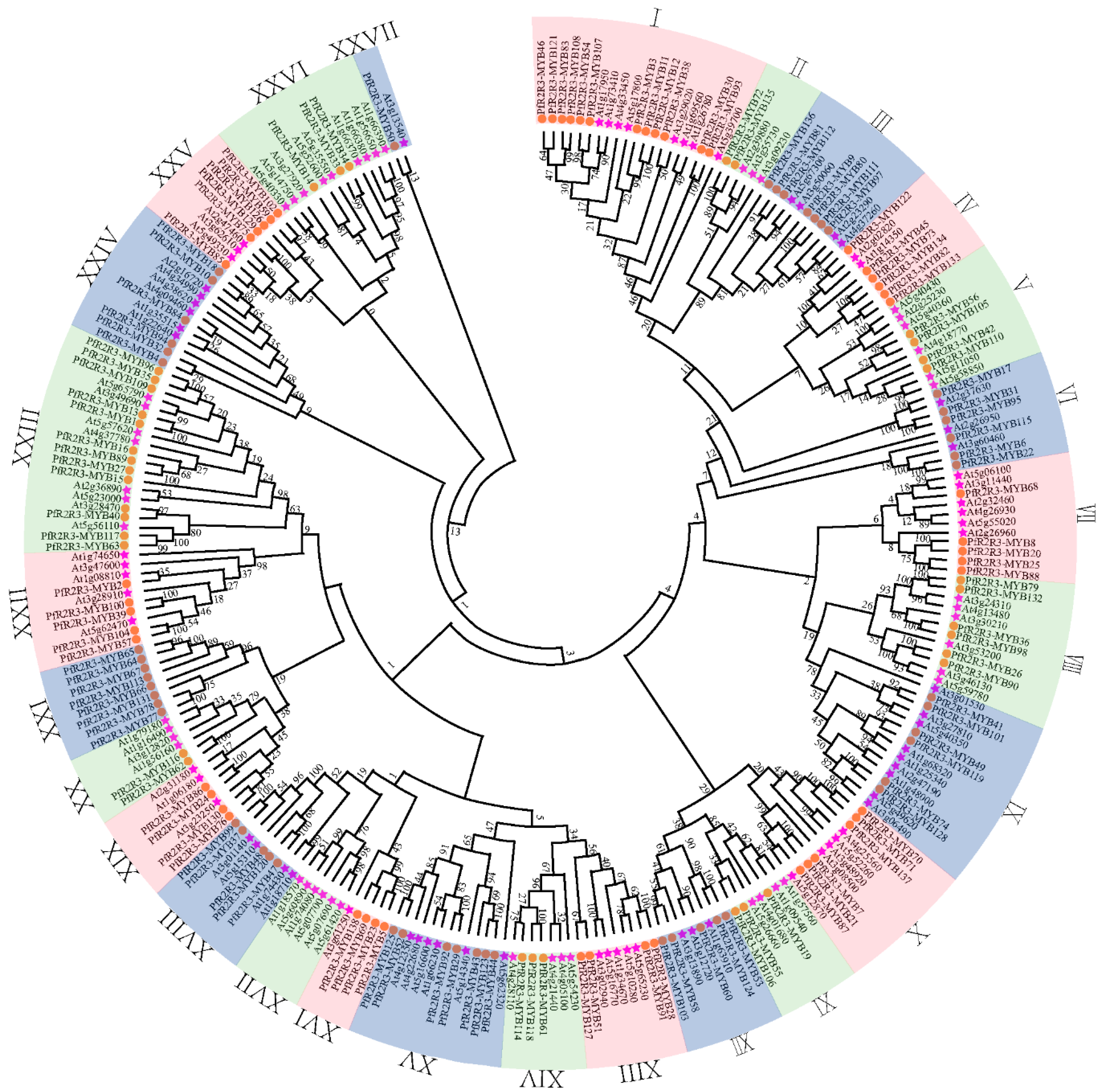

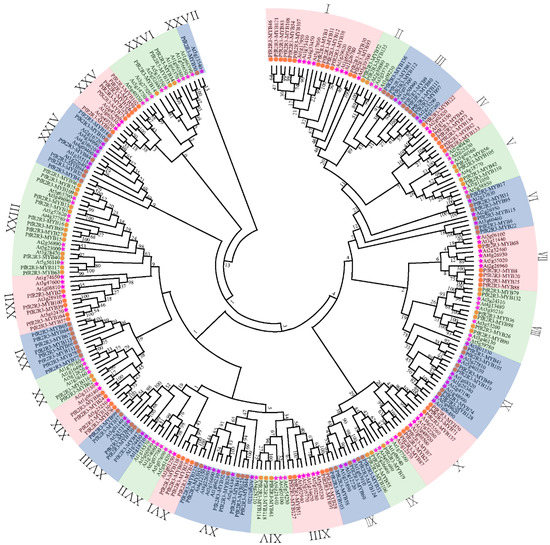

Figure 2. Phylogenetic analysis of the R2R3-MYBs proteins in P. fortunei and A. thaliana. Phylogenetic tree of R2R3-MYB family genes in P. fortunei and A. thaliana. MEGA 7.0 was used to generate the unrooted neighbor-joining tree with 1000 bootstrap replicates. The R2R3-MYBs from P. fortunei and A. thaliana were divided into 27 groups. The R2R3-MYB genes are labeled in yellow and pink for P. fortunei and A. thaliana, respectively.
Figure 2. Phylogenetic analysis of the R2R3-MYBs proteins in P. fortunei and A. thaliana. Phylogenetic tree of R2R3-MYB family genes in P. fortunei and A. thaliana. MEGA 7.0 was used to generate the unrooted neighbor-joining tree with 1000 bootstrap replicates. The R2R3-MYBs from P. fortunei and A. thaliana were divided into 27 groups. The R2R3-MYB genes are labeled in yellow and pink for P. fortunei and A. thaliana, respectively.
Genes 14 00007 g002
Genes 14 00007 g003 550

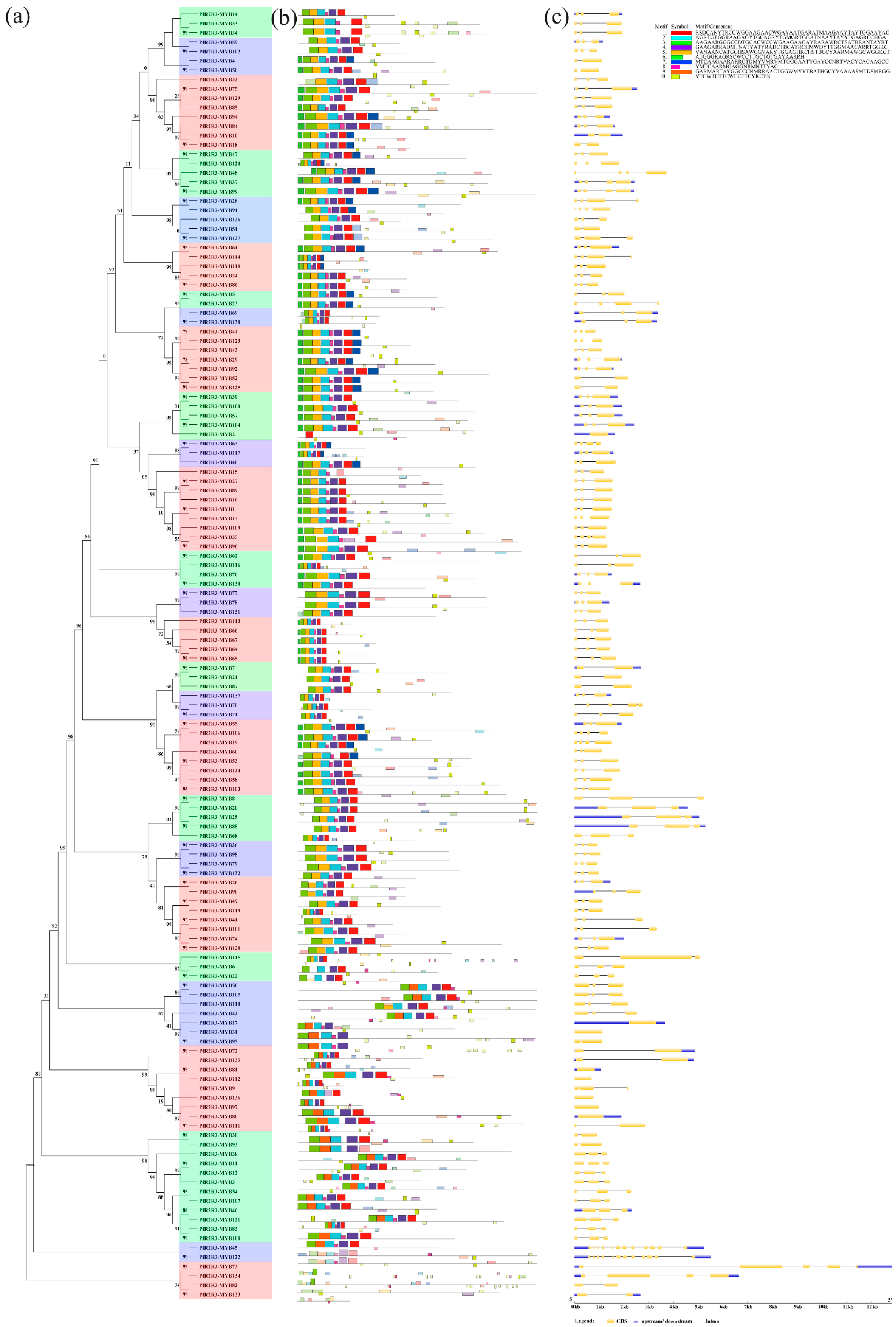

Figure 3. Phylogenetic tree, conserved motifs and gene structures of R2R3-MYB family members. (a) Phylogenetic tree was constructed based on 138 R2R3-MYB protein sequences, which were divided into 27 groups, according to phylogenetic tree. (b) Architecture of conserved protein motifs in 138 PfR2R3-MYB members. Each motif is represented by the number on the colored box. (c) Exon/intron structures of R2R3-MYB genes from P. fortunei.
Figure 3. Phylogenetic tree, conserved motifs and gene structures of R2R3-MYB family members. (a) Phylogenetic tree was constructed based on 138 R2R3-MYB protein sequences, which were divided into 27 groups, according to phylogenetic tree. (b) Architecture of conserved protein motifs in 138 PfR2R3-MYB members. Each motif is represented by the number on the colored box. (c) Exon/intron structures of R2R3-MYB genes from P. fortunei.
Genes 14 00007 g003
Genes 14 00007 g004 550

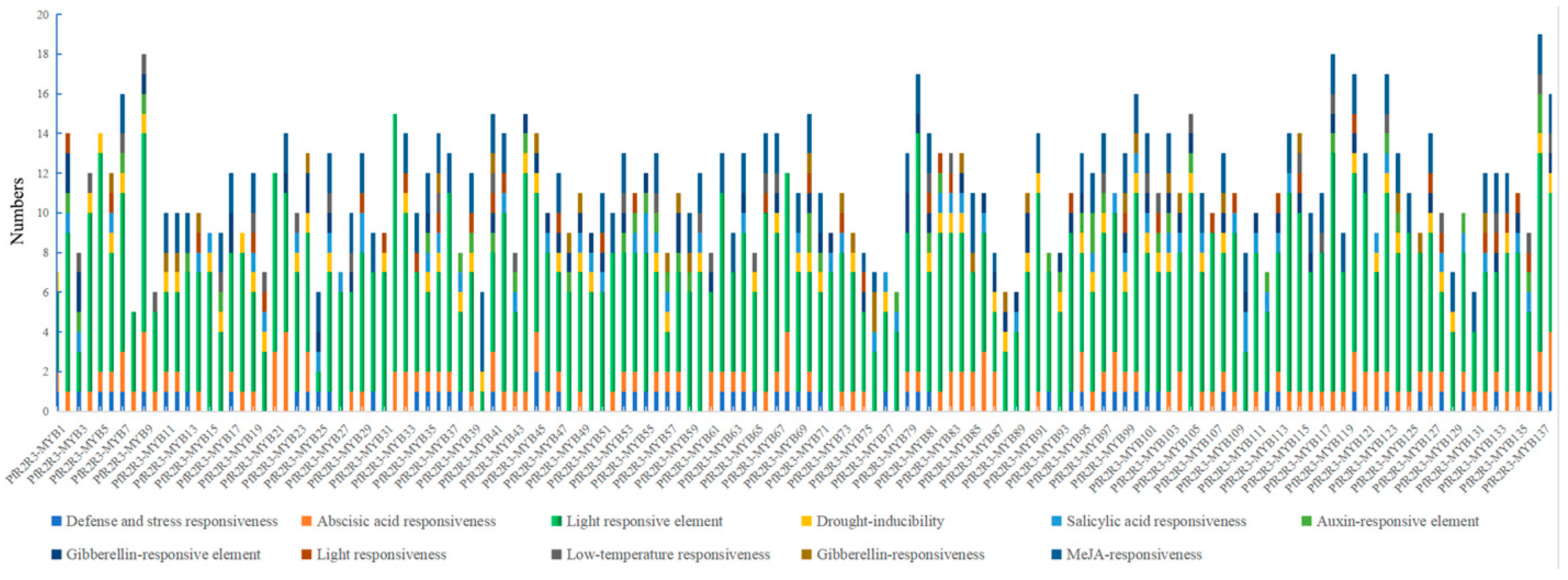

Figure 4. Cis-regulatory elements analysis of PfR2R3-MYB genes. Each cis-regulatory element type was marked by different colored boxes. Number of cis-regulatory elements in the promoter regions of PfR2R3-MYB genes.
Figure 4. Cis-regulatory elements analysis of PfR2R3-MYB genes. Each cis-regulatory element type was marked by different colored boxes. Number of cis-regulatory elements in the promoter regions of PfR2R3-MYB genes.
Genes 14 00007 g004
Genes 14 00007 g005 550

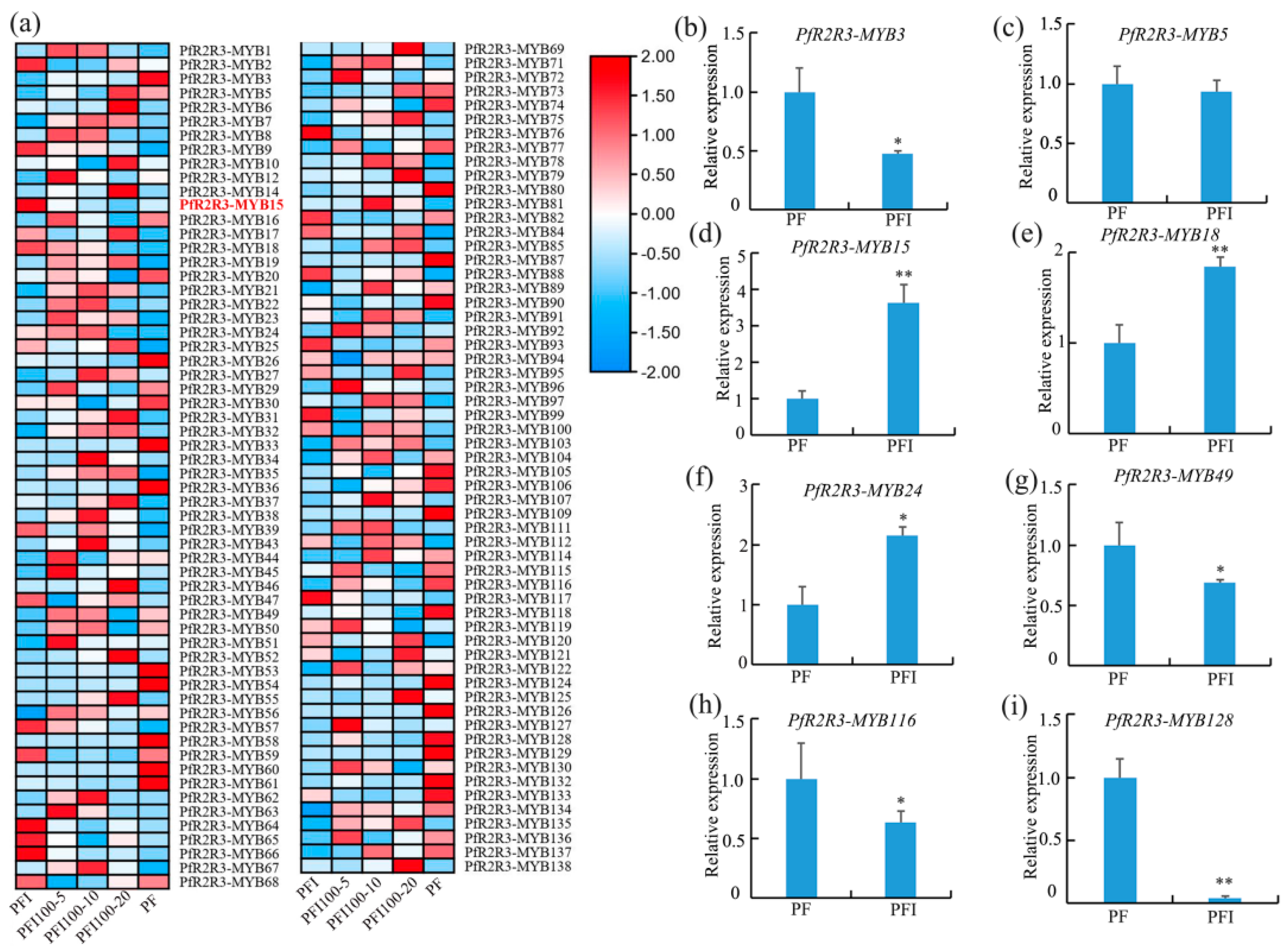

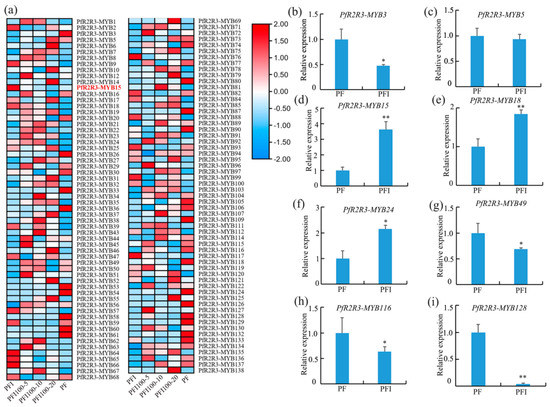

Figure 5. Expression pattern analysis of PfR2R3-MYB genes. (a) PfR2R3-MYB gene expression in phytoplasma-infected P. fortunei seedlings (PFI), PFI treated with 100 mg·L−1 Rif for 5, 10, and 20 days (PFI100-5, PFI100-10, and PFI100-20) and PF (P. fortunei seedlings). (b–i) QRT-PCR analysis of eight DEGs in PF and PFI. The error bars indicate the standard errors of three biological replicates. Asterisks indicate a significant difference (** p < 0.01; * p < 0.05) between PF and PFI.
Figure 5. Expression pattern analysis of PfR2R3-MYB genes. (a) PfR2R3-MYB gene expression in phytoplasma-infected P. fortunei seedlings (PFI), PFI treated with 100 mg·L−1 Rif for 5, 10, and 20 days (PFI100-5, PFI100-10, and PFI100-20) and PF (P. fortunei seedlings). (b–i) QRT-PCR analysis of eight DEGs in PF and PFI. The error bars indicate the standard errors of three biological replicates. Asterisks indicate a significant difference (** p < 0.01; * p < 0.05) between PF and PFI.
Genes 14 00007 g005
Genes 14 00007 g006 550
Figure 6. OE-PfR2R3-MYB15 causes witches’ broom symptoms in P. trichocarpa. (a) The root morphology of the WT and the transgenic line. (b) PCR detection of OE-PfR2R3-MYB15. M: DNA marker, 1, WT (negative control); 2, H2O (negative control); 3, positive control (plasmid); 4, OE-PfR2R3-MYB15-1; 5, OE-PfR2R3-MYB15-2; 6, OE-PfR2R3-MYB15-3. (c) Phenotype identification. 1, WT, 2, OE-PfR2R3-MYB15-1; 3, OE-PfR2R3-MYB15-2; 4, OE-PfR2R3-MYB15-3. (d) QRT-PCR detection of OE-PfR2R3-MYB15 transgenic plants. 1, WT; 2, OE-PfR2R3-MYB15-1; 3, OE-PfR2R3-MYB15-2; 4, OE-PfR2R3-MYB15-3.
Figure 6. OE-PfR2R3-MYB15 causes witches’ broom symptoms in P. trichocarpa. (a) The root morphology of the WT and the transgenic line. (b) PCR detection of OE-PfR2R3-MYB15. M: DNA marker, 1, WT (negative control); 2, H2O (negative control); 3, positive control (plasmid); 4, OE-PfR2R3-MYB15-1; 5, OE-PfR2R3-MYB15-2; 6, OE-PfR2R3-MYB15-3. (c) Phenotype identification. 1, WT, 2, OE-PfR2R3-MYB15-1; 3, OE-PfR2R3-MYB15-2; 4, OE-PfR2R3-MYB15-3. (d) QRT-PCR detection of OE-PfR2R3-MYB15 transgenic plants. 1, WT; 2, OE-PfR2R3-MYB15-1; 3, OE-PfR2R3-MYB15-2; 4, OE-PfR2R3-MYB15-3.
Genes 14 00007 g006
Genes 14 00007 g007 550
Figure 7. Subcellular localization of PfR2R3-MYB15. (a) Diagram of the 35S promoter and GFP in PfR2R3-MYB15. (b–g) 35S::PfR2R3-MYB15-GFP and 35S::GFP were transferred into N. benthamiana. Bright fields (b,e), GFP fluorescence detection (c,f), and superposition fields of GFP fluorescence (d,g) are shown.
Figure 7. Subcellular localization of PfR2R3-MYB15. (a) Diagram of the 35S promoter and GFP in PfR2R3-MYB15. (b–g) 35S::PfR2R3-MYB15-GFP and 35S::GFP were transferred into N. benthamiana. Bright fields (b,e), GFP fluorescence detection (c,f), and superposition fields of GFP fluorescence (d,g) are shown.
Genes 14 00007 g007
Genes 14 00007 g008 550
Figure 8. PFR2R3-MYB15 interacted with PfTAB2. (a) pGADT7-largeT/pGBKT7-p53 were positive control, while pGADT7-largeT/pGBKT7-laminC were negative control. (b) 0, 10, 20, 30, and 40 mM 3-AT were used for PfR2R3-MYB15 self-activating activity screening. (c) PfR2R3-MYB15 interacted with Paulownia_LG3G001014 (PfTAB2) by Y2H screening. (d) PfR2R3-MYB15 interacted with Paulownia_LG3G001014 (PfTAB2) by BiFC.
Figure 8. PFR2R3-MYB15 interacted with PfTAB2. (a) pGADT7-largeT/pGBKT7-p53 were positive control, while pGADT7-largeT/pGBKT7-laminC were negative control. (b) 0, 10, 20, 30, and 40 mM 3-AT were used for PfR2R3-MYB15 self-activating activity screening. (c) PfR2R3-MYB15 interacted with Paulownia_LG3G001014 (PfTAB2) by Y2H screening. (d) PfR2R3-MYB15 interacted with Paulownia_LG3G001014 (PfTAB2) by BiFC.
Genes 14 00007 g008
