Article

Head Size in Phelan–McDermid Syndrome: A Literature Review and Pooled Analysis of 198 Patients Identifies Candidate Genes on 22q13

by
Sara M. Sarasua
1,*,
Jane M. DeLuca
1,
Curtis Rogers
2,
Katy Phelan
3,
Lior Rennert
4,
Kara E. Powder
5,
Katherine Weisensee
6 and
Luigi Boccuto
1
1
Healthcare Genetics and Genomics Program, Clemson University School of Nursing, Clemson, SC 29634, USA
2
Greenwood Genetic Center, Greenville, SC 29605, USA
3
Florida Cancer Specialists & Research Institute, Fort Myers, FL 33908, USA
4
Department of Public Health Sciences, Clemson University, Clemson, SC 29634, USA
5
Department of Biological Sciences, Clemson University, Clemson, SC 29634, USA
6
Department of Sociology, Anthropology and Criminal Justice, Clemson University, Clemson, SC 29634, USA
*
Author to whom correspondence should be addressed.
Genes 2023, 14(3), 540; https://doi.org/10.3390/genes14030540
Submission received: 19 December 2022 / Revised: 11 February 2023 / Accepted: 12 February 2023 / Published: 21 February 2023
(This article belongs to the Section Human Genomics and Genetic Diseases)
Browse Figures
Versions Notes

Abstract

:
Phelan–McDermid syndrome (PMS) is a multisystem disorder that is associated with deletions of the 22q13 genomic region or pathogenic variants in the SHANK3 gene. Notable features include developmental issues, absent or delayed speech, neonatal hypotonia, seizures, autism or autistic traits, gastrointestinal problems, renal abnormalities, dolichocephaly, and both macro- and microcephaly. Assessment of the genetic factors that are responsible for abnormal head size in PMS has been hampered by small sample sizes as well as a lack of attention to these features. Therefore, this study was conducted to investigate the relationship between head size and genes on chromosome 22q13. A review of the literature was conducted to identify published cases of 22q13 deletions with information on head size to conduct a pooled association analysis. Across 56 studies, we identified 198 cases of PMS with defined deletion sizes and head size information. A total of 33 subjects (17%) had macrocephaly, 26 (13%) had microcephaly, and 139 (70%) were normocephalic. Individuals with macrocephaly had significantly larger genomic deletions than those with microcephaly or normocephaly (p < 0.0001). A genomic region on 22q13.31 was found to be significantly associated with macrocephaly with CELSR1, GRAMD4, and TBCD122 suggested as candidate genes. Investigation of these genes will aid the understanding of head and brain development.

1. Introduction

Head circumference, or occipitofrontal circumference (OFC), is a standard measure in clinical practice, systematically collected since birth, and relatively easy to obtain and track over a subject’s growth curve. Measurement of the head size provides valuable information on the growth and development of the cranium and, indirectly, the brain. The terms macrocephaly and microcephaly are generally used to indicate head size measures above the 97th and below the 3rd percentile, respectively, for a given age. They can be present either isolated or accompanied by craniofacial dysmorphic traits and/or brain abnormalities. In several microdeletion syndromes, such as Cri-du-chat syndrome (5p deletion), or Williams syndrome (7q11.23 deletion), the loss of several genes likely leads to the disruption of molecular pathways regulating growth and development and thus is associated with microcephaly, although some exceptions include microdeletion syndromes presenting with normocephaly or even macrocephaly, such as Sotos syndrome (5q35 deletion). Thus, clinical assessment of head size is instrumental in investigating the functional impact of haploinsufficiency of deleted genes and the affected pathways in brain and skull development.
This study focuses on abnormal head size in subjects with Phelan–McDermid syndrome (PMS) caused by chromosomal deletion of the 22q13 region to investigate the correlation between this clinical feature and the haploinsufficiency of SHANK3 and other 22q13 genes. Typical PMS features include developmental delay, neonatal hypotonia, motor impairment, delayed or absent speech, seizures, autistic traits, sleep disorders, and gastrointestinal and renal issues [1,2,3]. The phenotype of this syndrome is characterized by remarkable clinical variability involving, among other features, a spectrum of head size presentations, ranging from micro- to macrocephaly [4]. The genetic abnormalities leading to PMS are also relatively heterogeneous, ranging from pathogenic variants of the SHANK3 gene to terminal deletions of the 22q13 region spanning over 9 Mb, and including chromosomal rearrangements such as ring chromosome 22, unbalanced translocations, and interstitial deletions [1,5,6,7,8]. Due to such clinical and genetic variability, a distinction has been recently proposed between cases including SHANK3 variants or SHANK3 haploinsufficiency due to 22q13 rearrangements (PMS SHANK3-related) and cases with preserved SHANK3 (PMS SHANK3-unrelated) [9]. Historically, assessment of the prevalence of head size abnormalities in PMS has been hampered by small study cohorts or lack of systematic examination; moreover, early reports of subjects with PMS emphasized how growth parameters showed normal to accelerated patterns, including OFC, which was a relatively unusual feature for a microdeletion syndrome at that time. Moreover, a relatively common dysmorphic trait in PMS is dolichocephaly, reported in over 25% of cases [1], which can often lead to biased reports of macrocephaly. However, in recent years more refined genetic tests have allowed increasing the diagnostic yield for PMS and extending the phenotypic spectrum by including numerous cases with normal to decreased head size [1,4]. The variability of this trait and the novel classification of PMS subgroups call for a more accurate assessment of the prevalence of macro- and microcephaly in PMS, with particular attention to possible associations with deletion size, location, and genomic loci on 22q13. We hypothesize that larger deletions, indicative of a loss of additional haploinsufficient genes, may be associated with a higher risk of abnormal head size and possibly brain abnormalities. Therefore, exploring the genotype-phenotype correlation between macro/microcephaly and chromosomal deletions in PMS may highlight the contribution of 22q13 genes in both SHANK3-related and unrelated forms of PMS, provide valuable information to physicians about the expected head growth, and help early identification of brain abnormalities.

2. Materials and Methods

We reviewed the literature for 22q13 deletions published from 2000 to 2021, to identify cases with information on head circumference. PubMed and Google Scholar were searched using the terms (Phelan–McDermid syndrome OR 22q13) AND (macrocephaly OR microcephaly OR head size OR head circumference OR OFC OR growth). We excluded cases of 22q13 duplications or trisomy 22 because the goal of the study was to assess the effects of haploinsufficiency. For inclusion, deletions had to be defined either by terminal deletion size or breakpoint positions to identify the genomic region involved. Therefore, deletions of unknown size were excluded. All genomic coordinates were converted to genome build hg19 using the LiftOver tool (UCSC genome browser [10]). To determine whether a deletion preserved SHANK3, we used the coding region of SHANK3 plus 1kb to account for promoter regions. Thus, we defined deletions ending at genomic position 51,112,070 (using genome build hg19) or more proximal on chromosome 22 as preserving SHANK3. We considered people carrying these interstitial deletions to be part of the subcategory of PMS SHANK3-unrelated [9].
Deletions were considered to include SHANK3 if their proximal breakpoints were more terminal than this position. Cases due to SHANK3 point mutations, rather than deletions, were not included because the extensive literature on SHANK3 pathogenic variants encompasses not only PMS, but also autism spectrum disorder, intellectual disability, schizophrenia, and other neurodevelopmental disorders [11,12,13,14,15].
For this investigation, macrocephaly was defined as OFC of the 97th percentile or higher or reported as macrocephaly by the manuscript. Microcephaly was defined as an OFC of less than or equal to the 3rd percentile or reported as microcephaly in the manuscript. When OFC measurement was reported without a percentile, it was calculated from Simulconsult (https://simulconsult.com/, accessed on 9 March 2022) or using CDC growth charts. If values were reported as “>97”, they were coded as the 97th percentile for statistical analysis. Values “<3rd” were coded as the 3rd percentile for statistical analysis purposes. Finally, papers were required to be in English.

Statistical Analysis

Data were analyzed using SAS v9.4. Descriptive statistics included the mean, median, standard deviation, and range. Comparisons of continuous variables including age, deletion size, and OFC percentile were assessed with the Wilcoxon Rank Sum test (2 group comparisons) and the Kruskal–Wallis test (3 or more group comparisons). Comparisons of categorical variables were assessed with Chi-Square or Fisher’s Exact test when expected cell sizes were n < 5. A p-value < 0.05 was considered statistically significant. Associations between segmental deletions and head size was conducted using PLINK v1.07 software [16] using 50,000 permutations to calculate empirical p-values with adjustment for multiple testing.

3. Results

A total of 56 published studies [5,8,11,14,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68] were identified as having cases of 22q13 deletions along with information on the head size (either OFC measurement or classification as to macrocephaly, microcephaly, or normocephaly) (Table 1 and Table S1). The majority of publications (71%) were published since 2011, originated in Europe (61%) or North America (18%), and included individual case reports or small case series (83%). Descriptors that are included in Table S1 are author, year and countries of the studies; age, sex, and head circumferences of subjects; information about MRIs; deletion breakpoints; and size and SHANK3 status. Shortened versions of Table S1 are Table 1 and Table 2.
A total of 198 individuals with 22q13 deletions were included in this pooled assessment (Table 2). Ages ranged from newborn to 70 years with a mean of 10.7 years (SD 12.3 years) and 53% of the samples were female. Almost all had deletion breakpoints provided in the manuscript while 14 (7%) provided terminal deletion sizes and thus breakpoints were estimated. Deletion sizes ranged from 12 kb to 9.4 Mb with a mean of 3.34 Mb (SD of 2.96). Approximately 18% had deletions smaller than 100 kb. Not all deletions were terminal; 25 deletions preserved SHANK3 (13%), and 173 (87%) included SHANK3 in the deletion. Head size was reported as “macrocephaly” for 17% of cases, “microcephaly” for 13% of cases, and “normocephaly” for the remaining 70% of cases. A subset of 108 subjects had information on OFC size and percentile. When the OFC percentile was available, 24% of cases were found to have macrocephaly, 18% were found to have microcephaly, and 58% were normocephalic. OFC percentiles ranged from 0.4 to >99.9 with a mean of 56.8 (SD 36.96). MRI information was available for 97 of the 198 subjects. A total of 73% percent of people with MRIs had abnormal findings such as atrophy, cysts (including arachnoid cysts in a variety of locations and choroid plexus cysts), abnormalities of the corpus callosum (including agenesis, thin, or atypical morphology), leukomalacia, hypomyelination, and abnormal ventricles.

3.1. Investigation of Factors Associated with Head Size

The median deletion size was larger for those with macrocephaly (5.32 Mb) than those with normocephaly (2.29 Mb) or microcephaly (2.20 Mb, KW p = 0.0310, Table 3). No differences in age (p = 0.5518) or sex (p = 0.9377) were noted for different head size classifications. Macrocephaly was more common among those with deletions preserving SHANK3 (40%, 10/25) than among those with deletions including SHANK3 (13%, 23/173), Fisher’s Exact (p = 0.0048) (Table 3). Microcephaly was present for 13% (22/173) of cases with SHANK3 deleted and 16% (4/25) among those with SHANK3 preserved (p = 0.8447, Fisher’s Exact). Similar patterns of larger deletion sizes were observed for those with macrocephaly among those with SHANK3 preserved (median 4.15) or deleted (median 5.62 Mb), however, the differences were not statistically significant.

3.2. Assessment of Deletion Location on Macrocephaly, Microcephaly, and Normocephaly

Graphing the deletions for individuals with macrocephaly, microcephaly, and normocephaly for those with SHANK3 preserved (Figure 1) and SHANK3 not preserved (Figure 2) highlights that individuals with macrocephaly tended to have much larger deletions as well as deletions that began more proximally than subjects with normocephaly. Terminal deletions > 4 Mb in size showed the highest association with macrocephaly (Figure 2).

3.3. Association between OFC Measures and 22q13 Deletion Size

To perform a finer assessment of the association between deletions and OFC, we next examined the distribution of deletion size on head size among the 108 individuals with OFC percentile data. There was no difference in the OFC percentile for the 21 subjects with preserved SHANK3 and the 87 with partially or fully deleted SHANK3 (Wilcoxon Rank Sum p = 0.575). However, among the 87 subjects with partially or fully deleted SHANK3 deletions, there was a significant association between deletion size and OFC percentile (Kruskal–Wallis p = 0.0016) (Figure 3). Individuals with larger deletions, particularly those with deletions > 5 Mb, were more likely to have larger heads.

3.4. Association between Head Size and MRI Results

A total of 97 (49%) individuals had information on MRI results. The majority (73%) of individuals with MRI data had an abnormality of some kind (Table 4). In general, head size was not associated with having an abnormal MRI, with the exception that microcephaly was associated with brain atrophy (p = 0.0272, Table 4).

3.5. Association between 22q13 Genomic Deletions and Macrocephaly

Given the association that was observed between deletion size and macrocephaly, an additional analysis was conducted to determine whether specific loci on chromosome 22q13 were associated with head size (Table 5). Association analysis between segmental deletions along 22q13 and macrocephaly compared to normocephaly identified two genomic regions that were significantly associated with macrocephaly, one in 22q13.2 with 14 genes was significantly associated for those with SHANK3 preserved, and the other around 22q13.31 with 22 genes that was significantly associated for those with SHANK3 deleted. For microcephaly, a region on 22q13.33 was nominally associated with microcephaly in comparison to normocephaly, but this region was not significant after correction for multiple testing. Following the criteria that were outlined by Mitz et al. (2020) to prioritize genes that were most likely to be haploinsufficient [69], three genes (TBC1D22A, CELSR1, and GRAMD4) are candidates as they are in the highly associated region, have a pLI score > 0.9, and a population impact factor of >0.5. Thus, approximately half of the people with Phelan–McDermid syndrome deletions of 22q13 are estimated to have deletions encompassing these genes. The high pLI score is a tool to help predict whether having only one functioning copy of these genes is estimated to be pathogenic, although it should be interpreted with caution [70].

4. Discussion

In this study of individuals with PMS due to 22q13 deletions, we found macrocephaly to be reported in 17% of subjects and microcephaly to be reported in 13%. When the OFC percentile was reported, the rates were 24% of subjects with macrocephaly and 18% of subjects with microcephaly. Macrocephaly was more common (40%) among those with preserved SHANK3 (SHANK3-unrelated) than among those with SHANK3 deleted (SHANK3-related group). We observed a strong association between larger head sizes and larger deletions, with a region in 22q13.31 containing 22 genes being the most associated. We did not observe an association between the reported head size and prevalence of specific MRI abnormalities, other than that brain atrophy was associated with microcephaly. This association is consistent with the hypothesis of prenatal pathogenesis of the brain atrophy in these subjects: the reduced brain volume affects the development of the skull resulting in microcephaly. Interestingly, other neuroanatomical abnormalities do not seem to influence the head size, suggesting that postnatal onset and/or their effect on skull development may not be relevant.
There are three genes that are proposed as the main candidates for macrocephaly (TBC1D22A, CELSR1, and GRAMD4) given their location in the highly associated genomic regions, proposed function, or high probability of loss of function intolerance [71]. TBC1D22A has been associated with structural or functional abnormalities of the head or the central nervous system (CNS), such as seizures, schizophrenia, or bipolar disorder [72,73]. Boucherie et al. (2018) found Celsr1-deficient mice to have microcephaly and cortical hypoplasia [74]. Nevado et al. (2022) identified a region of 4.5 to 8 Mb from the telomere as associated with macrocephaly and a region of 0.4 to 3.4 Mb from the telomere associated with microcephaly and suggest GRAMD4 as a dosage-sensitive gene that may be involved in macrocephaly [3]. In particular, they point out that GRAMD4 interacts with the protein PIAS1, which has been associated with head size in the 19p13.3 deletion syndrome [3,75]. An association study suggested WNT7B to be a candidate gene for macrocephaly [76] although this gene is not predicted to be haploinsufficient according to the low pLI score of 0 [71]. We note that there are limitations regarding reliance on pLI scores [70], and therefore suggest WNT7B should be considered a candidate gene. If we consider all the 36 genes in the two regions that are associated with macrocephaly (14 on chromosome 22q13.2 and 22 on 22q13.31), it is of interest that biallelic pathogenic variants in the RNU12 gene have been reported as causative of the CDAGS syndrome [77], characterized by craniosynostosis, delayed closure of the fontanelles, cranial defects, clavicular hypoplasia, anal and genitourinary malformations, and skin manifestations. The proven role of RNU12 in cranial development and closure of the fontanelles suggests a potential double-hit pathogenic model for macrocephaly in subjects with PMS and loss of the chromosome 22q13.2 region, in which the deletion of one allele of RNU12 is likely matched by a pathogenic variant on the preserved allele.
On the other end of the spectrum of abnormal head size, we observed a trend linking smaller 22q13 deletions to microcephaly, even if the association failed to reach statistical significance. This result is in line with the findings of a recent study by Malara et al. [78], indicating that deficiency of the SHANK3 protein in the post-synaptic density leads to myelin defects in the CNS. It is plausible that in subjects with smaller 22q13 deletions, the SHANK3 haploinsufficiency may be responsible for the prevailing pathogenic mechanism influencing head development by reducing the levels of myelination and eventually leading to reduced brain volume and, indirectly, head size.
Our approach follows a similar methodology of pooling data to that which was performed by Samogy-Costa et al. [79], who combined data from four publications to assess associations between deletions and kidney disorders. Other approaches to examining large numbers of patients could include the use of registry data such as the PMSF International Registry [80] or prospective data collection on large cohorts [3].

Limitations

This study was strengthened by the large sample size (198 people with genetic and head size data), spanning 56 unique publications across 22 countries. The large sample size allowed for investigations into associations between important features that are not possible from case reports or case series. The literature search was not exhaustive and may have missed some cases. Pooling of data across studies may have introduced errors. Some individuals may have appeared in multiple studies, but were only counted once for analysis and we did not observe identical deletions. The specific chromosomal aberrations causing the deletions (e.g., simple terminal deletion, ring chromosome, translocations, etc.) were inconsistently reported in the literature and not assessed in this analysis. Phenotypic data may have been reported in a non-systematic manner across the different studies, although OFC head size is a standardized measurement. This study relied upon the classification of head size by the respective authors and the actual OFC percentile was available for approximately half of the subjects. Half of the subjects had information on MRI, however, it is unknown whether the MRI data are representative of all individuals as there may have been specific indications for performing the test.

5. Conclusions

This study supports the suggestion that larger deletions, and most likely deletions of gene(s) located on 22q13.31, as associated with macrocephaly [3,73]. Future studies would benefit from a systematic collection of phenotypic data on OFC, MRI, and well a characterized genotype, including specific breakpoint positions and whole exome or genome sequencing to determine contributing variants elsewhere in the genome or on the preserved copy of 22q13. MRI reporting for persons with PMS could include the reason for obtaining the MRI, OFC at the time of the study, and genomic data.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes14030540/s1, Table S1: Head size in PMS; literature data abstraction.xlsx.

Author Contributions

Conceptualization, S.M.S., J.M.D., C.R., K.P., L.R., K.E.P., K.W. and L.B.; methodology, S.M.S. and J.M.D.; formal analysis, S.M.S. and J.M.D.; writing—original draft preparation, S.M.S., J.M.D., and L.B.; writing—review and editing, S.M.S., J.M.D., C.R., K.P., L.R., K.E.P., K.W., and L.B. All authors have read and agreed to the published version of the manuscript.

Funding

The research reported in this publication was supported by the National Institute of Dental & Craniofacial Research of the National Institutes of Health under Award Number R03DE027497. Additional funding support for KEP was provided by NIH P20GM121342 and NSF/IOS #1942178. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health. Additional funding was provided to the study team by the Clemson University College of Behavioral, Social, and Health Sciences Impact Grant.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were generated in this investigation. The data abstracted from the literature is provided as Supplementary Material.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Phelan, K.; Rogers, R.C.; Boccuto, L. Phelan-McDermid Syndrome. In GeneReviews®; Adam, M.P., Ardinger, H.H., Pagon, R.A., Wallace, S.E., Bean, L.J., Gripp, K.W., Mirzaa, G.M., Amemiya, A., Eds.; University of Washington: Seattle, WA, USA, 2018. [Google Scholar]
  2. Sarasua, S.M.; Boccuto, L.; Sharp, J.L.; Dwivedi, A.; Chen, C.; Rollins, J.D.; Rogers, R.C.; Phelan, K.; DuPont, B.R. Clinical and Genomic Evaluation of 201 Patients with Phelan-McDermid Syndrome. Hum. Genet. 2014, 133, 847–859. [Google Scholar] [CrossRef]
  3. Nevado, J.; García-Miñaúr, S.; Palomares-Bralo, M.; Vallespín, E.; Guillén-Navarro, E.; Rosell, J.; Bel-Fenellós, C.; Mori, M.Á.; Milá, M.; Del Campo, M.; et al. Variability in Phelan-McDermid Syndrome in a Cohort of 210 Individuals. Front. Genet. 2022, 13, 652454. [Google Scholar] [CrossRef]
  4. Rollins, J.D.; Sarasua, S.M.; Phelan, K.; DuPont, B.R.; Rogers, R.C.; Collins, J.S. Growth in Phelan-McDermid Syndrome. Am. J. Med. Genet. A 2011, 155A, 2324–2326. [Google Scholar] [CrossRef]
  5. Disciglio, V.; Lo Rizzo, C.; Mencarelli, M.A.; Mucciolo, M.; Marozza, A.; Di Marco, C.; Massarelli, A.; Canocchi, V.; Baldassarri, M.; Ndoni, E.; et al. Interstitial 22q13 Deletions Not Involving SHANK3 Gene: A New Contiguous Gene Syndrome. Am. J. Med. Genet. A 2014, 164A, 1666–1676. [Google Scholar] [CrossRef]
  6. Sarasua, S.M.; Dwivedi, A.; Boccuto, L.; Rollins, J.D.; Chen, C.; Rogers, R.C.; Phelan, K.; DuPont, B.R.; Collins, J.S. Association between Deletion Size and Important Phenotypes Expands the Genomic Region of Interest in Phelan-McDermid Syndrome (22q13 Deletion Syndrome). J. Med. Genet. 2011, 48, 761–766. [Google Scholar] [CrossRef]
  7. Jeffries, A.R.; Curran, S.; Elmslie, F.; Sharma, A.; Wenger, S.; Hummel, M.; Powell, J. Molecular and Phenotypic Characterization of Ring Chromosome 22. Am. J. Med. Genet. A 2005, 137, 139–147. [Google Scholar] [CrossRef]
  8. Bonaglia, M.C.; Giorda, R.; Beri, S.; De Agostini, C.; Novara, F.; Fichera, M.; Grillo, L.; Galesi, O.; Vetro, A.; Ciccone, R.; et al. Molecular Mechanisms Generating and Stabilizing Terminal 22q13 Deletions in 44 Subjects with Phelan/McDermid Syndrome. PLoS Genet. 2011, 7, e1002173. [Google Scholar] [CrossRef]
  9. Phelan, K.; Boccuto, L.; Powell, C.M.; Boeckers, T.M.; van Ravenswaaij-Arts, C.; Rogers, R.C.; Sala, C.; Verpelli, C.; Thurm, A.; Bennett, W.E.; et al. Phelan-McDermid Syndrome: A Classification System After 30 years of Experience. Orphanet. J. Rare Dis. 2022, 17, 27. [Google Scholar] [CrossRef]
  10. Kent, W.J.; Sugnet, C.W.; Furey, T.S.; Roskin, K.M.; Pringle, T.H.; Zahler, A.M.; Haussler, D. The Human Genome Browser at UCSC. Genome Res. 2002, 12, 996–1006. [Google Scholar] [CrossRef] [Green Version]
  11. Durand, C.M.; Betancur, C.; Boeckers, T.M.; Bockmann, J.; Chaste, P.; Fauchereau, F.; Nygren, G.; Rastam, M.; Gillberg, I.C.; Anckarsater, H.; et al. Mutations in the Gene Encoding the Synaptic Scaffolding Protein SHANK3 are Associated with Autism Spectrum Disorders. Nat. Genet. 2007, 39, 25–27. [Google Scholar] [CrossRef] [Green Version]
  12. Leblond, C.S.; Nava, C.; Polge, A.; Gauthier, J.; Huguet, G.; Lumbroso, S.; Giuliano, F.; Stordeur, C.; Depienne, C.; Mouzat, K.; et al. Meta-Analysis of SHANK Mutations in Autism Spectrum Disorders: A Gradient of Severity in Cognitive Impairments. PLoS Genet. 2014, 10, e1004580. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Moessner, R.; Marshall, C.R.; Sutcliffe, J.S.; Skaug, J.; Pinto, D.; Vincent, J.; Zwaigenbaum, L.; Fernandez, B.; Roberts, W.; Szatmari, P.; et al. Contribution of SHANK3 Mutations to Autism Spectrum Disorder. Am. J. Hum. Genet. 2007, 81, 1289–1297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Moreira, D.P.; Griesi-Oliveira, K.; Bossolani-Martins, A.L.; Lourenço, N.C.V.; Takahashi, V.N.O.; da Rocha, K.M.; Moreira, E.S.; Vadasz, E.; Meira, J.G.C.; Bertola, D.; et al. Investigation of 15q11-q13, 16p11.2 and 22q13 CNVs in Autism Spectrum Disorder Brazilian Individuals with and without Epilepsy. PLoS ONE 2014, 9, e107705. [Google Scholar] [CrossRef] [Green Version]
  15. Guilmatre, A.; Huguet, G.; Delorme, R.; Bourgeron, T. The Emerging Role of SHANK Genes in Neuropsychiatric Disorders. Dev. Neurobiol. 2014, 74, 113–122. [Google Scholar] [CrossRef] [PubMed]
  16. Purcell, S.; Neale, B.; Todd-Brown, K.; Thomas, L.; Ferreira, M.A.R.; Bender, D.; Maller, J.; Sklar, P.; de Bakker, P.I.W.; Daly, M.J.; et al. PLINK: A Tool Set for Whole-Genome Association and Population-Based Linkage Analyses. Am. J. Hum. Genet. 2007, 81, 559–575. [Google Scholar] [CrossRef] [Green Version]
  17. Anderlid, B.M.; Schoumans, J.; Anneren, G.; Tapia-Paez, I.; Dumanski, J.; Blennow, E.; Nordenskjold, M. FISH-Mapping of a 100-Kb Terminal 22q13 Deletion. Hum. Genet. 2002, 110, 439–443. [Google Scholar] [CrossRef]
  18. Bartsch, O.; Schneider, E.; Damatova, N.; Weis, R.; Tufano, M.; Iorio, R.; Ahmed, A.; Beyer, V.; Zechner, U.; Haaf, T. Fulminant Hepatic Failure Requiring Liver Transplantation in 22q13.3 Deletion Syndrome. Am. J. Med. Genet. A 2010, 152A, 2099–2102. [Google Scholar] [CrossRef]
  19. Battini, R.; Battaglia, A.; Bertini, V.; Cioni, G.; Parrini, B.; Rapalini, E.; Simi, P.; Tinelli, F.; Valetto, A. Characterization of the Phenotype and Definition of the Deletion in a New Patient with Ring Chromosome 22. Am. J. Med. Genet. A 2004, 130A, 196–199. [Google Scholar] [CrossRef]
  20. Bisgaard, A.-M.; Kirchhoff, M.; Nielsen, J.E.; Kibaek, M.; Lund, A.; Schwartz, M.; Christensen, E. Chromosomal Deletion Unmasking a Recessive Disease: 22q13 Deletion Syndrome and Metachromatic Leukodystrophy. Clin. Genet. 2009, 75, 175–179. [Google Scholar] [CrossRef]
  21. Boccuto, L.; Abenavoli, L.; Cascio, L.; Srikanth, S.; DuPont, B.; Mitz, A.R.; Rogers, R.C.; Phelan, K. Variability in Phelan-McDermid Syndrome: The Impact of the PNPLA3 P.I148M Polymorphism. Clin. Genet. 2018, 94, 590–591. [Google Scholar] [CrossRef]
  22. Bonaglia, M.C.; Giorda, R.; Mani, E.; Aceti, G.; Anderlid, B.-M.; Baroncini, A.; Pramparo, T.; Zuffardi, O. Identification of a Recurrent Breakpoint within the SHANK3 Gene in the 22q13.3 Deletion Syndrome. J. Med. Genet. 2006, 43, 822–828. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Bonaglia, M.C.; Giorda, R.; Beri, S.; Bigoni, S.; Sensi, A.; Baroncini, A.; Capucci, A.; De Agostini, C.; Gwilliam, R.; Deloukas, P.; et al. Mosaic 22q13 Deletions: Evidence for Concurrent Mosaic Segmental Isodisomy and Gene Conversion. Eur. J. Hum. Genet. 2009, 17, 426–433. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Breckpot, J.; Vercruyssen, M.; Weyts, E.; Vandevoort, S.; D’Haenens, G.; Van Buggenhout, G.; Leempoels, L.; Brischoux-Boucher, E.; Van Maldergem, L.; Renieri, A.; et al. Copy Number Variation Analysis in Adults with Catatonia Confirms Haploinsufficiency of SHANK3 as a Predisposing Factor. Eur. J. Med. Genet. 2016, 59, 436–443. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, C.; Lin, S.; Chern, S.; Tsai, F.; Wu, P.; Lee, C.; Chen, Y.; Chen, W.; Wang, W. A De Novo 7.9 Mb Deletion in 22q13.2→qter in a Boy with Autistic Features, Epilepsy, Developmental Delay, Atopic Dermatitis and Abnormal Immunological Findings. Eur. J. Med. Genet. 2010, 53, 329–332. [Google Scholar] [CrossRef]
  26. Cho, E.H.; Park, J.B.; Kim, J.K. Atypical Teratoid Rhabdoid Brain Tumor in an Infant with Ring Chromosome 22. Korean J. Pediatr. 2014, 57, 333–336. [Google Scholar] [CrossRef]
  27. Deibert, E.; Crenshaw, M.; Miller, M.S. A Patient with Phelan-McDermid Syndrome and Dilation of the Great Vessels. Clin. Case Rep. 2019, 7, 607–611. [Google Scholar] [CrossRef] [Green Version]
  28. Denayer, A.; Van Esch, H.; de Ravel, T.; Frijns, J.-P.; Van Buggenhout, G.; Vogels, A.; Devriendt, K.; Geutjens, J.; Thiry, P.; Swillen, A. Neuropsychopathology in 7 Patients with the 22q13 Deletion Syndrome: Presence of Bipolar Disorder and Progressive Loss of Skills. Mol. Syndromol. 2012, 3, 14–20. [Google Scholar] [CrossRef] [Green Version]
  29. Droogmans, G.; Swillen, A.; Van Buggenhout, G. Deep Phenotyping of Development, Communication and Behaviour in Phelan-McDermid Syndrome. Mol. Syndromol. 2020, 10, 294–305. [Google Scholar] [CrossRef]
  30. Figura, M.G.; Coppola, A.; Bottitta, M.; Calabrese, G.; Grillo, L.; Luciano, D.; Del Gaudio, L.; Torniero, C.; Striano, S.; Elia, M. Seizures and EEG Pattern in the 22q13.3 Deletion Syndrome: Clinical Report of Six Italian Cases. Seizure 2014, 23, 774–779. [Google Scholar] [CrossRef] [Green Version]
  31. Goizet, C.; Excoffier, E.; Taine, L.; Taupiac, E.; El Moneim, A.A.; Arveiler, B.; Bouvard, M.; Lacombe, D. Case with Autistic Syndrome and Chromosome 22q13.3 Deletion Detected by FISH. Am. J. Med. Genet. 2000, 96, 839–844. [Google Scholar] [CrossRef]
  32. Gong, X.; Jiang, Y.; Zhang, X.; An, Y.; Zhang, J.; Wu, Y.; Wang, J.; Sun, Y.; Liu, Y.; Gao, X.; et al. High Proportion of 22q13 Deletions and SHANK3 Mutations in Chinese Patients with Intellectual Disability. PLoS ONE 2012, 7, e34739. [Google Scholar] [CrossRef] [PubMed]
  33. Guilherme, R.S.; Soares, K.C.; Simioni, M.; Vieira, T.P.; Gil-da-Silva-Lopes, V.L.; Kim, C.A.; Brunoni, D.; Spinner, N.B.; Conlin, L.K.; Christofolini, D.M.; et al. Clinical, Cytogenetic, and Molecular Characterization of Six Patients with Ring Chromosomes 22, Including One with Concomitant 22q11.2 Deletion. Am. J. Med. Genet. A 2014, 164A, 1659–1665. [Google Scholar] [CrossRef] [PubMed]
  34. Ha, J.F.; Ahmad, A.; Lesperance, M.M. Clinical Characterization of Novel Chromosome 22q13 Microdeletions. Int. J. Pediatr. Otorhinolaryngol. 2016, 95, 121–126. [Google Scholar] [CrossRef]
  35. Hackmann, K.; Rump, A.; Haas, S.A.; Lemke, J.R.; Fryns, J.; Tzschach, A.; Wieczorek, D.; Albrecht, B.; Kuechler, A.; Ripperger, T.; et al. Tentative Clinical Diagnosis of Lujan-Fryns Syndrome—A Conglomeration of Different Genetic Entities? Am. J. Med. Genet. A 2016, 170A, 94–102. [Google Scholar] [CrossRef] [Green Version]
  36. Hannachi, H.; Mougou, S.; Benabdallah, I.; Soayh, N.; Kahloul, N.; Gaddour, N.; Le Lorc’h, M.; Sanlaville, D.; El Ghezal, H.; Saad, A. Molecular and Phenotypic Characterization of Ring Chromosome 22 in Two Unrelated Patients. Cytogenet. Genome Res. 2013, 140, 1–11. [Google Scholar] [CrossRef]
  37. Holder, J.L.; Quach, M.M. The Spectrum of Epilepsy and Electroencephalographic Abnormalities due to SHANK3 Loss-of-Function Mutations. Epilepsia 2016, 57, 1651–1659. [Google Scholar] [CrossRef] [Green Version]
  38. Ishikawa, N.; Kobayashi, Y.; Fujii, Y.; Yamamoto, T.; Kobayashi, M. Late-Onset Epileptic Spasms in a Patient with 22q13.3 Deletion Syndrome. Brain Dev. 2015, 38, 109–112. [Google Scholar] [CrossRef]
  39. Jungová, P.; Čumová, A.; Kramarová, V.; Lisyová, J.; Ďurina, P.; Chandoga, J.; Böhmer, D. Phelan-McDermid Syndrome in Adult Patient with Atypical Bipolar Psychosis Repeatedly Triggered by Febrility. Neurocase 2018, 24, 227–230. [Google Scholar] [CrossRef]
  40. Karaman, A.; Aydin, H.; Geçkinli, B.; Göksu, K. The Deletion 22q13 Syndrome: A New Case. Genet. Couns. 2015, 26, 53–60. [Google Scholar]
  41. Kirkpatrick, B.E.; El-Khechen, D. A Unique Presentation of 22q13 Deletion Syndrome: Multicystic Kidney, Orofacial Clefting, and Wilms’ Tumor. Clin. Dysmorphol. 2011, 20, 53–54. [Google Scholar] [CrossRef]
  42. Koolen, D.A.; Reardon, W.; Rosser, E.M.; Lacombe, D.; Hurst, J.A.; Law, C.J.; Bongers, E.M.H.F.; Ravenswaaij-Arts, C.M.A.v.; Leisink, M.A.R.; Geurts van Kessel, A.H.M.; et al. Molecular Characterisation of Patients with Subtelomeric 22q Abnormalities using Chromosome Specific Array-Based Comparative Genomic Hybridisation. Eur. J. Hum. Genet. EJHG 2005, 13, 1019–1024. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Kurtas, N.; Arrigoni, F.; Errichiello, E.; Zucca, C.; Maghini, C.; D’Angelo, M.G.; Beri, S.; Giorda, R.; Bertuzzo, S.; Delledonne, M.; et al. Chromothripsis and Ring Chromosome 22: A Paradigm of Genomic Complexity in the Phelan-McDermid Syndrome (22q13 Deletion Syndrome). J. Med. Genet. 2018, 55, 269–277. [Google Scholar] [CrossRef] [Green Version]
  44. Lindquist, S.G.; Kirchhoff, M.; Lundsteen, C.; Pedersen, W.; Erichsen, G.; Kristensen, K.; Lillquist, K.; Smedegaard, H.H.; Skov, L.; Tommerup, N.; et al. Further Delineation of the 22q13 Deletion Syndrome. Clin. Dysmorphol. 2005, 14, 55–60. [Google Scholar] [CrossRef]
  45. Lumaka, A.; Race, V.; Peeters, H.; Corveleyn, A.; Coban-Akdemir, Z.; Jhangiani, S.N.; Song, X.; Mubungu, G.; Posey, J.; Lupski, J.R.; et al. A Comprehensive Clinical and Genetic Study in 127 Patients with ID in Kinshasa, DR Congo. Am. J. Med. Genet. A 2018, 176, 1897–1909. [Google Scholar] [CrossRef] [PubMed]
  46. Lund, C.; Brodtkorb, E.; Røsby, O.; Rødningen, O.K.; Selmer, K.K. Copy Number Variants in Adult Patients with Lennox–Gastaut Syndrome Features. Epilepsy Res. 2013, 105, 110–117. [Google Scholar] [CrossRef] [PubMed]
  47. Macedoni-Lukšič, M.; Krgović, D.; Zagradišnik, B.; Kokalj-Vokač, N. Deletion of the Last Exon of SHANK3 Gene Produces the Full Phelan–McDermid Phenotype: A Case Report. Gene 2013, 524, 386–389. [Google Scholar] [CrossRef]
  48. Misceo, D.; Rødningen, O.K.; Barøy, T.; Sorte, H.; Mellembakken, J.R.; Strømme, P.; Fannemel, M.; Frengen, E. A Translocation between Xq21.33 and 22q13.33 Causes an Intragenic SHANK3 Deletion in a Woman with Phelan-McDermid Syndrome and Hypergonadotropic Hypogonadism. Am. J. Med. Genet. A 2011, 155A, 403–408. [Google Scholar] [CrossRef]
  49. Palumbo, P.; Accadia, M.; Leone, M.P.; Palladino, T.; Stallone, R.; Carella, M.; Palumbo, O. Clinical and Molecular Characterization of an Emerging Chromosome 22q13.31 Microdeletion Syndrome. Am. J. Med. Genet. Part A 2018, 176, 391–398. [Google Scholar] [CrossRef]
  50. Pan, L.; Sun, Y.; Chen, S.; He, J.; Xu, C. SNP Microarray Characterization and Genotype-Phenotype Analysis in a Patient with a Ring Chromosome 22. Int. J. Hum. Genet. 2014, 14, 23–26. [Google Scholar] [CrossRef]
  51. Philippe, A.; Boddaert, N.; Vaivre-Douret, L.; Robel, L.; Danon-Boileau, L.; Malan, V.; de Blois, M.; Heron, D.; Colleaux, L.; Golse, B.; et al. Neurobehavioral Profile and Brain Imaging Study of the 22q13.3 Deletion Syndrome in Childhood. Pediatrics 2008, 122, e376–e382. [Google Scholar] [CrossRef]
  52. Pinto, D.; Delaby, E.; Merico, D.; Barbosa, M.; Merikangas, A.; Klei, L.; Thiruvahindrapuram, B.; Xu, X.; Ziman, R.; Wang, Z.; et al. Convergence of Genes and Cellular Pathways Dysregulated in Autism Spectrum Disorders. Am. J. Hum. Genet. 2014, 94, 677–694. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Sathyamoorthi, S.; Morales, J.; Bermudez, J.; McBride, L.; Luquette, M.; McGoey, R.; Oates, N.; Hales, S.; Biegel, J.A.; Lacassie, Y. Array Analysis and Molecular Studies of INI1 in an Infant with Deletion 22q13 (Phelan–McDermid Syndrome) and Atypical Teratoid/Rhabdoid Tumor. Am. J. Med. Genet. Part A 2009, 149A, 1067–1069. [Google Scholar] [CrossRef] [PubMed]
  54. Simenson, K.; Õiglane-Shlik, E.; Teek, R.; Kuuse, K.; Õunap, K. A Patient with the Classic Features of Phelan-McDermid Syndrome and a High Immunoglobulin E Level Caused by a Cryptic Interstitial 0.72-Mb Deletion in the 22q13.2 Region. Am. J. Med. Genet. A 2014, 164A, 806–809. [Google Scholar] [CrossRef] [PubMed]
  55. Soorya, L.; Kolevzon, A.; Zweifach, J.; Lim, T.; Dobry, Y.; Schwartz, L.; Frank, Y.; Wang, A.T.; Cai, G.; Parkhomenko, E.; et al. Prospective Investigation of Autism and Genotype-Phenotype Correlations in 22q13 Deletion Syndrome and SHANK3 Deficiency. Mol. Autism 2013, 4, 18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Tabet, A.; Rolland, T.; Ducloy, M.; Lévy, J.; Buratti, J.; Mathieu, A.; Haye, D.; Perrin, L.; Dupont, C.; Passemard, S.; et al. A Framework to Identify Contributing Genes in Patients with Phelan-McDermid Syndrome. NPJ Genom. Med. 2017, 2, 32. [Google Scholar] [CrossRef] [Green Version]
  57. Terrone, G.; Vitiello, G.; Genesio, R.; D’Amico, A.; Imperati, F.; Ugga, L.; Giugliano, T.; Piluso, G.; Nitsch, L.; Brunetti-Pierri, N.; et al. A Novel SHANK3 Interstitial Microdeletion in a Family with Intellectual Disability and Brain MRI Abnormalities Resembling Unidentified Bright Objects. Eur. J. Paediatr. Neurol. 2017, 21, 902–906. [Google Scholar] [CrossRef]
  58. Thümmler, S.; Giuliano, F.; Karmous-Benailly, H.; Richelme, C.; Fernandez, A.; De Georges, C.; Askenazy, F. Neurodevelopmental and Immunological Features in a Child Presenting 22q13.2 Microdeletion. Am. J. Med. Genet. A 2016, 170, 792–794. [Google Scholar] [CrossRef]
  59. Toruner, G.A.; Kurvathi, R.; Sugalski, R.; Shulman, L.; Twersky, S.; Pearson, P.G.; Tozzi, R.; Schwalb, M.N.; Wallerstein, R. Copy number variations in three children with sudden infant death. Clin. Genet. 2009, 76, 63–68. [Google Scholar] [CrossRef] [PubMed]
  60. Upadia, J.; Gonzales, P.R.; Atkinson, T.P.; Schroeder, H.W.; Robin, N.H.; Rudy, N.L.; Mikhail, F.M. A Previously Unrecognized 22q13.2 Microdeletion Syndrome that Encompasses TCF20 and TNFRSF13C. Am. J. Med. Genet. A 2018, 176, 2791–2797. [Google Scholar] [CrossRef]
  61. Verhoeven, W.M.; Egger, J.I.; Willemsen, M.H.; de Leijer, G.J.; Kleefstra, T. Phelan-McDermid Syndrome in Two Adult Brothers: Atypical Bipolar Disorder as its Psychopathological Phenotype? Neuropsychiatr. Dis. Treat. 2012, 8, 175–179. [Google Scholar] [CrossRef] [Green Version]
  62. Verhoeven, W.M.A.; Egger, J.I.M.; Cohen-Snuijf, R.; Kant, S.G.; de Leeuw, N. Phelan-McDermid Syndrome: Clinical Report of a 70-Year-Old Woman. Am. J. Med. Genet. A 2013, 161A, 158–161. [Google Scholar] [CrossRef]
  63. Vlaskamp, D.R.M.; Callenbach, P.M.C.; Rump, P.; Giannini, L.A.A.; Dijkhuizen, T.; Brouwer, O.F.; van Ravenswaaij-Arts, C.M.A. Copy Number Variation in a Hospital-Based Cohort of Children with Epilepsy. Epilepsia Open 2017, 2, 244–254. [Google Scholar] [CrossRef]
  64. Vucurovic, K.; Landais, E.; Delahaigue, C.; Eutrope, J.; Schneider, A.; Leroy, C.; Kabbaj, H.; Motte, J.; Gaillard, D.; Rolland, A.; et al. Bipolar Affective Disorder and Early Dementia Onset in a Male Patient with SHANK3 Deletion. Eur. J. Med. Genet. 2012, 55, 625–629. [Google Scholar] [CrossRef] [PubMed]
  65. Willemsen, M.H.; Rensen, J.H.M.; van Schrojenstein-Lantman de Valk, H.M.J.; Hamel, B.C.J.; Kleefstra, T. Adult Phenotypes in Angelman- and Rett-Like Syndromes. Mol. Syndromol. 2012, 2, 217–234. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Wu, Y.; Ji, T.; Wang, J.; Xiao, J.; Wang, H.; Li, J.; Gao, Z.; Yang, Y.; Cai, B.; Wang, L.; et al. Submicroscopic Subtelomeric Aberrations in Chinese Patients with Unexplained Developmental Delay/Mental Retardation. BMC Med. Genet. 2010, 11, 72. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Xu, N.; Lv, H.; Yang, T.; Du, X.; Sun, Y.; Xiao, B.; Fan, Y.; Luo, X.; Zhan, Y.; Wang, L.; et al. A 29 Mainland Chinese Cohort of Patients with Phelan–McDermid Syndrome: Genotype–phenotype Correlations and the Role of SHANK3 Haploinsufficiency in the Important Phenotypes. Orphanet. J. Rare Dis. 2020, 15, 335. [Google Scholar] [CrossRef] [PubMed]
  68. Wilson, H.L.; Crolla, J.A.; Walker, D.; Artifoni, L.; Dallapiccola, B.; Takano, T.; Vasudevan, P.; Huang, S.; Maloney, V.; Yobb, T.; et al. Interstitial 22q13 Deletions: Genes Other than have Major Effects on Cognitive and Language Development. Eur. J. Hum. Genet. EJHG 2008, 16, 1301–1310. [Google Scholar] [CrossRef] [PubMed]
  69. Mitz, A.R.; Philyaw, T.J.; Boccuto, L.; Shcheglovitov, A.; Sarasua, S.M.; Kaufmann, W.E.; Thurm, A. Identification of 22q13 genes most likely to contribute to Phelan-McDermid Syndrome. Eur. J. Hum. Genet. 2018, 26, 293–302. [Google Scholar] [CrossRef] [Green Version]
  70. Ziegler, A.; Colin, E.; Goudenège, D.; Bonneau, D. A Snapshot of some pLI Score Pitfalls. Hum. Mutat. 2019, 40, 839–841. [Google Scholar] [CrossRef] [PubMed]
  71. Karczewski, K.J.; Francioli, L.C.; Tiao, G.; Cummings, B.B.; Alföldi, J.; Wang, Q.; Collins, R.L.; Laricchia, K.M.; Ganna, A.; Birnbaum, D.P.; et al. The Mutational Constraint Spectrum Quantified from Variation in 141,456 Humans. Nature 2020, 581, 434–443. [Google Scholar] [CrossRef]
  72. Belhedi, N.; Bena, F.; Mrabet, A.; Guipponi, M.; Souissi, C.B.; Mrabet, H.K.; Elgaaied, A.B.; Malafosse, A.; Salzmann, A. A New Locus on Chromosome 22q13.31 Linked to Recessive Genetic Epilepsy with Febrile Seizures Plus (GEFS+) in a Tunisian Consanguineous Family. BMC Genet. 2013, 14, 93. [Google Scholar] [CrossRef] [Green Version]
  73. Jain, L.; Oberman, L.M.; Beamer, L.; Cascio, L.; May, M.; Srikanth, S.; Skinner, C.; Jones, K.; Allen, B.; Rogers, C.; et al. Genetic and Metabolic Profiling of individuals with Phelan-McDermid Syndrome Presenting with Seizures. Clin. Genet. 2022, 101, 87–100. [Google Scholar] [CrossRef] [PubMed]
  74. Boucherie, C.; Boutin, C.; Jossin, Y.; Schakman, O.; Goffinet, A.M.; Ris, L.; Gailly, P.; Tissir, F. Neural Progenitor Fate Decision Defects, Cortical Hypoplasia and Behavioral Impairment in Celsr1-Deficient Mice. Mol. Psychiatry 2018, 23, 723–734. [Google Scholar] [CrossRef] [Green Version]
  75. Tenorio, J.; Nevado, J.; González-Meneses, A.; Arias, P.; Dapía, I.; Venegas-Vega, C.A.; Calvente, M.; Hernández, A.; Landera, L.; Ramos, S.; et al. Further Definition of the Proximal 19p13.3 Microdeletion/Microduplication Syndrome and Implication of PIAS4 as the Major Contributor. Clin. Genet. 2020, 97, 467–476. [Google Scholar] [CrossRef] [PubMed]
  76. Sarasua, S.M.; Dwivedi, A.; Boccuto, L.; Chen, C.; Sharp, J.L.; Rollins, J.D.; Collins, J.S.; Rogers, R.C.; Phelan, K.; DuPont, B.R. 22q13.2q13.32 Genomic Regions Associated with Severity of Speech Delay, Developmental Delay, and Physical Features in Phelan-McDermid Syndrome. Genet. Med. 2014, 16, 318–328. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Xing, C.; Kanchwala, M.; Rios, J.J.; Hyatt, T.; Wang, R.C.; Tran, A.; Dougherty, I.; Tovar-Garza, A.; Purnadi, C.; Kumar, M.G.; et al. Biallelic Variants in RNU12 Cause CDAGS Syndrome. Hum. Mutat. 2021, 42, 1042–1052. [Google Scholar] [CrossRef]
  78. Malara, M.; Lutz, A.-K.; Incearap, B.; Bauer, H.F.; Cursano, S.; Volbracht, K.; Lerner, J.J.; Pandey, R.; Delling, J.P.; Ioannidis, V.; et al. SHANK3 deficiency leads to myelin defects in the central and peripheral nervous system. Cell. Mol. Life Sci. 2022, 79, 371. [Google Scholar] [CrossRef]
  79. Samogy-Costa, C.I.; Varella-Branco, E.; Monfardini, F.; Ferraz, H.; Fock, R.A.; Barbosa, R.H.A.; Pessoa, A.L.S.; Perez, A.B.A.; Lourenço, N.; Vibranovski, M.; et al. A Brazilian cohort of individuals with Phelan-McDermid syndrome: Genotype-phenotype correlation and identification of an atypical case. J. Neurodev. Disord. 2019, 11, 13. [Google Scholar] [CrossRef] [Green Version]
  80. Kothari, C.; Wack, M.; Hassen-Khodja, C.; Finan, S.; Savova, G.; O’Boyle, M.; Bliss, G.; Cornell, A.; Horn, E.J.; Davis, R.; et al. Phelan-McDermid syndrome data network: Integrating patient reported outcomes with clinical notes and curated genetic reports. Am. J. Med. Genet. B Neuropsychiatr. Genet. 2018, 177, 613–624. [Google Scholar] [CrossRef] [Green Version]
Genes 14 00540 g001 550

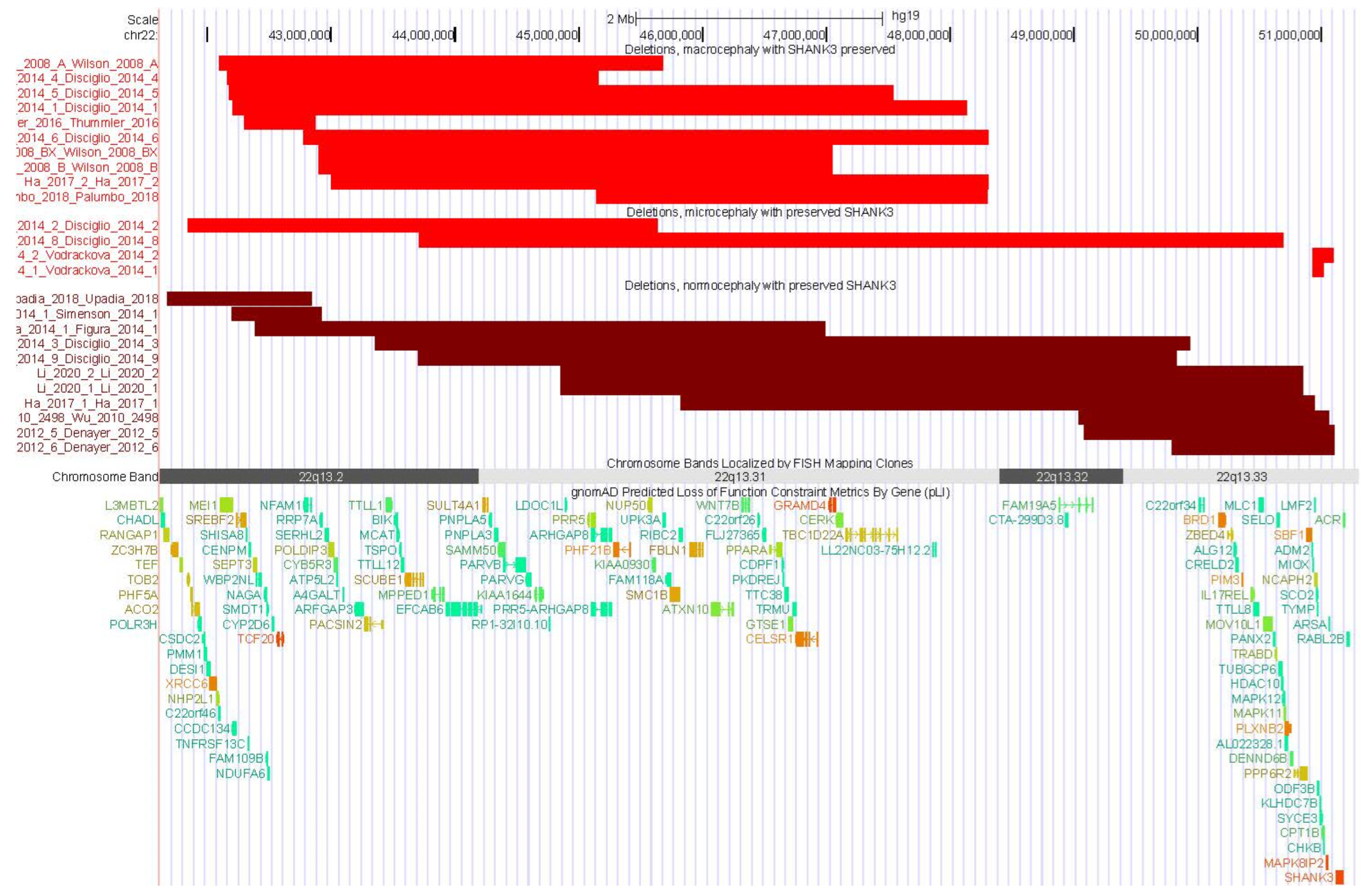

Figure 1. Distribution of deletions for individuals with macrocephaly (top), microcephaly (middle), and normocephaly (lower) with SHANK3 preserved. The graphic demonstrates the preponderance of deletions in the 22q13.2 and 22q13.31 bands for those with macrocephaly whereas individuals with normocephaly have deletions across all of 22q13. No pattern of deletions is apparent for microcephaly among those with SHANK3 preserved.
Figure 1. Distribution of deletions for individuals with macrocephaly (top), microcephaly (middle), and normocephaly (lower) with SHANK3 preserved. The graphic demonstrates the preponderance of deletions in the 22q13.2 and 22q13.31 bands for those with macrocephaly whereas individuals with normocephaly have deletions across all of 22q13. No pattern of deletions is apparent for microcephaly among those with SHANK3 preserved.
Genes 14 00540 g001
Genes 14 00540 g002 550
Figure 2. Distribution of deletions for individuals with macrocephaly (top), microcephaly (middle), and normocephaly (bottom panel) with SHANK3 partially or completely deleted. Note the preponderance of deletions > 1 Mb among individuals with microcephaly compared to those with normocephaly. Note the preponderance of deletions > 4 Mb among those with macrocephaly.
Figure 2. Distribution of deletions for individuals with macrocephaly (top), microcephaly (middle), and normocephaly (bottom panel) with SHANK3 partially or completely deleted. Note the preponderance of deletions > 1 Mb among individuals with microcephaly compared to those with normocephaly. Note the preponderance of deletions > 4 Mb among those with macrocephaly.
Genes 14 00540 g002
Genes 14 00540 g003 550

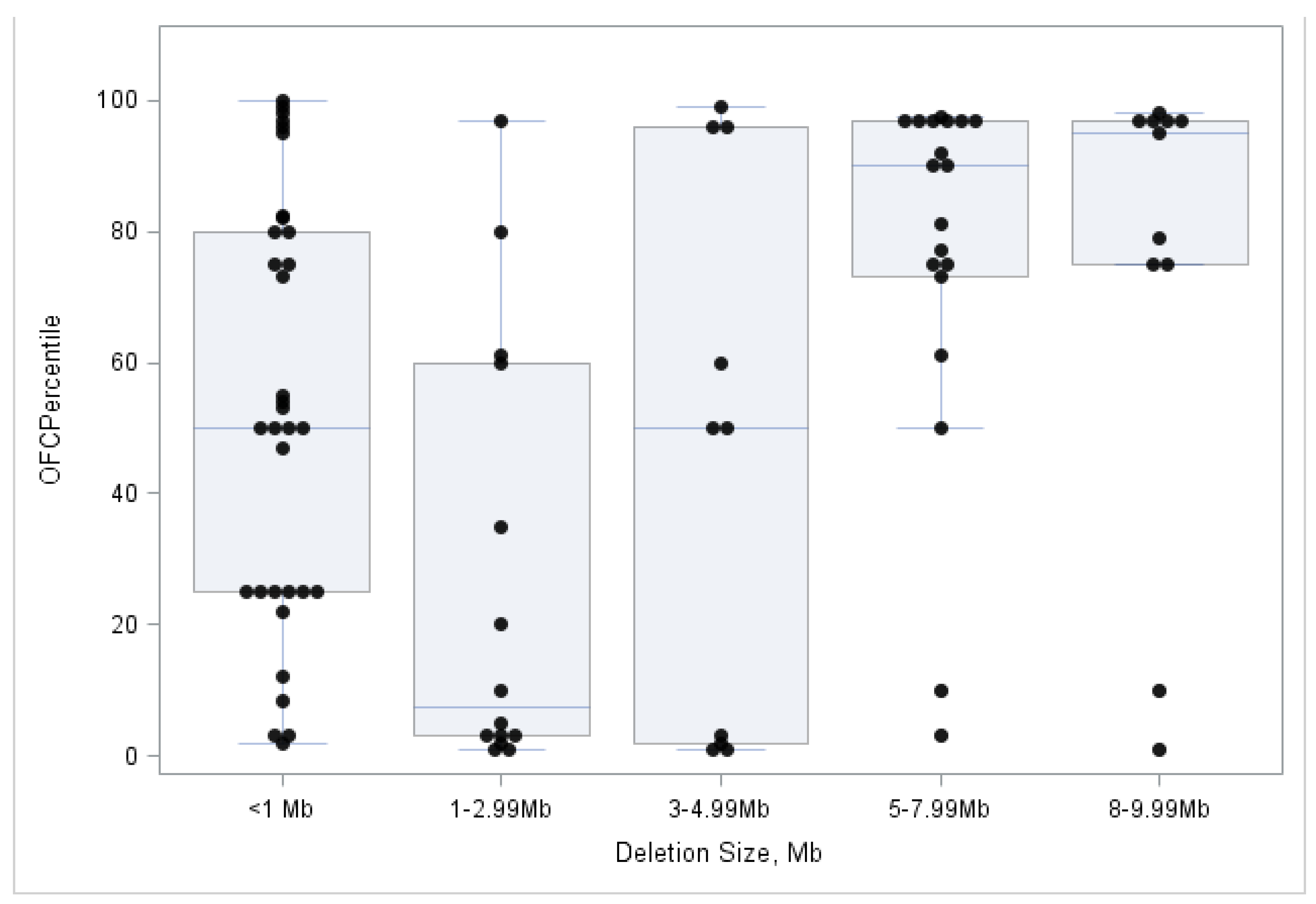

Figure 3. Distribution of OFC percentile by chromosome 22q13 deletion size for 87 individuals with partially or fully deleted SHANK3.
Figure 3. Distribution of OFC percentile by chromosome 22q13 deletion size for 87 individuals with partially or fully deleted SHANK3.
Genes 14 00540 g003
Table
Table 1. Description of 56 published articles with information on genetic data and head size.
Table 1. Description of 56 published articles with information on genetic data and head size.
Categoryn (%)
Year of Publication2000–2005
2006–2010
2011–2015
2016–2020		5 (9%)
11 (20%)
23 (41%)
17 (30%)
Country of PublicationAfrica
(DR Congo, Tunisia)
Asia
(China, Japan, Korea, Taiwan)
Europe
(Belgium, Czech Republic, Denmark, Estonia, France, Germany, Italy, Netherlands, Norway, Slovakia, Slovenia, Sweden, Turkey)
North America
(Canada, USA)
South America
(Brazil)		2 (4%)

7 (13%)

34 (61%)



10 (18%)

3 (5%)
Sample Size with Data1
2–9
10–19
20–50		33 (59%)
19 (34%)
2 (4%)
2 (4%)
Citations: [5,8,10,13,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68].
Table
Table 2. Description of 198 cases in the literature with 22q13 deletions with complete data on deletion size and head size.
Table 2. Description of 198 cases in the literature with 22q13 deletions with complete data on deletion size and head size.
Variablen = 198
Sex
Male
Female
93 (47%)
105 (53%)
Age of OFC measurement:
Mean (SD)
10.7 years (12.3)
Age of OFC measurement: n (%)
Newborn—4 years
5–11 years
12–17 years
18–70 years
82 (41%)
60 (30%)
20 (10%)
36 (18%)
Size of Deletion: mean (SD)3.34 Mb (2.96)
Size of Deletion: n (%)
<100 kb
100–999 kb
1–2.99 Mb
3–4.99 Mb
5–6.99 Mb
7–9.4 Mb
35 (18%)
28 (14%)
41 (21%)
29 (15%)
32 (16%)
33 (17%)
SHANK3 preserved: n (%)
Yes
No
25 (13%)
173 (87%)
Mosaic: n (%)
Yes
No/unknown
5 (3%)
193 (97%)
Inheritance: n (%)
Maternally inherited
Paternally inherited
Inherited/unspecified
De novo
Unknown
4 (2%)
6 (3%)
4 (4%)
115 (59%)
69 (35%)
Head size classification: n (%)
Macrocephaly
Normocephaly
Microcephaly
33 (17%)
139 (70%)
26 (13%)
OFC Percentile when reported: mean (SD)56.8 (SD 36.96)
OFC Percentile when reported: n (%)
≥97th
4th–96th
≤3rd
missing
26 (24%)
63 (58%)
19 (18%)
90 (--)
MRI Performed: n (%)
Yes
No
97 (49%)
101 (51%)
MRI findings

Normal
Abnormal

Type of abnormality *
Atrophy
Corpus callosum abnormalities
Enlarged/abnormal ventricles
Leukomalacia
Cysts
Hypomyelination
Other

26 (27%)
71 (73%)


12 (12%)
22 (22%)
21 (22%)
20 (21%)
12 (12%)
11 (11%)
11 (11%)
* Type of MRI abnormal finding adds to more than 100% as more than one finding could be reported on an abnormal MRI. OFC occipitofrontal circumference (head circumference)
Table
Table 3. Differences in 22q13 deletions and demographics by the size of the head.
Table 3. Differences in 22q13 deletions and demographics by the size of the head.
MacrocephalyNormocephalyMicrocephalyKruskal Wallis
p-Value
nn = 33n = 139n = 26
Median deletion size, Mb (hg19)5.32 Mb 2.29 Mb 2.20 Mb 0.0310
Median age6.05.256.00.5518
% Male45%50%47%0.9377
SHANK3 partially or fully deletedn = 23n = 128n = 22
Median deletion size, Mb ± SD (hg19)5.62 (3.25)2.17 (3.07)2.29 (2.22)0.0788
Median age in years (SD)7.0 (18.8)5.9 (11.6)5.0 (7.5)0.3776
SHANK3 preservedn = 10n = 11n = 4
Median deletion size, Mb ± SD (hg19)4.15 (1.61)4.60 (2.33)1.99 (3.30)0.6696
Median age in years (SD)5.5 (6.89)7.0 (14.4)8.25 (6.25)0.7848
Table
Table 4. Differences in 22q13 deletions and MRI findings by head size.
Table 4. Differences in 22q13 deletions and MRI findings by head size.
MacrocephalyMicrocephalyNormocephalyFisher’s Exact p-Value
MRI (n = 97)
Normal
Abnormal
3 (20%)
12 (80%)
2 (14%)
12 (86%)
21 (31%)
47 (69%)
0.4322
Brain Atrophy
Yes
No
1 (7%)
14 (93%)
5 (36%)
9 (64%)
6 (9%)
62 (91%)
0.0272
Corpus Callosum ab.
Yes
No
4 (27
%11 (73%)
5 (36%)
9 (64%)
13 (19%)
55 (81%)
0.3354
Cysts
Yes
No
3 (20%)
12 (80%)
0 (0%)
14 (100%)
9 (13%)
68 (87%)
0.2761
Hypomyelination
Yes
No
1 (7%)
14 (93%
1 (7%)
13 (93%)
9 (13%)
59 (87%)		0.8908
Leukomalacia
Yes
No
5 (33%)
10 (67%)
2 (14%)
12 (86%)
13 (19%)
55 (81%)
0.4594
Enlarged/Abnormal ventricles
Yes
No
4 (27%)
11 (73%)
4 (29%)
10 (71%)
13 (19%)
55 (81%)
0.5468
Other Abnormality
Yes
No
2 (13%)
13 (87%)
2 (14%)
12 (86%)
7 (10%)
61 (90%)
0.6853
Bold font indicates statistically significant.
Table
Table 5. Genomic regions (hg19) and genes that are associated with macrocephaly or microcephaly as compared to normocephaly. Corrected for multiple testing using the Benjamini–Hochberg method as implemented in Plink software.
Table 5. Genomic regions (hg19) and genes that are associated with macrocephaly or microcephaly as compared to normocephaly. Corrected for multiple testing using the Benjamini–Hochberg method as implemented in Plink software.
Head SizeGenomic Region Nominally Associated p < 0.05The Genomic Region Associated after Benjamini–Hochberg Correction (p < 0.05)Genes Significant in Regional Tests after Benjamini–Hochberg Correction, p < 0.05
Macrocephaly, SHANK3 preserved42.90–44.8542.92–43.3614 genes: SERHL2, RRP7B, POLDIP3, RNU12, CYB5R3, ATP5L2, A4GALT, ARFGAP3, PACSIN2, TTLL1, BIK, MCAT, TSPO, TTLL12
Microcephaly, SHANK3 preservedNoneNoneNone
Macrocephaly, SHANK3 partially or fully deleted45.58–49.0046.69–46.9122 genes: ATXN10, WNT7B, LOC730668, LINC00899, PRR34, LOC150381, MIRLET7BHG, MIR3619, MIRLET7A3, MIR4763, MIRLET7B, PPARA, CDPF1, PKDREJ, TTC38, GTSE1-AS1, GTSE1, TRMU, CELSR1, GRAMD4, CERK, TBC1D22A
Microcephaly, SHANK3 partially or fully deleted50.00–50.94None None
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sarasua, S.M.; DeLuca, J.M.; Rogers, C.; Phelan, K.; Rennert, L.; Powder, K.E.; Weisensee, K.; Boccuto, L. Head Size in Phelan–McDermid Syndrome: A Literature Review and Pooled Analysis of 198 Patients Identifies Candidate Genes on 22q13. Genes 2023, 14, 540. https://doi.org/10.3390/genes14030540

AMA Style

Sarasua SM, DeLuca JM, Rogers C, Phelan K, Rennert L, Powder KE, Weisensee K, Boccuto L. Head Size in Phelan–McDermid Syndrome: A Literature Review and Pooled Analysis of 198 Patients Identifies Candidate Genes on 22q13. Genes. 2023; 14(3):540. https://doi.org/10.3390/genes14030540

Chicago/Turabian Style

Sarasua, Sara M., Jane M. DeLuca, Curtis Rogers, Katy Phelan, Lior Rennert, Kara E. Powder, Katherine Weisensee, and Luigi Boccuto. 2023. "Head Size in Phelan–McDermid Syndrome: A Literature Review and Pooled Analysis of 198 Patients Identifies Candidate Genes on 22q13" Genes 14, no. 3: 540. https://doi.org/10.3390/genes14030540

APA Style

Sarasua, S. M., DeLuca, J. M., Rogers, C., Phelan, K., Rennert, L., Powder, K. E., Weisensee, K., & Boccuto, L. (2023). Head Size in Phelan–McDermid Syndrome: A Literature Review and Pooled Analysis of 198 Patients Identifies Candidate Genes on 22q13. Genes, 14(3), 540. https://doi.org/10.3390/genes14030540

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
