Genome-Wide Identification and Expression Analysis of the SHI-Related Sequence Family in Cassava

by
Huling Huang
1,
Jiming Song
2,
Yating Feng
1,
Linling Zheng
1,
Yinhua Chen
1 and
Kai Luo
1,*
1
Sanya Nanfan Research Institute, School of Tropical Crops, Hainan University, Haikou 572025, China
2
Institute of Tropical and Subtropical Economic Crops, Yunnan Provincial Academy of Agricultural Sciences, Baoshan 678000, China
*
Author to whom correspondence should be addressed.
Genes 2023, 14(4), 870; https://doi.org/10.3390/genes14040870
Submission received: 23 February 2023 / Revised: 31 March 2023 / Accepted: 3 April 2023 / Published: 5 April 2023
(This article belongs to the Section Plant Genetics and Genomics)
Browse Figures
Review Reports Versions Notes

Abstract

:
The SHORT INTERNODES (SHI)-related sequences (SRS) are plant-specific transcription factors that have been quantitatively characterized during plant growth, regeneration, and stress responses. However, the genome-wide discovery of SRS family genes and their involvement in abiotic stress-related activities in cassava have not been documented. A genome-wide search strategy was used to identify eight family members of the SRS gene family in cassava (Manihot esculenta Crantz). Based on their evolutionary linkages, all MeSRS genes featured homologous RING-like zinc finger and IXGH domains. Genetic architecture and conserved motif analysis validated the categorization of MeSRS genes into four groups. Eight pairs of segmental duplications were detected, resulting in an increase in the number of MeSRS genes. Orthologous studies of SRS genes among cassava and three different plant species (Arabidopsis thaliana, Oryza sativa, and Populus trichocarpa) provided important insights into the probable history of the MeSRS gene family. The functionality of MeSRS genes was elucidated through the prediction of protein–protein interaction networks and cis-acting domains. RNA-seq data demonstrated tissue/organ expression selectivity and preference of the MeSRS genes. Furthermore, qRT-PCR investigation of MeSRS gene expression after exposure to salicylic acid (SA) and methyl jasmonate (MeJA) hormone treatments, as well as salt (NaCl) and osmotic (polyethylene glycol, PEG) stresses, showed their stress-responsive patterns. This genome-wide characterization and identification of the evolutionary relationships and expression profiles of the cassava MeSRS family genes will be helpful for further research into this gene family and its function in stress response. It may also assist future agricultural efforts to increase the stress tolerance of cassava.

1. Introduction

Cassava (Manihot esculenta Crantz) is a vital source of food and income for over a hundred million people in tropical countries [1]. Due to its high starch content, it is also considered a promising biofuel crop for ethanol production [2]. According to the The Food and Agriculture Organization (FAO), global cassava production was expected to reach 306 million tons on approximately 34.23 million hectares by 2021 [3]. As cassava is the world’s sixth-largest staple crop [4,5], maintaining high yields is crucial for ensuring food security worldwide. However, biotic challenges such as insect, bacterial, fungal, and viral hazards, as well as abiotic stresses such as water deficit, high salinity, and cold temperatures, can significantly affect plant growth and productivity, including that of cassava. To cope with these adverse conditions, plants have developed a various molecular and physiological defense mechanisms by activating a range of stress-responsive genes. Increasingly, research is focusing on enhancing cassava yields by discovering and charactering key functional genes associated with yield development and environmental adaptation [6]. Although the availability of whole-genome cassava sequences has facilitated the identification of stress-related family genes on a genome-wide scale [7], only a few such genes have been found for cassava breeding so far. Plants show genome-wide transcriptional changes in response to abiotic and biotic stresses, which is critical for their survival by interacting with cis-acting elements [8].
The SHORT INTERNODES (SHI)-related sequence (SRS) gene family, also termed as the SHI gene family or the Stylish (STY) family, is a plant-specific transcription factor family that encodes proteins with single zinc finger motifs [9]. The SRS family encodes a protein structure with two highly conserved domains: a RING-like zinc finger motif and an IXGH domain. The RING-like region is positioned at the N-terminus, and its amino acid sequence has the following structure: CX2CX7CX4CX2CX7C, where X denotes variable amino acids [10]. Such a motif has the ability to bind to RNA, protein, and lipid molecules, indicating that it plays a variety of functions in numerous cellular biochemical and physiological processes [11,12]. The IXGH domain at the C-terminus is vital for homodimerization [13]. Certain SRS family members, however, may lack sequences encoding the IXGH domain through evolution [10].
SRS genes are widely recognized to be involved in biological processes during plant growth and development, particularly plant organ growth, photomorphogenesis, hormone biosynthesis, and environmental stress responses [13,14,15,16,17]. To date, ten SRS genes have been discovered in the Arabidopsis thaliana genome [18], each of which exhibits both the conventional RING-like zinc finger domain and the IXGH domain, except for SRS8, which lacks IXGH structure. The A. thaliana LATERAL ROOT PRIMORDIUM1 (LRP1) gene was the first found plant SRS gene, and it was established that the gene is involved in the early phases of lateral and adventitious root primordium formation [19]. SHI and the closely related STY1 and STY2 genes have been shown to operate jointly to enhance gynoecium, stamen, and leaf growth [18], while STY1, STY2, SHI, or SRS7 overexpression suppresses stem elongation and the control of tapetum dehiscence [20]. Recent research has found that SRS5 can adversely influence lateral root development by suppressing LBD16 and LBD29 gene expression, while also influencing photomorphogenesis by directly activating HY5, BBX21, and BBX22 expression [21,22].
LjSTY1/2/3 were targets of LjNFYA1, which was critical in nodule differentiation in Lotus japonicas (Regel) K. Larsen [23]. LRP1 works as a transcription factor (TF) in auxin signaling downstream of the Aux/IAA (auxin/indole-3-acetic acid) genes in maize (Zea mays) to modulate root growth [24]. In barley (Hordeum vulgare), two SRS family genes, LKS2 and VRS2, were found to govern awn elongation, pistil shape, and inflorescence patterning [25,26]. Remarkably, a new study indicates that SRS family genes may have a role in environmental stress tolerance. Cold and salt stress activate MeSRS gene expression in the forage species alfalfa (Medicago sativa), indicating that SRS genes may play important roles in tissue-dependent signaling pathways [27]. Several stress treatments, including salinity, low temperature, salicylic acid (SA), and methyl jasmonate (MeJA), substantially activated Melilotus albus SRS family genes [28]. Soybean (Glycine max) GmSRS18 has been shown to reduce drought and salt tolerance, as well as stress-related gene expression and physiological indicators such as chlorophyll, proline, and relative electrolyte leakage [17]. Due to their important regulatory function, an increasing number of SRS genes have been identified in various plant species in recent years, including rice (O. Sativa) [29], Z. mays [30], G. max [17], M. sativa [27], M. albus [28], and Phaseolus vulgaris [31]. Nevertheless, no genome-wide analysis of SRS family genes in cassava has been published.
As a result, we performed genome-wide identification and examination of the SRS family genes using assembled cassava genomes in our study. A thorough examination of phylogeny, gene/protein structure, conserved motifs, chromosomal placement, synteny, cis-element, and expression patterns was carried out. Furthermore, quantitative real-time RT-PCR (qRT-PCR) was used to evaluate the expression patterns of cassava MeSRS genes in response to hormone treatments and abiotic stresses. The findings of this study will help to further investigate the activities of the genes in the MeSRS family.

2. Materials and Methods

2.1. Identification of SRS Family Members in Cassava

The genome, protein sequence, coding sequence (CDS), and GFF annotation file of cassava (M. esculenta v6.1) were downloaded from EnsemblPlants (http://plants.ensembl.org/index.html, access date: 12 October 2022). The SRS protein sequences from other species, A. thaliana, O. sativa, S. oleracea, P. trichocarpa, and R. communis, were obtained from the Phytozome v13 database (https://phytozome-next.jgi.doe.gov/, access date: 15 November 2022) or PlantTFDB database (http://planttfdb.gao-lab.org/, access date: 15 November 2022) (Table S2). The SRS protein sequences from A. thaliana and O. sativa were used as queries to search the SRS proteins from cassava using BLAST with TBtools software [32]. The screened sequences were then examined for the presence of DUF702 domains by submitting them to Pfam database (http://pfam.xfam.org/family, access date: 20 November 2022), Conserved Domain Database (CCD) (https://www.ncbi.nlm.nih.gov/cdd/, access date: 25 November 2022) [33] and Simple Modular Architecture Research Tool (SMART) (http://smart.embl-heidelberg.de/, access date: 30 November 2022) [34].

2.2. Phylogenetic Analysis

Multiple sequence alignments of the identified cassava SRS proteins (MeSRS) and SRS proteins from A. thaliana, O. sativa, S. oleracea, P. trichocarpa, and R. communis were performed using ClustalW2 with default parameters [35]. The subsequent phylogenetic analysis relied on the neighbor-joining (NJ) method [36], as implemented in the MEGA v7.1 software [37], and a bootstrap analysis was applied based on 1000 replicates [38]. The phylogenetic tree was further beautified using the EvolView web server (http://120.202.110.254:8280/evolview, access date: 29 January 2023) [39].

2.3. Characterization of Cassava SRS Genes and Proteins

The protein length, MW, pI, and GRAVY of each identified MeSRS protein were calculated using the ProtParam program listed on the Expasy website (https://expasy.org, access date: 12 November 2022) [40]. The subcellular localizations of MeSRS proteins were predicted using the WoLF PSORT web server (https://wolfpsort.hgc.jp/, access date: 12 November 2022) [41]. The MeSRS protein sequences were aligned using DNAMAN ver. 7. The exon–intron structure of the MeSRS genes was visualized on the Gene Structure Display Server (GSDS) website (http://gsds.cbi.pku.edu.cn/, access date: 1 December 2022) [42], and the data were obtained from the cassava GFF annotation files. The conserved motifs of MeSRS proteins were predicted using the multiple expectation maximization for motif elicitation (MEME) ver. 5.4.1 online tools (http://meme-suite.org/index.html, access date: 10 December 2022) as follows: the maximum motif number was six, and the others set as default [43]. The secondary structure of the deduced polypeptide was predicted by SOPMA (http://npsa-pbil.ibcp.fr/cgi-bin/npsa_automat.pl?page=npsa_sopma.html, access date: 15 December 2022).

2.4. Chromosome Location, Gene Duplication, and Synteny Analysis

Information about the chromosome location of MeSRS genes was obtained from the cassava GFF annotation files, and the physical locations of MeSRS genes on chromosomes were visualized using TBtools [32]. Gene duplication pairs were identified from the plant genome duplication database (http://chibba.agtec.uga.edu/duplication/index/locket, access date: 15 February 2023). Synteny analysis and chromosomal location diagrams were generated using the Circos program in the TBtools software [32]. The Ka and Ks substitution rates were estimated using the TBtools software [32].

2.5. Protein Interaction Network Diagram and Cis-Regulatory Element Analysis

The functional relationship of the MeSRS proteins was predicted using the STRING protein interaction database (http://string-db.org/, access date: 20 November 2022) [44,45]. To analyze the regulatory elements in the MeSRS genes, the TBtools software was used to extract the 2000 bp upstream sequences of the MeSRS coding DNA sequences from the cassava genome data [32]. Possible cis-acting elements were identified using the PlantCARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/index.html, access date: 29 November 2022) [46].

2.6. In Silico mRNA Levels of MeSRS Genes in Different Tissues

The transcriptome data were retrieved from the NCBI database (accession number: GSE82279) submitted by Wilson et al. [5] and used to investigate the expression profiles of MeSRS genes in different tissues, including leaves, mid veins, lateral buds, somatic embryos (OES), friable embryogenic callus (FEC), fibrous roots (FR), storage root (SR), stems, petioles, root apical meristem (RAM), and shoot apical meristem (SAM). Fragments per kilobase of transcript per million reads mapped (FPKM) values were calculated to evaluate the gene expression. Log2-transformed heatmaps of all MeSRS genes were produced using TBtools software [47].

2.7. Plant Materials and Stress Treatments

South China 9 (SC9) cassava, a common edible cultivar in China that has good performance in terms of properties of starch and stress tolerance, was used in this research. The stems, approximately 15 cm in length with two to three buds, were subcultured for approximately 30 days on Murashige and Skoog (MS) medium at 25 °C under a 16 h light/8 h dark cycle at Hainan University (Haikou, Hainan, China). Uniform seedlings were chosen to study the transcriptional response of cassava MeSRS genes under abiotic stresses and phytohormone treatments. The seedlings were transferred to MS medium containing 20% PEG, 400 mM NaCl, 100 μM SA, and 100 μM MeJA, respectively, and four treatment time points (0, 4, 12, and 24 h) were selected. Leaf samples were collected with three replications per treatment at each time point. All samples were flash-frozen in liquid nitrogen and stored at −80 °C until use.

2.8. RNA Isolation and qRT-PCR

RNAprep Pure Plan Plus Kit (TIANGEN Biotech Co., Ltd., Beijing, China) was used to isolate RNA from the leaves according to the manufacturer’s instructions. Total RNA (1 ug) was used for first-strand cDNA synthesis using a reverse transcriptase kit (M1631, Thermo Fisher Scientific, Waltham, MA, USA). The elongation factor 1 α (EF1α) gene was used as an endogenous control. Quantitative primers were designed using the website Primer3 (http://bioinfo.ut.ee/primer3-0.4.0/) based on the identified MeSRS gene sequences, and the primers used in this study are listed in Table S5. Real-time PCR was performed on a 7500 Real Time PCR System (Thermo Fisher Scientific) with a total reaction volume of 20 μL, containing 2 μL cDNA template, 1 μL forward primer, 1 μL reverse primer, 10 μL qPCR Master Mix, and 6 μL sterilized ddH2O. The real-time PCR amplification protocol was set at 95 °C for 30 s for 40 cycles, 95 °C for 5 s, 55 °C for 30 s, 72 °C for 30 s, and 72 °C for 10 min [48]. Relative fold expression changes of the eight MeSRS genes were normalized to the EF1α gene and calculated using the 2−ΔΔCt method described by Schmittgen and Livak [49]. Each sample was analyzed in three independent biological replications. Differences between groups were analyzed using Duncan’s multiple range tests with SPSS Statistics ver. 20.0 (IBM, Armonk, NY, USA), and a p ≤ 0.05 was considered statistically significant.

3. Results

3.1. Identification and Phylogenetic Analysis of MeSRS Genes in Cassava

The cassava genome revealed eight non-redundant SRS family members (MeSRS1 to MeSRS8) (Table 1). Figure 1 shows a comprehensive sequence alignment of the MeSRS proteins. All of the MeSRS proteins had the conserved RING-like zinc finger domain CX2CX7CX4CX2CX7C and the IXGH domain, which are basic features of the SRS gene family (Figure 1). Additionally, the physicochemical characteristics of these MeSRSs were investigated. The CDS lengths for MeSRS genes ranged from 642 bp (MeSRS7) to 1080 bp (MeSRS2), while the sizes of the MeSRS proteins ranged from 213 a.a (MeSRS7) to 359 a.a (MeSRS2). The molecular weights (MWs) ranged from 23.05 kDa (MeSRS7) to 37.22 kDa (MeSRS2), and the projected isoelectric points (pIs) ranged from 6.13 (MeSRS6) to 8.98 (MeSRS7). All of the MeSRS proteins had a negative grand average of hydropathicity (GRAVY), suggesting that they were hydrophilic. The WoLF PSORT web service was used to identify MeSRSs’ subcellular localizations. Except for MeSRS2, which was predicted to be localized in the endoplasmic reticulum, almost all MeSRSs were predicted to be localized in the nucleus (Table 1). The SPOMA online program was employed to estimate the structural features of eight MeSRS proteins to better comprehend their molecular function (Table S1). According to our findings, the random coil is the primary component of the secondary structure of MeSRS proteins, accounting for more than 60% of all MeSRS proteins. The secondary structure α helix of MeSRS1 and MeSRS3 proteins, on the other hand, accounted for a substantial amount (more than 17%), whereas the portion of other proteins was minimal, with the lowest at 8.36% for MeSRS2. In the MeSRS protein structure, the fraction of extended chains was less than 18%.
An unrooted phylogenetic tree was generated using MAGA 7.1 software by utilizing multiple sequence alignment of SRS protein sequences from six distinct plant species, including eight in cassava, ten in A. thaliana, six in O. sativa, four in Spinacia oleracea (S. oleracea), ten in Populus trichocarpa (P. Trichocarpa), and five in Ricinus communis (R. Communis) (Table S2). Based on their evolutionary relationships, we grouped the 43 SRS proteins into six different groups (I-VI) (Figure 2). Group VI had the most SRS proteins, with nine from all six species, whereas Group IV only had three from monocot plants. The eight MeSRS genes were divided into five groups: I, II, III, V, and VI, each with one, two, two, one and two members, respectively. MeSRSs are more strongly connected to SRSs from dicots, particularly R. communis and P. trichocarpa (Figure 2).

3.2. Gene Structure and Conserved Motifs of MeSRSs

Figure 3A depicts a distinct cluster of cassava SRS proteins. The results showed that the tree’s structure matched that of the phylogenetic tree constructed using SRS sequences from the six plant species displayed in Figure 2. A detailed comparison of exon–intron structure was performed to further understand the structural properties of MeSRS genes (Figure 3B). Six MeSRS genes (MeSRS1, MeSRS2, MeSRS3, MeSRS4, MeSRS5, and MeSRS7) had two exons and one intron, but two MeSRS genes in group II (MeSRS6 and MeSRS8) had three exons and two introns. Exon–intron organization was generally comparable within the same group, supporting their tight evolutionary ties (Figure 3B). The MEME online program discovered six motifs to further investigate structural diversity and anticipate the function of the MeSRS protein (Figure 3C). The preserved motif lengths ranged from 18 (motif 3) to 50 (motif 2) a.a., while their logo symbol is illustrated in Figure 3D. A RING-like zinc finger motif CX2CX7CX4CX2CX7C appears in motif 1, while the IXGH conservation domain exists in motif 2. Motifs 1 and 2 were found in all MeSRS proteins, which is in line with the findings of multiple alignment of sequence analyses (Figure 1). It is worth mentioning that several conserved motifs were discovered in particular groups. For example, motif 3 was found only in groups VI and V, motifs 4 and 5 in groups III, IV, and VI, and motif 6 in two MeSRSs from group I. (Figure 3C). This finding implies that the distinct roles of each subgroup may be linked to certain motifs.

3.3. Chromosome Localization, Gene Duplication and Synteny Analysis

The eight MeSRS genes were spread across six cassava chromosomes. Two genes were found on chromosomes 1 and 2, and one gene on chromosomes 4, 5, 11, and 18. (Table 1; Figure 4A). We conducted a collinear analysis of MeSRS genes to better understand their evolutionary history. As segmental duplication genes, a total of eight homologous gene pairs including seven MeSRS genes were found. The duplicated pairings are MeSRS1: MeSRS8, MeSRS1: MeSRS3, MeSRS1: MeSRS6, MeSRS2: MeSRS4, MeSRS3: MeSRS6, MeSRS7: MeSRS8, MeSRS8: MeSRS3, and MeSRS8: MeSRS6 (Figure 4B). These findings suggested that these genes were perhaps created by segmental duplication events, which operated as a primary driving factor in the development of the MeSRS family. Furthermore, the non-synonymous (Ka) and synonymous (Ks) substitution rates were calculated for each homologous gene pair using the TBtools program. All of the MeSRS orthologous gene pairs showed a Ka/Ks ratio < 1 (Table 2). These findings point to the MeSRS genes’ conserved evolution. We created three comparative syntenic maps of cassava compared to three representative species, including two dicot plants, A. thaliana and P. trichocarpa, and one monocot plant, O. sativa, to further infer the evolutionary pathways of the MeSRS family (Figure 4C). Therefore, we identified pairwise homologues of the MeSRS genes in A. thaliana, P. trichocarpa, and O. sativa to detect 16, 27, and 2 pairs of homologous genes, respectively (Table S3).

3.4. Identification of Cis-Acting Elements in the Promoters of MeSRS Genes

PlantCARE was used to conduct a cis-elements study on the 2000 bp area upstream of the MeSRS genes (Figure 5). Each component possesses its own unique sequence and serves a specific function. In this study, eighteen cis-acting elements were identified: eight stress-sensitive (MYB, MYC, TC-rich repeats, MBS, STRE, W box, WUN-motif, and LTR), ten hormone-responsive (ABRE, CGTCA motif, ERE, GARE-motif, P-box, TATC-box, TCA-element, TGACG-motif, AuxRR-CORE, and TGA-element) cis-acting elements, and nine growth and development related (ARE, CAT-box, as−1, O2-site, circadian, HD-Zip 1, MSA-like, OCT, and GC-motif) cis-acting elements. ERE and ARE were discovered in each MeSRS gene promoter. MeSRS3 is expected to have the largest amount of cis-elements (Figure 5). Altogether, the promoter regions of each of these genes include a minimum of three types of stress-responsive and four types of hormone-responsive cis-acting elements, indicating that MeSRS genes may be engaged in abiotic and biotic stress responses.

3.5. Protein–Protein Interaction Network and GO Annotation Analysis

Utilizing protein–protein interaction network to connect unknown functional proteins can help us comprehend the many biological activities of proteins and the dynamic regulatory networks that exist among distinct biomolecules. In this study, the functional and physical interactions among potential MeSRS proteins were examined using the STRING program based on the A. thaliana association model (Figure 6). Each node represents all proteins generated by a single protein-coding locus. The predicted number of boundaries and the average local clustering coefficient were 10 and 0.313, respectively, and the p-value for protein–protein interaction enrichment was 8.29e-11. We found nine SRS functional molecules (SHI, STY1, STY2, LRP1, SRS3, SRS4, SRS5, SRS6, and SRS7) and five putative interaction proteins (KIN13A, NGA3, YUC4, AT1G32730, and AT3G06840) directly connected to MeSRS proteins using statistical analysis of eight MeSRS proteins (Figure 6). Among the seven discovered similar proteins in A. thaliana, SRS3 had the most interaction partners, including KIN13A, YUC4, AT1G32730, and AT3G06840.
The gene ontology (GO) functional analyses were carried out utilizing the PANNZER web server to identify the biological process, molecular function, and cellular component characteristics of the MeSRS proteins (Table S4). In the “biological process” category, auxin biosynthesis process (GO:0009851), auxin-activated signaling pathway (GO:0009734), regulation of DNA-templated transcription (GO:0006355), and positive regulation of nucleic acid-templated transcription (GO:1903508) characteristics of the MeSRS proteins were revealed. In the “molecular function” category, all proteins were classified as DNA-binding transcription factor activity (GO:0003700) and DNA binding (GO:0003677). Two GO terms related to cellular components, including nucleus (GO:0005634) and membrane (GO:0016020), were specifically enriched. These findings show that MeSRS proteins have a variety of roles in cell metabolism.

3.6. Expression of MeSRS Genes in Different Tissues

Wilson et al. [5] made their cassava RNA-seq data publicly available, and their dataset was used to investigate the expression patterns of MeSRS genes across eleven tissues. All eight MeSRS genes were included in the hierarchical clustering analysis (Figure 7) and found to be expressed differently across different cassava tissues. MeSRS2 and MeSRS5 exhibited higher expression levels in almost all tissues than the other MeSRS genes, suggesting that they may play important roles in cassava development. In contrast, MeSRS7 expression was low in all tissues tested. Some MeSRS genes exhibited tissue-specific expression patterns. MeSRS1, MeSRS6, and MeSRS8 exhibited higher expression levels in friable embryogenic callus (FEC), organized embryogenic structures (OES), fibrous roots (FR), and lateral buds than in other tissues. MeSRS4 had the greatest expression in storage root (SR). The high levels of expression of these MeSRS genes in a specific tissue suggest that they may play crucial roles in tissue growth or functionality (Figure 7).

3.7. Response of MeSRS Genes to Hormone Treatments and Abiotic Stresses

To study the possible functions of the cassava MeSRS genes in response to various stimuli, qRT-PCR was used to examine the expression patterns of these genes in cassava seedlings treated with salicylic (SA), methyl jasmonate (MeJA), NaCl, and polyethylene glycol (PEG) (Figure 8 and Figure 9). As a control, the expression level at 0 h was set as the baseline (CK). Except for MeSRS3, the seven MeSRS genes were strongly activated or repressed by SA treatment. MeSRS1 and MeSRS2 were suppressed after 12 h and 4 h, respectively. MeSRS4 and MeSRS6 demonstrated a similar dynamic, with upregulation beginning at 12 h. MeSRS5 and MeSRS7 were considerably upregulated at 12 h, but MeSRS8 showed no significant change from 0 to 12 h before being significantly upregulated at 24 h. MeSRS1 and MeSRS7 levels increased progressively under MeJA therapy and peaked at 24 h. MeSRS2 was significantly activated and sustained reasonably high levels of expression. MeSRS3 and MeSRS5 had a similar expression profile, with a strong increase after 12 h and a subsequent decrease after 24 h. MeSRS4 and MeSRS6 showed a similar expression profile, whereas MeSRS6 remained relatively low at 24 h. MeSRS8 exhibited almost no change during the first phase of MeJA treatment and began to be upregulated after 24 h (Figure 8).
Following NaCl treatment, the expression of MeSRS1, MeSRS2, MeSRS5, MeSRS7, and MeSRS8 increased considerably at 4 h or 12 h and then decreased after the peak time point. MeSRS3 was progressively suppressed, and its expression was downregulated at 24 h compared to 0 h. MeSRS4 levels were much lower after 12 h, then rose after 24 h and eventually peaked at 24 h. MeSRS6 was shown to be considerably up-regulated after 24 h (Figure 9). The expression of most MeSRS genes was considerably affected by PEG treatment, except for MeSRS7, whose expression remained relatively steady at all time periods. MeSRS3, MeSRS5, and MeSRS6 levels first increased but subsequently declined, peaking at 4 h or 12 h. MeSRS1, MeSRS4, and MeSRS8 all showed similar “down-up-down” tendencies from 0 h to 24 h. MeSRS3 was significantly upregulated at 24 h compared to 0 h, with a continuous rise in expression (Figure 9).
Taken together, most MeSRS genes were significantly affected by a variety of treatments. It was hypothesized that different MeSRS genes had diverse roles and used different coping techniques in response to stress or phytohormone signals in cassava.

4. Discussion

SRS is a plant TF family that has an important regulatory function in plant development and growth. In A. thaliana, SRS family genes have been well demonstrated to play vital roles in regulating photomorphogenesis [21,22], floral organ development [14,18], lateral root formation [17,21], carpel development [15], and phytohormone response [10,16]. Recent studies have further confirmed the involvement of SRS genes in abiotic stresses and phytohormone response [17,27,28,50], and their potential utilization value for genetic improvement of crop resistance. Although studies have been performed on SRS genes in several plant species [17,27,28,29,30,31], no systematic research on the SRS gene family in cassava has been reported. It is necessary to investigate the possible role of SRS in cassava. In this study, eight SRS genes were discovered in the cassava genome and named MeSRS1 through MeSRS8 based on their chromosomal placement (Table 1; Figure 4). A higher number of SRS genes were found in the cassava genome than in O. sativa (n = 6) [29], but fewer than in A. thaliana (n = 10) [18,51], P. trichocarpa (n = 10) [52], Z. mays (n = 11) [30], and G. max (n = 21) [17]. The number of SRS family genes between species may be related to gene duplication events and genome size [53].
The phylogenetic analysis of 43 SRS proteins from A. thaliana, O. sativa, S. oleracea, P. trichocarpa, and R. communis allowed us to analyze the evolutionary history and estimate the recurring occurrences during the growth of the SRS family. SRS proteins from six species were classified into six classes, with group VI having the most members (10) and being present in all six investigated species. Group IV was a monocot-specific group, whereas groups I, II, III and V had dicot members (Figure 2), which was consistent with He et al. [30]. It has been demonstrated that the four SRS protein subfamilies evolved through duplication of a common ancestor prior to the divergence of the monocot and eudicot lineages. The results of phylogenetic trees suggest that the grouping link is more likely when the functions are comparable [54]. Eight MeSRS genes, for example, are derived from groups I, II, III, V and VI, which have closer phylogenetic relationships and genetic structures with A. thaliana (Figure 2 and Figure 3A). This implies that MeSRS members could be operationally redundant and regulate auxin homeostasis in a dose-dependent manner during plant development [18]. SRS genes in plants had highly conserved exon/intron architectures. Exons in MeSRS genes in cassava vary from 2 to 3 (Figure 3B), which is comparable to O. sativa (2) [29], Z. mays (2–3) [30], G. max (2–4) [17], and M. sativa (2–4) [27]. We found six conserved motifs that helped us understand structural similarities among MeSRS proteins (Figure 3C; Figure 3D). Motif 1 was linked to RING-like region domains, whereas motif 2 was linked to IXGH domains. Other motifs were either increased or removed and shifted, which might be connected to the distinct genetic variety created by natural selection in the face of varied adversities in cassava (Figure 3D). This also suggested that the MeSRS proteins might have different functions.
The major driving mechanisms for gene family expansion in diverse plant species are gene duplication events, including segmental, tandem, and whole-genome duplications. Genetic mapping of MeSRS genes found that eight MeSRS genes were distributed across six chromosomes, with the number of genes ranging from one to two on each chromosome (Figure 4A). Analysis of gene duplication events identified eight pairs of duplicated genes with strong nucleotide sequence similarity. Furthermore, both Ka/Ks ratios were lower than one, suggesting that all duplicated MeSRS gene family members were under purifying selection pressure after gene duplications (Figure 4B; Table 2). In M. albus SRS genes, eight pairs of segmental duplication genes were identified, with gene duplication playing a key role in gene family expansion [28]. Two segmental duplications of OsSRS genes were observed in O. sativa [29]. Additionally, synteny analysis showed at least 16 orthologous gene pairs between cassava and the other two dicot species, P. trichocarpa and A. thaliana, but only two orthologous gene pairs between cassava and the monocot species O. sativa, suggesting that these gene pairs emerged after the divergence of dicot and monocot plants (Figure 4C). The phylogenetic tree also supports this hypothesis, demonstrating that cassava was more closely linked to P. trichocarpa than to A. thaliana and O. sativa (Figure 2).
A cis-acting regulatory element is a non-coding DNA segment found in the promoter region of genes. Drought sensitive (MBS, MYB), low temperature responsive (LTR), and abscisic acid (ABA) responsive (ABRE) cis-regulatory elements were found in various MeSRS promoters (Figure 5), showing that these genes might be activated by ABA and other abiotic stimuli [55,56]. Similarly, MYC responds to salt, drought, and ABA stresses by forming complexes with MYC-binding proteins [55,57,58]. In addition, three MeSRS genes had a W-box element (Figure 5), which is the DNA binding site of the WRKY protein produced by salicylic acid and has a role in disease defense [59,60,61]. Phytohormones are also required for plant response to abiotic stresses [62]. In this work, we determined that the MeSRS gene contains a variety of hormone response elements, including ethylene (ERE), gibberellin (TATC-box), MeJA (CGTCA/TGACG-motif), and IAA (TGA-element) (Figure 5). The cis-acting elements analysis suggests that the function of the MeSRS genes may play a role in abiotic and biotic stress responses, which is consistent with the findings of SRS gene family research in G. max [17].
Phytohormones and environmental stresses have a significant impact on crop development and growth. Previous research found that TFs play a role in many plants’ abiotic and biotic stress responses [63,64,65,66]. Plants contain putative stress or phytohormone-related SRS genes [28,30]. A recent study also discovered that GmSRS18 is present in the cell nucleus of G. max and can improve the susceptibility of transgenic A. thaliana to drought and salt stresses [17]. In this investigation, qRT-PCR was utilized to confirm the expression level of MeSRS genes under different conditions of phytohormone induction (SA and MeJA), osmotic pressure (PEG), and salt stress (NaCl) (Figure 8 and Figure 9). MeSRS genes responded differently to various hormone treatments. For example, MeSRS1 and MeSRS2 may be inhibited by SA but stimulated by MeJA (Figure 8), implying that SA and MeJA trigger antagonistic pathways. Almost all MeSRS genes were upregulated following PEG and NaCl treatments (Figure 9), suggesting that they play a role in the regulation of diverse stress-related responses. Interestingly, the changes in gene expression and time across various treatments are not simple linear connections, indicating that the regulation of distinct MeSRS family members is a complex process, as corroborated by other studies [28,47]. Although our findings suggest that the MeSRS genes respond to phytohormone stimulation and abiotic stress, much more research is required to fully understand this response mechanism.
In all, we identified eight non-redundant MeSRS genes in the cassava genome. A comprehensive genome-wide investigation of the MeSRS gene family was carried out, including phylogenetic analysis and gene architecture, chromosomal position, evolutionary traits, and a functional network. Following that, the cis-elements in the promoter region were studied, as well as the expression patterns in different tissues and in response to diverse stimuli, using transcriptome or qRT-PCR analysis. Our findings will be valuable for future functional characterization of MeSRS genes in cassava, and for improving the adaptive ability of plants exposed to environmental challenges.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes14040870/s1, Table S1: The secondary structure of MeSRS protein sequences; Table S2: List of the SRS amino acid sequences in cassava, A. thaliana, O. sativa, S. oleracea, P. trichocarpa, and R. communis; Table S3: The Ka and Ks values of cassava and different plants. Table S4: Functional annotation (gene ontology) of MeSRS proteins; Table S5: The primer designed for qRT-PCR.

Author Contributions

Conceptualization, K.L.; methodology, H.H., J.S., Y.F., L.Z. and K.L.; Investigation, H.H., J.S. and Y.F.; data analysis, H.H., J.S., Y.F., L.Z. and K.L.; writing, H.H. and K.L.; review and editing, Y.C. and K.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Hainan Province (320QN193) and the China Agriculture Research System (CARS-11-hncyh).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zárate-Chaves, C.A.; Gómez de la Cruz, D.; Verdier, V.; López, C.E.; Bernal, A.; Szurek, B. Cassava diseases caused by Xanthomonas phaseoli pv. manihotis and Xanthomonas cassavae. Mol. Plant Pathol. 2021, 22, 1520–1537. [Google Scholar] [CrossRef]
  2. Zidenga, T.; Leyva-Guerrero, E.; Moon, H.; Siritunga, D.; Sayre, R. Extending cassava root shelf life via reduction of reactive oxygen species production. Plant Physiol. 2012, 159, 1396–1407. [Google Scholar] [CrossRef] [Green Version]
  3. FAOSTAT. FAOSTAT Statistics Database; FAOSTAT: Rome, Italy, 2022. [Google Scholar]
  4. Olsen, K.; Schaal, B. Microsatellite variation in cassava (Manihot esculenta, Euphorbiaceae) and its wild relatives: Further evidence for a southern Amazonian origin of domestication. Am. J. Bot. 2001, 88, 131–142. [Google Scholar] [CrossRef] [Green Version]
  5. Wilson, M.C.; Mutka, A.M.; Hummel, A.W.; Berry, J.; Chauhan, R.D.; Vijayaraghavan, A.; Taylor, N.J.; Voytas, D.F.; Chitwood, D.H.; Bart, R.S. Gene expression atlas for the food security crop cassava. New Phytol. 2017, 213, 1632–1641. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Hong, Y.; Xiao, Y.; Song, N.; Zhu, S.; Zhao, R.; Li, K.; Geng, M.; Yu, X.; Wang, H.; Xia, W.; et al. Identification and characterization of MeERF genes and their targets in pathogen response by cassava (Manihot esculenta). Crop J. 2021, 9, 1145–1153. [Google Scholar] [CrossRef]
  7. Wang, W.; Feng, B.; Xiao, J.; Xia, Z.; Zhou, X.; Li, P.; Zhang, W.; Wang, Y.; Møller, B.L.; Zhang, P.; et al. Cassava genome from a wild ancestor to cultivated varieties. Nat. Commun. 2014, 5, 5110. [Google Scholar] [CrossRef] [Green Version]
  8. Tran, L.S.; Nakashima, K.; Sakuma, Y.; Simpson, S.D.; Fujita, Y.; Maruyama, K.; Fujita, M.; Seki, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Isolation and functional analysis of Arabidopsis stress inducible NAC transcription factors that bind to a drought responsive cis-element in the early responsive to dehydration stress 1 promoter. Plant Cell 2004, 16, 2481–2498. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Fridborg, I.; Kuusk, S.; Moritz, T.; Sundberg, E. The Arabidopsis dwarf mutant shi exhibits reduced gibberellin responses conferred by overexpression of a new putative zinc finger protein. Plant Cell 1999, 11, 1019–1031. [Google Scholar] [CrossRef] [Green Version]
  10. Fridborg, I.; Kuusk, S.; Robertson, M.; Sundberg, E. The Arabidopsis protein SHI represses gibberellin responses in Arabidopsis and barley. Plant Physiol. 2001, 127, 937–948. [Google Scholar] [CrossRef] [PubMed]
  11. Berg, J.M.; Shi, Y. The galvanization of biology: A growing appreciation for the roles of zinc. Science 1996, 271, 1081–1085. [Google Scholar] [CrossRef]
  12. Elenbaas, B.; Dobbelstein, M.; Roth, J.; Shenk, T.; Levine, A.J. The MDM2 oncoprotein binds specifically to RNA through its RING finger domain. Mol. Med. 1996, 2, 439–451. [Google Scholar] [CrossRef] [Green Version]
  13. Eklund, D.M.; Ståldal, V.; Valsecchi, I.; Cierlik, I.; Eriksson, C.; Hiratsu, K.; Takagi, M.O.; Sundström, J.F.; Thelander, M.; Ezcurra, I.; et al. The Arabidopsis thaliana STYLISH1 protein acts as a transcriptional activator regulating auxin biosynthesis. Plant Cell 2010, 22, 349–363. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Kuusk, S.; Sohlberg, J.J.; Long, J.A.; Fridborg, I.; Sundberg, E. STY1 and STY2 promote the formation of apical tissues during Arabidopsis gynoecium development. Development 2002, 129, 4707–4717. [Google Scholar] [CrossRef]
  15. Gomariz-Fernandez, A.; Sanchez-Gerschon, V.; Fourquin, C.; Ferrandiz, C. The role of SHI/STY/SRS genes in organ growth and carpel development is conserved in the distant eudicot species Arabidopsis thaliana and Nicotiana benthamiana. Front. Plant Sci. 2017, 8, 814. [Google Scholar] [CrossRef] [Green Version]
  16. Singh, S.; Yadav, S.; Singh, A.; Mahima, M.; Singh, A.; Gautam, V.; Sarkar, A.K. Auxin signaling modulates LATERAL ROOT PRIMORDIUM1 (LRP1) expression during lateral root development in Arabidopsis. Plant J. 2020, 101, 87–100. [Google Scholar] [CrossRef] [PubMed]
  17. Zhao, S.P.; Song, X.Y.; Guo, L.L.; Zhang, X.Z.; Zheng, W.J. Genome-wide analysis of the Shi-related sequence family and functional identification of GmSRS18 involving in drought and salt stresses in soybean. Int. J. Mol. Sci. 2020, 21, 1810. [Google Scholar] [CrossRef] [Green Version]
  18. Kuusk, S.; Sohlberg, J.J.; Magnus Eklund, D.; Sundberg, E. Functionally redundant SHI family genes regulate Arabidopsis gynoecium development in a dose-dependent manner. Plant J. 2006, 47, 99–111. [Google Scholar] [CrossRef]
  19. Smith, D.L.; Fedoroff, N.V. LRP1, a gene expressed in lateral and adventitious root primordia of Arabidopsis. Plant Cell 1995, 7, 735–745. [Google Scholar] [PubMed]
  20. Kim, S.G.; Lee, S.; Kim, Y.S.; Yun, D.J.; Woo, J.C.; Park, C.M. Activation tagging of an Arabidopsis SHI-RELATED SEQUENCE gene produces abnormal anther dehiscence and floral development. Plant Mol. Biol. 2010, 74, 337–351. [Google Scholar] [CrossRef]
  21. Yuan, T.T.; Xu, H.H.; Li, J.; Lu, Y.T. Auxin abolishes SHI-RELATED SEQUENCE5-mediated inhibition of lateral root development in Arabidopsis. New Phytol. 2020, 225, 297–309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Yuan, T.T.; Xu, H.H.; Zhang, Q.; Zhang, L.Y.; Lu, Y.T. The COP1 target SHI-RELATED SEQUENCE5 directly activates photomorphogenesis-promoting genes. Plant Cell 2018, 30, 2368–2382. [Google Scholar] [CrossRef] [Green Version]
  23. Hossain, M.S.; Shrestha, A.; Zhong, S.; Miri, M.; Austin, R.S.; Sato, S.; Ross, L.; Huebert, T.; Tromas, A.; Torres-Jerez, I.; et al. Lotus japonicus NF-YA1 plays an essential role during nodule differentiation and targets members of the SHI/STY gene family. Mol. Plant-Microbe Interact. 2016, 29, 950–964. [Google Scholar] [CrossRef] [Green Version]
  24. Zhang, Y.; von Behrens, I.; Zimmermann, R.; Ludwig, Y.; Hey, S.; Hochholdinger, F. LATERAL ROOT PRIMORDIA 1 of maize acts as a transcriptional activator in auxin signalling downstream of the Aux/IAA gene rootless with undetectable meristem 1. J. Exp. Bot. 2015, 66, 3855–3863. [Google Scholar] [CrossRef] [Green Version]
  25. Yuo, T.; Yamashita, Y.; Kanamori, H.; Matsumoto, T.; Lundqvist, U.; Sato, K.; Ichii, M.; Jobling, S.A.; Taketa, S. A SHORT INTERNODES (SHI) family transcription factor gene regulates awn elongation and pistil morphology in barley. J. Exp. Bot. 2012, 63, 5223–5232. [Google Scholar] [CrossRef] [Green Version]
  26. Youssef, H.M.; Eggert, K.; Koppolu, R.; Alqudah, A.M.; Poursarebani, N.; Fazeli, A.; Sakuma, S.; Tagiri, A.; Rutten, T.; Govind, G.; et al. VRS2 regulates hormone-mediated inflorescence patterning in barley. Nat. Genet. 2017, 49, 157–161. [Google Scholar] [CrossRef]
  27. Yang, Y.; Qi, L.; Nian, L.; Zhu, X.; Yi, X.; Jiyu, Z.; Qiu, J. Genome-wide identification and expression analysis of the SRS gene family in Medicago sativa. DNA Cell Biol. 2021, 40, 1539–1553. [Google Scholar] [CrossRef]
  28. Ma, B.; Nian, L.; Ain, N.U.; Liu, X.; Yang, Y.; Zhu, X.; Haider, F.U.; Lv, Y.; Bai, P.; Zhang, X.; et al. Genome-wide identification and expression profiling of the SRS gene family in Melilotus albus reveals functions in various stress conditions. Plants 2022, 11, 3101. [Google Scholar] [CrossRef] [PubMed]
  29. Yang, J.; Xu, P.; Yu, D. Genome-wide identification and characterization of the SHI-related sequence gene family in rice. Evol. Bioinform. 2020, 16, 1176934320941495. [Google Scholar] [CrossRef] [PubMed]
  30. He, B.; Shi, P.; Lv, Y.; Gao, Z.; Chen, G. Gene coexpression network analysis reveals the role of SRS genes in senescence leaf of maize (Zea mays L.). J. Genet. 2020, 99, 3. [Google Scholar] [CrossRef]
  31. Büyük, İ.; Okay, A.; Aras, S. Identification and characterization of SRS genes in Phaseolus vulgaris genome and their responses under salt stress. Biochem. Genet. 2022, 60, 482–503. [Google Scholar] [CrossRef] [PubMed]
  32. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  33. Aron, M.B.; Bo, Y.; Han, L.; He, J.; Lanczycki, C.J.; Lu, S.; Chitsaz, F.; Derbyshire, M.K.; Geer, R.C.; Gonzales, N.R.; et al. CDD/SPARCLE: Functional classification of proteins via subfamily domain architectures. Nucleic Acids Res. 2017, 45, D200–D203. [Google Scholar]
  34. Letunic, I.; Bork, P. 20 years of the SMART protein domain annotation resource. Nucleic Acids Res. 2018, 46, D493–D496. [Google Scholar] [CrossRef] [PubMed]
  35. Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H. Clustal W and clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Kumar, S.; Gadagkar, S.R. Efficiency of the neighbor-joining method in reconstructing deep and shallow evolutionary relationships in large phylogenies. J. Mol. Evol. 2000, 51, 544. [Google Scholar] [CrossRef] [Green Version]
  37. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  38. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  39. Zhang, H.; Gao, S.; Lercher, M.J.; Hu, S.; Chen, W.H. EvolView, an online tool for visualizing, annotating and managing phylogenetic trees. Nucleic Acids Res. 2012, 40, W569–W572. [Google Scholar] [CrossRef]
  40. Gasteiger, E.; Gattiker, A.; Hoogland, C.; Ivanyi, I.; Appel, R.D.; Bairoch, A. ExPASy: The proteomics server for in-depth protein knowledge and analysis. Nucleic Acids Res. 2003, 31, 3784–3788. [Google Scholar] [CrossRef] [Green Version]
  41. Horton, P.; Park, K.J.; Obayashi, T.; Fujita, N.; Harada, H.; Adams-Collier, C.J.; Nakai, K. WoLF PSORT: Protein localization predictor. Nucleic Acids Res. 2007, 35, W585–W587. [Google Scholar] [CrossRef] [Green Version]
  42. Hu, B.; Jin, J.; Guo, A.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [Green Version]
  43. Bailey, T.L.; Johnson, J.; Grant, C.E.; Noble, W.S. The MEME Suite. Nucleic Acids Res. 2015, 43, W39–W49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Szklarczyk, D.; Franceschini, A.; Wyder, S.; Forslund, K.; Heller, D.; Huerta-Cepas, J.; Simonovic, M.; Roth, A.; Santos, A.; Tsafou, K.P.; et al. STRING v10: Protein-protein interaction networks, integrated over the tree of life. Nucleic Acids Res. 2015, 43, D447–D452. [Google Scholar] [CrossRef]
  45. Franceschini, A.; Szklarczyk, D.; Frankild, S.; Kuhn, M.; Simonovic, M.; Roth, A.; Lin, J.; Minguez, P.; Bork, P.; von Mering, C.; et al. STRING v9.1: Protein-protein interaction networks, with increased coverage and integration. Nucleic Acids Res. 2013, 41, D808–D815. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van, P.Y.; Rouzé, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef]
  47. Zheng, L.; Wan, Q.; Wang, H.; Guo, C.; Niu, X.; Zhang, X.; Zhang, R.; Chen, Y.; Luo, K. Genome-wide identification and expression of TIFY family in cassava (Manihot esculenta Crantz). Front. Plant Sci. 2022, 13, 1017840. [Google Scholar] [CrossRef]
  48. Cao, M.; Zheng, L.; Li, J.; Mao, Y.; Zhang, R.; Niu, X.; Geng, M.; Zhang, X.; Huang, W.; Luo, K.; et al. Transcriptomic profiling suggests candidate molecular responses to waterlogging in cassava. PLoS ONE 2022, 17, e0261086. [Google Scholar] [CrossRef] [PubMed]
  49. Schmittgen, T.D.; Livak, K.J. Analyzing real-time PCR data by the comparative CT method. Nat. Protoc. 2008, 3, 1101–1108. [Google Scholar] [CrossRef]
  50. Eklund, D.M.; Cierlik, I.; Staldal, V.; Claes, A.R.; Vestman, D.; Chandler, J.; Sundberg, E. Expression of Arabidopsis SHORT INTERNODES/STYLISH family genes in auxin biosynthesis zones of aerial organs is dependent on a GCC box-like regulatory. Plant Physiol. 2011, 157, 2069–2080. [Google Scholar] [CrossRef] [Green Version]
  51. Staldal, V.; Cierlik, I.; Chen, S.; Landberg, K.; Baylis, T.; Myrenas, M.; Sundström, J.F.; Eklund, D.M.; Ljung, K.; Sundberg, E. The Arabidopsis thaliana transcriptional activator STYLISH1 regulates genes affecting stamen development, cell expansion and timing of flowering. Plant Mol. Biol. 2012, 78, 545–559. [Google Scholar] [CrossRef]
  52. Zawaski, C.; Kadmiel, M.; Ma, C.; Gai, Y.; Jiang, X.; Strauss, S.H.; Busov, V.B. SHORT INTERNODES-like genes regulate shoot growth and xylem proliferation in Populus. New Phytol. 2011, 191, 678–691. [Google Scholar] [CrossRef]
  53. Flagel, L.E.; Wendel, J.F. Gene duplication and evolutionary novelty in plants. New Phytol. 2009, 183, 557–564. [Google Scholar] [CrossRef] [PubMed]
  54. Christiaens, J.F.; Van Mulders, S.E.; Duitama, J.; Brown, C.A.; Ghequire, M.G.; De Meester, L.; Michiels, J.; Wenseleers, T.; Voordeckers, K.; Verstrepen, K.J. Functional divergence of gene duplicates through ectopic recombination. EMBO Rep. 2012, 13, 1145–1151. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Abe, H.; Urao, T.; Ito, T.; Seki, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Arabidopsis AtMYC2 (bHLH) and AtMYB2 (MYB) function as transcriptional activators in abscisic acid signaling. Plant Cell 2003, 15, 63–78. [Google Scholar] [CrossRef] [Green Version]
  56. Narusaka, Y.; Nakashima, K.; Shinwari, Z.K.; Sakuma, Y.; Furihata, T.; Abe, H.; Narusaka, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Interaction between two cis-acting elements, ABRE and DRE, in ABA-dependent expression of Arabidopsis Rd29A gene in response to dehydration and high-salinity stresses. Plant J. 2003, 34, 137–148. [Google Scholar] [CrossRef]
  57. Feng, H.L.; Ma, N.N.; Meng, X.; Zhang, S.; Wang, J.R.; Chai, S.; Meng, Q.W. A novel tomato MYC-type ICE1-like transcription factor, SlICE1a, confers cold, osmotic and salt tolerance in transgenic tobacco. Plant Physiol. Biochem. 2013, 73, 309–320. [Google Scholar] [CrossRef]
  58. Strygina, K.V.; Khlestkina, E.K. Myc-like transcriptional factors in wheat: Structural and functional organization of the subfamily I members. BMC Plant Biol. 2019, 19 (Suppl. 1), 50. [Google Scholar] [CrossRef]
  59. Richly, E.; Kurth, J.; Leister, D. Mode of amplification and reorganization of resistance genes during recent Arabidopsis thaliana evolution. Mol. Biol. Evol. 2002, 19, 76–84. [Google Scholar] [CrossRef] [Green Version]
  60. Mohr, T.J.; Mammarella, N.D.; Hoff, T.; Woffenden, B.J.; Jelesko, J.G.; McDowell, J.M. The Arabidopsis downy mildew resistance gene RPP8 is induced by pathogens and salicylic acid and is regulated by W Box cis elements. Mol. Plant-Microbe Interact. 2010, 23, 1303–1315. [Google Scholar] [CrossRef] [Green Version]
  61. Liu, Z.Q.; Shi, L.P.; Yang, S.; Qiu, S.S.; Ma, X.L.; Cai, J.S.; Guan, D.Y.; Wang, Z.H.; He, S.L. A conserved double-W box in the promoter of CaWRKY40 mediates autoregulation during response to pathogen attack and heat stress in pepper. Mol. Plant Pathol. 2021, 22, 3–18. [Google Scholar] [CrossRef] [PubMed]
  62. Santner, A.; Estelle, M. Recent advances and emerging trends in plant hormone signalling. Nature 2009, 459, 1071. [Google Scholar] [CrossRef] [PubMed]
  63. Singh, K.; Foley, R.C.; Oñate-Sánchez, L. Transcription factors in plant defense and stress responses. Curr. Opin. Plant Biol. 2002, 5, 430–436. [Google Scholar] [CrossRef] [PubMed]
  64. Amorim, L.L.B.; da Fonseca Dos Santos, R.; Neto, J.P.B.; Guida-Santos, M.; Crovella, S.; Benko-Iseppon, A.M. Transcription factors involved in plant resistance to pathogens. Curr. Protein Pept. Sci. 2017, 18, 335–351. [Google Scholar] [CrossRef]
  65. Jiang, J.; Ma, S.; Ye, N.; Jiang, M.; Cao, J.; Zhang, J. WRKY transcription factors in plant responses to stresses. J. Integr. Plant Biol. 2017, 59, 86–101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Manna, M.; Thakur, T.; Chirom, O.; Mandlik, R.; Deshmukh, R.; Salvi, P. Transcription factors as key molecular target to strengthen the drought stress tolerance in plants. Physiol. Plant 2021, 172, 847–868. [Google Scholar] [CrossRef]
Genes 14 00870 g001 550

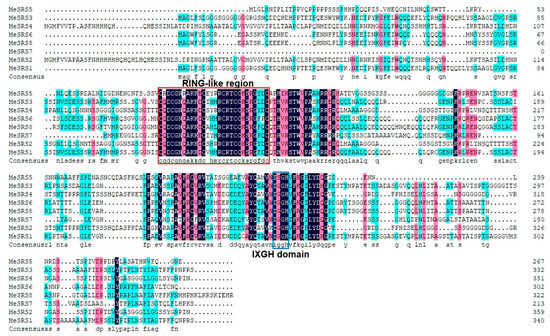

Figure 1. Multiple sequence alignments of MeSRS proteins. The RING-like region (CX2CX7CX4CX2CX7C) and the IXGH domain are marked by the red and blue boxes, respectively.
Figure 1. Multiple sequence alignments of MeSRS proteins. The RING-like region (CX2CX7CX4CX2CX7C) and the IXGH domain are marked by the red and blue boxes, respectively.
Genes 14 00870 g001
Genes 14 00870 g002 550

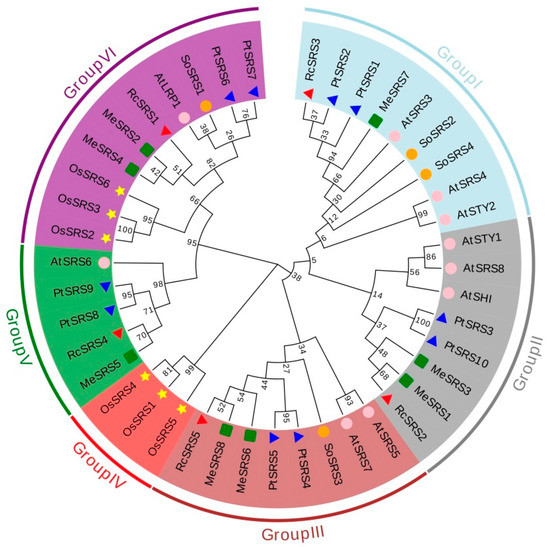

Figure 2. Phylogenetic analysis of SRS proteins in six plant species. Unrooted phylogenetic tree of plant SRS proteins was constructed using the neighbor-joining (NJ) method with 1000 bootstrap value. Different groups were distinguished by different colors, and the SRS proteins from different plant species were marked by different color and shape. Me, Manihot esculanta Crantz; At, Arabidopsis thaliana; Os, Oryza sativa; So, Spinacia oleracea, Pt, Populus trichocarpa; Rc, Ricinus communis. The accession numbers and protein sequences of all SRS genes used in the present study are listed in Table S2.
Figure 2. Phylogenetic analysis of SRS proteins in six plant species. Unrooted phylogenetic tree of plant SRS proteins was constructed using the neighbor-joining (NJ) method with 1000 bootstrap value. Different groups were distinguished by different colors, and the SRS proteins from different plant species were marked by different color and shape. Me, Manihot esculanta Crantz; At, Arabidopsis thaliana; Os, Oryza sativa; So, Spinacia oleracea, Pt, Populus trichocarpa; Rc, Ricinus communis. The accession numbers and protein sequences of all SRS genes used in the present study are listed in Table S2.
Genes 14 00870 g002
Genes 14 00870 g003 550

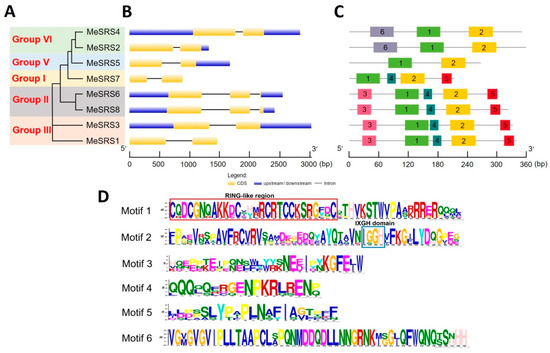

Figure 3. Phylogenetic relationship, gene structure, and protein motif analysis of MeSRS family members. (A) Phylogenetic tree of MeSRS proteins was constructed by the neighbor-joining (NJ) method with 1000 bootstrap values. (B) Exon–intron organization of MeSRS genes, using the GSDS program. CDS, upstream/downstream and introns are shown. (C) Distribution of the conserved motifs. Conserved motifs in the MeSRS proteins were identified by MEME software. Gray lines represent the non-conserved sequences, and different colored boxes represent each motif. (D) The logo map of conserved sequences of six putative motifs of the MeSRS protein. The conserved RING-like region (CX2CX7CX4CX2CX7C) and the IXGH domain are marked by the red and blue boxes, respectively.
Figure 3. Phylogenetic relationship, gene structure, and protein motif analysis of MeSRS family members. (A) Phylogenetic tree of MeSRS proteins was constructed by the neighbor-joining (NJ) method with 1000 bootstrap values. (B) Exon–intron organization of MeSRS genes, using the GSDS program. CDS, upstream/downstream and introns are shown. (C) Distribution of the conserved motifs. Conserved motifs in the MeSRS proteins were identified by MEME software. Gray lines represent the non-conserved sequences, and different colored boxes represent each motif. (D) The logo map of conserved sequences of six putative motifs of the MeSRS protein. The conserved RING-like region (CX2CX7CX4CX2CX7C) and the IXGH domain are marked by the red and blue boxes, respectively.
Genes 14 00870 g003
Genes 14 00870 g004 550

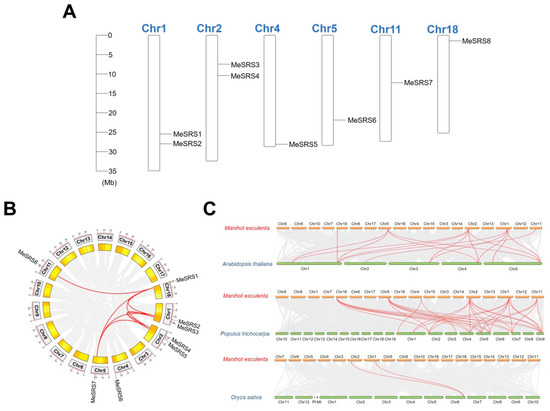

Figure 4. Mapping and synteny analysis of MeSRS genes. (A) Illustrative diagram of chromosomal distribution of MeSRS genes. The chromosome number is indicated above each bar, and the scale on the left is in megabases (Mb). The chromosome size is indicated by its relative length using the information from GFF3. (B) CIRCOS figure of MeSRS genes. The gray line in the background indicates a collinear block in the genome of cassava, while the red line highlights the isomorphic gene pair. The chromosome number is indicated in each chromosome. (C) Syntenic relationships between MeSRS genes in cassava with other SRS genes in three other representative plant species. Gray lines in the background indicate the collinear blocks within cassava and other plant genomes. Red lines in highlight indicate the syntenic SRS gene pairs.
Figure 4. Mapping and synteny analysis of MeSRS genes. (A) Illustrative diagram of chromosomal distribution of MeSRS genes. The chromosome number is indicated above each bar, and the scale on the left is in megabases (Mb). The chromosome size is indicated by its relative length using the information from GFF3. (B) CIRCOS figure of MeSRS genes. The gray line in the background indicates a collinear block in the genome of cassava, while the red line highlights the isomorphic gene pair. The chromosome number is indicated in each chromosome. (C) Syntenic relationships between MeSRS genes in cassava with other SRS genes in three other representative plant species. Gray lines in the background indicate the collinear blocks within cassava and other plant genomes. Red lines in highlight indicate the syntenic SRS gene pairs.
Genes 14 00870 g004
Genes 14 00870 g005 550

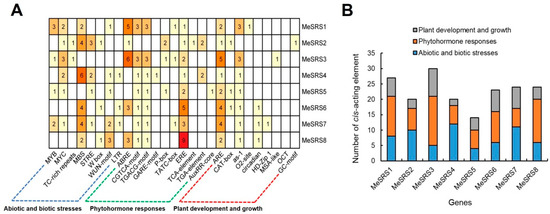

Figure 5. Analysis of cis-acting elements in MeSRS genes. (A) Different colors and numbers on the grid indicate numbers of different cis-acting elements in each MeSRS gene. (B) Different colors on the histograms represent the sum of the cis-acting elements in each category.
Figure 5. Analysis of cis-acting elements in MeSRS genes. (A) Different colors and numbers on the grid indicate numbers of different cis-acting elements in each MeSRS gene. (B) Different colors on the histograms represent the sum of the cis-acting elements in each category.
Genes 14 00870 g005
Genes 14 00870 g006 550

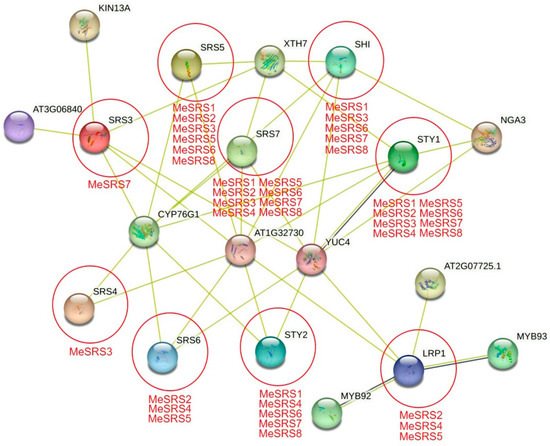

Figure 6. Protein–protein interaction network of MeSRS proteins based on their orthologs in Arabidopsis. The color scales represent the relative signal intensity scores.
Figure 6. Protein–protein interaction network of MeSRS proteins based on their orthologs in Arabidopsis. The color scales represent the relative signal intensity scores.
Genes 14 00870 g006
Genes 14 00870 g007 550

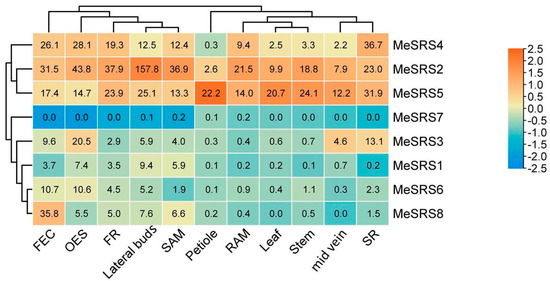

Figure 7. The expression profiles of MeSRS genes in various cassava tissues. Colors from red to blue indicate high to low expressions. FEC, OES, FR, SAM, RAM, and SR represent friable embryogenic callus, organized embryogenic structures, fibrous root, shoot apical meristem, root apical meristem, and storage root, respectively.
Figure 7. The expression profiles of MeSRS genes in various cassava tissues. Colors from red to blue indicate high to low expressions. FEC, OES, FR, SAM, RAM, and SR represent friable embryogenic callus, organized embryogenic structures, fibrous root, shoot apical meristem, root apical meristem, and storage root, respectively.
Genes 14 00870 g007
Genes 14 00870 g008 550

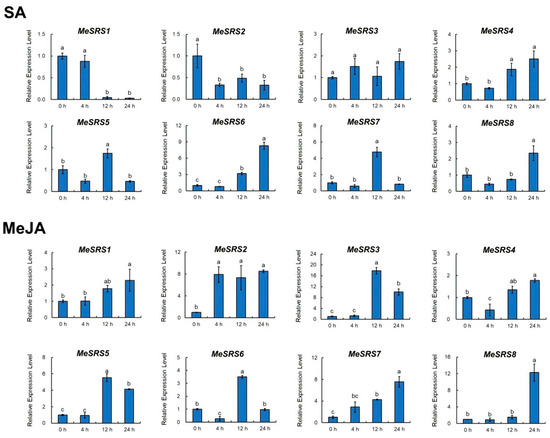

Figure 8. Expression profiles of MeSRS genes under phytohormone treatment in cassava as determined by qRT-PCR. The error bars represent the standard error of the means of three independent replicates. Values denoted by the same letter did not differ significantly at p < 0.05 according to Duncan’s multiple range tests.
Figure 8. Expression profiles of MeSRS genes under phytohormone treatment in cassava as determined by qRT-PCR. The error bars represent the standard error of the means of three independent replicates. Values denoted by the same letter did not differ significantly at p < 0.05 according to Duncan’s multiple range tests.
Genes 14 00870 g008
Genes 14 00870 g009 550

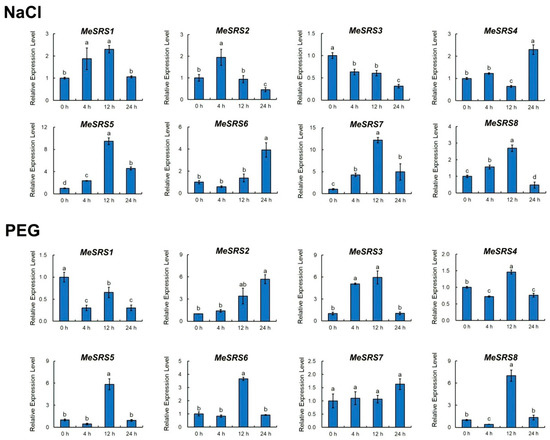

Figure 9. Expression profiles of MeSRS genes under abiotic stress treatment in cassava as determined by qRT-PCR. The error bars represent the standard error of the means of three independent replicates. Values denoted by the same letter did not differ significantly at p < 0.05 according to Duncan’s multiple range tests.
Figure 9. Expression profiles of MeSRS genes under abiotic stress treatment in cassava as determined by qRT-PCR. The error bars represent the standard error of the means of three independent replicates. Values denoted by the same letter did not differ significantly at p < 0.05 according to Duncan’s multiple range tests.
Genes 14 00870 g009
Table
Table 1. Basic information on SRS family in cassava.
Table 1. Basic information on SRS family in cassava.
Gene NameTranscript NameLocation Coordinates (5′–3′)Full CDS Length (bp)ProteinSublocation
(WoLF)
Protein Length (a.a.)MW (kDa)pIGRAVY
MeSRS1Manes.01G141500.1Chr01:25446260..25447722 forward102334036.347.53−0.60Nucleus
MeSRS2Manes.01G179500.1Chr01:27965586..27966905 forward108035937.228.71−0.56Endoplasmic reticulum
MeSRS3Manes.02G100100.1Chr02:7467865..7470885 forward99933235.516.44−0.55Nucleus
MeSRS4Manes.02G140000.1Chr02:10395124..10397959 forward105635136.507.23−0.53Nucleus
MeSRS5Manes.04G159200.1Chr04:28097243..28098912 reverse80426729.007.56−0.71Nucleus
MeSRS6Manes.05G153200.1Chr05:21854523..21857069 forward90930233.406.13−0.79Nucleus
MeSRS7Manes.11G087500.1Chr11:12235314..12236199 reverse64221323.058.98−0.35Nucleus
MeSRS8Manes.18G018200.1Chr18:1442270..1444681 forward97232335.978.93−0.79Nucleus
Table
Table 2. The duplication events of MeSRS genes identified in cassava.
Table 2. The duplication events of MeSRS genes identified in cassava.
Sequence 1Sequence 2KaKsKa/KsDuplication Type
MeSRS1MeSRS80.2321.6140.144Segmental
MeSRS1MeSRS30.0710.2990.238Segmental
MeSRS1MeSRS60.2511.9640.128Segmental
MeSRS2MeSRS40.0600.3530.169Segmental
MeSRS3MeSRS60.2681.9190.140Segmental
MeSRS7MeSRS80.3581.2460.287Segmental
MeSRS8MeSRS30.2761.3060.211Segmental
MeSRS8MeSRS60.0740.2720.273Segmental
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Huang, H.; Song, J.; Feng, Y.; Zheng, L.; Chen, Y.; Luo, K. Genome-Wide Identification and Expression Analysis of the SHI-Related Sequence Family in Cassava. Genes 2023, 14, 870. https://doi.org/10.3390/genes14040870

AMA Style

Huang H, Song J, Feng Y, Zheng L, Chen Y, Luo K. Genome-Wide Identification and Expression Analysis of the SHI-Related Sequence Family in Cassava. Genes. 2023; 14(4):870. https://doi.org/10.3390/genes14040870

Chicago/Turabian Style

Huang, Huling, Jiming Song, Yating Feng, Linling Zheng, Yinhua Chen, and Kai Luo. 2023. "Genome-Wide Identification and Expression Analysis of the SHI-Related Sequence Family in Cassava" Genes 14, no. 4: 870. https://doi.org/10.3390/genes14040870

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
