Two Ways to Quantify Korean Drought Frequency: Partial Duration Series and Bivariate Exponential Distribution, and Application to Climate Change

Abstract

Studies using drought index to examine return levels of drought can be classified into two approaches: univariate frequency analysis using annual series extracted from drought index time series and multivariate frequency analysis that simultaneously reflects various characteristics of drought. In the case of drought analysis, it is important to properly consider the duration, so, in this study, univariate frequency analysis is performed using the partial duration series. In addition, a bivariate frequency analysis is performed using a relatively simple bivariate exponential distribution to give a more realistic return level to major drought events in the past while reflecting the correlation between drought severities and durations. The drought severity–duration–frequency curves using each of the two frequency analyses are derived, and these curves are used to examine how the drought phenomenon currently in progress is evolving. From this, the advantages and disadvantages of the two approaches, as well as the points to be aware of in application, are discussed. Finally, using the two approaches to the proposed drought frequency analysis, the behavior of Korea’s future extreme droughts is investigated under the conditions of various future climate change scenarios.

1. Introduction

Unlike flooding, drought is difficult to quantify since it occurs over a large area over a relatively long period of time. Even if one wants to look at the characteristics of a drought at a particular site, various characterizations should be involved: identification of drought events including the start and end times of drought, the duration of drought events, the cumulative or averaged drought severity during the duration of the drought, and many others. Therefore, it is very difficult to quantify drought by reflecting them properly. The most common method of quantifying drought is to use a drought index. Various drought indices have been developed by using factors such as precipitation, evapotranspiration, soil moisture, reservoir storage, and river flow rate in accordance with the purpose of use [1].

Studies examining the return level of drought from the drought index can be broadly classified into two approaches. The first is an approach that extracts an annual maximum (or minimum) series (AMS) from the drought index time series and analyzes the univariate frequency. The second is an approach that performs multivariate frequency analysis by simultaneously reflecting various characteristics of drought events [2]. Yoo and Kim [3] derived SDF (drought severity-duration-frequency) curves using the method of applying SPI (standardized precipitation index, [4]) to the Poisson rectangular plus point rainfall model under the assumption that drought severity and duration are independent of each other. Then, Kim and Yoo [5] analyzed the spatial distribution characteristics of drought severity in Korea using the method proposed by Yoo and Kim [3]. A variety of previous studies using univariate frequency analysis can be found worldwide. Ghosh and Mujumdar [6] projected India’s future 10-year drought using a 12-month time scale SPI. Lehner et al. [7] suggested a drought severity corresponding to a return level of 100-year using the log-Pearson type 3 distribution. Mishra and Singh [8] performed frequency analysis using the Gumbel distribution from the SPI time series. Vidal and Wade [9] studied changes in the future drought severity using SPIs of various time scales. Lee and Kim [10] derived SDF curves by extracting drought severity AMS for various durations and then performing frequency analysis for each duration. Kang and Moon [11] derived SDF curves in the northern part of the Korean Peninsula in a similar way. Kim et al. [12] analyzed changes in the future drought severity through frequency analysis of the SPI time series, and Park et al. [13] and Kim et al. [14] also examined the future extreme drought using SDF curves derived from SPI’s AMS for various durations. In the above studies, the relationship between drought severity and duration was not specifically treated since the relationship between drought severity and duration was assumed independently, or AMS extracted using different durations were independently analyzed. However, in the above studies, the method of extracting the AMS required to perform the frequency analysis was not clearly described, or in some studies, the method of mechanically extracting the AMS based on the year was taken. Since drought events occur at any time of the year and sometimes occur for a long period of time through several years, the accuracy of frequency analysis depends largely on how AMS for frequency analysis is extracted [15].

In the case of multivariate drought frequency analysis, in particular, quantification of drought using drought severity and duration has been actively conducted. To analyze the two-dimensional probability behavior between drought severity and duration, it is necessary to estimate the joint probability distribution between drought severity and duration, and various studies have been conducted on this [16]. Dalezios et al. [17] performed a drought frequency analysis using the PDSI (Palmer drought severity index, [18]) for the Greek region and analyzed the SDF relationship between the drought period and the wet period. Shiau and Shen [19] attempted to quantify the risk of drought in the study basin by performing a risk analysis for the drought severity using a conditional copula model and then estimating the drought severity for a specific duration. In addition, Shiau [20] applied various two-variable copula for drought severity and duration and performed frequency analysis using a joint distribution and conditional distribution for each copula function. Yeon et al. [21] estimated the return level for major drought events in the past after deriving the joint probability density function between drought severity and duration for the case where the marginal distribution of drought duration and conditional distribution of drought severity were given. Shiau and Modarres [22] attempted to determine the drought situation in the unmeasured basin by developing SDF curves from the drought severity and duration data based on the copula function. Ganguli and Reddy [23] also estimated the risk of drought using conditional return levels, and Mirabbasi et al. [24] constructed an optimal copula model for the severity and duration of the drought through error analysis and the analysis of the dependency of the tail and performed a bivariate drought frequency analysis. Chen et al. [25] performed multivariate frequency analysis by applying the minimum value of the drought index and the time of drought to the copula function as well as the drought severity and duration, and Halwatura et al. [26] used SDF curves to investigate the applicability of rapid drought situation determination and probability drought mapping. Chun et al. [27] analyzed the frequency of drought using the hidden Markov chain model and the bivariate (drought severity and duration) copula function, and Kim et al. [28] performed drought frequency analysis using a trivariate copula function including cumulative drought severity in addition to the average drought severity and duration. In addition, since the three-dimensional shape of the bivariate joint distribution using the copula function decreases practical intuition, Yu et al. [29] calculated the conditional probability distribution function for each duration from the copula function and proposed the concept of threshold drought severity for non-excess probability. Kwon et al. [30] also performed bivariate drought frequency analysis using the copula function for SPI and precipitation deficit. In most studies, bivariate frequency analysis was performed using drought severity and duration, and it can be seen that copula functions are generally used to estimate the probability distribution. This is because the copula function can well reflect the correlation between hydrological variables [31]. However, in order to use the copula function, a number of drought events sample data representing various drought severities and various durations observed over a relatively long period of time should be secured. Therefore, when the number of drought events used in the analysis is only a few tens, it is difficult to secure the reliability of the result. In particular, SDF curves derived by using the copula function from drought events that occurred during observation periods of less than 40 years were found to estimate the return level of major drought events in the past, going back at least 200 years and up to 5000 years or more.

In this study, we tried to quantify the frequency of drought using two approaches: univariate frequency analysis and bivariate frequency analysis. In the case of univariate frequency analysis, partial duration series (PDS) for each duration was extracted from the SPI time series using the method proposed by Stall [32], which is applied to the low flow rate analysis of reservoir inflow. In the case of the bivariate frequency analysis, in order to reflect the correlation between the drought severity and the duration and, at the same time, to give a more realistic return level to the major drought events in the past, the joint probability density function between drought severity and duration was constructed using a relatively simple bivariate exponential distribution. The temporal behavior of past drought events was examined using SDF curves derived from two approaches. We also investigated whether the induced SDF curves can be used as a tool to quantitatively recognize the progress of drought when a drought event occurs. From this, the advantages and disadvantages of applying the two approaches and the considerations to be taken in application were discussed. Finally, the behavior of future extreme droughts was analyzed under the conditions of future climate change scenarios using two quantification methods of drought frequency analysis.

2. Methods

2.1. Data

The data used in this study are monthly precipitation data from the Daeghwanryeong site, Mokpo site, Namhae site, and Seosan site operated by the KMA (Korea Meteorological Administration). The data period of selected sites is 38 years from 1981 to 2018, and the SPI time series with a 6-month time scale for 37 years from 1982 to 2018 was analyzed. The locations of the four sites applied are shown in Figure 1.

In this study, SPI was applied as the drought index. SPI is one of the most widely used drought indices, due to its simple calculation procedure using only precipitation and its advantages for reflecting regional characteristics [33]. SPI is derived from the probability distribution function, which explains precipitation data well. The value of SPI is quantified to the extent that the observed precipitation deviates from the long-term average. Among the SPIs of various time scales, a 6-month time scale SPI that superimposes the attributes of short-term and long-term drought was used for analysis. In Korea, rainfall is mainly concentrated in the summer months, and rain during this period affects the spring of the following year, so cumulative rainfall over a period of six months, which is relatively long compared to other countries, is used for drought management [10]. KMA’s drought warning is also performed using a 6-month time scale SPI. The probability distribution for SPI calculation was applied to the two-parameter Gamma distribution used as a standard in Korea [34], and the parameters were estimated by the L-moment method [35]. Figure 2 shows the SPI time series at selected sites. Since the drought is a negative SPI, the sign of the SPI is changed for frequency analysis to convert the positive to a drought.

Figure 2 shows representative past drought events that occurred in Korea in 1984, 1988, 1994–1995, 2000, 2001, 2014–2015, and 2017. Even relatively recently, it can be found that Korea has experienced drought.

2.2. Partial Duration Series

For univariate frequency analysis, AMS should be extracted from monthly SPI time series. When estimating design rainfall depth using the block maxima approach, AMS for each duration is extracted from rainfall data. However, in the case of drought analysis, it is very important to properly consider the duration, so the extraction of AMS is not simple. In this study, the PDS for each duration was extracted from the SPI time series by the following procedure using the method proposed by Stall [32], which is applied to the low flow rate analysis of the reservoir inflow:

• Obtain a moving average time series, $\mathrm{B}$, for each duration from the monthly SPI time series, $\mathrm{A}$.
• The smallest sample in time series $\mathrm{B}$ is selected first, and the selected sample is deleted. Then, the sample series as many as the number of months of the duration before and after the deleted sample is deleted to form a time series $\mathrm{C}$.
• The smallest sample among time series $\mathrm{C}$ is selected as the second rank, and the selected sample is deleted. Then, samples as many as the number of months in the duration before and after the deleted sample are deleted to form a new time series $\mathrm{D}$.
• Create a PDS by repeating this procedure and selecting the smallest samples.

The number of PDS samples cannot exceed the observed number of years, and if the value of the selected sample is greater than zero, the iterative process is stopped. Therefore, the maximum number of PDS samples will be the number of years observed, and if the duration is long, the number of samples may be less than the number of years observed. When estimating the return level of drought severity, the number of PDS samples should be considered. The return level of drought severity $s$ and duration $d$ of PDS can be estimated as follows:

$$T_r\left(s,d\right)=\frac{1}{\lambda \left\{1-F\left(s\right)\right\}}$$

(1)

where $\lambda$ is the probability of occurrence of PDS, that is, the number of PDS samples divided by the number of years observed, and $F\left(s\right)$ is the cumulative probability distribution of the drought severity. In this study, $F\left(s\right)$ was applied to the Gumbel distribution whose parameters were estimated by the L-moment method.

2.3. Drought Events

Unlike univariate analysis, it is necessary to define drought events for bivariate analysis. In this study, using the Run theory proposed by Yevjevich [36], the drought event was defined as a period in which the SPI drought criterion of −1 or less was continuous (see Figure 3). That is, the duration $D$ of the drought event means a period in which the SPI below the threshold level is −1. Drought severity denoted by $S$ is the mean value of SPI within the drought duration $D$. For convenience, drought severity $S$ is taken to be positive, which is defined by:

$$S=-\frac{1}{D}{{\displaystyle \sum }}_{i=1}^{D}SP{I}_i-S_{th},$$

(2)

where $S_{th}$ is −1, the threshold level of drought.

2.4. Bivariate Exponential Distribution

For the development of SDF curves considering the correlation between drought severity and duration, the joint probability distribution function (PDF) given by Nagao and Kadoya [37] is employed in this study. Of several types of bivariate exponential distributions that can be found in extensive literature reviews, the Nagao–Kadoya distribution has a general form with marginals that are standard exponential distributions and the correlation coefficient not posing any restrictions on the cross-correlation coefficient [38]. The joint PDF is as follows:

$$f_{S,D}\left(s,d\right)=\frac{\beta \delta }{1-\rho }\exp \left[-\frac{\beta s-\delta d}{1-\rho }\right]\times I_o\left[\frac{2{\left(\rho \beta \delta sd\right)}^{1/2}}{1-\rho }\right]$$

(3)

where $\mathrm{s}$ is the mean severity of drought event, $\mathrm{d}$ is the duration of drought event, $\mathsf{\beta }$ is the reciprocal of the expected value of $\mathrm{s}$, $\mathsf{\delta }$ is the reciprocal of the expected value of $\mathrm{d}$, $\mathsf{\rho }$ is the cross-correlation coefficient of $\mathrm{s}$ and $\mathrm{d}$, and the function $I_o$() is the Bessel function of the first kind with the order zero. The PDF introduced by Nagao and Kadoya [37] in Equation (3) was used by Cordova and Rodriguez-Iturbe [39] and Goel et al. [40] in their study of the probabilistic structure of storm surface runoff to account for correlation between rainfall intensity and duration. Ashkar et al. [41] also used this PDF to investigate the relation of the volume and duration of low-flow events in river channels to manage water resources and design hydraulic structures.

The joint return period $T_r\left(s,d\right)$ of the drought event $\left(s,d\right)$ can be defined as follows:

$$T_r\left(s,d\right)=\frac{1}{\lambda \left\{1-F\left(s,d\right)\right\}}$$

(4)

where $F\left(s,d\right)$ is the conditional non-exceedance probability when a drought event occurs, and can be defined as $F\left(s,d\right)=\mathrm{Pr}\left[S\le sorD\le d\right]$, and $\mathsf{\lambda }$ is the probability of a drought event occurring in a certain year. Equation (4) represents the return level when either s or d or both are exceeded ($S>s$, or $D>d$, or $S>s$ and $D>d$). In the univariate frequency analysis, the return level can be estimated using the non-exceedance probability. However, since the drought event is expressed by the mean drought severity and the duration in the bivariate frequency analysis, an estimation method of the return level which considers both variables simultaneously is required. Hence, the joint return level of the drought event ($S>s$ & $D>d$, i.e., both $s$ and $d$ are exceeded) can be defined as follows:

$$T_r^e\left(s,d\right)=\frac{1}{F_e\left(s,d\right)}$$

(5)

where $F_e\left(s,d\right)$ is the exceedance probability, and is defined as follows:

$$\begin{array}{cc}\hfill F_e\left(s,d\right)& =\lambda \times \mathrm{Pr}\left[S>s\&D>d\right]\hfill \\ \hfill & =\lambda {{\displaystyle \int }}_s^{\infty }{{\displaystyle \int }}_d^{\infty }{f}_{S,D}\left(s,d\right)dd\mathrm{ds}\hfill \end{array}$$

(6)

3. Results

3.1. Frequency Analysis Using Partial Duration Series

Table 1. Number of partial duration series.

	Site	Daeghwanryeong	Mokpo	Namhae	Seosan
Duration
1 month		37	37	37	37
2 months		37	37	37	37
3 months		37	37	37	37
4 months		37	37	37	37
5 months		37	37	37	37
6 months		36	34	37	36
7 months		31	29	31	34
8 months		25	28	26	31
9 months		24	24	23	29
10 months		23	20	20	24
11 months		22	17	20	20
12 months		21	16	17	17

shows the number of PDS samples corresponding to each duration derived using the method proposed by Stall [32]. Up to a 5-month duration, PDS consisting of 37 samples equal to the number of data years could be constructed, but the longer the duration, the smaller the number of PDS samples. This is because, when creating a PDS, samples located before and after the sample selected as a member of the PDS are removed to secure independence between the PDS samples. The number of samples of a 12-month duration PDS at the Mokpo site is 16, which is the smallest number of PDS samples applied. The probability of the occurrence of drought (i.e., $\mathsf{\lambda }$ of Equation (1)) for a duration of 12 months at the Mokpo site is 16/37 = 0.4324, which is the number of PDS samples divided by the number of years observed. The site with the largest number of PDS samples for a 12-month duration is Daeghwanryeong, and the corresponding $\lambda$ is 21/37 = 0.5676. The PDSs from the four sites are shown in Figure S1.

Table 2. Date when the most extreme drought index occurred.

	Site	Daeghwanryeong	Mokpo	Namhae	Seosan
Duration
1 month		May 2001	Apr. 2000	Mar. 1984	May 2001
2 months		May 2001	May 2000	Mar. 1984	Jun. 2017
3 months		Oct. 2015	May 2000	Mar. 1984	Jun. 2017
4 months		Oct. 2015	Dec. 1988	Apr. 1984	Jun. 2017
5 months		Oct. 2015	Dec. 1988	May 1984	Jul. 2017
6 months		Sep. 2014	Sep. 1994	May 1984	Aug. 2017
7 months		Sep. 2014	Sep. 1994	Jun. 1984	Sep. 2017
8 months		Oct. 2014	Sep. 1994	Jul. 1984	Nov. 2017
9 months		Nov. 2014	Oct. 1994	Aug. 1984	Nov. 2017
10 months		Dec. 2014	Feb. 1996	Sep. 1984	Nov. 1988
11 months		Jan. 2015	Feb. 1996	Oct. 1984	Dec. 1988
12 months		Feb. 2015	Feb. 1996	Nov. 1984	Dec. 1988

shows the times when the most severe drought occurred for a specific duration. With a short duration of less than 2 months at Daeghwanryeong site, it was found that the drought was the most severe in the spring of 2001, but, overall, the most severe drought occurred in 2014–2015. At the Mokpo site, the drought was the most severe in the spring of 2000 for short durations of less than 3 months, and the drought was the most severe in 1994–1995 for the longer durations. Drought at the Namhae site was the most severe in 1984, and drought in 1988 and 2017 was the most severe at the Seosan site. Korea has a relatively small land area, but as can be seen from the results of the above four sites, it can be found that the spatial variability of drought is very large. Looking at these results from a different point of view, it can be said that the so-called mega-drought event that swept the whole country has not yet occurred.

The result of fitting a 3-month duration PDS to the Gumbel distribution can be seen in Figure S2. It can be seen that some PDSs follow the Gumbel distribution very well (see Figure S2a,d), while others do not (see Figure S2b,c). However, the results of the goodness-of-fit test showed that it is possible to apply the Gumbel distribution to most PDSs.

Figure 4 shows the SDF curves derived using PDS. It can be recognized that the drought index observed to be the most severe for a specific duration generally corresponds to the SDF curves corresponding to the return levels between 20 years and 50 years, and the drought index observed as the seventh most severely coincides with the SDF curve corresponding to the 5-year return level. The observed drought indices in other rankings also showed good agreement with the SDF curves for the corresponding return level. This means that the method of this study that makes SDF curves using PDS and Gumbel distributions is reasonable.

3.2. Frequency Analysis Using Bivariate Exponential Distribution

Table 3. Statistics of drought events.

Site	Number of Events	Severity (-)		Duration (Month)
		Mean	Standard Deviation	Mean	Standard Deviation
Daeghwanryeong	38	0.4462	0.3898	1.7632	1.2398
Mokpo	33	0.4098	0.3489	1.9697	1.8789
Namhae	33	0.4500	0.3502	2.0303	1.4892
Seosan	35	0.4636	0.3541	1.6286	1.0596

shows the statistics of drought events estimated at four sites. During the 37 years, an average of 35 drought events occurred (average of four sites), and there are slight differences among sites. The average of drought severity $S$ defined in Equation (2) was found to be 0.41 to 0.46, and the average of duration $D$ was about 2 months. In other words, the statistics of the analyzed sites indicate that a drought event occurs every 11 to 14 months in Korea, and the average drought severity when a drought event occurs is 0.44 on average and lasts for 1.9 months. On the other hand, since the difference between the mean and standard deviation of the drought severity is not significantly different, it can be seen that it is reasonable to fit the drought severity to the exponential distribution. Likewise, it would be possible to adapt the duration of drought to the exponential distribution.

Table 4. Most extreme drought events.

Site		Daeghwan-Ryeong	Mokpo	Namhae	Seosan
Maximum severity event	Mean value of –SPI	2.5794	2.2899	2.3726	2.3233
	Duration (month)	2	1	1	2
	Occurrence date	2001/04	2001/05	1989/05	2001/04
	Return level (year)	33.6	26.1	23.7	18.4
Maximum Duration event	Duration (month)	7	7	6	5
	Mean value of –SPI	1.7127	1.7347	1.9222	1.3078
	Occurrence date	2014/03	1994/03	1983/12	2007/12
	Return level (year)	51.6	39.2	21.5	22.8

shows the drought event with the most severe drought severity and the longest drought duration. The duration of drought events with the most severe drought severity was mainly selected between 1 month and 2 months. Since the drought severity is an average value for the duration of the drought event, the longer the drought duration, the smaller the drought depth is. The average SPI for drought events with the most severe drought severity is −2.33. In the concept of non-exceedance probability, such a value can be regarded as a very severe rainfall shortage of more than 99 %. Except for the Namhae site, it was spring of 2001 that recorded the most severe drought severity. In fact, in the spring of 2001, rice planting was not carried out on time due to drought, causing severe agricultural damage [1]. For reference, the return level in Table 4 is the result of univariate frequency analysis.

The longest drought duration ranged from 5 months to 7 months. The average SPI for drought events corresponding to the longest duration of drought is −1.67. In the concept of non-exceedance probability, this value is more than 95%. This means that the period of insufficient rainfall, which is less than 5% of the occurrence probability, continued for 5 to 7 months. The time of occurrence of drought events that caused the maximum drought severity was concentrated in the spring of 2001, but the time of occurrence of drought events that persisted for the maximum duration varied from site to site. The cause can be found in the climate characteristics of the Korean Peninsula. In other words, in the case of the Korean Peninsula, localized heavy rains occur within a period of 5 to 7 months, and droughts are (even temporarily) often resolved. Therefore, it can be recognized that there is not much possibility of simultaneously driving the whole country into a drought situation for a long time (for instance, over a year) in view of the current climate pattern.

In this study, it was assumed that the drought severity and the duration of drought each follow the exponential distribution (see Table 3). Figure S3 shows the histogram of the drought severity samples and the theoretical exponential distribution. Figure S4 shows the results for drought duration. It can be seen that both the drought severity and the duration can be adequately fitted to the exponential distribution. As a result of performing univariate frequency analysis using drought severity samples, the return level of drought events that recorded the most severe drought depth was estimated from 18.4-year to 33.6-year. Similarly, as a result of univariate frequency analysis using drought duration samples, the return level of drought events that recorded the longest duration was estimated from 21.5-year to 51.6-year (see Table 4). Even if frequency analysis is performed using the drought events of the same site as described above, it can be recognized that different results can be obtained in the case of characterizing drought using the duration and the case of characterizing drought using the drought severity.

Figure S5 shows the correlation between drought severity and drought duration. It is difficult to say that the correlation between drought severity and drought duration is very high, but it is also difficult to consider drought severity and drought duration as independent of each other. This strongly suggests the need to analyze a bivariate drought frequency that takes into account both the drought severity and the duration of the drought. However, as shown in Figure S5 (or Table 3), the number of drought events observed in 37 years is only 33 to 38, so it is difficult to apply copula. Figure 5 shows the results of fitting the drought severity and duration samples to the Nagao–Kadoya bivariate exponential distribution (BED). In the BED, the marginal distribution of each of the drought severities and durations is all in the exponential distribution.

Figure 6 shows the SDF curves derived by using the bivariate frequency analysis of drought severity-duration. At Daeghwanryeong site, the drought event with a duration of 7 months exceeded the return level of 100 years, and, at the Mokpo site, the drought event with a duration of 7 months had the largest return level (over 50 years). The Namhae site recorded the highest return level (almost 50 years) with a 6-month duration of drought. The drought event with the longest duration at all three sites showed the highest return level. However, at the Seosan site, drought events with a duration of 2 months and 3 months recorded the largest return level (between 30 years and 50 years). The longest-lasting (5-month) drought event at the Seosan site showed a return level of about 30 years.

4. Discussion and Applications

4.1. Comparison of Two Kinds of SDF Curves

It should be noted that drought severity is defined differently in the two approaches to making the SDF curves presented in this study. In the PDS approach, the drought severity is defined as the average drought index for an artificially determined duration regardless of the duration of the actual drought event. That is, even if the actual drought event lasted for 2 months (i.e., the period in which the SPI is less than −1 is 2 months), the severity of drought for a duration of 3 months can be defined. For this reason, although the duration of the longest observed drought event is less than 7 months (see Table 4), the drought severity of PDS for durations greater than 8 months can be calculated (see Figure 4). This definition of drought severity creates two caveats in the interpretation of SDF by PDS. The first is about the interpretation of SDF for short durations. For instance, in the SDF curves in Figure 4a, the return level of the drought index (SPI = –3.44) corresponding to the duration of 1 month and the return level of 200 years is not actually the return level of a drought event lasting 1 month. In fact, it is a result of frequency analysis of drought severity samples observed during a 1-month period selected from a drought index sequence of longer sustained drought events. In other words, the drought index corresponding to a duration of 1 month, which is expected to be observed once every 200 years, is −3.44. If we expect to be unable to feel the stress of water shortage even in the case of lack of precipitation, which corresponds to the return level of 200 years for 1 month, we need to have enough water supply for SPI6 –3.44 for 1 month. The second is about SDF interpretation for long duration. For instance, in the SDF curves in Figure 4b, the return level of –1.71, the average drought index for 12 months, corresponding to a duration of 12 months and a return level of 200 years, does not imply a return level for drought events that lasted 12 months. It is the result of frequency analysis of drought index samples mechanically averaged over a 12-month period in the drought index sequence of relatively shorter drought events. In other words, the average drought index for the 12-month period expected to be observed once every 200 years is −1.71. However, as shown in Table 1, it can be said that the reliability of the result for the long duration is not high in the frequency analysis using the PDS since the number of samples used for frequency analysis decreases rapidly as the duration increases. Therefore, in a rough sense, it can be considered that the calculation of water supply for drought response using SDF curves derived from PDS is significant only for durations below the maximum duration of observed drought events.

The BED approach first identifies drought events and defines drought duration and drought severity as characteristic factors constituting drought events. In the actual drought event that lasted for 7 months, the average drought severity for 2 months is not considered as a drought event for a duration of 2 months. Only the average drought severity that lasted for a duration of 7 months is considered a characteristic factor of the corresponding drought event. Since a drought event that has occurred once undergoes the process of occurrence–growth–decay for a relatively long time, the severity and duration of drought generally show a positive correlation (see Figure S5). This definition of drought severity leads to two caveats in the interpretation of SDF by BED. The first is about the interpretation of SDF for short duration. For instance, in the SDF curves in Figure 6c, the minimum observed drought index for a duration of 1 month is −2.37, and the corresponding return level is 26 years. However, in the SDF curve by PDS, the return level corresponding to a drought severity of −2.37 and the duration of 1 month is calculated as 7.5 years. This fact reveals the disadvantage that SDF curves by BED do not reflect the short-term extreme drought index included in the long-lasting drought event. If we use SDF curves by BED to develop a water supply plan that responds to a drought index of a specific return level in a short duration, it is very likely that we will experience severe water shortages. The second is about SDF interpretation for long duration. For instance, in the SDF curves in Figure 6d, the drought severity–duration curve corresponding to the return level of 100 years exists only under the duration of 7 months or less. That is, in the case of Seosan site, the frequency of the occurrence of drought events with a duration of 2 month is 3.6 years, and the frequency of occurrence of drought events with a duration of 4 months is 12.3 years. It can be seen that, on average, a drought event with a duration of 6 months occurs once every 42.1 years.

4.2. Applicability for Awareness of Drought Progress

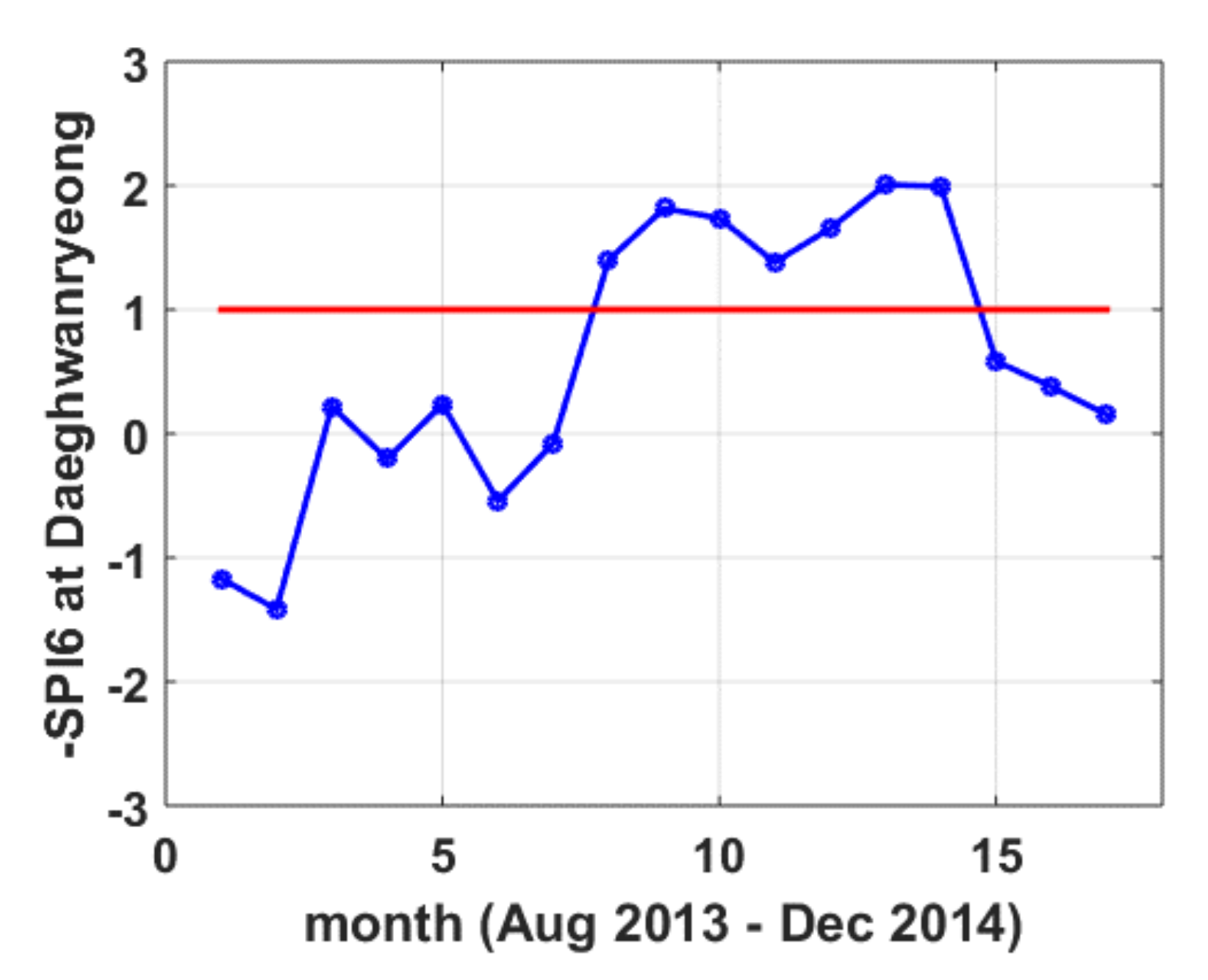

The SDF curves presented in this study can be applied to examine how the drought phenomenon is currently evolving. Figure 7 shows the SPI6 time series for the drought that lasted for 7 months from March 2014 to September 2014 on the Daeghwanryeong site.

Figure 8a shows the progress of this drought event on SDF curves created using PDS. The drought index time series for a 1 month duration from March to September 2014 is shown in the form of a solid black line and a small circle over the duration of 1 month in Figure 8a. In August 2014, it was found that the drought intensified to a maximum return level of 5.6 years. In the same way, it is possible to clearly show how the drought situation evolved over a 2-month to 7-month duration. That is, it is possible to examine how much the return level of the drought event currently in progress for each duration is. As a policy, it may be possible to standardize the largest return level at a specific point in time as the representative return level of the current drought event. When using SDF curves by PDS, it can be recognized that the drought event that occurred in 2014 started with a return level of 1.2 years for a duration of 1 month in March. It can be found that this drought event grew into a drought with a return level of 14.7 years for a duration of 4 months in June, and a severe drought with a return level of 61.2 years lasting for a duration of 7 months in September.

Monitoring of the progress of drought events can be more clearly identified using SDF curves by BED. Figure 8b is the result of expressing the same drought progress as Figure 8b using SDF curves by BED. It can be recognized that a drought event occurred in March 2014, and the drought at this time could have been characterized as a 3.6-year return period for a 1-month duration. Since then, the drought has continued to grow, deepening to a return level of 19.4 years in June, and could have been monitored for reaching a return level of 95.4 years in September.

4.3. Climate Change Drought Impact Assessment

Because global climate models (GCMs) have low spatial resolution, there are many limitations in examining future climates using GCM outputs in small areas affected by the ocean. Therefore, it is feasible to investigate the future climate using outputs from regional climate models (RCMs), which dynamically downscale the outputs of GCMs. In this study, 16 future (2021–2050) climate ensembles obtained from two GCMs (HadGEM2-AO and MPI_ESM_LR), four RCMs (RegCM4, RSM, MM5 and WRF), and two representative concentration pathway (RCP) climate change scenarios (RCP 4.5 and RCP 8.5) were applied [42].

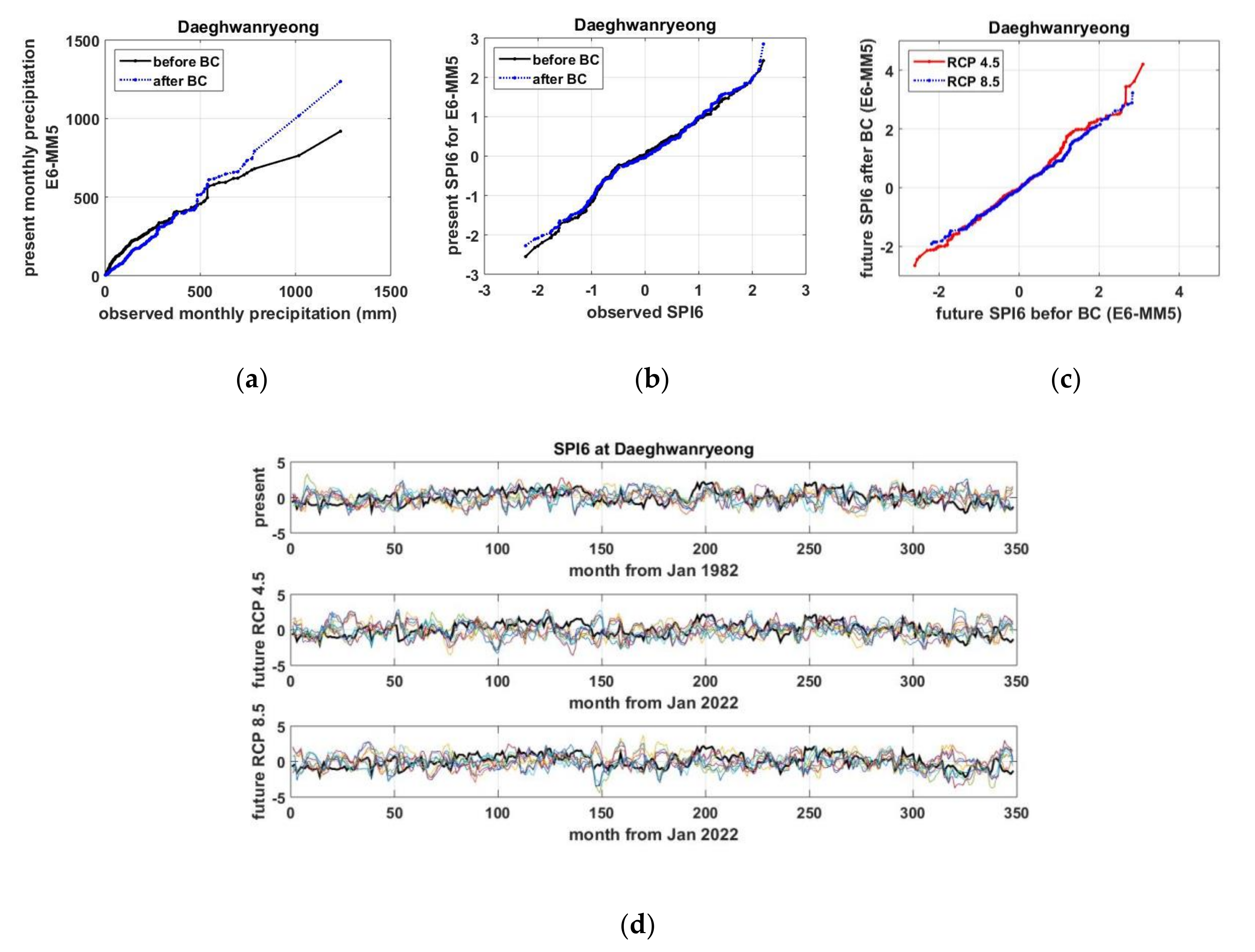

From the perspective of hydrological impact studies, RCM outputs are known to have significant biases [43,44,45]. Since bias correction is required to fit RCM outputs to observations [46], various bias-correction techniques have been developed [47]. Figure 9a shows the empirical Q–Q plot of the simulated monthly precipitation from the RCM before and after bias correction and the monthly precipitation observed in the same period. As the applied bias-correction technique, a commonly used quantile mapping technique was applied [48,49]. The climate model is a combination of MPI_ESM_LR and MM5. It can be recognized that the points of the Q–Q plot of the bias-corrected RCM monthly precipitation and the observed monthly precipitation are roughly straight. On the other hand, it can be found that the raw RCM monthly precipitation was underestimated above 500 mm. However, when calculating SPI using RCM monthly precipitation data (SPI6 in this study), it was revealed that the effect of bias correction almost disappeared (see Figure 9b,c). This is because SPI does not depend on the absolute value of monthly precipitation, but on the relative value. Therefore, in this study, the monthly precipitation simulated in RCMs without any bias correction was directly used, considering that there may be information from the RCM that is lost while performing the bias correction. Figure 9d shows the ensembles of the present and future SPI6 time series simulated at Daeghwanryeong site. The number of ensembles consists of eight for each the present condition, future condition of RCP 4.5, and future condition of RCP 8.5. For comparison, the SPI6 time series calculated using the observed monthly precipitation is shown as a thick solid line.

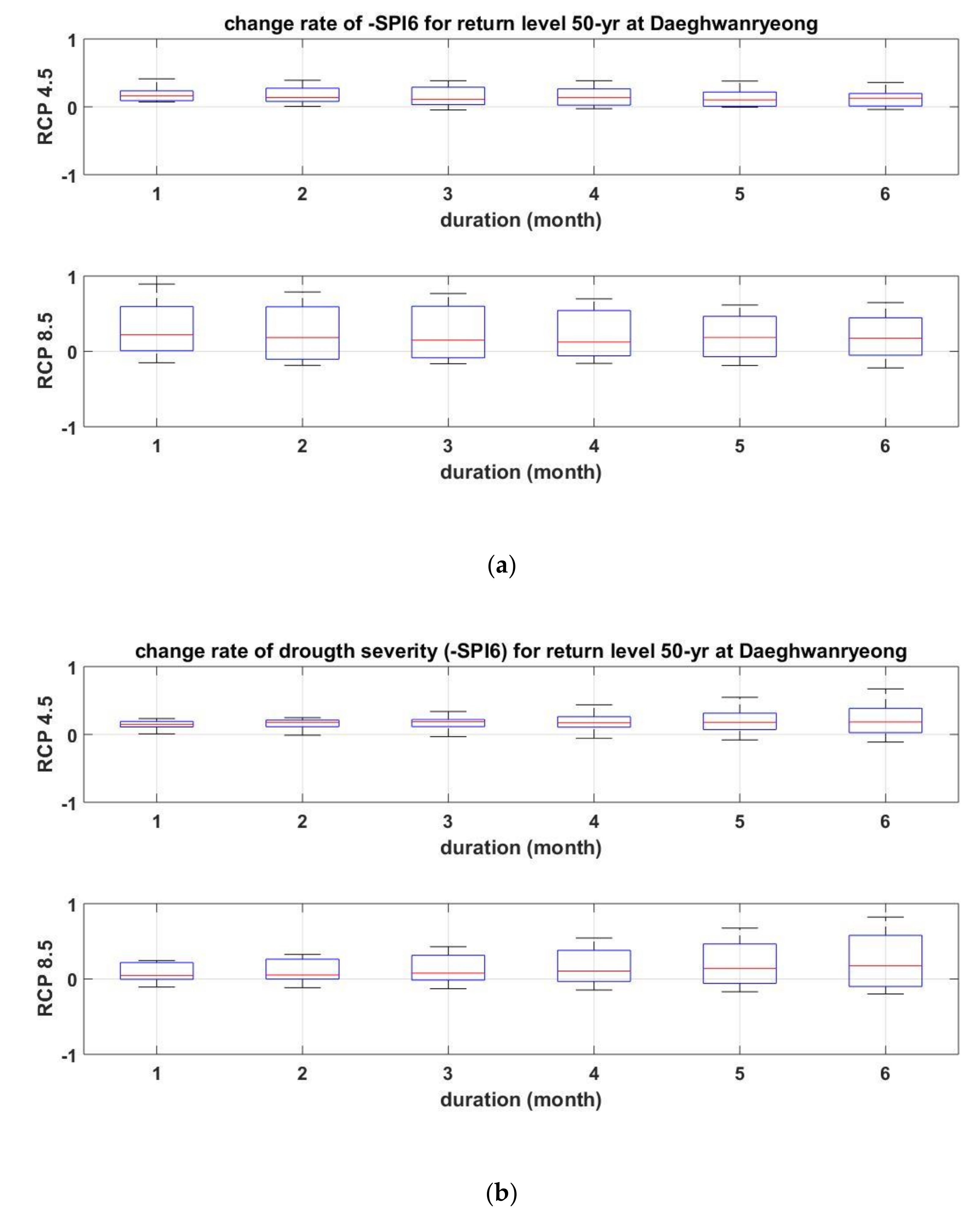

Figure 10 shows the change rate (%) of the future drought severity estimated using the projected SPI6 time series. Figure 10a shows the change rate of –SPI6 corresponding to a return level of 50 years for various durations derived from the comparison of present and future SDF curves drawn using the PDS approach. Figure 10b shows the change rate of the drought severity projected from the BED approach. In the PDS approach or the BED approach, the Daeghwanryeong site can be found to be more likely to have a drought severity 10%~20% higher than the present drought severity in the future.

Figure 10 reveals that both the PDS approach and the BED approach applied in this study can be effectively applied to investigate the prospects of future drought. In addition, when looking at the sensitivity of the change rate to the duration, in the PDS approach, the sensitivity to the duration of the change rate is not large, whereas in the BED approach, it can be found that the sensitivity of the change rate increases as the duration increases. This means that the future drought behavior of each of the PDS and BED approaches needs to be examined in more depth. In addition, the uncertainty inherent in each approach will be an important research topic. In addition, since evapotranspiration is expected to play a larger role in drought due to global warming [50], if the method proposed in this study is applied using a drought index reflecting surface air temperature, such as SPEI [51], it is expected that very interesting results will be found.

5. Conclusions

Studies looking at the return level of drought using the drought index can be broadly divided into two categories: Univariate frequency analysis using annual series extracted from drought index time series, and multivariate frequency analysis by simultaneously reflecting various characteristics of drought events. In this study, we tried to quantify the frequency of drought independently using two approaches: univariate frequency analysis and bivariate frequency analysis. In the case of univariate frequency analysis, it is important to properly consider the duration, so a partial duration series for each duration was used from the SPI time series. In the case of bivariate frequency analysis, it is necessary to satisfy both conditions that should reflect the correlation between drought severity and duration, and that should give a more realistic return level to major drought events in the past. Therefore, a relatively simple bivariate exponential distribution was used to construct a joint probability density function between drought severity and duration. SDF curves drawn from two approaches were used to examine the temporal behavior of past drought events. The SDF curves derived from the two approaches showed that they could be properly used as a tool to monitor the ongoing drought situation when a drought event occurs, although it was analyzed that both approaches require attention. The behavior of the future extreme drought considering the future climate change scenarios was investigated at the Daeghwanryeong site using two quantification methods of drought frequency analysis. Both approaches revealed that the future drought severity is likely to increase by 10% to 20% more than the present drought severity.
