Article

Structural Characterisation of Dimeric Esters in α-Pinene Secondary Organic Aerosol Using N2 and CO2 Ion Mobility Mass Spectrometry

by
Yoshiteru Iinuma
1,*,
Sathiyamurthi Ramasamy
2,†,
Kei Sato
2,
Agata Kołodziejczyk
3,‡ and
Rafal Szmigielski
3
1
Okinawa Institute of Science and Technology Graduate University, Onna-son, Okinawa 904-0495, Japan
2
National Institute for Environmental Studies, Tsukuba, Ibaraki 305-8506, Japan
3
Institute of Physical Chemistry of the Polish Academy of Sciences, 01-224 Warsaw, Poland
*
Author to whom correspondence should be addressed.
†
Currently Institut de recherches sur la catalyse et l’environnement de Lyon (IRCELYON), 69100 Villeurbanne, France.
‡
Currently at Leibniz-Institut für Troposphärenforschung, D-04318 Leipzig, Germany.
Atmosphere 2021, 12(1), 17; https://doi.org/10.3390/atmos12010017
Submission received: 13 November 2020 / Revised: 11 December 2020 / Accepted: 20 December 2020 / Published: 24 December 2020
(This article belongs to the Special Issue Plant-Derived Volatiles and Their Contribution to Secondary Organic Aerosol)
Browse Figures
Versions Notes

Abstract

:
The atmospheric oxidation of monoterpenes leads to the formation of secondary organic aerosol (SOA). While numerous works have been carried out in the past to characterise SOA at a molecular level, the structural elucidation of SOA compounds remains challenging owing to the lack of authentic standard compounds. In this work, the structures of α-pinene originating dimeric esters in SOA with m/z 357 (C17H25O8-) and m/z 367 (C19H27O7-) were characterised using UPLC/ESI(-)IMS-TOFMS2 (ultra-performance liquid chromatography coupled to ion mobility spectrometry tandem time-of-flight mass spectrometry). The measured collision cross-section (ΩN2) values were compared to theoretically calculated ΩN2 values. Selected product ions of dimeric compounds and the authentic standard compounds of product ions were subjected to CO2-IMS-TOFMS for more detailed structural characterisation. Our results were consistent with previously reported subunits of the m/z 357 (terpenylic acid and cis-pinic acid), and the m/z 367 (10-hydroxy-cis-pinonic acid and cis-pinic acid) ions. The measured and calculated ΩN2 values of m/z 367 ions further support the conclusion of earlier structural characterisation; however, the structure of the m/z 357 ion remains vague and requires further characterisation studies with a synthesised reference compound.

1. Introduction

Secondary organic aerosol (SOA) plays an important role in the Earth’s climate system by directly or indirectly influencing the planetary energy budget [1]. Besides affecting air quality by reducing visibility, SOA can also potentially damage human health through the inhalation of ultrafine particles to the deepest part of the lungs [2,3]. Annual SOA production can be as high as 910 TgC yr−1 [4], although this estimation is largely uncertain due to a lack of knowledge about the mechanisms leading to SOA formation [1].
Among various known SOA precursor compounds, monoterpenes have been studied extensively because they are emitted in large amounts with an estimated global emission of 155 Tg yr−1 [5], and their oxidation products are found in fine ambient particles at considerable levels [6]. Ambient and laboratory monoterpene SOA compounds reported in the literature include multifunctional carboxylic acids, organosulfates, nitrooxy-organosulfates, highly oxidised organic molecules with peroxy functional groups (HOMs), and dimeric esters [6]. While some of these compounds are firmly identified by comparison to authentic standard compounds, many of them remain structurally uncharacterised due to difficulties associated with the synthesis of standard compounds. This hinders our understanding of underlying processes leading to the formation of monoterpene SOA compounds in the atmosphere.
When no authentic standard compound is available for unambiguous identification of a target compound, tandem mass spectrometry (MSn) experiments are often performed to obtain a piece of structural information such as the presence of functional groups and structural subunits [7]. While MSn is a powerful tool, it can lead to different structural matches for the same compound as the technique is highly dependent on instrumental settings and the interpretation of the mass spectra; it also does not provide information about three-dimensional conformation [8]. One of the ways to support structural identification is to obtain information about the conformation or shape of an ion using advanced mass spectrometric data. For this purpose, ion mobility spectrometry coupled to time-of-flight mass spectrometry (IMS-TOFMS) is often used to obtain information about the shape besides the elemental formula of a target ion. The IMS-HRMS measures ion mobility, i.e., drift velocity of an ion in an inert gas under the influence of an electric field. Ion mobility can be related to collisional cross-section (ΩN2), a physicochemical property related to the shape of an ion in the gas phase. This technique is increasingly used in the structural characterisation of small molecules since the introduction of the first commercial IMS-TOFMS in 2006 [9]. In the field of atmospheric science, IMS-TOFMS is successfully used for the molecular characterisation of β-pinene originating organosulfates [10], isoprene originating organosulfates [11], aerosol bound alkyl nitrates [12], classification of atmospherically relevant organic compounds [13], aqueous phase oligomerisation of α,β-unsaturated carbonyls and acids [14], separation of highly oxygenated molecules in laboratory-generated α-pinene SOA [15], particle-phase reaction products of α-pinene oxidation [16], and heterogeneous oxidation of organic aerosols [17,18].
Past studies showed that dimeric esters with Mw 358 (C17H26O8) and Mw 368 (C19H28O7) are commonly found in laboratory-generated α-pinene SOA [19,20,21,22]. They were also found in fine ambient particles influenced by boreal forest emissions [21,23,24,25,26], indicating that they contribute importantly to atmospheric SOA mass. The formation mechanisms of these dimeric esters remain uncertain to date, although several mechanisms are proposed in the literature. These include particle-phase esterification of carboxylic acids such as cis-pinic acid and terpenylic acid leading to Mw 358 [21], a gas phase mechanism involving Criegee intermediates [23], and the formation of RO3R’ from the reaction of RO2· and R’O·, and the subsequent decomposition of acyl hydroperoxide groups to form stable esters [19]. Other suggested mechanisms that can lead to dimeric SOA compounds that are not exclusive to Mw 358 and Mw 368 include heterogeneous reactions of aldehydes with hydroperoxides [27,28], and more recently a series of organic peroxy and alkoxy radical cross-reactions at the interface forming dimeric compounds [17]. Recent mass spectrometric studies on α-pinene SOA showed that these dimers consist of diaterpenylic acid and cis-pinic acid for Mw 358 [19,20,21] and of cis-hydroxyl pinonic acid and cis-pinic acid for Mw 368 [19]. While their monomeric units are unambiguously determined from MS2 data, further structural information is required for the determination of their exact conformations and configuration isomers. Such information is especially important for understanding the mechanisms leading to the formation of these compounds, and their roles in particle growth and SOA formation as the conformation of molecules are vital to the condensation process by their influence in inter- and intra-molecular interactions.
In this study, dimeric compounds with Mw 358 and Mw 368 present in laboratory-generated α-pinene SOA were subjected to detailed structural re-elucidation experiments using IMS-TOFMS. Two types of drift gases were compared for the separation of ions in IMS-TOFMS: nitrogen (N2) and carbon dioxide (CO2). It is known that highly polarisable CO2 drift gas has different selectivity from N2 drift gas for smaller ions in IMS, e.g., [29,30,31,32,33]. By using CO2 drift gas, we expected to separate the small product ions of dimeric esters better in IMS-TOFMS2, enabling us to gather information about the conformation of these compounds.

2. Experiments

2.1. α-Pinene/O3 SOA Sample Generation and SOA Standard Compound Synthesis

An α-pinene ozonolysis experiment was conducted in a temperature controllable 6 m3 Teflon® coated stainless steel chamber (ULVAC, Inc., Chigasaki, Japan) at National Institute of Environmental Studies (NIES), Tsukuba, Japan. Detailed explanation of the chamber setup can be found elsewhere [34,35,36]. SOA was produced from the reaction of 0.19 ppm of α-pinene and 0.21 ppm of ozone. The SOA sample was collected on 47mm Teflon filter (total 0.21 mg, 1 m3) and stored below −22 °C until sample analysis.
A standard compound of terpenylic acid was synthesised following a method described in Claeys et al., 2009 [37]. The synthesis methods of cis-pinic acid and cis-norpinic acid can be found in Kołodziejczyk et al., 2019 [38].

2.2. Sample Analysis

A portion (2 × 1 cm diameter punch) of a collected filter was extracted in 1 mL of acetonitrile (QTofMS grade, Fujifilm Wako, Tokyo, Japan) using an orbital shaker. Insoluble debris was removed using a PTFE syringe filter (Millex LG 0.20 µm, Merck, Darmstadt, Germany). The extract was dried using a vacuum concentrator and reconstituted in 200 µL of 1:1 acetonitrile/ultrapure water (v/v) solution.
Ultra-performance liquid chromatography (UPLC, Acquity I-Class, Waters, MA, USA) equipped with a Waters Acquity UPLC T3 column (2.1 mm × 100 mm, 100Å, 1.8 µm) was used to separate dimeric esters. The eluent programme used was as follows: 99% (A) ultrapure water with 0.1% formic acid and 1% (B) acetonitrile for 2 min, raised (B) to 100% (B) in 5.5 min, kept constant for 2.5 min, brought back to the initial condition and equilibrated for 3.5 min. The flow rate of the eluent was 0.4 mLmin−1, and the injection volume of the sample was 1 µL. The column temperature was kept at 30 °C, and the sample compartment was kept at 15 °C.
The ion mobilities of dimeric esters were measured using electrospray ionisation ion mobility spectrometry time-of-flight mass spectrometry in the negative ion mode (ESI(-)-IMS-QTOFMS, Synapt G2S, Waters). All ions reported in this study are (M‒H)- ions. The operational principle of Synapt G2S ESI-IMS-QTOFMS is as follows: The ions formed in the electrospray ionisation source entered through the entrance orifice to the ion guide, then to the quadrupole mass filter. The filtered or non-filtered ions are passed to the “TriWave” region that consists of a trap ion guide, an ion mobility spectrometer (IMS), and a transfer ion guide. Collision induced dissociation (CID) experiments can be performed in both the trap and transfer ion guides though only the trap was used for CID experiments in this study. This means that a precursor ion and product ions were detected at different drift times, enabling us to obtain collision cross-section (Ω) values of precursor and product ions simultaneously. After the transfer ion guide, the ions were passed into the Time-of-Flight (TOF) analyser and the detector to record m/z values of the ions. The IMS-QTOFMS parameters used for the ion mobility separation are summarised in Table 1.
The purities of the buffer gases used were 99.9995% for N2 made from an N2 generator (KURASEP, Kuraray Chemical, Japan) and 95.5% for CO2 (Iwatani, Japan). The Waters Synapt G2S system was not equipped with a thermostated jacket to keep the drift tube temperature constant. However, our laboratory was kept at 25 °C to minimise temperature related drift time fluctuation.
To adjust the day-to-day variation of drift times for N2-IMS and CO2-IMS, a Waters Major Mix IMS/Tof Calibration Kit (Waters, MA, USA) containing standard compounds with known nitrogen collision cross-section (ΩN2) values was used. These were acetaminophen (C8H8NO2-, m/z 150.0555, ΩN2 = 131.5), sulfaguanidine (C7H9N4O2S-, m/z 213.0446, ΩN2 = 145.2), sulfadimethoxine (C12H13N4O4S-, m/z 309.0658, ΩN2 = 170.1), and Val-Tyr-Val (C19H28N3O5-, m/z 378.2029, ΩN2 = 192.5). In all experimental days, the drift times of standard compounds stayed the same when the operational conditions were the same (i.e., no deviation of drift time during the course of the analytical day). It is noted that ΩN2 measurements using Synapt G2 instruments are highly reproducible, and less than 2% relative standard deviation (RSD) for ΩN2 values of more than 100 common metabolites is reported from an inter-laboratory comparison study [39].
The calibration curve for the determination of ΩN2 values was constructed from the measurement of the same calibration standard solution. To obtain ΩN2 values of target analytes, we followed the procedure for ΩN2 calibration curve construction published in Paglia et al., 2014 [39] and Paglia and Astarita, 2017 [40].

2.3. Theoretical Calculation of Collision Cross-Section

ΩN2 values for Mw 358 and Mw 368 dimeric esters, and their MS2 product ions were calculated using N2-MOBCAL reported by Campuzano et al. [41]. N2-MOBCAL is based on the MOBCAL developed by Mesleh et al. [42] for the calculation of ΩHe based on a He trajectory method. To prepare an input file for the N2-MOBCAL, we followed a method described in Campuzano et al. [41] except for the initial 2D structural drawing made via ChemDraw Professional ver. 16.0 (PerkinElmer, MA, USA). Owing to the lack of carbon dioxide collision cross-section values (ΩCO2) for reference compounds, no ΩCO2 values were calculated in this study.
The accuracy of the N2-MOBCAL for the class of compounds concerned in this study was assessed from the literature data. Paglia et al., 2014 [39] compared 107 ΩN2 values of negatively charged ions predicted by N2-MOBCAL to the measured ΩN2 values determined by three independent Synapt G2 instruments from different laboratories. Among their dataset, we selected 13 carboxylic acids (glyceric acid, fumaric acid, succinic acid, ketoleucine, malic acid, salicylic acid, oxoglutaric acid, mevalonic acid, aconitic acid, ascorbic acid, citric acid, glucuronic acid, and gluconic acid) and eight saccharides (fructose, galactose, glucose, mannose, mannitol, lactose, sucrose, and trehalose) that have the same functional groups (-OH or -COOH), elements (CHO), and similar m/z values as the compounds studied here for the assessment. In general, the N2-MOBCAL predicted ΩN2 values agreed well with the measured ΩN2 values from all three Synapt G2 instruments, with average relative difference (RD% = (measured Ω − predicted Ω)/(measured Ω)) values ranging from −0.1 ± 4.0% to −1.3 ± 4.3% (µ ± 1σ). Worse RD% values among all data were found from glyceric acid, fructose, and glucose with RD% of 8.5–9.2, 6.8–10.8, and 6.0–10.1, respectively. These highly oxygenated compounds (a C/O ratio ≥ 1) may need further molecular dynamic simulation to accurately represent their molecular conformations, and caution is warranted for the application of N2-MOBCAL for this class of compounds. Based on this, we concluded that N2-MOBCAL was suitable for the purpose of this study. In addition to a published dataset, we measured ΩN2 values of cis-norpinic acid, terpenylic acid, and cis-pinic acid, then compared them with N2-MOBCAL predicted ΩN2 values. The RD% values were 2.4% for terpenylic acid (IMS: 137.7 Å2, N2-MOBCAL: 134.4 Å2), 1.0% for cis-norpinic acid (IMS: 136.6 Å2, N2-MOBCAL: 135.3 Å2), and 4.5% for cis-pinic acid (IMS: 140.6 Å2, N2-MOBCAL: 147.0 Å2). These RD% values fall within the range of RD% values obtained from the dataset of Paglia et al., 2014 [39], except for cis-pinic acid. This discrepancy is discussed in a later section.

3. Results and Discussion

3.1. Tandem Mass Spectrometry Analysis of m/z 357 (C17H25O8-) and m/z 367 (C19H27O7-) Ions

Figure 1 shows the extracted ion chromatograms (EICs) of m/z 357 (C17H25O8-) and m/z 367 (C19H27O7-) ions detected in a chamber-generated α-pinene/O3 SOA sample. The EICs showed that no isobaric isomers of these dimers were present in the sample. Figure 2 shows the high-resolution tandem mass spectrometry data (MS2) of m/z 357 and m/z 367 ions detected at 4.90 min and 5.41 min, respectively. The MS2 product ions of m/z 357 were m/z 185 (C9H13O4-), m/z 171 (C8H11O4-), m/z 141 (C8H13O2-), and m/z 127 (C7H11O2-). In the MS2 data of m/z 367, product ions detected at a significant level were m/z 199 (C10H15O4-), m/z 185 (C9H13O4-), m/z 167 (C9H11O3-), m/z 141 (C8H13O2-), and m/z 123 (C8H11O-). These product ions were consistent with published data in the literature [19,21,43], although their relative intensities were not the same as the literature data owing to the difference in an MS2 experiment condition in each study. While the product ions were the same, MS2 data alone does not provide sufficient evidence to unambiguously confirm the structures of the two dimers. To obtain further structural information, these ions were subjected to IMS-TOFMS analysis.

3.2. Ion Mobility Spectrometry Tandem Mass Spectrometry Analysis of m/z 357 (C17H25O8-) and m/z 367 (C19H27O7-) Ions

3.2.1. N2-IMS-TOFMS2 of m/z 357 (C17H25O8-) Ion

The N2 driftgrams of the major product ions detected in the MS2 experiment of m/z 357 ion are shown in Figure 3. Both Müller et al., 2009 [43] and Kahnt et al., 2018 [19] attributed the m/z 185 product ion to cis-pinic acid though they assigned the m/z 171 product ion to a different product ion; Müller et al., 2009 [43] assigned it to cis-norpinic acid, whereas Kahnt et al., 2018 [19] assigned it to a diaterpenylic acid. To assign the structures of product ions unambiguously, N2 drift times of cis-pinic acid, cis-norpinic acid, and terpenylic acid was compared to those of product ions (Figure 4). The m/z 185 product ion showed the identical drift time as the standard of cis-pinic acid (1.41), indicating that the product ion was indeed cis-pinic acid. The drift time of the m/z 171 product ion also agreed well with those of m/z 171 producing standard compounds; however, the product ion, cis-norpinic acid, and terpenylic acid produced the same drift time (1.30 msec) and could not be assigned to the definitive structure based on the results from N2-IMS-QTOFMS2 experiments. To better distinguish cis-norpinic acid and terpenylic acid, the m/z 357 ion and their MS2 product ions were analysed using CO2 as a buffer gas for the ion mobility separation (CO2-IMS-QTOFMS2).

3.2.2. CO2-IMS-TOFMS2 of m/z 357 (C17H25O8-) Ion

Figure 5 shows the CO2 driftgrams of (a) cis-norpinic acid, (b) terpenylic acid, and (c) cis-pinic acid. As can be seen, the utilisation of a larger and more polarisable CO2 drift gas separated cis-norpinic acid and terpenylic acid well enough, and their drift times can be used for the structural assignment of the m/z 171 product ion. Figure 6 shows the driftgrams of the major product ions detected in the MS2 experiment of m/z 357 ion. Similar to the N2-IMS-TOFMS2 experiment, the CO2 drift time of cis-pinic acid was in line with that of the m/z 185 product ion. For the m/z 171 product ion, the CO2 drift time of terpenylic acid matched well with that of the m/z 171 product ion. Note that CO2 drift times were highly reproducible and consistently detected as the same with no deviation. In addition to the main peak, the terpenylic acid and m/z 171 product ion showed a shoulder peak that appeared to encounter another ion. However, the driftgram shown in Figure 5 and Figure 6 were selected ion driftgrams with an m/z 0.02 window; hence it was unlikely that these peaks were contaminated by other ions. One possible explanation for the shoulder peak is that it originated from an open ring structure of terpenylic acid that may have formed in the TriWave region of the instrument. It is known that a travelling wave ion mobility instrument such as Synapt suffers from ion activation due to ion heating, and this causes conformational changes and/or dissociation of the ions to some extent. Further investigation is necessary for the exact cause of the shoulder peak for terpenylic acid and the m/z 171 product ion.
It has been reported that the structure producing the m/z 171 ion from the m/z 357 ion is diaterpenylic acid, which has the non-lactone structure of terpenylic acid [19]. Based on the drift times of the m/z 171 product ion and terpenylic acid, it is likely that the m/z 171 product ion (diaterpenylic acid) led to cyclisation, forming terpenylic acid after collision-induced dissociation during IMS-TOFMS2 experimentation.
While N2-IMS-TOFMS2 and CO2-IMS-TOFMS2 experiments provided information about the structures of monomers, they do not provide information about the stereochemical representation of the molecular structure, such as cis-trans isomers or positional isomers. To assign the stereochemical structure of the m/z 357 ion, measured and theoretical ΩN2 values for previously reported structures were compared, and the results are discussed in Section 3.3.

3.2.3. N2-IMS-TOFMS2 of the m/z 367 (C19H27O7-) Ion and the Structural Elucidation of the m/z 199 Product Ion from Theoretical and Measured ΩN2 Values

The driftgrams of product ions obtained from N2-IMS-TOFMS2 experimentation for the m/z 367 ion are shown in Figure 7. The drift time of the m/z 185 product ion was identical to that of cis-pinic acid in Figure 3, confirming the presence of cis-pinic acid in the m/z 367 ion. According to the literature data [19,44], the other product ion detected at m/z 199 was likely 10-hydroxy-cis-pinonic acid; though no authentic standard compound was available for the positive identification of the m/z 199 product ion for this study. To obtain further insights into the structure of the m/z 199 product ion, a comparison was made between the theoretically calculated ΩN2 value of 10-hydroxy-cis-pinic acid and the measured ΩN2 value of the m/z 199 product ion.
Table 2 summarises the theoretically calculated ΩN2 values of cis-pinic acid and 10-hydroxy-cis-pinonic acid, and measured ΩN2 values of m/z 185 and m/z 199 product ions from N2-IMS-TOFMS2 experiment for the m/z 367 ion.
For the C10H15O4- product ion, the difference between the theoretical and measured ΩN2 values was within 1.5% relative difference. This agreement further supports the proposed structures of 10-hydroxy-cis-pinonic acid for the m/z 199 compound. However, the unambiguous structural identification of the m/z 199 product ion still requires comparison of the ΩN2 and ΩCO2 values between the standard compound of 10-hydroxy-cis-pinonic acid and the m/z 199 product ion, as ΩN2 values may not be sufficiently different for all possible hydroxy-cis-pinonic acid isomers with the -OH group attached to a different position of the carbon skeleton.
Regarding the difference between the predicted and measured ΩN2 values of cis-pinic acid, RD% value was greater than those of terpenylic acid, cis-norpinic acid, and 10-hydroxy-cis-pinic acid. As described in Section 2.3 about the prediction of ΩN2 values, RD% values of the measured and the predicted ΩN2 values could be larger than 10% for some of the highly oxygenated compounds, though the C/O ratio of cis-pinic acid was much lower than 1, and it is unlikely that the predicted ΩN2 value of cis-pinic acid was biased for this reason. The predicted ΩN2 value of cis-pinic acid became much closer to that of the measured value when an intra-molecular hydrogen bond between the carboxylate and carboxylic groups was considered in the modelled structural conformation, indicating the difficulties of associating with the geometrical optimisation for the prediction of ΩN2 values.

3.3. The Structural and the Comformation Elucidation of m/z 357 and m/z 367 Ions from Theoretical and Measured Values

The theoretical and measured ΩN2 values from N2-IMS-TOFMS of m/z 357 and 367 ions and their structures considered in this study are summarised in Table 3. In addition to the positional isomers (labelled as 357a, 357b, 367a, and 367b following Kahnt et al., 2018 [19]), we considered (R,R) and (S,S) stereoisomers of m/z 357 ions, and (S,S)(S,S) and (S,S)(R,R) stereoisomers of m/z 367 ions. We note that the m/z 367 ion may have alternative structures that consist of cis-pinic acid and positional isomers of hydroxy-cis-pinonic acid. They were not considered in this study owing to the high computational expenses of ΩN2 prediction. For all modelled structures, theoretical ΩN2 values were much greater than those of measured m/z 357 and m/z 367 ions. As the drift times of product ions from N2-IMS-TOFMS2 and CO2-IMS-TOFMS2 experiments agreed very well with authentic standard compounds, it is likely that the discrepancy originates from the conformational isomerism of the m/z 357 and m/z 367 ions. Smaller measured ΩN2 values than the theoretically calculated values suggest that the m/z 357 and m/z 367 ions in the IMS instrument are more spherical in shape than the structures shown in Table 3. To determine the conformation of the m/z 357 and m/z 367 ions, additional conformational candidates were subjected to theoretical ΩN2 calculation. For this purpose, both the dimeric compounds were folded to make a clam shell structure by forming intra-molecular hydrogen bonding between terminal carboxyl groups (Table 4). As expected, the calculated ΩN2 values for the structures with a hydrogen bond became much closer to those of the measured ΩN2 values. Among all the structural candidates, 367bHB(R,R)(S,S) yielded sufficiently small RD of 1.42% to support the structures of the m/z 367 ion. Among all the m/z 357 structures, 357bHB(S)(R,R) resulted in the smallest RD of 2.35%. This supports the structural suggestion by Gao et al. (2010) [22] and Beck and Hoffmann (2016) [20] but contradicts the results of Yasmeen et al. (2010) [21] and Kahnt et al. (2018) [19] in which 357a is suggested as its structure based on the results obtained from LC/MS2 experiments of a methylated m/z 357 ion. While the theoretical ΩN2 value of the m/z 357 ion supports the structure of 357b, the RD value over 2% is larger than the acceptance criterion of the calibration of the ΩN2 values for the instrument [45] and it remains too unclear for conclusive structural elucidation. Further stereochemical assignment study using the authentic standard compound is warranted to unambiguously elucidate the structure of the m/z 357 ion.

4. Conclusions

Using UPLC/ESI(-)-IMS-QTOFMS, we obtained collision cross-section (ΩN2) values for the MS2 product ions of two major dimeric compounds, namely m/z 357 (C17H25O8-) and m/z 367 (C19H27O7-), present in α-pinene SOA. In addition to N2-IMS-TOFMS, the product ions were subjected to CO2-IMS-TOFMS for further structural characterisation. Obtained ΩN2 values and CO2 drift times of product ions were compared to those of monomeric α-pinene SOA standard compounds. Based on the results from a set of IMS-QTOFMS measurements, we conclude that the m/z 357 (C17H25O8-) ion consists of a terpenylic acid moiety and cis-pinic acid, and the m/z 367 (C19H27O7-) ion consists of 10-hydroxy-cis-pinonic acid and cis-pinic acid. To confirm their structures, possible structural isomers were evaluated through the comparison of measured and theoretical ΩN2 values. The results indicate that both m/z 357 (C17H25O8-) and m/z 367 (C19H27O7-) ions likely have an intra-molecular hydrogen bond between terminal carboxyl groups forming a clam shell structure in the IMS instrument. The measured and theoretical ΩN2 values of the m/z 367 agreed very well with the structure that has all the chiral centres in an (R) configuration. This structure is consistent with the study of Kahnt et al. (2018) [19] that proposed an ester bond between the carboxylic group attached to the isobutyric part of pinic acid and the hydroxy group of the 2-hydroxy-3-methylbutanal part of 10-hydroxy-cis-pinonic acid. The structural elucidation for the m/z 357 ion is not conclusive as RD% of measured and theoretical ΩN2 values was over 2%; the theoretical ΩN2 value was closer to the structure suggested by Gao et al. (2010) [22] and Beck and Hoffmann (2016) [20] than Yasmeen et al. (2010) [21] and Kahnt et al. (2018) [19]. Further study is needed for a conclusive structural elucidation of the m/z 357 ion.

Author Contributions

Conceptualisation, Y.I.; methodology, Y.I.; chemical synthesis, A.K. and R.S.; chamber experiment, S.R. and K.S.; ion mobility modelling and measurements, Y.I.; LC-MS experiments, Y.I.; writing—original draft preparation, Y.I.; writing—review and editing, Y.I., S.R., K.S., A.K., R.S.; funding acquisition, K.S. and S.R. All authors have read and agree to the published version of the manuscript.

Funding

K.S. and S.R. gratefully acknowledge financial support from JSPS KAKENHI JP17H01866.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hallquist, M.; Wenger, J.C.; Baltensperger, U.; Rudich, Y.; Simpson, D.; Claeys, M.; Dommen, J.; Donahue, N.M.; George, C.; Goldstein, A.H.; et al. The formation, properties and impact of secondary organic aerosol: Current and emerging issues. Atmos. Chem. Phys. 2009, 9, 5155–5236. [Google Scholar] [CrossRef] [Green Version]
  2. Kim, K.-H.; Kabir, E.; Kabir, S. A review on the human health impact of airborne particulate matter. Environ. Int. 2015, 74, 136–143. [Google Scholar] [CrossRef] [PubMed]
  3. Davidson, C.I.; Phalen, R.F.; Solomon, P.A. Airborne Particulate Matter and Human Health: A Review. Aerosol. Sci. Technol. 2005, 39, 737–749. [Google Scholar] [CrossRef]
  4. Goldstein, A.H.; Galbally, I.E. Known and Unexplored Organic Constituents in the Earth’s Atmosphere. Environ. Sci. Technol. 2007, 41, 1514–1521. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Guenther, A.B.; Jiang, X.; Heald, C.L.; Sakulyanontvittaya, T.; Duhl, T.; Emmons, L.K.; Wang, X. The Model of Emissions of Gases and Aerosols from Nature version 2.1 (MEGAN2.1): An extended and updated framework for modeling biogenic emissions. Geosci. Model Dev. 2012, 5, 1471–1492. [Google Scholar] [CrossRef] [Green Version]
  6. Nozière, B.; Kalberer, M.; Claeys, M.; Allan, J.; D’Anna, B.; Decesari, S.; Finessi, E.; Glasius, M.; Grgić, I.; Hamilton, J.F.; et al. The Molecular Identification of Organic Compounds in the Atmosphere: State of the Art and Challenges. Chem. Rev. 2015, 115, 3919–3983. [Google Scholar] [CrossRef]
  7. Spolnik, G.; Wach, P.; Rudzinski, K.J.; Skotak, K.; Danikiewicz, W.; Szmigielski, R. Improved UHPLC-MS/MS Methods for Analysis of Isoprene-Derived Organosulfates. Anal. Chem. 2018, 90, 3416–3423. [Google Scholar] [CrossRef]
  8. De Vijlder, T.; Valkenborg, D.; Lemière, F.; Romijn, E.P.; Laukens, K.; Cuyckens, F. A tutorial in small molecule identification via electrospray ionization-mass spectrometry: The practical art of structural elucidation. Mass Spec. Rev. 2018, 37, 607–629. [Google Scholar] [CrossRef]
  9. Lapthorn, C.; Pullen, F.; Chowdhry, B.Z. Ion mobility spectrometry-mass spectrometry (IMS-MS) of small molecules: Separating and assigning structures to ions. Mass Spectrom. Rev. 2013, 32, 43–71. [Google Scholar] [CrossRef] [Green Version]
  10. Iinuma, Y.; Böge, O.; Kahnt, A.; Herrmann, H. Laboratory chamber studies on the formation of organosulfates from reactive uptake of monoterpene oxides. Phys. Chem. Chem. Phys. 2009, 11, 7985–7997. [Google Scholar] [CrossRef]
  11. Krechmer, J.E.; Groessl, M.; Zhang, X.; Junninen, H.; Massoli, P.; Lambe, A.T.; Kimmel, J.R.; Cubison, M.J.; Graf, S.; Lin, Y.-H.; et al. Ion mobility spectrometry–mass spectrometry (IMS–MS) for on- and offline analysis of atmospheric gas and aerosol species. Atmos. Meas. Tech. 2016, 9, 3245–3262. [Google Scholar] [CrossRef] [Green Version]
  12. Zhang, X.; Zhang, H.; Xu, W.; Wu, X.; Tyndall, G.S.; Orlando, J.J.; Jayne, J.T.; Worsnop, D.R.; Canagaratna, M.R. Molecular characterization of alkyl nitrates in atmospheric aerosols by ion mobility mass spectrometry. Atmos. Meas. Tech. 2019, 12, 5535–5545. [Google Scholar] [CrossRef] [Green Version]
  13. Zhang, X.; Krechmer, J.E.; Groessl, M.; Xu, W.; Graf, S.; Cubison, M.; Jayne, J.T.; Jimenez, J.L.; Worsnop, D.R.; Canagaratna, M.R. A novel framework for molecular characterization of atmospherically relevant organic compounds based on collision cross section and mass-to-charge ratio. Atmos. Chem. Phys. 2016, 16, 12945–12959. [Google Scholar] [CrossRef] [Green Version]
  14. Renard, P.; Tlili, S.; Ravier, S.; Quivet, E.; Monod, A. Aqueous phase oligomerization of α,β-unsaturated carbonyls and acids investigated using ion mobility spectrometry coupled to mass spectrometry (IMS-MS). Atmos. Environ. 2016, 130, 153–162. [Google Scholar] [CrossRef]
  15. Zhang, X.; Lambe, A.T.; Upshur, M.A.; Brooks, W.A.; Gray Bé, A.; Thomson, R.J.; Geiger, F.M.; Surratt, J.D.; Zhang, Z.; Gold, A.; et al. Highly Oxygenated Multifunctional Compounds in α-Pinene Secondary Organic Aerosol. Environ. Sci. Technol. 2017, 51, 5932–5940. [Google Scholar] [CrossRef]
  16. Zhao, Z.; Le, C.; Xu, Q.; Peng, W.; Jiang, H.; Lin, Y.-H.; Iii, D.R.C.; Zhang, H. Compositional Evolution of Secondary Organic Aerosol as Temperature and Relative Humidity Cycle in Atmospherically Relevant Ranges. ACS Earth Space Chem. 2019, 3, 2549–2558. [Google Scholar] [CrossRef] [Green Version]
  17. Zhao, Z.; Tolentino, R.; Lee, J.; Vuong, A.; Yang, X.; Zhang, H. Interfacial Dimerization by Organic Radical Reactions during Heterogeneous Oxidative Aging of Oxygenated Organic Aerosols. J. Phys. Chem. A 2019, 123, 10782–10792. [Google Scholar] [CrossRef]
  18. Zhao, Z.; Mayorga, R.; Lee, J.; Yang, X.; Tolentino, R.; Zhang, W.; Vuong, A.; Zhang, H. Site-Specific Mechanisms in OH-Initiated Organic Aerosol Heterogeneous Oxidation Revealed by Isomer-Resolved Molecular Characterization. ACS Earth Space Chem. 2020, 4, 783–794. [Google Scholar] [CrossRef]
  19. Kahnt, A.; Vermeylen, R.; Iinuma, Y.; Safi Shalamzari, M.; Maenhaut, W.; Claeys, M. High-molecular-weight esters in α-pinene ozonolysis secondary organic aerosol: Structural characterization and mechanistic proposal for their formation from highly oxygenated molecules. Atmos. Chem. Phys. 2018, 18, 8453–8467. [Google Scholar] [CrossRef] [Green Version]
  20. Beck, M.; Hoffmann, T. A detailed MSn study for the molecular identification of a dimer formed from oxidation of pinene. Atmos. Environ. 2016, 130, 120–126. [Google Scholar] [CrossRef]
  21. Yasmeen, F.; Vermeylen, R.; Szmigielski, R.; Iinuma, Y.; Böge, O.; Herrmann, H.; Maenhaut, W.; Claeys, M. Terpenylic acid and related compounds: Precursors for dimers in secondary organic aerosol from the ozonolysis of α and β-pinene. Atmos. Chem. Phys. 2010, 10, 9383–9392. [Google Scholar] [CrossRef] [Green Version]
  22. Gao, Y.; Hall, W.A.; Johnston, M.V. Molecular Composition of Monoterpene Secondary Organic Aerosol at Low Mass Loading. Environ. Sci. Technol. 2010, 44, 7897–7902. [Google Scholar] [CrossRef] [PubMed]
  23. Kristensen, K.; Enggrob, K.L.; King, S.M.; Worton, D.R.; Platt, S.M.; Mortensen, R.; Rosenoern, T.; Surratt, J.D.; Bilde, M.; Goldstein, A.H.; et al. Formation and occurrence of dimer esters of pinene oxidation products in atmospheric aerosols. Atmos. Chem. Phys. 2013, 13, 3763–3776. [Google Scholar] [CrossRef] [Green Version]
  24. Kourtchev, I.; Fuller, S.J.; Giorio, C.; Healy, R.M.; Wilson, E.; O’Connor, I.; Wenger, J.C.; McLeod, M.; Aalto, J.; Ruuskanen, T.M.; et al. Molecular composition of biogenic secondary organic aerosols using ultrahigh-resolution mass spectrometry: Comparing laboratory and field studies. Atmos. Chem. Phys. 2014, 14, 2155–2167. [Google Scholar] [CrossRef] [Green Version]
  25. Kourtchev, I.; Doussin, J.-F.; Giorio, C.; Mahon, B.; Wilson, E.M.; Maurin, N.; Pangui, E.; Venables, D.S.; Wenger, J.C.; Kalberer, M. Molecular composition of fresh and aged secondary organic aerosol from a mixture of biogenic volatile compounds: A high-resolution mass spectrometry study. Atmos. Chem. Phys. 2015, 15, 5683–5695. [Google Scholar] [CrossRef] [Green Version]
  26. Kristensen, K.; Watne, Å.K.; Hammes, J.; Lutz, A.; Peta, T.; Hallquist, M.; Bilde, M.; Glasius, M. High-Molecular Weight Dimer Esters Are Major Products in Aerosols from α-Pinene Ozonolysis and the Boreal Forest. Environ. Sci. Technol. Lett. 2016, 3, 280–285. [Google Scholar] [CrossRef]
  27. Docherty, K.S.; Wu, W.; Lim, Y.B.; Ziemann, P.J. Contributions of Organic Peroxides to Secondary Aerosol Formed from Reactions of Monoterpenes with O3. Environ. Sci. Technol. 2005, 39, 4049–4059. [Google Scholar] [CrossRef]
  28. Ziemann, P.J. Formation of Alkoxyhydroperoxy Aldehydes and Cyclic Peroxyhemiacetals from Reactions of Cyclic Alkenes with O 3 in the Presence of Alcohols. J. Phys. Chem. A 2003, 107, 2048–2060. [Google Scholar] [CrossRef]
  29. Davidson, K.L.; Bush, M.F. Effects of Drift Gas Selection on the Ambient-Temperature, Ion Mobility Mass Spectrometry Analysis of Amino Acids. Anal. Chem. 2017, 89, 2017–2023. [Google Scholar] [CrossRef]
  30. Asbury, G.R.; Hill, H.H. Using Different Drift Gases to Change Separation Factors (α) in Ion Mobility Spectrometry. Anal. Chem. 2000, 72, 580–584. [Google Scholar] [CrossRef]
  31. Kurulugama, R.T.; Darland, E.; Kuhlmann, F.; Stafford, G.; Fjeldsted, J. Evaluation of drift gas selection in complex sample analyses using a high performance drift tube ion mobility-QTOF mass spectrometer. Analyst 2015, 140, 6834–6844. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Matz, L.M.; Hill, H.H.; Beegle, L.W.; Kanik, I. Investigation of drift gas selectivity in high resolution ion mobility spectrometry with mass spectrometry detection. J. Am. Soc. Mass. Spectrom. 2002, 13, 300–307. [Google Scholar] [CrossRef] [Green Version]
  33. Fasciotti, M.; Sanvido, G.B.; Santos, V.G.; Lalli, P.M.; McCullagh, M.; de Sá, G.F.; Daroda, R.J.; Peter, M.G.; Eberlin, M.N. Separation of isomeric disaccharides by traveling wave ion mobility mass spectrometry using CO2 as drift gas: Increasing ion mobility Synapt resolution with CO2. J. Mass Spectrom. 2012, 47, 1643–1647. [Google Scholar] [CrossRef] [PubMed]
  34. Sato, K.; Hatakeyama, S.; Imamura, T. Secondary Organic Aerosol Formation during the Photooxidation of Toluene: NOx Dependence of Chemical Composition. J. Phys. Chem. A 2007, 111, 9796–9808. [Google Scholar] [CrossRef] [PubMed]
  35. Ramasamy, S.; Nakayama, T.; Imamura, T.; Morino, Y.; Kajii, Y.; Sato, K. Investigation of dark condition nitrate radical- and ozone-initiated aging of toluene secondary organic aerosol: Importance of nitrate radical reactions with phenolic products. Atmos. Environ. 2019, 219, 117049. [Google Scholar] [CrossRef]
  36. Akimoto, H.; Hoshino, M.; Inoue, G.; Sakamaki, F.; Washida, N.; Okuda, M. Design and characterization of the evacuable and bakable photochemical smog chamber. Environ. Sci. Technol. 1979, 13, 471–475. [Google Scholar] [CrossRef]
  37. Claeys, M.; Iinuma, Y.; Szmigielski, R.; Surratt, J.D.; Blockhuys, F.; Van Alsenoy, C.; Böge, O.; Sierau, B.; Gómez-González, Y.; Vermeylen, R.; et al. Terpenylic Acid and Related Compounds from the Oxidation of α-Pinene: Implications for New Particle Formation and Growth above Forests. Environ. Sci. Technol. 2009, 43, 6976–6982. [Google Scholar] [CrossRef] [Green Version]
  38. Kołodziejczyk, A.; Pyrcz, P.; Pobudkowska, A.; Błaziak, K.; Szmigielski, R. Physicochemical Properties of Pinic, Pinonic, Norpinic, and Norpinonic Acids as Relevant α-Pinene Oxidation Products. J. Phys. Chem. B 2019, 123, 8261–8267. [Google Scholar] [CrossRef]
  39. Paglia, G.; Williams, J.P.; Menikarachchi, L.; Thompson, J.W.; Tyldesley-Worster, R.; Halldórsson, S.; Rolfsson, O.; Moseley, A.; Grant, D.; Langridge, J.; et al. Ion Mobility Derived Collision Cross Sections to Support Metabolomics Applications. Anal. Chem. 2014, 86, 3985–3993. [Google Scholar] [CrossRef] [Green Version]
  40. Paglia, G.; Astarita, G. Metabolomics and lipidomics using traveling-wave ion mobility mass spectrometry. Nat. Protoc. 2017, 12, 797–813. [Google Scholar] [CrossRef]
  41. Campuzano, I.; Bush, M.F.; Robinson, C.V.; Beaumont, C.; Richardson, K.; Kim, H.; Kim, H.I. Structural Characterization of Drug-like Compounds by Ion Mobility Mass Spectrometry: Comparison of Theoretical and Experimentally Derived Nitrogen Collision Cross Sections. Anal. Chem. 2012, 84, 1026–1033. [Google Scholar] [CrossRef] [PubMed]
  42. Mesleh, M.F.; Hunter, J.M.; Shvartsburg, A.A.; Schatz, G.C.; Jarrold, M.F. Structural Information from Ion Mobility Measurements:  Effects of the Long-Range Potential. J. Phys. Chem. 1996, 100, 16082–16086. [Google Scholar] [CrossRef]
  43. Müller, L.; Reinnig, M.-C.; Hayen, H.; Hoffmann, T. Characterization of oligomeric compounds in secondary organic aerosol using liquid chromatography coupled to electrospray ionization Fourier transform ion cyclotron resonance mass spectrometry. Rapid Commun. Mass Spectrom. 2009, 23, 971–979. [Google Scholar] [CrossRef] [PubMed]
  44. Müller, L.; Reinnig, M.-C.; Warnke, J.; Hoffmann, T. Unambiguous identification of esters as oligomers in secondary organic aerosol formed from cyclohexene and cyclohexene/α-pinene ozonolysis. Atmos. Chem. Phys. 2008, 8, 1423–1433. [Google Scholar] [CrossRef] [Green Version]
  45. Alelyunas, Y.W.; Smith, K.; Cleland, G.; Mortishire-Smith, R.; Wrona, M.D. Building a Collision Cross Section Library of Pharmaceutical Drugs Using the Vion IMS QT of Platform. Verification of System Performance, Precision and Deviation of CCS Measurements. Waters Appl. Note 2017, 720005903. Available online: https://www.waters.com/webassets/cms/library/docs/720005903en.pdf (accessed on 7 December 2020).

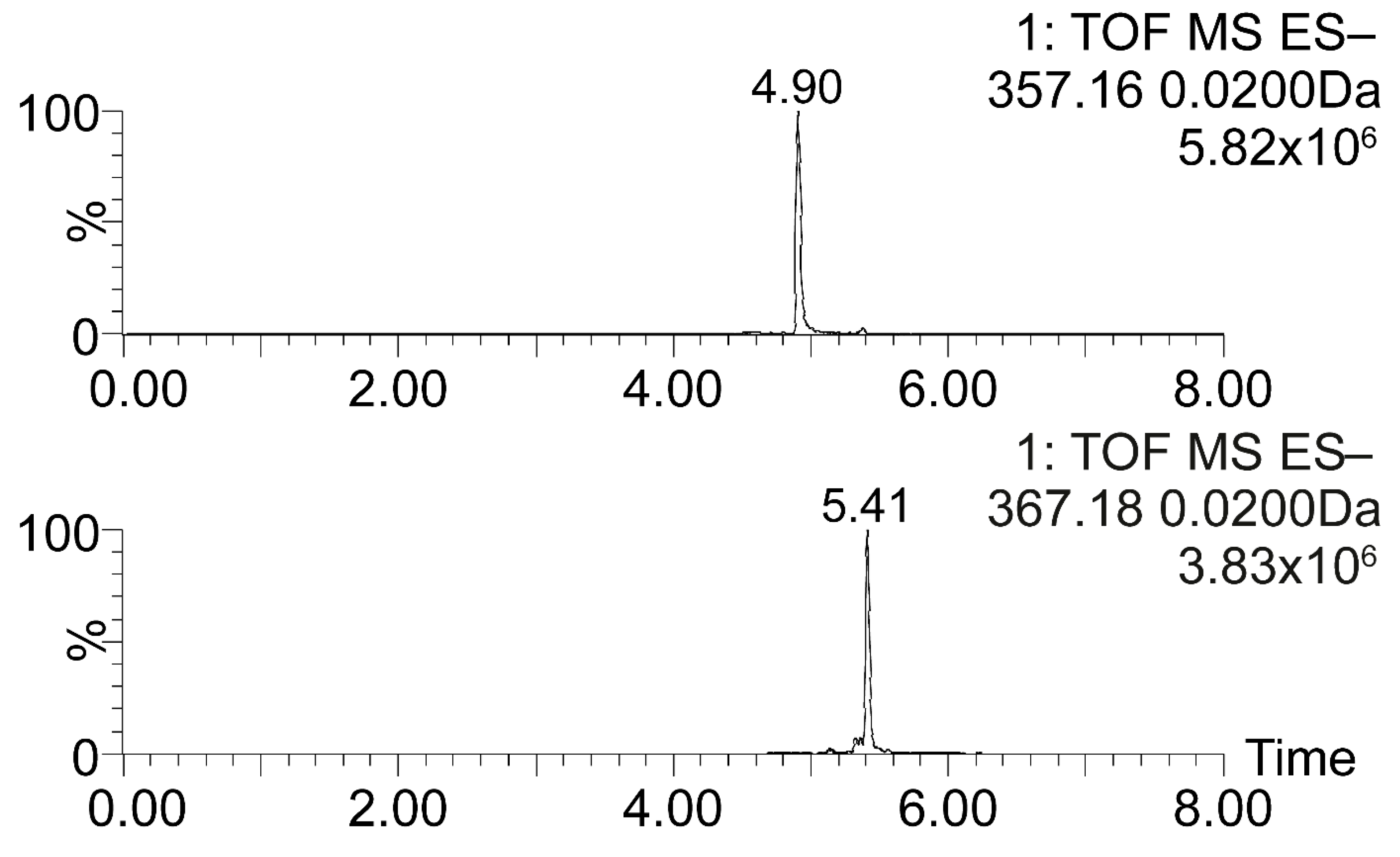

Atmosphere 12 00017 g001 550
Figure 1. Extracted ion chromatograms (EICs) of m/z 357 (C17H25O8-, top panel) and m/z 367 (C19H27O7-, bottom panel) ions detected in laboratory-generated α-pinene/O3 sample. The time axis is in minutes.
Figure 1. Extracted ion chromatograms (EICs) of m/z 357 (C17H25O8-, top panel) and m/z 367 (C19H27O7-, bottom panel) ions detected in laboratory-generated α-pinene/O3 sample. The time axis is in minutes.
Atmosphere 12 00017 g001

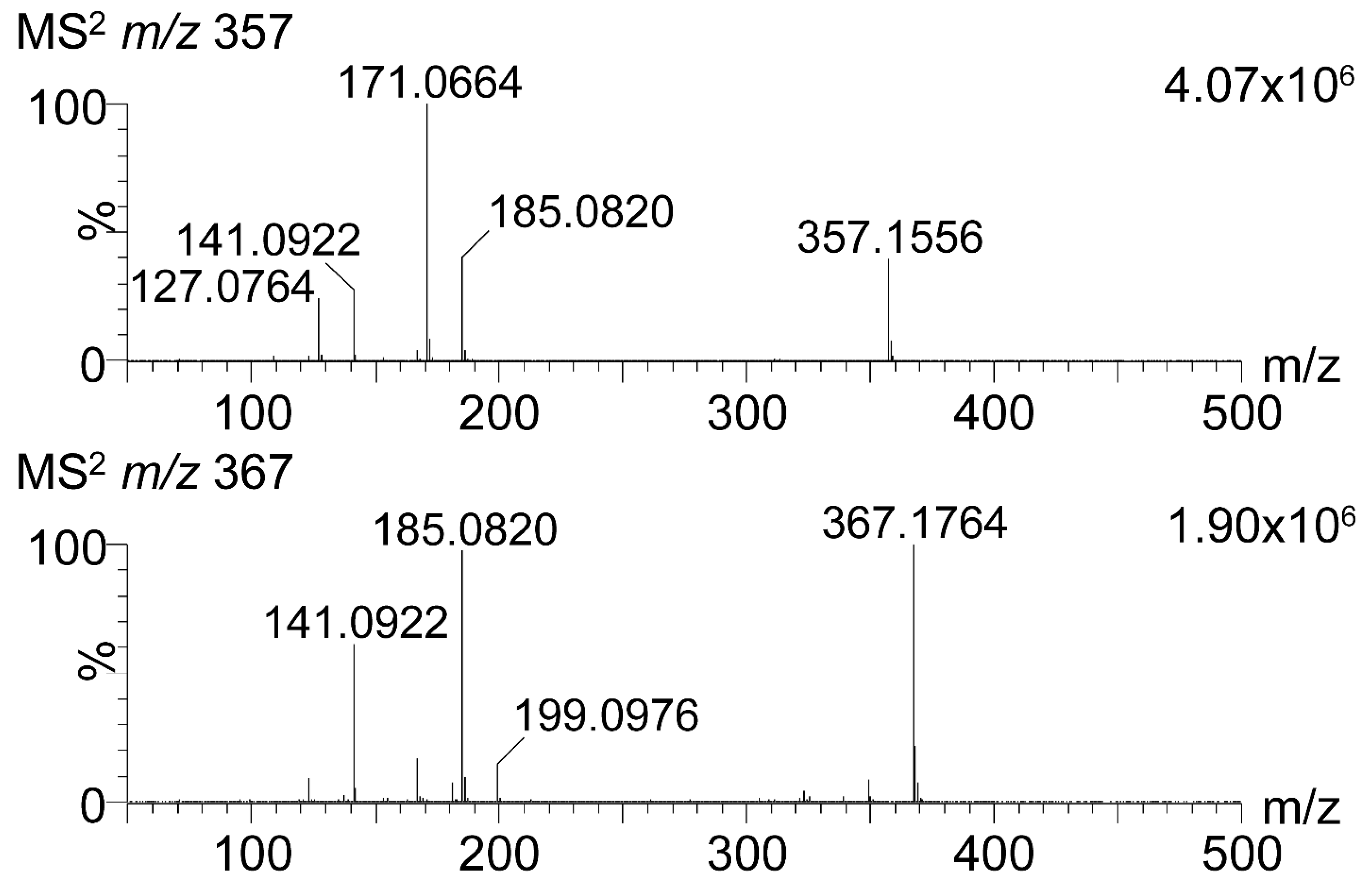

Atmosphere 12 00017 g002 550
Figure 2. High-resolution tandem mass spectrometric data of m/z 357 (C17H25O8-, top panel) and m/z 367 (C19H27O7-, bottom panel) ions detected in laboratory-generated α-pinene/O3 sample.
Figure 2. High-resolution tandem mass spectrometric data of m/z 357 (C17H25O8-, top panel) and m/z 367 (C19H27O7-, bottom panel) ions detected in laboratory-generated α-pinene/O3 sample.
Atmosphere 12 00017 g002

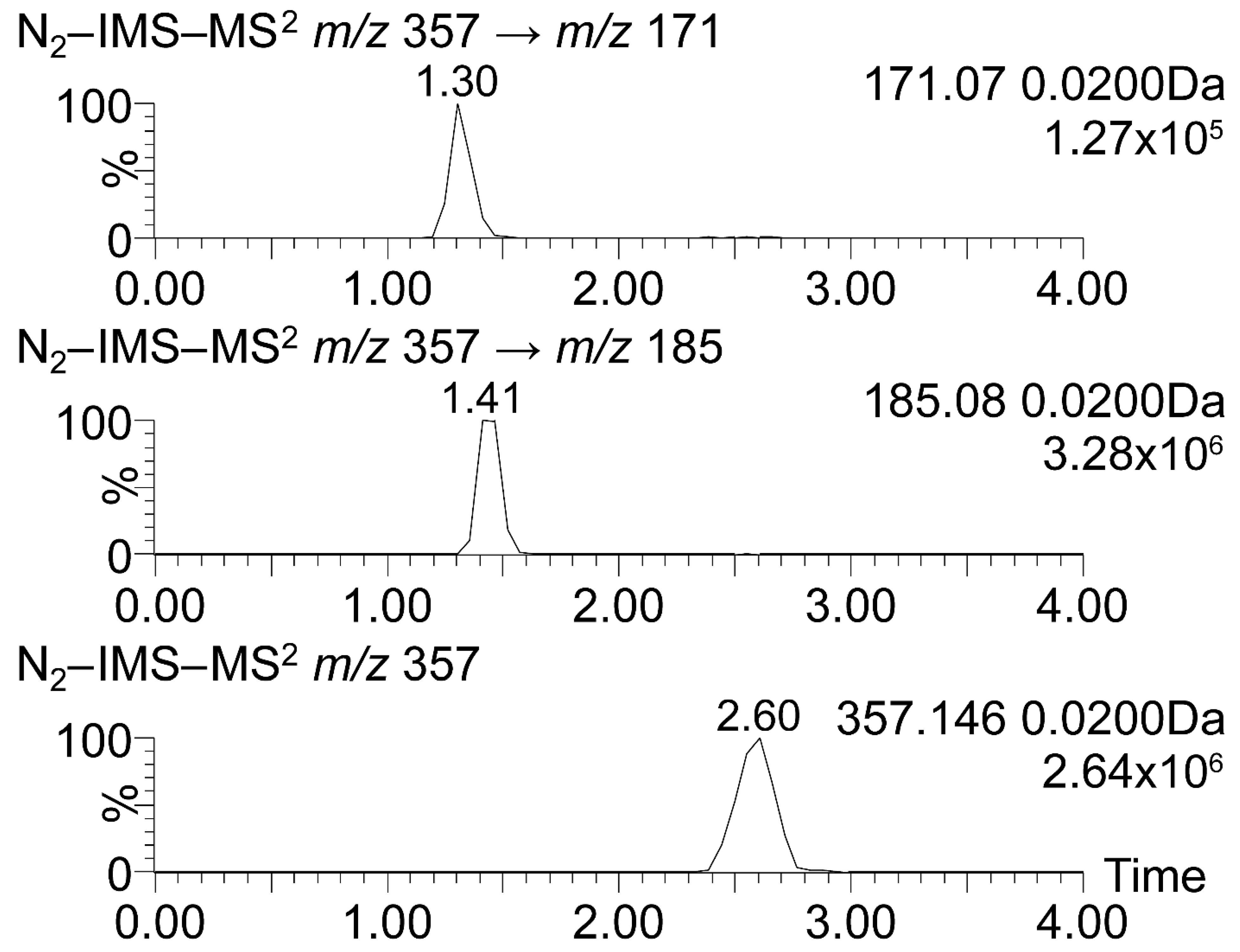

Atmosphere 12 00017 g003 550
Figure 3. N2-driftgrams of precursor and major product ions originating from m/z 357 ion. The top panel shows m/z 171 (C8H11O4-), the middle panel shows m/z 185 (C9H13O4-), and the bottom panel shows m/z 357 (C17H25O8-). The time axis is in milliseconds.
Figure 3. N2-driftgrams of precursor and major product ions originating from m/z 357 ion. The top panel shows m/z 171 (C8H11O4-), the middle panel shows m/z 185 (C9H13O4-), and the bottom panel shows m/z 357 (C17H25O8-). The time axis is in milliseconds.
Atmosphere 12 00017 g003

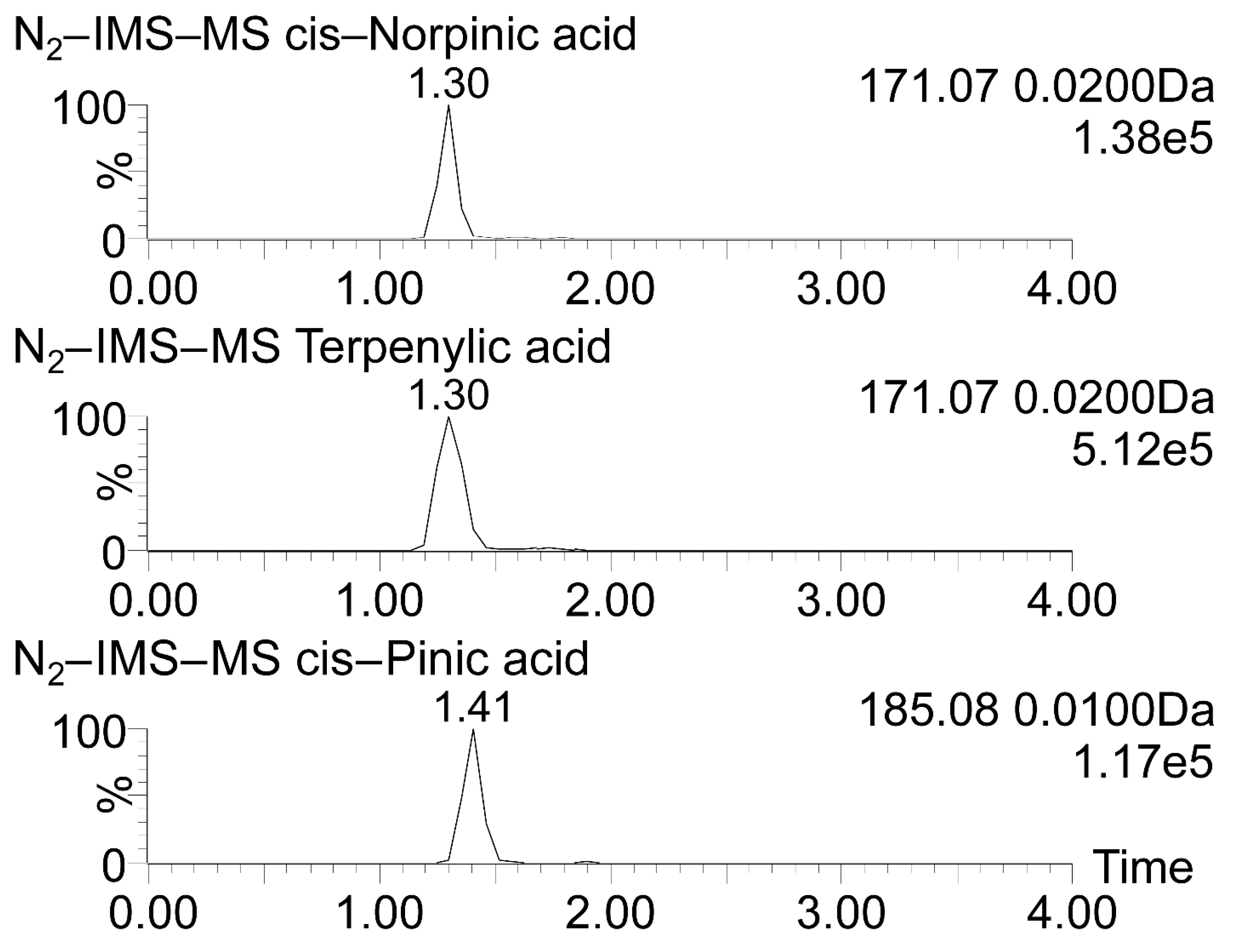

Atmosphere 12 00017 g004 550
Figure 4. N2-driftgrams of standard compounds. The top panel shows cis-norpinic acid (m/z 171, C8H11O4-), the middle panel shows terpenylic acid (m/z 171, C8H11O4-), and the bottom panel shows cis-pinic acid (m/z 185, C9H13O4-). The time axis is in milliseconds.
Figure 4. N2-driftgrams of standard compounds. The top panel shows cis-norpinic acid (m/z 171, C8H11O4-), the middle panel shows terpenylic acid (m/z 171, C8H11O4-), and the bottom panel shows cis-pinic acid (m/z 185, C9H13O4-). The time axis is in milliseconds.
Atmosphere 12 00017 g004

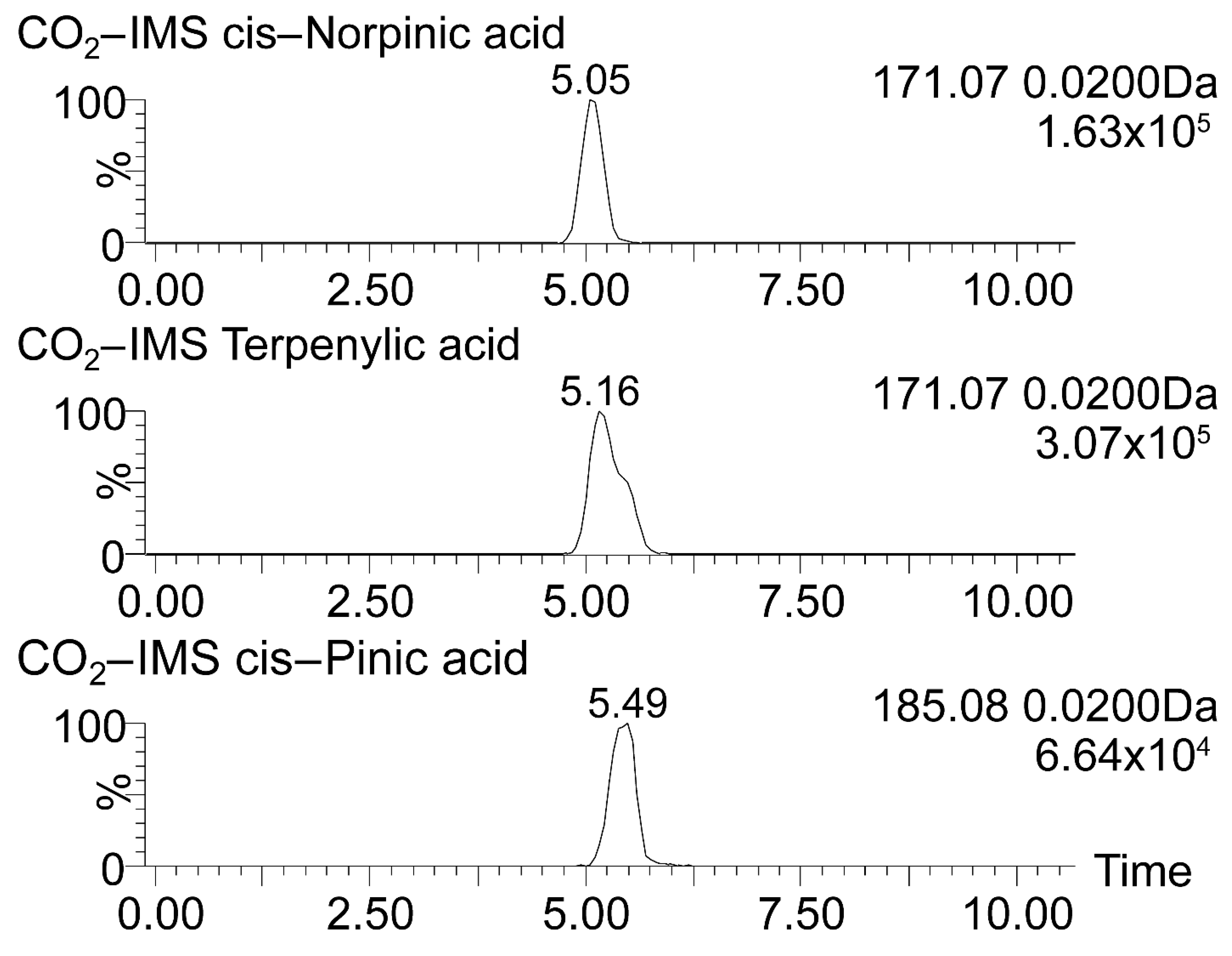

Atmosphere 12 00017 g005 550
Figure 5. CO2- driftgrams of standard compounds. The top panel shows cis-norpinic acid (m/z 171, C8H11O4-), the middle panel shows terpenylic acid (m/z 171, C8H11O4-), and the bottom panel shows cis-pinic acid (m/z 185, C9H13O4-). The time axis is in milliseconds.
Figure 5. CO2- driftgrams of standard compounds. The top panel shows cis-norpinic acid (m/z 171, C8H11O4-), the middle panel shows terpenylic acid (m/z 171, C8H11O4-), and the bottom panel shows cis-pinic acid (m/z 185, C9H13O4-). The time axis is in milliseconds.
Atmosphere 12 00017 g005

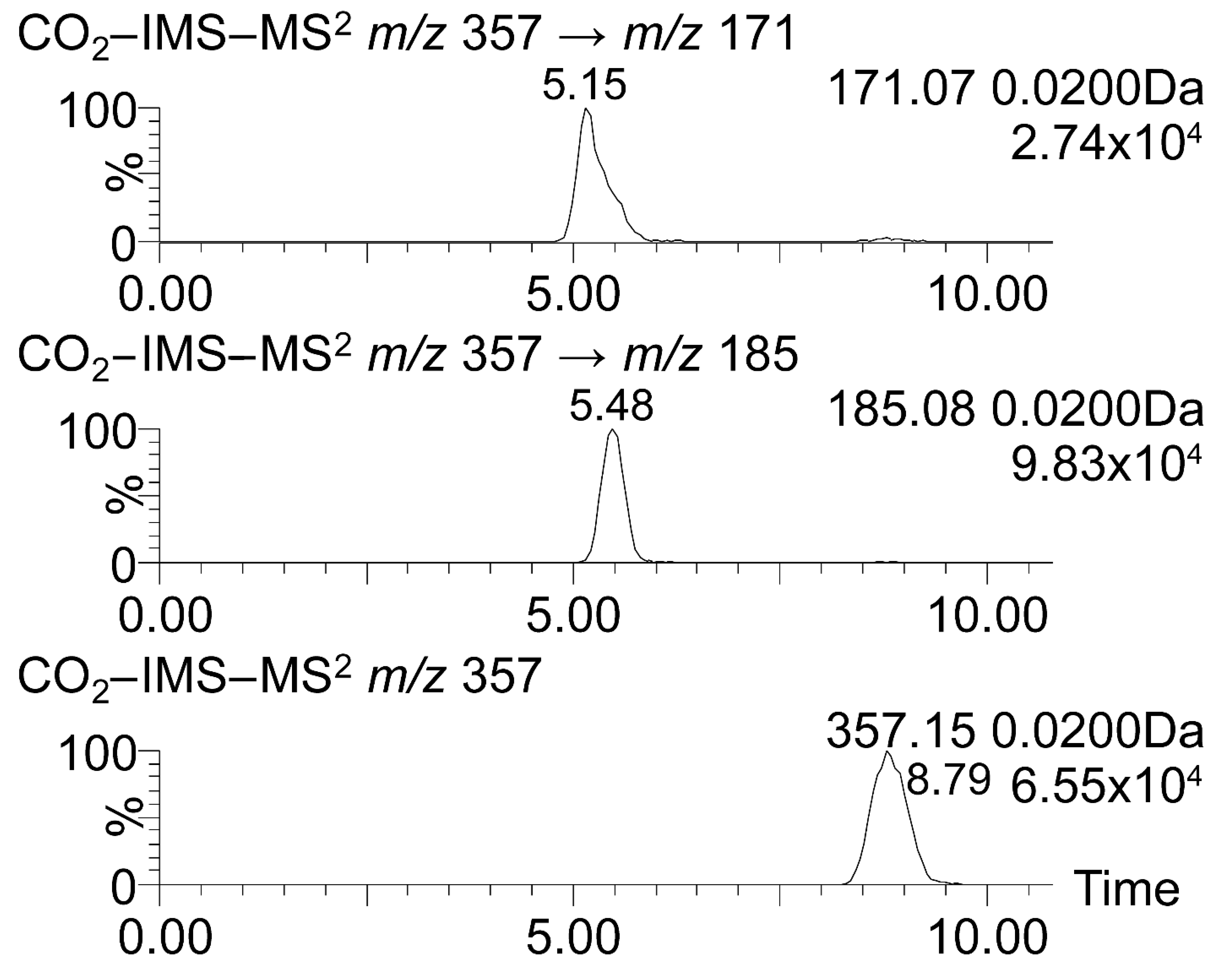

Atmosphere 12 00017 g006 550
Figure 6. CO2- driftgrams of precursor and major product ions originating from the m/z 357 ion. The top panel shows m/z 171 (C8H11O4-), the middle panel shows m/z 185 (C9H13O4-), and the bottom panel shows m/z 357 (C17H25O8-). The time axis is in milliseconds.
Figure 6. CO2- driftgrams of precursor and major product ions originating from the m/z 357 ion. The top panel shows m/z 171 (C8H11O4-), the middle panel shows m/z 185 (C9H13O4-), and the bottom panel shows m/z 357 (C17H25O8-). The time axis is in milliseconds.
Atmosphere 12 00017 g006
Atmosphere 12 00017 g007 550
Figure 7. N2-driftgrams of precursor and major product ions originating from the m/z 367 ion. The top panel shows m/z 185 (C9H13O4-), the middle panel shows m/z 199 (C10H15O4-), and the bottom panel shows m/z 367 (C19H27O7-). The time axis is in milliseconds.
Figure 7. N2-driftgrams of precursor and major product ions originating from the m/z 367 ion. The top panel shows m/z 185 (C9H13O4-), the middle panel shows m/z 199 (C10H15O4-), and the bottom panel shows m/z 367 (C19H27O7-). The time axis is in milliseconds.
Atmosphere 12 00017 g007
Table
Table 1. Operating conditions for ESI(-)-IMS-QTOFMS.
Table 1. Operating conditions for ESI(-)-IMS-QTOFMS.
Parameter
Mass range (m/z)50–1200
Capillary voltage (kV)2.5
Sampling cone voltage (V)40
Source offset (V)10
Source temperature (°C)120
Desolvation temperature (°C)350
Desolvation Gas Flow (Lh−1)800
Nebuliser Gas Flow (Bar)6.5
Cone gas flow (Lh−1)50
IMS Cell Pressure (mbar)3 (N2)
1.5 (CO2)
Buffer gas flow rate (mLmin−1)90
IMS Wave height (V)40
IMS Wave Velocity (ms−1)650
IMS resolution (Ω/ΔΩ)40
Trap Collision Energy (eV)4
Transfer Collision Energy (eV)2
Trap Collision Energy Ramp Start for MS2 (eV)15.0
Trap Collision Energy Ramp End for MS2 (eV)40.0
ESI(-)-IMS-QTOFMS: electrospray ionisation ion mobility spectrometry time-of-flight mass spectrometry in the negative ion mode.
Table
Table 2. Theoretical and measured ΩN2 values of product ions of m/z 367 (C19H27O7-) ion.
Table 2. Theoretical and measured ΩN2 values of product ions of m/z 367 (C19H27O7-) ion.
NameFormulam/zΩN2 IMSΩN2 MOBCALRD%
(Å2)(Å2)
cis-pinic acidC9H13O4-185.0789140.6147.0−4.5%
cis-pinic acid with an intramolecular hydrogen bond”””141.7−0.8%
10-Hydroxy-cis-pinonic acidC10H15O4-199.0931144.3142.21.48%
RD%: relative difference IMS: ion mobility spectrometry; ΩN2: collision cross-section.
Table
Table 3. Structures and ΩN2 values of m/z 357 and m/z 367 ions considered in this study. The ditto mark (”) indicates the formula or number is the same as above.
Table 3. Structures and ΩN2 values of m/z 357 and m/z 367 ions considered in this study. The ditto mark (”) indicates the formula or number is the same as above.
AbbreviationStructure m/zΩN2 IMSΩN2 MOBCALRD%
(Å2)(Å2)
357a(R,R) Atmosphere 12 00017 i001C17H25O8-357.1549178.6191.46.91%
357a(S,S) Atmosphere 12 00017 i002”””209.816.07%
357b(S,S) Atmosphere 12 00017 i003”””195.18.83%
357b(R,R) Atmosphere 12 00017 i004”””196.19.36%
367a(S,S)(S,S) Atmosphere 12 00017 i005C19H27O7-367.1757182.5216.416.99%
367a(S,S)(R,R) Atmosphere 12 00017 i006”””227.521.93%
367b(S,S)(R,R) Atmosphere 12 00017 i007”””205.711.95%
367b(S,S)(S,S) Atmosphere 12 00017 i008”””201.19.69%
Table
Table 4. Structures and ΩN2 values of m/z 357 and m/z 367 ions with an intra-molecular hydrogen bond considered in this study.
Table 4. Structures and ΩN2 values of m/z 357 and m/z 367 ions with an intra-molecular hydrogen bond considered in this study.
AbbreviationStructure m/zΩN2 IMSΩN2 MOBCALRD%
(Å2)(Å2)
357aHB(R)(S,S) Atmosphere 12 00017 i009C17H25O8-357.1549178.6188.25.27%
357aHB(R)(R,R) Atmosphere 12 00017 i010”””205.013.76%
357bHB(R)(R,R) Atmosphere 12 00017 i011”””182.82.35%
357bHB(S)(S,S) Atmosphere 12 00017 i012”””198.410.50%
367aHB(S,S)(R,R) Atmosphere 12 00017 i013C19H27O7-367.1757182.5192.25.19%
367aHB(R,R)(R,R) Atmosphere 12 00017 i014”””193.05.56%
367bHB(R,R)(R,R) Atmosphere 12 00017 i015”””185.11.42%
367bHB(R,R)(S,S) Atmosphere 12 00017 i016”””195.76.97%
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Iinuma, Y.; Ramasamy, S.; Sato, K.; Kołodziejczyk, A.; Szmigielski, R. Structural Characterisation of Dimeric Esters in α-Pinene Secondary Organic Aerosol Using N2 and CO2 Ion Mobility Mass Spectrometry. Atmosphere 2021, 12, 17. https://doi.org/10.3390/atmos12010017

AMA Style

Iinuma Y, Ramasamy S, Sato K, Kołodziejczyk A, Szmigielski R. Structural Characterisation of Dimeric Esters in α-Pinene Secondary Organic Aerosol Using N2 and CO2 Ion Mobility Mass Spectrometry. Atmosphere. 2021; 12(1):17. https://doi.org/10.3390/atmos12010017

Chicago/Turabian Style

Iinuma, Yoshiteru, Sathiyamurthi Ramasamy, Kei Sato, Agata Kołodziejczyk, and Rafal Szmigielski. 2021. "Structural Characterisation of Dimeric Esters in α-Pinene Secondary Organic Aerosol Using N2 and CO2 Ion Mobility Mass Spectrometry" Atmosphere 12, no. 1: 17. https://doi.org/10.3390/atmos12010017

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
