Review of User-Friendly Models to Improve the Urban Micro-Climate

Abstract

Various micro-scale models for comparing alternative design concepts have been developed in recent decades. The objective of this study is to provide an overview of current user-friendly micro-climate models. In the results, a vast majority of models identified were excluded from the review because the models were not micro-scale, lacking a user-interface, or were not available. In total, eight models met the seven-point inclusion criteria. These models were ADMS Temperature and Humidity model, advanced SkyHelios model, ANSYS FLUENT, ENVI-met, RayMan, SOLWEIG, TownScope, and UMEP. These models differ in their complexity and their widespread use in the scientific community, ranging from very few to thousands of citations. Most of these models simulate air temperature, global radiation, and mean radiant temperature, which helps to evaluate outdoor thermal comfort in cities. All of these models offer a linkage to CAD or GIS software and user support systems at various levels, which facilitates a smooth integration to planning and design. We detected that all models have been evaluated against observations. A wider model comparison, however, has only been performed for fewer models. With this review, we aim to support the finding of a reliable tool, which is fit for the specific purpose.

1. Introduction

With global climate change, making cities climate-proof has become increasingly critical. The form and design of cities effect the outdoor thermal micro-climate, by influencing the micrometeorological variables—air temperature, humidity, solar radiation, and wind speed and direction [1]. Different factors, such as urban morphology [2,3], amount of vegetation, and water bodies (e.g., [4,5]), surface materials (e.g., [6,7]), and ventilation (e.g., [8]), are decisive in determining outdoor thermal comfort. An understanding of the micro-scale is therefore imperative to facilitate climate-sensitive city planning and design.

A substantial body of knowledge focusing on methods to optimize the outdoor thermal climate in cities has been developed in recent decades [4,9]. A huge gap, however, continues to exist between scientific knowledge on climate-sensitive city design and its implementation in practice [10,11]. A wider practical implementation of urban climate knowledge is limited to only a few cities [1,11].

Numerical models are essential tools for analyzing urban climate for engineers, architects, urban planners, and policymakers. This is because climate-sensitive urban planning needs to be predictive to account for different urban forms and climates [12]. Numerical models enable built environment professionals to compare different urban design alternatives [13]. Also, numerical models have the potential to simulate the study areas under varying meteorological conditions. The development of simulation models can thus provide suitable urban planning measures based on the knowledge of urban human biometeorology [14].

Recent years have witnessed an increased research interest in urban climate at varied spatial scales [15]. Numerical models can be broadly categorized into three categories on the basis of spatial scale [16];

• Building-scale models focus on isolated buildings, thermal comfort, indoor air quality, etc. These Building Energy Models (BEM) (e.g., EUReCA [17]) are based on energy balance applied to the building volume;
• Micro-scale models focus on the neighborhood scale and are mostly used in thermal comfort studies. The interaction between the building and its surroundings is the basis of the development of microclimate models. Different model types ranging from simple geometrical models to complex Computational Fluid Dynamic (CFD) and Large Eddy Simulation (LES) models can be categorized to micro-scale models. These models are mostly utilized by scientists and architects; and
• City-scale models are much coarser in resolution and are used to evaluate urban scale policies to mitigate heat island effects. For parameterization of various urban features, such as vegetation and building density at the meso-scale, single- and multi-layer urban canopy models are often applied [18].

This article focuses on the urban micro-scale models that simulate outdoor thermal comfort. Depending on the scope, these models usually investigate the effect of different parameters, such as building orientation, street canyon aspect ratio, surface materials, vegetation, and tree planting on the calculation of surface convection, pedestrian comfort, or urban ventilation [16].

Among many other reasons, the lack of user-friendly models for evaluating the effect of different urban design decisions impedes the incorporation of urban climate knowledge in the design process [19]. Many models are too complicated to be used by related research in built environment studies. More simplified tools are required for local city administration and outside of academia [19]. Moreover, obtaining an overview of current models usable in urban planning has been cumbersome because the information is spread across numerous individual and highly specialized articles.

While the authors are not aware of a review study about the user-friendly micro-climate models, review studies have been published for other related research questions regarding micro-scale models for climate design: ref. [16] reviewed studies that simulate various aspects of urban heat island using building energy, micro-climate or meso-scale models. Ref. [11] provided summarized information on urban climate models from city to building scale that can be used to support the implementation of urban climate knowledge into practice. They focused on different types of models and simulations, such as CFD or statistical models rather than on a complete list of examples. Ref. [20] reviewed different indices and software to assess human outdoor comfort and heat stress. They focused on the different ways to assess human thermal comfort using different types of indices. Software to calculate outdoor human comfort was just a smaller part of the review. A review about CFD models in urban micro-climate has been done by [13]. Ref. [21] reviewed the capabilities of available tools for evaluating the interrelations between microclimate, outdoor comfort, energy demand, and systems in urban areas.

These reviews provide an overview and partly critical assessment of the available models. Many of the reviewed models, however, are too complicated and require programming skills or large computational resources. This impedes the much-needed transfer from science to practice and the related field of science. In order to facilitate the usage of micro-climate models also by experts from practice in business or administration additional features, i.e., linkage to Computer Aided Design (CAD) or Geographic Information System (GIS) software is needed.

The objective of this study is to fill this gap and provide an overview of the current models for micro-climate in cities that are user-friendly and usable without extensive computational resources and advanced programming skills. This paper helps to find suitable and easy-to-use models for applied urban climate studies. Therefore, firstly, we identified urban climate models that are easy to use (provide a user interface), can predict the effects of design decisions (e.g., different options for buildings and/or surfaces), and cover the thermal aspects of urban climate.

Secondly, we reviewed the models based on general features and simulated variables, supported data formats, linkage to GIS and CAD software, evaluation studies available and the number of publications using the model. Furthermore, we present an overview about the availability of support and evaluation studies. Additionally, this review also identified the possible drawbacks of micro-climate models based on wider application and provided basic information that can give potential users a quick start in finding a suitable tool.

2. Materials and Methods

We conducted a literature review in order to identify user-friendly micro-climate models based on four steps: 1. identification, 2. pre-screening, 3. Eligibility-screening, and 4. full-review (Figure 1)

2.1. Identification and Pre-Screening

To identify relevant models, we searched the databases Web of Science and Science Direct for relevant peer-reviewed articles using the keywords ((MODEL OR TOOL) AND (“URBAN CLIMATE” OR MICROCLIMATE OR MICRO-CLIMATE)). The search was additionally supplemented with a search on Google Scholar in order to enhance our search for models. The main research was conducted in the year 2020.

In total, 6335 studies were identified in Web of Science and Science Direct using the above-mentioned keywords (Figure 1). Identified articles were thereafter pre-screened based on abstract and title. Each of the three co-authors conducted the pre-screening for a third of the articles and attributed possible eligible models to be included in the eligibility screening process independently. In the pre-screening, we identified 54 models mentioned in the papers that could be potentially eligible.

2.2. Eligibility-Screening

For the eligibility screening, we checked if the models identified by the pre-screening fulfill the identified seven-point criteria. The eligibility criteria consisted of focuses on user friendliness; urban micro and local scale and usability in further studies. The seven-point criteria defined for model inclusion in this study encompasses the following key aspects:

• Peer-reviewed: The included models are published and introduced in peer-reviewed literature focusing on thermal or ventilation aspects of the micro-climate or urban climate listed in Web of Science and/or Science Direct. Models described comprehensively only in conference papers were not included. Also, models whose application is presented in peer-reviewed literature without description pertaining to the underlying basics such as formulae and concepts were excluded. This criterion also serves as proxy for the quality and reliability of the model.
• Urban Climate: The included models simulate and account for built-up and urban environments. Models that only simulate natural components were not considered.
• Micro-scale: Only models that simulate the micro-scale and resolve buildings explicitly (not parameterized) are considered.
• Worldwide application: The models included needed to have the ability to be used in different cities and across different climatic contexts globally. They should not be specifically tailored to one city, region, or country.
• Simulate outdoor thermal comfort: The included models simulate or estimate the outdoor bioclimate in terms of at least one of the following variables: air temperature (T_a), surface temperature (T_s), mean radiant temperature (T_mrt), or thermal comfort indices (e.g., PET, UTCI).
• User-friendly: The eligible models are user-friendly, i.e., provide a user interface and can be used on regular Windows PC without extensive computational resources.
• Availability: The models are currently available to download, purchase, and subscribe to. The models that are not supported or not provided any longer were excluded.

The definition of these criteria enabled targeting models applicable in varied fields of urban climatology worldwide.

The 54 recognized models were thereafter divided into three groups and thus reviewed by the three authors separately. Representative papers (e.g., intro papers) for these models were assessed in detail in order to check the fulfillment of the above-mentioned seven-point inclusion criteria. During the pre-screening process, if one criterion was not fulfilled, the eligibility screening was aborted and the model (and associated papers) was excluded from full review. Continuous deliberation and validation between the co-authors brought forth comparable review results. On the basis of the review results, the authors found that 46 models did not fulfill the seven-point eligibility criteria (

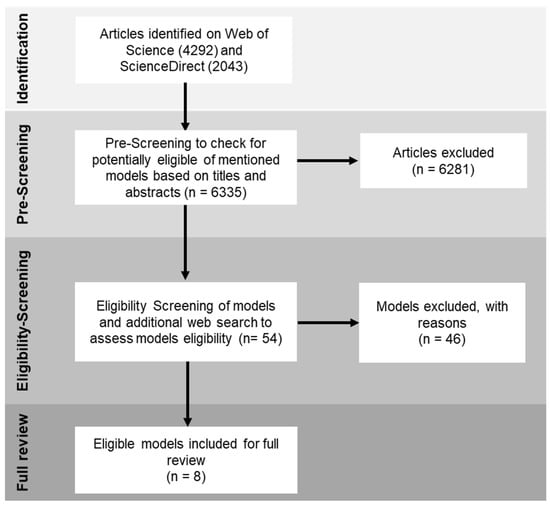

Table 1. Flow chart of the methods used to identify, assess the eligibility of models and their inclu-sion/exclusion from full review.

No.	Name	Reference	Inclusion (Y/N)	Exclusion Reason(s)
1	ADMS Temperature and Humidity model	[22]	Y	None
2	(Advanced) SkyHelios model	[23]	Y	None
3	AKL FlowDesigner	[24]	N	1
4	ANSYS FLUENT	[25]	Y	None
5	AUSSSM-Tool	[26]	N	3
6	BioCAS	[27]	N	4, 7
7	CBE Thermal Comfort Tool	[28]	N	2, 3
8	City Energy Analyst (CEA)	[29]	N	5
9	CityBES	[30]	N	3
10	CityComfort+	[31]	N	6
11	CityFeel	[32]	N	3, 6, 7
12	CITYgreen	[33]	N	2, 5, 6, 7
13	CitySim	[34]	N	1, 7
14	Climate Mapping Tool	[35]	N	2, 3
15	COMFA model	[36]	N	2, 3, 6
16	Decision Support System (DSS)	[37]	N	3
17	Ecotect Win-Air	[38]	N	1, 7
18	ENVI-met	[39]	Y	None
19	FITNAH	[40]	N	3, 6, 7
20	Green CTTC Model/CTTC model	[41]	N	6, 7
21	Griha LD online model	[42]	N	1.7
22	INKAS	[43]	N	3, 4
23	Lucy model	[44]	N	3,,5
24	MeteoInfo	[45]	N	3
25	MIMO	[46]	N	6, 7
26	Mitigation Impact Screening Tool (MIST)	[47]	N	3
27	MUKLIMO-3 Basis/Thermodynamic version	[48,49]	N	5, 6, 7
28	OpenFOAM mircoscale model	[50]	N	6
29	OTC Model	[51]	N	7
30	OutdoorROOM	[52]	N	7
31	PALM	[53]	N	6
32	QUIC EnvSim	[54]	N	7
33	RayMan	[55]	Y	None
34	SCORCHIO tool	[56]	N	4, 7
35	Simple Urban Radiation Model (SURM)	[57]	N	3, 6
36	SimStadt	[58]	N	1, 5
37	ThermoRender	[59]	Y	7
38	SOLENE Microclimate	[60]	N	7
39	SOLWEIG	[61]	Y	None
40	SPOTE	[62]	N	7
41	The Surface Temperature And Runoff (STAR) Tools	[63]	N	4
42	STEVE	[10]	N	4
43	SUEWS	[64]	N	5
44	SUNtool	[65]	N	7
45	SVF mapping tool	[66]	N	5
46	TownScope	[67]	Y	None
47	TUF-3D	[68]	N	5
48	UBIKLIM	[69]	N	3
49	UHI Atlas	[70]	N	3, 4
50	UMEP	[71]	Y	None
51	UMI	[72]	N	5
52	Umsim	[73]	N	7
53	Urban Weather Generator	[74]	N	1, 3
54	WRF-UCM	[75]	N	3

) indicated above.

It is crucial to note that the seven-point criteria applied do not present a valuation or assessment of the models. Models that are excluded on the basis of the criteria defined might still be valuable for various other approaches (see Appendix A). They are, however, beyond the scope of this paper.

2.3. Full Review

In the following full review, research and review articles as well as technical reports, companies and research institutes’ web pages were also reviewed. This facilitated gathering of additional information related to availability and support. The results have been discussed and double-checked by all the co-authors.

For the full review, we considered the whole model development and not only the newest version of the respective model. Only for the model SkyHelios the newest version, called “Advanced SkyHelios”, was differentiated, because the former version was not found to be eligible according to the review criteria.

3. Results and Discussion

3.1. Results of the Pre-Screening

A vast majority of models identified in the pre-screening process did not fulfill the above-defined seven-point inclusion criteria, i.e., 46 models were thus excluded from further analysis. The prime reasons for model exclusion pertained to the model not being a micro- or local scale model; lacking a user interface or not being available for download (see Table 1 for more details). The authors, however, concur that some of the excluded models might still be interesting for the target users. A brief description of some of the most relevant excluded models is offered in Appendix A.

Unfortunately, many interesting models, such as QUIC EnvSim [54], SUNTool [65], SPOTE [62], or Umsim [73], that seem to fall in the scope of this review were not available any longer and the authors were not able to get access to the codes. This was probably due to research projects with only short-term funding.

3.2. Results of the Full Review

In total, the eight models that met the seven-point inclusion criteria are discussed in further detail.

Table 2. Review matrix of user-friendly models included in this review.

No.	Name	Reference	Simulated Variables	Bioclimatic Indices/Variables	Ventilation Aspects	Plants	Supported Data Formats	Linkage (to GIS/CAD)	Pay-/Free-Ware	Example(s) of Evaluation Studies	Number of Publications in Science Direct (Web of Science)
											Mentioning Model Name	Mentioning Model Name and Urban Climate or Micro-Climate
1	ADMS Temperature and Humidity model	[22]	Ts, Ta, Q, Tmrt	-	X	X	.csv, specifc	GIS	Pay	[76]	72 (41)	0 (1)
2	advanced SkyHelios model	[23]	Ws, Wd, Q, Tmrt	PT, UTCI, PET	X	X	grid/vector	GIS/CAD	Free	[23]	0 (1)	1 (5)
3	ANSYS FLUENT	[25]	Ta, Ts, Q, Ws, Wd, others	-	X	X	specific formats	CAD	Pay	[77]	1503 (2954)	5 (8)
4	ENVI-met	[39]	Ta, Ts, Q, Ws, Wd, others	PMV, UTCI, PET, SET	X	X	specific formats, Net-CDF-Output possible	CAD/GIS	Pay	Numerous studies (see review by [78])	264 (389)	179 (281)
5	RayMan	[79]	Q, Tmrt, Ts	PET, SET, PMV, mPET, UTCI, PT	X	X	.txt, specific formats	GIS	Free	[14,55]	49 (122)	25 (53)
6	SOLWEIG	[61]	Q, Tmrt	-		X	.shp, .txt, .tif	GIS	Free	[61,80,81]	12 (29)	5 (11)
7	TownScope	[67]	Q	Sweat rate, sweatevaporation, skin wetness	X	X	specific formats	CAD	Pay	[82,83]	3 (3)	0 (0)
8	Urban Multi-scale Environmental Predictor (UMEP)	[71]	Ta, Q, Tmrt, T	-		X	.shp, .txt, .tif	GIS	Free	see examples for SOLWEIG	2 (2)	1 (1)

The abbreviations for simulated variables are Ts: surface temperature, Ta: air temperature, Q: long- and short-wave radiation, T_mrt: mean radiant temperature, Ws: wind speed, and Wd: wind direction. For the bioclimatic indices PT: Perceived Temperature, UTCI: Universal Thermal Climate Index, PET: Physiological Equivalent Temperature, mPET: modified Physiological Equivalent Temperature, SET: Standard Effective Temperature, and PMV: Predicted Mean Vote.

gives an overview of the models.

The models have different features as the different simulated variables and bioclimatic indices indicate. The models used different data formats that can be considered as common such as .txt, .shp, or ones specific to this software. Remarkable was the huge variety between the citations of the models ranging from very few into thousands, which might show how widely the models are known in the scientific community.

Most of the models included in this review have been developed in Europe: ADMS (Great Britain), advanced SkyHelios, ENVI-met, RayMan (Germany), SOLWEIG (Sweden), TownScope (Belgium), and UMEP (Sweden, Great Britain). Only the very general model ANSYS FLUENT originates from the USA. A short description of the included models is given in the following paragraphs.

3.2.1. ADMS Temperature and Humidity Model (ADMS-TH)

The ADMS Temperature and Humidity (ADMS-TH) Model is a supplement to the ADMS-Urban, which is a version of the Atmospheric Dispersion Modelling System (ADMS) designed with a focus to simulate dispersion in simple and complex urban scenarios. The ADMS model is based on the Monin–Obukhov similarity theory for boundary layer processes [76]. The ADMS-TH model calculates local heat flux and temperature perturbations based on the upwind temperature due to spatial variability of land use parameters in urban area [22,76]. It is developed and published by the Cambridge Environmental Research Consultants (CERC). The ADMS-Urban model is mainly used for assessing and modeling air quality [84,85], which is not the focus here.

The ADMS-TH was developed and described in detail by [22]. The model was used to study neighborhood air temperature and humidity patterns within the LUCID project [52,86,87]. ADMS-TH is able to run at the street and building-resolving scale of a few meters, but can also be applied to simulate complete cities, such as London, as in LUCID Project [52]. ADMS-TH is also able to simulate the cooling effects of vegetation and albedo changes, as studied for different scenarios of green and cool roofs in London by [87]. Benefits of the ADMS modeling system is wide field of possible applications and research questions. This, however, goes along with the requirements of the extensive and detailed input data and more complexity.

3.2.2. Advanced SkyHelios Model

The advanced SkyHelios model is a simple and user-friendly diagnostic model that simulates T_mrt, PT, PET, and UTCI in complex urban environments [23]. The advanced SkyHelios model has been developed by adding new features to SkyHelios and can be seen as an advancement on the RayMan model [23]. SkyHelios uses graphic processors which can be integrated into simulation, e.g., visualization of Sky View Factor (SVF) or radiation estimation [23]. Since T_mrt and wind speed are difficult to measure in urban areas, a three-dimensional diagnostic model has been integrated into SkyHelios [88]. The model comprises of updated parameterization in terms of upwind wind cavity and improved street canyon vortices after [89]. The wind model can thus be used to predict spatially resolved wind speed and direction. By combining information pertaining to radiation and wind, SkyHelios can estimate thermal indices such as PT, UTCI, and PET at a spatially resolved high resolution [88].

While large model areas are possible, the main calculation is done for small areas of interest. SkyHelios is characterized by the following positives, which include short computing time and low costs due to the use of open-source frameworks.

3.2.3. Ansys Fluent

ANSYS FLUENT is a commercial CFD model that has been used to model flow, turbulence, and heat transfer for various tasks for decades [25]. Ansys offers the Ansys Solar Load Model that accounts for isotropic diffuse radiation [79]. Ansys FLUENT can be used on Linux or Windows PC, but cloud computing options are also offered by the company [90]. ANSYS FLUENT is very often used in other fields of research such as thermal and chemical engineering, where the overwhelming number of publications lies (based on the Science Direct research in Table 2). ANSYS FLUENT offers a user interface with many options for adapting and adjusting simulations, but can also be used as a batch and with command lines [90].

Among others, ANSYS FLUENT has been used to study UHI mitigation measures and design decisions [77,91], dispersion of air pollution [92], and in combination with other simulation tools, e.g., to simulate multi-scale urban wind flows by coupling with the mesoscale model WRF [93] or to simulate the park cool island effect by coupling with a thermal model [94]. ANSYS is one of few CFD-models with a user-interface that has been applied to micro-climate studies. Despite its user-interface, ANSYS is, like all CFD-models, sophisticated and users require at least a fundamental understanding of the modelling system.

3.2.4. ENVI-Met

ENVI-met is recognized as the most often used model for micro-climate studies in this review (see Table 2). It has been developed by [39] and several new versions have been released since then. ENVI-met is a three-dimensional, prognostic model designed to simulate the surface–vegetation–air–interactions in the urban environment. It consists of the following sub models: 1D boundary model, 3D atmospheric model, soil model, and vegetation model. ENVI-met is used for various research questions regarding the effects of vegetation, water, albedo, position, material, shading, transpiration, and pollutant dispersion in urban design decisions (e.g., [95]).

Despite its user-friendly interface, ENVI-met is a sophisticated full climate model with the necessary underlying complexity. To successfully apply ENVI-met, at least basic knowledge about computational modeling and atmospheric processes is required. Without the knowledge, the model might become unstable or produce unreasonable results. Due to the complexity, simulations can be very time-consuming. Running a 24 h simulation for an area of 250 × 250 × 30 grid cell can easily take up to one week or more processing time on an up-to-date PC [96].

While many of the known limitations of the models have been overcome, [78] still mentioned several weak points in version v4.0. Among others, there were calculations of radiation fluxes, tendency to over-estimate the turbulent production in high acceleration areas, static cloud, and wind conditions during the simulation period.

3.2.5. RayMan

RayMan calculates the radiation fluxes and biometerological indices and takes complex structures into account [55,79]. It follows a diagnostic approach to be time-independent and requires limited meteorological inputs. The model has been developed in accordance with the German VDI-Guidelines 3789 and VDI-3787 [79]. For the simulation of the short- and long-wave radiant flux densities, RayMan divides the three-dimensional environment into an upper and a lower half space with a parting plane at the human–bio meteorological reference height of 1.1 m [14].

The model requires data pertaining to air temperature, humidity, wind speed, and short- and long-wave radiation fluxes as well as activity and clothing data for computing PET. RayMan allows users the opportunity of free drawing of urban structures (buildings, deciduous and coniferous trees).

RayMan provides diverse opportunities in applied climatology for research and education. With the available climate or meteorological data, thermal indices for simple and complex environments can be estimated. RayMan is a very simple and easy-to-use model. RayMan, however, only enables spot-related simulation of radiant flux densities and thermo-physiological assessment indices.

3.2.6. SOLWEIG

SOLWEIG is a radiation model capable of simulating spatial variations of 3D radiation fluxes and T_mrt in complex urban settings. The model requires a limited number of inputs: direct, diffuse, and global short-wave radiation, T_a, RH, urban geometry, and geographical information (e.g., latitude, longitude, and elevation). The model was developed by [61]. In 2011, a new vegetation scheme was included in SOLWEIG [97].

One of the advantages of this model is that the software copes well with the low sun elevation angles when calculating T_mrt. The model was used in different cities and approaches. Ref. [98] assessed the potential changes in outdoor thermal comfort in Göteborg due to climate change and the influence of urban geometry on the intra-urban differences in outdoor thermal comfort using this model. Ref. [80] analyzed T_mrt variations in the high-density subtropical urban environment of Hong Kong. Ref. [99] analyzed the effect of variations in land cover on T_mrt through a simple scheme developed in SOLWEIG. SOLWEIG was also used to analyze the influence of increasing tree cover on T_mrt in Adelaide [100], and in Vancouver, Canada [101,102]. Furthermore, [81] analyzed the influence of woody vegetation and facade orientation on T_mrt in Szeged, Hungary, by applying radiation measurements.

3.2.7. TownScope

TownScope focuses on the interactions in urban open areas based on solar computations that consider the spaces and their surrounding buildings as well as the actual 3D site where the project is positioned [67]. TownScope combines visual instruments with numerical evaluators within an urban information management system. Different solar evaluation methods are implemented in a unified model. A clear distinction between the built in 3D geometrical objects and urban entities that can be user defined is provided. The whole software has been developed with an object-oriented language—CLOS (Common Lisp Object System), to improve modularity and portability [103]). Data encoding has been limited to the minimum by utilizing [104] theoretical method for determining available hourly radiation values at an unobstructed site [67]. Spherical projections have been utilized intensively for both visualization as well as evaluation purposes [67].

TownScope provides two different data acquisition modes for 3D objects: Data import and export between TownScope and solid modelers as well as the use of direct data acquisition tools. Triangulation algorithms allow for a convenient and easy way to define ground and irregular surfaces through points or level curves [67].

Unlike other software, TownScope focuses on the urban design detail level [67]. It supports solar access decision-making in keeping with a sustainable urban design perspective. The software comprises tools that facilitate analysis pertaining to solar access, thermal comfort, sky opening, and visibility analysis. TownScope considers thermal comfort by simulating sweat rate, sweat evaporation, and skin wetness [105]. The software also facilitates direct comparison on different scenes. Lastly, another interesting application of the tool is that it can be used to determine the potential for a neighborhood’s solar heating and photovoltaic electricity production (e.g., [106]). Different studies have utilized TownScope (e.g., [67,82,83]). An advantage of TownScope is that it provides a visual and analysis tool that supports the urban design decision-making process [67]. The evaluation of solar access can be performed at any geographical location for any day of the year. The native functions for evaluating solar potential, however, are usually non-editable, which might prevent the further use of results [107].

3.2.8. UMEP

Ref. [71] introduced the Urban Multi-scale Environmental Predictor (UMEP) to the scientific community as an integrated tool for urban climate and climate-sensitive planning applications. This integrated tool for city-based climate services can be used for the analysis of outdoor thermal comfort, wind, urban energy consumption, and climate change mitigation [71]. UMEP is a coupled modeling system that is open source and can be applied for the analysis performed from the street canyon to city-scale. It consists of the following main models: the SOLWEIG model (SOlar and LongWave Environmental Irradiance Geometry model), the SUEWS model (Surface Urban Energy and Water Balance Scheme), the BLUEWS model (Boundary Layer Urban Energy Water Scheme), and the LUCY model (Large scale Urban Consumption of energY model). The tool enables users to input atmospheric and surface data, characterize the urban environment, perform simulations and use scenarios, and visualize and compare different combinations of climate indicators [71]. Advantages of an integrated system, such as UMEP, is that various research questions related to climate-sensitive urban design can be addressed with various straightforward tools within one environment, from the street canyon to city scale.

3.3. Evaluation against Observations

All of the models included in this review have been evaluated in at least one published study (Table 2). Hence, one can assume a certain quality from the simulations for the standard output variables such as T_a.

Different variables simulated by AMDS-TH have been evaluated for the Lecce, Italy, against observation with good agreement by [76].

The advanced SkyHelios model has been evaluated by the developers in Freiburg, Germany, with good results [23]. The authors did not find another peer-reviewed evaluation study of the advanced Sky Helios model. Since the model is viewed as an advancement on the popular and well-evaluated RayMan model, this absence might not be an issue. Nevertheless, additional evaluations of the model will contribute to its visibility and further development.

ANSYS FLUENT has been used for evaluation of the field of urban climate against observations by [77] focusing on air and surface temperature and wind speed in relation to albedo and building compactness.

ENVI-met has been evaluated frequently and in many regions, and [78] performed a meta-analysis of the 52 evaluation studies. Most evaluations were done regarding air temperature with RMSE between 0.52 and 4.30 K. Also, for T_mrt, some evaluation has been performed with a median RMSE of 6.50 °C and a tendency of over-estimation. Wind, however, has rarely been evaluated [78]. Nevertheless, a study [108] evaluated the performance of ENVI-met model in diurnal cycles for different meteorological conditions and obtained good agreement of measured and modelled values of Ta and RH, while this is not the case for T_mrt and wind speed.

For RayMan also various evaluations studies have been conducted (Table 2). RayMan is capable of simulating T_mrt satisfactorily under relatively homogeneous site conditions only [14]. Additionally, RayMan 1.2 software simulates T_mrt well at high sun elevations but under-estimates it considerably at low sun elevations [109]. Furthermore, RayMan model enables spot specific thermal comfort assessment. Sky Helios on the other hand is more suitable for spatial analysis at a higher spatial resolution, e.g., 1 m [110].

SOLWEIG was firstly evaluated in Göteborg, Sweden, by [61,97]. The evaluation results from Göteborg showed good agreement between modeled and measured T_mrt at two sites with different building geometries, i.e., a large square and a small courtyard [61]. In Freiburg, Germany, Ref. [111] compared T_mrt obtained from field experiments and from modeling by SOLWEIG. In Shanghai, China, Ref. [112] investigated the spatial variation of T_mrt in different urban settings of the city. T_mrt was obtained by SOLWEIG and tested against six directional radiant flux density measurements, and, generally, good performances were noticed [112]. The results from this study showed that the developed scheme could simulate the outgoing fluxes well (especially during sunny conditions), while they were under-estimated at night and in shadowed locations.

For TownScope one evaluation study was identified that compared the simulation with results from previous studies that simulated solar radiation at facades in similar urban contexts and climate zones (hot–arid and hot–humid) [82].

UMEP’s model components, such as SOLWEIG and SUEWS, have been evaluated individually (e.g., [61,71,97,113]).

A detailed overview about the robustness of the validation of each model is beyond the scope of this review and should be carefully checked before the usage of a micro-climate model.

3.4. Combination and Inter-Comparison of Models

While all reviewed models have been evaluated against observations, at least for certain variables and situations, model comparisons are not available for all of these models. In the following paragraphs, we present an overview study that compared at least two of the models recognized in this study as eligible user-friendly micro-climate models in a quantitative manner (

Table 3. Overview of available support and training material for the user-friendly models. X indicated that the information is available.

Name	Man-ual/	For-um/Support	Tutorials, Videos	Training Courses	Website/
ADMS-TH	x			x	https://www.cerc.co.uk/environmental-software/ADMS-Urban-model.html (accessed on 2 October 2021)
advanced SkyHelios model	x	x			https://www.urbanclimate.net/skyhelios/ (accessed on 2 October 2021)
ANSYS FLUENT	x	x	x	x	https://www.ansys.com/training-center/ (accessed on 2 October 2021)
ENVI-met	x	x	x		https://www.envi-met.com (accessed on 2 October 2021)
RayMan	x	x	x	x	https://www.urbanclimate.net/rayman/ (accessed on 2 October 2021)
SOLWEIG	x	x	x	x	https://umep-docs.readthedocs.io/projects/tutorial/en/latest/Tutorials/IntroductionToSolweig.html (accessed on 2 October 2021)
TownScope	x	x	x	x	www.townscope.com (accessed on 2 October 2021)
UMEP	x	x	x	x	https://umep-docs.readthedocs.io/en/latest/ (accessed on 2 October 2021)

).

Most of the comparisons have been performed between the models ENVI-met, RayMan, and SOLWEIG (see Table 3). Due to different study regions and model domains, the studies arrived at different results:

• Ref. [110] compared Envi-met, SOLWEIG, and RayMan with observations of T_mrt in Freiburg, Germany. They detected that RayMan performed with fine time resolution better than the other models.
• Ref. [114] compared the three models with observations for Berlin, Germany. The authors of this study concluded that the SOLWEIG simulated T_mrt closest to the observation, however, it over-estimated the amplitude of short-wave upward radiation.
• Ref. [81] also applied the models Envi-met, SOLWEIG, and RayMan and evaluated the simulation of T_mrt against observations in Szeged, Hungary. They evaluated the models for different survey points and revealed that models performing varies between the different sites.
• The study [115] for Szeged, Hungary, pointed out that the models RayMan Pro, SOLWEIG, and ENVI-met under-estimate night-time T_mrt. Overall SOLWEIG showed the lowest deviations from observations.
• Ref. [116] validated seasonal T_mrt obtained via RayMan and ENVI-met in Tempe, Arizona. This study reported that both models produce large simulation errors, thus exceeding a suggested T_mrt accuracy of ± 5 °C for heat-stress studies. Accordingly, both models were not able to accurately simulate T_mrt for hot conditions.
• The study [117] observed that ENVI-met has the lowest margin of error while RayMan has the highest and SOLWEIG is in the middle. RayMan however works best at higher solar altitudes on clear summer days, unlike ENVI-met that works well in cloudy and cloudless scenarios.

Comparison between other model constellations were rare: [118,119] compared SVF estimated by Envi-met and RayMan with fish-eye-observations. Ref. [76] compared T_a simulated by ADMS-TH model with ENVI-met in a case study in south Italy. In this study it was found that the ADMS temperature and humidity model performs better than ENVI-met overall. For the other models AnsysFluent, TownScope, and UMEP no comparison studies could be identified.

Other studies applied two or more models in combination without comparing the model results with each other against observations.

Ref. [120] applied SkyHelios, RayMan, and Envi-met in combination. Refs. [88,121,122] applied SkyHelios and RayMan models together. Various studies applied Envi-met and RayMan in combination [123,124,125,126,127,128,129]. In these studies, RayMan was often just applied to calculate the biometeorological variables, such as PET or UTCI.

Based on these results, it can be concluded that there is a substantial gap in the comparison between the models that requires further scientific research. This will be a complex future endeavor as it will require collaboration across different scientific fields and between researchers skilled in different models for a comprehensive assessment.

3.5. Links the GIS and CAD Software

To expand the applicability of the micro-climate models, it is important to connect them to other software, such as GIS and CAD. GIS are widely used in various scientific and applied fields including urban climate and urban planning [10]. CAD software is mainly used by architects and building engineers. CAD data, however, are often not geo-referenced which impedes their automated usage in modeling. Hence, GIS and CAD can serve to bridge the knowledge between science and practice. We have assessed if the user-friendly micro-climate models are connected to this software (Table 2):

• ADMS offers a visualization package and is linkable to meso-scale models such as WRF as well as to GIS software (ADMS-GIS extension). ADMS has links to GIS such as ArcGIS and offers its own GIS application called ADMS-Mapper. With these linkages model input can be generated and model output data can be visualized in GIS [130].
• The Advanced Skyhelios model can support typical spatial formats (e.g., shape, tif, ascii, and City GML) that can be generated and used in CAD or GIS in addition to special formats used by other models (RayMan obstacle files and ENVI-met area input files) [131].
• ANSYS FLUENT is targeted towards engineers since the simulating objects can be imported from various CAD and 3D visualization software.
• ENVI-met offers with Monde an additional editor to generate input data and the model domain from GIS data. Also, a Rhino/Grasshopper plugin is available to generate input data from CAD files [96].
• For RayMan a QGIS (free and opensource GIS software) plugin “SHP to OBS” provides the capability of creating input files for RayMan [132]. The plugin requires two ESRI^®-shape files (or three, if vegetation is included) as input to create RayMan obstacle files. The plugin is available free for download.
• TownScope works well with CAD. The software can import data from main CAD systems and calculate solar gain, thermal comfort, and perceptive properties of urban open spaces. The software additionally allows for generation of terrain from 3D points [133]. TownScope can import data from main CAD systems and calculate solar gain, thermal comfort, and perceptive properties of urban open spaces. This produces results rapidly and can be applied to GIS formats [134].
• UMEP [71] is developed with the idea to enable users to interact with spatial information and to edit, map, and visualize inputs and results. Accordingly, it is written as a plug-in to QGIS, which is a cross-platform, free, and open-source desktop GIS application (https://qgis.org/en/site/, accessed on 2 October 2021). With a linkage to GIS also the creation of urban climate maps is supported [11]. As part of UMEP, SOLWEIG can be used in QGIS.

Interestingly, each of the user-friendly models offers some sort of linkage either to GIS or to CAD software as described later in this manuscript. This can be interpreted as a special feature due to the applied scope of the models or as a new development. Ten years ago, only a few models were available that could be used in GIS or be easily linked to GIS [10]. In general, GRID and NCDF are more frequently used data formats in the atmospheric science community. These formats, however, are not directly supported by GIS tools. Also, different software types are used by the atmospheric science community [45]. Hence, it makes the transfer of technology easier if different, as well as GIS-compatible formats are provided as in- and output data.

3.6. Availability of Support

Most of the micro-climate models offer various and also interactive support for the models (Table 3). This is helpful and needed in order to create an active user community.

ADMS-Urban offers yearly user meetings, a user’s guide and additional documents to get started with. The Advanced SkyHelios and RayMan have a documentation and a community forum. ANSYS FLUENT offers various support options as a commercial and in other fields of research, a widely-used model. It offers forum, videos, tutorials, individual support, and various training courses, which mainly come with an additional fee. ENVI-met offers detailed documentation, videos, and support via the websites. UMEP and SOLWEIG offer detailed manuals and training materials. Furthermore, it is possible to take part in their development, i.e., participate in coding or adding new features, submit comments or report issues, get updates, news and help from other users. TownScope offers documentation, an active FAQ, and training sessions.

3.7. Limitations

This review paper has very specific focus on user-friendly micro-climate models. This means that there are many other micro-climate models available that do not offer a user-interface and are not usable on a private PC. Furthermore, since we only included peer-reviewed models, we might not have captured the newest developments that might just have been introduced at conferences or have user-interface currently under construction. Also, studies on models were included only if they were written in English language and presented as an original research paper.

Another limitation of this review paper is that it must be seen as a snapshot and starting point for one’s own search for the newest model developments. As mentioned earlier, many models identified in the pre-screening were not available anymore, i.e., websites given in studies were inoperable and contact information outdated. Some of the models might be updated in future, e.g., with another founding project.

4. Conclusions

With this review, we demonstrated that eight user-friendly micro-climate models are already available that can be used to improve the design and development of outdoor spaces in cities. All of these models offer a linkage to CAD or GIS software and support systems at various levels, which promote a smooth integration to planning and design software. We have also detected that all models have been evaluated against observations, which is evidence for simulation quality.

A wider model comparison, however, has only been performed for some models. Hence, comparative analyses between the models were very limited. Moreover, models eligible for this review were developed only in Europe and USA. Some of the models are in use all over the world, others only in several countries. When applying the models to new climate zones, special attentions need to be given to the simulation’s quality.

Since we detected that many models identified at the stage of eligibility screening were not available and supported anymore, we argue that more effort need to be taken to secure financing and hosting of the model websites to avoid the loss of models and gained experience.

Upcoming models often focus on multi-scale approaches that integrate or combine different urban climate models to address processes at various spatial levels, which was not within the scope of this review. Multi-scale has the advantage to bridge between the meso- and the microscale and are able to produce spatially consistent results. Examples for multi-scale and integrated approaches besides the included UMEP [71], are the Integrated Multi-scale Environmental Urban Model (IMEUM) [135] or studies that coupled micro- and meso-scale climate models, e.g., [136] or [137] or even micro- and meso-scale models with a building energy model [138].

Another future research direction that is also needed for climate-sensitive urban development and design is the integration or coupling of models for bio-climate sensitive designs with models for other aspects of climate-proofing, such as building energy models. Ref. [21] noted that many models often address only one or two of the above-mentioned urban planning aspects, nonetheless there are numerous links between them. Moreover, in many city administrations, the environmental planning departments need to deal with a wide range of issues related to climate, such as reducing outdoor heat stress, reducing energy consumption, optimizing the use of solar energy on buildings, and adapting to increasing flood risk. Hence, tools and workflows that let planners deal with these different issues easily are also desirable.

The approach of performance-based urban planning addresses the impact of new land uses across the entire urban system and has a much larger scope than just climate issues [138]. Several model approaches aim to quantify new plans based on different cumulative effects on mobility, green infrastructure, energy, e.g., [139] to optimize the overall performance in the urban system. This could be a follow-up approach after considering the aspects of climate. Related to the increasingly complex modeling methods is the need for more detailed data sources to describe the city. There is a growing need for high-quality urban experimental datasets for validating models. Secondly, high-resolution geometric details and properties of the urban fabric are needed for model validation.

Beside the need for more integrated models, also the models for climate-sensitive urban planning need to increase their focus on the target group of applied scientists and practitioners. Therefore, the idea of “Research through design” stated for microclimate in [140] is highly interesting, but is seldom used for designing microclimates.
