Article

Organic Molecular Tracers in PM2.5 at Urban Sites during Spring and Summer in Japan: Impact of Secondary Organic Aerosols on Water-Soluble Organic Carbon

by
Fumikazu Ikemori
1,*,
Rie Nishimura
2,
Shinji Saito
3,
Masayuki Akiyama
4,
Shigekazu Yamamoto
5,
Akihiro Iijima
6 and
Seiji Sugata
7
1
Nagoya City Institute for Environmental Sciences, Nagoya 457-0841, Aichi, Japan
2
Research Institute of Environment Agriculture and Fisheries Osaka Prefecture, Habikino 583-0862, Osaka, Japan
3
Tokyo Metropolitan Research Institute for Environmental Protection, Koto-ku, Tokyo 136-0075, Japan
4
Research Institute of Energy, Environment and Geology, Hokkaido Research Organization, Sapporo 060-0819, Hokkaido, Japan
5
Fukuoka Institute of Health and Environmental Sciences, Dazaifu 818-0135, Fukuoka, Japan
6
Department of Regional Activation, Takasaki City University of Economics, Takasaki 370-0801, Gunma, Japan
7
National Institute for Environmental Studies, Tsukuba 305-8506, Ibaraki, Japan
*
Author to whom correspondence should be addressed.
Atmosphere 2021, 12(5), 579; https://doi.org/10.3390/atmos12050579
Submission received: 27 March 2021 / Revised: 21 April 2021 / Accepted: 28 April 2021 / Published: 30 April 2021
(This article belongs to the Special Issue Air Pollution in Japan)
Browse Figures
Versions Notes

Abstract

:
To understand the characteristics of secondary organic aerosols (SOAs) and estimate their impact on water-soluble organic carbon (WSOC) in urban areas in Japan, we measured 17 organic tracers using gas chromatography–mass spectrometry from particulate matter with an aerodynamic diameter smaller than 2.5 μm collected at five urban sites in Japan during spring and summer. Most anthropogenic, monoterpene-derived, and isoprene-derived SOA tracers showed meaningful correlations with potential ozone in both these seasons. These results indicate that oxidants play an important role in SOAs produced during both seasons in urban cities in Japan. WSOC was significantly affected by anthropogenic and monoterpene-derived SOAs during spring and three SOA groups during summer at most of the sites sampled. The total estimated secondary organic carbons (SOCs), including mono-aromatic, di-aromatic, monoterpene-derived, and isoprene-derived SOCs, could explain the WSOC fractions of 39–63% in spring and 46–54% in summer at each site. Notably, monoterpene-derived and mono-aromatic SOCs accounted for most of the total estimated SOCs in both spring (85–93%) and summer (75–82%) at each site. These results indicate that SOAs significantly impact WSOC concentrations during both these seasons at urban sites in Japan.

1. Introduction

Atmospheric aerosols, including particulate matter (PM) with an aerodynamic diameter smaller than 2.5 μm (PM2.5), possess characteristics, such as light absorptivity, toxicity, and hygroscopicity; therefore, these aerosols impact human health and the global climate directly and indirectly [1,2]. Owing to their toxicity, PMs have been classified as carcinogenic to humans by the World Health Organization [3]. PM2.5 consists of various substances, such as carbonaceous components, sulfate (SO42−), nitrate (NO3−), ammonium (NH4+), and metals [4]. Organic components, such as organic carbon (OC) and water-soluble OC (WSOC), account for a large proportion of PM2.5, ranging from 10% to 70% [2,4]. Organic compounds in PM play an important role in the PM properties affecting air quality, health, and climate. Therefore, a number of studies have been performed to understand the characteristics of organic aerosols [5]. Organic aerosols are generally categorized into primary organic aerosols (POAs) directly emitted from biomass and fossil fuel combustion, and plant and soil dust, and secondary organic aerosols (SOAs) produced via the oxidation of gas-phase precursors in the atmosphere [6]. SOAs generally have a higher water solubility than their precursors because of oxidation reactions, and their formation is an important factor contributing to the increase in the WSOC concentration. Identifying sources and formation mechanisms is challenging because of the complex sources and atmospheric processing of SOAs.
Recently, specific organic compounds have been proposed as tracers to evaluate the sources and generation processes of organic aerosols. Several tracers of anthropogenic SOA (ASOA) and biogenic SOA have been proposed in laboratory and field studies. 2,3-Dihydroxy-4-oxopentanoic acid (DHOPA), phthalic acid, 4-methylphthalic acid, and some nitroaromatics, such as 3,5-dinitrosalicylic acid, have been proposed as oxidation products from anthropogenic volatile organic compounds (AVOCs) such as toluene and naphthalene [7,8,9,10]. Pinonic acid, pinic acid, 3-hydroxyglutaric acid, and 3-methyl-1,2,3-butanetricarboxylic acid (MBTCA) have been reported as oxidation products from monoterpenes, such as α-pinene [11,12,13]. Isoprene can be oxidized to 2-methylthreitol and 2-methylerythritol under low-nitrogen oxide (NOx) conditions and 2,3-dihydroxy-2-methylpropanoic acid (2-methylglyceric acid) under high-NOx conditions [14,15]. For POA tracers, anhydrous sugars, such as levoglucosan, have been used as tracers for biomass burning [16,17]. In addition, terephthalic acid is a major pyrolysis product of polyethylene terephthalate used in plastic products [18]. Terephthalic acid may also be formed by the secondary formation of aromatic hydrocarbons from traffic emissions in urban areas [19,20]. Arabitol and mannitol are storage substances found in fungal spores and plants [21,22], and glucose is emitted from terrestrial plant fruits and vascular plants [23]. These sugars are known tracers of primary biogenic emissions. These organic tracers are widely used to analyze the sources and formation processes of organic aerosols worldwide.
In Japan, the PM2.5 environmental standard was set in 2009 to 15 μg/m3 for the annual average concentration and to 35 μg/m3 for the 98th percentile value of the daily average [24]. Focusing on carbonaceous aerosols, elemental carbon (EC) concentrations have gradually decreased in urban areas, such as Tokyo [25,26,27] and Nagoya [28], because of motor vehicle emission controls [29]. Conversely, OC concentrations demonstrated insignificant variations from 2004 to 2014 in Tokyo [27]. Regarding the sources of carbonaceous aerosols, Miyazaki et al. [30] used time-resolved field observations to demonstrate that the hourly WSOC concentration is highly correlated with the secondary organic carbon (SOC) concentration as estimated using the EC-tracer method. To prevent secondary air pollution, such as SOAs and oxidants, regulations controlling VOC emissions were implemented in 2006 in Japan. The goal of this regulation was a 30% reduction of the 2000-emission level by 2010. As a result, a reduction of more than 42% in VOC emissions from stationary sources in Japan was achieved from 2000 to 2009 [29]. To understand the effectiveness of VOC regulations, it is essential to understand the actual status of ASOAs. According to radiocarbon measurements, fossil sources contributed to the high daytime SOA concentration in Maebashi, a suburban city located downwind of Tokyo [31,32]. Ikemori et al. [33] also demonstrated that SOA-produced fossil VOCs contributed to the periods of high fossil-carbon concentration during summer in Nagoya, an urban city in Japan. However, in Japan, the concentrations, formation processes, and contributions of SOA have not been examined in detail. In particular, field studies using organic tracers are limited, especially at urban sites where there are multiple anthropogenic emission sources [9]. In this study, we measured 17 organic tracer compounds of SOAs and POAs using gas chromatography–mass spectrometry (GC–MS) to reveal the characteristics of these tracers during spring and summer when oxidants tend to be highly concentrated. We focused on SOAs and estimated their impact on WSOC in PM2.5 at urban sites in Japan.

2. Materials and Methods

2.1. Sampling and Measurements

PM2.5 was collected for 24 h on quartz filters to quantify water-soluble ionic species, OC, EC, and organic tracer compounds during spring and summer in 2015 at five urban cities in Japan (Figure 1, Table S1 of Supplementary Material). Detailed information concerning the sampling sites and the PM2.5 collection, including the samplers, is given in Table 1.
Measurements of ions and carbonaceous components (OC, EC, and WSOC) were conducted according to the standard PM2.5 measuring method based on the Ministry of the Environment Air Pollution Control Law in Japan [34]. In brief, the water-soluble ionic species and WSOC were extracted via ultrapure water and determined using ion chromatography (ICS-5000, Thermo Fisher Scientific) and a total organic carbon analyzer (TOC-V CPH, Shimadzu), respectively. OC and EC were analyzed using an OC/EC analyzer (Desert Research Institute Model 2001) according to the Interagency Monitoring of Protected Visual Environments protocol (IMPROVE)/thermal, optical reflectance method. Organic tracer compounds were determined via GC–MS (GC: Agilent 7890, MS: Agilent 5975) following the method reported in our previous studies [35,36]. In brief, a quartz filter aliquot (filter area of 4.3 cm2 in Dazaifu and 3 cm2 at the other sites) was spiked with internal recovery standards (succinic acid-d4, glutaric acid-d6, levoglucosan-13C6, and mannitol-d8); organic tracers were then extracted using dichloromethane/methanol (2:1, v/v, 5 mL, Wako Pure Chemical Industries) under ultrasonication for 20 min [35]. The solvent extracts were concentrated using pure nitrogen gas. Then, the dried extracts were reacted with 40 μL N,O-bis(trimethylsilyl)trifluoroacetamide containing 1% trimethylsilyl chloride (BSTFA; GL-sciences) and 10 μL pyridine (Wako Pure Chemical Industries) at 70 °C for 1.5 h to convert the compounds into trimethylsilyl derivatives. Then, the obtained derivatives were diluted with 100 μL isooctane containing the recovery standard (n-pentacosan-d52; C/D/N Isotopes) and measurements of organic tracers were conducted via GC–MS. The GC was equipped with a splitless injector and an InertCap 5MS fused-silica capillary column (30 m + 5 m × 0.25 mm internal diameter, 0.25 mm film thickness; GL-sciences). The MS was operated in electron ionization mode at 70 eV and in selected ion monitoring (SIM)/scan mode, measuring the target mass within a scanning range of 50–650 Da. Quantification of the organic tracer compounds was performed using authentic standards, except for 2-methylthreitol and 2-methylerythritol, estimated using meso-erythritol and threitol, respectively. The SIM results were normalized to the corresponding internal standards and quantified using a linear calibration curve (R2 > 0.995). Recoveries of the quantified organic tracer compounds ranged from 95% to 112% [36].
We used the PM2.5 mass and gaseous compound data, including nitric oxide (NO), nitrogen dioxide (NO2), nitrogen oxide (NOx), and oxidants (Ox), measured by the local and national governments in Japan at residential monitoring sites within 2.5 km of each PM2.5 sampling site. The potential ozone (PO) was calculated as:
PO = Ox + NO2 − 0.1 × NO,
based on the report by Itano et al. [37]. In addition, we used meteorological data measured by the Japanese Meteorological Agency. These data have been published by the National Institute for Environmental Studies [38] and the Japanese Meteorological Agency [39].

2.2. Estimation of Secondary Organic Carbon Using an Organic Tracer-Based Method

SOA (or SOC) originating from biogenic VOC (BVOC) and AVOC was estimated using a tracer-based method (SOA-tracer method). The fraction of SOC (fsoc) is defined as:
fsoc = Σi[tri]/[SOC],
where [tri] is the concentration of each organic tracer i in ng/m3 and (SOC) is the organic carbon concentration of the SOA. Tracer mass fraction factors (fsoc) based on chamber experiments have been proposed in previous studies [7,40,41,42,43]. We adopted 0.00307, 0.0367, 0.059 and 0.155 as the fsoc values for the mono-aromatics estimated by DHOPA [7]; di-aromatic SOCs estimated by naphthalene [7]; monoterpene-derived SOCs estimated by pinonic acid, pinic acid, 3-hydroxyglutaric acid, MBTCA, and 3-hydroxy-4,4-dimethylglutaric acid [43]; and isoprene-derived SOCs estimated by 2-methylthreitol, 2-methylerythritol, and 2-methylglyceric acid [41], respectively. The factor for monoterpene-derived SOCs proposed by Kleindienst et al. [41] has been used in multiple studies. However, this factor was estimated using nine compounds, including pinonic acid, pinic acid, and 3-hydroxyglutaric acid, detected in PM in monoterpene oxidation chamber experiments. Only three of these nine components could be quantified in this study. In addition, MBTCA, which showed a high concentration in this study, was not used to calculate fsoc reported in Kleindienst et al. [41]. These factors may cause large errors in estimations of monoterpene-derived SOCs when using the fsoc value reported by Kleindienst et al. [41]. Conversely, four of the five tracer compounds used to calculate the factor proposed by Zhang et al. [43] were quantifiable in this study. Therefore, the fsoc value reported by Zhang et al. [43] will likely lead to smaller errors than that reported by Kleindienst et al. [41]. Accordingly, we adopted the fsoc value proposed by Zhang et al. [43].

3. Results and Discussion

3.1. PM2.5 Mass and Major Component Concentrations

Seasonal averages of the PM2.5 mass, OC, WSOC, EC, ions, gaseous components, and meteorological data during spring and summer at all sites are shown in Table 2. The component with the highest averaged concentration is sulfate, followed by OC or ammonium, at all sites during both seasons. The seasonal mean concentrations of sulfate in Dazaifu were 1.9–2.8 and 1.4–2.7 times higher than those at other sites during spring and summer. Sulfate is a significant contributing component to long-range PM2.5 transported to Japan from the Asian continent. Accordingly, the sulfate concentration is higher in western regions than in eastern regions of Japan [44,45]. The OC concentrations were comparable at all sites during spring but were lower in Sapporo than that at other sites during summer. This concentration trend for OC indicates that OC is not as strongly affected by transboundary pollution as is sulfate. The averaged WSOC fractions of OC at each observation site were large at 68.0–74.6% in spring and 77.1–88.1% in summer. In addition, strong correlations between WSOC and OC at each site were shown in spring (r = 0.95–0.98) and summer (r = 0.94–0.97), except at Sapporo (r = 0.59 and 0.43, respectively), as shown in Table S2 of Supplementary Material. The WSOC was also weakly correlated with the PO in Sapporo in summer (r = 0.51) and strongly correlated with the PO in spring (r = 0.77–0.88) and summer (r = 0.78–0.93) in other cities in both these seasons, as is also shown in Table S2.
WSOC is mainly produced from biomass burning (direct emission) and via secondary reactions of VOC (e.g., [46]). Using an EC-tracer method in the Tokyo urban area, Miyazaki et al. [30] demonstrated that the hourly WSOC is highly correlated with the SOC estimate. Ueno et al. [47] also reported that secondary generation from VOCs, rather than biomass combustion, primarily contributes to WSOC production in Tokyo based on the correlation between WSOC and both potassium ions and PO. Based on a radiocarbon analysis at an urban site in Nagoya, Ikemori et al. [33] suggested that high values of total carbon in summer are associated with secondary formation from AVOC and BVOC. Moreover, the contribution of biomass burning is lower in spring and summer–early fall than in late fall and winter. Our results indicate the possibility that secondary generation from VOC is a significant contributor to WSOC at urban sites during spring and summer; however, the trends observed in Sapporo are different. Using organic tracers, we discuss in detail the origin of WSOCs, especially secondary generation, in Section 3.2.

3.2. Organic Tracers

Seventeen organic tracer compounds were measured and categorized into six groups according to their origins (ASOA, biogenic SOAs from monoterpene and isoprene, biomass burning, plastic burning, and primary biogenic organic aerosols). The seasonal means of the organic tracers in spring and summer are shown in Table 3. The seasonal averages of the total organic tracer components at each site are shown in Figure 2. During spring, the lowest seasonal average was observed in Tokyo; Dazaifu had the highest average among all sites, which can be attributed to the higher concentration of BPOA. In Dazaifu, PM2.5 impactor for a high-volume (HVI2.5, Tokyo dylec) was used to sample PM2.5; however, others have reported that calcium ions contained in the soil (coarse particles) are collected when sampling PM2.5 [48]. Similar behavior has been reported when using other high-volume PM2.5 impactors [49]. Therefore, tracers for fungal spores and plants, which are abundant in coarse particles, showed high value at Dazaifu. In summer, the seasonal averages across the sites were comparable, although that at Sapporo was the lowest. Isoprene-derived SOA tracers were higher in summer than in spring; meanwhile, biomass burning tracers were clearly higher in spring than in summer. The detailed characteristics of each categorized group and the WSOC relationships are discussed in the following subsections.

3.2.1. ASOA Tracers

Three organics, DHOPA, phthalic acid, and 4-methylphthalic acid, were quantified as ASOA tracers (Table 3). The seasonally averaged subtotals of the ASOA tracers at each site were comparable in spring and summer; however, those at Sapporo were more than twice as high in spring than in summer. In Sapporo, the highest values were observed in spring, whereas the lowest values were observed in summer. Phthalic acid showed the highest concentrations of the ASOA tracers during both spring and summer at all sites. Seasonally averaged concentrations of DHOPA in spring were higher than those of 4-methylphthalic acid at all sites, whereas the seasonally averaged concentrations of DHOPA in summer were comparable or lower than those of 4-methylphthalic acid. Moderately or highly positive correlations were shown for the three organics during spring (r = 0.69–0.92) and summer (r = 0.56–0.94), excepting absent correlations between 4-methyphthalic acid and both phthalic acid and DHOPA in Sapporo during spring and 4-methylphthalic acid and DHOPA in Nagoya during both these seasons (Table S3 of Supplementary Material).
DHOPA is an aromatic ring-opening SOA product from toluene and is known to be a useful tracer of toluene-derived SOAs [41]. Recently, DHOPA was also detected in SOAs generated from other mono-aromatic VOCs, such as xylenes, ethylbenzene, and trimethylbenzenes, in chamber experiments; therefore, it is a common SOA product for mono-aromatic VOCs [7]. Phthalic and 4-methylphthalic acids have been detected during the photooxidation of naphthalene and methylnaphthalene in chamber experiments [7,42]. Furthermore, it has been reported that ASOA tracers, OC, and anthropogenic sulfate, are often transported from Northeast China to western Japan in spring [36,45,50]. For each sampling day and at each sampling site, 72 h backward trajectories were calculated at 12:00 Japan Standard Time at an altitude of 1000 m using NOAA Hysprit; the results are presented in Figure S1 of Supplementary Material. Air masses came from China, particularly during the entire sampling period at Sapporo and the first half of the sampling period at other sites. The ASOA tracers also tended to be abundant during this period, as presented in Figure S2 of Supplementary Material. Therefore, it is possible that, in spring, ASOAs are a mixture of regional and transboundary pollution. These factors may suggest a possible reason why the subtotals of the ASOA tracers were equivalent in spring and summer, even though SOA generation is generally more active in summer.

3.2.2. Monoterpene-Derived SOA Tracers

Four monoterpene-derived SOA tracers, pinonic, pinic, and 3-hydroxyglutaric acids and MBTCA, were identified in the PM2.5 collected at all sites (Table 3). With respect to the generation mechanism of the tracers, it is proposed that pinonic and pinic acids are first-generation products and that 3-hydroxyglutaric acid and MBTCA are later-generation products [13,51]. The seasonally averaged subtotals of these tracers in Osaka/Izumiotsu and Sapporo were comparable for both seasons. Those in Tokyo were higher in summer than in spring, while those in Dazaifu and Nagoya were higher in spring than in summer. Pinonic acid showed the highest seasonal concentration in spring, followed by 3-hydroxyglutaric acid; however, the reverse order was observed in Sapporo. In summer, the seasonal mean concentration of 3-hydroxyglutaric acid was the highest of the monoterpene-derived SOA tracers at all sites, followed by MBTCA, except in Sapporo. At four sites, except Sapporo, the seasonal mean concentrations of pinonic acid were higher in spring than in summer, whereas those of MBTCA were higher in summer than in spring at all sites. Correlations of pinonic acid with pinic acid were significant in spring (r = 0.75–0.90), except in Tokyo and Sapporo; meanwhile, pinonic acid showed insignificant correlations with the other monoterpene-derived SOA tracers in summer at all sites, excluding that with MBTCA in Dazaifu (Table S3). In addition, the pinic and 3-hydroxyglutaric acids and MBTCA were strongly correlated in summer (r = 0.83–0.98) at all sites (Table S3). Therefore, pinonic acid exhibited different behavior than the other monoterpene-derived SOA tracers. By comparing measurements of pinonic acid in PM2.5 collected on both quartz and polytetrafluoroethylene filters, Ikemori et al. [35] found that pinonic acid in PM2.5 collected on quartz filters is gas adsorbed. Therefore, one possible explanation is that pinonic acid varies from the other monoterpene-derived SOA tracers because of its volatility.
These SOA tracers are produced by the photooxidation of α/β-pinene via reactions with O3 and OH radicals [13,52]. To evaluate the aging level of monoterpene-derived SOAs, the ratio of the first-generation products (pinic acid) to the later-generation products (MBTCA) (P/M ratio) was used in this study. The seasonal averages of the P/M ratio at five sampling sites ranged from 1.2 to 2.3 during spring and from 0.55 to 0.91 during summer. These results indicate that monoterpene-derived SOAs were more aged during summer than during spring.

3.2.3. Isoprene-Derived SOA Tracers

Three isoprene-derived SOA tracers were detected in PM2.5 collected at all sites: 2-methylthreitol, 2-methylerythritol, and 2-methylglyceric acid (Table 3). Seasonal mean concentrations of their subtotals were nearly 10 times higher in summer than in spring at all sites. 2-Methylglyceric acid showed the highest seasonal concentration in spring, followed by 2-methylerythritol and 2-methylthreitol. Conversely, 2-methylglyceric acid showed the lowest seasonal concentration in summer. Furthermore, compared with 2-methylthreitol and 2-methylerythritol, the seasonal differences in concentrations of 2-methylglyceric acid between spring and summer were smaller at each site. 2-Methylerythritol was strongly correlated with 2-methylthreitol in both spring and summer (r = 0.93–0.99) at all sites (Table S3). 2-Methylglyceric acid was also strongly correlated with 2-methylthreitol and 2-methylerythritol at all sites in summer (r = 0.78–0.98); however, these correlations were only significant in Nagoya and Sapporo in spring (Table S3).
Isoprene-derived SOAs form via the oxidation of isoprene by oxidants, such as OH radicals, NO3 radicals, and O3 in the atmosphere. Organic tracers of isoprene-derived SOAs are also strongly affected by NOx [53]. 2-Methylthreitol and 2-methylerythritol are produced by the oxidation of isoprene under low-NOx conditions. Conversely, 2-methylglyceric acid is produced by the oxidation of isoprene under high-NOx conditions. Therefore, the ratio of 2-methylglyceric acid to the sum of 2-methylthreitol and 2-methylerythritol (2MGA/2MTLs) will increase as the ratio of NOx/isoprene increases [14,54,55]. According to field observations, a higher concentration of isoprene was observed in summer than in spring in Nagoya [56]. During our measurement periods, the seasonal mean values of NOx were comparable in spring and summer at each site. The seasonal mean values of 2MGA/2MTLs were higher in spring (1.1–2.9) than in summer (0.085–0.17) at all sites. This indicates that the differences in the seasonal concentrations of 2-methylthreitol and 2-methylerythritol in this study were related to the isoprene emission amount.

3.2.4. Primary Emission Tracers

Three biomass.burning tracers (levoglucosan, mannosan, and galactosan, [16,17]), one plastic.burning tracer (terephthalic acid, [18]), and three biogenic primary emission tracers (arabitol, mannitol, and glucose, [21,22,23]) were observed in the PM2.5 collected at all sites (Table 3). All biomass-burning tracers had higher concentrations in spring than in summer. Terephthalic acid also had higher concentrations in Dazaifu, Osaka/Izumiotsu, and Sapporo in spring than in summer, with comparable concentrations in Nagoya. Seasonal mean concentrations of arabitol and mannitol were higher in summer than in spring, excepting arabitol in Sapporo. Seasonal mean values of glucose were higher in Dazaifu and Sapporo during spring than during summer but were comparable during both seasons in Osaka/Izumiotsu. The correlations between the tracer compounds were significant in each tracer group, except in some cases between glucose and arabitol and/or mannitol (Table S3). Interestingly, in spring, terephthalic acid was strongly correlated with sulfate at all sites (r = 0.80–0.81), except in Tokyo (r = 0.17). Ikemori et al. [36] proposed that PM2.5 emitted from plastic combustion was transported from Northeast Asia downwind to Japan in spring, resulting in the relationship between terephthalic acid and sulfate. This may support the theory that transboundary plastic-burning aerosols are transported to central Japan.

3.2.5. Relationship between PO and SOA Tracers

The correlations between PO and the organic tracers are shown in Table 4. The correlations between PO and the three ASOA tracers were significant during spring in Osaka, Nagoya, and Tokyo, except for DHOPA in Osaka (Table 4). Conversely, PO was only correlated with DHOPA in Dazaifu and was insignificantly correlated with the ASOA tracers in Sapporo. In summer, the correlations of PO with the ASOA tracers were significant at all sites, except in Sapporo. For the monoterpene-derived SOA tracers, PO was significantly correlated with 3-hdroxyglutraic acid and MBTCA in Osaka, Nagoya, and Tokyo in spring and was significantly correlated with pinic acid, 3-hdroxyglutraic acid, and MBTCA in summer at four sites, excepting Sapporo. PO was also significantly correlated with 2-methylglyceric acid in Dazaifu, Nagoya, and Tokyo but was insignificantly correlated with 2-methylthreitol and 2-methyerythritol in spring. In summer, PO showed significant correlations with the isoprene-derived SOA tracers at all sites, except for 2-methylthreitol and 2-methyerythritol in Sapporo. The scatter plots of PO concerning the SOAs at all sites during spring and summer are shown in Figure 3. Most SOA tracers were strongly or moderately correlated with PO in summer; however, they were weakly or insignificantly correlated with PO in spring (Table S4 of Supplementary Material). This result supports the theory that there are similar or common factors increasing the concentrations of these SOA tracers and PO during summer at all sites. Moreover, some tracers show a trend of a higher ratio of tracers to PO in summer than in spring. One possible explanation for this is that the background PO was higher than the background SOA tracers due to transboundary transport. Another possible explanation is that, during summer, there were several factors enhancing the production of SOA, even at low PO concentrations. Notably, pinonic and pinic acids as first-generation products from monoterpene did not show such a trend, while 3-hyroxyglutaric acid and MBTCA as later-generation products demonstrated higher ratios in summer than in spring. Further studies are required to reveal the differences in the relationships between PO and these SOA tracers, including the cause of the differences at the oxidation stage for the monoterpene-derived SOA tracers during spring and summer. Notably, terephthalic acid was moderately or strongly correlated with PO in Dazaifu, Nagoya, and Tokyo in both springs (r = 0.70–0.78) and summer (r = 0.64–0.95). Matos et al. [20] reported that terephthalic acid might be formed by the secondary formation of aromatic hydrocarbons from traffic emissions in urban areas. Although terephthalic acid is commonly used as a plastic combustion marker [57,58], this correlation may imply that terephthalic acid generated from secondary formation can affect its concentration in the atmospheric aerosols in urban areas. Time-resolved observations should be performed to clarify the sources of terephthalic acid and their relationship with PO and ASOA tracers.

3.2.6. Relationship between WSOC and Organic Tracers

The correlations between WSOC and the SOA tracers are shown in Table 5. Most ASOA tracers showed significant correlations with WSOC in spring and summer. The monoterpene-derived SOA tracers, except for pinonic acid, were also strongly correlated with WSOC during summer, while the later-generation products, MBTCA and 3-hydroxyglutaric acid, showed a significant correlation with WSOC at all sites even during spring, except for both in Sapporo and MBTCA in Dazaifu. Remarkably, limited correlations of pinonic acid with WSOC were shown during spring in Nagoya and during summer in Dazaifu, indicating different behavior than the other monoterpene-derived SOA tracers. WSOC showed strong or moderate correlations with 2-methylgyceric acid in Tokyo and Dazaifu and with three isoprene-derived SOA tracers in Nagoya in spring. WSOC also showed strong or moderate correlations with the isoprene-derived SOA tracers in summer at all sites. Of the primary emission tracers, the biomass-burning tracers showed weak or moderate correlations with WSOC during spring in Osaka and Nagoya and during summer at all sites; however, these tracers were lower in summer than in spring (Table 3). Although biomass burning is one of the most important sources of WSOC [46,59], it has been reported that emissions from biomass burning are not high in the spring and summer in urban areas in Japan, based on seasonal variations of levoglucosan concentrations [9,35,60]. Specifically, Ikemori et al. [35] reported that levoglucosan concentrations during winter were three and six times higher than those during spring and summer, respectively. Conversely, SOA tracers, such as DHOPA, 3-hydroxyglutaric acid, MBTCA, 2-methyltraitol, and 2-methylglyceric acid, showed higher concentrations during spring and summer than during winter. Hoshi and Saito et al. [60] also reported that similar seasonal levoglucosan trends had been observed in Tokyo. Moreover, they estimated the contributions of biomass burning to OC from the levoglucosan concentrations as 13–31% in the autumn‒winter, 4.7–12% in spring, and 2.6–6.2% in the summer in Tokyo. In addition, levoglucosan and WSOC concentrations were moderately correlated during the autumn (r = 0.70) and winter (r = 0.69), but were weakly or insignificantly correlated during the spring (r = 0.40) and summer (r = 0.26). According to Ikemori et al. [9], the concentration of nitrocatechols as tracers of secondary aerosols from biomass burning during autumn was one order higher than those during summer. These studies support our findings of a limited contribution of biomass burning to WSOC during the spring and summer in urban areas of Japan. The primary biogenic emission tracers showed strong correlations with WSOC in Nagoya in spring; however, most of these tracers were insignificantly or weakly correlated with WSOC during spring and summer at the other sites. These results indicate that WSOC was significantly affected by ASOA and monoterpene-derived SOAs during spring at all sites except Sapporo and by the three SOA groups during summer at all sites. In addition, WSOC may be affected by biomass burning and primary biogenic sources at some sites.

3.3. Source Apportionment of SOCs Using an Organic SOA-Tracer Method

Total mono-aromatic, di-aromatic, monoterpene-derived, and isoprene-derived SOCs were estimated using the SOA-tracer method, as detailed in Table 6 and broken down by fraction in Figure 4. During spring, the seasonal mean concentration of monoterpene-derived SOCs was at its highest, followed using mono-aromatic SOCs in Dazaifu, Osaka, and Nagoya; meanwhile, Sapporo exhibited the opposite trend. In Tokyo, the means of the monoterpene-derived SOCs and mono-aromatic SOCs were comparable. The seasonal means of di-aromatic SOCs followed the two higher SOC means, and the mean concentrations of the isoprene-derived SOCs were the lowest at all sites. During summer, the seasonal mean concentration of the monoterpene-derived SOCs was the highest, followed using the mono-aromatic SOCs at all sites. The seasonal means of the di-aromatic SOCs were higher than those of the isoprene-derived SOCs in Nagoya and Tokyo but were comparable at the other three sites. The isoprene-derived SOCs were more than 10 times higher in summer than in spring; however, their contributions to the total estimated SOCs were insignificant at all sites. The total seasonal means of the estimated SOCs at each site ranged from 1.1 µg/m3 to 1.9 µg/m3 in spring and from 0.76 µg/m3 to 1.7 µg/m3 in summer. The total estimated SOCs could explain the variation in the WSOC fraction shown in Figure 4 from 39% to 63% in spring and from 46% to 54% in summer at each site. Notably, monoterpene-derived and mono-aromatic hydrocarbon SOCs occupied a high fraction of the total estimated SOCs in both spring (85–93%) and summer (75–82%) at each site. These results indicate that SOCs, especially monoterpene-derived and mono-aromatic SOCs, have a significant impact on the WSOC concentrations during both seasons in urban areas in Japan.
SOCs estimated from previous studies using the same BSOA tracers used herein at urban sites in China [61,62,63,64] are also shown in Table 6. The SOCs in China listed in Table 6 were recalculated using the same method used in this study; the factors and organic tracers in the calculations were used as described in Section 2.2. In summer, the mono-aromatic and isoprene-derived SOCs were higher in China than in Japan, whereas the monoterpene-derived SOCs exhibited higher values in Japan than in China. Even though the di-aromatic SOC values were not available because phthalic acid has not been measured in many studies in China, the ratio of ASOC (sum of mono-aromatic and di-aromatic SOCs) to BSOC (sum of monoterpene-derived and isoprene-derived SOCs) (A/B) was higher in China than in Japan. The annual average concentration of atmospheric toluene in the 2015 fiscal year was 7.2 µg/m3 in Japan. In Izumiotsu, Nagoya, and Tokyo, the concentrations were 9.5 µg/m3, 9.1 µg/m3, and 9.7 µg/m3, respectively [65,66,67]. The sum of benzene, toluene, ethylbenzene, and xylenes, which are representative precursors of ASOA, was 15 µg/m3 in Tokyo in 2015 [67] and was 38.94 ± 27.83 μg/m3 (range: 6.40–132.09 μg/m3) in urban areas in China [68]. These values support the notion that the A/B ratio was higher in China than in Japan because of the differences in the precursor VOC concentrations between Japan and China. To reveal the SOA characteristics in detail, simultaneous observations of organic tracers with their precursor VOCs need to be conducted.

4. Conclusions

To evaluate the characteristics of organic tracers and the impact of SOAs on WSOC in PM2.5 at urban sites in Japan, we measured 17 organic tracer compounds using GC–MS. Within each category, SOA tracers were often significantly correlated in spring and summer, except pinonic acid in monoterpene-derived SOA tracers. Moreover, most anthropogenic, monoterpene-derived, and isoprene-derived SOA tracers showed meaningful correlations with PO in spring and summer. WSOC was also significantly correlated with ASOA and monoterpene-derived SOAs during spring and with the three SOA groups during summer. These results indicate that the WSOC concentrations were meaningfully influenced by the generation of SOAs, such as ASOAs and monoterpene-derived SOAs during spring and the three SOA groups during summer. The seasonal means of the P/M ratio demonstrate that the monoterpene-derived SOAs were more aged in summer. In addition, the relationship of the seasonal mean values of the 2MGA/MTs ratio with NOx indicates that the higher seasonal concentrations of 2-methylthreitol and 2-methylerythritol during summer were due to increasing emission amounts of isoprene. The total estimated SOCs, including mono-aromatic, di-aromatic, monoterpene-derived, and isoprene-derived SOCs, according to the SOA-tracer method, could explain the seasonal WSOC fractions at each site of from 39% to 63% in spring and from 46% to 54% in summer. Remarkably, monoterpene-derived and mono-aromatic SOCs accounted for most of the total estimated SOCs in both spring (85–93%) and summer (75–82%) at each site. These results indicate that SOAs have a significant impact on WSOC concentrations at urban sites in Japan.
When considering plans to reduce the PM2.5 concentration, it is necessary to investigate the anthropogenic precursor VOCs that have a large impact on anthropogenic SOA formation and to determine their formation mechanisms. Recently, new secondary organic products of ASOAs and biomass-burning-derived SOAs, such as nitroaromatic hydrocarbons, have been detected and quantified in PM2.5 [7,9,10,69]. Nitroaromatic hydrocarbons are produced in the presence of NOx via the insertion of a nitro group into aromatic VOCs. To understand SOAs in urban areas where NOx emissions are abundant, further detailed studies using these compounds as useful tracers to quantify SOAs are necessary. Furthermore, future works should aim to compare and refine the SOC estimated using other methods, such as the OC/EC tracer method and the receptor model.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/atmos12050579/s1, Table S1. Sampling dates during spring and summer at each sampling site. Table S2. Correlations among OC, WSOC, and PO during (a) spring and (b) summer at each sampling site. Table S3. Correlations among organic tracers during (a) spring and (b) summer at each sampling site. Table S4. Correlations between PO and SOA tracers from all sampling sites during (a) spring and (b) summer. Figure S1. 72 h backward trajectories at (a) Dazaifu, (b) Osaka, (c) Nagoya, (d) Tokyo, and (e) Sapporo from 21 April to 30 April 2014. Figure S2. Variations in ASOA tracers (DHOPA, phthalic acid (PhA), and 4-methylphthalic acid (4MPhA)) at (a) Dazaifu, (b) Osaka, (c) Nagoya, (d) Tokyo, and (e) Sapporo from 21 April to 30 April 2015.

Author Contributions

Conceptualization, F.I.; analysis, F.I., R.N., S.S. (Shinji Saito) and M.A.; investigation, F.I., R.N., S.S. (Shinji Saito), M.A. and S.Y.; writing—original draft preparation, F.I.; writing—review and editing, F.I., A.I. and S.S. (Seiji Sugata); supervision, S.S. (Seiji Sugata); funding acquisition, A.I. and S.S. (Seiji Sugata). All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Environment Research and Technology Development Fund (JPMEERF20185001).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Concentration data of chemical components presented in this study may be obtained on request from the corresponding author.

Acknowledgments

This research was supported in part by the Environment Research and Technology Development Fund (JPMEERF20185001). We thank Makiko Yamagami of Nagoya City Institute for Environmental Sciences, Japan, for valuable comments for analysis using oxidants. This research was conducted as Type II joint research between the National Institute for Environmental Studies and the local environmental research institutes in Japan. The authors gratefully acknowledge the NOAA Air Resources Laboratory (ARL) for the provision of the HYSPLIT transport and dispersion model and/or READY website (https://www.ready.noaa.gov (accessed on 17 April 2021)) used in this publication.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, J.; Li, C.; Ristovski, Z.; Milic, A.; Gu, Y.; Islam, M.S.; Dumka, U.C. A review of biomass burning: Emissions and impacts on air quality, health and climate in China. Sci. Total Environ. 2017, 579, 1000–1034. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Pöschl, U. Atmospheric aerosols: Composition, transformation, climate and health effects. Angew. Chem. Int. Ed. 2005, 44, 7520–7540. [Google Scholar] [CrossRef]
  3. WHO. Outdoor Air Pollution a Leading Environmental Cause of Cancer Deaths. Available online: https://www.euro.who.int/en/health-topics/environment-and-health/air-quality/news/news/2013/10/outdoor-air-pollution-a-leading-environmental-cause-of-cancer-deaths (accessed on 9 March 2021).
  4. IPCC. Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2013; p. 1535. [Google Scholar]
  5. Nozière, B.; Kalberer, M.; Claeys, M.; Allan, J.; D’Anna, B.; Decesari, S.; Finessi, E.; Glasius, M.; Grgic, I.; Hamilton, J.F.; et al. The molecular identification of organic compounds in the atmosphere: State of the art and challenges. Chem. Rev. 2015, 115, 3919–3983. [Google Scholar] [CrossRef] [PubMed]
  6. Hallquist, M.; Wenger, J.C.; Baltensperger, U.; Rudich, Y.; Simpson, D.; Claeys, M.; Dommen, J.; Donahue, N.M.; George, C.; Goldstein, A.H.; et al. The formation, properties and impact of secondary organic aerosol: Current and emerging issues. Atmos. Chem. Phys. 2009, 9, 5155–5236. [Google Scholar] [CrossRef] [Green Version]
  7. Al-Naiema, I.M.; Offenberg, J.H.; Madler, C.J.; Lewandowski, M.; Kettler, J.; Fang, T.; Stone, E.A. Secondary organic aerosols from aromatic hydrocarbons and their contribution to fine particulate matter in Atlanta, Georgia. Atmos. Environ. 2020, 223, 117227. [Google Scholar] [CrossRef] [PubMed]
  8. Al-Naiema, I.M.; Stone, E.A. Evaluation of anthropogenic secondary organic aerosol tracers from aromatic hydrocarbons. Atmos. Chem. Phys. 2017, 17, 2053–2065. [Google Scholar] [CrossRef] [Green Version]
  9. Ikemori, F.; Nakayama, T.; Hasegawa, H. Characterization and possible sources of nitrated mono- and di-aromatic hydrocarbons containing hydroxyl and/or carboxyl functional groups in ambient particles in Nagoya, Japan. Atmos. Environ. 2019, 211, 91–102. [Google Scholar] [CrossRef]
  10. Sato, K.; Hatakeyama, S.; Imamura, T. Secondary organic aerosol formation during the photooxidation of toluene: NOx dependence of chemical composition. J. Phys. Chem. A 2007, 111, 9796–9808. [Google Scholar] [CrossRef]
  11. Claeys, M.; Szmigielski, R.; Kourtchev, I.; Van der Veken, P.; Vermeylen, R.; Maenhaut, W.; Jaoui, M.; Kleindienst, T.E.; Lewandowski, M.; Offenberg, J.H.; et al. Hydroxydicarboxylic acids: Markers for secondary organic aerosol from the photooxidation of α-pinene. Environ. Sci. Technol. 2007, 41, 1628–1634. [Google Scholar] [CrossRef]
  12. Jaoui, M.; Kamens, R.M. Mass balance of gaseous and particulate products analysis from alpha-pinene/NOx/air in the presence of natural sunlight. J. Geophys. Res. Atmos. 2001, 106, 12541–12558. [Google Scholar] [CrossRef] [Green Version]
  13. Szmigielski, R.; Surratt, J.D.; Gómez-González, Y.; Veken, P.V.D.; Kourtchev, I.; Vermeylen, R.; Blockhuys, F.; Jaoui, M.; Kleindienst, T.E.; Lewandowski, M.; et al. 3-methyl-1,2,3-butanetricarboxylic acid: An atmospheric tracer for terpene secondary organic aerosol. Geophys. Res. Lett. 2007, 34, 497–507. [Google Scholar] [CrossRef]
  14. Edney, E.O.; Kleindienst, T.E.; Jaoui, M.; Lewandowski, M.; Offenberg, J.H.; Wang, W.; Claeys, M. Formation of 2-methyl tetrols and 2-methylglyceric acid in secondary organic aerosol from laboratory irradiated isoprene/NOx/SO2/air mixtures and their detection in ambient PM2.5 samples collected in the eastern United States. Atmos. Environ. 2005, 39, 5281–5289. [Google Scholar] [CrossRef]
  15. Surratt, J.D.; Murphy, S.M.; Kroll, J.H.; Ng, N.L.; Hildebrandt, L.; Sorooshian, A.; Szmigielski, R.; Vermeylen, R.; Maenhaut, W.; Claeys, M. Chemical composition of secondary organic aerosol formed from the photooxidation of isoprene. J. Phys. Chem. 2006, 110, 9665–9690. [Google Scholar] [CrossRef] [Green Version]
  16. Bhattarai, H.; Saikawa, E.; Wan, X.; Zhu, Y.; Ram, K.; Gao, S.; Kang, S.; Zhang, Q.; Zhang, Y.; Wang, X.; et al. Levoglucosan as a tracer of biomass burning: Recent progress and perspectives. Atmos. Res. 2019, 220, 20–33. [Google Scholar] [CrossRef]
  17. Simoneit, B.R.T.; Schauer, J.J.; Nolte, C.G.; Oros, D.R.; Elias, V.O.; Fraser, M.P.; Rogge, W.F.; Cass, G.R. Levoglucosan, a tracer for cellulose in biomass burning and atmospheric particles. Atmos. Environ. 1999, 33, 173–182. [Google Scholar] [CrossRef]
  18. Simoneit, B.R.T.; Medeiros, P.M.; Didyk, B.M. Combustion products of plastics as indicators for refuse burning in the atmosphere. Environ. Sci. Technol. 2005, 39, 6961–6970. [Google Scholar] [CrossRef]
  19. Chalbot, M.C.G.; Brown, J.; Chitranshi, P.; Gamboa da Costa, G.; Pollock, E.D.; Kavouras, I.G. Functional characterization of the water-soluble organic carbon of size-fractionated aerosol in the southern Mississippi Valley. Atmos. Chem. Phys. 2014, 14, 6075–6088. [Google Scholar] [CrossRef] [Green Version]
  20. Matos, J.T.V.; Duarte, R.M.B.O.; Lopes, S.P.; Silva, A.M.S.; Duarte, A.C. Persistence of urban organic aerosols composition: Decoding their structural complexity and seasonal variability. Environ. Pollut. 2017, 231, 281–290. [Google Scholar] [CrossRef]
  21. Bauer, H.; Claeys, M.; Vermeylen, R.; Schueller, E.; Weinke, G.; Berger, A.; Puxbaum, H. Arabitol and mannitol as tracers for the quantification of airborne fungal spores. Atmos. Environ. 2008, 42, 588–593. [Google Scholar] [CrossRef]
  22. Burshtein, N.; Lang-Yona, N.; Rudich, Y. Ergosterol, arabitol and mannitol as tracers for biogenic aerosols in the eastern Mediterranean. Atmos. Chem. Phys. 2011, 11, 829–839. [Google Scholar] [CrossRef] [Green Version]
  23. Cowie, G.L.; Hedges, J.I. Carbohydrate sources in a coastal marine environment. Geochim. Cosmochim. Acta 1984, 48, 2075–2087. [Google Scholar] [CrossRef]
  24. Ministry of the Environment in Japan. Environmental Standards for Air Pollution by Fine Particulate Matter. 2011. Available online: http://www.env.go.jp/kijun/taiki4.html (accessed on 9 March 2021).
  25. Kondo, Y.; Ram, K.; Takegawa, N.; Sahu, L.; Morino, Y.; Liu, X.; Ohara, T. Reduction of black carbon aerosols in Tokyo: Comparison of real-time observations with emission estimates. Atmos. Environ. 2012, 54, 242–249. [Google Scholar] [CrossRef]
  26. Minoura, H.; Takahashi, K.; Chow, J.C.; Watson, J.G. Multi-year trend in fine and coarse particle mass, carbon, and ions in downtown Tokyo, Japan. Atmos. Environ. 2006, 40, 2478–2487. [Google Scholar] [CrossRef]
  27. Miyakawa, T.; Kanaya, Y.; Komazaki, Y.; Miyoshi, T.; Nara, H.; Takami, A.; Moteki, N.; Koike, M.; Kondo, Y. Emission regulations altered the concentrations, origin, and formation of carbonaceous aerosols in the tokyo metropolitan area. Aerosol Air Qual. Res. 2016, 16, 1603–1614. [Google Scholar] [CrossRef] [Green Version]
  28. Yamagami, M.; Ikemori, F.; Nakashima, H.; Hisatsune, K.; Osada, K. Decreasing trend of elemental carbon concentration with changes in major sources at Mega city Nagoya, Central Japan. Atmos. Environ. 2019, 199, 155–163. [Google Scholar] [CrossRef]
  29. Wakamatsu, S.; Morikawa, T.; Ito, A. Air pollution trend in Japan between 1970 and 2012 and impact of urban air pollution countermeasures. Asian J. Atmos. Environ. 2013, 7, 177–190. [Google Scholar] [CrossRef] [Green Version]
  30. Miyazaki, Y.; Kondo, Y.; Takegawa, N.; Komazaki, Y.; Fukuda, M.; Kawamura, K.; Mochida, M.; Okuzawa, K.; Weber, R.J. Time-resolved measurements of water-soluble organic carbon in Tokyo. J. Geophys. Res. 2006, 111, D23206. [Google Scholar] [CrossRef] [Green Version]
  31. Fushimi, A.; Wagai, R.; Uchida, M.; Hasegawa, S.; Takahashi, K.; Kondo, M.; Hirabayashi, M.; Morino, Y.; Shibata, Y.; Ohara, T.; et al. Radiocarbon diurnal variations in fine particles at sites downwind from Tokyo, Japan in summer. Environ. Sci. Technol. 2011, 45, 6784–6792. [Google Scholar] [CrossRef]
  32. Takahashi, K.; Fushimi, A.; Morino, Y.; Iijima, A.; Yonemochi, S.; Hayami, H.; Hasegawa, S.; Tanabe, K.; Kobayashi, S. Source apportionment of ambient fine particle using a receptor model combined with radiocarbon content in Northern Kanto area. J. Jpn. Soc. Atmos. Environ. 2011, 46, 156–163. (In Japanese) [Google Scholar]
  33. Ikemori, F.; Honjyo, K.; Asakawa, D.; Yamagami, M.; Nakamura, T. Seasonal variation and source analysis of carbonaceous aerosol at urban site in Nagoya using radiocarbon. Earozoru Kenkyu 2016, 31, 47–58. (In Japanese) [Google Scholar]
  34. Ministry of the Environment in Japan. The Standard Measuring Method of Chemical Components of PM2.5. 2011. Available online: http://www.env.go.jp/air/osen/pm/ca/manual.html (accessed on 1 March 2021). (In Japanese)
  35. Ikemori, F.; Yamagami, M.; Sugata, S. Impact on adsorption of gaseous organic tracer compounds in PM2.5 collected on quartz filter. J. Jpn. Soc. Atmos. Environ. 2018, 53, 70–78. (In Japanese) [Google Scholar]
  36. Ikemori, F.; Uranishi, K.; Sato, T.; Fujihara, M.; Hasegawa, H.; Sugata, S. Time-resolved characterization of organic compounds in PM2.5 collected at Oki Island, Japan, affected by transboundary pollution of biomass and non-biomass burning from Northeast China. Sci. Total Environ. 2021, 750, 142183. [Google Scholar] [CrossRef]
  37. Itano, Y.; Bandow, H.; Takenaka, N.; Saitoh, Y.; Asayama, A.; Fukuyama, J. Impact of NOx reduction on long-term ozone trends in an urban atmosphere. Sci. Total Environ. 2007, 379, 46–55. [Google Scholar] [CrossRef] [PubMed]
  38. NIES. Numerical Environmental Database. Available online: http://www.nies.go.jp/igreen/ (accessed on 9 March 2021).
  39. JMA. Weather Observation Data. Available online: http://www.jma.go.jp/jma/menu/menureport.html (accessed on 9 March 2021).
  40. Fushimi, A.; Nakajima, D.; Furuyama, A.; Suzuki, G.; Ito, T.; Sato, K.; Fujitani, Y.; Kondo, Y.; Yoshino, A.; Ramasamy, S.; et al. Source contributions to multiple toxic potentials of atmospheric organic aerosols. Sci. Total Environ. 2021, 773, 145614. [Google Scholar] [CrossRef] [PubMed]
  41. Kleindienst, T.E.; Jaoui, M.; Lewandowski, M.; Offenberg, J.H.; Lewis, C.W.; Bhave, P.V.; Edney, E.O. Estimates of the contributions of biogenic and anthropogenic hydrocarbons to secondary organic aerosol at a southeastern US location. Atmos. Environ. 2007, 41, 8288–8300. [Google Scholar] [CrossRef]
  42. Kleindienst, T.E.; Jaoui, M.; Lewandowski, M.; Offenberg, J.H.; Docherty, K.S. The formation of SOA and chemical tracer compounds from the photooxidation of naphthalene and its methyl analogs in the presence and absence of nitrogen oxides. Atmos. Chem. Phys. 2012, 12, 8711–8726. [Google Scholar] [CrossRef] [Green Version]
  43. Zhang, Y.Q.; Chen, D.H.; Ding, X.; Li, J.; Zhang, T.; Wang, J.Q.; Cheng, Q.; Jiang, H.; Song, W.; Ou, Y.B.; et al. Impact of anthropogenic emissions on biogenic secondary organic aerosol: Observation in the Pearl River Delta, southern China. Atmos. Chem. Phys. 2019, 19, 14403–14415. [Google Scholar] [CrossRef] [Green Version]
  44. Aikawa, M.; Ohara, T.; Hiraki, T.; Oishi, O.; Tsuji, A.; Yamagami, M.; Mukai, H. Significant geographic gradients in particulate sulfate over Japan determined from multiple-site measurements and a chemical transport model: Impacts of transboundary pollution from the Asian continent. Atmos. Environ. 2010, 44, 381–391. [Google Scholar] [CrossRef]
  45. Kaneyasu, N.; Yamamoto, S.; Sato, K.; Takami, A.; Hayashi, M.; Hara, K.; Kawamoto, K.; Okuda, T.; Hatakeyama, S. Impact of long-range transport of aerosols on the PM2.5 composition at a major metropolitan area in the northern Kyushu area of Japan. Atmos. Environ. 2014, 97, 416–425. [Google Scholar] [CrossRef]
  46. Sullivan, A.P.; Peltier, R.E.; Brock, C.A.; de Gouw, J.A.; Holloway, J.S.; Warneke, C.; Wollny, A.G.; Weber, R.J. Airborne measurements of carbonaceous aerosol soluble in water over northeastern United States: Method development and an investigation into water-soluble organic carbon sources. J. Geophys. Res. 2006, 111, D23S46. [Google Scholar] [CrossRef]
  47. Ueno, H.; Akiyama, K.; Ishii, K.; Miyoshi, T.; Yokota, H.; Nagoya, T. Summer-time formation of secondary organic matter in PM2.5 in Tokyo viewed in hourly data. J. Jpn. Soc. Atmos. Environ. 2011, 46, 124–130. (In Japanese) [Google Scholar]
  48. Kaneyasu, N.; Yamamoto, S. Design and evaluation of modified high-volume impactor for PM2.5 (HVI2.5). J. Jpn. Soc. Atmos. Environ. 2016, 51, 174–180. (In Japanese) [Google Scholar]
  49. Sugita, K.; Kin, Y.; Yagishita, M.; Ikemori, F.; Kumagai, K.; Ohara, T.; Kinoshita, M.; Nishimura, K.; Takagi, Y.; Nakajima, D. Evaluation of the genotoxicity of PM2.5 collected by a high-volume air sampler with impactor. Gene Environ. 2019, 41, 7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Itahashi, S.; Uno, I.; Osada, K.; Kamiguchi, Y.; Yamamoto, S.; Tamura, K.; Wang, Z.; Kurosaki, Y.; Kanaya, Y. Nitrate transboundary heavy pollution over East Asia in winter. Atmos. Chem. Phys. 2017, 17, 3823–3843. [Google Scholar] [CrossRef] [Green Version]
  51. Kourtchev, I.; Copolovici, L.; Claeys, M.; Maenhaut, M. Characterization of atmospheric aerosols at a forested site in central Europe. Environ. Sci. Technol. 2009, 43, 4665–4671. [Google Scholar] [CrossRef] [PubMed]
  52. Iinuma, Y.; Boge, O.; Gnauk, T.; Herrmann, H. Aerosol-chamber study of the α-pinene/O3 reaction: Influence of particle acidity on aerosol yields and products. Atmos. Environ. 2004, 38, 761–773. [Google Scholar] [CrossRef]
  53. Surratt, J.D.; Chan, A.W.H.; Eddingsaas, N.C.; Chan, M.N.; Loza, C.L.; Kwan, A.J.; Hersey, S.P.; Flagan, R.C.; Wennberg, P.O.; Seinfeld, J.H. Reactive intermediates revealed in secondary organic aerosol formation from isoprene. Proc. Natl. Acad. Sci. USA 2010, 107, 6640–6645. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Jaoui, M.; Corse, E.W.; Lewandowski, M.; Offenberg, J.H.; Kleindienst, T.E.; Edney, E.O. Formation of organic tracers for isoprene SOA under acidic conditions. Atmos. Environ. 2010, 44, 1798–1805. [Google Scholar] [CrossRef]
  55. Surratt, J.D.; Lewandowski, M.; Offenberg, J.H.; Jaoui, M.; Kleindienst, T.E.; Edney, E.O.; Seinfeld, J.H. Effect of acidity on secondary organic aerosol formation from isoprene. Environ. Sci. Technol. 2007, 41, 5363–5369. [Google Scholar] [CrossRef]
  56. Saito, S.; Nagao, I.; Kanzawa, H. Characteristics of ambient C2–C11 non-methane hydrocarbons in metropolitan Nagoya, Japan. Atmos. Environ. 2009, 43, 4384–4395. [Google Scholar] [CrossRef]
  57. Agarwal, R.; Shukla, K.; Kumar, S.; Aggarwal, S.G.; Kawamura, K. Chemical composition of waste burning organic aerosols at landfill and urban sites in Delhi. Atmos. Pollut. Res. 2020, 11, 554–565. [Google Scholar] [CrossRef]
  58. Kawamura, K.; Pavuluri, C.M. New Directions: Need for better understanding of plastic waste burning as inferred from high abundance of terephthalic acid in South Asian aerosols. Atmos. Environ. 2010, 44, 5320–5321. [Google Scholar] [CrossRef] [Green Version]
  59. Graham, B.; Mayol-Bracero, O.L.; Guyon, P.; Roberts, G.C.; Decesari, S.; Facchini, M.C.; Artaxo, P.; Maenhaut, W.; Koll, P.; Andreae, M.O. Water-soluble organic compounds in biomass burning aerosols over Amazonia 1. Characterization by NMR and GC-MS. J. Geophys. Res. 2002, 107, 8047. [Google Scholar] [CrossRef] [Green Version]
  60. Hoshi, J.; Saito, S. Estimating the contribution of biomass burning to atmospheric organic particles at the central Tokyo metropolitan area using levoglucosan and radiocarbon. J. Jpn. Soc. Atmos. Environ. 2020, 55, 204–220. (In Japanese) [Google Scholar]
  61. Ding, X.; He, Q.F.; Shen, R.Q.; Yu, Q.Q.; Wang, X.M. Spatial distributions of secondary organic aerosols from isoprene, monoterpenes, β-caryophyllene, and aromatics over China during summer. J. Geophys. Res. Atmos. 2014, 119, 11877–11891. [Google Scholar] [CrossRef]
  62. Fan, Y.B.; Liu, C.Q.; Li, L.J.; Ren, L.J.; Ren, H.; Zhang, Z.M.; Li, Q.K.; Wang, S.; Hu, W.; Deng, J.J.; et al. Large contributions of biogenic and anthropogenic sources to fine organic aerosols in Tianjin, North China. Atmos. Chem. Phys. 2020, 20, 117–137. [Google Scholar] [CrossRef] [Green Version]
  63. Liu, T.; Hu, B.; Xu, X.; Hong, Y.; Zhang, Y.; Wu, X.; Xu, L.; Li, M.; Chen, Y.; Chen, X.; et al. Characteristics of PM2.5-bound secondary organic aerosol tracers in a coastal city in Southeastern China: Seasonal patterns and pollution identification. Atmos. Environ. 2020, 237, 117710. [Google Scholar] [CrossRef]
  64. Ren, Y.Q.; Wei, J.; Ji, J.J.; Wu, Z.H.; Fang, B.; Gao, R.; Wang, X.Z.; Li, H. Chemical composition of fine organic aerosols during a moderate pollution event in summertime in Beijing: Combined effect of primary emission and secondary formation. Atmos. Environ. 2021, 246, 118167. [Google Scholar] [CrossRef]
  65. Hazardous Air Pollutant Monitoring Survey Report of 2015, in Osaka. Available online: http://www.pref.osaka.lg.jp/kankyohozen/taiki/yumoni.html (accessed on 16 March 2021).
  66. Hazardous Air Pollutant Monitoring Survey Report of 2015, in Nagoya. Available online: https://www.city.nagoya.jp/kankyo/page/0000083450.html (accessed on 16 March 2021).
  67. Hazardous Air Pollutant Monitoring Survey Report of 2015, in Tokyo. Available online: https://www.kankyo.metro.tokyo.lg.jp/data/publications/air/yugaimonitoring_repo.html (accessed on 16 March 2021).
  68. Ji, Y.; Gao, F.; Wu, Z.; Li, L.; Li, D.; Zhang, H.; Zhang, Y.; Gao, J.; Bai, Y.; Li, H. A review of atmospheric benzene homologues in China: Characterization, health risk assessment, source identification and countermeasures. J. Environ. Sci. 2020, 95, 225–239. [Google Scholar] [CrossRef] [PubMed]
  69. Iinuma, Y.; Boege, O.; Graefe, R.; Herrmann, H. Methyl-nitrocatechols: Atmospheric tracer compounds for biomass burning secondary organic aerosols. Environ. Sci. Technol. 2010, 44, 8453–8459. [Google Scholar] [CrossRef]
Atmosphere 12 00579 g001 550
Figure 1. Locations of the PM2.5 observation sites.
Figure 1. Locations of the PM2.5 observation sites.
Atmosphere 12 00579 g001
Atmosphere 12 00579 g002 550

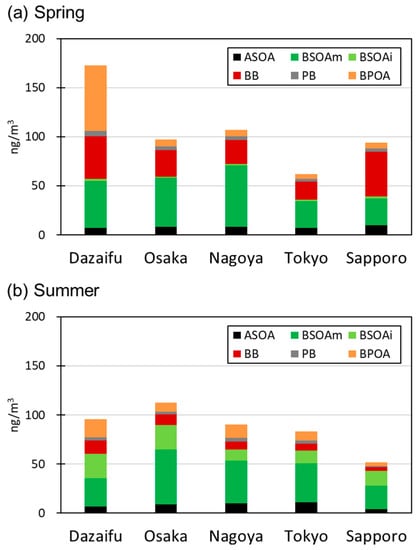

Figure 2. Chemical composition of the organic tracers detected in the PM2.5 collected at each site. Six categorized groups are shown (anthropogenic secondary aerosol (ASOA), monoterpene-derived SOA (BSOAm), isoprene-derived SOA (BSOAi), biomass burning (BB), plastic burning (PB), and primary biogenic organic aerosol (BPOA)).
Figure 2. Chemical composition of the organic tracers detected in the PM2.5 collected at each site. Six categorized groups are shown (anthropogenic secondary aerosol (ASOA), monoterpene-derived SOA (BSOAm), isoprene-derived SOA (BSOAi), biomass burning (BB), plastic burning (PB), and primary biogenic organic aerosol (BPOA)).
Atmosphere 12 00579 g002
Atmosphere 12 00579 g003 550

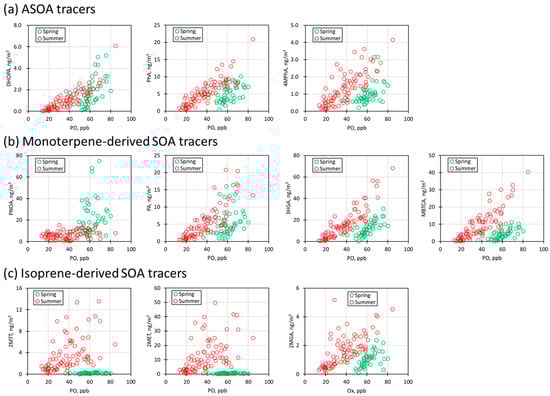

Figure 3. Scatter plots between potential ozone (PO) and SOA tracers with data from all sampling sites during spring (green) and summer (red): (a) ASOA tracers (DHOPA, phthalic acid (PhA), and 4-methylphthalic acid (4MPhA)) (b) monoterpene-derived SOA tracers (pinonic acid (PNOA), pinic acid (PA), 3-hydroxyglutaric acid (3HGA), and MBTCA), (c) isoprene-derived SOA tracers (2-methylthreitol (2MTT), 2-methylerythritol (2MET), and 2-methylglyceric acid (2MGA)).
Figure 3. Scatter plots between potential ozone (PO) and SOA tracers with data from all sampling sites during spring (green) and summer (red): (a) ASOA tracers (DHOPA, phthalic acid (PhA), and 4-methylphthalic acid (4MPhA)) (b) monoterpene-derived SOA tracers (pinonic acid (PNOA), pinic acid (PA), 3-hydroxyglutaric acid (3HGA), and MBTCA), (c) isoprene-derived SOA tracers (2-methylthreitol (2MTT), 2-methylerythritol (2MET), and 2-methylglyceric acid (2MGA)).
Atmosphere 12 00579 g003
Atmosphere 12 00579 g004 550

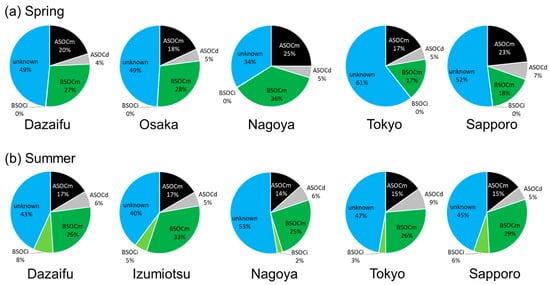

Figure 4. Fractions of mono-aromatic, di-aromatic, monoterpene-derived, and isoprene-derived SOCs (ASOCm, ASOCd, BSOCm, and BSOCi, respectively) in WSOC during (a) spring and (b) summer at each site.
Figure 4. Fractions of mono-aromatic, di-aromatic, monoterpene-derived, and isoprene-derived SOCs (ASOCm, ASOCd, BSOCm, and BSOCi, respectively) in WSOC during (a) spring and (b) summer at each site.
Atmosphere 12 00579 g004
Table
Table 1. Location and sampler type used at the filter-based monitoring sites.
Table 1. Location and sampler type used at the filter-based monitoring sites.
No.SitePrefectureLatitude (°N)Longitude (°E)Sampler
TypeImpactorFlowrate
1DazaifuFukuoka33.51130.50HV-1000 F (Sibata)HVI2.5740 L/min
2aOsakaOsaka34.68135.54Partisol Plus 2025 (Thermo)WINS impactor16.7 L/min
2bIzumiotsuOsaka34.50135.41Partisol Plus 2025 (Thermo)WINS impactor16.7 L/min
3NagoyaNagoya35.10136.92LV-250 (Sibata)WINS impactor16.7 L/min
4TokyoTokyo35.67139.82FRM2000 (Thermo)WINS impactor16.7 L/min
5SapporoHokkaido43.08141.33FRM2000 (Thermo)WINS impactor16.7 L/min
Table
Table 2. Seasonal OC, WSOC, EC, and ion averages by filter-based measurements and PM2.5 mass, meteorological data, gaseous components, and potential ozone (PO) by online-based measurements during spring and summer at all sites.
Table 2. Seasonal OC, WSOC, EC, and ion averages by filter-based measurements and PM2.5 mass, meteorological data, gaseous components, and potential ozone (PO) by online-based measurements during spring and summer at all sites.
SpringSummer
DazaifuOsakaNagoyaTokyoSapporoDazaifuIzumiotsuNagoyaTokyoSapporo
n = 10n = 10n = 10n = 10n = 7n = 16n = 16n = 15n = 16n = 16
Filter based measurement, µg/m3
OC4.2±1.54.4±1.44.1±1.73.8±1.33.6±0.692.5±0.953.1±1.33.4±1.33.3±1.41.9±0.67
WSOC3.0±1.13.0±1.02.9±1.32.7±0.902.6±0.431.9±0.662.9±1.62.9±1.32.6±1.21.4±0.30
EC1.8±0.631.3±0.511.2±0.531.2±0.441.4±0.391.2±0.41.3±0.721.4±0.481.5±0.410.99±0.25
Na+0.22±0.180.13±0.080.21±0.110.19±0.190.25±0.190.31±0.190.16±0.0710.12±0.0540.24±0.160.073±0.083
NH4+6.1±3.82.7±1.92.3±1.42.2±1.72.2±0.944.7±3.43.5±2.42.7±2.02.7±1.72.1±1.0
K+0.36±0.230.11±0.0700.094±0.0610.10±0.0590.11±0.0270.19±0.0910.17±0.0970.14±0.150.12±0.0680.052±0.033
Mg2+0.031±0.0180.0076±0.00560.011±0.00500.0099±0.0110.022±0.0160.021±0.0120.0048±0.00210.0070±0.00530.011±0.00820.0019±0.0025
Ca2+0.35±0.190.059±0.0560.079±0.0500.080±0.0690.047±0.0170.17±0.140.038±0.0290.058±0.0470.084±0.0530.0071±0.0038
Cl-0.18±0.100.097±0.0820.047±0.0160.13±0.160.087±0.0770.037±0.0140.038±0.0840.027±0.0110.040±0.0620.017±0.029
NO3-3.9±3.91.5±1.21.1±0.622.4±1.90.87±0.490.36±0.180.11±0.0280.096±0.0290.24±0.150.037±0.024
SO42-12.5±7.76.5±5.05.9±3.84.9±4.34.5±2.214.2±9.810.0±6.97.5±5.67.7±4.85.2±3.0
Oxalate0.48±0.320.26±0.140.26±0.160.23±0.140.17±0.0360.35±0.180.27±0.180.20±0.0990.15±0.0960.12±0.048
Online-based measurement
PM2.5, µg/m323.1±10.425.7±10.822.5±9.821.8±10.517.4±13.218.6±8.924.3±14.122.4±11.824.1±11.013.1±5.1
Wind speed, m/s2.0±0.392.3±0.382.8±0.382.9±0.593.0±1.31.9±0.331.4±0.402.7±0.693.0±1.12.7±0.71
Daily radiation, MJ/m222.5±5.422.8±5.024.1±2.320.4±4.421.7±1.322.8±6.321.2±5.620.3±6.121.1±4.614.9±5.1
Temperature, ℃17.6±2.418.8±2.318.9±1.618.3±1.813.0±2.328.9±1.429.2±1.929.8±1.929.6±1.024.6±1.5
Relative humidity,%56.5±15.354.5±12.156.7±9.963.5±7.953.6±10.272.7±6.670.0±8.068.2±9.672.3±5.278.4±6.6
NO, ppb1.3±0.723.1±2.34.4±2.02.5±2.00.91±0.472.3±1.13.1±3.24.9±3.95.8±4.72.0±0.96
NO2, ppb16.9±4.822.2±7.421.1±6.722.2±8.611.3±4.09.4±2.712.1±3.615.7±5.022.6±7.07.8±2.3
NOx, ppb18.1±5.225.3±9.625.5±8.324.8±10.312.2±4.411.7±3.615.3±5.320.6±7.828.4±8.09.8±3.1
Ox, ppb47.2±8.344.5±8.843.6±7.038.6±6.445.5±10.126.8±7.131.5±18.828.9±15.825.6±16.021.0±6.8
PO, ppb62.3±11.064.2±9.862.2±7.958.4±5.155.5±7.235.0±8.042.0±20.142.6±15.745.3±18.327.8±6.0
Table
Table 3. Organic tracer concentrations (ng/m3) in PM2.5 during spring and summer at each site.
Table 3. Organic tracer concentrations (ng/m3) in PM2.5 during spring and summer at each site.
SpringSummerAbbreviation
DazaifuOsakaNagoyaTokyoSapporoDazaifuIzumiotsuNagoyaTokyoSapporo
n = 10n = 10n = 10n = 10n = 7n = 16n = 16n = 15n = 16n = 16
ASOA tracers
DHOPA 11.8±1.41.7±0.972.2±1.71.5±1.31.9±0.40.96±0.501.5±1.11.2±0.801.2±1.50.61±0.33DHOPA
Phthalic acid4.6±1.85.3±2.85.0±2.64.9±2.36.9±1.24.5±2.15.9±3.76.8±2.97.9±5.22.7±1.2PhA
4-Methylphthalic acid0.71±0.211.3±0.671.0±0.500.95±0.361.0±0.951.0±0.551.5±0.851.9±0.981.8±1.10.53±0.254MPhA
Subtotal7.1±3.18.2±4.38.2±4.57.3±3.89.8±2.36.5±3.08.9±5.610.0±4.210.9±7.53.8±1.7
Monoterpene-derived SOA tracers
cis-Pinonic acid20.5±13.627.8±15.736.6±19.912.4±4.15.7±1.91.9±1.29.4±3.55.2±3.19.1±2.46.1±0.87PNOA
Pinic acid8.7±4.25.1±1.67.7±4.72.2±0.93.6±1.94.9±2.78.5±7.56.5±4.94.3±3.23.0±1.4PA
3-Hydroxyglutaric acid13.6±8.111.9±5.712.7±8.09.9±5.614.8±6.713.4±7.223.4±20.119.5±13.417.0±16.010.5±5.83HGA
MBTCA 25.0±2.54.9±2.35.3±3.72.4±1.53.2±2.18.9±5.814.6±11.511.9±8.09.5±9.54.2±2.8MBTCA
Subtotal47.8±18.949.7±18.562.4±32.427.0±8.427.3±11.629.1±15.855.9±40.143.2±25.240.0±28.823.8±9.5
Isoprene-derived SOA tracers
2-Methylthreitol0.20±0.100.24±0.120.23±0.130.18±0.0820.14±0.0324.7±3.85.7±4.01.9±1.12.5±1.33.1±2.62MTT
2-Methylerythritol0.59±0.300.58±0.240.55±0.400.40±0.160.36±0.09618.4±14.317.3±13.58.1±5.98.7±6.110.5±10.02MET
2-Methylglyceric acid1.4±0.450.73±0.291.0±0.720.83±0.351.4±0.341.5±0.761.8±1.31.5±0.931.6±0.991.8±1.42MGA
Subtotal2.1±0.631.5±0.421.8±1.21.4±0.511.9±0.4424.6±18.724.8±18.711.5±7.712.9±8.415.3±13.8
Biomass-burning tracers
Levoglucosan37.7±13.422.8±18.020.8±14.216.1±16.539.9±24.112.1±5.49.2±4.57.2±3.25.8±5.03.2±1.7LEV
Mannosan4.0±1.32.7±2.52.5±1.81.8±1.83.7±2.11.1±0.411.0±0.520.71±0.340.69±0.480.42±0.20MAN
Galactosan2.0±0.781.3±0.971.2±0.840.98±0.821.9±1.10.52±0.220.57±0.220.30±0.100.41±0.230.19±0.072GAL
Subtotal43.7±15.426.8±21.424.4±16.818.9±19.145.5±27.113.7±6.010.8±5.28.2±3.66.9±5.73.8±2.0
Plastic-burning tracer
Terephthalic acid5.5±3.04.2±3.43.7±2.02.5±1.23.6±2.23.5±1.43.0±1.93.8±2.13.2±2.40.99±0.52tPhA
BPOA tracers
Arabitol2.6±0.921.1±0.660.97±0.420.61±0.380.81±0.203.2±1.91.7±0.702.3±1.21.5±0.860.64±0.33ARA
Mannitol2.1±0.630.89±0.580.98±0.460.55±0.320.53±0.185.3±1.83.1±1.74.2±2.52.6±1.61.2±0.62MAT
Glucose61.8±22.34.9±3.04.9±2.33.6±1.94.3±1.29.7±4.84.6±1.76.9±3.45.2±3.12.5±1.3GLU
Subtotal66.5±22.87.0±4.36.8±3.14.7±2.45.7±1.418.2±7.39.4±4.013.4±7.09.3±5.34.3±2.1
1 DHOPA: 2,3-dihydroxy-4-oxopentanoic acid, 2 MBTCA: 3-methylbutane1,2,3-tricarboxylic acid. Unit: ng/m3.
Table
Table 4. Correlations between PO and organic tracers during (a) spring and (b) summer at each sampling site.
Table 4. Correlations between PO and organic tracers during (a) spring and (b) summer at each sampling site.
(a) Spring
PODHOPAPhA4MPhAPNOAPA3HGAMBTCA2MTT2MET2MGALEVMANGLAtPhAARAMATGLU
Dazaifu0.73*0.29 0.42 −0.02 0.03 0.82**0.29 −0.06 −0.20 0.88**0.16 0.19 0.21 0.78**−0.46 −0.38 −0.04
Osaka0.58 0.68*0.72*0.03 0.18 0.81**0.78**0.03 0.05 0.33 0.23 0.16 0.17 0.62 0.31 0.29 0.32
Nagoya0.76*0.83**0.77**0.37 0.54 0.82**0.83**0.45 0.50 0.73*0.40 0.31 0.34 0.78**0.79**0.68*0.86**
Tokyo0.70*0.68*0.67*−0.22 0.50 0.86**0.87**0.50 0.40 0.92**−0.04 0.05 0.14 0.70*0.19 0.25 0.35
Sapporo0.30 0.64 0.75 0.83*0.41 0.46 0.82*0.36 0.13 0.63 −0.39 −0.53 −0.49 0.70 0.10 0.22 0.16
(b) Summer
PODHOPAPhA4MPhAPNOAPA3HGAMBTCA2MTT2MET2MGALEVMANGLAtPhAARAMATGLU
Dazaifu0.85**0.86**0.78**0.27 0.91**0.92**0.75**0.69**0.69**0.87**0.32 0.44 0.60*0.64**0.22 0.12 0.42
Izumiotsu0.96**0.87**0.76**0.43 0.88**0.94**0.92**0.93**0.91**0.93**0.51*0.49 0.78**0.95**0.52*0.17 0.52*
Nagoya0.84**0.76**0.71**−0.12 0.94**0.91**0.92**0.77**0.69**0.90**0.26 0.29 0.73**0.50 0.44 0.36 0.45
Tokyo0.82**0.94**0.85**0.34 0.87**0.88**0.84**0.80**0.79**0.82**0.57*0.63**0.76**0.69**0.35 0.39 0.39
Sapporo0.42 0.44 0.27 −0.23 0.32 0.42 0.32 0.45 0.38 0.57*0.06 0.04 −0.04 0.53*−0.54*−0.45 −0.21
(* p < 0.05, ** p < 0.01).
Table
Table 5. Correlations between WSOC and organic tracers during (a) spring and (b) summer in each sampling site.
Table 5. Correlations between WSOC and organic tracers during (a) spring and (b) summer in each sampling site.
(a) Spring
WSOCDHOPAPhA4MPhAPNOAPA3HGAMBTCA2MTT2MET2MGALEVMANGLAtPhAARAMATGLU
Dazaifu0.86**0.54 0.78**0.00 0.20 0.93**0.63 −0.07 −0.26 0.85**0.50 0.53 0.52 0.90**−0.48 −0.24 0.12
Osaka0.82**0.90**0.81**0.28 0.39 0.83**0.77**−0.17 −0.07 0.32 0.65*0.59 0.59 0.75*0.59 0.59 0.61
Nagoya0.85**0.92**0.73*0.66*0.81**0.94**0.90**0.64*0.72*0.92**0.67*0.58 0.64*0.96**0.82**0.71*0.92**
Tokyo0.78**0.89**0.79**−0.44 0.23 0.67*0.67*0.31 0.17 0.90**0.45 0.53 0.63 0.86**0.45 0.42 0.77**
Sapporo0.50 0.83*0.63 0.37 0.10 0.33 0.58 0.50 0.27 0.49 −0.15 −0.27 −0.23 0.48 −0.18 −0.21 0.20
(b) Summer
WSOCDHOPAPhA4MPhAPNOAPA3HGAMBTCA2MTT2MET2MGALEVMANGLAtPhAARAMATGLU
Dazaifu0.67**0.77**0.85**0.65**0.88**0.85**0.96**0.78**0.80**0.83**0.73**0.72**0.74**0.47 0.45 0.50*0.70**
Izumiotsu0.85**0.79**0.79**0.49 0.99**0.95**0.99**0.86**0.84**0.90**0.42 0.42 0.65**0.93**0.60*0.25 0.58*
Nagoya0.64*0.70**0.89**−0.37 0.95**0.84**0.97**0.60*0.59*0.85**0.48 0.48 0.69**0.45 0.60*0.52*0.57*
Tokyo0.93**0.95**0.86**0.19 0.93**0.97**0.98**0.85**0.90**0.93**0.64**0.69**0.74**0.80**0.56*0.61*0.51*
Sapporo0.75**0.73**0.75**−0.31 0.88**0.88**0.88**0.75**0.71**0.77**0.63**0.69**0.63**0.88**−0.07 −0.01 0.24
(* p < 0.05, ** p < 0.01).
Table
Table 6. Estimated SOC concentrations (ng/m3) during spring and summer presented herein and those presented by [61,62,63,64] in China.
Table 6. Estimated SOC concentrations (ng/m3) during spring and summer presented herein and those presented by [61,62,63,64] in China.
SiteCountryYearASOCmASOCdBSOCmBSOCiASOC/BSOCReference
Spring
DazaifuJapan20156001248095.10.89This study
Osaka 20155481448435.30.82This study
Nagoya 201572813510575.00.81This study
Tokyo 20154731334583.81.3This study
Sapporo 20156181874633.31.7This study
FuzhouChina2017749na306392.2[63]
Summer
DazaifuJapan20153131224931490.68This study
Izumiotsu 20154821619471480.59This study
Nagoya 2015391186733650.72This study
Tokyo 2015394214678730.81This study
Sapporo 201519973403870.56This study
BeijingChina20121700na1496472.1[61]
Taiyuan 2012988na713062.6[61]
Dunhuang 2012687na595741.1[61]
Hefei 2012854na29115130.47[61]
Kunming 2012783na736551.1[61]
Tianjin 20166971852081152.7[62]
Tianjin 201654496234961.9[62]
Beijing 2017280na303260.85[64]
Fuzhou 2017951na4391181.7[63]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ikemori, F.; Nishimura, R.; Saito, S.; Akiyama, M.; Yamamoto, S.; Iijima, A.; Sugata, S. Organic Molecular Tracers in PM2.5 at Urban Sites during Spring and Summer in Japan: Impact of Secondary Organic Aerosols on Water-Soluble Organic Carbon. Atmosphere 2021, 12, 579. https://doi.org/10.3390/atmos12050579

AMA Style

Ikemori F, Nishimura R, Saito S, Akiyama M, Yamamoto S, Iijima A, Sugata S. Organic Molecular Tracers in PM2.5 at Urban Sites during Spring and Summer in Japan: Impact of Secondary Organic Aerosols on Water-Soluble Organic Carbon. Atmosphere. 2021; 12(5):579. https://doi.org/10.3390/atmos12050579

Chicago/Turabian Style

Ikemori, Fumikazu, Rie Nishimura, Shinji Saito, Masayuki Akiyama, Shigekazu Yamamoto, Akihiro Iijima, and Seiji Sugata. 2021. "Organic Molecular Tracers in PM2.5 at Urban Sites during Spring and Summer in Japan: Impact of Secondary Organic Aerosols on Water-Soluble Organic Carbon" Atmosphere 12, no. 5: 579. https://doi.org/10.3390/atmos12050579

APA Style

Ikemori, F., Nishimura, R., Saito, S., Akiyama, M., Yamamoto, S., Iijima, A., & Sugata, S. (2021). Organic Molecular Tracers in PM2.5 at Urban Sites during Spring and Summer in Japan: Impact of Secondary Organic Aerosols on Water-Soluble Organic Carbon. Atmosphere, 12(5), 579. https://doi.org/10.3390/atmos12050579

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
