Investigation of BTX Concentrations and Effects of Meteorological Parameters in the Steelpoort Area of Limpopo Province, South Africa

by
Collet Maswanganyi
1,2,*,
James Tshilongo
1,3,
Andile Mkhohlakali
3 and
Lynwill Martin
4
1
Department of Chemistry, University of South Africa, P.O. Box 392, Pretoria 0003, South Africa
2
Department of Chemistry, University of Limpopo, Private Bag x1106, Sovenga 0727, South Africa
3
Analytical Chemistry Division (ACD), Council for Mineral Technology (Mintek) 200 Malibongwe Drive, Praegville, Randburg 2194, South Africa
4
Cape Point Global Atmosphere Watch Station, South Africa Weather Service, c/o CSIR, Stellenbosch 7599, South Africa
*
Author to whom correspondence should be addressed.
Atmosphere 2024, 15(5), 552; https://doi.org/10.3390/atmos15050552
Submission received: 28 March 2024 / Revised: 18 April 2024 / Accepted: 23 April 2024 / Published: 30 April 2024
(This article belongs to the Section Air Quality)
Browse Figures
Versions Notes

Abstract

:
It has been demonstrated that benzene, toluene, and xylene are carcinogens. Its combined effects with other contaminants have the potential to harm several ecosystem components. Since most human benzene exposure takes place inside, it is important to understand how outdoor benzene emissions from traffic and industry affect interior concentrations. However, this area of study has not received enough attention to date. Herein, we examine the outdoor concentrations of benzene, toluene, and xylene (BTX) in a Steelpoort mining area. BTX pollutants were passively sampled on the first seven days of the month, from January to December 2021 using Radiello samplers. The effects of meteorological parameters such as temperature, relative humidity, wind speed, and solar radiation on BTX concentrations were also statistically tested. For all seasons, BTX concentrations were greater in the winter than in the summer with concentrations of 0.69 µg/m3, 2.97 µg/m3 and 0.80 µg/m3 for benzene, toluene and xylene, respectively. In addition, toluene was the most common BTX compound with the highest concentrations when compared to benzene and xylene. Benzene, toluene and xylene, had yearly average concentrations of 0.61 µg/m3, 1.48 µg/m3 and 0.64 µg/m3, respectively. The benzene and xylene concentrations were below international exposure limits (annual, 5 µg/m3 for benzene; weekly, 260 µg/m3 for toluene), as in comparison to the World Health Organization, as well as within South African exceedance limits. Both positive and negative correlations between BTX and meteorological parameters were demonstrated by statistical models. Temperature, wind speed, and relative humidity depicted a weak negative correlation with benzene of 0.003, 0.019 and 0.006, respectively. Toluene showed a positive correlation with wind speed (1.90) and relative humidity (0.041). Overall, the concentration of benzene is of major concern since it is an agent of cancer and it is there in the atmosphere.

1. Introduction

Mono-aromatic volatile organic compounds (VOCs), such as benzene, toluene, and xylene (BTX), are among the most widely produced chemicals in the world [1,2,3,4]. These compounds are classified as hazardous air pollutants due to their potential to damage human health [5,6]. According to the International Agency for Research on Cancer, benzene, toluene and xylene are categorized as human carcinogen, probable human carcinogen and non-carcinogen for humans [7,8,9]. It has been reported that human beings are exposed to these volatile organic compounds through inhalation, which places their health at risk [10]. The effects of BTX exposure on human health have been extensively studied and are mostly influenced by exposure duration and concentration [11,12]. BTX, which can pollute air through a variety of sources, such as cigarette smoke, motor vehicle fuel combustion, petrochemical industries and gasoline and diesel combustion have both short-term and long-term effects on human health [13]. Eye irritation, headache, vertigo, visual impairments, and memory disorders have been linked to short-term exposure to BTX [14,15,16], while long-term exposure was linked with leukaemia and biliary tract cancer; birth defects; damage to body organs such as the liver, kidney, and central nervous system; allergies; and asthmatic intensification. Toluene and xylenes are neurotoxic and cause peripheral neuropathies, while benzene is hematotoxic and considered to be the most toxic chemical among BTX [12,17]. Although children and the elderly groups are the most vulnerable groups due to their weaker immune system [18], studies show that children are at greater risk. This is due to their high metabolic and resting rate as compared to adults. Again, it was further found that children spend most of their time indoor next to their mothers, and they are thus exposed to elevated concentrations of combustion pollutants during cooking and heating conditions [19].
Studies on the fluctuations of BTX in metropolitan regions’ atmosphere across time and space, in both established and developing nations, have demonstrated that BTX are linked to certain activities such as oil refineries, petrochemical industries and vehicle emissions [20,21]. Of all of the sources reported, gasoline is the one that has received much attention in the past decades [22,23,24]. The major component of gasoline is benzene, which is released from gasoline engines. The benzene-to-toluene (B/T) ratio is often applied as an index for determining the emission sources of BTX compounds [6,25,26]. A ratio exceeding 0.5 suggests that the source of benzene is not only related to traffic but also other sources. Moreover, B/T ratios lower than 0.5 suggest that transportation is the predominant source of BTX [27].
In South Africa, emissions of volatile organic compounds along with their corresponding concentrations are all considered to be major sources of air pollution. Pollutants released from a variety of sources such as the burning of biomass and home fuels, etc., have an impact on the quality of the air in different parts of the nation. [28]. Since there is no law in South Africa defining acceptable levels of VOCs in ambient air, it is more difficult to implement monitoring and emission reduction programs [19,29]. The only pollutant the South African government regularly monitors and limits in ambient air is benzene, even though toluene and xylenes have been shown to be harmful to human health. However, since TX is regarded as an ozone precursor substance, there has been a push in South Africa to include limits and guideline values for it. Furthermore, the South African government intended to further reduce benzene limits from 3 ppb to 1.5 ppb by 2016, with no exceedances (above limits) permitted as VOC levels rise [19,23].
BTX have been monitored in South Africa in areas such as Vaal Triangle, Cape Town, Johannesburg, Pretoria and Mpumalanga Highveld [30,31]. The passive sampling of BTX was investigated and found to range between 8.83 to 39.62 µg/m3 in residential areas around Roodepoort, South Africa [32]. Also, seven-day median personal BTX exposure was collected using passive compact diffusive samplers [33]. Nonetheless, BTX levels have not been assessed in the Steelpoort mining area. This research will contribute to assessing the risk associated with BTX health effects for Steelpoort residents. Therefore, the aim of this study was to assess the air quality of the mining area in Steelpoort, specifically the VOCs such as benzene, toluene and xylene. The dataset contains concentrations of BTX from January 2021 to December 2021. Passive sampling was used because it has proven to be a methodology that fulfils the need for adopting inexpensive, simple and reliable methods for air quality monitoring. Therefore, the aim of the study was to investigate the outdoor concentrations of BTX by using Radiello® diffusive samplers. This study also uses the interspecies ratio to get the potential emission sources and statistical tests on meteorological factors affecting concentrations of BTX.

2. Materials and Methods

2.1. Study Area

Steelpoort is a mining area in Sekhukhune District Municipality in the Limpopo province. The altitude ranges from 1500 to 2400 m above sea level. Mean annual rainfall varies between 630 mm and 1000 mm, mainly in the form of summer thunderstorms. The settlement has an estimated population of approximately 1105, 380 (122.09 per km2) households and covers 3.11 km2. It is also surrounded by five villages within a radius of ±10 km radius, namely Ga-Mahlokwane (3.8 km); Tukakgomo (3.8 km); Ga-Phasha (3.8 km); Ga-Mampuru (8.4 km); and Stocking (9.4 km). Also, Steelpoort is surrounded by eight mines, viz., Dwarsrivier Chrome; Tweefontein Chrome; Tubatse Ferrochrome; Two Rivers Platinum; Modikwa Platinum; Mototolo Platinum Mine; Lion Ferrochrome Smelter; and Marula Platinum (Pty) Ltd. as illustrated in Figure 1.

2.2. Sampling Method

Radiello passive sampling cartridges were deployed to collect the air samples during a 7-day sampling session from January 2021 to December 2021. The samplers were placed at Ga-Mapodile Library which is 10 km away and on the western side of the Steelpoort mine. The sampling period was chosen because it represents varying seasonal climatic conditions. BTX were sampled by Radiello® diffusive samplers (Code RAD 130). The Code RAD130 cartridge has a very large loading capacity of about 80 mg. This corresponds to an overall VOC concentration of 3000–3500 mg/m3 sampled for 8 h or 70,000–80,000 µg/m3 for 14 days [34]. The adsorbing cartridge consists of a stainless steel net cylinder with a 100 mesh grid opening and 5.8 mm diameter containing 530 ± 30 mg of activated charcoal, which is enclosed in a white diffusive body. A mountable polypropylene shelter protected the sampler from bad weather and direct sunlight. The samplers were placed 1.5 m above ground level at the sampling site. The samples were coded and transferred to the laboratory in a cold box at 4 °C for further analysis.

2.3. Analyses of BTX by Gas Chromatography

The cartridges used during sampling were transferred into vials and first fortified with 100 µL of 1-chlorooctane solution (internal standard with concentration of 10 µg/mL), then 2 mL carbon disulphide was added and the vials were immediately sealed with a septum cap. The samples were shaken for 30 min at room temperature, then 5 µL of the extract were analysed by GC-FID as outlined below. All samples were analysed on 7890A/5975C Triple-Axis Detector diffusion pump-based (Agilent, Santa Clara, CA, USA) GC-MS equipped with a split/splitless inlet. A 60 m × 0.25 mm HP-INNOWax (Agilent, USA) column with a film thickness of 0.25 µm was used for the separation of BTX. The constant flow of helium in the column was 1 mL/min. Temperatures of ion source, quadrupole and MS interface were 230, 150 and 250 °C, respectively. The thermal desorption of analytes from SPME fibre in GC injector was done in spitless mode at 250 °C using a 0.75 mm in diameter liner (Supelco, Bellefonte, PA, USA). Oven temperature was programmed from an initial 40 °C (held for 3 min) to 150 °C (held for 1.5 min) at the heating rate of 20 °C/min. As shown in Figure 2, the GC column separated BTX in different retention times, such as 11.49 min for benzene, 16,614 min for toluene and 22.7 to 24.02 min for xylene. It can be seen that xylene split into three distinct peaks at 22.7, 23.41 and 24.02 min (retention time), which are attributed to m-xylene, p-xylene and o-xylene, respectively. The peak around 28.416 min can be attributed to ethylbenzene. Detection was carried out in selected ion monitoring mode t m/z 78, 91 and 106 for the selective detection and quantification of the four BTX constituents, respectively. The total run time of the analysis was 10 min. The identification of compounds was carried out by comparing the characteristics peaks of the eluted sample with those of authentic analyte standards and GC retention times. The sample and the blanks were injected twice and the mean values were reported.
The mean concentration C (µg/m3) of a specific BTX during the exposure time t is calculated using the following Equation (1)
C = m/Q·t × 106
where m (µg) is the amount of analytes adsorbed on the cartridge, Q (mL/min) is the uptake rate at 298 K and t (min) is the sampling period. The Q values are given by the Radiello manual; at the normal conditions as defined by EC directives at T = 293 and P = 101.3 kPa, the Q values are 80 mL/min for benzene, 74 mL/min for toluene, 68 mL/min for ethylbenzene, 70 mL/min for (m + p)-xylenes and 68 mL/min for o-xylene.
Since the temperature and pressure were different from the normal conditions, the Q values were corrected using Equation (2):
QT = Q298(T/298)1.5
where QT is the sampling rate at the temperature T, and Q298 is the Q value at the normal condition. The relative humidity between 15% and 90%, as well as wind speeds between 0.1 and 10 m/s, have no influence on sampling rates.

2.4. Quality Assurance and Quality Control

All of the chemicals used during the preparation, extraction and analysis of the samples were analytical and chromatographic grade. The 1-chlorooctane solution used as the internal standard and carbon disulphide (Reagent Plus, redistilled, ≥99.9%, low benzene) used for the extraction of samples were purchased from Sigma-Aldrich (Sigma-Aldrich, Steinheim, Germany). Radiello® diffusive samplers (Code RAD 130) were purchased from Merck. Laboratory and field blanks were analysed to check for any contamination during sample handling and analysis. BTX concentrations detected in the laboratory blanks were found to be below the detection limit of the instrument. On the other hand, trace levels of BTX were measured in the field blanks and they were subtracted from the sample concentrations. Recoveries of the BTX the diffusive samplers were determined according to the instructions from the Radiello manual. To determine the method’s detection limit, blank samples were also transferred to the field together with other samplers and were kept close during the sampling period. After that, they were brought to the laboratory and analysed the same way as the other samples. Method detection limits were calculated by using analyte amounts in the field blanks corresponding to a signal-to-noise ratio. Calibration curves were developed using six points based on standard solutions ranging from 1 to 60 ppm. The results showed that the coefficients of determination (R2) for BTEX contaminants were as follows using the calibration curves: 0.998 for benzene, 0.997 for toluene and 0.998 for xylenes.

2.5. Statistical Analyses of Data

The statistical test of meteorological factors on BTX concentrations included temperature (T, °C), relative humidity (RH, %), wind speed (WS, m/s) and solar radiation (SR). The effect of these factors on BTX concentrations were analysed statistically with the SPSS program (Version 29.00) on a personal computer. The relationships between the BTX concentrations and the meteorological factors were tested with a multiple linear regression (MLR) model and were fitted simultaneously to Equation (3). Regression coefficients deduced from MLR analysis were statistically significant if p ≤ 0.05.
A = C + β1x1 + β2x2 + β3x3+ β4x4
where A is the dependent variable (BTX), C is the constant of regression, β is a regression coefficient and x1 through x4 are the independent variables x1 (temperature, T, °C), x2 (wind speed, WS, m/s), x3 (relative humidity, RH, %) and x4 (solar radiation, SR). Also, Pearson correlation analysis was applied to all data collected to assess the relationship between BTX and meteorological factors.

3. Results and Discussion

3.1. Benzene, Toluene and Xylene Concentrations

The concentrations for BTX compounds are shown in Figure 3. The results indicated that the predominant BTX compound was toluene, which had the highest concentrations throughout the year compared to other VOCs, with an annual average of 1.48 µg/m3. This finding is in agreement with the results of other studies where toluene was the dominant VOC among BTX compounds in the ambient air [18,35]. The main reason for higher toluene concentrations is that it is usually added to gasoline to enhance octane number and improve fuel efficiency [36]. Toluene was followed by xylene (0.64 µg/m3) and benzene (0.61 µg/m3).
The highest concentrations of toluene and xylene were observed in winter (June–August), whereas the benzene level was high in late winter and early spring (September). This is due to the increased emissions from heating devices as well as emissions from vehicle traffic. It has also been reported that a lower average ambient temperature aids the accumulation of pollutants in the atmosphere, due to the limited movement of air masses in the vertical plane [37]. The results are in agreement with those obtained by other studies in which toluene was reported to have the highest concentrations of BTX [38,39,40]. For example, the values of benzene, toluene and m,p-xylene reported by [40] are 598.34 µg/m3, 1054.32 µg/m3 and 1076.29 µg/m3, respectively. The concentrations of benzene and toluene were lower than the world governing bodies’ annual exposure limits, which are 5 µg/m3 (annually) and 260 µg/m3 (weekly) for benzene and toluene, respectively. The Limpopo provincial government of South Africa has monitoring programs for BTX, but the monitoring stations are poorly serviced.
Steelpoort is cold in winter and temperature inversions are more common during this season [41]. A temperature inversion occurs when a layer of warm air traps cooler air near the surface. This stable atmospheric condition can prevent vertical mixing of the air and pollutants, leading to the accumulation of pollutants, including benzene, toluene and xylene, at ground level [42,43]. With limited dispersion, pollutants are trapped near the surface, resulting in higher concentrations. The minimal values of benzene, toluene and xylene were observed during summertime. Benzene and toluene are known to be sensitive to photochemical reactions, therefore an increase in temperature causes their concentrations to be low [44]. The South African summer is usually a rainy season and rain with other forms of precipitation can help remove these compounds from the atmosphere by washing them out of the air [45,46]. This process, known as wet deposition, can temporarily reduce pollutant levels. There is also a lot of traffic in the area due to the transportation of minerals which introduces a lot of pollution from the vehicles. About 3% of the Steelpoort population [47] depends on coal for cooking and this influences the concentrations of VOCs. Therefore, the high concentrations of toluene were mainly attributed to the combustion of fossil fuel (e.g., domestic coal) for heating during the winter. This observation agreed with research reported in rural regions where BTX was mainly attributed to the combustion of fossil fuel (e.g., domestic coal) for heating during the winter [48].

3.2. Interspecies Ratios among BTX

Interspecies ratios were used to identify the potential emission sources of BTX [22,47]. Table 1 shows the BTX interspecies ratios under study. Since Steelpoort is a mining area and a lot of heavy vehicles are used to transport minerals, BTX interspecies ratios were used to identify these VOC sources. Interspecies ratios are affected by BTX source, BTX degradation rates, distance from the source and meteorological factors such as solar radiation, temperature, wind speed, wind direction and relative humidity. Therefore, T/B ratios between two and three indicate mobile sources, while values between three and four indicate that the sampling may be under the influence of mobile and evaporative sources. Values greater than four indicate point sources of BTX or industrial regions. The T/B ratios between two and three, indicate gasoline as a source of the VOCs. Furthermore, the ratio of 4.6 between benzene and toluene in winter shows that they are emitted from other sources such as industrial processes and vehicular emissions [49]. In this study, the calculated T/B ratio range from 1.3 to 4.6 for outdoor BTX concentrations confirms traffic as the emission source. This range was comparable to those measured in southern Taiwan [3]. Also, the T/X ratios are above a value of one, indicating that the vehicles are the source of emission. The X/B ratios range between 0.56 and 1.96, and these low X/B ratios indicate that the air mass in the study area is photochemically aged. For example, it could be aged via reactions with hydroxyl radicals. Benzene has a relatively low reactivity as compared with xylenes. Hydroxyl radicals are extremely short-lived species and play the key role as the chemical scavengers of the atmosphere in cleansing the earth’s atmosphere of harmful organic pollutants [48]. Also, the small X/B ratio was reported for xylenes stemming from transport [27,49].

3.3. Multiple Linear Regression Data

To estimate how the BTX concentrations depend on meteorological factors an MLR was performed. The dependent variables (A) were the BTX mass concentrations, whereas the independent variables were temperature (β1), wind speed (β2), relative humidity (β3) and solar radiation (β4). The backward elimination of MLR analysis was applied to filter the independent variables (criterion: probability of F to remove ≥0.10, with 95% confidence interval). The MLR coefficients of BTX concentrations with respect to meteorological parameters are illustrated in Table 1. The initial models, derived from Equation (3) for BTX are given by Equations (4)–(6).
AB = 0.844 − 0.003 T − 0.019 WS − 0.006 RH + 0.001 SR
AT = 1.543 − 0.233 T + 1.900 WS + 0.041 RH − 0.001 SR
AX = 18.606 − 1.33 T + 15.593 WS + 0.749 RH − 0.178 SR
AB = 0.857 − 0.005 RH
AT = 3.368 − 0.088 T
AX = 38.830 − 0.0125 SR
where AB, AT and AX are the dependent variables benzene, toluene and xylene, respectively. Meanwhile T is temperature, WS is wind speed, RH is relative humidity and SR is solar radiation.
The strength of the relationships of meteorological parameters with BTX was measured by the size of β-values. For example, in Equation (4), the β-values for independent variables are 0.003, 0.019, 0.006 and 0.001 for temperature, wind speed, relative humidity and solar radiation, respectively. Equations (4) through (6) show that there were negative correlations between the BTX concentrations with temperature. A negative correlation between benzene and temperature, wind speed and relative humidity, as shown by Equation (4), was observed. A weak positive correlation (0.001) with solar radiation shows that photochemical reactions are influencing the concentrations of benzene, although they are low. A similar study has shown negative correlations between benzene and temperature and wind speed [6]. Equation (5) shows that there are positive correlations of toluene with wind speed (1.900) and relative humidity (0.041). As wind speed and relative humidity increase, toluene concentrations increase. This means that the levels of toluene depend on these meteorological factors. Also, there was a negative weak correlation (−0.001) of toluene with solar radiation, which indicates that the toluene concentration does not depend much on the solar radiation. There was a strong positive correlation of xylene with wind speed (15.593) and moderate relative humidity (0.749). Additionally, there was moderate positive correlation with solar radiation (0.178) and strong negative correlation with temperature (1.33). A strong correlation for xylene and wind speed indicates the difference in the relationship with meteorological factors as compared to benzene and toluene. The correlative coefficients (R) in Table 2 were between 0.519 and 0.718 for the initial and final models of BTX, which show that the positive linear correlations were moderately significant between the dependent variables and independent variables. Final Equations (7)–(9) show variability related to relative humidity, temperature and solar radiation for benzene, toluene and xylene, respectively. Figure 4 shows the scatter plots for the relationship between BTX and meteorological parameters to support the r2 shown in Table 2. The MLR models were significant, with r2 values of between 0.269 and 0.640. For toluene, the model explained 52% of the variability in the initial model and 64% of the variability in the final model. For benzene, the model explained 41% of the variability in the initial model and 36% of the variability in the final model. However, for xylene, the model explained 38% of the variability in the initial model and 27% of the variability in the final model.

3.4. Study Limitations

This study had some limitations, which included surveying the ambient air pollutants (BTX) in one residential area in Steelpoort. This was done because the DEFF monitoring station is housed in that area. Furthermore, there was a reliance on the SAAQIS for obtaining data on meteorological parameters. However, the benefit of obtaining data from SAAQIS was that the meteorological data was made available at any time. Section 4 presents the conclusions of the study.

4. Conclusions

The ambient concentrations and possible sources of BTX in Steelpoort are reported in this study. The effects of meteorological parameters on VOCs were also investigated. Among the BTX concentrations investigated, toluene was found to be the most dominant of all VOCs. The highest concentrations of benzene and toluene were observed in winter, whereas the xylene level was high during spring. The minimum values of BTX were observed during summertime due to the South African summer, which is usually a rainy season. Rain with other forms of precipitation helps remove these compounds from the atmosphere by washing them out of the air. The T/B ratios indicated that VOCs are emitted from sources such as industrial processes and vehicular emissions. Statistical models showed both positive and negative correlations of BTX with varying weather conditions. The MLR data show that benzene had a weak negative correlation with temperature, wind speed and relative humidity. A positive correlation of toluene with wind speed and relative humidity shows the dependence on these meteorological parameters. Xylene showed a strong correlation with all meteorological parameters, which indicates that it has a different relationship with these factors as compared to benzene and toluene.
This study shows the need for the implementation of effective actions for controlling industrial and vehicular emissions in the Steelpoort mining area, and for the Limpopo provincial government to make sure air quality standards, as stipulated in the act, are followed, especially for benzene, which is considered carcinogenic to humans. Also, this study is important to the assessment of the technological impacts as well as the maintenance routines of monitoring stations to monitor the industrial and vehicular emissions.

Author Contributions

Conceptualization, C.M. and J.T.; methodology, C.M.; software, L.M.; validation, C.M., A.M. and J.T.; formal analysis, A.M.; investigation, L.M.; resources, J.T.; data curation, A.M.; writing—original draft preparation, C.M.; writing—review and editing, A.M.; visualization, L.M.; supervision, J.T.; project administration, L.M.; funding acquisition, J.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Mintek grant number: ASR-00024035 and University of Limpopo.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this manuscript will be available upon request from the corresponding author. The data are not publicly available due to privacy reason.

Acknowledgments

The authors acknowledge the Limpopo Department of Economic Development, Environment and Tourism, South African Department of Environmental Affairs, South African Forestry and Fisheries for providing meteorological data through SAAQIS, and the University of Limpopo for providing facilities and material resources to conduct the study.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Abbasi, F.; Pasalari, H.; Delgado-saborit, J.M.; Rafiee, A.; Abbasi, A.; Hoseini, M. Characterization and risk assessment of BTEX in ambient air of a Middle Eastern City. Process Saf. Environ. Prot. 2020, 139, 98–1055. [Google Scholar] [CrossRef]
  2. Alsbou, E.M.; Omari, K.W. BTEX indoor air characteristic values in rural areas of Jordan: Heaters and health risk assessment consequences in winter season. Environ. Pollut. 2020, 267, 115464. [Google Scholar] [CrossRef]
  3. Badyda, A.J.; Rogula-Kozłowska, W.; Majewski, G.; Bralewska, K.; Widziewicz-Rzońca, K.; Piekarska, B.; Rogulski, M.; Bihałowicz, J.S. Inhalation risk to PAHs and BTEX during barbecuing: The role of fuel/food type and route of exposure. J. Hazard. Mater. 2022, 440, 129635. [Google Scholar] [CrossRef] [PubMed]
  4. Baghani, A.N.; Sorooshian, A.; Heydari, M.; Sheikhi, R.; Golbaz, S.; Ashournejad, Q.; Kermani, M.; Golkhorshidi, F.; Barkhordari, A.; Jafari, A.J.; et al. A case study of BTEX characteristics and health effects by major point sources of pollution during winter in Iran. Environ. Pollut. 2019, 247, 607–617. [Google Scholar] [CrossRef] [PubMed]
  5. Behnami, A.; Jafari, N.; Benis, K.Z.; Fanaei, F.; Abdolahnejad, A. Spatio-temporal variations, ozone and secondary organic aerosol formation potential, and health risk assessment of BTEX compounds in east of Azerbaijan Province, Iran. Urban Clim. 2023, 47, 101360. [Google Scholar] [CrossRef]
  6. Bretón, J.G.C.; Bretón, R.M.C.; Morales, S.M.; Kahl, J.D.W.; Guarnaccia, C.; del Carmen Lara Severino, R.; Marrón, M.R.; Lara, E.R.; de la Luz Espinosa Fuentes, M.; Chi, M.P.U.; et al. Health risk assessment of the levels of BTEX in ambient air of one urban site located in leon, guanajuato, mexico during two climatic seasons. Atmosphere 2020, 11, 165. [Google Scholar] [CrossRef]
  7. Choi, E.; Lee, H.-M.; Kim, Y.P.; Lee, J.Y.; Wu, Z. Evaluation of the Behavior of BTEX at Beijing and Seoul in Winter and Summer Using Observations and 3-D Modeling. Atmos. Environ. 2024, 319, 120268. [Google Scholar] [CrossRef]
  8. Doornkamp, J.L.; James, N.A.; Ori, S.; Bent, G.-A. Preliminary assessment of BTEX exposure levels in urban ambient air and public buses: A pilot study conducted in Paramaribo, Suriname. Case Stud. Chem. Environ. Eng. 2021, 4, 100112. [Google Scholar] [CrossRef]
  9. Cruz, L.P.S.; Santos, D.F.; dos Santos, I.F.; Gomes, Í.V.S.; Santos, A.V.S.; Souza, K.S.P.P. Exploratory analysis of the atmospheric levels of BTEX, criteria air pollutants and meteorological parameters in a tropical urban area in Northeastern Brazil. Microchem. J. 2019, 152, 104265. [Google Scholar] [CrossRef]
  10. Dehghani, M.; Fazlzadeh, M.; Sorooshian, A.; Tabatabaee, H.R.; Rashidi, M. Ecotoxicology and Environmental Safety Characteristics and health effects of BTEX in a hot spot for urban pollution. Ecotoxicol. Environ. Saf. 2018, 155, 133–143. [Google Scholar] [CrossRef]
  11. Department of Environmental Affairs. 3rd South Africa Environment Outlook Report Third Draft. September 2018. Available online: https://www.dffe.gov.za/reports/uploads/2018/09/3.-SAEO_Pressures_13_09.pdf (accessed on 26 March 2024).
  12. Dutta, C.; Som, D.; Chatterjee, A.; Mukherjee, A.K.; Jana, T.K.; Sen, S. Mixing ratios of carbonyls and BTEX in ambient air of Kolkata, India and their associated health risk. Environ. Monit. Assess. 2008, 148, 97–107. [Google Scholar] [CrossRef] [PubMed]
  13. Everson, F.; Martens, D.S.; Nawrot, T.S.; Goswami, N.; Mthethwa, M.; Webster, I.; Mashele, N.; Charania, S.; Kamau, F.; De Boever, P.; et al. Personal Exposure to NO2 and Benzene in the Cape Town Region of South Africa Is Associated with Shorter Leukocyte Telomere Length in Women. Environ. Res. 2020, 182, 108993. [Google Scholar] [CrossRef] [PubMed]
  14. Fontes, T.; Manso, M.C.; Prata, J.C.; Carvalho, M.; Silva, C.; Barros, N. Exposure to BTEX in buses: The influence of vehicle fuel type. Environ. Pollut. 2019, 255, 113100. [Google Scholar] [CrossRef] [PubMed]
  15. Garg, A.; Gupta, N.C. Science of the Total Environment A comprehensive study on spatio-temporal distribution, health risk assessment and ozone formation potential of BTEX emissions in ambient air of Delhi, India. Sci. Total Environ. 2018, 659, 1090–1099. [Google Scholar] [CrossRef] [PubMed]
  16. Geng, C.; Wang, J.; Yin, B.; Zhao, R.; Li, P.; Yang, W.; Xiao, Z.; Li, S.; Li, K.; Bai, Z. Vertical Distribution of Volatile Organic Compounds Conducted by Tethered Balloon in the Beijing-Tianjin-Hebei Region of China. J. Environ. Sci. 2020, 95, 121–129. [Google Scholar] [CrossRef]
  17. Ghaffari, H.R.; Kamari, Z.; Hassanvand, M.S.; Fazlzadeh, M.; Heidari, M. Level of Air BTEX in Urban, Rural and Industrial Regions of Bandar Abbas, Iran; Indoor-Outdoor Relationships and Probabilistic Health Risk Assessment. Environ. Res. 2021, 200, 111745. [Google Scholar] [CrossRef] [PubMed]
  18. Golkhorshidi, F.; Sorooshian, A.; Jonidi, A.; Norouzian, A.; Kermani, M.; Rezaei, R. On the nature and health impacts of BTEX in a populated middle eastern city: Tehran, Iran. Atmos. Pollut. Res. 2019, 10, 921–930. [Google Scholar] [CrossRef]
  19. Hazrati, S.; Rostami, R.; Fazlzadeh, M. Science of the Total Environment BTEX in indoor air of waterpipe cafés: Levels and factors in fl uencing their concentrations. Sci. Total Environ. 2015, 524–525, 347–353. [Google Scholar] [CrossRef]
  20. Jaars, K.; Vestenius, M.; van Zyl, P.G.; Beukes, J.P.; Hellén, H.; Vakkari, V.; Venter, M.; Josipovic, M.; Hakola, H. Receptor Modelling and Risk Assessment of Volatile Organic Compounds Measured at a Regional Background Site in South Africa. Atmos. Environ. 2018, 172, 133–148. [Google Scholar] [CrossRef]
  21. Jiang, Z.; Grosselin, B.; Daële, V.; Mellouki, A.; Mu, Y. Seasonal and diurnal variations of BTEX compounds in the semi-urban environment of Orleans, France. Sci. Total Environ. 2017, 574, 1659–1664. [Google Scholar] [CrossRef]
  22. Kim, G.S.; Son, Y.S.; Lee, J.H.; Kim, I.W.; Kim, J.C.; Oh, J.T.; Kim, H. Air Pollution Monitoring and Control System for Subway Stations Using Environmental Sensors. J. Sens. 2016, 2016, 1865614. [Google Scholar] [CrossRef]
  23. Król, S.; Zabiegała, B.; Namieśnik, J. Measurement of benzene concentration in urban air using passive sampling. Anal. Bioanal. Chem. 2011, 403, 1067–1082. [Google Scholar] [CrossRef] [PubMed]
  24. Kumari, P.; Soni, D.; Aggarwal, S.G.; Singh, K. Seasonal and diurnal measurement of ambient benzene at a high traffic inflation site in Delhi: Health risk assessment and its possible role in ozone formation pathways. Environ. Anal. Health Toxicol. 2023, 38, e2023016. [Google Scholar] [CrossRef] [PubMed]
  25. Ku, I.T.; Zhou, Y.; Hecobian, A.; Benedict, K.; Buck, B.; Lachenmayer, E.; Terry, B.; Frazier, M.; Zhang, J.; Pan, D.; et al. Air Quality Impacts from the Development of Unconventional Oil and Gas Well Pads: Air Toxics and Other Volatile Organic Compounds. Atmos. Environ. 2024, 317, 120187. [Google Scholar] [CrossRef]
  26. Liu, Q.; Liu, Y.; Zhang, M. Personal exposure and source characteristics of carbonyl compounds and BTEXs within homes in Beijing, China. Build. Environ. 2013, 61, 210–216. [Google Scholar] [CrossRef]
  27. Lourens, A.S.; Beukes, J.P.; Van Zyl, P.G.; Fourie, G.D.; Burger, J.W.; Pienaar, J.J.; Read, C.E.; Jordaan, J.H. Spatial and Temporal Assessment of Gaseous Pollutants in the Highveld of South Africa. S. Afr. J. Sci. 2011, 107, 8. [Google Scholar] [CrossRef]
  28. Marumbwa, F.M.; Cho, M.A.; Chirwa, P.W. Analysis of Spatio-Temporal Rainfall Trends across Southern African Biomes between 1981 and 2016. Phys. Chem. Earth 2019, 114, 102808. [Google Scholar] [CrossRef]
  29. Masekameni, M.D.; Moolla, R.; Gulumian, M.; Brouwer, D. Risk assessment of benzene, toluene, ethyl benzene, and xylene concentrations from the combustion of coal in a controlled laboratory environment. Int. J. Environ. Res. Public Health 2019, 16, 95. [Google Scholar] [CrossRef]
  30. Masih, A.; Lall, A.S.; Taneja, A.; Singhvi, R. Exposure Levels and Health Risk Assessment of Ambient BTX at Urban and Rural Environments of a Terai Region of Northern India. Environ. Pollut. 2018, 242, 1678–1683. [Google Scholar] [CrossRef]
  31. Mentese, S.; Akca, B. Hot-Spot Summertime Levels and Potential Sources of Volatile Organic Compounds (VOC) on Roads around Çanakkale and Kilitbahir Harbors across Dardanelles Strait. Atmos. Pollut. Res. 2020, 11, 2297–2307. [Google Scholar] [CrossRef]
  32. Milazzo, M.J.; Gohlke, J.M.; Gallagher, D.L.; Scott, A.A.; Zaitchik, B.F.; Marr, L.C. Potential for city parks to reduce exposure to BTEX in air. Environ. Sci. Process. Impacts 2019, 21, 40–50. [Google Scholar] [CrossRef]
  33. Miri, M.; Rostami Aghdam Shendi, M.; Ghaffari, H.R.; Ebrahimi Aval, H.; Ahmadi, E.; Taban, E.; Gholizadeh, A.; Yazdani Aval, M.; Mohammadi, A.; Azari, A. Investigation of outdoor BTEX: Concentration, variations, sources, spatial distribution, and risk assessment. Chemosphere 2016, 163, 601–609. [Google Scholar] [CrossRef] [PubMed]
  34. Moolla, R.; Curtis, C.J.; Knight, J. Science of the Total Environment Assessment of occupational exposure to BTEX compounds at a bus diesel-refueling bay: A case study in Johannesburg, South Africa. Sci. Total Environ. 2015, 537, 51–57. [Google Scholar] [CrossRef] [PubMed]
  35. Popitanu, C.; Cioca, G.; Copolovici, L.; Iosif, D.; Munteanu, F.D.; Copolovici, D. The seasonality impact of the BTEX pollution on the atmosphere of Arad city, Romania. Int. J. Environ. Res. Public Health 2021, 18, 4858. [Google Scholar] [CrossRef] [PubMed]
  36. Naiker, Y.; Diab, R.; Zunckel, M.; Hayes, E. Introduction of Local Air Quality Management in South Africa: Overview and Challenges. Environ. Sci. Policy 2012, 17, 62–71. [Google Scholar] [CrossRef]
  37. Qiu, H.; Chuang, K.J.; Fan, Y.C.; Chang, T.P.; Chuang, H.C.; Wong, E.L.Y.; Bai, C.H.; Ho, K.F. Association between ambient BTEX mixture and neurological hospitalizations: A multicity time-series study in Taiwan. Ecotoxicol. Environ. Saf. 2023, 263, 115239. [Google Scholar] [CrossRef] [PubMed]
  38. Ra, A.; Delgado-saborit, J.M.; Sly, P.D.; Amiri, H.; Hoseini, M. Science of the Total Environment Lifestyle and occupational factors affecting exposure to BTEX in municipal solid waste composting facility workers. Sci. Total. Environ. 2019, 656, 540–546. [Google Scholar] [CrossRef] [PubMed]
  39. Minguillón, M.; Rivas, I.; Moreno, T.; Alastuey, A.; Font, O.; Córdoba, P.; Álvarez-Pedrerol, M.; Sunyer, J.; Querol, X. Road traffic and sandy playground influence on ambient pollutants in schools. Atmospheric Environ. 2015, 111, 94–102. [Google Scholar] [CrossRef]
  40. Singh, R.; Gaur, M.; Shukla, A. Seasonal and Spatial Variation of BTEX in Ambient Air of Delhi. J. Environ. Prot. 2016, 7, 670–688. [Google Scholar] [CrossRef]
  41. Singla, V.; Pachauri, T.; Satsangi, A.; Kumari, K.M.; Lakhani, A. Comparison of BTX profiles and their mutagenicity assessment at two sites of Agra, India. Sci. World J. 2012, 2012, 272853. [Google Scholar] [CrossRef]
  42. Statistics South Africa (SSA). Census 2011 Municipal Report: Limpopo (Issue 03); Statistics South Africa: Pretoria, South Africa, 2012. [Google Scholar]
  43. Tabatabaei, Z.; Baghapour, M.A.; Hoseini, M.; Fararouei, M.; Abbasi, F.; Baghapour, M. Assessing BTEX concentrations emitted by hookah smoke in indoor air of residential buildings: Health risk assessment for children. J. Environ. Health Sci. Eng. 2021, 19, 1653–1665. [Google Scholar] [CrossRef] [PubMed]
  44. Tsai, J.H.; Lu, Y.T.; Chung, I.I.; Chiang, H.L. Traffic-related airborne VOC profiles variation on road sites and residential area within a microscale in urban area in Southern Taiwan. Atmosphere 2020, 11, 1015. [Google Scholar] [CrossRef]
  45. Wang, M.; Jiang, D.; Yang, L.; Wei, J.; Kong, L.; Xie, W.; Ding, D.; Fan, T.; Deng, S. Natural Attenuation of BTEX and Chlorobenzenes in a Formerly Contaminated Pesticide Site in China: Examining Kinetics, Mechanisms, and Isotopes Analysis. Sci. Total Environ. 2024, 918, 170506. [Google Scholar] [CrossRef] [PubMed]
  46. Wang, P.; Zhao, W. Assessment of Ambient Volatile Organic Compounds (VOCs) near Major Roads in Urban Nanjing, China. Atmos. Res. 2008, 89, 289–297. [Google Scholar] [CrossRef]
  47. Xiong, F.; Li, Q.; Zhou, B.; Huang, J.; Liang, G.; Zhang, L.; Ma, S. Oxidative Stress and Genotoxicity of Long-Term Occupational Exposure to Low Levels of BTEX in Gas Station Workers. Int. J. Environ. Res. Public Health 2016, 13, 1212. [Google Scholar] [CrossRef] [PubMed]
  48. Xu, Z.; Huang, X.; Nie, W.; Chi, X.; Xu, Z.; Zheng, L.; Sun, P.; Ding, A. Influence of Synoptic Condition and Holiday Effects on VOCs and Ozone Production in the Yangtze River Delta Region, China. Atmos. Environ. 2017, 168, 112–124. [Google Scholar] [CrossRef]
  49. Sema, Y.; Civan, M.; Kuntasal, Ö.; Doğan, G.; Pekey, H.; Tuncel, G. Temporal Variations of VOC Concentrations in Bursa Atmosphere. Atmos. Pollut. Res. 2018, 9, 189–206. [Google Scholar] [CrossRef]
Atmosphere 15 00552 g001
Figure 1. Map of Limpopo showing sampling site, Steelpoort.
Figure 1. Map of Limpopo showing sampling site, Steelpoort.
Atmosphere 15 00552 g001
Atmosphere 15 00552 g002

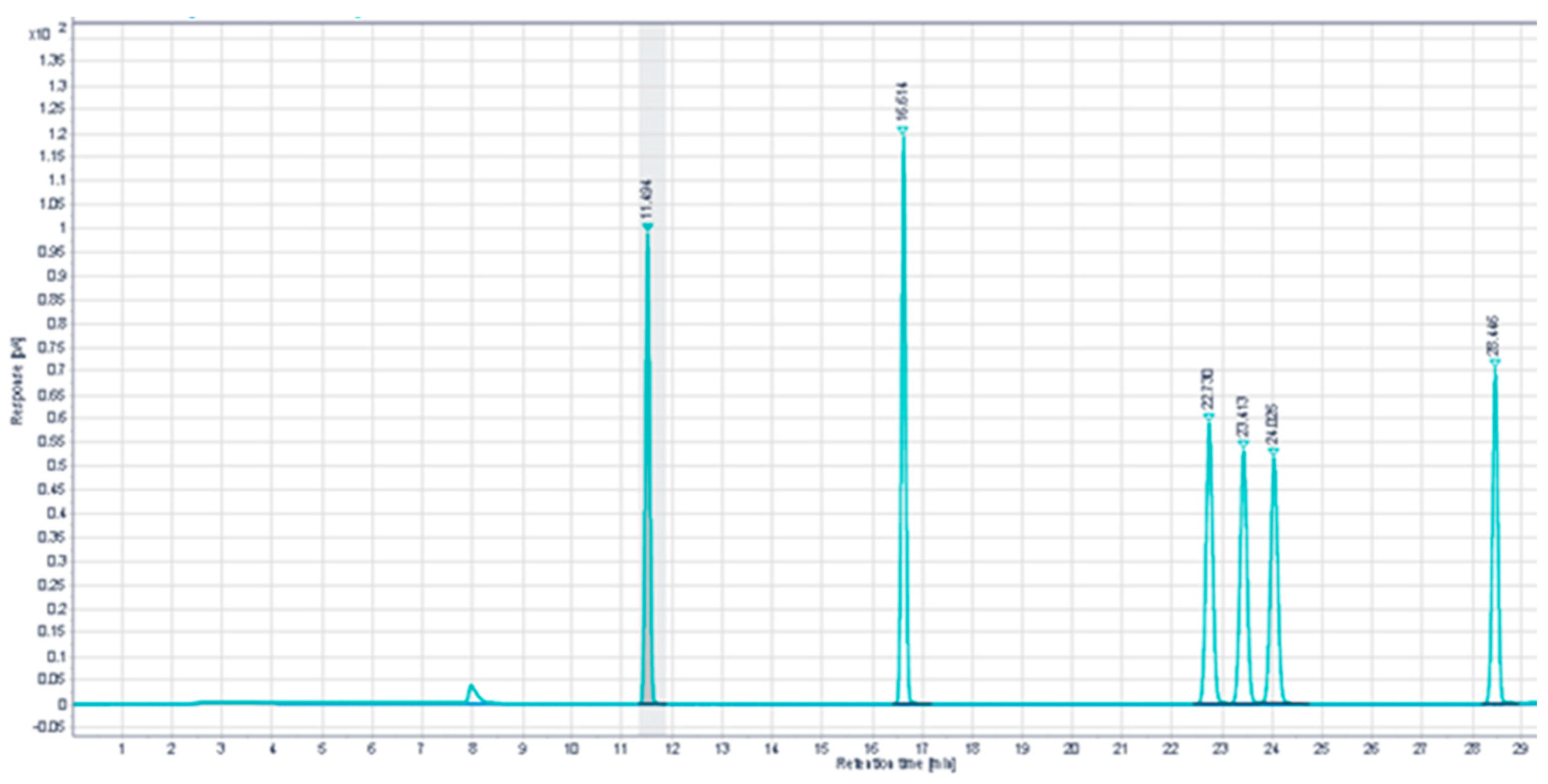

Figure 2. GC chromatogram of BTX: 1 = benzene, 2 = toluene and 3 = xylene, with relative standard deviations of 1.9%, 0.75% and 3.72%, respectively.
Figure 2. GC chromatogram of BTX: 1 = benzene, 2 = toluene and 3 = xylene, with relative standard deviations of 1.9%, 0.75% and 3.72%, respectively.
Atmosphere 15 00552 g002
Atmosphere 15 00552 g003

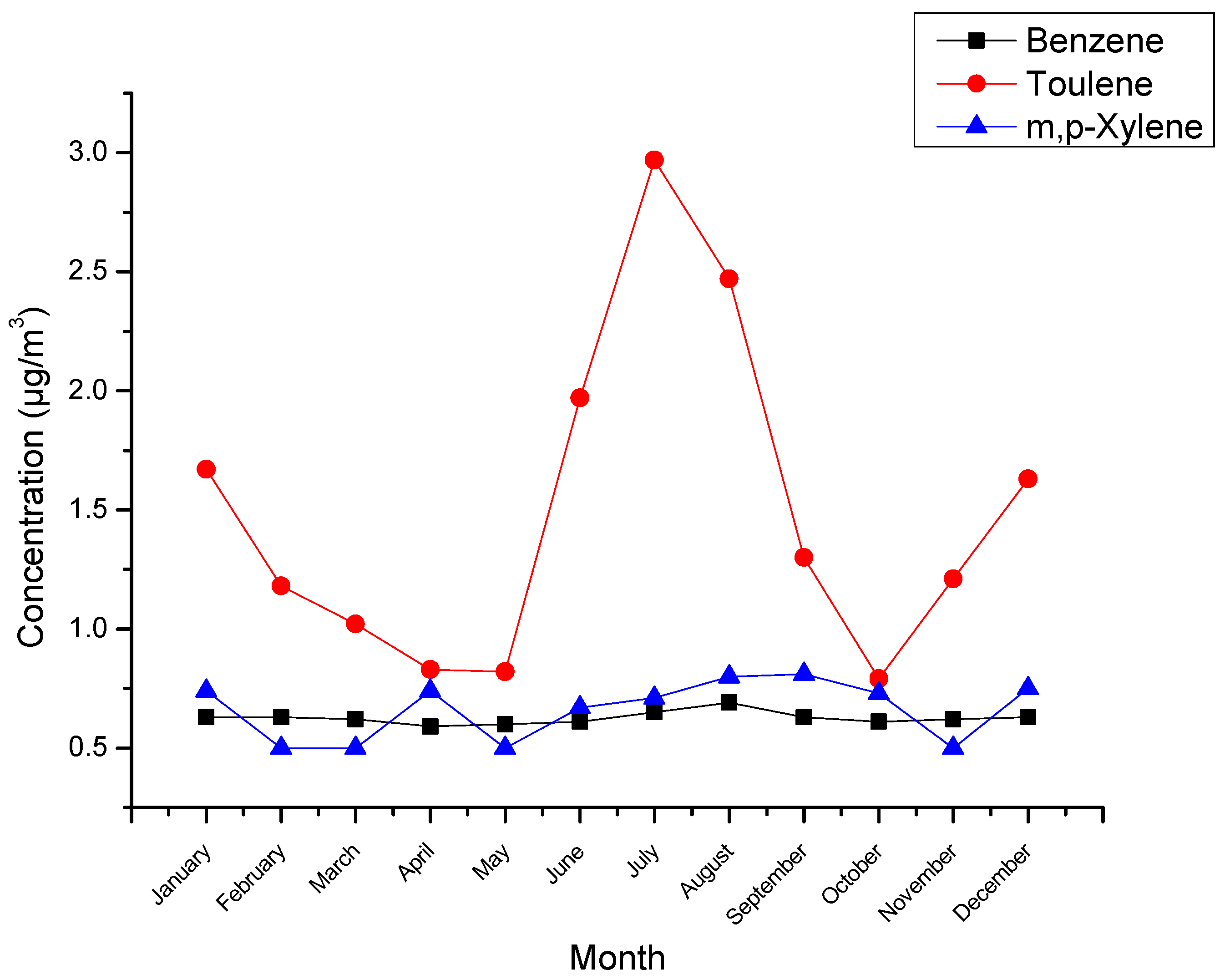

Figure 3. Concentrations of BTX in Steelpoort.
Figure 3. Concentrations of BTX in Steelpoort.
Atmosphere 15 00552 g003
Atmosphere 15 00552 g004

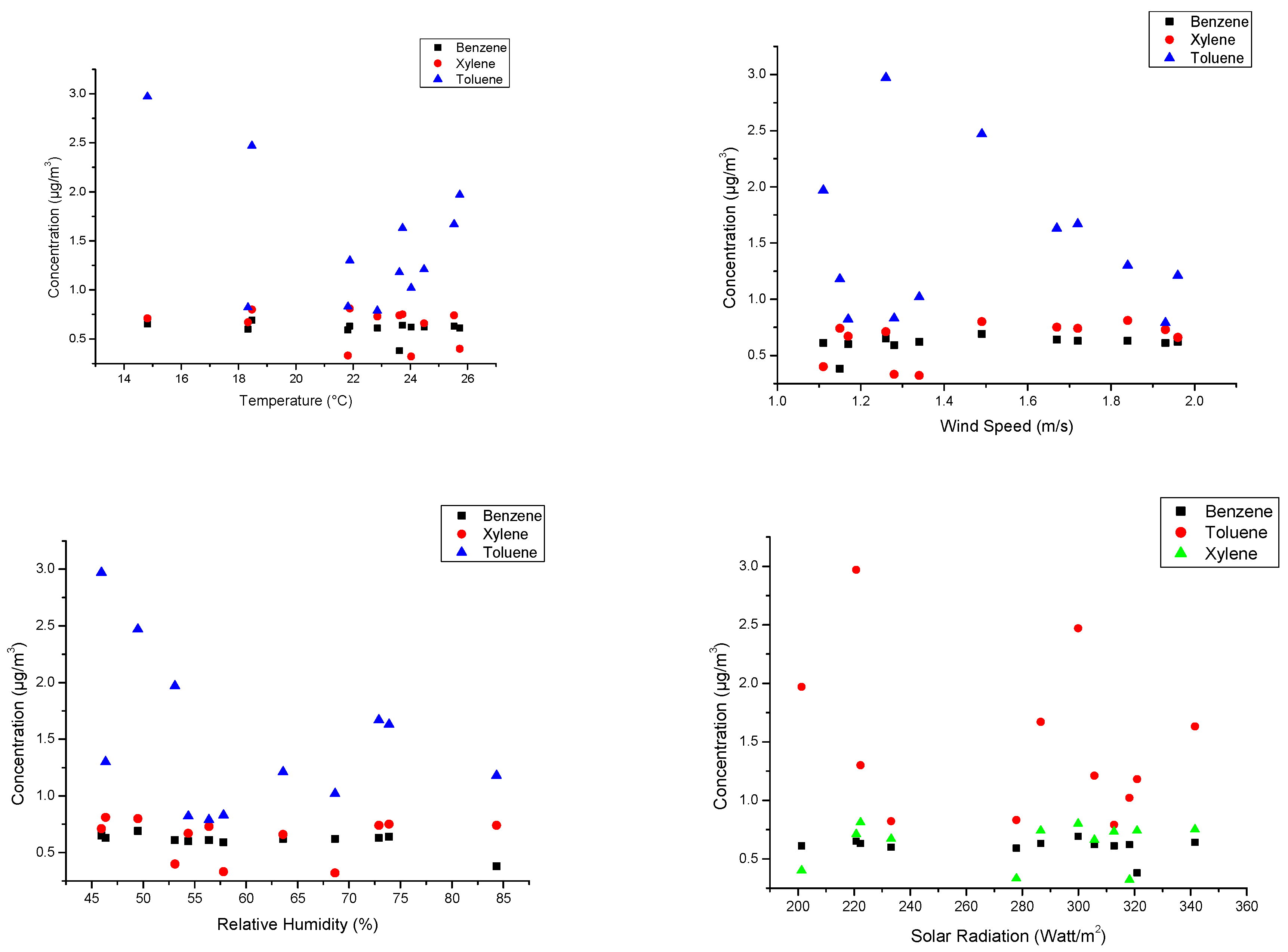

Figure 4. Scatter plots of the relationship between BTX concentrations and meteorological factors.
Figure 4. Scatter plots of the relationship between BTX concentrations and meteorological factors.
Atmosphere 15 00552 g004
Table 1. Interspecies ratios of toluene/benzene (T/B), toluene/xylene (T/X) and xylene/benzene (X/B).
Table 1. Interspecies ratios of toluene/benzene (T/B), toluene/xylene (T/X) and xylene/benzene (X/B).
MonthT/BT/XX/B
January 2.62.31.2
February3.12.31.9
March 1.63.20.52
April 1.42.50.56
May 1.41.21.1
June 3.24.90.66
July 4.64.21.1
August 3.63.11.2
September2.11.61.3
October1.31.11.2
November2.01.81.1
December2.52.21.2
Table 2. Regression coefficients of BTX mass concentrations in Steelpoort.
Table 2. Regression coefficients of BTX mass concentrations in Steelpoort.
Model B T X
Vβ p-Valueβp-Valueβp-Value
1C0.08440.0031.5430.36818.6060.552
Temp−0.0030.814−0.2230.047−1.3310.465
WS−0.0190.8941.9000.14815.5930.496
RH−0.0060.2440.0410.3170.7490.329
SR0.0010.485−0.0010.907−0.1780.217
R0.642 0.718 0.619
r20.413 0.516 0.383
2C0.826<0.0011.5610.32732.7990.167
Temp−0.0040.600−0.2240.032−0.4190.720
WS(-) 1.8380.099(-)
RH−0.0050.0620.0390.2240.3280.430
SR0.0010.445(-) −0.1370.266
R0.641 0.718 0.581
r20.411 0.515 0.338
3C0.816<0.0013.1560.00731.7440.153
Temp(-) −0.1320.036(-)
WS(-) 0.8320.231(-)
RH−0.0050.0051(-) 0.3290.403
SR0.0000.555(-) −0.1650.070
R0.624 0.640 0.572
r20.389 0.410 0.327
4C0.857<0.0013.3680.00438.8300.061
Temp(-) −0.0880.064(-)
RH−0.0050.038(-) (-)
SR(-) (-) −0.1250.084
R0.603 0.549 0.519
r20.364 0.302 0.269
Note: V, variable; B, benzene; T, toluene; X, xylene; C, constant; Temp, temperature; WS, wind speed; RH, relative humidity; SR, solar radiation; (-), eliminated; R, correlative coefficients.
