Surface Water Dynamics in the North America Arctic Based on 2000–2016 Landsat Data

Abstract

At high latitudes, lake and river ecosystems are predominant and these ecosystems are undergoing significant changes due to climate change. Although many scientists have studied lakes and rivers in the Arctic region, the inland water dynamics in this region at the continental scale remain unknown. In this study, the dynamics of the Arctic water were analyzed at the continental scale using Landsat ortho-rectified surface reflectance products of fine spatial and temporal resolutions for the period of 2000–2016, using the random forests method. The results of this study produced the following revelations: (i) the water area is decreasing year by year in the long term; (ii) the water loss and gain always show the same dynamic pattern spatially and temporally; (iii) the spatial distribution of the water budget is strongly linked to permafrost, which implies that permafrost determines the distribution pattern of the water dynamics more than climatic factors; and (iv) the dynamics of the water show a certain rule with surface temperature, but the pattern of the dynamics cannot be explained by temperature alone.

1. Introduction

In the Arctic region, inland water plays a significant role. Not only does life in the Arctic depend on the water supply from lakes and rivers but, in addition, water influences several other factors such as surface energy balance, the carbon cycle, the habitats of organisms, and soil moisture. Nevertheless, despite the increasing number of studies on Arctic inland water, the distribution and dynamics of inland water in this region remain unclear. Thus, further investigation is required in this area.

Images of satellite sensing have been applied extensively to analyze the changes of surface water in the Arctic from the local scale [1,2,3,4,5]. Smith et al. [3] reported that lakes in Siberia are disappearing. Jones et al. [4] observed an increase in the number of lakes in Alaska. Early in their research, they found a general Arctic water pattern in which lake abundance and surface area appeared to decrease in the discontinuous, sporadic, and isolated permafrost zones while increasing in the continuous permafrost zone [4]. However, the pattern became unclear in additional studies because the research was conducted in a local region. Therefore, it became apparent that the trend needs to be investigated on a regional scale.

Some recent studies used Landsat imagery to map water bodies at a finer spatial resolution [6,7,8,9,10], which can detect water bodies less than 0.01 km² and provide more details to characterize the inland water status and dynamics. However, nearly all existing Landsat-derived regional to global inundation products are extremely limited by the temporal resolution as they were created only once or every ten years [11,12].

Lately, there are some water products [13] using Landsat imagery whose temporal resolution achieved a yearly, even monthly level. Global Surface Water v1.0 [13] shows a series of maps of global inland water from 1984 to 2015 at a monthly resolution. Moreover, Pekel [13] concentrated on global scale analysis and did not analyze the dynamics of the Arctic open water and often overestimated the water (Figure 1). However, the hydrological process and the role of a factor may differ by location, particularly in the Arctic [14], where the special climate and high latitude make the Arctic region unique. So it is important to investigate the pattern of inland water dynamics in the Arctic on a regional scale and at high temporal resolution.

This present study provides an understanding of the dynamic pattern of inland water in the North American Arctic region (above 60° N) over a 17-year period (2000–2016). In the paper, data from April to October were selected. In addition, the annual inland water dynamics were analyzed.

2. Materials and Methods

2.1. Study Area and Data

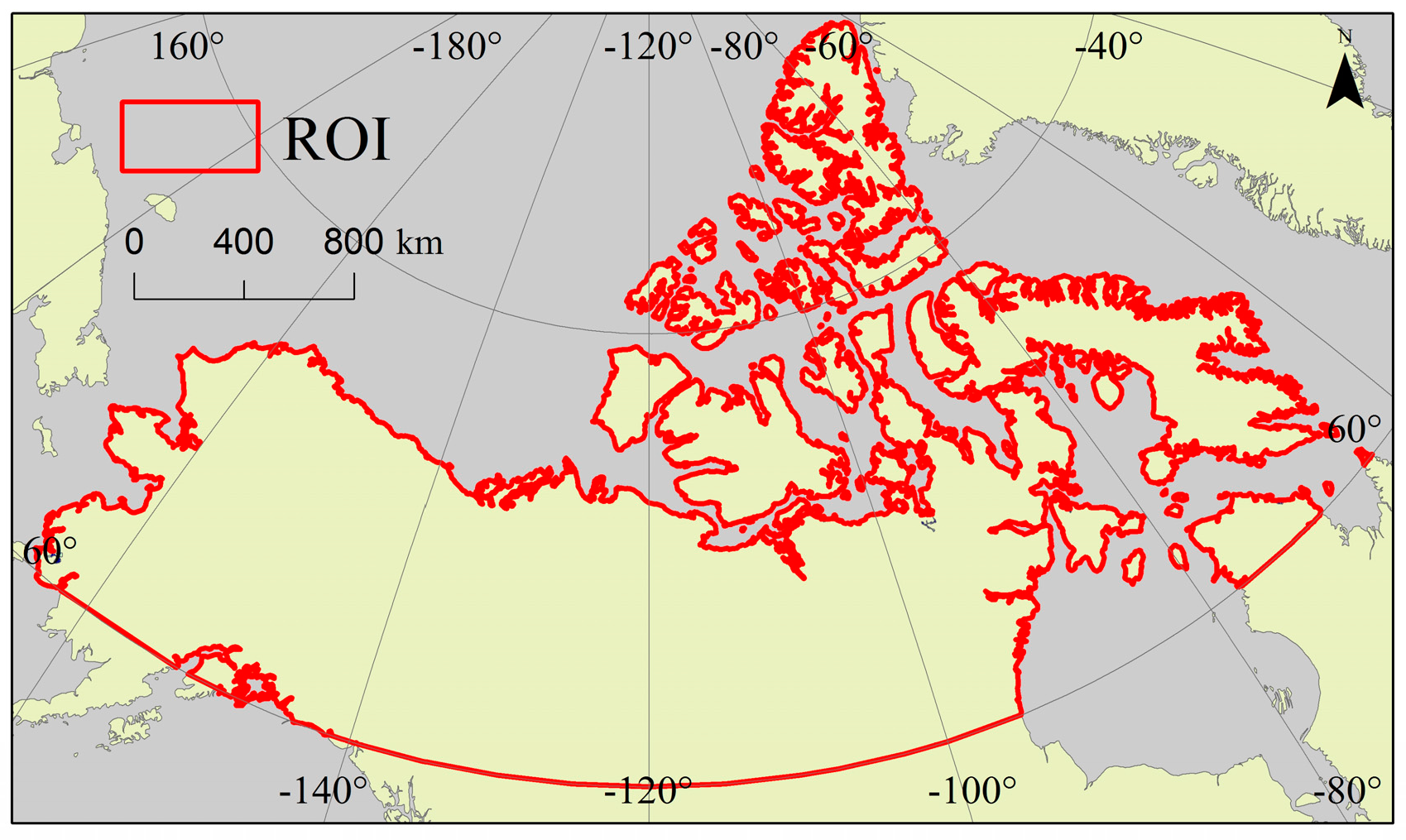

The study area includes the Arctic and boreal regions above 60° N in Canada and Alaska. Figure 2 shows the location of the study area.

In this paper, Landsat 7 was used to generate data in 2000, both Landsat 5 and 7 were used to generate data from 2001 to 2012, and Landsat 8 was used to generate data from 2013 to 2016. This paper discusses the dynamics of surface water extent during the wet period, thus, all the ice-free data from April to October were selected.

2.2. Methods

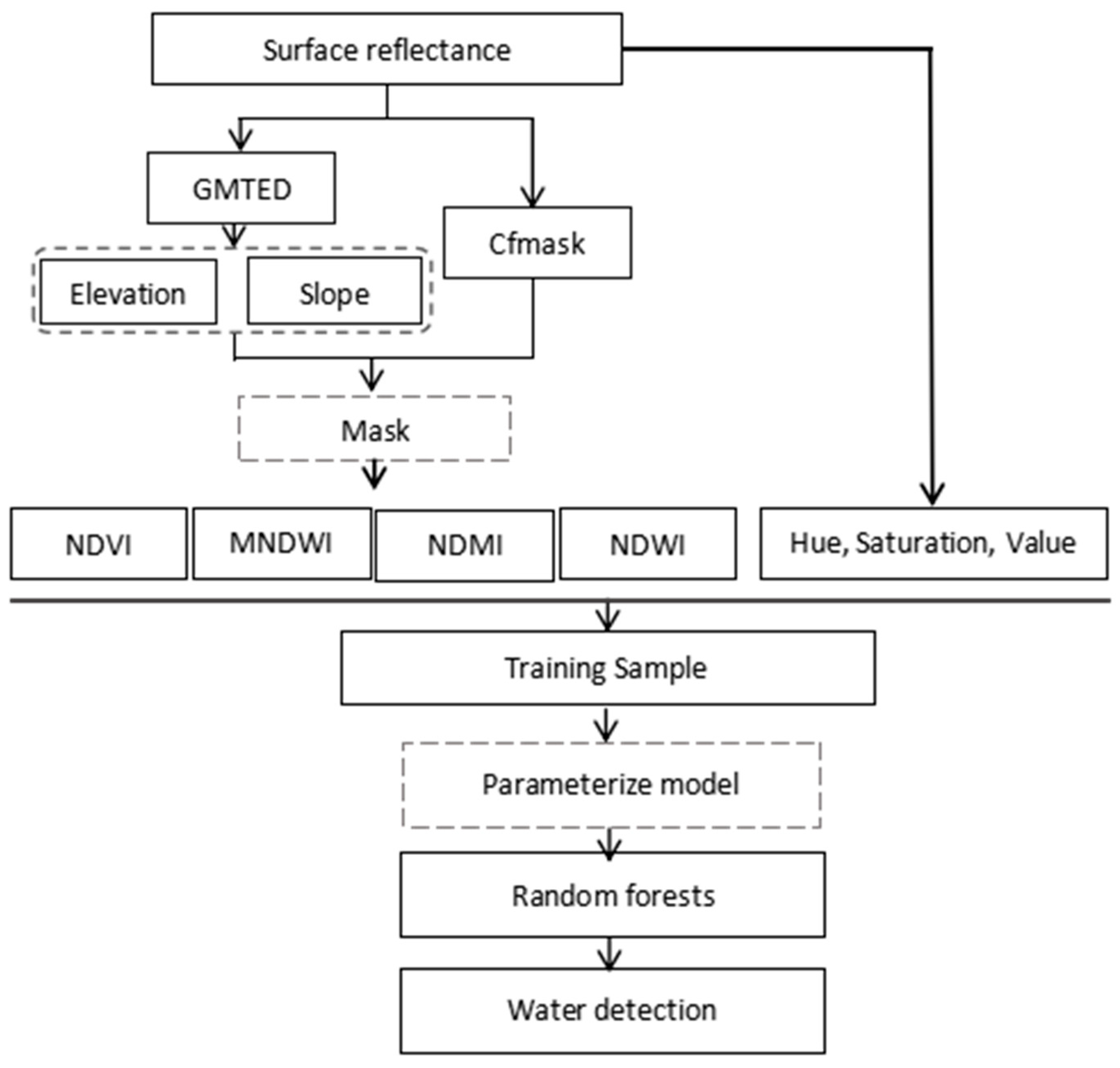

We quantified the changes in the Arctic surface water in North America over the past 16 years at a 30-m resolution and used the random forests (RF) supervised classification method to generate the water maps. The Landsat surface reflectance (SR) from April to October for a seventeen-year period between 2000 and 2016 were downloaded from the United States Geological Survey [15]. Using a cloud mask band (CFmask), clouds, cloud shadows, ice, and snow were removed from the scenes. All scenes in the same year were composited by maximizing the normalized difference water index (NDWI) values to observe the water body during the wet season. The ocean mask, terrain shadow mask, and ice mask were applied to the composited images before they were classified.

The cloud shadows, terrain shadows, and glaciers are challenges faced in water detection. Therefore, various indices based on Landsat SR were used to distinguish water from land and other objects. To begin, we used masks to reduce the areas of shadows, seas, and glaciers. The SR product includes the CFmask band, which classifies each pixel as clear, water, cloud, cloud shadow, ice, or snow. The cloud and cloud shadows can be detected by the CFmask band, enabling the use of all the scenes as much as possible.

Terrain shadows are often identified by hill-shade, which is calculated using the parameters of solar azimuth and elevation in a DEM (Digital Elevation Model). Nevertheless, if only the hill-shade is considered, the terrain shadows cannot be identified very accurately, leading to an underestimation of the terrain shadows. The method employed to restrict the thresholds of hill-shade, elevation, and the slope is proven to be effective [14]. In this study, we used the method that restricts the hill-shade, elevation, and slope of DEM to detect water from terrain shadows. Glaciers can be masked by the Randolph Glacier Inventory (RGI 5.0) and seawater can be removed by the MODIS water mask. With the masks, errors cannot be avoided completely; therefore, these images need to be further processed by classification.

Before masking, all the scenes in the same year were composited into an image where each pixel was calculated by the maximum of all the NDWI values in the position of the pixel. Subsequently, we generated water images using the random forests (RF) supervision algorithm. To avoid the inconsistencies in the quality of the local water classification, we selected training points considering all regions where water is present. We used various vegetation and water indices and color parameters to improve the generalization ability of the model. NDWI, MNDWI (Modified Normalized-Difference Water Index), and NDMI (Normalized Difference Moisture Index) were used to distinguish between the water and other objects. NDVI (Normalized Difference Vegetation Index) was used to differentiate the water from the vegetation. The HSV (Hue-Saturation-Value) color model helped to identify the water in the color aspect.

2.3. High-Performance Computing Resources

The Landsat imagery used in this study is available from the Google Earth Engine (https://earthengine.google.com). Google Earth Engine provides online access to all Landsat images and other remote sensing images provided by the United States Geological Survey. This platform makes Landsat data easily accessible to researchers. Furthermore, it allows classification codes to be run on any Landsat 5, 7, and 8 images. In the study, the location of the scenes ranged from 14 to 173, and the row ranged from 1 to 248. A total of 32,927 Landsat scenes were included, with the total data volume exceeding 5.7 TB.

2.4. Indices

Previous studies [9,10,13] have indicated that the NDWI [16], normalized difference vegetation index (NDVI) [17], and normalized difference moisture index (NDMI) [18] can be applied to regional-scale water detection, showing high performance in distinguishing water at different band ranges. The modified normalized-Difference Water Index (MNDWI) [19], which has been widely used to detect water, can differentiate water from soil and buildings. The formulas are as follows:

$$NDWI=({\rho }_G-{\rho }_{NIR})/({\rho }_G+{\rho }_{NIR})$$

(1)

$$MNDWI=({\rho }_G-{\rho }_{SWIR1})/({\rho }_G+{\rho }_{SWIR1})$$

(2)

$$NDMI=({\rho }_{NIR}-{\rho }_{SWIR1})/({\rho }_{NIR}+{\rho }_{SWIR1})$$

(3)

$$NDVI=({\rho }_{NIR}-{\rho }_R)/({\rho }_{NIR}+{\rho }_R)$$

(4)

ρ_G is the green band, ρ_NIP is the near-infrared band (NIR), ρ_SWIR1 is the shortwave infrared band (SWIR1), and ρ_R is the red band.

Using a standard transformation, the Hue-Saturation-Value (HSV) and color-space transformations [3] were performed for the following band combinations: shortwave infrared (SWIR1), near-infrared (NIR), red and NIR, green, blue. Recently, the HSV color model has been applied to image identification successfully. This is highly desirable because changes in observation conditions first affect the V component and then the S component, while the H component remains relatively stable (except when the fundamental nature of the target changes, such as when land becomes water). Consequently, this property promotes temporal stability in the measurements and HSV-based classifications have been successfully used for near-real-time surface water detection at continental scales.

2.5. Terrain Mask

We generated a terrain mask with the Global Multi-Resolution Terrain Elevation Data (GMTED) [20], whose best resolution is 250 m. The mask was created by restricting slope and elevation. The slope was calculated from the max rate that the elevation difference was divided by and the distance difference between a pixel and its adjacent pixels. After several experiments, we set the slope to more than 7° and the elevation to more than 1500 m to reduce terrain shadows. This method identifies not only terrain shadows but also the land and parts of the glaciers, which is more effective than using hill-shade.

2.6. Glacier Mask

To avoid interference from glacier shadows, the RGI 5.0 [21] was used to mask the images. The glacier mask removes the areas where glaciers exist, even though it may omit the melted water in such areas.

2.7. Ocean Mask

We removed seawater from the dataset using the MODIS water mask [22]. The MODIS water mask is a global MODIS water mask with a product coverage from 2000 to 2002 and a resolution of 250 m. Firstly, pixels whose elevation (GMTED) was below 5 m and above −5 m were selected from the MODIS water dataset. Then, the analysis converted the selected data to vectors. The largest polygon was detected as the MODIS ocean mask. Next, the Landsat ocean pixels with an elevation below −5 were removed. Then we detected sea regions using the MODIS ocean mask and applied the mask to water maps of this study. Then we buffered the region by 15 pixels to reduce the effect of seawater.

2.8. Classification

Random forests or random decision forests are classifiers containing multiple decision trees, which are combined with “bootstrap aggregating” and the “random subspace method.” The introduction of randomness improved the overfitting problem of the decision trees. In addition, this enabled the processing of a large number of input variables, creating a good generalization ability and enhancing robustness. The random forests [23] outlined in the Extended Data Figure 3 were developed to assign each pixel to one of three target classes: water, land, or non-valid observations (snow, ice, cloud, or sensor-related issues). Labels of the training points included two classes: water and land. The numbers of the water and land training points are approximately equal. The selection of water training points considered terrain, the density of water, and the type of water. The land training points were selected from different moisture soil and areas where water was easily classified.

2.9. Validation

The results of the classification were evaluated in terms of the errors of commission at the pixel scale. The validation design applied the validation method in Olofsson et al. (2014) [24] and took into account different sensors. The reference datasets were produced as follows. A random sample of 1416 pixels was generated from a region of interest. We applied 472 random points to the 2000, 2008, and 2016 water maps which represented Landsat 5, Landsat 7, and Landsat 8 results, respectively. Each map was classified into 3 classes: water (no change compared with 2000 water map), land (no change compared with 2000 water map), and the changing class. We applied the stratified sampling method for each map. Then, the properties of these points were determined by visual interpretation. The dataset was used to verify the classification of each year. Both the user’s accuracy and the producer’s accuracy were calculated.

Table 1. The accuracy of classification.

Map		Reference			User’s Accuracy
		Water	Land	Total
Landsat5	Water	90	1	91	98.90%
	Land	17	364	381	95.54%
	Total	107	365	472
	Producer’s Accuracy	84.1%	99.7%		Total Accuracy: 96.19%
Landsat7	Water	88	2	90	97.8%
	Land	21	361	382	94.5%
	Total	109	363	472
	Producer’s Accuracy	80.7%	99.4%		Total Accuracy: 95.1%
Landsat8	Water	97	1	98	99.0%
	Land	15	359	374	96.0%
	Total	112	360	472
	Producer’s Accuracy	86.6%	99.7%		Total Accuracy: 96.6%

shows the accuracy of the classification.

3. Results and Discussion

3.1. Results

Water detection was performed to collect 16 years’ worth of data from 2000 to 2016. The data that was then used to investigate the surface water dynamics in the Arctic and boreal regions of North America. The distribution map of inland water is shown in Figure 4a. One can see that over the past 16 years, almost 3.2 km² of water disappeared, over 1.2 km² transitioned from land to water, and over 4.4 km² transitioned from water to land in the study area. Figure 4b shows an example of lake changes during the study period. Figure 5, Figure 6 and Figure 7 shows the water dynamics in the entire region between 2000 and 2016. Figure 5 shows the trend of the dynamic in terms of the years. Figure 6 shows the trend of the dynamic by latitude and Figure 7 shows the trend of the dynamic by longitude. The loss of water indicates that the water in 2000 transformed into land in another year. Gain refers to the land in 2000 transforming into water in another year. Budget equals the amount of loss subtracted by the amount of gain. The percentage of the water area dynamics is an average of the total water bodies’ dynamics from 2001 to 2016. In the statistical analysis, a 2° interval was set for the latitude and a 5° interval was set for the longitude.

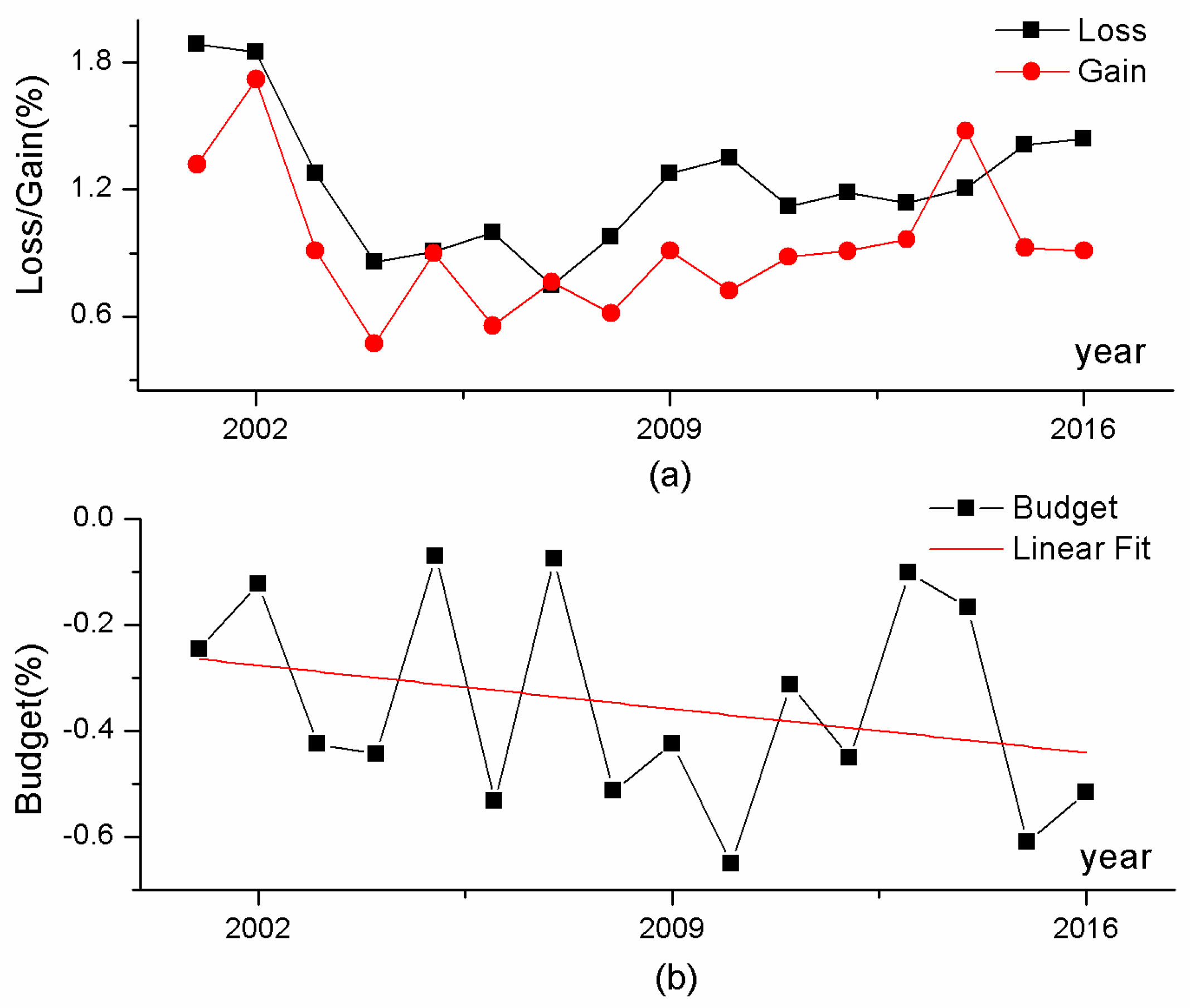

From Figure 5, it seems that the water gain and loss shows a slowly increasing trend, with an exception in 2001. This means more and more water bodies are shrinking and expanding, or that more and more water appears and disappears. Such a finding may be related to the deepening active layer of permafrost [25] as well as the climatic factors [26]. The deepening active layer of permafrost can cause lateral erosion, which results in water body expansion and lateral drainage, and can also cause settlement at the lake bottom, which results in internal drainage. Even though the loss and gain areas increased, the budget did not change significantly as the emergence and disappearance areas of water are roughly equivalent. Thus, the Arctic does not appear to lose significant amounts of water. Additionally, surface water does not evaporate or drain underground much either. However, the budget trend is slightly decreasing, which implies that the water may decrease gradually in the future.

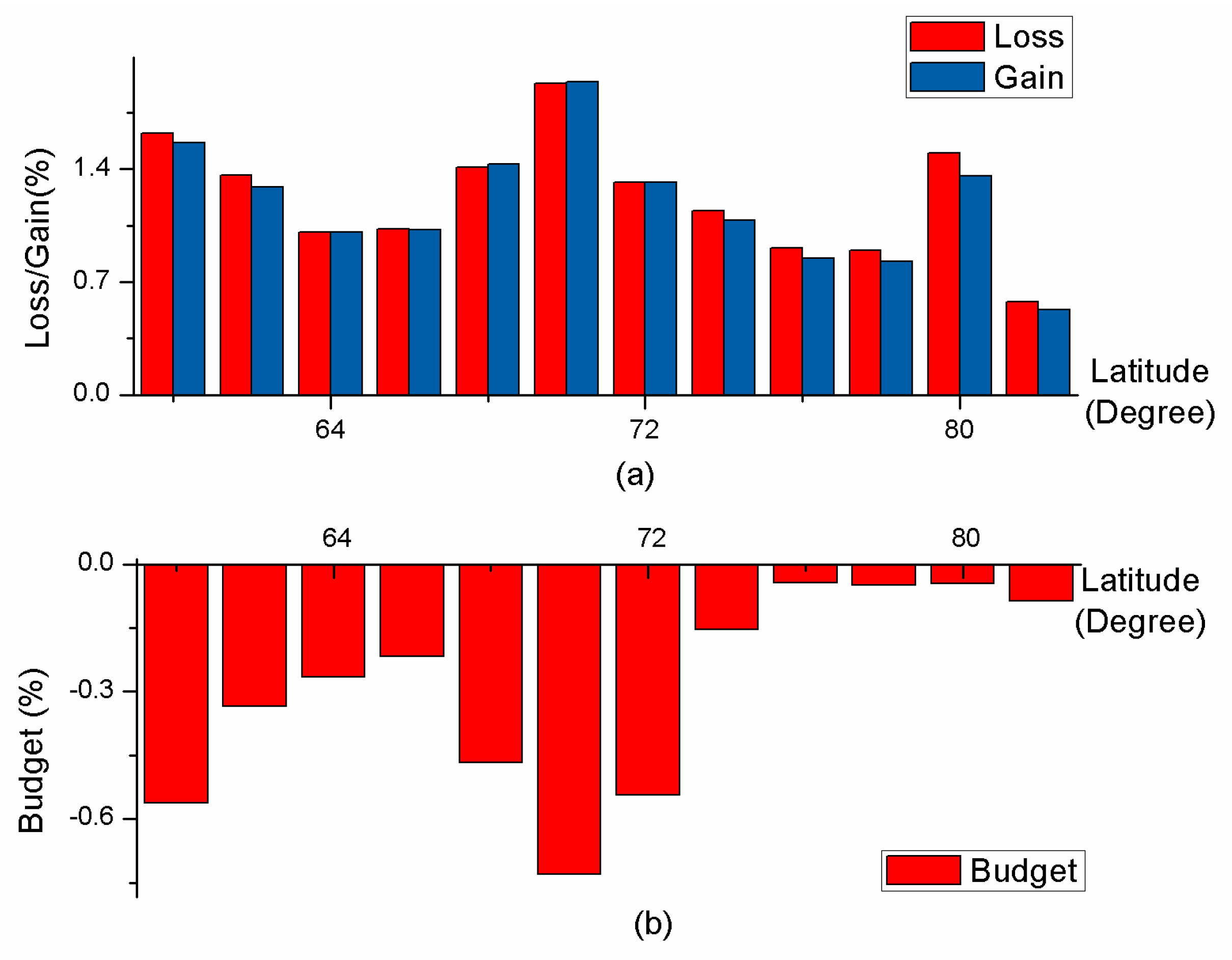

From Figure 6, the loss and gain areas rise abruptly at 70° N, where the coastal zone dominates, possibly due to the shrinking sea ice [27]. The shrinking sea ice results in higher temperatures and increased snowfall, which decreases the lake ice thickness. The budget dynamics of latitude shows a different pattern. The budget at 68° N begins to change abruptly and decreases as the latitude increases from 60° N to 68° N. The region above 68° N shows the same trend.

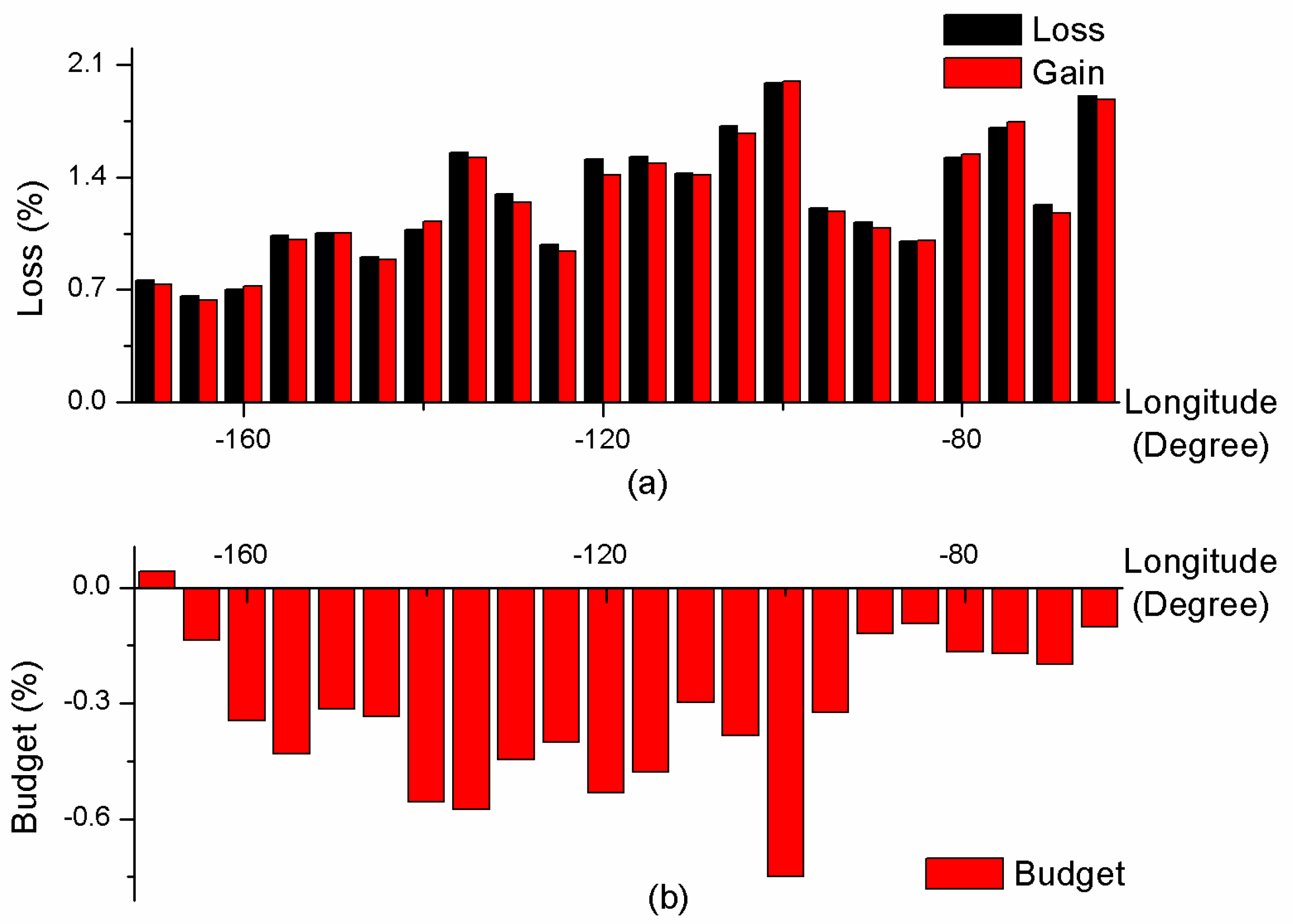

From Figure 7, the water with longitude shows different dynamics—the loss and gain decrease more in the east than in the west. Moreover, budget in the east decreases more than in the west. The distribution with longitude may be related to the terrain, climate, and permafrost. Mountains in North America are distributed from 125° W to 160° W, which is different from the distribution pattern of the water longitude dynamics. Thus, the terrain does not impact the water dynamics significantly.

3.2. Discussion

Many studies on the trends of water and climate-driven effects on ponds have been conducted in the Arctic region. Some studies observed significant decreases in size and number, and some found increases in the number, as well as in the area of lakes [9,28,29]. Obviously, the results are ambiguous and the reasons for the discrepancies are unclear. Site investigations suggest that permeability of soils, temperature, precipitation, shoreline erosion, and vegetation cover [1,4,30,31] may be related to these discrepancies, which need to be explored further.

We found that budget changes abruptly at 68° N (Figure 6) and changes more from 160° W to 100° W. This region is roughly consistent with the distribution of permafrost (Figure 8). We can further verify that the Arctic inland water dynamics are strongly correlated to permafrost [32,33,34]. In order to further confirm that the permafrost process impacts inland water dynamics, we calculated the loss, gain, budget area percentages from 2000 to 2016 with a 1° (latitude) × 5° (longitude) grid and calculated the correlation between the dynamic area and permafrost. We assigned the weight to the grid net based on the distribution of the permafrost. The weights of the continuous permafrost, the discontinuous permafrost, the sporadic permafrost, and the isolated permafrost were 0.95, 0.70, 0.30, and 0.05. The mean of the weight value within each grid was calculated. From

Table 2. The correlation analysis.

Correlations	Gain	Loss	Budget
Spearman Correlations	0.35	0.62	−0.55
Kendall Correlations	0.25	0.49	−0.42

, the loss and budget had a strong correlation with the distribution of the permafrost. The gain was unrelated to the permafrost weakly.

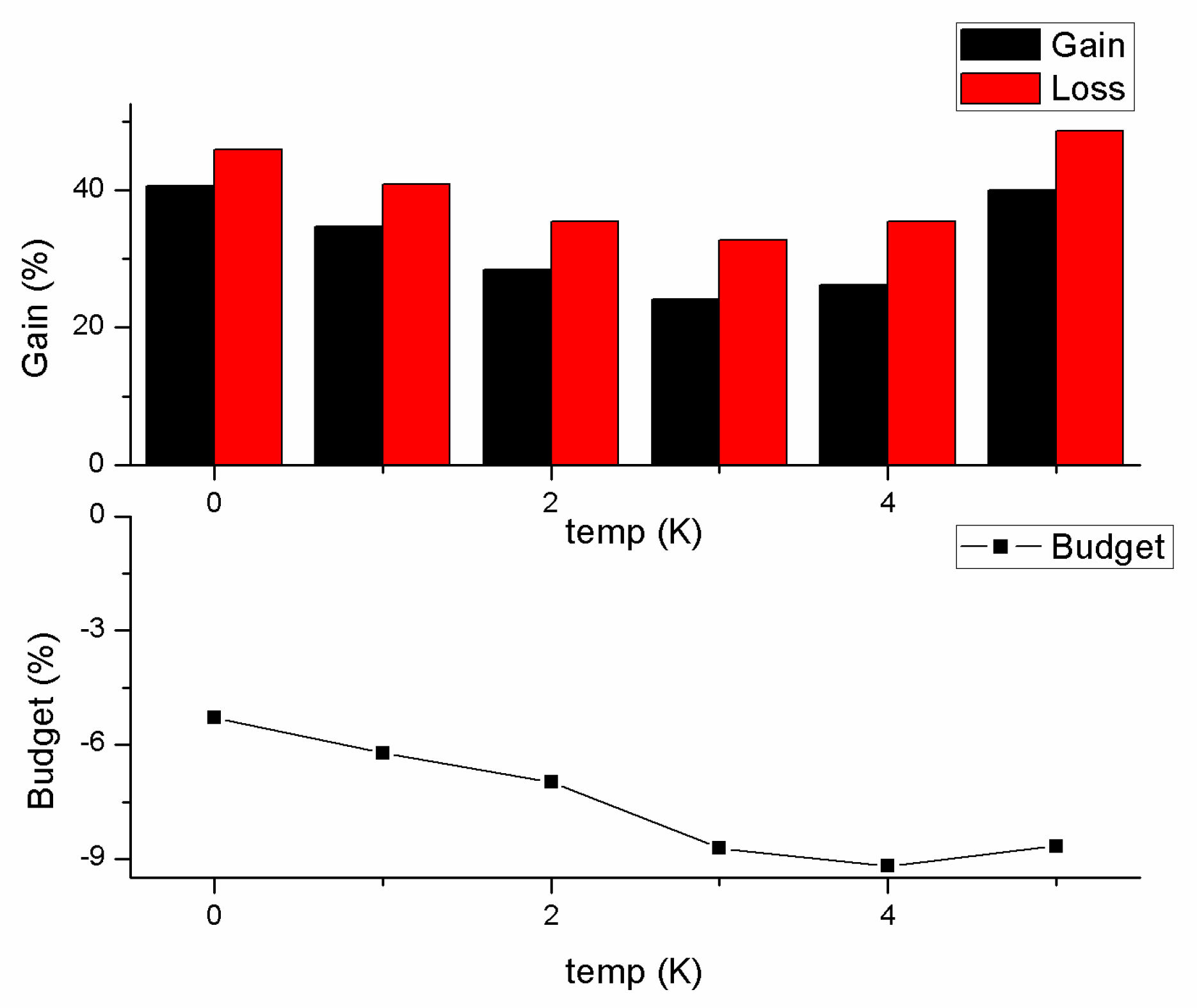

Permafrost thaw is related to the surface temperature. A different process of thaw occurs at different temperatures and, consequently, water will change at various levels. The paper uses the MODIS LST/Emissivity products, MYD11A2 and MOD11A2 [36,37], to analyze the water dynamics with annual average temperature differences (Figure 9). As observed in Figure 9, the paper found that the loss and gain of water showed the same trend. In the beginning, the loss and gain areas declined and then the loss and gain areas increased with the rising temperatures. However, this trend cannot be explained by temperature alone, as there are other factors (for example, Lake ice, wind, and morphological variables) involved in the process [34]. The budget shows a different trend—as the temperatures rise, the net loss increases at first and then decreases. This trend is consistent with the water response to permafrost thaw [26].

4. Conclusions

The observations of surface water in the Arctic region show that the dynamics of surface water vary through time and space. These results help understand Arctic landscape dynamics. Many studies have analyzed the extent and amount of inland water using Landsat products of coarser or higher resolution. Some studies observed decreases, while some observed increases, and some found both. These changes become increasingly ambiguous with further research. As such, the controlling factors of these changes remain unclear. Accordingly, some studies investigated the factors from two perspectives: climatic factors and thermokarst processes. The present study investigated water dynamics at the continental scale and determined the spatial and temporal distribution using a high temporal resolution. The study also analyzed the reasons for these changes. The results showed that the water area is decreasing yearly in the long term, while water loss and gain always show similar dynamic patterns both latitudinally and longitudinally with the loss of water and the gain of water roughly offsetting one another. In addition, the spatial distribution of the water budget is strongly linked to permafrost—it seems that permafrost determines the distribution pattern of the water dynamics more than climatic factors (for example, temperature). Moreover, in continuous permafrost regions, the water net loss decreases as the latitude increases. The same pattern was present in the discontinuous permafrost and sporadic permafrost regions. Loss and gain water show the same pattern with surface temperature, but the pattern of the dynamics cannot be explained by temperature alone. The budget presents a pattern with the surface temperature, which can be explained by the fact that temperature affects permafrost thaw.
