Multiple Temporal Scales Assessment in the Hydrological Response of Small Mediterranean-Climate Catchments

Abstract

Mediterranean-climate catchments are characterized by significant spatial and temporal hydrological variability caused by the interaction of natural as well human-induced abiotic and biotic factors. This study investigates the non-linearity of rainfall-runoff relationship at multiple temporal scales in representative small Mediterranean-climate catchments (i.e., <10 km²) to achieve a better understanding of their hydrological response. The rainfall-runoff relationship was evaluated in 43 catchments at annual and event—203 events in 12 of these 43 catchments—scales. A linear rainfall-runoff relationship was observed at an annual scale, with a higher scatter in pervious (R²: 0.47) than impervious catchments (R²: 0.82). Larger scattering was observed at the event scale, although pervious lithology and agricultural land use promoted significant rainfall-runoff linear relations in winter and spring. These relationships were particularly analysed during five hydrological years in the Es Fangar catchment (3.35 km²; Mallorca, Spain) as a temporal downscaling to assess the intra-annual variability, elucidating whether antecedent wetness conditions played a significant role in runoff generation. The assessment of rainfall-runoff relationships under contrasted lithology, land use and seasonality is a useful approach to improve the hydrological modelling of global change scenarios in small catchments where the linearity and non-linearity of the hydrological response—at multiple temporal scales—can inherently co-exist in Mediterranean-climate catchments.

1. Introduction

The complexity of Mediterranean fluvial systems is caused by the multiple temporal and spatial heterogeneities in the relationships between the natural and human-induced abiotic and biotic variables, especially in the Mediterranean Sea Region [1,2]. The Mediterranean climate lies between 32° and 40° N and S of the Equator and is characterized by a wet and mild winter, a warm and dry summer and a high inter- and intra-annual variability in rainfall patterns. Mediterranean climate regions comprise the Mediterranean Sea Region, the coast of California, Central Chile, the Cape region of South Africa and the southwestern and southern parts of Australia [3]. Under these climatic conditions, catchments are mostly characterized by a high diversity in hydrological regimes [4,5] promoting significant temporal and spatial differences in the hydrological response [6,7,8]. The seasonality of the Mediterranean climate plays a key role in the runoff generation processes, increasing the non-linearity of the rainfall-runoff relationship at the event scale [9,10,11]. In winter and early spring, saturation processes are dominant, due to water reserves triggering the runoff generation [8,12]. During late spring, summer and early autumn, those same authors observed how runoff was generated under Hortonian conditions due to high rainfall intensities. Different runoff mechanisms can co-exist within a catchment [13], although flood events under antecedent saturation wetness conditions enable a larger hydrological response [12,14,15,16].

The spatial variability of runoff generation is also elucidated in the catchment hydrological response as a combination of rainfall-distribution [17] and runoff-contribution areas [18]. Thus, the spatial distribution of landscape elements in relation to each other is fundamental in influencing transfer flow pathways [19]. The main factors governing connectivity are associated to changes in topography [20], soil properties [21], soil type [22] and in vegetation cover [23]. In addition, river connectivity occurs along a three spatial dimension (i.e., longitudinal, lateral and vertical) which can change markedly over time, especially in ephemeral rivers [24]. Consequently, flow pathway activation depends on rainfall amount and intensity, as well as soil moisture antecedent conditions [25,26,27]. Lithology’s effects on runoff response in Mediterranean Sea Region fluvial systems are conditioned by the presence of karst features, as the proportion of carbonate rocks is significantly higher than in other landscapes [28]. Therefore, its characteristics related to hydrology, such as high infiltration rates, deep percolation and spring sources, must be taken into account [29,30,31]. In limestone areas, Hortonian and saturation runoff can both be generated and infiltrated downslope [32,33], whilst in badland areas the runoff generation is characterized by a lower soil infiltration capacity than in karst areas [34]. In areas with high clay subsoil content [35] and over granite bedrock [36], runoff is generated as a combination of a lack of deep percolation and a subsurface runoff over an impervious subsoil layer, even artificially promoted [15].

Land uses also alter the hydrological response, depicting a runoff reduction when agriculture uses are replaced by forests [37]. Afforestation processes due to land abandonment can promote a 40% reduction in the annual water yield in Mediterranean Sea Region fluvial systems [38], whilst forest logging may increase the annual runoff coefficient by up to 16% [39]. However, afforested catchments generate the largest flows and peak discharges at the event scale when compared with forest catchments [40]. Most of these catchments are affected by soil and water conservation structures historically built to reduce overland flow and prevent erosion [41]. The abandonment and degradation of these structures may promote and increase runoff and sediment yield [42], with runoff coefficients being between 20% and 40% in abandoned terraces [43].

Hydrologists develop perceptual models of the catchments they study, which consist of an appreciation of the dominant processes controlling the hydrological response, using field measurements and observations [44]. Numerical models used to simulate catchment behaviour often fail build on this knowledge [45], also considering that the Mediterranean-climate catchments show very heterogeneous responses over time and space, resulting in limitations in hydrological modelling and large uncertainties in predictions [46]. To reduce this spatio-temporal scale variability, small experimental and representative catchments are useful to observe the hydrological response under different or specific land use, lithology and human effect characteristics [47]. The aim of this paper is to investigate the rainfall-runoff relationship at different temporal scales in representative small Mediterranean-climate catchments (i.e., <10 km²), evaluating the role of lithology and land use. At the annual scale, the runoff response was assessed at 43 catchments under a pervious or impervious lithology. At the event scale, the rainfall-runoff response of 203 events was investigated to examine the effects of seasonality, lithology and land use. In addition, the inter- and intra-annual variability of the rainfall-runoff and the temporal downscaling (i.e., annual to event scale) was studied in the Es Fangar Creek catchment (3.35 km²; Mallorca, Spain) during five hydrological years. The rainfall-runoff relationship assessment under contrasted lithology, land use and seasonality may provide new insights into the hydrological modelling of small Mediterranean-climate catchments. These catchments are highly demanding in terms of data and event-scale modelling because classical hydrological models are not well suited to the Mediterranean area, as many hydrological processes remain poorly represented [46].

2. Materials and Methods

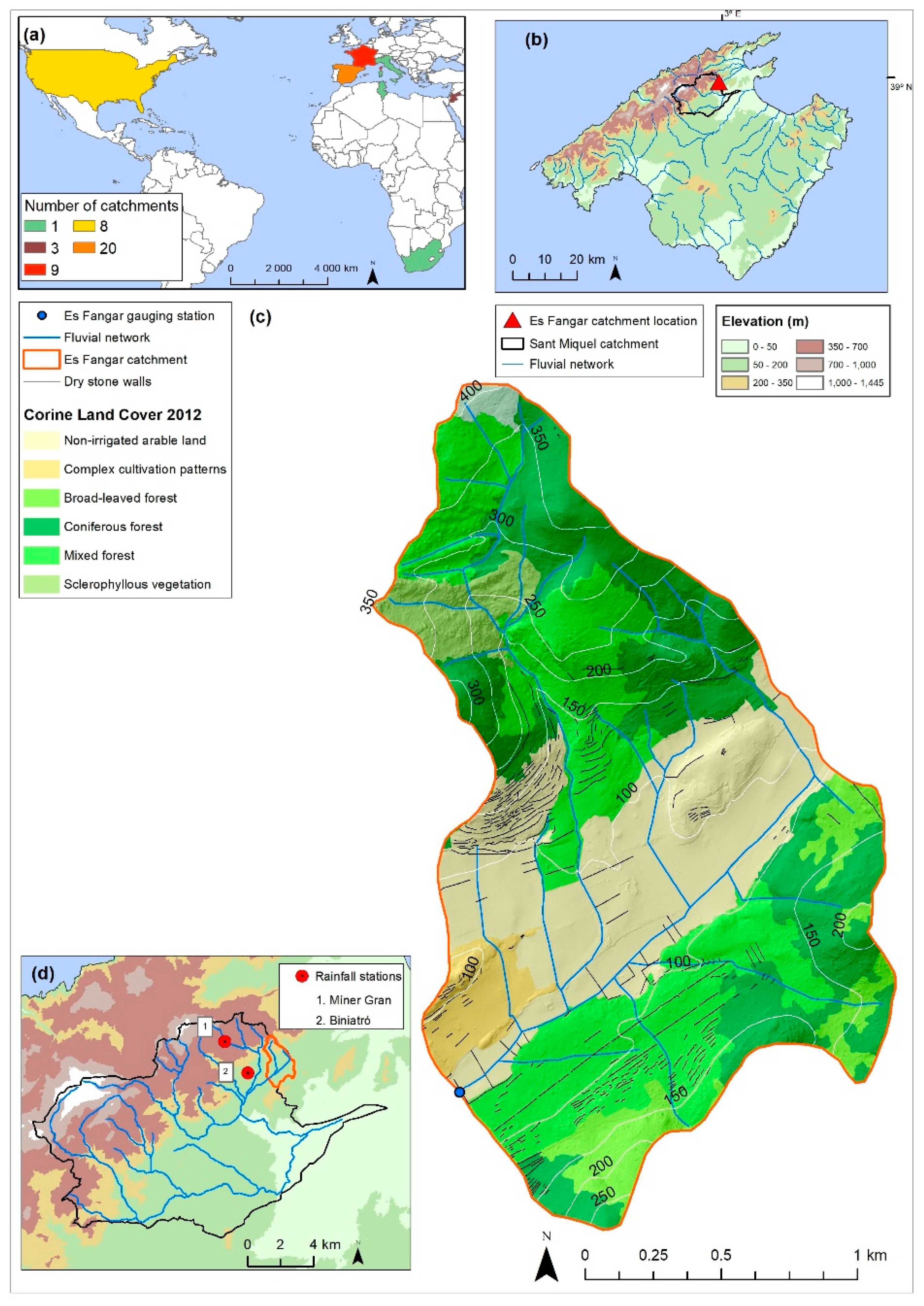

2.1. Study Areas

2.1.1. Small Mediterranean-Climate Catchments

A total of 43 small catchments (i.e., <10 km²) from 22 published studies on the Mediterranean climate regions (Figure 1a) were selected to analyse hydrological response. The geographical distribution of the catchments was grouped into the main climate regions, as follows: (1) Western coast of USA, (2) Western Mediterranean Sea Region (from Spain to Italy), (3) Eastern Mediterranean Sea Region (Israel) and (4) South Africa. The area of the catchments ranged from 0.05 to 9.61 km², the median value being 1.03 km² and the standard deviation 2.6 km². The mean annual rainfall ranged from 367 to 1794 mm y⁻¹, with a median value of 833 mm y⁻¹ ± 334 mm y⁻¹. The mean annual temperature ranged from 6.6 to 17.2 °C with a median value of 13.9 °C ± 3 °C. When temperature information was not available, it was obtained according to Fick and Hijmans [48]. The predominant lithology was pervious in 12 catchments, and was impervious in the other 31. Within the 43 catchments, the studies of 12 of them also contained information related to the main land uses, which was used in this paper for assessing their hydrological response at the event scale. The main land uses were agriculture (3 catchments), agroforestry (3), forestry (1) and shrub (5).

2.1.2. Es Fangar Creek

A temporal downscaling assessment of the inter- and intra-annual variability of the rainfall-runoff relationship was carried out in the Es Fangar Creek catchment, a headwater tributary of the Sant Miquel River catchment (151 km²) located in the north-eastern part of Mallorca Island (Figure 1b) and is representative of Mediterranean mid-mountainous catchments. The lithology is mainly composed of marl and marl-limestone formations from the medium–upper Jurassic and Cretaceous period in the valley bottoms. In the upper parts of the catchment, massive calcareous and dolomite materials from the lower Jurassic period and dolomite and marl formations from the Triassic period (Rhaetian) are dominant. The Es Fangar catchment has an area of 3.4 km², with altitudes ranging from 72 m.a.s.l. to 404 m.a.s.l. (Figure 1c). The mean slope of the catchment is 26% and the length of the main channel is 3.1 km (average slope of 22%). The drainage network is natural in the headwater parts. In the bottom valley, flow lamination is applied, with transverse walls and also the straightening and diverting of the main stream, with the banks fixed with dry-stone walls for flood control and erosion prevention. In addition, subsurface tile drains are also installed to facilitate drainage due to the impervious materials which would impede agricultural activity during wet periods. As a result, 16% of the surface catchment is occupied by soil and water conservation structures. Since 1950, important socio-economic changes have caused a gradual abandonment of farmland in marginal areas, leading to afforestation. The land uses in 1956 were rainfed herbaceous crops (54%), forest (31%) and scrubland (15%). Nowadays, the main land uses (Figure 1c) are forest (63%), rainfed herbaceous crops (32%) and scrubland (5%). In addition, 54% of terraced land is currently covered by forests (Figure 1c), demonstrating the consolidation of the forest transition. The climate of the area is classified on the Emberger scale [49] as Mediterranean temperate sub-humid. The mean annual rainfall (1965–2016, Biniatró AEMET station) is 927 mm y⁻¹ with a variation coefficient of 23%, and the mean annual temperature is 15.7 °C. A rainfall amount of 180 mm in 24 h is estimated to have a recurrence period of 25 years [50]. The Es Fangar streamflow regime can be classified as intermittent flashy (49% zero days flow), with an annual variability from intermittent (35% zero days flow) to harsh intermittent (62% zero days flow).

2.2. Hydrological Response of Small Mediterranean-Climate Catchments

Bivariate statistical regressions were used to establish the correlations at the annual and event scales between rainfall and runoff in order to assess the hydrological response of small Mediterranean-climate catchments (i.e., <10 km²; Figure 1c). These equations were used descriptively as least squares adjusted for the rainfall-runoff assessment. At the annual scale, data from the 43 representative catchments (

Table A1. Mediterranean studies used into the rainfall-runoff relationship at (a) annual and (b) event scale.

Time Scale	Catchment	Country	Area (km2)	Precipitation (mm year−1)	Temperature (ºC)	Main Lithology	Reference
(a) Annual scale	Watershed C	USA	0.05	657	16.1	Impervious	Cited in Latron [47]
	TM9	Spain	0.06	891	13.5	Impervious	Cited in Latron [47]
	Watershed B	USA	0.09	901.7	13.9	Impervious	Dahlgren et al. [75]
	Watershed G	USA	0.13	931.3	13.9	Impervious	Dahlgren et al. [75]
	Watershed B	USA	0.17	623	16.1	Impervious	Cited in Latron [47]
	Watershed A	USA	0.19	623	16.1	Impervious	Cited in Latron [47]
	Spruce	France	0.20	1794	6.6	Impervious	Didon-Lescot et al. [36]
	La Sapine	France	0.20	1715.6	6.6	Impervious	Didon-Lescot et al. [36]
	Watershed C	USA	0.23	898.8	13.9	Impervious	Dahlgren et al. [75]
	Mokobulaam	South Africa	0.26	1150	17.2	Impervious	Cited in Nadal-Romero [34]
	HREC	USA	0.33	549	15.0	Pervious	Swarowsky et al. [54]
	Guadalperalón	Spain	0.35	502	16.0	Pervious	Ceballos and Schnabel [9]
	La Teula	Spain	0.39	595.5	12.5	Impervious	Cited in Latron [47]
	Araguás	Spain	0.45	764.6	11.8	Impervious	Nadal-Romero [34]
	Avic	Spain	0.52	548	12.5	Impervious	Cited in Latron [47]
	Sta Magdalena	Spain	0.53	1418	7.3	Pervious	Latron [47]
	Can Vila	Spain	0.56	1041	9.0	Impervious	Latron [47]
	Boussicaut	France	0.73	1038	13.9	Impervious	Cited in Latron [47]
	San Salvador	Spain	0.92	1108	9.5	Pervious	Serrano-Muela [56]
	Parapuños	Spain	1.00	516.2	14.3	Impervious	Schnabel et al. [74]
	Schubert	USA	1.03	708	15.7	Impervious	Lewis et al. [35]
	Can Revull	Spain	1.03	517	16.5	Impervious	Estrany et al. [15]
	Sa Murtera	Spain	1.20	520.4	16.5	Pervious	García-Comendador et al. [58]
	Cannata	Italy	1.30	671	14.3	Pervious	Licciardello et al. [76]
	Ca l’Isard	Spain	1.32	1128	7.3	Pervious	Latron [47]
	Vaubarnier	France	1.49	1059	13.9	Impervious	Cited in Latron [47]
	Desteou	France	1.53	1169	13.9	Impervious	Cited in Latron [47]
	Bosc	Spain	1.60	675.1	13.0	Impervious	Pacheco et al. [77]
	TM0	Spain	2.00	1004	13.5	Impervious	Cited in Latron [47]
	Campàs	Spain	2.57	675.1	13.0	Impervious	Pacheco et al. [77]
	Kamech	Tunisia	2.63	650	14.0	Impervious	Slimane et al. [78]
	Arnás	Spain	2.84	951	11.0	Impervious	Lana-Renalut [10]
	Headwater 4	Jordan	3.20	493	16.7	Pervious	Riest et al. [61]
	Es Fangar	Spain	3.35	840.8	15.7	Pervious	This study
	Cal Rodó	Spain	4.17	1125	9.0	Pervious	Latron [47]
	Headwater 3	Jordan	4.20	491	16.7	Pervious	Riest et al. [61]
	Biniaraix	Spain	4.40	1453.2	12.0	Pervious	Calsamiglia et al. [55]
	Sa Font de la Vila	Spain	4.80	519.6	16.5	Pervious	García-Comendador et al. [58]
	Cogolins	France	5.47	833	13.9	Impervious	Cited in Latron [47]
	Headwater 2	Jordan	8.40	367	16.7	Pervious	Riest et al. [61]
	Maurets	France	8.48	1088	13.9	Impervious	Cited in Latron [47]
	Valescure	France	9.22	1208	13.9	Impervious	Cited in Latron [47]
	Maraval	France	9.61	822	13.9	Impervious	Cited in Latron [47]
	Catchment	Country	Area (km2)	Precipitation (mm year−1)	Land use	Main lithology	Reference
(b) Event scale	Guadalperalón	Spain	0.35	22	Agroforestry	Pervious	Ceballos and Schnabel [9]
	Can Vila	Spain	0.56	39.6	Agricultural	Impervious	Latron and Gallart [18]; Roig-Planasdemunt et al. [79]; Cayuelta et al. [80]
	Parapuños	Spain	1.00	17.4	Agroforestry	Impervious	Schnabel et al. [74]
	Can Revull	Spain	1.03	19.9	Agricultural	Impervious	Estrany et al. [15]
	Sa Murtera	Spain	1.20	43.9	Shrub	Pervious	García-Comendador et al. [58]
	Arnás	Spain	2.84	20.1	Shrub	Impervious	Lana-Renalut [10]
	Headwater 4	Jordan	3.20	225	Agricultural	Pervious	Riest et al. [61]
	Es Fangar	Spain	3.35	29	Agroforestry	Pervious	This study
	Headwater 3	Jordan	4.20	213	Shrub	Pervious	Riest et al. [61]
	Biniaraix	Spain	4.40	42.6	Forest	Pervious	Calsamiglia et al. [55]
	Sa Font de la Vila	Spain	4.80	36.9	Shrub	Pervious	García-Comendador et al. [58]
	Headwater 2	Jordan	8.40	174	Shrub	Pervious	Riest et al. [61]

(a); hereinafter A1a) were collected to observe the influence of lithology on this response; i.e., the catchments were classified as pervious or impervious by using the information regarding the catchments’ characteristics (e.g., soil type, soil texture or lithology materials) extracted from research papers. At the event scale, 203 events from 12 representative catchments were classified according to (a) seasonal occurrence (autumn, winter, spring or summer), (b) pervious or impervious lithology and (c) main land use (agricultural, agroforestry, forest or shrub) (Table A1 (b)). The main land uses of each catchment were divided into specific land uses when the information was available (Figure A1). Most of these studies (79%) were located in the Mediterranean Sea Region and 47% of them studied catchments < 1 km².

2.3. Monitoring and Data Acquisition in Es Fangar

The rainfall data since 2012 were obtained from the B696 Biniatró AEMET station (Figure 1d; 1 km away from the catchment). In October 2014, a rainfall gauge station (Míner Gran) was installed less than 2.5 km away from the catchment. The Míner Gran rainfall gauge is located 1 m above the ground and connected to a HOBO Pendant^® G Data Logger-UA-004-64 that records precipitation at 0.2 mm resolution. A linear regression was established (n = 978; R²: 0.88) for daily rainfall (2014–2017) between the Biniatró and Míner Gran stations to reconstruct rainfall data series from 2012 to 2014 for the Míner Gran station. Due to the lack of temperature data available in the studied catchment, the data of neighbouring AEMET weather stations (i.e., less than 8 km away from the catchment) were used to estimate the catchment’s temperature by using the block kriging technique. With this information, the monthly evapotranspiration (i.e., ET_o) was estimated using the equation from Hargreaves and Samani [51].

The gauging station of the Es Fangar catchment was built in July 2012. Its cross section is formed by a rectangular broad-crested weir for low water stages to better measure low discharges. The water level was continuously (1 min time step) measured using a pressure sensor Campbell CS451 connected to a CR200X datalogger and average readings were kept every 15 min. The flow velocity was measured during baseflow conditions and flood events using an OTT MF Pro electromagnetic water flow meter. These flow velocity measurements (n = 17) were subsequently used to calibrate the stage–discharge relationship.

2.4. Rainfall-Runoff Relationship Assessment in Es Fangar

This study is based on data from 5 hydrological years (2012–2013 to 2016–2017). For each runoff event (i.e., when the water stage exceeds the low-flows channel; i.e., 0.036 m³ s⁻¹), a simple hydrograph separation between quickflow and baseflow components was performed through a visual technique based on the breakpoints detected on the logarithmic falling limb of the hydrograph [52]. This hydrograph separation method was used only to characterize the response of the catchment to a rainfall, with no aim of deriving any interpretation in terms of runoff processes. Over a 5-year period, hydrograph separation was conducted on 49 events. Based on the hydrograph separations, the baseflow and quickflow contributions for each hydrological year (October to September) were calculated.

Several variables were derived from the hyetograph and hydrograph from each rainfall-runoff event (

Table 1. Pre-event and event conditions variables to explain the rainfall-runoff relationship in the Es Fangar Creek catchment.

Pre-Event Conditions		Event Conditions
Q0	Baseflow at the start of the flood (m3 s−1)	Ptot	Rainfall depth (mm)
AP1d	Antecedent precipitation 1 day before (mm)	IPmean30	Average rainfall intensity (mm h−1)
		IPmax30	Maximum 30’ rainfall intensity (mm h−1)
		Qmax	Maximum peak discharge (m3 s−1)
		R	Runoff (mm)
		Rc	Runoff coefficient

). These variables aimed to characterize the pre-event conditions (antecedent precipitation in 24 h, AP1d; baseflow at the start of the event, Q₀) as well as the event characteristics (rainfall depth, P_tot; mean and maximum rainfall intensity, IP_mean30 and IP_max30; runoff depth and runoff coefficient, R and R_c; and peak-flow discharge, Q_max). The relationships between these variables were assessed through the Pearson correlation matrix. A more detailed analysis of rainfall-runoff relationships in the Es Fangar catchment was carried out in a second step to investigate the variability of the hydrological response to similar size rainfall events to assess the rainfall-runoff non-linearity. The widest range of events with a similar P_tot (40–50 mm) generating the highest differences in R response was selected. Accordingly, 7 events with a P_tot range from 41.8 to 49.8 mm but with different antecedent conditions or rainfall dynamics were selected and also classified in relation to wet, dry and transition periods, in accordance with Gallart et al. [53].

3. Results

3.1. Hydrological Response of Small Mediterranean-Climate Catchments

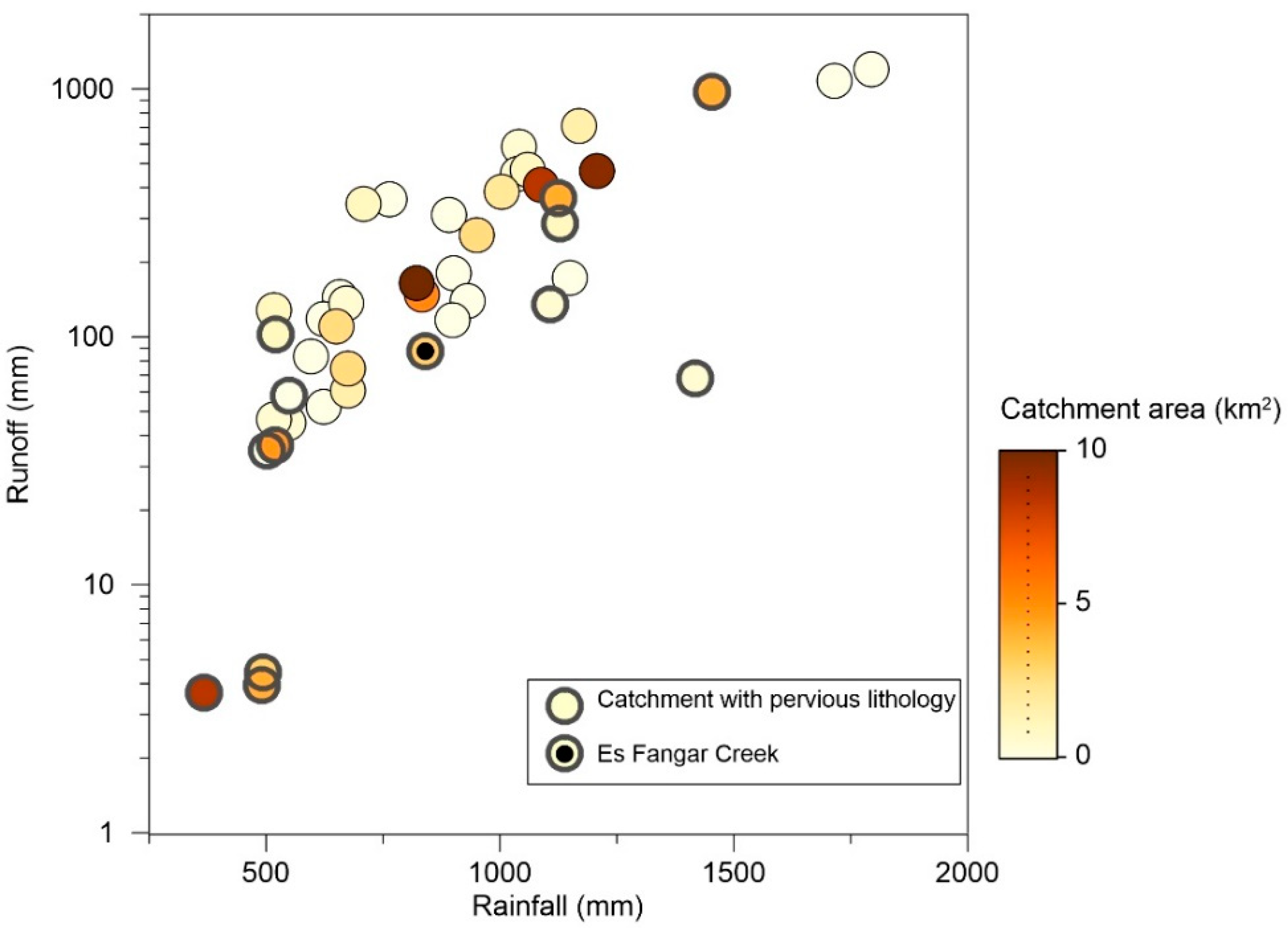

3.1.1. Annual Scale: Lithology Influence

The annual rainfall ranged from 376 to 1794 mm yr⁻¹, whilst R ranged from 3.7 to 1200 mm within these representative catchments under Mediterranean-climate conditions. The relationship between annual rainfall and R (Figure 2) showed a significant positive linear correlation (R² = 0.68; p < 0.01). However, some scattering was also apparent in the relationship because when catchments with pervious lithology were not included, the regression increased (R² = 0.82; p < 0.01; see Figure 2). The lowest annual R values (<10 mm) are related to catchments with annual rainfall < 500 mm yr⁻¹ and a pervious lithology (Figure 2), located in the Eastern Mediterranean Sea (Lower Jordan River). Besides, catchments with pervious lithology with ca. 1500 mm yr⁻¹ of annual rainfall showed large differences in their R amount, ranging from 70 to 974 mm.

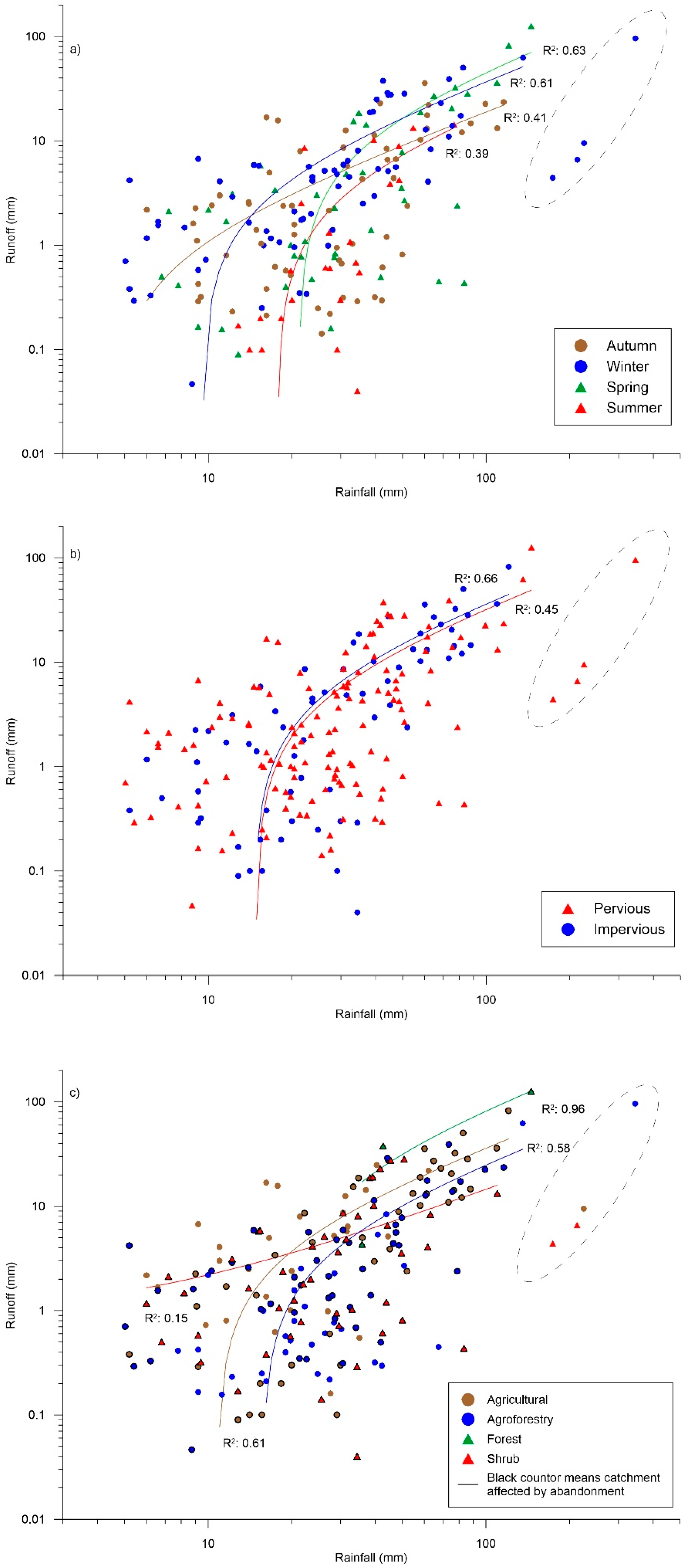

3.1.2. Event Scale: Seasonality, Lithology and Land Use Influences

To investigate the variability of the hydrological response at the event scale, the rainfall-runoff relationships of 203 events from 12 small Mediterranean-climate catchments were analysed (Table A1 (b) and Figure 3). Within Figure 3, the outliers are marked with an ellipsoid and excluded from the correlations because outliers enlarged the rating curves of these correlations, obtaining significant relationships in all cases.

The seasonal distribution of the events was winter (34%), autumn (32%), spring (22%) and summer (12%)—most of them occurred between November and February (47%). Similar seasonal median rainfall was observed, ranging from 26.2 (winter) to 29.0 mm (autumn). The highest seasonal median of event R occurred in winter (4.2 mm). However, those events occurred during the transition periods depicted a similar median R (autumn = 2.3 mm; spring = 2.2 mm) being the lowest value for summer events (0.6 mm). In the case of rainfall-runoff relationships, the highest correlation was obtained in spring (R² = 0.63), followed by winter, autumn and summer (Figure 3a).

Small differences between the median of R events in catchments with pervious lithology (2.2 mm) and catchments without pervious lithology (3.1 mm) were observed. Nevertheless, significant differences in rainfall-runoff relationships were detected as events in catchments with pervious lithology showed the highest correlation and the lowest scattering (Figure 3b). Rainfall events > 55 mm generated a R > 4 mm, excepting events occurred in late spring (Figure 3a) in catchments with predominance of pervious lithology (Figure 3b).

Event rainfall-runoff relationship was carried out considering the differences in the main land uses of studied catchments (Figure 3c). The median event R in forest (37.6 mm) was higher than agricultural (5.0 mm), shrub (2.0 mm) and agroforest (1.5 mm) catchments. However, the highest correlations between rainfall and R were obtained in catchments with a predominance of forest (R² = 0.96), agricultural (R² = 0.61) and agroforest (R² = 0.58) land uses.

3.2. Hydrological Response at Multiple Temporal Scales in Es Fangar Catchment

3.2.1. Annual Scale

The mean annual rainfall (840.8 mm yr⁻¹ ± 213 mm y⁻¹) calculated over the five hydrological years (2012–2017) was broadly representative (−9%) of the long term mean annual rainfall (927 mm y⁻¹ ± 215 mm y⁻¹: 1965–2016), but showed a high range of variation (coefficient of variation 25%, being 553 mm y⁻¹ to 1090 mm y⁻¹), characteristic of Mediterranean conditions. Figure 4 shows the annual variability of rainfall, baseflow and quickflow contributions as well the annual R_c and the number of days with observed flow at the gauging station. Linear positive relationships were observed between annual rainfall, R, R_c, baseflow and quickflow (R² ≥ 0.84, data not shown). The annual R_c ranged from 2.9% to 14.2% (mean value = 10.4%) and quickflow contribution from 9.9% to 45.0% (mean value = 33.0%). During the study period, flow was observed 42.8% of the time. From year to year, the cumulated number of days with flow ranged from 37.8% (138 days) to 65.2% (238 days) of the total days (Figure 4). An inverse relation between annual R and the number of days with flow was established. On the one hand, hydrological years with the largest R (2013–2014, 2014–2015 and 2016–2017) showed fewer days with flow and a lower baseflow contribution (<60%). In these years, 50% to 62% of the annual R was reached in 5 or fewer days (

Table A2. Relative rainfall and R contribution of the highest 5 days and number of days to reach the 50% of R for each hydrological year in the Es Fangar Creek.

Year	Rainfall Contribution of 5 Days (%)	Runoff Contribution of 5 Days (%)	Number of Days to Reach 50% of Runoff
2012–2013	32	37	10
2013–2014	35	53	5
2014–2015	23	50	5
2015–2016	35	28	17
2016–2017	41	28	3

). In addition, days with more R were always during autumn and winter. On the other hand, the hydrological years with the lowest R (2012–2013 and 2015–2016) showed 208 and 238 days with flow. The baseflow contributions represented 70% and 90%, respectively, and 50% of the annual R was reached in 10 and 17 days, also respectively. The contribution of the 5 days with more R did not exceed 28% and 37%, respectively, and these days with more R were distributed among the four seasons.

3.2.2. Seasonal Scale

Figure 5 shows the monthly mean values of rainfall, reference evapotranspiration and minimum, median and maximum R values. The mean monthly rainfall values were broadly comparable to those observed for the long-term period, except for October, when rainfall during the study period was much lower (56% lower than long-term rainfall).

The seasonal dynamics of rainfall and evapotranspiration controlled the R response. Characteristic wet (winter) and dry (summer) periods alternated throughout the year, separated by transition periods (last autumn and early spring). Autumn was the rainiest season, with low evapotranspiration and flow observed at the outlet for 52.7% of the time, on average. The autumn mean R_c was 9.1% and ranged from 4.1% to 11.4%. During November and December, a continuous baseflow was generated in response to a large rainfall amount after the pre-filling of the initial water storage in October. From October to December, the mean R_c increased from 1.3% to 13.1%. Finally, the minimum, median, average and maximum monthly R amounts in December were higher than in November, even with lower rainfall amounts (Figure 5). Although differences between the hydrological years were observed, autumn was the season with less inter-variability in terms of R response.

During winter, flow occurred during 90.6% of the time, although the mean rainfall amount (294 mm) was lower than in autumn (326 mm). This more frequent presence of flow was caused by the low evapotranspiration demand, thus keeping the hydrological pathways active, as already established in autumn. Consequently, in winter, a R amount similar to that of autumn can be generated from a lower rainfall amount. The winter mean R coefficient was 16.9%, ranging from 1.5% to 27%. During winter, the mean monthly R_c decreased from 18.9% to 14.6% between January and March as a consequence of a decreasing rainfall amount and an increasing evapotranspiration demand.

In spring, flow was observed 41.3% of the time. The monthly rainfall decreased during the season and was much lower (127.4 mm) than in autumn and winter. Although monthly evapotranspiration losses increased and were higher than rainfall, the water reserves accumulated during the autumn and winter months sustained the flow contribution. The spring mean R_c was 5.1%, ranging from 0.4% to 8.4% during the study period. The average monthly R decreased during the season from April (7.7%) to June (0.3%).

Finally, in summer, flow was observed only 0.9% of the time. The stream was most often dry in this season due to the high negative balance between rainfall and evapotranspiration. R was only ephemeral in response to the episodic rainfall events more frequent in September, when 80% of rainfall occurred on average (Figure 5). The summer R_c was 1.4%.

3.2.3. Non-Linearity Assessment at Event Scale

During the study period, the number of flood events per hydrological year was between 2 (2015–2016) and 14 (2014–2015). Their seasonal distribution was 13 events in autumn, 25 in winter, 7 in spring and 4 in summer. The events’ characteristics are detailed in

Table A3. Flood event characteristics during the study period 2012–2017 in the Es Fangar Creek.

ID	Date	Ptot (mm)	IPmean30 (mm h−1)	IPmax30 (mm h−1)	Qdur (h)	Q0 (m3 s−1)	Qmax (m3 s−1)	R (mm)	Rc (%)	AP1d (mm)	AP3d (mm)
1	27 October 2012 20:15	30.6	10.1	33.8	8.0	0.002	0.144	0.3	1.0	0.0	0.0
2	11 November 2012 22:20	47.3	11.3	77.5	18.0	0.008	1.747	6.7	14.1	3.4	3.4
3	28 November 2012 08:00	15.5	6.2	18.6	17.5	0.030	0.094	1.0	6.7	9.7	9.7
4	24 January 2013 09:00	21.3	5.7	24.6	12.7	0.011	0.036	0.3	1.6	0.0	15.3
5	24 January 2013 22:30	5.0	6.7	13.8	15.7	0.021	0.083	0.7	13.9	21.3	36.6
6	28 January 2013 03:30	16.8	4.5	7.8	44.5	0.012	0.064	1.2	6.9	1.7	32.5
7	28 February 2013 08:00	32.1	3.9	16.4	21.2	0.017	0.427	4.5	14.0	4.6	11.0
8	01 March 2013 21:00	8.7	5.0	14.6	8.0	0.035	0.077	0.0	0.5	32.2	40.6
9	13 March 2013 14:15	60.6	8.7	24.0	12.8	0.014	1.610	12.8	21.1	0.0	0.0
10	14 March 2013 20:30	6.6	8.8	13.2	17.6	0.038	0.156	1.6	23.5	60.8	60.8
11	05 April 2013 22:30	38.5	4.1	11.0	48.5	0.007	0.059	1.4	3.6	0.0	0.0
12	28 April 2013 21:00	24.6	ND	ND	46.5	0.011	0.347	3.0	12.3	22.1	23.0
13	19 November 2013 02:15	99.3	5.3	43.0	64.7	0.002	1.414	22.5	22.7	7.0	75.5
14	22 November 2013 09:30	8.8	ND	ND	24.7	0.044	0.093	1.6	18.2	1.3	1.3
15	27 November 2013 18:45	14.0	3.1	9.3	39.5	0.028	0.115	2.6	18.6	9.2	15.3
16	29 November 2013 10:30	10.3	ND	ND	25.5	0.046	0.155	2.4	23.3	3.6	28.8
17	30 November 2013 18:45	39.5	2.3	6.6	46.3	0.054	1.105	11.3	28.7	10.3	40.2
18	04 April 2014 03:15	49.8	2.6	6.6	44.7	0.002	1.006	7.8	15.6	3.8	8.0
19	25 April 2014 06:45	28.6	6.4	14.4	15.5	0.000	0.180	0.8	2.9	5.0	13.4
20	29 September 2014 13:45	48.6	16.2	56.4	14.0	0.001	2.356	4.2	8.7	11.8	13.9
21	04 December 2014 22:45	27.2	4.5	12.4	44.3	0.016	0.197	2.1	7.9	9.4	69.2
22	28 December 2014 10:45	36.0	5.1	10.8	39.3	0.008	0.183	2.5	7.0	2.2	2.2
23	20 January 2015 13:00	81.0	2.7	12.4	50.0	0.010	2.094	17.3	21.4	9.0	9.0
24	03 February 2015 09:45	22.6	1.4	9.6	7.5	0.019	0.058	0.3	1.5	0.4	21.6
25	04 February 2015 11:15	73.6	1.3	5.2	65.5	0.050	2.453	39.2	53.2	22.6	35.8
26	21 February 2015 22:15	30.6	1.6	6.8	24.8	0.022	0.883	5.9	19.3	0.0	0.0
27	24 February 2015 00:45	20.4	2.7	10.8	18.2	0.031	0.077	1.0	4.7	0.0	30.6
28	27 February 2015 13:00	20.4	3.1	9.2	31.8	0.026	0.164	2.1	10.3	5.4	11.8
29	14 March 2015 18:00	21.6	3.9	10.4	16.7	0.015	0.351	1.7	8.1	0.0	0.0
30	22 March 2015 02:45	6.2	4.1	11.2	8.7	0.020	0.056	0.3	5.3	1.4	11.6
31	24 March 2015 23:15	75.6	1.8	7.2	42.8	0.033	0.924	13.9	18.4	0.0	7.6
32	04 September 2015 03:00	32.4	1.7	19.6	11.0	0.004	0.783	1.1	3.3	0.6	2.6
33	30 September 2015 08:15	34.0	2.4	5.6	9.7	0.001	0.132	0.7	2.0	8.0	13.0
34	30 September 2015 18:15	27.2	2.0	13.2	16.8	0.037	0.207	1.3	4.9	36.2	47.0
35	01 April 2016 16:00	78.8	2.7	14.0	43.5	0.016	0.222	2.4	3.0	0.0	0.0
36	07 May 2016 11:15	41.8	2.7	6.4	13.5	0.006	0.092	0.5	1.2	1.6	1.6
37	19 December 2016 02:30	46.4	2.3	7.6	27.2	0.012	0.394	4.4	9.5	2.0	16.6
38	20 December 2016 09:00	115.8	6.3	21.6	16.0	0.054	2.434	23.5	20.3	24.4	49.2
39	21 December 2016 04:30	61.4	4.9	9.6	33.7	0.626	1.565	17.6	28.6	116.0	164.6
40	20 January 2017 07:50	28.0	1.8	6.8	13.0	0.013	0.180	1.4	5.0	4.0	9.8
41	20 January 2017 17:45	14.6	1.7	7.6	10.7	0.082	1.687	5.9	40.2	28.4	37.2
42	21 January 2017 07:00	44.2	2.6	7.6	19.2	0.230	3.942	28.9	65.4	35.4	50.6
43	22 January 2017 04:00	5.2	1.0	4.0	5.7	0.360	1.465	4.2	80.8	35.4	50.6
44	22 January 2017 16:00	12.2	0.8	4.0	9.0	0.243	0.461	2.9	23.8	44.4	96.2
45	23 January 2017 20:52	29.0	2.1	4.8	25.0	0.150	0.355	4.8	16.5	20.2	87.2
46	25 January 2017 11:45	5.4	1.2	4.8	31.3	0.036	0.235	0.3	5.4	0.0	51.6
47	27 January 2017 17:00	23.0	2.9	11.6	55.0	0.027	0.306	5.6	24.5	0.0	5.6
48	8 February 2017 06:30	47.4	2.9	8.8	41.5	0.013	0.843	5.6	11.8	0.0	12.8
49	5 June 2017 10:45	67.6	3.0	21.6	5.7	0.028	0.330	0.4	0.7	2.6	2.6
	Min	5.0	0.8	4.0	5.7	0.000	0.036	0.0	0.5	0.0	0.0
	Max	115.8	16.2	77.5	65.5	0.626	3.942	39.2	80.8	116.0	164.6
	Median	29.0	2.9	10.8	19.2	0.0	0.3	2.4	11.8	4.0	13.9
	SD	25.5	3.0	13.8	16.4	0.108	0.857	8.3	16.2	20.6	31.6

. An investigation of the variability and the non-linearity of the hydrological response at the event scale was carried out by means of a comparative assessment of seven rainfall-runoff events with similar P_tot, ranging from 41.8 to 49.8 mm, but different antecedent conditions and rainfall dynamics (Figure 6).

The event on 21 January 2017 (Figure 6a) occurred under wet conditions following a runoff event on the day before. AP1d was 35.4 mm and Q₀ was high (0.229 m³ s⁻¹). The rainfall characteristics (duration and intensity) were similar to those observed for other events of the same magnitude (Figure 6b,e,g), but the hydrological response was an order of magnitude higher in terms of R (28.9 mm), R_c (65%) and Q_max (3.942 m³ s⁻¹) due to wet antecedent conditions (

Table A4. Main characteristics of the selected events for non-linearity analysis in Es Fangar Creek.

ID	Flood Event	Ptot (mm)	IPmax30 (mm h−1)	R (mm)	Rc (%)	Qmax (m3 s−1)	Q0 (m3 s−1)	AP1d (mm)
42	21 January 2017 07:00	44.2	7.6	28.9	65	3.942	0.229	35.4
18	04 April 2014 03:15	49.8	6.6	7.8	16	1.006	0.002	3.8
2	11 November 2012 22:15	47.3	77.5	6.7	14	1.747	0.008	3.4
48	08 February 2017 06:30	47.4	8.8	5.6	12	0.843	0.012	0.0
37	19 December 2016 02:30	46.4	7.6	4.4	9	0.394	0.012	2.0
20	29 September 2014 13:45	48.6	56.4	4.2	9	2.356	0.015	11.8
36	07 May 2016 11:15	41.8	6.4	0.5	1	0.092	0.006	1.6

). This event had a similar duration to events that occurred under higher rainfall intensities (11 November 2012, 29 September 2014). However, wet antecedent conditions were much more favourable than rainfall intensity to reach a high Q_max and especially a higher R contribution.

The event on 4 April 2012 (Figure 6b) occurred in early spring, ergo at the beginning of the transition period from wet to drier conditions. The antecedent conditions were favourable to R generation, due to the presence of a baseflow maintained by water reserves accumulated in the autumn and winter months. R_c was 16%. The event on 11 November 2012 (Figure 6c) recorded the highest IP_max30 (i.e., 77.5 mm h⁻¹) of the study period, occurring in the transition period from dry to wet conditions (middle autumn). Previous to this event, the stream channel was dry. Under these conditions of rainfall intensity and without previous baseflow, the R_c reached 14%. Although the event on 4 April 2012 recorded a similar R_c (16%) to the 11 November 2012 event, both events resulted in different hydrographs because of different rainfall characteristics (in terms of duration and intensity) and antecedent wetness conditions. As a result, the duration of 44.7 h for the event on 4 April 2012 contrasted with the duration of the 11th November 2012 event, which only lasted 18 h. In addition, the differences between these two events were also relevant in terms of Q_max—1.006 m³ s⁻¹ for the April event and 1.747 m³ s⁻¹ for the event on 11 November 2012.

The event on 8 February 2017 (Figure 6d) occurred during the wet season. AP1d and a Q₀ were, respectively, 0 mm and 0.012 m³ s⁻¹. On the contrary, the event on 19 December 2016 (Figure 6e) occurred at the end of the transition period and had an AP1d and a Q₀ of 2 mm and 0.012 m³ s⁻¹, respectively. Both events had similar values of IP_max30, AP1d and Q₀ (Table A4). Nevertheless, R and R_c were slightly larger for the event on 8 February 2017, likely due to the large rainfall amount accumulated during the two events (more than 400 mm of rainfall between 19 December 2016 and 8 February 2017).

The event on 7 May 2016 (Figure 6g) was similar to the event on 19 December 2016 (Figure 6e) in terms of P_tot, duration and intensity. Nevertheless, R response started earlier (i.e., shorter response time) for the event on 19 December 2016. This difference was caused because the December 2016 event occurred during the wetting-up period when catchment water reserves were increasing. As a result, whilst the R response was relatively small (4.4 mm), R_c (9%) and Q_max (0.394 m³ s⁻¹) were significantly larger than for the event on 7 May 2016 (Table A4), which occurred during the transition period towards dry conditions. With an AP1d of 1.6 mm and Q₀ of 0.006 m³ s⁻¹, the lowest R response was generated (see total runoff, R_c and Q_max in Table A4). This R response was also the most delayed, as shown on Figure 6g, starting when 95% of the rain (39.8 mm) had fallen on the catchment.

The event on 29 September 2014 (Figure 6f) occurred during the dry season (i.e., late summer, early autumn) but with an AP1d of 11.8 mm. The rainfall event was the shortest of these seven selected events (3.2 h), with the second highest IP_max30 (56.4 mm h⁻¹) of the study period. This very high intensity triggered a R response during dry conditions. Similar rainfall but lower intensities during dry conditions always produced lower responses (R_c ≤ 3%). Although the R response was relatively small (4.2 mm) with R_c < 10%, Q_max was relatively high (2.356 m³ s⁻¹), promoted by the rainfall intensity.

4. Discussion on Hydrological Responses in Small Mediterranean-Climate and Es Fangar Catchments

4.1. Annual and Seasonal Scales

4.1.1. Small Mediterranean-Climate Catchments: Lithology Influences

Catchments with annual rainfall ranging from 500 to 900 mm yr⁻¹ showed annual R ca. 20–350 mm, where the role played by lithology on the annual R response was important. Accordingly, the highest annual R values (>350 mm) were observed in catchments with badland areas [34] and a high subsoil clay content promoting lateral flow and a perennial regime [35]. Swarowsky et al. [54] also reported an annual R 17% lower than in an adjacent catchment to that investigated by Lewis et al. [35] and related this difference to greater deep infiltration. Similarly to our results, Merheb et al. [46] obtained a significant rainfall-runoff correlation (R² = 0.69) using 160 catchments from the Mediterranean Region (0.35 to 21,700 km²). These authors highlighted that the scattering observed was due to karstic catchments or snowmelt contributions.

Also, scattering can be observed in the relationship for catchments with annual rainfall >1000 mm yr⁻¹. For this group of catchments, the annual R ranged from 135 to 1200 mm, except for the Santa Magdalena catchment, which is entirely on a limestone lithology and yielded an annual R value of 70 mm [47]. Large annual R values usually corresponded to watertight catchments with R values > 1000 mm yr⁻¹ for two small Mediterranean-climate catchments on granite bedrock [36]. However, karstic environments can also promote very high annual R values, e.g., Ref. [55], as a result of incoming karstic spring sources. The conceptual model developed by Borg Galea et al. [2], which is based in exogenous and endogenous variables that link natural and human-derived variables and their influences in the system on a spatial–temporal scale, emphasized that climate is the main exogenous driver of the rainfall-runoff relationship, although their processes through precipitation, temperature and wind are mediated by catchment geology (endogenous variable).

Different seasonal rainfall-runoff relationships in relation to the influence of rainfall and evapotranspiration [56] are related to the alternation of rainfall and reference evapotranspiration throughout the year reproducing wet (winter), dry (summer) and transition periods (last autumn and early spring) [57]. Accordingly, winter is the season with the highest R_c, from 17% to 56%, due to rainfall being accumulated during autumn—and maintained in winter—and low evapotranspiration demand [10,15,56]. The same pattern was also observed during the five hydrological years assessed in Es Fangar Creek. In addition, all these studies also emphasized that in summer the hydrological response is limited or null, with R_c < 10%. Serrano-Muela [56] observed runoff coefficients < 5% in a range of rainfall amounts of 15–200 mm during summer in a small catchment characterized by a large forest cover. The driest environments in these studies obtained a summer R_c < 2%. R_c in autumn and spring were similar, ranging from 9% to 25% and 5% to 28% respectively. However, a variability throughout the seasons can be observed, especially in late autumn and early spring, as these are transition periods. Additionally, Lana-Renault [10] observed that the wetting-up period was steeper than the drying-down period, which was more progressive in a catchment located in the Pyrenees. Autumn was the season after the driest period, and it was when the evapotranspiration reached the maximum values. The beginning and the end of this season can be quite different in relation to R_c. The catchments have a null or limited response until a succession of rainfall events that fill the water reserves and generate favourable conditions for R generation [56]. The findings of Lana-Renault [10] in spring concluded that the accumulated rainfall during autumn and winter maintain high water reserves, allowing high runoff coefficients, even though spring was not the rainiest season.

4.1.2. Es Fangar

In the Es Fangar catchment, a low mean annual R value (87 mm) was recorded during the 2012–2017 period, despite its mean annual rainfall value (black dot on Figure 2). This result is most likely related to the presence of massive karstic dolomites and breccias in the lithology of the catchment headwaters.

The reported annual R in Es Fangar is within the R range of small catchments located in Mallorca, with annual rainfall ranging from 500 to 900 mm yr⁻¹, which yielded annual R between 36 and 130 mm. From these catchments, the highest R value was observed in an agricultural small lowland catchment prone to receiving subsurface contributions [15]. Spatial differences in the annual R between the headwater (102 mm) and catchment outlet (36 mm) due to transmission losses along the main channel were detected in the Sa Font de la Vila River, a mid-mountainous terraced catchment affected by forest fires [58]. Within this catchment, temporal differences were observed as R_c ranged from 1% to 22% from one year to year.

4.2. Event Scale

4.2.1. Seasonality, Lithology and Land Use Influences on Small Mediterranean-Climate Catchments Hydrological Response

The seasonal dynamics of rainfall and evapotranspiration during the year generate wet, dry and transition periods, which control the R response [10,53]. Therefore, seasonally, the highest correlation observed in spring could be related to the water reserves accumulated during the autumn and winter seasons, which is favourable for R generation [13]. According to the seasonal distribution of the 203 events, other studies in Mediterranean-climate catchments observed an event seasonality in the hydrological response [8,10,59] where autumn rainfall events produced a limited or null R response, especially at the beginning of the season. In addition, in winter and spring, the R_c values were always larger than 3%, being the maximum in spring (70%).

The role of transmission losses due to lithology has been investigated [32,60], depicting how low runoff values were recorded due to infiltration. In this study (see Section 3.2), events assessed in catchments with a predominance of pervious lithology showed a higher scattering than events in impervious catchments. In addition, rainfall events >55 mm generated R > 4 mm, except in events occuring in late spring in catchments with pervious lithology. In this case, the transmission losses due to pervious lithology have more influence on the hydrological response than the seasonal role of the water catchment reserves. Ries et al. [61] identified a low and large R response in rainfall events >50 mm based on the physiographic catchment and rainfall characteristics. Events occurring in catchments, which even had different land uses, with less bedrock permeability and less soil water storage but with higher values of rainfall intensity generate a greater R response than catchments with more bedrock permeability and soil water storage under low rainfall intensities. Contrarily, other types of lithology (i.e., badland areas) are characterized by a low infiltration capacity [62]. Latron and Gallart [63] observed that frequently badlands are the only active area to R response. According to these findings, Nadal-Romero et al. [64] observed an event stormflow coefficient of up to 20% in a Mediterranean-climate catchment with badland areas, even when the headwater catchment was forested (30% of the catchment area).

Events occurring in agricultural catchments obtained the second highest values in the median R and in the rainfall-runoff correlation, as arable land and its spatial distribution within a catchment have been demonstrated to be a driver for R generation [65]. However, events in the forest catchment had the highest correlation and median R, as the water yield and rainfall-runoff relationship decrease in forests catchments when compared to agricultural catchments, due to forest cover [66]. However, this correlation (R²: 0.96; n: 3) and median value is related to the presence of karstic springs in the forest catchment, which was the only forest catchment found in the literature. The median R of forest catchments could be similar to the values obtained in afforested ones, as both land uses trigger a reduction in the R generation. This reduction was quantified in a loss of water yield ca. 10–40% [38,66,67,68,69]. Nevertheless, larger flows and Q_max were observed in afforested catchments than forest ones. The shrub median R (2.0 mm) was higher than afforested catchments, as shrub coverage is characterized by lower vegetation cover than forest and afforested land uses. In addition, the second main land use in shrub catchments is agricultural land use (Figure 1A), which could explain the higher median R compared with the afforested catchments. The same results were observed in García-Ruiz et al. [66], where catchments under shrub land use had lower R contributions than catchments with forest land use due to a lower plant cover density in the shrub catchment.

4.2.2. Rainfall-Runoff Relationship at the Es Fangar Catchment

The identification of driving factors explaining the variability of R_c can be explored through the relationships between R_c and R and P_tot, rainfall, maximum intensity and baseflow at the beginning of the event, as Latron et al. [8] carried out in a mountainous Mediterranean-climate catchment in North Eastern Spain.

Only the correlation between R and R_c was significant in the Es Fangar catchment (Figure A2a), explaining 73% of the variance. As in Latron et al. [8] this relationship had the highest correlation. However, contrarily to Latron et al. [8], the relationship between rainfall and R_c was highly non-lineal in Es Fangar, presenting a huge scattering, especially for P_tot between 20 and 60 mm (Figure A2b), which yielded R_c ranging from 1% to 65%. For larger rainfall events (i.e., 60 to 100 mm), the R_c values were high (>20%), but low R responses (with R_c ranging 1% to 3%) were also observed when large rainfall events were recorded after or during dry conditions. In line with the results from Latron et al. [8], R_c was not related with rainfall intensity (Figure A2c).

The relationship between Q₀ and R_c was not linear in the Es Fangar catchment (Figure A2d). A threshold was identified leading to larger R_c (>10%) for events with Q₀ above 0.04 m³ s⁻¹, which always occurred between November and April. The relationship between Q₀ and R_c in Latron et al. [8] was stronger, because of the presence of a baseflow during most of the year. In general terms, the frequent absence of a baseflow in the Es Fangar catchment between May and October worsens most of the relationships presented in Figure A2 in comparison to a catchment with an almost permanent baseflow, as in Latron et al. [8] and Nadal-Romero et al. [40]. Then, baseflow–R_c correlation increased as the environment got wetter, from R² = 0.19 in Es Fangar to R² = 0.70 in a humid catchment [70].

In order to help in identifying the main factors involved in the hydrological response in the Es Fangar catchment, multiples relationships were carried out to investigate the influence of rainfall, Q₀ and IP_max30 on R and Q_max (Figure 7). The hydrological response by using R and Q_max was highly non-linear, as observed in other Mediterranean-climate catchments [8,11] because the soil moisture antecedent conditions are crucial for R generation. Figure 7a shows how the R response could not be explained by Q_0, as the highest R values presented a large scattering along the Y axis. This pattern confirmed that large R amounts (i.e., >10 mm) may occur from large rainfall events occurring in dry or wet conditions (i.e., with low or high Q₀ values). Therefore, P_tot was a key factor for R response, as shown by the significant positive correlation (p < 0.01) between both variables (

Table 2. Pearson correlation matrix between selected variables.

Variables	Q0	Ptot	IPmean30	IPmax30	Qmax	R	Rc
Q0	1	0.03	0.00	0.08	0.39	0.28	0.53
Ptot		1	0.09	0.27	0.55	0.68	0.07
IPmean30			1	0.79	0.15	−0.06	−0.21
IPmax30				1	0.25	0.03	−0.17
Qmax					1	0.82	0.67
R						1	0.62
Rc							1
Correlation significant at 0.01 level

). The largest R values were always recorded during last autumn or winter, with contributions of >17 mm (Figure A3 and

Table A5. Main characteristics of the highest runoff event contribution in Es Fangar Creek during the study period 2012–2017.

ID	Flood Event	Ptot (mm)	IPmax30 (mm h−1)	R (mm)	Rc (%)	Qmax (m3 s−1)	Q0 (m3 s−1)	AP1d (mm)
25	04 February 2015 11:15	73.6	5.2	39.2	53	2.453	0.046	22.6
42	21 January 2017 07:00	44.2	7.6	28.9	65	3.942	0.229	35.4
38	20 December 2016 09:00	115.8	21.6	23.5	20	2.434	0.054	24.4
13	19 November 2013 02:15	99.3	43.0	22.5	23	1.414	0.021	7.0
39	21 December 2016 04:30	61.4	9.6	17.6	29	1.565	0.626	116.0
23	20 January 2015 13:00	81.0	12.4	17.3	21	2.094	0.010	9.0

), and are characterized by P_tot, R, R_c, Q_max and AP1d values much higher than median values (Table A3). Contrarily, large rainfall events occurring in spring resulted in a small R contribution because of the dry antecedent conditions (i.e., low or null Q₀ values). Other authors also assessed relationships between seasonality and R generation. In a mountainous catchment, Lana-Renault [10] observed that the highest rainfall-runoff correlations at the event scale were depicted in winter and spring due to higher water reserves than in autumn and summer. In Es Fangar, a group of events during autumn and winter characterized by Q₀ > 0.080 m³ s⁻¹ always generated R_c greater than 14% (Figure A2d). The P_tot of these events ranged from 5.2 to 61.4 mm but the AP1d was larger than 20 mm, except in one event (AP1d: 3.4 mm), which was characterised as the highest IP_max30 (i.e., 77.5 mm h⁻¹) of the study period. These event characteristics suggest that P_tot was the main factor controlling an effective hydrological response as antecedent conditions (i.e., soil moisture degree of the catchment) have been demonstrated to play an important role in R generation [18]. Similarly, Lana-Renault [10] identified a cluster of events characterized with the highest Q₀ that generated a larger R response, but the convective rainfall occurring in the Pyrenees during summer blurred the seasonal pattern described in the Es Fangar catchment.

Figure 7b shows that high Q_max values were observed in response to large rainfall amounts (above 50 mm) or for flood events with a Q₀ value higher than 0.080 m³ s⁻¹. Both factors had a combined effect on the generation of high Q_max values as shown by the significant correlation observed between P_tot and Q₀ and Q_max. The role of wet conditions over Q_max was also observed in other Mediterranean-climate catchments where AP1d correlated significantly with Q_max [15,17,71].

R and Q_max were not significantly correlated with IP_max30 (Table 2). Figure 7c,d show how high values of R and Q_max resulted for events with low IP_max30 when rainfall was > 50 mm or high Q₀. This absence of correlation between rainfall and the catchment response (R and Q_max) indicates that R generation is most likely the result of saturation excess processes [72], where P_tot and antecedent conditions played a key role. For events between June and September, saturation excess processes were, however, probably less dominant and combined with infiltration excess processes in response to highest IP_max30 values ranging from 19 to 56.4 mm h⁻¹. As a result, the events observed between June and September were shorter (5.7 to 14 h duration compared to 8 to 65.5 h for wet conditions events). Therefore, R mechanisms co-exist within a Mediterranean catchment [13] such as Es Fangar, with a marked seasonality, with saturation processes being dominant during the wet period and Hortonian R during the dry period. Consequently, the alternation of the R mechanisms generated lower and larger R contributions in events occurring during the dry and wet seasons, respectively. These processes caused the non-linearity of the hydrological response because the same amount of P_tot generated a non-lineal R response due to different soil moisture conditions [15,64].

4.2.3. Non-Linearity Assessment at Es Fangar Catchment

The events analysed in Figure 6 presented a huge variability in their hydrological response, despite recording a similar P_tot, ranging from 41.8 to 49.8 mm. R_c ranged from 1% to 65%, depending on the catchment moisture conditions, rainfall intensities and seasonality characteristics. The highest hydrological response occurred under marked wet soil moisture conditions in the winter period, even with low rainfall intensities (Figure 6a). A similar complexity in R responses has already been observed in other Mediterranean-climate catchments where seasonality and antecedent soil moisture conditions played a key role in R generation [11,57]. Gallart et al. [73] also showed that different R generation behaviours could be observed during the year due to varying catchment wetness conditions and changing rainfall events characteristics. The results obtained by these authors are clearly illustrated by comparing Events 2 and 20 with Events 18 and 37 in Figure 6. Indeed, R events that occurred during wet conditions with low rainfall intensities (18 and 37) showed similar R_c than events that occurred during dry conditions with high rainfall intensities (2 and 20). However, during dry conditions, runoff events resulting from low intensity rainfall yielded the lowest R responses (e.g., Event 36). Our results are also in agreement with the observations made by Schnabel et al. [74], who observed higher R contributions for low rainfall intensities events occurring in periods with high soil water content than for events with high rainfall intensities. Besides, those authors pointed out that this condition was common during years with above average rainfall (i.e., during wet years) but was rarely observed during dry years.

5. Conclusions

The evaluation of multiple temporal scales in contrasting small Mediterranean-climate catchments has improved the understanding of the role played by lithology and land use in the hydrological response. The assessment of rainfall-runoff relationships at the annual scale in small Mediterranean-climate catchments showed a significant linearity in the hydrological response due to the importance of the annual rainfall amount. Nevertheless, lithology effects on R generation explained an increase in the scattering in the rainfall-runoff relationship because pervious and impervious materials triggered larger and lower R contribution, respectively. Despite the significant correlation between rainfall and R, the Es Fangar Creek dataset illustrated a huge intra-annual variability of the rainfall-runoff relationship during the five hydrological years analysed, as seasonal rainfall and evapotranspiration dynamics controlled the R response. These dynamics were clearly observed in the average seasonal R_c, decreasing from winter to summer. As a result, these seasonal differences should be considered as a starting point of the non-linearity generation in the rainfall-runoff relationships at the event scale.

At the event scale, lineal and non-lineal relationships were observed in the rainfall-runoff relationships in small Mediterranean-climate catchments, suggesting that different factors conditioned the R response. The total rainfall was the most significant driving factor, although the interaction between seasonality and the spatial diversity of lithology and land uses at the catchment scale also played an important role in R generation. Thus, the highest correlations at the seasonal scale were observed in those events which occurred in winter and spring when the highest water reserves favoured the R response. Lithology caused a higher dispersion in the rainfall-runoff relationships at the event scale in the set of small Mediterranean catchments because pervious materials required higher antecedent wetness conditions. Different land uses promoted a decrease in R generation, comparing agricultural with scrubland uses, because agriculture promoted the highest correlation in the rainfall-runoff relationships due to lower vegetation cover. Therefore, human-induced alterations related to land uses in the R generation must be assessed in those countries were the abandonment of upland agricultural catchments have allowed natural vegetation to expand (i.e., southern Europe) and also in countries were agriculture and irrigated areas are increasingly replacing forest and shrub lands (i.e., North African Maghreb). However, events under agricultural land use or which occurred in the winter season independently of the land use and lithology catchments were the situations which were able to generate a higher linearity in the rainfall-runoff relationships.

This temporal downscaling from the annual to event scale elucidated how different R mechanisms can co-exist in small Mediterranean-climate catchments, considering the main temporal and spatial factors that govern the river catchment connectivity. Despite this, controls on R generation in Mediterranean-climate catchments require further attention to assess the role of lithology, land use and seasonality and their combined effects on the hydrological response for going beyond in the comprehension of highly sensitive areas to global change, such as the Mediterranean region. Considering that the performance gaps of hydrological processes in hydrological models due to the results of rainfall-runoff at daily scales are smoothed in small Mediterranean-climate catchments, the findings of this study improve the comprehension of hydrological processes as practical field knowledge needed to complete hydrological modelling at the event scale.
