Water Footprint Management for Sustainable Growth in the Bangladesh Apparel Sector

Abstract

Bangladesh is one of the fastest growing economies in the world, primarily driven by its textile industries. A high amount of water is consumed and polluted in the production and processing of raw material to the final product in the textile industry. Therefore, water footprint assessment is important for textile products. In this study, the water footprint of cotton cultivation, transportation and textile industry was calculated by analyzing the amount of imported cotton, production and processing capacity of cotton yarn and cotton fabrics, wastewater volume, number of workers and pollution load database, for 2012–2016. For the textile industry, the annual water footprint was found to be 1.8 billion m³. This high amount of water footprint and water pollution may result in depletion of groundwater level and can lead to major health problems for the local people, respectively. Total water footprint for ready-made garment product is found to be 27.56 billion m³, whereas considering proper water treatment and water reuse facilities can reduce the grey water footprint to around 1.26 billion m³. This study shows the extent of water pollution, groundwater depletion and economic impact of groundwater extraction, and possible means to reduce water footprint in cotton cultivation and textile industries.

1. Introduction

The ready-made garment (RMG) industry has become the backbone of the Bangladesh economy, being the second largest exporter of clothing after China [1]. The export from the ready-made garment (RMG) sector has reached 32 billion USD in the last fiscal year [2]. Besides contributing significantly to the GDP (gross domestic product), this sector creates about 4.2 million employment opportunities [3]. The growth in this sector undoubtedly has a positive effect on national economic development, but there are also negative implications. The textile industry uses massive amounts of water in the production of goods. Untreated effluent generated by Bangladesh textile industries is one of the major sources of water pollution [4]. In Bangladesh, textile dyeing is categorized as a red category industry under the Environmental Conservation Act (1995) [5]. Textile wastewater contains various chemicals such as oil, grease, caustic, glauber salt, ammonia, sulfide, lead, heavy metals and other toxic substances [6,7]. Typical characteristics of textile industry wastewater generally include a wide range of pH, biochemical oxygen demand (BOD), chemical oxygen demand (COD), total dissolved solids (TDS), heavy metals and strong color [8,9,10,11]. The high volume of textile wastewater may cause alteration of the physical, chemical and biological properties of aquatic environment, and could be harmful to public health and livestock [6,12]. It is reported that in most of the cases, industrial effluents are discharged to nearby river or wetlands without proper treatment [13].

As a water intensive sector, the growth and the sustainability of the RMG sector is highly dependent on how it manages its water risks. Textile industry in general has an enormous water footprint in terms of agricultural water consumption for cotton farming, high water use in textile manufacturing and water pollution [14]. In the textile industry, inlet water mainly comes from groundwater extraction and no water is recycled back to the process, which causes groundwater depletion in the industrial regions. The underground water levels around the city center are dropping at an alarming two to three meters per year due to excessive and indiscriminate withdrawal of groundwater in Dhaka city [15,16]. In addition, high volume untreated textile effluents cause high gray water footprint and increase water stress, which may instigate a quick change of ecosystem and climate change [17]. Thus, it is required to quantify the amount of water consumption and pollution for the growing textile industry in Bangladesh. Calculating the water footprint of textile production is an effective tool to calculate the water consumption and pollution.

Water footprint (WF) is a measure of the use of freshwater for productive activities both in terms of the amount of water consumed (green and blue WF) or polluted (grey WF) was first introduced in 2002 [18,19]. Green water footprint is the volume of rainwater that is stored in the root zone of the soil and evaporated, transpired or incorporated by plants. Blue water footprint is the volume of surface and groundwater required (evaporated or used directly) for the production of a good or service [20,21]. Grey water footprint indicates the water volume needed to assimilate a pollutant load to meet specific water quality standards that reaches a water body [22].

Measuring water footprint and taking all the necessary steps to keep the water footprint level as low as possible is very important for mankind because freshwater is vital to our daily life, but the supply of freshwater is limited [23]. To assess water consumption and pollution for textile cotton products, the water footprint for every stage (from raw material to final product) was calculated in this study. Cotton production was chosen because around 80% of garments made in Bangladesh are sourced from cotton [24]. Uncertainties associated with technological and environmental change (drought) were not considered in this study. Energy consumption in textile processing was also not considered in WF calculation. The effect of current and future pollution load (Biological Oxygen Demand: BOD, Chemical Oxygen Demand: COD, Total Suspended Solid: Total Dissolved Solid: TDS) of textile industries on the environment and human life has been studied in our previously published article [25]. Effect of conventional practice and improved practice (adoption of improved technologies and cleaner production) has been quantified and it was found that the amount of effluent water and pollution load decreased around 22.6% if improved practice is followed [25]. The main objectives of this study are to provide an analysis on the impact of the growth in RMG and textile sector on water security in Bangladesh, calculate water footprint for cotton cultivation for RMG products, calculate water footprint for transportation, calculate water footprint for textile industry for cotton product, calculate productwise water footprint for RMG cotton product and identify opportunities to reduce water use while achieving the aspirations of growth from the industries. Water footprint for cotton cultivation, transportation, spinning, yarn dyeing, fabric manufacturing, fabric washing, dyeing, finishing, and water footprint in RMG sector are calculated. Water footprint for cotton cultivation is calculated by studying and analyzing 101 regions of 11 countries. For the textile industry, water footprint is calculated by analyzing annual production rate, processing capacity, number of workers involved, water consumption and pollution load for different products. Furthermore, effects of adapting new technologies (e.g., zero liquid discharge options) to reduce water footprint are assessed. Overall, this study helps policy makers and industry management to take necessary steps towards sustainable water management.

2. Materials and Method

2.1. Imported Cotton, Cotton Yarn and Cotton Fabric

From cotton field to final RMG products, there are various stages with different impact on water resources. Bangladesh imports a large amount of cotton for its textile and RMG sector. Cotton yarn and cotton fabrics are also imported to meet the demand of this sector. Percentage and amount of imported cotton, cotton yarn and cotton fabric from different countries collected from the Bangladesh Cotton Association (BCA), USDA gain report and Bangladesh Bank Annual Import Payment Report (2012–2013 to 2015–2016) are presented in Appendix A. It was considered that Bangladesh imports cotton yarn at 3300 USD/ton and cotton woven fabric at 8570 USD/ton [26,27]. Seed cotton yield for the countries from which Bangladesh import cotton, cotton yarn and cotton fabric are also given in Appendix A.

2.2. Water Footprint of Cotton Cultivation

During cotton cultivation, three types of water usage are recognized [28]: (i) green water—consumptive use of rainwater stored in soils as soil moisture, (ii) blue water—consumptive use of water withdrawn from the groundwater or surface water and (iii) grey water—pollution of water.

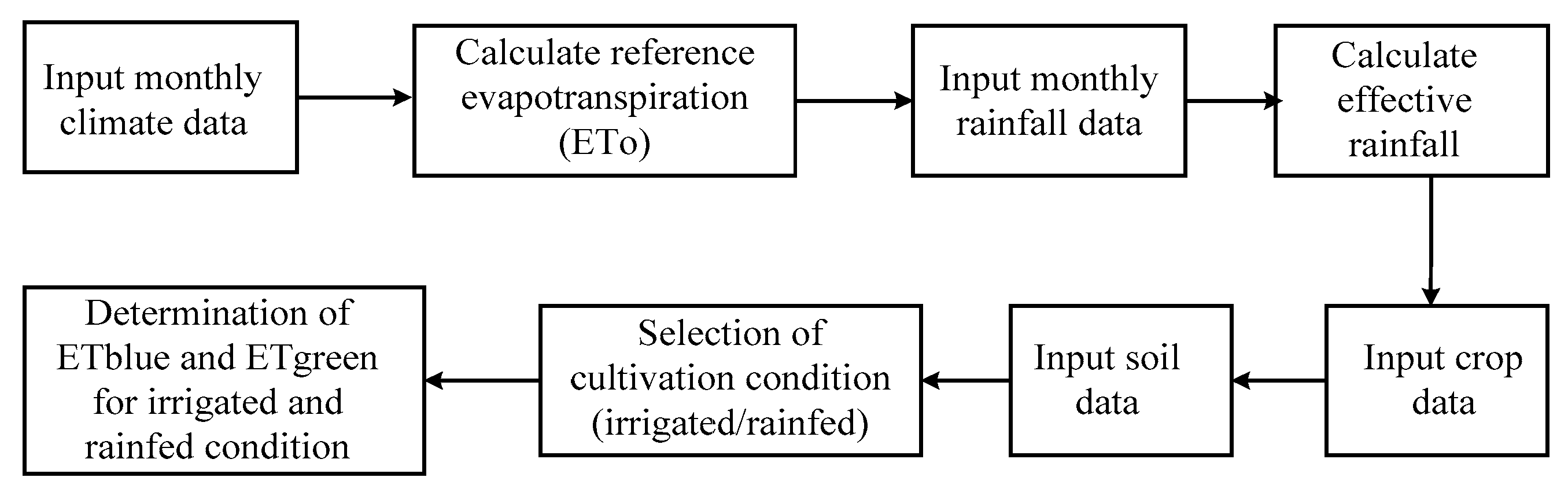

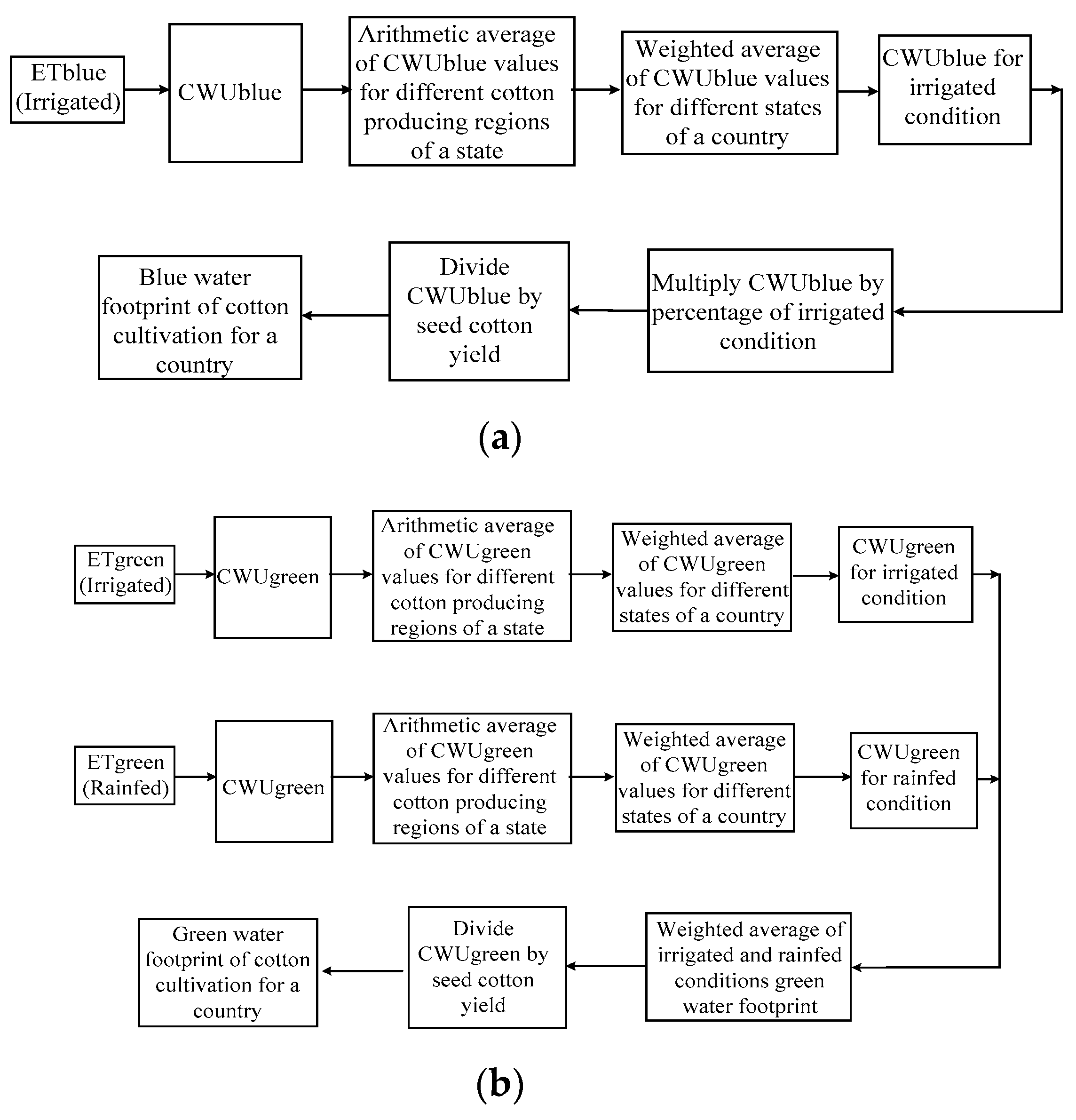

The CROPWAT 8.0 model, a computer model developed by the Food and Agriculture Organization of the United Nations [29] for the calculation of crop water and irrigation requirements based on soil, climate and crop data, was used to estimate blue and green water footprint. Figure 1 represents the calculation procedure of crop water evapotranspiration from which blue and green water footprint were calculated. Figure 2 represents the blue and green water calculation steps from crop water evapotranspiration (mm) and crop water use (CWU in m³/ha). Detailed calculation procedure is given in Appendix B. The crop and soil data, which are required in the CROPWAT model, are given in Appendix C.

The formula to calculate grey water footprint is shown in Equation (1) [32]. In this study, the grey water footprint related to nitrogen use only was quantified. The effect of the use of nutrients, pesticides and herbicides to the environment was not analyzed. The quantity of nitrogen that reaches free flowing water bodies was assumed to be 10 percent of the applied fertilization rate (in kg/ha/year) [33]. The fertilizer application rate in different countries is given in Appendix D. The total volume of water required per ton of nitrogen is calculated considering the volume of nitrogen that leaches or runs off and the maximum allowable concentration in the free-flowing surface water bodies. As ambient water quality standard for nitrogen, 10 mg/L (measured as N: nitrogen) was used for this study [22]. The natural concentration in the receiving water body was assumed to be 0.4 mg/L [34,35].

$$\mathrm{Grey} \mathrm{water} \mathrm{footprint}, \mathrm{WFgrey}=\frac{\mathrm{L}}{{\mathrm{C}}_{\max }-{\mathrm{C}}_{\mathrm{nat}}}=\frac{\mathsf{\alpha }\times \mathrm{Appl}}{{\mathrm{C}}_{\max }-{\mathrm{C}}_{\mathrm{nat}}}$$

(1)

where

• α = the leaching–runoff fraction, defined as the fraction of applied chemicals reaching freshwater bodies,
• Appl = application rate of chemicals on or into the soil (in mass/time),
• c_max = the maximum acceptable concentration for a pollutant and
• c_nat = natural concentration for a pollutant in the receiving water body.

2.3. Water Footprint of Textile Industry

A major part of the internal water footprint of RMG products comes from the textile industry. A lot of water is consumed in yarn dyeing, fabric manufacturing, dyeing and finishing. During textile operation, two types of water usage are distinguished: (i) blue water—consumptive use of water withdrawn from the groundwater or surface water and (ii) grey water—pollution of water.

2.3.1. Raw Material for Textile Industry

It was assumed that 100 kg cotton lint produces 95 kg cotton yarn and 100 kg cotton yarn produces 95 kg fabric [36]. Around 95% of imported and domestically produced cotton is used in the textile industry to meet the national and international demand of textile products; the remaining 5% is used by handloom, medical and other sectors [37]. It was considered that 100% of imported cotton yarn and woven fabrics of cotton is used by the textile industry. The local spinning sector can meet up 90% demand of knit wear garment industries and around 40% demand of woven industries [38]. Around 80 percent of garments made in Bangladesh are sourced from cotton [24]. The percentage of imported and domestically produced raw cotton, imported cotton yarn and imported cotton woven fabric employed in knit and woven fabric manufacturing is shown in Appendix E, which was calculated considering a knit product export price of 4 USD/piece (per piece weight: 250 g) and a woven product export price of 5 USD/piece (per piece weight: 400 g) (collected from local industries).

2.3.2. Water Footprint Calculation for Textile Industry

Mass ratio of dyed and undyed cotton fabric was considered as 4:1. Effluent water from yarn dyeing is calculated by multiplying the total yarn dyed in a year by water key performance indication (KPI). Effluent water from fabric dyeing is calculated as the same procedure as yarn dyeing effluent water. It is considered that water KPI for yarn dyeing, knit fabric dyeing and woven fabric dyeing are 80 L/kg yarn dyed, 120 L/kg fabric dyed and 140 L/kg fabric dyed, respectively, which were collected from local industries. In fabric washing, around one-third water of fabric dyeing is required. Blue water footprint can be calculated by the following formula [22]:

Blue water footprint = Blue water evaporation + Blue water incorporation + Lost return flow

(2)

The lost return flow refers to the part of the return flow that is not available for reuse within the same catchment within the same period of withdrawal. In this study, the assumption was made that the textile processing mills do not return their effluents into the same catchment in the same period of time [32]. Therefore, the lost return flow is assumed to be 95% of inlet water (water abstraction) in a process.

The formula to calculate grey water footprint is shown in Equation (3) [22]. In this study, grey water footprint is calculated for BOD since grey water footprint for BOD is about three times higher than that of COD [25]. However, water quality standard considering COD is four times higher than that of BOD, while the standard for natural concentration of COD in the receiving water body is three times higher than that of BOD standard (Appendix F). This leaves the denominator with a higher value (compared to the denominator when considering BOD) and consequently a lower grey water footprint. The actual and natural concentration of pollution load and ambient water quality standard for pollution load is given in Appendix F.

To calculate grey water footprint in textile industry, BOD values for knit and woven industries were considered to be 450 and 550 ppm [39]. In this study, pollution load from the outlet of industry (ETP inlet) is considered for calculating grey water footprint.

$$\mathrm{Grey} \mathrm{water} \mathrm{footprint}=\frac{\mathrm{L}}{{\mathrm{C}}_{\max }-{\mathrm{C}}_{\mathrm{nat}}}=\frac{\mathrm{Effl}\times {\mathrm{c}}_{\mathrm{effl}}-\mathrm{Abstr}\times {\mathrm{c}}_{\mathrm{act}}}{{\mathrm{c}}_{\max }-{\mathrm{c}}_{\mathrm{nat}}}$$

(3)

where

• E_ffl = effluent volume,
• Abstr = water volume of the abstraction,
• c_effl = concentration of the pollutant in the effluent and
• c_act = actual concentration of the intake water.

2.4. Water Footprint of Workers

The number of farmers/workers involved in cotton cultivation, cotton yarn manufacturing in spinning mills, cotton yarn dyeing, cotton fabric manufacturing and cotton fabric dyeing in textile mills is given in Appendix G. It was assumed that a worker produces 30 L of wastewater daily and takes 5% of wastewater (1.5 L) everyday, which comes from groundwater extraction. Here, the 1.5 L water is assumed to be employed in blue water incorporation and evaporation. The number of workers in RMG was obtained from Bangladesh Garment Manufacturers and Exporters Association BGMEA website [40]. Total number of workers in a stage was multiplied by the amount of water abstraction for a worker to get blue water footprint for the stage over a certain period of time. Grey water footprint for a worker was calculated in the same way as described earlier for grey water footprint for textile processing. In this case, effluent BOD concentration was assumed to be 300 ppm (collected from local industries).

2.5. Water Footprint for Transportation

It was assumed that an average ship size of 7000 TEU (twenty-foot equivalent unit) is used for the transportation of raw cotton, cotton yarn and cotton woven fabric from abroad. Fuel consumption for a 7000 TEU ship is 205 tons per day to travel at a speed of approximately 24 knots [41]. Time required to travel from different countries to Bangladesh is given in Appendix H. Total fuel consumption was calculated by multiplying required time with fuel consumption (205 ton per day) considering 40 feet (capacity: 14,000 kg of yarns) and 20 foot (capacity: 6550 kg of yarns) container sizes for import purpose [42].

To import cotton from Uzbekistan, at first the cotton is transported to Poti, Georgia, by road and then from Georgia to Chittagong port by sea [43]. On the other hand, Indian cotton is imported by road and for the other countries it was considered that cotton is imported by sea. It was assumed that a heavy-duty diesel truck that hauls 19 tons of freight a distance of 7 miles would consume approximately 1 gallon of diesel fuel. Water consumption per ton crude oil recovery to refining conventional gasoline was considered 0.41 m³ [44] and blue water evaporation and incorporation were considered negligible.

3. Results

3.1. Water Footprint of Cotton Cultivation

Bangladesh imports a huge quantity of cotton every year to meet the increasing demand of RMG products and other value-added products in domestic and foreign markets. Thus, water footprint of cotton cultivation comes mainly from the countries from where Bangladesh imports raw material for RMG products.

In 2016, Bangladesh imported 6.3 million bales (1,371,665 metric tons) of raw cotton with a major share from India (around 50%). Around 2% of the national requirement is fulfilled through local production (around 0.13 million bales). Besides raw cotton, around 263,071 tons of cotton yarn and 294,335 tons of cotton fabric were imported in 2016.

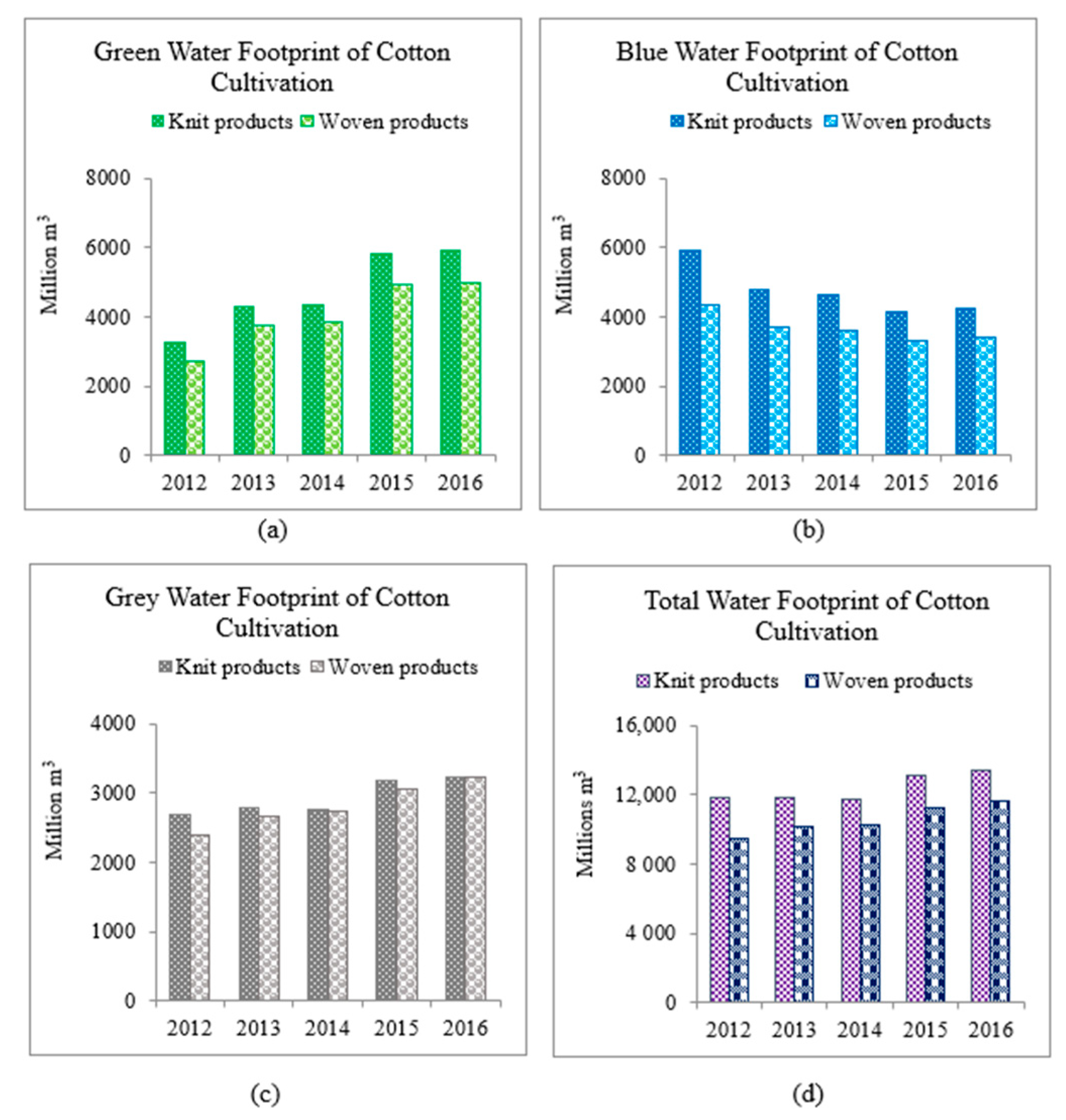

Figure 3 presents green, blue, grey water footprint and total water footprint of cotton cultivation for knit and woven products for the five years from 2012 through 2016. Water footprint of cotton cultivation for knit products is mostly higher than that of woven products. This is because around 60% of raw materials for knit products are met by local spinning mills; the remaining 40% comes from imported cotton yarn. On the other hand, for woven products, around 40% of raw materials comes from imported raw cotton, with the remaining 60% coming from imported cotton yarn and fabric. Local spinning mills use mostly the imported raw cotton to produce cotton yarn. In recent years, around 80% of this imported raw cotton comes from India, Uzbekistan and Africa, where green and blue water requirements for cotton production is much higher than China, from where a major amount of cotton yarn and cotton fabric is imported. As seen in Figure 3a,b, green water footprint for knit and woven products is increasing gradually and blue water footprint for knit and woven products is decreasing gradually. In 2012, green and blue water footprint of cotton cultivation for RMG products was found to be 5.98 and 10.21 billion m³, respectively, whereas, in 2016, the values were 10.87 and 7.65 billion m³, respectively. Currently, a larger percentage of raw cotton is imported from India, where around 65% of cotton is grown under a rainfed condition. The percentage of raw cotton imported from Uzbekistan is decreasing, where almost 100% of cotton is grown under an irrigated condition. Thus, over the years, green water footprint is increasing and blue water footprint is decreasing for both knit and woven products.

Grey water footprint of cotton cultivation is increasing gradually because of greater cotton demand; for per kg RMG production, grey water footprints of cotton cultivation were found to be 3695 L in 2012 and 3705 L in 2016. Here, only nitrogen fertilizer was considered to calculate grey water footprint as nitrogen is most susceptible to leaching because it cannot be retained by the soil. Phosphorus has low mobility in the soil and leaching is generally not a problem. Potassium mobility in soils is intermediate between nitrogen and phosphorus, but it is not easily leached because of having positive charge (K+), which causes it to be attracted to negatively charged soil colloids [36]. Total water footprints of knit and woven products are shown in Figure 3d. In 2016, total water footprint of cotton cultivation for knit and woven products was 13.4 billion m³ and 11.6 billion m³, respectively.

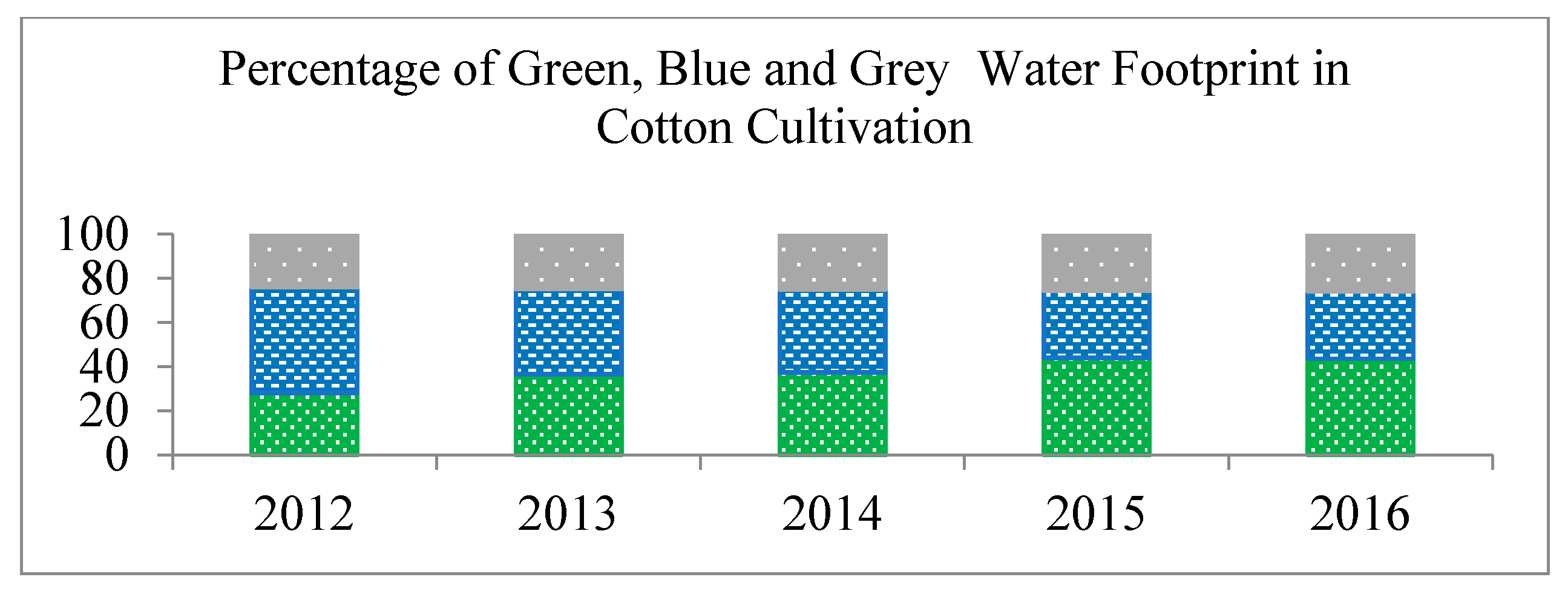

Figure 4 presents the percentage of green, blue and grey water footprint of cotton cultivation for the last five years. In 2012, percentage of green, blue and grey water footprint of cotton cultivation was 28, 48 and 24% respectively; whereas, for 2016, the values were 43, 31 and 26%, respectively. The percentage of blue water footprint is decreasing and the percentage of green water footprint is increasing because of greater percentage of imported cotton from countries where cotton is cultivated mostly under rainfed conditions. The percentage of grey water footprint changes with year is not large enough compared to the import percentage because of imported cotton from the countries where nitrogen fertilizer application rate is lower.

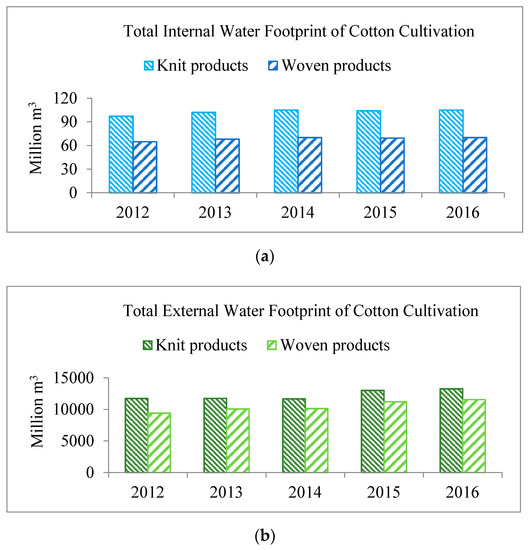

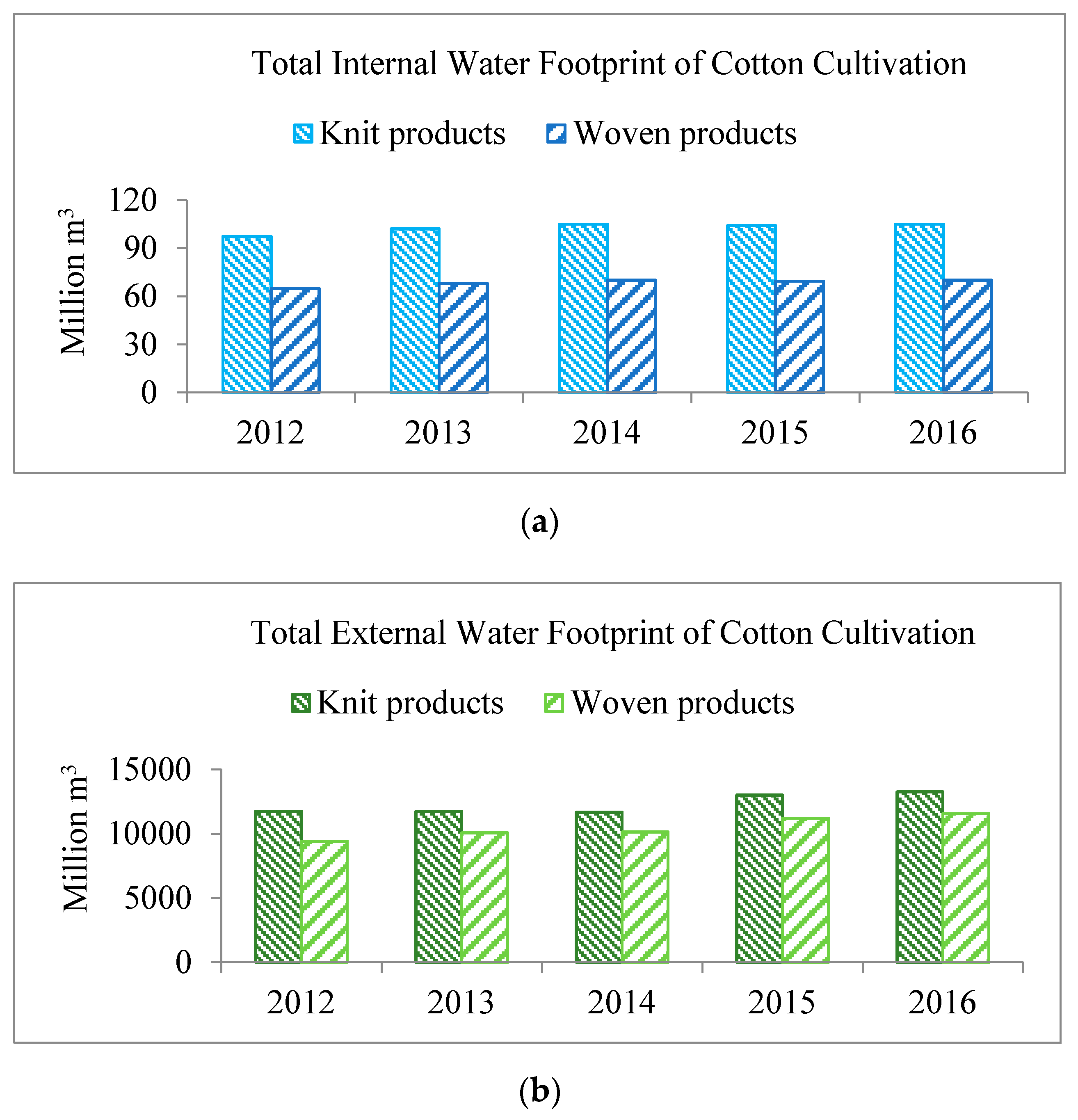

The internal water footprint comes from the water use and pollution inside the country, while external water footprint comes from water use and pollution abroad. In cotton cultivation, water footprint comes mainly from abroad because the amount of cotton cultivated in Bangladesh is only 2% of the demand of the RMG sector. External water footprint for cotton cultivation is 98.93% whereas internal water footprint for cotton cultivation is only 0.7%.

Total internal water footprint (due to domestically produced cotton) of cotton cultivation increased around 8% in the last five years due to increase of cotton production from 170 to 184 million metric tons (Figure 5a). In 2016, total internal water footprint of cotton cultivation was 184 million m³ (114 million m³ for knit products and 70 million m³ for woven products) and total external water footprint for cotton cultivation was 25,600 million m³ (14,100 million m³ for knit products and 11,500 million m³ for woven products). The total external water footprint of cotton cultivation increased around 16% in the last five years due to more imported cotton to meet RMG sector export demand (Figure 5b).

3.2. Water Footprint for Transportation

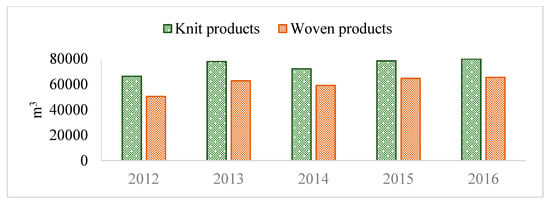

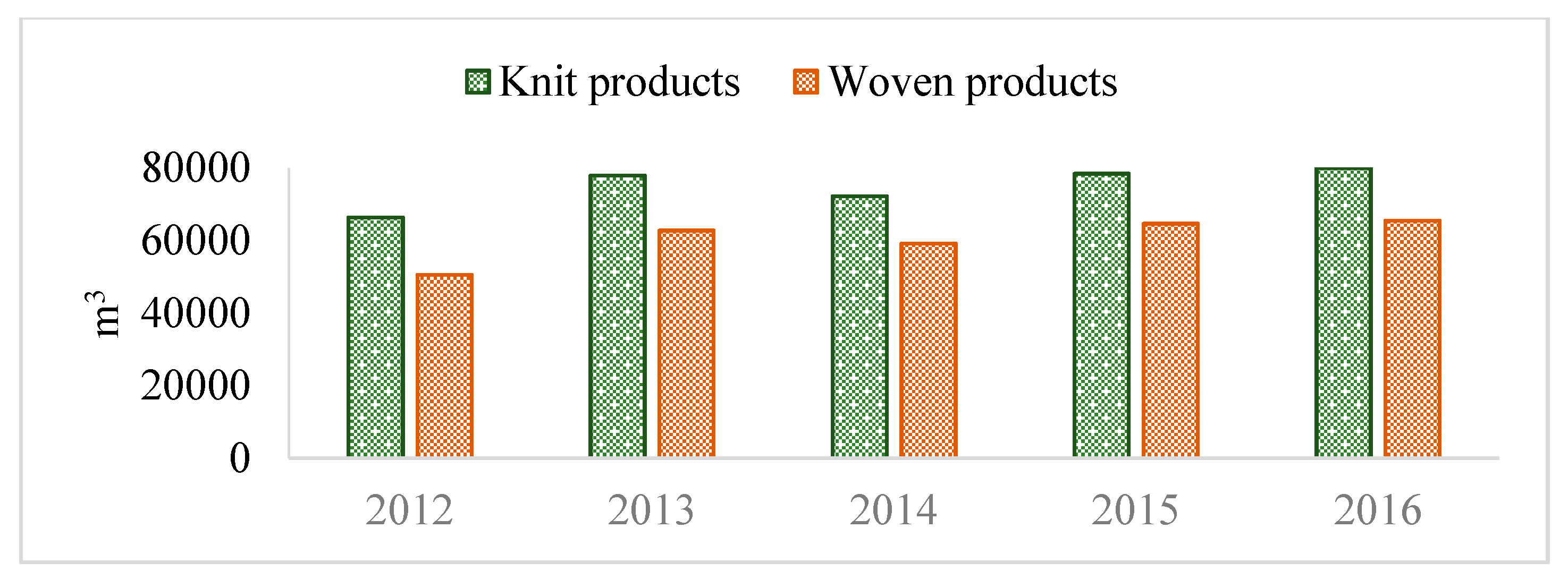

Blue water footprint to transport raw cotton, cotton yarn and cotton fabric from different countries to Bangladesh was calculated by considering fuel consumption during the transportation. Blue water footprint for transportation for knit and woven products was found to be 79,988 m³ and 65,461 million m³, respectively, in 2016 (Figure 6). For knit production, water footprint is higher than woven products because the amount of raw material transported by road for knit product is higher than that for woven product. Blue water footprint for transportation depends on fuel consumption, and fuel consumption depends on the distance between countries and the mode of transportation (by road/by sea). Fuel consumption by road transportation is larger than transportation by ship.

3.3. Water Footprint of Textile Industry

In the textile industry, there are various processes to convert the raw material into the final product. At first, the raw cotton is spun in spinning mills to produce cotton yarn. After necessary processing, cotton yarn is employed to produce cotton fabric. Necessary treatments (bleaching, washing, dyeing, printing, finishing etc.) are done to make the fabric and produce fabric suitable for garment use. From raw cotton to final products in the garments, a huge amount of water is required for various processes. In this study, water consumption in every step both for process and by worker was calculated.

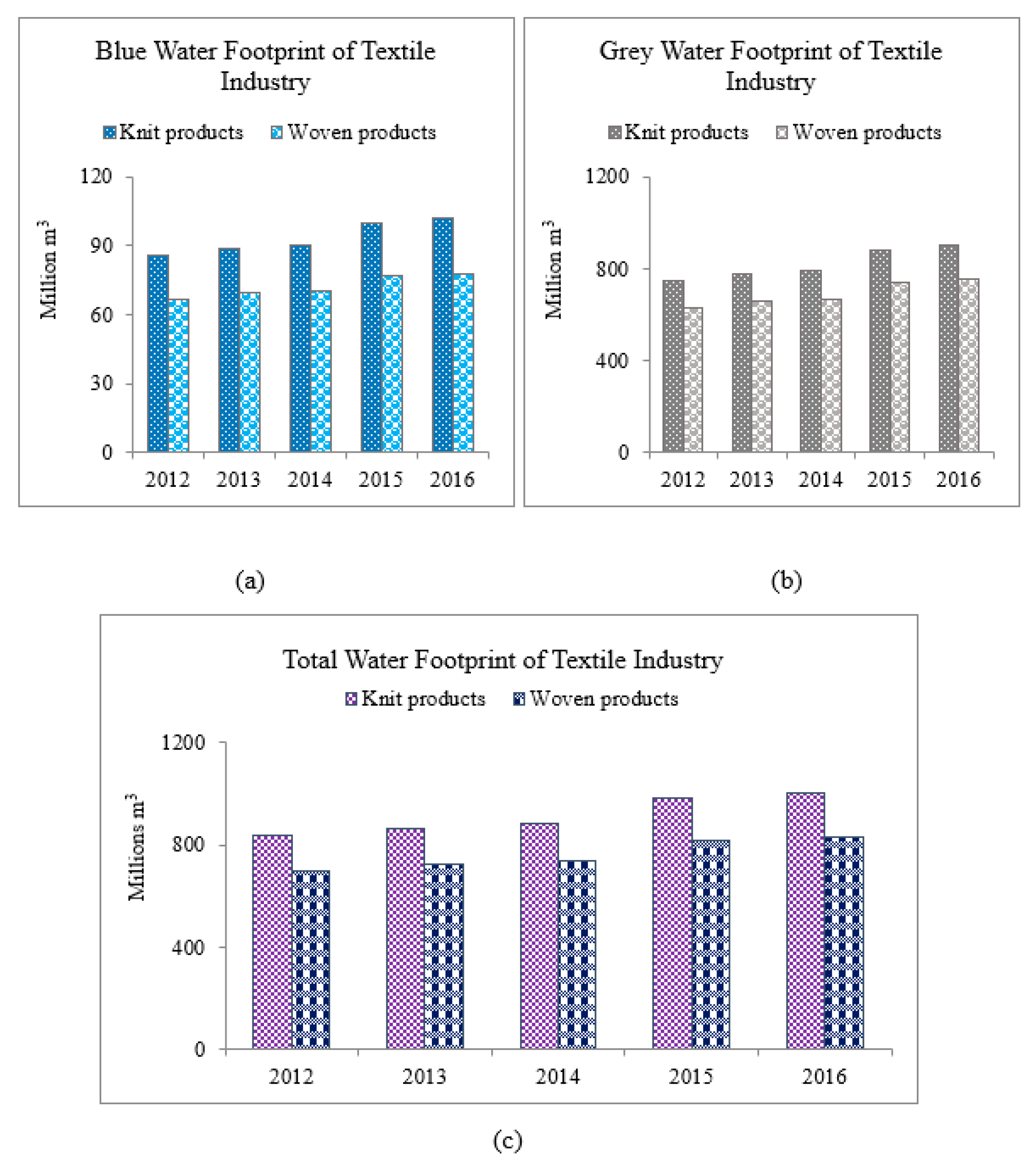

Figure 7 shows blue, grey and total water footprint of textile industry for the last five years. In 2016, the blue water footprint for knit and woven products were 102 and 77.5 million m³, respectively (Figure 7a), whereas the grey water footprint for knit and woven products were 898 and 750 million m³, respectively (Figure 7b). The total water footprint for the textile industry increased around 20% for knit products and around 23% for woven products from 2012 to 2016 (Figure 7c). To fulfill this high amount of water demand in the textile industry, around 180 million m³ of groundwater was extracted in 2016. A large amount of groundwater is extracted, which causes groundwater depletion in the industrial regions. High pollution load is harmful for environment and human health. Industrial toxic and chemical wastes that are disposed into water bodies are responsible for several types of health problem of illness and premature deaths across the globe. The presence of dyes in surface and subsurface water causes many waterborne diseases, viz., nausea, hemorrhage, ulceration of skin and mucous membrane, dermatitis, perforation of nasal septum and severe irritation of respiratory tract [45,46]. Moreover, any increase of salinity water caused by excessive groundwater extraction may cause high blood pressure, heart disease and heart failure [47]. A large number of villages at Gazipur and D.N.D (Dhaka–Narayanganj–Demra) Embankment are now being threatened by the environmental degradation caused by textile effluent [45].

For the textile industry, blue water footprint was 9% and grey water footprint is around 91% for 2012–2016. The main reason for this huge percentage of grey water footprint is high amount of water pollution during textile processing.

As most of the raw materials for cotton products are imported as raw cotton, 99.58% of water footprint is internal in the textile operation. Imported cotton yarn and cotton woven fabric are also dyed in the country; as a result, only water footprint for workers to produce cotton yarn and cotton fabric contributed to the external water footprint (0.42%).

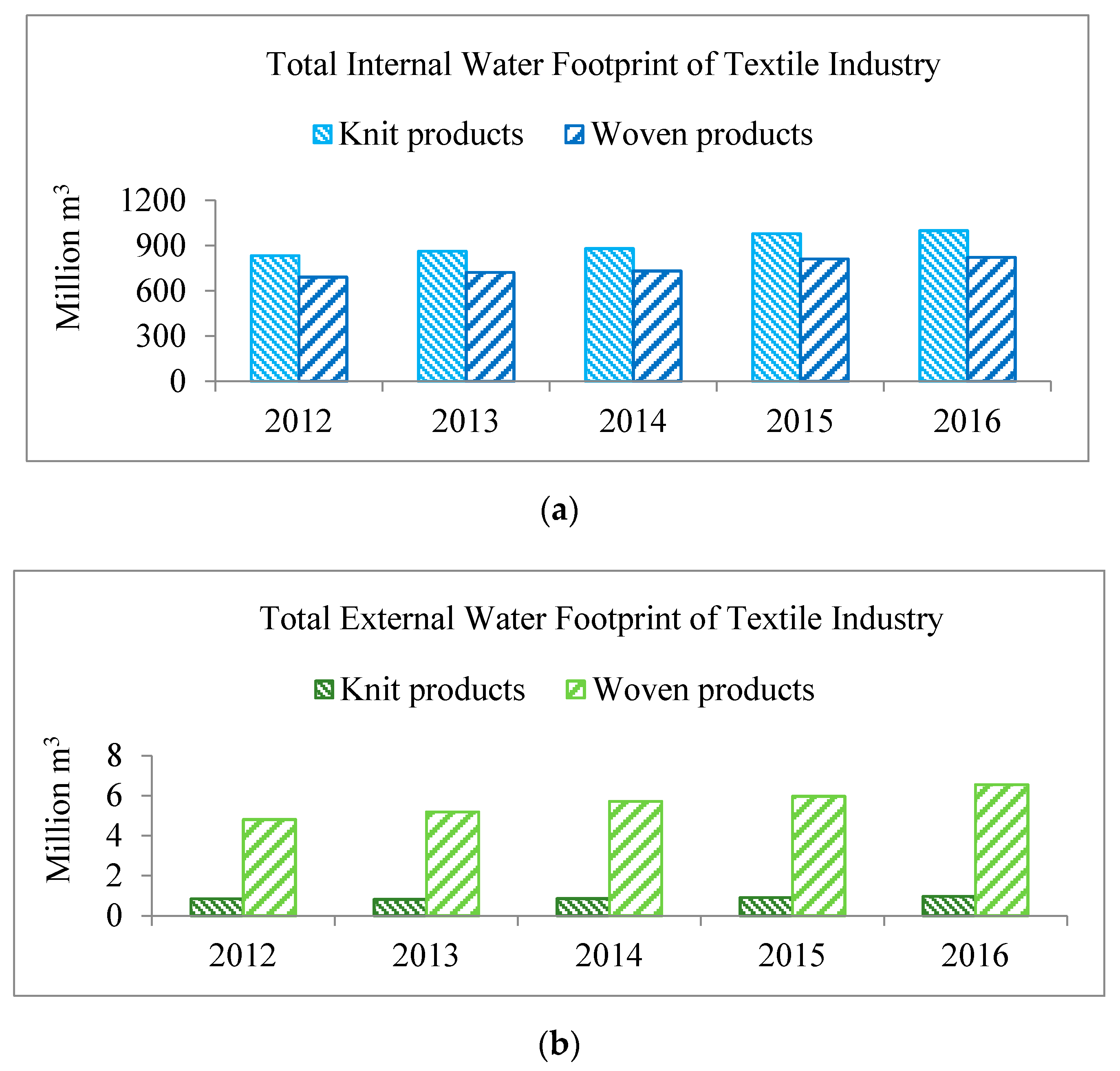

Figure 8 shows the total internal and external water footprint for the textile industry. In 2016, total internal water footprint of textile processing was 1820 million m³ (999 million m³ for knit fabric and 821 million m³ for woven fabric), whereas the total external water footprint of textile processing was 7.51 million m³ (0.97 million m³ for knit fabric and 6.54 million m³ for woven fabric). Total internal water footprint of textile processing was around 242 times higher than the total external water footprint of textile processing (in 2016).

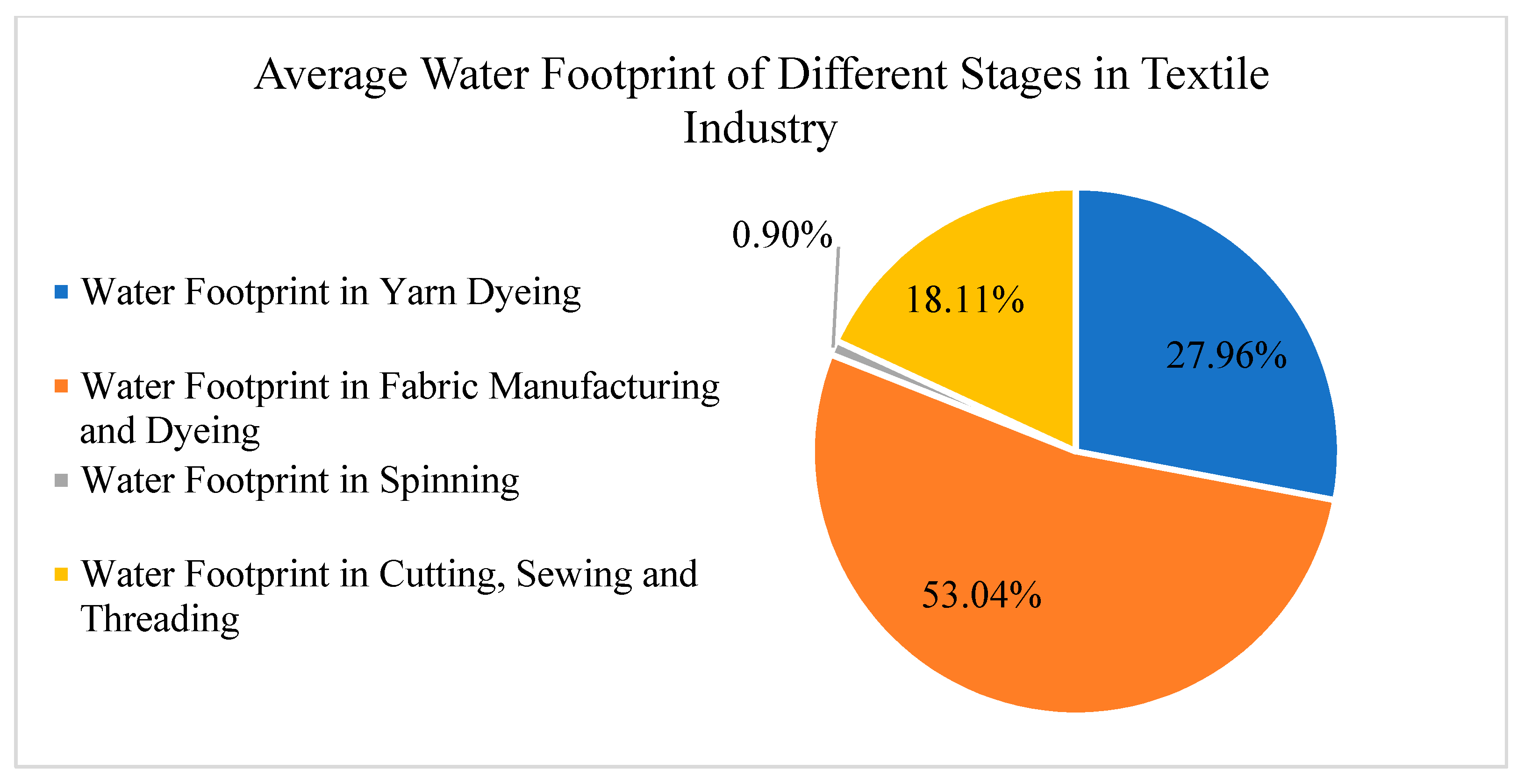

Water footprint in different stages in the textile industry can be seen in Figure 9. A large amount of water is employed in fabric washing, dyeing and finishing, which is 53%, while water footprint in yarn dyeing is 28% of total water footprint in the textile industry. Percentages of water footprint in spinning (0.9%) and fabric manufacturing (0.5%) are very small because in these stages most water footprint comes from worker water consumption and pollution. For yarn dyeing and fabric dyeing water footprint comes from both the dyeing process and the workers involved in the process. In RMG sector, there is also no water footprint of the process, the only water footprint is contributed by the workers, which is 18% of total water footprint in textile industry. This percentage of worker water footprint is higher than spinning and fabric manufacturing as in RMG sector number of workers is higher than spinning and fabric manufacturing. Water footprint in wet processing is 81% because of high consumption of water in various steps of product manufacturing; the remaining 19% of water footprint was contributed by the workers working in the industry.

3.4. Water Footprint in Different Stages from Cotton Cultivation to Final Product

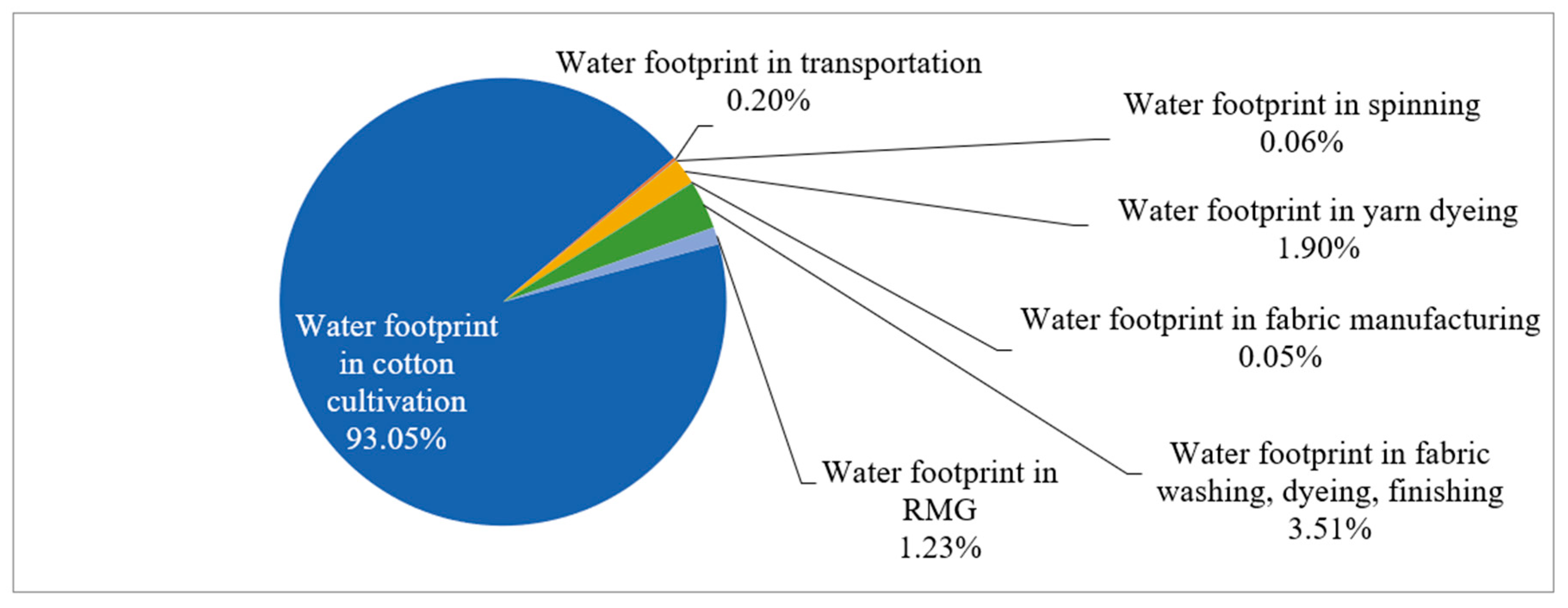

Figure 10 shows the percentage of water footprint in different stages of RMG production (from cotton cultivation to final product). The highest water footprint is in cotton cultivation, 93%; the second highest is for fabric washing, dyeing and finishing, 3.5%. Around 7% of total water footprint is associated with the textile industry. The percentage of water footprint in cotton cultivation is 93% of total water footprint because of a higher percentage of water consumption and pollution during cotton cultivation.

3.5. Total Water Footprint of RMG Production

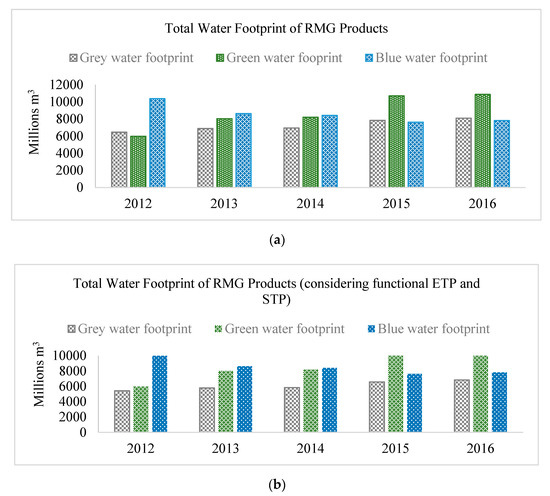

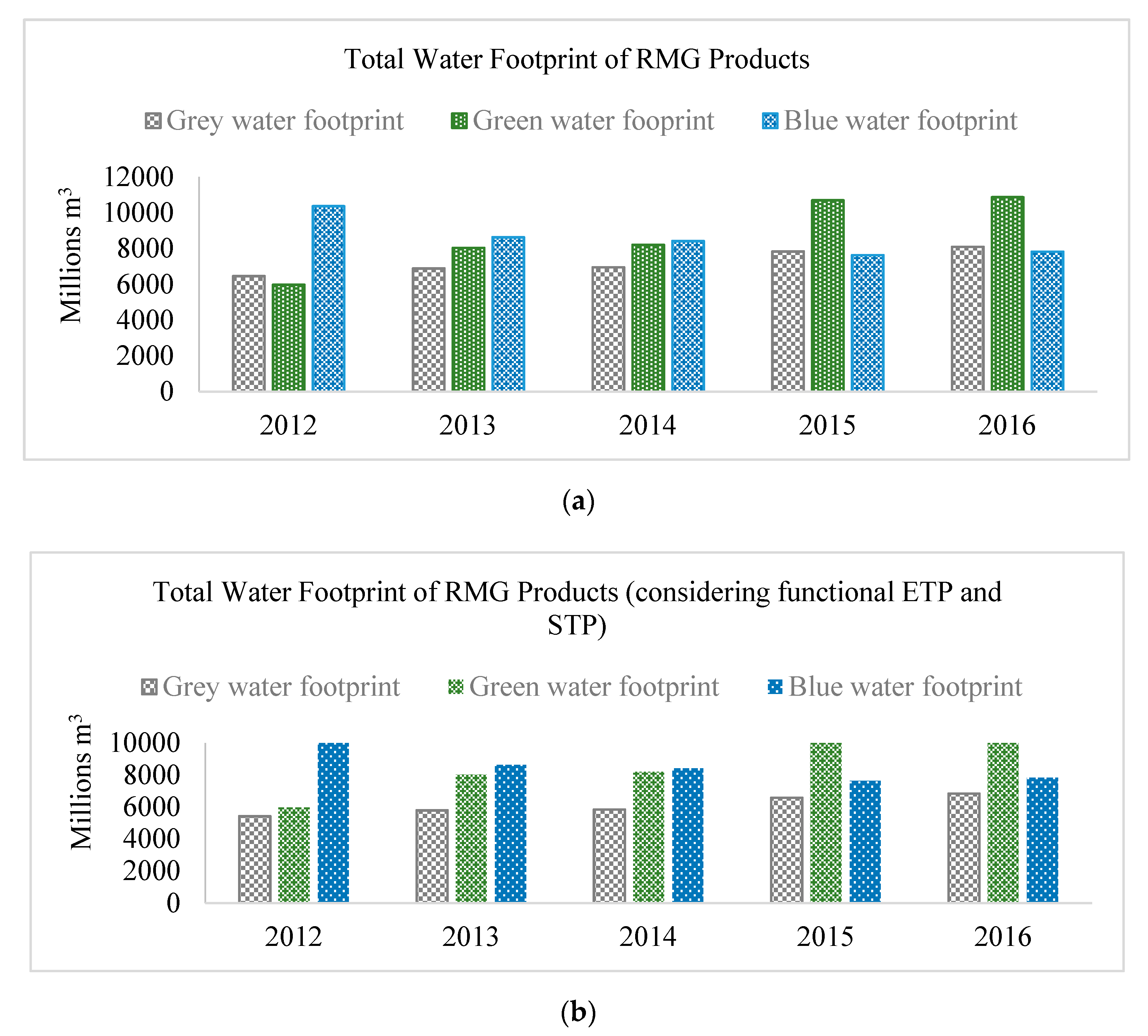

The total water footprint of RMG production is the water footprint of product from cotton cultivation to final product in the garments. Figure 11a shows total water footprint of RMG production for the last five years. Total green, blue and grey water footprint of RMG production was 10.87 billion m³, 7.88 billion m³ and 8.81 billion m³, respectively in 2016. Total consumptive water was 18.75 billion m³ for 1.74 million tons of fabric.

If it is considered that textile industries are running an ETP (effluent treatment plant) and STP (sewage treatment plant) as per national requirements (ECR 1997), the grey water footprint will be reduced, which is shown in Figure 11b; green and blue water footprint will remain same as the values calculated without considering ETP and STP. In 2016, grey water footprint was found to be 6.84 million m³, which is 22% lower than the grey water footprint calculated without considering ETP and STP.

3.6. Water Footprint Calculation for Different Products

Water footprints for different textile products, such as shirt, T-shirt, bedsheet and a pair of jeans were calculated considering water consumption and pollution in every stage from cotton cultivation to final product in the RMG sector.

3.6.1. Water Footprint of a T-Shirt

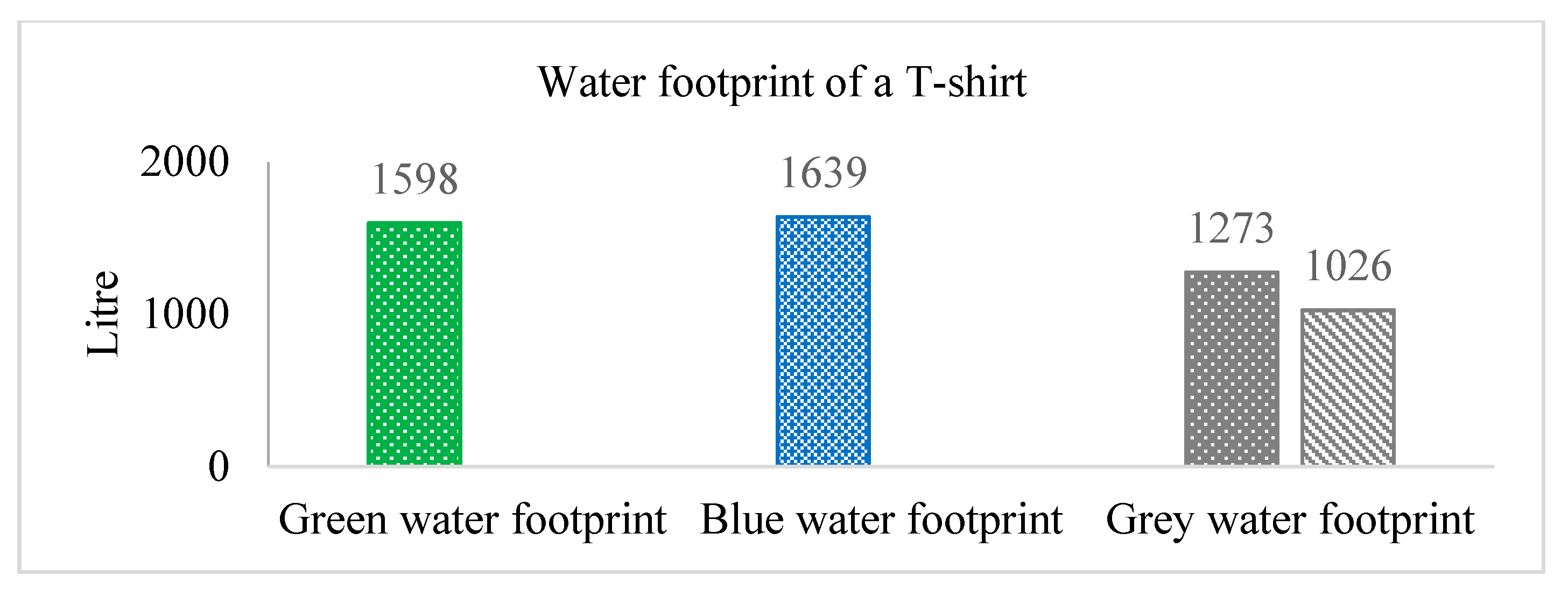

Water footprint of a T-shirt is estimated to be 4510 L, considering that the weight of one T-shirt is 250 g [48]. Among the total water footprint, green, blue and grey water footprints were found to be 1598 L, 1639 L and 1273 L, respectively (Figure 12). This calculation was made without considering ETP and STP. If ETP and STP are considered, grey water footprint for one T-shirt is reduced to 1026 L.

3.6.2. Water Footprint for a Shirt

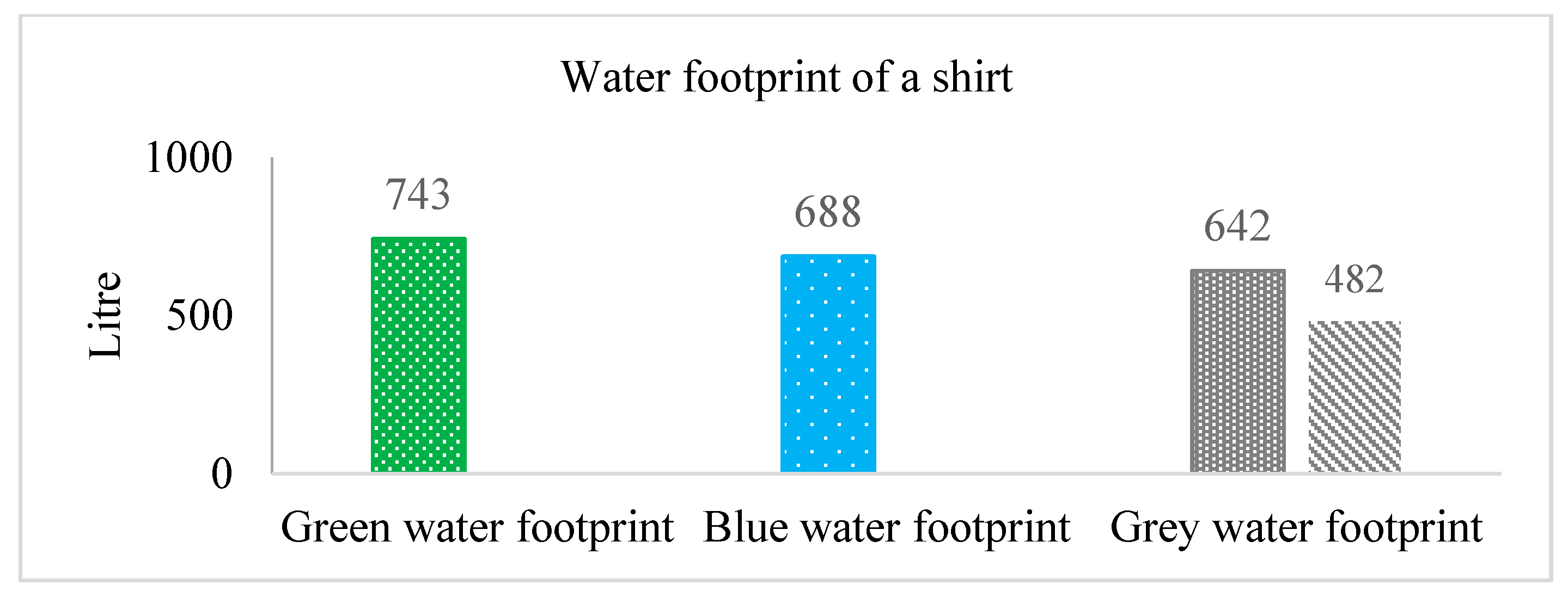

Water footprint of a shirt was estimated at 2194 L, considering weight of one shirt is 150 g [48]. Among the total water footprint, green, blue and grey water footprints were found to be 743 L, 696 L and 642 L, respectively (Figure 13). This calculation was made without considering ETP and STP. If ETP and STP are considered, the grey water footprint for one shirt is reduced to 482 L.

3.6.3. Water Footprint for a Single Bedsheet

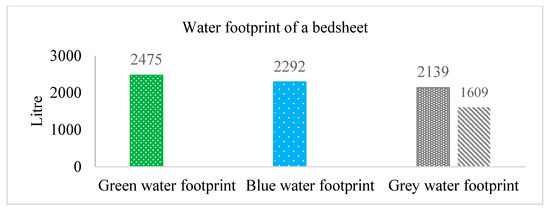

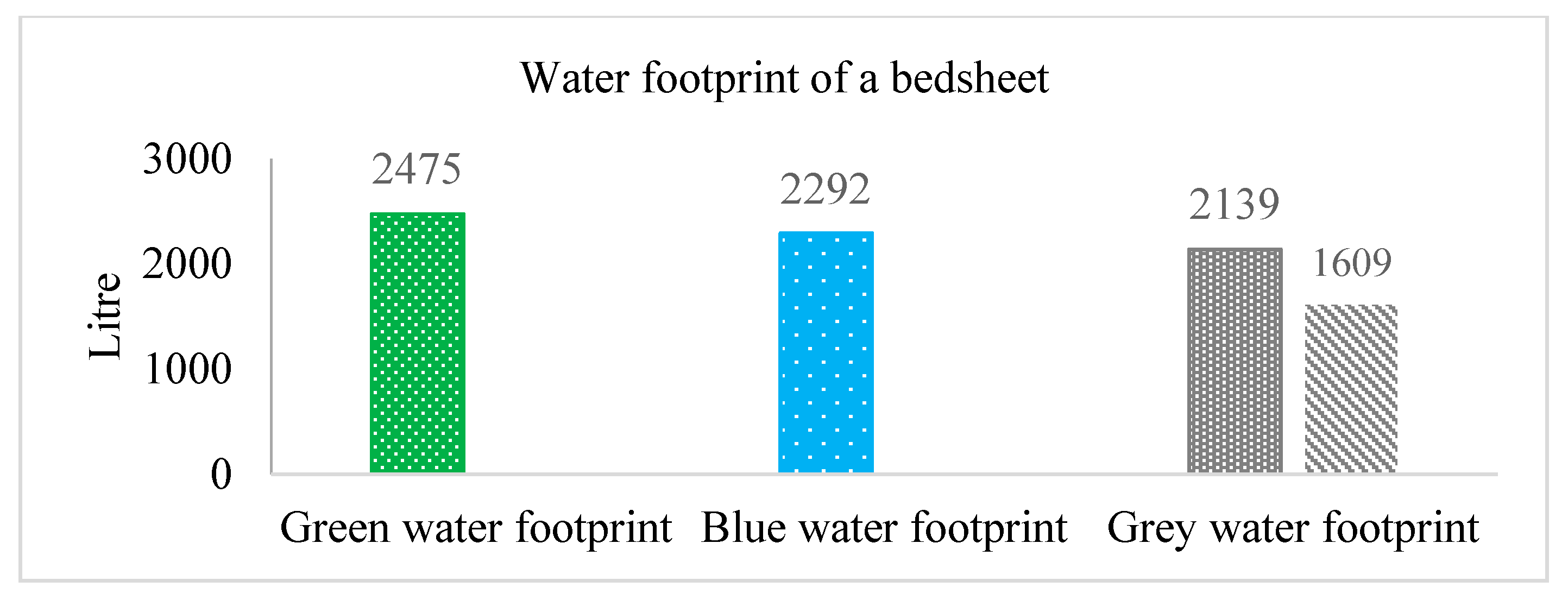

Water footprint of a single bedsheet was estimated to be 7312 L, considering the weight of a single bedsheet is 500 g [49]. Among the total water footprint, green, blue and grey water footprints were found to be 2475 L, 2292 L and 2139 L, respectively (Figure 14). This calculation was made without considering ETP and STP. If ETP and STP are considered, the grey water footprint for a single bedsheet is reduced to 1609 L.

3.6.4. Water Footprint for a Pair of Jeans

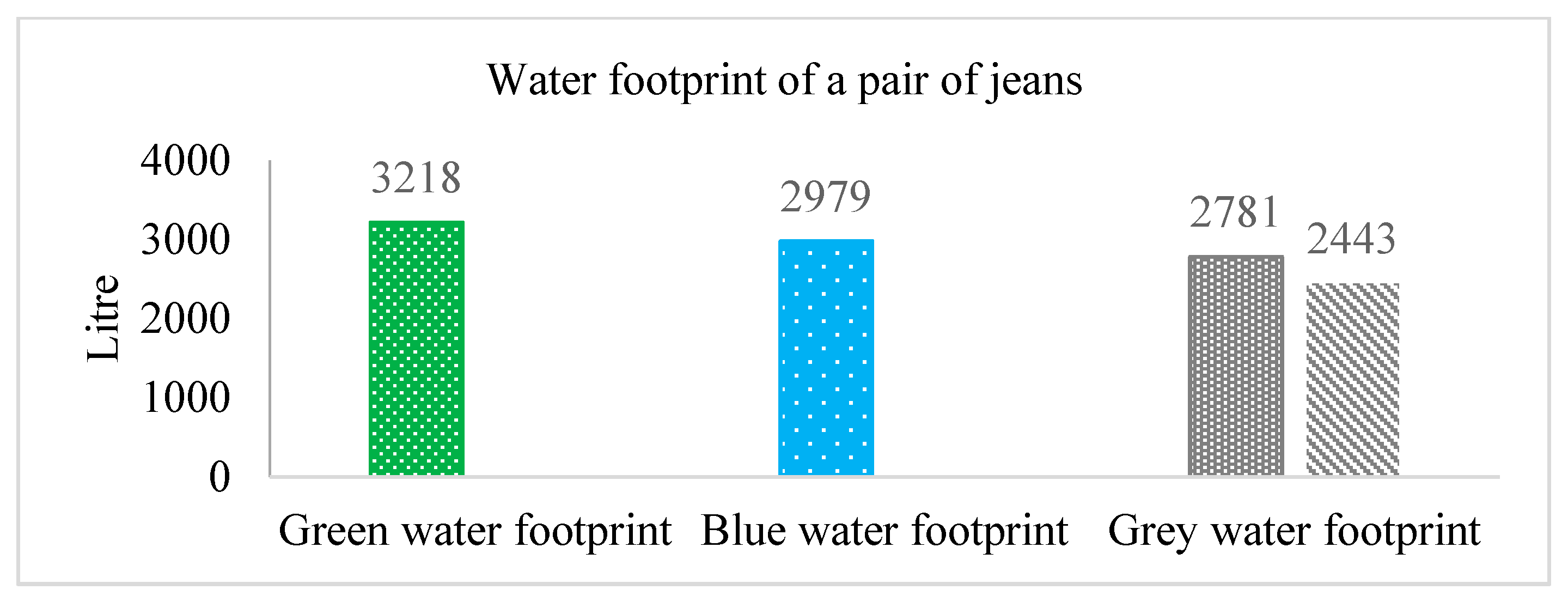

Water footprint of a pair of jeans was estimated to be 9506 L, considering the weight of a pair of jeans is 650 g [48]. Among the total water footprint, green, blue and grey water footprints were found to be 3218 L, 2979 L and 2781 L, respectively (Figure 15). This calculation was made without considering ETP and STP. If ETP and STP are considered, grey water footprint for a pair of jeans is reduced to 2443 L.

4. Discussion

4.1. Cotton Cultivation

A large amount of water is being used for cotton production in every year, which is quantified by water footprint calculation (Figure 3d). To reduce this water consumption, farmers are trying to adopt new technologies. Organic cotton farming is gaining popularity because of the elimination of toxic pesticide use, reduction of water consumption in cotton farming, and reduction of blue water footprint up to 63 percent [50,51]. The main producers of organic cotton are India, China, Turkey and Kyrgyzstan. One of the drawbacks of organic cotton farming is high labor requirements for manual weeding. However, it might be an opportunity for developing countries like Bangladesh to create employment opportunities for its large population [52].

Bangladesh mainly imports raw cotton to meet its textile demand. However, cotton production in Bangladesh is increasing daily to fulfill the growing raw material demand of the RMG sector and reduce the import load. Therefore, it is time for Bangladesh to look for organic farming and smart irrigation systems to reduce water consumption in cotton cultivation. The main challenges of organic cotton production in Bangladesh are lack of training facilities for farmers, land scarcity and an unstable world market [53]. Government and stakeholders need to come forward to initiate the sustainable cotton farming and take necessary steps to overcome these challenges.

4.2. Textile Industry

The textile sector is the backbone of Bangladesh’s economy. However, the industry is faced with many challenges due to high resource (energy, water and chemical) footprint and consequent environmental impact [54]. Around 180 million m³ of water is consumed by textile industries annually, and water consumption will increase with the increasing demand of RMG production. Total water footprint for cotton product was found to be 15,748 L for per kg product, which is close to the previously done study for global water footprint for cotton products [55].

In 2021, textile production will increase around 1.6 times, which will consume and pollute more water [25]. Increasing wastewater volume results in increasing water footprint (both blue and grey water footprint) and lowers the level of the water table. It has been reported that in Dhaka city, groundwater levels dropped more than 60 m over the last 50 years and these levels continue to decline at a high rate [56]. Groundwater helps in supporting overlying rock and soil; once the water table drops, gradual settling of the land may occur, a phenomenon known as land subsidence [57]. From 2012 to 2016, blue water footprint (water consumption) and grey water footprint (water pollution) in the textile industry increased around 21% and 23%. Grey water footprint associated with chemical production and consumption was not considered in this study. Considering those parameters will further increase the grey water footprint.

According to a recent study, textile industries near the Shitalakkhya River discharge their untreated dye with heavy metals into the river [58]. By consumption and using this polluted water in bathing, washing and household work, the marginal people who are living on the bank of the Shitalakkhya River, especially children, are prone to different types of water borne diseases, viz., nausea, skin sores, irritation in respiratory tract [12], typhoid, dysentery, cholera, viral hepatitis etc. and loss of life [58]. Inland water bodies affect climate at the regional scale through exchange of heat and water with the atmosphere [59]. In addition, they play a substantial role in the global carbon (C) cycle and thus potentially affect climate as well [60].

In addition, excessive groundwater extraction and inconsistent rainfall caused by climate change may increase the salinity of groundwater and soil [61], and further affect aquatic ecosystems and reduce the productivity of crops and aquatic life. Therefore, it is important to treat, recycle and reuse industrial wastewater to minimize groundwater extraction and relevant water footprint. Implementation of zero liquid discharge (ZLD) in the textile industry will contribute significantly to reduce water footprint in the textile industry.

A ZLD system involves a range of advanced wastewater treatment technologies to recycle, recovery and reuse of the "treated" wastewater, and thereby ensure there is no discharge of wastewater to the environment. A typical ZLD system comprises the following components [62]: (i) pretreatment, (ii) reverse osmosis and (iii) evaporator and crystallizer. One of the major problems of ZLD is disposal of solid waste that will be generated. The problem can be solved by using the solid waste in other industries or by developing ZLD technologies that will generate lower solid waste or, no solid waste [63]. The high cost of operation of a ZLD is also a major challenge. The recovery of water and salt offsets these costs significantly [54].

Bangladesh DoE (Department of Environment) recently issued a zero liquid discharge (ZLD) regulation to deal with the problem of effluent, mandating all textile mills to install zero liquid discharge effluent treatment plant (ZLD–ETP) systems. The initiative is focused on incorporating learning from best practices, technologies and policy initiatives to support effective implementation of the ZLD mandate in Bangladesh [64].

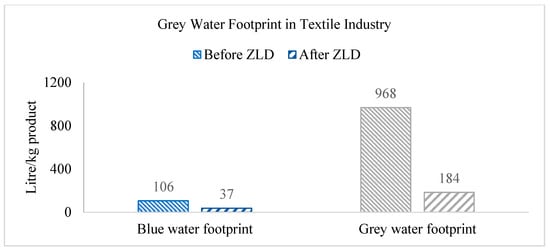

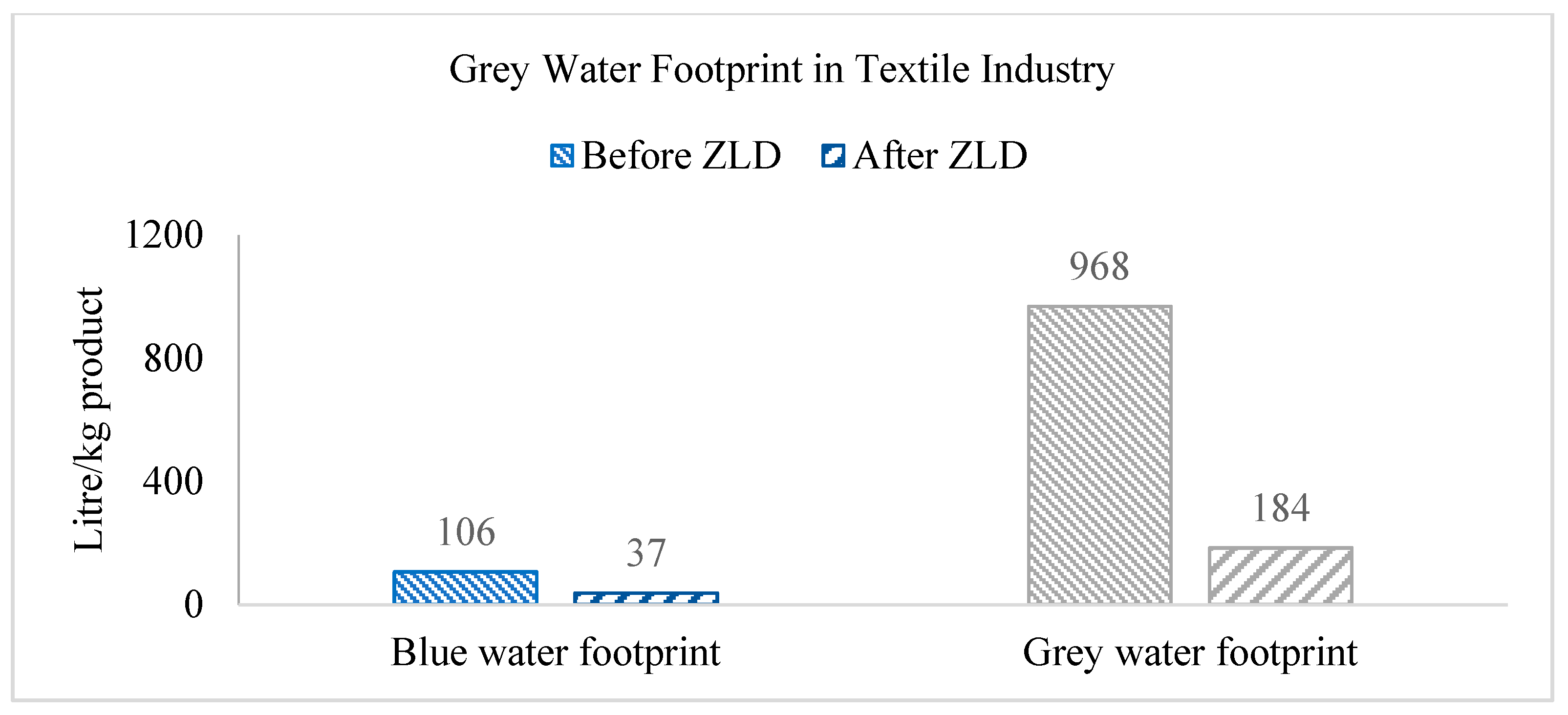

Figure 16 shows water footprint before and after the implementation of ZLD. It was considered that 5% of effluent water from the textile industry is lost in the treatment process and the rejection from the RO is further treated in evaporator to separate the salt from the liquid. From the figure, it can be seen that after implementation of ZLD, blue water footprint will decrease around 72% and grey water footprint will decrease around 88% for per kg textile product (considering no liquid discharge and only 5% of effluent water being lost in the process). This huge decrease in water usage and pollution can protect the environment and aquatic life from further pollution and extinction, respectively.

5. Conclusions

Water footprint calculation is a useful tool for the identification of relevant water consumption and pollution. In this study, annual water footprint of apparel products was calculated from the supply chain to final product in the garments. About one-third of water footprint in RMG sector is related to the pollution. This is due to the high amount of water pollution during cotton cultivation and textile operation.

Around 91% of total water footprint of RMG production is associated with cotton cultivation, which is mostly external water footprint. Total water footprint of cotton cultivation was found to be 25 billion m³. This large water footprint indicates the importance of organic cotton farming, which can reduce water and fertilizer consumption during cotton cultivation. Cotton produced in India, East and West Africa and Bangladesh is less dependent on irrigated water (more dependent on green water) due to cultivation in rainfed condition, whereas most cotton in Uzbekistan, USA, Pakistan, Australia, Egypt, Turkmenistan and China is grown under irrigated condition (more dependent on blue water). The amount of irrigated water in these countries can be reduced by adopting organic farming. In cotton cultivation, water pollution (grey water footprint) can be reduced by reducing use of fertilizer.

In the textile industry, the grey water footprint was found to be around 91% of total water footprint in textile industry, which is quite alarming for the country as around 99.5% water footprint in the textile industry is internal water footprint. This will severely affect the aquatic system, public health and surrounding environment. It is important to treat textile effluents and reuse the treated water. It can reduce water extraction, water footprint and water stress, and protect the aquatic ecosystem. If it is considered that textile industries are running their ETPs, grey water footprint will be less for the industries running ETP. But in most of the cases, ETPs are not properly operated in the industries.

The results and analysis show the RMG sector’s current scenario in terms of amount of rainwater used, groundwater extraction and water pollution. This study will be highly useful for the government, funding agencies, industry management and technologists to make strategic policies and adopt appropriate technologies to reduce water footprint for the sustainable growth in the Bangladesh apparel sector.
