Changes in Water Surface Area of the Lake in the Steppe Region of Mongolia: A Case Study of Ugii Nuur Lake, Central Mongolia

Abstract

The Ugii Nuur Lake is not only one of the small hydrologically closed lakes located in the Orkhon River Basin in Central Mongolia but also the most vulnerable area for global climate change. Therefore, this study aims to investigate the impacts of recent global climate change on the water surface area. The data we analyzed were various measured hydro-meteorological variables of the lake basin and the lake surface area, which was estimated from Landsat series satellite data from 1986 to 2018. The methods we used were Mann-Kendall (MK), Innovative trend analysis method (ITAM), Sen’s slope estimator test, correlation, and regression analysis. The variation of lake water surface area has a strong positive correlation with the change of the lake water level (r = 0.95). The Mann-Kendall trend analysis has indicated that under a significant decrease in total annual precipitation ($\mathrm{Z}$ = −0.902) and inflow river discharge ($\mathrm{Z}$ = −5.392) and a considerable increase in total annual evaporation ($\mathrm{Z}$ = 4.385) and annual average air temperature ($\mathrm{Z}$ = 4.595), the surface area of the Ugii Nuur Lake has decreased sharply ($\mathrm{Z}$ = −6.021). The total annual evaporation (r = −0.64) and inflow river discharge (r = 0.67) were the essential hydro-meteorological factors affecting the surface area of the Ugii Nuur Lake. The lake surface area decreased by 13.5% in 2018 compared with 1986. In the near future, it is vital to conduct scientific studies considering the volume of lake water, groundwater, and the anthropogenic impact.

1. Introduction

Global climate change has apparent impacts on the environmental and hydrological systems [1]. It is possible to determine the impacts by temporal variability in the surface water resources at the center of the mainland [2] especially over the semi-arid steppe, Gobi, and desert region of Central Asia [3]. Thus, it has become an interesting issue to study the change of water resources in those regions since there is low total annual precipitation and few surface water distributions [4,5]. Those regions include Mongolia, where the annual average air temperature has increased by 2.2 °C since the 1940s, which is three times over-heated than global warming speed. The territory of Mongolia is characterized as semi-arid to arid. Total annual precipitation is 300–400 mm in the Northern mountainous regions of Mongolia; 150–250 mm in the steppe; 100–150 mm in the steppe desert; and 50–100 mm in the Gobi Desert. About 80% to 90% of total annual precipitation falls in the warm season, which is from April to September [6]. Thus, the Gobi, desert, and steppe regions of Mongolia are considered vulnerable for global climate change [7,8]. Monitoring surface water ecosystems in this region may be necessary for detecting the effects of global climate change. One of these regions is the Ugii Nuur Lake basin, which is a representative location for the dry steppe region of Mongolia and the natural ecosystem influenced by desertification and dryness (Figure 1) [9,10,11]. The Ugii Nuur Lake has been registered under the Ramsar Convention for the Protection of Wetlands of International Importance since 1998; also, it is a famous tourist destination in Mongolia. Meanwhile, the Ugii Nuur Lake basin is an ideal location to study Holocene climate evolution in the continental area of the steppe region in Mongolia [12,13].

Scientists have implemented several local surveys in the fields of soil, vegetation, and ecology surrounding the Ugii Nuur Lake [14], and have also studied lake morphometric parameters [11,14], geological parameters such as the age of lake sediments, paleoclimate, environmental change, and climate evolution, etc. [9,10,12,13,15,16]. The Ugii Nuur Lake Basin belongs to the steppe region of Mongolia with brown steppe soil as a dominant soil type. As for vegetation cover, Stipa, Bidle grass (Cleistogenes), and Agropyron types of grass are the dominant types in the lake basin area [12,14,15]. Jimee [11] considered that the lake formed as a result of the channel meandering processes of the Orkhon river. He also estimated that the surface area of the lake was 5020 km². The main inflow of the lake is the Khogshin Orkhon river. The water regime of the lake was influenced by the flow regulating the capacity of the Orkhon river. Approximately 50% of the lake water surface area has a depth of lower than 3 m [11]. Several studies focused on lake sediments. Pagma et al. [17] determined the interrelation between lake physics and the surrounding climate by taking samples from the borehole drilled with a depth of 0.38 m at the Ugii Nuur Lake bottom. The analysis of the radio-carbon test, which is used for determination of sediment age, shows that the age of the Ugii Nuur Lake would be 2880 ± 50 years at a depth of 1.6–2.0 m [17].

The average elevation above sea level of the lake is not only a vital point of water level measurement but also a tracer of water balance and water surface area of the lake. Different studies present several elevation values of the mean water level of the lake in different periods. The reasons can be concluded as the differences in the methods used, time determined, and climate condition. According to Jimee [11], the elevation of the lake water level was around 1332 m and 1337 m above sea level in 1971 and 2000, respectively. Walther, Gegeensuvd [10], Schwanghart, Schütt [13], and Wang et al. [16] stated that elevations of the lake water levels were 1332 m, 1328 m, and 1332 m, respectively. Studies done by the Information and Research Institute of Meteorology, Hydrology, and Environment of Mongolia showed that the mean water level of the lake corresponds to the elevation above sea level was 1335 m in 2018 [18].

The Ugii Nuur Lake is relatively shallow compared to other lakes in Mongolia, and the Khogshin Orkhon river is the unique surface inflow into the lake. There are few studies related to groundwater and flow, so it has no highlights on the lake water supply [19,20]. Satellite images are widely used to investigate water surface area changes [21]. Furthermore, the simple and effective way to study the lake water supply and the regime is to estimate the components of water balance and then compare them with the water surface area of the lake [22,23]. The use of non-parametric Mann-Kendall (MK) testing, correlation, and regression analysis is also suitable for the expression of long-term changes in hydro-meteorological variables [8,24,25]. Thus, this study aims to determine the changes in the water surface area of the Ugii Nuur Lake due to recent global climate change based on the water balance components with data obtained from satellite and hydro-weather stations.

2. Materials and Methods

2.1. Study Area

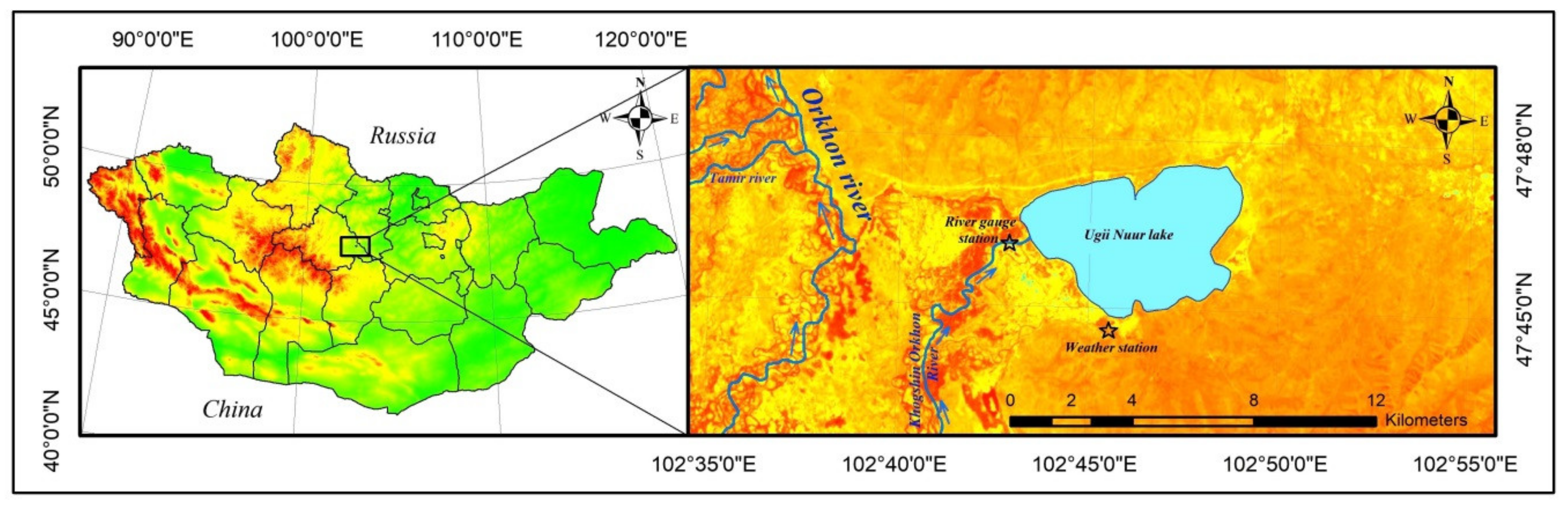

The Ugii Nuur Lake (47°46’ N, 102°44’ E) is located in the Orkhon river basin. The total area of the Orkhon river basin is 132,835 km², 38.2% of which belongs to the Arkhangai province of Central Mongolia. The lake exists in the Arkhangai province, which is about 350 km to the west of the capital city Ulaanbaatar (Figure 2) [10,12,16]. The lake has fresh water with mineralization of 0.499 g∙l⁻¹, which is one of the biggest steppe lakes in Mongolia. The main surface inflow is the Khogshin Orkhon river, which is one of the tributaries of the Orkhon river. The lake has a width of 7.9 km from west to east and 5.3 km from north to south, and the shoreline length is 24.7 km. The surface area of the lake varies between 25.3 to 25.7 km² with a mean depth of 6.6 m, and the corresponding mean volume is 0.17 km³ [11]. The maximum depth of the lake is observed in the center of the lake, with a value of 15.3 m. The basin area of the lake is 5020 km² [11].

2.2. Data Sources

The long-term climate change survey covers data for longer than 30 years, which is recommended by the World Meteorological Organization (WMO). Various types of observations and satellite data from 1986 to 2018 were collected and statistically analyzed. The climate and hydrological data of the Ugii Nuur Lake basin in central Mongolia during 1986 to 2018 were supplied by the Archive and Database center at the National Agency of Meteorology and Environment of Mongolia [26]. The daily and monthly air temperature, wind speed, and precipitation data measured at the Ugii Nuur Weather Station were used for estimating climate factors impacts on lake surface area. Daily river discharge data, measured at the Khogshin Orkhon river station as one of the income components of water balance, has been summarized into total monthly and annual amounts (mm). Then, variations in components of water balance were statistically analyzed and compared with the lake surface area. Water level data of the Ugii Nuur Lake applied for validating the lake surface area was estimated from satellite data. The water surface area of the Ugii Nuur Lake in all Augusts between 1986 and 2012 was calculated by using Normalized Difference Water Index (NDWI) products from Landsat 4 and 5 TM satellite, while data between 2013 and 2018 were obtained by the NDWI products of Landsat 8 OLI satellite [27]. NDWI is an approach to determine water bodies using remotely sensed digital data based on reflected near-infrared radiation and visible green light [28,29].

2.3. Methods

The lake water surface images were obtained and calculated by different multi-spectral bands of Landsat satellites. The lake area was calculated by using NDWI in the downloaded images. Analysis of long-term trends in both the observed and adjusted data was done by using the Mann-Kendall test, with linear changes in the data represented by Kendall-Theil Robust Lines. The non-parametric Mann-Kendall (MK) test has been applied in studies to detect the trends in hydro-meteorological observations that do not need the normal distribution of data points. This study used the MK test method to detect the trends in climate and components of water balance time-series data. For evaluating the reliability of MK, the results were compared with the Innovative trend analysis method (ITAM) and Sen’s slope estimator test. Besides, time-series data for annual average air temperature, total annual precipitation, total annual river discharge, total annual evaporation, and water surface area were investigated by statistical analysis. Significance levels at 10%, 5%, and 1% were taken to assess the time-series data for climate and river discharge by MK, ITAM, and Sen’s slope estimator method.

2.3.1. Lake Surface Area Calculation

The lake water surface mapping with multi-spectral remote-sensing images is based on the difference of the absorption and reflection of light between the water and other features in different frequency bands. As reflections from the water of the visible to infrared bands are gradually weakened, the surface water on an image can be delineated with the NDWI indices by the contrast of the visible wavelength with the near-infrared and short-wave infrared wavelengths [30,31].

$$\mathrm{NDWI}=\frac{\mathrm{PGreen}-\mathrm{PNIR}}{\mathrm{PGreen}+\mathrm{PNIR}}$$

(1)

where $\mathrm{PGreen}$ is the green band, $\mathrm{PNIR}$ is the near-infrared band of Landsat 4–5 TM and Landsat 8 OLI satellites. Using NDWI, lake surface water was mapped on the 33 images taken at different times by extraction using the Band math tool of ENVI 5.5.3 and ArcGIS. For validating lake water surface area calculated by satellite image, the measured lake water level has been correlated with lake water surface area obtained by NDWI.

2.3.2. Mann-Kendall (MK) Analytical Method

The Mann-Kendal (MK) is a non-parametric statistical test used to detect the trends of hydroclimatic variables. The MK test also shows whether the trend is increasing or decreasing. The strength of the trend depends on the magnitude, sample size, and variations of data series. The trends in the MK test are not significantly affected by the outliers that occurred in the data series since the MK test statistically depends on positive or negative signs. The Mann-Kendall test statistics “S” is then equated as [32]:

$$\mathrm{S}={\displaystyle \sum }_{\mathrm{i}=1}^{\mathrm{n}-1}{\displaystyle \sum }_{\mathrm{j}=\mathrm{i}+1}^{\mathrm{n}}\mathrm{sgn} \left({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{i}}\right)$$

(2)

The trend test is applied to ${\mathrm{x}}_{\mathrm{i}}$ data values $\left(\mathrm{i}=1,2,\dots \mathrm{n}-1\right)$ and${ \mathrm{x}}_{\mathrm{j} }\left(\mathrm{j}=\mathrm{i}+1,2,\dots \mathrm{n}\right)$. The data value of each ${\mathrm{x}}_{\mathrm{i}}$is used as a reference point to compare with the data value of ${ \mathrm{x}}_{\mathrm{j} }$which is given as:

$$\mathrm{sgn}\left({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{i}}\right)=\{\begin{array}{c}+1 \mathrm{if} \left({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{i}}\right)>0 \\ 0 \mathrm{if} \left({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{i}}\right)=0 \\ -1 \mathrm{if} \left({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{i}}\right)<0\end{array}$$

(3)

where${ \mathrm{x}}_{\mathrm{j}}$and ${\mathrm{x}}_{\mathrm{i}}$are the values in period $\mathrm{j}$ and$\mathrm{i}$. When the number of data series is greater than or equal to ten $\left(\mathrm{n}\ge 10\right),$the MK test is then characterized by a normal distribution with the mean$\mathrm{E}\left(\mathrm{S}\right)=0$ and variance $\mathrm{Var}\left(\mathrm{S}\right)$ is equated as:

$$\mathrm{E}\left(\mathrm{S}\right)=0$$

(4)

$$\mathrm{Var}\left(\mathrm{S}\right)=\frac{\mathrm{n}\left(\mathrm{n}-1\right)\left(2\mathrm{n}+5\right)-{{\displaystyle \sum }}_{\mathrm{k}=1}^{\mathrm{m}}{\mathrm{t}}_{\mathrm{k}}\left({\mathrm{t}}_{\mathrm{k}}-1\right)\left(2{\mathrm{t}}_{\mathrm{k}}+5\right)}{18}$$

(5)

where$\mathrm{m}$ is the number of the tied groups in the time series, and ${\mathrm{t}}_{\mathrm{k}}$ is the number of ties in the $\mathrm{kth}$ tied group. The test statistics $\mathrm{Z}$ is as follows [33]:

$$\mathrm{Z}=\{\begin{array}{c}\frac{\mathrm{s}-1}{\mathsf{\delta }} \mathrm{if} S>0 \\ 0, \mathrm{if} S=0 \\ \frac{\mathrm{s}+1}{\mathsf{\delta }} \mathrm{if} S<0\end{array}$$

(6)

When $\mathrm{Z}$ is greater than zero, it indicates an increasing trend, and when $\mathrm{Z}$ is less than zero, it is a decreasing trend.

In time sequence, the statistics are defined independently:

$${\mathrm{UF}}_{\mathrm{k}}=\frac{{\mathrm{d}}_{\mathrm{k}}-\mathrm{E}\left({\mathrm{d}}_{\mathrm{k}}\right)}{\sqrt{\mathrm{var}\left({\mathrm{d}}_{\mathrm{k}}\right)}}\left(\mathrm{k}=1,2,\dots ,\mathrm{n}\right)$$

(7)

Firstly, given the confidence level$\mathsf{\alpha }$, if the${ \mathrm{UF}}_{\mathrm{k}}>{ \mathrm{UF}}_{\mathsf{\alpha }}/2$, the sequence has a significant trend. Then, the time sequence is arranged in reverse order. According to the equation calculation, while making

$${\mathrm{UB}}_{\mathrm{k}}=-{\mathrm{UF}}_{\mathrm{k}}$$

(8)

$$\mathrm{K}=\mathrm{n}+1-\mathrm{k}$$

(9)

Finally, ${\mathrm{UB}}_{\mathrm{k}}$ and ${\mathrm{UF}}_{\mathrm{k}}$ were drawn as $\mathrm{UB}$ and $\mathrm{UF}$ curves. Where ${\mathrm{UF}}_{\mathrm{k}}$ = 0 and ${\mathrm{UF}}_{\mathrm{k}}$ is a standard normal distribution. There is an upward trend when it is 0, while there is a downward trend when it is less than 0. If a significant level α is given, according to the normal distribution table we get the critical value t₀ and, if ${\mathrm{UF}}_{\mathrm{k}}$ > t₀, this indicates that there is an obvious change trend in the sequence. If the result is multiplied by −1, then we get the reverse sequence’s statistic${ \mathrm{UF}}_{\mathrm{k}}$, where ${\mathrm{UB}}_{\mathrm{k}}$ = 0. If there is an intersection between the two curves, the intersection is the beginning of the mutation [34]. When the two curves${ \mathrm{UF}}_{\mathrm{k}}$, and ${\mathrm{UF}}_{\mathrm{k}}$ intersect and the intersection point is between the confidence lines, then the intersection point is the abrupt point. According to the test, if between the confidence lines that were defined from the processing of the data the value “zero” is included, then these values present mean values that are statistically equal. Thus, confidence lines are significant levels [35].

2.3.3. Innovative Trend Analysis Method (ITAM)

ITAM has been used in many studies to detect the hydro-meteorological observations, and its accuracy was compared with the results of MK method. The trend indicator is given as:

$$\mathsf{\phi }=\frac{1}{\mathrm{n}}{\displaystyle \sum }_{\mathrm{i}=1}^{\mathrm{n}}\frac{10 \left({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{i}}\right)}{\mathsf{\mu }}$$

(10)

where $\mathsf{\phi }$- is the trend indicator, $\mathrm{n}$-is the number of observations in the subseries, ${\mathrm{x}}_{\mathrm{i}}$-is the data series in the first half subseries class, ${\mathrm{x}}_{\mathrm{j}}$-is the data series in the second half subseries class, and $\mathsf{\mu }$-is the mean of data series in the first half subseries class [36].

2.3.4. Sen’s Slope Estimator Test

Sen’s slope estimator can be used to discover trends in a univariate time series of hydro-meteorological variables such as runoff series, etc. The slope ${\mathcal{Q}}_{\mathrm{i}}$ between two data points is given by the equation:

$${\mathrm{Q}}_{\mathrm{i}}=\frac{{\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}}}{\mathrm{j}-\mathrm{k}}, \mathrm{for} \mathrm{i}=1,2,\dots \mathrm{N}$$

(11)

where${ \mathrm{x}}_{\mathrm{j}}$ and ${\mathrm{x}}_{\mathrm{k}}$ are data points at times $\mathrm{j}$ and$(\mathrm{j}>\mathrm{k})$, respectively. When there is an only single datum in each time, then $\mathrm{N}=\frac{\mathrm{n}\left(\mathrm{n}-1\right)}{2}$; n is a number of time periods. However, if the number of data in each year is more than 1, then $\mathrm{N}<\frac{\mathrm{n}\left(\mathrm{n}-1\right)}{2}$; n is the number of total observations. The $\mathrm{N}$ values of slope estimator are arranged from smallest to biggest. Then, the median of slope ($\mathsf{\beta }$) is computed as:

$$\mathsf{\beta }=\{\begin{array}{c}Q\left[\left(\mathrm{N}+1\right)/2\right] \mathrm{when} N \mathrm{is} \mathrm{odd} \\ Q\left[\left(\mathrm{N}/2\right)+\mathrm{Q}\left(\mathrm{N}+2\right)/\left(2\right)/\left(2\right)\right] \mathrm{when} N \mathrm{is} \mathrm{even}\end{array}$$

(12)

The sign of $\mathsf{\beta }$ shows whether the trend is increasing or decreasing [37].

2.3.5. Analysis and Estimation of Climate and Hydrological Variables Influencing the Water Surface Area of the Lake

To achieve the aim of this study, various types of climate and hydrological measurement data were taken for statistical calculations, for example, hydro-meteorological variables were statistically analyzed with the change of lake surface area by correlation and regression analysis. Since the temporal change of water balance of the lake is directly related to the change of lake surface area [38], one of the components of water balance or evaporation has been estimated for this analysis.

The primary method for estimating the water balance of the lake is based on the difference between income and outcome water flow of the lake [23,38,39].

$$\frac{\mathrm{dV}}{\mathrm{dt}}=\mathrm{P}-\mathrm{E}+\mathrm{Q}-{\mathrm{Q}}^{\prime }$$

(13)

where $\mathrm{dV}$ is the change of lake volume within a given time of period $\left(\mathrm{dt}\right)$, $\mathrm{P}$ is the precipitation amount, $\mathrm{E}$ is the evaporation from open surface water of a lake, $\mathrm{Q}$ is the surface inflow to the lake, ${\mathrm{Q}}^{\prime }$ is the surface outflow from the lake. Notably, the Ugii Nuur Lake does not have an outflowing river.

The supply from groundwater and ground flow is an essential component of the water balance of the lake. However, hydro-geological studies on the Ugii Nuur Lakes are barely carried out. For detecting the relationship between recent global climate change and variations in the lake water surface area, it should consider the precipitation and river discharge as income of the water balance equation and the evaporation as the outcome. Since both the precipitation and river inflow were measured around the hydro-weather station, we can estimate the evaporation from the lake surface.

Dalton [40] proposed the physical law for estimating evaporation based on the relation among average daily humidity, air temperature, and wind speed. The equation was updated several times, and the widely used equation was proposed by Penman [41,42]. Gombo [30] divided major Mongolian lakes into three groups with an elevation above mean sea level. Based on the equations mentioned above, the researcher proposed empiric equations for evaporation from the lake surface for each lake groups. Since the Ugii Nuur Lake has an elevation of 1335 m above the mean sea level, it is suggested to calculate its evaporation by the following equation [43]:

$$\mathrm{E}=0.32\left(1+0.38{\mathrm{v}}_2\right)\left({\mathrm{e}}_0-{\mathrm{e}}_2\right)$$

(14)

where $\mathrm{E}$ is the evaporation (mm), ${\mathrm{v}}_2$ is the wind speed at 2.0 m above the ground surface (m∙s⁻¹), ${\mathrm{e}}_0$ is the water vapor pressure computed by water surface temperature (hPa),and${ \mathrm{e}}_2$ is the water vapor pressure at 2.0 m above the ground surface (hPa).

Magnus [44] created the first version for estimating saturated vapor pressure by the empiric method. Several scientists developed the Magnus formula. The equation by Matveev [45] was used for this research (Equation (14)).

$$\mathrm{e}=6.108·{10}^{\left(\mathrm{at}\right)·{\left(\mathrm{b}+\mathrm{t}\right)}^{-1}}$$

(15)

where if $\mathrm{t}$ < 0°C, then $\mathrm{a}$ = 9.5, $\mathrm{b}$ = 265.5; if $\mathrm{t}$ > 0 °C, then a = 7.63, $\mathrm{b}$ = 241.9, and $\mathrm{t}$ is temperature.

It lacks long-term measurement of lake surface temperature in Mongolia. Thus, to calculate the saturated vapor pressure at the surface, lake mix-layer temperature and lake ice temperature have been taken from the Fifth Generation of European Centre for Medium-Range Weather Forecasts (ECMWF) atmospheric reanalysis of the global climate (ERA5) [46] for estimating evaporation from the water surface area of the Ugii Nuur Lake.

The measured height of wind is 10 m above ground at each meteorological observation site [47]. The version of the empirical equation suggested by the WMO based on the law by Hellman [48] was used for estimating wind speed at 2 m above the ground surface (Equation (15)) [49].

$${\mathrm{v}}_{\mathrm{h}}={\mathrm{v}}_{10}\left[0.233+0.656\lg \left(\mathrm{h}+4.75\right)\right]$$

(16)

where ${\mathrm{v}}_{\mathrm{h}}$ is the estimated wind speed at a given $\mathrm{h}$ level and ${\mathrm{v}}_{10}$ is the measured wind speed at 10 m level.

3. Results and Discussion

3.1. Changes in Lake Water Surface Area

The water surface area of the Ugii Nuur Lake was estimated by using ArcGIS software with Landsat satellite data. Then, data were analyzed in the time series.

Table 1. Water surface area of the Ugii Nuur Lake, km².

Years	1986	1987	1988	1989	1990	1991	1992	1993	1994	1995	1996
Lake area	26.04	25.96	25.84	24.45	25.98	26.74	25.74	26.43	26.48	26.78	25.88
Years	1997	1998	1999	2000	2001	2002	2003	2004	2005	2006	2007
Lake area	25.91	26.17	25.89	27.11	25.69	24.81	24.95	25.30	25.43	24.80	24.35
Years	2008	2009	2010	2011	2012	2013	2014	2015	2016	2017	2018
Lake area	23.68	22.79	22.24	21.80	22.16	22.52	23.37	23.13	24.19	24.38	24.60

shows the water surface area of the lake in each August between 1986 and 2018.

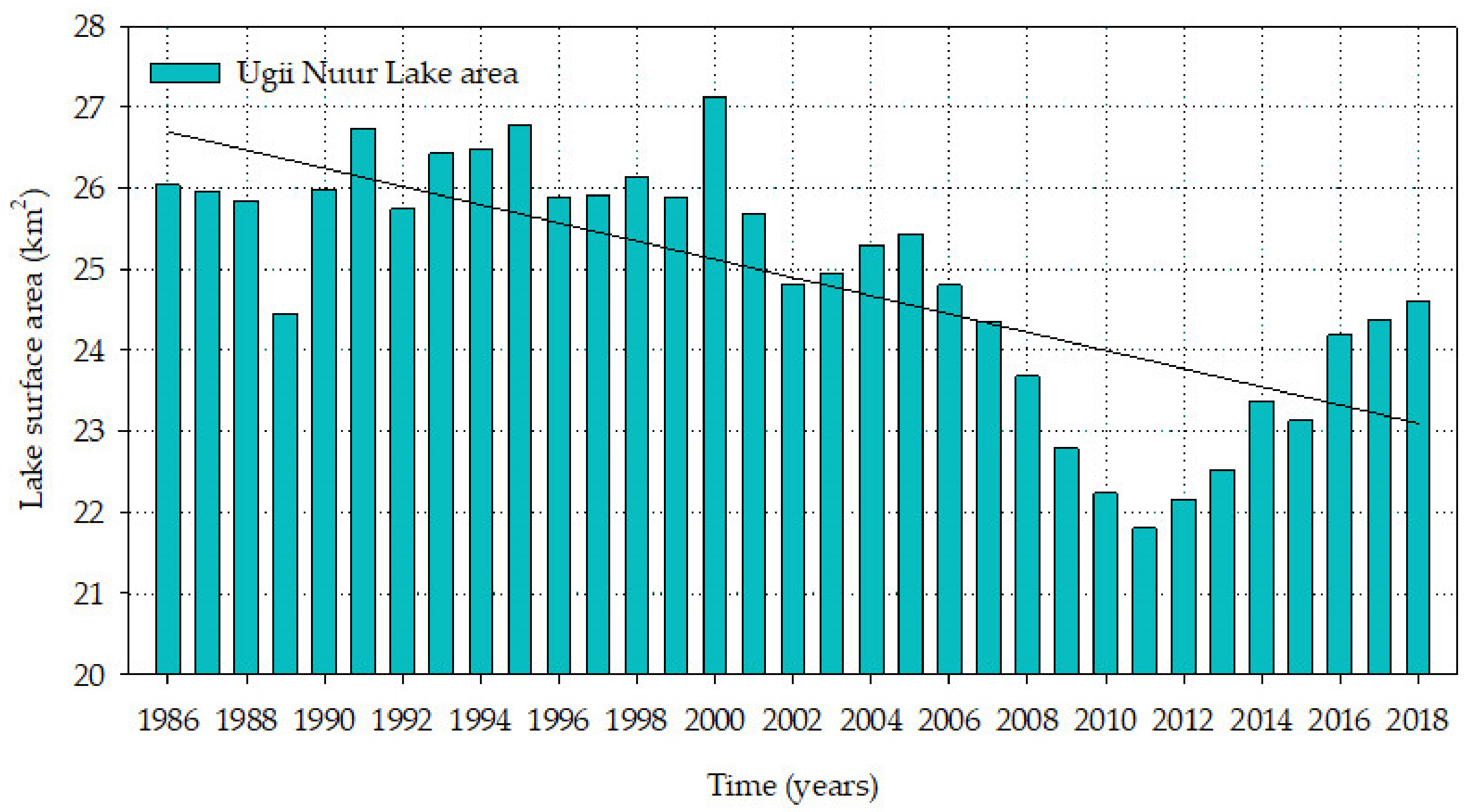

Figure 3 illustrates the inter-annual variation of the water surface area of the Ugii Nuur Lake. The area of the lake decreased if we compared the water surface area in 1986 and 2018. However, among these years, water surface areas of the Ugii Nuur Lake have been showing several increases and decreases. For instance, the water surface area of the lake decreased from 1986 to the 1990s, but it gradually increased until the 2000s. The area of the lake was rapidly decreasing until 2011, and then it grew until 2018.

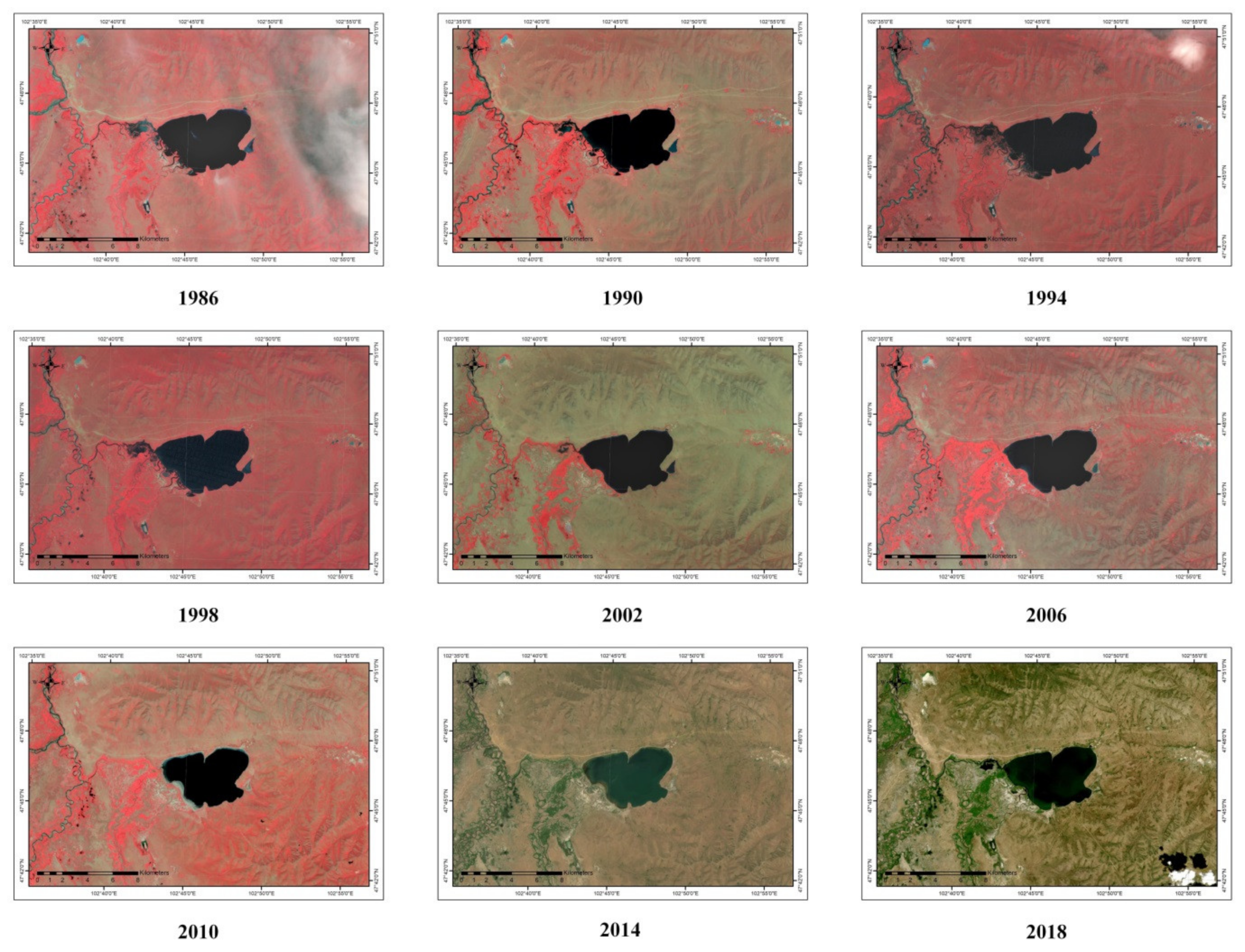

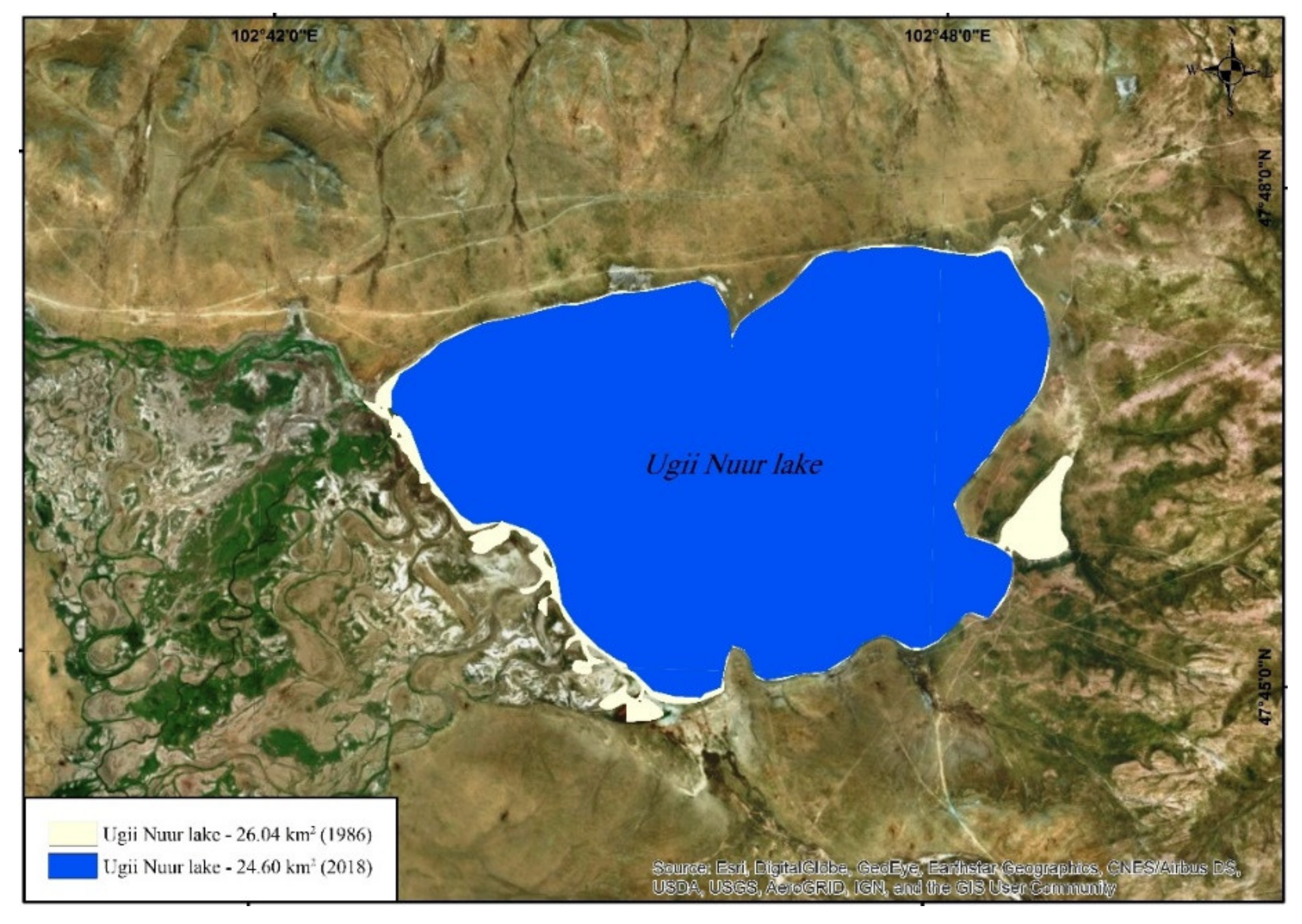

Figure 4 shows the water surface area of the lake and its spatial change in August 1986 and 2018 by satellite image. According to the changes in the lake surface area, the largest lake area was observed in 2000 with an area of 27.11 km², while the smallest area was 21.80 km² in 2011. The average water surface area of the Ugii Nuur Lake is about 24.90 km². In 1986, the lake area was 26.04 km² and then it decreased to 24.40 km² in 2018. Long-term observations of the water surface area of the lake revealed that the lake area has decreased by 13.5% within the last 33 years (Figure 5).

For showing a decline in time series of the water surface areas of the Ugii Nuur Lake calculated by the NDWI index from Landsat satellite, the imagery of the lake for every four years from 1986 to 2018 is shown in Figure 5. The shape and surface area of the lake have considerably changed over the last 30 years.

The water resources and morphometric parameters of the lake were obtained by satellite remote sensing data [50]. The water level data measured at the Ugii Nuur Lake from 2002 to 2018 were compared with the water surface area of the lake obtained from remote sensing data (Figure 6).

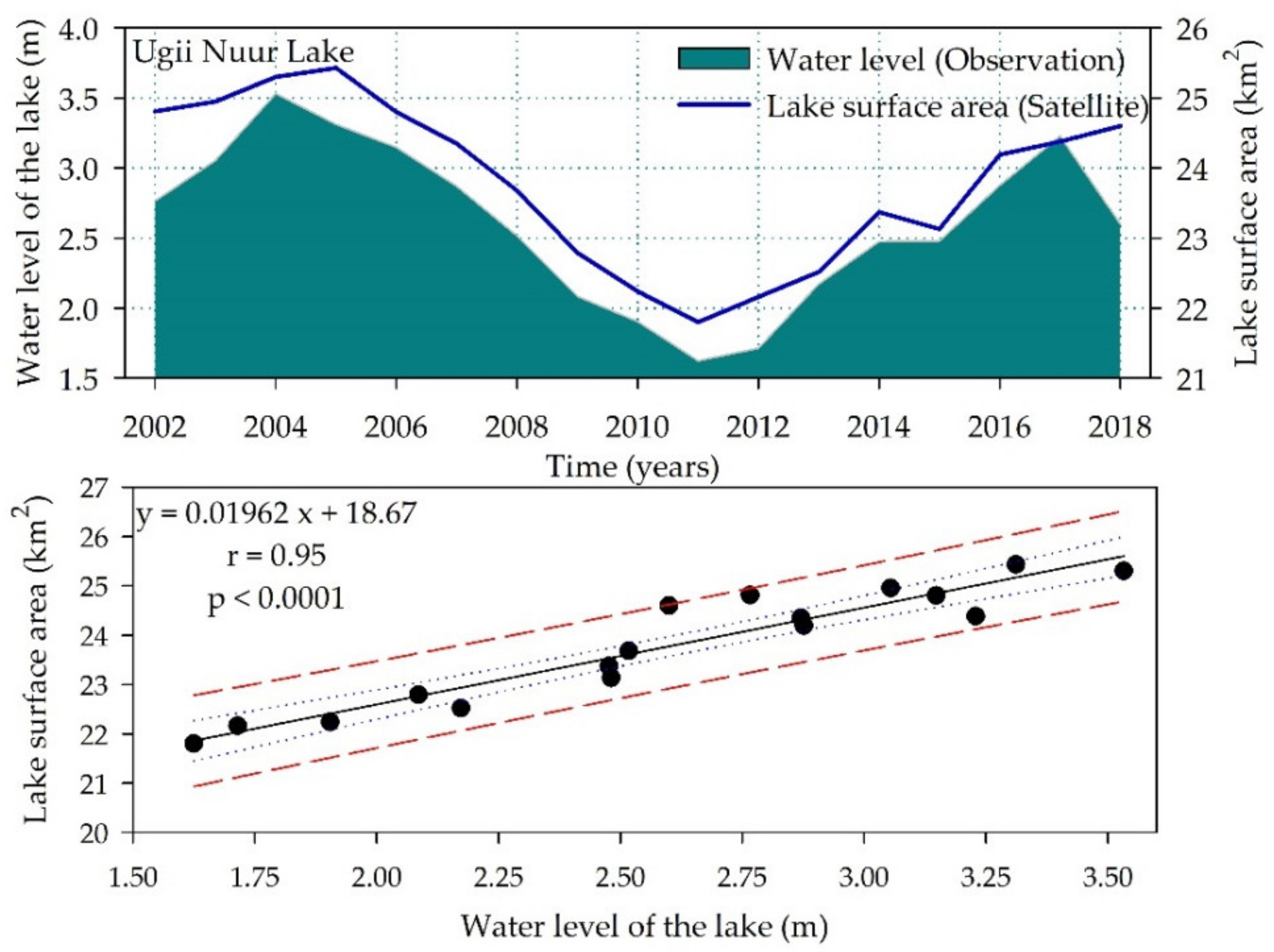

Figure 6 shows that the variation of lake water surface area has a strong positive correlation with the change of lake water level (r = 0.95). A strong relationship between those lake morphometric parameters matches with the study results of Shang [51] and Fang [52]. Thus, data for the water surface area of the lake estimated by the NDWI products from Landsat satellite can be used for further studies.

3.2. Trend Analysis

The trend analysis was carried out by using MK, ITAM, and Sen’s estimator Test methods with the data series of climate and hydrological measurements at the Ugii Nuur Lake Basin from 1986 to 2018.

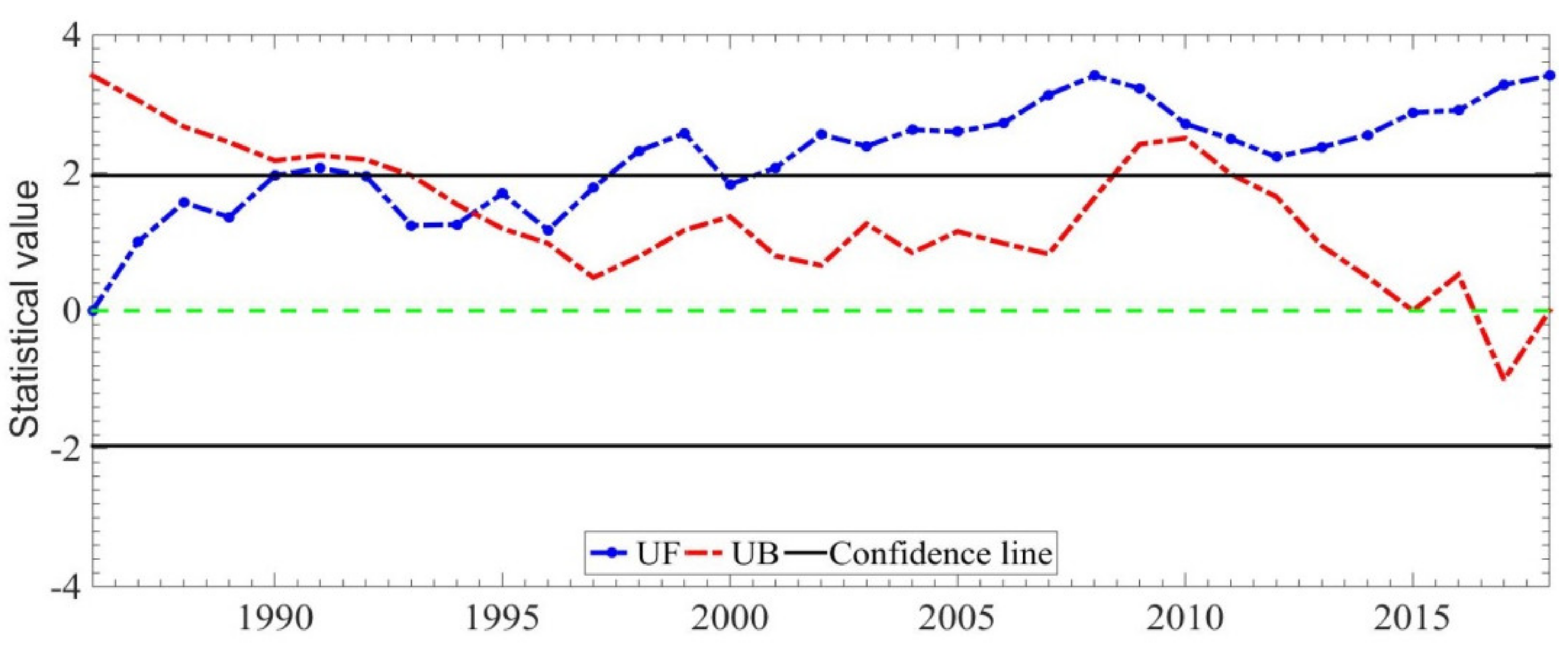

3.2.1. Air Temperature Analysis

The annual average air temperature for the Ugii Nuur weather station was 1.2 °C between 1986 and 2018. It was a maximum of 3.3 °C in 2017 and a minimum of −1.2 °C in 1986. Analysis of annual average air temperature (change of parameter) by the MK trend method shows a sharp increase at the Ugii Nuur Weather Station. Such a sharp statistical increase started in 1986 and has been observed in 2008 and 2018 ($\mathrm{Z}$ = 4.595). The rise in annual average air temperature was also confirmed by the results provided by Innovative Trend (φ = 16.076) and Sen’s Slope Estimator Test ($\mathsf{\beta }$ = 0.065) methods (Figure 7).

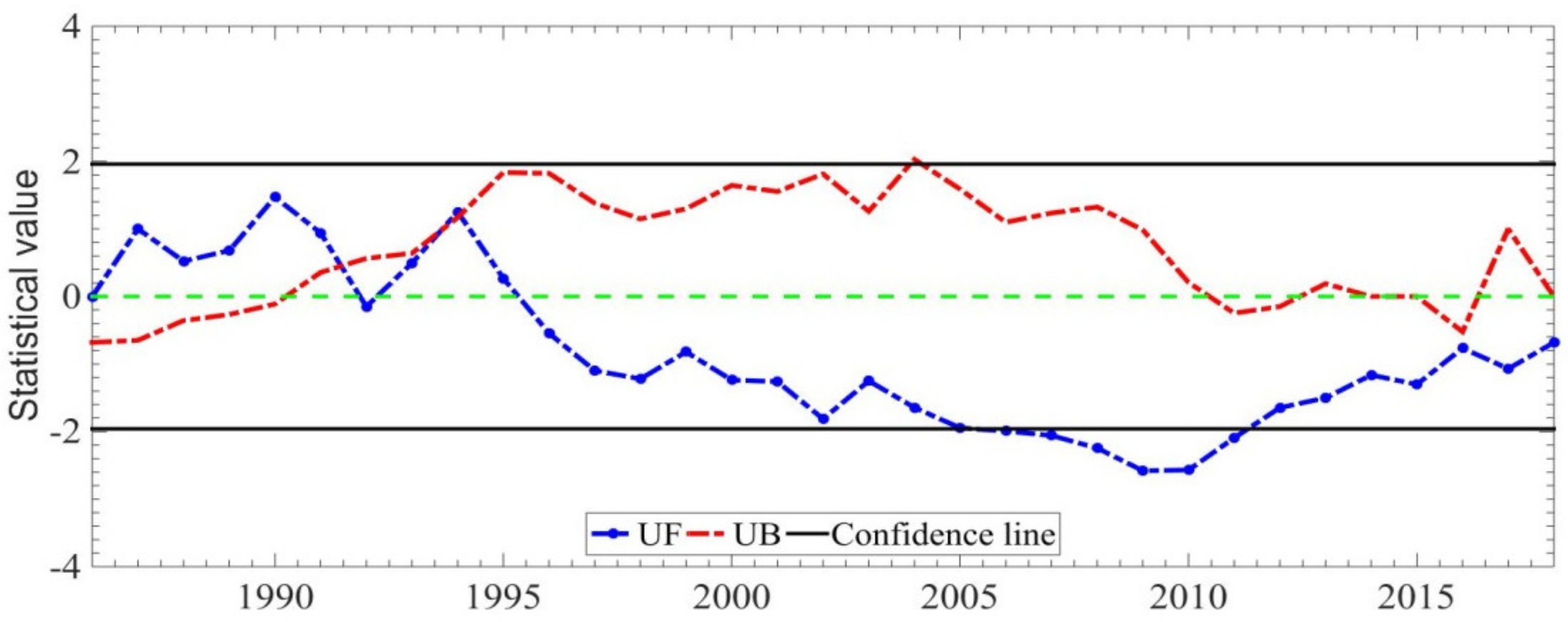

3.2.2. Precipitation Analysis

The total annual precipitation at the Ugii Nuur weather station was 256.6 mm as the average between 1986 and 2018. It was a maximum of 380.5 mm in 1994 and a minimum of 170.8 mm in 2002. Analysis of total annual precipitation series shows a slight decline from 1994 to 2010s. Then, the annual precipitation exhibited an increasing trend from 2010 to 2018. A significantly statistical decline was observed in 2010 ($\mathrm{Z}$ = −0.902) at the Ugii Nuur Weather Station based on the Mann-Kendall analysis approach. The change of trends was consistent with the other two methods, Innovative Trend ($\mathsf{\phi }$ = −0.542) and Sen’s Slope Estimator Test ($\mathsf{\beta }$ = −0.888) (Figure 8).

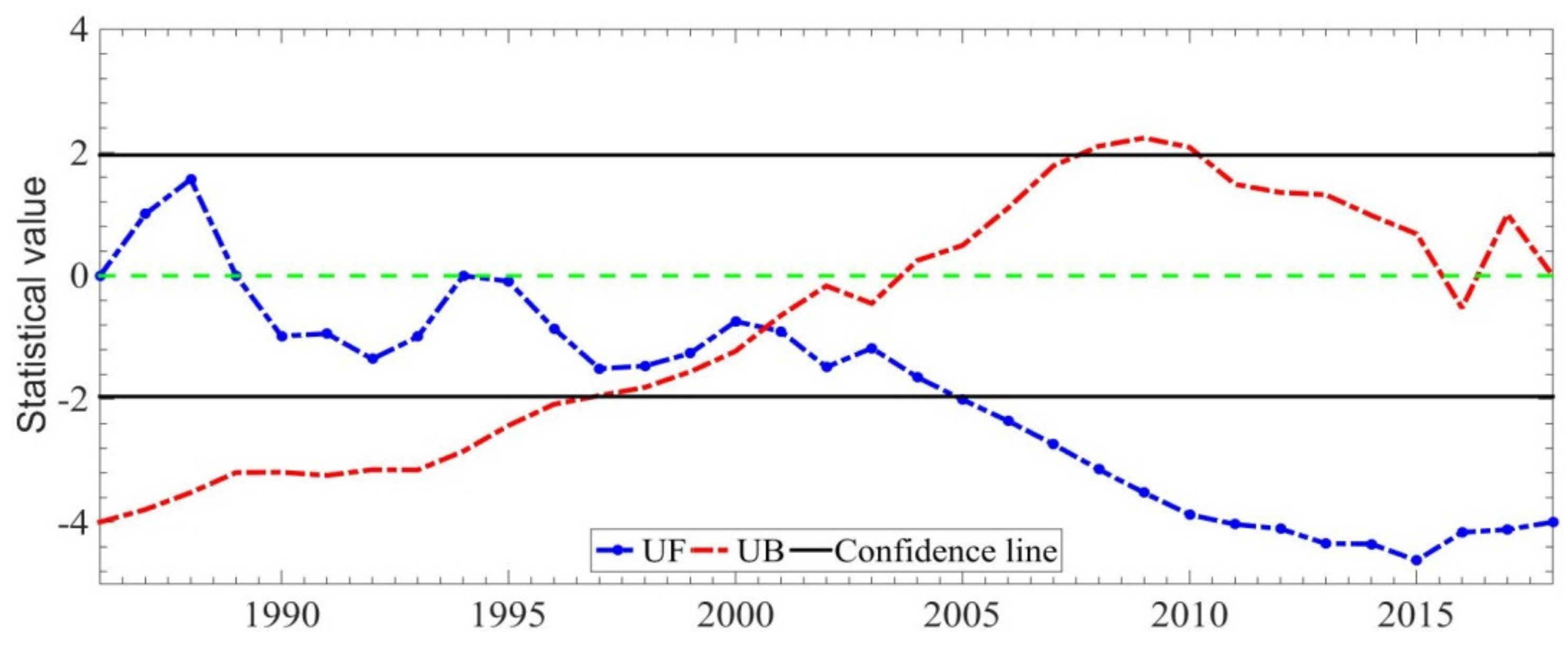

3.2.3. River Discharge Analysis

The total annual inflow river discharge at the Khogshin Orkhon river gauge station was 36.2 mm as the average between 1986 and 2018. It was a maximum of 147.3 mm in 1994 and a minimum of 0.6 in 2010. Analysis of the total annual discharge series of the Khogshin Orkhon River shows a reversely rapid decrease of river discharge from 1988 to 2018. A statistically rapid drop in river discharge was observed from 2005 to 2018 ($\mathrm{Z}$ = −5.392) based on the Mann-Kendall analysis approach. The change of trends also was consistent with the other two methods by Innovative Trend ($\mathsf{\phi }$ = −6.511) and Sen’s Slope Estimator Test ($\mathsf{\beta }$ = −0.015) (Figure 9).

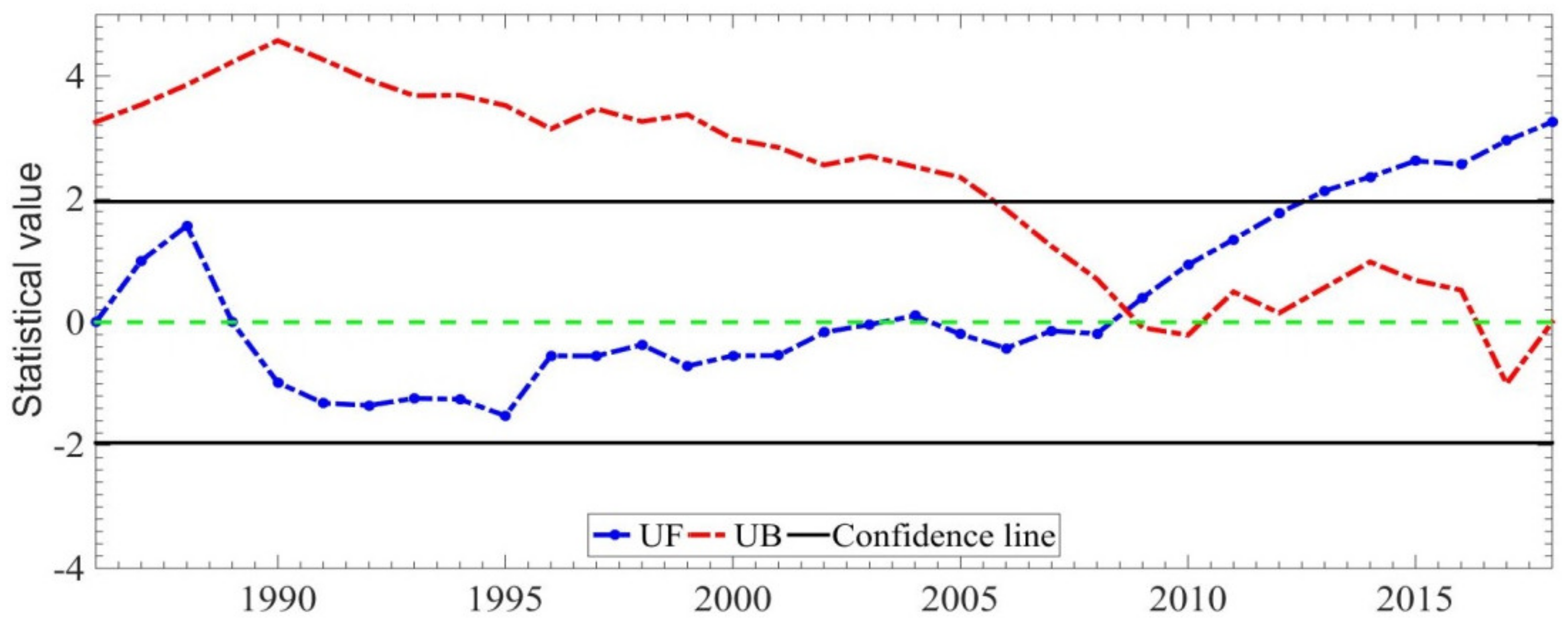

3.2.4. Evaporation Analysis

The total annual evaporation from the Ugii Nuur Lake was 110.5 mm as the average between 1986 and 2018. It was a maximum of 222.2 mm in 2017 and a minimum of 50.8 mm in 1990. Analysis of total annual evaporation (parameter change) by the Mann-Kendall trend method shows a sharp increase at the Ugii Nuur Lake. A statistically sharp increase started in the 1990s and has also been observed from 2013 to 2018 ($\mathrm{Z}$ = 4.385). This increase in total annual evaporation also was confirmed by the results provided by Innovative Trend ($\mathsf{\phi }$ = 4.328) and Sen’s Slope Estimator Test ($\mathsf{\beta }$ = 2.256) methods (Figure 10).

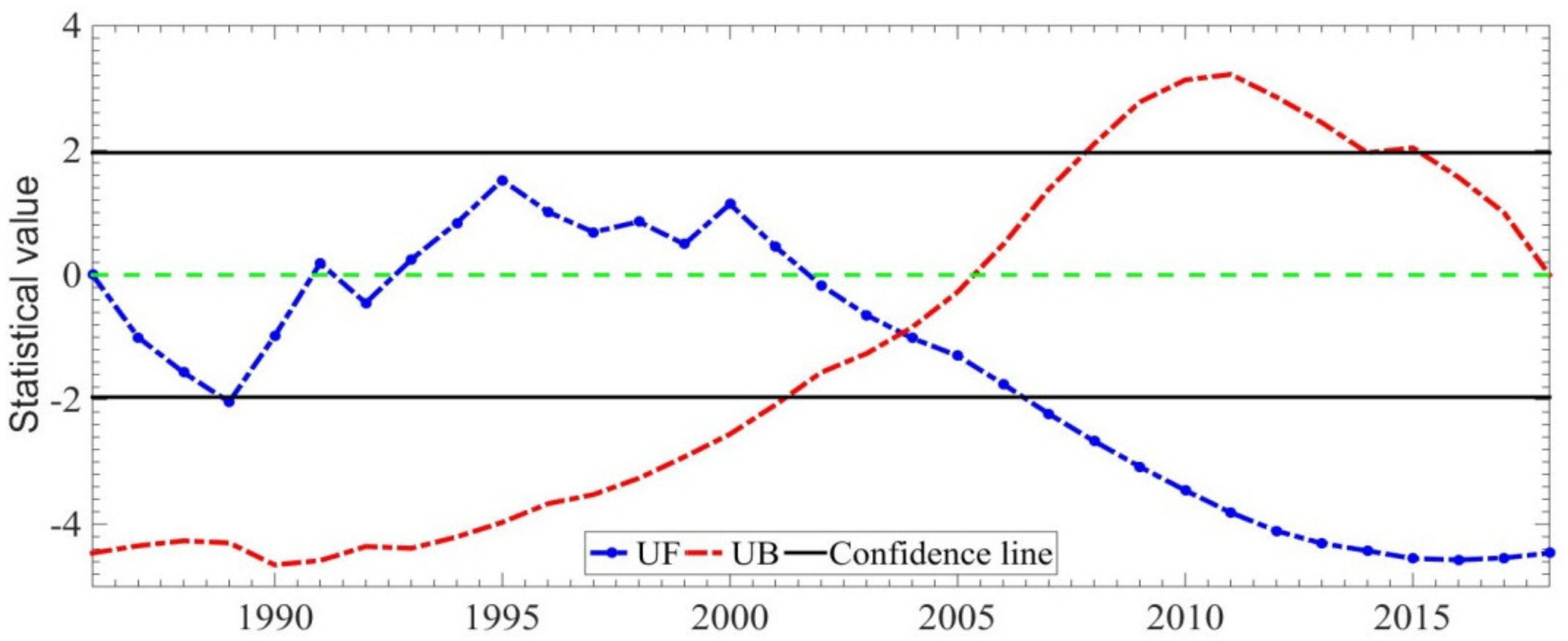

3.2.5. Analysis of the Water Surface Area of the Lake

The water surface area has a decreasing trend ($\mathrm{Z}$ = −6.021) from 1986 to 2018 by the Mann-Kendall trend method. During the period from 1986 to 2000, the lake water surface area showed a gradually increasing trend. From 2000 to 2018, the water surface area of the lake had a statistically sharp decreasing trend according to the Mann-Kendall trend analysis. The above results on the lake water surface area by the Mann-Kendall method were the same as the outputs by Innovative Trend ($\mathsf{\phi }$ = −0.896) and Sen’s Slope Estimator Test ($\mathsf{\beta }$ = −0.102) (Figure 11).

MK, ITAM, and Sen’s Slope Estimator approaches have been used for trend analysis of several parameters, such as long-term average annual air temperature, total annual precipitation, total annual inflow river discharge, total annual evaporation at the Ugii Nuur Lake Basin, and the water surface area of the Ugii Nuur Lake (

Table 2. Comparison of results by Mann-Kendal (MK), Innovative Trend (ITAM), and Sen’s Slope Estimator Test.

No	Parameters	Mann-Kendall Trend Analysis	Innovative Trend Analysis	Sen’s SlopeEstimator Test Approach
1	Trend of annual average air temperature	4.595 ***	16.076 ***	0.065
2	Trend of total annual precipitation	−0.902	−0.542	−0.888
3	Trend of total annual river discharge	−5.392 ***	−6.511 ***	−0.015
4	Trend of total annual evaporation	4.385 ***	4.328 ***	2.256 **
5	Trend of water surface area	−6.021 ***	−0.896	−0.102

* 0.1 trend with low variation; ** 0.05 trend with relative changes; *** 0.01 trend with high variation.

).

Table 2 presents the annual trend analysis of hydro-meteorological variables and the water surface area of the lake in the station by the MK test, ITAM, Sen’s slope estimator test. Hence, the increase and decrease in innovative trend analysis $\mathsf{\phi }$ test value predicted that the magnitude becomes strong.

3.3. Impact of Cimate Parameters and Water Balance Components on the Water Surface Area of the Ugii Nuur Lake

According to the results of Mann-Kendall, Innovative Trend, and Estimator test methods for time series of climate and hydrological variables shown in Section 3.2, a decrease was observed in water surface area of the lake with the satellite data, showing a negative correlation with a sharp increase in annual average air temperature and total annual evaporation, while a positive correlation with a decrease in total annual river discharge and total annual precipitation was also observed. According to the results of MK, ITAM, and Sen’s Estimator test methods for the time series of climate and hydrological variables shown in Section 3.2, a decrease was observed in the water surface area of the lake estimated from the satellite data. Moreover, annual average air temperature and total annual evaporation showed a sharp increase, while total annual river discharge and total annual precipitation showed a decrease. The results were consistent with the studies conducted by Chebud and Melesse [53].

Statistical analysis has been done between different components of the lake water balance and climatic factors [54] by using hydro-meteorological data measured at the Ugii Nuur Lake Basin and water surface area of the lake obtained from Landsat satellite from 1986 to 2018. Figure 12 illustrated the results in the analysis mentioned above.

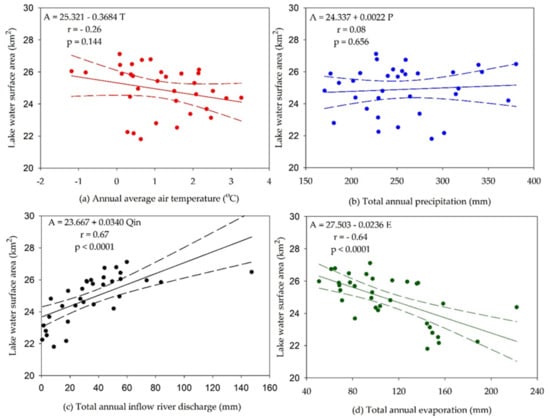

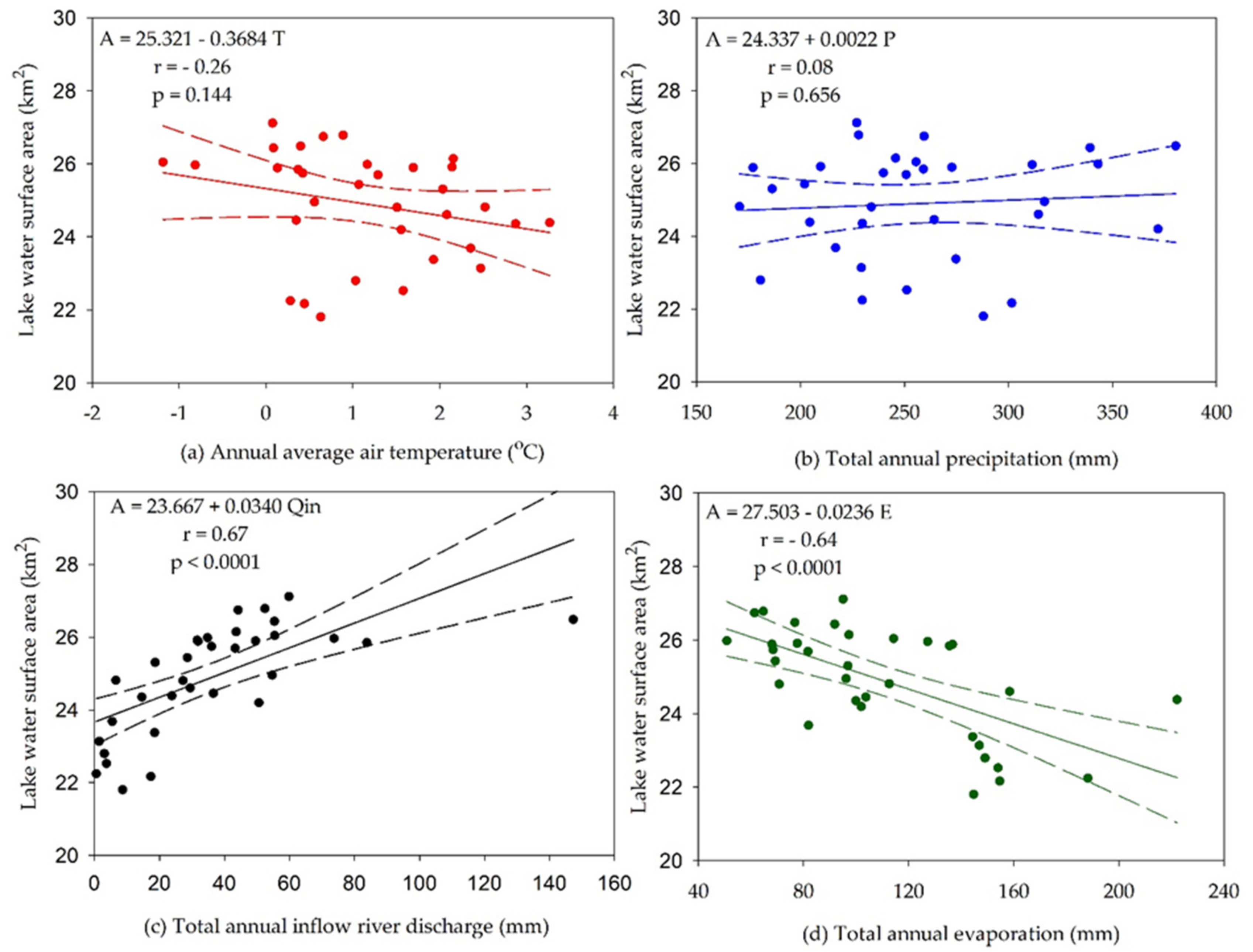

The scatter chart in Figure 12 showed that the water surface area of the Ugii Nuur Lake had a reverse correlation with annual average air temperature and total annual evaporation. In contrast, it had a direct correlation with the total annual river discharge or inflow and total annual precipitation [22,52]. The correlation coefficients between the annual average air temperature and lake surface area were −0.26. In other words, the increase of annual average air temperature led to an increase of total annual evaporation, and this caused a decrease in the water surface area of the lake. Thus, the effect of the regime of annual average air temperature on the lake surface was weak (Figure 12a).

The surface area of the lake is directly dependent on the volume of the lake [51]. Therefore, it is necessary to investigate the relationship between lake surface area and components of the water balance, such as total annual precipitation, river discharge, and evaporation. The correlation coefficient between the total annual precipitation and lake surface area was 0.08 (Figure 12b). If the precipitation amount increases, the lake surface area will expand. However, total annual precipitation has decreased by 7.1% for the 33 years of the period from 1986 to 2018. The decrease rate in precipitation was about two times less than the decrease in the lake surface area mentioned in Section 3.1. In other words, small decreases in total annual precipitation led to a weak correlation with the lake surface area. The weak relationship was confirmed by the result of a slight decrease (Z = −0.902) calculated using the MK analysis in Section 3.2.2. The correlation coefficient between total annual river discharge and the lake water surface area was 0.67, which indicates that it had a positive and moderate effect on the water surface area of the lake (Figure 12c). A decrease in the total annual inflow river discharge brought a decline in the lake water surface area. It was confirmed by the result of a statistically significant decrease (Z = −5.392) calculated by the MK analysis in 3.2.3. The correlation coefficient between total annual evaporation and lake water surface area was −0.64 or a negative and moderate (Figure 12d). That is to say, if the total annual evaporation rate grows, the lake surface area will decrease. The moderate relationship was confirmed by the result of a statistically sharp increase ($\mathrm{Z}$= 4.385) calculated by the MK analysis in Section 3.2.4.

From the above results, the average annual air temperature and the total annual precipitation were not strongly related to the surface area of the lake. However, the total annual river flow and the total annual evaporation had a strong relationship with the surface area of the lake. In other words, the total annual evaporation and inflow river discharge were the essential hydro-meteorological factors affecting the surface area of the Ugii Nuur Lake. Therefore, the multiple regression equation of the lake surface area depending on the total annual evaporation and the total annual river discharge was obtained (Equation (17)).

$$\mathrm{A}=25.82396+0.025622 \mathrm{Q}-0.01679 \mathrm{E}$$

(17)

where, $\mathrm{A}$ is the lake water surface area (km²), $\mathrm{Q}$ is total annual river discharge (mm), and is total annual evaporation (mm).

Determination coefficient and statistical significance in equation 17 was r² = 0.64 and p < 0.0001, respectively. It means that 64% of the variations in the water surface area of the Ugii Nuur Lake related to the variability of the total annual evaporation and the total annual river discharge by the equation. The remaining 36% can be explained by other factors that were not chosen for the regression model. The surface area of the lake was found using Equation (17) and then compared with the values calculated from the satellite imagery (Figure 13).

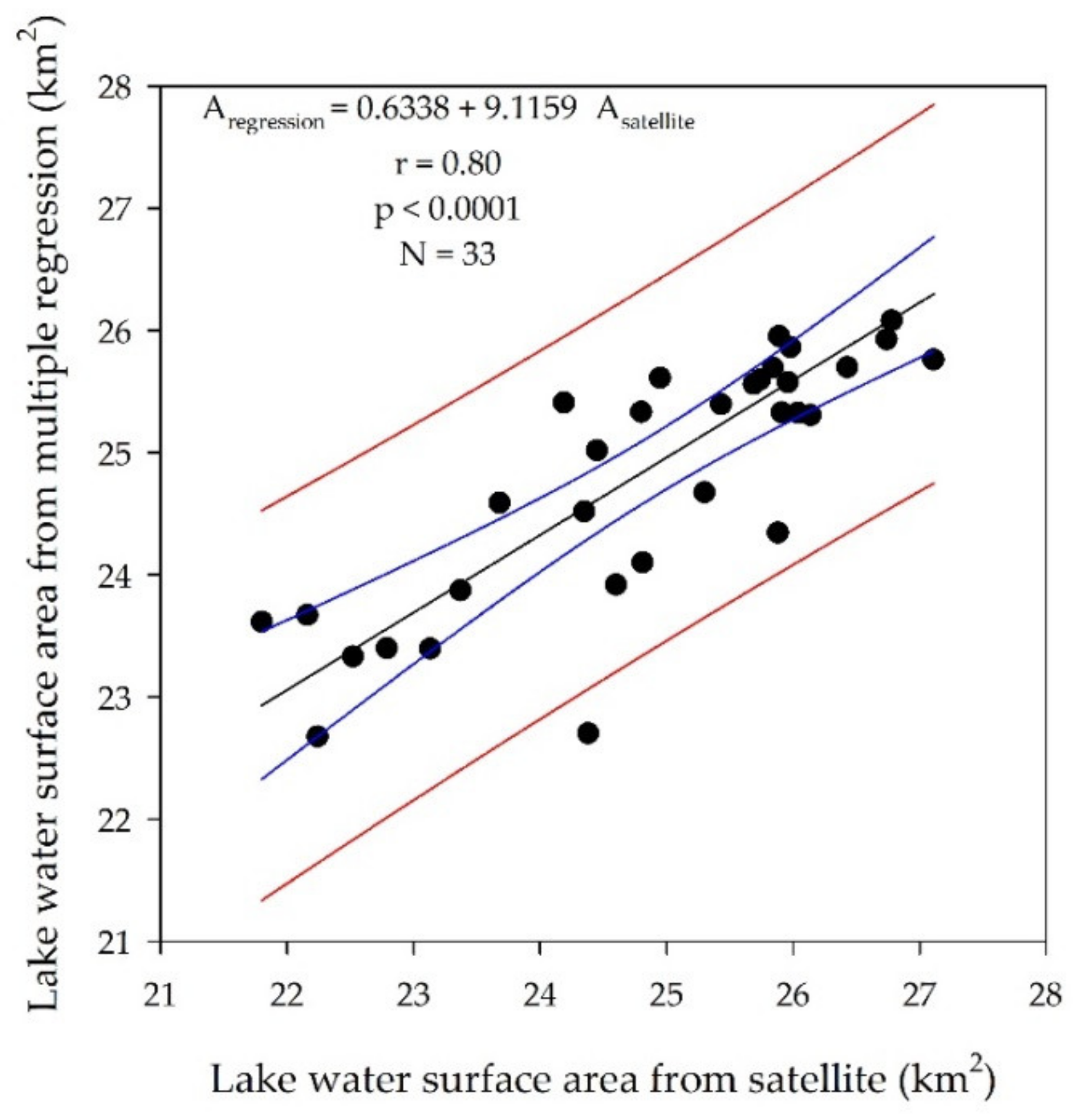

The correlation coefficient between satellite and model values of the lake water surface area was r = 0.80 (p < 0.0001), and they had a positive and strong relationship with each other. It validated the results of Figure 12.

The results of several studies showed that recent global climate change influenced the surface area of the lake [21,55,56,57,58,59]. It indicated that a decrease in the total annual inflow river discharge and an increase in total annual evaporation were crucial hydro-meteorological factors on the reduction of the water surface area of the Ugii Nuur Lake. The study was a baseline study of lakes in Mongolia’s steppe region as a benchmark for determining how much of the lake area is affected by recent global climate change. It was consistent with the results of Tao et al.’s [8] study on Mongolian plateau lakes.

The Ugii Nuur Lake surface area has sharply decreased since 1995 (Figure 11) [25,60]. It may be related to the impact of groundwater and also the socio-economic activities, including fishing, agriculture, and tourism in the lake basin.

4. Conclusions

In this study, Landsat satellite NDWI multi-channel data were used to calculate the values of the Ugii Nuur Lake surface area from 1986 to 2018. The satellite data was validated by the measurement of the lake water level (r = 0.95). The lake surface area has decreased by 13.5% for the period from 1986 to 2018.

Non-parametric trend analysis in hydro-climatic variables was used to determine the reasons for changes in the lake water surface area. The Mann-Kendall trend analysis has indicated a slight decrease in total annual precipitation (Z = −0.902) and inflow river discharge (Z = −5.392), respectively. In contrast, a statistically significant increase was seen in a trend in total annual evaporation (Z = 4.385) and annual average air temperature (Z = 4.595). The total impact of the changes in the above variables has led to a dramatic change in the water surface area of the Ugii Nuur Lake. All the results were confirmed by ITAM and the Sen’s Slope Estimator Test Approach. All results were confirmed by ITAM and the Sen’s Slope Estimator Test Approach.

Correlation and regression analysis of several hydro-meteorological variables representing global climate change were related to the lake surface area. The analysis showed that the most critical factors affecting the water surface area of the Ugii Nuur Lake were the total annual evaporation (r = −0.64) and the total annual inflow river discharge (r = 0.67).

In the near future, it is vital to conduct scientific studies considering the volume of lake water, groundwater, and the anthropogenic impact.
