Influence of Streambed Heterogeneity on Hyporheic Flow and Sorptive Solute Transport

by
Yuanhong Liu
1,2,
Corey D. Wallace
2,*,
Yaoquan Zhou
3,
Reza Ershadnia
2,
Faranak Behzadi
2,
Dipankar Dwivedi
4,
Lianqing Xue
1 and
Mohamad Reza Soltanian
2,5
1
College of Hydrology and Water Resources, Hohai University, Nanjing 211100, China
2
Department of Geology, University of Cincinnati, Cincinnati, OH 45220, USA
3
School of Earth Sciences, The Ohio State University, Columbus, OH 43210, USA
4
Lawrence Berkeley National Laboratory, Berkeley, CA 94720, USA
5
Department of Environmental Engineering, University of Cincinnati, Cincinnati, OH 45220, USA
*
Author to whom correspondence should be addressed.
Water 2020, 12(6), 1547; https://doi.org/10.3390/w12061547
Submission received: 6 April 2020 / Revised: 4 May 2020 / Accepted: 26 May 2020 / Published: 28 May 2020
(This article belongs to the Special Issue Modeling of Flow and Transport in Saturated and Unsaturated Porous Media)
Browse Figures
Versions Notes

Abstract

:
The subsurface region where river water and groundwater actively mix (the hyporheic zone) plays an important role in conservative and reactive solute transport along rivers. Deposits of high-conductivity (K) sediments along rivers can strongly control hyporheic processes by channeling flow along preferential flow paths wherever they intersect the channel boundary. Our goal is to understand how sediment heterogeneity influences conservative and sorptive solute transport within hyporheic zones containing high- and low-K sediment facies types. The sedimentary architecture of high-K facies is modeled using commonly observed characteristics (e.g., volume proportion and mean length), and their spatial connectivity is quantified to evaluate its effect on hyporheic mixing dynamics. Numerical simulations incorporate physical and chemical heterogeneity by representing spatial variability in both K and in the sediment sorption distribution coefficient ( K d ). Sediment heterogeneity significantly enhances hyporheic exchange and skews solute breakthrough behavior, while in homogeneous sediments, interfacial flux and solute transport are instead controlled by geomorphology and local-scale riverbed topographies. The hyporheic zone is compressed in sediments with high sorptive capacity, which limits solute interactions to only a small portion of the sedimentary architecture and thus increases retention. Our results have practical implications for groundwater quality, including remediation strategies for contaminants of emerging concern.

1. Introduction

River bedforms enhance the exchange of water and solutes between the surface water and shallow riverbed, known as hyporheic exchange. Hyporheic exchange is typically characterized by complex flow processes at nested spatial scales, ranging from ripples and dunes to pool-riffles and gravel bars to meanders [1,2,3]. The architectural and textural characteristics of sediment facies (i.e., three-dimensional (3D) sediment bodies [4]) across different scales control the distribution of both the physical (e.g., hydraulic conductivity (K), porosity, grain size, and bulk density) and chemical (e.g., mineralogical composition, equilibrium sorption distribution coefficient ( K d ), and reactive surface area) properties of the subsurface [5,6,7,8,9,10,11,12,13,14,15]. These properties in turn influence fluid flow and solute mass transport. Sorption processes may also hinder solute migration and increase the interfacial area of concentration gradients, which indirectly enhances diffusion and mixing [16,17]. Roughly 88% of whole-stream ecosystem respiration has been attributed to processing within the hyporheic zone (HZ) [18].
Numerous studies have shown that sediment heterogeneity can have a significant impact on hyporheic exchange fluxes, residence times (RTs), and flow patterns [19,20,21]. These studies mainly represented riverbed heterogeneity using geostatistical approaches, which rely on generating spatial variability in conductivity without incorporating the underlying sedimentary architecture. Using smooth, continuous conductivity fields in flume and numerical experiments, Salehin [22] found that heterogeneity can create preferential flow paths and increase hyporheic exchange. Sawyer and Cardenas [23] showed that cross-bedded conductivity structures slightly increase the depth of hyporheic exchange, while Liu and Chui [24] demonstrated that heterogeneity decreases mean and median hyporheic RTs while increasing the range of the RTs. Abrupt, discontinuous conductivity transitions are common in fluvial deposits composed of multiple sediment facies types, however, with potentially dramatic effects on hyporheic exchange [25]. To more accurately replicate field conditions, prior studies have represented the riverbed as a bimodal distribution of high- and low-K sediments (e.g., [4,26,27]). Pryshlak et al. [26] showed that the more abrupt the K transitions, the more impactful they can be. Several prior studies [28,29,30] also show that relatively low-K zones can be as important as high-K zones in driving exchange and influencing the spatial patterns of exchange. Stonedahl et al. [31] explored the influence of discontinuous conductivity fields on hyporheic exchange and RT distributions in a sand and sandy gravel framework, and found that there is a strong correlation between the volumetric flow rate and the arrangement of high conductivity grid cells. Using numerical models, Zhou et al. [4] quantified the influence of high-K open-framework gravel (OFG) strata on hyporheic flow and showed that such strata have a greater influence than the channel morphology (also see Pryshlak et al. [26]). Thus, in strongly heterogeneous sediments, facies architecture is often more influential than channel morphology in predicting hyporheic exchange and RTs.
Hydraulically connected, high-K facies create preferential flow pathways that significantly influence fluid flow and solute transport processes [32,33,34]. In general, connectivity increases with the volume proportion of high-K facies [35,36,37]. For example, Kennedy et al. [38] found that 70% of nitrate flux through the hyporheic zone of a small stream in an agricultural watershed occurred across only 38% of the streambed area, related to the intersection of high-K cross-strata with the channel boundary. These findings echo those of Zhou et al. [4], who determined that the majority of hyporheic exchange occurs at locations of high-K OFG cross-strata. Zinn and Harvey [39] observed a fundamental shift in transport behavior toward rate-limited mass transfer (i.e., heavy tailing) as the connectivity of high-K strata increased. A number of previous studies have investigated the effects of bimodal sediment heterogeneity on hyporheic exchange rates and solute RTs (e.g., [4,26,27,31]), but the impacts of low connectivity and sorption distribution have not been determined.
Chemical heterogeneity may also influence RTs and biogeochemical reaction rates [40,41,42,43,44]. A number of reactive contaminants may be temporarily removed through adsorption to particulate matter but are eventually released back into the water column depending on the sorption characteristics of the sediments [45]. Peter et al. [46] found that sorption to immobile zones, biofilms, and organic matter is a controlling mechanism in emerging contaminant removal in the HZ and results in longer hyporheic retention times with improved contaminant attenuation. Both positive and negative cross-correlation between K and K d can significantly affect the values of the effective retardation factor and reactive solute transport in the temporal and spatial domains [47,48].
The goal of this study is to determine how the spatial organization of sedimentary facies types, their spatial connectivity, and the resulting heterogeneity in K and in Kd influence hyporheic exchange and solute transport. Specifically, we focus on the differences between fully connected (i.e., percolating) high-K facies and disconnected (i.e., non-percolating) high-K facies. A series of numerical flow and mass transport models of bimodal sediments were developed within the HZ of a gravelly meander with local-scale topography in the riverbed and were used to understand the fate of conservative and sorptive solutes along hyporheic flow paths. The sorptive capacity of the high-K sediments was varied to investigate the influence of chemical heterogeneity on sorptive solute transport. Models of homogeneous sediments with the same bulk composition were compared to further understand how sediment heterogeneity influences mass transport.

2. Methods

2.1. Hyporheic Flow Model

The pressure over the streambed influences the water and solute exchange across the stream-sediment interface, which consequently governs biogeochemical transformations in the hyporheic zone. Surface water flow over complex streambed morphologies and its resulting pressure can be simulated using computational fluid dynamics (CFD) solutions [49,50,51,52,53,54]. Our numerical models follow the framework of Stonedahl et al. [3] and Zhou et al. [4]. Specifically, Stonedahl et al. [3] created a three-dimensional (3D), multi-scale model for hyporheic exchange within a meandering stream. They used bedform topography quantified from a flume experiment to calculate the pressure over the streambed interface with an approach adapted from empirical relationships defined in [55,56,57]. Pore water flow was simulated using the finite difference method in MODFLOW [58], with the calculation of bedform-induced head fluctuations over the streambed represented as the top boundary condition on the subsurface flow model. Stonedahl et al. [3] evaluated the influence of morphology by running simulations at varying scales and quantified differences in the interfacial flux. Zhou et al. [4] modified the finite-difference model in [3] by renormalizing it to the scale of a 100 m wide channel meander in the well-studied Sagavanirktok River, and included a representation of OFG cross-strata in the streambed.
Here, we build on the model from Zhou et al. [4]. Full details of the model are available in Zhou et al. [4], but below, we provide a brief summary of the key model features and details about new additions to the model. As in Zhou et al. [4], the model domain is 800 m long, 400 m wide, and 3 m deep (see Figure 1; also see Figure 3 in [4]). We used a channel width of 144 m (highlighted in blue in the conceptual domain shown in Figure 1), which reflects the average channel width in the Sagavanirktok River system [59]. The model was uniformly discretized with a 2 m horizontal and 0.05 m vertical resolution (4.8 × 106 MODFLOW grid cells). We made sure the grid was fine enough to effectively capture the size and connectivity of dipping stratasets. To keep the problem computationally tractable, only one meander from Stonedahl et al. [3] was included in the simulation. The boundary conditions and hydraulic head distribution from Zhou et al. [4] were adopted here. The prescribed head values along the top boundary were obtained from Stonedahl et al. [3], preserving the overall hydraulic gradient (1.3 × 10−3) and local variations in the head associated with small-scale bedform topography and channel morphology. Note that the gradient matches the slope of the energy grade line in the gravelly rivers, as reported by [59]. The prescribed head was also applied to the upstream and downstream boundaries. The model base and sides were defined as no-flow boundaries.
As in Zhou et al. [4], we used the bimodal sediment heterogeneity distribution of [4], which was simulated using a transition-probability (i.e., the probability of transitioning from one facies to another)-based approach in T-PROGS [60] in two stages. First, a Markov Chain (MC) model and indicator simulation with quenching (the T-PROGS code [60]) were used to simulate the structure of high- and low-K facies. The MC model uses specified mean lengths and volume proportions of each facies to model the transition rates. The quenching step ensures that the specified volume proportions are honored for each modeled heterogeneity realization. Second, MODFLOW cells were populated with variable conductivity drawn from a statistical distribution for each of the two stratal facies types (see Figure 2, a description below, and also [4] for a detailed description).
Our model also contains additions to the model of Zhou et al. [4] relevant to studying the influence of heterogeneity on hyporheic exchange and the associated solute mixing. For example, two scenarios were developed to quantify the influence of sediment heterogeneity on hyporheic exchange and mass transport: a non-percolating case (10% high-K facies type by riverbed volume) with limited hydraulic connectivity and no spanning cluster (see Figure 3), and a corresponding homogeneous case. These cases complement the prior cases from Zhou et al. [4]: a percolating case (28% high-K facies type by riverbed volume) with hydraulically connected high-K clusters spanning the domain, and a corresponding homogeneous case. As mentioned earlier, facies connectivity is controlled by the volume proportion of high-K facies types, and clusters become fully connected when that proportion reaches between 20 and 25 percent for a given realization. Therefore, in our non-percolating case, the volume proportion of 10% is well below threshold. Both high and low volume proportions of high-K sediments have been observed in a range of fluvial deposits [61,62,63,64]. Here, high-K facies cells are considered fully connected (i.e., percolating) if a single cluster spans between any pair of opposing domain boundaries. Our goal is to compare cases with and without percolating clusters (i.e., full connectivity). A vertical anisotropy ratio in K of 0.1 was used for all facies in all scenarios. For the high-K facies, a random number generator was used to generate ln(K) values with a mean of −2.3025 (geometric mean of 0.1 m s−1) and variance of 1.0 [4]. Low-K facies were assigned a mean of −7.6009 (geometric mean of 5 × 10−4 m s−1) and a variance of 1.0. Note that these are values are horizontal K. The frequency distributions of K in the heterogeneous cases are shown in Figure 2. An equivalent homogeneous model was developed for both scenarios using the geometric mean of hydraulic conductivity (2.2×10−3 m s−1 and 9 × 10−4 m s−1 for percolating and non-percolating sediments, respectively) (Table 1).

2.2. Solute Transport Model

Solute transport through the hyporheic zone was simulated using the modular multispecies transport model (MT3DMS) [65], a solute transport package coupled with MODFLOW. The pore water velocities are calculated from the hydraulic head distribution within the model domain, which are then used to solve the transport equation [44,66].
We followed the common approach of using a generic solute for all solute transport simulations (e.g., [23]). The initial solute concentration in the riverbed sediments was zero. Along the sediment–water interface, solutes were released at downwelling locations across the streambed at a concentration of 1 mg L−1 (representing river water with a constant, normalized solute concentration). Upwelling cells were defined based on interfacial flux calculations in MODFLOW and were assigned as convective flux boundaries. Solute breakthrough curves were calculated by dividing the flux-weighted concentration integrated across all upwelling cells by the flux-weighted concentration integrated across all downwelling cells. No additional source or sink terms were specified.
A linear isotherm was used to represent sorption. Thus, a retardation factor (R) was used in the advection–dispersion equation (ADE).
R ( x ) = 1 + ( ρ b n ) K d ( x ) ,
where ρ b is the bulk density of the subsurface medium (mg m−1), n is porosity (), and K d is the equilibrium sorption distribution coefficient (m3 mg−1). The x denotes the spatial variability of K d in the x, y, and z directions, which results in spatial variability in R.
More robust and mechanistic models (e.g., non-linear isotherms, Surface Complexation Models) could be used to model sorption (e.g., [67,68]), but our goal was to address the lack of understanding of how simple sorption processes affect solute transport within the hyporheic zone. Such knowledge is critical in designing remediation strategies for solutes that undergo sorption (e.g., perfluoroalkyl and polyfluoroalkyl substances (PFAS), 1,4-dioxane, perchloroethylene, trichloroethylene, and trace metals) as they are transported through porous media, particularly within the heterogeneous riverbed.
To better understand the impacts of heterogeneity in the equilibrium sorption distribution coefficient, three sorption scenarios were simulated in the present study: (1) a conservative case with no sorption (i.e., no Kd), (2) a low sorption case where the K d of high-K facies was ten-fold lower than the K d of the surrounding low-K sediment (1 m3 mg−1) (0.1 K d hereafter), and (3) a high sorption case where the K d of high-K sediment was 10 times higher than the K d of the surrounding sediment (10 K d hereafter). In sorptive scenarios, the Kd values within each facies were spatially uniform. Thus, in the 0.1 K d case, there would be less sorption along preferential solute transport pathways (i.e., high-K facies, especially when they are percolating). This is reversed in the 10 K d case. For equivalent homogeneous simulations corresponding to 28% high-K facies with 10 K d and 0.1 K d , average K d values of 3.52 m3 mg−1 and 0.748 m3 mg−1 were assigned, respectively. Similarly, for homogeneous simulations of 10% corresponding to high-K facies with 10 K d and 0.1 K d , the average K d values were 1.9 m3 mg−1 and 0.91 m3 mg−1, respectively.

3. Results

Heterogeneity increased hyporheic exchange by nearly an order of magnitude relative to in homogeneous scenarios. The total exchange volumes through the percolating and non-percolating heterogeneous models were 22.55 m3 s−1 and 9.81 m3 s−1, respectively, while the total exchange volumes through the associated homogeneous models were 3.33 m3 s−1 and 1.31 m3 s−1, respectively (Table 1). The average interfacial flow increased with connectivity, consistent with previous studies (e.g., [4,26]). The results for both percolating and non-percolating cases are consistent with prior work on the impacts of heterogeneity on the dynamics of hyporheic exchange (e.g., [19,22,23,69,70,71,72,73]).
Sedimentary architecture strongly influences hyporheic exchange in heterogeneous simulations by governing both the location and magnitude of flux across the riverbed. Zones of upwelling and downwelling were co-located with regions where high-K facies intersected the sediment–water interface (Figure 4a,b). In percolating simulations (i.e., 28% high-K facies by volume), nearly 70% of hyporheic exchange occurred across just 30% of the channel boundary, coinciding with locations where high-K facies intersected the channel. Conversely, channel morphology predominantly controlled the distribution of hyporheic flowpaths in homogeneous sediments, and small-scale bedform topographies were locally important (Figure 4c,d). As a result, the magnitude of flux was greater in the homogenous model corresponding to a 28% proportion of high-K facies, but the flow patterns remained consistent.
Sorption strongly influenced solute transport through the hyporheic zone, but its effect was tempered by the flow variability associated with K within the sediments (Figure 5). Less than 10% of the infiltrated solute mass returned to the river in both the heterogeneous and homogeneous models, with the rest advected across the downstream model boundary without returning to the river due to the natural hydraulic gradient. Slightly more mass returned back to river in heterogeneous cases (both with and without percolation), but the amount was generally lower in percolating sediments, which drive exchange and direct more flow away from the river. The conservative and low-sorption (0.1 K d ) scenarios were comparable in percolating and non-percolating conditions. However, the returned mass to the upwelling cells increased by nearly 30% with increasing K d in percolating sediments, and by approximately 8% in non-percolating sediments. Roughly 7% of the infiltrated solute mass returned to the river in homogeneous scenarios. Contrary to the trend in heterogeneous sediments, the amount of sorptive solute mass that returned to the river in homogeneous sediments decreased with increasing K d .
The sorption characteristics of high-K sediments changed solute breakthrough behavior (Figure 6). High-K facies in heterogeneous sediments exhibited a higher retardation factor, which skewed breakthrough patterns (Figure 6) and significantly delayed solute transport in both percolating and non-percolating sediments, particularly when sorption was high. More conservative mass returned to the river in the high sorption (10 K d ) scenario relative to the low sorption (0.1 K d ) scenario, suggesting the compression of the solute mixing zone (Figure 7). As both hydraulic connectivity and the sorptive capacity of high-K facies increased within heterogeneous sediments, more solute mass returned to the river. In homogeneous sediments, sorption significantly delayed solute transport and resulted in longer solute breakthrough behavior compared to conservative scenarios, with the longest breakthrough curves observed when sorption was highest. The solute mixing zone was compressed in the high sorption (10 K d ) scenario relative to the conservative and low sorption (0.1 K d ) scenarios, which were comparable (Figure 7). Thus, the solute mixing zone is compressed as sorption increases, which causes solutes only to move along short, shallow flow paths. As a result, more solute mass returns to the river from the shallow hyporheic zone, which dominates mixing and is less affected by heterogeneity structure.

4. Discussion

Hyporheic exchange is strongly influenced by sediment heterogeneity, even when high-K facies types are fully connected (i.e., non-percolating case). Heterogeneity produces irregularity in pore water flow relative to homogeneous sediments, which alters hyporheic exchange patterns. By contrast, the topography of the meander, the distribution of bedforms, and sediment conductivity govern the formation of hyporheic flowpaths through homogeneous sediments. Sediment heterogeneity also strongly affects the magnitude of hyporheic exchange and solute breakthrough behavior. Heterogeneity generally increases the complexity of hyporheic exchange paths and, depending on the conductivity structure, may also moderate the depth of mixing [23]. As a result, solutes move along shorter and faster preferential flow paths, and the overall penetration depth is often reduced [22]. In this study, the breakthrough curves for heterogeneous sediments were ten-fold shorter than even the shortest breakthrough curves in equivalent homogeneous sediments. These results reflect the findings of [74], who showed that the influence of sediment heterogeneity on RTs partly depends on the bimodal variance in K. The complex facies geometries associated with bimodal sediments also produces steep pore water head gradients, which result in flatter, more vertically compressed streamlines through the heterogeneous riverbed.
Sorption strongly influences the breakthrough curves and the paths of solute migration. In both percolating and non-percolating heterogeneous sediments, an increase in the sorption coefficient of high-K facies altered the distribution of solutes throughout the riverbed, compressing the solute mixing zone and skewing the breakthrough behavior. When sorption was low within the high-K facies, the breakthrough behavior of sorptive solutes was comparable to that of conservative solutes; sorptive solute migration through the hyporheic zone was lower in non-percolating sediments. Sorption significantly impedes solute transport in homogeneous cases; the homogenous model corresponding to 10% high-K sediments with high sorption had the longest breakthrough curves. Breakthrough times were generally longer in non-percolating cases, and earlier breakthrough behavior was associated with percolating sediments. The sorptive behavior of high-K sediments caused greater solute retention and a shallower solute mixing zone, which resulted in more mass exchange through the longer flow paths.
The sorptive potential of heterogeneous sediments could influence the subsurface transport of emerging contaminants, which are becoming increasingly abundant in the biosphere. Given their novel geochemical properties, detection is often difficult, and optimal remediation strategies remain uncertain. A necessary first step in addressing this growing issue is a fundamental understanding of how sorption capacity affects reactive solute transport through the hyporheic zone, which has the geomicrobiological potential for contaminant remediation. In our models, increased sorption in high-K sediments limited solute interactions to only a small subset of the sedimentary architecture as the solute mixing zone was compressed (Figure 7), and as a result, more solute mass was returned to the river instead of being lost to groundwater. This behavior could prove advantageous in the context of emerging contaminant transport, especially given the abundance of communities that rely on groundwater as a primary water source. High-K sediments do not often exhibit high sorptive capacity, however, but instead often contain less organic matter and smaller surface sorption sites, which decrease sorptive capacity [75,76,77,78]. As a result, sorptive solutes are more strongly controlled by the riverbed heterogeneity structure when high-K facies are more abundant and hydraulically connected. Our results indicate that in such conditions, conservative solutes may be used to estimate breakthrough behavior, RT distributions, and the exchange flux of sorptive solutes to the river. Note that RT distributions are likely predictable even though they were not assessed in this paper. The fate of sorptive solutes (i.e., emerging contaminants) lost to the groundwater cannot be approximated by conservative solutes, however, due to their non-ideal transport and mixing behavior (e.g., [12,13,79,80]), and thus a more comprehensive understanding of their transport in complex groundwater systems is needed.

5. Conclusions

Strongly heterogeneous sediments with high sorptive capacity compress the solute mixing zone and return more solute mass to the river than homogeneous sediments, even when the bulk physical and chemical properties are equivalent. Permeable, hydraulically connected facies form preferential flow pathways that increase hyporheic exchange and, therefore, solute delivery but shorten solute breakthrough curves along shallow flow paths. These results suggest that contaminant remediation in aquatic sediments is often least efficient where loads are greatest, an unfortunate circumstance that would presumably limit the attenuation of emerging contaminant loads in the environment. However, high-K sediments often exhibit low sorptive capacity due to having less organic matter and smaller surface sorption sites, in which case, conservative solutes may be used to estimate RT distributions and the exchange flux of sorptive solutes to the river. Given the importance of physical and chemical heterogeneity on hyporheic exchange and solute transport, their associated processes should be considered when designing remediation strategies for geogenic and emerging contaminants.

Author Contributions

We are grateful for constructive comments from three anonymous reviewers. Conceptualization, Y.L., L.X. and M.R.S.; Formal analysis, Y.L., C.D.W., Y.Z., R.E., L.X. and M.R.S.; Funding acquisition, L.X.; Investigation, Y.L., C.D.W., Y.Z., D.D. and L.X.; Methodology, Y.L., Y.Z. and M.R.S.; Project administration, M.R.S.; Software, Y.L.; Visualization, C.D.W. and D.D.; Writing—original draft, Y.L.; Writing—review & editing, C.D.W., Y.Z., R.E., F.B., D.D., L.X. and M.R.S. The authors thank Audrey Sawyer for fruitful discussion. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boano, F.; Harvey, J.W.; Marion, A.; Packman, A.I.; Revelli, R.; Ridolfi, L.; Worman, A. Hyporheic flow and transport processes: Mechanisms, models, and biogeochemical implications. Rev. Geophys. 2014, 52, 603–679. [Google Scholar] [CrossRef]
  2. Brunke, M.; Gonser, T. The ecological significance of exchange processes between rivers and groundwater. Freshw. Biol. 1997, 37, 1–33. [Google Scholar] [CrossRef] [Green Version]
  3. Stonedahl, S.H.; Harvey, J.W.; Worman, A.; Salehin, M.; Packman, A.I. A multiscale model for integrating hyporheic exchange from ripples to meanders. Water Resour. Res. 2010, 46. [Google Scholar] [CrossRef] [Green Version]
  4. Zhou, Y.; Ritzi, R.W., Jr.; Soltanian, M.R.; Dominic, D.F. The influence of streambed heterogeneity on hyporheic flow in gravelly rivers. Ground Water 2014, 52, 206–216. [Google Scholar] [CrossRef]
  5. Anderson, M.P. Hydrogeologic facies models to delineate large-scale spatial trends in glacial and glaciofluvial sediments. GSA Bull. 1989, 101, 501–511. [Google Scholar] [CrossRef]
  6. Barrash, W.; Clemo, T. Hierarchical geostatistics and multifacies systems: Boise Hydrogeophysical Research Site, Boise, Idaho. Water Resour. Res. 2002, 38, 14-1–14-18. [Google Scholar] [CrossRef] [Green Version]
  7. Divine, D. Physical and Chemical Heterogeneity in the Subsurface: Spatial Distribution of Transport Parameters and Their Relation to Depositional Processes. Master’s Thesis, Washington State University, Pullman, PA, USA, 2002. [Google Scholar]
  8. Gaud, M.N.; Smith, G.A.; Mckenna, S.A.; Bridge, J.S.; Hyndman, D.W. Relating Small-Scale Permeability Heterogeneity to Lithofacies Distribution. In Aquifer Characterization; SEPM Society for Sedimentary Geology: Tulsa, OK, USA, 2004. [Google Scholar]
  9. Allen-King, R.M.; Divine, D.P.; Robin, M.J.L.; Alldredge, J.R.; Gaylord, D.R. Spatial distributions of perchloroethylene reactive transport parameters in the Borden Aquifer. Water Resour. Res. 2006, 42. [Google Scholar] [CrossRef] [Green Version]
  10. Allen-King, R.M.; Kalinovich, I.; Dominic, D.F.; Wang, G.; Polmanteer, R.; Divine, D. Hydrophobic organic contaminant transport property heterogeneity in the Borden Aquifer. Water Resour. Res. 2015, 51, 1723–1743. [Google Scholar] [CrossRef] [Green Version]
  11. Ritzi, R.W., Jr.; Huang, L.; Ramanathan, R.; Allen-King, R.M. Horizontal spatial correlation of hydraulic and reactive transport parameters as related to hierarchical sedimentary architecture at the Borden research site. Water Resour. Res. 2013, 49, 1901–1913. [Google Scholar] [CrossRef]
  12. Soltanian, M.R.; Ritzi, R.W.; Huang, C.C.; Dai, Z. Relating reactive solute transport to hierarchical and multiscale sedimentary architecture in a Lagrangian-based transport model: 1. Time-dependent effective retardation factor. Water Resour. Res. 2015, 51, 1586–1600. [Google Scholar] [CrossRef]
  13. Soltanian, M.R.; Ritzi, R.W.; Huang, C.C.; Dai, Z. Relating reactive solute transport to hierarchical and multiscale sedimentary architecture in a Lagrangian-based transport model: 2. Particle displacement variance. Water Resour. Res. 2015, 51, 1601–1618. [Google Scholar] [CrossRef]
  14. Dai, Z.; Zhan, C.; Dong, S.; Yin, S.; Zhang, X.; Soltanian, M.R. How does resolution of sedimentary architecture data affect plume dispersion in multiscale and hierarchical systems? J. Hydrol. 2020, 582, 124516. [Google Scholar] [CrossRef]
  15. Dai, Z.; Zhan, C.; Soltanian, M.R.; Ritzi, R.W.; Zhang, X. Identifying spatial correlation structure of multimodal permeability in hierarchical media with Markov chain approach. J. Hydrol. 2019, 568, 703–715. [Google Scholar] [CrossRef]
  16. Brunner, P.; Therrien, R.; Renard, P.; Simmons, C.T.; Franssen, H.J.H. Advances in understanding river-groundwater interactions. Rev. Geophys. 2017, 55, 818–854. [Google Scholar] [CrossRef]
  17. Hester, E.T.; Cardenas, M.B.; Haggerty, R.; Apte, S.V. The importance and challenge of hyporheic mixing. Water Resour. Res. 2017, 53, 3565–3575. [Google Scholar] [CrossRef] [Green Version]
  18. Trauth, N.; Schmidt, C.; Vieweg, M.; Oswald, S.E.; Fleckenstein, J.H. Hydraulic controls of in-stream gravel bar hyporheic exchange and reactions. Water Resour. Res. 2015, 51, 2243–2263. [Google Scholar] [CrossRef]
  19. Cardenas, M.B.; Wilson, J.L.; Zlotnik, V.A. Impact of heterogeneity, bed forms, and stream curvature on subchannel hyporheic exchange. Water Resour. Res. 2004, 40. [Google Scholar] [CrossRef] [Green Version]
  20. Choi, J.; Harvey, J.W.; Conklin, M.H. Characterizing multiple timescales of stream and storage zone interaction that affect solute fate and transport in streams. Water Resour. Res. 2000, 36, 1511–1518. [Google Scholar] [CrossRef]
  21. Engdahl, N.B.; Weissmann, G.S. Anisotropic transport rates in heterogeneous porous media. Water Resour. Res. 2010, 46. [Google Scholar] [CrossRef]
  22. Salehin, M.; Packman, A.I.; Paradis, M. Hyporheic exchange with heterogeneous streambeds: Laboratory experiments and modeling. Water Resour. Res. 2004, 40. [Google Scholar] [CrossRef]
  23. Sawyer, A.H.; Cardenas, M.B. Hyporheic flow and residence time distributions in heterogeneous cross-bedded sediment. Water Resour. Res. 2009, 45. [Google Scholar] [CrossRef] [Green Version]
  24. Liu, S.; Chui, T.F.M. Impacts of Streambed Heterogeneity and Anisotropy on Residence Time of Hyporheic Zone. Ground Water 2018, 56, 425–436. [Google Scholar] [CrossRef] [PubMed]
  25. Tonina, D.; de Barros, F.P.J.; Marzadri, A.; Bellin, A. Does streambed heterogeneity matter for hyporheic residence time distribution in sand-bedded streams? Adv. Water Resour. 2016, 96, 120–126. [Google Scholar] [CrossRef] [Green Version]
  26. Pryshlak, T.T.; Sawyer, A.H.; Stonedahl, S.H.; Soltanian, M.R. Multiscale hyporheic exchange through strongly heterogeneous sediments. Water Resour. Res. 2015, 51, 9127–9140. [Google Scholar] [CrossRef] [Green Version]
  27. Pescimoro, E.; Boano, F.; Sawyer, A.H.; Soltanian, M.R. Modeling Influence of Sediment Heterogeneity on Nutrient Cycling in Streambeds. Water Resour. Res. 2019, 55, 4082–4095. [Google Scholar] [CrossRef]
  28. Vaux, W.F. Intragravel Flow and Interchange of Water in a Streambed; Fishery Bulletin of the Fish and Wildlife Service: Washington, DC, USA, 1968; Volume 66. [Google Scholar]
  29. Ward, A.; Gooseff, M.; Johnson, P. How can subsurface modifications to hydraulic conductivity be designed as stream restoration structures? Analysis of Vaux’s conceptual models to enhance hyporheic exchange. Water Resour. Res. 2011, 47. [Google Scholar] [CrossRef]
  30. Herzog, S.P.; Higgins, C.P.; McCray, J.E. Engineered Streambeds for Induced Hyporheic Flow: Enhanced Removal of Nutrients, Pathogens, and Metals from Urban Streams. J. Environ. Eng. 2016, 142, 04015053. [Google Scholar] [CrossRef]
  31. Stonedahl, S.H.; Sawyer, A.H.; Stonedahl, F.; Reiter, C.; Gibson, C. Effect of Heterogeneous Sediment Distributions on Hyporheic Flow in Physical and Numerical Models. Ground Water 2018, 56, 934–946. [Google Scholar] [CrossRef]
  32. Proce, C.J.; Ritzi, R.W.; Dominic, D.F.; Dai, Z. Modeling multiscale heterogeneity and aquifer interconnectivity. Ground Water 2004, 42, 658–670. [Google Scholar] [CrossRef]
  33. Renard, P.; Allard, D. Connectivity metrics for subsurface flow and transport. Adv. Water Resour. 2013, 51, 168–196. [Google Scholar] [CrossRef] [Green Version]
  34. Western, A.W.; Blöschl, G.; Grayson, R.B. Toward capturing hydrologically significant connectivity in spatial patterns. Water Resour. Res. 2001, 37, 83–97. [Google Scholar] [CrossRef]
  35. Harter, T. Finite-size scaling analysis of percolation in three-dimensional correlated binary Markov chain random fields. Phys. Rev. E Stat. Nonlin. Soft Matter Phys. 2005, 72 Pt 2, 026120. [Google Scholar] [CrossRef] [Green Version]
  36. Soltanian, M.R.; Amooie, M.A.; Dai, Z.; Cole, D.; Moortgat, J. Critical Dynamics of Gravito-Convective Mixing in Geological Carbon Sequestration. Sci. Rep. 2016, 6, 1–13. [Google Scholar] [CrossRef]
  37. Soltanian, M.R.; Amooie, M.A.; Gershenzon, N.; Dai, Z.; Ritzi, R.; Xiong, F.; Cole, D.; Moortgat, J. Dissolution Trapping of Carbon Dioxide in Heterogeneous Aquifers. Environ. Sci. Technol. 2017, 51, 7732–7741. [Google Scholar] [CrossRef]
  38. Kennedy, C.D.; Genereux, D.P.; Corbett, D.R.; Mitasova, H. Spatial and temporal dynamics of coupled groundwater and nitrogen fluxes through a streambed in an agricultural watershed. Water Resour. Res. 2009, 45. [Google Scholar] [CrossRef]
  39. Zinn, B.; Harvey, C.F. When good statistical models of aquifer heterogeneity go bad: A comparison of flow, dispersion, and mass transfer in connected and multivariate Gaussian hydraulic conductivity fields. Water Resour. Res. 2003, 39. [Google Scholar] [CrossRef] [Green Version]
  40. Soltanian, M.R.; Ritzi, R.W.; Dai, Z.; Huang, C.C. Reactive solute transport in physically and chemically heterogeneous porous media with multimodal reactive mineral facies: The Lagrangian approach. Chemosphere 2015, 122, 235–244. [Google Scholar] [CrossRef] [Green Version]
  41. Soltanian, M.R.; Ritzi, R.; Huang, C.C.; Dai, Z.; Deng, H. A Note on Upscaling Retardation Factor in Hierarchical Porous Media with Multimodal Reactive Mineral Facies. Transp. Porous Media 2015, 108, 355–366. [Google Scholar] [CrossRef] [Green Version]
  42. Jonsson, K.; Johansson, H.; Wörman, A. Sorption Behavior and Long-Term Retention of Reactive Solutes in the Hyporheic Zone of Streams. J. Environ. Eng. 2004, 130, 573–584. [Google Scholar] [CrossRef]
  43. Lemke, D.; Gonzalez-Pinzon, R.; Liao, Z.; Wohling, T.; Osenbruck, K.; Haggerty, R.; Cirpka, O.A. Sorption and transformation of the reactive tracers resazurin and resorufin in natural river sediments. Hydrol. Earth Syst. Sci. 2014, 18, 3151–3163. [Google Scholar] [CrossRef] [Green Version]
  44. Hester, E.T.; Young, K.I.; Widdowson, M.A. Mixing of surface and groundwater induced by riverbed dunes: Implications for hyporheic zone definitions and pollutant reactions. Water Resour. Res. 2013, 49, 5221–5237. [Google Scholar] [CrossRef]
  45. Jonsson, K.; Johansson, H.; Wörman, A. Hyporheic exchange of reactive and conservative solutes in streams—tracer methodology and model interpretation. J. Hydrol. 2003, 278, 153–171. [Google Scholar] [CrossRef]
  46. Peter, K.T.; Herzog, S.; Tian, Z.; Wu, C.; McCray, J.E.; Lynch, K.; Kolodziej, E.P. Evaluating emerging organic contaminant removal in an engineered hyporheic zone using high resolution mass spectrometry. Water Res. 2019, 150, 140–152. [Google Scholar] [CrossRef]
  47. Maghrebi, M.; Jankovic, I.; Fiori, A.; Dagan, G. Effective retardation factor for transport of reactive solutes in highly heterogeneous porous formations. Water Resour. Res. 2013, 49, 8600–8604. [Google Scholar] [CrossRef]
  48. Deng, H.; Dai, Z.; Wolfsberg, A.V.; Ye, M.; Stauffer, P.H.; Lu, Z.; Kwicklis, E. Upscaling retardation factor in hierarchical porous media with multimodal reactive mineral facies. Chemosphere 2013, 91, 248–257. [Google Scholar] [CrossRef]
  49. Behzadi, F.; Newman, J.C. An exact source-term balancing scheme on the finite element solution of shallow water equations. Comput. Methods Appl. Mech. Eng. 2020, 359, 112662. [Google Scholar] [CrossRef]
  50. Behzadi, F.; Shamsaei, B.; Newman, J.C. Solution of fully-coupled shallow water equations and contaminant transport using a primitive-variable Riemann method. Environ. Fluid Mech. 2018, 18, 515–535. [Google Scholar] [CrossRef]
  51. Chen, X.; Cardenas, M.B.; Chen, L. Hyporheic Exchange Driven by Three-Dimensional Sandy Bed Forms: Sensitivity to and Prediction from Bed Form Geometry. Water Resour. Res. 2018, 54, 4131–4149. [Google Scholar] [CrossRef]
  52. Li, B.; Liu, X.; Kaufman, M.H.; Turetcaia, A.; Chen, X.; Cardenas, M.B. Flexible and Modular Simultaneous Modeling of Flow and Reactive Transport in Rivers and Hyporheic Zones. Water Resour. Res. 2020, 56, e2019WR026528. [Google Scholar] [CrossRef]
  53. Chen, Y.; Bao, J.; Fang, Y.; Scheibe, T.D.; Richmond, M.C.; Perkins, W.A.; Ren, H.; Song, X.; Duan, Z.; Hou, Z.; et al. Modeling the Effects of Topography Heterogeneity and Discharge Variations on Riverbed Hydrodynamics in a 30-kilometer-long Reach over a Nine-year Period using OpenFOAM. Earth Space Sci. Open Arch. 2020, 43. [Google Scholar] [CrossRef]
  54. Zhou, T.; Bao, J.; Huang, M.; Hou, Z.; Arntzen, E.; Song, X.; Harding, S.F.; Titzler, P.S.; Ren, H.; Murray, C.J.; et al. Riverbed Hydrologic Exchange Dynamics in a Large Regulated River Reach. Water Resour. Res. 2018, 54, 2715–2730. [Google Scholar] [CrossRef]
  55. Elliott, A.; Brooks, N.H. Transfer of nonsorbing solutes to a streambed with bed forms: Laboratory experiments. Water Resour. Res. 1997, 33, 137–151. [Google Scholar] [CrossRef]
  56. Elliott, A.H.; Brooks, N.H. Transfer of nonsorbing solutes to a streambed with bed forms: Theory. Water Resour. Res. 1997, 33, 123–136. [Google Scholar] [CrossRef]
  57. Wörman, A.; Packman, A.I.; Marklund, L.; Harvey, J.W.; Stone, S.H. Exact three-dimensional spectral solution to surface-groundwater interactions with arbitrary surface topography. Geophys. Res. Lett. 2006, 33. [Google Scholar] [CrossRef] [Green Version]
  58. Harbaugh, A.W. MODFLOW-2000, the U.S. Geological Survey Modular Ground-Water Model: User Guide to Modularization Concepts and the Ground-Water Flow Process; U.S. Geological Survey: Reston, VA, USA; Branch of Information Services [distributor]: Denver, CO, USA, 2000.
  59. Lunt, I.A.; Bridge, J.S. Evolution and deposits of a gravelly braid bar, Sagavanirktok River, Alaska. Sedimentology 2004, 51, 415–432. [Google Scholar] [CrossRef]
  60. Carle, S. TProGS: Transition Probability Geostatistical Software, version 2.1; University of California: Davis, CA, USA, 1999. [Google Scholar]
  61. Engdahl, N.; Vogler, E.; Weissmann, G. Evaluation of aquifer heterogeneity effects on river flow loss using a transition probability framework. Water Resour. Res. 2010, 46. [Google Scholar] [CrossRef]
  62. Ritzi, R.W.; Dai, Z.; Dominic, D.F.; Rubin, Y.N. Spatial correlation of permeability in cross-stratified sediment with hierarchical architecture. Water Resour. Res. 2004, 40. [Google Scholar] [CrossRef] [Green Version]
  63. Weissmann, G.S.; Carle, S.F.; Fogg, G.E. Three-dimensional hydrofacies modeling based on soil surveys and transition probability geostatistics. Water Resour. Res. 1999, 35, 1761–1770. [Google Scholar] [CrossRef] [Green Version]
  64. Weissmann, G.S.; Fogg, G.E. Multi-scale alluvial fan heterogeneity modeled with transition probability geostatistics in a sequence stratigraphic framework. J. Hydrol. 1999, 226, 48–65. [Google Scholar] [CrossRef]
  65. Zheng, C.; Wang, P. MT3DMS: A Modular Three-Dimensional Multispecies Transport Model for Simulation of Advection, Dispersion, and Chemical Reactions of Contaminants in Groundwater Systems; Documentation and User’s Guide; The University of Alabama: Tuscaloosa, AL, USA, 1999. [Google Scholar]
  66. Lautz, L.K.; Siegel, D.I. Modeling surface and ground water mixing in the hyporheic zone using MODFLOW and MT3D. Adv. Water Resour. 2006, 29, 1618–1633. [Google Scholar] [CrossRef]
  67. Arora, B.; Davis, J.; Spycher, N.; Dong, W.; Wainwright, H. Comparison of Electrostatic and Non-Electrostatic Models for U(VI) Sorption on Aquifer Sediments. Ground Water 2018, 56, 73–86. [Google Scholar] [CrossRef] [Green Version]
  68. Yabusaki, S.B.; Wilkins, M.J.; Fang, Y.; Williams, K.H.; Arora, B.; Bargar, J.; Beller, H.R.; Bouskill, N.J.; Brodie, E.L.; Christensen, J.N.; et al. Water Table Dynamics and Biogeochemical Cycling in a Shallow, Variably-Saturated Floodplain. Environ. Sci. Technol. 2017, 51, 3307–3317. [Google Scholar] [CrossRef]
  69. Conant, B. Delineating and Quantifying Ground Water Discharge Zones Using Streambed Temperatures. Ground Water 2004, 42, 243–257. [Google Scholar] [CrossRef]
  70. Niswonger, R. The Hydroecological Significance of Perched Groundwater Beneath Streams. Ph.D. Thesis, Hydrologic Sciences Graduate Group, University of California, Davis, CA, USA, 2005. [Google Scholar]
  71. Fleckenstein, J.; Niswonger, R.; Fogg, G. River-Aquifer Interactions, Geologic Heterogeneity, and Low-Flow Management. Ground Water 2006, 44, 837–852. [Google Scholar] [CrossRef]
  72. Krause, S.; Bronstert, A.; Zehe, E. Groundwater–surface water interactions in a North German lowland floodplain—Implications for the river discharge dynamics and riparian water balance. J. Hydrol. 2007, 347, 404–417. [Google Scholar] [CrossRef]
  73. Frei, S.; Fleckenstein, J.H.; Kollet, S.J.; Maxwell, R.M. Patterns and dynamics of river–aquifer exchange with variably-saturated flow using a fully-coupled model. J. Hydrol. 2009, 375, 383–393. [Google Scholar] [CrossRef]
  74. Laube, G.; Schmidt, C.; Fleckenstein, J.H. The systematic effect of streambed conductivity heterogeneity on hyporheic flux and residence time. Adv. Water Resour. 2018, 122, 60–69. [Google Scholar] [CrossRef]
  75. Sawyer, A.H. Enhanced removal of groundwater-borne nitrate in heterogeneous aquatic sediments. Geophys. Res. Lett. 2015, 42, 403–410. [Google Scholar] [CrossRef]
  76. Kessler, A.J.; Glud, R.N.; Cardenas, M.B.; Larsen, M.; Bourke, M.F.; Cook, P.L.M. Quantifying denitrification in rippled permeable sands through combined flume experiments and modeling. Limnol. Oceanogr. 2012, 57, 1217–1232. [Google Scholar] [CrossRef]
  77. Kessler, A.J.; Glud, R.N.; Cardenas, M.B.; Cook, P.L.M. Transport Zonation Limits Coupled Nitrification-Denitrification in Permeable Sediments. Environ. Sci. Technol. 2013, 47, 13404–13411. [Google Scholar] [CrossRef]
  78. Wörman, A.; Packman, A.; Marklund, L.; Harvey, J.; Stonedahl, S. Fractal topography and subsurface flows from fluvial bedforms to the continental shield. Geophys. Res. Lett. 2007, 34. [Google Scholar] [CrossRef] [Green Version]
  79. Sudicky, E.A.; Illman, W.A. Lessons Learned from a Suite of CFB Borden Experiments. Ground Water 2011, 49, 630–648. [Google Scholar] [CrossRef] [PubMed]
  80. Dentz, M.; le Borgne, T.; Englert, A.; Bijeljic, B. Mixing, spreading and reaction in heterogeneous media: A brief review. J. Contam. Hydrol. 2011, 120–121, 1–17. [Google Scholar] [CrossRef] [PubMed]
Water 12 01547 g001 550

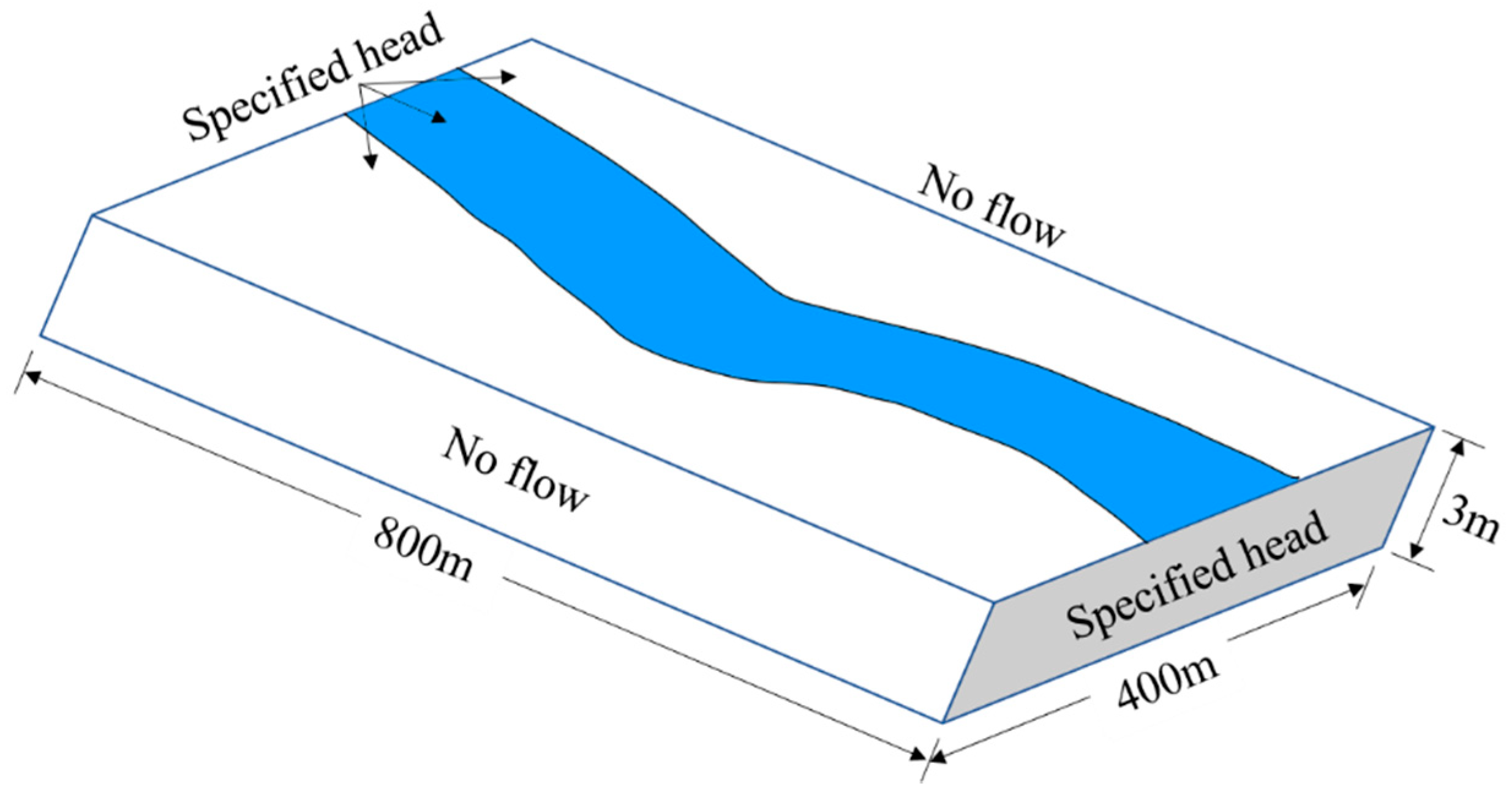

Figure 1. Model domain and boundary conditions.
Figure 1. Model domain and boundary conditions.
Water 12 01547 g001
Water 12 01547 g002 550

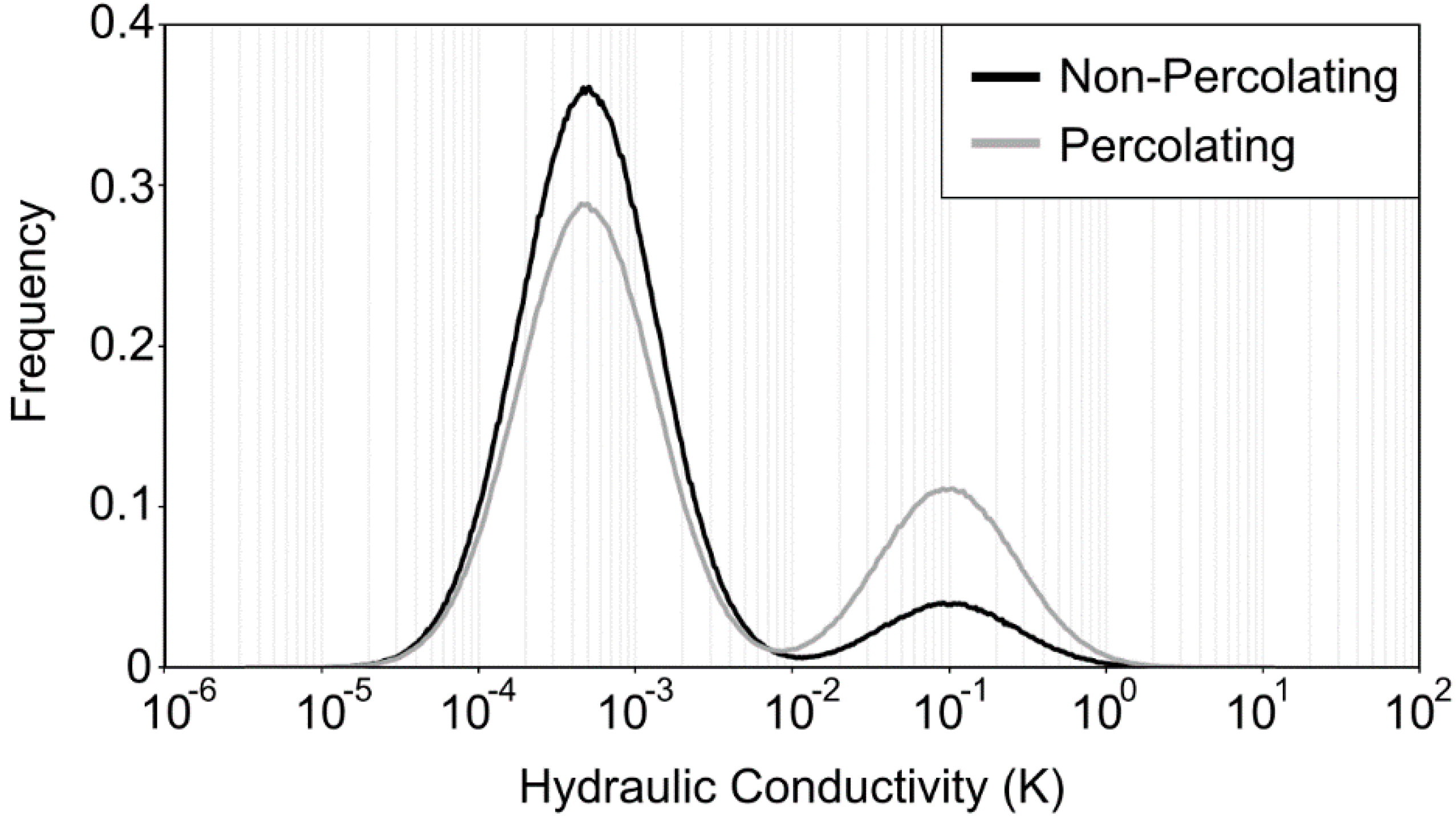

Figure 2. Frequency plot of hydraulic conductivity in heterogeneous simulations. Difference in mean ln(K) is clear for both percolating and non-percolating cases.
Figure 2. Frequency plot of hydraulic conductivity in heterogeneous simulations. Difference in mean ln(K) is clear for both percolating and non-percolating cases.
Water 12 01547 g002
Water 12 01547 g003 550

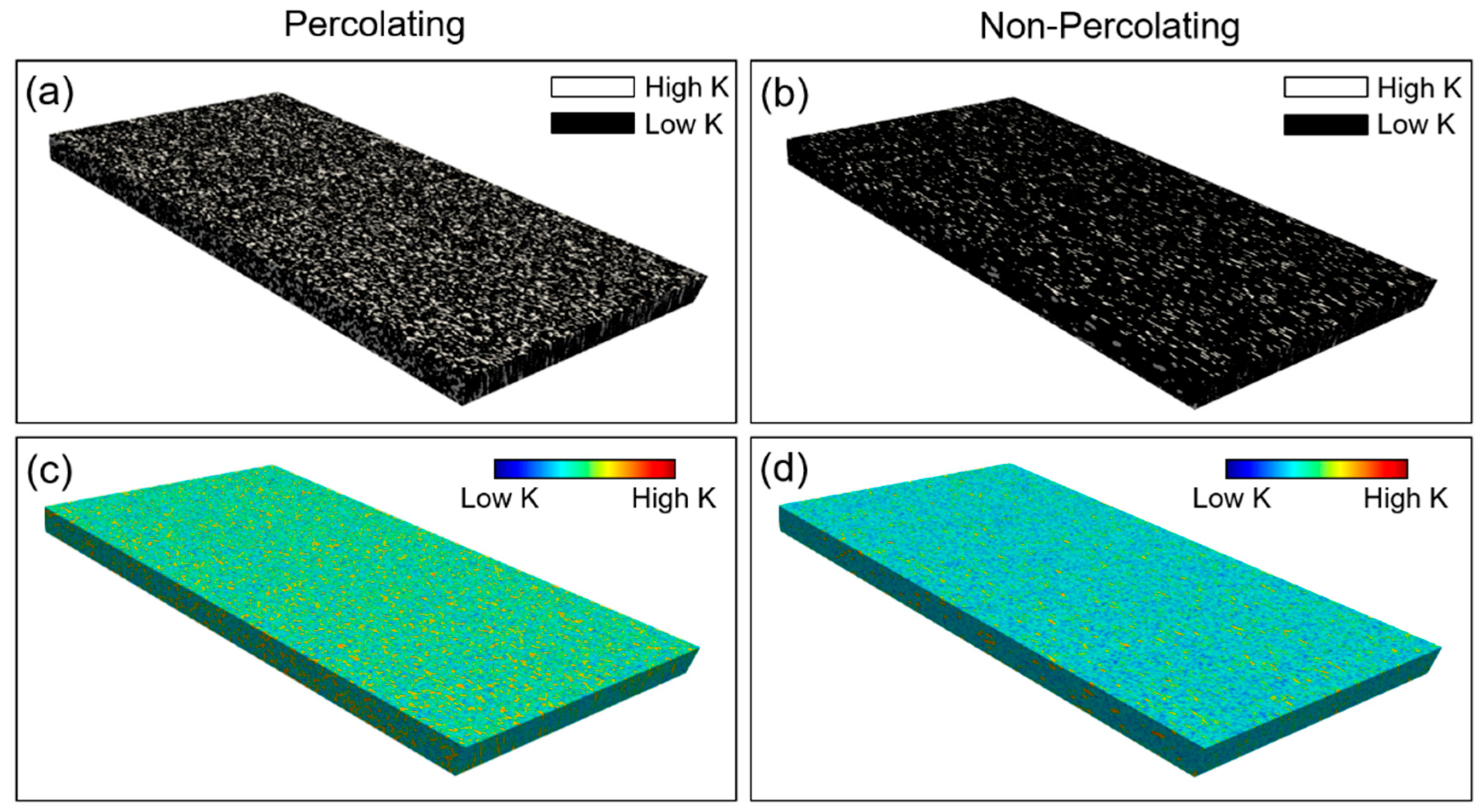

Figure 3. Facies type distribution for (a) percolating (28% high-K) and (b) non-percolating (10% high-K) scenarios. The K fields for the (c) percolating and (d) non-percolating realizations were generated in T-PROGS using a transition probability-based approach.
Figure 3. Facies type distribution for (a) percolating (28% high-K) and (b) non-percolating (10% high-K) scenarios. The K fields for the (c) percolating and (d) non-percolating realizations were generated in T-PROGS using a transition probability-based approach.
Water 12 01547 g003
Water 12 01547 g004 550

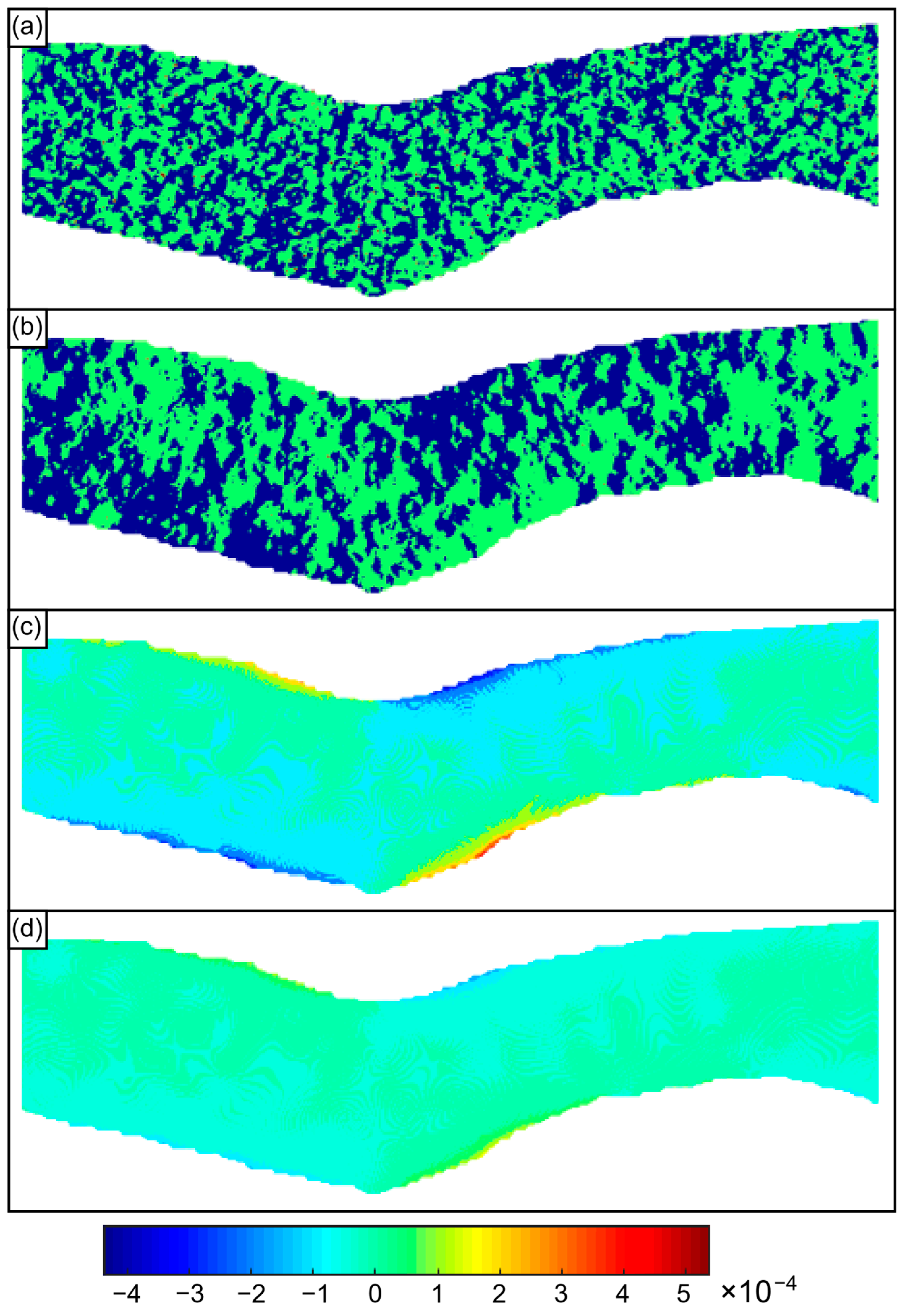

Figure 4. Interfacial flux (m s−1) in the riverbed through (a) percolating and (b) non-percolating heterogeneous sediments, and (c) percolating and (d) non-percolating homogeneous sediments. Positive flux is into the riverbed; negative flux is out of the riverbed.
Figure 4. Interfacial flux (m s−1) in the riverbed through (a) percolating and (b) non-percolating heterogeneous sediments, and (c) percolating and (d) non-percolating homogeneous sediments. Positive flux is into the riverbed; negative flux is out of the riverbed.
Water 12 01547 g004
Water 12 01547 g005 550

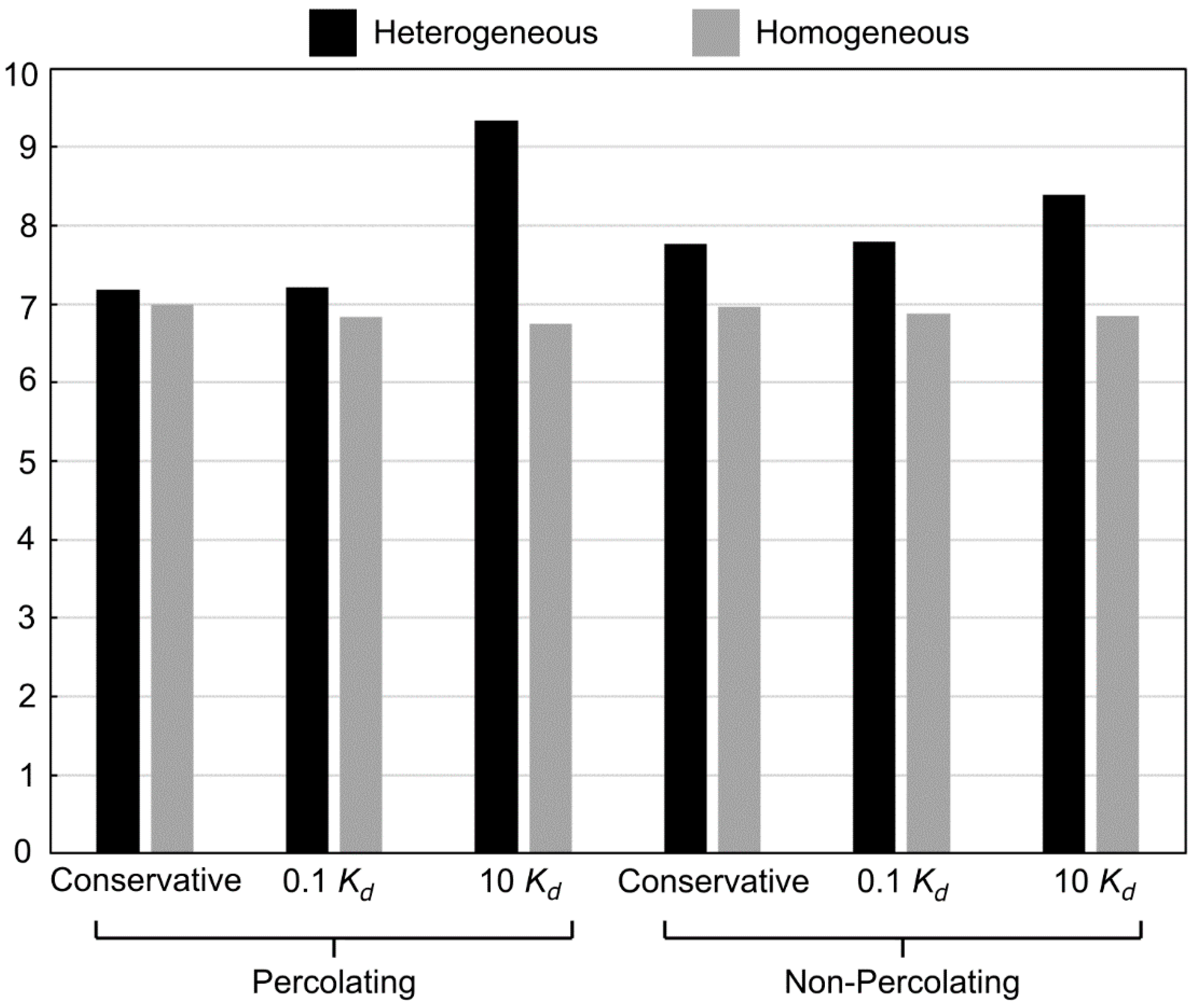

Figure 5. Percentage of solute mass in upwelling cells (or percentage of total mass returning to the river after exchange occurs). Black and gray indicate heterogeneous and homogeneous simulations, respectively.
Figure 5. Percentage of solute mass in upwelling cells (or percentage of total mass returning to the river after exchange occurs). Black and gray indicate heterogeneous and homogeneous simulations, respectively.
Water 12 01547 g005
Water 12 01547 g006 550

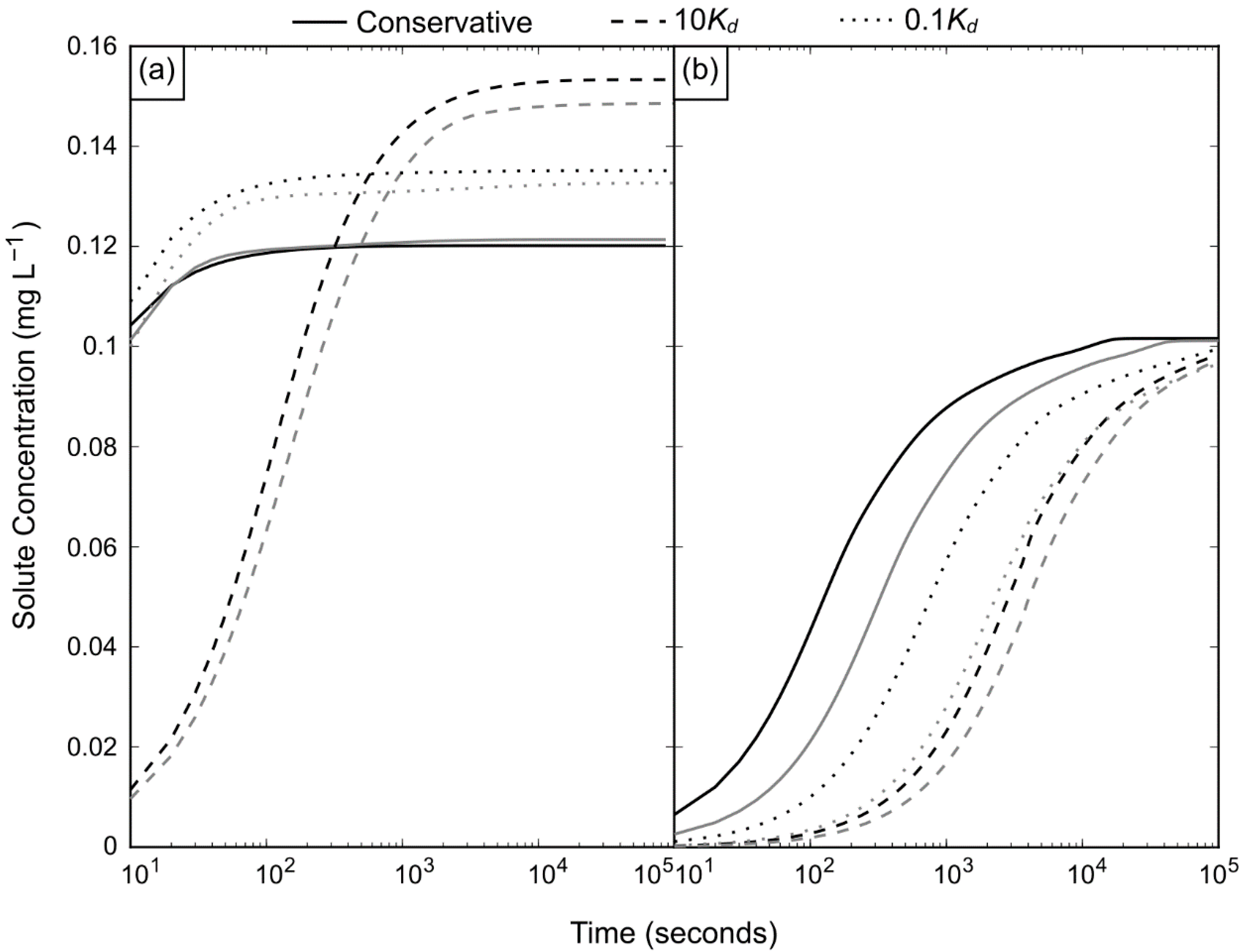

Figure 6. Breakthrough curves for conservative and reactive solutes returned to the stream in (a) heterogeneous and (b) homogeneous simulations. Black and gray lines indicate percolating and non-percolating sediments, respectively.
Figure 6. Breakthrough curves for conservative and reactive solutes returned to the stream in (a) heterogeneous and (b) homogeneous simulations. Black and gray lines indicate percolating and non-percolating sediments, respectively.
Water 12 01547 g006
Water 12 01547 g007 550

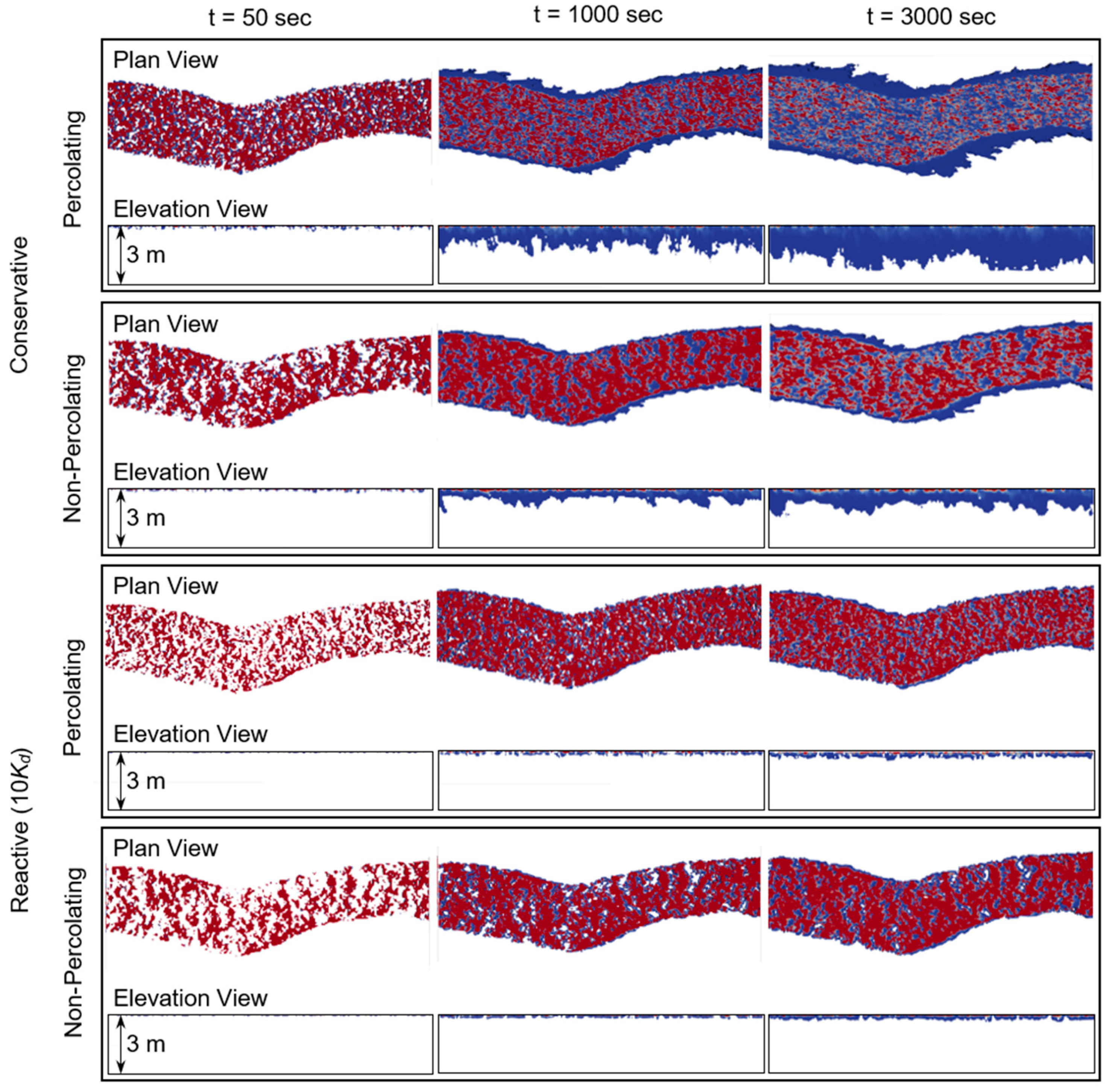

Figure 7. Conservative and reactive solute distributions for percolating and non-percolating heterogeneous sediments. Both a plan view and elevation view are shown. Concentration is normalized to the initial downwelling value, where red indicates high concentrations and blue indicates low concentrations.
Figure 7. Conservative and reactive solute distributions for percolating and non-percolating heterogeneous sediments. Both a plan view and elevation view are shown. Concentration is normalized to the initial downwelling value, where red indicates high concentrations and blue indicates low concentrations.
Water 12 01547 g007
Table
Table 1. Sediment proportions and total hyporheic exchange volumes for heterogeneous and the corresponding homogeneous models.
Table 1. Sediment proportions and total hyporheic exchange volumes for heterogeneous and the corresponding homogeneous models.
MetricHeterogeneousHomogeneous
High-K facies type by riverbed volume (%)28102810
Total exchange volume (m3 s−1)22.69.83.41.3

Share and Cite

MDPI and ACS Style

Liu, Y.; Wallace, C.D.; Zhou, Y.; Ershadnia, R.; Behzadi, F.; Dwivedi, D.; Xue, L.; Soltanian, M.R. Influence of Streambed Heterogeneity on Hyporheic Flow and Sorptive Solute Transport. Water 2020, 12, 1547. https://doi.org/10.3390/w12061547

AMA Style

Liu Y, Wallace CD, Zhou Y, Ershadnia R, Behzadi F, Dwivedi D, Xue L, Soltanian MR. Influence of Streambed Heterogeneity on Hyporheic Flow and Sorptive Solute Transport. Water. 2020; 12(6):1547. https://doi.org/10.3390/w12061547

Chicago/Turabian Style

Liu, Yuanhong, Corey D. Wallace, Yaoquan Zhou, Reza Ershadnia, Faranak Behzadi, Dipankar Dwivedi, Lianqing Xue, and Mohamad Reza Soltanian. 2020. "Influence of Streambed Heterogeneity on Hyporheic Flow and Sorptive Solute Transport" Water 12, no. 6: 1547. https://doi.org/10.3390/w12061547

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
