Ecotoxicological Effect of Aged Wood Leachates to Aquatic Organisms

by
Lyndon N. A. Sackey
*,
Klára A. Mocová
and
Vladimír Kočí
Department of Environmental Chemistry, Faculty of Environmental Technology, University of Chemistry and Technology, Technická 5, 166 28 Praha 6-Dejvice, Prague, Czech Republic
*
Author to whom correspondence should be addressed.
Water 2020, 12(8), 2091; https://doi.org/10.3390/w12082091
Submission received: 16 June 2020 / Revised: 17 July 2020 / Accepted: 20 July 2020 / Published: 23 July 2020
(This article belongs to the Section Water Quality and Contamination)
Browse Figures
Review Reports Versions Notes

Abstract

:
Wood is an important natural resource used for various human activities. Toxicity of wood leachate in aquatic organisms has been previously established, but whether storage over time has an impact on the quality of leachate has not been assessed. Hence, this research seeks to assess the toxicity of aged wood leachate in aquatic organisms. Five fresh wood samples were randomly selected from the Oboyow forest reserve in the eastern region of Ghana: Mahogany (Khaya ivorensis), Cedrela (Cedrela odorata), Emire (Terminalia ivorensis), Wawa (Triplochiton scleroxylon), and Ceiba (Ceiba pendandra) to assess their toxicity to aquatic organisms. Algal (Desmodesmus subspicatus) duckweed (Lemna minor) and daphnia (Daphnia magna) were carried out using exposures to concentrations of 20%, 30%, 45%, 67%, and 100% v/v of wood leachate with control media, because they represented various concentration rate levels of wood leachate toxicity in the test organisms. The toxicity of the various wood leachates might be due to high levels of biochemical oxygen demand (BOD), chemical oxygen demand (COD), and total organic carbon (TOC), i.e., metals and phenols. The % IC50 of the various wood leachate ranged from 21.51–66.77% with mahogany exhibiting the highest toxicity and wawa the lowest. It was also observed that toxicity of wood leachates decreased as the wood leachate aged. The % IC50 showed both confirmed and potential toxicity among the various wood leachates.

1. Introduction

Wood has been used for centuries by humans as an essential material for daily activities and has been beneficial since the primitive state for its outstanding mechanical characteristics. Due to technological development, wood is widely used in various corners of human life. It is a natural product and storing such a natural product can be harmful to the environment. Wood contains organic compounds that are leached when put into contact with liquid such as resin acids, terpenes, fatty acids, and tannins [1]. A generated liquid called leachate contains compounds, which when released into water bodies, may cause adverse impact on aquatic organisms [2]. The storage of logs awaiting to be processed is remnant of post-processed woodchips and sawdust stored on impermeable surfaces. The water from rainfall, snowmelt, or irrigation in contact with them result in the generation of leachate. Leachate needs to be managed and usually pumped into a treatment pond or holding receptacle before being released into a water body.
In this study, we used aquatic organisms Lemna minor (duckweed), Desmodemus Subspicatus (algae,) and Daphnia magna (daphnia) because they play an important role in the maintenance of the ecosystem.
Desmodesmus subspicatus is a microscopic freshwater green alga that grows in the water column as free-floating plankton and can be found around the world, even in the soil [3]. Their color is a result of the green pigment chlorophyll, which is surrounded by a membrane and forms a conspicuous structure called a chloroplast [4]. It is a primary producer at the base of the food chain and it is an important source of food for zooplankton and/or fish [4]. D. subspicatus may be a useful bio-indicator of nutrient conditions in lakes and as a model organism for investigating physiological, ecological, and/or ecotoxicological analysis [5]. The effect of log-yard storm water runoff on D. subspicatus was tested and the result shows that the log-yard storm water had a negative effect on the test organism [6]. The variations in the toxicity of the two water cycles indicated that a total hydrological assessment of the treatment of the storm water from the log-yard had an effect on the environment. One of the test organisms was D. subspicatus and after the test it was observed that the Aspen wood leachate inhibited algal growth at a very low concentration.
Lemna minor (genus Lemna) is a small floating plant with a single root. It is indigenous in most of Africa, Asia, Europe, and North America [7]. It is usually found in freshwater ponds and slow-moving streams. The fronds are oval and light green, and only a few cells thick. Aerenchyma assists with floatation [8]. Duckweed can grow at temperatures between 6 and 33 °C, and optimal pH between 6.5–8.0 [7]. Many wastewater studies have been performed using L. minor as the test organism for determining toxicity. Duckweed has also proven its capability to be used as test organism for complex effluent bioassays and herbicide pollutants in aquatic environments [9]. L. minor was used as a sensitive endpoint to assess the toxicity of organic aquatic micropollutants based on the chlorophyll content. The result demonstrated different sensitivities in tested micropollutants; industrial chemicals and pesticides were the most toxic [10]. L. minor was used for the growth inhibition test in this research. Actively growing L. minor in a 7-day static renewal assay was used to assess various liquid samples for their effects on Lemna growth [11].
Daphnia magna is a micro crustacean that belongs to the family crustacean and the order Cladocera. They are planktonic and one of the many small aquatic crustaceans called water fleas because of the way they swim. D. magna are found mostly in lakes, ponds, streams, and rivers in most parts of the world. They play vital ecological functions within these habitats by changing phytoplankton and bacteria into animal proteins and form a major part of the food for numerous fish species who feed on them [12]. Daphnia generally endure poor water quality and their dissolved oxygen varies from almost zero to super saturation. Daphnia are sensitive to poor water environments; a number of research and industrial groups use daphnia to test water quality. D. magna was used to determine toxicity from 52 textiles and the results indicated that the chemicals were toxic to the D. magna and hence they could affect the environment when released into water bodies without treatment [13]. Ecotoxicity of leachates from wood materials treated with wood preservatives was determined using D. magna [14]. The test results showed that the tested leachates from the treated wood preservatives were all toxic to D. magna. Aspen wood toxicity for leachates in aquatic organisms has been found and in our study, D. magna was one of the organisms used. It was observed from the toxicity test that the aspen wood leachate was toxic to D. magna [15].
Even though the toxicity of wood leachate to aquatic organisms has been proven by many studies, this research seeks to find out if aging wood leachates have a toxic effect on aquatic organisms. This research was informed by research conducted on the effect of toxicity of aged landfill leachates to aquatic organisms [16]. This research could help in the management of leachates generated from wood processing industries and leachate treatment.

2. Materials and Methods

2.1. Sample Preparation

Wood logs obtained through a random selection of a forest reserve in an eastern region of Ghana were cut into pieces; volumes ranged from 1–3 cm3. The dry matter content of 100 g of wood samples was determined at 105 ± 5 °C [17] using a Memmert hot air oven, model UNE 300 (Schwabach,, Germany) [18]. The leachates were stored in a 2 L plain glass bottle container covered with perforated parafilm to prevent any particles from entering and to allow gas exchanges for 1 month, 3 months, and 6 months under laboratory conditions where temperature ranged between 24–25 °C. The samples were put in an open place to receive natural light. The pH, conductivity, and dissolved oxygen of the leachates were determined using the Wissenschaftlich-Technische Werkstätten WTW Multiline P4, 2.2. The biochemical oxygen demand (BOD) was determined using the suppression of the nitrification method [19]. Atomic absorption spectrometry (AAS) (SensAA GBC Scientific Equipment Dual, Australia) was used to determine selected metals (Cd, Mn, Cr, Fe, Cu, Pb, and Zn) present in wood leachates [20]. The GBC 933 AAS elemental detection limits were 0.009 mg/L for cadmium, 0.025 mg/L for Cu, 0.06 mg/L for Pb, 0.008 mg/L for Zn, 0.002 mg/L for Mn, 0.003 mg/L for Cr, and 0.005 mg/L for Fe. The World Health Organization (WHO) limits were used because they apply to wastewater discharge limits. The chemical oxygen demand (COD) was determined using potassium dichromate, modified via the semi-automated colorimetric method [21]. Total organic carbon (TOC) was determined using the high-temperature combustion method [22]. The total phenols was determined by the colorimetric method using Folin Ciocalteu’s phenol reagent with Gallic acid [23].

2.2. Toxicity Test

2.2.1. Algal Toxicity Test

Algal medium is the bold’s basal medium (BBM) for algae (Desmodesmus subspicatus) cultivation. It was constituted from distilled water and then dissolved in salts with a pH of 6.6 ± 0.2, according to [24,25,26]. The BBM was sterilized by using pressure cooker for 20 min at 121 °C.
A stock culture of the algae (Desmodesmus subspicatus) was prepared from strain number BRINKMANN 1953/SAG 86.81 via a culture collection of autotrophic organisms (CCALA), Institute of Botany of the AS CR, Třeboň, Czech Republic. The algae stock culture was prepared in a flow chamber by adding 4 mL of stock algae concentrate to 150 mL of cultivation medium in flat bottom glass flasks. Incoming air was cleaned from algae. Free flying bacteria were in a round atmosphere bacterial filter and immediately afterwards fed into algal suspension. The stock culture was transferred into a thermostat with a light cycle (16/8 h) under stable fluorescent light and temperature (22 ± 2 °C; 6000–8000 lux) for 72 h under continual aeration.
The test was carried out in 25 mL Erlenmeyer flasks. A volume of 15 mL of samples and growth medium were prepared in three replicates of different concentrations of sample: 20, 35, 45, 67, and 100% v/v for the toxicity test. The experiment was carried under sterile conditions. Initial algal concentration (80,000 cells/mL) was estimated by counting cells in the Bürker chamber. The control medium and samples were incubated in a thermostat with a light cycle (16/8 h) for 72 h under stable fluorescent light (6000–8000 lux) and temperature (22 ± 2 °C). After the exposure period, the algae cells were counted in the Bürker chamber under a microscope to calculate the algae growth rate.

2.2.2. Duckweed Toxicity Test

The Steinberg nutrient solution for duckweed cultivation was constituted from distilled water and dissolved appropriate concentrations of given salts. The solution had a pH of 5.5 ± 0.2, according to ISO guideline 20,079 [27,28]. The nutrient medium was sterilized in a pressure cooker for 20 min at 121 °C.
Prior to the test, the duckweed were transferred from a solid agar into the Steinberg nutrient solution and cultivated under 24 ± 2 °C and light cycle (16 h/8 h; light/dark; 5000–6000 lux) for 168 h. The test was conducted in 150 mL beakers. A volume of 100 mL of samples and growth medium were prepared in three replicates of different concentrations: 20%, 35%, 45%, 67%, and 100% v/v for the toxicity test. An initial frond number of 10 was transferred into each replicate; the beakers were covered with transparent film. The samples were incubated for 168 h under the same temperature and light conditions as the culture. The plants were photographed at the beginning (0 day), middle (3 days). and end of the exposures (7 days) for frond number and area estimation. After the 7-day exposures, chlorophyll content (a and b) was extracted in 99.8% methanol (48 h; 4 °C, dark) and measured by spectrophotometry (Hach, DR/2400, Germany). The calculation of the total chlorophyll content (a and b) was made according to a previous study [29]. The area were calculated by image analysis [30].

2.2.3. Daphnia Toxicity Test

The daphnia acute mobility inhibition test was performed using juvenile individuals of Daphnia magna Straus aged up to 24 h, originating from ephippia (Microbiotests Inc., Mariakerke (Gent), Belgium). The test design was based on a previous work [31,32]. Aerated ADaM medium (pH 7.8 ± 0.2; O2 ≥ 7.0 mg/L) [33] was used as a control. To ensure a sufficient amount of dissolved oxygen (minimum 90%), the ADaM medium was aerated for at least a day before the toxicity test. Before the toxicity test, ephippia were culture in ADaM medium for 3–4 days under 24 ± 2 °C and 16/8 h light cycle for hatching of ephippia.
The test was conducted in 25 mL beakers. A volume of 20 mL of samples and growth medium were prepared in three replicates of different concentrations: 20%, 35%, 45%, 67%, and 100% v/v for the toxicity test. This was made in three replicates for both the control and samples. In total, 5 juveniles were transferred into 25 mL beakers containing various concentrations of leachate samples by Pasteur pipette, covered with transparent parafilm, and incubated at 24 ± 2 °C and a 16 h/8 h light/dark cycle (2000–3000 lux). The mobility (viability) of the test organisms was observed after the 48 h exposure.

2.2.4. Statistical Analysis

The logit model was used to calculate the dose response curve and GraphPad prism ver. 5.01 [34] in fitting of dose-response curves for all toxicity tests to determine the percentage median inhibition concentration (% IC50).

3. Results and Discussion

3.1. Physical and Chemical Characteristics

The wood leachate understudy showed different wood leachate colors after agitated with distilled water in a bottle for 24 h: mahogany-brown; cedrela- light Pink; wawa-colourless; emire-yellowish; and ceiba-light brown [18]. Moreover, after storage for 1 month, 3 months. and 6 months, there were changes in the wood leachate colors as the leachates aged: mahogany-dark brown; cedrela-deep pink; wawa-light brown; emire- deep yellow and ceiba-brown. The different colors and changes in leachate colors with age can be explained by oxidation, extractive degradation of extractives (especially lignin and tannins), and an increase in pH of the wood leachate with time and UV exposure [35,36].
Generally, pH increased when wood leachates aged, i.e., with time, leachates became more alkaline and this could be due to release of more hydroxide ions in the solution because of oxidation. The pH values ranged between 4.8–8.9, with emire having the lowest pH value and ceiba having the highest pH value across the various aged leachates. Generally, high values of pH were measured between 24 h and 1 month for most leachate samples. This could be due to storage time between the two, which indicated that during that period less biochemical reactions occurred.
Every wood leachate sample at 24 h had a woody or lumber smell, and as they aged the odor became offensive. This might be due to chemical changes in organic substances or decomposition of organic matter.
The conductivity of the wood leachates increased as the leachates aged, which indicated that more dissolved ions were released when leachates aged. Conductivity ranged between 174–1035 µS/cm. The lowest conductivity was observed in mahogany and the highest in ceiba. High values of conductivity were measured mostly between 24 h and 1 month of wawa, emire, and ceiba wood leachates. This could be due to the high concentrations of ions in fresh wood leachate and the storage period between other wood samples [35]. Furthermore, dissociation of inorganic compounds within the leachate with time could contribute to the increase in ion concentration within the leachates. The difference in the ion concentration by these wood leachates might be due to their different chemical composition, because it has been reported by [36] that different wood species yield different leachate compositions, which corresponds to their chemical composition. All the leachates conductivity were above the acceptable range for discharge into freshwater, that indicates the possibility of changing the quality of water when discharged without treatment [37].
Heavy metals (Cd, Mn, Cr, Fe, Cu, Pb and Zn) were determined because they are commonly encountered in polluted water [38]. Cd, Mn, Cr, Fe, Cu, Pb, and Zn were detected in various wood leachates at different concentration levels ranging between 0.02–3.78 mg/L. (Table 1, Table 2, Table 3, Table 4 and Table 5). Pb and Zn were under detection level throughout the various wood leachate samples. Mn was detected in all wood leachate samples and was within the permissible limit. Mn is an essential element for plant growth and might be supported in duckweed growth throughout various wood leachates [39]. Zn was predicted in other research to be a contributors of toxicity. However, in wood leachates samples for this experiment, it was under the detection limit in all wood leachate samples [40]. Fe concentration in the wood leachates were below the permissible limit. This could be due to both biochemical reaction, which reduced the Fe concentration with time.
Cu concentration levels in all wood samples were below the discharge limit and thus its effect on aquatic organisms might not be lethal. This could have supported the growth and development of aquatic organisms. Cd was above the permissible level [42] in all wood leachate samples by 2 times the reference value’s (0.03 mg/L) discharge limit.
This could affect the chlorophyll levels in the fronds. It has been reported that Cd induces inhibition of photosynthetic systems and causes oxidative stress [43]. Cr was above the permissible limit over 37 times the discharge limit for wastewater and this could affect plant growth and development [44,45]. It was generally observed that metal concentration decreased as wood leachate aged and this could be due to metal degradation by microorganisms [45]. High levels of metals have a inhibitory effect on aquatic organisms development [46].
Generally, the BOD, COD, and TOC decrease as wood leachates age, indicating that with time organic leachate content biodegrades. Mahogany had the highest concentrations of BOD, COD, and TOC, while wawa had the lowest among the age of various wood leachates analyzed. This could be due to the presence of organic compounds (e.g., lignins, tannins, cellulose). The BOD and COD for the wood leachate samples were above the effluent discharge permissible limit of 40 mg/L and 120 mg/L, respectively, except for wawa [47]. This indicated that there are more organic and inorganic compounds in the samples and hence will affect the quality of water and could also kill aquatic organisms when discharged without treatment. This will occur because organic matter in leachates through decomposition compete with aquatic organisms for available oxygen, hence reducing the quantity of oxygen available within the aquatic system, which might result in death. The BOD ranged between 9–268 mg/L (Table 6), which was more than 8 times the permissible limit.
The COD ranged between 37.4–1397 mg/L (Table 6) and was more than 10 times the permissible level. The BOD and COD ratio was 0.3, indicating that wood leachates can be treated biologically, but must be seeded [47]. This showed that there were more chemicals within the samples that were not oxidized [48].
The TOC measured ranges between 23.4–699 mg/L and was above the permissible limit. This indicates that the presence of organic carbons within the sample could be due to the presence of high phenols detected in wood leachates. This could promote high oxygen demand and affect lives in the aquatic environment [49].
Phenols are one of the major compounds attributed for causing toxicity in wood leachates [15,36,47]. The total phenols determined in various wood leachates ranged between 2.6–76.7 mg/L and were all above the permissible limit of 1 mg/L in wastewater [50]. Generally, phenols concentration decreased when the leachates aged. Mahogany had the highest phenol content of 76.7 mg/L at 24 h leachate, whereas ceiba had the lowest with 2.6 mg/L in 6 months. It could be observed that the change in phenol concentration between 24 h and 1 month in the various samples were not significant when compared to the change between 1 and 3 months, and 3 and 6 months. This also confirmed that age of leachate has an impact on total phenol content within leachates.
The recorded variation recorded might be due to different biochemical reactions within various wood leachates. Emire and mahogany were 33 and 66 times higher than the permissible limit, which indicated its high level of toxicity to the various aquatic organisms (Table 7). The difference in the various phenol concentrations in wood leachates could be due to their nature and species richness composition because concentration of extractives varies from tree species to tree species [51].
The concentration of phenols measured in the wood leachate samples corresponded with the level of toxicity to the aquatic organisms used for the toxicity test [15]. The high level of total phenols measured in the various wood leachates depicted that other extractives such as lignin, tannins and terpenes could be high and contribute to the toxicity of the aquatic organisms, as reported in other research work [35].

3.2. Ecotoxicity Tests

The toxicity of various wood leachates to algae (Desmodesmus subspicatus) were determined by cell density and growth rate of the algae after the 72 h of exposure. The number of living cells per volume countered after exposure increased when concentration rate decreased among all wood leachate samples. Moreover, cell density increased as wood leachates aged. An average cell density of over one million cell/mL was observed throughout all wood leachate samples. Although there was inhibition of algal growth, the number of living cells per volume in the wood leachate samples were higher than the initial inoculum of 80,000 cells/mL, indicating the ability of the samples to support algal growth, especially in advanced aged leachate samples. However, low numbers of living cells were recorded mostly in 67% and 100% v/v concentrations and increased to 20%, 30%, and 45% v/v (Figure 1, Figure 2 and Figure 3).
The growth rate also showed a similar trend with regard to cell density, but generally the algal growth per day was high (1.21 × 106 cell/mL at 1 day) [52,53].
The growth rate generally decreased as the leachate concentration increased in the various wood leachates, which indicated that to prevent the effect leachate on algal growth, the leachate has to be treated before being discharged into any aquatic system. Among all wood leachates, the mahogany leachate showed inhibition throughout the various ages, indicating inhibition of algal cells. With other leachates, there were stimulation at lower concentrations (Figure 1A) and inhibition at higher concentrations. This could be due to lack of nutrients that might have prevented the algae to obtain the necessary minerals for growth and color, preventing light penetration [54].
The nature of the color might have been a contributing factor because the samples became less intense when diluted with the control medium. Thus, more light transmitted at a lower concentration, enabling algae growth. High phenol levels determined in wood leachates could be a contributing factor in the inhibition of algae growth rate in the toxicity test [55]. The presence of phenols caused cell and tissue damage in the samples, altering intermediary metabolisms and oxidative stress [56]. The variations in conductivity and high BOD, COD, and TOC might also be a contributing factor, because algae needs optimal conditions to thrive [48]. High conductivity levels in the samples could create osmotic pressure and affect water absorption by the algae, thus affecting their growth rate. High BOD, COD, and TOC could affect algae growth rate because of too much organic matter, which may result in less oxygen availability, thereby depicting more growth recorded as the leachate aged in the algal toxicity test [57].
The high levels of metals measured in leachates may also affect the growth and photosynthesis of algae. The absence of Zn in all leachates is a basic component of various enzymes involved in photosynthesis and metabolism. The presence of other heavy metals such as Cd, Cr, and Mn in leachates could have resulted in algae inhibition [58].
The dose-response curve of algae growth in various wood leachates showed distinct trends with respect to leachate age. The dose-response indicated a reduction in response to the algae as the leachate aged (Figure 1, Figure 2 and Figure 3). In mahogany and wawa, there was not much of a difference between 3 and 6 months (Figure 1). For cedrela (Figure 3), there was not much of a dose-response difference between the 24 h and 1 month leachates. For emire, even though there was a difference in the dose-response of the algae at various leachate ages, at 67% v/v almost the same dose-response was realized in the 1 and 3 month(s) leachates (Figure 2A). These variations in dose-response could be due to the phenols in the wood leachates, or biochemical processes that took place during storage or response during the exposure period [35,59].
The percentage median IC50 of wood leachate samples for algae (Desmodesmus subspicatus) ranged between 27.7–60.0% (Table 8), which depicted both confirmed and potential toxicity [60,61]. This proves that the various wood leachates had negative effects on algae growth at different toxicity levels. Thus, when released into the environment without treatment it could impact the aquatic environment. The mahogany showed the highest toxicity with a % IC50 value of 27.7% at 24 h. Wawa had the lowest toxicity with a % IC50 value of 60% at 6 months. It was observed that the % IC50 reduced when leachates aged.
The growth rate of duckweed in the wood leachate was determined using frond numbers (pcs), frond area (cm2), and chlorophyll content (µg/cm2). The duckweed fronds ranged between 16–18 fronds in almost all wood leachates on the third day of exposure, except in the mahogany leachates, where the frond number was below 14. Even in some aged leachates, wawa, ceiba, and cedrela doubled their frond number on the third day of exposure. Usually, increased frond numbers are seen at lower leachate concentrations. On the seventh day of exposure, the number of fronds ranged between 25–32. This was realized in the 20%, 30%, and 45% v/v concentrations. In the higher concentrations, it ranged between 18 and 19 fronds, especially in the mahogany and emire leachates.
Most samples showed stimulation, chloritic, or necrotic nature of fronds throughout various ages (Figure 4). In the aged leachates, the frond number tripled in mahogany, emire, and cedrela leachates, and even quadrupled in wawa and ceiba leachates, especially after exposure to lower concentrations. The duckweed frond area increased by 0.6 cm2 on the third day in almost all leachates except mahogany, which was 0.3 cm2 at its lower concentrations. On the seventh day of exposure, the frond area in the lower concentrations increased by 0.13 cm2 and at the higher concentration by 0.5 cm2. The chlorophyll content of the duckweed after exposure increased as concentrations decreased. The average chlorophyll content in the control was 18 µg/cm2 and that of the various samples was 9.8 µg/cm2, indicating that the chlorophyll content in the control was two times more than the samples. The mahogany leachate had the lowest chlorophyll content at 100% v/v, which was 0.2 µg/cm2. This correlates to the necrotic nature of the fronds observed during the experiment. The low chlorophyll content observed in some of these leachates might be due to many chemical or enzymatic degradation reactions during the exposure period [62]. There was duckweed stimulation in almost all wood leachate concentrations except for mahogany, which chlorosis and necrosis of fronds were observed.
High growth rate was recorded in wawa, cedrela, and ceiba at 20%, 30&, and 45% v/v. For emire and mahogany, it was observed in 20% and 30% v/v concentrations throughout all wood leachates. The highest inhibition of duckweed was seen in mahogany leachates and the lowest in wawa. This could be due to the lack of nutrients, high phenol concentration, and metals from the leachate, which may have affected duckweed growth and development [63,64]. The lack of nutrients was largely due to absence of a nutritive control medium in the 100% v/v and small amount in the 67% v/v, which would not have been sufficient to support duckweed growth. Duckweed root elongation was observed in high concentrations and short roots were seen in lower concentrations. This could be due to lack of nutrients and thus the duckweed’s extending roots could be used to obtain limited nutrients within the sample. The high level of phenol concentration may have affected the growth and development of duckweed because it affected metabolism and interfered with various enzyme activities.
The chlorotic fronds of duckweed observed in most samples indicated a possible toxicity of chemicals such as Mn, which were detected in all wood samples and may have affected the growth and development of the duckweed [65].
Cd and Cu may have caused genotoxicity and oxidative stress in duckweed [66]. Cd might have contributed to the toxicity of the duckweed by destroying the photosynthesis apparatus and nitrogen metabolism, thus resulting in growth retardation [67]. The chlorosis, necrosis, and frond discoloration of duckweed observed in the leachates could be due to the presence of Cu [68]. The presence of Cr may have caused growth rate reduction and content of photosynthetic pigments [69]. The variation in pH and conductivity of the leachate could affect mineral transportation and also build osmotic pressure within the system, especially around the roots. This affects water absorption and duckweed growth and development.
The growth rate increased as concentrations decreased: 100 > 67 > 45 > 30 > 20% v/v and the effect of the leachates to duckweed decreased as they aged, which could be due to their biochemical reaction that occurred during the exposure period. The dose-response curve for both chlorophyll and area inhibition showed a similar growth rate trend for duckweed. However, for mahogany, there was an inhibition for both the chlorophyll and the area inhibition, with 24 h leachate depicting almost all fronds as necrotized. The area inhibition curve of mahogany showed no difference between the 3 and 6 months leachate, which could be due to them having almost the same area. The difference in chlorophyll inhibition could be due to level of decolorization of their fronds after exposure.

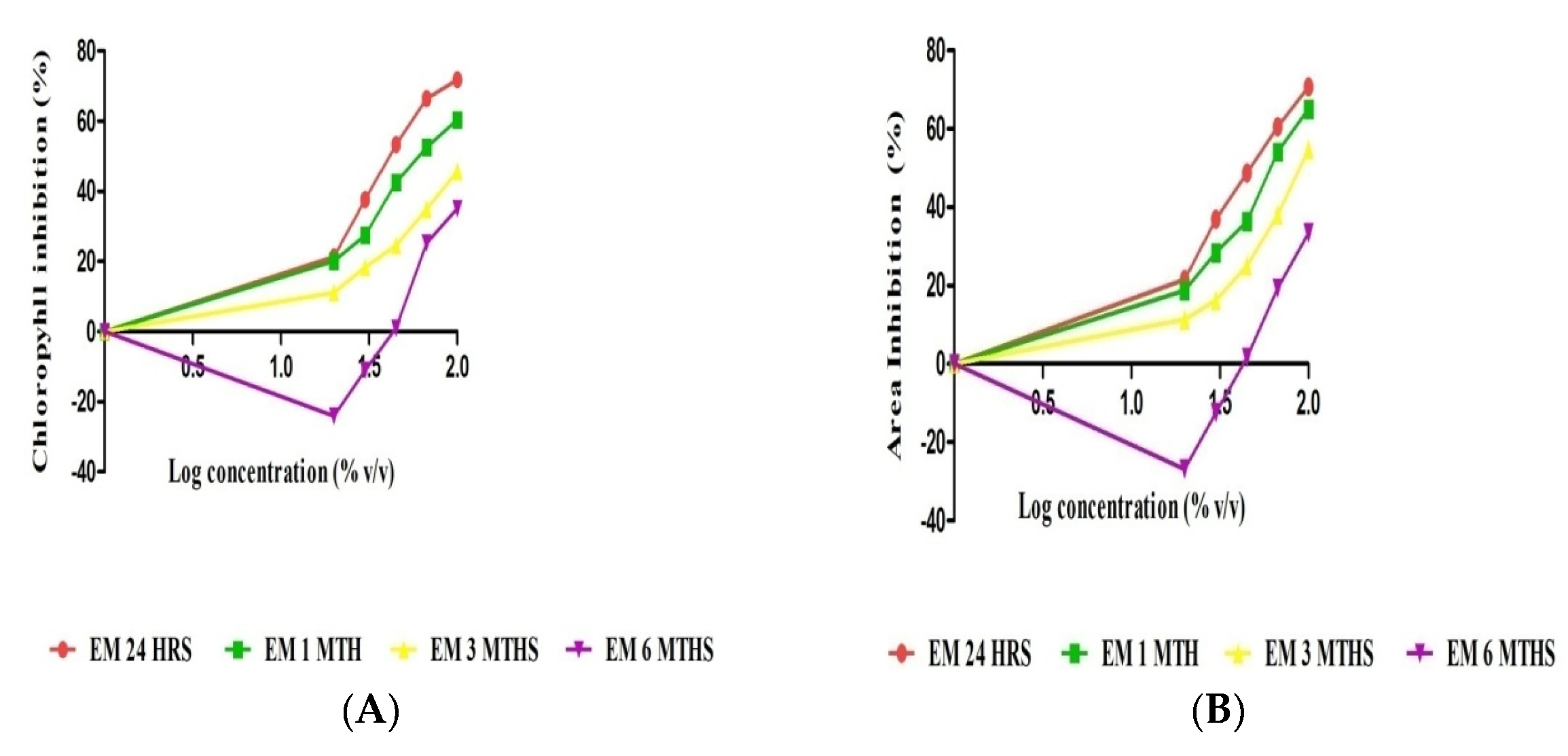

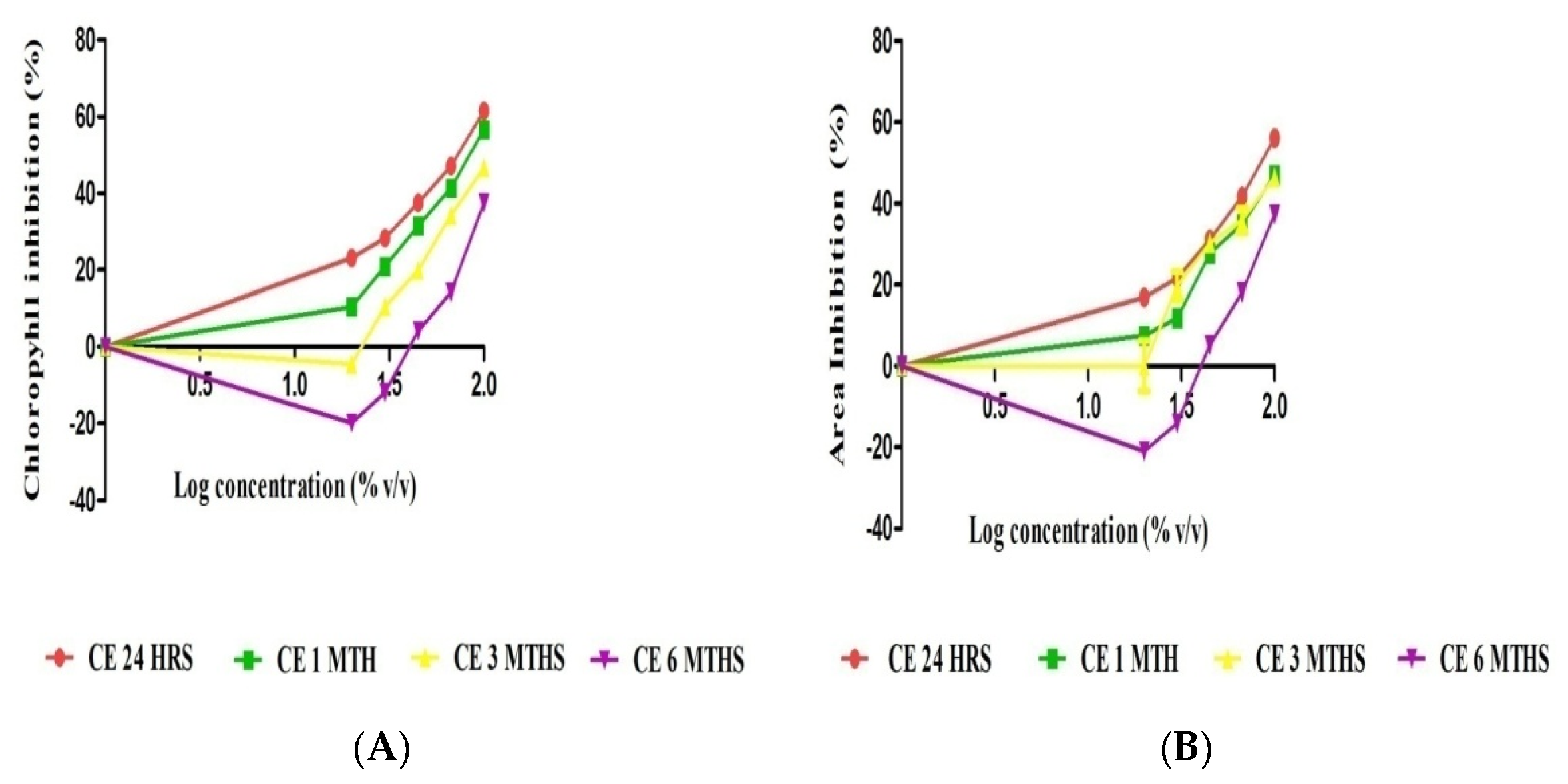

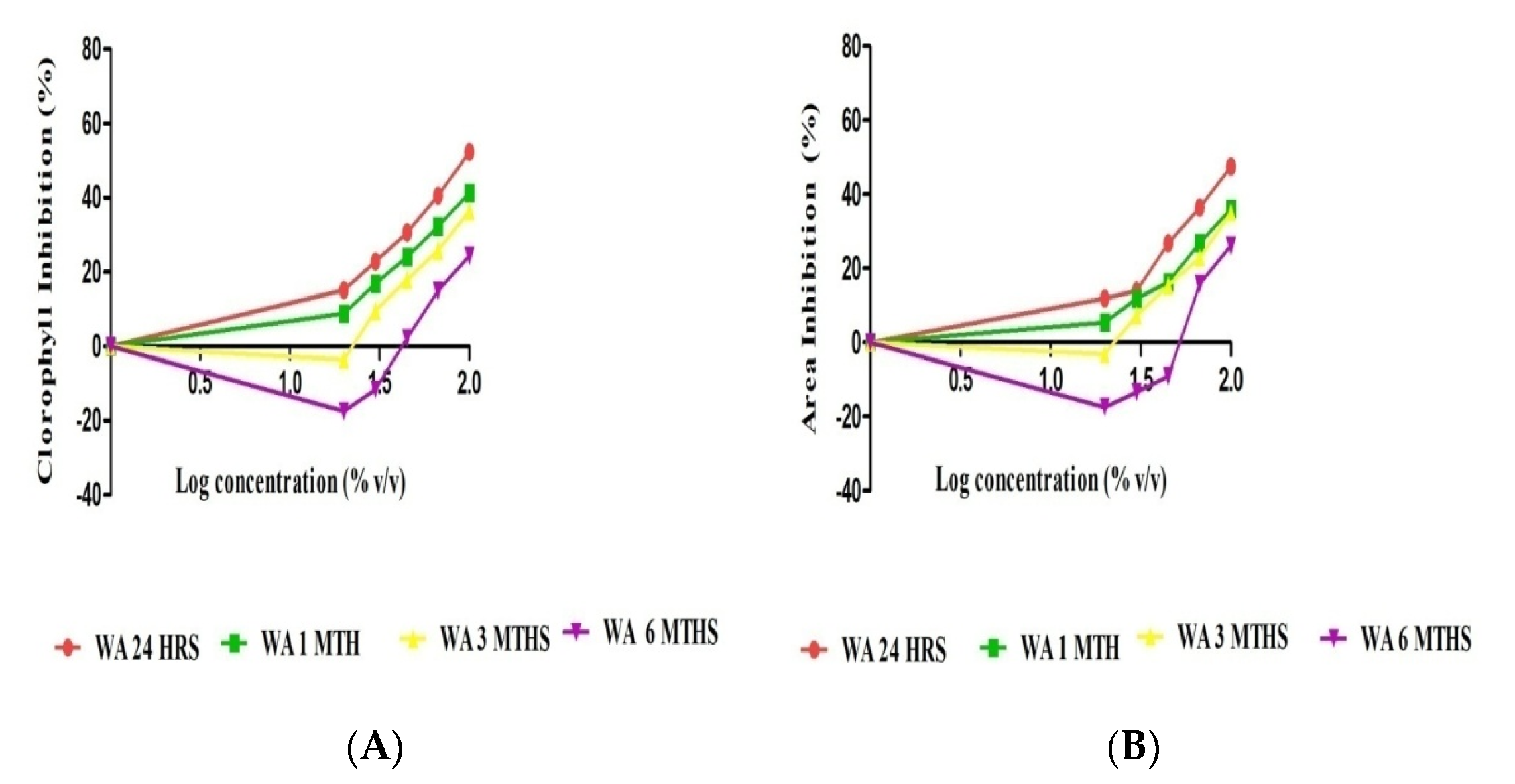

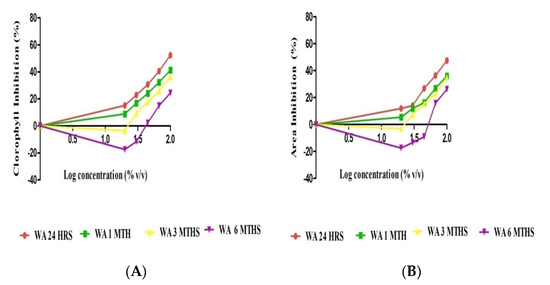

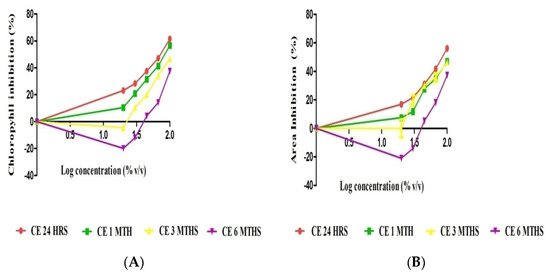

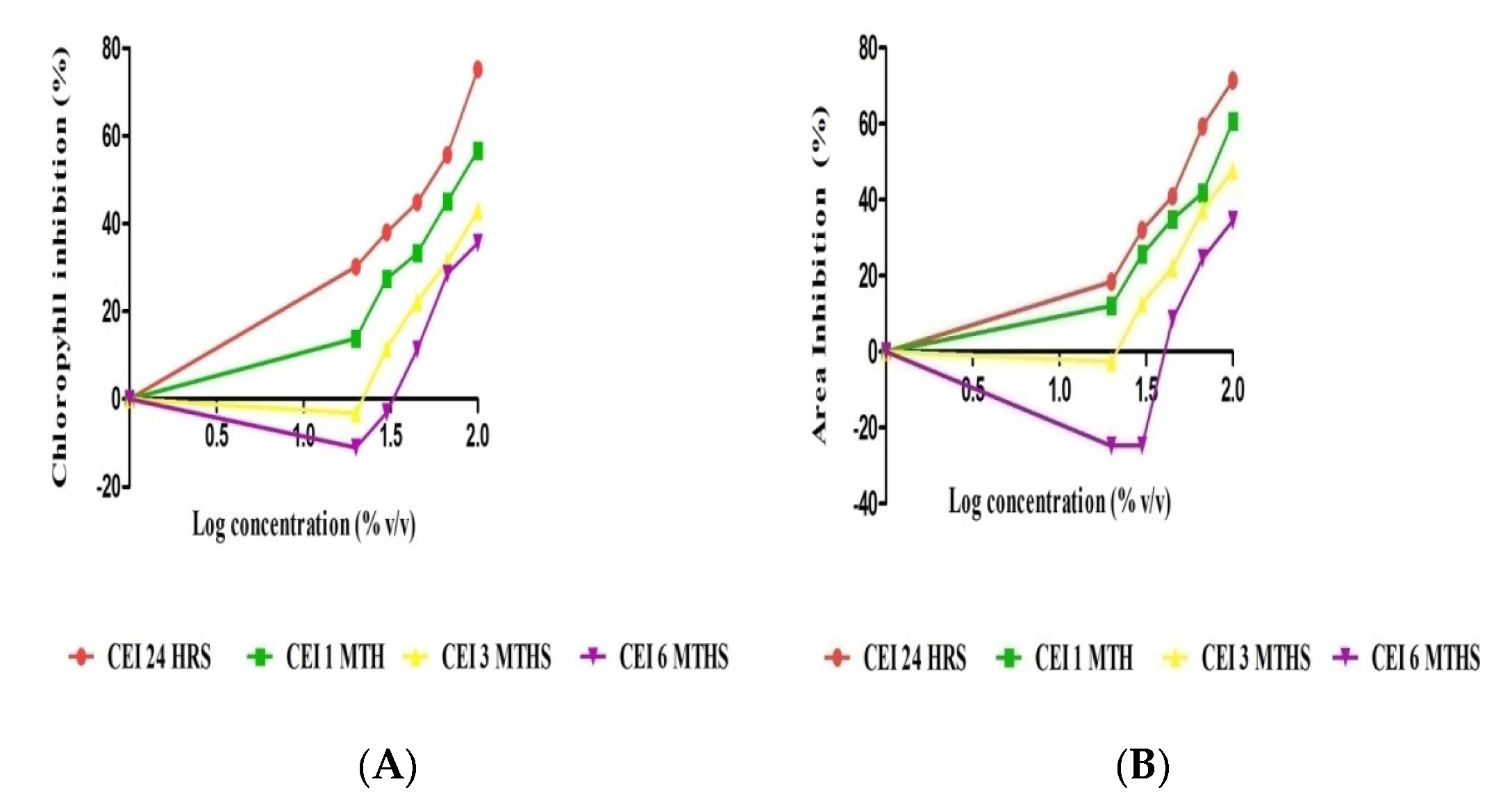

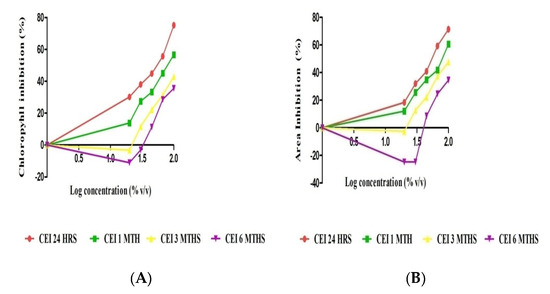

There was stimulation in all lechate types (Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8) observed at 3 and 6 months in the area and chlorophyll content, with 24 h and 1 month leachates showing inhibition. The various wood leachates at 24 h showed a high inhibition to the duckweed at the 100% v/v concentration, which indicated that when raw leachates were released into water body, duckweed growth was seriously impacted. The % IC50 of the chlorophyll content and duckweed area decreased as the wood leachate aged.
The duckweed toxicity test indicated that the size of the front area after exposure correlated with the quantity of chlorophyll content. Stimulation was observed in the emire leachate only at 6 months and similar dose-response between the 24 h and 1 month of the 20% v/v concentration after exposure (Figure 7).
This then indicated that leachates toxicity towards duckweed decreased as leachates were stored over a longer period. The % IC50 of duckweed chlorophyll content ranged between 25.2–57.2% among the various ages of leachates (Table 9). Mahogany leachate had the highest toxicity with a % IC50 value of 25.2% in the 24 h leachate, whereas wawa leachate the lowest toxicity with a % IC50 value of 57.2% for the 6 month leachate. The % IC50 for the frond area of duckweed ranged between 29.1–50.1% (Table 9). The highest % IC50 was realized in mahogany with a % IC50 of 29.1%, whereas the was cedrela, for the 6 month leachate. The % IC50 ranged of the various bioindicators depicted that the leachates confirmed the potential toxicity [60,61].
Zooplankton species D. magna was used for the toxicity test because of its importance in the ecosystem. In the toxicity test, D. magna endpoints were used for reproduction, growth, survival, and death or immobilization. In the present study, the immobilization of D. magna was used as the endpoint after 48 h of exposure. Immobilization was recorded in all wood leachates and for juveniles, immobilization increased as concentration increased. Moreover, we observed that the immobilization of juveniles decreased as leachates aged after exposure. In mahogany leachate, all juveniles were immobilized with a 100% v/v concentration, regardless of age. Immobilization was recorded in 67% and 45% v/v concentrations in the 24 h leachate and in the 1 month leachate at 67% v/v. The 20%, 30%, and 45% v/v of the various ages of the mahogany leachates showed mobility of juveniles between 2–3 juveniles after exposure. For cedrela, all juveniles immobilized after 24 h and 1 month at 67% and 100% v/v concentrations. The juveniles were all mobile in 6 months leachates. In 20%, 30%, and 45% v/v concentrations, the number of juveniles alive within the various ages of the cedrela leachate ranged between 3–5 juveniles. Wawa leachates had no immobilization of juveniles in the 1, 3, and 6 months. Immobilization in the wawa leachate was observed in the 24 h leachate at 67% and 100% v/v concentration with 1–2 juveniles immobilized. The immobilization of all juveniles was observed at 100% v/v concentration for all ages of emire leachates. Further, for emire, at 30%, 45%, and 67% v/v concentrations 2–4 mobile juveniles were observed in each beaker and no immobilization was recorded in 20% and 30% v/v for 3 and 6 months leachates. In the ceiba leachates, immobilization was observed at 100% v/v concentration in every wood leachates understudy and also through 67% v/v concentration, except in the 6 months leachate, where juvenile mobility was observed. Furthermore, juvenile mobility was recorded at 20%, 30%, and 45% v/v in the various leachate ages, which ranged between 3–4 juveniles. The changes in immobilization occurred in the leachates and cold be due to their different chemical composition and biological nature. The reduction in immobilization could be due to biochemical reactions that occurred during the storage of leachates and also during the period of the exposure. The high immobilization recorded in most leachates could be due to the presence of inorganic compounds, i.e., Mn, Cr, and Cu [70,71]. Dissolved oxygen concentrations measured after the experiments in the various leachates were above 5 mg/L. The pH after exposure ranged between 5.1–8.1 and largely fell within the optimal pH for survival and growth of daphnia. However, pH variation for leachates, especially emire and mahogany, might have contributed to the immobilization of daphnia [72]. The high levels of phenol measured in the leachates could have a biological effect on the juveniles, potentially resulting in their immobilization [73]. The presence of heavy metals within the leachates might cause chemotoxicity, which can result in daphnia mortality.

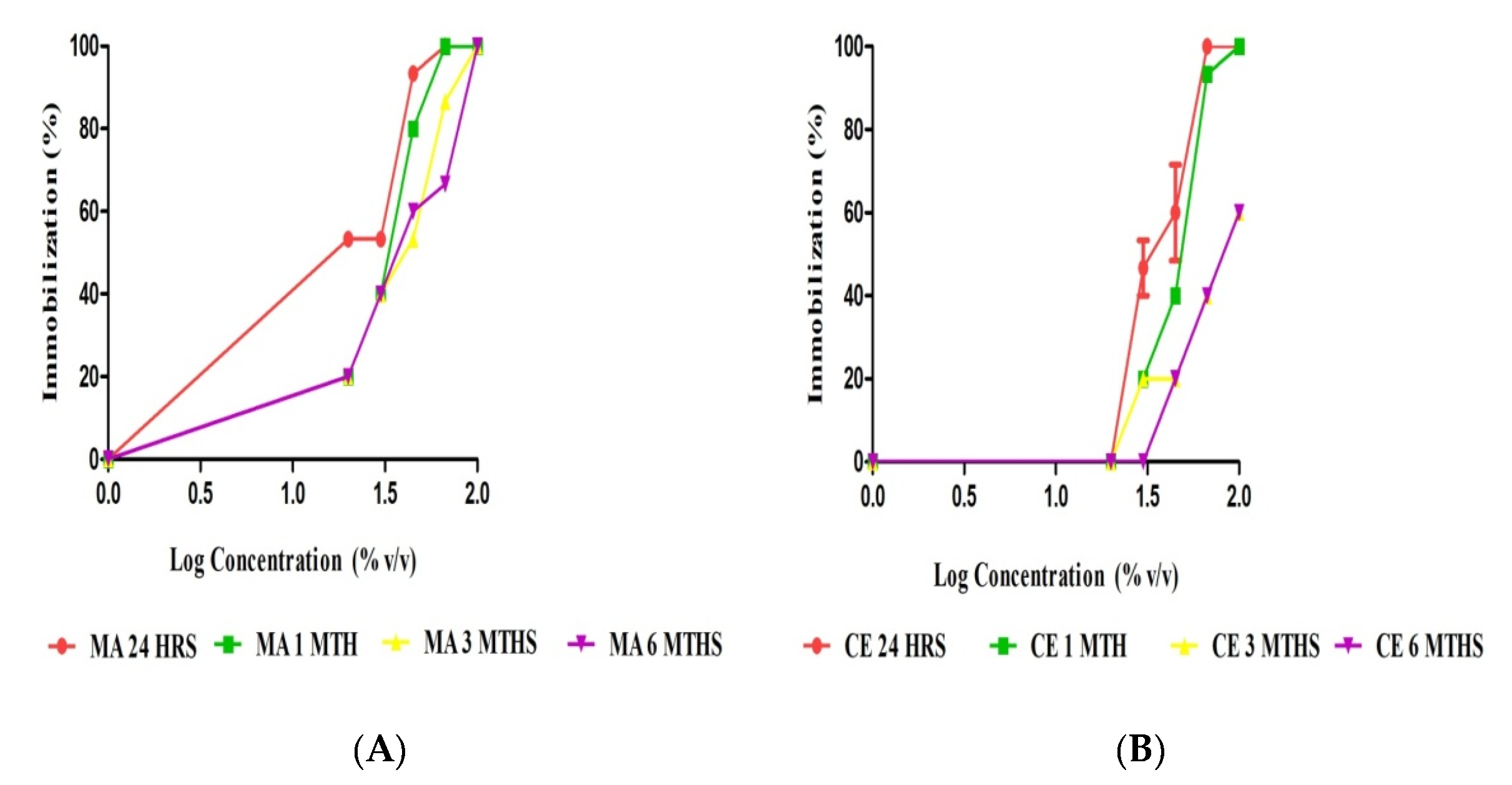

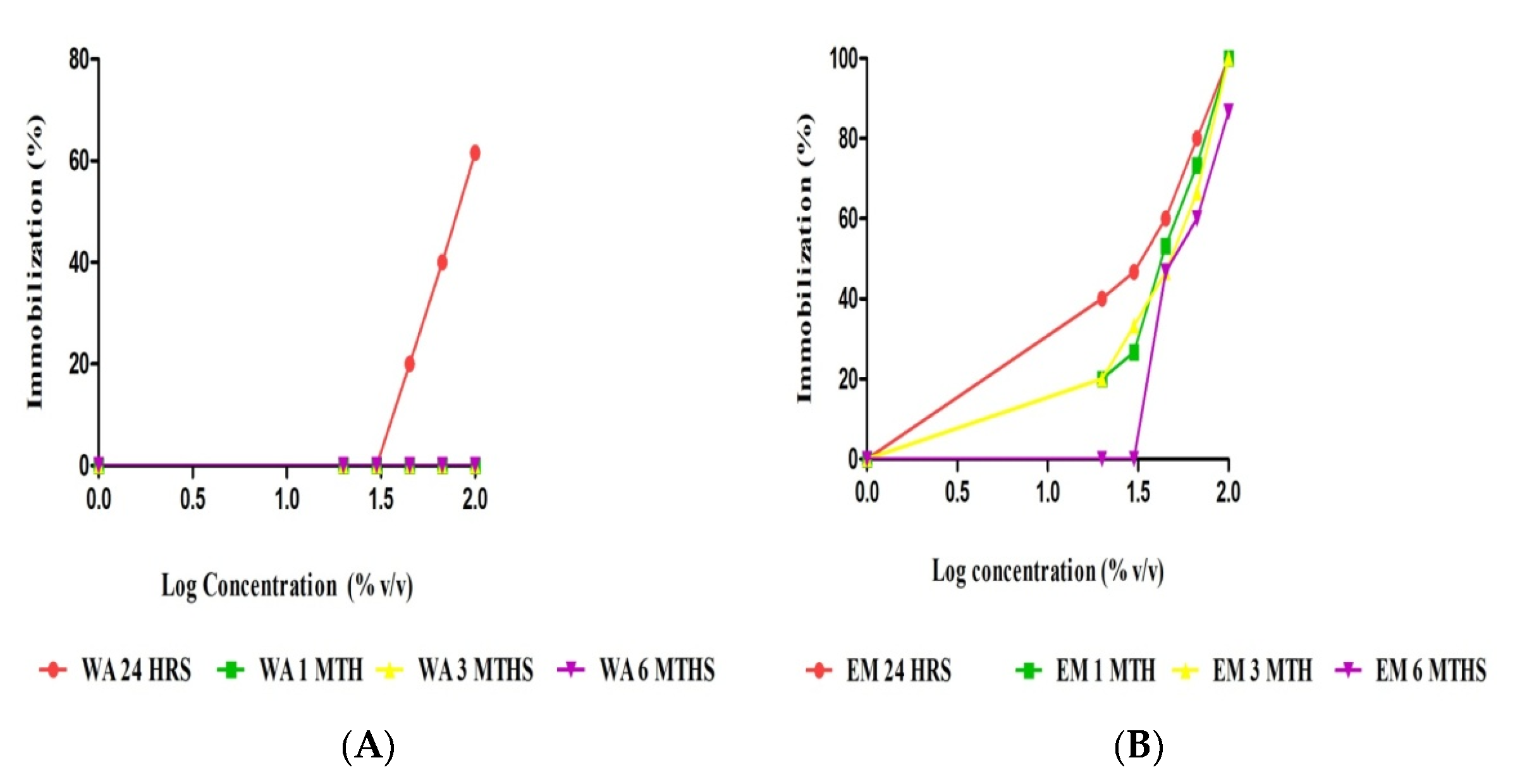

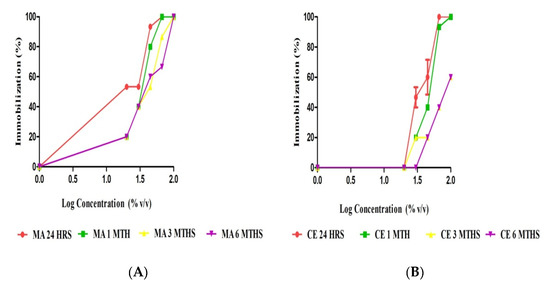

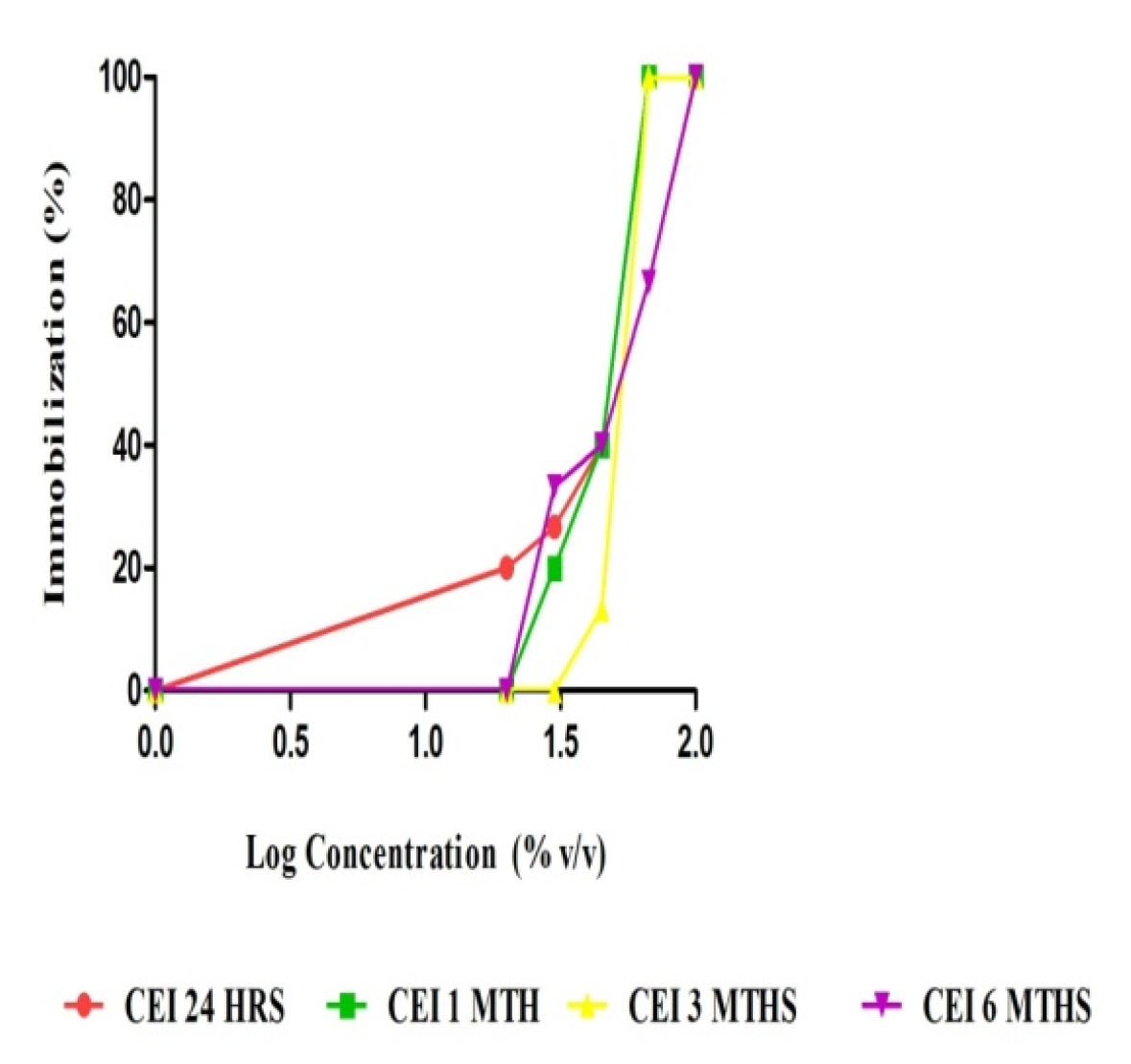

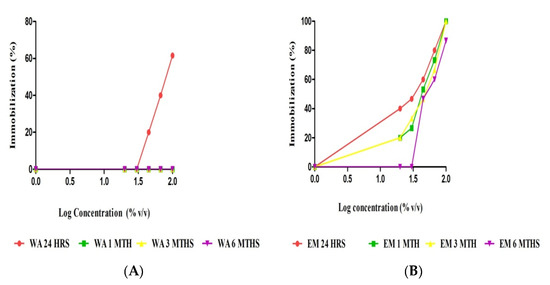

All wood leachates showed 100% immobilization at 100% v/v concentration at 24 h, except in wawa, which depicted 60% immobilization. This indicates that fresh leachates are highly toxic to daphnia. At 20% v/v, 0% immobilization was recorded in all wood leachates except mahogany, which recorded 20% immobilization (Figure 9, Figure 10 and Figure 11). Moreover, % immobilization was recorded in other concentrations in the ages of various leachates between 20–100%, but in wawa 0% immobilization was observed in these concentrations. The variation observed in the various leachates could be due to chemical composition and biochemical reaction during the storage and exposure period. Furthermore, the high concentration of phenol could also be a contributing factor.
Mahogany had the highest % IC50 at 21.5% for the 24 h leachate and wawa had the lowest toxicity of % IC50 at 67.5% for the 6 month leachate (Table 10). The % IC50 decreased as the wood leachate increased. Mahogany leachates showed confirmed toxicity throughout all ages, proving that the leachate is toxic irrespective of age. The emire, cedrela, ceiba, and wawa showed potential toxicity, which proved they all have the tendency to cause toxic effect to daphnia at different toxicity levels [60,61].

4. Conclusions

Our study of aged wood leachates showed various toxicity levels for the test organisms. We determined that high BOD, COD, and TOC, as well as metals and high levels of phenols, might cause toxicity in test organisms. Toxicity decreased when wood aged in various leachate samples. Among the studied sampls, the mahogany leachate was the most toxic, while wawa was the least toxic. The % IC50 ranged between 21.51% and 66.77%, indicating both confirmed and potential toxicity to aquatic organisms. The mahogany leachates showed the highest % IC50 of 21.51% in the 24 h leachate, whereas wawa shoes the lowest with a % IC50 of 66.77%. The present study confirms that in natural products like wood, leachate is toxic in early stages but reduces toxicity due to biological activities. The result obtained can be used by policymakers for environmental management. The results further will help environmental engineers design wood leachate treatment facilities. The results will serve as a basis for other researchers on further study of wood leachate toxicity.

Author Contributions

L.N.A.S. conceived the research idea, L.N.A.S. and K.A.M. eastablished the research methodology, L.N.A.S. performed the formal analysis and investigations, L.N.A.S. drafted the original preparation, K.A.M. and V.K. did the review and editing and V.K. and K.A.M. did the supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

Authors would like to acknowledge scientific internal grant agency of University of Chemistry and Technology (UCT) Prague for funding this study and its institutional support.

Conflicts of Interest

The authors declare that they have no competing interests.

References

  1. Garbowski, T. Changes in the physico-chemical parameters of water as a result of long-term contact with biomass, on the example of pine bark (Pinus sylvestris). Water Air Soil Pollut. 2019, 230, 140. [Google Scholar] [CrossRef] [Green Version]
  2. Taylor, B.N.; Goudey, J.S.; Carmichael, N.B. Toxicity of aspen wood leachate to aquatic life: Laboratory studies. Environ. Toxicol. Chem. 1996, 15, 150–159. [Google Scholar] [CrossRef]
  3. Naselli-Flores, L.; Barone, R. Fight on plankton! Or, phytoplankton shape and size as adaptive tools to get ahead in the struggle for life. Cryptogam. Algol. 2011, 32, 157–204. [Google Scholar] [CrossRef]
  4. Pal, R.; Choudhury, A.K. An Introduction to Phytoplanktons: Diversity and Ecology. 2014. Available online: https://www.springer.com/gp/book/9788132218371 (accessed on 17 February 2020).
  5. Omar, W.M. Perspectives on the use of algae as biological indicators for monitoring and protecting aquatic environments, with special reference to malaysian freshwater ecosystems. Trop. Life Sci. Res. 2010, 21, 51–67. [Google Scholar] [PubMed]
  6. Kaczala, F.; Salomon, P.S.; Marques, M.; Granéli, E.; Hogland, W. Effects from Log-Yard Stormwater Runoff on the Microalgae Scenedesmus Subspicatus: Intra-Storm Magnitude and Variability. J. Hazard. Mater. 2011, 185, 732–739. [Google Scholar] [CrossRef] [PubMed]
  7. Skillicorn, P.; Spira, W.; Journey, W. Duckweed Aquaculture: A New Aquatic Farming System for Developing Countries; The World Bank: Washington, DC, USA, 1993; Available online: https://www.researchgate.net/publication/242631709_Duckweed_Aquaculture_A_New_Aquatic_Farming_System_for_Developing_Countries (accessed on 2 March 2020).
  8. Bernard, F.A.; Bernard, J.M.; Denny, P. Flower structure, anatomy and life history of Woiffiia australiana (Benth.) den Hartog & van der Plas. Bull. Torrey Bot. Club 1990, 117, 18–26. [Google Scholar]
  9. Fekete-Kertész, I.; Kunglné-Nagy, Z.; Gruiz, K.; Magyar, Á.; Farkas, É.; Molnár, M. Assessing toxicity of organic aquatic micropollutants based on the total chlorophyll content of Lemna minor as a sensitive endpoint. Period. Polytech. Chem. Eng. 2015, 59, 262–271. [Google Scholar] [CrossRef] [Green Version]
  10. Moody, M.; Miller, J. Lemna minor Growth Inhibition Test. In Small-Scale Freshwater Toxicity Investigations; Blaise, C., Férard, J.F., Eds.; Springer: Dordrecht, The Netherlands, 2005; pp. 271–298. [Google Scholar]
  11. Bednarova, I.; Mikulaskova, H.; Havelkova, B.; Strakova, L.; Beklova, M.; Sochor, J.; Hynek, D.; Adam, V.; Kizek, R. Study of the influence of platinum, palladium and rhodium on duckweed (lemna minor). Neuro Endocrinol. Lett. 2004, 35, 35–42. [Google Scholar]
  12. Clare, J.P. Daphnia: An Aquarist’s Guide, Version 3.2; 2002. Available online: https://digitalcommons.ithaca.edu/cgi/viewcontent.cgi?article=1614&context=whalen (accessed on 13 February 2020).
  13. Svendsen, N.; Reisser, C.M.O.; Dukić, M.; Thuillier, V.; Ségard, A.; Liautard-Haag, C.; Fasel, D.; Hürlimann, E.; Lenormand, T.; Galimov, Y.; et al. Uncovering cryptic asexuality in daphnia magna by rad sequencing. Genetics 2015, 201, 1143–1155. [Google Scholar] [CrossRef] [Green Version]
  14. Göran, D.; Pia, A. Comparative toxicity of leachates from 52 textiles to Daphnia magna. Ecotoxicol. Environ. Saf. 2010, 73, 1629–1632. [Google Scholar]
  15. Taylor, B.R.; Carmichael, N.B. Toxicity and chemistry of aspen wood leachate to aquatic life: Field study. Environ. Toxicol. Chem. 2003, 22, 2048–2056. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Sackey, L.N.A.; Kočí, V.; van Gestel, C.A.M. Ecotoxicological effects on Lemna minor and Daphnia magna of leachates from differently aged landfills of Ghana. Sci. Total Environ. 2020, 698, 134295. [Google Scholar] [CrossRef] [PubMed]
  17. ISO 11465. Soil Quality—Determination of Dry Matter and Water Content on a Mass Basis—Gravimetric Method; ISO: Brussel, Belgium, 1993. [Google Scholar]
  18. Sackey, L.N.A.; Kočí, V. Assessing the effects of tropical wood leachate to Desmodesmus subspicatus, Lemna minor and Daphnia magna. Heliyon 2020, 6, e04268. [Google Scholar] [CrossRef] [PubMed]
  19. Standard Method for Examination of Wastewater 5210 Biochemical Oxygen Demand (BOD). 2017. Available online: https://www.standardmethods.org/doi/10.2105/SMWW.2882.102 (accessed on 16 March 2020).
  20. Chubaka, C.E.; Whiley, H.; Edwards, J.W.; Ross, K.E. Lead, Zinc, Copper, and Cadmium Content of Water from South Australian Rainwater Tanks. Int. J. Environ. Res. Public Health 2018, 15, 1551. [Google Scholar] [CrossRef] [Green Version]
  21. Environmental Protection Agency. The Determination of Chemical Oxygen Demand by Semi Automated Colorimetry; Method 410.4, Revision 2.0; 1993. Available online: https://www.epa.gov/sites/production/files/2015-08/documents/method_410-4_1993.pdf (accessed on 20 April 2020).
  22. Standard Method for Examination of Wastewater 5310 Total Organic Carbon (TOC). 2017. Available online: https://www.standardmethods.org/doi/10.2105/SMWW.2882.104 (accessed on 16 March 2020).
  23. Singleton, V.L.; Rossi, J.A. Colorimetry of total phenolics with phosphomolybdic-phosphotungstic acid reagents. Am. J. Enol. Vitic. 1965, 16, 144–158. [Google Scholar]
  24. Bold, H.C. The morphology of Chlamydomonas chlamydogama sp. nov. Bull. Torrey Bot. Club 1949, 76, 101–108. [Google Scholar] [CrossRef]
  25. ISO 8692. Water Quality—Fresh Water Algal Growth Inhibition Test with Unicellular Green Algae; ISO: Brussel, Belgium, 2012. [Google Scholar]
  26. OECD Guidelines for the Testing of Chemicals Proposal for Updating Guideline 201 Freshwater Algae and Cyanobacteria, Growth Inhibition Test; OECD: Paris, France, 2002; Available online: https://www.oecd.org/Chemicalsafety/testing/1946914.pdf (accessed on 15 March 2020).
  27. ISO/FDIS 20079. Water Quality Determination of the Toxic Effect of Water Constituents and Waste Water on Duckweed (Lemna minor). Duckweed Growth Inhibition Test; Final Draft; ISO: Geneva, Switzerland, 2005; Available online: https://www.iso.org/obp/ui/#iso:std:67326:en (accessed on 18 April 2020).
  28. OECD Guidelines for the Testing of Chemicals Revised Proposal for a New Guideline 221 Lemna sp. Growth Inhibition Test; OECD: Paris, France, 2002; Available online: http://www.oecd.org/chemicalsafety/testing/1948054.pdf (accessed on 18 April 2020).
  29. Wellburn, A.R. The spectral determination of chlorophyll a and chlorophyll b as well as total carotenoids, using various solvents with spectrophotometers of different resolution. J. Plant Physiol. 1994, 144, 307–313. [Google Scholar] [CrossRef]
  30. NIS Elements ver. 4.2. Laboratory imaging Prague, Czech Republic. 2014. Available online: https://www.nis-elements.cz/ (accessed on 12 March 2020).
  31. ISO 6341. Water Quality–Determination of the Inhibition of Mobility of Daphnia Magna Straus (Cladocera, Crustacea)–Acute Toxicity Test; ISO: Geneva, Switzerland, 1996; Available online: https://www.iso.org/standard/21923.html (accessed on 18 April 2020).
  32. OECD Guidelines for the Testing of Chemicals 202 Daphnia sp. Acute Immobilisation Test; OECD: Paris, France, 2004; Available online: http://www.oecd.org/chemicalsafety/testing/46507550.pdf (accessed on 18 April 2020).
  33. Klüttgen, B.; Dulmer, U.; Engels, M.; Ratte, H.T. ADaM, an artificial freshwater for the culture of Zooplankton. Water Res. 1994, 28, 743–746. [Google Scholar] [CrossRef]
  34. GraphPad Prism; ver. 5.01; GraphPad Software Inc.: La Jolla, CA, USA, 2009.
  35. Tao, W.; Hall, K.J.; Masbough, A.; Frankowsk, K.; Duff, S.J.B. Characterization of leachate from a wood waste pile. Water Qual. Res. J. Can. 2005, 40, 476–483. [Google Scholar] [CrossRef]
  36. Svensson, H. Leaching Test with Sawdust from Different Tree Species Appropriateness of Using Them as Adsorption Media in Wastewater and in Storm Water Treatment. Master’s Thesis, Linnaeus University, Växjö, Sweden, 2010. [Google Scholar]
  37. Nyame, F.K.; Tigme, J.; Kutu, J.M.; Armah, T. Environmental Implications of the Discharge of Municipal Landfill Leachate into the Densu River and Surrounding Ramsar Wetland in the Accra Metropolis, Ghana. J. Water Resour. Prot. 2012, 4, 622. [Google Scholar] [CrossRef] [Green Version]
  38. Gray, N.F. Water Science and Technology: An Introduction; Taylor & Francis, CRC Press: Boca Raton, FL, USA, 2017. [Google Scholar]
  39. Clark, R.B. Plant response to mineral element toxicity and deficiency. In Breeding Plants for Less Favorable Environments; Christiansen, M.N., Lewis, C.F., Eds.; John Wiley & Sons: New York, NY, USA, 1982; pp. 71–142. [Google Scholar]
  40. Bailey, H.C.; Elphick, J.R.; Potter., A.; Chao, E.; Konasewich, D.; Zak, J.B. Causes of toxicity in stormwater runoff from sawmills. Environ. Toxicol. Chem. 1999, 18, 1485–1491. [Google Scholar] [CrossRef]
  41. World Health Organization. Guidelines for Drinking-Water Quality, 4th ed.; WHO: Geneva, Switzerland, 2011. [Google Scholar]
  42. Andresen, E.; Küpper, H. Cadmium toxicity in plants. Met. Ions Life Sci. 2013, 11, 395–413. [Google Scholar] [PubMed]
  43. Huang, M.; Zhu, H.; Zhang, J.; Tang, D.; Han, X.; Chen, L.; Du, D.; Yao, J.; Chen, K.; Sun, J. Toxic effects of cadmium on tall fescue and different responses of the photosynthetic activities in the photosystem electron donor and acceptor sides. Sci. Rep. 2017, 7, 14387. [Google Scholar] [CrossRef]
  44. Shanker, A.K.; Cervantes, C.; Loza-Tavera, H.; Avudainayagam, S. Chromium toxicity in plants. Environ. Int. 2005, 31, 739–753. [Google Scholar] [CrossRef]
  45. Igiri, B.E.; Okoduwa, S.I.R.; Idoko, G.O.; Akabuogu, E.P.; Adeyi, A.O.; Ejiogu, I.K. Toxicity and bioremediation of heavy metals contaminated ecosystem from tannery wastewater: A Review. J. Toxicol. 2018, 2018, 2568038. [Google Scholar] [CrossRef]
  46. Atici, T.; Obali, O.; Altindag, A.; Ahhiska, S.; Aydin, D. The accumulation of heavy metals (Cd, Pb, Hg, Cr) and their state in phytoplanktonic algae and zooplanktonic organisms Beysehir Lake and MOgan Lake, Turkey. Afr. J. Biotechnol. 2010, 9, 475–487. [Google Scholar]
  47. Khaled, Z.A.; Gina, H. Correlation between biochemical oxygen demand and chemical oxygen demand for various wastewater treatment plants in Egypt to obtain the biodegradability indices. Int. J. Sci. Basic Appl. Res. 2014, 13, 42–48. [Google Scholar]
  48. Rex, F.J.; Dube, S.; Kruskopf, P.; Berch, S. Investigating potential toxicity of leachate from wood chip piles generated by roadside biomass operations. Forests 2016, 7, 40. [Google Scholar] [CrossRef]
  49. Kannepalli, S.; Strom, P.F.; Krogmann, U.; Subroy, V.; Giménez, D.; Miskewitz, R. Characterization of wood mulch and leachate/runoff from three wood recycling facilities. J. Environ. Manag. 2016, 182, 421–428. [Google Scholar] [CrossRef]
  50. Hussain, A.; Dubey, S.K.; Kumar, V. Kinetic study for aerobic treatment of phenolic wastewater. Water Resour. Ind. 2015, 11, 81–90. [Google Scholar] [CrossRef] [Green Version]
  51. Nascimento, M.S.; Santana, A.L.B.D.; Maranhao, L.S.; Bieber, L.S. Phenolic extractives and natural resistance of wood, biodegradation. In Life of Science; 2013; pp. 349–370. Available online: https://www.intechopen.com/books/biodegradation-life-of-science/phenolic-extractives-and-natural-resistance-of-wood (accessed on 20 March 2020).
  52. Latiffi, N.A.A.; Mohamed, R.M.S.R.; Apandi, N.M.; Tajuddin, R.M. Preliminary Assessment of Growth Rates on Different Concentration of Microalgae Scenedesmus sp. in Industrial Meat Food Processing Wastewater. MATEC Web Conf. 2017, 103, 06010. [Google Scholar] [CrossRef] [Green Version]
  53. Singh, P.K.; Shrivastava, A.K. Role of initial cell density of algal bioassay of toxic chemicals. J. Basic Microbial. 2016, 56, 812–819. [Google Scholar] [CrossRef]
  54. Singh, S.P.; Singh, P. Effect of temperature and light on the growth of algae species: A review. Renew. Sustain. Energy Rev. 2015, 50, 431–444. [Google Scholar] [CrossRef]
  55. Barnette, J.; Jeronimidis, G. Wood Quality and Its Biological Basis; John Wiley and Sons: NJ, USA, 2009; p. 78. Available online: https://www.wiley.com/en-us/Wood+Quality+and+its+Biological+Basis-p-9781405147811 (accessed on 27 April 2020).
  56. Duan, W.; Fanping, M.; Lin, Y.; Wang, G. Toxicological effects of phenol on four marine microalgae. Environ. Toxicol. Pharmacol. 2017, 52, 170–176. [Google Scholar] [CrossRef] [PubMed]
  57. Aniyikaiye, T.E.; Oluseyi, T.; Odiyo, J.O.; Edokpayi, J.N. Physico-chemical analysis of wastewater discharge from selected paint industries in Lagos, Nigeria. Int. J. Environ. Res. Public Health 2019, 16, 1235. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Miazek, K.; Iwanek, W.; Remacle, C.; Richel, A.; Goffin, D. Effect of metals, metalloids and metallic nanoparticles on microalgae growth and industrial product biosynthesis: A Review. Int. J. Mol. Sci. 2015, 16, 23929–23969. [Google Scholar] [CrossRef] [Green Version]
  59. Shariff, A.J.; Lowe, R.W.; Berthiaume, D.; Bryce, J.R.G.; McLean, R.A.N. Unexpected source of phenol in the sulphur-free semichemical pulping of hardwoods. Tappi J. 1989, 72, 177–183. [Google Scholar]
  60. Ghosh, P.; Thakur, I.S.; Kaushi, A. Bioassays for toxicological risk assessment of landfill leachate: A review. Ecotoxicol. Environ. Saf. 2017, 141, 259–270. [Google Scholar] [CrossRef]
  61. Marsalek, J.; Rochfort, Q.; Brownlee, B.; Mayer, T.; Servos, M. An exploratory study of urban runoff toxicity. Water Sci. Technol. 1999, 39, 33–39. [Google Scholar] [CrossRef]
  62. Žaltauskaitė, J.; Sujetovienė, G.; Čypaitė, A.; Aužbikavičiūtė, A. Lemna minor as a tool for wastewater toxicity assessment and pollutants removal agent. In Proceedings of the 9th International Conference “ENVIRONMENTAL ENGINEERING”, Vilnius, Lithuania, 22–23 May 2014. [Google Scholar]
  63. Šereš, M.; Mocová, K.A.; Moradi, J.; Kriška, M.; Kočí, V.; Hnátková, T. The impact of woodchip-gravel mixture on the efficiency and toxicity of denitrification bioreactors. Sci. Total Environ. 2019, 647, 888–894. [Google Scholar] [CrossRef]
  64. Touria, E.; Douglas, A.C. Manganese toxicity in plants. J. Plant Nutr. 1998, 21, 353–386. [Google Scholar]
  65. Cvjetko, P.; Tolić, S.; Šikić, S.; Balen, B.; Tkalec, M.; Vidaković-Cifrek, Z.; Pavlica, M. Effect of Copper on the Toxicity and Genotoxicity of Cadmium in Duckweed (Lemna minor L.). Arch. Ind. Hyg. Toxicol. 2010, 61, 287–296. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Prasad, S.M.; Dwivedi, R.; Zeeshan, M.; Singh, R. UV-B and cadmium induced changes in pigments, photosynthetic electron transport activity, antioxidant levels and antioxidative enzyme activities of Riccia sp. Acta Physiol. Plant. 2004, 26, 423–430. [Google Scholar] [CrossRef]
  67. Frankart, C.; Eullaffroy, P.; Vernet, G. Photosynthetic responses of Lemna minor exposed to xenobiotics, copper, and their combinations. Ecotoxicol. Environ. Saf. 2002, 53, 439–445. [Google Scholar] [CrossRef]
  68. Kalcíkova, G.; Zupancic, M.; Jemec, A.; Gotvajn, A.Z. The impact of humic acid on chromium phytoextraction by aquaticmacrophyte Lemna minor. Chemosphere 2016, 147, 311–317. [Google Scholar] [CrossRef]
  69. Xiao, Y.; Peijnenburg, W.J.; Chen, G.; Vijyer, M.G. Toxicity of copper nanoparticles to Daphnia magna under different exposure conditions. Sci. Total Environ. 2016, 1, 81–88. [Google Scholar] [CrossRef]
  70. Hoppe, S.; Sundbom, M.; Borg, H.; Breitholtz, M. Predictions of Cu toxicity in three aquatic species using bioavailability tools in four Swedish soft freshwaters. Environ. Sci. Eur. 2015, 27, 25. [Google Scholar] [CrossRef] [Green Version]
  71. Geffard, O.; Gerffard, A.; Chaumot, A.; Vollat, B.; Alvarez, C.; Tusseau-Vuillemin, M.H.; Garric, J. Effects of chronic dietary and waterborne cadmium exposures on the contamination level and reproduction of Daphnia magna. Environ. Toxicol. Chem. 2008, 27, 1128–1134. [Google Scholar] [CrossRef]
  72. Mahassen, M.; El-Deeb, G.; Madlen, M.H.; Eman, Y.M. Effects of pH on Survival, Growth and Reproduction Rates of the Crustacean, Daphnia magna. Aust. J. Basic Appl. Sci. 2011, 5, 1–10. [Google Scholar]
  73. Liber, K.; Solomon, K.R. Acute and Chronic of 2,3,4,6-terachlorophenol and pentachlorophenol to Daphnia and rotifers. Arch. Environ. Contam. Toxicol. 1994, 26, 212–221. [Google Scholar] [CrossRef]
Water 12 02091 g001 550

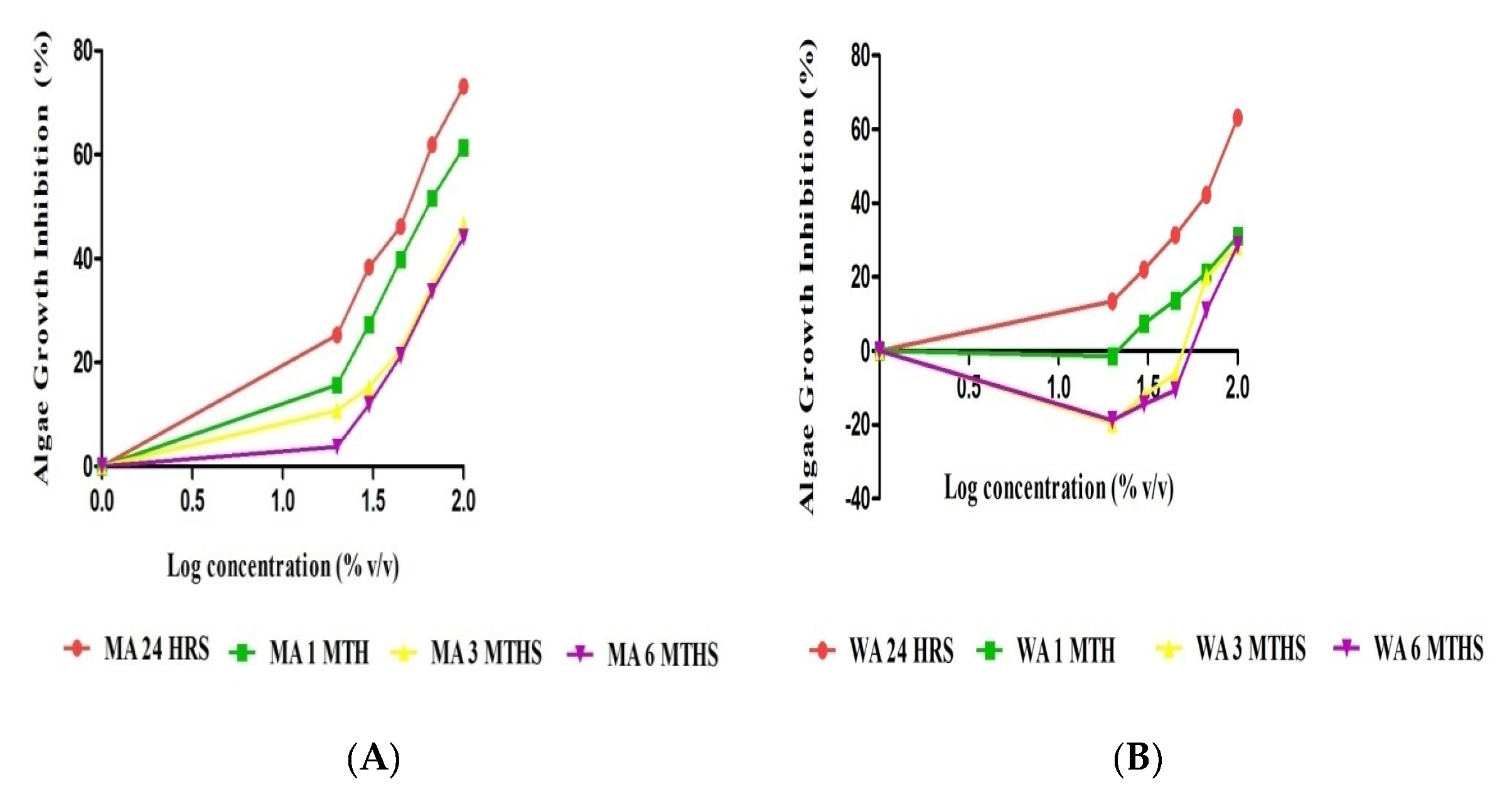

Figure 1. Percentage of algae (Desmodesmus subspicatus) growth rate inhibition upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, 100% v/v) in the various periods storage of (A) mahogany wood leachate and (B) wawa wood leachate.
Figure 1. Percentage of algae (Desmodesmus subspicatus) growth rate inhibition upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, 100% v/v) in the various periods storage of (A) mahogany wood leachate and (B) wawa wood leachate.
Water 12 02091 g001
Water 12 02091 g002 550

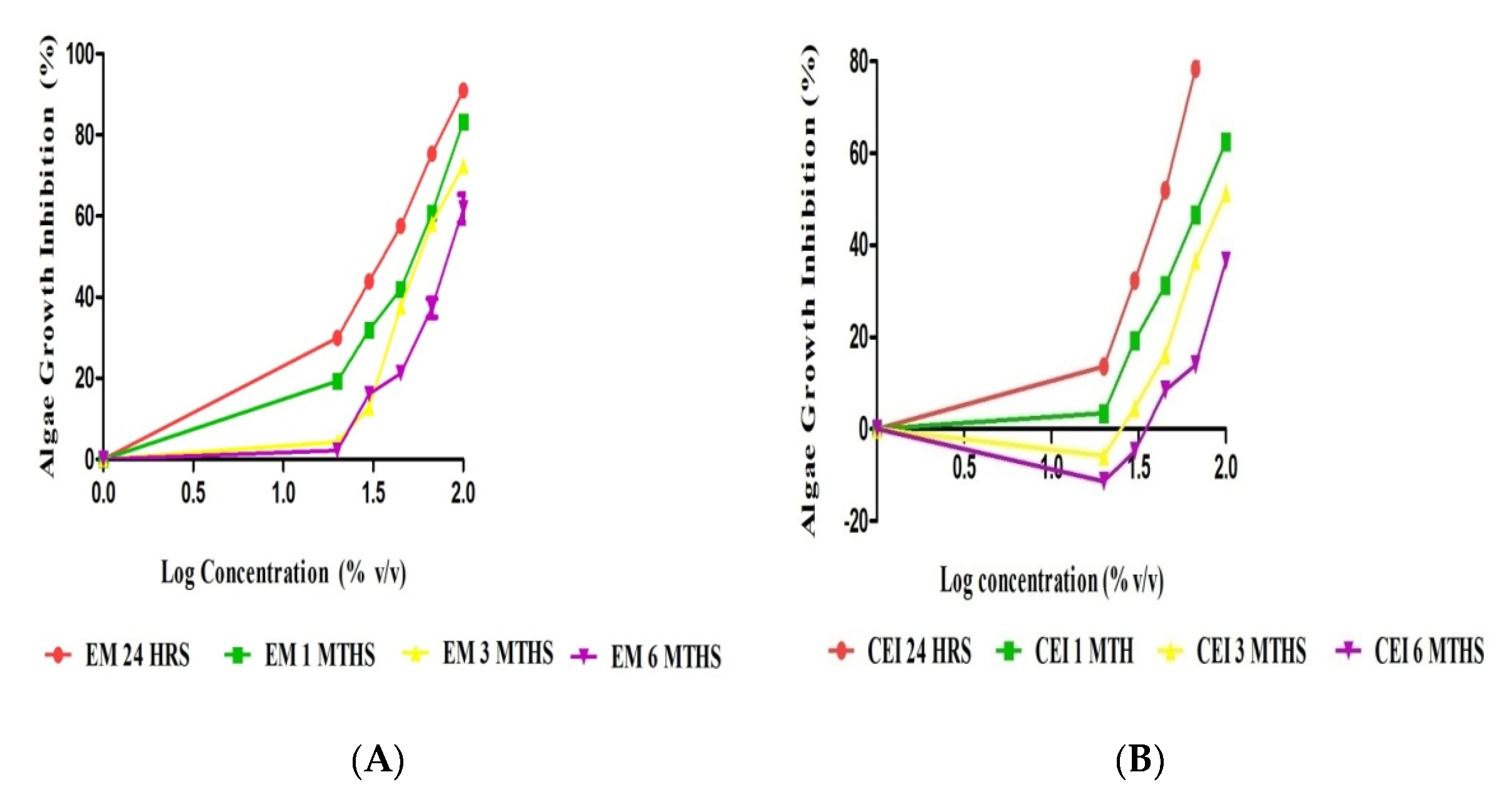

Figure 2. Percentage of algae (Desmodemus subspicatus) growth rate inhibition upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, 100% v/v) in the various storage periods of (A) emire wood leachate and (B) ceiba wood leachate.
Figure 2. Percentage of algae (Desmodemus subspicatus) growth rate inhibition upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, 100% v/v) in the various storage periods of (A) emire wood leachate and (B) ceiba wood leachate.
Water 12 02091 g002
Water 12 02091 g003 550

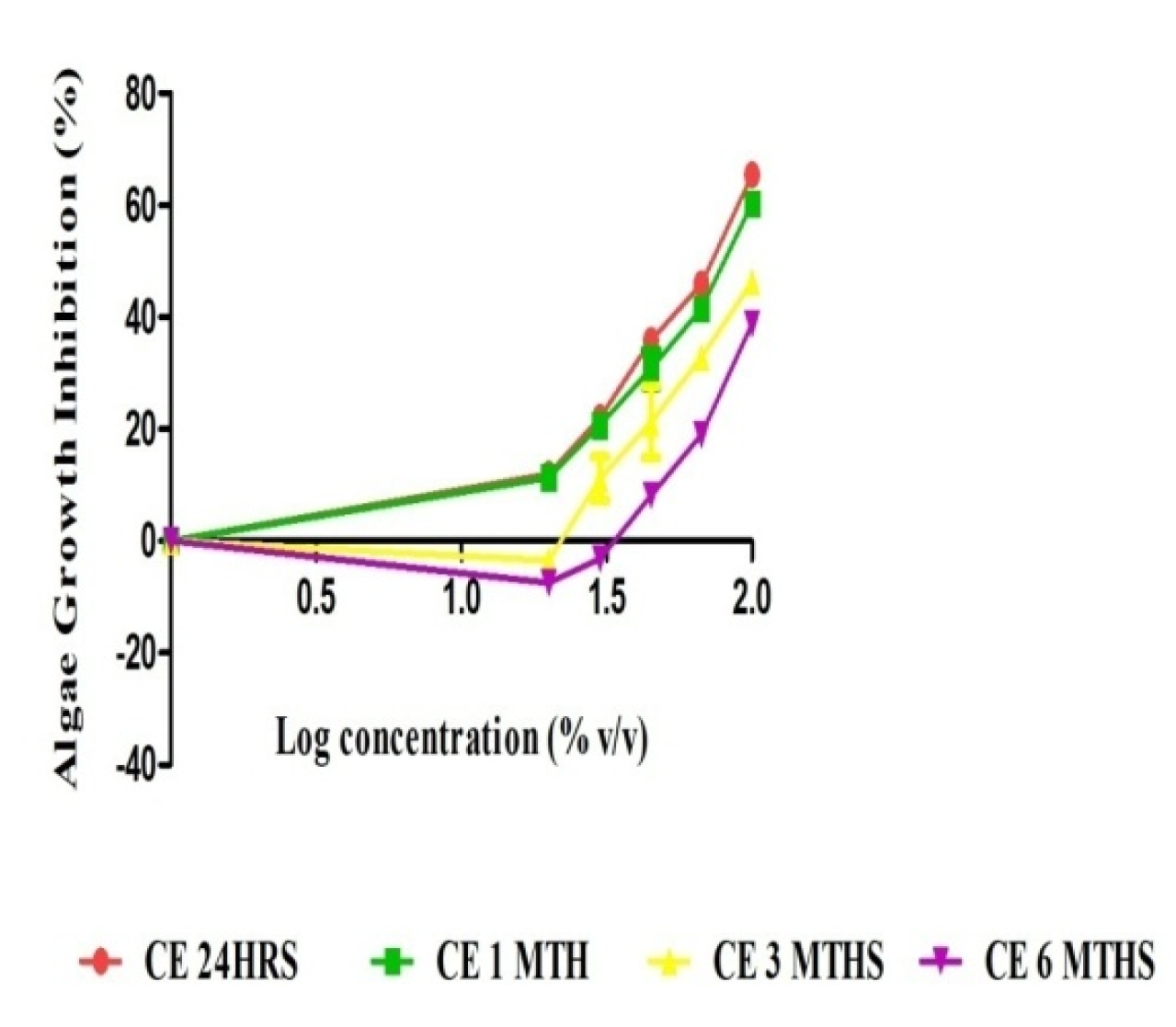

Figure 3. Percentage of algae (Desmodemus subspicatus) growth rate inhibition upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, 100% v/v) in the various storage periods of cedrela wood leachate.
Figure 3. Percentage of algae (Desmodemus subspicatus) growth rate inhibition upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, 100% v/v) in the various storage periods of cedrela wood leachate.
Water 12 02091 g003
Water 12 02091 g004 550

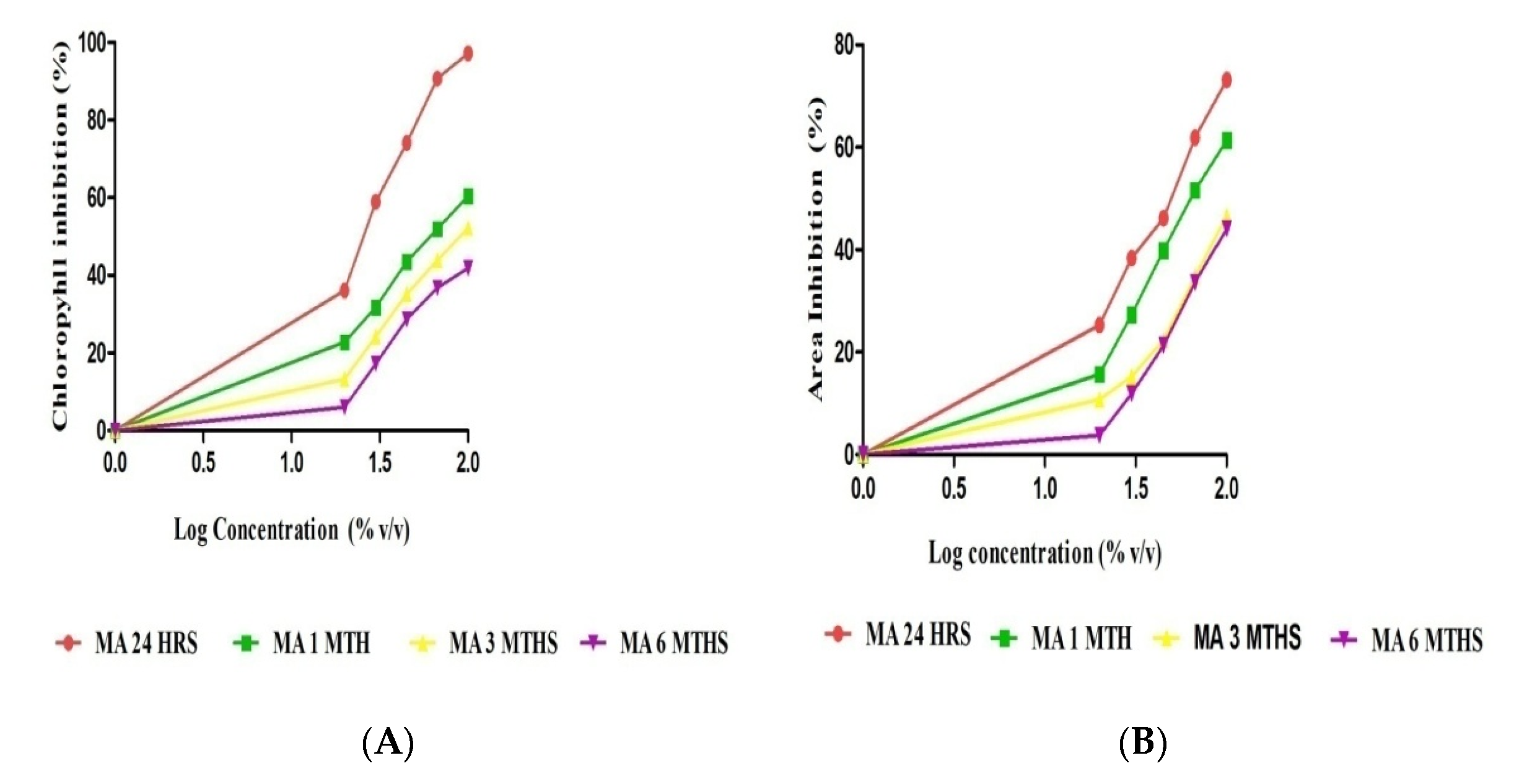

Figure 4. Percentage inhibition of chlorophyll content (A) and area (B) of duckweed (Lemna minor) fronds upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of the mahogany wood leachate.
Figure 4. Percentage inhibition of chlorophyll content (A) and area (B) of duckweed (Lemna minor) fronds upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of the mahogany wood leachate.
Water 12 02091 g004
Water 12 02091 g005 550
Figure 5. Percentage inhibition of chlorophyll content (A) and area (B) of duckweed (Lemna minor) fronds upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of cedrela wood leachates.
Figure 5. Percentage inhibition of chlorophyll content (A) and area (B) of duckweed (Lemna minor) fronds upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of cedrela wood leachates.
Water 12 02091 g005
Water 12 02091 g006 550
Figure 6. Percentage inhibition of chlorophyll content (A) and area (B) of duckweed (Lemna minor) fronds upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of emire wood leachates.
Figure 6. Percentage inhibition of chlorophyll content (A) and area (B) of duckweed (Lemna minor) fronds upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of emire wood leachates.
Water 12 02091 g006
Water 12 02091 g007 550
Figure 7. Percentage inhibition of chlorophyll content (A) and area (B) of duckweed (Lemna minor) fronds upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of emire wood leachates.
Figure 7. Percentage inhibition of chlorophyll content (A) and area (B) of duckweed (Lemna minor) fronds upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of emire wood leachates.
Water 12 02091 g007
Water 12 02091 g008 550
Figure 8. Percentage inhibition of chlorophyll content (A) and area (B) of duckweed (Lemna minor) fronds upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of ceiba wood leachates.
Figure 8. Percentage inhibition of chlorophyll content (A) and area (B) of duckweed (Lemna minor) fronds upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of ceiba wood leachates.
Water 12 02091 g008
Water 12 02091 g009 550
Figure 9. Percentage of daphnia (Daphnia magna) immobilization upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of mahogany (A) and cedrela (B) wood leachates.
Figure 9. Percentage of daphnia (Daphnia magna) immobilization upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of mahogany (A) and cedrela (B) wood leachates.
Water 12 02091 g009
Water 12 02091 g010 550
Figure 10. Percentage of daphnia (Daphnia magna) immobilization upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of wawa (A) and emire (B) leachates.
Figure 10. Percentage of daphnia (Daphnia magna) immobilization upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of wawa (A) and emire (B) leachates.
Water 12 02091 g010
Water 12 02091 g011 550
Figure 11. Percentage of daphnia (Daphnia magna) immobilization upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of ceiba wood leachates.
Figure 11. Percentage of daphnia (Daphnia magna) immobilization upon exposure to dilution series of leachate (20%, 30%, 45%, 67%, and 100% v/v) in the various storage periods of ceiba wood leachates.
Water 12 02091 g011
Table
Table 1. Metals identified over 24 h, 1, 3, and 6 months in mahogany wood leachate. The permissible limit defined by the World Health Organization (WHO) [41]. The mean values ± standard deviation (n = 3) are shown.
Table 1. Metals identified over 24 h, 1, 3, and 6 months in mahogany wood leachate. The permissible limit defined by the World Health Organization (WHO) [41]. The mean values ± standard deviation (n = 3) are shown.
MetalsMetal Concentrations (mg/L) in Wood Leachate Sample
WHO 2011 (mg/L)24 h1 Month3 Months6 Months
Cr0.010.51 ± 0.10.42 ± 1.30.33 ± 0.70.25 ± 0.5
Fe0.300.30 ± 0.20.10 ± 0.20.60 ± 0.20.40 ± 0.2
Zn3.00NDNDNDND
Cu2.000.70 ± 0.50.60 ± 0.30.50 ± 0.20.40 ± 0.3
Cd0.030.10 ± 0.20.06 ± 0.20.05 ± 0.10.04 ± 0.1
Pb0.01NDNDNDND
Mn0.500.09 ± 0.210.07 ± 0.110.04 ± 0.110.02 ± 0.22
ND: Not detected.
Table
Table 2. Metals identified over 24 h, 1, 3, and 6 months in the emire wood leachate. The permissible limit defined by WHO [41]. The mean values ± standard deviation (n = 3) are shown.
Table 2. Metals identified over 24 h, 1, 3, and 6 months in the emire wood leachate. The permissible limit defined by WHO [41]. The mean values ± standard deviation (n = 3) are shown.
MetalsWood Sample Concentrations (mg/L)
WHO 2011 (mg/L)24 h1 Month3 Months6 Months
Cr0.010.48 ± 0.110.42 ± 0.700.34 ± 2.10.22 ± 1.2
Fe0.300.20 ± 0.120.16 ± 0.210.14 ± 0.10.10 ± 0.1
Zn3.00NDNDNDND
Cu2.000.68 ± 0.230.45 ± 0.320.19 ± 0.110.13 ± 0.21
Cd0.030.10 ± 0.120.08 ± 0.210.06 ± 0.140.04 ± 0.15
Pb0.01NDNDNDND
Mn0.500.17 ± 0.230.25 ± 0.310.27 ± 0.110.34 ± 0.22
ND: Not detected.
Table
Table 3. Metals identified over 24 h, 1, 3, and 6 months in the cedrela wood leachate. The permissible limit defined by WHO [30]. The mean values ± standard deviation (n = 3) are shown.
Table 3. Metals identified over 24 h, 1, 3, and 6 months in the cedrela wood leachate. The permissible limit defined by WHO [30]. The mean values ± standard deviation (n = 3) are shown.
MetalsMetal Concentrations (mg/L) in Wood Leachate Sample
WHO 2011 (mg/L)24 h1 Month3 Months6 Months
Cr0.010.24 ± 0.100.21 ± 0.030.18 ± 0.200.15 ± 0.51
Fe0.300.10 ± 0.120.07 ± 0.020.05 ± 0.020.04 ± 0.11
Zn3.00NDNDNDND
Cu2.000.12 ± 0.210.09 ± 0.300.06 ± 0.300.04 ± 0.24
Cd0.030.04 ± 0.120.03 ± 0.100.01 ± 0.200.01 ± 0.32
Pb0.01NDNDNDND
Mn0.500.20 ± 0.200.15 ± 0.300.12 ± 0.100.10 ± 0.31
ND: Not detected.
Table
Table 4. Metals identified over 24 h, 1, 3, and 6 months in the wawa wood leachate. The permissible limit defined by WHO [30]. The mean values ± standard deviation (n = 3) are shown.
Table 4. Metals identified over 24 h, 1, 3, and 6 months in the wawa wood leachate. The permissible limit defined by WHO [30]. The mean values ± standard deviation (n = 3) are shown.
MetalsMetal Concentrations (mg/L) in Wood Leachate Sample
WHO 2011 (mg/L)24 h1 Month3 Months6 Months
Cr0.010.34 ± 0.20.31 ± 0.10.26 ± 0.110.21 ± 0.2
Fe0.300.41 ± 0.20.35 ± 0.20.28 ± 0.30.19 ± 0.1
Zn3.00NDNDNDND
Cu2.000.73 ± 0.40.54 ± 0.10.38 ± 0.20.23 ± 0.1
Cd0.030.09 ± 0.10.06 ± 0.10.04 ± 0.10.02 ± 0.2
Pb0.01NDNDNDND
Mn0.500.34 ± 0.20.31± 0.10.28 ± 0.20.20 ± 0.3
ND: Not detected.
Table
Table 5. Metals identified over 24 h, 1, 3, and 6 months in the ceiba wood leachate. The permissible limit defined by WHO [30]. The mean values ± standard deviation (n = 3) are shown.
Table 5. Metals identified over 24 h, 1, 3, and 6 months in the ceiba wood leachate. The permissible limit defined by WHO [30]. The mean values ± standard deviation (n = 3) are shown.
MetalsMetal Concentrations (mg/L) in Wood Leachate Sample
WHO 2011 (mg/L)24 h1 Month3 Months6 Months
Cr0.010.38 ± 0.20.32 ± 0.20.27 ± 0.10.14 ± 02
Fe0.300.36 ± 0.20.11 ± 0.20.08 ± 0.30.04 ± 0.1
Zn3.00NDNDNDND
Cu2.000.25 ± 0.10.35 ± 0.20.41 ± 0.10.52 ± 0.2
Cd0.030.19 ± 0.30.12 ± 0.10.07 ± 0.20.04 ± 0.2
Pb0.01NDNDNDND
Mn0.500.41 ± 0.30.36 ± 0.20.22 ± 0.10.15 ± 0.2
ND: Not detected.
Table
Table 6. Biochemical oxygen demand (BOD), chemical oxygen demand (COD), and total organic carbon (TOC) of 24 h, 1, 3, and 6 months preparation and storage period of various wood leachates. The mean values ± standard deviation (n = 3) are shown.
Table 6. Biochemical oxygen demand (BOD), chemical oxygen demand (COD), and total organic carbon (TOC) of 24 h, 1, 3, and 6 months preparation and storage period of various wood leachates. The mean values ± standard deviation (n = 3) are shown.
Types of WoodLeachate Age
24 h1 Month
BOD (mg/L)COD (mg/L)TOC (mg/L)BOD (mg/L)COD (mg/L)TOC (mg/L)
Mahogany268.2 ± 4.01397.1 ± 7.0699.0 ± 5.2213.0 ± 4.21289 ± 7.4647.0 ± 7.1
Cedrela121.7 ± 6.0329.7 ± 4.0167.2 ± 6.1102.3 ± 6.1252.2 ± 5.5116.9 ± 2
Wawa31.0 ± 3.089.5 ± 8.0112.5 ± 3.321.5 ± 2.259.9 ± 4.899.7 ± 3.2
Emire103.3 ± 6.0505.3 ± 6.0246.0 ± 4.394.7 ± 6.3269.9 ± 7.1122 ± 3.5
Ceiba101.1 ± 6.0476.6 ± 2.4200.0 ± 6.586.3 ± 6.2404.6 ± 5.368.4 ± 2.0
3 Months6 Months
BOD (mg/L)COD (mg/L)TOC (mg/L)BOD (mg/L)COD (mg/L)TOC (mg/L)
Mahogany148.3 ± 3.31067.7 ± 2.6605.1 ± 3.5118.0 ± 3.21010.3± 1.1476 ± 4.3
Cedrela93.3 ± 6.1226.4 ± 4.795.8 ± 4.277.3 ± 2.5207.4 ± 1.152.1 ± 3.2
Wawa16.1 ± 2.549.4 ± 2.167.3 ± 2.49.0 ± 1.137.4 ± 4.245.6 ± 2.4
Emire74.7 ± 3.1214.2 ± 3.4269 ± 2.458.1 ± 1.3191.5 ± 3.2219 ± 3.1
Ceiba69.3 ± 2.2316.8 ± 2.770.6 ± 1.357.3 ± 1.5274.2 ± 1.623.4 ± 2.2
Table
Table 7. Total phenols concentration of 24 h, 1, 3, and 6 months preparation and storage period of various wood leachates. The mean values ± standard deviation (n = 3) are shown.
Table 7. Total phenols concentration of 24 h, 1, 3, and 6 months preparation and storage period of various wood leachates. The mean values ± standard deviation (n = 3) are shown.
Wood LeachateTotal Phenols Concentration (mg/L)
24 h1 Month3 Months6 Months
Mahogany76.7 ± 1.475.8 ± 4.360.4 ± 3.551.6 ± 6.0
Cedrela7.2 ± 0.27.1 ± 0.35.3 ± 0.34.7 ± 1.2
Wawa8.7 ± 0.75.9 ± 0.94.8 ± 0.53.9 ± 0.3
Emire40.1 ± 3.138.7 ± 3.229.8 ± 2.123.1 ± 0.3
Ceiba4.1 ± 0.43.2 ± 0.42.9 ± 0.12.6 ± 0.1
Table
Table 8. The percentage median inhibition concentration (% IC50) values for the toxicity of 24 h, 1, 3, and 6 months of storage period for various wood leachates to algae (Desmodemus subspicatus) growth rate.
Table 8. The percentage median inhibition concentration (% IC50) values for the toxicity of 24 h, 1, 3, and 6 months of storage period for various wood leachates to algae (Desmodemus subspicatus) growth rate.
Wood LeachatesLeachate Age
24 h1 Month3 Months6 Months
% IC of Growth Rate of Desmodesmus subspicatus
Mahogany27.7036.5640.2450.63
Cedrela40.5441.4744.5756.64
Wawa41.5346.4751.6760.00
Emire30.6439.0344.4752.38
Ceiba38.6443.3449.5454.88
Table
Table 9. The % IC50 values for the toxicity of 24 h, 1, 3, and 6 months storage period of various wood leachates to duckweed (Lemna minor) frond area and chlorophyll content.
Table 9. The % IC50 values for the toxicity of 24 h, 1, 3, and 6 months storage period of various wood leachates to duckweed (Lemna minor) frond area and chlorophyll content.
Wood LeachatesLeachate Age
% IC of Lemna minor Frond Area and Chlorophlly Content (a and b)
24 h1 Month3 Months6 Months
Frond AreaChlorophyll Content (a and b)Frond AreaChlorophyll Content (a and b)Frond AreaChlorophyll Content (a and b)Frond AreaChlorophyll Content (a and b)
Mahogany29.1525.2332.8227.1641.0032.0244.0634.45
Cedrela36.1130.8341.2139.0637.3344.5750.1752.73
Wawa34.0234.0236.3236.3242.6642.6647.0357.03
Emire29.3828.5834.0329.9143.6537.1245.5546.23
Ceiba34.1329.1337.5833.6243.3842.1844.6745.20
Table
Table 10. % IC50 values for the toxicity of 24 h, 1, 3, and 6 Months storage period of various wood leachates to immobilization of Daphnia magna.
Table 10. % IC50 values for the toxicity of 24 h, 1, 3, and 6 Months storage period of various wood leachates to immobilization of Daphnia magna.
Wood LeachatesLEACHATE AGE
24 h1 Month3 Months6 Months
% IC of Immobilization of Daphnia magna
Mahogany21.5131.7936.8437.94
Cedrela35.3346.1649.8854.90
Wawa55.6160.1464.9767.77
Emire29.8041.8843.0848.36
Ceiba42.3545.9546.3547.80

Share and Cite

MDPI and ACS Style

Sackey, L.N.A.; Mocová, K.A.; Kočí, V. Ecotoxicological Effect of Aged Wood Leachates to Aquatic Organisms. Water 2020, 12, 2091. https://doi.org/10.3390/w12082091

AMA Style

Sackey LNA, Mocová KA, Kočí V. Ecotoxicological Effect of Aged Wood Leachates to Aquatic Organisms. Water. 2020; 12(8):2091. https://doi.org/10.3390/w12082091

Chicago/Turabian Style

Sackey, Lyndon N. A., Klára A. Mocová, and Vladimír Kočí. 2020. "Ecotoxicological Effect of Aged Wood Leachates to Aquatic Organisms" Water 12, no. 8: 2091. https://doi.org/10.3390/w12082091

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
