Estimation of Heavy Metal Concentrations in the Water of Urban Lakes in the Russian Arctic (Murmansk)

Abstract

This article presents the results of the analysis and estimation of the seasonal variation of heavy metals in the water of urban lakes and the assessment of their environmental state based on the chemical data. The research covered seven lakes in Murmansk, subject to various levels of anthropogenic load. Field studies were conducted in 2019–2020. Water samples were taken both in summer and in winter/spring seasons. The most polluted lake was Lake Ledovoe, where the highest concentrations of V, Cr, Co, Ni, Cu, W, and Mn were found. Lake Yuzhnoe, which is characterized by the lowest concentrations of studied heavy metals, was the least subject to anthropogenic load. In total, V, Ni, Zn, Fe, and Mn were above the background levels in the lakes of Murmansk. The analysis of the seasonal variation showed that the highest concentrations of heavy metals were found in winter/spring season and reached their maximum during the period of melt water intake from the catchment area. The research showed the impact of the urban environment on the chemical composition of the Murmansk lakes.

1. Introduction

Among the pollutants, heavy metals pose the highest risk to aquatic ecosystems due to their toxicity, resistance to biodegradation, and high potential for accumulation in organisms [1,2,3]. Toxic impact of heavy metals on aquatic organisms causes negative effects on the nervous, digestive, and respiratory systems of animals and the photosynthesis of plants [4,5]. This happens because the main targets for heavy metals at the molecular level are proteins and enzymes, involved in various vital functions. Thus, due to excessive input of Cu and Ni into the lakes of the north-western part of Murmansk region (operations of Kola Mining-Metallurgical Company) fish suffer from pathological changes in organs and tissues, such as intensive growth of the connective tissue in kidneys, kidney stone disease, pathologies in gonads (segmented gonads, medullary form of gonads), etc. This is explained by the fact that the fish liver is the organ of the greatest accumulation of Cu («target organ»). At the same time, Ni is mostly concentrated in the kidneys. The spatial features of the accumulation of these metals, especially Ni, in the «target organs» of Coregonus lavaretus are subject to the gradient dependence relative to the source of contamination (the «Pechenganikel» plant). Thus, the average Ni content in the whitefish kidneys from Lake Kuetsjarvi (2 km from the plant) was 30 μg/g dry weight, and in the forest lake Kocheyaur (109 km from the source of pollution) the Cu content did not exceed 3 μg/g dry weight. At the same time, the frequency of occurrence of pathological kidney changes in these lakes is 100 and 80%, respectively [6].

Heavy metals are toxic for plankton (especially filter feeders)—these organisms concentrate metals that remain in cells for an unlimited period of time, cause their death, and then accumulate in sediments. The filter type of daphnia nutrition makes them highly sensitive to the presence of toxic substances in the aquatic environment. Cu ions exhibit acute toxicity in Daphnia magna at concentrations of 0.1 and 1 μg/L, Zn, Co, and Ni ions at the same concentrations exhibit chronic toxicity [7].

Heavy metals inputs to water bodies occur due to both natural processes and anthropogenic impact. The main natural sources of heavy metals in water bodies are rock weathering, wind transportation, release from sediments, and mineralization of organic matter in the catchment area and the water body itself [8,9,10,11]. Anthropogenic sources are various industries (metallurgical, mining, chemical, engineering, thermal power), housing and public utilities, transport, agriculture, etc. [12].

Increased anthropogenic impact on the environment in urbanized areas and industrial centers results in higher rates of heavy metals and other pollutants in the surface water. Studies in Wuhan, China showed the tendency towards increased concentrations of heavy metals and other elements (Cd, Co, Pb, Ni, Cu, Zn, Mn, Fe, Al) in urban lakes water compared to water bodies in rural areas. For example, in the waters of the urban lakes, the concentration of Co was 3.3 μg/L, Pb 10.04 μg/L, As 45.19 μg/L, Al 5.59 μg/L, Ni 18.22 μg/L, Mn 656.24 μg/L, which exceeded the values recorded for rural lakes by 9, 7, 14, 15.5, 3, and 15 times, respectively [13]. Mining operations in the Tri-State Mining District (TSMD) of southwest Missouri, northeast Oklahoma, and southeast Kansas (the USA) caused long-term input of Cd, Pb, and Zn to the environment. Even though mining operations were shut down totally in 1970, there is still an abundance of Cd, Pb, and Zn in floodplain soils and sediments of rivers and streams. The highest concentrations of Pb and Zn are closely related to the geographical location of the former mining and smelting centers. Thus, the content of Pb and Zn in flood-plain soils and Tar Creek sediments in Kansas was 409 and 37 mg/kg, respectively. In Oklahoma, the Pb level was 200 mg/kg, Zn was 2000 mg/kg. The state of Missouri was characterized by the lowest concentrations compared to other states, however, metal concentrations were at a high level (Pb—145 mg/kg; Zn—1755 mg/kg) [14]. In the water bodies near the city of Lulea in northern Sweden, there was an excess of concentrations of heavy metals in the waters and sediments. This is explained by the inflow of stormwater from urban areas and point sources of pollution. Stormwater was characterized by a high content of Cd 0.2 μg/L, Cu 22 μg/L, Pb 70 μg/L, Zn 82 μg/L. At the same time, the existing redox conditions in water bodies mainly cause the fixation of pollutants in precipitation due to the formation of sulfides and slow oxidation of organic pollutants [15]. According to the long-term studies in the north of Russia, the greatest contribution to the transformation of the chemical composition of water and sediments of Lake Imandra, on which several cities of Murmansk region are located, was made by mining, extraction, processing, and metallurgical industries. Concentrations of heavy metals (Ni, Cu, Co, Zn, Cd, Pb, As, Hg, Cr) in the surface layers of sediments have increased by dozens, hundreds, and thousands of times (e.g., Ni) above the background as a result of anthropogenic influence on the lake. Thus, in the surface layers of sediments of the Monche Bay (Bolshaya Imandra), there were significant increases in concentrations of heavy metals compared to the deep background layer. The Ni concentration increased from 50 to 30,000 mg/g, while the copper content changed from 50 to 6000 μg/g.

The increase in the content by more than an order of magnitude was also recorded for other heavy metals—Co, Zn, Cd, Pb, As, Hg, Cr, which are the accompanying metals in copper-nickel ore [16,17]. Thus, the problem of surface water pollution with heavy metals in urbanized areas is significant, especially regarding the fact that urban rivers and lakes can be used for recreational, cultural, and social purposes by the local population. Therefore, this problem extends beyond the issue of fundamental science, affecting social, economic, and even political aspects of people’s lives. The objective of this study is to estimate the seasonal variation of heavy metals in the surface waters of Murmansk, the largest city north of the Arctic Circle, and the environmental state of lakes based on the chemical data.

2. Materials and Methods

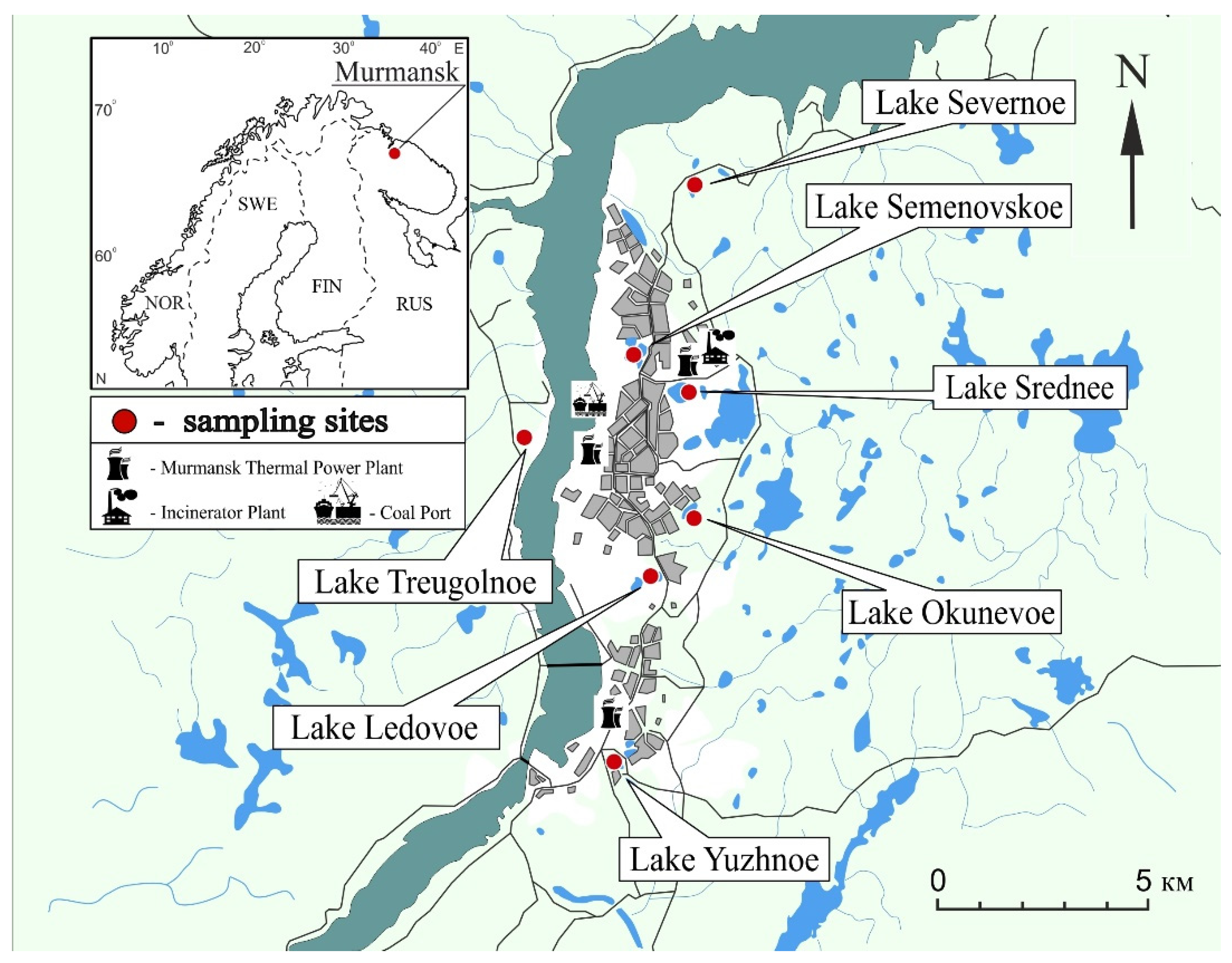

The article presents the results of the field studies of Murmansk in 2019–2020. The research covered seven lakes in the city of Murmansk (Semenovskoe, Ledovoe, Severnoe, Okunevoe, Srednee, Yuzhnoe, Treugolnoe) subject to various levels of anthropogenic load from the main sources of pollution (heating plants, the coal terminal, the waste incineration plant, etc.). It is noteworthy that three selected lakes are not officially named and two of them were named according to their geographical location: (Severnoe (Northern) and Yuzhnoe (Southern)), Lake Treugolnoe (Triangular) was named by the authors because of its shape (Figure 1).

The largest lakes are Srednee and Semenovskoe, the deepest ones are also Srednee and Ledovoe with maximum depths 23.5 and 15.7 m respectively (

Table 1. The main morphometric characteristics and geographic coordinates of the Murmansk lakes.

Lakes	Geographic Coordinates	Area, km2	Perimeter of the Lake, m	Maximum Length of the Lake, m	Depth, m
					Max.	Mean
Severnoe	69.032664° N and 33.117487° E	0.009	520	230	3.90	1.75
Ledovoe	68.93313° N and 33.10451° E	0.040	780	270	15.70	7.80
Okunevoe	68.95012° N and 33.12734° E	0.048	1270	550	5.60	2.30
Semenovskoe	68.99080° N and 33.08851° E	0.213	3200	730	11.30	2.40
Srednee	68.98147° N and 33.12422° E	0.248	1990	700	23.50	7.70
Yuzhnoe	68.88469° N and 33.07660° E	0.053	1130	430	11.30	3.05
Treugolnoe	68.967875° N and 33.002587° E	0.100	550	160	8.60	5.60

). According to the classification of Alekin [18], the waters in the studied lakes mainly belong to the chloride class, Na group, owing to the influence of marine aerosols from Kola Bay [19]. The exceptions are Lake Okunevoe and Lake Srednee as their water is typical for the majority of lakes in Murmansk region, characterized by the distribution patterns of main ions in the bicarbonate (HCO₃^–) class, Ca group. These lakes are characterized by low mineralization (mean 63–143 mg/L), the highest rates of mineralization are observed in Lake Yuzhnoe and Lake Ledovoe (294 and 612 mg/L, respectively) [20].

Water samples from the surface (1 m from the surface) water and the bottom (1 m from the bottom) water of the lakes were taken with a 2 L plastic bathometer. From the bathometer, the samples were poured into 1 L plastic bottles from Nalgene^®, the material of which does not have sorbing properties. Before use, the bottles were thoroughly washed in the laboratory. When sampling water, the bottles were rinsed twice with lake water, then placed in dark containers and refrigerated (~+4 °C), and in a short time transported to the laboratory. Filtration of water samples was carried out in the laboratory during discharge using a Millipore phase sepa ration unit from high-density polypropylene through glass and polycarbonate membrane filters of Millipore with a pore size of 0.45 μm. The following parameters were determined in taken samples: pH, conductivity, alkalinity, main ions (Ca, Mg, Na, K, HCO₃, SO₄, Cl), and mineralization as the sum of seven main ions. The quality of chemical–analytical measurements carried out in the laboratory was confirmed by participation in the annual international verification (Intercomparison 2019). The content of trace elements (V, Cu, Ni, Cr, Zn, Cd, Sb, Sn, Pb) in water samples was measured using an ELAN 9000 inductively coupled plasma mass spectrometer.

Lake Semenovskoe was chosen to study the seasonal variation of heavy metals because this lake is the most popular water body among locals and visitors of Murmansk. Chemical and analytical studies were conducted in Institute of North Industrial Ecology Problems and Institute of Geology, KRCRAS using the same methods [21].

3. Results

According to the data analysis, concentrations of Mo, Cd, Sn, Sb, TI, Pb, and Bi in the studied water bodies did not exceed the regional relative background [22] and the maximum permissible concentrations for fisheries [23] (

Table 2. The mean concentrations of microelements in the Murmansk lakes, μg/L.

Elements	Semenovskoe	Ledovoe	Severnoe	Okunevoe	Srednee	Yuzhnoe	Treugolnoe	Background [22]	MPC Fish [23]
n	9	4	3	3	4	3	2
V	$\frac{2.8\pm 1.85}{1.9(0.96–6.4)}$	$\frac{9.1\pm 5}{10.1(2–13)}$	$\frac{2.9\pm 0.7}{2.9(2.1–3.6)}$	$\frac{5.8\pm 4.6}{3.2(2.9–11.1)}$	$\frac{8.3\pm 12.4}{2.4(1.5–26.9)}$	$\frac{0.9\pm 0.3}{0.8(0.8–1.3)}$	$\frac{2.4\pm 1.2}{2.4(1.5–3.2)}$	0.67	1
Cr	$\frac{0.4\pm 0.08}{0.4(0.3–0.6)}$	$\frac{1.6\pm 0.56}{1.7(0.9–2.2)}$	$\frac{0.7\pm 0.03}{0.7(0.6–0.7)}$	$\frac{0.95\pm 0.06}{1(0.9–1)}$	$\frac{0.6\pm 0.05}{0.5(0.5–0.6)}$	$\frac{0.7\pm 0.2}{0.7(0.5–0.8)}$	$\frac{0.8\pm 0.05}{(0.7–0.8)}$	0.50	70
Co	$\frac{0.17\pm 0.24}{0.06(0.04–0.8)}$	$\frac{1.39\pm 0.53}{1.2(1–2.2)}$	$\frac{0.52\pm 0.42}{0.3(0.27–1)}$	$\frac{0.14\pm 0.02}{0.15(0.12–0.16)}$	$\frac{0.11\pm 0.05}{0.08(0.07–0.19)}$	$\frac{0.1\pm 0.003}{0.1(0.1–0.11)}$	$\frac{0.6\pm 0.8}{0.6(0.07–1.19)}$	0.47	10
Ni	$\frac{4.13\pm 0.8}{4.2(3.2–5.4)}$	$\frac{11.74\pm 5.2}{10.7(7.2–18.4)}$	$\frac{5.5\pm 1.1}{5.6(4.4–6.6)}$	$\frac{5.9\pm 1.6}{5.1(4.9–7.8)}$	$\frac{6.8\pm 3.6}{5.2(4.5–12.2)}$	$\frac{2.8\pm 0.6}{2.9(2.1–3.3)}$	$\frac{7.1\pm 6.9}{7(2.2–12)}$	1.06	10
Cu	$\frac{1.7\pm 0.3}{1.7(1.2–2)}$	$\frac{2.6\pm 1.4}{2.4(1.2–4.4)}$	$\frac{2.3\pm 0.8}{2.1(1.5–3.1)}$	$\frac{2.5\pm 0.5}{2.3(2.2–3)}$	$\frac{2\pm 0.8}{1.8(1.4–3.2)}$	$\frac{1.3\pm 0.2}{1.4(1.1–1.5)}$	$\frac{2.5\pm 0.8}{2.5(1.9–3)}$	0.94	1
Zn	$\frac{6.4\pm 3.9}{5.7(2.6–15)}$	$\frac{10.4\pm 4.6}{8.9(6.7–17.1)}$	$\frac{14.8\pm 6}{11.4(11.3–21.7)}$	$\frac{17.2\pm 11.1}{11(10.6–30.1)}$	$\frac{7\pm 6}{4.7(2.7–15.8)}$	$\frac{1.6\pm 0.16}{1.6(1.5–1.8)}$	$\frac{5.6\pm 2.3}{5.6(4–7.3)}$	1.66	10
Mo	$\frac{0.11\pm 0.02}{0.1(0.09–0.16)}$	$\frac{0.41\pm 0.14}{0.4(0.26–0.55)}$	$\frac{0.74\pm 0.28}{0.7(0.5–1.05)}$	$\frac{0.14\pm 0.04}{0.1(0.11–0.19)}$	$\frac{0.25\pm 0.08}{0.2(0.19–0.37)}$	$\frac{0.32\pm 0.01}{0.3(0.3–0.32)}$	$\frac{0.02\pm 0.01}{0.02(0.007–0.03)}$	0.55	500
Cd	$\frac{0.01\pm 0.003}{0.01(0.008–0.02)}$	$\frac{0.02\pm 0.004}{0.02(0.01–0.02)}$	$\frac{0.03\pm 0.015}{0.03(0.02–0.05)}$	$\frac{0.03\pm 0.02}{0.02(0.02–0.06)}$	$\frac{0.06\pm 0.05}{0.04(0.018–0.13)}$	$\frac{0.01\pm 0.008}{0.01(0.007–0.02)}$	$\frac{0.02\pm 0.01}{0.02(0.01–0.02)}$	0.36	5
Sn	$\frac{0.008\pm 0.007}{0.008(0.002–0.02)}$	$\frac{0.059\pm 0.029}{0.057(0.027–0.096)}$	$\frac{0.029\pm 0.04}{0.009(0.003–0.076)}$	$\frac{0.036\pm 0.001}{0.037(0.035–0.038)}$	$\frac{0.028\pm 0.026}{0.025(0.001–0.06)}$	$\frac{0.005\pm 0.005}{0.002(0.002–0.01)}$	$\frac{0.025\pm 0.015}{0.025(0.014–0.036)}$	0.50	112
Sb	$\frac{0.11\pm 0.02}{0.12(0.07–0.13)}$	$\frac{0.15\pm 0.08}{0.11(0.10–0.27)}$	$\frac{0.15\pm 0.03}{0.15(0.13–0.19)}$	$\frac{0.25\pm 0.02}{0.25(0.23–0.27)}$	$\frac{0.33\pm 0.12}{0.29(0.24–0.5)}$	$\frac{0.16\pm 0.02}{0.17(0.14–0.17)}$	$\frac{0.06\pm 0.006}{0.06(0.05–0.06)}$	0.69	–
W	$\frac{0.009\pm 0.006}{0.007(0.005–0.03)}$	$\frac{1.39\pm 0.62}{1.62(0.51–1.84)}$	$\frac{0.07\pm 0.03}{0.06(0.05–0.10)}$	$\frac{0.02\pm 0.009}{0.03(0.01–0.03)}$	$\frac{0.01\pm 0.008}{0.01(0.004–0.02)}$	$\frac{0.02\pm 0.005}{0.02(0.016–0.025)}$	$\frac{0.006\pm 0.002}{0.006(0.004–0.007)}$	0.61	0.8
Tl	$\frac{0.004\pm 0.001}{0.004(0.003–0.007)}$	$\frac{0.007\pm 0.004}{0.008(0.003–0.011)}$	$\frac{0.009\pm 0.003}{0.007(0.007–0.012)}$	$\frac{0.005\pm 0.002}{0.004(0.003–0.007)}$	$\frac{0.003\pm 0.001}{0.003(0.002–0.005)}$	$\frac{0.002\pm 0.001}{0.001(0.001–0.003)}$	$\frac{0.004\pm 0.00007}{0.004(0.0035–0.0036)}$	1.85	60
Pb	$\frac{0.14\pm 0.08}{0.13(0.07–0.3)}$	$\frac{0.27\pm 0.06}{0.3(0.22–0.4)}$	$\frac{0.2\pm 0.03}{0.2(0.17–0.22)}$	$\frac{0.45\pm 0.08}{0.4(0.39–0.54)}$	$\frac{0.12\pm 0.10}{0.1(0.03–0.26)}$	$\frac{0.07\pm 0.01}{0.07(0.06–0.08)}$	$\frac{0.37\pm 0.22}{0.37(0.21–0.53)}$	0.47	6
Bi	$\frac{0.004\pm 0.006}{0.0007(0.0002–0.02)}$	$\frac{0.014\pm 0.004}{0.016(0.007–0.02)}$	$\frac{0.007\pm 0.004}{0.009(0.002–0.009)}$	$\frac{0.004\pm 0.004}{0.003(0.0003–0.008)}$	$\frac{0.007\pm 0.001}{0.007(0.005–0.007)}$	$\frac{0.004\pm 0.003}{0.004(0.001–0.006)}$	$\frac{0.01\pm 0.002}{0.01(0.007–0.011)}$	1.06	–
Mn	$\frac{77\pm 134}{14(1.7–398)}$	$\frac{371\pm 235}{435(46.8–568)}$	$\frac{66\pm 84}{20(14.5–163)}$	$\frac{8\pm 3}{6(5.5–11)}$	$\frac{41\pm 50}{25(4–109)}$	$\frac{31\pm 37}{12(7–74)}$	$\frac{216\pm 285}{216(14–418)}$	2.09	10
Fe	$\frac{438\pm 891}{127(32–3339)}$	$\frac{2684\pm 2453}{2137(211–6051)}$	$\frac{233\pm 167}{171(111–478)}$	$\frac{418\pm 54}{414(359–483)}$	$\frac{36\pm 7}{39(27–42)}$	$\frac{45\pm 13}{50(32–59)}$	$\frac{2010\pm 1557}{1996(560–3488)}$	47.26	100

Numerator—mean value ± standard deviation; the denominator is the median (the minimum and maximum values of the sample); n—number of samples.

).

3.1. Water Chemistry

Vanadium concentrations in the lakes varied from 0.95 to 9.1 μg/L. The highest V rates were found in Lake Ledovoe (9.1 μg/L), Lake Srednee (8.3 μg/L), and Lake Okunevoe (5.8 μg/L). Operations of thermal power plants, using mazut (the Murmansk thermal power plant and boiler rooms) significantly influence the increase of the element rates in urban lakes. It is known that mazut contains vanadium and such heat and power plants can pollute urban areas around the world [24,25]. The concentrations of V in lakes decreased with distance to the sources of emissions, however, concentrations 3–4 times above the background were found even in the remote lakes (Severnoe, Treugolnoe). This happens mostly because transport distance of ash particles from heat and power plants using mazut can reach 15 km from the source [26].

Nickel is the main siderophile element of the Baltic Shield [27] and its background is 1.06 μg/L. Ni concentrations in the studied lakes varied from 2.8 to 11.74 μg/L, which are 2.6–11 times higher than the regional background. Meanwhile, it was found that Lake Ledovoe was characterized by the highest concentration of this element (11.73 μg/L). The lowest Ni content, as well as V, was observed in Lake Yuzhnoe. This element as well as vanadium is an indicator of the combustion of mazut fuel [28,29,30]. The defined mean positive correlation (Figure 2) between V and Ni concentrations (critical value r = 0.54 with significance level p = 0.005) in the studied lakes confirmed the significant anthropogenic influence of the Murmansk combine heat and power plant and boiler rooms on the state of water bodies.

Chromium and cobalt concentrations varied from 0.40 to 1.64 μg/L and from 0.1 to 1.39 μg/L, respectively. The maximum concentrations of these elements (three times above the background) were found in Lake Ledovoe. Exceeding the maximum permissible concentrations for fishing has not been recorded.

The high content of copper in chemical composition of surface waters is a special feature of water bodies in the Arctic zone and the Russian North due to predominance of chalcophile elements in the Baltic Shield and humification of the catchment area of the lakes in Murmansk region [27]. The concentrations of Cu in Murmansk lakes varied from 1.33 to 2.62 μg/L. The maximum content was found in Lake Ledovoe, the minimum in Lake Yuzhnoe. The majority of lakes were characterized by Cu concentrations higher than the background of the region and 0.7–1.6 times higher than the maximum permissible concentrations for fisheries.

During the research of the Murmansk lakes, zinc content varied from 1.64 to 17.22 μg/L. Almost all the studied lakes were characterized by the exceeding the maximum permissible concentrations for this element. The exception is Lake Yuzhnoe with the lowest Zn concentration. Zn concentrations in Lake Severnoe and Lake Okunevoe were 1.5 and 1.7 times higher than the maximum permissible concentrations. Possibly, the high content of Zn in these lakes is connected with the deposition of plant residues in the catchment areas and further Zn transport with the surface run-off and from the soil horizon to the lakes in autumn and spring seasons [31,32]. The anthropogenic source of Zn input to the urban water bodies is dust from the highways. The enrichment of the road dust with Zn occurs due to tire abrasion and worn brake shoes [26,33].

Tungsten concentration in the lakes did not exceed the background. The exception is Lake Ledovoe with the W concentration of 1.4 μg/L, that is 0.8 μg/L more than the background. W compounds are used in mechanical engineering for lubricants and polyamide composites as antifriction nanoparticles, that reduce the friction coefficient, and as catalysts for oil refining [34]. The gas station, the car wash, and garages are located near Lake Ledovoe, which is possibly a reason for the increase of W in this lake.

The Murmansk lakes are characterized by the relatively high content of Fe, the exceptions are Lake Srednee and Lake Yuzhnoe, where the lowest concentrations of this element (36 and 47 μg/L, respectively) were found. The maximum rates were observed in Lake Ledovoe (2684 μg/L) and Lake Treugolnoe (2010 μg/L), 27 and 20 times higher than the maximum permissible concentrations for fisheries. The main source of Fe in waters is rocks, where Fe exists in the bivalent form. During silicate weathering under the influence of carbonic acid and water, bivalent iron in the form of bicarbonates transports into waters. Under the influence of oxygen, bivalent iron further switches to trivalent, which breaks down hydrolytically to Iron (III) oxide-hydroxide in acid solutions [35]. Moreover, Fe has the capacity to complexation, creating stable complex compounds with humic substances (the main part of Fe exists in the complex anionic form) [36].

Manganese is a widespread element in the environment. Its mean content in the Murmansk lakes varied from 8 to 371 μg/L. The highest concentrations compared to the background were found in Lake Ledovoe (371 μg/L) and Lake Treugolnoe (215.85 μg/L). The minimum Mn concentration was observed in Lake Okunevoe—8 μg/L. The Republic of Karelia and Murmansk region belong to the ferromanganese geochemical province, which causes migration of elements as part of organic-mineral complexes to the water bodies of these regions [37]. The strong correlation (Figure 3) between Fe and Mn contents in the studied lakes indicated simultaneous input of these elements. Moreover, the subarctic areas are characterized by eutrophication of lakes with the high content of humus [38]. As a result of low temperature influence and decrease in the oxygen content at the bottom of water bodies, Mn switches to the dissolved form (Mn(II)) and releases from sediments [39]. Anthropogenic sources of Mn are exhaust fumes of cars with gasoline engines, where methylcyclopentadienyl manganese tricarbonyl is used as an antiknock agent, and manganese antismoke agents for diesel fuel [40].

Comparison of the concentrations of trace elements in the Murmansk lakes with their concentrations in the lakes of the border zones of Russia, Finland, and Norway (

Table 3. The mean contents of microelements in the Murmansk lakes and the neighboring zones of Russia, Norway, and Finland, μg/L [41].

	Cu	Ni	Pb	Fe
Murmansk	2.1	6.3	0.23	837
Russia	5.2	41.6	0.26	98
Norway	2.1	3.6	0.28	54
Finland	0.9	1.5	0.09	434

) showed that the concentration of Cu in the Murmansk lakes was on the same level as Norway. Moreover, Ni concentrations in the Murmansk lakes were 1.8 times higher than in Norway. The highest concentrations of these elements are common for the north-western part of Murmansk region. As noted above, Cu and Ni are some of the most common pollutants from non-ferrous metallurgical plants, located in this area. The highest concentrations were found in lakes located close to metallurgical plants: Lake Haukilampi (Cu—8.3 μg/L; Ni—109 μg/L), LN-2 (Cu—9.8 μg/L; Ni—265 μg/L), LN-3 (Cu—13.6 μg/L; Ni—111 μg/L), Lake Kuetsjarvi (Cu—8.6 μg/L; Ni—106 μg/L) [41]. The lowest concentrations of Cu, Ni, and Pb were observed in the lakes of Finland. The mean Pb content in other regions was similar and varied from 0.23 to 0.28 μg/L. In turn, the lakes of Murmansk and Finland were characterized by high concentrations of the mean Fe content, which is common for small lakes in these regions. Meanwhile, the highest concentrations of Fe were observed in the Murmansk lakes and they were 1.9 times higher than in the Finnish lakes.

3.2. Seasonal Variation

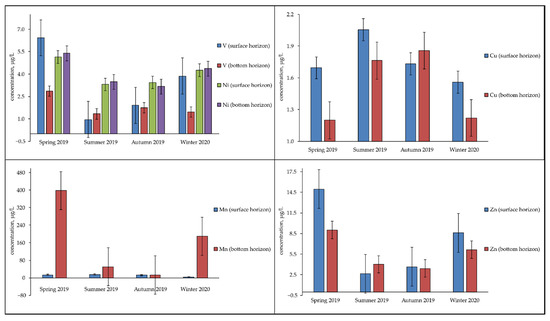

The seasonal variation of the content of microelements in the Murmansk lakes was studied in Lake Semenovskoe due to its location in the central part of the city and its high recreational meaning for citizens.

The mean concentrations higher than the regional background were found in Lake Semenovskoe for these elements: Cu (1.8 times higher), Ni (3.9), Zn (3.9), V (4.2), Fe (9.3), and Mn (37). The highest concentrations were observed mainly in winter/spring season and reached their maximum in the flood period. Thus, there were high concentrations of V (3.87 μg/L in winter; 6.42 μg/L in spring) and Zn (8.22 μg/L in winter; 15 μg/L in spring) in the surface water (Figure 4 and Figure 5).

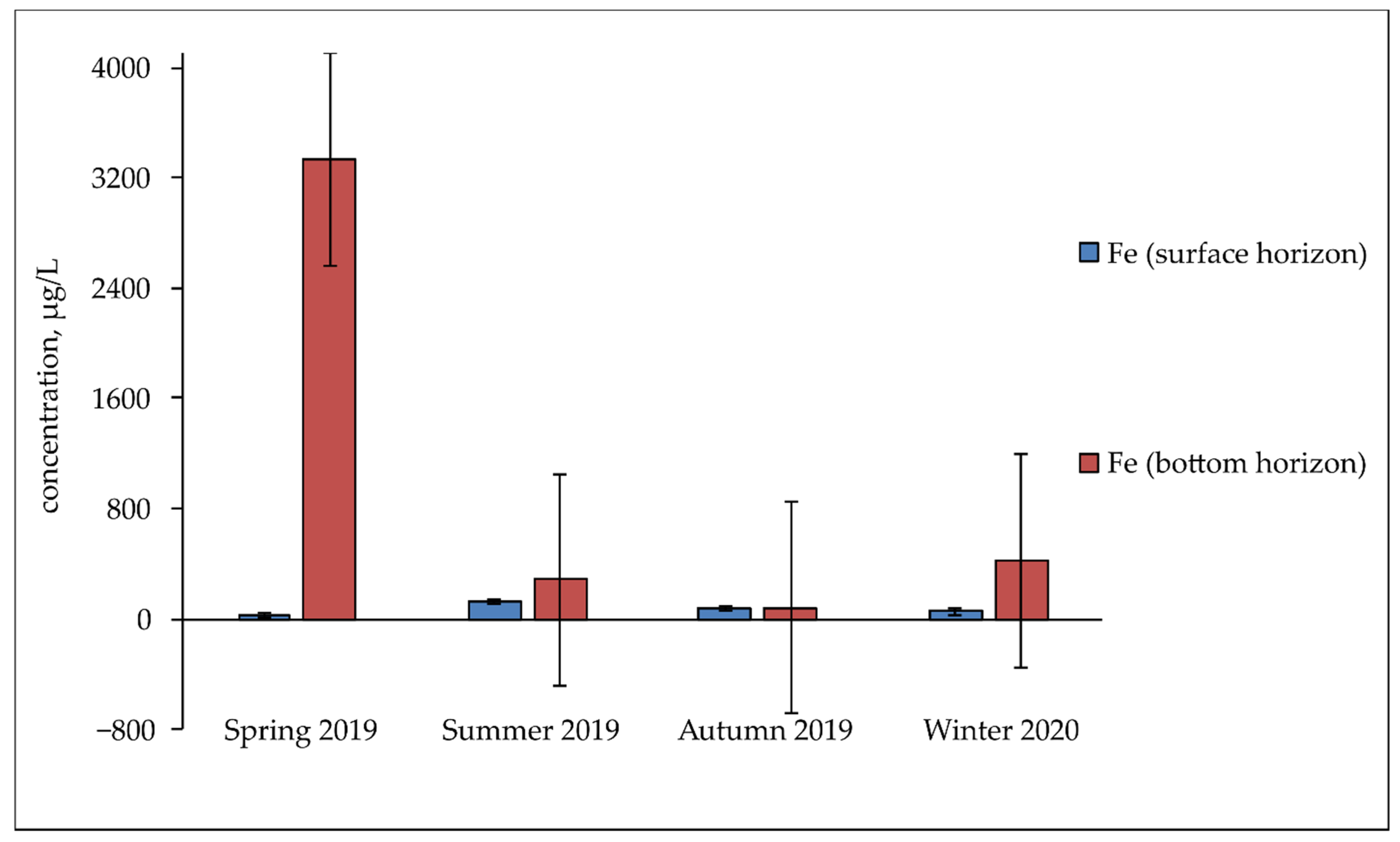

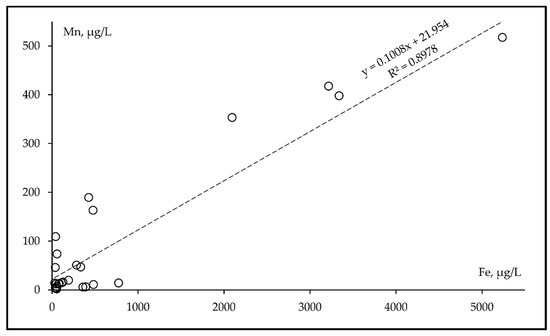

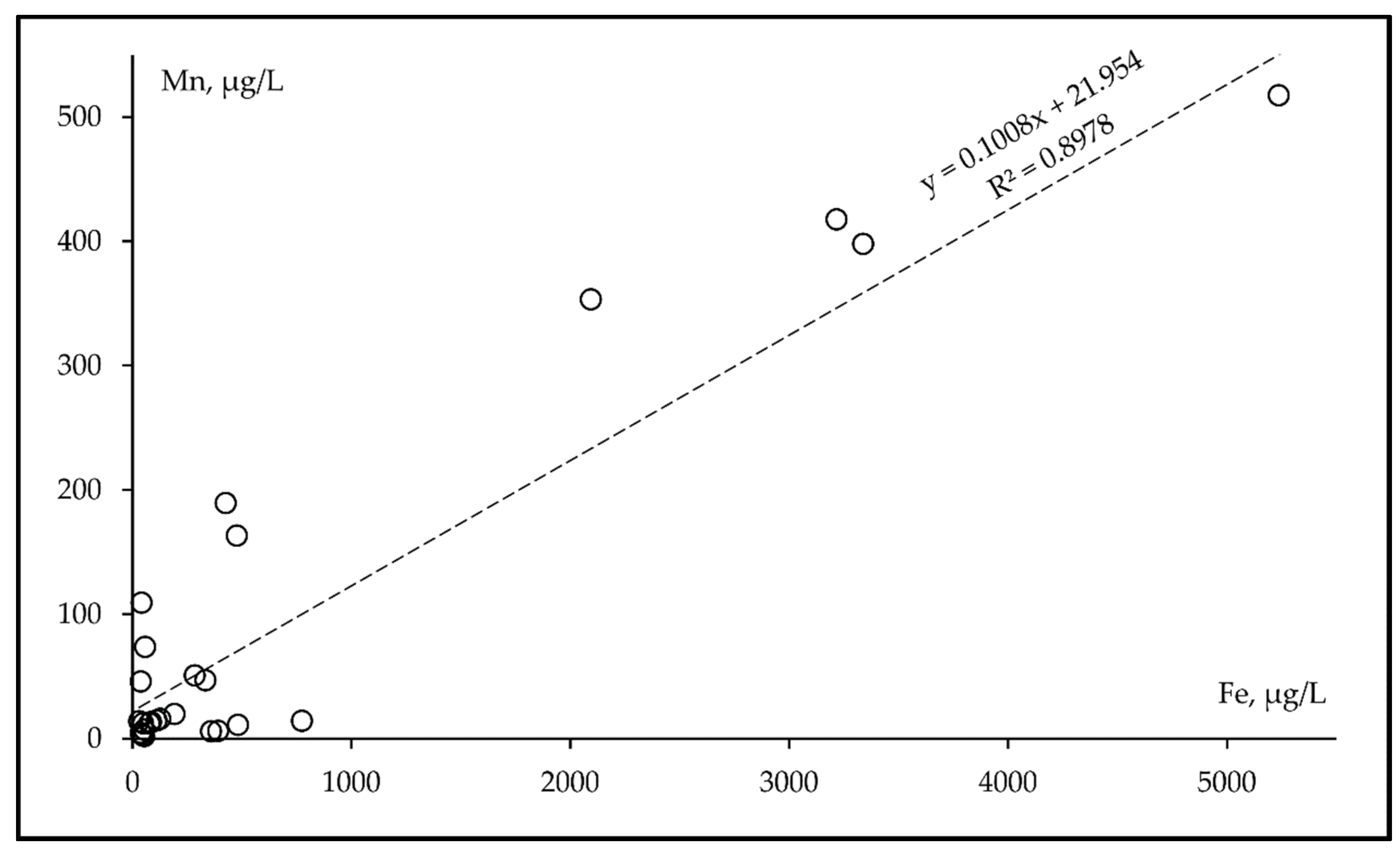

The highest contents of Mn were noted in the bottom water layer (189 μg/L in winter; 398 μg/L in spring) and Fe (427 μg/L; 3339 μg/L in spring). Iron and manganese cycling is common for natural water bodies [42]. During winter stagnation, active diffusion of Fe²⁺ and Mn²⁺ from sediments to water occurs and that leads to the accumulation of these elements in the bottom water. In summer, a significant decrease in concentrations of studied elements occurs compared to the spring season. For instance, Zn concentration was 12.4 μg/L less in the surface water and 4.98 μg/L less in the bottom water. Mn content in the surface water was on the same level in summer, while the concentration of this element in the bottom water was 7.8 times less compared to spring. A sharp decline in concentrations in summer in the bottom water is common also for Fe (content was 11.7 times less). In summer, when oxygen conditions improve, Fe²⁺ oxidation to hydroxides and Mn²⁺ oxidation to dioxide occurs, and concentrations of these elements in water bodies decrease. In autumn during homothermia, water masses mixing leads to equal distribution of elements in the water column of the lake. Thus, Zn content in the surface water was 3.67 μg/L and in the bottom water 3.41 μg/L. The seasonal pattern of Cu proceeds without strong variations. The highest content of this element was observed in summer (2.05 μg/L in the surface water; 1.76 μg/L in the bottom water) and spring (1.73 μg/L in the surface water; 1.86 μg/L in the bottom water). In winter/spring season, the highest concentration of Cu was found in the surface water (1.6 μg/L). Meanwhile, the difference between Ni content in the surface and bottom water was not observed during the research.

3.3. Assessment of the Level of Pollution of Water Bodies

To assess the level of pollution of lake waters in Murmansk, a regional water pollution index (WPI_reg) was calculated [36]. To calculate this indicator, only priority chemical indicators reflecting this type of pollution are used. This takes into account not only the toxicity of the elements in accordance with their maximum permissible concentrations for fishery reservoirs but also the geochemical background for uncontaminated reservoirs. The index takes into account not only the toxicity of elements from the maximum permissible concentrations for fisheries but also the geochemical background for unpolluted water bodies. WPIreg is calculated according to the formula:

$${\mathrm{WPI}}_{\mathrm{reg}}=\frac{1}{n}{\displaystyle \sum }\frac{Ci}{RMPC i},$$

(1)

where Ci—the actual concentration of the element in the water body; RMPCi—the regional maximum permissible concentrations of the same element. Only the compounds with Ci ≥ RMPC are used for the calculation, others, as well as substances reflecting the regional specifics of waters, are not taken into account. RMPC for substances with MPC > Cbackground (V, Cr, Co, Ni, Zn) are calculated as the geometric mean:

$$\mathrm{RMPC}=\sqrt{\mathrm{Cbackground}\times \mathrm{MPC}}$$

(2)

The sum

RMPC = Cbackground + MPC

(3)

was used for elements with the background concentration on the same level as MPC (Cu, W). The regional water pollution indices, confirming the influence of anthropogenic load on the state and quality of Murmansk lakes, are presented in

Table 4. The regional water pollution index (WPI_reg) of the Murmansk lakes.

Lake	WPIreg	Classification by WPIreg
Semenovskoe	2.1	Polluted
Ledovoe	3.7	Heavily polluted
Severnoe	2.5	Polluted
Okunevoe	3.6	Heavily polluted
Srednee	3.7	Heavily polluted
Yuzhnoe	1.1	Moderately polluted
Treugolnoe	2	Polluted

.

As can be seen from Table 4, although the studied lakes are not directly exposed to wastewater discharge from the enterprises of Murmansk, WPI_reg reflects the influence of the urban environment on the state of water bodies. At the same time, Lake Imandra (the largest water body in Murmansk region) is influenced by the multifactorial anthropogenic load from mining and metallurgical industries, iron ore production, energy complex, household wastewater, and characterized by the value of WPI_reg from 0.9 to 2.5. These values are close to those for the lakes of Murmansk [43]. On the other hand, the Syuskuyanjoki River (the Republic of Karelia, Russia), characterized by the low development of the catchment area and the absence of point sources of pollution, is considered to be clean (WPI_reg is 0.4) [44]. Additionally, WPI_reg was calculated for the water of Lake Peipus (45% of the lake area belongs to Russia, 55% to Estonia). This lake is exposed to the anthropogenic load from point (urban wastewater) and scattered (agricultural facilities) sources of pollution. WPI_reg for this lake was 0.77, which corresponds to the category of clean waters [45].

4. Conclusions

The results of the studies showed the significant influence of the urban environment on the chemical composition of the Murmansk lakes. The most polluted lake was Lake Ledovoe with the highest concentrations of V, Cr, Co, Ni, Cu, W, and Mn. The least subject to anthropogenic load was Lake Yuzhnoe, characterized by the lowest concentrations of studied heavy metals. The highest excess of the background in the Murmansk lakes were found for V, Ni, Zn, Fe, and Mn. The main reason for the high content of V and Ni is the combustion of mazut fuel. Zn and Mn concentrations can increase due to both natural and anthropogenic factors, influencing different processes in the surface and bottom waters. The analysis of the seasonal variation showed that the highest concentrations of heavy metals were observed in winter/spring season and reached their maximum during the period of melt water intake from the catchment area. The assessment of the quality of the Murmansk lakes using the regional water pollution index showed that Ledovoe, Okunevoe, and Srednee lakes can be characterized as “heavily polluted”. Semenovskoe, Severnoe, and Treugolnoe lakes are “polluted”. Only Lake Yuzhnoe is “moderately polluted”.
