Water Leak Localization Using High-Resolution Pressure Sensors

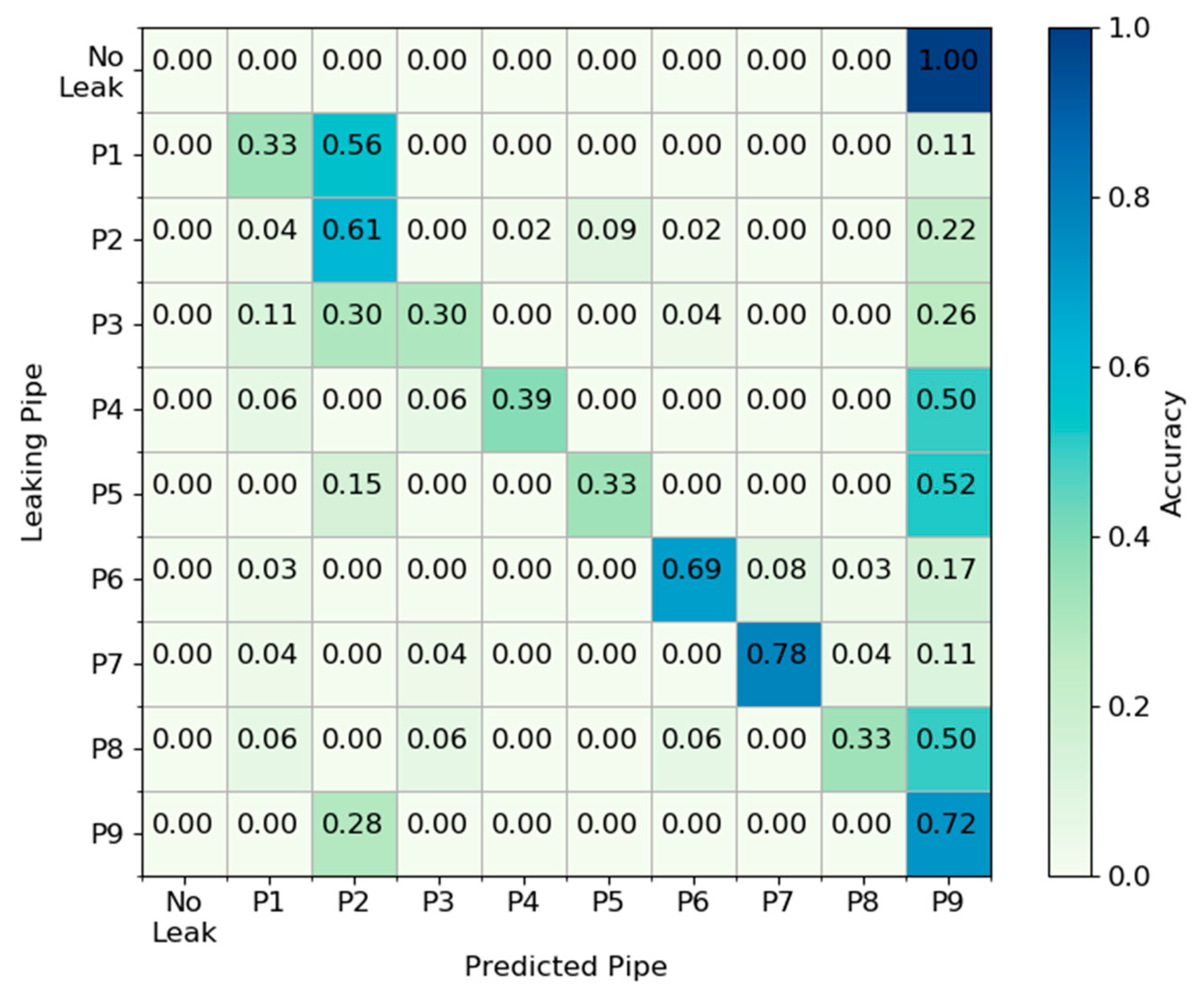

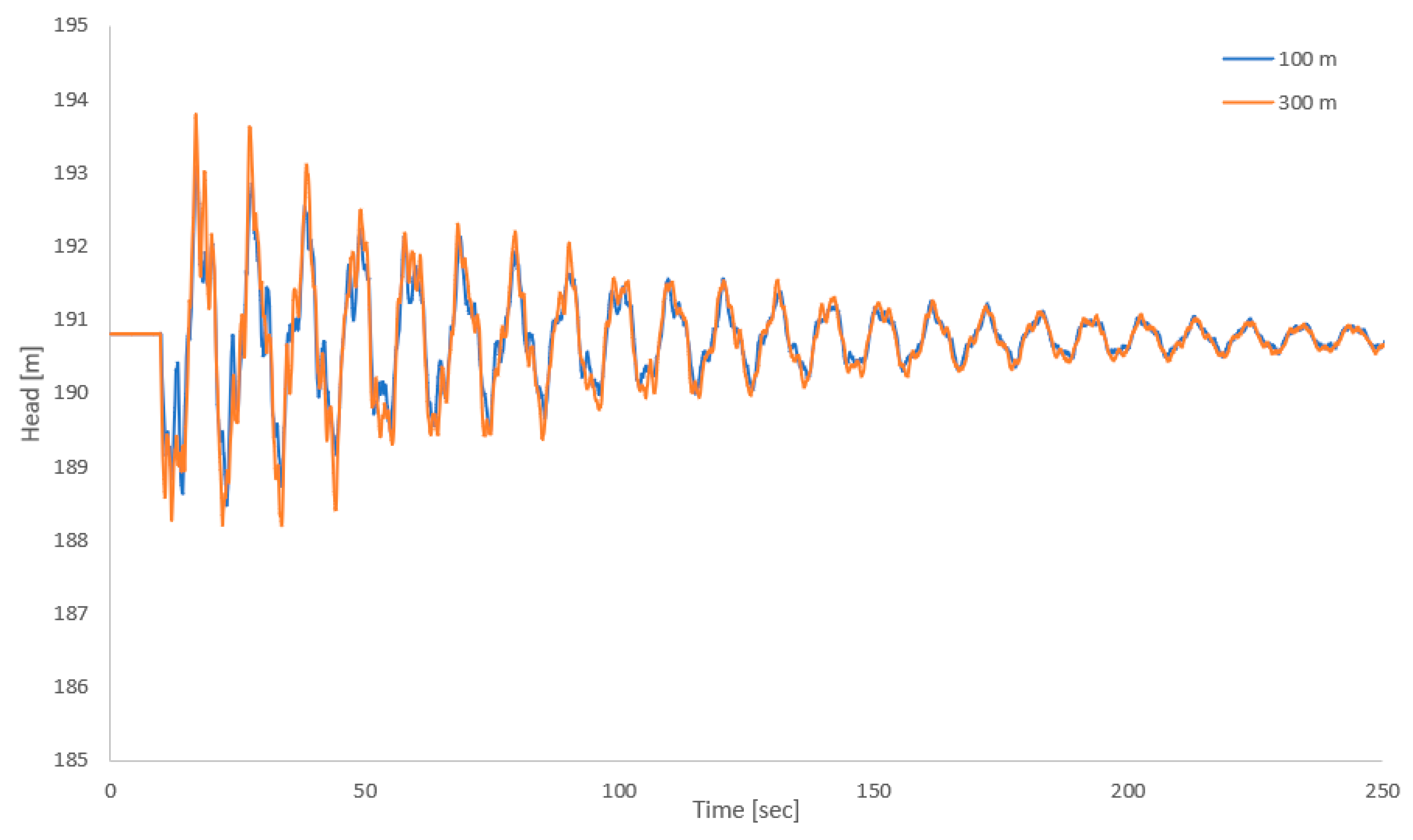

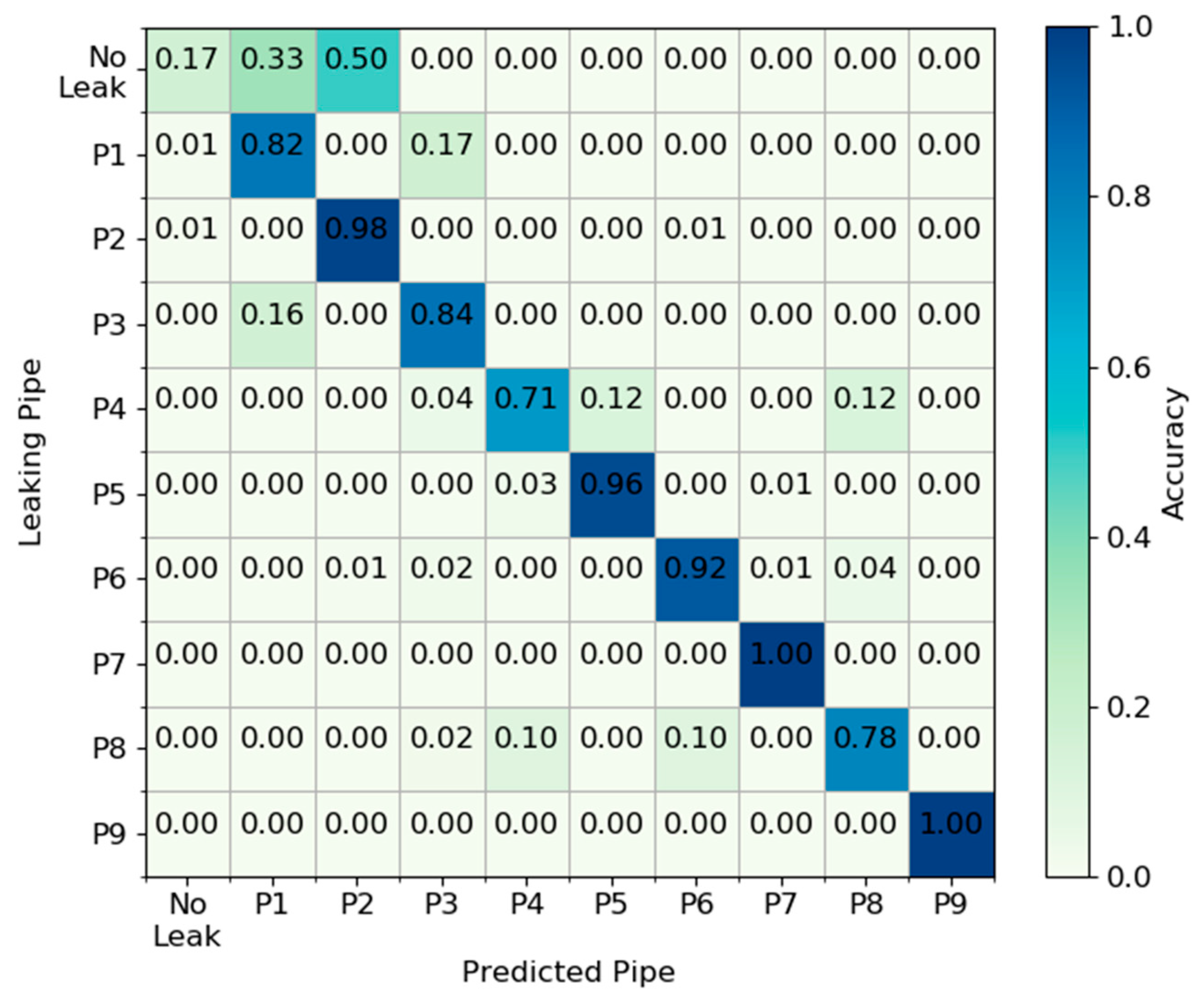

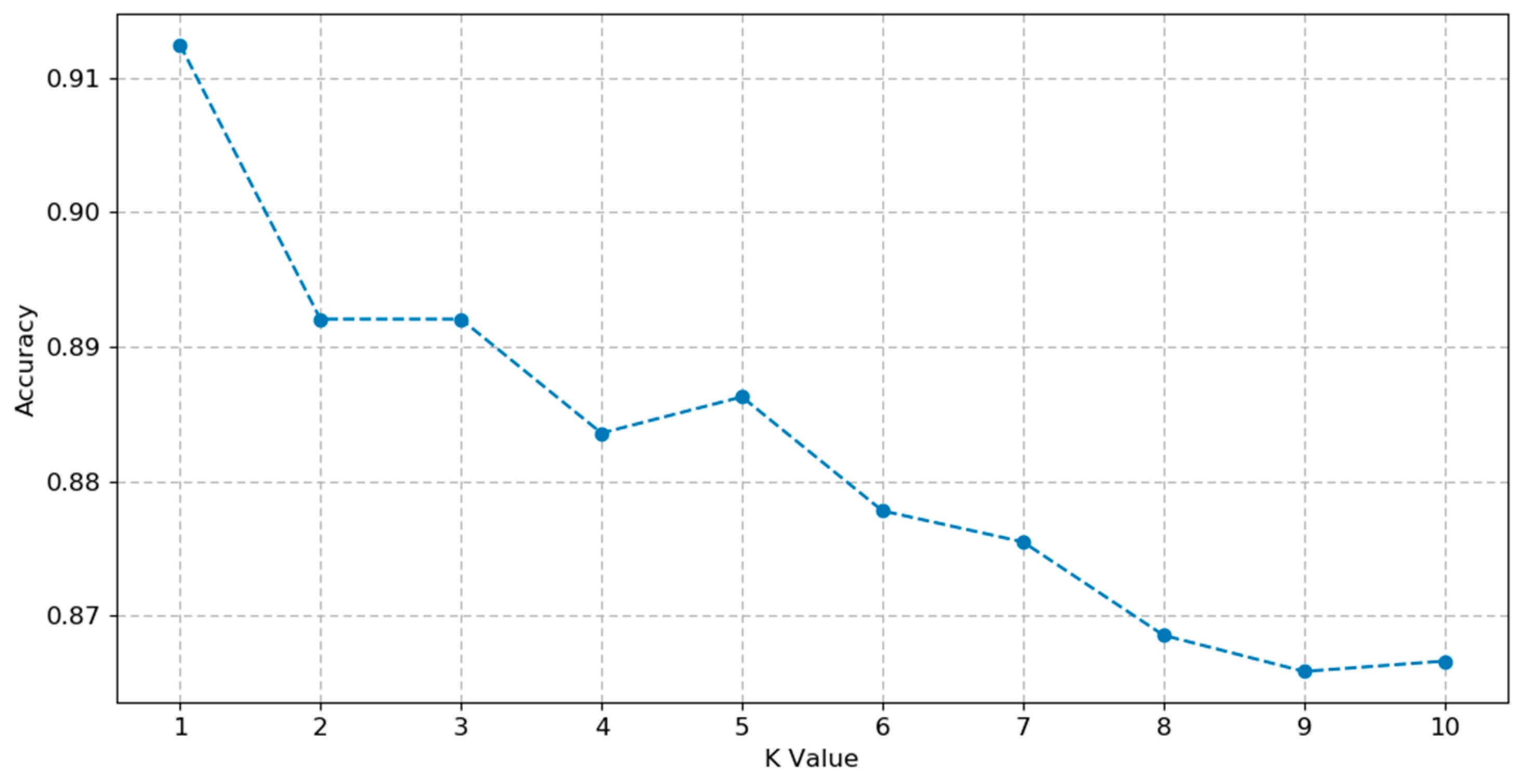

A new method for identifying a leaking pipe within a pressurized water distribution system is presented. This novel approach utilizes transient modeling to analyze water networks. Urban water supply networks are important infrastructure that ensures the daily water consumption of urban residents and industrial sites. The aging and deterioration of drinking water mains is the cause of frequent burst pipes, thus making the detection and localization of these bursts a top priority for water distribution companies. Here we describe a novel method based on transient modeling of the water network and produces high-resolution pressure response under various scenarios. Analyzing this data allows the prediction of the leaking pipe. The transient pressure data is classified as leaking pipes or no leak clusters using the K-nearest neighbors (K-NN) algorithm. The transient model requires a massive computation effort to simulate the network’s performance. The classification model presented good performance with an overall accuracy of 0.9 for the basic scenarios. The lowest accuracy was obtained for interpolated scenarios the model had not been trained on; in this case, the accuracy was 0.52.
