Estimation of the Deep Geothermal Reservoir Temperature of the Thermal Waters of the Active Continental Margin (Okhotsk Sea Coast, Far East of Asia)
Abstract
:1. Introduction

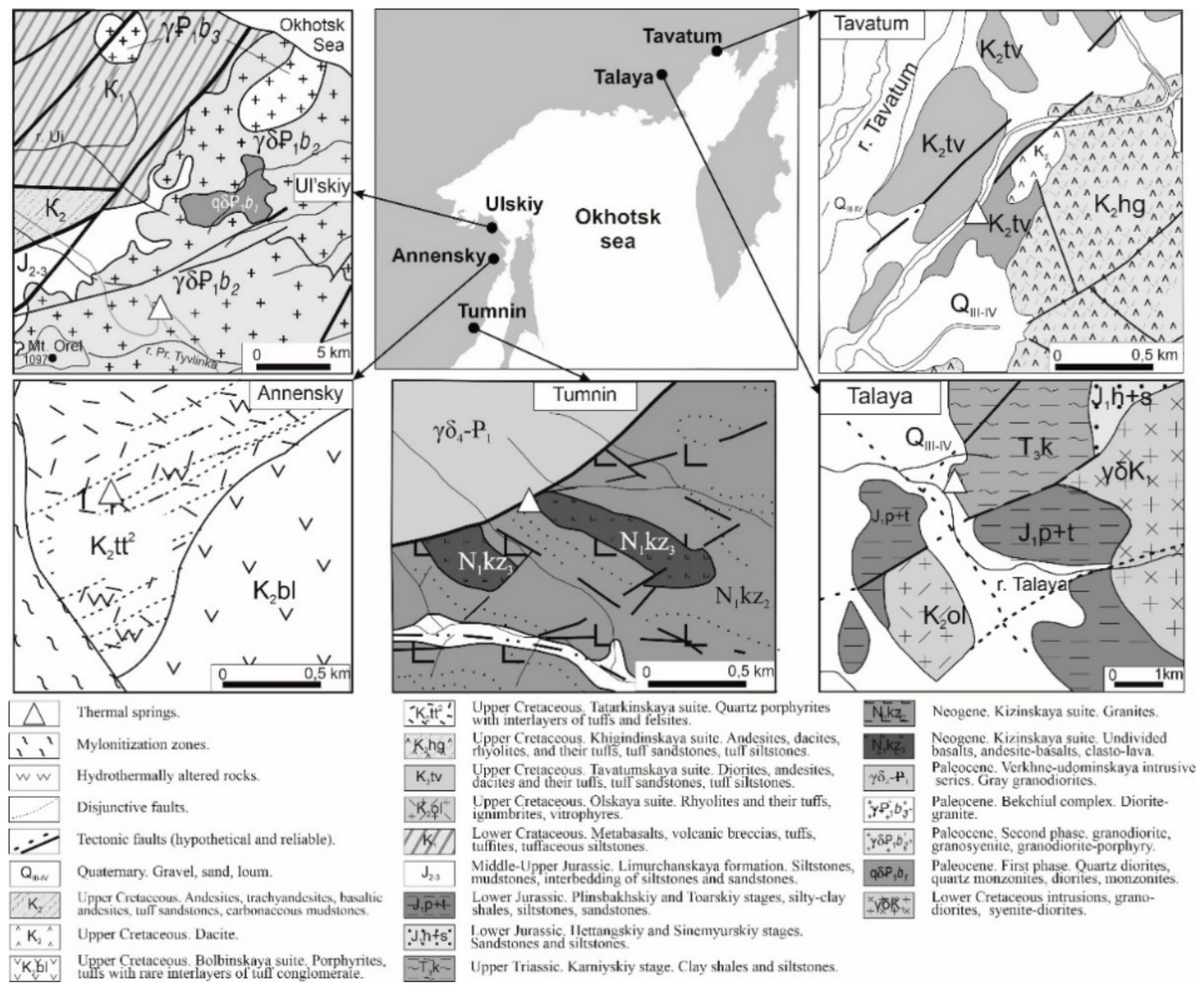

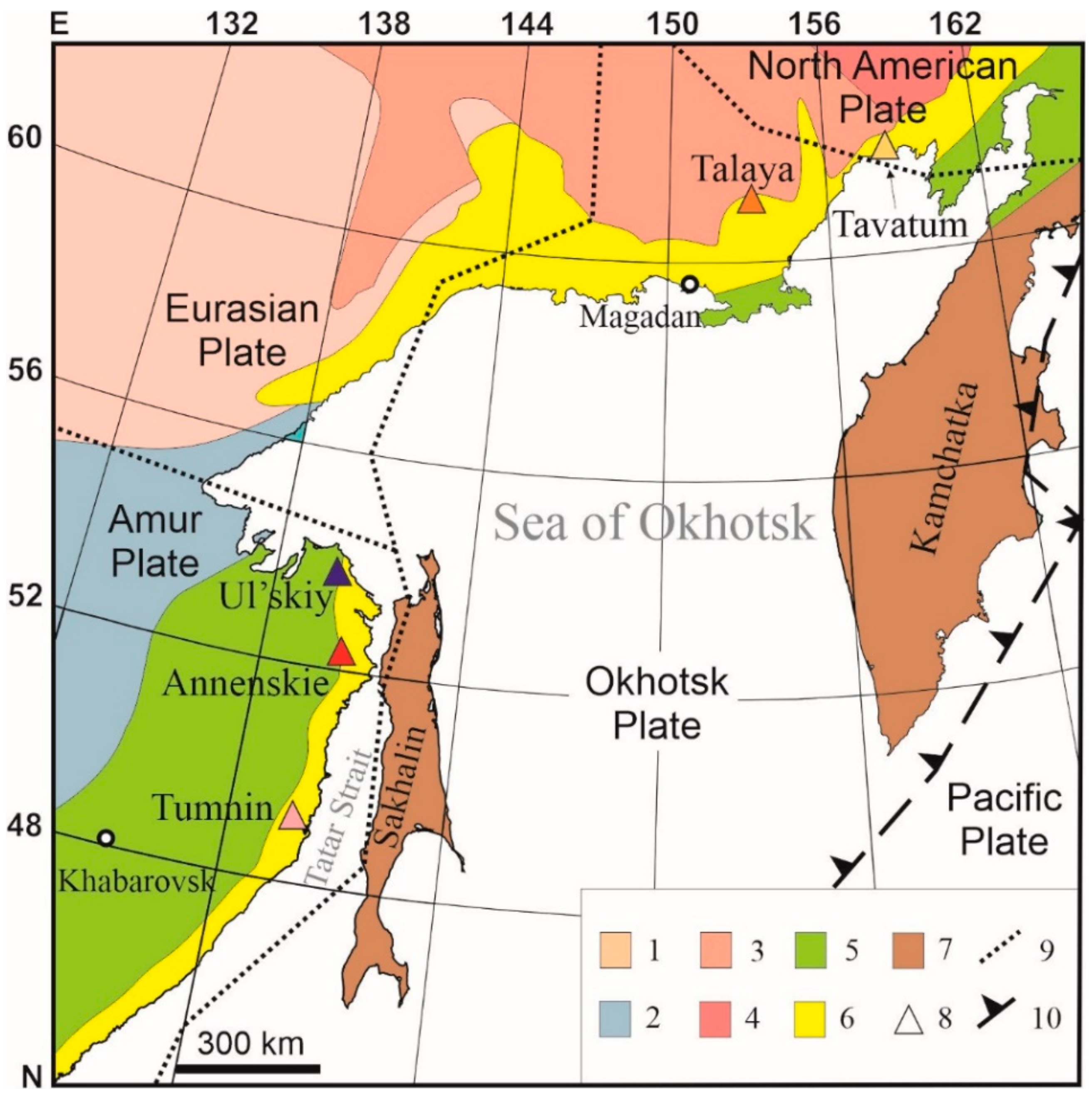

2. Site Description
3. Materials and Methods
4. Results

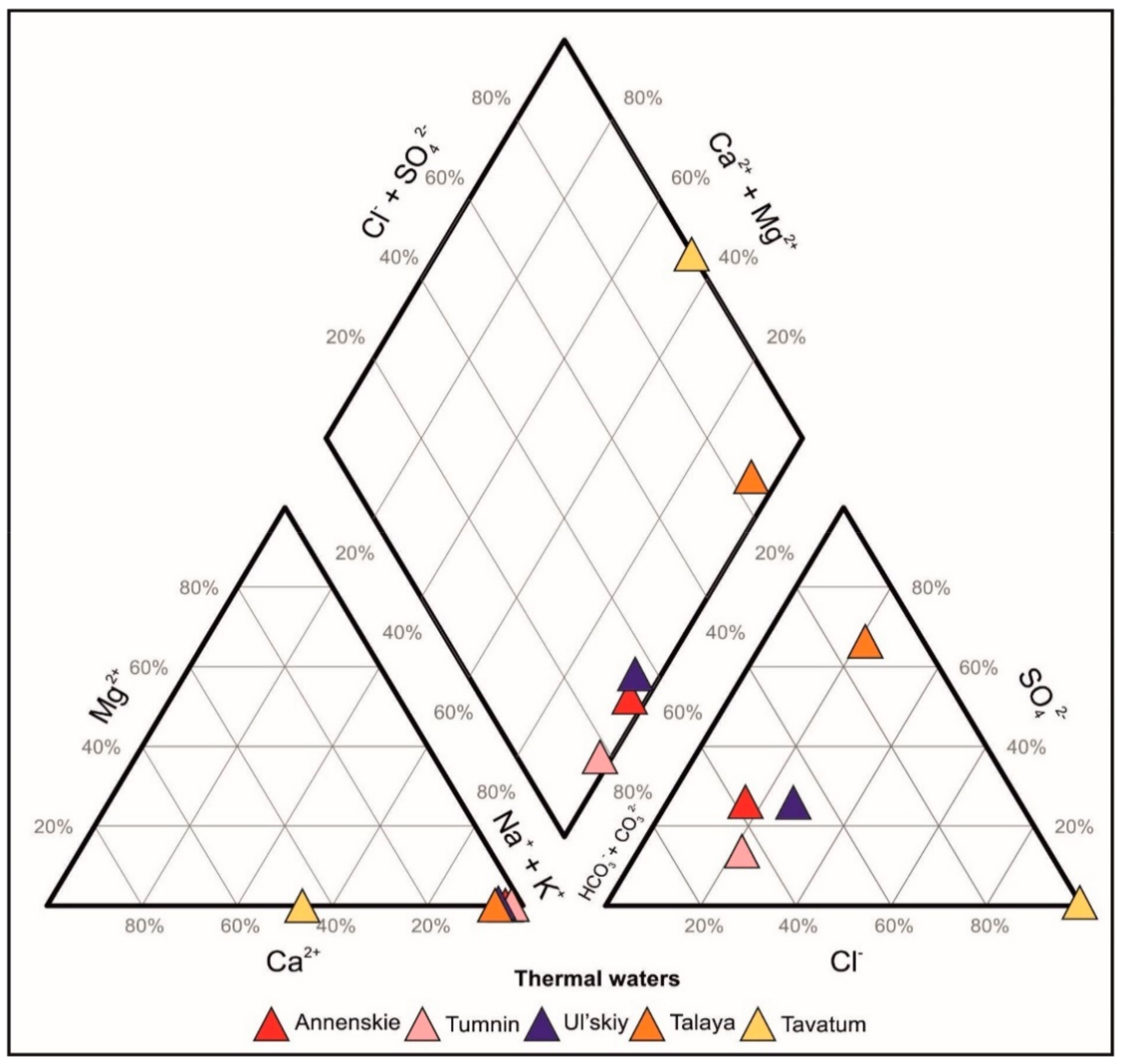

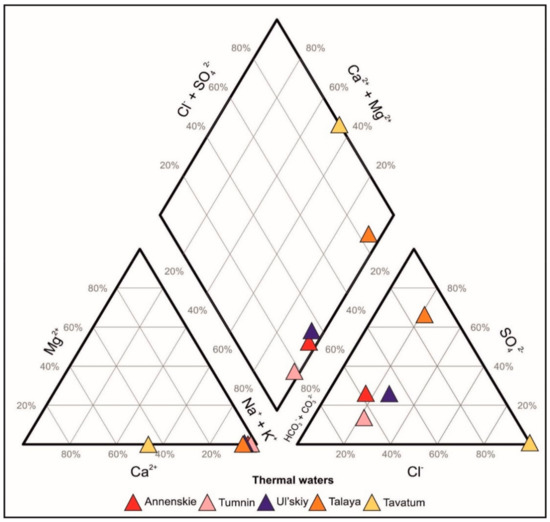

4.1. Chemical and Isotopic Composition

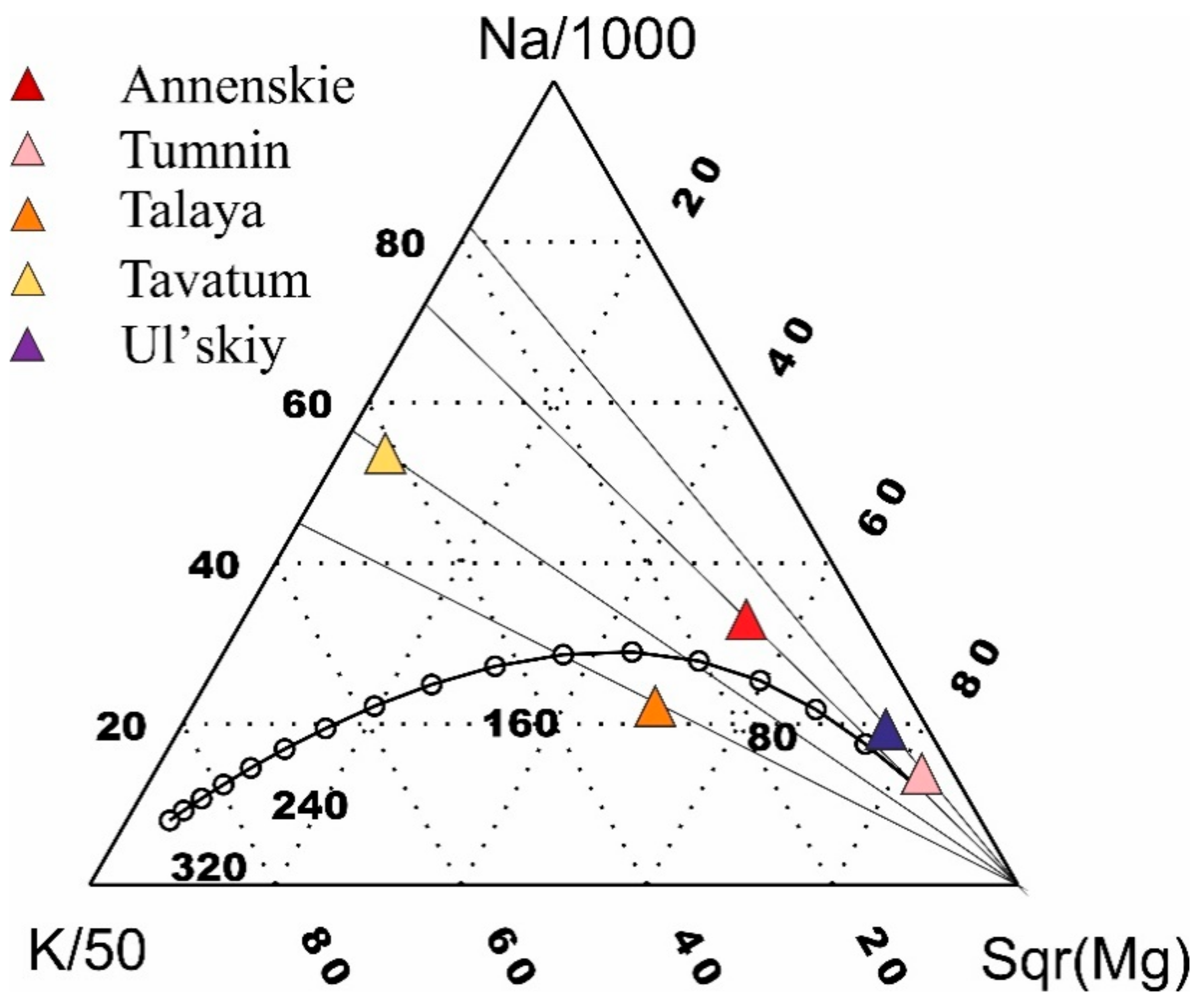

4.2. Estimation of the Reservoir Temperature

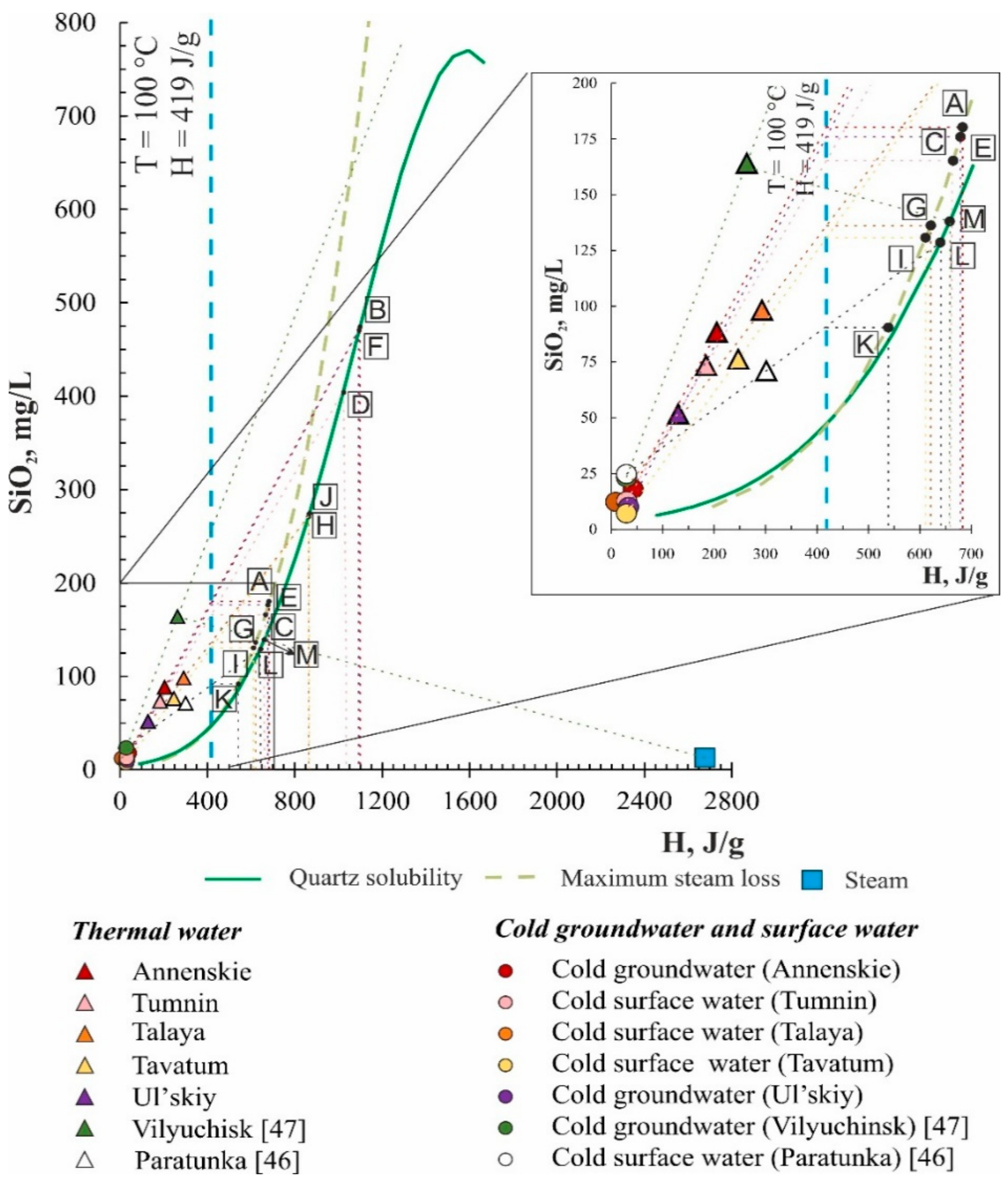

Thermal Water | Steam Separation before/after Mixing | The Point in Figure 4 | H, J/g | T, °C |
---|---|---|---|---|
Annenskie | before | A | 684 | 162 |
after | B | 1100 | 253 | |
Tumnin | before | C | 671 | 159 |
after | D | 1047 | 242 | |
Ul’skiy | before | E | 675 | 160 |
after | F | 1090 | 251 | |
Talaya | before | G | 619 | 147 |
after | H | 861 | 202 | |
Tavatum | before | I | 610 | 145 |
after | J | 861 | 202 | |
Paratunka [46] | before | K | 546 | 130 |
after | L | 640 | 152 | |
Vilyuchinsk [47] | no mixing | M | 671 | 159 |
5. Discussion
6. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Kulakov, V.V.; Sidorenko, S.V. Mineral Waters and Therapeutic Mud of the Amur Region; DVGMU: Khabarovsk, Russia, 2017; 473p. (In Russian) [Google Scholar]
- Chudaev, O.V. Composition and Conditions of the Formation of the Modern Hydrothermal Systems of the Russian Far East; Dal’nauka: Vladivostok, Russia, 2003. (In Russian) [Google Scholar]
- Chelnokov, G.; Bragin, I.; Kharitonova, N.; Alexandrov, I.; Ivan, V.; Chelnokova, B. Geochemistry and Conditions of the Formation of the Ulsk Thermal Spring (Coasts of the Sea of Okhotsk, Khabarovsk Krai). Russ. J. Pac. Geol. 2019, 13, 163–175. [Google Scholar] [CrossRef]
- Chudaev, O.V.; Kharitonova, N.A.; Chelnokov, G.A.; Bragin, I.V.; Kalitina, E.G. Geochemical Features of the Behavior of Rare-Earth Elements in Waters of the Russian Far East under Conditions of Natural and Anthropogenic Anomalies; Dal’nauka: Vladivostok, Russia, 2017; 152p. (In Russian) [Google Scholar]
- Bragin, I.V.; Chelnokov, G.A.; Chudaev, O.V.; Kharitonova, N.A.; Vysotskiy, S.V. Geochemistry of thermal waters of continental margin of Far East of Russia. Acta Geol. Sin. 2016, 90, 276–284. [Google Scholar] [CrossRef]
- Bragin, I.V.; Chelnokov, G.A.; Kharitonova, N.A.; Veldemar, A.A.; Pavlov, A.A. Rare-earth elements and isotopic geochemistry of thermal waters of the Okhotsk sea shore, Far East of Russia. IOP Conf. Ser. Earth Environ. Sci. 2020, 467, 012092. [Google Scholar] [CrossRef] [Green Version]
- Chernyshev, E.I. Report on Detailed Prospecting of Thermal Waters on the Sea Coast of the Nikolaevsk Region: Works of 1986–1987; Ul’skii Team: Khabarovsk, Russia, 1988. (In Russian) [Google Scholar]
- Bogatkov, N.M.; Kulakov, V.V. Annenskie spa. Soviet Geol. 1966, 5, 17–19. (In Russian) [Google Scholar]
- Polyak, B.G.; Prasolov, E.M.; Lavrushin, V.Y.; Cheshko, A.L.; Kamenskii, I.L. He, Ar, C and N isotopes in thermal springs of the Chukotka Peninsula: Geochemical evidence of the recent rifting in the north-eastern Asia. Chem. Geol. 2013, 339, 127–140. [Google Scholar] [CrossRef]
- Jeong, C.-H.; Lee, B.-D.; Yang, J.-H.; Nagao, K.; Kim, K.-H.; Ahn, S.-W.; Lee, Y.-C.; Lee, Y.-J.; Jang, H.-W. Geochemical and Isotopic Compositions and Geothermometry of Thermal Waters in the Magumsan Area, South Korea. Water 2019, 11, 1774. [Google Scholar] [CrossRef] [Green Version]
- Karaku, S.H. Helium and carbon isotope composition of gas discharges in the Simav Geothermal Field, Turkey: Implications for the heat source. Geochemistry 2013, 57, 213–223. [Google Scholar] [CrossRef]
- Wang, X.; Zhao, L.; Liu, X.; Lili, A.; Zhang, Y. Temperature effect on the transport of nitrate and ammonium ions on a loose-pore geothermal reservoir. J. Geochem. Exp. 2013, 124, 59–66. [Google Scholar] [CrossRef]
- Lavrushin, V.Y. Subsurface Fluids of the Greater Caucasus and Its Surrounding; GEOS: Moscow, Russia, 2012; 349p. (In Russian) [Google Scholar]
- Tikhomirov, P.L.; Kalinina, E.A.; Moriguti, T.; Makishima, A.; Kobayashi, K.; Cherepanova, I.Y.; Nakamura, E. The Cretaceous Okhotsk–Chukotka Volcanic Belt (NE Russia): Geology, geochronology, magma output rates, and implications on the genesis of silicic LIPs. J. Volcanol. Geotherm. Res. 2012, 221–222, 14–32. [Google Scholar] [CrossRef]
- Nokleberg, W.J.; Parfenov, L.M.; Monger, J.W.; Norton, I.O.; Chanďuk, A.I.; Stone, D.B.; Scotese, C.R.; Scholl, D.W.; Fujita, K. Fujita Phanerozoic tectonic evolution of the Circum-North Pacific US Geological Survey. Prof. Pap. 2001, 1626, 122. [Google Scholar]
- Rodnikov, A.G.; Sergeyeva, N.A.; Zabarinskaya, L.P.; Filatova, N.I.; Piip, V.B.; Rashidov, V.A. The deep structure of active continental margins of the Far East (Russia). Russ. J. Earth. Sci. 2008, 10, ES4002. [Google Scholar] [CrossRef]
- Tolstikhin, O.N. Hydrogeology of USSR. XXVI. North-Eastern USSR; Nedra: Moscow, Russia, 1972; 297p. (In Russian) [Google Scholar]
- Martynov, A.Y.; Golozubov, V.V.; Martynov, Y.A.; Kasatkin, S.A. Lateral Zonality of the East Sikhote-Alin Volcanic Belt: Geodynamic Regime in the Late Cretaceous. Russ. J. Pac. Geol. 2019, 13, 265–282. [Google Scholar] [CrossRef]
- Chelnokov, G.; Kharitonova, N.; Bragin, I.; Vasil’eva, M. Deuterium, oxygen-18 and tritium in precipitation, surface and groundwater in the Far East of Russia. Proc. Earth Planet. Sci. 2013, 7, 151–154. [Google Scholar] [CrossRef] [Green Version]
- Moiseev, A.V.; Luchitskaya, M.V.; Sokolov, S.D. Volcanic Rocks and Granitoids from Cape Svyatoy Nos (Eastern Arctic): Their Age, Composition, and Paleotectonic Reconstructions. Dokl. Earth Sci. 2020, 492, 2. [Google Scholar] [CrossRef]
- Fournier, R.O. Chemical geothermometers and mixing models for geothermal systems. Geothermics 1977, 5, 41–50. [Google Scholar] [CrossRef]
- Fournier, R.O. A revised equation for the Na-K geothermometer. Geotherm. Resour. Counc. Transections 1979, 3, 221–224. [Google Scholar]
- Giggenbach, W.F. Geothermal solute equilibria. Derivation of Na-K-Mg-Ca geoindicators. Geochim. Cosmochim. Acta 1988, 52, 2749–2765. [Google Scholar] [CrossRef]
- Fournier, R.O.; Truesdell, A.H. An empirical Na-K-Ca chemical geothermometer for natural waters. Geochim. Cosmochim. Acta 1973, 37, 1255–1275. [Google Scholar] [CrossRef]
- Fournier, R. Lecture on Geochemical Interpretation of Hydrothermal Waters; UNU Geothermal Training Programme: Reykjavik, Iceland, 1989; Volume 10, p. 66. [Google Scholar]
- Truesdell, A.H.; Fournier, R.O. Procedure for estimating the temperature of a hot water component in mixed water using a plot of dissolved silica vs. enthalpy. J. Res. USA Geol. Surv. 1977, 5, 49–52. [Google Scholar]
- Arnórsson, S.; Gunnlaugsson, E. New gas geothermometers for geothermal exploration calibration and application. Geochim. Cosmochim. Acta 1985, 49, 1307–1325. [Google Scholar] [CrossRef]
- Fouillac, R.; Michard, S. Sodium/Lithium ratio in water applied to geothermometry of geothermal reservoirs. Geothermics 1981, 10, 55–70. [Google Scholar] [CrossRef]
- Banks, D.; Sletten, R.S.; Haldorsen, S.; Dale, B.; Heim, M.; Swensen, B. The thermal springs of Bockfjord, Svalbard: Occurrence and major ion hydrochemistry. Geothermics 1998, 27, 445–467. [Google Scholar] [CrossRef]
- Reed, M.H.; Spycher, N.F. Calculation of pH and mineral equilibria in hydrothermal waters with application to geothermometry and studies of boiling and dilution. Geochim. Cosmochim. Acta 1984, 48, 1479–1492. [Google Scholar] [CrossRef]
- Pang, Z.-H.; Reed, M.H. Theoretical chemical thermometry on geothermal waters: Problems and methods. Geochim. Cosmochim. Acta 1998, 62, 1083–1091. [Google Scholar] [CrossRef]
- Palandri, J.; Reed, M.H. Reconstruction of in situ composition of sedimentary formation waters. Geochim. Cosmochim. Acta 2001, 65, 1741–1767. [Google Scholar] [CrossRef]
- Matsubaya, O.; Sakai, H.; Kusachi, I.; Setake, H. Hydrogen and oxygen isotopic ratios and major element chemistry of Japanese thermal water system. Geochem. J. 1973, 7, 123–151. [Google Scholar] [CrossRef]
- Frisbee, M.D.; Tolley, D.G.; Wilson, J.L. Field estimates of groundwater circulation depths in two mountainous watersheds in the western U.S. and the effect of deep circulation on solute concentrations in streamflow. Water Resour. Res. 2017, 53, 2693–2715. [Google Scholar] [CrossRef]
- Kolesar, P.T.; DeGraff, J.V. A comparison of the silica and Na-K-Ca geothermometers for thermal springs in Utah. Geothermics 1978, 6, 221–226. [Google Scholar] [CrossRef]
- Italiano, F.; Bonfanti, P.; Pizzino, L.; Quattrocchi, F. Geochemistry of fluids discharged over the seismic area of the Southern Apennines (Calabria region, Southern Italy): Implications for fluid-fault relationships. Appl. Geochem. 2010, 25, 540–554. [Google Scholar] [CrossRef]
- Apollaro, C.; Caracausi, A.; Paternoster, M.; Randazzo, P.; Aiuppa, A.; De Rosa, R.; Fuoco, I.; Mongelli, G.; Muto, F.; Vannia, E.; et al. Fluid geochemistry in a low-enthalpy geothermal field along a sector of southern Apennines chain (Italy). J. Geochem. Explor. 2020, 219, 106618. [Google Scholar] [CrossRef]
- Shvartsev, S.L.; Sun, Z.; Borzenko, S.V.; Gao, B.; Tokarenko, O.G.; Zippa, E.V. Geochemistry of the thermal waters in Jiangxi Province, China. Appl. Geochem. 2018, 96, 113–130. [Google Scholar] [CrossRef]
- Shvartsev, S.L.; Zippa, E.V.; Borzenko, S.V. The Nature of Low Salinity and Composition Peculiarities of Thermal Waters in Jiangxi Province (China). Russ. Geol. Geophys. 2020, 61, 196–213. [Google Scholar] [CrossRef]
- Wang, X.; Wang, G.L.; Gan, H.N.; Liu, Z.; Nan, D.W. Hydrochemical characteristics and evolution of geothermal fluids in the Chabu high-temperature geothermal system, Southern Tibet. Geofluids 2018, 2018, 8532840. [Google Scholar] [CrossRef] [Green Version]
- Lin, S.-S.; Shen, S.-L.; Zhou, A.; Lyu, H.-M. Assessment and management of lake eutrophication: A case study in Lake Erhai, China. Sci. Total Environ. 2021, 751, 141618. [Google Scholar] [CrossRef]
- Lyu, H.-M.; Shen, S.-L.; Zhou, A. The development of IFN-SPA: A new risk assessment method of urban water quality and its application in Shanghai. J. Clean. Prod. 2021, 282, 124542. [Google Scholar] [CrossRef]
- Lyu, H.-M.; Shen, S.-L.; Wu, Y.-X.; Zhou, A.-N. Calculation of groundwater head distribution with a close barrier during excavation dewatering in confined aquifer. Geosci. Front. 2021, 12, 791–803. [Google Scholar] [CrossRef]
- Alçiçek, H.; Bülbül, A.; Brogi, A.; Liotta, D.; Ruggieri, G.; Capezzuoli, E.; Meccheri, M.; Yavuzer, I.; Alçiçek, M.C. Origin, evolution and geothermometry of the thermal waters in the Gölemezli Geothermal Field, Denizli Basin (SW Anatolia, Turkey). J. Volcanol. Geotherm. Res. 2018, 349, 1–30. [Google Scholar] [CrossRef]
- Keenan, J.H.; Keyes, F.G.; Hill, P.G.; Moore, J.G. Steam Tables—Thermodynamic Properties of Water including Vapor, Liquid, and Solid Phases, International Edition—Metric units ed.; Wiley: New York, NY, USA, 1969; p. 162. [Google Scholar]
- Chudaev, O.V.; Chelnokov, G.A.; Bragin, I.V.; Kharitonova, N.A.; Rychagov, S.N.; Nuzhdaev, A.A.; Nuzhdaev, I.A. Geochemical features of major and rare-earth element behavior in the Paratunka and Bol’shebannyi hydrothermal systems of Kamchatka. Russ. J. Pac. Geol. 2016, 10, 458–475. [Google Scholar] [CrossRef]
- Chelnokov, G.A.; Kharitonova, N.A.; Bragin, I.V.; Aseeva, A.V.; Bushkareva, K.Y.; Liamina, L.A. The Geochemistry of Rare Earth Elements in Natural Waters and Secondary Mineral Sediments of Thermal Fields of Kamchatka. Mosc. Univ. Geol. Bull. 2020, 75, 196–204. [Google Scholar] [CrossRef]

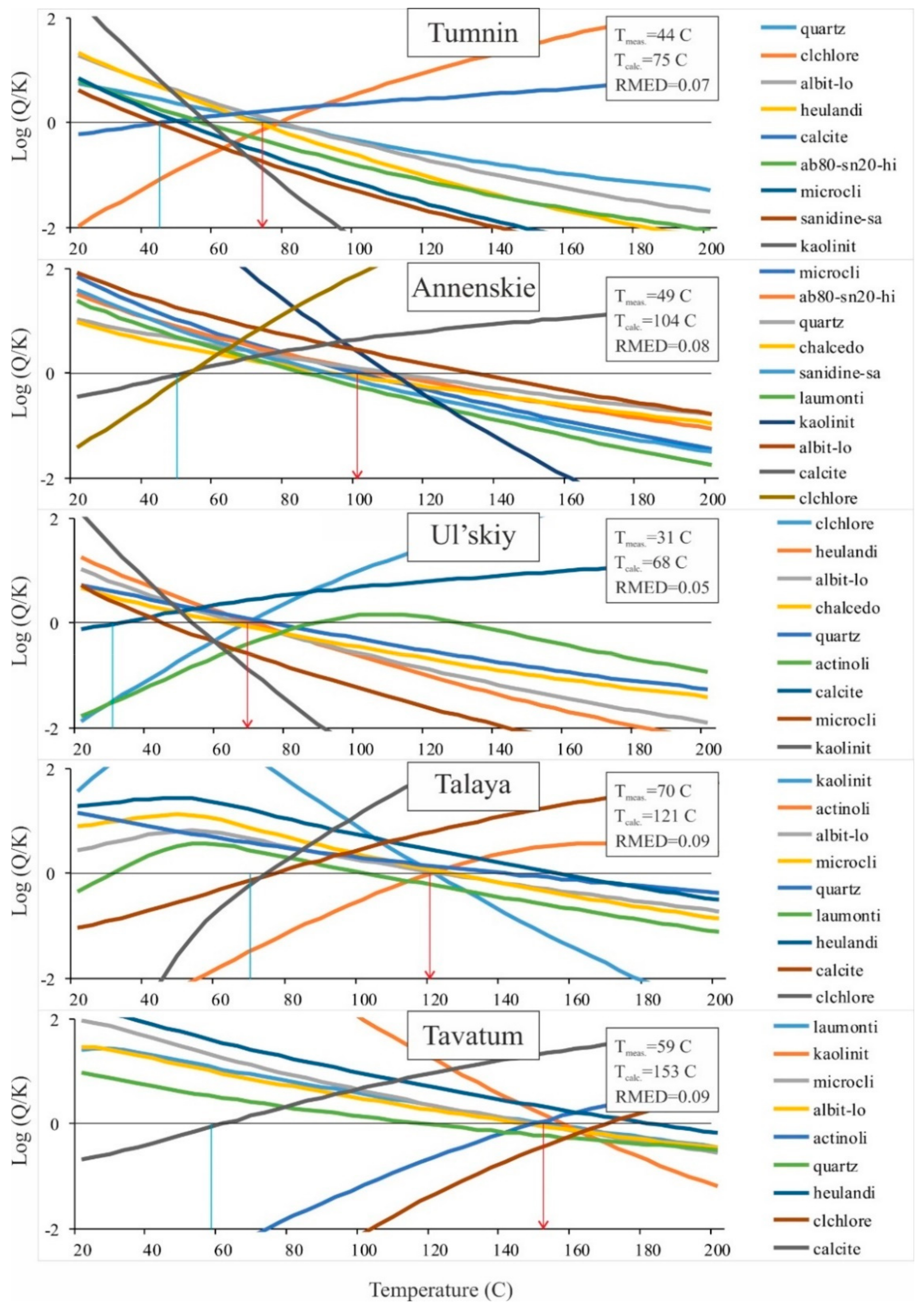

Name | T | TDS | pH | HCO3− + CO32− | Cl− | SO42− | Na+ | K+ | Ca2+ | Mg2+ | SiO2 | δ18O | δD |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
°C | g/L | mg/L | ‰, SMOW | ||||||||||
Tumnin | 44 | 0.2 | 9.3 | 78 | 2 | 10 | 34 | 0.6 | 0.7 | <0.1 | 73 | −16 | −117 |
Annenskie | 49 | 0.2 | 9.2 | 112 | 5 | 34 | 59 | 1.5 | 2.0 | <0.1 | 88 | −18.8 | −136 |
Ul’skiy | 31 | 0.2 | 9.1 | 58 | 5 | 18 | 35 | 0.7 | 1.6 | <0.1 | 52 | −15.5 | −113.4 |
Talaya | 70 | 1.0 | 8.7 | 84 | 57 | 282 | 200 | 13 | 11 | 0.20 | 98 | −23.4 | −177.9 |
Tavatum | 59 | 15 | 7.5 | 21 | 11087 | 131 | 3516 | 136 | 2711 | <0.1 | 76 | −16.3 | −124.1 |
Thermal Water | Tmeas. | (1) | (2) | (3) | (4) | (5) | (6) | (7) |
---|---|---|---|---|---|---|---|---|
Tumnin | 44 | 119 | 121 | 92 | 200 | 100 | 121 | 107 |
Annenskie | 49 | 127 | 130 | 103 | 225 | 121 | 141 | 172 |
Ul’skiy | 31 | 104 | 103 | 74 | 202 | 108 | 129 | 212 |
Talaya | 70 | 132 | 136 | 109 | 306 | 181 | 198 | 366 |
Tavatum | 59 | 120 | 123 | 94 | 268 | 147 | 166 | 153 |
Minimum | 31 | 104 | 103 | 74 | 200 | 100 | 121 | 107 |
Maximum | 70 | 132 | 136 | 109 | 306 | 181 | 198 | 366 |
Name | Tmeas., °C | Tres., °C | Tres. multicomponent, °C | Circulation Depth, km | |
---|---|---|---|---|---|
No Mixing | Mixing | ||||
Tumnin | 44 | 121 | 159 | 75 | 3.0 |
Annenskie | 49 | 130 | 162 | 104 | 4.1 |
Ul’skiy | 31 | 103 | 160 | 68 | 2.7 |
Talaya | 70 | 136 | 147 | 121 | 4.3 |
Tavatum | 59 | 153 | 153 | 6.1 |
