Quantifying the Benefits and Ecosystem Services Provided by Green Roofs—A Review

Abstract

Water-sensitive urban design (WSUD) has been widely used in cities to mitigate the negative consequences of urbanization and climate change. One of the WSUD strategies that is becoming popular is green roofs (GR) which offer a wide range of ecosystem services. Research on this WSUD strategy has been continuously increasing in terms of both quantity and quality. This paper presents a comprehensive review quantifying the benefits of GRs in papers published since 2010. More precisely, this review aims to provide up-to-date information about each GR benefit and how they have improved over the last decade. In agreement with previous reviews, extensive GRs were considerably researched, as compared to very limited studies on intensive and semi-intensive GRs. Each GR ecosystem service was specifically quantified, and an imbalance of GR research focus was identified, wherein urban heat- and runoff-related benefits were outstandingly popular when compared to other benefits. The results also highlight the recent introduction of hybrid GRs, which demonstrated improvements in GR performance. Furthermore, limitations of GRs, obstacles to their uptake, and inconsistent research findings were also identified in this review. Accordingly, opportunities for future research were pointed out in this review. This paper also recommends future studies to improve upon well-known GR benefits by exploring and applying more innovative GR construction techniques and materials. At the same time, further studies need to be undertaken on inadequately studied GR benefits, such as reduced noise and air pollution. In spite of the existence of reliable modelling tools, their application to study the effects of large-scale implementations of GRs has been restricted. Insufficient information from such research is likely to restrict large-scale implementations of GRs. As a result, further studies are required to transform the GR concept into one of the widely accepted and implemented WSUD strategies.

1. Introduction

Water-sensitive urban design (WSUD) strategies have been widely used in cities to mitigate the negative consequences of rapid urbanization and climate change. Whilst WSUD is a popular term in Australia and a few other countries, blue-green infrastructure (BGI) is also a commonly used term. Green roofs (GR) have been regarded as a promising BGI strategy to deal with these globally growing concerns of urbanization and climate change. This BGI strategy, sometimes called a living roof or vegetated roof, offers a wide range of environmental, social, and economic benefits compared to conventional roofs (CRs) [1]. The stormwater management and the mitigation of heat-related issues are the two primary GR benefits that have attracted the attention of researchers the most. Additionally, GR is capable of reducing energy consumption, improving air and runoff quality, and alleviating noise pollution [2]. The vegetated roof also enhances the aesthetic aspects of a building and urban ecology by converting impervious roof surfaces to green spaces [3].

The configurations of a GR vary according to its geographical location, requirements, and the purposes for which it is built. Generally, a typical GR consists of the following layers (from the bottom to the top): waterproofing membrane, drainage layer, filter layer, substrate (growing medium), and vegetation layer. The insulation layer is optional and added when GRs are implemented on existing roofs (i.e., retrofitting a green roof). In the event that long-rooted plants are applied, anti-root layers are compulsory to protect both the GR system and its underneath structure [1]. In terms of GR types, GRs are categorized into intensive GRs (IGRs) and extensive GRs (EGRs). The main difference between these two groups is the substrate depth. While the IGR substrate is more than 20 cm thick, the EGR growing medium is thinner, with less than 15 cm [4]. Consequently, IGRs are suitable for the vast majority of plants, whereas EGRs are only able to support the survival of drought-resilient plants, such as succulents. By contrast, EGRs are much more prevalent than IGRs for several reasons, including lesser efforts for maintenance, lighter weights, and lower construction costs [5,6]. A semi-intensive GR (SIGR) is a type of GR with an intermediate substrate depth between those of EGRs and IGRs. A moderate substrate thickness allows a SIGR to accommodate small shrubs [7].

Though the success of GR projects at a pilot- (or small-) scale as well as at a large-scale have been reported globally, there is still a long way to go towards global acceptance and implementation of this innovative type of roof. This could be a result of the unbalanced focus on GRs between developed countries and the rest of the world. The reviewed papers are distributed across various countries, as presented in Figure 1. Figure 1 points out that most of the 102 papers reviewed in this study are from the USA, Europe, and other developed countries. The last decade saw the implementation of GRs in other countries such as Australia, China, Hong Kong, and Italy. The USA is still leading in terms of GR research, which was also reported by other studies, such as Blank et al. [8]. A more recent study by Zheng et al. [9] has also provided a similar finding. They studied 75 papers analyzing runoff retention in GRs and found that minimal efforts have been made to study and implement GRs in some regions of the world, including Africa, Central America, and Central Asia. This lack of GR-related research and knowledge in developing or under-developed countries leads to stakeholders, such as building owners, developers, and builders, being unaware of the benefits and optimal components of GRs appropriate for their study locations and roof sites [1,2].

As far as the scale of GR implementation is concerned, they have been implemented at various spatial scales. In this study, they are grouped into three categories: pilot-scale (or small-scale), full-scale, and large-scale. Pilot-scale GRs occupy a small portion of the roof area and/or they are commonly installed on raised test beds or modules, whereas full-scale GRs are those covering the entire roof area with some non-vegetated paths for rooftop access, maintenance, and use of equipment [10]. Finally, the term “large-scale” refers to studies considering the application of GRs at scales that exceed the single-building scale, such as the city-wide scale, municipal scale, or catchment scale. Figure 2 indicates the domination of pilot-scale and full-scale GR studies, whereas only 10 studies (i.e., 10% of the reviewed studies) investigated the potential of implementing GRs at a large scale. The large-scale implementation of GRs is constrained by several factors. For instance, the installation and maintenance costs for a GR remain high, which requires further studies to explore GR components that are not just economical but are also environmentally friendly. Another barrier could be the knowledge gap in quantifying the benefits of the large-scale implementation of GRs. There are 12 studies which did not conduct a field experiment and/or did not investigate large-scale GRs through simulation models. They were, hence, categorized as “others”. Though the prospects of GRs at large scales are reasonably foreseeable, the insufficient information from limited research is likely to prevent authorities from issuing policies that encourage the large-scale implementation of GRs (such as financial incentives and utility bill reduction) [2].

Earlier literature reviews on GRs concentrated on exploring their potential benefits, components, challenges, trends, and implementation opportunities [1,2,11,12]. Other previous works studied the performance of GRs implemented in different locations and climatic characteristics [4,5,13,14,15]. This review has also identified that the majority of the research conducted was qualitative based. Therefore, there is a need to quantify the benefits of GRs in order to demonstrate the need of more GR research areas to be investigated. This paper aims to conduct a comprehensive review to quantify GR benefits based on papers published during the last decade (from 2010 onwards) by considering several functional indicators, such as surface and air temperature (thermal reduction) and rainfall retention and peak flow (runoff reduction). Furthermore, this paper provides up-to-date information on each of the GR benefits that have been studied and whose performance has been improved during the last decade.

This paper is structured as follows. An overview of the reviewed papers and a summary of different types of GRs is presented in the next section. This is followed by the quantification of various GR benefits. The paper is concluded with a discussion of the key outcomes of this review and, finally, conclusions are drawn and recommendations from this study are presented.

2. Overview of Literature

2.1. Methodology

This review of GR papers used the Google Scholar and Scopus search engines as the primary search database with a timeframe ranging from 2010 to 2021. Within a set of potential search keywords for GRs, only “green roof” was chosen. Compared to other possible keywords such as “vegetated roof”, “cool roof”, and “living roof”, the selected keyword was able to cover all potential papers and thus satisfy the study objectives. In particular, this selection aims to draw conclusions about how significant each of the GR benefits has been in studies to date. Most relevant papers were identified through an exhaustive abstract-screening procedure. This method enables the filtering process to exclude scholarly works which are not associated with the scope of the present study, such as review papers and papers not focusing on the quantification of GR performance. The search process aimed to identify at least 100 suitable papers. The authors of this review are aware that there are substantially more works and published materials on GRs during the selected time frame. The papers studied in this review were selected based on their relevance in terms of quantifying the benefits of GRs. The work reviewed in this study provides a good snapshot of current research on GRs and ensures that sufficient information is available for the analysis and that a good balance of the number of papers is available from each year, from 2010 onwards.

The information of papers identified in the search process described above will be divided into several categories to facilitate the quantifying process. Firstly, the preliminary categorization is presented in

Table A1. An overview of green roof papers reviewed in this study.

Number	Reference	Country	Type of GR	GR Benefit	Type of Modelling
1	Barnhart, Pettus, Halama, McKane, Mayer, Djang, Brookes and Moskal [52]	USA	EGR 1	Runoff Reduction	Model simulation
			IGR 2
2	Liu et al. [115]	China	SIGR 3	Runoff Quality Improvement	Field experiment
3	Feitosa and Wilkinson [35]	Australia	GR and Green Wall	HTC 4 Improvement	Field experiment
4	He, Yu, Ozaki and Dong [18]	China	EGR	HTC Improvement	Field experiment and model simulation
				Energy Use Reduction
5	La Roche, Yeom and Ponce [36]	USA	GR and Radiant Cooling System	HTC Improvement	Field experiment and model simulation
6	Ávila-Hernández, Simá, Xamán, Hernández-Pérez, Téllez-Velázquez and Chagolla-Aranda [19]	Mexico	EGR	Ecological, Social, and Economic	Field experiment and model simulation
				HTC Improvement
				Energy Use Reduction
7	Liu, Sun, Niu and Riley [20]	China	EGR	Runoff Reduction	Model simulation
8	Silva, K Najjar, WA Hammad, Haddad and Vazquez [53]	Brazil	EGR	Runoff Reduction	Field experiment
9	Baek, Ligaray, Pachepsky, Chun, Yoon, Park and Cho [27]	South Korea	SIGR	Runoff Reduction	Field experiment and model simulation
10	Talebi, Bagg, Sleep and O’Carroll [56]	Canada	EGR	Runoff Reduction	Model simulation
			SIGR
11	Gong, Yin, Li, Zhang, Wang, Fang, Shi and Wang [40]	China	EGR	Runoff Quality Improvement	Field experiment
				Runoff Reduction
12	Cai, Feng, Yu, Xiang and Chen [85]	China	EGR	HTC Improvement	Field experiment and model simulation
				Energy Use Reduction
				Ecological, Social, and Economic
13	Jahanfar, Drake, Sleep and Margolis [54]	Canada	GR and PV 5	Runoff Reduction	Field experiment
14	Palermo, Turco, Principato and Piro [22]	Italy	EGR	Runoff Reduction	Field experiment and model simulation
15	Sims, Robinson, Smart and O’Carroll [55]	Canada	EGR	Runoff Reduction	Field experiment and model simulation
16	Xing, Hao, Lin, Tan and Yang [33]	China	GR and Green Wall	HTC Improvement	Field experiment
				Energy Use Reduction
17	Cao, Hu, Dong, Liu and Wang [83]	China	EGR	HTC Improvement	Field experiment
18	Baraldi, Neri, Costa, Facini, Rapparini and Carriero [110]	Italy	IGR	Air Quality Improvement	N/A
19	Tang and Zheng [84]	China	EGR	HTC Improvement	Field experiment
				Energy Use Reduction
20	Zhang, Szota, Fletcher, Williams and Farrell [47]	Australia	EGR	Runoff Reduction	Indoor experiment
21	Cascone, Catania, Gagliano and Sciuto [21]	Italy	EGR	HTC Improvement	Model simulation
				Energy Use Reduction
				Ecological, Social, and Economic
22	Feitosa and Wilkinson [34]	Brazil	GR and Green Wall	HTC Improvement	Field experiment
		Australia
23	Johannessen, Muthanna and Braskerud [59]	Norway	EGR	Runoff Reduction	Field experiment
24	Park, Kim, Dvorak and Lee [86]	South Korea	EGR	HTC Improvement	Field experiment and model simulation
25	Shafique, Kim and Kyung-Ho [58]	South Korea	EGR	Runoff Reduction	Field experiment
26	Berto, Stival and Rosato [106]	Italy	EGR	Ecological, Social, and Economic	Model simulation
27	Lee and Jim [23]	Hong Kong	IGR	HTC Improvement	Field experiment
28	Zhang, Szota, Fletcher, Williams, Werdin and Farrell [41]	Australia	EGR	Runoff Reduction	Indoor experiment
29	Azeñas, Cuxart, Picos, Medrano, Simó, López-Grifol and Gulías [87]	Spain	EGR	HTC Improvement	Field experiment
				Energy Use Reduction
30	Kratschmer, Kriechbaum and Pachinger [24]	Austria	EGR	Ecological, Social, and Economic	Field experiment
			SIGR
			IGR
31	Rumble, Finch and Gange [107]	UK	EGR	Ecological, Social, and Economic	Field experiment
32	Todorov, Driscoll and Todorova [45]	USA	EGR	Runoff Reduction	Field experiment
33	Ferrans, Rey, Pérez, Rodríguez and Díaz-Granados [57]	Colombia	EGR	Runoff Reduction	Field experiment
				Runoff Quality Improvement
34	Morakinyo, Dahanayake, Ng and Chow [26]	Hong Kong	IGR	HTC Improvement	Model simulation
		Japan
		Egypt		Energy Use Reduction
		France
35	He, Yu, Ozaki, Dong and Zheng [80]	China	EGR	HTC Improvement	Field experiment and model simulation
				Energy Use Reduction
36	Yeom and La Roche [37]	USA	GR and Radiant Cooling System	HTC Improvement	Field experiment
37	Shafique and Kim [30]	South Korea	GR and Blue Roof	HTC Improvement	Field experiment
38	Wilkinson, Feitosa, Kaga and De Franceschi [88]	Australia	GR and Green Wall	HTC Improvement	Field experiment
		Brazil
39	Johannessen, Hanslin and Muthanna [61]	Norway	EGR	Runoff Reduction	Model simulation
		Iceland
		Sweden
		UK
40	Bevilacqua, Mazzeo, Bruno and Arcuri [82]	Italy	EGR	HTC Improvement	Field experiment
41	Foustalieraki, Assimakopoulos, Santamouris and Pangalou [89]	Greece	EGR	HTC Improvement	Field experiment and model simulation
				Energy Use Reduction
42	Soulis, Valiantzas, Ntoulas, Kargas and Nektarios [60]	Greece	EGR	Runoff Reduction	Field experiment and model simulation
43	Boafo, Kim and Kim [81]	South Korea	EGR	HTC Improvement	Model simulation
				Energy Use Reduction
44	Cipolla, Maglionico and Stojkov [64]	Italy	EGR	Runoff Reduction	Field experiment and model simulation
45	Buffam, Mitchell and Durtsche [104]	USA	EGR	Runoff Quality Improvement	Field experiment
46	Karteris, Theodoridou, Mallinis, Tsiros and Karteris [63]	Greece	SIGR	Air Quality Improvement	Model simulation
				Energy Use Reduction
			EGR	Runoff Reduction
47	El Bachawati et al. [116]	Lebanon	EGR	Ecological, Social, and Economic	Model simulation
			IGR
48	Gagliano, Detommaso, Nocera and Berardi [90]	Italy	EGR	HTC Improvement	Model simulation
				Energy Use Reduction
49	Shafique, Kim and Lee [29]	South Korea	GR and Blue Roof	Runoff Reduction	Field experiment
				HTC Improvement
50	Shafique, Lee and Kim [28]	South Korea	GR and Blue Roof	Runoff Reduction	Field experiment
51	Carpenter, Todorov, Driscoll and Montesdeoca [48]	USA	EGR	Runoff Reduction	Field experiment
				Runoff Quality Improvement
52	He, Yu, Dong and Ye [78]	China	EGR	HTC Improvement	Field experiment
				Energy Use Reduction
53	Tam, Wang and Le [91]	Hong Kong	EGR	HTC Improvement	Field experiment
			IGR	Ecological, Social, and Economic
54	Brunetti, Šimůnek and Piro [62]	Italy	EGR	Runoff Reduction	Field experiment and model simulation
55	Nawaz, McDonald and Postoyko [50]	UK	EGR	Runoff Reduction	Field experiment and model simulation
56	Harper, Limmer, Showalter and Burken [68]	USA	EGR	Runoff Reduction	Field experiment and model simulation
				Runoff Quality Improvement
57	Yang, Li, Sun and Ni [67]	China	EGR	Runoff Reduction	Field experiment and model simulation
58	Versini, Ramier, Berthier and De Gouvello [66]	France	EGR	Runoff Reduction	Field experiment and model simulation
59	Zhang, Miao, Wang, Liu, Zhu, Zhou, Sun and Liu [49]	China	EGR	Runoff Reduction	Field experiment
				Runoff Quality Improvement
60	Lee, Lee and Han [65]	South Korea	EGR	Runoff Reduction	Field experiment
			SIGR		Indoor experiment
61	Vijayaraghavan and Raja [100]	India	EGR	Runoff Quality Improvement	Field experiment
62	Beecham and Razzaghmanesh [25]	Australia	EGR	Runoff reduction	Field experiment
			IGR	Runoff Quality Improvement
63	Hakimdavar, Culligan, Finazzi, Barontini and Ranzi [51]	USA	EGR	Runoff Reduction	Field experiment and model simulation
64	Razzaghmanesh and Beecham [69]	Australia	EGR	Runoff Reduction	Field experiment
			IGR
65	Razzaghmanesh, Beecham and Kazemi [101]	Australia	EGR	Runoff Quality Improvement	Field experiment
			IGR
66	Vijayaraghavan and Joshi [117]	India	EGR	Runoff Quality Improvement	Field experiment
67	Schweitzer and Erell [92]	Israel	EGR	HTC Improvement	Field experiment
				Energy Use Reduction
68	Vijayaraghavan and Raja [118]	India	EGR	Runoff Quality Improvement	Field experiment
69	Wong and Jim [44]	Hong Kong	EGR	Runoff Reduction	Field experiment
70	Chemisana and Lamnatou [93]	Spain	GR and PV	HTC Improvement	Field experiment
71	Carson, Marasco, Culligan and McGillis [10]	USA	EGR	Runoff Reduction	Field experiment and model simulation
72	Speak, Rothwell, Lindley and Smith [46]	UK	SIGR	Runoff Reduction	Field experiment
73	Sun, Bou-Zeid, Wang, Zerba and Ni [79]	China	EGR	HTC Improvement	Field experiment and model simulation
		USA		Energy Use Reduction
74	Connelly and Hodgson [112]	Canada	EGR	Noise Reduction	Field experiment
					Indoor experiment
75	Peng and Jim [3]	Hong Kong	EGR	HTC Improvement	Field experiment and model simulation
			IGR
76	Whittinghill, Rowe and Cregg [108]	USA	EGR	Ecological, Social, and Economic	Field experiment
77	Ascione, Bianco, de’Rossi, Turni and Vanoli [16]	Spain	SIGR	Ecological, Social, and Economic	Model simulation
		UK
		The Netherlands		HTC Improvement
		Italy	EGR	Energy Use Reduction
		Norway
78	Pandey, Hindoliya and Mod [94]	India	EGR	HTC Improvement	Field experiment
			SIGR
			IGR	Energy Use Reduction
79	Blanusa, Monteiro, Fantozzi, Vysini, Li and Cameron [95]	UK	SIGR	HTC Improvement	Field experiment
					Indoor experiment
80	Mickovski, Buss, McKenzie and Sökmener [70]	UK	EGR	Runoff Reduction	Indoor experiment
81	Qin, Wu, Chiew and Li [72]	Singapore	SIGR	HTC Improvement	Field experiment
				Runoff Reduction
82	Stovin, Vesuviano and Kasmin [42]	UK	EGR	Runoff Reduction	Field experiment and model simulation
83	Nagase and Dunnett [71]	UK	EGR	Runoff Reduction	Indoor experiment
84	Bianchini and Hewage [119]	Canada	EGR	Ecological, Social, and Economic	Model simulation
			IGR
85	Jim and Peng [96]	Hong Kong	EGR	HTC Improvement	Field experiment
				Energy Use Reduction
86	Vijayaraghavan, Joshi and Balasubramanian [102]	Singapore	EGR	Runoff Quality Improvement	Field experiment
87	Pérez, Coma, Solé, Castell and Cabeza [97]	Spain	EGR	HTC Improvement	Field experiment
				Energy Use Reduction
88	Yang, Kang and Choi [113]	UK	EGR	Noise Reduction	Indoor experiment
89	Gregoire and Clausen [43]	USA	EGR	Runoff Reduction	Field experiment and model simulation
				Runoff Quality Improvement
90	MacIvor and Lundholm [38]	Canada	IGR	Ecological, Social, and Economic	Field experiment
91	Tsang and Jim [120]	Hong Kong	EGR	Ecological, Social, and Economic	Model simulation
92	Alsup et al. [121]	USA	EGR	Runoff quality Improvement	Field experiment
93	Beck, Johnson and Spolek [74]	USA	EGR	Runoff Quality Improvement	Indoor experiment
				Runoff Reduction
94	Buccola and Spolek [73]	USA	EGR	Runoff Quality Improvement	Indoor experiment
				Runoff Reduction
95	Getter, Rowe, Andresen and Wichman [98]	USA	EGR	HTC Improvement	Field experiment
				Energy Use Reduction
96	Hui and Chan [99]	Hong Kong	GR and PV	HTC Improvement	Field experiment and model simulation
				Energy Use Reduction
97	Palla, Gnecco and Lanza [77]	Italy	SIGR	Runoff Reduction	Field experiment
			EGR		Indoor experiment
98	Voyde, Fassman and Simcock [76]	New Zealand	EGR	Runoff Reduction	Field experiment
99	Roehr and Kong [75]	Canada	EGR	Runoff Reduction	Model simulation
		China
100	Li, Wai, Li, Zhan, Ho, Li and Lam [111]	Hong Kong	IGR	Air Quality Improvement	Indoor experiment, Field experiment, and model simulation
101	Alsup, Ebbs and Retzlaff [103]	USA	EGR	Runoff Quality Improvement	Indoor experiment
102	Niu et al. [122]	USA	EGR	Ecological, Social, and Economic	Model simulation

¹ Extensive Green Roof, ² Intensive Green Roof, ³ Semi-intensive Green Roof, ⁴ Human Thermal Comfort, ⁵ Photovoltaic.

(in Appendix A), which provides the reader with an overview of the GR-related research with respect to the location, country, type of GR, methodology used, and GR benefits investigated. Later, this review goes into an in-depth evaluation of GR benefits and attempts to quantify them.

2.2. Types of Green Roof

2.2.1. Traditional Green Roofs

As discussed above, GRs are traditionally divided into three groups: EGR, SIGR, and IGR. The main difference between them is the depth of the substrate layer and the corresponding plants to suit a particular depth. EGRs with numerous favorable characteristics are widely implemented. Figure 3 describes the distribution of papers across the different GR types. It is worth highlighting that EGRs have been extensively studied, with 80 out of the 102 reviewed papers being on EGRs. The strong preference for EGRs has been well documented in previous studies and remains unchanged to date. As already mentioned, EGRs have been thoroughly and widely implemented because of several advantages, such as ease of installation due to their light weight, low initial and operational costs, and less maintenance requirements [16]. A good example of a country where EGRs are highly popular is Germany, where 85% of new GRs constructed annually are EGRs [17]. He et al. [18] studied the changes in temperature and energy consumption in test chambers with extensive green modules on their top surface. Ávila-Hernández et al. [19] collected the experimental data from an EGR on a test box to validate the simulation results of EnergyPlus software. Liu et al. [20] used EGR-based parameters as the inputs of the Storm Water Management Model (SWMM) to assess the GR’s capability of mitigating urban flooding for Nanchang in China. Cascone et al. [21] simulated a variety of EGRs through EnergyPlus to comprehensively study the performance of a GR on a building in Catania, in Sicily, Italy. Palermo et al. [22] investigated the hydrological behaviour of a full-scale EGR on top of a building at the University of Calabria, Italy. Carson, Marasco, Culligan and McGillis [10] monitored the retention capacity of three full-scale EGRs for one year and successively developed a model to identify the multi-year hydrological response of these systems.

On the other hand, SIGRs and IGRs have received less attention from researchers, although they outperform EGRs with regard to ecosystem services, mainly due to their thicker substrate layer. This lack of attention could be because of the stronger structural requirements, higher costs, and frequent maintenance associated with SIGRs. Of the 102 reviewed papers, a limited number of studies have considered SIGRs and IGRs, with only 11 and 15 studies being related to SIGRs and IGRs, respectively. For example, Lee and Jim [23] studied a full-scale IGR with a very deep substrate of 1 m to observe its thermal and cooling performance in Hong Kong. Such a thick substrate can allow the growth and survival of woodland vegetation. Kratschmer et al. [24] examined the impact of various full-scale GRs with thick substrates (up to 0.9 m) on the diversity and abundance of wild bees. Beecham and Razzaghmanesh [25] investigated both the water quantity and quality of several pilot-scale EGRs and IGRs in Adelaide, Australia, with 0.1 m and 0.3 m of substrate depth, respectively. Moreover, researchers have not input the configurations of SIGRs and IGRs into their simulation models due to the low possibility of the application of these GRs. There are some exceptions to this. Morakinyo et al. [26] used ENVI-met and EnergyPlus to simulate and evaluate the reduction of temperature and the energy use of a building installing an IGR system. Baek et al. [27] collected the field data of a pilot-scale SIGR for inputs of the coupled SWMM and HYDRUS model to estimate the runoff reduction throughout an urban sub-basin.

2.2.2. Hybrid Green Roofs

In a broader context, researchers have recently attempted to improve the ecosystem services of this WSUD practice by integrating GRs with other systems. In this review, the term “Hybrid GR” is used to represent such roofs. One of them is the green–blue roof initially developed in Korea [1]. This is a combination of a blue roof and a green roof. A green–blue roof is technically similar to a typical GR, with the addition of one storage layer below the growing medium (Figure 4a). Only three papers (from the 102 reviewed papers) studied this type of roof. These are the studies by Shafique et al. [28], Shafique et al. [29], and Shafique and Kim [30]. This modified GR was reported to significantly mitigate urban flooding and urban heat island phenomena. Additionally, the integration of photovoltaic (PV) modules with GRs is a globally increasing trend among researchers. The integration of these two systems brings benefits in terms of both the electrical production and GR services [31]. More precisely, the evapotranspiration process of GR plants and growing mediums lessens the surface temperature of PV panels as well as their surrounding environment, which improves the electrical yield [32]. PV panels, which partially shade the surface of the GR, enhance GR benefits by limiting the solar radiation and, hence, diminishing the evapotranspiration rate of GRs [2].

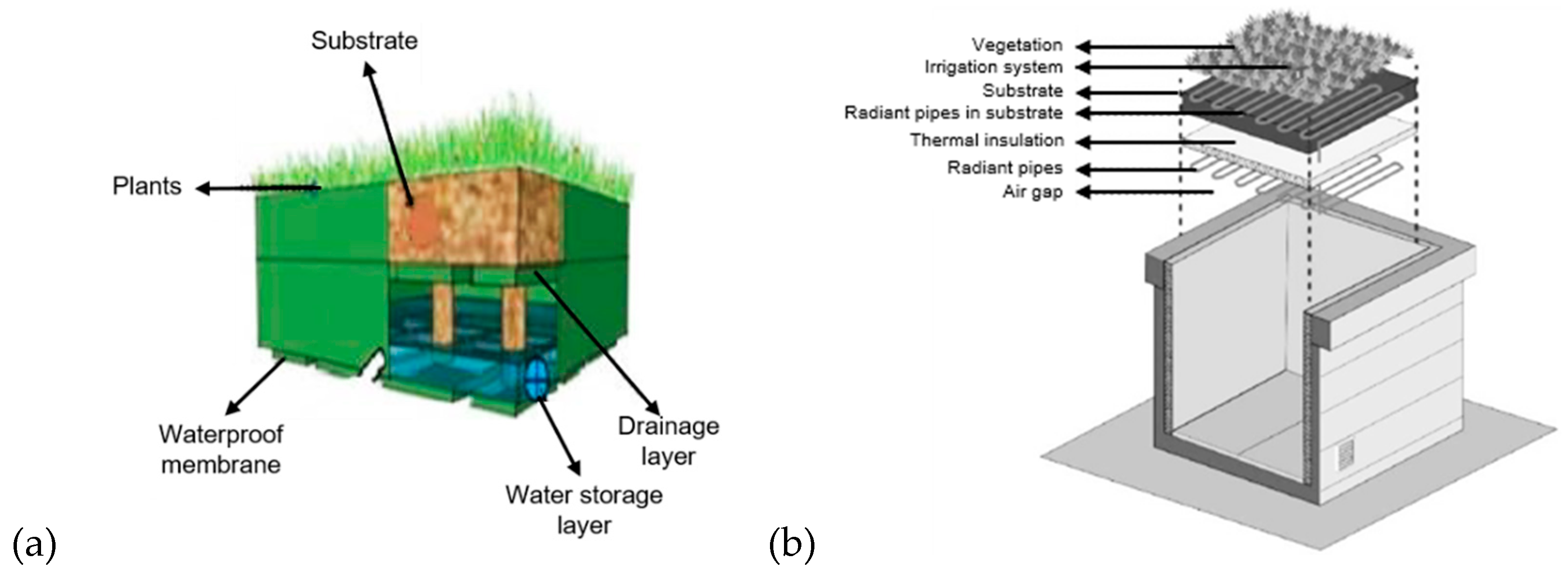

The other two types of hybrid GRs identified in this review are the GR–green wall system and the integration of GRs with radiant cooling systems. The construction of a vertical greening system along with a living roof is expected to greatly improve the Human Thermal Comfort (HTC) and thus reduce the cooling and heating demand. Only three papers (out of the 102 reviewed papers) considered this type of hybrid GR. Because of the difficulties and challenges associated with carrying out such projects at a building scale, previous studies explored the thermal behaviour of this combination in an experimental room [33] and with pilot-scale prototypes simulating full-scale dwellings [34,35]. In addition, the present study also found two papers examining the performance of a radiant cooling system integrated with a GR (Figure 4b). This type of hybrid GR comprises of a water pipe system (radiant component) and a sprinkler system (evaporative component) in its configuration [36]. It was determined that this hybrid GR performed better than conventional GRs in terms of temperature and energy reduction [36,37].

3. Quantification of Green Roof Benefits

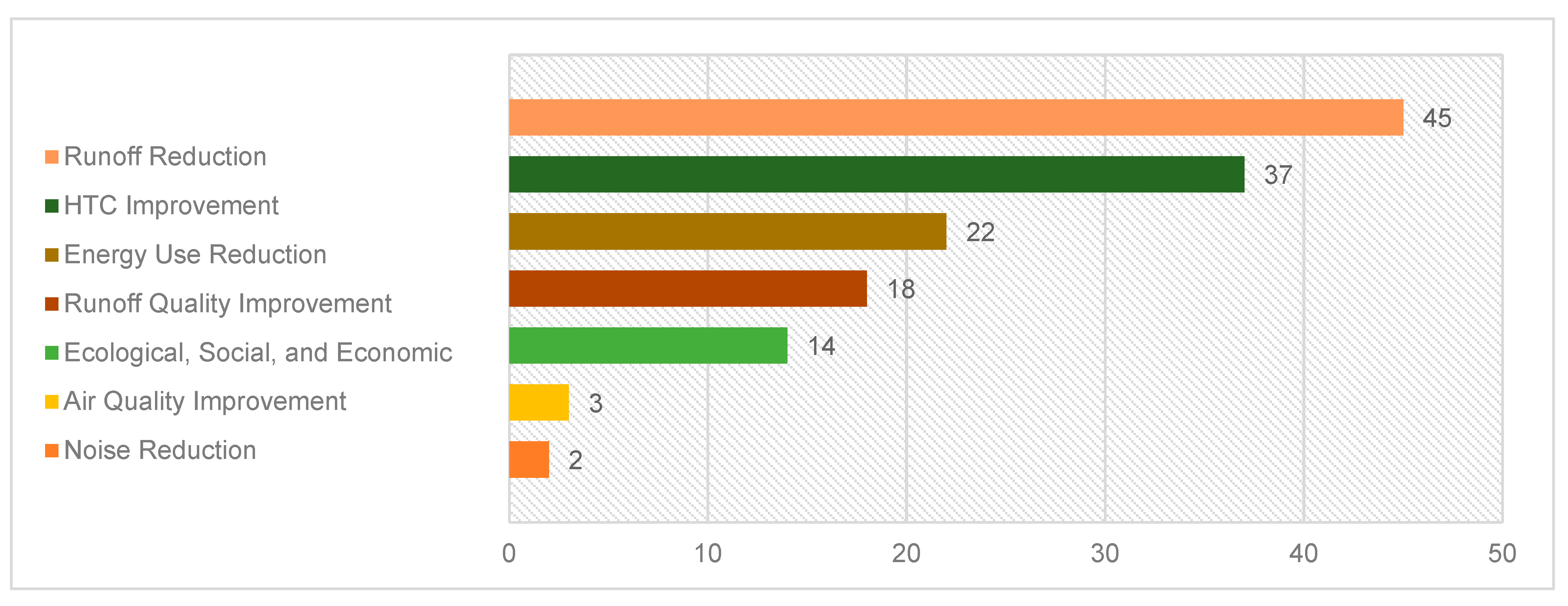

This section attempts to quantify the ecosystem services that a GR can provide. Figure 5 indicates that HTC improvement and runoff reduction are two GR benefits being researched much more often than others during the last decade. Air quality improvement and noise reduction have been studied the least, with only three and two papers, respectively, out of the 102 papers reviewed in the present study. Additionally, further research on energy use reduction, runoff quality improvement, and ecological, social, and economic benefits are also required, as they were insufficiently studied with 22, 18, and 14 papers, respectively. These findings imply an identical trend with those previously reported in the reviews of Vijayaraghavan [2] and Shafique, Kim and Rafiq [1].

The above-discussed imbalance of GR research focus results from several factors. GR projects associated with temperature and runoff are easily carried out with the availability of numerous monitoring devices and existing simulation models. Consequently, such types of projects vary greatly, from indoor and outdoor experiments to model simulations. They can be also implemented in various methods comprising full-scale GRs, small test cells, and raised GR test beds. On the other hand, a lesser number of studies on runoff quality could be explained by the requirements of expensive instruments and advanced knowledge to collect and analyze water samples. Though there are 14 papers under the category “Ecological, Social, and Economic”, only a small number of them have conducted the cost–benefit analysis to explore the costs of a GR system during its life cycle and its payback period. Meanwhile, fewer works have been done to study ecological and social benefits due to the difficulties in quantifying the recovery of habitat loss, the enhancement of urban biodiversity, and the improved human health and well-being by connecting people to green spaces [1,3,38,39]. By contrast, noise reduction and air pollution mitigation are two GR benefits that are receiving the least attention from researchers. This limitation could be due to the fact that these two benefits require a complex research design and specific knowledge relating to plant biochemistry. In particular, the amount of CO₂, a primary greenhouse gas, that is directly absorbed by GR plants is minimal in comparison with indirect CO₂ reduction from the energy savings provided by GRs [21].

This review referred to the Köppen climate classification system so as to understand the impact of climatic conditions on GR performance. This system divides the global climate into five main groups. The first letters, including A, B, C, D, and E, represent five types of climate: Tropical, Dry, Temperate, Continental, and Polar, respectively. To further describe these climate types, the second and third letters help to divide them into numerous sub-groups based on the precipitation and temperature characteristics. For instance, a sub-group Cfa (known as a humid sub-tropical climate) has the following features: Temperate (C), No dry season (f), and Hot summer (a). The following sub-sections give detailed information about how each of the GR benefits have been studied during last ten years.

3.1. Runoff Reduction

GR has been well known as an effective WSUD treatment due to its capability of holding precipitation in its layers, thus reducing stress on urban drainage systems. The hydrological behaviours of GR vary significantly because of several factors. Among those, rainfall depth appears to be the most influential one. The impact of rainfall depth on the GR retention rate could be identified not only by comparing results between different papers but also by considering individual papers. For example, cumulative rainfall retention by GRs reached a peak of 82.9% among 46 identified papers in Table 1 because a rainfall depth of only 628.2 mm, ranging from 0.8 to 78.8 mm per event, was recorded during the study period of 15 months [40]. Another high retention rate of 73% was observed in the study of Zhang et al. [41] as only 563.7 mm of precipitation during 468 days was monitored. Others reported a smaller amount of rainfall retained greatly by GRs due to significant rainfall events and higher accumulated rainfall depths during the monitoring periods. Some examples are 45.1% [22], 50.2% [42], and 51.4% [43], corresponding to cumulative rainfall depths of 1256.3 mm (1 year), 1892.2 mm (27 months), and 481 mm (5 months), respectively. The lowest retention rate of 11.9% in the study of Wong and Jim [44] was due to the exposure of the GR to heavy rainfall events (more than 300 mm per event) with a total depth of 1102.7 mm in a short study period of 10 months.

Taking runoff reduction, rainfall retention from a single event, and peak flow reduction into account, these parameters demonstrate an identical pattern with the cumulative rainfall retention discussed in the above paragraph. Such a hydrological GR response has been mentioned in plenty of previous reports. Carson, Marasco, Culligan and McGillis [10] found a downward trend in the rainfall retention rate as precipitation increases. Palermo, Turco, Principato and Piro [22], Todorov et al. [45], Speak et al. [46], and Stovin, Vesuviano and Kasmin [42] found that the retention performance of GRs, when analyzing all events, was higher than the retention rate when considering only storm events. On an event-by-event basis, Zhang et al. [47] found an average retention rate of 95%, as only small rainfall events, ranging from 2- to 35.2-mm depths, took place during the study period. Following the study of Todorov, Driscoll and Todorova [45] and Carpenter et al. [48], the retention rates of 95.9% and 96.8% corresponded with rainfall depths ranging between 0.76 and 44.2 mm and 2.5 to 17.8 mm, respectively. Other papers applying large rainfall volumes showed lower retention capacities. Zhang et al. [49], Nawaz et al. [50], Hakimdavar et al. [51], Wong and Jim [44], and Stovin, Vesuviano and Kasmin [42] are good examples. Table 1 summarizes the hydrological performance of GRs from 45 studies. The results from this review are in agreement with those presented in Zheng, Zou, Lounsbury, Wang, Wang and Recycling [9], namely, that the rainfall volume retained during a single event ranges from 0 to 100% with an average value of 62%.

Table 1. Quantification of runoff reduction caused by green roofs.

Number	Reference	Climate Group	Modelling Software Used	Rainfall Depth (mm) (Rainfall Intensity (mm/h))	Runoff Reduction (%)	Cumulative Rainfall Retention (%)	Rainfall Retention per Single Rainfall Event (%)	Peak Flow Reduction per Single Rainfall Event (%)	Rainfall Retention from Storm Events
1	Barnhart et al. [52]	Cfb	Visualizing Ecosystem Land Management Assessments (VELMA)	N/A	EGR: 10–15 (annual)	N/A	N/A	N/A	N/A
					IGR: 20–25 (annual)
2	Baek, Ligaray, Pachepsky, Chun, Yoon, Park and Cho [27]	Cfa and Cwa	SWWM and HYDRUS-1D	N/A	N/A	N/A	N/A	N/A	N/A
3	Silva et al. [53]	Aw	N/A	(115.8 to 145.4)	N/A	N/A	68 to 82	59 to 81	N/A
4	Liu, Sun, Niu and Riley [20]	Cwa	SWWM	30 to 70	27 to 42	N/A	41 to 75	8 to 31	N/A
5	Jahanfar et al. [54]	Dfa	N/A	less than 10	N/A	N/A	Control GR: 90 (minimum)	N/A
							PV GR: 61 to 75 (minimum)
6	Zhang, Szota, Fletcher, Williams and Farrell [47]	Cfb	N/A	2 to 35.2	N/A	N/A	89 to 95 (average)	N/A	N/A
7	Sims et al. [55]	Dfb	A Richards-based numerical model	N/A	N/A	N/A	N/A	58 (average)	N/A
8	Palermo, Turco, Principato and Piro [22]	Csa	HYDRUS-1D	2 to 120, and 1256.3 (1 year)	N/A	45.1 (1 year)	16.7 to 100 (68 average)	13.3 to 95.2 (56 average)	16.7 to 82.5 (49.6 average)
9	Gong, Yin, Li, Zhang, Wang, Fang, Shi and Wang [40]	Dwa	N/A	0.8 to 78.8, and 628.2 (15 months)	N/A	68.5 to 82.9 (15 months)	12.1 to 100, and (88.1 to 92.9 average)	72.3 to 95.9	N/A
10	Talebi et al. [56]	Cfb, Dwb, Dfa, and Dfb	Penman–Monteith (PM) model and Hargreaves and Samani (HS) model	390 to 1200 (annual)	17 to 47 and 27 to 61 (annual, low and high water-use plants, respectively)	N/A	N/A	N/A	N/A
11	Ferrans et al. [57]	Cfb	N/A	600 to 1200 (annual)	N/A	N/A	85 (average)	N/A	N/A
12	Todorov, Driscoll and Todorova [45]	Dfb	N/A	0.76 to 44.2	N/A	N/A	75 to 99.6 (95.9 average)	N/A	89 (average)
13	Shafique et al. [58]	Dwa	N/A	(50 to 100)	N/A	N/A	10 to 60	N/A	N/A
14	Zhang, Szota, Fletcher, Williams, Werdin and Farrell [41]	Cfb	N/A	563.7 (468 days)	N/A	73 (468 days)	N/A	N/A	N/A
15	Johannessen et al. [59]	Cfb, Dfb, and Dfc	N/A	970 to 3110 (annual)	N/A	11 to 30	N/A	65 to 90 (average)	N/A
16	Soulis et al. [60]	Csa	HYDRUS-1D	13.9 to 74.2	0.1 to 100 (42.8 average)	N/A	N/A	8.7 to 100 (70.2 average)	N/A
17	Johannessen et al. [61]	Cfb, Cfc, Dfb, and Dfc	Water balance model and Oudin Etmodel	N/A	N/A	cold and wet climate: 17 (annual)	N/A	N/A	N/A
						warm and dry climate: 58 (annual)
18	Brunetti et al. [62]	Csa	HYDRUS-1D	431 (2 months)	25 (2 months)	N/A	N/A	N/A	N/A
19	Carpenter, Todorov, Driscoll and Montesdeoca [48]	Dfb	N/A	2.5 to 17.8	N/A	N/A	96.8 (average)	N/A	N/A
20	Shafique, Lee and Kim [28]	Dwa	N/A	(60) (maximum)	67	N/A	N/A	N/A	N/A
21	Shafique, Kim and Lee [29]	Dwa	N/A	(90) (average)	70 to 100	N/A	N/A	N/A	N/A
22	Karteris et al. [63]	Csa	Regression	less than 96.7	N/A	45 (average)	N/A	N/A	N/A
23	Cipolla et al. [64]	Cfa	SWMM	0.2 to 41.6	N/A	N/A	6.4 to 100 (51.9 average)	N/A	N/A
24	Beecham and Razzaghmanesh [25]	Csa	N/A	11.5 to 56	N/A	N/A	51 to 96 (average)	N/A	N/A
25	Lee et al. [65]	Dwa	N/A	8.5 to 42.5	EGR: 13.8 to 34.4	N/A	N/A	N/A	N/A
					Semi-IGR: 42.8 to 60.8
26	Zhang, Miao, Wang, Liu, Zhu, Zhou, Sun and Liu [49]	Cfa	N/A	2.5 to 84.8, and 1116.5 (annual)	N/A	68 (annual)	35.5 to 100 (77.2 average)	N/A	N/A
27	Versini et al. [66]	Cfb	SWMM and Regression	827 (15 months)	N/A	N/A	0.03 m substrate: 0 to 100 (83 average). 0.15 m substrate: 18 to 100 (89 average)	N/A
				10.6 to 112.8	Simulated Roof: 10 to 100 (85 average)		N/A	Simulated Roof: 10 to 100 (85 average)	N/A
					Simulated Basin: 14.4 to 53.9 (25.2 average)		N/A	Simulated Basin: 17.4 to 38.7 (35.6 average)
28	Yang et al. [67]	Dwa	Regression and HYDRUS-1D	1.8 to 190.4	N/A	38 (4 months)	17 to 100 (78 average)	N/A	N/A
29	Harper et al. [68]	Cfa	Water Balance Model	less than 50	60 (9 months)	N/A	N/A	N/A	N/A
30	Nawaz, McDonald and Postoyko [50]	Cfb	Regression	1 to 84	N/A	39.4 (20 months)	3.6 to 100 (66 average)	N/A	N/A
31	Wong and Jim [44]	Cwa	N/A	0.6 to 344.8, and 1102.7 (10 months)	N/A	11.9 to 14.1 (10 months)	38.9 to 45.3 (average)	40.6 to 58.3 (average)	N/A
32	Razzaghmanesh and Beecham [69]	Csa	N/A	4.2 to 100.2, and 967.8 (2 years)	N/A	N/A	EGR: 74 (average)	EGR: 61.5 (average)	N/A
							IGR: 88.6 (average)	IGR: 70.3 (average)
33	Hakimdavar, Culligan, Finazzi, Barontini and Ranzi [51]	Cfa	HYDRUS-1D	less than 20, 20-40, and more than 40	N/A	N/A	Average: 85, 48, and 32, respectively	Average: 89, 62, and 51, respectively	N/A
34	Mickovski et al. [70]	Cfb	N/A	N/A	N/A	N/A	69 (average)	N/A	N/A
35	Speak, Rothwell, Lindley and Smith [46]	Cfb	N/A	less than 56.08	N/A	N/A	22 to 100 (65.7 average)	N/A	36.58 to 73.22, and 51.2 (average)
36	Carson, Marasco, Culligan and McGillis [10]	Cfa	Regression	0.25 to 180	N/A	36, 47, and 61 (1 year)	3 to 100, 9 to 100, and 20 to 100	N/A	N/A
37	Nagase and Dunnett [71]	Cfb	N/A	N/A	N/A	N/A	N/A	N/A	N/A
38	Stovin, Vesuviano and Kasmin [42]	Cfb	Regression	1892.2 (27 months)	N/A	50.2 (27 months)	0 to 100 (70 average)	60 (average)	0 to 100, and 43 (average)
39	Qin et al. [72]	Af	N/A	18	N/A	N/A	11.4	65	N/A
40	Buccola and Spolek [73]	Csb	N/A	Heavy: (340)	N/A	N/A	Heavy: 56 (average)	N/A	N/A
				Medium: (30)			Medium: 64 (average)
41	Beck et al. [74]	Csb	N/A	(74)	N/A	N/A	8.5 to 32.5 (21.1 average)	N/A	N/A
42	Gregoire and Clausen [43]	Dfa	Water Balance Model	481 (5 months)	N/A	51.4 (5 months)	N/A	N/A	N/A
43	Roehr and Kong [75]	Cfb, Csb, and Cfa	Water Balance Model	1200, 380.5, and 1219 (annual)	Low water-use plants: 29, 100, and 28 (annual, respectively)	N/A	N/A	N/A	N/A
					High water-use plants: 58, 100, and 55 (annual, respectively)
44	Voyde et al. [76]	Cfb	N/A	1093 (1 year)	N/A	66 (1 year)	82 (average)	93 (average)	N/A
45	Palla et al. [77]	Cfa	N/A	Laboratory test: (108 to 194). Field experiment: 8 to 138.2	N/A	N/A	Laboratory test: 52 to 67	Field experiment: 44 to 100 (83.3 average)	N/A
							Field experiment: 0 to 100 (51.5 average)

Table 1. Quantification of runoff reduction caused by green roofs.

Number	Reference	Climate Group	Modelling Software Used	Rainfall Depth (mm) (Rainfall Intensity (mm/h))	Runoff Reduction (%)	Cumulative Rainfall Retention (%)	Rainfall Retention per Single Rainfall Event (%)	Peak Flow Reduction per Single Rainfall Event (%)	Rainfall Retention from Storm Events
1	Barnhart et al. [52]	Cfb	Visualizing Ecosystem Land Management Assessments (VELMA)	N/A	EGR: 10–15 (annual)	N/A	N/A	N/A	N/A
					IGR: 20–25 (annual)
2	Baek, Ligaray, Pachepsky, Chun, Yoon, Park and Cho [27]	Cfa and Cwa	SWWM and HYDRUS-1D	N/A	N/A	N/A	N/A	N/A	N/A
3	Silva et al. [53]	Aw	N/A	(115.8 to 145.4)	N/A	N/A	68 to 82	59 to 81	N/A
4	Liu, Sun, Niu and Riley [20]	Cwa	SWWM	30 to 70	27 to 42	N/A	41 to 75	8 to 31	N/A
5	Jahanfar et al. [54]	Dfa	N/A	less than 10	N/A	N/A	Control GR: 90 (minimum)	N/A
							PV GR: 61 to 75 (minimum)
6	Zhang, Szota, Fletcher, Williams and Farrell [47]	Cfb	N/A	2 to 35.2	N/A	N/A	89 to 95 (average)	N/A	N/A
7	Sims et al. [55]	Dfb	A Richards-based numerical model	N/A	N/A	N/A	N/A	58 (average)	N/A
8	Palermo, Turco, Principato and Piro [22]	Csa	HYDRUS-1D	2 to 120, and 1256.3 (1 year)	N/A	45.1 (1 year)	16.7 to 100 (68 average)	13.3 to 95.2 (56 average)	16.7 to 82.5 (49.6 average)
9	Gong, Yin, Li, Zhang, Wang, Fang, Shi and Wang [40]	Dwa	N/A	0.8 to 78.8, and 628.2 (15 months)	N/A	68.5 to 82.9 (15 months)	12.1 to 100, and (88.1 to 92.9 average)	72.3 to 95.9	N/A
10	Talebi et al. [56]	Cfb, Dwb, Dfa, and Dfb	Penman–Monteith (PM) model and Hargreaves and Samani (HS) model	390 to 1200 (annual)	17 to 47 and 27 to 61 (annual, low and high water-use plants, respectively)	N/A	N/A	N/A	N/A
11	Ferrans et al. [57]	Cfb	N/A	600 to 1200 (annual)	N/A	N/A	85 (average)	N/A	N/A
12	Todorov, Driscoll and Todorova [45]	Dfb	N/A	0.76 to 44.2	N/A	N/A	75 to 99.6 (95.9 average)	N/A	89 (average)
13	Shafique et al. [58]	Dwa	N/A	(50 to 100)	N/A	N/A	10 to 60	N/A	N/A
14	Zhang, Szota, Fletcher, Williams, Werdin and Farrell [41]	Cfb	N/A	563.7 (468 days)	N/A	73 (468 days)	N/A	N/A	N/A
15	Johannessen et al. [59]	Cfb, Dfb, and Dfc	N/A	970 to 3110 (annual)	N/A	11 to 30	N/A	65 to 90 (average)	N/A
16	Soulis et al. [60]	Csa	HYDRUS-1D	13.9 to 74.2	0.1 to 100 (42.8 average)	N/A	N/A	8.7 to 100 (70.2 average)	N/A
17	Johannessen et al. [61]	Cfb, Cfc, Dfb, and Dfc	Water balance model and Oudin Etmodel	N/A	N/A	cold and wet climate: 17 (annual)	N/A	N/A	N/A
						warm and dry climate: 58 (annual)
18	Brunetti et al. [62]	Csa	HYDRUS-1D	431 (2 months)	25 (2 months)	N/A	N/A	N/A	N/A
19	Carpenter, Todorov, Driscoll and Montesdeoca [48]	Dfb	N/A	2.5 to 17.8	N/A	N/A	96.8 (average)	N/A	N/A
20	Shafique, Lee and Kim [28]	Dwa	N/A	(60) (maximum)	67	N/A	N/A	N/A	N/A
21	Shafique, Kim and Lee [29]	Dwa	N/A	(90) (average)	70 to 100	N/A	N/A	N/A	N/A
22	Karteris et al. [63]	Csa	Regression	less than 96.7	N/A	45 (average)	N/A	N/A	N/A
23	Cipolla et al. [64]	Cfa	SWMM	0.2 to 41.6	N/A	N/A	6.4 to 100 (51.9 average)	N/A	N/A
24	Beecham and Razzaghmanesh [25]	Csa	N/A	11.5 to 56	N/A	N/A	51 to 96 (average)	N/A	N/A
25	Lee et al. [65]	Dwa	N/A	8.5 to 42.5	EGR: 13.8 to 34.4	N/A	N/A	N/A	N/A
					Semi-IGR: 42.8 to 60.8
26	Zhang, Miao, Wang, Liu, Zhu, Zhou, Sun and Liu [49]	Cfa	N/A	2.5 to 84.8, and 1116.5 (annual)	N/A	68 (annual)	35.5 to 100 (77.2 average)	N/A	N/A
27	Versini et al. [66]	Cfb	SWMM and Regression	827 (15 months)	N/A	N/A	0.03 m substrate: 0 to 100 (83 average). 0.15 m substrate: 18 to 100 (89 average)	N/A
				10.6 to 112.8	Simulated Roof: 10 to 100 (85 average)		N/A	Simulated Roof: 10 to 100 (85 average)	N/A
					Simulated Basin: 14.4 to 53.9 (25.2 average)		N/A	Simulated Basin: 17.4 to 38.7 (35.6 average)
28	Yang et al. [67]	Dwa	Regression and HYDRUS-1D	1.8 to 190.4	N/A	38 (4 months)	17 to 100 (78 average)	N/A	N/A
29	Harper et al. [68]	Cfa	Water Balance Model	less than 50	60 (9 months)	N/A	N/A	N/A	N/A
30	Nawaz, McDonald and Postoyko [50]	Cfb	Regression	1 to 84	N/A	39.4 (20 months)	3.6 to 100 (66 average)	N/A	N/A
31	Wong and Jim [44]	Cwa	N/A	0.6 to 344.8, and 1102.7 (10 months)	N/A	11.9 to 14.1 (10 months)	38.9 to 45.3 (average)	40.6 to 58.3 (average)	N/A
32	Razzaghmanesh and Beecham [69]	Csa	N/A	4.2 to 100.2, and 967.8 (2 years)	N/A	N/A	EGR: 74 (average)	EGR: 61.5 (average)	N/A
							IGR: 88.6 (average)	IGR: 70.3 (average)
33	Hakimdavar, Culligan, Finazzi, Barontini and Ranzi [51]	Cfa	HYDRUS-1D	less than 20, 20-40, and more than 40	N/A	N/A	Average: 85, 48, and 32, respectively	Average: 89, 62, and 51, respectively	N/A
34	Mickovski et al. [70]	Cfb	N/A	N/A	N/A	N/A	69 (average)	N/A	N/A
35	Speak, Rothwell, Lindley and Smith [46]	Cfb	N/A	less than 56.08	N/A	N/A	22 to 100 (65.7 average)	N/A	36.58 to 73.22, and 51.2 (average)
36	Carson, Marasco, Culligan and McGillis [10]	Cfa	Regression	0.25 to 180	N/A	36, 47, and 61 (1 year)	3 to 100, 9 to 100, and 20 to 100	N/A	N/A
37	Nagase and Dunnett [71]	Cfb	N/A	N/A	N/A	N/A	N/A	N/A	N/A
38	Stovin, Vesuviano and Kasmin [42]	Cfb	Regression	1892.2 (27 months)	N/A	50.2 (27 months)	0 to 100 (70 average)	60 (average)	0 to 100, and 43 (average)
39	Qin et al. [72]	Af	N/A	18	N/A	N/A	11.4	65	N/A
40	Buccola and Spolek [73]	Csb	N/A	Heavy: (340)	N/A	N/A	Heavy: 56 (average)	N/A	N/A
				Medium: (30)			Medium: 64 (average)
41	Beck et al. [74]	Csb	N/A	(74)	N/A	N/A	8.5 to 32.5 (21.1 average)	N/A	N/A
42	Gregoire and Clausen [43]	Dfa	Water Balance Model	481 (5 months)	N/A	51.4 (5 months)	N/A	N/A	N/A
43	Roehr and Kong [75]	Cfb, Csb, and Cfa	Water Balance Model	1200, 380.5, and 1219 (annual)	Low water-use plants: 29, 100, and 28 (annual, respectively)	N/A	N/A	N/A	N/A
					High water-use plants: 58, 100, and 55 (annual, respectively)
44	Voyde et al. [76]	Cfb	N/A	1093 (1 year)	N/A	66 (1 year)	82 (average)	93 (average)	N/A
45	Palla et al. [77]	Cfa	N/A	Laboratory test: (108 to 194). Field experiment: 8 to 138.2	N/A	N/A	Laboratory test: 52 to 67	Field experiment: 44 to 100 (83.3 average)	N/A
							Field experiment: 0 to 100 (51.5 average)

In order to make a proper comparison between different climatic locations, some papers simulated GRs with identical configurations to identify their hydrological behaviours in various weather patterns. Talebi, Bagg, Sleep and O’Carroll [56] recognized the best performance of GR in Regina (Dfb) and Calgary (Dwb), which received the least precipitation (390 and 420 mm, respectively) among six studied Canadian cities, whereas the worst performance was observed in Halifax (Dfb), which had an average annual precipitation of 1400 mm. In the study of Johannessen, Muthanna and Braskerud [59], a GR in Bergen (Cfb) with 3110 mm of annual precipitation could retain total rainfall at only 11%, whereas the accumulated retention rate in Trondheim (Dfc) was 30%. Johannessen, Hanslin and Muthanna [61] considered ten northern European cities. They concluded that the wettest climate (Bergen, Cfb) showed the lowest annual retention rate of 17%; meanwhile, the driest climate (Malmö, Cfb) achieved the highest rate of 58%.

3.2. Human Thermal Comfort (HTC) Improvement

Although GRs are an important WSUD strategy, they also help to address temperature- and heat-related urban issues. The decrease in outer surface temperature (T_s) of a roof deck after GR installation widely fluctuates, between around 5 °C and 40 °C, with a reduction of 15 °C to 20 °C reported the most (Table 2 The difference in T_s between a GR and a bare roof (ΔT_s = T_{s-bare roof} − T_s-GR) was the highest, at 40 °C in the study of He et al. [78], whereas Sun et al. [79] observed the smallest ΔT_s of 4.2 °C. The variation of a GRs’ thermal response depends on many factors, such as the structural design of GRs and the thermal properties of GR materials, and the different climatic conditions that the GR is exposed to. However, some identical patterns, as well as noticeable discrepancies, have been identified in this review.

More specifically, in many studies, while GRs produced the most impressive results in hot climates, they showed the weakest impacts in cold climatic conditions. For instance, following He, Yu, Ozaki and Dong [18], a GR reduced T_s by 21.7 °C and 14.4 °C in summer and winter, respectively. He et al. [80] also reported similar results with the T_s reduction of 35 °C and 15 °C in the hottest and coldest seasons, respectively. Furthermore, in studies considering the impact of climatic conditions on thermal performance, GRs in hot and dry climates demonstrated the highest ΔT_s. For example, Ávila-Hernández, Simá, Xamán, Hernández-Pérez, Téllez-Velázquez and Chagolla-Aranda [19] and Morakinyo, Dahanayake, Ng and Chow [26] utilized a computer-based tool to test the thermal effectiveness of GRs in different climates. They both found that cities in hot desert climates, which are indicated by the BWh sub-group, had the most positive results relative to those in other locations. It was also determined that the GRs in continental climates (Dfa or Dwa) achieved the poorest performance with regard to ΔT_s [30,79,81]. Shanghai, China (Dfa) was found the most-appropriate location to implement GRs, as the greatest ΔT_s was recorded in this city [78,80,82].

Table 2. Quantification of Human Thermal Comfort improvement by green roofs.

Number	Reference	Climate Group	Modelling Software Used	Surface Temperature Reduction—ΔTS (°C)	Indoor Air Temperature Reduction—ΔTair.in (°C)	Outdoor Air Temperature Reduction—ΔTair.out (°C)
1	La Roche, Yeom and Ponce [36]	Csa	Regression	N/A	2.1 (averaged maximum, compared with insulated bare roof)	N/A
2	Ávila-Hernández, Simá, Xamán, Hernández-Pérez, Téllez-Velázquez and Chagolla-Aranda [19]	As (Aw), Am, BSh, BWh, BSk, and Cwb	EnergyPlus	14.5 (maximum)	Maximum: 4.7 (upper level) and 0.9 (lower level)	N/A
3	Feitosa and Wilkinson [35]	Cfa	N/A	N/A	WGBT: −1.9 (nighttime) and 8.3 (daytime)	N/A
4	He, Yu, Ozaki and Dong [18]	Cfa	THERB	Summer maximum: 21.7 (daytime) and −5.3 (nighttime)	N/A	N/A
				Winter maximum: 14.4 (daytime) and −9.2 (nighttime)
5	Xing, Hao, Lin, Tan and Yang [33]	Cfa	N/A	N/A	−3 (maximum, nighttime)	N/A
6	Cao et al. [83]	Cfa	N/A	Maximum: 11.9 (compared to bare soil roof)	N/A	N/A
7	Tang and Zheng [84]	Cfa	N/A	16.4 (maximum)	3.1 (average)	N/A
8	Cai et al. [85]	Cfa	N/A	Summer: 5.7 (average, sunny)	Summer: 0.6 (average, sunny)	N/A
				Winter: −1.2 (average, sunny)	Winter: −1.6 (average, sunny)
9	Cascone, Catania, Gagliano and Sciuto [21]	Csa	EnergyPlus	19 (maximum)	N/A	N/A
10	Feitosa and Wilkinson [34]	Aw and Cfa	N/A	N/A	Rio de Janeiro, maximum WGBT: 8.1 (daytime) and −2.8 (nighttime)	N/A
					Sydney, maximum WGBT: 12 (daytime) and −1.2 (nighttime)
11	Park et al. [86]	Dwa	Regression	N/A	N/A	Maximum, 1.5 m above: 22.6 (daytime) and 1.9 ( nighttime)
12	Lee and Jim [23]	Cwa	N/A	19.8 (maximum)	N/A	Maximum: 6.21 (0.15 m above), 4.7 (0.50 m above, and 3.1 (1.5 m above)
13	Azeñas et al. [87]	Csa	N/A	N/A	N/A	N/A
14	Morakinyo, Dahanayake, Ng and Chow [26]	BWh, Cfa, Cwa, and Cfb	EnergyPlus and ENVI-met	Maximum: 14 (daytime) and 4 (nighttime)	Maximum, hot climate, 0.7-m substrate: 1.4 (daytime) and 0.3 (nighttime)	Maximum, 1.5 m above, pedestrian level: 0.6 (daytime) and −0.2 (nighttime)
					Maximum, cold climate, 0.3-m substrate: 0.3 (daytime) and −0.1 (nighttime)
15	He, Yu, Ozaki, Dong and Zheng [80]	Cfa	A coupled heat and moisture transfer model	Summer maximum: 35 (daytime) and −5 (nighttime)	N/A	Maximum, 0.15 m above: 5 (summer) and 2 (winter)
				Winter maximum: 15 (daytime) and -10 (nighttime)
16	Yeom and La Roche [37]	Csa	N/A	N/A	2 (compared to other test cells)	N/A
17	Shafique and Kim [30]	Dwa	N/A	5 to 9 (average)	N/A	N/A
18	Wilkinson et al. [88]	Aw and Cfa	N/A	N/A	Rio de Janeiro maximum: −4.1 (nighttime) and 6.2 (daytime)	N/A
					Sydney maximum: −1.1 (nighttime) and 12 (daytime)
19	Bevilacqua, Mazzeo, Bruno and Arcuri [82]	Csa	N/A	Maximum: 34.1 (daytime) and −9.4 (nighttime)	N/A	N/A
20	Foustalieraki et al. [89]	Csa	N/A	Maximum: 21.9 (daytime) and −1.6 (nighttime)	Maximum: 1.1 (summer) and −0.7 (winter)	N/A
21	Boafo, Kim and Kim [81]	Dwa	EnergyPlus	Maximum: 5 (summer) and −6 (winter)	N/A	N/A
22	Gagliano et al. [90]	Csa	The Design Builder software	19 (maximum)	4 (maximum)	N/A
23	Shafique, Kim and Lee [29]	Dwa	N/A	10 (maximum)	N/A	N/A
24	He, Yu, Dong and Ye [78]	Cfa	N/A	Maximum: 30 (free floating) and 40 (air conditioned)	Maximum: 2 (daytime) and −2.5 (nighttime)	5 (maximum, 0.15 m above)
25	Tam et al. [91]	Cwa	N/A	N/A	3.4 (maximum)	N/A
26	Schweitzer and Erell [92]	Csa	N/A	N/A	1.89 (average) and 4.5 (maximum)	N/A
27	Chemisana and Lamnatou [93]	BSk	N/A	14 (maximum)	N/A	N/A
28	Sun, Bou-Zeid, Wang, Zerba and Ni [79]	Dwa and Dfa	PROM	4.2 (summer, averaged daily maximum)	N/A	N/A
29	Peng and Jim [3]	Cwa	ENVI-met and RayMan	N/A	Maximum: 1.6 (Top Floor) and 1.3 (Ground Floor)	Maximum, 1.2 m above: 2.1 (rooftop level) and 1.7 (pedestrian level)
30	Ascione, Bianco, de’Rossi, Turni and Vanoli [16]	Bsh, Csa, Cfb, and Dfb	EnergyPlus	N/A	N/A	N/A
31	Pandey et al. [94]	Cwa	N/A	N/A	Average: 3.9 (DBT) and 4 (WGBT)	N/A
32	Blanusa et al. [95]	Cfb	N/A	Compared with bare soil roof: 14.9 (maximum)	N/A	Compared with bare soil roof: 1.1 (average, 0.1 m above)
33	Qin, Wu, Chiew and Li [72]	Af	N/A	15.3 (maximum) and 7.3 (average)	N/A	0.3 m above: 1.3 (maximum) and 0.5 (average)
34	Jim and Peng [96]	Cwa	N/A	12.5 (maximum)	N/A	Maximum: 4.4 (0.1 m above) and 2.3 (1.6 m above)
35	Pérez et al. [97]	Bsk	N/A	N/A	N/A	N/A
36	Getter et al. [98]	Dfa	N/A	20 (maximum)	N/A	N/A
37	Hui and Chan [99]	Cwa	N/A	4 to 5 (compared to non-PV GR)	N/A	N/A

Table 2. Quantification of Human Thermal Comfort improvement by green roofs.

Number	Reference	Climate Group	Modelling Software Used	Surface Temperature Reduction—ΔTS (°C)	Indoor Air Temperature Reduction—ΔTair.in (°C)	Outdoor Air Temperature Reduction—ΔTair.out (°C)
1	La Roche, Yeom and Ponce [36]	Csa	Regression	N/A	2.1 (averaged maximum, compared with insulated bare roof)	N/A
2	Ávila-Hernández, Simá, Xamán, Hernández-Pérez, Téllez-Velázquez and Chagolla-Aranda [19]	As (Aw), Am, BSh, BWh, BSk, and Cwb	EnergyPlus	14.5 (maximum)	Maximum: 4.7 (upper level) and 0.9 (lower level)	N/A
3	Feitosa and Wilkinson [35]	Cfa	N/A	N/A	WGBT: −1.9 (nighttime) and 8.3 (daytime)	N/A
4	He, Yu, Ozaki and Dong [18]	Cfa	THERB	Summer maximum: 21.7 (daytime) and −5.3 (nighttime)	N/A	N/A
				Winter maximum: 14.4 (daytime) and −9.2 (nighttime)
5	Xing, Hao, Lin, Tan and Yang [33]	Cfa	N/A	N/A	−3 (maximum, nighttime)	N/A
6	Cao et al. [83]	Cfa	N/A	Maximum: 11.9 (compared to bare soil roof)	N/A	N/A
7	Tang and Zheng [84]	Cfa	N/A	16.4 (maximum)	3.1 (average)	N/A
8	Cai et al. [85]	Cfa	N/A	Summer: 5.7 (average, sunny)	Summer: 0.6 (average, sunny)	N/A
				Winter: −1.2 (average, sunny)	Winter: −1.6 (average, sunny)
9	Cascone, Catania, Gagliano and Sciuto [21]	Csa	EnergyPlus	19 (maximum)	N/A	N/A
10	Feitosa and Wilkinson [34]	Aw and Cfa	N/A	N/A	Rio de Janeiro, maximum WGBT: 8.1 (daytime) and −2.8 (nighttime)	N/A
					Sydney, maximum WGBT: 12 (daytime) and −1.2 (nighttime)
11	Park et al. [86]	Dwa	Regression	N/A	N/A	Maximum, 1.5 m above: 22.6 (daytime) and 1.9 ( nighttime)
12	Lee and Jim [23]	Cwa	N/A	19.8 (maximum)	N/A	Maximum: 6.21 (0.15 m above), 4.7 (0.50 m above, and 3.1 (1.5 m above)
13	Azeñas et al. [87]	Csa	N/A	N/A	N/A	N/A
14	Morakinyo, Dahanayake, Ng and Chow [26]	BWh, Cfa, Cwa, and Cfb	EnergyPlus and ENVI-met	Maximum: 14 (daytime) and 4 (nighttime)	Maximum, hot climate, 0.7-m substrate: 1.4 (daytime) and 0.3 (nighttime)	Maximum, 1.5 m above, pedestrian level: 0.6 (daytime) and −0.2 (nighttime)
					Maximum, cold climate, 0.3-m substrate: 0.3 (daytime) and −0.1 (nighttime)
15	He, Yu, Ozaki, Dong and Zheng [80]	Cfa	A coupled heat and moisture transfer model	Summer maximum: 35 (daytime) and −5 (nighttime)	N/A	Maximum, 0.15 m above: 5 (summer) and 2 (winter)
				Winter maximum: 15 (daytime) and -10 (nighttime)
16	Yeom and La Roche [37]	Csa	N/A	N/A	2 (compared to other test cells)	N/A
17	Shafique and Kim [30]	Dwa	N/A	5 to 9 (average)	N/A	N/A
18	Wilkinson et al. [88]	Aw and Cfa	N/A	N/A	Rio de Janeiro maximum: −4.1 (nighttime) and 6.2 (daytime)	N/A
					Sydney maximum: −1.1 (nighttime) and 12 (daytime)
19	Bevilacqua, Mazzeo, Bruno and Arcuri [82]	Csa	N/A	Maximum: 34.1 (daytime) and −9.4 (nighttime)	N/A	N/A
20	Foustalieraki et al. [89]	Csa	N/A	Maximum: 21.9 (daytime) and −1.6 (nighttime)	Maximum: 1.1 (summer) and −0.7 (winter)	N/A
21	Boafo, Kim and Kim [81]	Dwa	EnergyPlus	Maximum: 5 (summer) and −6 (winter)	N/A	N/A
22	Gagliano et al. [90]	Csa	The Design Builder software	19 (maximum)	4 (maximum)	N/A
23	Shafique, Kim and Lee [29]	Dwa	N/A	10 (maximum)	N/A	N/A
24	He, Yu, Dong and Ye [78]	Cfa	N/A	Maximum: 30 (free floating) and 40 (air conditioned)	Maximum: 2 (daytime) and −2.5 (nighttime)	5 (maximum, 0.15 m above)
25	Tam et al. [91]	Cwa	N/A	N/A	3.4 (maximum)	N/A
26	Schweitzer and Erell [92]	Csa	N/A	N/A	1.89 (average) and 4.5 (maximum)	N/A
27	Chemisana and Lamnatou [93]	BSk	N/A	14 (maximum)	N/A	N/A
28	Sun, Bou-Zeid, Wang, Zerba and Ni [79]	Dwa and Dfa	PROM	4.2 (summer, averaged daily maximum)	N/A	N/A
29	Peng and Jim [3]	Cwa	ENVI-met and RayMan	N/A	Maximum: 1.6 (Top Floor) and 1.3 (Ground Floor)	Maximum, 1.2 m above: 2.1 (rooftop level) and 1.7 (pedestrian level)
30	Ascione, Bianco, de’Rossi, Turni and Vanoli [16]	Bsh, Csa, Cfb, and Dfb	EnergyPlus	N/A	N/A	N/A
31	Pandey et al. [94]	Cwa	N/A	N/A	Average: 3.9 (DBT) and 4 (WGBT)	N/A
32	Blanusa et al. [95]	Cfb	N/A	Compared with bare soil roof: 14.9 (maximum)	N/A	Compared with bare soil roof: 1.1 (average, 0.1 m above)
33	Qin, Wu, Chiew and Li [72]	Af	N/A	15.3 (maximum) and 7.3 (average)	N/A	0.3 m above: 1.3 (maximum) and 0.5 (average)
34	Jim and Peng [96]	Cwa	N/A	12.5 (maximum)	N/A	Maximum: 4.4 (0.1 m above) and 2.3 (1.6 m above)
35	Pérez et al. [97]	Bsk	N/A	N/A	N/A	N/A
36	Getter et al. [98]	Dfa	N/A	20 (maximum)	N/A	N/A
37	Hui and Chan [99]	Cwa	N/A	4 to 5 (compared to non-PV GR)	N/A	N/A

Owing to the interaction between the surface temperature of the roof membrane and the indoor environment, (T_air.in), ΔT_air.in (T_{air.in-bare roof} − T_air.in-GR), and ΔT_s demonstrate a similar behaviour. However, ΔT_air.in is much smaller than ΔT_s, with respect to both magnitude and amplitude. In accordance with the data presented in Table 2, ΔT_air.in ranged from around 1 °C to 5 °C. The integration of GRs and green walls significantly improved T_air.in, with a maximum daytime reduction of 6.2 °C and 12 °C in Rio de Janeiro and Sydney, respectively [88]. In alignment with T_s, the T_air.in of a living roof was mostly reported as warmer than that of a bare roof during nighttime and wintertime. GRs acting as a heat source could be ideal to reduce heating demands in cold regions, but this is not the case in hot climatic regions.

The ability of GRs to mitigate urban heat island (UHI) effects has been inadequately examined. Of the 37 published works in Table 2, there are few papers researching the decrease in ambient air temperature (ΔT_air.out) after GR implementation. Some exceptions are the studies by Park, Kim, Dvorak and Lee [86], Lee and Jim [23], Morakinyo, Dahanayake, Ng and Chow [26], Peng and Jim [3], and Jim and Peng [96], as they undertook an analysis of T_air.out above a living roof and a non-living roof. Nevertheless, in addition to different GR characteristics and study locations, they produced greatly divergent outcomes due to the nonidentical set-ups of their measuring devices. He, Yu, Ozaki, Dong and Zheng [80] concluded that the GR was able to reduce air temperature at 0.15 m above the roof by 5 °C in summer and 2 °C in winter. Lee and Jim [23] set thermal sensors to monitor T_air.out above the studied roofs at three positions, including 0.15 m, 0.5 m, and 1.5 m. Qin, Wu, Chiew and Li [72] and Peng and Jim [3] reported values of T_air.out at 0.3 m and 1.2 m above the roofs, respectively. Park, Kim, Dvorak and Lee [86] reported an outstanding result, as ΔT_air.out reached a peak of 22.6 °C, whereas others observed much smaller T_air.out reductions. However, it was similarly detected that a higher reduction was observed closer to plant canopies and the greater effect of GRs occurred during the day and in summer. Moreover, only two papers estimated ΔT_air.out at the pedestrian level after growing plants on building rooftops [3,26]. Future studies similar to that by Köhler and Kaiser [17] are important, since they conducted a comprehensive investigation of GR performance with regard to UHI mitigation with a 20-year monitoring period. They found that although the ambient temperature had an upward trend due to global warming, the temperature of the GR substrate layer remained stable with a slight decrease. Consequently, the potential of GRs to address the UHI effects is still optimistic, and sufficient studies need to be undertaken with an identical approach prior to making generic conclusions.

3.3. Energy Use Reduction

In accordance with thermal reduction, GR reduces the energy that a building consumes for cooling and heating demand. Twenty-two papers were identified in the present study that reported varying results in terms of savings in energy use. However, some similarities can also be observed in

Table 3. Quantification of energy use reduction caused by green roofs.

Number	Reference	Climate Group	Modelling Software Used	Energy Performance
				Energy Reduction	Heat Flux (HF) Reduction—ΔHF	CO2 Emission Reduction
1	Ávila-Hernández, Simá, Xamán, Hernández-Pérez, Téllez-Velázquez and Chagolla-Aranda [19]	As (Aw), Am, BSh, BWh, BSk, and Cwb	EnergyPlus	Maximum: 99% (cooling) and −25% (heating)	N/A	2.5 tons or 45.7% (maximum, annual)
2	He, Yu, Ozaki and Dong [18]	Cfa	THERB	Top floor: 3.6% (cooling) and 6.2% (heating)	Summer maximum: 12.6 (daytime) and −3.1 (nighttime) W/m2	N/A
					Winter maximum: 8.4 (daytime) and −5.4 (nighttime) W/m2
3	Xing, Hao, Lin, Tan and Yang [33]	Cfa	N/A	18% (heating)	3.1 W/m2 (average, heating condition)	N/A
4	Tang and Zheng [84]	Cfa	N/A	14.7% (average, cooling)	35.5 W/m2 (maximum, daytime) and 76.1% (average)	N/A
5	Cai, Feng, Yu, Xiang and Chen [85]	Cfa	Swell BESI2016	Annual: 10.13% (total), 9.3% (heating), and 11.2% (cooling)	Summer: 3.7 W/m2 or 50% (average, daytime)	9.35 kg/m2 GR (annual)
					Winter: −7.5 W/m2 or 24.6% (average, daytime)
6	Cascone, Catania, Gagliano and Sciuto [21]	Csa	FASST	Annual: 20–24% (total), 31–35% (cooling), and 2–10% (heating)	N/A	1.35 kg/m2 GR (annual)
7	Azeñas, Cuxart, Picos, Medrano, Simó, López-Grifol and Gulías [87]	Csa	N/A	N/A	48 to 86% (annual)	N/A
8	Morakinyo, Dahanayake, Ng and Chow [26]	BWh, Cfa, Cwa, and Cfb	EnergyPlus	Maximum. cooling: 5.2% (hot climate, 0.7-m soil thickness) and 0.3% (temperate climate, 0.3-m soil thickness)	N/A	N/A
9	He, Yu, Ozaki, Dong and Zheng [80]	Cfa	A coupled heat and moisture transfer model	N/A	Average: 1.75 W/m2 (summer) and 0.87 W/m2 (winter)	N/A
10	Foustalieraki, Assimakopoulos, Santamouris and Pangalou [89]	Csa	EnergyPlus	Annual: 15.1% (total), 18.7% (cooling), and 11.4% (heating)	N/A	N/A
11	Boafo, Kim and Kim [81]	Dwa	EnergyPlus	Annual: 3.7% (total), 5.4% (cooling), and 2.7% (heating)	N/A	N/A
12	Karteris, Theodoridou, Mallinis, Tsiros and Karteris [63]	Csa	EnergyPlus	Maximum: 5% (heating) and 16% (cooling)	N/A	3.5 to 9.1 kg/m2 GR (annual)
13	Gagliano, Detommaso, Nocera and Berardi [90]	Csa	The Design Builder software	Maximum: 85% (cooling) and 48% (heating)	N/A	N/A
14	He, Yu, Dong and Ye [78]	Cfa	N/A	N/A	Maximum daytime: 15 (free floating) and 20 (air conditioning) W/m2	N/A
15	Schweitzer and Erell [92]	Csa	N/A	N/A	679 kJ/m2 (average)	N/A
16	Sun, Bou-Zeid, Wang, Zerba and Ni [79]	Dwa and Dfa	PROM	N/A	133 W/m2 (averaged daily maximum)	N/A
17	Ascione, Bianco, de’Rossi, Turni and Vanoli [16]	Bsh, Csa, Cfb, and Dfb	EnergyPlus	Maximum: 11% (warm climate) and 7% (cold climate)	N/A	N/A
18	Pandey, Hindoliya and Mod [94]	Cwa	N/A	N/A	13.8 W/m2 and 73.8% (maximum, daytime)	N/A
19	Jim and Peng [96]	Cwa	N/A	2.8 × 104 kWh (cooling, 484 m2 GR)	33.5 W/m2 (maximum, daytime)	27.02 tons (summer, at power plant)
20	Pérez, Coma, Solé, Castell and Cabeza [97]	Bsk	N/A	3.6 to 15% (cooling) and −7% (heating)	N/A	N/A
21	Getter, Rowe, Andresen and Wichman [98]	Dfa	N/A	N/A	Average: 167% (summer) and 13% (winter)	N/A
22	Hui and Chan [99]	Cwa	EnergyPlus	6.53 × 104 kWh (6300 m2 GR, annual)	N/A	N/A

. All publications pointed out a higher decrease in cooling demand than heating demand after implementation of GRs. For example, Cai, Feng, Yu, Xiang and Chen [85] achieved an annual reduction of 11.2% and 9.3% of energy consumption for cooling and heating, respectively. The difference was even larger in Cascone, Catania, Gagliano and Sciuto [21]; the yearly amount of electricity consumed by a GR-integrated building was 35% (cooling) and 10% (heating) less than a building with a conventional roof. Moreover, these two values in Gagliano, Detommaso, Nocera and Berardi [90] were impressive, with maximum decreases of 85% and 48% for cooling and heating requirements, respectively.

In a broader context, some papers modelled buildings with vegetated roofs in various climates to investigate the climatic influence on the energy performance of GRs. Overall, the energy effectiveness of GRs has reported the greatest savings in hot climates and the least savings in cold climates. Ascione, Bianco, de’Rossi, Turni and Vanoli [16] reported a maximum reduction of 11% in warm climates, whereas 7% was estimated in cold climates. Morakinyo, Dahanayake, Ng and Chow [26] fulfilled a comprehensive analysis of energy reduction due to GRs with different substrate depths and climatic conditions. As expected, GRs with a deeper substrate (0.7 m) in hot climates (BWh) outperformed GRs with a thinner substrate (0.3 m) in temperate climates (Cfb), with respect to energy savings for cooling at 5.2% and 0.3%, respectively. Ávila-Hernández, Simá, Xamán, Hernández-Pérez, Téllez-Velázquez and Chagolla-Aranda [19] brought a different perspective by investigating the energy behavior of a residential building with a living roof in several Mexican cities. The largest annual energy savings, of more than 90%, was recorded in cities where the cooling demand exceeds the heating demand. In spite of the large energy reduction for cooling, those cities consumed more energy for heating because the cooling effect of the GR was inappropriate for low-average-annual-temperature regions (BSk and Cwb). Finally, the simulation results suggested that GRs should be implemented in warm-climate cities (Am and BWh), which are dominated by cooling demand.

Another parameter used in the studies is heat flux (HF), which is defined as the flow of energy through building envelopes. Many papers considered HF because of its strong correlation with the electricity consumption of a building. In this context, a GR acts as an insulation layer to reduce heat flux moving into a building through the rooftop. This reduction of energy flow (Δ HF = HF_{bare roof} − HF_GR) is in agreement with the ΔT_air.in already discussed earlier. More accurately, ΔHF was greater during daytime and hot summers than that during night-time and cold winters. There was a decrease of more than 50% in HF passing through the roof deck under a GR as compared to a conventional roof. The ΔHF in Getter, Rowe, Andresen and Wichman [98] reached an average of 167% in summer, but only 13% in winter. In the study of He, Yu, Ozaki, Dong and Zheng [80], GRs lessened HF by 1.75 W/m² and 0.87 W/m² in summer and winter, respectively.

Few studies investigating building energy reduction due to GRs also studied the reduction of cardon dioxide (CO₂) concentration caused by a reduction in energy use. In addition to the direct CO₂ absorption by GR plants, the indirect removal of CO₂ is caused by the energy savings. The calculation of CO₂ indirectly absorbed by GR vegetation was mostly based upon the emission factor and the amount of energy saved by the GR installation. Karteris, Theodoridou, Mallinis, Tsiros and Karteris [63] concluded that the implementation of a GR at the municipality level of Thessaloniki city could reduce 65,000 tons of CO₂ yearly. Furthermore, the CO₂ reduction generated by 50% of the building blocks in the city corresponds to the 50-acre forest plantation. Simulation results from Ávila-Hernández, Simá, Xamán, Hernández-Pérez, Téllez-Velázquez and Chagolla-Aranda [19] show that applying GRs could save up to 45.7% of CO₂ annually in Chetumal, which has a high cooling demand. In Wuxi, China, with a humid, subtropical climate (Cfa), each square meter of a GR could reduce 9.35 kg of CO₂ per year [85].

3.4. Runoff Quality Improvement

In addition to runoff reduction, improving runoff quality is another ecosystem service provided by this WSUD strategy. However, this benefit requires further research due to the significant variation among the published results. Globally, researchers are trying to determine whether GRs enhance or degrade the stormwater quality. Several authors have been in agreement, with a conclusion that the runoff quality from GRs is strongly affected by the substrate composition (organic content), substrate depth, GR age, maintenance frequency, and fertilizing methods [1,2]. No standards exist for regulating the runoff quality from GRs [100]. Therefore, the vast majority of papers on runoff quality in this review used fresh-water standards from the American Public Health Association (APHA) and the United States Environmental Protection Agency (USEPA). A few papers used local guidelines to examine GR outflows, such as Razzaghmanesh et al. [101], with Australian drinking water guidelines and the South Australian Environment Protection Authority’s policy on water quality.

Findings from 17 identified studies demonstrate the difference in GR performance associated with runoff quality. GRs performed inconsistently with different types of pollutants and GR systems. Gong, Yin, Li, Zhang, Wang, Fang, Shi and Wang [40] found that GRs reduced the loads of pollutants such as total phosphorus (TP) and total nitrogen (TN), but increased the load of chemical oxygen demand (COD). In contrast, different GR modules in Ferrans, Rey, Pérez, Rodríguez and Díaz-Granados [57] were effective for neutralizing the pH of rainwater, but were unsuccessful in absorbing most of the runoff pollutants, including TP, TN, and several metals. The majority of GR systems identified in this review were reportedly capable of increasing pH values of roof runoff to around 8, a neutral value. Rainwater tends to be acidic, with average pH values of less than 5.6, and hence the neutralization of rainwater by GRs is an environmental benefit that prevents acidic runoff from flowing to receiving water bodies [102,103]. Harper, Limmer, Showalter and Burken [68] detected significant nutrient loads in GR discharge with a decreasing trend of concentration during the monitoring period. Zhang, Miao, Wang, Liu, Zhu, Zhou, Sun and Liu [49] found that GRs washed out ammonium nitrogen, total suspended solids (TSS), and fluoride anions, but was a source of the remaining pollutants. Additionally, the GR in the study by Vijayaraghavan and Raja [100] acted as a sink for all examined heavy metal ions during both un-spiked and spiked artificial rainfall events, whereas the GR was a source of all pollutants in the study by Beecham and Razzaghmanesh [25].

Among abovementioned variables, the composition of GR growing media and the use of fertilizers were found linked the most to the quality of GR runoff. For example, Beecham and Razzaghmanesh [25] pointed out that the outflows from GRs with higher organic matter had higher pollutant concentrations. The lower concentrations of TP and TN in the study of Gregoire and Clausen [43], as compared to other studies, were explained by the slow-release fertilizer, expanded shale, and biosolids media with a high sorption rate of pollutants. Zhang, Miao, Wang, Liu, Zhu, Zhou, Sun and Liu [49] stated that a high concentration of TN in GR discharge could result from the substrate used, which had a nitrogen-rich content. Harper, Limmer, Showalter and Burken [68] observed a greatly noticeable nutrient load in GR runoff due to the excessive nutrients contained in the substrate construction materials. All studied EGR modules of Gong, Yin, Li, Zhang, Wang, Fang, Shi and Wang [40] acted as a sink of TP and TN, but a source of COD. The significant release of COD had a strong connection to the substrate layer, as it contained plenty of turfy soil which had high contents of organic matter. Moreover, the pollutant loads of TP and TN in GR outflows were negligible because of no addition of nitrogen and phosphorus fertilizers.

Aside from the substrate materials and fertilizing practices, researchers also studied other factors potentially correlating to GR runoff quality. For example, Razzaghmanesh, Beecham and Kazemi [101] found that EGRs outperformed IGRs in terms of runoff quality because the thinner substrate of the EGRs restricted its capacity to leach pollutants from the soil media. The concentration of pollutants was the highest at the beginning of the GR operation and consecutively decreased until the end of study period, which is consistent with the finding of Harper, Limmer, Showalter and Burken [68]. Beecham and Razzaghmanesh [25] compared various types of roofs, including non-vegetated and vegetated beds of EGRs and IGRs. They concluded that non-vegetated EGRs and vegetated IGRs were more effective than non-vegetated IGRs and vegetated EGRs, respectively. While the former was due to the shallower substrate, the latter was from the plant uptake. The authors also highlighted the important role of vegetation in the pollutant removal efficiency. In addition, temperature was similarly reported in Buffam et al. [104] and Carpenter, Todorov, Driscoll and Montesdeoca [48] to be linked with the concentration of nutrients in the GR discharge. The quality of stormwater passing through GRs varied seasonally, with the highest concentration during the growing season and the greatest retention during the non-growing season. The mechanism behind this seasonal variation was that the higher temperature in the growing season was promoting the mineralization process in the soil media of the GRs.

3.5. Ecological, Social, and Economic Benefits

One of the biggest challenges confronting the application of GRs is the high installation costs and other costs arising from its operation. Although it is commonly understood that a GR system requires a considerable investment, it provides promising monetary savings after a short payback period as compared to conventional roofs [105]. The financial factor plays an important role in the successful acceptance of GRs since it facilitates approvals from policy makers, investors, and property owners. Therefore, the interest of researchers has also been directed towards economic benefits from the implementation of GRs. For instance, Ávila-Hernández, Simá, Xamán, Hernández-Pérez, Téllez-Velázquez and Chagolla-Aranda [19] made an economic evaluation by considering the electricity and irrigation costs. Their GR in the city of Hermosillo, Sonora could provide a return on investment after only 8.8 years. Cai, Feng, Yu, Xiang and Chen [85] studied the economic benefit of GRs by converting the GR ecosystem services into monetary values. More specifically, they took into account the carbon sequestration, oxygen release, air pollution mitigation, rainwater management, and energy savings. The computed net present value (NPV) showed that a GR could become profitable from the 10th year after its installation. With nearly identical variables, Cascone, Catania, Gagliano and Sciuto [21] performed an economic assessment based on an actual circumstance with a tax deduction of 65%, provided by Italian laws, for GR installation costs. The results show that the payback period varied according to drainage materials and vegetation types. They were 13.4 years for sedum with perlite and 17.9 years for salvia on rubber crumb. On the contrary, some works reported opposite results. In the study of Ascione, Bianco, de’Rossi, Turni and Vanoli [16], cool roofs were preferable with respect to economic benefits. By analyzing the watering and energy costs, GRs required more than 100 years to cover the investment cost. GR costs were even impossible to be paid in some locations. Another study of Berto et al. [106] supported the economic effectiveness of cool roofs over GRs from the private investors’ point of view. The contradictory conclusions from the cost assessments are attributed to two facts. The first is the limitation of efforts made to analyze the GR costs, so the knowledge about this GR benefit is not comprehensively understood [2]. The second constraint is the difficulty in quantifying some of the GR ecosystem services, which makes the life-cycle assessment of GR difficult to be justified [1]. Consequently, further studies involving as many GR advantages as possible in the cost–benefit analysis are required prior to making final conclusions. Regardless of all discussed uncertainties, GRs are still believed to be much more superior to other roof types. Berto, Stival and Rosato [106] suggested that without counting the unquantifiable benefits, it was sensibly deduced that GRs could bring huge profits as compared to cool roofs. Vijayaraghavan [2] maintained that the likelihood of profits from a GR system could overcome all of its weakness and losses.

GR is able to promote the urban ecology by attracting wildlife species and restoring the habitat loss caused by urban development [2,3]. Additionally, GR offers numerous social benefits that are advantageous for human health and liveability. The reduction of heat stress, noise pollution, and air pollution play a crucial role in improving human health and well-being. Furthermore, the green spaces generated by GRs improve urban aesthetics and establish recreational activities in urban areas, thus improving social connectivity [1]. Although the ecological and social benefits of GRs are foreseeable, research on them has been insufficient. This is in conformity with a small number of relevant papers identified in this review. The difficulty in measuring such benefits is an explanation for such limited research. The following attempts are noteworthy in this direction. Kratschmer, Kriechbaum and Pachinger [24] studied the correlation of the diversity and abundance of wild bees with GRs. They found that wild bee species were positively affected by floral resources and finer and deeper substrates. Rumble et al. [107] investigated the presence of microarthropods, bacteria, and fungi in GR materials. They observed their survival and the independent colonization during eleven months after the construction of the GR. The species existing in GRs were found linked to both GR construction components and natural communities. Mycorrhizal fungi, which is beneficial for the uptake of nutrients by the plants, was suggested to be commercially added to GR construction. MacIvor and Lundholm [38] also detected the existence of a broad range of insects from five studied IGRs. This finding could encourage the idea of using GRs to improve urban biodiversity. Whittinghill et al. [108] researched the potential of the social benefits of GRs by calculating the food production by EGR plants. Tomatoes, beans, cucumbers, basil, and chives were chosen, and they survived and produced an adequate yield. This horticultural method, which is well known as a part of urban farming, is a promising strategy to address critical social issues such as food security and job opportunities.

3.6. Air Quality Improvement

GRs bring benefits to the air quality in two distinct ways. The first way is the indirect reduction of CO₂ emission from energy savings, which has been already discussed in an earlier section. The second way is through the stomata of GR vegetation to remove this greenhouse gas from the atmosphere [109]. In addition to CO₂, GRs are capable of capturing several air pollutants, consisting of O₃, NO₂, PM₁₀, and SO₂. However, CO₂ has attracted the most attention of researchers. This review found only three papers studying this benefit provided by GRs. This small number is not likely to represent all works completed; however, it could partially reflect the limitation of efforts and interest in this research area. For instance, the large-scale application of GRs in Thessaloniki led to a CO₂ sequestration rate of 3951.52 tons per year, and a total annual CO₂ saving of 12,441 tons [63]. The ability of sequestrating CO₂ depends on the selection of GR plants, and it was determined that spices and aromatic plants outperformed grasses. However, this reduction was not considerable as compared to a year-round CO₂ saving of 65,000 tons by reducing the air-conditioning demand. GRs contribute to diminishing the CO₂ emission by consuming the air pollutants from the atmosphere; nevertheless, this is minimal, relative to the indirect reduction from energy savings [21]. Another study performed by Baraldi et al. [110] examined the GR capability of capturing the air pollutants. They conducted a holistic analysis concerning the physiological features of fifteen GR species comprising shrubs and herbaceous plants. The results reveal that the capacity of mitigating the air pollution varies according to the specific species. Furthermore, all tested species were also found favorable for urban sustainable development as they are not likely to form ozone. Li et al. [111] adopted a mixed methodology to research the effect of GRs on the fluctuation of CO₂ concentration in the ambient atmosphere. According to the field measurement, chamber experiment, and computer simulation, the authors stated that a GR had a large potential to reduce CO₂ emission by up to 2% on a sunny day. They also concluded that the CO₂ absorbing rate greatly depends on the condition of GR plants, sunlight intensity, wind velocity, and GR position.

3.7. Noise Reduction

Another ecosystem service of GR is to establish an acoustic barrier confronting the sound transmission from the outdoor environment to a building. Noise from vehicles and other anthropogenic activities influencing human health and well-being is regarded as noise pollution. GR functions as an additional sound insulation layer as well as an absorber of sound waves passing through the building envelopes. In this review, only two papers were found to investigate this GR benefit. Connelly and Hodgson [112] conducted both a field experiment and a purpose-built field laboratory to investigate the loss of sound transmission through vegetated and non-vegetated roofs. As expected, the difference in sound transmission between the conventional roof and the GR was up to 10, 20, and more than 20 decibels (dB) in the low-, mid-, and high-frequency ranges, respectively. It was also noted that the thicker substrates and the deeper-root plants enhanced the noise reduction, whereas the substrate moisture content caused no major changes. Following Yang et al. [113], they computed the noise reduction at street level by installing a GR on a low-profiled structure. The results show that a GR could successfully attenuate the sound annoyance level by up to 9.5 db. Moreover, the substrate type and depth were found to be not as important as the whole GR system in terms of traffic noise mitigation. Similar to the air quality improvement, this review identified a very small number of papers associated with the noise reduction. Therefore, it could be reasonably deduced that this research area needs more attention.

4. Discussion

4.1. GR Types

As can be seen in Figure 3, the number of papers applying EGRs are 6–7 times more than those applying IGRs and SIGRs. It is well known that EGRs have plenty of advantages that have led to their widespread implementation. On the contrary, the implementation of IGRs faces many challenges, as they require high structural load bearing capacities and high amounts of maintenance. However, with the consideration of the capability of providing ecosystem services alone, IGRs remarkably outperform EGRs. It is also worth noting that SIGRs appear to have a combination of advantages taken from both EGRs and IGRs. Their growing media are thinner and lighter than that of IGRs, and they support a broader range of appropriate plants than what EGRs can. Therefore, SIGRs not only eliminate the disadvantages of IGRs and EGRs but also optimize the GR benefits. Further research should study the potential of intensive and semi-intensive types of GRs, so that they are not disregarded. More efforts to explore alternative materials for light-weight GR systems are also encouraged.

Attempts to establish hybrid GR-based experiments were found to be negligible in this review. Such hybrid GRs are highly recommended because of the encouraging results achieved by them. For example, Hui and Chan [99] found that the T_s of a hybrid photovoltaic GR (PV GR) was 5 °C cooler than that of a traditional GR, due to the shading effect of the PV panels. An increase of 4.3% in power output from the PV panels also resulted from this combined system. Another example of the enhanced performance of hybrid GRs is provided by Chemisana and Lamnatou [93]. They found a maximum ΔT_s of 14 °C as well as a maximum increase of 3.33% in solar energy from the PV system. Yeom and La Roche [37] evaluated the combination of a GR and a radiant cooling system by setting up various test cells. They found a 2-°C lower temperature inside the cell with a GR and radiant pipes as compared to GRs with and without an insulation layer. Additionally, the combination of GRs and green walls provide outstanding thermal and energy reductions as compared to stand-alone GR systems [33,34,35,88]. In an attempt to improve the runoff retention rate, a system integrating GRs with blue roofs was developed and the runoff outflow rates from the green–blue roof and a control roof were 0.1 L/s and 0.3 L/s, respectively, in the study by Shafique, Lee and Kim [28]. It is worth noting that the outflows from the green–blue roof only occurred a few hours after the beginning of a rainfall event, which helps to alleviate the stress on the urban drainage system.

4.2. GR Benefits

As mentioned in previous sections, urban heat mitigation and runoff reductions have been found to be the most-studied GR benefits. On the other hand, the mitigation of air pollution through the direct CO₂ sequestration of GR plants is a GR benefit that has been inadequately investigated. A barrier to undertake research on this GR benefit is the limited options for the vegetation layer. While EGR keeps receiving the most attention during the last ten years due to several advantages, shallow-root plants in EGRs have a smaller capacity to capture gaseous pollutants and dust particles in the atmosphere [1,2]. Large plants, such as trees with deep roots, could absorb greater amounts of air pollutants, but face many challenges in GR construction and operation during its lifespan. Other than that, the insignificant quantity of CO₂ sequestrated by GR plants could be an explanation for their lesser preference among researchers. Last but not least, the simplest way to conduct such projects is by utilizing the factor values already computed in the literature, which could not produce dependable results. Otherwise, the investigation of this benefit (reduction in air pollution) requires a complex experimental set-up and specific knowledge about the phytology of plants.

Noise reduction is also inadequately researched due to various constraints. One of them could be attributed to the fact that a GR system can only lessen the noise transmitted from traffic into the indoor environment if it is installed on a low-rise building [2]. Along with the rapid urbanization and population growth, multi-storey buildings are being constructed. Consequently, the GRs of both existing and new buildings are positioned far away from the ground level. This reduces the possibility of the application of GRs for noise reduction. Another difficulty could be the lack of standards for measuring the sound transmission through roofs [112]. Moreover, methods for testing the transmission loss are mainly developed for other building components, such as interior walls and exterior facades.

Finally, other GR benefits relating to runoff quality, the ecosystem, and social and economic benefits have been researched more often than the mitigation of noise and air pollution. However, they are still in experimental stages due to various constraints. For example, the question of whether GRs improve or degrade the runoff quality should be properly answered before proceeding to implementation. Additionally, the cost–benefit analysis of GRs pointed out remarkable long-term savings, and many experts have confirmed that the GR benefits outweigh their potential costs. Nevertheless, numerous important benefits were not considered in the economic evaluation because most of them are difficult to convert into monetary values. Consequently, this hinders researchers from carrying out such projects. Hence, future studies are suggested to be conducted with a well-designed approach.

4.3. Innovative GR Construction Techniques and Materials

In spite of unsolved issues, the potential of GRs remains remarkably huge. Considering only the GRs’ capability of providing ecosystem services, most studies illustrate positive outcomes. In order to facilitate the widespread implementation of GR, it is suggested that future studies should be directed towards identifying optimal GR designs to satisfy not only the ecosystem services provided by GRs but also their affordability for installing, operating, and maintaining. According to the literature review, it was determined that there exist attempts to explore alternative GR materials. Some of them succeeded to enhance the GR benefits. For example, Carpenter, Todorov, Driscoll and Montesdeoca [48] obtained a noticeable averaged retention rate of 96.8%, which exceeded the previously-reported values mainly due to the application of an effective drainage layer. Another high retention rate from Todorov, Driscoll and Todorova [45] was also a result of a drainage design that was never applied in other studies. Altering the substrate composition by adding biochar improved both the retention capacity and quality of the GR discharge [74]. On the other hand, the application of modelling software to simulate GR performance was observed during the last decade. Though the accuracy of simulation results compared well with actual field data, their application for the large-scale implementation of GRs is still negligible. The costs and benefits of large-scale implementation of GRs need to be clear to authorities and stakeholders, such as building owners, builders, and developers. Therefore, this is a recommendation for future research studies.

4.4. Inconsistent Impact of Parameters on GR Performance

It is not challenging to find studies on the benefits of GRs relating to UHI mitigation and energy reduction. These two benefits of GRs are quite apparent during the period of the strongest solar radiation (SR). Conversely, they are less desirable at night and in cold weather conditions. Moreover, seasonal and daily thermal behaviours of GRs are even more complicated. He, Yu, Ozaki and Dong [18], He, Yu, Ozaki, Dong and Zheng [80], Bevilacqua, Mazzeo, Bruno and Arcuri [82], and Foustalieraki, Assimakopoulos, Santamouris and Pangalou [89] found a higher T_s of GRs than that of traditional roofs at nighttime in both hot and cold seasons. Additionally, although the maximal T_s reduction in winter is not as impressive as that in summer, ΔT_s still remains positive during winter daytime. Those research outcomes are contrary to others’ findings. More precisely, the T_s of a non-vegetated roof was higher than that of a GR at night-time, following Morakinyo, Dahanayake, Ng and Chow [26] and Cascone, Catania, Gagliano and Sciuto [21]. A warmer roof deck underneath the GR was observed in winter at daytime, following Boafo, Kim and Kim [81] and Cai, Feng, Yu, Xiang and Chen [85]. A combined effect of great heat storage and thermal inertia of GR components is likely to explain a warmer skin temperature of outer roof decks at night [18]. Oppositely, Cascone, Catania, Gagliano and Sciuto [21] stated that the evapotranspiration process allows GRs to release the heat accumulated during a hot summer day, which helps to maintain a lower T_s of a GR at night. The negative ΔT_s at night during summer could lead to a higher cooling demand, though this is preferable to save the electricity for heating during cold seasons. On the other hand, attempts to study this topic have not yet been made. Consequently, solutions from future research are needed to avoid any unexpected impacts of GRs.

Among many attempts to study the HTC improvement, the vast majority of them analyzed the indoor dry-bulb temperature (DBT), which is also known as air temperature. On the other hand, the wet-bulb globe temperature (WBGT), which is a combined effect of air temperature and relative humidity, has received less attention. Human discomfort is primarily affected by WBGT and, hence, this variable should be involved in future works (rather than simply analyzing DBT). Moreover, the studies about whether the T_air.in improved due to the construction of GRs has been limited. Though energy savings after GR installation has been generally agreed upon, it is worthwhile to investigate the possibility of a GR-based passive-cooling system.

Another noteworthy finding is the differences in the experimental setups of measuring devices from one study to the other. It is understandable that the position of measuring devices strongly depends on the specific research aims. However, this review suggests that future research needs to apply consistent measurements for accuracy of result comparisons and performance evaluations between different studies. For example, this review detected a difference in the height of sensors for measuring the air temperature above the plant canopy. Additionally, previous studies published ΔT_s values with various positions of thermal sensors. The explanations for those chosen sensor positions are also missing. In order to properly understand the effects of GRs, an adequate number of studies with identical and appropriate experimental designs are required.

Palermo, Turco, Principato and Piro [22] and Gregoire and Clausen [43] stated that the inconsistency in published runoff reduction was due to differences in the catchment size, the length of the study period, the data-analysis approach, and the hydraulic characteristics of the GR materials. Nevertheless, no consensus about how those variables influence the GR capability of reducing runoff have been reached yet. For example, Zhang, Miao, Wang, Liu, Zhu, Zhou, Sun and Liu [49] and Razzaghmanesh and Beecham [69] highlighted the importance of an antecedent dry weather period (ADWP) in the retention capability of GRs. In contrast, Zhang, Szota, Fletcher, Williams and Farrell [47], Ferrans, Rey, Pérez, Rodríguez and Díaz-Granados [57], and Hakimdavar, Culligan, Finazzi, Barontini and Ranzi [51] concluded that the substrate storage capacity and initial substrate moisture content were more related to the retention performance, whereas the impact of ADWP was negligible. They also found that the selection of high water-use plants, followed by the high evapotranspiration (ET) rate, was not as important as the substrate type. In contrast, Johannessen, Muthanna and Braskerud [59] raised another debate, as they reported opposite results as the ET process made greater variations in GR performance than different GR configurations did. Kaiser et al. [114] highlighted the importance of ET by applying some solutions to increase the rate of ET. Such disputes could be resolved with extensive knowledge acquired from future works. Furthermore, Sims, Robinson, Smart and O’Carroll [55] maintained that the high retention rates in some studies resulted from the inclusion of rainfall events generating no runoff (100% retention) in the data analysis. This review recommends that all future research should apply a precipitation threshold to exclude small events with no discharge from GRs so that a proper conclusion about the runoff retention capacity of a GR system could be reached.

5. Conclusions

Among numerous WSUD strategies, GRs are a popularly used practice implemented to deal with the adverse impacts of climate change and to tackle various issues arising from rapid urbanization and increases in population. This paper reviewed a broad range of GR literature investigating all ecosystem services that a GR system can provide. They are HTC improvement, energy saving, runoff reduction, runoff quality enhancement, noise reduction, air quality improvement, and ecological, social, and economic benefits. This review aimed to provide readers with in-depth knowledge of GR performance during the last 10 years through the quantification of the provided benefits.

The key observations, conclusions, and recommendations that are provided on the basis of this study are as follows:

(a)

Countries such as the USA and various European countries have implemented GRs quite popularly. This review also indicates that China is also taking up GRs in a big way. GRs have not been popular in developing countries due to a lack of local research about the methods for constructing GRs and their benefits. The high initial cost of construction is also a constraint in developing countries.

(b)

An imbalance of GR research focuses was identified, wherein Human Thermal Comfort and runoff-related benefits were well researched when compared to other benefits. At the same time, further studies need to be undertaken on inadequately studied GR benefits, such as reduced noise and air pollution.

(c)

It was found that EGR has been more commonly implemented because of numerous advantages over other types of GR. However, if only the capability of providing ecosystem services is considered, IGRs very clearly outperform EGRs. On the other hand, the intermediate type of GR, namely SIGRs, appear to have a combination of advantages taken from both EGRs and IGRs.

(d)

The effectiveness of hybrid GRs was clearly observed as compared to traditional GRs. The main hybrid GRs identified in this review include photovoltaic GRs, green–blue roofs, GRs integrated with radiant cooling systems, and GRs combined with green walls. However, further studies to quantify the benefits of hybrid GRs are recommended.

(e)

It is recommended that future studies are undertaken to improve upon well-known GR benefits by discovering more innovative GR construction techniques and materials. Further studies are also recommended to explore GR components that are economical as well as environmentally friendly.

(f)

The impact of key influential GR parameters (e.g., substrate type and their water-holding capacity, the type of plants, and evapotranspiration rate, etc.) on its performance was continually highlighted in this review. Many studies reported contradictory outcomes on varying some of these parameters, and hence, further studies are recommended.

(g)

In spite of the existence of reliable modelling tools, their application to study the large-scale implementation of GRs (at a city-wide scale, catchment scale or municipality scale) has been restricted. As a result, more research and studies are necessary to transform the GR concept into one of the widespread and popularly used WSUD strategies.

(h)

Recommendations to address GR limitations and obstacles in taking up GRs have been identified in this literature review.
