Article

Chemical and Isotopic Tracers for Characterization of the Groundwater in the Heterogeneous System: Case from Chichaoua-Imin’tanout (Morocco)

by
Rim Tijani
1,*,
Abdennebi El Mandour
1,
Driss Chafouq
1,
Malak Elmeknassi
1,
Fatima Ezzahra El Ghazali
1 and
Lhoussaine Bouchaou
2,3
1
GeoSciences Semlalia Laboratory, Faculty of Sciences Semlalia, Cadi Ayyad University, Marrakesh 40000, Morocco
2
Laboratory of Applied Geology and Geo-Environment, Ibn Zohr University, Agadir 80035, Morocco
3
International Water Research Institute, Mohammed VI Polytechnic University, Ben Guerir 43150, Morocco
*
Author to whom correspondence should be addressed.
Water 2022, 14(1), 9; https://doi.org/10.3390/w14010009
Submission received: 31 October 2021 / Revised: 2 December 2021 / Accepted: 9 December 2021 / Published: 21 December 2021
(This article belongs to the Section Hydrogeology)
Browse Figures
Versions Notes

Abstract

:
The geological and hydrogeological approach of the structure of the basin OuladBouSbaâ led to the definition of the geometry of the main aquifers. In general, the profiles show the complexity of the geological configuration. The filling of the depression of OuladBouSbaâ is from the Eo-Cretacian. At this level, the aquifer is recharged by direct water infiltration. The quaternary, Eocene, and Cenomanian-Turonian formations constitute the main aquifers. Horizontal as well as vertical heterogeneity lead to a higher diversification of aquifer characteristics. To define the origins and understand the groundwater flows in this complex zone, we used a multi-tracer approach with the analysis of major elements and the isotopes of δ2H and δ18O. The chemical composition is mainly governed by the interaction with the rock with low electrical conductivity except in areas around domestic landfills. Geochemical results analyzing groundwater in the Piper diagram show two distinct chemical facies: the sulfated calcium and magnesium, and the hyper-chloride calcium. The levels of δ18O range from −7.60 to −4.25 while those of δ2H vary between −53.07 and −27.03. Analyses of signature isotopes differentiate two groups. The first contains high levels of heavy isotopes (highest levels of δ2H and δ18O) having therefore been submitted to evaporation. The second with lower levels of δ2H and δ18O did not undergo evaporation. The first one belongs to the unconfined free aquifer while the second corresponds to the captive aquifer.

1. Introduction

Groundwater is almost the only available resource to satisfy water needs for drinking and irrigation in semi-arid areas such as Morocco and other Mediterranean countries [1]. However, the quality as well as the quantity of this valuable resource in these areas are increasingly threatened by human and natural processes such as salinization, pollution, and climate change [2,3,4,5,6,7,8,9,10,11]. This can hamper social development, especially in areas where agriculture is still the main activity of the population. The agricultural sector can be significantly affected by the increasing contamination of groundwater by chemicals that can limit crop growth and change soil properties such as permeability [12,13,14,15,16].
Groundwater salinization was related to natural processes such as climate change [17], the interaction of water and geological layers [18,19,20,21,22,23], seawater intrusion [24,25,26,27,28,29,30], the ascent of fossil saline waters from deep layers [31], and the contamination by saline waters [32,33,34]. Man-made activities (septic tank effluent, synthetic fertilizer use) can also amplify the effect through intensive irrigation, reduction in the quality and usage of groundwater, and the development of landfills [35,36,37,38,39].
Groundwater pollution issues are of serious concern nowadays [40]. Increased rates of nitrates, found in drinking water, are considered a health hazard since they may lead to methemoglobinemia in human infants, a life-threatening syndrome involving impaired oxygen transport in the blood.
Geochemistry of the aquifers can explain some factors such as prior geological conditions and current anthropic activities that affect groundwater quality [41]. However, the local and regional importance of the aquifers, the main hydrogeological governing models, and the origin of groundwater remains poorly understood [42]. Hydro-chemistry and isotope marking have been used to approach the effect of these multiple factors on the origin of the mineralization as well as its evolution [8,43]. The multi-tracer approach, using isotopes and solute concentrations in water, was used to establish the origin and the interaction between different aquifers [44,45,46,47,48].
In addition, this multidisciplinary approach can lead to efficient exploitation of the groundwater systems [49,50,51], such as establishing new boreholes for agricultural and drinking water supply [52].
The Ouled BouSbaâ basin is home to around 212,778 inhabitants mainly working in agriculture and herding, and occasionally artisanal crafts such as tapestry. The aquifers in this area are overexploited because they are the only resource for the increasing needs of drinking water and irrigation.
The main objective of this study is to analyze the hydrogeological basin of Ouled BouSbaa in central Morocco using a multidisciplinary approach including geology, piezometers, hydro-chemical, and isotope evaluation. We will define the number and nature of the hydro-geological structures, the extension of the aquifer system, and explore the effect of salinization, pollution, and the different modes of water supply in the different aquifers.
Our area is in the form of a set of superimposed and juxtaposed reservoirs. It is very complex and that is what makes studying in this region very difficult. Across the western limit of Ouled Bousbaa formed by the Haouz plain which is a subsidizing basin, contains many isotopic studies (18O and 2H) which show that the water table is fed at the level of the High Atlas [53]. Its results are identical to the results found by the deepwater table of Ouled Bousbaa.
The main issue of our study is nitrate contamination in the line. They are very high in places, and this is due firstly to the diffuse pollution of nitrates used in agriculture, secondly to the discharge of untreated wastewater from urban areas and unsealed landfills, and thirdly to phosphate deposits in the formations of the Eocene. The drinking water supply is provided by boreholes carried out by the National Office of Electricity and Drinking Water showing low nitrate values. This makes the risk of human contamination low.
The main objective remains to develop a water management model for efficient and sustainable use of surface and groundwater in this basin.

2. Geographical and Geological Context

The area under investigation of 6560 km2 is part of the ‘Hydraulic Basin Agency of Tensift wadi in the center-west of Morocco. The basin is delimited by the western High Atlas Mountains to the South-West, Tensift wadi to the North, Chichaoua wadi to the East, and the Meskala-Korimate basin to the West. The main localities of the investigated area are Chichoua in the North-East, Sidi El Mokhtar in the North, Taftacht North-West, Imin’Tanout in the South, and Bouabout in the Southern-West part.

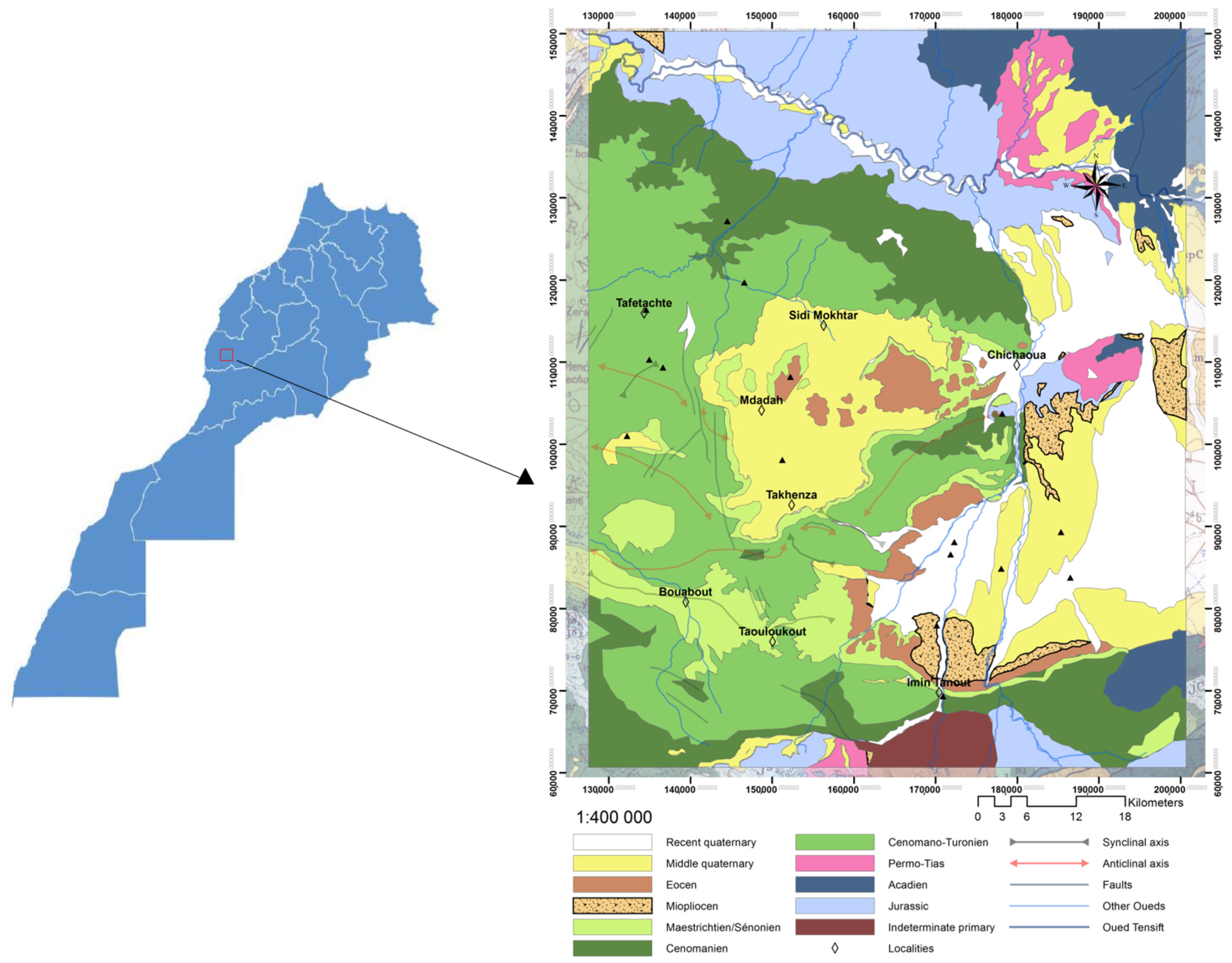

The Ouled BouSbaa basin (Figure 1) is located in the Western Meseta of Morocco. The regional geology shows that the deposits started in the Primary (Cambrian) up to the Quaternary (Holocene). The Primary layers outcrop in the Southern part of the area. They are mainly composed of shales, sandstone shales, clay shales, and conglomerates of the Cambro-Permian.

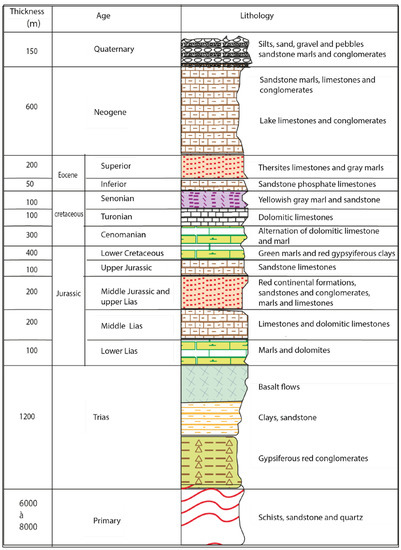

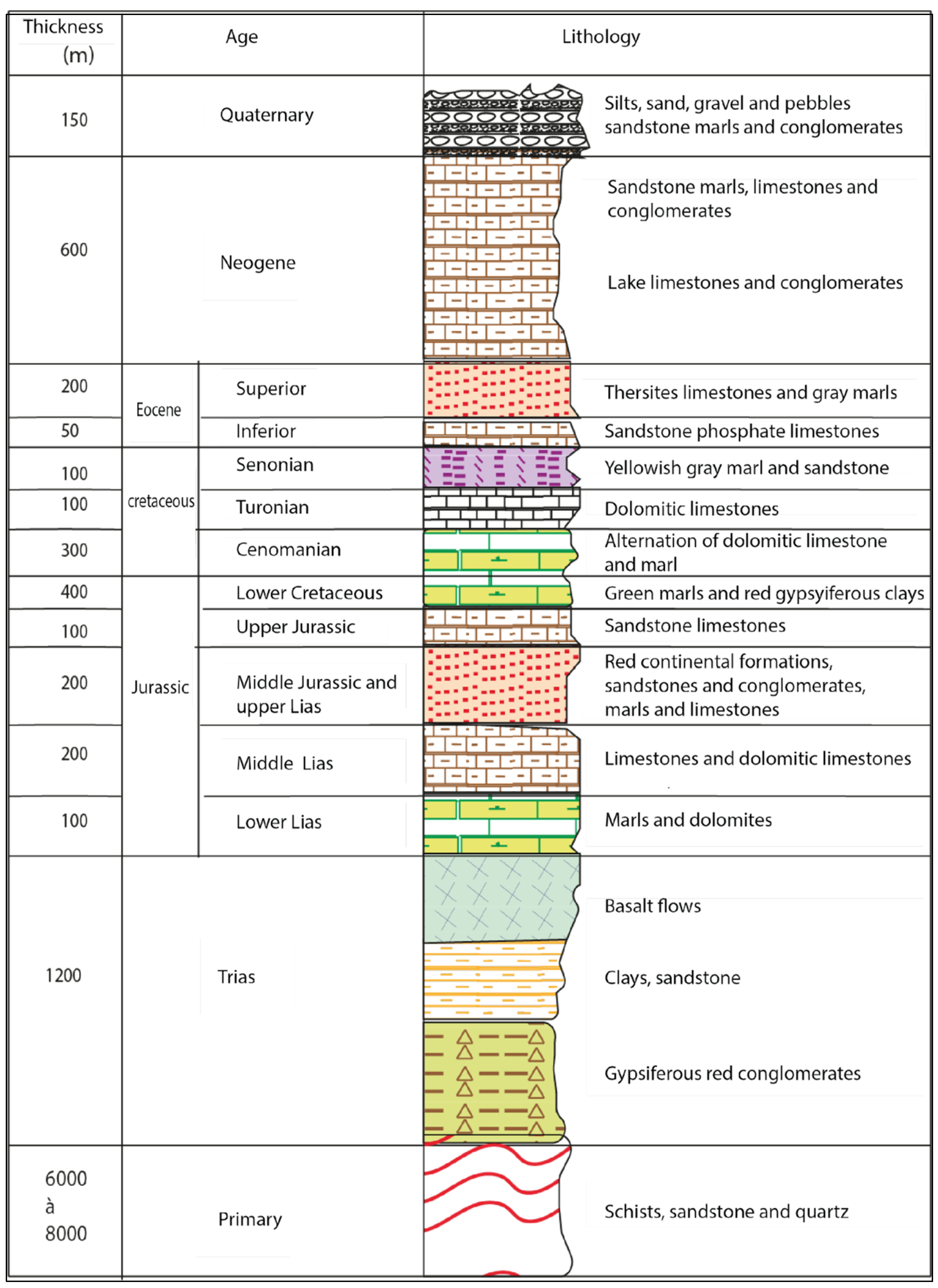

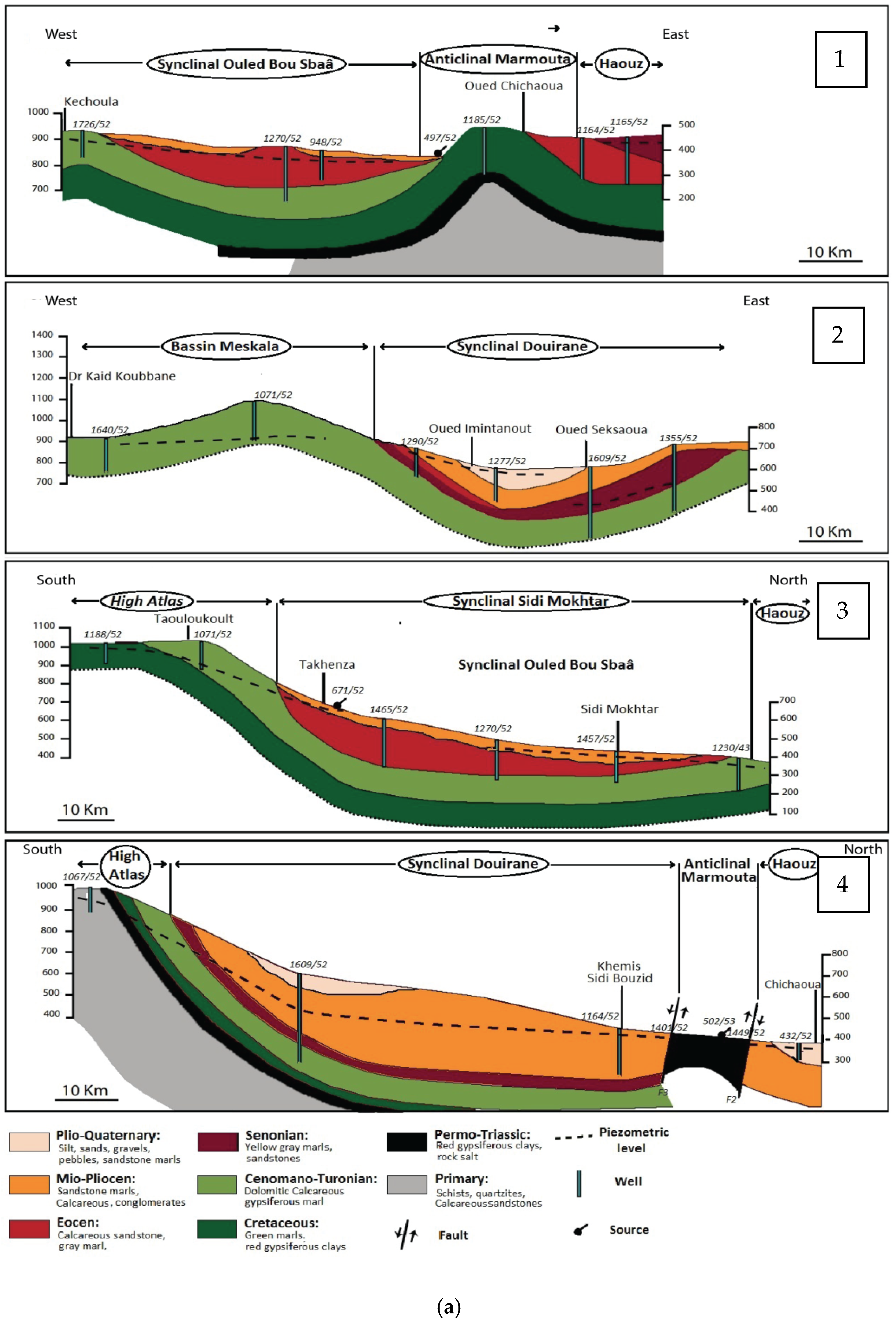

The synthetic stratigraphic log (Figure 2) shows the different geological formations in the investigated area. In general, the thickness of the different geological layers varies from a zone to another one. According to many authors [54,55,56,57,58], all the geological formations of the Quaternary-Tertiary can reach up to 600 m thickness while those of the Cretaceous reach 1800 m. Figure 2 below gives the thickness of the different layers and the main lithological facies. Four geological profiles were developed from the drilling logs, geological maps, and field observations (Figure 3).
  • Profiles 1 and 2 describe two synclines and one anticline separated by Cretaceous layers under Lower Cretaceous formations (Sidi Mokhtar). The first cuvette of Sidi Mokhtar shows Eocene formations in the surface laying on limestone from Cenomanian-Turonian. These structures cover green marls and marl limestones of the Lower Cretaceous. The anticline of Marmouta favors the occurrence of resurgences of the aquifer (source 497/52). The second cuvette of Douirane is formed by the Quaternary that sits on the Mio-Pliocene and the Cenomanian-Turonian (that comes to the surface toward the west).
  • Profile 3 highlights the Sidi Mokhtar Syncline with Mio-Pliocene and Eocene filling over the Cenomanian-Turonian limestone. Cretaceous outcrops around the Sub-Atlas structure as shown in the southern part of the profile.
Profile 4 displays the part of the High Atlas where the Primary formations become almost vertical, the structures of the Douirane basin (mainly quaternary and Mio-Pliocene), and the anticline of Marmouta.

3. Climate and Hydrology

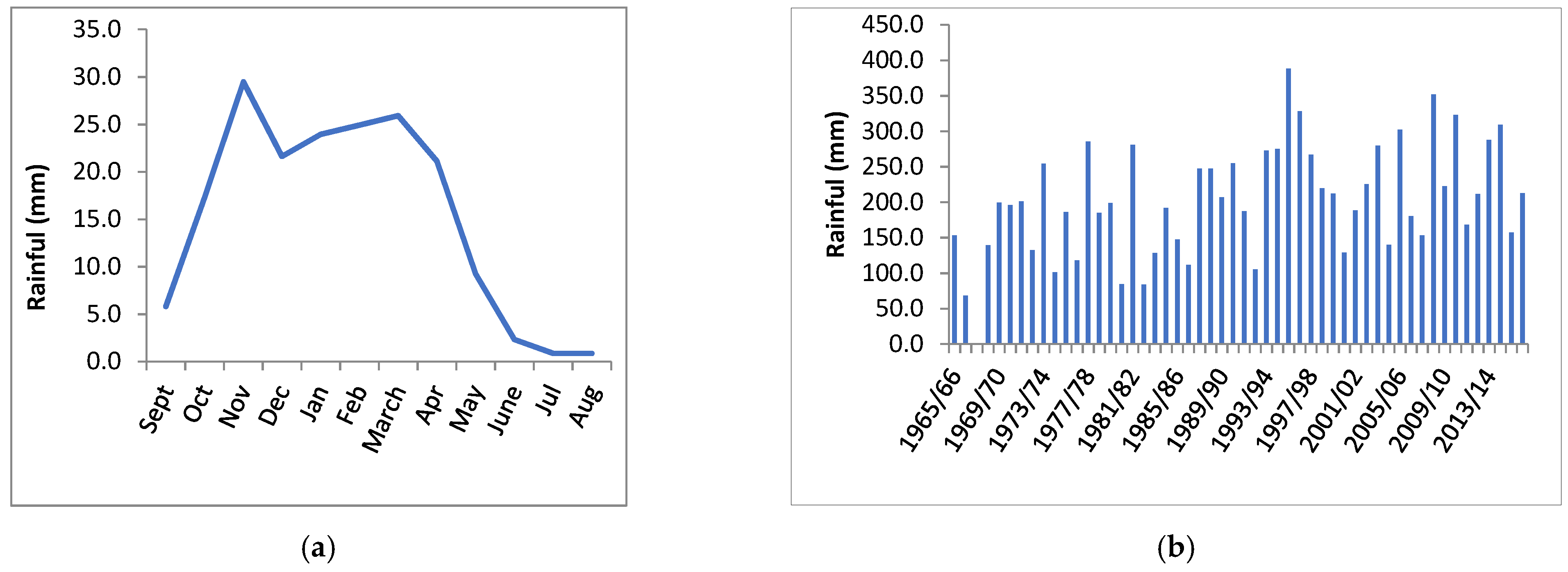

The climate of the area is influenced by its continental localization as well as its proximity to the High Atlas Mountains [60]. Rainfall is generally low characterized by a wide Spatio-temporal variability. The average annual rainfall (Figure 4b) is around 205 mm, ranging from 86 mm to 386 mm. The rainy season generally extends from October to May (Figure 4b).
The average temperature is between 15 and 20 °C with important contrasts in daily, seasonal and annual variations. In general, the climate of the area is arid in the plains and semi-arid in the mountain piedmont, and relatively rainy in the Mountains, which is the main supply for rivers coming from the Atlas.
The average annual evaporation varies between 1800 mm in the north on the Atlas foothills and 2600 mm in the center (basin of Sidi Mokhtar) and the south (region of the Tensift river) of the plain. The minimum values are recorded during January, while the maximum values characterize the months of July and August. Almost 60% of total evaporation is recorded during the four months from June to September.
The hydrographic system is less dense in the central part. The area is drained in its Eastern zone by Chichaoua wadi (Figure 1). All the drainage network contributes to Tensift River (main collector in the Haouz area) flow during the rainy periods.
The relief of the anticline of Marmouta trending NE-SW between Bouabout and Chichaoua gives two sub-watersheds. The Douirane sub-basin, located to the SE of the plain, is drained by the Chichaoua wadi and its tributaries; Wadi Ameznas in the west, Imintanout in the center, and Sekssaoua in the east. These three wadis Ameznas, Imintanout, and Sekssaoua are often dry; their flow depends on the importance of the rainy episodes and the flow of the sources. The northern sub-basin of Ouled BouSbaa (Sidi Mokhtar basin) is drained by the Mramer wadi and its tributaries Bourgua and Fagh and the Matil wadi in the Bouabout area.
The hydrographic network plays an important role in its «underflows». The transversal plains with their low altitude are the outlets for the excess water of each sub-basin. The streams that perpendicularly cross the geological formations can have a draining effect.

4. Hydrogeology

Three main aquifers could be identified in the Ouled Bousbaâ basin based on the results of geology, structure, and geophysics, along with the inventory of water sources and borehole logs. They are aquifers of the Quaternary, Turonian, and Vraconian (belonging to lower Cretaceous) representing complex aquifer profiles with unequal sizes.
The water table of white limestone of the Quaternary is limited by green marls of the Coniacian: it is separated into two parts by the Marmouta anticline. The first represents the syncline of Sidi Mokhtar, and the second called cuvette of Douirane. The thickness of the aquifer is variable but increases from the riverside towards the center of the plain.
The deep aquifer of Turonian limestone, limited by Cenomanian grey marls, spreads out to almost all the basins except in areas of the anticline structures where Vraconian and Cenomanian formations crop out (Figure 3(a1,2)). The thickness of this aquifer varies from 20 m in the cuvette of Sidi Mokhrtar to 200 m towards the East and South. In the Douirane sector, the thickness is greater than 140 m in the central south area (Figure 3(a3,4)).
The deep aquifer of Vraconian limestone limited by the green marls of the Aptian covers almost all the basin except in the anticline zones. The height of the Vraconian wall ranges from 850 to 1400 m to sea level. In the northern sector, the map shows the extension limit of the Vraconian towards the Northeast and North area along with an important asymmetrical depression that outcrops in the southern area. In the southern sector, there is a wide depression corresponding to a structure oriented SW-NE [61,62,63,64].
The transmissivity has been raised during pumping tests carried out by the Haouz hydraulic basin agency. For the free water table, these values vary from 1.1 × 10−5 to 6.5 × 10−2, while for the captive aquifer the values are between 4 × 10−5 to 5.6 ×10−2. This reflects the good productivity of the two reservoirs.
Indeed, the two aquifers are homogeneous and isotropic.
This work will report mainly on the quaternary and Turonian aquifers, the deep Vraconian aquifer is represented only by two sample sites.
Piezometry
The hydrological system of the study area showed the existence of impermeable as well as permeable series that can allow interstitial or fissured groundwater flow. Groundwater circulation is mainly longitudinal but can be transversal in anticlinal relays and faults [58,59,60,61,62,63,64,65,66,67].
The depth of groundwater varies from 22 to 240 m under the soil level. Nevertheless, the exceptional depth of 508 m was the only borehole capturing water from the Vraconian. The shallow groundwater was observed close to the surface water streams while the deepest were observed in the frontal zone. The lowest elevation of groundwater was 325 m close to the Tensift wadi in the North-western zone, while the highest reached 740 m in the South close to Imintanout at the High Atlas piedmont.

5. Methodology

A sampling campaign was carried out in May 2017 in the whole area. The Electrical Conductivity, pH, and temperature of the groundwater were directly measured in the field. Water samples were collected in 1 L polyethylene bottles, thoroughly washed and rinsed to avoid any contamination. The bottles were transported at 4 °C and kept at this temperature in the lab. The sampling points were chosen to be distributed over the different parts of the area depending on the aquifer captured.
A total of 46 samples (including 27 capturing the phreatic aquifers and 18 capturing the captive aquifer) were analyzed for the major anions (Chloride, Nitrate, and Sulfate) and cations (Calcium, Magnesium, Potassium, and Sodium). Volumetric methods were used for HCO3, Ca, Mg, and Cl dosage in the Laboratory of Applied Geology and Geo-Environment (LAGAGE); Ibn Zohr University.
A flame photometer was used to measure Na and K and a spectrophotometer for SO4.
Analyses of 2H and 18O were carried out on 30 samples collected and stored as recommended by [65].
The δ2H and δ18O of groundwater were obtained by H2 and CO2 equilibrium, respectively, using Isotope Ratio Mass Spectrometry (IRMS) on a delta S Finnigan Mat in the Laboratory of Applied Geology and Geo-Environment (LAGAGE); Ibn Zohr University.
The isotope ratios are expressed in terms of δ‰ relative to V-SMOW (Vienna Standard Ocean Mean Water). The ratios were calculated using International and Internal standards. Simple reproducibility was within ±0.5‰ for δ2H and ±0.2‰ for δ18OH2O.
Stable isotope ratios were expressed in part per thousand (‰) using the conventional delta notation:
δ ‰ = [ R ( s a m p l e ) R ( V − S M O W ) − 1 ] ∗ 10 3
With R representing one of the ratios: 18O/16O and 2H/1H for the samples (R(Sample)) and the Standards (R(V-SMOW)).

6. Results: Hydrochemistry Characterization

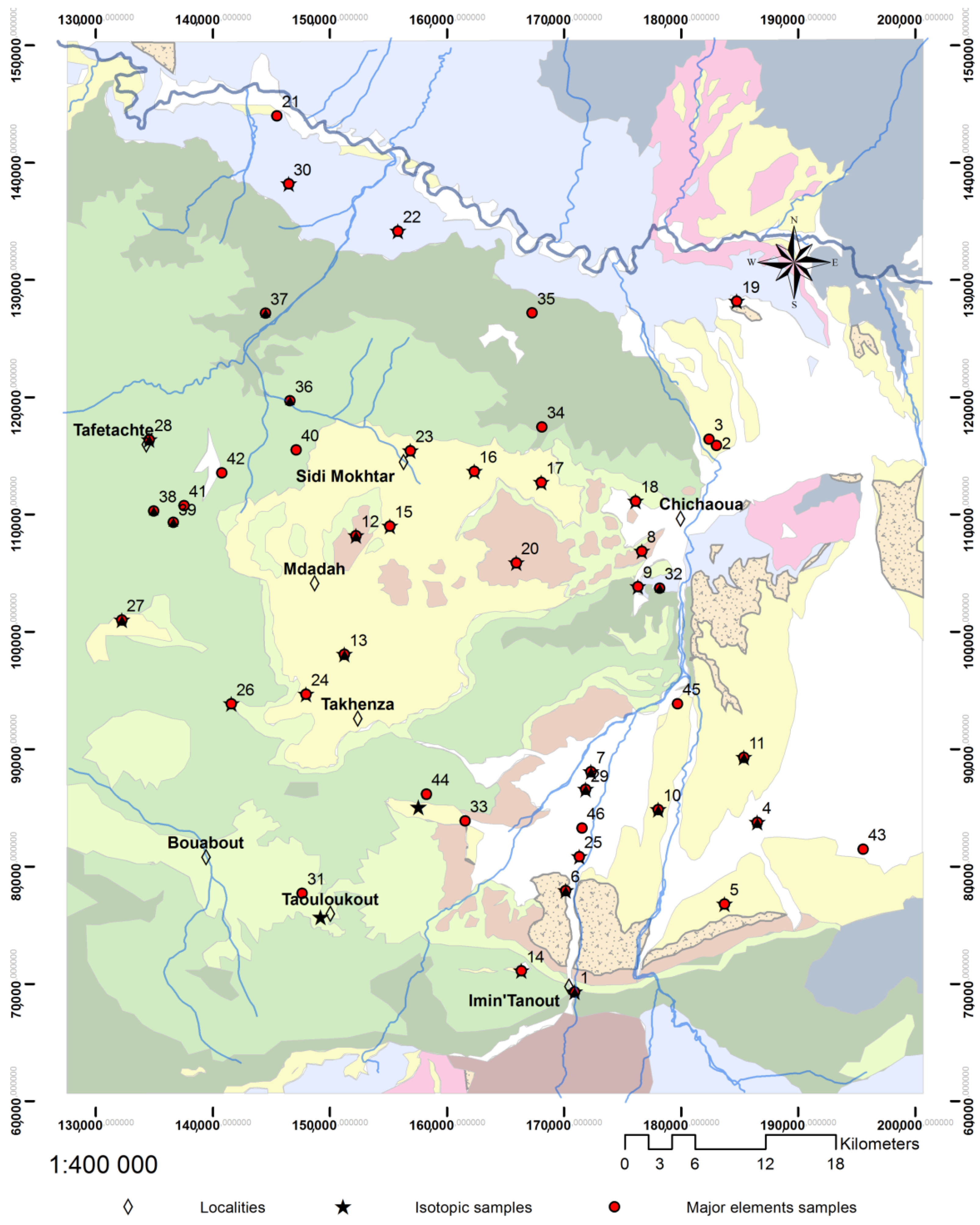

The map (Figure 5) shows the scattering of the groundwater sampled points in the study area. Table 1 presents chemical and isotopes data of the sampling campaigns for the investigated aquifers. The data and discussion that follows are presented as a function of geographic distribution in the basin (Figure 5).
During the sampling campaign of May 2017, the temperature of groundwater samples ranged from 20.4 °C (well 31) to 27.2 °C (well 9), with an average of 23.98 °C (Table 1). These values are typical for the hypothermal cold waters reflecting the seasonal changes. The values of pH varied from 7.1 (well 24) to 8.4 (well 26), indicating the neutral to alkaline nature of groundwater. The Electrical Conductivity (EC) was variable in the zone extending from 228 μS/cm in the South to 3245 μS/cm toward Tensiftwadi which constitutes the main collector of the global area.

6.1. Spatial Distribution of the Electric Conductivity (EC)

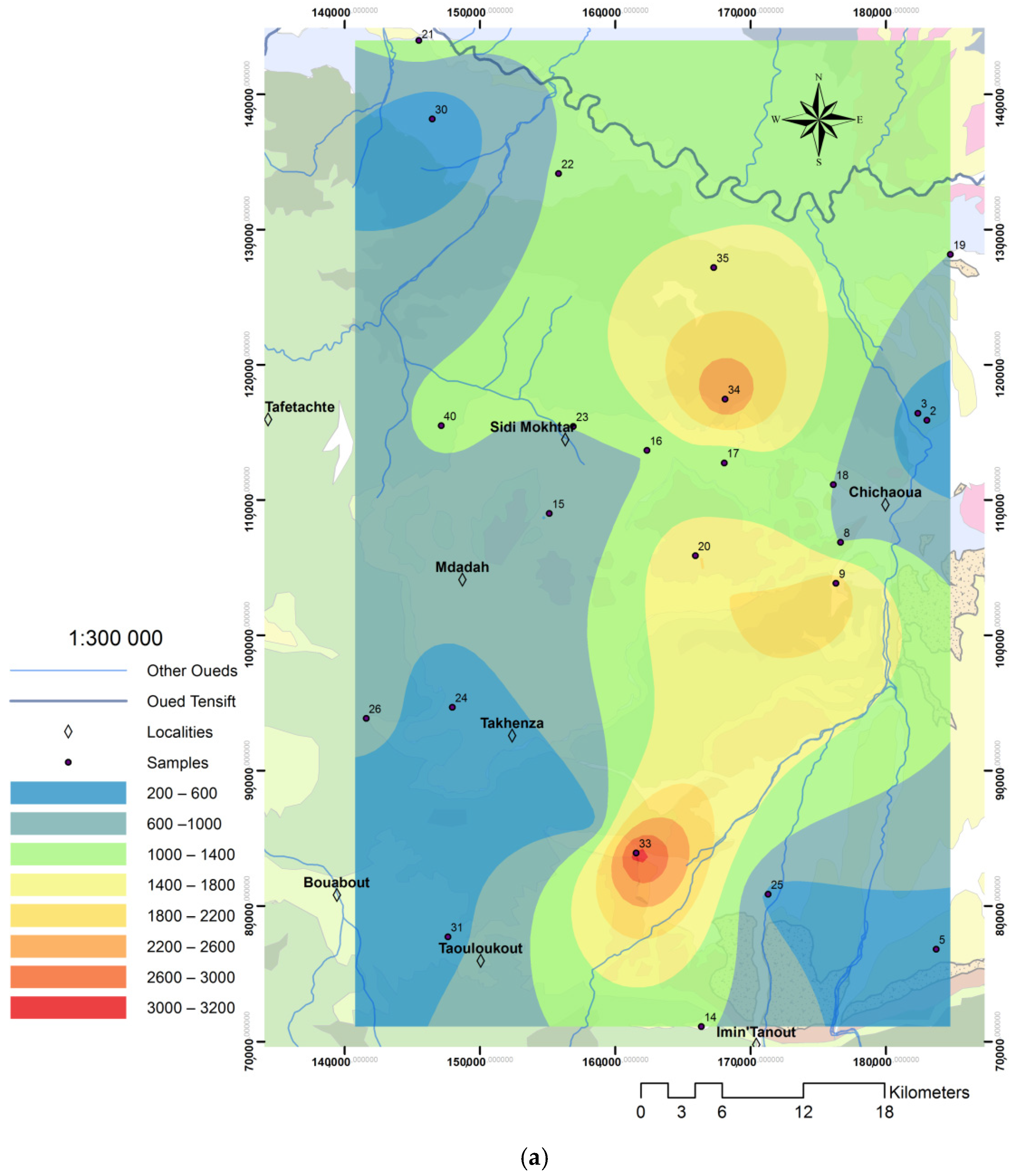

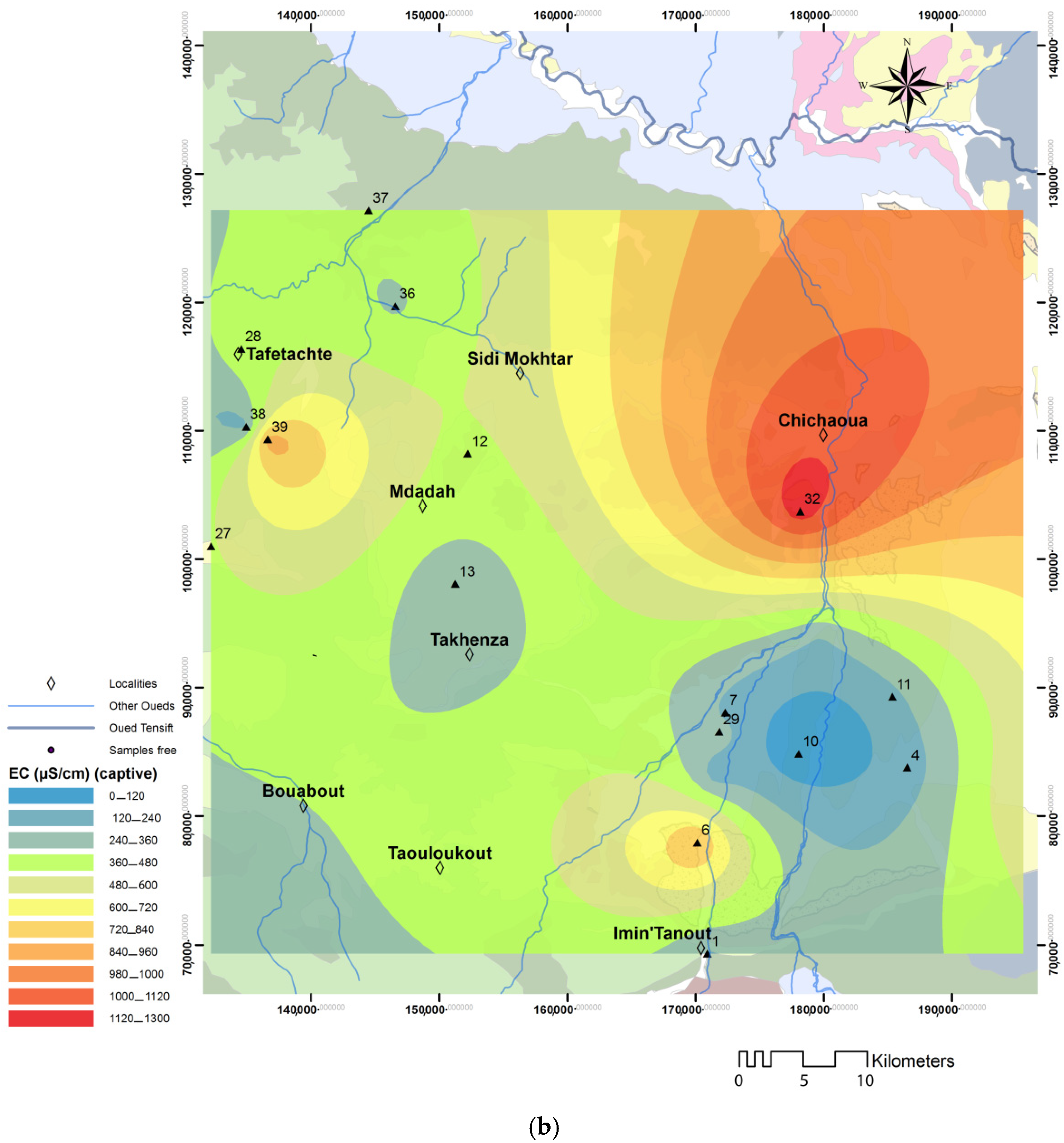

The objective of the electrical conductivity map (Figure 6) is to investigate the origin and the spatial evolution of groundwater mineralization and the interaction of water with the geological layers. EC values in the free aquifer are ranging between 228 and 3245 µS/cm (Figure 6a). High values were observed downstream from Chichaoua and Imintanout.
EC values in the captive aquifer are ranging between 228 and 3245 µS/cm (Figure 6b) and increase globally from South to North following the flow direction. The lowest values appear upstream (recharge zone) while the highest values occur downstream close to the Tensift wadi.

6.2. Main Ionic Character

The groundwater hydrochemical characteristics of the Ouled BouSbaa plain are shown in Table 1. The pH of the groundwater in the study area is 6.3; 8.85, and the average value is 7.37; the groundwater is weakly alkaline.
The main cation in groundwater is Ca2+, with a concentration between 94 and 584 mg/L. The average value is 216.99 mg/L. The order of cations concentration is Ca2+ > Mg2+ > Na+ > K+. The main anion of groundwater is SO42−. Its concentration range is between 34.6 and 1651 mg/L. The mean concentration of SO42− is 395.78 mg/L. The order of anion concentration is: SO42− > Cl− > HCO3− > NO3−.
It is worth noting that the concentration of NO3− is 3.71; 477.0 mg/L, and the average concentration is 152.64 mg/L, with an over-the-standard (50 mg/L) [9]; rate of 76.1%. It is obvious that groundwater in the area has been seriously polluted by NO3−.

6.3. Water Types

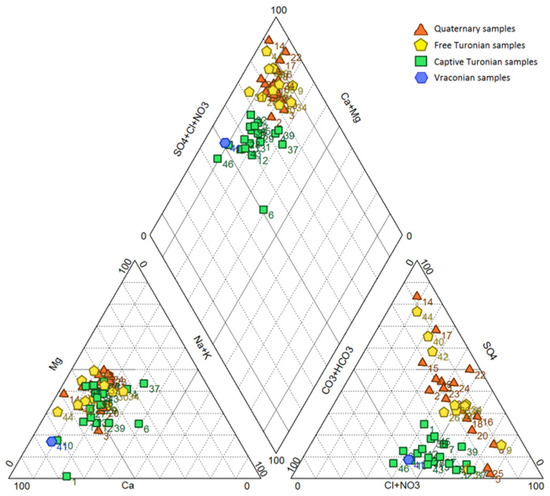

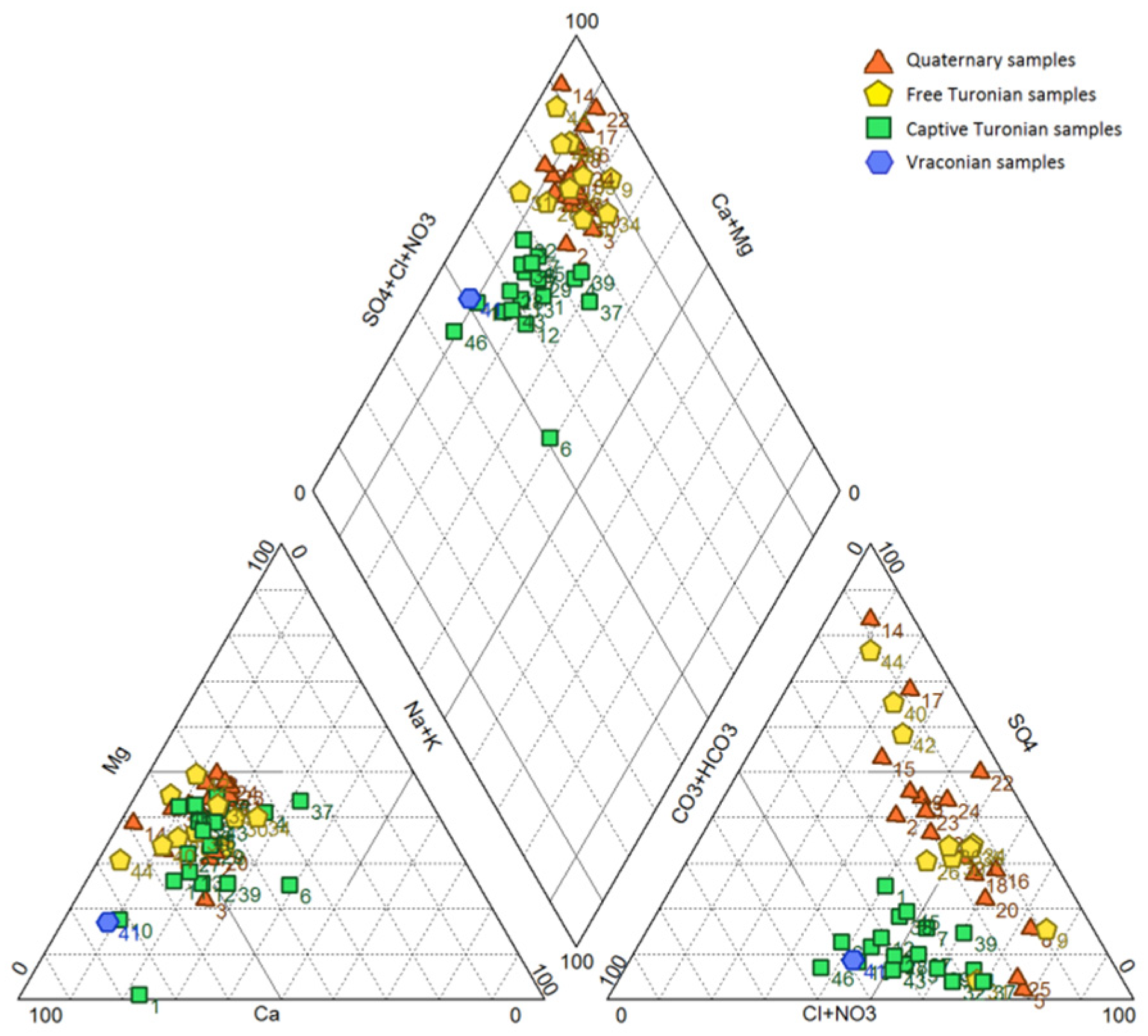

To identify the water types in the study area, the contents of analyzed elements were reported on the diagram of Piper (Figure 7) illustrating the existence of different types of facies. The dominant cations were Calcium followed by Magnesium. The anion concentrations show two groups with one dominated by carbonates and chlorides and a second rich in sulfates and chlorides. Thus, there seem to be two different facies with the first one characterized by sulfate and calcium-magnesium representing the confined aquifer of Turonian and one sample from Vraconian. The second of hyper-chlorides and calcium, that represents a mixing between the Quaternary water and the unconfined Turonian to the upstream.

6.4. Isotopes

The estimate of aquifers’ recharge altitudes is of particular interest where recharge areas are poorly known. Generally, the isotopes of the water molecule (Oxygene-18, Deuterium) are among the most used in aquifer investigations. They are expressed using the Delta notation (δ), defined by Craig [68] as:
δ (‰) = [(Rsample/Rreferance) − 1] × 1000
R is the ratio of isotopic abundance, expressed as 18O/16O or 2H/1H. Positive values of δ indicate that the sample is enriched relative to the reference standard and negative values indicate that the sample is depleted.
For Oxygen-18 and Deuterium, the standard corresponds to the average isotopic composition of SMOW (standard mean ocean water), oceanic waters having by definition a value equal to 0%. On a global scale, the Oxygene-18 and Deuterium contents of precipitations that did not undergo evaporation are characterized by a linear relationship [68]. The equation of this line, called the global meteoric water line (GMWL), is written as follows:
δ ‰ (2H) = 8 × δ ‰ (18O) + 10
Thirty groundwater samples were collected in the study area. The sampled points were distributed over the entire area (Figure 8). Stable isotopes values are reported in Table 1.The altitude of the water points ranges between 830 m (sample 30) and 212 m (sample 21). Oxygene-18 values range from −7.60‰ (well 10 at 640 m altitude) to −4.25‰ (well 17 at 374 m), those of Deuterium between −53.07‰ (well 10 at 640 m altitude) and −27.03‰ (well 28 at 412 m). The relationship between Deuterium and Oxygene-18 is shown in Figure 9, with the global meteoric water line [68]. All water samples plot along the GMWL or are very close to this line. Some samples below the GMWL show very slight evaporation.

7. Discussion

In general, the groundwater level in the study area is quite deep (22 to 240 m below ground level). Even with a deep aquifer, the groundwater flow is controlled by surface topography. In the eastern part, groundwater flows towards the north and in the western part, towards the south-west. As expected, the hydraulic gradient is low in the plains and high in the pediment zones in the north and the south. Collected groundwater samples are divided into three groups based on the type of geological formation the wells encountered. As the majority of the samples (28 no.) are distributed within the Free Aquifer, 18 samples represent the Quaternary formation, 10 samples are from the Turonian formation, and the last 17 points belong to Turonian captive aquifer.
The analysis of EC (Figure 7) indicates that the quality of the water in the captive and the free aquifers were mostly good except for well 34 with a value of 3245 µS/cm exceeding the Moroccan and OMS standards. The lowest values of conductivity were observed around the Seksaouawadi (upstream of Chichaoua’s Wadi). The low EC freshwater of this stream feeds the aquifer according to [69].The highest EC values were recorded north of Chichaoua and Sidi Mokhtar probably resulting from leaching related to raw wastewater discharge and the surrounding fields [70].

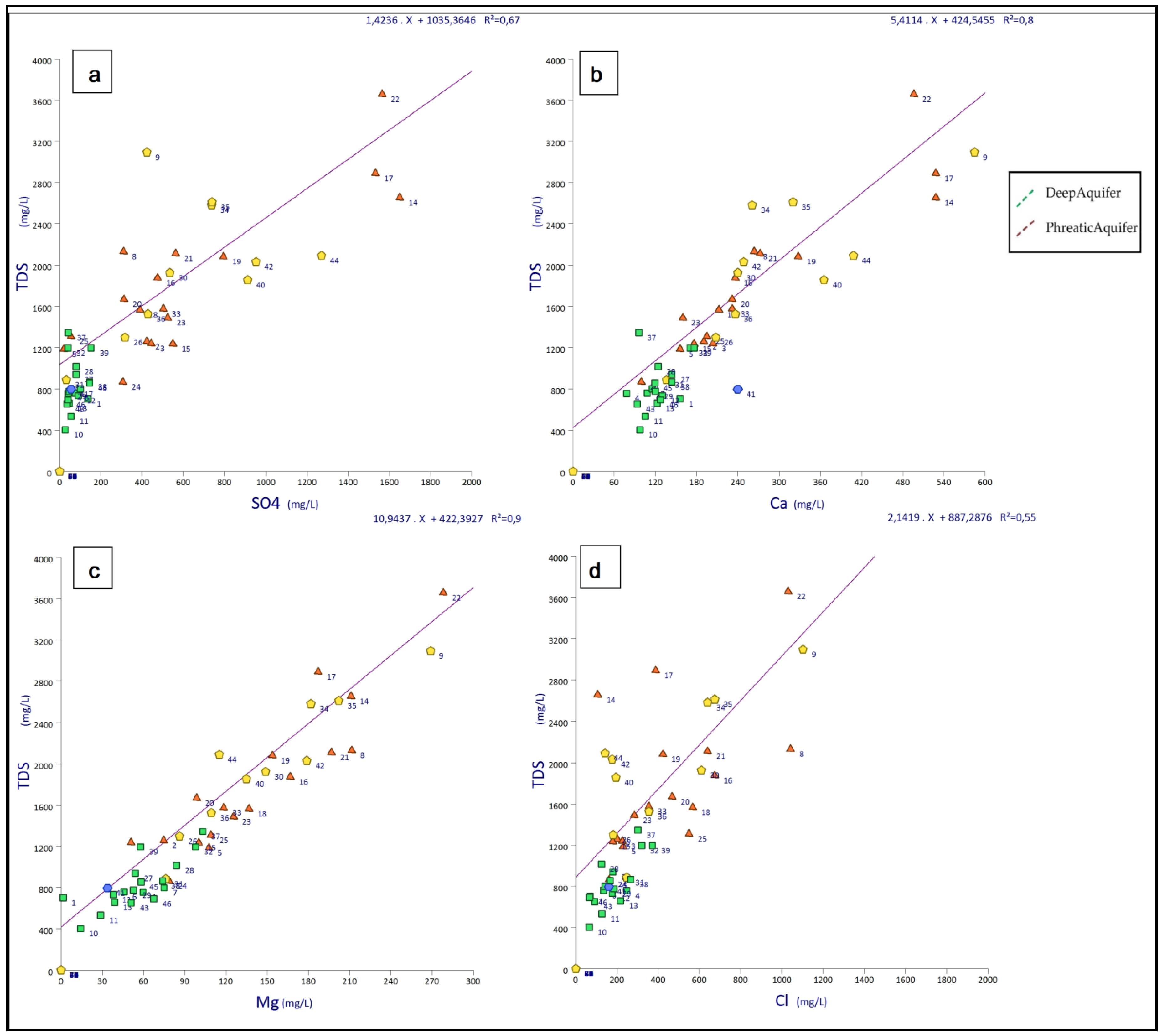

The values of total dissolved solids (TDS) vary between 508 and 3740 mg/L. The concentration of ions varies widely with Chlorides from 63.9 to 1402.25 mg/L, Calcium from 78 to 584 mg/L, Sodium from 19.84 to 317 mg/L, sulfates from 19To 1651 mg/L, magnesium from 1.44 to 278.4 mg/L, and nitrates from 3.71 to 477 mg/L.
To better clarify the origins of mineralization, Figure 10 reports correlation between TDS and major elements. These correlations reflect the main elements contributing to groundwater salinity.The graphs show a clear distinction of two groups of samples. Those originating from the deep aquifers (captive Turonian) with a low salinity compared to those originating from the Quaternary and unconfined Turonian aquifers. This is consistent with the interaction above of the Piper diagram (Figure 8).

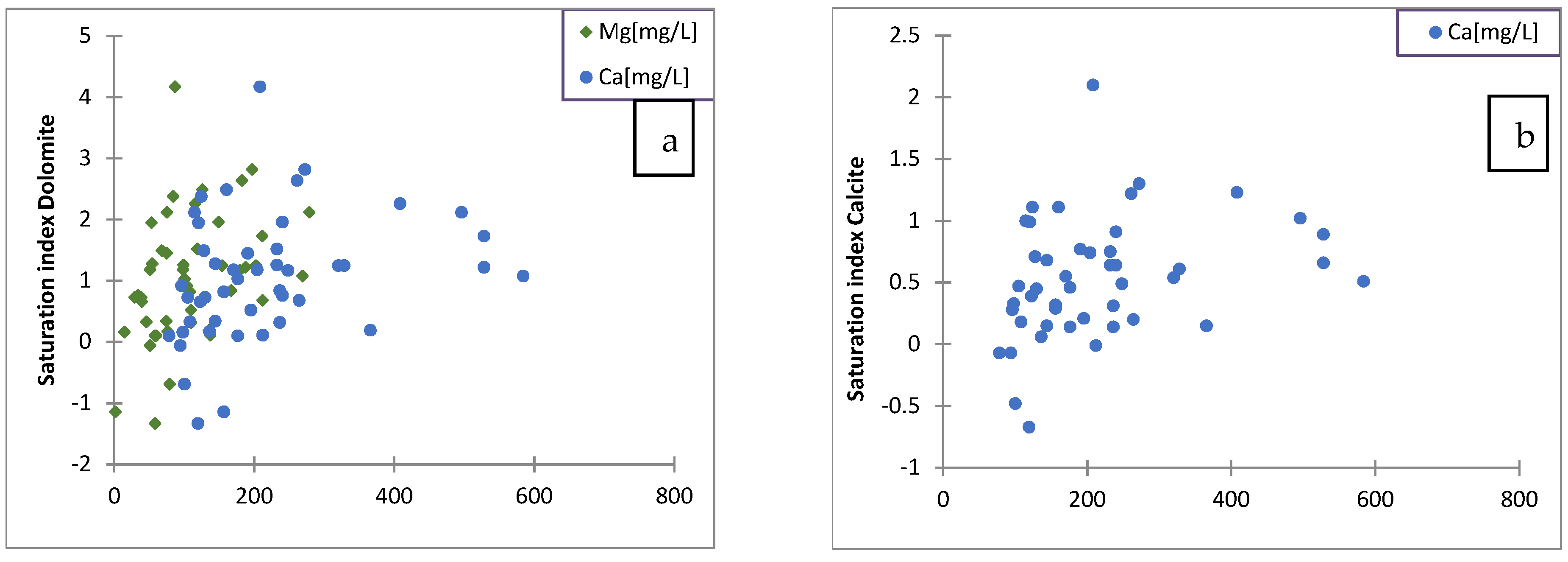

However, (Figure 10) showed that despite the high saturation index of carbonates, they are the evaporite formations that correlate better with minerals in groundwater samples. Hence, sodium and chlorides originated from the dissolution of halite contained in Triassic evaporates and also from de fertilizers as indicated by the spatial distribution map of EC [71,72,73].

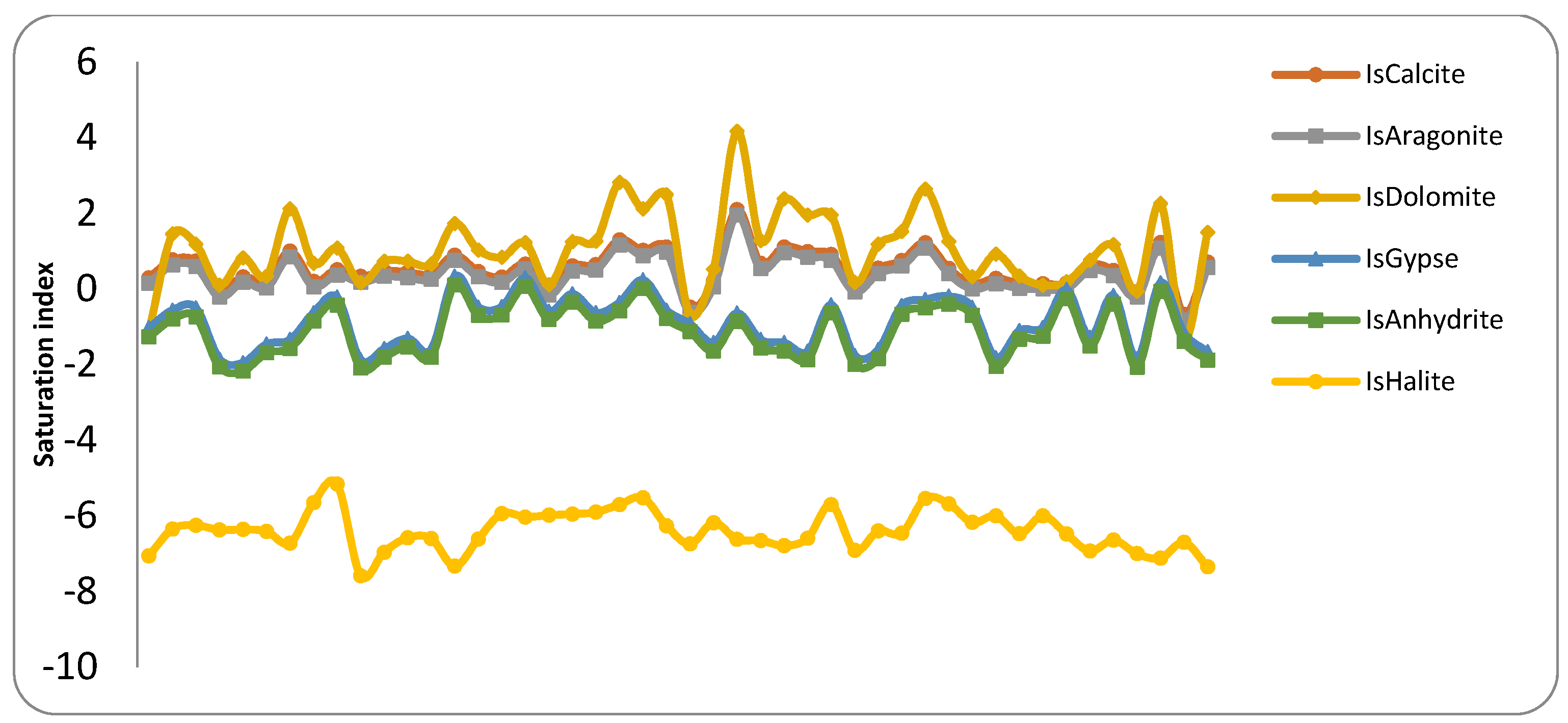

Water is in equilibrium with a mineral when the salinity index Is = 0, under-saturated when Is < 0, and over-saturated when Is > 0 [74,75]. The graph of the salinity index (Figure 11) shows that minerals with carbonates are in saturation while the minerals of evaporites are under-saturated.
The concentrations of SO42−, Cl−, Ca2+ and Na+ presented a very similar distribution. The highest concentrations occurred in the Northern part of the aquifer. The concentrations of Calcium and Magnesium may originate from the dissolution of carbonate formations of the Cenomanian-Turonian and dolomites of lower Cretaceous in addition to leaching from encrusted salts but in majority from the dissolution of evaporates; Gypsum and Anhydrites in Cenomanian-Turonian and Permo-Triassic halite (Figure 12c), [76]. Calcium ions also originated from trickling waters of Chichaouawadi and AssifElmal and springs upstream of the Plio-Quaternary water table [77]. Nevertheless, the highest values of Magnesium and Sulfates can be justified by the presence of gypsiferous marls from evaporite deposits. Sodium and chlorides were found in the Southeast and Northwest parts of the aquifer. Chlorides can have many origins such as sandy gypsiferous clays, gypsiferous marls, and halite.

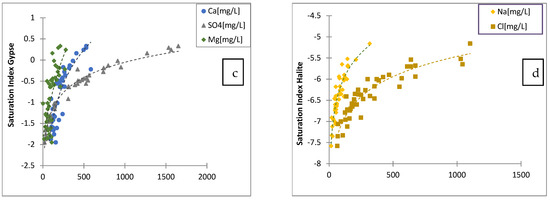

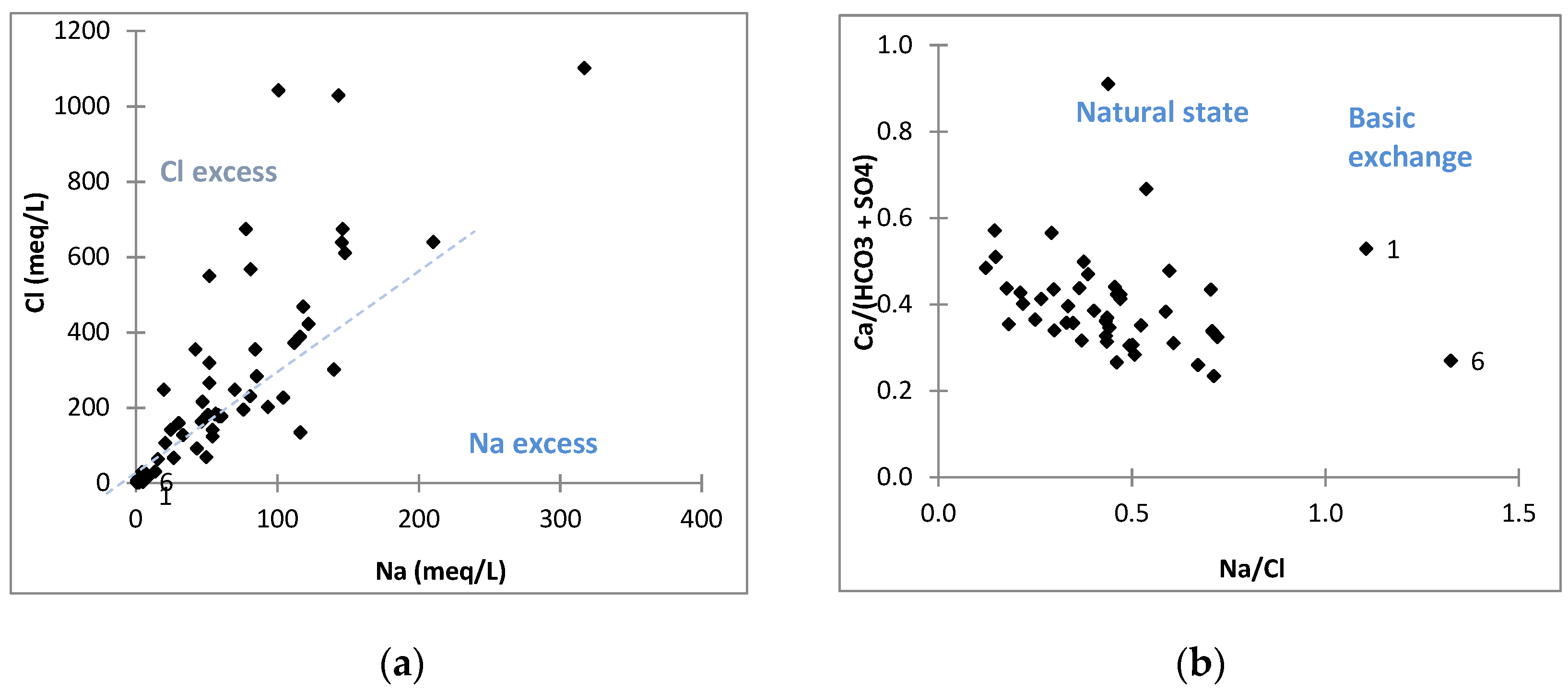

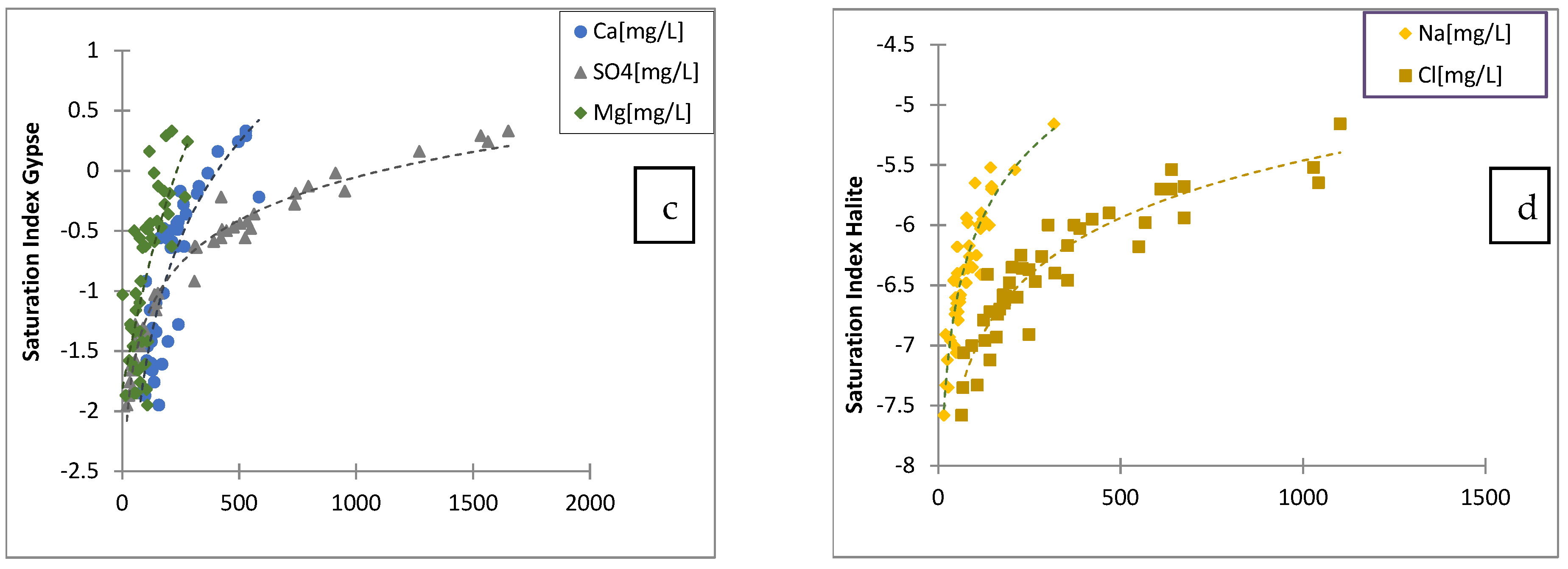

The graph of the evolution of Cl− as a function of Na+ (Figure 12d) shows that they are correlated with an excess of chloride ions in some points. The projection of all samples on the Na+/Cl− and Ca2+/(HCO3SO4) diagram showed that 44 of the 46 water samples were in the natural state.
As the free aquifer and the captive are segregated by an impermeable layer, the nitrates contamination mainly affects the water table, not the deep aquifer. It is therefore essential to establish its spatial distribution to know its source.

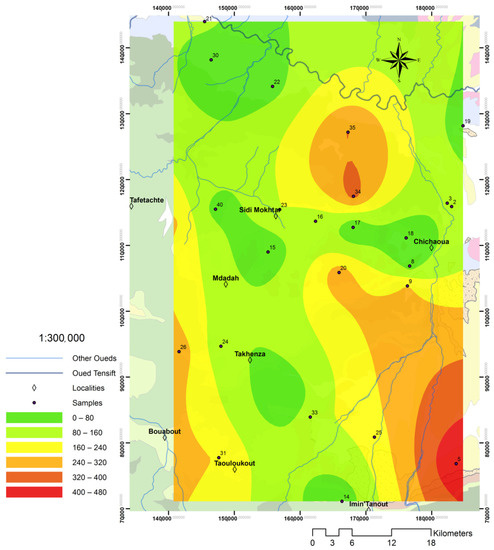

The high concentration of nitrates is certainly related to human activities including the presence in the area of many landfills with leachates, domestic wastewater effluents, septic tanks, and larges agricultures exploitations using big amounts of fertilizer that can infiltrate the groundwater as shown in the special distribution of the Nitrates map (Figure 13) [78].

7.1. Isotopes

Stable isotopes of the water molecules can be used to understand the source of groundwater recharge, connectivity between aquifers [54,78], groundwater flow regime, and aquifer recharge [79,80].
It often represents the most effective tool to study the possibility of a connection between waters of different origins [81] since they are conserved as soon as they reach the level of the aquifer. Previous observations in the study area have shown heterogeneous values (−24.4% to −110.7% for d2H and −5.5% to −15.6% for d18O) representing the isotopic variation of rainfall from the plain to the High Atlas Mountains.

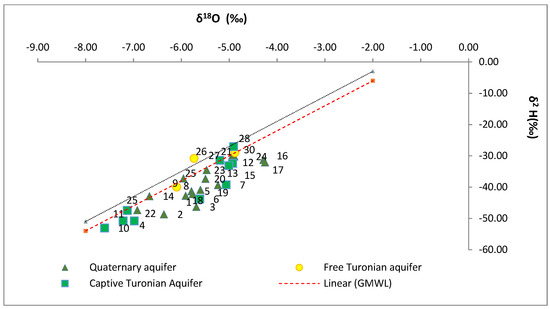

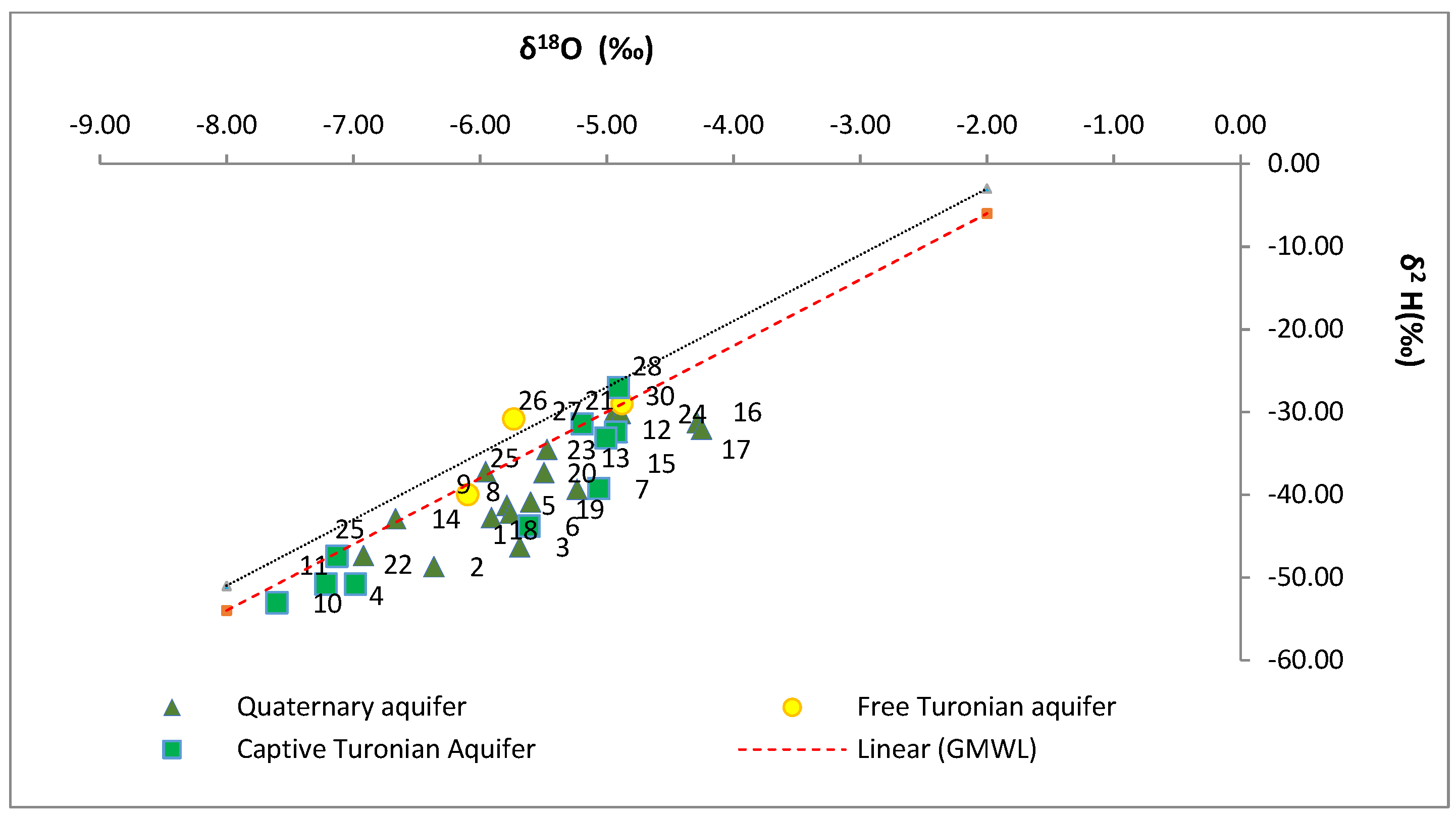

Based on the values of δ18O and δ2H and their relative position to GMWL (Figure 8), our samples could be divided into two groups:
  • The first with points 14, 21, 25, 26, 27, 28, 29, and 30 located a little above the GMWL, which may indicate that the trickled waters were not submitted to evaporation;
  • The second that encloses all the remaining samples appeared below the GMWL and seems to be partitioned by evaporation.

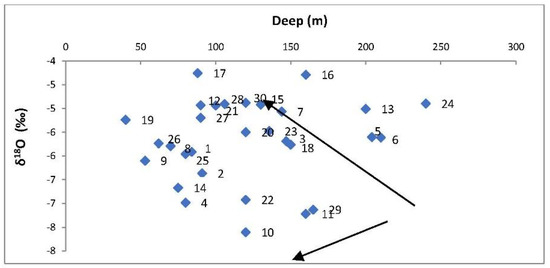

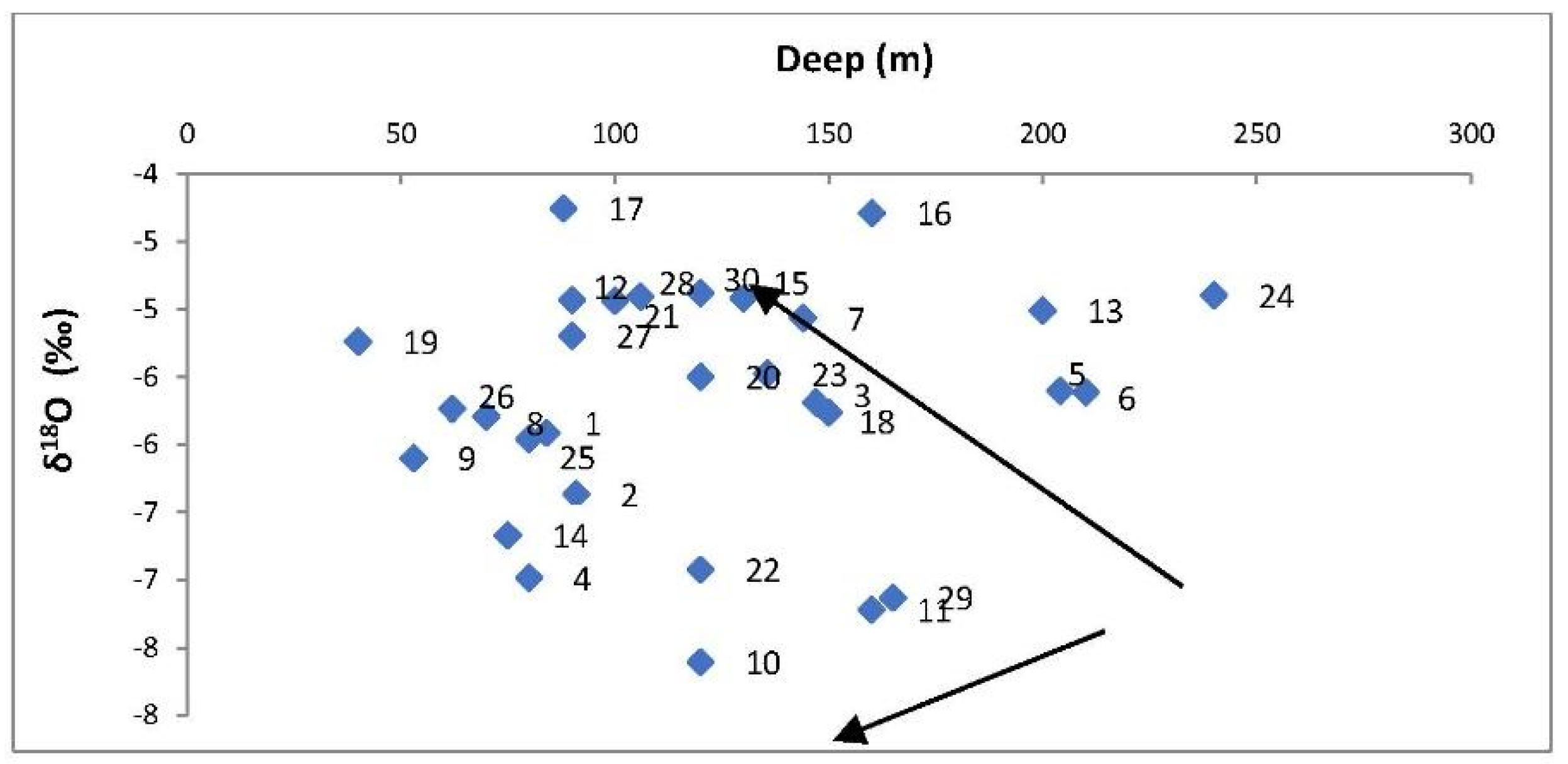

The analysis of the relation between oxygen 18 and the depth of groundwater samples (Figure 14) showed that the evaporation affects mostly the shallow groundwater samples. The origin of the deep groundwater samples with low levels of δ18O is distant coming from the high altitudes. This confirms the hypothesis that the aquifers are fed by the junction of the two aquifers at the High Atlas piedmont.

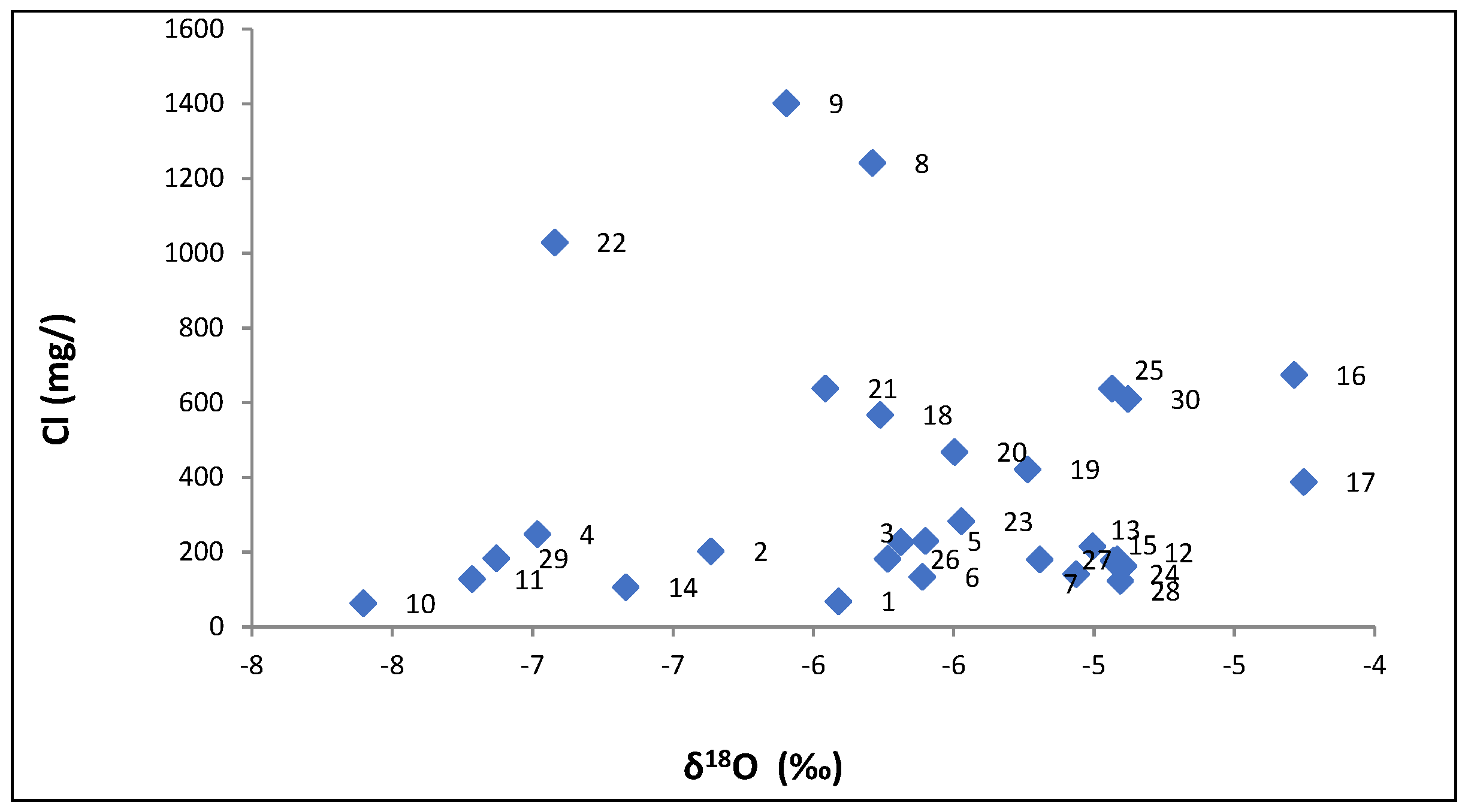

The graph of δ18O versus chloride levels (Figure 15) that can explain the different processes such as groundwater mixing and halite dissolution [82,83], showed two trends. The first, characterized with high chloride values resulting from the leaching of evaporite formations and the second with low values shows that the origin is far away.
Nitrate contamination of groundwater is a growing problem worldwide and constitutes a major challenge to drinking water supplies dependent on groundwater [84]. To check the sources of the nitrates, several patterns have been illustrated in Figure 16 and Figure 17. According to Figure 16a, several samples represent high nitrates values associated with high 18O values. These results indicate that the nitrates leached from the land surface to groundwater via infiltration. The irrigation water is marked by enrichment in δ18O due to considerable evaporation at the surface and a concentration of NO3-more or less high depending on the degree of fertilizer use. Since we have a significant correlation between δ18O H2O and NO3-in general, this suggests that irrigation water return is an important source of nitrate.

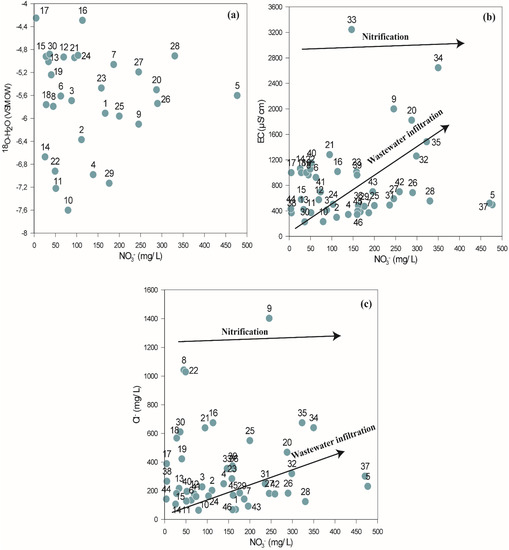

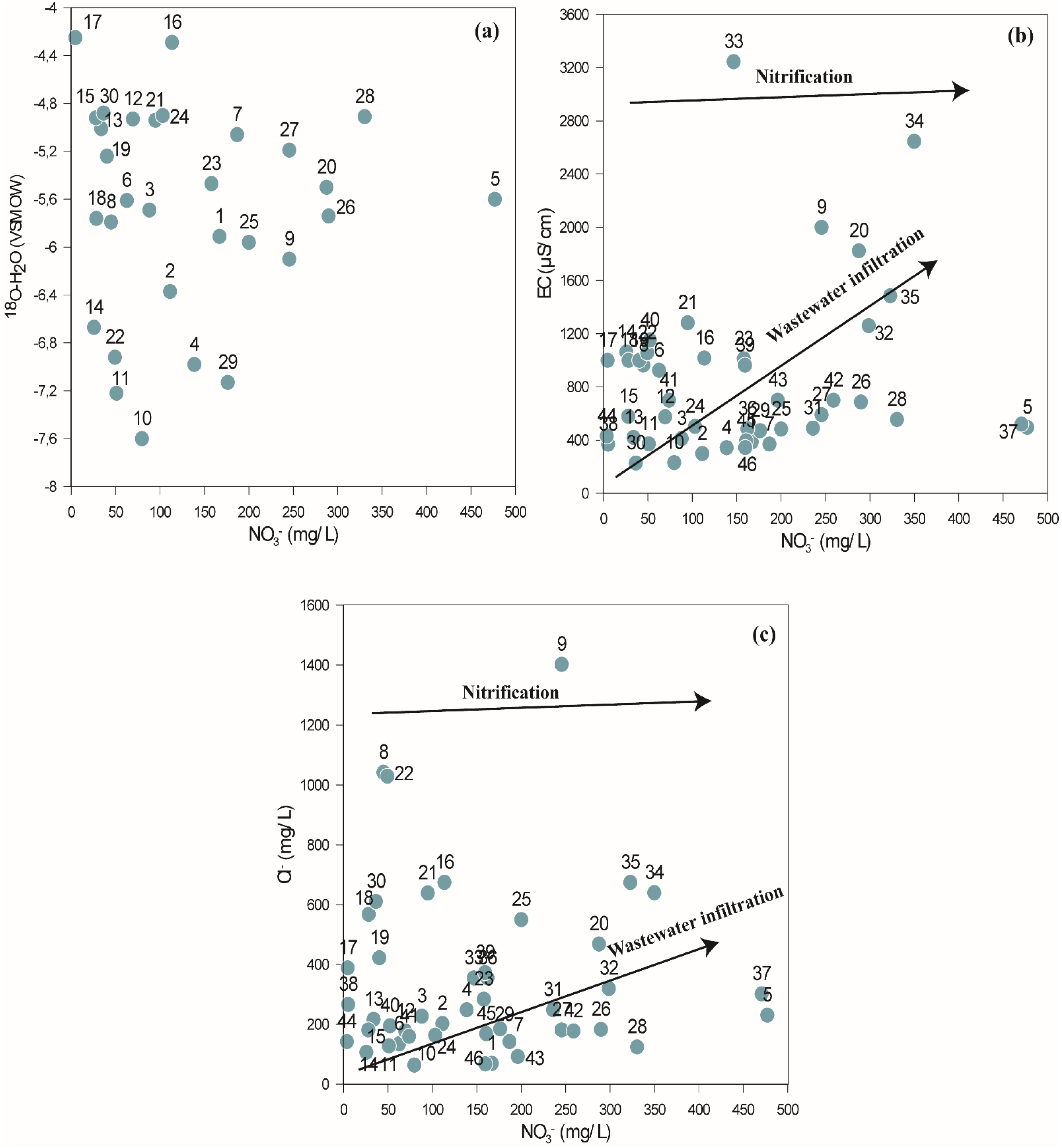

As shown in Figure 16b,c, CL and EC have a constant trend with increasing NO3. Increased NO3- in groundwater without influencing other variables is evidence that infiltration of polluted water from the surface is mixing with mineralized groundwater. Figure 16 indicates that waste infiltration contributes significantly to nitrate pollution of water.

7.2. Charging Altitude

In the context of the evolution of groundwater resources in an arid to semi-arid zone combined with increasing socio-economic development which has led to overexploitation of the aquifer; it is necessary to locate the feeding areas.

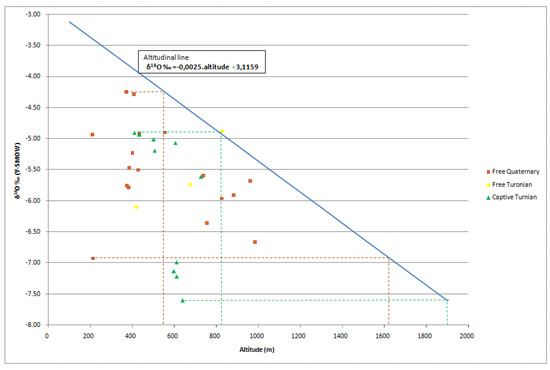

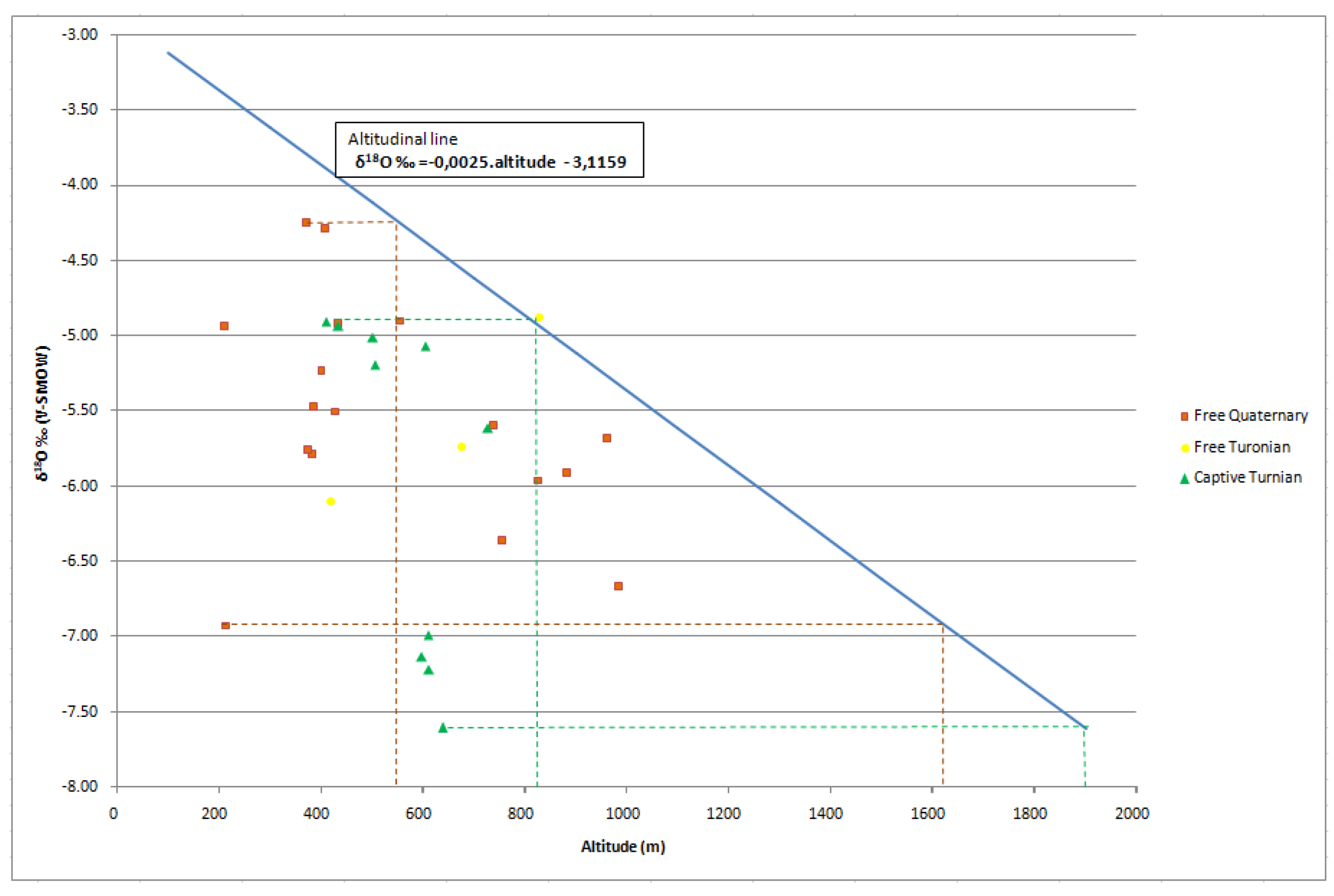

From the isotopic composition of the water (Figure 17), we can calculate the average water supply altitude [85]. For this, it is necessary to calculate the regional altitudinal gradient. However, the lack of data in SO4 and 2H on rainfall in the study area led us to synthesize previous studies ... in order to obtain a gradient of 0.25 pr per 100 m for 18O.
The projection of the sample points made it possible to locate the recharge altitudes between 570 m and 1600 m for the free aquifer, and 800 m and 1900 m for the captive aquifer. This confirms the feeding by the connection of the Turonian aquifer in the free Plioquaternary aquifer in the foothills of the High Atlas.

8. Conclusions

The groundwater flow in the study’s area is controlled by surface topography; groundwater flows towards the north in the eastern part and in the western part, towards the south-west. The quality of the water in the area was mostly good, except for well 34 with a value of 3245 µS/cm, exceeding the Moroccan and OMS standards, probably resulting from leaching related to raw wastewater discharge and the surrounding fields.
According to the analysis and Piper diagram, samples originating from the deep aquifers (captive Turonian) have a low salinity compared to those originating from the Quaternary and unconfined Turonian aquifers.
Hence, the geochemical composition of the groundwater in the area shows that minerals mostly originated from the water-rock interaction such as the dissolution of halite contained in permo-Triassic evaporates the sandy gypsiferous clays, the gypsiferous marls and Gypsum and Anhydrides from the Cenomanian-Turonian. Entropic activities such as landfills with leachates, domestic wastewater effluents, and the use of fertilizer in agriculture generate high concentrations of nitrates.
For the values of δ18O and δ2H and their relative position to GMWL, our samples could be divided into two groups, the first where the trickled waters were not subjected to evaporation and the second encompassing all the remaining samples partitioned by evaporation.
The analysis of the relation between oxygen 18 and the depth of groundwater samples showed that the evaporation affects mostly the shallow groundwater samples. The origin of the deep groundwater samples with low levels of δ18O is distant coming from the high altitudes. This confirms the hypothesis that the aquifers are fed by the junction of the two aquifers at the High Atlas piedmont.
The analysis of the isotopes in addition to the other corposants and the altitude recharge confirm that showed two trends. The first, characterized by high chloride values resulting from the leaching of evaporite formations, and the second with low values showing that the origin is far away.
This confirms the feeding by the connection of the Turonian aquifer in the free Plioquaternary aquifer in the foothills of the High Atlas.

Author Contributions

Conceptualization, R.T. and A.E.M.; Data curation, R.T.; Formal analysis, R.T.; Funding acquisition, R.T. and A.E.M.; Investigation, R.T.; Methodology, R.T. and A.E.M.; Project administration, A.E.M.; Resources, R.T., A.E.M.and L.B.; Software, R.T.; Supervision, A.E.M.; Validation, A.E.M., D.C., M.E. and L.B.; Visualization, M.E. and F.E.E.G.; Writing—original draft, R.T.; Writing—review & editing, R.T., A.E.M., M.E. and L.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
