Metacommunity Concepts Provide New Insights in Explaining Zooplankton Spatial Patterns within Large Floodplain Systems

Abstract

Flood pulse related physical variables (FLOOD) can affect zooplankton community structure through local factors directly and can also influence through regional dispersal factors of metacommunity concepts indirectly. Therefore, we infer that spatial patterns of zooplankton communities could be related to metacommunity concepts and their importance may depend on the size of the aquatic/terrestrial transition zone (ATTZ). Herein, we explored the relative importance of limnological (LIMNO) and FLOOD variables in zooplankton community by analyzing data from 272 sites across three floodplain lakes in the middle reaches of the Yangtze River. Our results showed that the variation in the zooplankton community can be well explained by the LIMNO and FLOOD variables in all of the lakes under the low water level season. However, during the high water level season, neither LIMNO nor FLOOD can explain the spatial variances of zooplankton. Therefore, our results indicated that testing biogeographical theories and macroecological laws using zooplankton should consider temporal aspects of flood pulse. Furthermore, we noted that the number of explained variance by local variables is negatively correlated with the size of the ATTZ. Metacommunity concepts provide complementary insights in explaining zooplankton spatial patterns within large floodplain systems, which also provide a theoretical basis for ATTZ protection in floodplain management.

1. Introduction

Large floodplain lakes, which are characterized by large ranges of water level variation and large areas of aquatic/terrestrial transition zone (ATTZ), serve as important habitats for many organisms [1]. The heterogeneous habitats and the spatial pattern of aquatic communities in large floodplain lakes are mainly determined by their flood pulse. The flood pulse concept states that the pulsing of river discharge and water level variation is the major driving force responsible for the existence, productivity, and interactions of biota in river–floodplain systems [2]. Similarly, niche theory hypothesizes that heterogeneous habitats offer more niches and thus promote enhanced diversity of spatial patterns [3]. For instance, the spatial variation of the zooplankton community is frequently attributed to physical environmental features within a floodplain ecosystem [4,5]. However, the rule of flood pulse on zooplankton spatial patterns including local and regional aspects is still unclear from the perspective of the metacommunity framework.

The conceptual framework of metacommunity has been proven to be theoretically and empirically useful in understanding complex patterns of distribution, abundance, and interaction of species across multiple scales of spatiotemporal organization. In addition, it has progressed rapidly in recent years [6]. With multivariate variance partitioning for fish, chironomids, odonates, molluscs, oligochaetes, and macrophytes, Reckendorfer and Funk [7] found that environmental and spatial factors significantly affect the structure of the different communities. The success of metacommunity theory in interconnected ecosystems and in discrete habitat patches [8,9,10] suggests the possible application of metacommunity frameworks in floodplain ecosystems.

In river–floodplain lake systems, the relative importance of local and regional environmental variables for zooplankton community structure changes temporally with the dynamics of flood pulse. For instance, local factors explain a significant portion of the variation in the zooplankton community in the dry season, while spatial factors are more influential than environmental factors in the flood season [11]. Meanwhile, local environmental factors may also exert a considerably greater and continuous influence on the zooplankton community in the face of high dispersal rates [9]. Accordingly, beta diversity is predicted to be higher in floodplain lakes during periods of low than in high water level [12]. Therefore, we expect that zooplankton spatial distribution patterns can be well explained by the local process during the low water level season. In addition, the strong flood pulse may mediate local variables in structuring zooplankton community during the high water level season. Furthermore, Heino, Melo [6] stressed that future studies should explore temporal aspects of metacommunity dynamics rather than basing conclusions on a single snapshot survey in his review of metacommunity organization, spatial extent, and dispersal in aquatic systems. However, most of these studies consider only a yearly snapshot of zooplankton community structure while ignoring flood pulse dynamics.

Metacommunity and flood pulse concepts are two independent conceptual frameworks in the community ecology of aquatic organisms [2,13]. However, the metacommunity frameworks have somewhat distinct explanations on spatial patterns of aquatic organisms compared with the flood pulse concepts. From a metacommunity point of view, flood pulse dynamics, which make the water surface area expand and shrink dramatically, have made large floodplains a model environment to analyze the significance of niche assembly and dispersal assembly processes in structuring zooplankton communities [7,14]. However, the spatial heterogeneity and temporal stochasticity also present unique challenges for testing these theories. The reason may be that the idea of metacommunity is inspired by the theory of island biogeography, and the discrete habitat patches (e.g., the island-like ponds and lakes) have been intensively used [15]. However, few studies have incorporated large floodplain systems into their design, especially on zooplankton.

To explore the degree of explanation of metacommunity concepts on spatial patterns of crustacean zooplankton (hereinafter zooplankton) in lakes with flood pulse, we select three interconnected floodplain lakes located in the Yangtze River basin, at similar latitudes but with quite different areas and ratios of ATTZ. Our study aims to (1) incorporate the metacommunity framework into large floodplain lakes and (2) verify whether the zooplankton community responds differently to the local processes under different flood pulse dynamics. Herein, we infer that metacommunity concepts will explain zooplankton spatial distribution patterns well in lakes with large ATTZ. Meanwhile, the role of flood pulse concept in explaining zooplankton spatial distribution patterns may be weakened by the large ATTZ.

2. Materials and Methods

2.1. Study Area

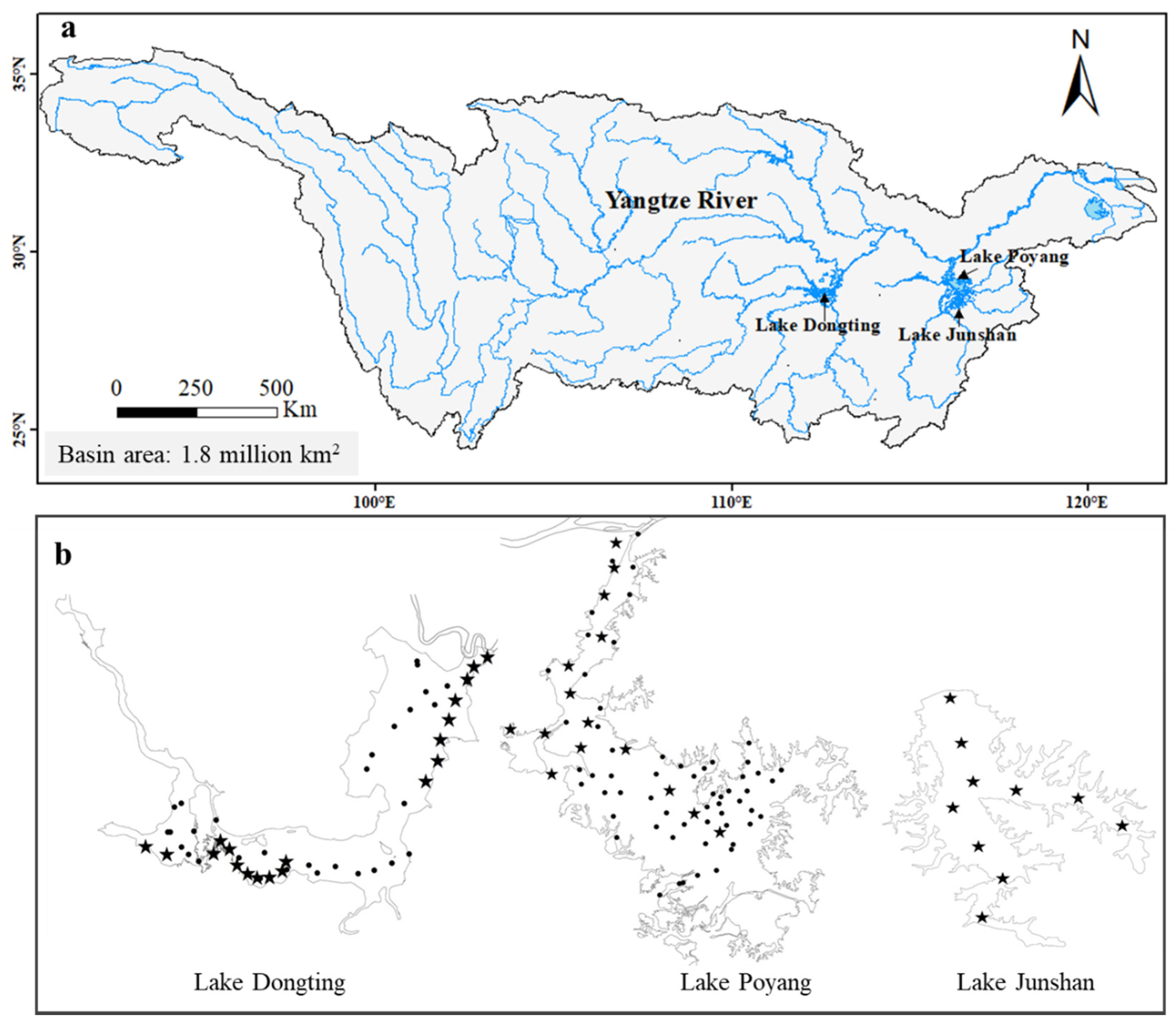

The Yangtze River is China’s longest and the world’s third longest river with a length of 6300 km, and it functions as the fourth largest source of water supply to the oceans after the Amazon, Zaire, and Orinoco Rivers. The floodplain lakes in our study are highly interconnected with this large river (Figure 1a). Lake Poyang and Dongting (PY and DT) are the largest and the second-largest floodplain lake in China with corresponding large volumes of 295 × 10⁸ m³ and 155 × 10⁸ m³ [16,17]. Lake DT was once the largest floodplain lake, which reached its maximum surface area of 6300 km² in 1825 [18]. The lake surface area of DT has been reduced by approximately 40% and is now the second-largest freshwater lake in China. Land reclamation through levee construction accounts for approximately 73% of the total lake loss since the 1930s, and the total arable land in the lake region increased by 1800 km² from the early 1950s to the late 1970s [18,19]. Accordingly, the lake volume decreased and 60% of the floodplain was lost. Presently, lake PY has a drainage area of 162,000 km², with an average yearly runoff from outlets of 1460 × 10⁸ m³. Lake DT has a drainage area of 257,000 km², and the average yearly runoff from outlets is 3021 × 10⁸ m³. The large floodplain regions of lake DT and PY are included in the “Ramsar Convention on Wetlands of International Importance Especially as Waterfowl Habitat” [20]. Lake JS was once a part of lake PY but was isolated from the main channel by a dam in 1959. As a result, the lake is used for aquaculture, and the water level is controlled with a sluice.

2.2. Sampling

Water samples were collected in July (the high water level season) of 2012 and 2013 and in January of 2013 (the low water level season). All of the riverine regions are inundated throughout the year, but most of the floodplain regions dry out in the low water level season. Therefore, only sites in riverine zones (Figure 1b) were sampled in the low water level season, the numbers are 23 and 19 for PY and DT, respectively. In the high water level season, sites in the riverine and floodplain regions were sampled (Figure 1), the numbers are 68 and 32, respectively. The water surface area of lake JS changes insignificantly between seasons. Therefore, the sampling sites were identical (=10) in the high and low water level seasons. Zooplankton samples were taken twice with a 5 L organic glass sampler 0.5 m below the surface, passed through a 64 μm mesh plankton net, and preserved with 4% formalin. All of the cladoceran individuals were counted and identified to the species level under a stereomicroscope (maximum magnification × 120) where possible. Larval and juvenile stages were treated as taxonomic entities and included in the synchrony analyses for the copepods, given that these analyses consider only group abundance and not species richness. Crustacean biomass was estimated using the body-weight formula [21].

Water temperature, Oxido-reduction Potential, pH, turbidity, and electrical conductivity were obtained using a Hydrolab Datasonde 5 sensor (OTT HydroMet, Loveland, CO, USA) in situ. Other local environmental variables (e.g., nutrient parameters and COD_Mn) used in this study were sampled and analyzed as described in APHA [22].

2.3. Statistical Analysis

All of the testing was performed with the R version 3.6 (R Core Development Team). Only taxons present in >25% of the samples were considered to minimize the number of zeros in the biological data [23]. The data were transformed to the natural logarithm [ln(1 + x)] to conform to assumptions of normality, if necessary. The species dataset was Hellinger-transformed before RDA. Considering that our goal was to evaluate the actual similarities between communities rather than emphasizing the role of rare species, we used untransformed proportional species abundances to explore the similarities between the sites and test the differences between the three lakes [24]. We used the method of “analysis of similarity” (ANOSIM,) based on the Bray–Curtis dissimilarity measure with 999 permutations [25], and we also performed a non-metric multidimensional scaling analysis (NMDS) to reflect the ordination of sites and reduce the deviations of sample size on ANOSIM. NMDS was performed via the “metaMDS” function, and the data were transformed with the Hellinger standardization method via “decostand” function. To test the significant level of dissimilarity among the three lakes, we performed permutational multivariate analysis of variance (PERMANOVA), employing distance matrices via the “Adonis” function. The population and environmental synchrony were estimated via Spearman’s and Pearson’s mean cross-correlation, respectively. Their significance level was estimated by Monte Carlo permutations. Methods for canonical ordination and variation partitioning were offered in the Supplementary Data.

Owing to the spatial configuration of connections between lakes and rivers, using distance variables such as Euclidean distance and topology of the dispersal network, is inappropriate. Therefore, a consideration of the actual configuration of dispersal networks in these lakes is unrealistic. As a result, we split the environmental variables into two subsets, namely flood pulse related physical variables (FLOOD factors: Flow velocity, water depth, the amplitude of water level fluctuations, alimentation coefficient, floodplain area ratio, and water exchange cycle) and limnological variables (LIMNO factors: Salinity, degree of mineralization, Secchi depth, water temperature, pH, chlorophyll a, oxidation-reduction potentiometer, total nitrogen, total phosphorous, chemical-oxygen demand, turbidity, and NH₄). The former was normally taken as hydrological physical factors in the flood pulse concept (i.e., as local factors), but can also be partly taken as proxies for regional factors of dispersal in the metacommunity concept. The partial redundancy analysis (pRDA) determines whether LIMNO significantly explains the zooplankton species patterns when the effect of the FLOOD is held constant. The relative importance of FLOOD and LIMNO factors in affecting zooplankton community distributions was tested by variation partitioning (vPAR). During the analysis, variance inflation factors (VIF) were compared to remove significant collinear factors (e.g., salinity, degree of mineralization, and conductivity). The ANOSIM, NMDS, PERMANOVA, pRDA, and PERMIDISP function could be found in ‘‘vegan’’ package.

The amplitude of water level fluctuations (1), alimentation coefficient (2), floodplain area ratio (3), and water exchange cycle (4) of each lake were calculated by the following equation:

$$\begin{gathered} \left[\mathrm{amplitude} \mathrm{of} \mathrm{water} \mathrm{level} \mathrm{fluctuations} \left(\mathrm{m}\right)\right]=\mathrm{Averaged} \left(\mathrm{highest} -\mathrm{lowest}\right) \mathrm{water} \mathrm{level} \\ \left[\mathrm{alimentation} \mathrm{coefficient}\right]=\frac{\mathrm{drainage} \mathrm{area}\left({\mathrm{km}}^2\right)}{\mathrm{Averaged} \mathrm{highest} \mathrm{water} \mathrm{surface} \mathrm{area}\left({\mathrm{km}}^2\right)} \\ \left[\mathrm{floodplain} \mathrm{ratio}(\%)\right]=\frac{ \mathrm{Averaged} \left(\mathrm{highest} - \mathrm{lowest}\right) \mathrm{water} \mathrm{surface} \mathrm{area}\left({\mathrm{km}}^2\right)}{\mathrm{multi} \mathrm{year} \mathrm{mean} \mathrm{maximum} \mathrm{surface} \mathrm{area}\left({\mathrm{km}}^2\right)}\times 100\%. \\ \left[\mathrm{water} \mathrm{exchange} \mathrm{cycle} \left(\mathrm{days}\right)\right]=\frac{\mathrm{lake} \mathrm{volume} \left({\mathrm{m}}^3\right)}{\mathrm{yearly} \mathrm{runoff} \mathrm{of} \mathrm{outlets} \left({\mathrm{m}}^3\right)}\times 365\mathrm{days} \end{gathered}$$

3. Results

The water surface area (Figure 2) of the two large floodplain lakes expand and shrink relative to the seasonal changes in water level. During the flood season, the water surface areas of lake PY and DT expand to 2933 km² and 2432.5 km², respectively, which provides a lotic main channel and a lotic floodplain wetland and lentic backwater habitats to aquatic organisms. In contrast, their main lake areas during the dry season shrink to 146 km² and 311 km², respectively, which provides only riverine habitats. The water surface area of lake JS is usually 220 km², while it has a water surface area of 180 km² in the low water level season.

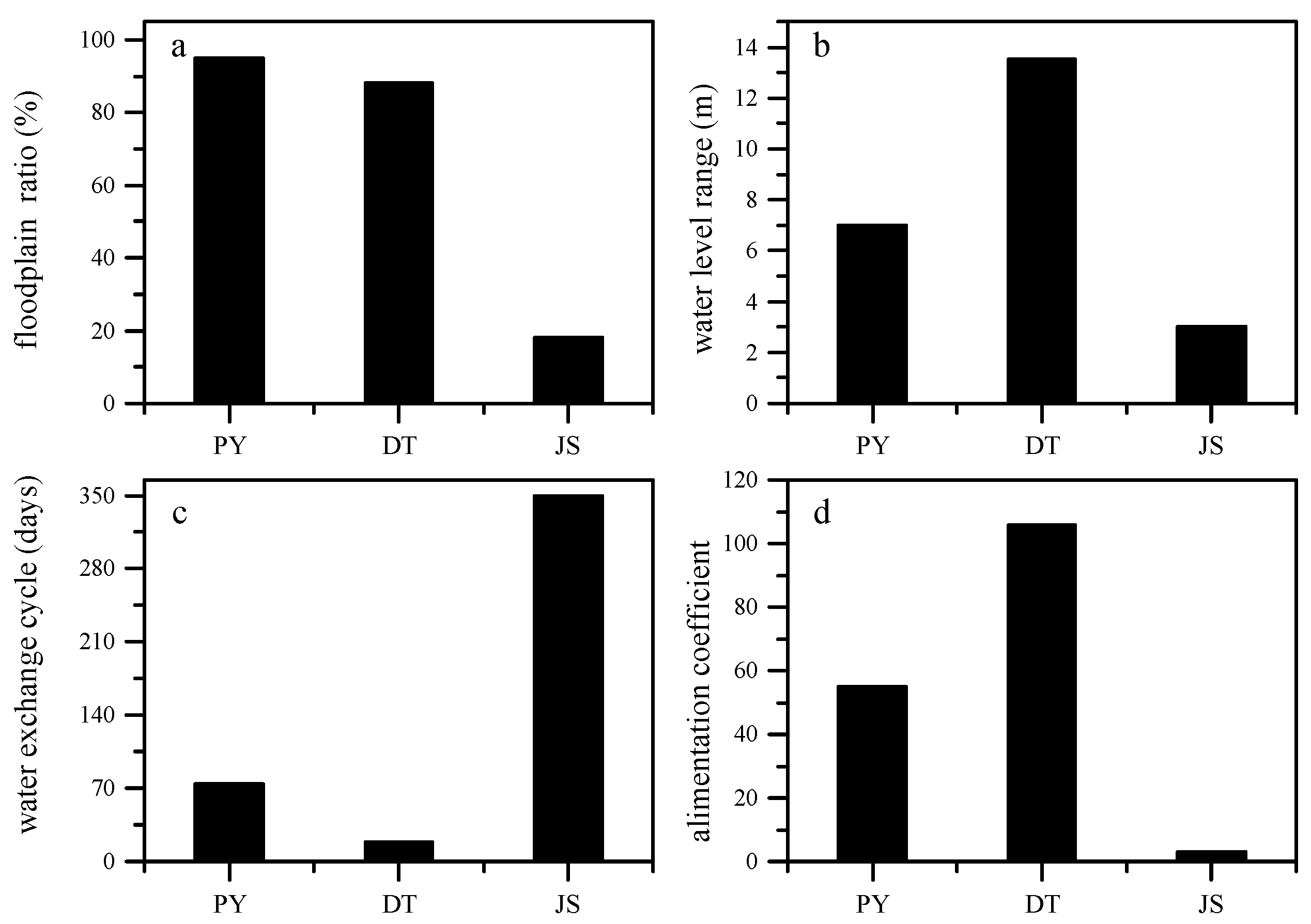

Four flood pulse related hydrological variables were compared between the floodplain lakes (Figure 3). The hydrological processes in DT are characterized by the largest range in water level (13 m), the largest alimentation coefficient (105.7), and the shortest water exchange cycle (18.8 days) of the three lakes. Comparatively, lake PY has a relatively large surface area and the largest floodplain ratio (95%), but a relatively lower alimentation coefficient (55.0). Therefore, the hydrological processes in lake PY are less intense. For instance, the average range in water level is 7 m and the water exchange cycle is 74 days. The hydrological processes of lake JS are artificially controlled, with a water exchange cycle of 350 days. Although its yearly averaged range of the water level is 3 m, the water surface area only changes insignificantly (floodplain ratio of 18%). A comparison of physicochemical environmental variables between lake DT, PY, and JS was offered in Table S1 of the Supplementary Data.

The bimultivariate redundancy statistic showed that the local process explained 26.3% (adjusted R² = 0.196) and 49% (adjusted R² = 0.282) of inter-lake zooplankton variances in the high and low water level seasons, respectively.

During the flood seasons, the results of pRDA showed that environmental variables could explain 85.6% of the variation in the zooplankton community in lake JS, while the figure was only 33.2% and 20.7% in lake DT and PY, respectively. Specifically, LIMNO factors explained 7.5%, 22.9%, and 57.4%, and FLOOD factors explained 13.2%, 10.3%, and 28.2% of the variance in lake PY, DT, and JS, respectively (Figure 4a). The vPAR showed similar results: 40.4%, 15.4%, and 12.8% of zooplankton variances could be explained in lake JS, DT, and PY, respectively. Among them, LIMNO independently explained the majority of the variances in the dammed lake JS (25.6% of 40.4%) and in the lake DT (11.4% of 15.4%). Neither LIMNO nor FLOOD can well explain the variances of the floodplain lake PY.

Correspondingly, the results of pRDA showed that environmental variables explained 85.5%, 60.4%, and 56.9% of the variation in the zooplankton community in lake JS, DT, and PY during the low water level season. Among them, LIMNO factors accounted for 74.8%, 38.2%, and 29.2% (FLOOD factors for 10.7%, 22.2%, and 27.7%) of the variances in lake PY, DT, and JS, respectively (Figure 4b). The vPAR showed that 56.6%, 20.9%, and 13.7% of the variances could be explained in lake JS, DT, and PY, respectively. LIMNO independently explained the majority of the variances in the dammed lake JS (25.6% of 40.4%) and in the leveed lake DT (14.2% of 20.9%).

In addition, the results which are not central but important to the paper, such as zooplankton compositions (Figure S1), their ANOSIM (Figure S2), and the NMDS (Figure S3) analysis were offered in the supplementary materials.

4. Discussion

The “flood pulse concept” states that flood pulse may create homogeneity in tropical lowland floodplain systems, which is also known as flood homogenization [26]. Indeed, considerable literature shows that heterogeneity of plankton communities would be decreased when flood pulse occurs and floodplain regions are abundant (e.g., [12,27,28,29,30]). Various studies in the Amazonian floodplain system [31] and in the Upper Parana´ River system [32] have also confirmed that floods can decrease environmental heterogeneity and zooplankton beta diversity among aquatic habitats of floodplain systems. However, our result of ANOSIM (Figure S2) implies that the within-lake dissimilarity of zooplankton communities in lake PY and DT was as high as the between-lake dissimilarity (spatial heterogenization). The result is consistent with the former study conducted in lake PY, which indicated that zooplankton biomass and body size showed a major horizontal heterogenization during the flood seasons [33]. However, the spatial heterogenization, which is incompatible with the flood pulse concept, could be well explained by the metacommunity theory. According to the metacommunity concept, larger scales tend to have greater environmental heterogeneity and may reveal different patterns from those that would be observed on a smaller scale [34]. Indeed, the water surface area of lake PY and DT could reach up to 2933 km² and 2432 km² from 146 km² and 311 km², respectively. Meanwhile, the ATTZ inundated by water could reach up to 95% and 88% of the total water surface area. The ATTZ at the inside lake scale is even larger than the largest spatial scales studied in most of the former studies focusing simply on the metacommunity or flood pulse theory, such as Donau-Auen National Park in Austria [35] and in upper Parana River in Brazil [36].

The “metacommunity concept” proposes that the local process is the important driving force responsible for the existence, productivity, and interactions of zooplankton in heterogeneous habitats [6,9]. However, our quantitative results of pRDA and vPAR showed that spatial heterogeneity of zooplankton in the two floodplain lakes could not be well predicted by the local environmental stressors (residuals > 0.8). Dias, Simoes [36] conducted a similar quantitative analysis and used the principal coordinates of neighbor matrix analysis derived from the geographical coordinates of the lakes and fishery data, but they similarly found an overall, very low explained variability. Therefore, the main factors responsible for the heterogeneity of zooplankton in large floodplain lakes are still unclear to date. Possible explanations could be some neglected ecological aspects including, but not limited to, the indirect biotic factors [37,38,39], stochastic processes [40,41], and other unmeasured environmental variables. The low explained variability, in turn, are in accordance with the flood pulse concept: High lateral complexity in large floodplain lakes is mediated through flood pulse, which therefore has a strong influence on the zooplankton community [11]. Flood pulse associated with high hydrological connectivity would highlight the importance of spatial and stochastic processes [42,43] in structuring the zooplankton community [44,45,46,47,48].

Our results suggest that the flood pulse concept and metacommunity theory show the complementary function in explaining the zooplankton spatial distribution in large floodplain lakes during the high water level season. The power of the local process in structuring spatial patterns of zooplankton was mediated by flood pulse, while the homogenizing force of flood pulse was buffered by the spatial scale ATTZ. Our applications of metacommunity frameworks in floodplain lakes are also important for ATTZ management [49], such as levee and dam construction. Hydrological regulations change the natural dynamics of flood pulse and can be considered a major threat to floodplain ecosystems [50,51,52]. Globally, habitat degradation-induced alterations of floodplain heterogeneity/homogeneity have resulted in shifts in the biodiversity of natural communities [53,54,55,56]. Therefore, assessing the effects of hydrological regulations on ecology has received increasing attention [57]. Indeed, our results imply that ATTZ degradation may alter the community of zooplankton. We noticed that the zooplankton spatial dissimilarity in lake DT is significantly lower than in lake PY during the flood seasons, which may indicate that floodplain loss [50,58] has led to degradation of zooplankton spatial heterogeneity. Therefore, we propose that the size of ATTZ may be crucial for the spatial dissimilarity of zooplankton given that the floodplains may act as a buffer zone reducing flood pulse, which increases spatial variability, and as drivers for spatial heterogeneity [28,59]. Dam construction has stabilized the hydrological condition of lake JS and reduced the extent of the seasonally flooded area and the duration of floods [57,60]. Overall, our results are consistent with the few studies that analyzed metacommunities in river-floodplain systems [7], which showed that environmental factors alone explained a large amount of the higher zooplankton variation when the flood pulse is weak [11]. For example, Dias, Simoes [36] found that the importance of environmental and spatial predictors increases in explaining the distribution of microorganisms during periods of low water level and long residence time in the upper Parana River floodplains. During droughts, environmental conditions are more important for maintaining the populations in biotopes and organisms can be led to seek new delimitations of their niches [32]. Similarly, beta diversity is predicted to be higher in floodplain lakes during periods of low than high water levels [12,61].

Ours and many others studies clearly show that testing biogeographical theories and macroecological laws using small organisms within a one-time spatial survey may probably draw serious inconsistent conclusions (for phytoplankton see [62] and for bacteria see [63]). The ‘‘metacommunity concept’’ reconciles regional and local dynamics in a more inclusive theory of community assembly. Currently, the successful use of the unifying concept of the metacommunity in macroorganisms in freshwater ecosystems (e.g., fishes [8], gastropods [14], macroinvertebrates [64], etc. [7]) suggests the possible application of this model in a diverse suite of small organisms with a short life cycle [6,62,65]. The empirical attention on metacommunity is silently assuming that all of the study objects in correlating the microorganism’s community structure to environmental variables in these multi-system observational studies show temporal coherence. However, no synchronous fluctuations in microorganisms is observed among the locations within a geographic region, especially in river systems where the environmental conditions have high temporal variations. A one-time analysis that captures major spatial biodiversity patterns of small organisms is nearly impossible. Presumably, different sizes of aquatic organisms have different abilities to handle turbulent environments induced by the flood pulse. Therefore, our empirical results support research prospects of Heino, Melo [6], which mentioned that future studies should encourage exploring temporal aspects of metacommunity organization.

5. Conclusions

Our study highlights the importance of large ATTZ in maintaining the stability and heterogeneity of river-floodplain ecosystems. Our results indicated that, although flood pulse can mediate local processes in structuring the zooplankton metacommunity, flood homogenization was weakened by the large ATTZ. The application of metacommunity concepts in large floodplain systems will be helpful in creating a new understanding of the importance of floodplain lake management. Future studies should also encourage exploring temporal aspects of metacommunity organization.
