Metropolis-Hastings Markov Chain Monte Carlo Approach to Simulate van Genuchten Model Parameters for Soil Water Retention Curve

Abstract

The soil water retention curve (SWRC) is essential for assessing water flow and solute transport in unsaturated media. The van Genuchten (VG) model is widely used to describe the SWRC; however, estimation of its effective hydraulic parameters is often prone to error, especially when data exist for only a limited range of matric potential. We developed a Metropolis-Hastings algorithm of the Markov chain Monte Carlo (MH-MCMC) approach using R to estimate VG parameters, which produces a numerical estimate of the joint posterior distribution of model parameters, including fully-quantified uncertainties. When VG model parameters were obtained using complete range of soil water content (SWC) data (i.e., from saturation to oven dryness), the MH-MCMC approach returned similar accuracy as the widely used non-linear curve-fitting program RETC (RETention Curve), but avoiding non-convergence issues. When VG model parameters were obtained using 5 SWC data measured at matric potential of around −60, −100, −200, −500, and −15,000 cm, the MH-MCMC approach was more robust than the RETC program. The performance of MH-MCMC are generally good (R² > 0.95) for all 8 soils, whereas the RETC underperformed for coarse-textured soils. The MH-MCMC approach was used to obtain VG model parameters for all 1871 soils in the National Cooperative Soil Characterization dataset with SWC measured at matric potentials of −60 cm, −100 cm, −330 cm, and −15,000 cm; the results showed that the simulated SWC by MH-MCMC model were highly consistent with the measured SWC at corresponding matric potential. Altogether, our new MH-MCMC approach to solving the VG model is more robust to limited coverage of soil matric potential when compared to the RETC procedures, making it an effective alternative to traditional water retention solvers. We developed an MH-MCMC code in R for solving VG model parameters, which can be found at the GitHub repository.

1. Introduction

The relationship between volumetric soil water content (SWC, θ, L³·L⁻³) and matric potential (h, -cm, taken negative for increasing suctions, same hereafter), i.e., the soil water retention curve (SWRC), is critical for understanding the hydraulic characteristics of a soil. The SWRC is a physical basis for deriving flow and storage properties of variably saturated porous media and, as such, is key to quantifying water (e.g., infiltration, evaporation, and root and water uptake) and material (e.g., erosion, weathering, and solute transport) fluxes in soils. Therefore, it is important to develop methods which can accurately describe the SWRC for different soils.

The SWRC is typically determined under laboratory conditions where h or SWC are measured and used to build an empirical retention curve. To date, no one measurement device allows for full determination of water retention over all possible moisture contents; thus it has become common to use multiple measurement methods to build a complete SWRC [1]. For example, the SWRC is often determined using a porous plate apparatus, in which SWC can be measured gravimetrically for discrete h values after pressure equilibration with the ceramic plate matrix [2,3]. However, because ceramic plate methods have lower accuracy in the driest range (e.g., h < −4000 cm) [4], they can be supplemented with methods that measure water potential in the vapor phase to derive h (e.g., dew point methods) [5]. These values become the basis for extrapolating an accurate SWRC for a given soil.

Many mathematical models have been developed for estimating the SWRC of soils. For example: Brooks and Corey [6], van Genuchten [7], Fayer and Simmons [8], Webb [9], Khlosi et al. [10], Fredlund and Xing [11], and Groenevelt and Grant [12] developed models to fit the SWRC data from saturation to oven dryness. Among these models, the van Genuchten model (hereafter called VG model) is most widely used because it well describes the SWRC for a large range of soil types [13,14,15]. The VG model, however, is a complex non-linear equation, involving several parameters (i.e., saturated water contents (θ_S), residual water contents (θ_r), a parameter related to the inverse of the air entry pressure (α), and a metric related to the pore-size distribution (n)) to simulate the SWRC curves, making it difficult to obtain optimal solutions for those parameters through inverse modeling.

Modern computing capabilities have facilitated the use of several numerical solvers and algorithms which improve empirically-derived solutions to optimize VG parameters. The widely used RETC (RETention Curve) program [13] is a non-linear, least squares optimization algorithm for building soil water retention curves. Despite the success of the RETC, the program often produces compounding uncertainties when seeking optimal parameter solutions [14,15]. For example, when solving for SWRC parameters, Wang et al. [16] suggests that RETC does not guarantee convergence to the global optimum because it requires the prior soil information to initialize the VG model parameters. The traditional numerical methods to solve for VG parameters usually produce uncertainty and error, and make it difficult to obtain global parameter solutions [17]. Non-convergence, returning extreme parameter values, and inefficient computation are also common problems when seeking solutions for the VG model parameters [14,15]. When combined with the inevitable uncertainty from observational water retention data, the RETC program can produce solver errors that are further manifested in optimization, and eventually, the scientific inference from those results.

A popular and promising Bayesian method, the so-called Markov Chain Monte Carlo (MCMC) approach, is now widely used for a variety of inverse problems in applied mathematics [18] and recently in hydrological simulations [19,20]. Thus, MCMC methods are likely to become useful for solving VG parameters. For example, Carsel et al. [21] used a Monte Carlo approach to characterize input parameters for the pesticide root zone model (PRZM), which then simulated the leaching potential of pesticides. Duan and Gupta [22] presented a shuffled complex evolution algorithm (SCE-UA) to consistently locate the global optimum of a conceptual rainfall-runoff model. Subsequently, an MCMC method was combined with the SCE-UA approach, which drastically improved its computational efficiency [23]. Shi et al. [15] used an adaptive Metropolis MCMC to estimate the parameters of VG model for a silt soil from QingDao, China, and found the adaptive Metropolis MCMC approach to be an effective approach in solving VG model parameters, yet this analysis was restricted to one silt soil from QingDao, China.

The MCMC approach has been successfully used to obtain parameters for the VG model; however, it is unclear whether the MCMC approach is accurate and robust when applied to a wide range of soils. Additionally, the performance of the MCMC approach in estimating VG parameters is unclear when only a limited number of measurements are available (e.g., with h values between −15,000 and −60 cm). To explore these questions, the objectives of this study were: (1) to develop an MCMC program using R which can be used to characterize the entire SWRC using measurements from saturation to dryness; (2) to investigate the performance of the developed MCMC program if only data between −15,306 cm and −50 cm were used; (3) to obtain the optimal solutions for the VG model parameters for all 1871 soils from the National Cooperative Soil Characterization (NCSS) dataset.

2. Materials and Methods

2.1. Soil Water Content under Certain Matric Potential Gradient

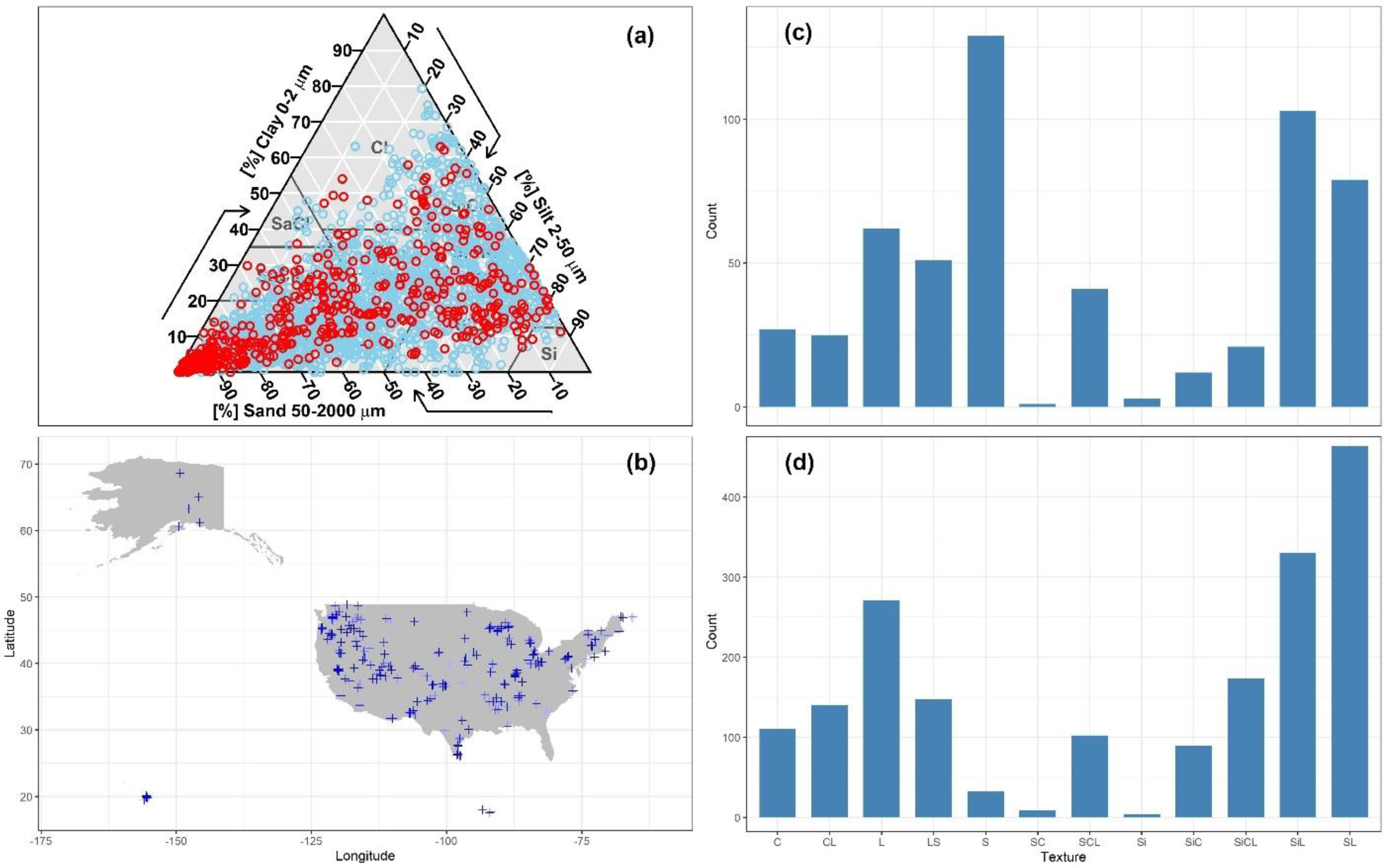

Soil water content data from saturation to air dry matric potential gradient of 8 soils were used derived from Lu et al. [24,25]. The soil samples were collected from China and USA, covered a wide range of soil texture, from sand to silt loam. SWC between 0 and −15,000 cm matric potential range were obtained using the pressure plate method, and SWC beyond −15,000 cm matric potential were obtained using the Dewpoint Potential Meter (Model WP4-T, Decagon Device, Pullman, WA, USA). For more detailed information about the soil properties and SWC measurements, please refer to Lu et al. [24,25].

Soil water content at matric potential of 0 cm, −60 cm, −100 cm, −330 cm, and −15,000 cm from the NCSS database were used to train and test the MCMC model in this study. The NCSS includes more than 100,000 samples data from the Kellogg Soil Survey Laboratory and cooperating universities, which contains measurements of soil texture, organic carbon content, bulk density, and SWC under specified matric potential from American soils. A Microsoft Access NCSS database can be accessed through https://ncsslabdatamart.sc.egov.usda.gov/ (accessed on 17 June 2022). In addition to commonly requested data, the Access database includes metadata tables that describe the column headings of the laboratory data tables. Only soil samples with SWC at 0 cm, −60 cm, −100 cm, −330 cm, and −15,000 cm were used in this study. The original water content data were measured gravimetrically and were converted to volumetric water content values by the corresponding bulk density. In addition, we also filtered the data for outliers, and excluded data with organic carbon content larger than 10% and soil with andic properties because they behaved differently from mineral soil. After filtering, there were 1871 data points, distributed into 12 United States Department of Agriculture (USDA) soil texture groups, which were used in this study (Figure 1a,b, light-blue points). Sand clay and silt soil samples were relatively scarce, but all other soil textures have extensive data (Figure 1c,d).

Another subset of the unsaturated soil hydraulic properties database (UNSODA) was used in this study to evaluate the performance of our MCMC model. UNSODA contains water retention, hydraulic conductivity, soil water diffusivity, basic soil properties (e.g., particle-size distribution, bulk density, organic matter content), and additional information regarding the soil and the experimental procedures. UNSODA was used to support the Rosetta model [26]. The Rosetta install software package has a testing subset of UNSODA (555 samples, Figure 1, red points); this subset was used in this study to evaluate the performance of our MCMC model.

2.2. The van Genuchten (VG) Model

The VG model to describe the SWRC can be explained by Equation (1):

$$\theta \left(h\right)={\theta }_r+\frac{{\theta }_s-{\theta }_r}{{\left[1+{\left(\alpha h\right)}^n\right]}^{\left(1-\frac{1}{n}\right)}}$$

(1)

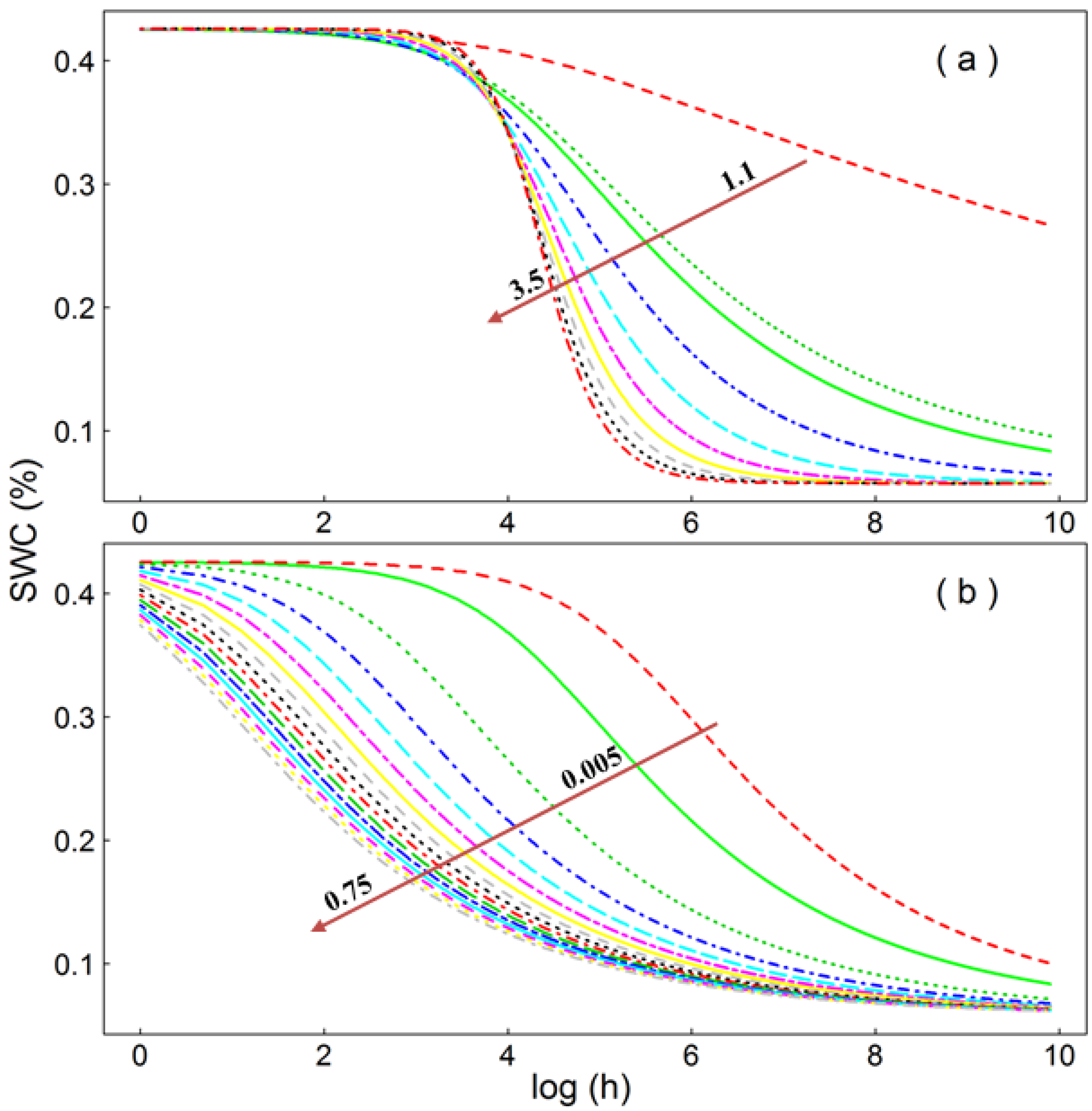

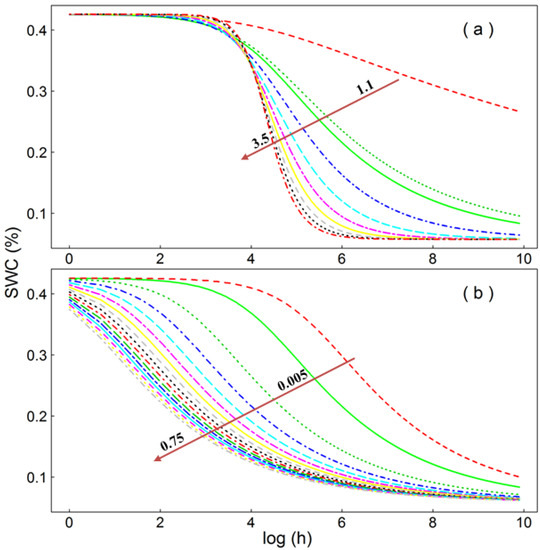

where $\theta \left(h\right)$ is the measured volumetric water content (L³·L⁻³) at the suction h (-cm, taken negative for increasing suctions). The parameters ${\theta }_s \mathrm{and} {\theta }_r$ are saturated and residual water contents, respectively (L³·L⁻³). $\alpha$ is a positive value (in unit of cm⁻¹), related to the inverse of the air entry pressure, and n (>1, unitless) is a metric related to the pore-size distribution. Both $\alpha$ and n determined the shape of the SWCR [7,13] (Figure A1).

2.3. Markov Chain Monte Carlo (MCMC) Approach

Bayesian methods have two important advantages over traditional model curve-fitting approaches: first, they allow virtually infinite flexibility in deviating from the distributional assumptions of typical statistical methods; second, they provide robust estimates of uncertainty. Practical application of Bayesian methods is challenged by the need to compute high-dimensional integrals associated with the interactions of many probability distribution functions. To a large extent, this has been solved by the advent of Markov Chain Monte Carlo (MCMC) methods, which leverage dramatic recent increases in computing power to estimate these integrals numerically [18,27].

2.4. Obtaining Parameters of VG Model Using the MH-MCMC Approach

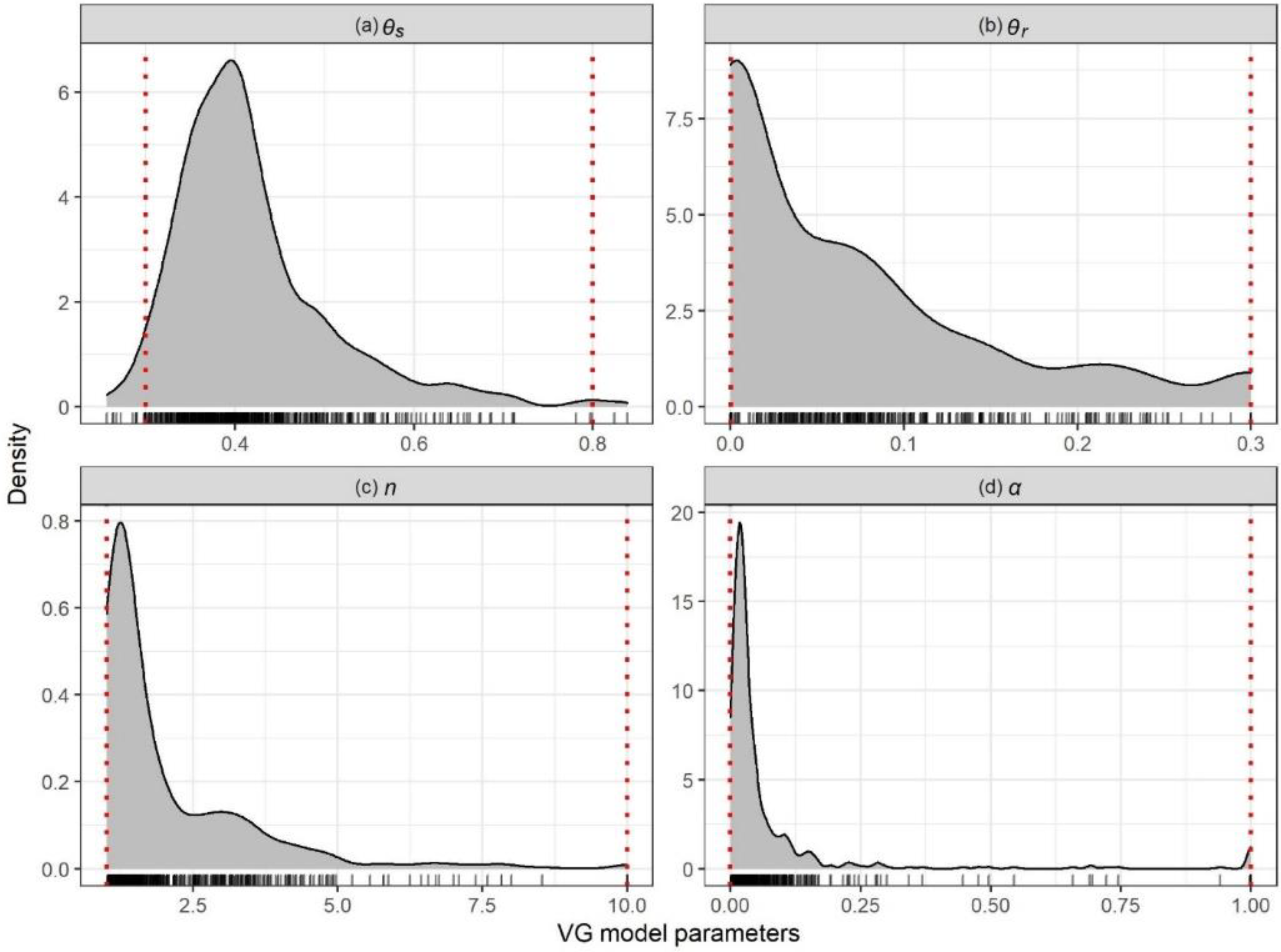

When using the MCMC approach to obtain the posterior distribution of the VG model parameters, the model could be written as Equation (2). According to previous studies [15,27,28,29], we assumed a uniform distribution for the prior distribution of every parameter, and the bounds of the parameters were set up according to the distribution of VG model parameters (${\theta }_s$, ${\theta }_r$, α, and n) from the UNSODA (

Table 1. Distributions of the parameters for using the MCMC modeling to simulate the soil water content curve. UNSODA: the unsaturated soil hydraulic properties database.

Parameters	Prior	Note
${\theta }_s$	0.30–0.80	Adjusted based on UNSODA (Figure 2) and ref. [15]
${\theta }_r$	0.0003–0.30	Adjusted based on UNSODA (Figure 2) and ref. [15]
$\alpha$	0.0001–1.0	Adjusted based on UNSODA (Figure 2) and ref. [15]
n	1.0–10	Adjusted based on UNSODA (Figure 2) and ref. [15]

and Figure 2).

$$\theta =f\left({\theta }_s,{\theta }_r,\mathsf{\alpha },n, h\right)$$

(2)

The Markov Chain stationary distribution ($\pi$) and its transfer matrix (Q) are critical foundations for the MCMC method. Many stochastic simulation methods, including Metropolis–Hastings-MCMC (MH-MCMC) [28,29], adapted MH-MCMC [27], and Gibbs sampling [30] have been developed to resolve this problem. We used the MH-MCMC approach to generate the posterior distribution of all four parameters (${\theta }_s$, ${\theta }_r$, α, and n) of the VG model because MH-MCMC has been successfully used to solve hydrology-related studies. For a detailed description about MH-MCMC, please refer to [28,29]. The sampling process of the MH-MCMC algorithm can be described as follows:

(1)

Initiating the model parameters, as MH-MCMC is not sensitive to the initial condition, we therefore set a same values for all soil samples, i.e., set ${\theta }_s$ = 0.56, ${\theta }_r$ = 0.18, α = 0.049, and n = 1.5 as initial values for the VG model parameters.

(2)

Based on the model and the measured SWC under different pressure heads to get an initial estimate of $\theta$ and h.

(3)

Generating an arbitrary Markov Chain stationary distribution $\pi \left(x\right)$ and its transfer matrix Q. Sample from any simple probability distribution to get the initial state value, x₀.

(4)

Set accept rate = $min\left\{\frac{\pi \left(j\right)Q\left(j,i\right)}{\pi \left(i\right)Q\left(i,j\right)}, 1\right\}$.

(5)

Sample from the conditional probability distribution $Q(x|x_t)$, get $x^{*}$; sample from the uniform distribution $\mu ~\mathrm{U}\left[0,1\right]$; if $\mu <\alpha \left(x_t,x^{*}\right)=min\left\{\frac{\pi \left(j\right)Q\left(j,i\right)}{\pi \left(i\right)Q\left(i,j\right)}, 1\right\}$, accept $\alpha \left(x_t,x^{*}\right)$, i.e., $x_{t+1}=x^{*}$; and otherwise, reject transformation, i.e., $x_{t+1}=x_t$.

The sample set ($x_{n_1}, x_{n_1+1}, \dots , x_{n_1+n_2-1})$ is corresponding to the stationary distribution; repeat this process for all four parameters (${\theta }_s$, ${\theta }_r$, α, and n), and we can get the parameters for the VG equation for each soil sample. We conducted 10,000 iterations of sampling and discarded the first 2000 iterations as the burn-in period. We selected the burn-in amount and evaluated convergence by visual inspection of the MCMC chains. The MH-MCMC program and statistical analyses of the output were conducted using R (Version 4.2.0, R Core Team, 2019). Details on the MH-MCMC algorithm were described in the source code, which are available at the following GitHub repository (https://github.com/jinshijian/SWRC_MCMC, accessed on 17 June 2022).

We used the MH-MCMC approach to obtain VG model parameters for all 8 soil samples in the Lu et al. dataset [24,25], and detailed information for those 8 soil samples can be found in

Table A1. Soil texture, volumetric soil water content at selected matric potential of around −60, −100, −200, −500, and −15,000 cm for 8 soils in Lu et al.’s dataset [24,25]. For detailed soil properties and soil water content from saturation to oven dryness conditions, please refer to [24,25] and Lu_2008_2013_Data.csv in the GitHub repository: https://github.com/jinshijian/SWRC_MCMC (accessed on 17 June 2022).

Soil	Texture	Suction Matric (cm)	Volumetric Soil Water Content
I	Sand	−60	0.0446
		−102	0.0304
		−142.9	0.0336
		−403.1	0.0208
		−15,306	0.0112
II	Sandy loam	−51	0.2580
		−102	0.1889
		−295.9	0.1213
		−510.2	0.1072
		−15,101.9	0.0536
III	Loam	−61.2	0.4316
		−102	0.3978
		−214.3	0.2041
		−510.2	0.1105
		−15,306	0.0442
IV	Silt loam	−71.4	0.4569
		−102	0.4154
		−204.1	0.3283
		−510.2	0.2365
		−15,306	0.1018
V	Silt clay loam	−61.2	0.4141
		−102	0.3780
		−214.3	0.3315
		−510.2	0.2696
		−15,306	0.1342
VI	Silt loam	−51	0.4615
		−102	0.4229
		−295.9	0.2753
		−510.2	0.2208
		−15,101.9	0.0998
VII	Silt clay loam	−51	0.5306
		−102	0.5095
		−295.9	0.3643
		−510.2	0.3208
		−15,101.9	0.1690
VIII	Silt loam	−50	0.4920
		−95.2	0.4680
		−203.9	0.4104
		−407.9	0.3672
		−15,116.4	0.1764

. We first used MH-MCMC approach to obtain parameters of the VG model (${\theta }_s$, ${\theta }_r$, α, and n) based on all available SWC measurements (15 to 24 SWC measurements from saturation to oven dryness condition, see

Table 2. Summary of adjusted R², root mean square error (RMSE), mean error (ME), and number of samples when comparing the van Genuchten (VG) model’s predicted and measured soil water content for 8 soils from ref. [24,25].

Soil	Adjusted R2	RMSE	ME	Adjusted R2	RMSE	ME	Samples
All SWC Measurements Were Used to Parameterize the VG Model
	MCMC			RETC
I (Sand)	0.997	0.006	<0.0001	0.998	0.006	0.0007	19
II (Sandy loam)	0.985	0.018	−0.002	0.985	0.018	<0.0001	19
III (Loam)	0.991	0.016	−0.001	0.991	0.016	<0.0001	19
IV (Silt loam)	0.993	0.013	−0.005	0.995	0.012	<0.0001	17
V (Silt clay loam)	0.995	0.010	−0.003	0.996	0.009	0.0002	19
VI (Silt loam)	0.991	0.013	−0.005	0.992	0.012	<0.0001	15
VII (Silt clay loam)	0.992	0.013	−0.006	0.993	0.013	<0.0001	16
VIII (Silt loam)	0.991	0.015	−0.003	0.993	0.013	0.0001	24
Only 5 SWC measurements were used to parameterize the VG model (but all data were used for model performance evaluation)
	MCMC			RETC
I (Sand)	0.950	0.027	0.013	0.872	0.044	−0.0454	19
II (Sandy loam)	0.956	0.031	0.006	0.900	0.046	0.0182	19
III (Loam)	0.970	0.029	0.007	0.988	0.018	0.0026	19
IV (Silt loam)	0.952	0.037	0.005	0.972	0.028	0.0129	17
V (Silt clay loam)	0.978	0.021	0.002	0.994	0.011	0.0032	19
VI (Silt loam)	0.985	0.017	0.004	0.963	0.026	0.0141	15
VII (Silt clay loam)	0.968	0.027	0.002	0.911	0.045	0.0246	16
VIII (Silt loam)	0.971	0.027	0.018	0.993	0.014	0.0136	24

). We also used the MH-MCMC approach to obtain VG parameters based on SWC measured at matric potential approximated to −60, −100, −200, −500, and −15,000 cm (Table A1).

For the 1871 soils in the NCSS dataset, only SWC at matric potential of 0, −60, −100, −330, and −15,000 cm were available. We also used the MH-MCMC approach to obtain the parameters of VG model using SWC at matric potential of −60, −100, −330, and −15,000 cm. SWC at matric potential of 0 cm (saturated SWC) were not used in the MH-MCMC process but were compared with the ${\theta }_s$ from the MH-MCMC to evaluate its performance.

2.5. Obtaining Parameters of VG Model Using the RETC Program

As a comparison, we also used the RETC program (version 6.02) to determine the best parameter of VG model for the Lu et al. dataset [24,25]. For instruction about RETC usage, please refer to [13]. Same as the MH-MCMC approach, we used the RETC program to characterize the SWRC for 8 soils from Lu et al.’s dataset [24,25] using all measurements from saturation to dryness. As well, we only used 5 measurements at matric potential of around −60, −100, −200, −500, and −15,000 cm (Table A1).

2.6. Model Evaluation

The performance of both the MCMC approach and the RETC program were evaluated by comparing the simulated soil water retention curve and measured data. The distribution, the random walk trace, and the auto-correlation of posteriori estimates of each parameter (${\theta }_s$, ${\theta }_r$, α, and n) were also used to evaluate the performance of the MH-MCMC approach. In addition, the adj R² (Equation (3)), Root Mean Square Error (RMSE, Equation (4)), and mean error (ME, Equation (5)) were used to evaluate the model performance:

$$adj R^2=1-\left[\frac{\left(1-R^2\right)\left(n-1\right)}{n-k-1}\right]$$

(3)

where R², n, and k are the coefficient of determination, the total number of observations, and the total number of independent variables in the model, respectively. In this study, the adj R² was used to quantify the variability in the measured θ(h) as explained by the VG model, which was parameterized using the MH-MCMC approach:

$$ME=\frac{{{\displaystyle \sum }}_{i=1}^n\left(\widehat{y_i}-y_i\right)}{n}$$

(4)

$$RMSE=\sqrt{\frac{{{\displaystyle \sum }}_{i=1}^n{\left(y_i-\widehat{y_i}\right)}^2}{n}}$$

(5)

where $\widehat{y_i}$ represents the i_th predicted θ(h) value and $y_i$ represents the i_th measured θ(h) value. ME is the averaged difference between predicted and measured θ(h). Therefore, when ME ≈ 0, the predicted θ(h) is not different from the measured θ(h), whereas ME > 0 and ME < 0 indicate that the predicted θ(h) were overestimated and underestimated compared with the measured θ(h), respectively. Smaller RMSE values indicated better model performance.

All data analysis were also conducted under R [31], and we prepared an R markdown file to reproduce all the analysis in this study (‘Analysis_manuscript.Rmd’ in the GitHub repository: https://github.com/jinshijian/SWRC_MCMC, accessed on 17 June 2022). For more details, please see the “Data and code availability” section below.

3. Results

3.1. Fitted Soil Water Retention Curve by the MH-MCMC Approach and the RETC Program

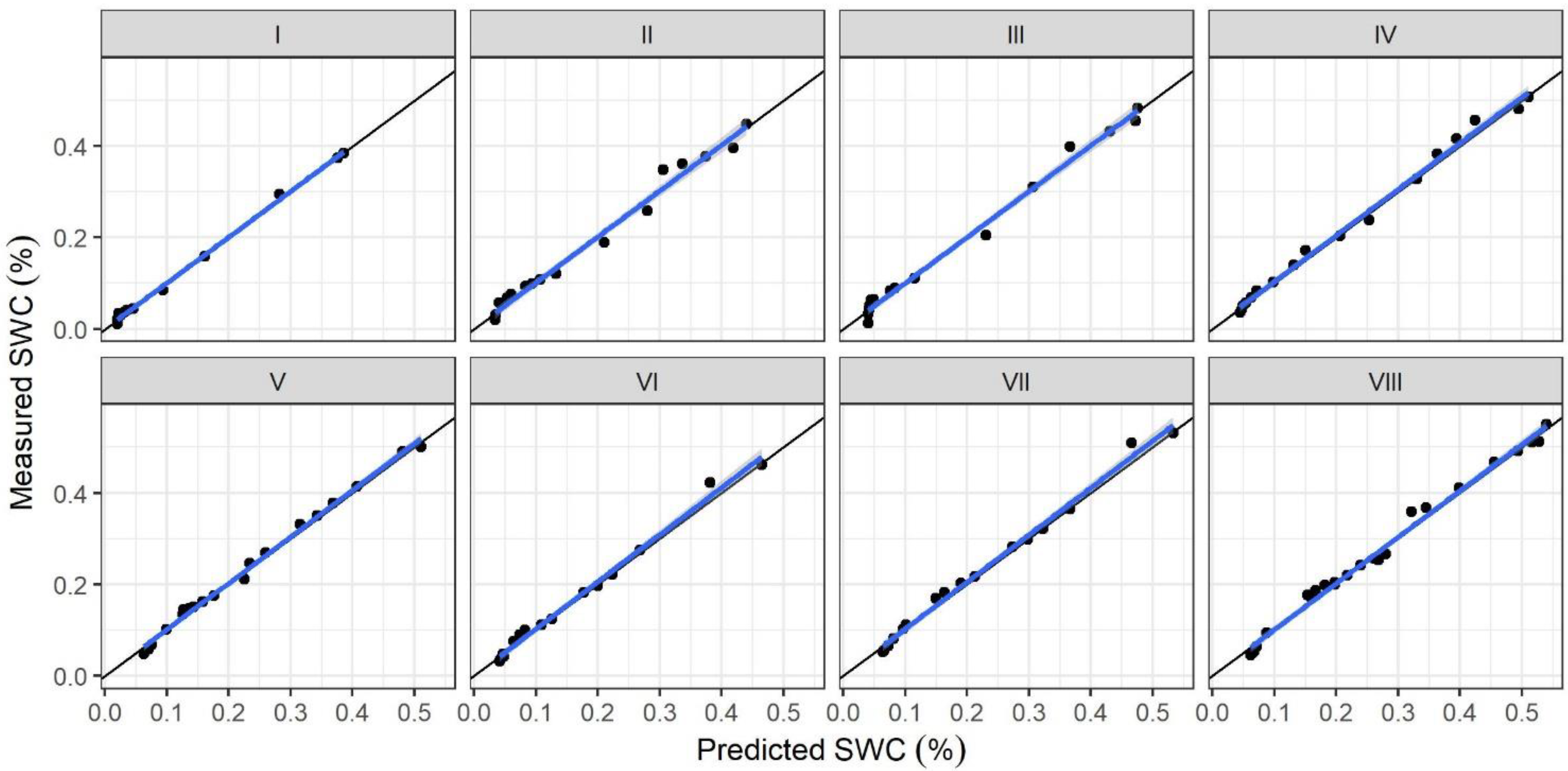

The results showed that when the complete SWC measurements from saturation to oven dryness were used, both the MH-MCMC approach and the RETC program reasonably simulated the parameters for the VG model, as the fitted curve matched well with the measured data (Figure 3a). Adjusted R², RMSE, and ME from the RETC program are similar to that from the MH-MCMC approach (Table 2). Importantly, for soil V (a silt clay loam soil) and soil VIII (a silt loam soil), the RETC program was unable to obtain θ_r values due to extremely small estimates, and 0 values were used for θ_r in the RETC program (

Table A2. Parameters of van Genuchten model obtained by the Metropolis–Hastings Markov Chain Monte Carlo approach and RETC program.

	MH-MCMC Approach				RETC Program
Soil	θr	θS	α	n	θr	θS	α	n
All measurements were used to obtain VG model parameters
I	0.0196	0.3870	0.0432	3.7672	0.0206	0.3850	0.0422	3.9701
II	0.0330	0.4532	0.0426	1.5655	0.0339	0.4489	0.0391	1.5755
III	0.0401	0.4770	0.0084	2.2000	0.0418	0.4748	0.0079	2.2908
IV	0.0323	0.5216	0.0170	1.3622	0.0369	0.5141	0.0132	1.3842
V	0.0255	0.5443	0.0461	1.2501	0.0000 *	0.5378	0.0443	1.2197
VI	0.0333	0.6269	0.0324	1.4044	0.0377	0.5671	0.0185	1.4390
VII	0.0300	0.6719	0.0362	1.2676	0.0119	0.7238	0.0552	1.2370
VIII	0.0213	0.5500	0.0159	1.2521	0.0000 *	0.5456	0.0144	1.2305
Only 5 measurements at −60, −100, −200, −500, −15,000 cm matric potential were used to obtain VG model parameters
I	0.0235	0.5527	0.0587	3.7686	0.0101	0.4520	1.2765	1.5937
II	0.0569	0.5258	0.0591	1.7282	0.0461	0.8492	0.1995	1.5714
III	0.0475	0.5538	0.0120	2.1971	0.0528	0.4632	0.0071	2.7770
IV	0.0641	0.6305	0.0278	1.4721	0.0734	0.5900	0.0173	1.5191
V	0.0835	0.5568	0.0429	1.3388	0.0481	0.4980	0.0233	1.2816
VI	0.0673	0.5917	0.0237	1.5001	0.0948	0.4855	0.0067	1.9176
VII	0.1047	0.6420	0.0227	1.4061	0.1593	0.5564	0.0061	1.7973
VIII	0.0770	0.6189	0.0431	1.2510	0.0506	0.5308	0.0111	1.2615

* The RETC program was unable to simulate θ_r, therefore 0 value was used in the program.

). When using the MH-MCMC approach, however, we were able to obtain θ_r values for soil V and soil VIII (Table A2). MH-MCMC approach showed similar accuracy as the RETC program (i.e., adjusted R², RMSE, and ME are similar, see Table 2), but avoiding extreme small value for θ_r, indicating that the MH-MCMC approach developed here is at least as accurate as the RETC program.

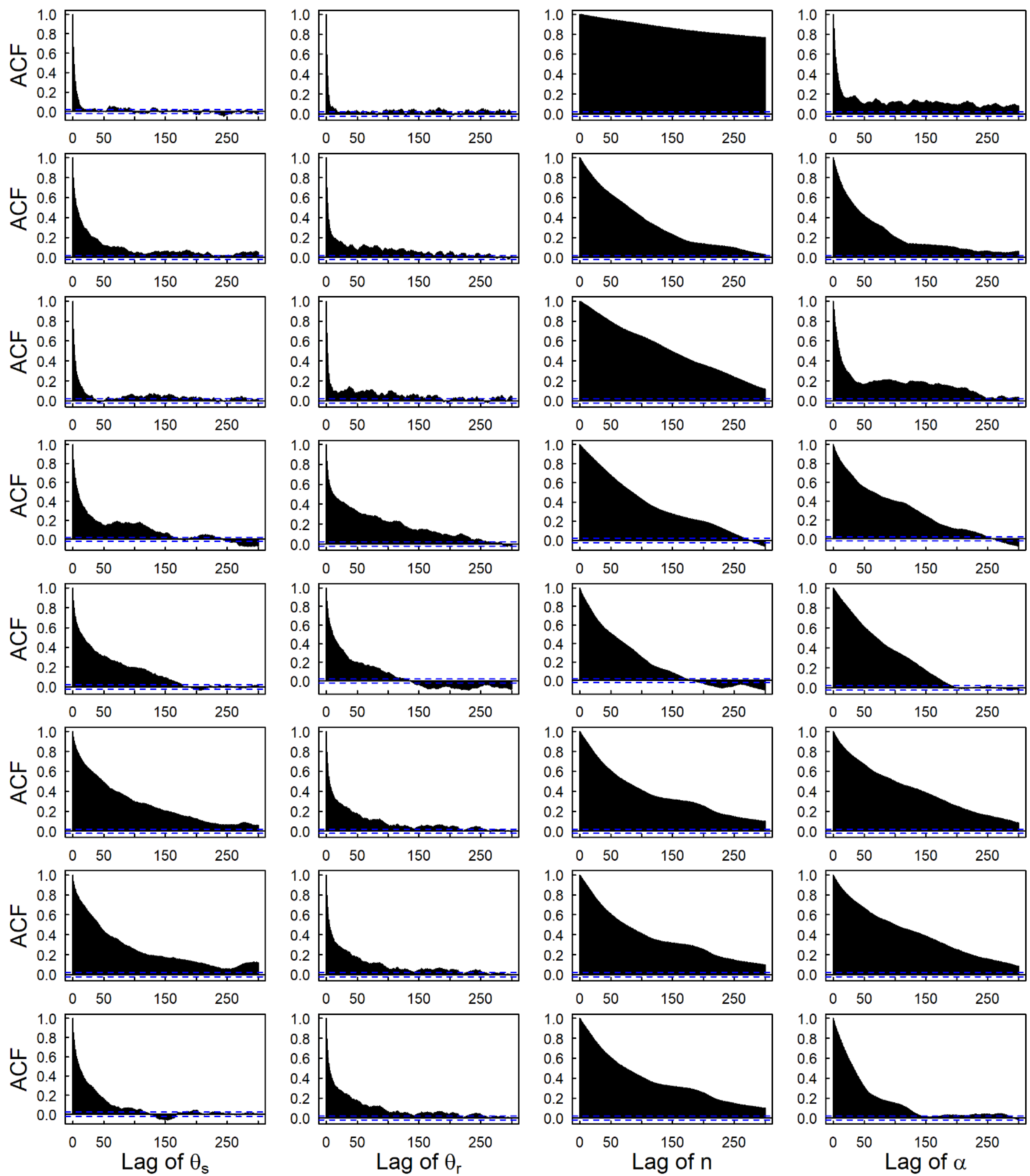

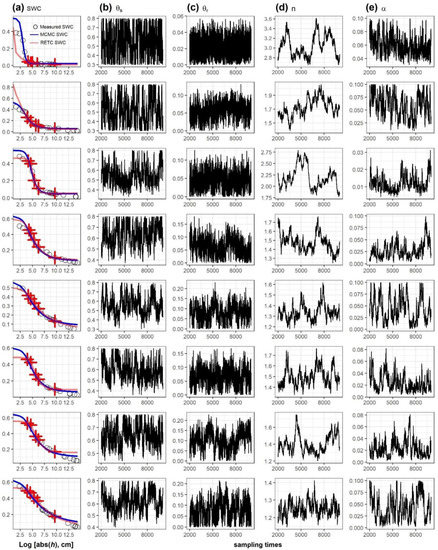

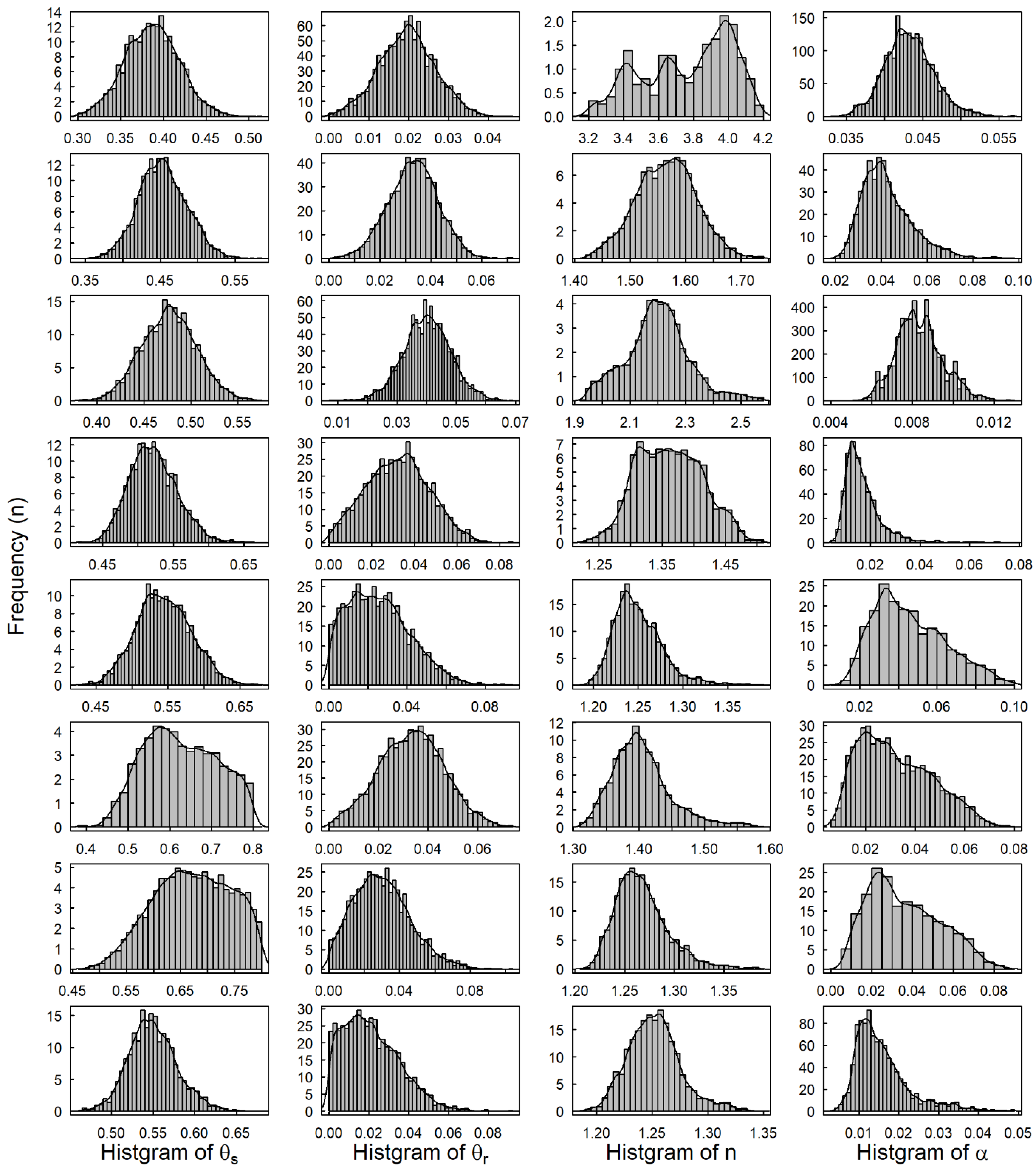

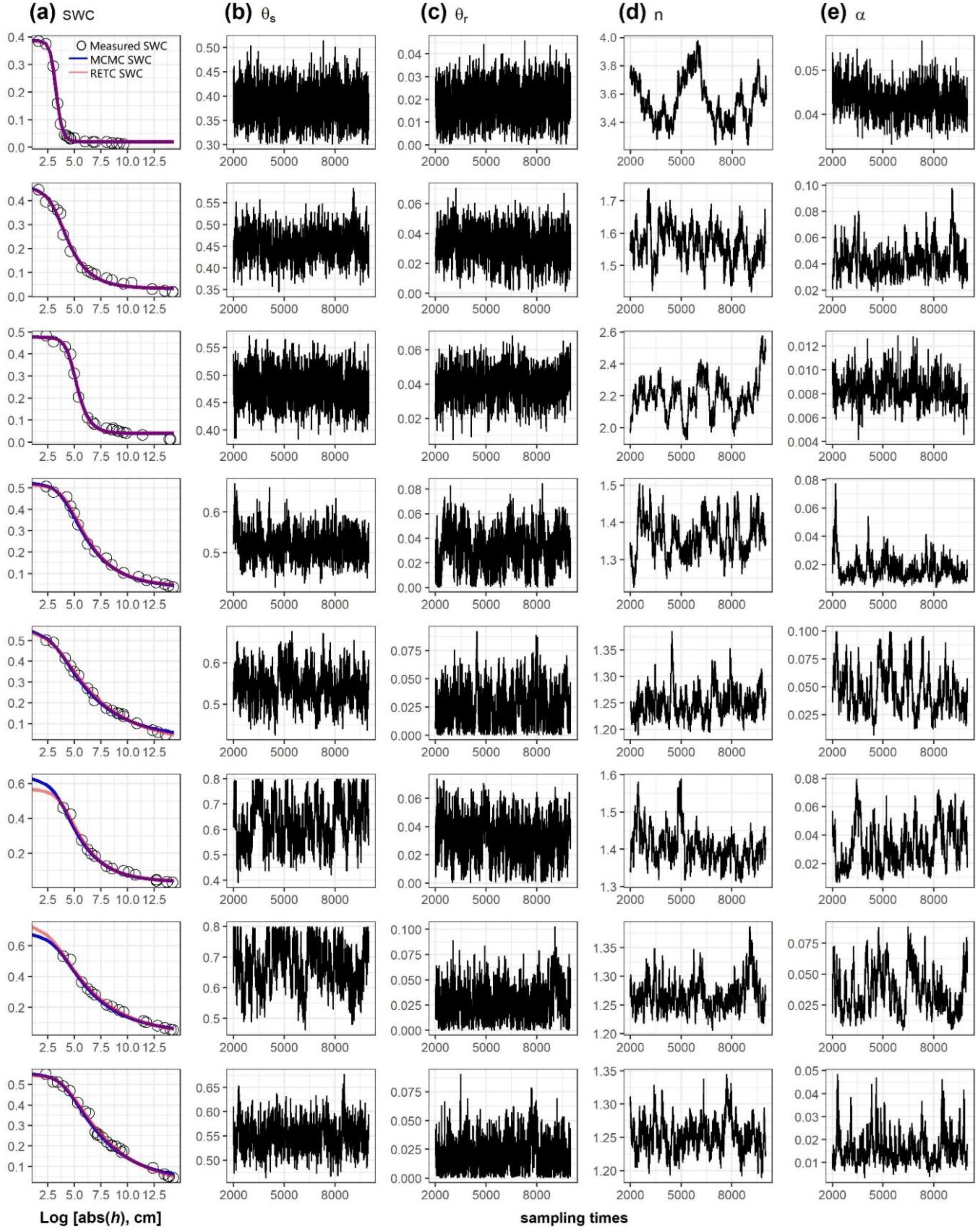

The random walk trace plot of θ_S, θ_r, α, and n (Figure 3b–e) indicate convergence in the same direction, albeit with large variations in parameter estimates. A histogram of posteriori estimates of θ_S, θ_r, α, and n (Figure A2) were generally normal distributions. All parameters’ auto-correlation decreased as lag-time increased (Figure A3), indicating that the MH-MCMC simulation performs efficiently through the calculations. Our results also showed that with uniform prior distributions of the parameters, the MCMC approach is robust to simulations for all 8 soil types from Lu et al. [24,25] (Figure 3).

3.2. Model Performance if Only 5 Measurements between −60 and −15,000 cm Were Used in the MH-MCMC Approach and the RETC Program

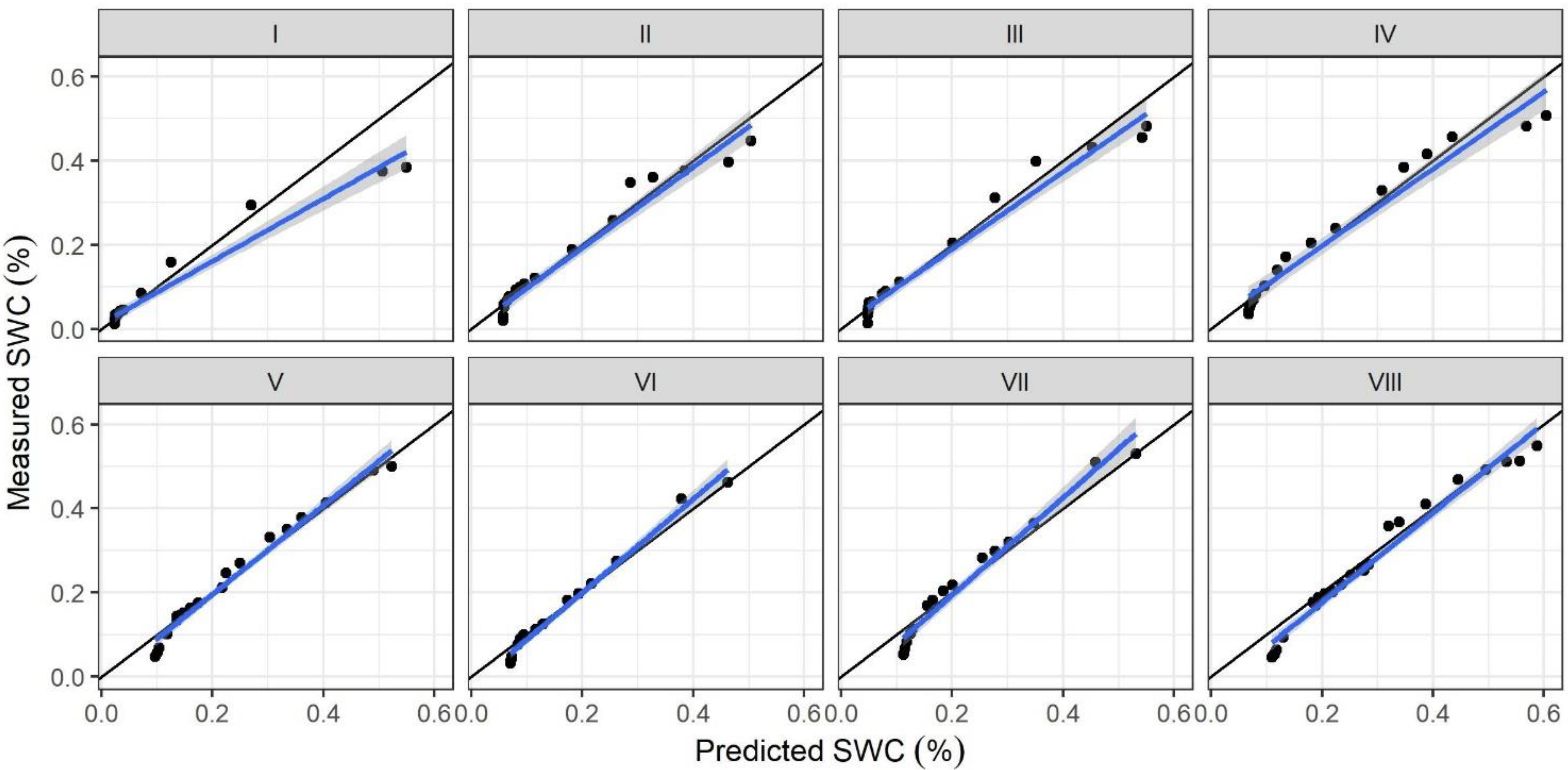

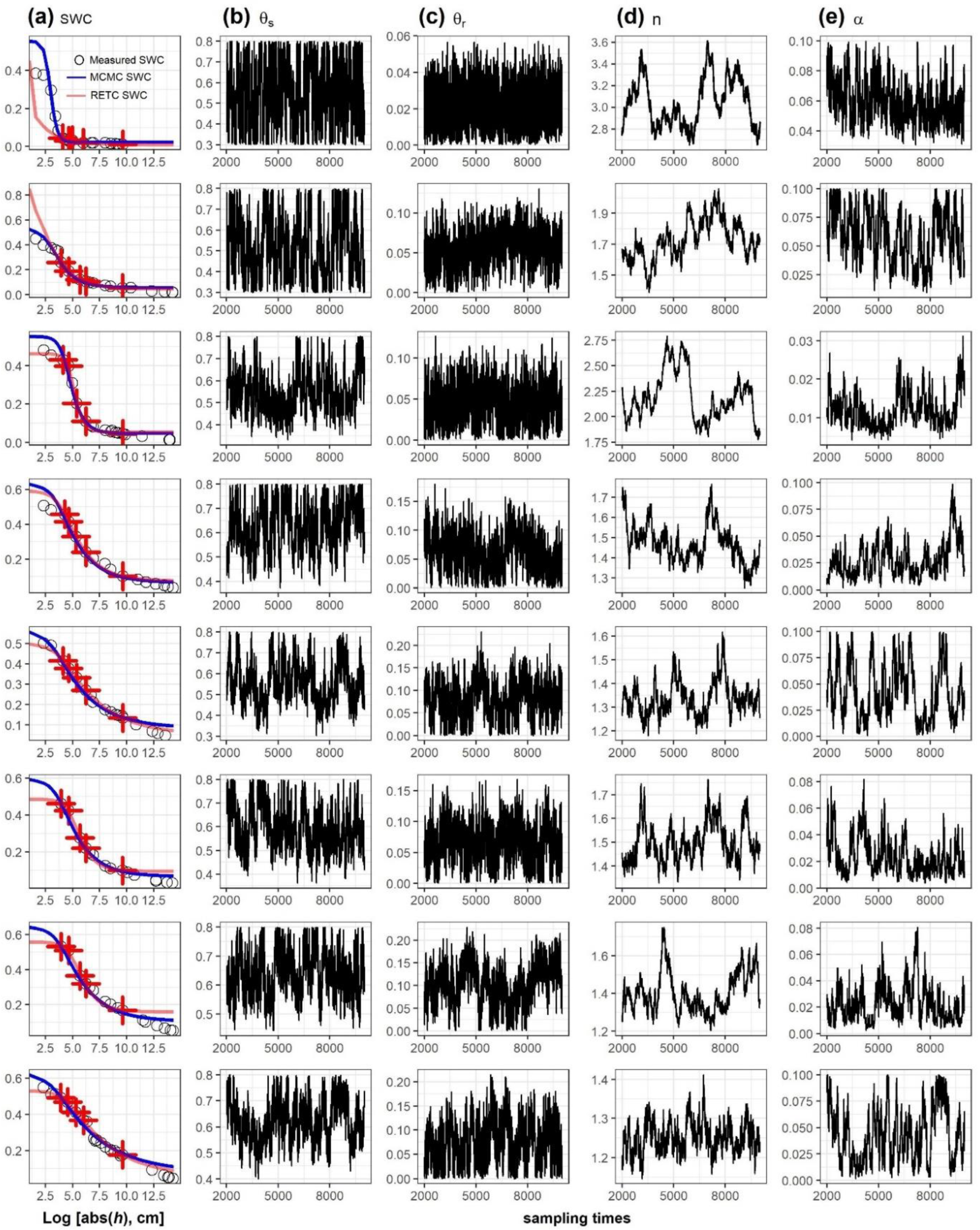

We tested the performance of the RETC program and MH-MCMC approach when only 5 data points (h = −60, −100, −200, −500, and −15,000 cm) were used (Table A1 and red crosses in Figure A4a). Compared with the outputs when all measurements were used to obtain the parameters of the VG model, the accuracy of the RETC program significantly decreased for soil I (a sandy soil), soil II (a sandy loam soil), and soil VII (a silt clay loam soil) when only these 5 measurements were used (Table 2). For example, the adjusted RETC R² significantly decreased, while RMSE and ME increased, especially for soil I (sand), the α value was 1.2765 (Table A2), beyond the range (0–1) of the defined α parameter of the VG model (Figure A4, Figure A5 and Figure A6, Table 2 and Table A2).

Compared with using all SWC measurements, if only 5 data points (h = −60, −100, −200, −500, and −15,000 cm) were used to parameterize the VG model, the MH-MCMC model performance of the soil I (sand) decreased the most, with adjusted R² values which decreased from 0.997 to 0.950, RMSE which increased from 0.006 to 0.027, and ME which increased from 0.000 to 0.013 (Table 2). However, even for this worst case scenario, the MH-MCMC approach obtains reliable results for the VG model parameters. Therefore, when fewer measurements were available, the results in this study suggest that MH-MCMC is still a robust way to obtain the parameters of the VG model.

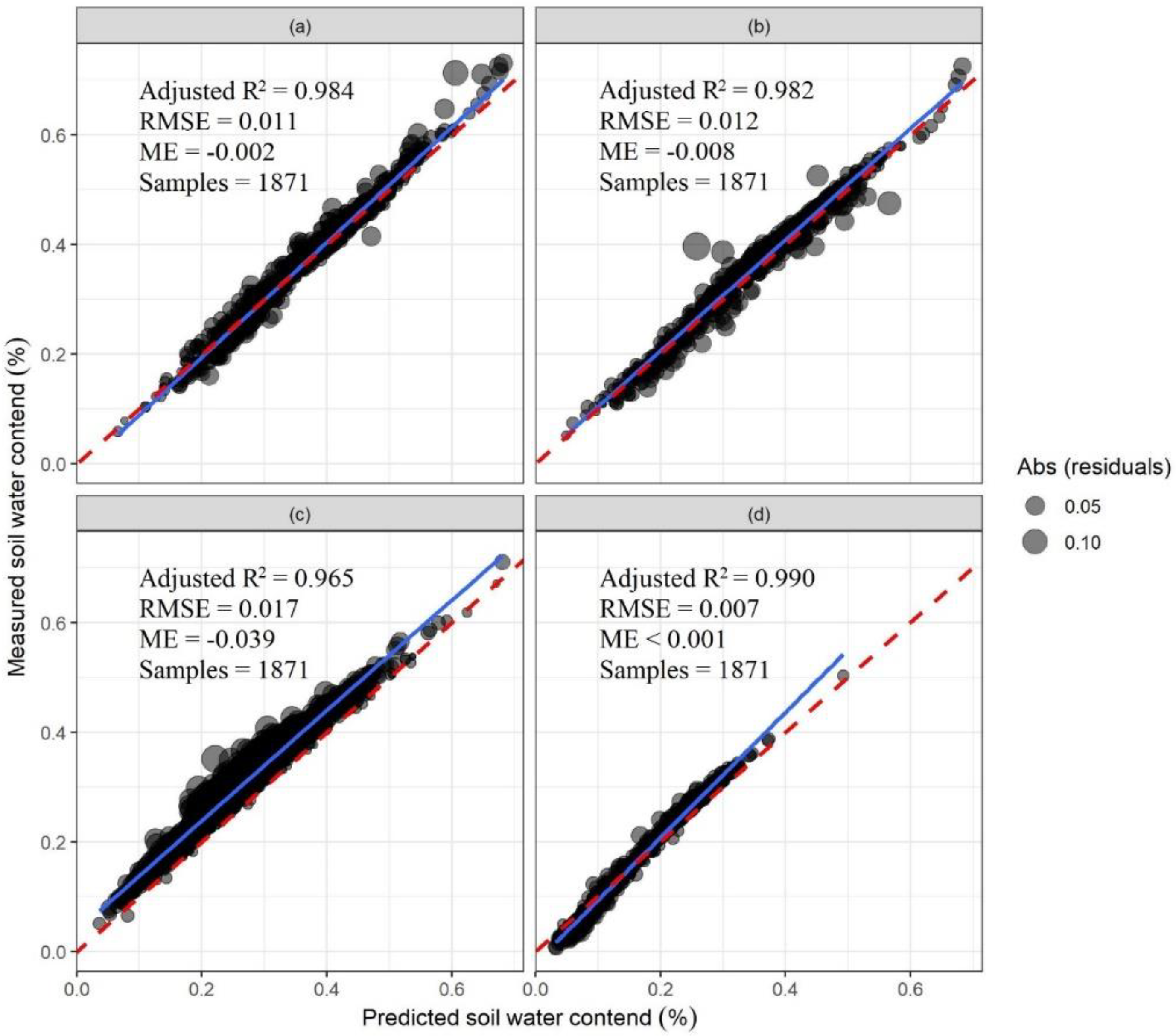

3.3. Model Performance over All 1871 Soils in the NCSS Dataset

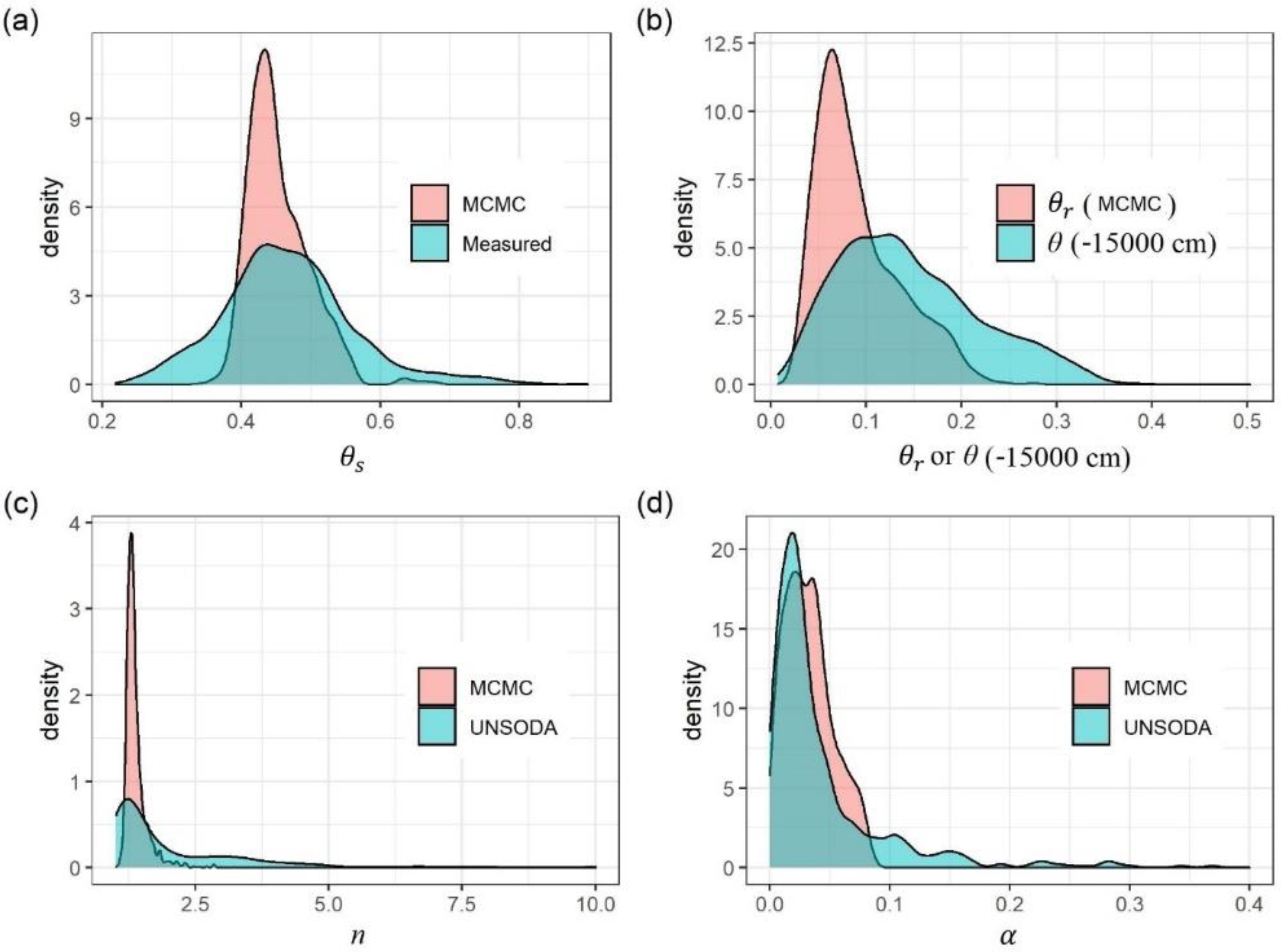

As soils from the NCSS dataset only have SWC measured at matric potential between 0 and −15,000 cm, we therefore used the MH-MCMC approach to obtain the VG model parameters based on SWC at metric potential of −60, −100, −330, and −15,000 for all 1871 soils in the NCSS dataset. The random walk trace plot, histogram of posteriori estimates, and the auto-correlation of θ_S, θ_r, α, and n indicate that the MH-MCMC method performs well for all soils. The simulated SWC at h = −60 cm, −100 cm, −330 cm, and −15,000 cm were highly consistent with the measured SWC at corresponding matric potential (Figure 4). The simulated ${\theta }_s$ for the NCSS database matched well with the distribution of measured ${\theta }_s$ (Figure 5a). The distribution of simulated ${\theta }_r$ from the NCSS database was skewed left compared with the SWC at metric potential of −15,000 cm (Figure 5b), indicating that 1) many soils may still retain a non-trivial amount of water at permanent wilting point (h = −15,000 cm), and that 2) it may be pragmatic to extend measured retention values closer to ${\theta }_r$, or fully dried SWC. The distribution of 1871 simulated n and α values matched well with the predicted n and α values from the UNSODA dataset (Figure 5c,d). All the above comparisons suggested that the MH-MCMC approach developed in this study were able to obtain the VG model parameters for all the 1871 soils in the NCSS dataset.

4. Discussion

Solving the VG model (and its 4 parameters) with limited measurements (sometimes sample size ≤ 5) could introduce parameter uncertainty for various reasons. First, uncertainties may arise from the VG model itself, in the process when describing the SWRC using a relatively simple equation with several parameters which could introduce uncertainties. Second, inherent errors in the collection and measurement of water retention data adds to this compounding uncertainty during model calibration. Finally, standard laboratory water retention methods are generally limited to matric potential between 0 and −15,000 cm [1]. For example, soils from the NCSS dataset (http://ncsslabdatamart.sc.egov.usda.gov/, accessed on 17 June 2022) only measured SWC at matric potential of 0, −60, −100, −330, and −15,000 cm.

Non-convergence and extreme parameters’ outputs are common problems when seeking solutions for the VG model parameters using the RETC [12,14,15]. In this study, based on 8 soils from Lu et al.’s dataset [32,33], we find that θ_r cannot be obtained for soil V (a silt loam soil) and soil VIII (a silt clay loam soil) due to extremely small estimates when using the RETC program (Table A2). In this case, the RETC program assumed these low θ_r values to be zero, whereas MH-MCMC derived values were 0.03 and 0.02 for the silt loam and silty clay loam, respectively. However, this discrepancy of 2–3% water content could be hydrologically significant for storage and flow properties, especially when scaled across a soil profile. When only SWC at around matric potential of −60, −100, −200, −500, and −15,000 cm were used, soil I in Lu et al.’s dataset [32,33] in the RETC method produced α > 1.0, which is beyond the range (0–1) of the defined α parameter of the VG model. Both issues were well resolved by the MH-MCMC approach developed in this study. The results show that the MH-MCMC approach had superior performance compared to the RETC program in obtaining VG parameters for soils of variable texture.

Measuring the SWRC is usually compromised by time and labor, as such, reliable pedotransfer functions (PTFs) can be useful tools to predict the SWRC based on relatively easy-to-measure soil properties (e.g., soil texture and bulk density). One critical point in improving PTFs is not from new statistical methods but rather from quality data sources [32,33]. In this sense, the VG model parameters from the 1871 soils in the NCSS dataset provide valuable sources for the future development of PTFs to predict the SWRC. Furthermore, the MH-MCMC approach developed in this study is robust in obtaining VG parameters to different soil types and even outperforms traditional least squares-based methods when retention data are limited to −15,000 cm < h < −60 cm. Thus, this new approach could be used to expand the database of VG model parameters in the future. In addition, Jian et al. [34] showed that the widely used ROSETTA model significantly over predicted the near-saturated hydraulic conductivity in urban soils. The MH-MCMC approach developed in this study may be appropriate for characterizing a wide range of soil textures and, as a result, it may help build water retention functions for understudied urban soils.

Even though the newly developed MH-MCMC approach is more robust to solve the VG model when compared to the RETC procedures, it is important to note that the MCMC method has its inherent drawbacks: (1) The sampling points are not independent of each other; the MCMC approach usually takes one sample per N point to alleviate this problem, but it does not solve the problem in and of itself [35]. (2) The mixing time may be very long, i.e., the model may go back and forth in the initial state, within a certain distribution. When the peaks and valleys of the two distributions are too low, the probability of sampling points reaching the peaks and valleys is very low. This can result in the MCMC not being able to sample points that can well characterize the target probability distribution—meaning sampling failure [36]. (3) Even if the sampling is successful, it is difficult to know exactly which moment has reached the stationary distribution [37]. Instead, by periodically adopting the distribution at the current moment, the probability distribution of its sampling is obtained and compared with the target probability distribution to determine how similar the two distributions are, and confirm that a stationary distribution has been reached. For the above reasons, MCMC users should proceed with caution and pay close attention to data quality and parameter posterior distributions before accepting solver solutions.

5. Conclusions

We developed an MH-MCMC code in R for solving VG model parameters, and this MH-MCMC approach performs well across a wide range of soil textures. The results showed that the MH-MCMC approach had good performance when only 5 SWC measured at matric potential of −60cm and −15,000 cm were used to optimize the VG model parameters. The MH-MCMC approach was then used to obtain VG model parameters for 1871 soils in the NCSS dataset. The MH-MCMC code developed in this study provides a useful tool for future usage of solving VG model parameters based on the SWC measurements. The VG model parameters of the 1871 soils in the NCSS dataset likely provide useful information for the future PTF development.
