Article

The Role of Citrus Groves in Rainfall-Triggered Landslide Hazards in Uwajima, Japan

by
Novia Lusiana
1,2 and
Yoshinori Shinohara
3,*
1
Interdisciplinary Graduate School of Agriculture and Engineering, University of Miyazaki, Miyazaki 889-2192, Japan
2
Environmental Engineering Study Program, Faculty of Agricultural Technology, Universitas Brawijaya, Malang 65145, Indonesia
3
Faculty of Agriculture, University of Miyazaki, Miyazaki 889-2192, Japan
*
Author to whom correspondence should be addressed.
Water 2022, 14(13), 2113; https://doi.org/10.3390/w14132113
Submission received: 27 April 2022 / Revised: 28 June 2022 / Accepted: 29 June 2022 / Published: 1 July 2022

Abstract

:
Landslides often cause deaths and severe economic losses. In general, forests play an important role in reducing landslide probability because of the stabilizing effect of the tree roots. Although fruit groves consist of trees, which are similar to forests, practical land management, such as the frequent trampling of fields by laborers and compression of the terrain, may cause such land to become prone to landslides compared with forests. Fruit groves are widely distributed in hilly regions, but few studies have examined their role in landslide initiation. This study aims at filling this gap evaluating the predisposing and triggering conditions for rainfall-triggering landslides in part of Uwajima City, Japan. A large number of landslides occurred due to a heavy rainfall event in July 2018, where citrus groves occupied about 50% of the study area. In this study, we combined geodata with a regression model to assess the landslide hazard of fruit groves in hilly regions. We developed maps for five conditioning factors: slope gradient, slope aspect, normalized difference vegetation index (NDVI), land use, and geology. Based on these five maps and a landslide inventory map, we found that the landslide area density in citrus groves was larger than in forests for the categories of slope gradient, slope aspect, NDVI, and geology. Ten logistic regression models along with different rainfall indices (i.e., 1-h, 3-h, 12-h, 24-h maximum rainfall and total rainfall) and different land use (forests or citrus groves) in addition to the other four conditioning factors were produced. The result revealed that “citrus grove” was a significant factor with a positive coefficient for all models, whereas “forest” was a negative coefficient. These results suggest that citrus groves have a higher probability of landslide initiation than forests in this study area. Similar studies targeting different sites with various types of fruit groves and several rainfall events are crucial to generalize the analysis of landslide hazard in fruit groves.

1. Introduction

Landslides are frightening and destructive natural disasters. The Global Fatal Landslide Database recorded 55,997 fatalities from 4862 landslide events from 2004 to 2016 [1], and the number of landslides has increased over time [2,3]. For example, the Centre for Research on the Epidemiology of Disaster and United Nations Office for Disaster Risk Reduction [4] reported a 48% increase in landslide events from 1999 to 2019. Although several approaches for landslide mitigation exist, understanding the hazards in areas prone to landslides is a fundamental approach.
Geology, morphology, vegetation, and human activities are factors affecting landslide hazards [5,6], and land cover is a key determining factor. Forests and trees play important roles in reducing landslide risk mainly due to shear strength enhancement by roots on soil particles of slip surfaces [7,8]. A comparison of landslide distribution among land use types has been conducted by numerous studies: a lower landslide area density (LAD) has been found in forests than in bare land [9], grasslands, and shrublands [10,11].
Fruit groves, such as citrus groves, apple orchards, and pear orchards, are composed of trees categorically similar to forests. Therefore, fruit groves are easily founded in hilly regions [12,13]. However, land treatment of fruit groves differs greatly from forests. In fruit groves, laborers frequently trample fields, and compressed terrain is formed due to irrigation efficiency, soil wash prevention, and cultivation. Land treatment of fruit groves, in turn, may impact landslide initiation and distribution. In Iran, for example, a higher landslide density has been reported for fruit groves than in forests and agricultural lands [11,14]. In Thailand, landslides frequently occurred in forest areas converted to fruit groves [15], especially in mountainous areas where the largest area destroyed by landslides occurred in a region with fruit groves [16]. Landslides in fruit groves cause huge economic losses; for instance, in Southern Thailand, the total economic damages are estimated at approximately $300 million a year [17]. Landslide sensitivity determines whether a danger becomes a disaster [18]. Thus, reducing activities that impair sensitivity is an effective approach to prevent damage. Until now, few studies have evaluated the role of fruit groves in landslide initiation. However, such evaluation is essential for policymakers to develop a land use plan in regions where fruit production thrives.
Landslide hazard has previously been evaluated using landslide inventory maps (LIMs) as well as maps for the effects of triggering factors [6]. Rainfall is the most common trigger for landslides [19,20], although earthquakes and volcanic activities also frequently initiate landslide events. Landslide modeling and prediction of rainfall-triggered landslides requires rainfall distribution data [21]. These data can be obtained from the global rainfall database, with a resolution of >1 km [22,23] or developed by spatial interpolation of ground-based observations [24,25]. Therefore, although rainfall is highly heterogeneous, rainfall distribution data with high resolution are not generally available. Recently, rainfall distribution data with 250-m resolution, observed in X-band multiparameter (MP) radar networks, have become available in Japan. Thus, this rainfall data would be efficient for evaluating the landslide triggering conditions in fruit groves in the study area.
This study aimed to evaluate the impact of fruit groves on landslide initiation in part of Uwajima City, Japan. This region has widespread tangerine citrus groves in hilly areas that were affected by many landslides in July 2018 due to heavy rainfall. The objectives of the study were to (1) examine landslide distributions and conditioning factors, including several rainfall indices; (2) compare the landslide density among land use types for each category of slope gradient, slope aspect, NDVI, and geology; and (3) develop the logistic regression models to evaluate the significance of citrus groves in the occurrence of landslides.

2. Materials and Methods

2.1. Site Descriptions

This study was conducted in the northern part of Uwajima City, Ehime prefecture, Japan (Figure 1). The total area is 30.28 km2, occupying 6.5% of Uwajima City. The annual rainfall from 2001 to 2020 was recorded at the Uwajima rainfall station of the Japan Meteorological Agency, which is 4.4 km south of the study area; the minimum and maximum annual rainfall were between 1049.5 mm in 2002 and 2305.0 mm in 2004 (mean, 1767 mm). The mean annual temperature was 17.1 °C. There were seasonal variations in rainfall; rainfall from June to September was heavier than that from November to February. The elevation of the study area is 5–620 m.a.s.l (mean, 61 m.a.s.l). Areas with elevations ≤200 m.a.s.l occupy over 70% of the study area. The study area is dominated by gentle terrains; 79% of the study area has a slope gradient of ≤24°. For land use, citrus groves occupied about 50% of the study area. The area mainly comprised sandy turbidite, muddy turbidite, and turbidite soil. More detailed topography, geology, and land use of the study area are shown in the results section.

2.2. The Rainfall Event in July 2018

Heavy rainfall events occurred from 1 to 8 July 2018. At the Uwajima station, the total rainfall was 578.0 mm; the maximum hourly rainfall observed from 06:00 to 07:00 on 7 July was 49.0 mm (Figure 2). The rainfall event induced numerous landslides in several cities in Ehime prefecture, particularly in Uwajima City. Uwajima City suffered the greatest landslide disaster on 7 July 2018; in total, 51 debris flows and 102 steep slope failures affected houses and public facilities [26].

2.3. Data Preparation

We used a LIM, distributions of slope gradient, slope aspect, NDVI, land use, and geology as conditioning factors, and rainfall for analysis. Data of the conditioning factors were generally selected based on the abundance, accessibility, region characteristics, and research purposes [27,28]. Because we aimed to evaluate the effects of citrus groves on landslide initiation, we considered land use as a primary conditioning factor. We also included morphological factors such as slope gradient and aspect, as well as NDVI and geology, as conditioning factors. The number of conditioning factors may not be sufficient for a landslide susceptibility study. However, they were appropriate for the hazard assessment in the area according to the study purposes. Table 1 summarizes the datasets used. We used a LIM provided by the Geospatial Information Authority of Japan (GSI) [29], which was produced using aerial photographs taken both before and shortly after the rainfall event. The LIM included 162 landslides and occupied 0.53% of the study area (Figure 1). The slope gradient and aspect were calculated using a digital elevation model (DEM). ASTER Global DEM (GDEM) was used for the calculations [30], and NDVI was calculated from the reflectance of the near-infrared wavelength (NIR) and red wavelength (RED):
NDVI = NIR RED NIR + RED
Herein, we used the NIR and RED of Landsat 8, collection 2, level-2, measured on 20 April 2018 [31], which was a clear day just before the landslide events. Landsat series collection 2, level-2, was generated from collection 2, level-1 inputs. The level-1 consisted of quantized and calibrated scaled digital number values representing multispectral image data, whereas level-2 data consisted of pixel values estimating the spectral reflectance measured at the Earth’s surface without atmospheric scattering or absorption effects [32]. Land use and geological maps were provided by the Ministry of Land, Infrastructure, Transport, and Tourism in vector format (polygon coverage) [33]; these were converted into raster data with a resolution of 100 m. The land use map included six categories (i.e., “forest,” “other agricultural land (land where vegetables and fruits are cultivated),” “field (agriculture),” “building site,” “road,” and “water”). Within the study area, the category “other agricultural land” mainly included citrus groves. Although the original classification was used when examining the landslide density for each category, these were further classified as “forest,” “citrus grove,” and “the others”, which represented the field, building site, road, and water categories. The purpose of the new classification was to highlight the difference in landslide initiation between “forest” and “citrus grove.” The geological map in this area included five geological units: “sandy turbidite,” “muddy turbidite,” “turbidite,” “limestone block,” and “chert block.”
For rainfall analysis, rainfall distributions based on the X-band MP radar network were used [34]. We downloaded the data that were recorded every 10 min on 1–8 July, and we calculated the 1-h, 3-h, 12-h, and 24-h maximum rainfall and total rainfall during the study period.

2.4. Analysis

First, maps for the one triggering and five conditioning factors were developed. For rainfall, maps for the 1-h, 3-h, 12-h, and 24-h maximum rainfall and the total rainfall during the study period were developed. Second, we calculated the landslide area proportional to the entire study area, and the LAD for each category was calculated. The LAD was calculated as the ratio of the area with landslides to the total area of each category [35,36]. We established eight categories for slope aspect, and six categories with the same data range were set for the slope gradient and NDVI. For the five rainfall indices, four categories with the same data range were set. Third, the LAD was compared in the new land use categories for each category of slope gradient, slope aspect, NDVI, and geology. Finally, multivariate analyses were performed to comprehensively examine the effects of each factor on landslide initiation. For this analysis, we applied logistic regression although random forest has also been frequently used recently. However, according to a previous review [37], logistic regression has been the most commonly used for landslide susceptibility modeling. The logistic regression can be expressed as follows [38]:
z = b 0 + b 1 x 1 + b 2 x 2 + + b n x n
where z is a dependent variable, b0 is the constant, bi is ith regression coefficient, xi is the ith independent variables, i is the number of independent variables, and n (= 6 in this study) is the number of independent variables.
Landslides and non-landslide points are required to predict the probability of landslide occurrences in the logistic regression model and evaluating the model accuracy by true- or false- positive and negative rates. Landslide points at pixels with the highest elevation for each landslide were set [39,40]. Non-landslide points were randomly selected in areas without landslides using the “random points inside polygons” function in QGIS. We set the minimum distance to 10 m, and the observed mean distance was 262.3 m as a result. Following the previous literature [38,41], the number of non-landslide and landslide points was the same. Both landslide and non-landslide points were divided into training sets for model development and testing sets for model validation. According to the suggestions in previous studies [38,42,43,44], the ratios of the training and testing sets were 80% and 20%, respectively.
The slope gradient, slope aspect, NDVI, land use, geology, and rainfall were considered as independent variables. Dummy variables were used for categorical factors of land use and geology [45] (see Appendix A Table A1 and Table A2). We developed ten models with different rainfall indices, namely 1-h, 3-h, 12-h, and 24-h maximum rainfall and total rainfall and different land use categories, namely “forest” and “citrus grove” (Appendix A Table A3). To investigate the linearity among independent variables [46], the variance inflation factor (VIF) was used, which is widely used for multicollinearity analysis. VIF indicates the effect of the determination coefficients on the variance of the estimated regression coefficients [45]. A high VIF value indicates that the model is not feasible due to multicollinearity among independent variables [45,46]. We set an acceptable VIF of 2.5, because several studies stated that VIF ≥ 2.5 indicates considerable collinearity [47,48], and VIF > 5 or 10 indicates a serious collinearity problem. The two land use types were separately calculated because the VIF values were >2.5 without separation.
The independent variables for each model were reduced stepwise based on the akaike information criterion (AIC). A stepwise regression automatically assigned the best subset of independent variables throughout several stages [49]. Each conditioning factor was evaluated one-by-one at every step using t statistics to determine the variable coefficients. To ensure acceptable model accuracy, the final models were evaluated using the area under the curve (AUC), which was obtained by constructing a receiver operating characteristic (ROC) curve comparing true- and false-positive rates, an F1 score by Equation (3) [50], and the overall accuracy by Equation (4) [51]. The all-accuracy score takes a value between 0% and 100%, and a higher score indicates higher model accuracy [46,51,52]. All geoprocessing was performed with QGIS (ver. 3.10), and logistic regression analysis was performed using R (ver. 4.1.0) programming language.
F 1   s c o r e = T P T P + 1 2 ( F P + F N )
O v e r a l l   A c c u r a c y = T P + T N T P + F P + T N + F N
where TP is the true positive, TN is the true negative, FP is the false positive, and FN is the false negative.
In the evaluations, we set the threshold of 0.5 between the occurrence and nonoccurrence of landslides.

3. Results

3.1. Landslide Area Density on Each Conditioning Factor

Figure 3 shows the maps of the five conditioning factors. The proportional area and LAD for each category in all conditioning factors are shown in Figure 4. The center of the LAD distribution was a slope gradient of 16–24°. The LAD was smaller when the slope gradient was smaller or larger than 16–24° (Figure 4a). There were no considerable differences in the proportional area among the eight slope aspects. The LADs in the southern- and northern-facing slopes tended to be larger than those in the western- and eastern-facing slopes (Figure 4b). The NDVI for the study area was 0.05 and 0.83; over 70% of the area had an NDVI of >0.68 (Figure 4c). For land use, “citrus grove” was the dominant (52.74%), followed by “forest” (35.80%) and “building site” (7.31%) (Figure 4d). The highest LAD was found on “citrus grove” (0.41%), followed by “forest” (0.11%). The LADs of the other four land use types were 0.01% (Figure 4d). Limestones and chert blocks occupied <2% (Figure 4e). The LAD of sandy turbidites was more than twice as large as that of muddy turbidites and turbidite.

3.2. Landslide Area Density Based on Rainfall Indices

Areas with a high 1-h maximum rainfall (35–63 mm) were distributed in the western part of the study area (Figure 5a). In contrast, areas with a high 3-h maximum rainfall were distributed in the northern part of the study area (Figure 5b). The distributions of the 12-h (Figure 5c) and 24-h (Figure 5d) maximum rainfall were similar to that of the total rainfall (Figure 5e); these were higher in the northeast to southwest areas and lower in the southeastern and southwestern areas. The LAD increased with an increase in the 1-h maximum rainfall (Figure 5f). The pattern of the 3-h maximum rainfall was different from that of the 1-h maximum rainfall. The middle range had the highest LAD (Figure 5g). The LADs for the 12-h (Figure 5h) and 24-h (Figure 5i) maximum rainfall and the total rainfall (Figure 5j) were comparable due to the similarity in rainfall distributions. The LAD steeply increased from the first to the second categories, and it gradually increased from the second to the fourth categories.

3.3. Land Use Effect to Landslide Density Distribution

Figure 6 compared the LADs of “forest,” “citrus grove,” and “the others” for each category of slope gradient, slope aspect, NDVI, and geology. For the slope gradient (Figure 6a), the LAD for citrus groves was larger than that for forests on gentle slopes (<24°); in contrast, it was an inconsiderable difference on steep slopes (>32°). For the slope aspect (Figure 6b), NDVI (Figure 6c), and geology (Figure 6d), the LAD for “citrus grove” was larger than that for “forest” in all categories.

3.4. Significant Effects of Landslide Conditioning Factors

All the independent variables for the ten models had a VIF of <2 (Appendix A Table A4 and Table A5), indicating that all the variables could be simulated together. Table 2 summarized the selected factors; after the stepwise processes of logistic regression analysis, NDVI, “forest,” and “citrus grove” were selected as significant factors. Because rainfall was not selected for models 2–5 and 7–10, the same result was obtained for the eight models. For models 1–10, NDVI and slope gradient were selected with negative coefficients, and “sandy turbidites” (Dummy 3) was selected with positive coefficients. In models 1–5, “forest” (Dummy 1) was selected with negative coefficient, and “citrus grove” (Dummy 2) was selected with positive coefficients in models 6–10. Additionally, rainfall was selected with a positive coefficient for models 1 and 6. The factors with a positive coefficient indicated an increasing value (or the presence) of factors that increase the landslide hazard. The AIC value for model 1 and 6 (321.1 and 311.7, respectively) were lower than those for models 2–5 and 7–10 (323.9 and 314.2, respectively). Figure 7 shows the ROC of all models; the AUC for models 1 and 6 were larger than that for models 2–5 and 7–10 as well as the F1 scores and the overall accuracy for models 1–5. However, the same accuracy values for models 6–10 were found in the F1 scores and the overall accuracy (Table 3).

4. Discussion and Conclusions

The land use category “citrus grove” occupied >50% of the study area (Figure 4). The LAD for “citrus grove” was the highest among the six land use categories (Figure 4). When LAD was compared with “forest”, “citrus grove,” and “the others” for each category of conditioning factors, the LAD for “citrus grove” was larger than that for “forest” and “the others” in most cases (Figure 6). Specifically, the LAD of citrus groves on gentle terrain was higher than that of forests on steeper terrains (32–40° of gradient) (Figure 6). This result may be attributed to the study location, which is predominantly covered by gentle terrain (78.46%), and “citrus grove” was more distributed on gentle terrain than steep terrain with 42.82%, and 9.92% of the area, respectively. Furthermore, “citrus grove” was selected as a significant factor with positive coefficients in the logistic regression analysis for all models. Thus, citrus groves contributes more to increasing the landslide hazard than forests in the study area.
Some studies [11,14] also reported a higher landslide density of fruit groves to landslides compared with forests, although there are few extensive studies examining the differences in landslide hazard between forest lands and fruit groves. However, there are several possible reasons for fruit groves contributing more to the landslide hazard. First, fruit groves are often developed by cutting the upper side of the slope and leveling the lower side of the slope to build pits for transplanting the seedlings. Generally, manmade slopes are more susceptible to landslides than natural slopes [53]. Manmade slopes and leveled natural slopes tend to change the physical properties of the soil. The main cause of hazard in manmade slopes is excavation [54,55]; geomechanical studies of soft rock slopes state that large deformation of the slope may occur on layered excavations without retaining the structure, due to the unloading of stress, which can lead to slope instability [55,56]. Second, irrigation in fruit grove areas can maintain a high soil water content. Third, fruit groves are composed of a single species. Areas with low biodiversity may have a weak root network system in terms of soil-binding capacity [57]. In addition, soil compaction by trampling may also alter soil physical properties to influence landslide initiation.
This study used radar-based rainfall data with high spatial and temporal resolutions. The result showed 1-h maximum rainfall significantly affected the landslide occurrence (Table 2). The AIC and AUC of model 1 and 6, including 1-h maximum rainfall, were lower and larger than models 2–5 and models 7–10, respectively, where rainfall indices were excluded. In a previous study [58] that compared rainfall data from XRAIN radar with those based on rain gauges, the reported differences were 2% for normalized bias, 22% for normalized error, 0.96 for correlation coefficient, and 3.5 mm for root mean square error. High-quality radar-based rainfall measurement can improve the evaluations of landslide hazard.
The results of this study suggest that fruit groves should not be developed on slopes near houses or public facilities, where people can be harmed and assets destroyed. This may apply to other areas with similar topographic and geological conditions. The results of this study (i.e., higher contribution in landslide initiation and distribution in fruit groves than forests) are identical to previous studies [11,14]. However, previous studies have only examined landslide initiation among land use types without considering variations in rainfall distributions; this study examined landslide hazard in several steps while considering several rainfall distributions, which expands upon previous work. This is an improvement over the previous studies. However, this study had some limitations. First, this study only included one rainfall event, several events would have been desirable for generalization. Second, historical land use changes and landslides were not considered, which may affect the current landslide hazard [59,60]. Third, the mechanism that leads to higher landslide initiation in fruit groves compared with forests could not be clarified. Examining and comparing the root system as well as hydrological aspects of fruit groves with forests will further increase the understanding of these mechanisms. Finally, other data inputs (i.e., natural vs. manmade slopes, soil characteristics, and root types) for the logistic regression model will help to better understand the landslide hazard of fruit groves. Our final goal is to be able to generalize landslide hazard in fruit groves, and the study presented in this paper is a step in this direction.

Author Contributions

Conceptualization, Y.S.; methodology, N.L.; formal analysis, N.L.; data curation, N.L.; writing—original draft preparation, N.L.; writing—review and editing, Y.S.; visualization, N.L.; funding acquisition, Y.S. and N.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Japan Society for the Promotion of Science (JSPS) KAKENHI Grant Number JP21K04590, and the APC was funded by the Japan Science and Technology Agency (JST) through “Support for Pioneering Research Initiated by the Next Generation”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Rule of dummy variables on land use.
Table A1. Rule of dummy variables on land use.
ForestCitrus GroveOthers
Dummy 1100
Dummy 2010
Table A2. Rule of dummy variables on geology.
Table A2. Rule of dummy variables on geology.
Sandy TurbiditeMuddy TurbiditeOthers
Dummy 3100
Dummy 4010
Table A3. Independent variables of models 1–10.
Table A3. Independent variables of models 1–10.
ModelFactor
Slope GradientSlope AspectNDVIForestCitrus GroveGeology1h-Max Rainfall3h-Max Rainfall12h-Max Rainfall24h-Max RainfallTotal Rainfall
1
2
3
4
5
6
7
8
9
10
√: including model.
Table A4. Variance inflation factors (VIF) for the five models (i.e., models 1–5).
Table A4. Variance inflation factors (VIF) for the five models (i.e., models 1–5).
Landslide Conditioning FactorsModel 1Model 2Model 3Model 4Model 5
Slope gradient1.271.081.111.111.10
Slope aspect1.011.011.011.011.01
NDVI1.231.141.181.181.18
Dummy 11.101.131.151.151.15
Dummy 31.831.831.831.831.83
Dummy 41.771.781.771.771.77
Rainfall1.371.051.181.181.16
Table A5. Variance inflation factors (VIF) for the five models (i.e., models 6–10).
Table A5. Variance inflation factors (VIF) for the five models (i.e., models 6–10).
Landslide Conditioning FactorsModel 6Model 7Model 8Model 9Model 10
Slope gradient1.271.091.111.111.10
Slope aspect1.011.011.011.011.01
NDVI1.231.151.181.181.18
Dummy 21.111.161.201.201.77
Dummy 31.811.801.801.801.80
Dummy 41.771.781.771.771.77
Rainfall1.381.081.221.221.20

References

  1. Froude, M.J.; Petley, D.N. Global fatal landslide occurrence from 2004 to 2016. Nat. Hazards Earth Syst. Sci. 2018, 18, 2161–2181. [Google Scholar] [CrossRef] [Green Version]
  2. Petley, D.N.; Hearn, G.J.; Hart, A.; Rosser, N.J.; Dunning, S.A.; Oven, K.; Mitchell, W.A. Trends in landslide occurrence in Nepal. Nat. Hazards 2007, 43, 23–44. [Google Scholar] [CrossRef]
  3. Carrión-Mero, P.; Montalván-Burbano, N.; Morante-Carballo, F.; Quesada-Román, A.; Apolo-Masache, B. Worldwide research trends in landslide science. Int. J. Environ. Res. Public Health 2021, 18, 9445. [Google Scholar] [CrossRef] [PubMed]
  4. UNDRR/CRED. Human Cost of Disasters. In An Overview of the Last 20 Years 2000–2019; UN Office for Disaster Risk Reduction: Geneva, Switzerland, 2020; pp. 6–7. [Google Scholar]
  5. Dahal, B.K.; Dahal, R.K. Landslide hazard map: Tool for optimization of low-cost mitigation. Geoenvironmental Disasters 2017, 4, 8. [Google Scholar] [CrossRef] [Green Version]
  6. Van Westen, C.J.; Castellanos, E.; Kuriakose, S.L. Spatial data for landslide susceptibility, hazard, and vulnerability assessment: An Overview. Eng. Geol. 2008, 102, 112–131. [Google Scholar] [CrossRef]
  7. Wu, W.; Sidle, R.C. A Distributed slope stability model for steep forested basins. Water Resour. Res. 1995, 31, 2097–2110. [Google Scholar] [CrossRef]
  8. Schwarz, M.; Lehmann, P.; Or, D. Quantifying lateral root reinforcement in steep slopes—From a bundle of roots to tree stands. Earth Surf. Process. Landforms 2010, 35, 354–367. [Google Scholar] [CrossRef]
  9. Schmaltz, E.M.; Steger, S.; Glade, T. The influence of forest cover on landslide occurrence explored with spatio-temporal information. Geomorphology 2017, 290, 250–264. [Google Scholar] [CrossRef]
  10. Shu, H.; Hürlimann, M.; Molowny-Horas, R.; González, M.; Pinyol, J.; Abancó, C.; Ma, J. Relation between land cover and landslide susceptibility in Val d’Aran, Pyrenees (Spain): Historical aspects, present situation and forward prediction. Sci. Total Environ. 2019, 693, 133557. [Google Scholar] [CrossRef]
  11. Joybari, J.; Kavian, A.A.; Mosaffaie, J. Effect of land use on landslide movement in the Tavan District, Qazvin. Watershed Manag. Res. J. 2017, 30, 29–39. [Google Scholar]
  12. Jia, Q.; Wang, Y.P. Relationships between leaf area index and evapotranspiration and crop coefficient of hilly apple orchard in the Loess Plateau. Water 2021, 13, 1957. [Google Scholar] [CrossRef]
  13. Shi, D.; Tan, H.; Rao, W.; Liu, Z.; Elenga, H.I. Variations in water content of soil in apricot orchards in the western hilly regions of the Chinese Loess Plateau. Vadose Zone J. 2020, 19, e20034. [Google Scholar] [CrossRef]
  14. Mousavi, S.Z.; Kavian, A.; Soleimani, K.; Mousavi, S.R.; Shirzadi, A. GIS-based spatial prediction of landslide susceptibility using logistic regression model. Geomatics Nat. Hazards Risk 2011, 2, 33–50. [Google Scholar] [CrossRef] [Green Version]
  15. Sangrawee, P.; Rangsipanich, A.; Suvachananonda, T. Analyzing the effects of land use changes for landslide susceptibility assessment: A case study of LabLae District, Uttradit Province, Thailand. In Proceedings of the 38th Asian Conference on Remote Sensing in Space Applications Touching Human Lives, ACRS, New Delhi, India, 3–7 October 2017. [Google Scholar]
  16. Boonyanuphap, J. Cost-benefit analysis of vetiver system-based rehabilitation measures for landslide-damaged mountainous agricultural lands in the Lower Northern Thailand. Nat. Hazards 2013, 69, 599–629. [Google Scholar] [CrossRef]
  17. Miyagi, T.; Prasad, G.B.; Tanavud, C.; Potichan, A.; Hamasaki, E. Landslide risk evaluation and mapping—Manual of aerial photo interpretation for landslide topography and risk management. Rep. Natl. Res. Inst. Earth Sci. Disaster Prev. 2004, 66, 75–137. [Google Scholar]
  18. World Meteorological Organization. Integrated Flood Management Tools Series-Management of Sediment-Related Risks; Issue 12; 2011. Available online: https://library.wmo.int/doc_num.php?explnum_id=4274) (accessed on 10 April 2022).
  19. Iverson, R.M. Landslide triggering by rain infiltration. Water Resour. Res. 2000, 36, 1897–1910. [Google Scholar] [CrossRef] [Green Version]
  20. Saito, H.; Uchiyama, S.; Hayakawa, Y.S.; Obanawa, H. Landslides triggered by an earthquake and heavy rainfalls at Aso Volcano, Japan, Detected by UAS and SfM-MVS photogrammetry. Prog. Earth Planet. Sci. 2018, 5, 1–10. [Google Scholar] [CrossRef]
  21. Chang, K.T.; Chiang, S.H. An integrated model for predicting rainfall-induced landslides. Geomorphology 2009, 105, 366–373. [Google Scholar] [CrossRef]
  22. Chang, K.; Chiang, S.-H.; Lei, F. Analysing the relationship between typhoon-triggered landslides and critical rainfall conditions. Earth Surf. Process. Landforms 2008, 33, 1261–1271. [Google Scholar] [CrossRef]
  23. Fick, S.E.; Hijmans, R.J. WorldClim 2: New 1-km spatial resolution climate surfaces for global land areas. Int. J. Climatol. 2017, 37, 4302–4315. [Google Scholar] [CrossRef]
  24. Sun, Q.; Miao, C.; Duan, Q.; Ashouri, H.; Sorooshian, S.; Hsu, K.L. A review of global precipitation data sets: Data sources, estimation, and intercomparisons. Rev. Geophys. 2018, 56, 79–107. [Google Scholar] [CrossRef] [Green Version]
  25. Karger, D.N.; Wilson, A.M.; Mahony, C.; Zimmermann, N.E.; Jetz, W. Global daily 1 km land surface precipitation based on cloud cover-informed downscaling. Sci. Data 2021, 8, 307. [Google Scholar] [CrossRef] [PubMed]
  26. Mori, S.; Ono, K. Landslide disasters in Ehime prefecture resulting from the july 2018 heavy rain event in Japan. Soils Found. 2019, 59, 2396–2409. [Google Scholar] [CrossRef]
  27. Lee, C.T.; Huang, C.C.; Lee, J.F.; Pan, K.L.; Lin, M.L.; Dong, J.J. Statistical approach to storm event-induced landslides susceptibility. Nat. Hazards Earth Syst. Sci. 2008, 8, 941–960. [Google Scholar] [CrossRef] [Green Version]
  28. Dou, J.; Yamagishi, H.; Pourghasemi, H.R.; Yunus, A.P.; Song, X.; Xu, Y.; Zhu, Z. An Integrated artificial neural network model for the landslide susceptibility assessment of Osado Island, Japan. Nat. Hazards 2015, 78, 1749–1776. [Google Scholar] [CrossRef]
  29. Geospatial Information Authority of Japan (GSI). Map/Aerial Photo Viewing Display. 2022. Available online: https://mapps.gsi.go.jp/maplibSearch.do;jsessionid=DAD5878D8589927635F982E6AAFE3A9F#1 (accessed on 10 April 2022).
  30. Tachikawa, I.T.; Hato, M.; Kaku, M.; Iwasaki, A. The Characteristics of ASTER GDEM Version 2. IGRASS 2011. Available online: https://www.jspacesystems.or.jp/ersdac/GDEM/J/ (accessed on 10 April 2022).
  31. United State Geological Survey (USGS). Earth Explorer. 2022. Available online: https://earthexplorer.usgs.gov/ (accessed on 10 April 2022).
  32. Pinto, C.T.; Jing, X.; Leigh, L. Evaluation analysis of landsat level-1 and level-2 data products using in situ measurements. Remote Sens. 2020, 12, 2597. [Google Scholar] [CrossRef]
  33. Ministry of Land, Infrastructure, Transport and Tourism (MLIT) of Japan. National Land Numerical Information Download Service. 2022. Available online: https://nlftp.mlit.go.jp/ksj/ (accessed on 10 April 2022).
  34. Ministry of Land, Infrastructure, Transport and Tourism (MLIT) of Japan. X/C Band MP Radar (XRAIN) Real-Time Rainfall Information by Data Integration and Analysis System Program (DIAS). 2022. Available online: http://apps.diasjp.net/xband/ (accessed on 10 April 2022).
  35. Dai, F.C.; Xu, C.; Yao, X.; Xu, L.; Tu, X.B.; Gong, Q.M. Spatial distribution of landslides triggered by the 2008 ms 8.0 Wenchuan earthquake, China. J. Asian Earth Sci. 2011, 40, 883–895. [Google Scholar] [CrossRef]
  36. Keefer, D.K. Statiscal analysis of an earthquake-induced landslide distribution—The 1989 Loma Prieta, California event. Eng. Geol. 2000, 58, 231–249. [Google Scholar] [CrossRef]
  37. Reichenbach, P.; Rossi, M.; Malamud, B.D.; Mihir, M.; Guzzetti, F. A review of statistically-based landslide susceptibility models. Earth-Sci. Rev. 2018, 180, 60–91. [Google Scholar] [CrossRef]
  38. Bai, S.B.; Wang, J.; Lü, G.N.; Zhou, P.G.; Hou, S.S.; Xu, S.N. GIS-based logistic regression for landslide susceptibility mapping of the Zhongxian segment in the Three Gorges Area, China. Geomorphology 2010, 115, 23–31. [Google Scholar] [CrossRef]
  39. Danjo, T.; Ishizawa, T.; Kimura, T. Spatial analysis of the landslide characteristics caused by heavy rainfall in the Northern Kyushu District in July 2017 using topography, geology, and rainfall levels. J. Disaster Res. 2018, 13, 832–845. [Google Scholar] [CrossRef]
  40. Di Napoli, M.; Di Martire, D.; Bausilio, G.; Calcaterra, D.; Confuorto, P.; Firpo, M.; Pepe, G.; Cevasco, A. Rainfall-induced shallow landslide detachment, transit and runout susceptibility mapping by integrating machine learning techniques and gis-based approaches. Water 2021, 13, 488. [Google Scholar] [CrossRef]
  41. Tien Bui, D.; Pradhan, B.; Lofman, O.; Revhaug, I. Landslide susceptibility assessment in Vietnam using support vector machines, decision tree, and nave bayes models. Math. Probl. Eng. 2012, 2012, 974638. [Google Scholar] [CrossRef] [Green Version]
  42. Nefeslioglu, H.A.; Gokceoglu, C.; Sonmez, H. An assessment on the use of logistic regression and artificial neural networks with different sampling strategies for the preparation of landslide susceptibility maps. Eng. Geol. 2008, 97, 171–191. [Google Scholar] [CrossRef]
  43. Pradhan, B.; Lee, S. Delineation of landslide hazard areas on Penang Island, Malaysia, by using frequency ratio, logistic regression, and artificial neural network models. Environ. Earth Sci. 2010, 60, 1037–1054. [Google Scholar] [CrossRef]
  44. Gautam, P.; Kubota, T.; Aditian, A. Evaluating underlying causative factors for earthquake-induced landslides and landslide susceptibility mapping in upper Indrawati watershed, Nepal. Geoenviron. Disasters 2021, 8, 30. [Google Scholar] [CrossRef]
  45. Gujarati, D.N.; Porter, D.C. Multicollinearity: What Happens If the Regressor Are Correlated? Basic Econometrics, 5th ed.; McGraw-Hill Irwin: New York, NY, USA, 2013; pp. 328–330. [Google Scholar]
  46. Corsini, A.; Mulas, M. Use of ROC curves for early warning of landslide displacement rates in response to precipitation (Piagneto Landslide, Northern Apennines, Italy). Landslides 2017, 14, 1241–1252. [Google Scholar] [CrossRef]
  47. Midi, H.; Sarkar, S.K.; Rana, S. Collinearity diagnostics of binary logistic regression model. J. Interdiscip. Math. 2010, 13, 253–267. [Google Scholar] [CrossRef]
  48. Johnston, R.; Jones, K.; Manley, D. Confounding and collinearity in regression analysis: A cautionary tale and an alternative procedure, illustrated by studies of british voting behaviour. Qual. Quant. 2018, 52, 1957–1976. [Google Scholar] [CrossRef] [Green Version]
  49. Hengl, T.; Heuvelink, G.B.M.; Stein, A. A generic framework for spatial prediction of soil variables based on regression-kriging. Geoderma 2004, 120, 75–93. [Google Scholar] [CrossRef] [Green Version]
  50. Hand, D.J.; Christen, P.; Kirielle, N. F*: An interpretable transformation of the F-measure. Mach. Learn. 2021, 110, 451–456. [Google Scholar] [CrossRef] [PubMed]
  51. Chen, W.; Xie, X.; Wang, J.; Pradhan, B.; Hong, H.; Bui, D.T.; Duan, Z.; Ma, J. A comparative study of logistic model tree, random forest, and classification and regression tree models for spatial prediction of landslide susceptibility. Catena 2017, 151, 147–160. [Google Scholar] [CrossRef] [Green Version]
  52. Xing, Y.; Yue, Y.; Guo, Z.; Chen, Y.; Hu, J.; Travé, A. Large-Scale landslide susceptibility mapping using an integrated machine learning model: A case study in the Lvliang Mountains of China. Front. Earth Sci. 2021, 9, 622. [Google Scholar] [CrossRef]
  53. Rupke, J.; Huisman, M.; Kruse, H.M.G. Stability of man-made slopes. Eng. Geol. 2007, 91, 16–24. [Google Scholar] [CrossRef]
  54. Zhang, F.; Liu, G.; Chen, W.; Liang, S.; Chen, R.; Han, W. Human-induced landslide on a high cut slope: A case of repeated failures due to multi-excavation. J. Rock Mech. Geotech. Eng. 2012, 4, 367–374. [Google Scholar] [CrossRef]
  55. Li, Q.; Wang, Y.M.; Zhang, K.B. Case study of cutting slope with progressive failure due to continuous excavation. In Proceedings of the 8th Japan-China Geotechnical Symposium Challenges to Breakthrough Geotechnics, Kyoto, Japan, 28–29 September 2020; pp. 436–440. [Google Scholar]
  56. Ayalew, L.; Moeller, D.; Reik, G. Geotechnical aspects and stability of road cuts in the Blue Nile Basin, Ethiopia. Geotech. Geol. Eng. 2009, 27, 713–728. [Google Scholar] [CrossRef]
  57. Ziegler, A.D.; Bruun, T.B.; Guardiola-Claramonte, M.; Giambelluca, T.W.; Lawrence, D.; Thanh Lam, N. Environmental consequences of the Demise in Swidden cultivation in Montane Mainland Southeast Asia: Hydrology and geomorphology. Hum. Ecol. 2009, 37, 361–373. [Google Scholar] [CrossRef]
  58. Shakti, P.C.; Misumi, R.; Nakatani, T.; Iwanami, K.; Maki, M.; Maesaka, T.; Hirano, K. Accuracy of quantitative precipitation estimation using operational weather radars: A case study of heavy rainfall on 9–10 September 2015 in the east Kanto region, Japan. J. Disaster Res. 2016, 11, 1003–1016. [Google Scholar] [CrossRef]
  59. Bernardie, S.; Vandromme, R.; Thiery, Y.; Houet, T.; Grémont, M.; Masson, F.; Grandjean, G.; Bouroullec, I. Modelling landslide hazards under global changes: The case of a Pyrenean Valley. Nat. Hazards Earth Syst. Sci. 2021, 21, 147–169. [Google Scholar] [CrossRef]
  60. Tyagi, A.; Tiwari, R.K.; James, N. GIS-Based Landslide Hazard Zonation and Risk Studies using MCDM BT—Local Site Effects and Ground Failures; Springer: Singapore, 2021; pp. 251–266. [Google Scholar]

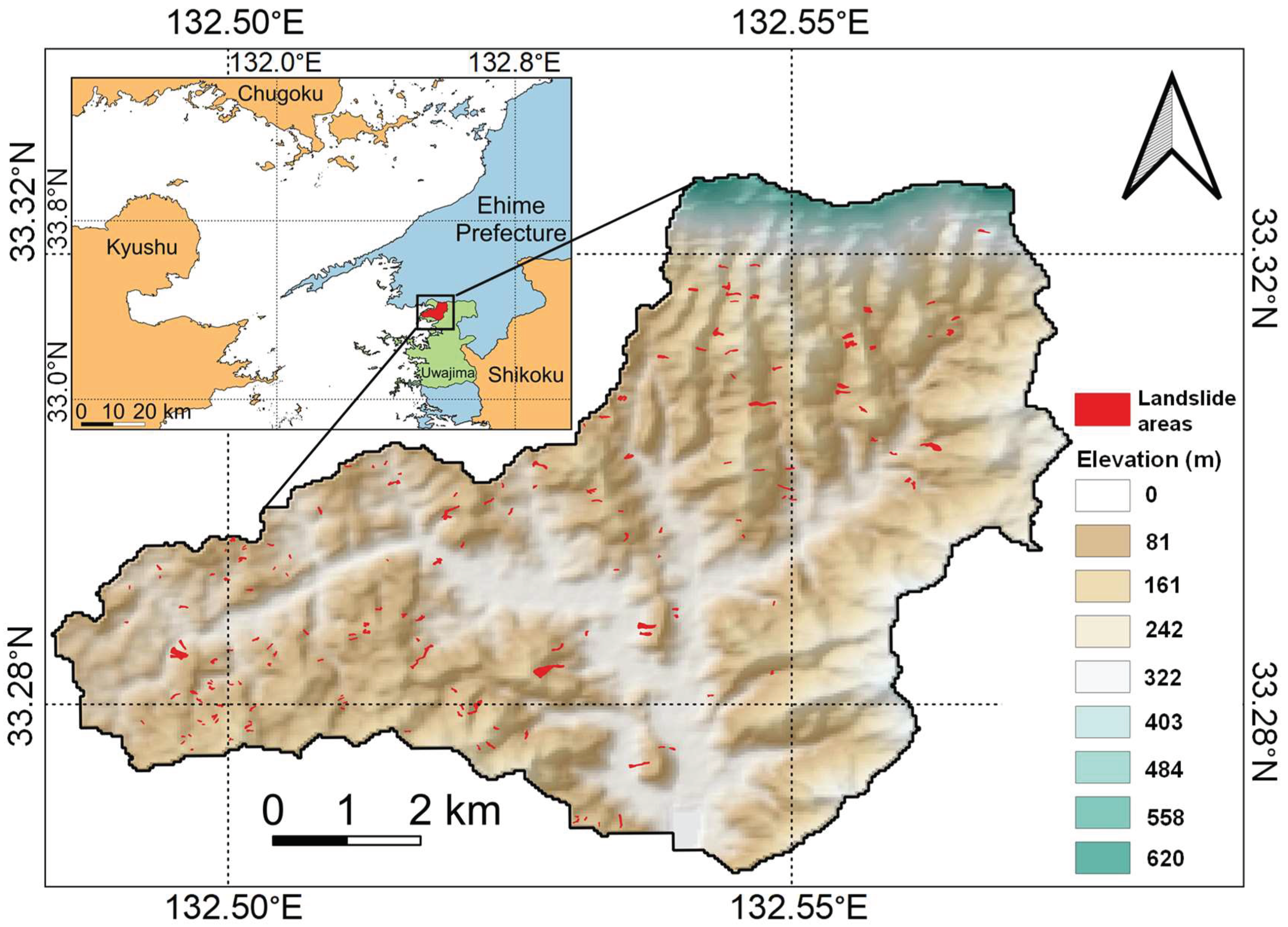

Figure 1. Location of the study area (in Uwajima City, southwest part of Ehime prefecture) and landslide distribution in July 2018. The height of elevation means height above sea level.
Figure 1. Location of the study area (in Uwajima City, southwest part of Ehime prefecture) and landslide distribution in July 2018. The height of elevation means height above sea level.
Water 14 02113 g001

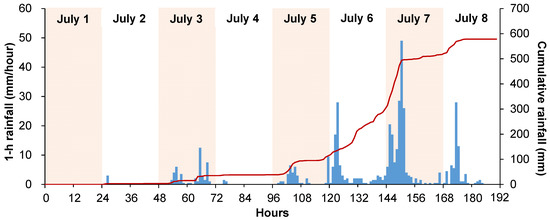

Figure 2. Hourly rainfall (blue bars) and cumulative rainfall (a red line) on 1–8 July 2018, at the Uwajima rainfall station.
Figure 2. Hourly rainfall (blue bars) and cumulative rainfall (a red line) on 1–8 July 2018, at the Uwajima rainfall station.
Water 14 02113 g002
Figure 3. The distributions of the landslide conditioning factors: (a) slope gradient, (b) slope aspect, (c) normalized difference vegetation index, (d) land use, and (e) geology. The solid lines in the maps indicate contour lines with an interval of 100 m.
Figure 3. The distributions of the landslide conditioning factors: (a) slope gradient, (b) slope aspect, (c) normalized difference vegetation index, (d) land use, and (e) geology. The solid lines in the maps indicate contour lines with an interval of 100 m.
Water 14 02113 g003

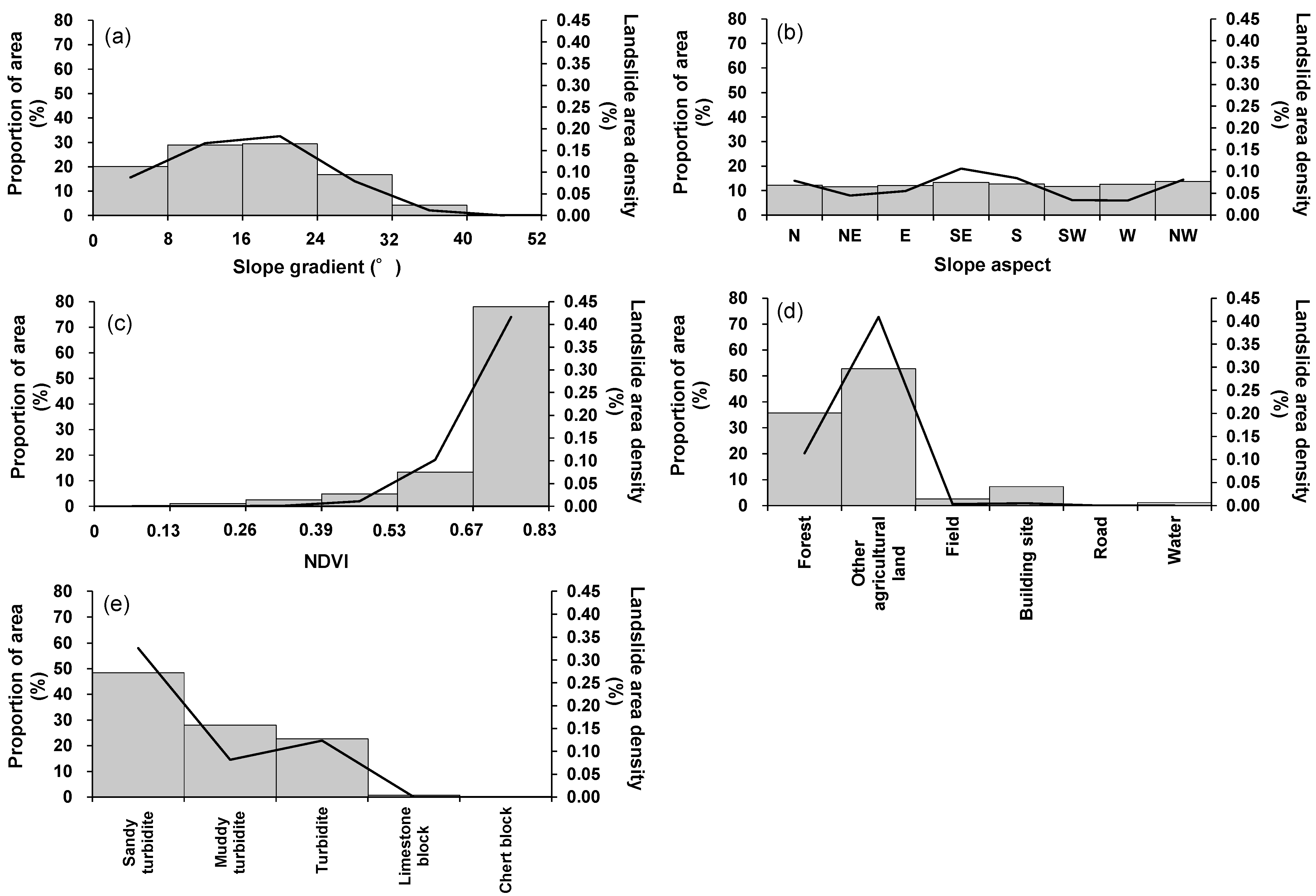

Figure 4. Proportion of area (bars) and landslide area density (lines) for each category of the five conditioning factors: (a) slope gradient; (b) slope aspect; (c) normalized difference vegetation index; (d) land use; and (e) geology.
Figure 4. Proportion of area (bars) and landslide area density (lines) for each category of the five conditioning factors: (a) slope gradient; (b) slope aspect; (c) normalized difference vegetation index; (d) land use; and (e) geology.
Water 14 02113 g004

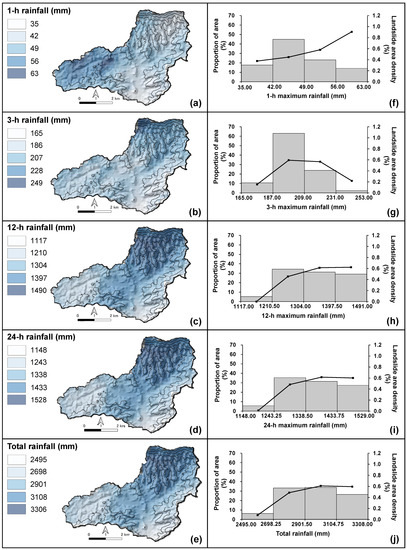

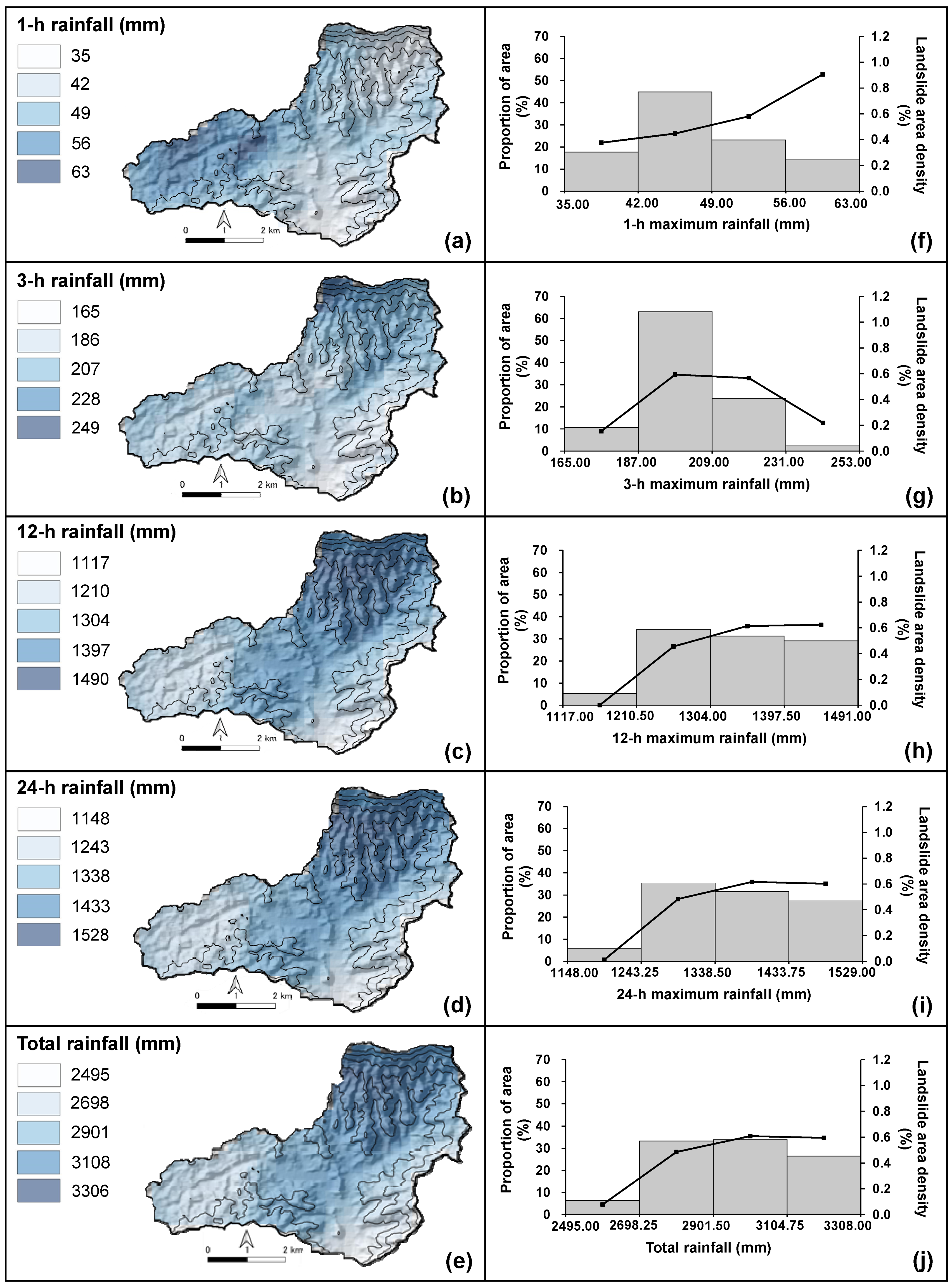

Figure 5. (ae) Rainfall distributions measured by the X-band MP radar network and (fj) the proportion of areas (bars) and landslide area density (lines) for the 1-h (a,f), 3-h (b,g), 12-h (c,h), and 24-h maximum rainfall (d,i) and total rainfall (e,j).
Figure 5. (ae) Rainfall distributions measured by the X-band MP radar network and (fj) the proportion of areas (bars) and landslide area density (lines) for the 1-h (a,f), 3-h (b,g), 12-h (c,h), and 24-h maximum rainfall (d,i) and total rainfall (e,j).
Water 14 02113 g005

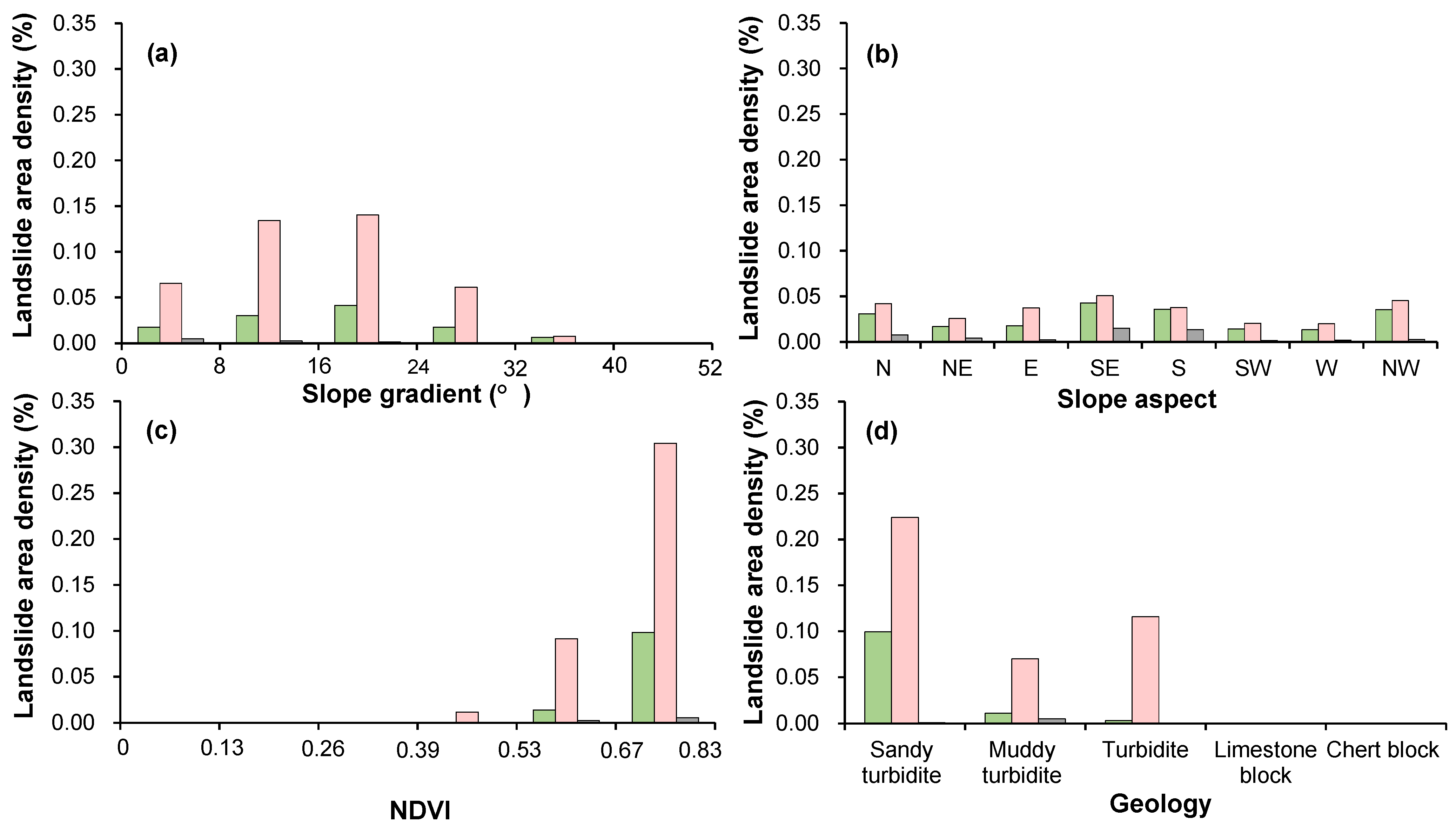

Figure 6. Landslide area density of “forest” (green), “citrus grove” (pink), and “the others (gray)” for each category of conditioning factors: (a) slope gradient; (b) slope aspect; (c) normalized difference vegetation index, and (d) geology.
Figure 6. Landslide area density of “forest” (green), “citrus grove” (pink), and “the others (gray)” for each category of conditioning factors: (a) slope gradient; (b) slope aspect; (c) normalized difference vegetation index, and (d) geology.
Water 14 02113 g006

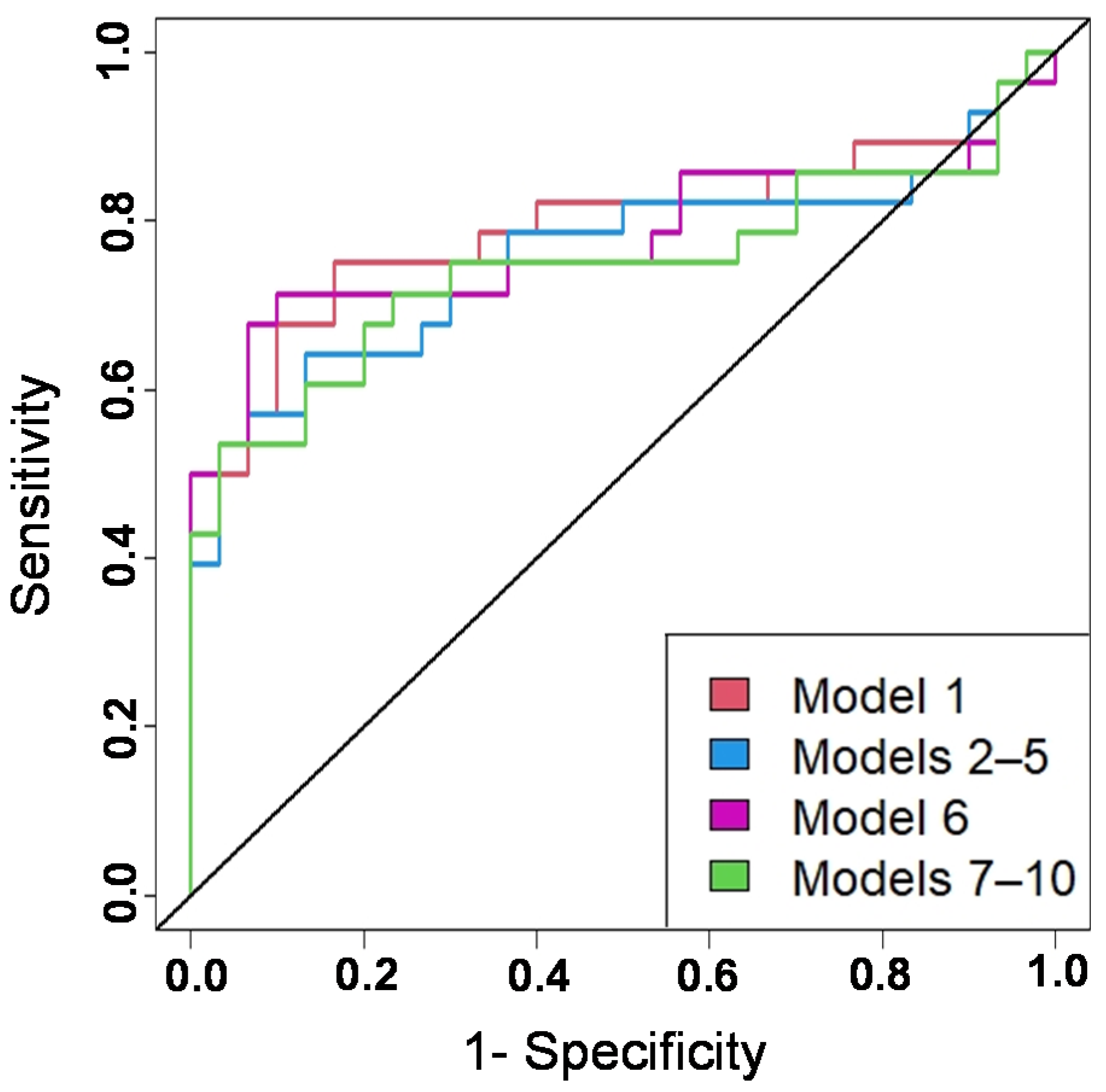

Figure 7. Receiver operating characteristic (ROC) curves with the value of the area under the curve (AUC) for all models developed by logistic regression analysis.
Figure 7. Receiver operating characteristic (ROC) curves with the value of the area under the curve (AUC) for all models developed by logistic regression analysis.
Water 14 02113 g007
Table 1. Summary of datasets.
Table 1. Summary of datasets.
DatasetsData TypeScale/ ResolutionSource
Landslide inventory maps (LIM)Polygon coverage1:25,000[29]
Digital Elevation Model (DEM)Raster30 × 30 m[30]
Normalized Difference Vegetation Index (NDVI)Raster30 × 30 m[31]
Land usePolygon coverage1:200,000[33]
GeologyPolygon coverage1:200,000[33]
RainfallRaster258 × 258 m[34]
Table 2. The coefficients of selected independent variables by logistic regression analysis for models 1–10.
Table 2. The coefficients of selected independent variables by logistic regression analysis for models 1–10.
VariableCoefficientVariableCoefficient
Model 1Models 2–5Model 6Models 7–10
Slope gradient–0.01Slope gradient–0.005
Slope aspectSlope aspect
NDVI–3.27 ***–3.48 ***NDVI–3.10 ***–3.29 ***
Dummy 1–0.14 *–0.15 *Dummy 20.22 ***0.23 ***
Dummy 30.130.12Dummy 30.130.13
Dummy 4Dummy 4
Rainfall0.01Rainfall0.01
–: eliminated variables by stepwise regression process; *** p < 0.001, ** p < 0.01, * p < 0.05.
Table 3. The values of the AUC, F1 scores, and overall accuracy for models 1–10 developed by logistic regression analysis.
Table 3. The values of the AUC, F1 scores, and overall accuracy for models 1–10 developed by logistic regression analysis.
MethodModel 1Models 2–5Model 6Models 7–10
AUC79.4075.9577.8674.64
F1 score77.7867.9272.7372.73
Overall accuracy79.3170.6974.1474.14
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lusiana, N.; Shinohara, Y. The Role of Citrus Groves in Rainfall-Triggered Landslide Hazards in Uwajima, Japan. Water 2022, 14, 2113. https://doi.org/10.3390/w14132113

AMA Style

Lusiana N, Shinohara Y. The Role of Citrus Groves in Rainfall-Triggered Landslide Hazards in Uwajima, Japan. Water. 2022; 14(13):2113. https://doi.org/10.3390/w14132113

Chicago/Turabian Style

Lusiana, Novia, and Yoshinori Shinohara. 2022. "The Role of Citrus Groves in Rainfall-Triggered Landslide Hazards in Uwajima, Japan" Water 14, no. 13: 2113. https://doi.org/10.3390/w14132113

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
