Hybridized Adaptive Neuro-Fuzzy Inference System with Metaheuristic Algorithms for Modeling Monthly Pan Evaporation

Abstract

Precise estimation of pan evaporation is necessary to manage available water resources. In this study, the capability of three hybridized models for modeling monthly pan evaporation (Epan) at three stations in the Dongting lake basin, China, were investigated. Each model consisted of an adaptive neuro-fuzzy inference system (ANFIS) integrated with a metaheuristic optimization algorithm; i.e., particle swarm optimization (PSO), whale optimization algorithm (WOA), and Harris hawks optimization (HHO). The modeling data were acquired for the period between 1962 and 2001 (480 months) and were grouped into several combinations and incorporated into the hybridized models. The performance of the models was assessed using the root mean square error (RMSE), mean absolute error (MAE), Nash–Sutcliffe Efficiency (NSE), coefficient of determination (R²), Taylor diagram, and Violin plot. The results showed that maximum temperature was the most influential variable for evaporation estimation compared to the other input variables. The effect of periodicity input was investigated, demonstrating the efficacy of this variable in improving the models’ predictive accuracy. Among the models developed, the ANFIS-HHO and ANFIS-WOA models outperformed the other models, predicting Epan in the study stations with different combinations of input variables. Between these two models, ANFIS-WOA performed better than ANFIS-HHO. The results also proved the capability of the models when they were used for the prediction of Epan when given a study station using the data obtained for another station. Our study can provide insights into the development of predictive hybrid models when the analysis is conducted in data-scare regions.

1. Introduction

Out of several components of the hydrological cycle that affect regional water resources and agricultural production, evaporation is known as one of the essential components [1,2]. The importance of evaporation gains even more attention when the objective is the management of water resources in arid and semi-arid regions [3,4]. Evaporation is estimated using various indirect and direct methods, such as water balance, energy balance, mass transfer, Penman method, and evaporation pan [5]. Among them, the evaporation pan is a widely used and cost-effective method that reflects the amount of evaporation in the balance between the water and energy cycles, and measures the combined effect of several climate elements, such as solar radiation (SR), air temperature (TA), rainfall, relative humidity (RH), and wind speed (SW). Therefore, many researchers have attempted to estimate pan evaporation (Epan) using direct and indirect approaches [6,7]. Although a direct estimation of Epan seems to be more accurate, practical limitations and restrictions in instrumental devices encourage meteorologists to implement indirect approaches that work based on empirical, mathematical, and soft computing, as well as machine learning (ML) techniques [8].

With the advancement of computer hardware and the improvement of soft computing techniques over the last three decades, data-driven ML techniques have been successfully used for the prediction of Epan [9]. Artificial neural networks (ANNs) [10], an adaptive neuro-fuzzy inference system (ANFIS) [11], least square support vector regression (LSSVM) [12], tree-based methods [13], a self-organizing map neural network (SOMNN) [14], multiple linear regression (MLR) [15], support vector machines (SVMs) [16], a classification and regression tree (CART) [17], an extreme learning machine (ELM) [18], gene expression programming [19], and a multivariate adaptive regression spline (MARS) [20] are among the methods that have been implemented in the literature.

In the case of the ANFIS method, many works have acknowledged its accuracy for Epan estimation [21,22]. ANFIS is a powerful tool for iterative optimization of complex real-world systems because ANFIS has the advantages of coupling both network-based models for the training process and fuzzy inference logic concepts for converting data patterns through membership functions. ANFIS also benefits from a fast calculation speed that allows for the finding of an optimal solution.

Apart from method selection, the selection of appropriate parameters is a critical step for the development of accurate and reliable Epan prediction models. Since each ML method, such as ANFIS, has several parameters, it is a difficult and time-consuming task to manually tune all parameters. Therefore, automatic parameter tuning using metaheuristic optimization algorithms has received attention from many researchers studying real-world problems. Examples of the metaheuristic optimization algorithms used for tuning a base method, such as ANN, LSSVM, SVR and ANFIS [23,24], include an electrostatic discharge algorithm [25], a water cycle optimization algorithm (WCA) [26], atom search optimization (ASO) [27], particle swarm optimization (PSO) [28], a cultural algorithm (CA) [29], a bee colony algorithm (BCA) [30], a genetic algorithm (GA) [31], biogeography-based optimization [24], and a firefly algorithm (FFA) [32].

Table 1. Comparing the performance of standalone ANFIS, hybridized ANFIS with metaheuristic algorithms, and other ML models in modeling Epan based on the previous reports.

Study	Developed Model(s)	Performance Comparison
Jasmin et al. [2]	ANFIS and hybridized ANFIS with FFA, GA, and PSO	The ANFIS-PSO model with R2 = 0.99 and RMSE = 9.73 performed the best.
Wang et al. [9]	Multi-layer perceptron (MLP), generalized regression neural network (GRNN), fuzzy genetic (FG), LSSVM, MARS, ANFIS with grid partition (ANFIS-GP)	The ANFIS-GP model did not perform better than MLP and GRNN. It provided less accurate results than SVM. Therefore, the use of metaheuristic algorithms was recommended for improving ANFIS.
Malik et al. [33]	MLP, co-active ANFIS (CANFIS), radial basis neural network (RBNN), and self-organizing map neural network (SOMNN)	The hybridized CANFIS model with RMSE = 0.627 was ranked among the most accurate models.
Arya Azar et al. [34]	Least-squares support vector regression (LS-SVR), ANFIS, and ANFIS-HHO	The hybridized ANFIS-HHO (RMSE  =  2.35 and NSE  =  0.95) model successfully outperformed the other models.
Seifi et al. [35]	Copula-based Bayesian Model Averaging (CBMA) and hybridized ANFIS with seagull optimization algorithm (SOA), crow search algorithm (CA), FA, and PSO	The hybridized models improved prediction accuracy by 20.35–64.36%. Thus, solidifying ANFIS with metaheuristic algorithms was recommended.

compares the hybridized ANFIS models with other ML methods for modeling evaporation as used in previous studies.

Owing to the capabilities of hybridized ANFIS models in capturing nonlinearity features of complex systems, this research aims to evaluate the performance of standalone ANFIS, along with three hybridized types of ANFIS, including ANFIS-PSO, ANFIS-WOA (Whale optimization algorithm), and ANFIS-HHO (Harris hawks optimization) in predicting Epan at three stations located in China. In this framework, limited data (Tmin and Tmax) and extraterrestrial radiation (Ra), which can be easily calculated with the Julian date, are used to develop the models. The major novelty of this study is to assess the potential of three hybridized models for estimating Epan. Furthermore, the contribution of the study relies on the evaluation of the models’ ability in extrapolating Epan in one of the stations (Nanxian Station) in proportion to the other two stations (Jingzhou and Yueyang Stations).

2. Case Study

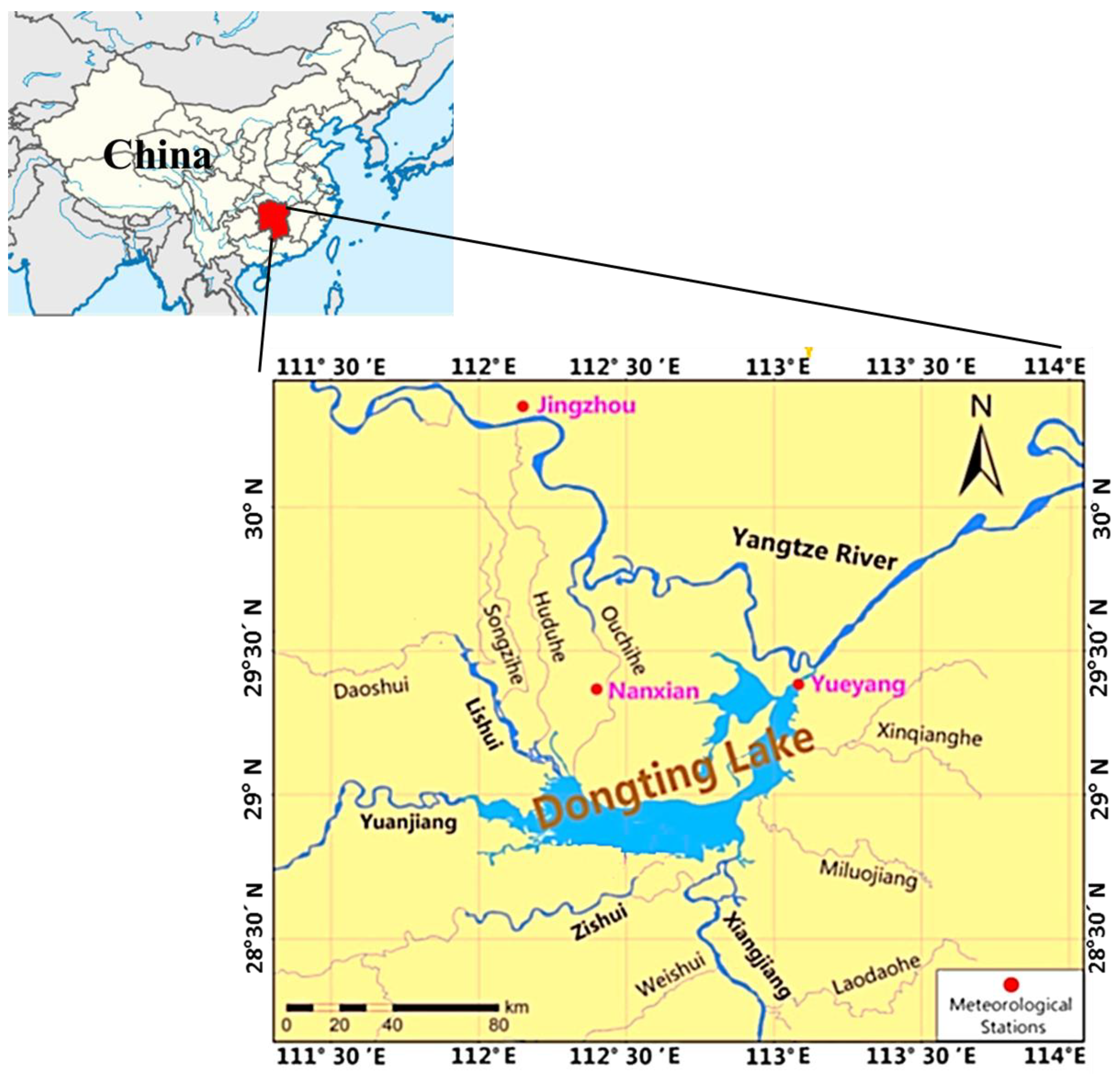

The Dongting Lake basin (DLB) in southeastern China (20°–32° N and 108°–123° E) was selected as the case study area to illustrate the methodology proposed for Epan estimation (Figure 1). Covering an area of around 261,400 km², the basin is located in the south of the Yangtze River. It covers 12% of the Yangtze River Basin and is ranked as the world’s second-largest freshwater lake. The DLB is drained by four main rivers, i.e., Li River, Yuan River, Zi River, and Xiang River. The DLB has a humid climate with many variations (mean annual =1380 mm) in precipitation that result in drought periods and flood events. The mean annual temperature of the basin is 17 °C, with the lowest temperature of 4.2 °C in January and the highest temperature of 28.9 °C in July. This region is mainly known for rice production, although production has been reduced due to drought events in recent years. The basin has an altitude gradient ranging from 30 m in plain areas to 2500 m in mountainous areas. Monthly minimum and maximum temperature data, as well as evaporation data, for the period between 1962 and 2001 (480 months) at the three selected stations were collected from the China Meteorological Administration (CMA). A summary of the statistical characteristics of the data is listed in

Table 2. The statistical characteristics of the data used in this study.

	Jingzhou Station			Nanxian Station			Yueyang Station
	Whole Data	Training	Testing	Whole Data	Training	Testing	Whole Data	Training	Testing
Tmin
Mean	13.336	13.016	13.639	13.562	13.444	13.918	14.384	14.193	14.960
Min.	−2.360	−2.360	0.742	−1.303	−1.303	0.761	−0.935	−0.935	1.426
Max.	26.039	26.039	25.165	27.148	26.706	27.148	28.165	27.952	28.165
Skewness	−0.102	−0.850	−0.071	−0.051	−0.050	−0.047	−0.051	−0.046	−0.056
Std. dev.	7.928	8.743	7.671	8.325	8.373	8.170	8.375	8.444	8.138
Tmax
Mean	21.397	21.301	21.685	20.774	20.681	21.053	20.769	20.716	20.929
Min.	4.448	4.448	6.448	3.162	3.162	5.706	2.852	2.852	5.677
Max.	36.284	36.284	34.726	35.084	35.084	34.445	35.174	35.174	34.116
Skewness	−0.138	−0.125	−0.176	−0.139	−0.130	−0.162	−0.122	−0.111	−0.154
Std. dev.	8.446	8.514	8.232	8.534	8.614	8.283	8.511	8.600	8.236
Extraterrestrial radiation
Mean	31.398	31.398	31.397	31.696	31.696	31.695	31.888	31.888	31.887
Min.	19.753	19.753	19.753	20.382	20.382	20.382	20.797	20.797	20.797
Max.	41.133	41.133	41.133	41.016	41.016	41.016	40.934	40.934	40.934
Skewness	−0.185	−0.185	−0.187	−0.199	−0.200	−0.201	−0.210	−0.210	−0.212
Std. dev.	7.639	7.639	7.640	7.377	7.377	7.378	7.202	7.202	7.203
Evaporation
Mean	3.630	3.653	3.562	3.385	3.256	3.773	3.956	3.872	4.207
Min.	0.884	0.961	0.884	0.803	0.803	0.997	0.911	0.911	1.116
Max.	10.619	10.619	7.861	9.087	9.087	9.045	11.119	11.119	11.029
Skewness	0.605	0.666	0.332	0.706	0.753	0.543	0.846	0.894	0.729
Std. dev.	1.816	1.857	1.683	1.810	1.751	1.926	2.185	2.177	2.189

. For the application of the machine learning models, data were divided into two sets, with 75% (360 months) of the data for model training and the remaining 25% (120 months) for model validation [13,28,33].

3. Methods

3.1. Adaptive Neuro-Fuzzy Inference System (ANFIS)

The adaptive neuro-fuzzy inference system (ANFIS) is an artificial intelligence method that was inspired by a combination of ANN and fuzzy logic. For an approximation function with three input variables and one output variable, a fuzzy rules base can be expressed as follows:

$$Rule 1:=If x_1=A_1 and x_2=B_1 and x_3=C_{1}then f_1={\alpha }_1{x}_1+{\beta }_1{x}_2+{\gamma }_1{x}_3+{\delta }_1$$

(1)

$$Rule 2:=If x_1=A_2 and x_2=B_2 and x_3=C_{2}then f_2={\alpha }_2{x}_1+{\beta }_2{x}_2+{\gamma }_2{x}_3+{\delta }_2$$

(2)

$$Rule 3:=If x_1=A_3 and x_2=B_3 and x_3=C_3;then f_3={\alpha }_3{x}_1+{\beta }_3{x}_2+{\gamma }_3{x}_3+{\delta }_3$$

(3)

where αi, βi, γi, and δi are the linear parameters in the consequent part of the ANFIS model; x₁, x₂, and x₃ are the input variables; and A_i, B_i, and C_i are the fuzzy sets [36]. ANFIS consists of five layers which can be summarized as follows. In the first layer, all nodes are adaptive and their parameters (i.e., the premise parameters) are updated during the training process. For each node in the first layer, the linguistic label is calculated using the corresponding membership functions (MFs), as follows:

$${\Omega }_i^1={\mu }_{A_i}\left(x_1\right). i=\mathrm{1.2.3}$$

(4)

$${\Omega }_i^1={\mu }_{B_{i-3}}\left(x_2\right). i=\mathrm{4.5.6}$$

(5)

$${\Omega }_i^1={\mu }_{C_{i-6}}\left(x_3\right). i=\mathrm{7.8.9}$$

(6)

For example, if the Gaussian membership function is used, it can be applied as follows:

$$f\left(x.\sigma .c\right)={\mu }_{A_i}\left(x_1\right)=e^{\frac{-{\left(x-c\right)}^2}{2{\sigma }^2}}$$

(7)

where σ and c are the parameters of the membership function (i.e., the premise parameters).

For the second layer, all nodes are fixed (not adaptive), performing a simple multiplier; each one only calculates the firing strength (w_i) of the fuzzy rule.

$${\Omega }_i^2={\omega }_i={\mu }_{A_i}\left(x_1\right)\times {\mu }_{B_i}\left(x_2\right)\times {\mu }_{C_i}\left(x_3\right) i=\mathrm{1.2.3}$$

(8)

The output of the third layer is calculated as the normalization of the firing strengths from the previous layer:

$${\Omega }_i^3={\overline{\omega }}_i=\frac{{\omega }_i}{{\omega }_1+{\omega }_2+{\omega }_3} i=1.2$$

(9)

For the fourth layer, the nodes are all adaptive and they perform the following output:

$${\Omega }_i^4={\overline{\omega }}_i{f}_i={\overline{\omega }}_i\left({\alpha }_i{x}_1+{\beta }_i{x}_2+{\gamma }_i{x}_3+{\delta }_i\right). i=\mathrm{1.2.3}$$

(10)

where α_i, β_i, γ_i, and δ_i are the linear parameters (i.e., the consequent parameters) of the fuzzy rules. For the fifth layer, only one node is available and it provides the final response by calculating the overall output as a summation:

$${\Omega }_i^5={\displaystyle \sum }_{i=1}{\overline{\omega }}_i{f}_i=\frac{{{\displaystyle \sum }}_i{\omega }_i{f}_i}{{{\displaystyle \sum }}_i{\omega }_i} i=\mathrm{1.2.3}$$

(11)

ANFIS uses a hybrid training algorithm in two steps: (i) a forward pass, for which the least square method (LSM) is used for updating the linear parameters (i.e., consequent parameters) in the fourth layer; and (ii) the backward pass for which the gradient descent (GD) algorithm is used for nonlinear parameters (i.e., premise parameters).

3.2. Particle Swarm Optimization (PSO)

Particle swarm optimization (PSO) was proposed by Kennedy and Eberhart [37]. PSO is a metaheuristic algorithm inspired by a swarm and is generally based on simulation of the migration, natural behaviors, and aggregation of birds, insects, herds, and fishes during foraging. An important point to note is that each individual in the colony represents one particle. PSO is an effective tool for solving global optimization problems based on two major components: iterations and search [38]. The major goal of PSO is that, within the swarm, the best global and optimal solution should be sought among the undetermined number of particles using cooperation and information sharing. According to Kennedy and Eberhart [37], each particle in the swarm is defined by a pair of numbers containing two co-ordinates: flying speed, i.e., velocity (V_i), and position, i.e., location (X_i):

$$V_i=\left[v_{i1}.v_{i2}.v_{i3}.\dots .v_{iD}\right]$$

(12)

$$X_i=\left[x_{i1}.x_{i2}.x_{i3}.\dots .x_{iD}\right]$$

(13)

We denote by P_best the optimal position of each particle and G_best the cluster (i.e., entire population) historical optimal position (i.e., location) as follows:

$$P_{best}=\left[P_{i1}.P_{i2}.P_{i3}.\dots .P_{iD}\right]$$

(14)

$$G_{best}=\left[p_{g1}.p_{g2}.p_{g3}.\dots .p_{gD}\right]$$

(15)

During the PSO process, and in each individual flight, the particles change and update their positions and velocities as follows:

$$v_{id}^{k+1}=\omega v_{id}^k+{\delta }_1{\theta }_1\left(p_{id}^k-x_{id}^k\right)+{\delta }_2{\theta }_2\left(p_{gd}^k-x_{id}^k\right)$$

(16)

$$x_{id}^{k+1}=x_{id}^k+v_{id}^{k+1}$$

(17)

$$i=\mathrm{1.2.3}\dots N and d=\mathrm{1.2.3}\dots D$$

(18)

where i is a particle in the group; N is the total number of particles in the swarm; d is the dimension of every particle; D is the number of variables; $v_{id}^k$ and $v_{id}^{k+1}$ are the velocity of each individual particle i at the iteration k and k+1, respectively; $x_{id}^k$ and $x_{id}^{k+1}$ are the positions of each individual particle i at the iteration k and k+1, respectively; θ₁ and θ₂ are random numbers ranging from 0 to 1; δ₁ and δ₂ are the cognitive and social acceleration coefficients; ω is an inertia weight parameter; $p_{id}^k$ is the best position of the particle; and $p_{id}^k$ is the swarm best position [39].

3.3. Whale Optimization Algorithm (WOA)

The whale optimization algorithm (WOA) is a swarm intelligence metaheuristic algorithm proposed by Mirjalili and Lewis [40], mimicking the physical movement and behavior of humpback whales in the ocean when swimming and attacking their prey. The overall WOA is formulated based on three optimization modes, namely: (i) encircling prey, (ii) spiral bubble-net feeding maneuver, and (iii) searching for prey. The algorithm process is divided into two important stages: exploration (i.e., spiral bubble-net feeding maneuver) and exploitation stages (i.e., searching for prey). To use WOA, similar to all metaheuristic algorithms, it is necessary to see the individual as an information carrier, for which each whale is considered an agent or a possible candidate solution. The agent, i.e., the individual whale, starts doing so using a solid commitment to look (i.e., keep seeking) for the best solution to the identified problem, i.e., the prey, using an iteration process [40].

Humpback whales possess the ability to detect even small prey and surround them (i.e., encircle). What is important to note is that, at the beginning of the process, the whale does not know the localization of the best solution, WOA hypothesizes that the identified target prey corresponds to the best candidate solution, or is relatively and approximately close to optimum. Consequently, once the best solution is decided, it becomes a haven for all remaining agents and will be forced to leave toward the best candidate (i.e., solution), and therefore, update their positions with respect to the best one. This first process is formulated as follows [40]:

$$\overrightarrow{Z}=\left|\overrightarrow{\beta }·\overrightarrow{X^{*}}\left(t\right)-\overrightarrow{X}\left(t\right)\right|$$

(19)

$$\overrightarrow{X}\left(t+1\right)=\overrightarrow{X^{*}}\left(t\right)-\overrightarrow{\delta } ·\overrightarrow{Z}$$

(20)

where $\overrightarrow{Z}$ represents the distance separating the search agent to the position of the best candidate; t refers to the current iteration; $\overrightarrow{X^{*}}$ is the position vector of the best solution; $\overrightarrow{\beta }$ and $\overrightarrow{\delta }$ are coefficient vectors; $\overrightarrow{X}$ is the position vector; $\left|\right|$ is the absolute value; and (.) is the multiplication. The two vectors $\overrightarrow{\beta }$ and $\overrightarrow{\delta }$ are formulated as follows:

$$\overrightarrow{\delta }=2\overrightarrow{\mu }·\overrightarrow{\theta }-\overrightarrow{\mu }$$

(21)

$$\overrightarrow{\beta }=2·\overrightarrow{\theta }$$

(22)

where $\overrightarrow{\mu }$ is a variable with an absolute value, and it should be decreased from 2 to 0 during the iteration process; $\overrightarrow{\theta }$ is a random vector ranging from 0 to 1. Furthermore, to surround their prey, whales perform a spiral movement downwards as far as possible from the bottom to the top, simultaneously emitting an ensemble of bubbles in different sizes. This movement of the humpback whales is designated as a helix-shaped movement, and is expressed as follows:

$$\overrightarrow{X}\left(t+1\right)=\overrightarrow{Z^{~}}·e^{bl}·\cos \left(2\pi l\right)+\overrightarrow{X^{*}}\left(t\right)$$

(23)

where $\overrightarrow{Z^{~}}=\left(\overrightarrow{X^{*}}\left(t\right)-\overrightarrow{X}\left(t\right)\right)$ is the distance separating the prey and the whale; l is a variable ranging from −1 to +1; and b is a constant related to the shape of the logarithmic spiral [41]. The previous equation can be formulated as follows:

$$\overrightarrow{X}\left(t+1\right)=\{\begin{array}{c}\overrightarrow{X^{*}}\left(t\right)-\overrightarrow{\delta ·}\overrightarrow{Z} if p<0.5\hfill \\ \overrightarrow{Z^{~}}·e^{bl}·\cos \left(2\pi l\right)+\overrightarrow{X^{*}}\left(t\right) if p\ge 0.5\hfill \end{array}$$

(24)

where p is a random variable ranging from 0 to 1. Finally, during the exploration phase, a randomly searching strategy is adopted by the whale, in respect to the position of each whale compared to the other and not according to the best agent. Hence, the process can be formulated as follows:

$$\overrightarrow{Z}=\left|\overrightarrow{\beta }·\overrightarrow{X_{rand}}-\overrightarrow{X}\right|$$

(25)

$$\overrightarrow{X}(t+1)=\overrightarrow{X_{rand}}-\overrightarrow{\delta }·\overrightarrow{Z}$$

(26)

where $\overrightarrow{X_{rand}}$ is a random position vector selected from the current population (Mirjalili and Lewis, 2016; Wong et al., 2019) [40].

3.4. Harris Hawk Optimization (HHO)

The Harris hawk optimization algorithm (HHO) was developed and introduced by Heidari et al. [41]. Since it was proposed, it has become a famous and attractive metaheuristic optimization algorithm largely used for solving high complex nonlinear problems. The HHO can be classified into the category of population-based algorithms. The algorithm has two major phases: exploration and exploitation. During the exploration phase, we should highlight two important connected waypoints: (i) the candidate solution, which is the Harris hawk, and (ii) the best candidate solution, which corresponds to the targeted prey (i.e., the rabbit). During wild animal hunting (i.e., attack of the rabbit), the Harris hawk uses two strategies (Equation (27)) having the same chance q: (i) based on the position of other Hawk members of the population (q < 0.5), and (ii) the position of the prey (q ≥ 0.5) [41].

$$X\left(t+1\right)=\{\begin{array}{c}{X}_{rand}\left(t\right)-{\alpha }_1\left|X_{rand}\left(t\right)-2{\alpha }_{2}X\left(t\right)\right| if q\ge 0.5\\ \left(X_{rabbit}\left(t\right)-X_m\left(t\right)\right)-{\alpha }_3\left(\beta +{\alpha }_4\left(\delta -\beta \right)\right) if q<0.5\end{array}$$

(27)

In the equation, we can see that there are four different positions, namely the actual position of the Harris Hawk ($X\left(t\right)$), the position of the Harris Hawk at the iteration t($X\left(t+1\right)$), the mean position of the Harris Hawk at the actual iteration ($X_m\left(t\right)$), and the position of the prey (the rabbit), which is the $X_{rabbit}\left(t\right)$. More precisely, α₁, α₂, α₃, and α₄ are random numbers ranging from 0 to 1; β and δ are the upper and lower bounds of variables; and $X_{rand}$ is a randomly selected Harris Hawk among all available individuals. The average position of the population is obtained using Equation (28):

$$X_m\left(t\right)=\frac{1}{N} {\displaystyle \sum }_{i=1}^N{X}_i\left(t\right)$$

(28)

where $X_i\left(t\right)$ is the position of the ith Harris hawk and N is the total number of Harris hawks in the population. Before moving to the exploitation phase, we should consider a transition phase within which the energy of the prey is evaluated in a decreasing trend, which provides an opportunity for the Harris hawk to select a strategy among a large number of possible strategic choices depending on the energy loss of the prey (i.e., the rabbit), which steadily decreases as the number of iterations rises. Hence, the energy loss of the prey can be formulated as follows:

$$E=2E_0\left(1-\frac{t}{T}\right)$$

(29)

where E is the escaping energy of the prey; E₀ is the prey energy before starting the flight forward; and T is the total number of iterations. From a mathematical point of view, the absolute value of E corresponds to two different cases: (i) if |E|≥1, we are in the exploration phase, and (ii) if |E|< 1, we are in the exploitation phase. We logically assume that the value of E₀ ranges in the interval from −1 to +1, and that its value should be updated at each iteration in decreasing or increasing ways. If the value of E₀ decreases from 0 to −1, we assume that the prey is weak, and if E₀ is higher than 0, we assume that the prey is strong [41].

During the exploitation phase, the prey (i.e., the rabbit) starts by drafting and adopting several escaping strategies in response to the different Harris hawk attack scenarios. Within the combinations of the escaping and hunting strategies, four possible scenarios can be formulated for the HHO. For this mathematical formulation, a numerical number (r) is used to demonstrate the success or failure of the escape plan adopted by the prey. Hence, r < 0.5 indicates the success of the escape, and conversely, r ≥ 0.5 corresponds to a failed escape plan. Based on these two values, a hard or soft besiege is performed, and the mathematical formulation of the two besieges is based on the values of (E). An absolute value of E higher than 0.5 (|E| ≥ 0.5) indicates that the HHO adopts a soft besiege, and an absolute value less than 0.5 (|E| < 0.5) leads to performing a hard besiege. The function of the soft besiege can be formulated as follows:

$$X\left(t+1\right)=\Delta X\left(t\right)-E\left|J{X}_{rabbit}\left(t\right)-X\left(t\right)\right|$$

(30)

$$\Delta X\left(t\right)=X_{rabbit}\left(t\right)-X\left(t\right)$$

(31)

The distance separating the location point of the prey and the location point of the Harris hawk corresponds to ΔX, and J is the random jump strength of the prey during flight; calculated as follows:

$$J=2(1-r_5)$$

(32)

where r₅ is a random number ranging from 0 to 1. The function of the hard besiege can be formulated as follows (r ≥ 0.5 and |E| < 0.5):

$$X\left(t+1\right)=X_{rabbit}\left(t\right)-E\left|\Delta X\left(t\right)\right|$$

(33)

The function of soft besiege with progressive rapid dives (r < 0.5 and |E| ≥ 0.5):

$$Y=X_{rabbit}\left(t\right)-E\left|J{X}_{rabbit}\left(t\right)-X\left(t\right)\right|$$

(34)

If the result of the attack procedure is not positive, an update is made as follows:

$$Z=Y+S\times LF\left(D\right)$$

(35)

where LF is a levy flight; D and S are the number of dimensions of the problem and a random vector, respectively. LF can be expressed as follows:

$$LF\left(x\right)=0.01\times \frac{\mu \times \sigma }{{\left|\upsilon \right|}^{\frac{1}{\beta }}}.\sigma ={\left(\frac{\Gamma \left(1+\beta \right)\times \sin \left(\frac{\pi \beta }{2}\right)}{\Gamma \left(\frac{1+\beta }{2}\right)\times \beta \times 2^{\left(\frac{\beta -1}{2}\right)}}\right)}^{\frac{1}{\beta }}$$

(36)

where β is a constant equal to 1.5; μ and υ are random values ranging from 0 to 1; and Γ is the gamma function. Finally, final formulation can be expressed as follows [42]:

$$X(t+1)=\left\{\begin{array}{cc}Y\hfill & ifF\left(Y\right)<F\left(X\right(t\left)\right)\hfill \\ Z\hfill & ifF\left(Z\right)<F\left(X\right(t\left)\right)\hfill \end{array}\right.$$

(37)

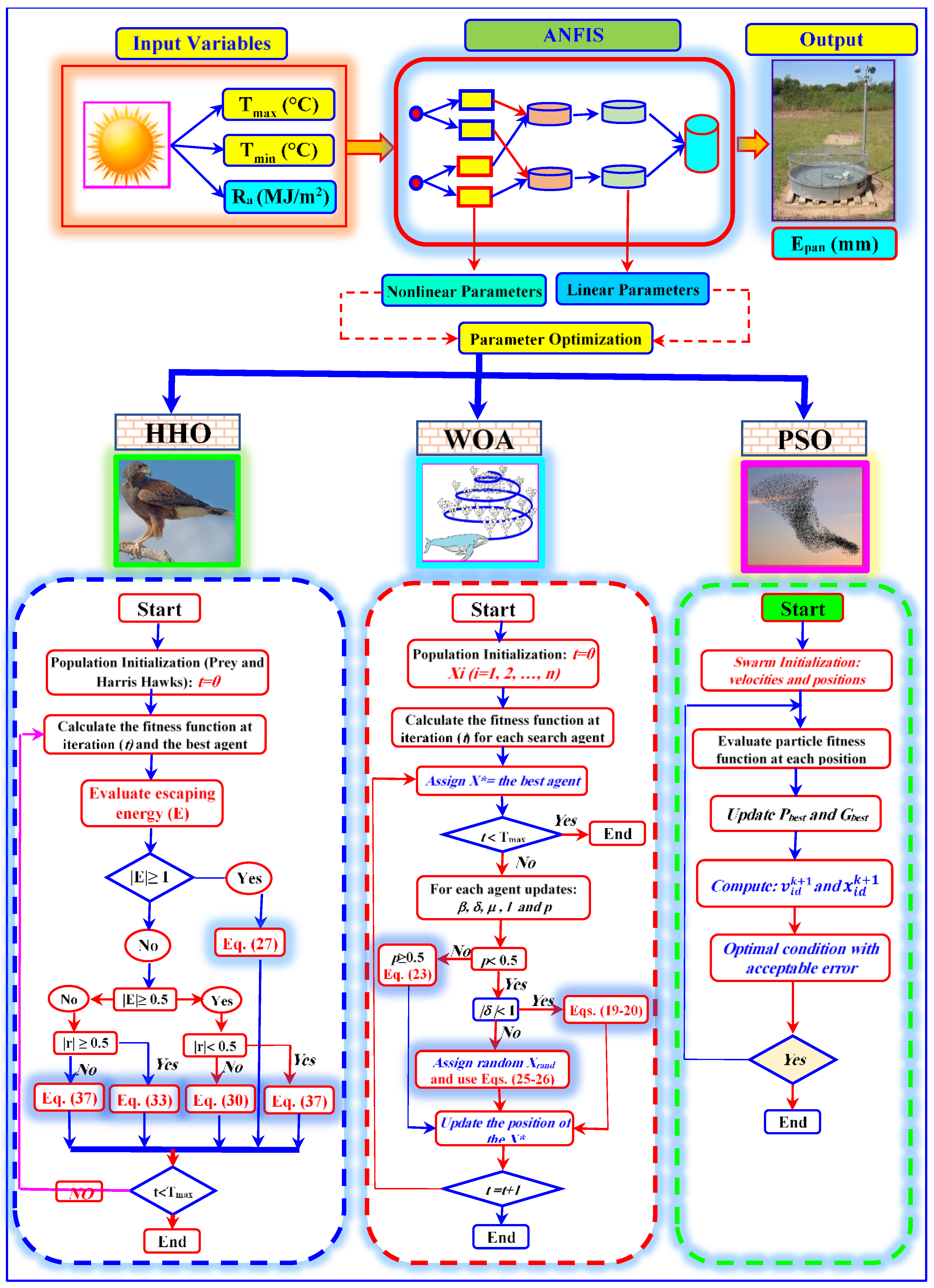

3.5. ANFIS Optimization Using PSO, WOA, and HHO

To train ANFIS toward the aim of achieving a high level of efficiency and accuracy, two parameters should be properly adjusted. They are (i) linear parameters (i.e., consequent parameters) available in the fourth layer {α, β, γ, δ}, and (ii) nonlinear parameters (i.e., premise parameters) available in the second layer {c, σ} for the membership function. The LSM can be adopted to better identify the linear parameters, while the GD algorithm is used for nonlinear parameters. In this study, we used three metaheuristic algorithms for optimizing the premise and the consequent parameters. The number of parameters to be optimized can be calculated depending on the number of fuzzy rules and the number of MFs for each input variable (i.e., the linguistic label). The total number of premise parameters is equal to the total number of fuzzy labels multiplied by two (i.e., c and σ), while the total number of consequent parameters should be equal to the number of fuzzy rules multiplied by the number of input variables and one constant. Consequently, in the metaheuristic algorithms, the initial population (i.e., the total number of agents) is equal to the total number of parameters; thus, the initial particles (i.e., agents) are randomly obtained and the fitness function is then calculated, and the process will continue until the optimal condition with an acceptable error is achieved. In this study, the mean squared error (MSE) was used as the fitness function. Details of the HHA, WOA, and PSO algorithms are depicted in Figure 2 as the research flowchart.

When the hybridized models were successfully developed, their performances were compared using the following metrics [43,44]:

$$RMSE:Root Mean Square Error=\sqrt{\frac{1}{N}{\displaystyle \sum }_{i=1}^N{[{(Y_0)}_i-{(Y_C)}_i]}^2}$$

(38)

$$MAE:Mean Absolute Error=\frac{1}{N}{\displaystyle \sum }_{i=1}^N|{(Y_0)}_i-{(Y_C)}_i|$$

(39)

$$NSE:Nash-Suutcliffe=1-\frac{{{\displaystyle \sum }}_{i=1}^N{[{(Y_0)}_i-{(Y_c)}_i]}^2}{{{\displaystyle \sum }}_{i=1}^N{[{(Y_0)}_i-{\overline{Y}}_0]}^2}.-\infty <NSE\le 1$$

(40)

$$R^2:Determination Coefficient={\left[\frac{{{\displaystyle \sum }}_{t=1}^N\left(Y_o-\overline{Y_o}\right)\left(Y_c-\overline{Y_c}\right)}{\sqrt{{{\displaystyle \sum }}_{t=1}^N{(Y_o-\overline{Y_o})}^2{(Y_c-\overline{Y_c})}^2}}\right]}^2$$

(41)

where $Y_c,Y_o, {\overline{Y}}_o, \mathrm{and} N$ are the calculated, measured, and mean of the measured Epan, and data quantity. The evaluation metrics were applied to data from three stations in China using several control parameters. The information on these parameter values is shown in

Table 3. Parameter settings of ANFIS and three optimization algorithms used in this study.

Method/Algorithm	Parameter	Value
ANFIS	Error goal	0
	Increase rate	1.1
	Initial step	0.01
	ANFIS-DEcrease rate	0.9
	Maximum epochs	100
PSO	Cognitive component ($c_1$)	2
	Social component ($c_2$)	2
	inertia weight	0.2–0.9
HHO	$\beta$	1.5
	$E_0$	$\in \left[-1.-1\right]$
WOA	$a$	$\in \left[0. 2\right]$
	$a_2$	$\in \left[-1.-2\right]$
All algorithms	Population	30
	Number of iterations	150
	Number of runs for each algorithm	10

. Population and iteration were set at 30 and 150 for 10 times to reach the robust outcomes.

4. Results and Discussion

The hybridized ANFIS models were compared for estimating the monthly Epan of the Jinzhou Station using various input combinations (

Table 4. Training and testing performances of the models for monthly Epan prediction—Jingzhou Station.

Model Inputs	Training				Test
	RMSE	MAE	R2	NSE	RMSE	MAE	R2	NSE
ANFIS
Tmin	0.8500	0.6285	0.7907	0.7884	0.8846	0.6902	0.7464	0.7436
Tmax	0.6340	0.4837	0.8836	0.8817	0.6508	0.5210	0.8956	0.8922
Ra	1.0604	0.7956	0.6740	0.6712	0.8408	0.6658	0.7545	0.7521
Tmin, Tmax	0.5162	0.3991	0.9246	0.9193	0.5135	0.4124	0.9185	0.9163
Tmin, Ra	0.7856	0.5680	0.8211	0.8184	0.9212	0.7285	0.7845	0.7816
Tmax, Ra	0.5744	0.4378	0.9044	0.9017	0.6186	0.4853	0.9109	0.9070
Tmin, Tmax, Ra	0.4593	0.3562	0.9388	0.9362	0.4412	0.3510	0.9455	0.9426
Opt inputs, α	0.4698	0.3587	0.9360	0.9321	0.4582	0.3534	0.9417	0.9378
Mean	0.6687	0.5035	0.8592	0.8561	0.6661	0.5260	0.8622	0.8592
ANFIS-PSO
Tmin	0.8111	0.6063	0.8093	0.8074	0.7851	0.6249	0.7798	0.7752
Tmax	0.6182	0.4753	0.8892	0.8876	0.5628	0.4577	0.9020	0.8996
Ra	1.0502	0.7867	0.6802	0.6775	0.8327	0.6560	0.7597	0.7564
Tmin, Tmax	0.5121	0.3917	0.9269	0.9237	0.5180	0.4244	0.9236	0.9215
Tmin, Ra	0.7493	0.5501	0.8312	0.8284	0.7706	0.5989	0.8105	0.7905
Tmax, Ra	0.5305	0.4110	0.9184	0.9167	0.5326	0.4419	0.9183	0.9158
Tmin, Tmax, Ra	0.4590	0.3529	0.9389	0.9358	0.4365	0.3218	0.9561	0.9542
Opt inputs, α	0.4627	0.3565	0.9382	0.9362	0.4476	0.3327	0.9521	0.9493
Mean	0.6491	0.4913	0.8665	0.8642	0.6107	0.4823	0.8753	0.8703
ANFIS-HHO
Tmin	0.8029	0.5987	0.8131	0.8115	0.7368	0.5781	0.8168	0.8143
Tmax	0.6163	0.4658	0.8899	0.8862	0.5268	0.4247	0.9094	0.9067
Ra	0.8419	0.6159	0.7794	0.7754	0.7185	0.5647	0.8263	0.8242
Tmin, Tmax	0.5051	0.3865	0.9290	0.9268	0.3749	0.2993	0.9609	0.9573
Tmin, Ra	0.7498	0.5445	0.8370	0.8341	0.6813	0.5383	0.8439	0.8422
Tmax, Ra	0.5132	0.3903	0.9236	0.9205	0.4892	0.3815	0.9261	0.9236
Tmin, Tmax, Ra	0.4569	0.3528	0.9395	0.9372	0.3646	0.2958	0.9623	0.9604
Opt inputs, α	0.4439	0.3405	0.9429	0.9404	0.3322	0.2746	0.9691	0.9675
Mean	0.6163	0.4619	0.8818	0.8790	0.5280	0.4196	0.9019	0.8995
ANFIS-WOA
Tmin	0.6970	0.4977	0.8590	0.8563	0.7155	0.5646	0.8274	0.8243
Tmax	0.5722	0.4326	0.9051	0.9026	0.5148	0.4160	0.9125	0.9103
Ra	0.8342	0.6083	0.7945	0.7918	0.7119	0.5585	0.8294	0.8261
Tmin, Tmax	0.4385	0.3181	0.9443	0.9421	0.3643	0.2961	0.9618	0.9595
Tmin, Ra	0.6943	0.4914	0.8602	0.8579	0.6706	0.5291	0.8480	0.8452
Tmax, Ra	0.4947	0.3565	0.9291	0.9274	0.4147	0.3435	0.9447	0.9417
Tmin, Tmax, Ra	0.4203	0.3122	0.9488	0.9457	0.3214	0.2604	0.9691	0.9658
Opt inputs, α	0.4098	0.3050	0.9513	0.9492	0.3127	0.2561	0.9726	0.9704
Mean	0.5701	0.4152	0.8990	0.8966	0.5032	0.4030	0.9082	0.9054

). The effect of periodicity was also investigated by adding the number of months over the year (α varies from 1 to 12) into the optimum input combination. From the first three input combinations, it is evident that the Tmax was the most influential parameter for Epan estimations for all models. For example, ANFIS with Tmax input had lower RMSE (0.6508 mm) and MAE (0.5210 mm), and higher R² (0.8956) and NSE (0.8922) compared to ANFIS, with only Tmin or Ra as input. Among the double input combinations, Tmin and Tmax had the highest accuracy (see combinations 4–6 in Table 4). Of the all input combinations, three inputs (Tmin, Tmax, and Ra) provided the lowest RMSE and MAE, and the highest R² and NSE in estimating monthly Epan for all four models. The last input combination comprised optimum inputs (Tmin, Tmax, and Ra) and α (Opt inputs, α). Table 4 reveals that the periodicity positively affected the accuracy of the ANFIS-HHO and ANFIS-WOA models, while involving α decreased the performance of the ANFIS and ANFIS-PSO models in the estimation of monthly Epan. Among the models developed here, the ANFIS-WOA provided the best accuracy, and the model with Opt inputs, α (Tmin, Tmax, Ra, and α), had the lowest RMSE (0.3127 mm) and MAE (0.2561 mm), and the highest R² (0.9726) and NSE (0.9704), followed by the ANFIS-HHO and ANFIS-PSO models. Table 4 shows that metaheuristic algorithms improved the performance of ANFIS in both the training and testing phases; the modeling error (RMSE) decreased by about 1.1%, 24.7%, and 29.1% in the testing phases of ANFIS-PSO, ANFIS-HHO, and ANFIS-WOA, respectively. The dominance of ANFIS-WOA can be clearly examined from the mean values of the statistics, which improved from 0.6661 to 0.5032, 0.5260 to 0.4030, 0.8622 to 0.9082, and 0.8592 to 9054 for the RMSE, MAE, R2, and NSE for the split scenarios from ANFIS to ANFIS-WOA, respectively.

Table 5. Training and testing performances of the models for monthly Epan prediction—Nanxian Station.

Model Inputs	Training				Test
	RMSE	MAE	R2	NSE	RMSE	MAE	R2	NSE
ANFIS
Tmin	0.6732	0.5114	0.8523	0.8503	1.0000	0.7716	0.8126	0.8103
Tmax	0.5479	0.4118	0.9023	0.9014	0.8130	0.6330	0.9092	0.9067
Ra	1.0960	0.8547	0.6082	0.6058	1.2974	0.9336	0.6258	0.6225
Tmin, Tmax	0.4819	0.3566	0.9243	0.9221	0.7961	0.5879	0.9087	0.9064
Tmin, Ra	0.6509	0.4962	0.8602	0.8583	0.9712	0.7511	0.8053	0.8032
Tmax, Ra	0.5272	0.3971	0.9094	0.9067	0.7928	0.6259	0.9053	0.9027
Tmin, Tmax, Ra	0.4395	0.3318	0.9370	0.9342	0.7738	0.5837	0.9114	0.9093
Opt inputs, α	0.4548	0.3340	0.9328	0.9301	0.7792	0.5877	0.9091	0.9075
	0.6089	0.4617	0.8658	0.8636	0.9029	0.6843	0.8484	0.8461
ANFIS-PSO
Tmin	0.6548	0.4979	0.8602	0.8583	0.9631	0.7320	0.8312	0.8283
Tmax	0.5338	0.4048	0.9061	0.9042	0.7775	0.5987	0.9183	0.9156
Ra	1.0342	0.7981	0.6512	0.6503	1.2263	0.8799	0.6744	0.6717
Tmin, Tmax	0.4781	0.3500	0.9255	0.9228	0.7829	0.5947	0.9384	0.9352
Tmin, Ra	0.6389	0.4878	0.8627	0.8601	0.9518	0.7155	0.8202	0.8179
Tmax, Ra	0.5236	0.3903	0.9106	0.9084	0.7841	0.6032	0.9185	0.9156
Tmin, Tmax, Ra	0.4333	0.3174	0.9388	0.9356	0.7635	0.5672	0.9321	0.9305
Opt inputs, α	0.4395	0.3318	0.9370	0.9342	0.7692	0.5742	0.9286	0.9253
	0.5920	0.4473	0.8740	0.8717	0.8773	0.6582	0.8702	0.8675
ANFIS-HHO
Tmin	0.6382	0.4943	0.8672	0.8647	0.8859	0.6745	0.8565	0.8537
Tmax	0.5318	0.4014	0.9078	0.9053	0.7757	0.5975	0.9226	0.9205
Ra	0.6944	0.5117	0.8428	0.8402	0.9909	0.7659	0.8126	0.8103
Tmin, Tmax	0.4557	0.3478	0.9323	0.9304	0.7624	0.5782	0.9418	0.9402
Tmin, Ra	0.6390	0.4950	0.8669	0.8652	0.8689	0.6570	0.8583	0.8563
Tmax, Ra	0.5130	0.3831	0.9142	0.9127	0.7660	0.5912	0.9251	0.9227
Tmin, Tmax, Ra	0.4273	0.3159	0.9405	0.9387	0.7484	0.5689	0.9413	0.9394
Opt inputs, α	0.4197	0.3094	0.9426	0.9403	0.7243	0.5637	0.9432	0.9408
	0.5399	0.4073	0.9018	0.8997	0.8153	0.6246	0.9002	0.8980
ANFIS-WOA
Tmin	0.5540	0.4073	0.8999	0.8973	0.8437	0.6499	0.8715	0.8702
Tmax	0.5241	0.3850	0.9104	0.9082	0.7726	0.5955	0.9233	0.9214
Ra	0.6925	0.5103	0.8436	0.8407	0.9853	0.7563	0.8153	0.8127
Tmin, Tmax	0.3991	0.2846	0.9481	0.9456	0.7367	0.5131	0.9516	0.9493
Tmin, Ra	0.5474	0.3982	0.9023	0.9007	0.8201	0.6345	0.8748	0.8721
Tmax, Ra	0.4485	0.3396	0.9344	0.9324	0.7581	0.5842	0.9266	0.9234
Tmin, Tmax, Ra	0.3687	0.2709	0.9557	0.9531	0.6643	0.5177	0.9472	0.9456
Opt inputs, α	0.3643	0.2690	0.9567	0.9548	0.5886	0.4629	0.9526	0.9507
	0.4873	0.3581	0.9189	0.9166	0.7712	0.5893	0.9079	0.9057

shows the training and testing outcomes of the four hybridized ANFIS models in estimating the monthly Epan of the Nanxian Station. Similar to the Jinzhou Station, Tmax was identified as the most effective variable for Epan prediction in all models. Among the double input combinations, Tmin, Tmax, Tmax, and Ra generally produced the same level of accuracy and performed better than the input combinations of Tmin and Ra. Similar to the previous station, three input combinations with all three parameters (Tmin, Tmax, and Ra) had the lowest RMSE and MAE and the highest R² and NSE both in the training and testing phases of all models. Periodicity improved the estimation accuracy of the ANFIS-HHO and ANFIS-WOA models. Improvements in testing accuracy of ANFIS-WOA were 11.4%, 10.6%, 0.6, and 0.5% in terms of RMSE, MAE, R², and NSE, respectively. It is clear from Table 5 that the metaheuristic algorithms improved the efficiency of ANFIS, and that the hybridized models performed much better in estimating monthly Epan using limited climatic input. The ANFIS-WOA model with three parameters and periodicity (Tmin, Tmax, Ra, and α) achieved the lowest RMSE (0.5886 mm) and MAE (0.4629 mm) and the highest R² (0.9526) and NSE (0.9507) in the testing phase. The WOA improved the accuracy of ANFIS with input Tmin, Tmax, and Ra by 23.9%, 20.7%, 4.5%, and 4.6% with respect to RMSE, MAE, R², and NSE, respectively. The mean values of the comparison of RMSE, MAE, R2, and NSE statistics also endorsed the outperformed performance of ANFIS-WOA by improving these statistical values from 0.9029 to 0.7712, 0.6843 to 0.5893, 0.8484 to 0.9079, and 0.8461 to 0.9057 for the models ANFIS to ANFIS-WOA, respectively.

Table 6. Training and testing performances of the models for monthly Epan prediction—Yueyang Station.

Model Inputs	Training				Test
	RMSE	MAE	R2	NSE	RMSE	MAE	R2	NSE
ANFIS
Tmin	0.7807	0.5907	0.8716	0.8694	0.9335	0.7200	0.8545	0.8524
Tmax	0.7081	0.5217	0.8944	0.8917	0.8843	0.6562	0.8663	0.8638
Ra	1.3904	1.0628	0.5920	0.5906	1.3849	1.0313	0.6239	0.6207
Tmin, Tmax	0.5888	0.4411	0.9269	0.9243	0.8178	0.6095	0.8911	0.8893
Tmin, Ra	0.7277	0.5562	0.8883	0.8856	0.8831	0.6875	0.8548	0.8524
Tmax, Ra	0.6508	0.4872	0.9107	0.9082	0.8210	0.6139	0.8816	0.8793
Tmin, Tmax, Ra	0.5479	0.4225	0.9369	0.9337	0.8178	0.6095	0.8911	0.8902
Opt inputs, α	0.5227	0.4163	0.9423	0.9221	0.8013	0.6010	0.8960	0.8936
	0.7396	0.5623	0.8704	0.8657	0.9180	0.6911	0.8449	0.8427
ANFIS-PSO
Tmin	0.7203	0.5499	0.8905	0.8884	0.8510	0.6482	0.8576	0.8543
Tmax	0.6882	0.5097	0.9000	0.8986	0.8087	0.6412	0.8918	0.8893
Ra	1.3282	1.0065	0.6277	0.6253	1.3177	0.9778	0.6616	0.6594
Tmin, Tmax	0.5453	0.4245	0.9373	0.9352	0.7234	0.5715	0.9247	0.9225
Tmin, Ra	0.7122	0.5466	0.8930	0.8907	0.8565	0.6624	0.8756	0.9726
Tmax, Ra	0.6314	0.4759	0.9159	0.9124	0.7655	0.5968	0.9094	0.9071
Tmin, Tmax, Ra	0.5328	0.4207	0.9401	0.9383	0.7244	0.5533	0.9275	0.9253
Opt inputs, α	0.5146	0.4011	0.9441	0.9425	0.7135	0.5360	0.9300	0.9287
	0.7091	0.5419	0.8811	0.8789	0.8451	0.6484	0.8723	0.8824
ANFIS-HHO
Tmin	0.7133	0.5482	0.8926	0.8901	0.8181	0.6167	0.8671	0.8643
Tmax	0.6774	0.5040	0.9010	0.8993	0.8003	0.6042	0.8993	0.8972
Ra	0.8873	0.6461	0.8338	0.8316	1.0387	0.7964	0.7984	0.7958
Tmin, Tmax	0.5365	0.4244	0.9393	0.9374	0.7202	0.5452	0.9257	0.9235
Tmin, Ra	0.7022	0.5383	0.8959	0.8932	0.7728	0.6045	0.8826	0.8804
Tmax, Ra	0.6286	0.4746	0.9166	0.9145	0.7363	0.5749	0.9188	0.9157
Tmin, Tmax, Ra	0.5108	0.3992	0.9467	0.9451	0.7093	0.5331	0.9333	0.9306
Opt inputs, α	0.5041	0.3990	0.9464	0.9448	0.6649	0.5244	0.9396	0.9372
	0.6450	0.4917	0.9090	0.9070	0.7826	0.5999	0.8956	0.8931
ANFIS-WOA
Tmin	0.6565	0.4804	0.9090	0.9072	0.8028	0.6025	0.8749	0.8723
Tmax	0.6135	0.4371	0.9206	0.9183	0.7896	0.5957	0.9049	0.9027
Ra	0.8862	0.6455	0.8342	0.8316	1.0365	0.7954	0.7991	0.7973
Tmin, Tmax	0.4658	0.3378	0.9542	0.9524	0.7161	0.5378	0.9278	0.9252
Tmin, Ra	0.6135	0.4524	0.9206	0.9182	0.7533	0.5795	0.8888	0.8856
Tmax, Ra	0.5076	0.3780	0.9456	0.9427	0.7278	0.5647	0.9211	0.9202
Tmin, Tmax, Ra	0.4658	0.3378	0.9542	0.9523	0.6508	0.5034	0.9433	0.9413
Opt inputs, α	0.4636	0.3330	0.9546	0.9531	0.6370	0.5052	0.9422	0.9404
	0.5841	0.4253	0.9241	0.9220	0.7642	0.5855	0.9003	0.8981

shows the modeling results for the Yueyang Station. Similar to the other two stations, Tmax was found to be the most influential variable on the performance of the models in estimating Epan. The combination of Tmin and Tmax had the best accuracy among the input combinations and produced the best accuracy in all models developed. Periodicity had a positive effect on the performance of all models. In this station, improvements in the accuracy of ANFIS were further achieved using the metaheuristic algorithms, with 11%, 17%, and 20.5% decreases in RMSE for the PSO, HHO, and WOA algorithms, respectively. The ANFIS-WOA model with three inputs and periodicity performed better than ANFIS-HHO, ANFIS-PSO, and ANFIS in estimating monthly Epan. The averages of the RMSE, MAE, R2, and NSE statistics also confirmed the dominancy of ANFIS-WOA over other ANFIS-based models in predicting monthly Epan.

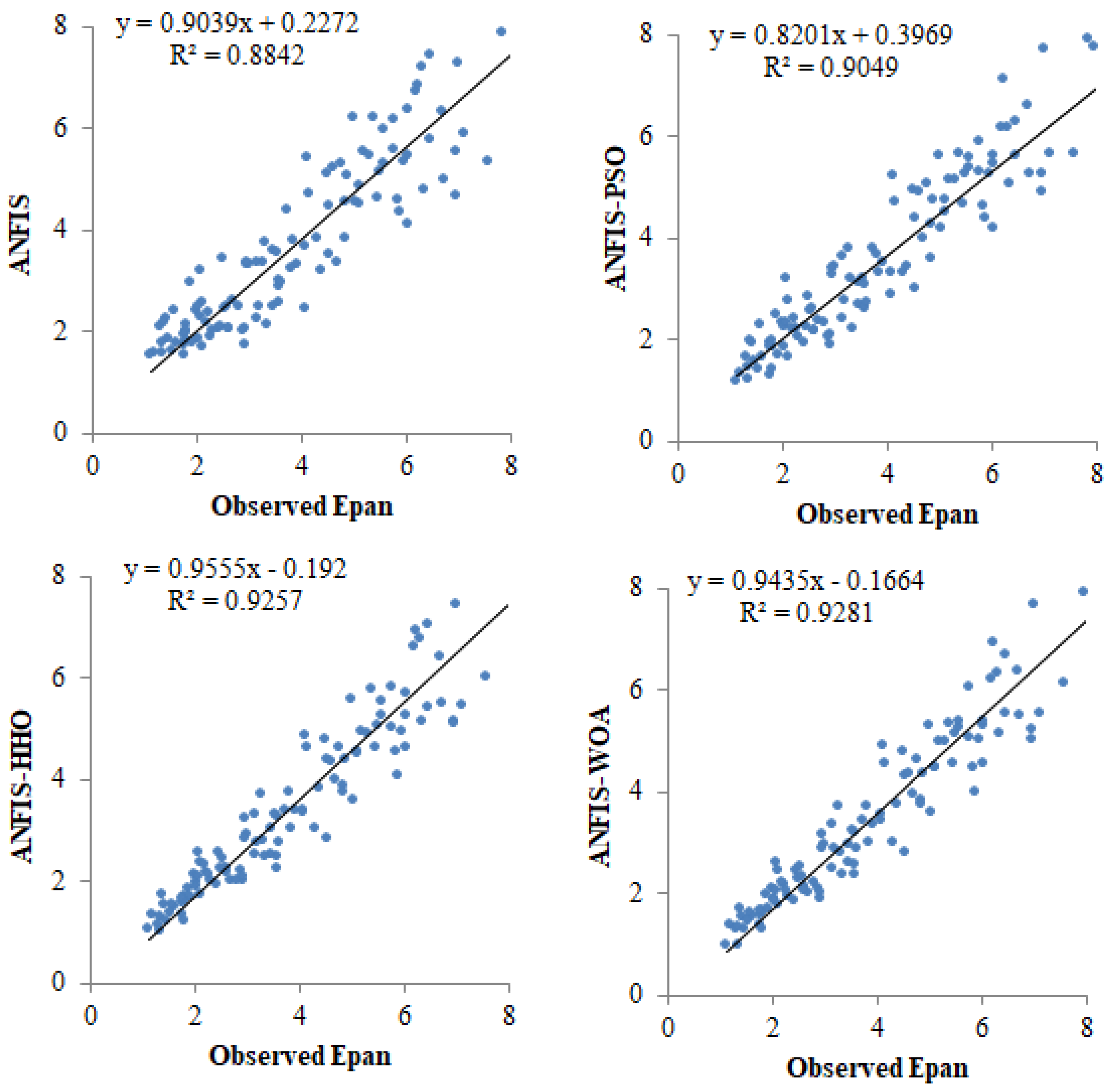

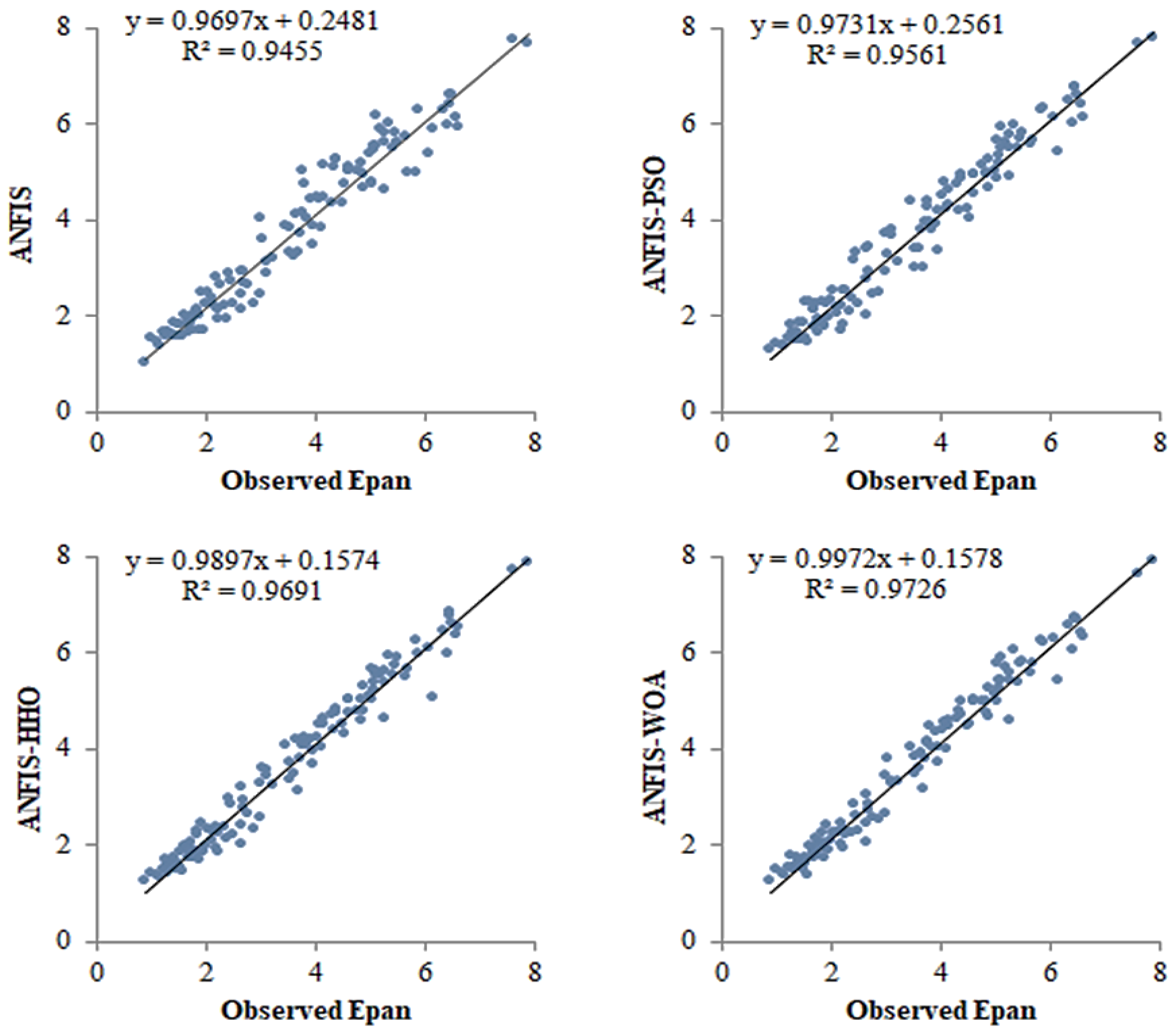

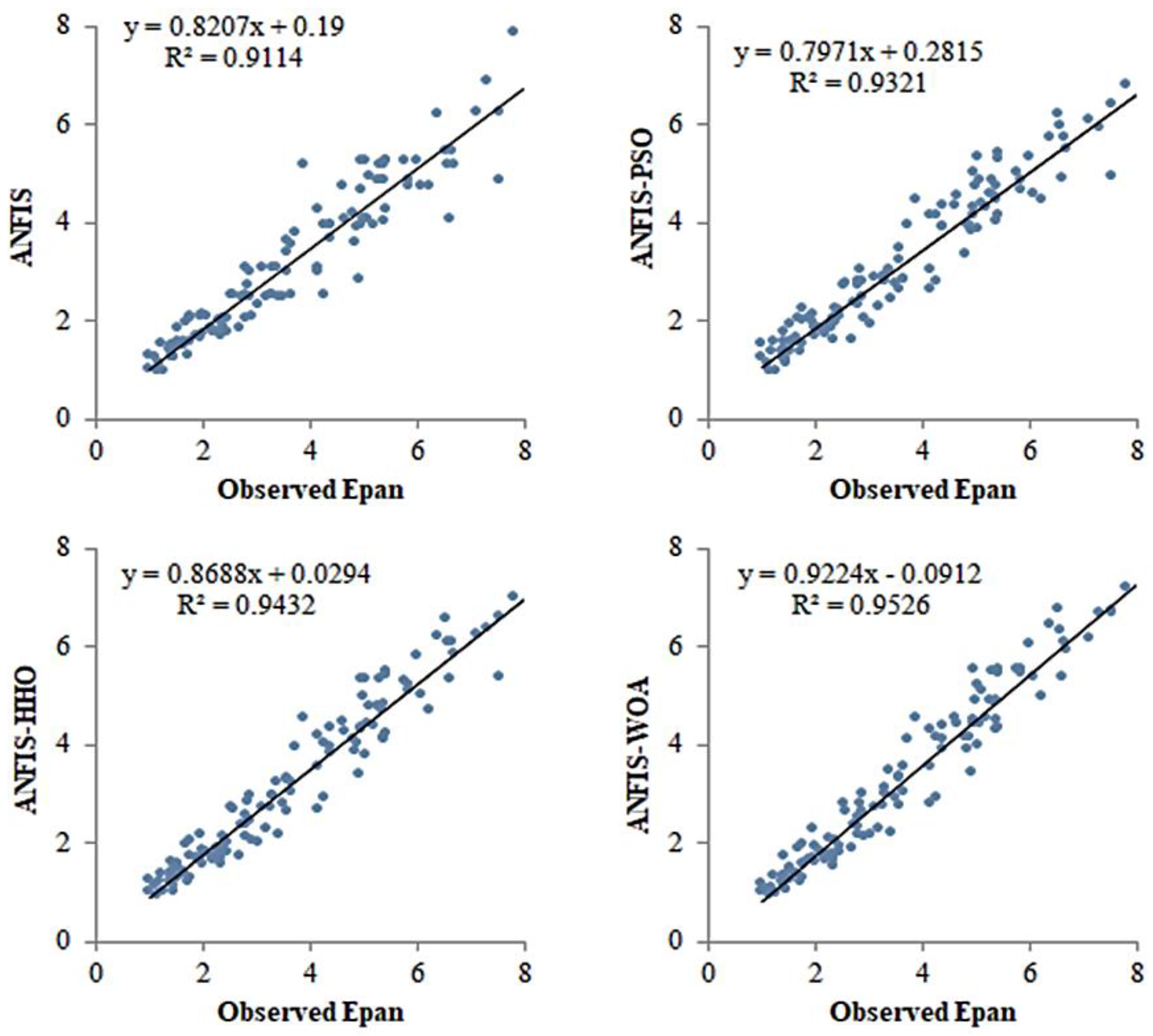

Figure 3, Figure 4 and Figure 5 illustrate the scatterplots which compare the observed and predicted Epan by the best hybridized ANFIS models for the three stations. ANFIS-WOA had the least scattered predictions, followed by ANFIS-HHO, ANFIS-PSO, and ANFIS. Figure 6 displays the Taylor diagrams of the models of the Nanxian Station. This diagram is a useful approach in assessing three statistics (e.g., RMSE, correlation, and standard deviation) at the same time. The diagram revealed that the ANFIS-WOA model had the least RMSE and the greatest correlation and the nearest standard deviation to the observations, followed by the ANFIS-HHO models. Figure 7 shows the violin plots of the models for the Nanxian Station. The plots reveal that the most similar distribution to the observations belongs to the ANFIS-WOA model compared to other models. While known as a simple structure algorithm, WOA has fast convergence speed, high convergence accuracy, strong robustness, and stability [45]. WOA has the ability to balance exploration and exploitation to avoid local optima and reach a global optimal solution. Many studies have demonstrated that WOA not only minimizes the cost of solving engineering problems, but also provides better optimization efficiency compared to other population-based metaheuristic algorithms [45,46].

Overall, our results demonstrated that the hybridized models reduced the drawbacks of the standalone ANFIS and enabled a more accurate model Epan, in line with previous studies [14,21,23,31,32,34].

Table 7. Training and testing performances of the models for monthly Epan prediction—Nanxian Station using data from Jingzhou Station.

Model Inputs	Training				Test
	RMSE	MAE	R2	NSE	RMSE	MAE	R2	NSE
ANFIS
Tmin	0.6863	0.5122	0.8467	0.8436	1.0422	0.9208	0.6846	0.6814
Tmax	0.5509	0.4148	0.9012	0.8994	0.8229	0.6129	0.8752	0.8723
Ra	1.0948	0.8537	0.6091	0.6072	1.2963	0.9326	0.6266	0.6237
Tmin, Tmax	0.5229	0.3871	0.9109	0.9083	0.8157	0.6326	0.8326	0.8302
Tmin, Ra	0.6536	0.4943	0.8608	0.8574	0.9752	0.8636	0.7236	0.7208
Tmax, Ra	0.5340	0.4054	0.9070	0.9046	0.8122	0.6354	0.8708	0.8682
Tmin, Tmax, Ra	0.5252	0.3871	0.9107	0.9081	0.8077	0.6133	0.8548	0.8517
Opt inputs, α	0.5042	0.3775	0.9171	0.9153	0.8051	0.5966	0.8842	0.8823
ANFIS-PSO
Tmin	0.6432	0.4883	0.8651	0.8623	0.9629	0.6984	0.8099	0.8073
Tmax	0.5435	0.4107	0.9037	0.9014	0.8130	0.5933	0.8760	0.8732
Ra	1.0193	0.7841	0.6612	0.6592	1.2116	0.8695	0.6841	0.6814
Tmin, Tmax	0.5174	0.3839	0.9127	0.9103	0.8048	0.5793	0.8876	0.8852
Tmin, Ra	0.6384	0.4889	0.8671	0.8652	0.9496	0.8353	0.8165	0.8137
Tmax, Ra	0.5172	0.3938	0.9128	0.9101	0.8078	0.6172	0.8846	0.8824
Tmin, Tmax, Ra	0.5032	0.3806	0.9172	0.9154	0.7661	0.5931	0.8936	0.8917
Opt inputs, α	0.5004	0.3779	0.9183	0.9166	0.7561	0.5569	0.9049	0.9025
ANFIS-HHO
Tmin	0.6377	0.4882	0.8674	0.8652	0.9155	0.6904	0.8456	0.8423
Tmax	0.5427	0.4101	0.9040	0.9027	0.7970	0.5808	0.8956	0.8934
Ra	0.6943	0.5118	0.8428	0.8403	0.9909	0.7659	0.8126	0.8102
Tmin, Tmax	0.5077	0.3787	0.9159	0.9127	0.7733	0.5683	0.9124	0.9096
Tmin, Ra	0.6318	0.4823	0.8698	0.8674	0.9181	0.7057	0.8474	0.8455
Tmax, Ra	0.5124	0.3915	0.9144	0.9126	0.7761	0.5696	0.9102	0.9081
Tmin, Tmax, Ra	0.4963	0.3692	0.9197	0.9173	0.7447	0.5520	0.9163	0.9145
Opt inputs, α	0.4850	0.3634	0.9233	0.9204	0.7197	0.5290	0.9257	0.9223
ANFIS-WOA
Tmin	0.5445	0.3947	0.9033	0.9014	0.9125	0.6886	0.8474	0.8453
Tmax	0.5137	0.3791	0.9140	0.9126	0.7233	0.5627	0.9054	0.9024
Ra	0.6925	0.5103	0.8436	0.8415	0.9854	0.7566	0.8152	0.8126
Tmin, Tmax	0.4256	0.3038	0.9409	0.9382	0.7655	0.5545	0.9183	0.9157
Tmin, Ra	0.5155	0.3794	0.9133	0.9104	0.9056	0.6803	0.8518	0.8485
Tmax, Ra	0.4676	0.3478	0.9287	0.9257	0.7672	0.5526	0.9173	0.9152
Tmin, Tmax, Ra	0.4265	0.3141	0.9407	0.9383	0.7434	0.5505	0.9216	0.9184
Opt inputs, α	0.4157	0.3029	0.9436	0.9405	0.7085	0.5086	0.9281	0.9252

shows the performance of the hybridized ANFIS models in estimating the monthly Epan of the Nanxian Station using climatic data of the Jinzhou Station. This type of comparison is essential, especially for the scare-data regions, and reveals that the models’ outcomes with external input data are not as accurate as local input data. However, the models had acceptable accuracy in estimating Epan without local input data. For example, R² and NSE of the ANFIS-WOA model in the testing phase ranged from 0.8152 and 0.8126 to 0.9281 and 0.9286 for the worst and best input combinations. Again, the results demonstrated the efficiency of the metaheuristic algorithms for the improvement of the accuracy of ANFIS. The ANFIS-WOA performed the best in estimating monthly Epan using external input data.

Table 8. Training and testing performances of the models for monthly Epan prediction—Nanxian Station using data from Yueyang Station.

Model Inputs	Training				Test
	RMSE	MAE	R2	NSE	RMSE	MAE	R2	NSE
ANFIS
Tmin	0.6251	0.4813	0.8727	0.8702	0.9422	0.7294	0.8598	0.8573
Tmax	0.5666	0.4249	0.8954	0.8923	0.8696	0.6485	0.8893	0.8871
Ra	1.0969	0.8553	0.6076	0.6054	1.2981	0.9344	0.6253	0.6228
Tmin, Tmax	0.5031	0.3775	0.9175	0.9156	0.8303	0.6020	0.9061	0.9043
Tmin, Ra	0.5992	0.4639	0.8829	0.8801	0.9159	0.7081	0.8435	0.8407
Tmax, Ra	0.5478	0.4116	0.9022	0.9004	0.8343	0.6328	0.8928	0.8902
Tmin, Tmax, Ra	0.4574	0.3545	0.9318	0.9295	0.7993	0.6249	0.9231	0.9224
Opt inputs, α	0.4845	0.3649	0.9236	0.9208	0.8245	0.6295	0.9094	0.9075
ANFIS-PSO
Tmin	0.5909	0.4588	0.8861	0.8843	0.8513	0.6550	0.8617	0.8593
Tmax	0.5560	0.4171	0.8992	0.8971	0.8379	0.6317	0.8986	0.8962
Ra	1.0370	0.7993	0.6493	0.6472	1.2267	0.8791	0.6744	0.6721
Tmin, Tmax	0.4762	0.3648	0.9261	0.9245	0.8131	0.6309	0.9104	0.9075
Tmin, Ra	0.5914	0.4592	0.8859	0.8827	0.8887	0.6897	0.8540	0.8523
Tmax, Ra	0.5301	0.3976	0.9084	0.9060	0.8163	0.6384	0.9052	0.9027
Tmin, Tmax, Ra	0.4545	0.3437	0.9326	0.9304	0.7676	0.6138	0.9253	0.9228
Opt inputs, α	0.4663	0.3575	0.9291	0.9275	0.8065	0.6248	0.9115	0.9095
ANFIS-HHO
Tmin	0.5879	0.4567	0.8873	0.8852	0.8328	0.6272	0.8757	0.8724
Tmax	0.5580	0.4201	0.8985	0.8956	0.8058	0.6170	0.9045	0.9023
Ra	0.6944	0.5117	0.8427	0.8403	0.9909	0.7659	0.8126	0.8105
Tmin, Tmax	0.4617	0.3594	0.9305	0.9283	0.7903	0.5989	0.9165	0.9146
Tmin, Ra	0.5737	0.4471	0.8927	0.8904	0.8067	0.6245	0.8755	0.8721
Tmax, Ra	0.5250	0.3953	0.9101	0.9085	0.7979	0.6116	0.9153	0.9127
Tmin, Tmax, Ra	0.4399	0.3336	0.9369	0.9337	0.7665	0.6065	0.9272	0.9258
Opt inputs, α	0.4549	0.3483	0.9328	0.9302	0.7825	0.6058	0.9167	0.9149
ANFIS-WOA
Tmin	0.5377	0.4062	0.9057	0.9028	0.8079	0.6223	0.8769	0.8742
Tmax	0.5048	0.3599	0.9169	0.9137	0.7963	0.6159	0.9097	0.9074
Ra	0.6925	0.5103	0.8436	0.8405	0.9852	0.7561	0.8153	0.8125
Tmin, Tmax	0.4260	0.3142	0.9408	0.9382	0.7806	0.5840	0.9225	0.9203
Tmin, Ra	0.5009	0.3771	0.9182	0.9157	0.7995	0.6216	0.8941	0.8917
Tmax, Ra	0.4516	0.3390	0.9335	0.9305	0.7923	0.6023	0.9199	0.9174
Tmin, Tmax, Ra	0.4186	0.3113	0.9422	0.9401	0.7442	0.5771	0.9299	0.9268
Opt inputs, α	0.4182	0.3082	0.9430	0.9416	0.7344	0.5768	0.9330	0.9283

compares the efficiency of the models in estimating the monthly Epan of the Nanxian Station using climatic data from the Yueyang Station. For this case, similar results were obtained; R² and NSE of the ANFIS-WOA model in the testing phase ranged from 0.8153 and 0.8125 to 0.9330 and 0.9283. The improvements in the accuracy of ANFIS when the metaheuristic algorithms were used were evident. A comparison between the results presented in Table 7 and Table 8 reveals that the models performed better in estimating Epan at the Nanxian Station using the climatic input data of Jinzhou Station. The main reason for this might be related to the climatic characteristics of the stations. The Yueyang Station is located very near to Dongting Lake (Figure 1), and relative humidity may affect Epan. This study used the temperature input without considering this information.

5. Conclusions

This paper investigated the accuracy of four hybridized ANFIS models in modeling monthly Epan using limited climatic data from three stations in China. Various combinations of minimum and maximum temperature and extraterrestrial radiation were considered as inputs to the models to investigate the effect of each variable on Epan. Among the input variables, Tmax was found to be the most effective variable on Epan in all stations and for all models. An examination of the effect of periodicity revealed that it could improve the models’ accuracy in some cases. The hybridized models were also compared in estimating one station’s evaporation using input data from other stations. It was found that the metaheuristic algorithms, specifically WOA and HHO, considerably improved the efficiency of ANFIS in modeling monthly Epan using limited climatic inputs in both applications. The ANFIS-WOA and ANFIS-HHO models with R² ≥ 0.81 and RMSE ≤ 1.04 mm performed the best using data from the all three stations, and successfully outperformed the other hybridized models in modeling Epan with local external temperature data. Our study can provide insights into the development of predictive models when analysis is based upon a narrow range of climatic variables.
