Evaluating the Impact of Climate Change on the Stream Flow in Soan River Basin (Pakistan)

Abstract

The global hydrological cycle is susceptible to climate change (CC), particularly in underdeveloped countries like Pakistan that lack appropriate management of precious freshwater resources. The study aims to evaluate CC impact on stream flow in the Soan River Basin (SRB). The study explores two general circulation models (GCMs), which involve Access 1.0 and CNRM-CM5 using three metrological stations (Rawalpindi, Islamabad, and Murree) data under two emission scenarios of representative concentration pathways (RCPs), such as RCP-4.5 and RCP-8.5. The CNRM-CM5 was selected as an appropriate model due to the higher coefficient of determination (R²) value for future the prediction of early century (2021–2045), mid-century (2046–2070), and late century (2071–2095) with baseline period of 1991–2017. After that, the soil and water assessment tool (SWAT) was utilized to simulate the stream flow of watersheds at the SRB for selected time periods. For both calibration and validation periods, the SWAT model’s performance was estimated based on the coefficient of determination (R²), percent bias (PBIAS), and Nash Sutcliffe Efficiency (NSE). The results showed that the average annual precipitation for Rawalpindi, Islamabad, and Murree will be decrease by 43.86 mm, 60.85 mm, and 86.86 mm, respectively, while average annual maximum temperature will be increased by 3.73 °C, 4.12 °C, and 1.33 °C, respectively, and average annual minimum temperature will be increased by 3.59 °C, 3.89 °C, and 2.33 °C, respectively, in early to late century under RCP-4.5 and RCP-8.5. Consequently, the average annual stream flow will be decreased in the future. According to the results, we found that it is possible to assess how CC will affect small water regions in the RCPs using small scale climate projections.

1. Introduction

The global climate change (CC) has impacted the hydrological regimes of various regions all over the world, and this change is anticipated to go on in the future [1]. CC has a significant effect on the ecological unit, socioeconomic systems, water supplies, and eco-systems [2,3]. In this regard, CC has become a major research focus during the past few decades [4,5,6]. Higher evaporation rates because of escalating global temperatures impact the precipitation patterns [7,8,9,10,11]. The hydrological cycle is a complex process that is challenging to manage on a global scale as well as within individual watersheds [12]. Therefore, it is necessary to assess the effects of improved decision making on the water resources management [3]. In order to predict consequences of the CC on hydrological catchments, a combination of general circulation models (GCMs) and hydrological models are often utilized [3,13,14]. The GCMs are regarded as the most appropriate models for evaluating the dynamic and physical process of the atmospheric system [15]. However, a limitation of the GCMs is low spatial resolution to evaluate the number of significant sub grid scale hydrological processes and applicability for the regional CC evaluations [16,17,18]. On the other hand, by simulating the hydrological processes that take place inside watersheds, hydrological models offer a correlation between CC and water yield, but regional scale input data is required to do so [19]. Downscaling approaches fill the gap between hydrological models and GCMs in terms of temporal and spatial resolution [20]. Despite various downscaling approaches, there are three key steps which affect CC simulation: (i) projection of future CC effects using simulations of GCMs, (ii) downscaling of climate projections from regional to large scales, and (iii) generation of hydrologic predictions using downscaled data and hydrologic models [21].

For a better understanding of CC impact on stream flow, hydrological models incorporates climatic model as an input [22]. By comparing water yield and CC, hydrologic processes can be simulated. The soil and water assessment tool (SWAT) is a physical model that can smooth continuous hydrologic simulations in a semi-distributed manner in real time. Despite not being a three-dimensionally circulating model, the SWAT recognizes geographically separated components that make up hydrologic response units (HRUs) and sub-basins [23]. Changes in temperature, humidity, and precipitation can affect plant growth and can be anticipated to have an effect on evapotranspiration, runoff, and snowfall. The SWAT model is frequently employed in research to simulate the hydrologic processes of watersheds with an emphasis on the impact of CC. In the literature, numerous studies have been performed to evaluate the impact of CC on the stream flows using both climate and hydrological models [21,24,25,26,27]. For instance, Babur et al. [28] used seven GCMs and the SWAT model. He concluded a decreasing and increasing tendency in overflow of the Upper Indus Basin. Akber et al. [29] evaluated the impact of land use land cover (LULC) changes followed by CC on stream flow of the Kunhar river basin using GCMs, the SWAT model, and the downscaling technique. It was concluded that owing to CC the streamflow increased 20% from its baseline period. Garee et al. [30] investigated CC impact on the stream flow of the Hunza River (Pakistan) using GCMs and SWAT models. It was observed that temperatures will be expected to increase from 1.39 °C to 6.58 °C by the end of this century while precipitation is anticipated to increase by 31%, resulting in a 5–10% increase in runoff. However, to the authors’ best knowledge, few studies have been performed particularly for Soan river basin (SRB) in Pakistan with the SWAT model for streamflow prediction, as this model has the ability to simulate the long-term hydrological changes, particularly for large catchments. It is projected that the demand for water will increase due to rapidly shifting economic and social conditions in upcoming decades. In this regard, it is essential to ascertain potential impacts of CC on stream flow for sustainable management of water resources in such areas.

Therefore, the present study aims to evaluate the impact of CC on stream flow variations in the SRB by employing the SWAT model in response to RCP-4.5 and RCP-8.5 with two of the most commonly used GCMs. Five metrological parameters data including maximum temperature ($T_{max}$), minimum temperature ($T_{min}$), relative humidity, precipitation, wind speed and solar radiation with land use (LU), digital elevation model (DEM), and soil data of the SRB were used and input for the SWAT model. Two general circulation models (GCMs) (i.e., Access 1.0 and CNRM-CM5) were used for the prediction of three meteorological parameters including $T_{max}$, $T_{min}$, and precipitation by utilizing three metrological stations (i.e., Rawalpindi, Islamabad, and Murree) data under RCP-4.5 and RCP-8.5 for early (2021–2045), mid (2046–2070), and late century (2071–2095) with a baseline period of 1991–2017. Consequently, the SWAT model’s output was incorporated with climatic models and utilized to simulate the stream flow of watersheds at the SRB for selected time periods. Additionally, the SWAT model’s performance was assessed based on coefficient of determination (R²), percent bias (PBIAS), and Nash Sutcliffe Efficiency (NSE) for both calibration (2006–2009) and validation (2010–2013) period.

2. Materials and Methods

2.1. Study Area

The Soan River is a major tributary of the Indus River and a substantial supplier of water for the Pothwar regions of Pakistan [31]. It begins in Murree mountains and passes through two hydrological stations of Chirrah and Dhok Pathan before flowing into the Indus River. The SRB covers an area of 6842 km² with maximum height of 2274 m. The average annual temperature in the SRB varies between 8–18 °C with average annual precipitation of 1465 mm. The northern area of the SRB has humid and sub humid climates whereas southern area has arid and semiarid climates [32]. Simly dam is also a major supplier of water for the capital city (Islamabad) that receive water from the SRB. Furthermore, the SRB significantly contributes to Pothwar’s agriculture and domestic water use. The slope of the SRB varies from gentle to steep, and monsoon season generates the majority of the stream flow. The study area’s population has grown dramatically in recent years owing to an increase in rural-to-urban migration, suggesting that water supplies are under persistent pressure [22].

2.2. Data Collection

2.2.1. Observed Climatic Data

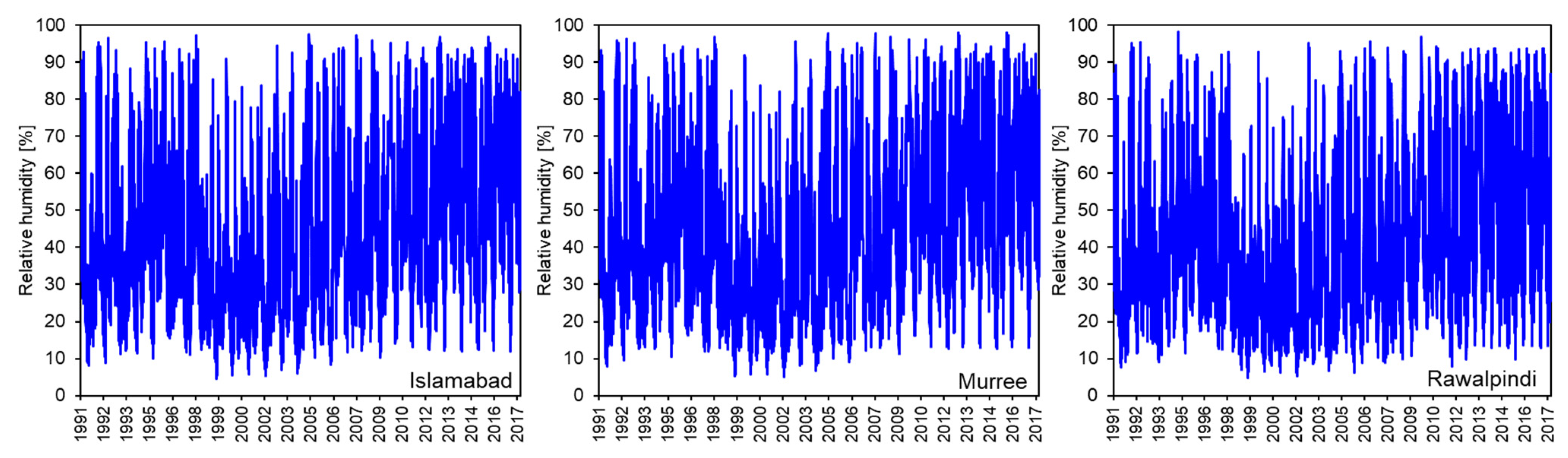

The study employed climatic data obtained from the Pakistan Meteorological Department and Soil and Water Conservation Research Institute for three meteorological stations, as shown in Figure 1, for the period of 1991–2017. The climatic data was obtained in terms of temperature, relative humidity, precipitation, wind speed, and solar radiation. The precipitation and temperature data are shown in Figure 2. However, the relative humidity, wind speed, and solar radiation data is available in Appendix A (Figure A1 and Figure A2). Stream flow data (gauged data) was collected from a hydrological station (Chirrah) of Water and Power Development Authority (WAPDA) only for the period of 2006–2013 due to the non-availability of long-term data.

2.2.2. Model Data

Model data including $T_{max}$, $T_{min}$, and precipitation were acquired for developing the CNRM-CM5 Model. The climatic projections were categorized into two groups such as the baseline period (1991–2005) and three future periods: early century (2021–2045), mid-century (2046–2070), and late century (2071–2095). Five global climate models (Access 1.0, CNRM-CM5, CCSM4, CSIRO, and MPI-ESM-LR) were used in this study, and the data was downloaded from reference [33].

2.2.3. Spatial Data

Spatial data comprising the digital elevation model (DEM), soil data, and land use (LU) data was incorporated into the SWAT model. The coordinate system used to project each spatial dataset was the same as WGS 1984 UTM ZONE 43N. The SWAT model developed the stream network plus defined the watershed using the DEM of the research area. It was purchased from the CGIAR-Consortium for spatial information v4.1 database (23). The LU data was collected from the National Engineering Service of Pakistan (NESPAK). After that, this LU data was categorized into eight classes including agricultural land generic, agricultural land-row crops, forest ever green, deciduous, mixed, pasture residential low density, and water, as shown in Figure 3a. The digital soil map of the world (DMSW) was utilized to download soil information from the reference [34]. The DEM data of the SWAT model defined five slope classes and soil classification in Figure 3b. The most central soil category is Gleyic Solonchaks, which covers 67.32% of the basin area. The dataset of soil classification for this region was obtained from the reference [34]. Based on the DEM data, the SWAT model defined five slope classes as shown in Figure 3c.

2.3. Climate Change Analysis and Downscaling

Linear scaling was applied to completely meet the corrected monthly average values with observed values [35,36,37]. Monthly variations in climatic data were obtained using observed data (1991–2017) and GCMs data. The following equations were used to predict future temperature and precipitation data of the GCMs using the bias correction method.

$$\Delta T_{27 years}=T_{observed, monthly}-T_{GCM,observed, monthly}$$

(1)

$$\Delta P_{27 years}=\frac{P_{observed, monthly}}{P_{GCM,observed, monthly}}$$

(2)

$$T_{future, daily}=\Delta T_{27 years+}{T}_{GCM,daily,future}$$

(3)

$$P_{future, daily}=\left(\Delta P_{27 years }\right)\ast P_{GCM,daily,future}$$

(4)

where $T_{observed, monthly}$ and $P_{observed, monthly}$ represents the observed monthly temperature (°C) and precipitation (mm), respectively, while $T_{GCM,observed, monthly}$ and $P_{GCM,observed, monthly}$ represents the raw data observed monthly temperature (°C) and precipitation (mm), respectively. $\Delta T$ represents a change in temperature (°C), $T$ represents temperature (°C), $\Delta P$ represents a change in precipitations (mm), and $P$ represents precipitation (mm). By using these above equations, climatic data was examined relative to baseline periods on a seasonal and annual basis for future possibilities. The predictions were divided into three future periods: early century (2021 to 2045), mid-century (2046 to 2070), and late century (2071 to 2095) while the selected baseline period was 1991 to 2017.

2.4. Bias Correction

In this study, two GCMs, Access 1.0, and CNRM-CM5, under two representative concentration pathways (RCPs) such as RCP-4.5 and RCP-8.5, were employed to predict the future impact of CC [14]. A statistical analysis including the 90th percentile, mean, standard deviation, and 10th percentiles was applied for non-bias corrected data, observed data, and for bias corrected data for $T_{max}$, $T_{min}$, and precipitations. Linear scaling was applied to completely meet the corrected monthly average values with observed values [35,36,37]. Monthly variations in climatic data were obtained using observed data (1991–2017) and GCM data. The bias correction of climatic parameters (precipitation, temperature) depended upon the below two equations.

$$P_{sim\left(bc\right)}=P_{sim}·(P_{obs}/P_{his})$$

(5)

$$T_{sim\left(bc\right)}=T_{sim}+(T_{obs}-T_{his})$$

(6)

where $P_{sim\left(bc\right)}$ and $T_{sim\left(bc\right)}$ represent bias corrected monthly precipitation and temperature, respectively. $P_{sim}$ and $T_{sim}$ represent the GCMs values for precipitation and temperature, respectively. $P_{obs}$ and $T_{obs}$ are the precipitation and temperature observed values, respectively. The $P_{his}$ and $T_{his}$ are GCMs historical simulated values of precipitation and temperature. The bias correction was done by adopting the following steps.

• The observed data period (1991–2010) was divided in to two groups: calibrated period (1991–2000) and validated period (2001–2010) for bias correction.
• For the calibration period, the correction factor for temperature and precipitation were calculated using historical data of the model and observed data.
• The linear scaling performance evaluation was estimated depending upon the evaluation of the 10th percentile, standard deviation, mean, and 90th percentile between two types of data (observed data, model data) formerly and later bias correction.
• The performance for the calibrated period was assessed after applying the bias corrected calibration period parameters to the validation period.
• The future forecasted model data of 2021–2095 was corrected monthly using the monthly correction factor.

2.5. SWAT Model for Hydrological Modelling

The study considered SWAT model to simulate the stream flow of watersheds because long-term simulations and predictions are possible with this model [38,39,40]. In a wide variety of watersheds, the SWAT model can replicate the stream flow process [35,41]. In various climate impact studies [42,43,44], the SWAT model shows promising results for simulating the long-term hydrological changes. Furthermore, these studies also concluded that the SWAT model is more efficient in the case of large catchments and provides satisfactory results, particularly for annually, daily, and monthly values. The SWAT model combined the spatial data, including soil data, land use, and digital elevation data. The DEM of the studied area was employed in the SWAT model to delineate the watershed and river network. The generated data were used to evaluate the hydraulic response unit (HRU), and each HRU simulates its own discharge at a monthly scale, which directed it to obtain total discharge from the entire watershed. The water balance equation is used to evaluate the hydrological parameters of the SWAT model [23,45].

$$S{W}_t=S{W}_o+{\sum }_{i=1}^t\left(R_i-Q_i-E_i-P_i-Q{R}_i\right)$$

(7)

where $S{W}_t$ represents final soil water content (mm/day), $S{W}_o$ represents initial soil water content (mm/day), $t$ represents time (days), $R_i$ represents the amount of precipitation (mm), $Q_i$ represents the amount of surface runoff (mm), $E_i$ represents the amount of evapotranspiration (mm), $P_i$ represents the amount of percolation (mm), and $Q{R}_i$ represents the amount of return flow (mm).

2.5.1. Calibration and Validation

The calibration of the model is the process of changing parameter values to ensure that the developed or simulated model flow accurately represents the changes of actual flow [46]. To acquire a better alignment between simulated and observed data (gauged data 2006–2009), calibration was achieved utilizing manual calibration as well as SWAT adjustment and an uncertainty program using SWAT-CUP (SWAT Calibration Uncertainty Program). In this regard, outflow from the SRB is simulated using ArcSWAT. Monsoon season starts in Pakistan from July to September, so runoff was found at maximum value in this season while the driest period of this region was from November to December. Data from GCMs was utilized as inputs for the SWAT model, which resulted in a variety of runoff series (6-time series and one baseline data). These six-time series belong to GCMs and given future conditions. The SWAT model generates replicate runoff data above its sub basin to determine CC impact. The same method has been successfully utilized by different studies [47,48,49].

2.5.2. Performance Evaluation

The SWAT model’s performance was assessed based on the most commonly used parameters such as the coefficient of determination (R²), percent bias (PBIAS), and Nash Sutcliffe Efficiency (NSE). The R² values from 0 to 1 indicates that either simulated and observed data are correlated or not. Higher values of R² (normally > 0.5) represent greater correlation with less error. The NSE represents how precisely the simulated plots turn the measured plots. It varies between 0 to 1, and values greater than 0.5 are regarded as acceptable if the model shows less error at higher levels. The PBIAS shows percent mean divergence between simulated and actual flows and might have a positive or negative value. The PBIAS values varied between −15 to +15 are considered acceptable [50].

3. Results

3.1. Climatic Model Selection

The climatic model was selected based on the observed values of R² for selected GCMs (Access 1.0 and CNRM-CM5). The results showed that the R² for Access 1.0 and CNRM-CM5 were 0.34 and 0.43, 0.31 and 0.52, and 0.47 and 0.35 at Rawalpindi, Islamabad, and Murree metrological stations, respectively. While the other three GCMs (CCSM4, CSIRO, and MPI-ESM-LR) give a lower value of R². The climatic parameter precipitation was selected for comparison with GCMs data from 1991–2005. The values of these three GCMs are given in a table below. It was observed that the CNRM-CM5 performed well as compared to the other four GCMs models on the basis of a high value for the coefficient of determination R². A high value for R² for CNRM-CM5 was due to more precipitation data similarity with a baseline precipitation as compared to Access 1.0 and the other three models. In this regard, the CNRM-CM5 model was selected for evaluation impact of CC on the SRB.

3.2. Bias Correction

A statistical analysis including the 90th percentile, mean, standard deviation, and 10th percentiles was applied for non-bias corrected data, observed data, and for bias corrected data for $T_{max}$, $T_{min}$, and for precipitation at meteorological stations of Rawalpindi, Islamabad, and Murree as shown in Figure 4. The correction factor established during the calibration period (1991–2000) was useful to the validation period (2001–2010). During bias correction, a correction factor in the calibration period of 1991–2000 was found, thereby utilized for validation period of 2001–2010. Additionally, a performance evaluation of both periods was calculated. According to the results, the calibration period increased more than the validation period at each meteorological station. The standard deviation, mean, and 90th percentiles showed underestimated results for $T_{max}$, $T_{min}$, and precipitations at the selected metrological stations using non-bias corrected signs. However, the bias corrected and observed mean precipitation results become equal during the calibration period at all metrological stations while the percentage difference of 51.5%, 41.9%, and 18.26% was observed at Rawalpindi, Islamabad, and Murree station, respectively, as compared to the observed results. For the $T_{max}$, the signs showed both underestimated and overestimated results mostly in the case of non-bias corrected data for both the calibration and validation periods for Murree and Rawalpindi station, while for Islamabad station, the signs show very little variations. In the case of Murree station, the mean values percentage difference for the $T_{max}$ was observed at −38.76% (non-bias corrected) during the calibration period while at −37.12% during the validation period. However, in the case of the 90th percentile, the percentage difference for Murree station was improved from 16.91% during the calibration period and 5.77% during the validation period with respect to the observed data. The percentage difference for the 10th percentiles was improved −23.11% during the calibration period and −2.18% during the validation period according to observed data for Murree station. The non-bias adjusted data for the $T_{min}$, which includes the mean, 10th percentile, and 90th percentile, reveals overestimated and underestimated values for the calibration and validation period at all climatic stations. At Murree station, for $T_{min}$, the percentage difference for the 90th percentile is 4.50% for non-bias correction and 9.50% for bias correction with respect to the observed data. Generally, it was detected that linear scaling applications meaningfully enhanced the statistical signs at all climatic stations. This demonstrates how effective these strategies are at improving the output of the chosen CNRM-CM5 model for the study area.

3.3. Assessment of Mean Monthly Future Meteorological Parameters at Climatic Stations

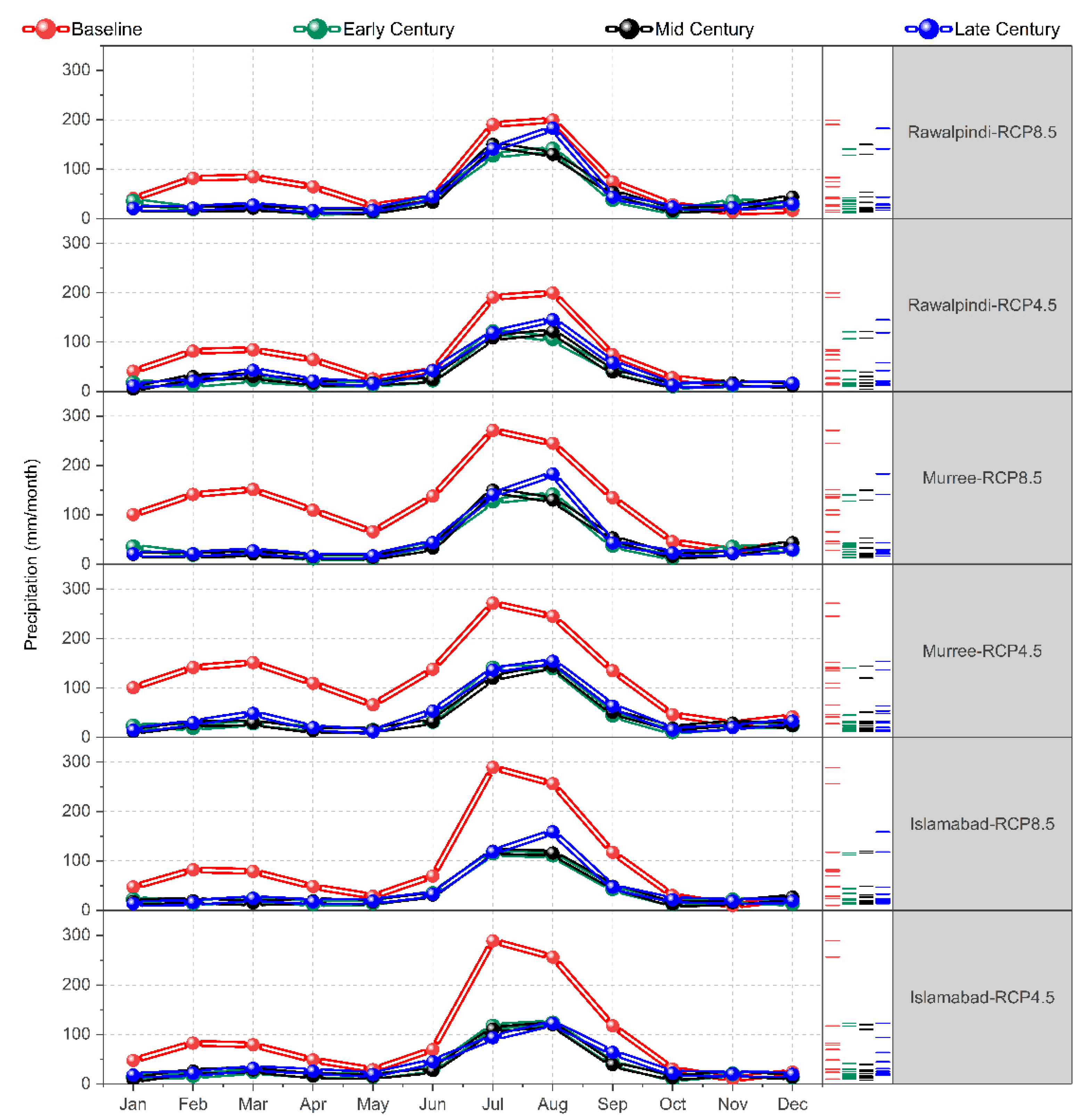

The mean monthly future meteorological parameters like precipitation, $T_{max}$, and $T_{min}$ were evaluated for the observed baseline period (1991 to 2017) and forecasted for early (2021 to 2045), mid (2046 to 2070), and late century (2071 to 2095) using the CNRM-CM5 model under both RCP-4.5 and RCP-8.5 for selected stations. Figure 5 represents the fundamental mean monthly profiles of precipitation for the base line period, early century, mid-century, and late century under RCP-4.5 and-RCP-8.5 at selected stations. In the case of both actual and prospective timeframes, the predicted peak precipitation levels were observed in July and August at selected stations under both emissions scenarios. In the case of mid-century (except Murree RCP-4.5), the maximum difference in precipitation was predicted to be between 127 mm/month and 155 mm/month for the month of July under both RCP-4.5 and RCP-8.5 while there is relatively minor change in precipitation between early and late century under both RCPs at selected stations. Additionally, in case of the Islamabad climate station, it was predicted that there will be more precipitation in the month of July rather than August. The early century was predicted to experience high precipitation of 200 mm/month which is approximately 50.90% higher than the baseline period under RCP-4.5. However, the mid- and late century were predicted to experience about 28% and 36% less precipitation than the baseline period. The precipitation in the early century under RCP-8.5 was predicted to be less than RCP-4.5 but still 45% less than the baseline period. Similarly, the predicted results of other stations can be found in Figure 4.

Figure 6 represents the monthly profiles of $T_{max}$ and $T_{min}$ for the base line period, early century, mid-century, and late century under RCP-4.5 and RCP-8.5 at selected stations. The $T_{max}$ was observed in the month of June in the case of early and mid-century for selected stations under both RCP-4.5 and RCP-8.5 as shown in Figure 6a. The early and mid-century was predicted to be greater than the baseline period, and this increment is observed to be significantly higher under RCP-8.5 as compared to RCP-4.5. However, in early and mid-century, a minor temperature difference was observed under RCP-4.5 but about 34.57% greater as compared to the baseline period for selected stations.

Consequently, in the case of Islamabad, the $T_{max}$ of 42.5 °C was observed in the month of June for the late century under RCP-8.5 which is 3.5 °C or 26% greater as compared to the baseline period of 38 °C while $T_{max}$ of 42.5 °C was observed in the same period under RCP-4.5. However, in early and mid-century, $T_{max}$ under RCP-8.5 was approximately equal to the temperatures under RCP-4.5. According to Figure 6b, the highest values of $T_{min}$ were in the month of July for all time periods and stations under both emission scenarios. In the case of Islamabad, highest value of $T_{min}$ of 28.5 °C was observed in the late century for the month of July as compared to the baseline period of 24 °C under RCP-8.5 while according to RCP-4.5, the highest value of $T_{min}$ of 27 °C was observed.

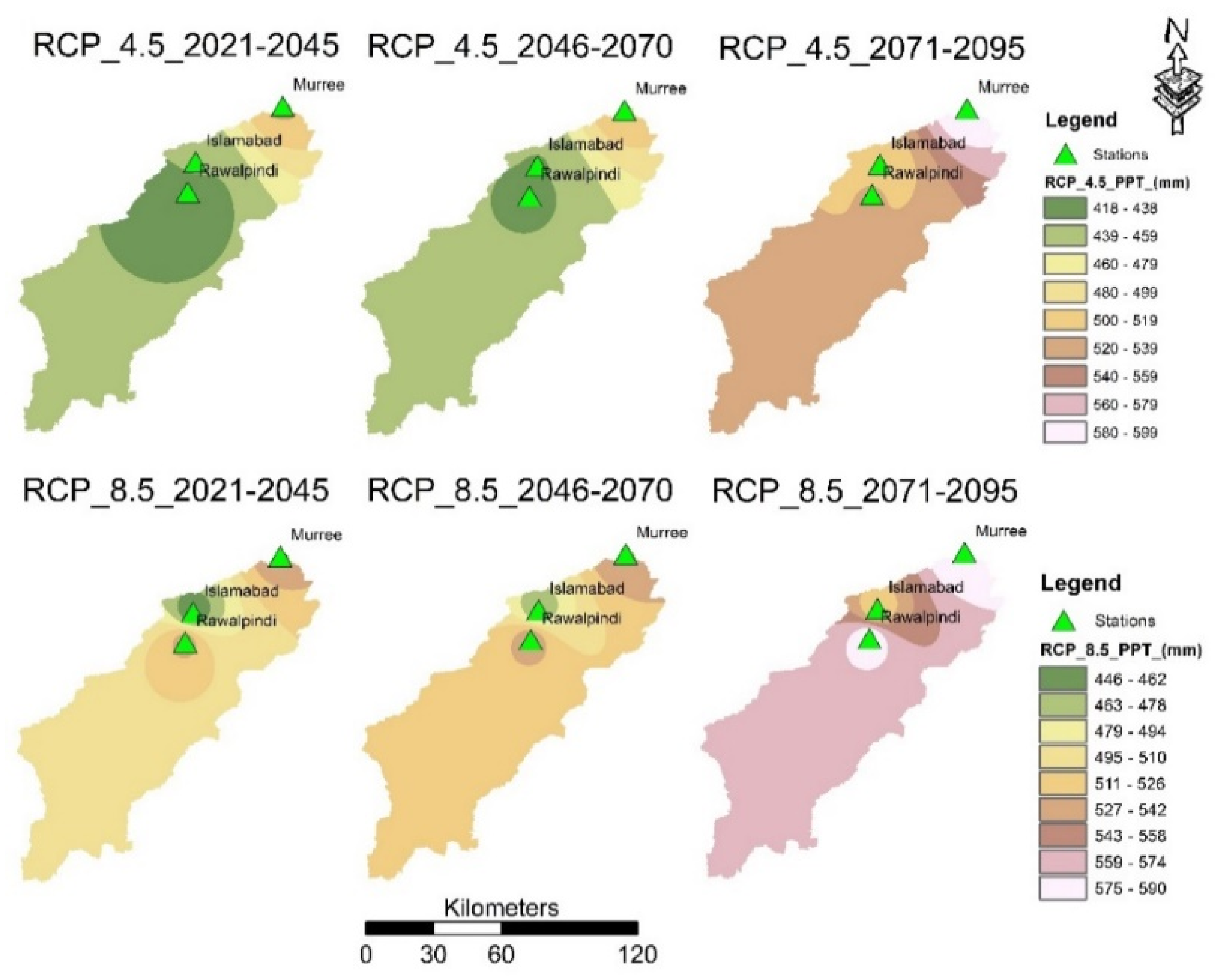

Additionally, for more clarification, the spatial distribution of the precipitation data in the SRB for early, mid, and late century under both RCP-4.5 and RCP-8.5 is represented in Figure 7. It is observed that the annual average precipitation is going to decrease from the early to late century. Similarly, Figure 8 represents the spatial distribution of $T_{max}$ and $T_{min}$ data in the SRB for early, mid, and late century under both RCP-4.5 and RCP-8.5. Figure 8a shows spatial distribution of $T_{max}$ in the SRB for early, mid, and late century under both RCP-4.5, and RCP-8.5. It was observed that $T_{max}$ varied between 31.4 °C to 34.4 °C under both RCP-4.5, and RCP-8.5. Similarly, Figure 8b shows spatial distribution of $T_{min}$ in the SRB for early, mid, and late century under both RCP-4.5, and RCP-8.5. It was observed that $T_{min}$ varied between 13.4 °C to 14.6 °C under RCP-4.5 while 13.6 °C to 16.5 °C under RCP-8.5. The results conclude that $T_{max}$ and $T_{min}$ will increase from early to late century which will result in a serious water threat in the near future.

According to Ikram et al. [51], the projected precipitation increases in Pakistan and is expected to be 2–3 mm/day under RCP-4.5 while 3–4 mm/day under RCP 8.5. The temperature increases were predicted to be 3 °C to 4 °C under RCP-4.5 and 3 °C to 8 °C under RCP-8.5. The findings of this study showed similar trends in temperature, but due to the use of different GCMs, precipitation showed a slight variation. In a previous study by Babur et al. [28], the change in $T_{max}$, $T_{min}$, and precipitation in Pakistan was varied from (−50) to (+70%), 3 °C to 6 °C, and 2.5 to 8 °C, accordingly, in RCP-4.5 and 8.5. The current study facts by Babur et al. show that extreme temperature shows a little variation while precipitation within the projected limit [28]. This might be due to a different GCM for climate prediction. Because of different study areas, several climate models can propose various outcomes. Naeem et al. [52] studied the impact of CC on the hydrological regimes of Jhelum River Basin and observed an annual increase in $T_{max}$, $T_{min}$, and precipitation of 0.4–4.18 °C and 0.3–4.2 °C and 1–1.4 mm and 2.1–2.8 mm under RCP-4.5 and 8.5, respectively [52]. Islam et al. [30] investigated the climatic and hydrological changes on the upper Indus River and found a significant increase in temperature and a decrease in precipitations [30]. Mahmood et al. [53] found an increase of 12% to 14% in precipitation at the end of this century at Jhelum River basin [53]. Shaukat et al. [54] concluded that there is a 0.5–2 °C increase in the temperature at the upper Indus basin system [54].

3.4. Water Balance/Stability in SWAT Model

Table 1. R² values of selected GCMs with respect of climatic stations.

GCMs	Stations	R2 Value
	Rawalpindi	0.52
CNRM-CM5	Islamabad	0.47
	Murree	0.35
	Rawalpindi	0.34
ACCESS 1.0	Islamabad	0.43
	Murree	0.31
	Rawalpindi	0.27
CCSM4	Islamabad	0.22
	Murree	0.29
	Rawalpindi	0.35
CSIRO	Islamabad	0.14
	Murree	0.33
	Rawalpindi	0.15
MPI-ESM-LR	Islamabad	0.28
	Murree	0.04

represents the water stability for the baseline period in a simulated hydrological SWAT model. Inflows and outflows were almost equal excluding a little difference because of losses happening in the watershed. About 59% of the inflows were used to produce water, which showed that the streamflow was being affected by most of the precipitation.

3.5. Calibration and Validation of the SWAT Model

Observed data collected by WAPDA at Chirrah gauge station on the SRB was employed for the calibration (2006–2009) and validation (2010–2013) of the SWAT model as shown in Figure 9. Twelve parameters were measured from which five were considered comparatively sensitive as shown in

Table 2. Model parameters used for calibration and validation.

Sr. No	Parameters	Description	Range	Optimum Value
1	SOL-AWC	Soil available capacity (mm/mm)	0–1	0.17
2	SOL-K	Saturated hydraulic conductivity (mm/h)	0–2000	4.27
3	GW-DELAY	Ground water delay (days)	0–500	31
4	GW-QMIN	Aqusifer required for return flow to occur (mm)	0–5000	1000
5	RCHRG-DP	Deep aquifer percolation fraction (–)	0–1	0.05
6	GW-REVAP	Ground Water rewap coefficient (-)	0.02–0.2	0.02
7	REVAPMN	Threshold depth of water in the shallow aquifer required for return flow to occur (mm)	0–500	500
8	ALPHABF	Base flow alpha factor (–)	0–1	0.048
9	CH-N2	Mannings n value for the main channel (–)	0.01–0.3	0.014
10	CH-K2	Effective hydraulic conductivity in the main channel (mm/h)	0.001–500	0.001
11	ESCO	Soil evaporation compensation factor (–)	0–1	0
12	EPCO	Plant uptake compensation factor (–)	0–1	0.97

. Additionally,

Table 3. Annual average water balance for the SRB (1991–2017).

Flow	Components of the Water Balance	Symbology	Calculated Values (mm)	Total Flow(mm)
Inflow	Precipitation	PRECIP	2404.8	2404.8
	Water Yield	WYLD	1424
Outflow	Deep Aquifer Recharge	DA-RCHG	802.7
	Evapotranspiration	ET	170	2396.7
	Losses			8.1

shows the annual average water balance for the SRB (1991–2017). In

Table 4. SWAT model calibration results.

Coefficients	Calibration Period (2006–2009)	Validation Period (2010–2013)
R2	0.8125	0.835
PBIAS	−0.8794	−0.9263
NSE	0.7876	0.6

, using the available information and the predicted results, the SWAT model simulation’s effectiveness was assessed from the viewpoints of R², PBIAS, and NSE are presented. To acquire complex parameters for calibration and validation, previous research work was the main point of concentration [37,55,56]. Five model parameters, which include Curve Number (CN), Groundwater Recharge Evaporation (GWRE), Soil Evaporation Compensation (SEC), Soil Available Water Capacity (SAWC), and slope, were adjusted to simulated results similar to the actual values. It was observed that all sub watersheds increased four-fold in the case of the CN while the GWRE was accepted as 0.4 and SEC was increase by 0.8, and SAWC and slope parameters multiplied by 0.4 and 1.3, respectively. This shows that for this particular watershed, factors relating to soil processes, surface runoff, and groundwater processes have the greatest effects on the output of the SWAT. The detailed explanation of every parameter of this model is available in user’s manual of the SWAT [57].

Figure 10 shows the profiles of simulated and observed runoff at the SRB for the calibration and validation periods. It was observed that simulated runoff during the calibration period was greater from July 2006 to September 2008 while lower values were observed from January 2006, May 2006, and November 2008 to December 2009. However, in case of the validation period, the simulated flow was observed less from June 2010 to June 2011 while higher values were observed between May 2012 and August 2012. The variations in runoff data are due to different precipitation data observed and calculated with the GCM at all selected stations.

3.6. Prediction of Streamflow Variations

Figure 11 shows monthly changes in stream flows for the baseline to late century with their marginal distribution curves in the SRB under both RCP 4.5 and RCP 8.5. The predicted monthly stream flows were observed at a maximum of 84.34 mm/month and 78.41 mm/month from July to August under RCP-4.5 as shown in Figure 11a while 67.12 mm/month and 75.25 mm/month under RCP-8.5 as shown in Figure 11b in the mid-century period for selected stations. It is important to mention here that the marginal distribution curve in Figure 11 shows a data height in numbers instead of density or relative frequency of data. Additionally, in mid-century, the predicted annual averaged stream flows were observed at a maximum of 42.31 mm and 35.71 mm under RCP-4.5 and RCP-8.5, respectively. The significant difference was observed in peak runoff established in the late century under both emission scenarios. At all meteorological stations, the trend of mean monthly precipitation was directly related to the trend of stream flow.

4. Discussion

In general, a hydrological model and climate simulations by GCMs, which are run in future under various RCPs, must be combined in order to assess the hydrological implications of CC [58]. The parameters such as precipitation, $T_{max}$, $T_{min}$, relative humidity, and wind speed are major variables for hydrological presentations in particular, hence stream flow forecasting/projections depends on accurate data for these variables at the catchment size. Numerous features of climatic variables are measured using several metrics, such as the 90th percentile, mean, standard deviation, and 10th percentile for both bias and non-bias corrected data of climatic variables for future prediction, which was divided into three future periods of early (2021–2045), mid (2046–2070), and late century (2071–2095). In order to estimate how effectively the CNRM-CM5 model simulates the observed data over the research area, for one sub catchment of (SRB) in Pakistan, these measures were initially utilized. Additionally, relatively minor variations in climatic variables may result in significant variations in the future prediction of climate variables [59,60,61].

Therefore, the SWAT model’s calibration and validation was done to anticipate streamflow across the Chirrah sub catchment. When measured against a particular objective function, the model’s performance during calibration is typically effective since it highlights a specific system characteristic [62]. However, concurrently, other system characteristics may experience significant faults [63]. While evaluating the performance of hydrological model using various objective functions takes into account the various uncertainties that may be present in a system, a representative set of Pareto optimum results of the model’s parameter is produced as a result avoiding simulation from being biased near one objective function and specifying an exclusive solution that can increase or decrease a specific independent priority [64,65]. For example, the NSE illustrates how large the residual variance is in comparison to the variance of the observations and could lead to an incorrect assessment of the model’s performance [66]. In this work, the performance of the SWAT model was evaluated during autonomous calibrated and validated periods using a variety of objective functions, including R², PBIAS, and NSE. These centuries were carefully chosen to account for the future forecasting of climate variables, thus reducing inaccuracies [66].

The SWAT model worked exceptionally well during the calibrated and validated periods for Chirrah sub catchment in (Figure 10); this model has also done exceptionally well in other catchments with utterly dissimilar characteristics, such as complicated terrain [28]. The small PBIAS (%age transformation between gauged and modeled streamflow) values suggest the strength of the model’s factors, which is very suitable for sub catchment. The divergence between gauged and modeled runoff during the calibrated and validated periods is a reflection of the inaccuracies in model arrangement and factors values [67]. For the investigation on the implications of climate change, the choice of appropriate GCMs is crucial [68]. For this, the runoff for the historic period of 1991–2017 was initially simulated by means of both gauged and modeled (CNRM-CM5) climatic data for Chirrah sub catchment by means of the SWAT model (after calibration and validation). The streamflow for the early century (2021–2045), mid-century (2046–2070), and late century (2071–2095) future periods was than simulated by means of the climate data from CNRM-CM5, enforced with two emission scenarios of RCP-4.5, and 8.5.

The best GCM across the sub catchment was chosen after R² was used to access the GCMs appropriateness for streamflow modeling [69]. The average minimum and maximum temperature was found to be increased from 1.31 °C to 4.67 °C from early to late century, and a decrease in precipitation was found to be 43.86 mm to 86.86 mm from early to late century; that is very close to the previous studies value while precipitation shows a slight variation [28,51]. Performance evaluation parameters like R^2, PBIAS, and NSE also give satisfied values: 0.81, −0.87, and 0.78 for calibration period and 0.83, −0.92, and 0.6 for validation period of the SWAT model. The value of NSE is little in validation but is justified due to area characteristics and comparable to the other studies like Baber et al.; in his study, he found the validation value was 0.65 for R² and 0.55 for NSE [28].

5. Conclusions and Recommendations

The study evaluated the impact of CC on streamflow at SRB, which is the main tributary of the Indus River and a significant source of water for Pothwar regions of the country. The study concludes that bias in climatic parameters (temperature and precipitation time series) can be effectively removed using the linear scaling practices. After bias was corrected, and the statistical indicators significantly outperformed the observed time series. The SWAT was a useful tool for analyzing the water balance components since it accurately represented the hydrology for data scarce and high elevation regions. The results of the study showed that under both RCPs for early, mid, and late parts of the century, precipitation was predicted to decrease in the future. Winter was projected to be relatively dry while summer was predicted to get the most precipitation. Early June was also anticipated to have the highest $T_{max}$ and $T_{min}$ in comparison to the baseline period. The future rise in the $T_{max}$ was more significant than the $T_{min}$. Furthermore, the runoff at the SRB was expected to decrease in the future, especially in the summer months (July and August) under RCP-8.5. The conservation of water may be useful during the high flow season to meet the demands in the dry season or low flow season. Indeed, the runoff is decreasing in the future; however, this increment may speed up the soil erosion process, which would lead to the reduction of the storage capacity of the Simly Dam.

The SRB is a key source of domestic water supplies for Rawalpindi and Islamabad. Therefore, coordination is required between the various departments: Capital Development Authority, Rawalpindi Cantonment Board (RCB), and Water and Sanitation Authority (WASA). In addition, future research can be planned with the use of the SWAT model to predict sediment and runoff by studying LU changes. This study could help to cope with the reservoir storage capacity problem and promote effective maintenance techniques. Furthermore, as forecasted above, the effective rainfall will decrease while the average $T_{max}$, and $T_{min}$ will increase in upcoming decades, ultimately leading to a reduction in freshwater resources and an increase in crop water demands. Therefore, there should be a strong relationship between the water management board and research institutes of the country to deal with the problems associated with water shortage.

6. Limitations

Short term discharge data for only eight years made the SWAT model calibration and validation challenging. However, the satisfied values of performance evaluation parameters (i.e., R², PBIAS, and NSE) showed better performance. In this study, LULC was supposed to be persistent. In future studies, it is advised to consider how variations in LULC may contribute to CC. In conclusion, using a single GCM to evaluate CC forecasts into future flow projection has inherent vagueness. To better convey the future climate uncertainty, future work should include the whole group of GCM model outputs.
