Identification of Groundwater Radon Precursory Anomalies by Critical Slowing down Theory: A Case Study in Yunnan Region, Southwest China

Abstract

In this study, we use the critical slowing down (CSD) theory to identify the precursory anomalies of groundwater radon based on the 1000-day continuous data from 8 monitoring stations in Yunnan Province, China during the seismically active period of 1993–1996. The low-frequency and high-frequency information were extracted from raw groundwater radon data to calculate their one-step lag autocorrelation (AR-1) and variance, respectively, in order to identify the precursory anomalies. The results show that the anomaly characteristics can be divided into three categories: sudden jump anomalies, persistent anomalies, and fluctuation anomalies. The highest average seismic recognition rate is 72.78%, based on the high-frequency information’s autocorrelation, while the lowest is 45.08%, based on the low-frequency information’s variance. The crustal activity and the change in hydrogeological conditions are possibly the main factors influencing groundwater radon anomalies in the selected period in the study area. There is a positive correlation between the anomaly occurrence time and epicentral distance when epicentral distance is less than 300 km, which may be related to the seismogenic modes and hydrogeological conditions. This study provides a reference for identifying groundwater radon anomalies before earthquakes by mathematical methods.

1. Introduction

Earthquake disasters are important global issues concerning the development of human society, which can often be highly destructive due to the lack of early warning systems [1]. The geochemistry anomalies related to earthquakes are important research directions in the search for earthquake precursors with potential use in earthquake prediction [2]. With the improvement in the monitoring system, radon, which is considered as one of the key indicators of the geochemistry, has increasingly attracted the attention of researchers [3,4,5]. Radon is generated by the decay of ²³⁸U in rock and soil in the subsurface environment, and therefore remains in the soil or dissolves in groundwater. There are many published studies on the relationship between radon and earthquakes, suggesting that radon has the potential to be a good indicator of the precursory process [6].

It was first proposed in 1927 that radon anomalies in groundwater were related to earthquakes, but it was not until 30 years later that people collected accurate data showing the change in radon concentrations in groundwater before earthquakes [7,8]. The temperature, precipitation, and other meteorological factors can cause the seasonal variation in groundwater radon concentrations, but its anomalies may also be related to the change in tectonic stress [7,9]. Although it has become a consensus that radon anomalies could be related to earthquakes, it is generally very difficult to identify anomalies because radon concentration variations often show the characteristics of nonlinear dynamic fluctuations. Therefore, it is very necessary to find effective identification methods. The traditional statistical methods, to a certain degree, are subjective and inaccurate. Some data mining methods, such as machine learning and artificial neural networks, have been used recently and have made a few achievements [7,9,10,11].

Faced with the complexity of crustal movements, many scholars began to perform systematic statistical analysis [12,13]. In 1989, Bak [14] proposed the “self-organized criticality (SOC) phenomenon” and classified earthquakes as this phenomenon, which attracted seismic researchers’ attention to the precursor analysis of the critical threshold of complex dynamic systems [15,16]. With the in-depth study of complex systems in medicine, finance, ecology and other fields [17,18,19], scholars have found that many complex systems have critical points, before and after which the state of the system will change; the critical point is also called an “avalanche” in SOC phenomena [20]. Accordingly, how to identify the critical point has become the key issue in complex systems research.

The critical slowing down (CSD) theory has been widely used to indicate the critical point of complex systems, such as the critical state’s identification in clinical medicine, biological systems and climate change, etc. [21,22,23]. The CSD is a phenomenon before the tipping point, which is where a complex system shifts abruptly from a state to another state [24]. For earthquakes, the high stress state before a large earthquake is considered as before the critical point, and the stress release after the earthquake is after the critical point, so the earthquake can be regarded as the critical point. Before the earthquake, the fluctuation amplitude of the corresponding observation value increases and the recovery speed slows down until the occurrence of the earthquake. Numerous studies have found indicators that can reflect the CSD effectively [25]. Some scholars have also tried to apply this theory to the precursory anomaly identification in groundwater radon, and revealed that the CSD theory showed promise in dealing with the anomalous variations in groundwater radon and confirming the existence of critical slowing effects before earthquakes, which also provides an important reference for earthquake precursor identification [26,27,28,29]. In this study, the CSD theory is employed to identify the precursory anomalies in groundwater radon based on the 1000-day continuous data from 8 monitoring stations in Yunnan Province, China during the seismically active period of 1993–1996, which may provide ideas for the related research of identifying precursory anomalies in groundwater.

2. Geological and Hydrogeological Settings

The eight monitoring stations are located in the west and north of the Yunnan region, Southwest China. The region is in the southeastern margin of the Qinghai-Tibet Plateau, and the edge zone of interaction between the Eurasian plate and the Indian plate (Figure 1). As one of the tectonically active regions, the Yunnan region is characterized by the high-frequency, large magnitude and wide distribution of earthquake activities [30,31]. According to the earthquake catalogue of the National Earthquake Information Center (NEIC), more than 289 earthquakes with M ≥ 5 occurred in Yunnan region in the 20th century, including 13 earthquakes with M ≥ 7 [9].

From west to east, there are three large-scale faults in the region, i.e., the Lancangjiang fault, the Jinshajiang-Red River fault and the Xiaojiang fault, and there are four main sub-plates, i.e., the Yunnan-Burma-Thailand (YBT) plate, the Indochina plate, the Yangtze plate and the South-China plate.

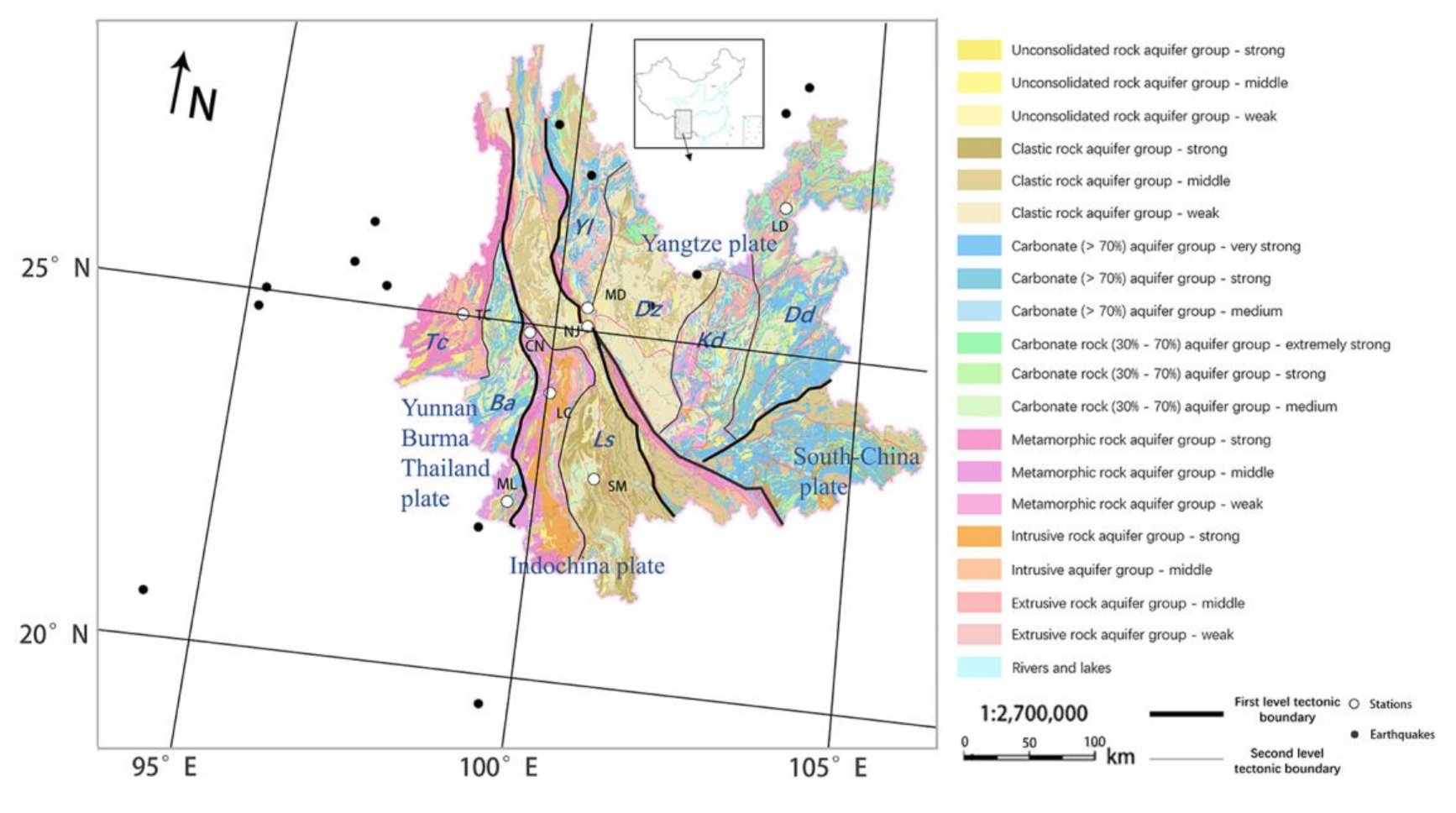

As shown in Figure 1, in the YBT plate, the Tengchong block is mainly metamorphic rock aquifer, and the Baoshan block is mainly carbonate rock aquifer; in the Indochina plate, the Lanping-Simao back arc basin is mainly clastic rock aquifer, and the rest is metamorphic rock and magmatic rock aquifers; the Yangtze plate has complex fold structures and various aquifers. Among them, the central Yunnan depression is mainly composed of loose sedimentary aquifers and clastic rock aquifers, and the aquifers of other plots are mainly carbonate rock aquifers, mixed with metamorphic rock aquifers and magmatic rock aquifers. The South China plate is mainly carbonate rock aquifer in the center, and the boundary with the Yangtze plate is clastic rock aquifer (Figure 1).

3. Data Preprocessing

There were four seismic active periods in Yunnan region in the 20th century, and the last period started in 1988 and ended in 1996 [31]. During that period, there were two earthquakes with magnitudes larger than 7, which were the Menglian earthquake (12 July 1995, Mw 7.2) and the Lijiang earthquake (3 February 1996, Mw 7.0). Therefore, we chose this region as the study area. We collected 1000 days of data (9 May 1993–3 February 1996), which is in the active period of earthquakes in the region where the eight monitoring wells were distributed. Groundwater samples were collected daily using a pre-vacuumed glass bottle and radon concentrations were measured on the same day using the FD-105K instrument (Shanghai Electronic Instrument Co., Ltd., Shangjai, China) based on the scintillation method. The locations of the monitoring wells are shown in Figure 1. The longitude and latitude of the stations are shown in

Table 1. Information of 8 stations.

Station	Longitude	Latitude	Types of Wells and Springs	Formation Lithology	Well Depth
MD	100.5	25.35	Artesian thermal water well	Silicified limestone	32.9
NJ	100.52	25.05	Bedrock fissure water	Cambrian metamorphic rocks
CN	99.61	24.83	Fault rising spring	Ordovician sericite schist
TC	98.54	25.02	Structural fissure water	Olivine basalt	121
LC	100.1	23.98	Fissure confined water	Granite	213
LD	103.56	27.19	Contact descending spring	Permian limestone	39
SM	100.98	22.79	Fissure confined water (artesian)	Cretaceous sandstone	112.27
ML	99.59	22.34	Fissure confined water (non artesian)	Cretaceous sandstone	100.38

.

We can calculate the possible occurrence range of earthquake precursors according to the empirical formula:

$$\mathrm{R}={10}^{0.43\mathrm{M}}$$

(1)

where $\mathrm{M}$ is earthquake magnitude and $\mathrm{R}$ is epicenter distance (km) [32]. The calculation results show that the precursory range of M 5.0 earthquake is 141.25 km and the range is more than 1000 km when the M is greater than 7.

Hauksson et al. put forward an empirical formula for water radon anomalies before earthquakes with M ≥ 5, as follows:

$$\mathrm{M}=2.4\mathrm{lgR}-0.43$$

(2)

where $\mathrm{M}$ is earthquake magnitude and $\mathrm{R}$ is epicenter distance (km) [33]. The calculation results show that the precursory range of M 5.0 earthquake is 183 km and the range is more than 1246 km when the M is greater than 7.

Assuming that the precursory response is highly correlated with the co-seismic effect [9], the precursory range can be also estimated according to the formula [34]:

$$\mathrm{e}={10}^{1.449\mathrm{M}-3.04\mathrm{lgR}-3.91}$$

(3)

where $\mathrm{e}$ is the energy density, $\mathrm{M}$ is earthquake magnitude and $\mathrm{R}$ is epicenter distance (km). Wang et al. indicated that the hydrological response in some areas is very sensitive, and the response to energy density may be as small as 10⁻⁴ J/m³ [35], so we selected earthquakes with seismic energy density greater than 10⁻⁴ J/m³ as earthquakes whose precursor may occur at the stations. When the energy density is 10⁻⁴ J/m³ and the magnitude is 5, the maximum epicenter distance is 256.8 km; when the magnitude is 7, it is greater than 2300 km.

Walia et al. summarized the empirical formula for the occurrence range of radon anomalies before earthquakes and pointed out that the range in radon anomalies before earthquakes can be far greater than the calculation results of the empirical formula [36]. Therefore, we only took the above results as references. By investigation of the occurrence of earthquakes in the study period in the study area, we finally selected the data of earthquakes with magnitude greater than M 5.0 within the farthest 500 km of the most marginal stations from 9 May 1993 to 3 February 1996, according to the earthquake catalogue of the NEIC, for calculation. We only selected earthquakes with the largest magnitude among multiple earthquakes occurring in a short time in the same area. The earthquakes finally selected are shown in

Table 2. The epicentral distance and energy density of the earthquakes selected at each station.

No.	Name	Time	Latitude	Longitude	Mag	Epicentral Distance/(km)								Energy Density/(J·m−3)
						MD	NJ	CN	TC	LC	LD	SM	ML	MD	NJ	CN	TC	LC	LD	SM	ML
1	Puer	1993/7/17	28.011	99.636	5.4	308.09	340.79	353.72	350.00	450.62	397.28	596.02	630.60	0.0002	0.0002	0.0001	0.0002		0.0001
2	Longquan	1993/8/14	25.44	101.545	5.2	105.45	111.84	206.26	305.84	218.31	279.64	300.19	397.88	0.0030	0.0025	0.0004	0.0001	0.0003	0.0002	0.0001
3	Luocheng	1993/10/14	28.629	103.419	5	465.35	490.98	566.96	628.71	613.66	160.61	693.66	797.80						0.0004
4	Tanai	1994/1/11	25.231	97.203	6.1	331.73	334.49	246.57	136.63	324.22	670.44	469.90	402.87	0.0018	0.0018	0.0045	0.0273	0.0020	0.0002	0.0006	0.0010
5	Myitkyina	1994/4/6	26.188	96.867	5.9	375.53	387.48	313.96	212.15	407.75	674.12	562.04	509.14	0.0006	0.0006	0.0011	0.0037	0.0005	0.0001	0.0002	0.0003
6	Sidoktaya	1994/5/29	20.556	94.16	6.5	839.72	821.17	733.62	669.20	719.97	1206.55	747.12	595.90	0.0004	0.0004	0.0006	0.0008	0.0007	0.0001	0.0006	0.0012
7	Homalin	1994/8/9	24.721	95.2	6.1	538.49	537.84	445.38	338.58	503.15	879.52	626.13	519.94	0.0004	0.0004	0.0008	0.0017	0.0005		0.0003	0.0005
8	Mae Chai	1994/9/11	19.586	99.516	5.2	648.84	616.27	583.19	612.51	492.30	940.67	387.24	306.33								0.0001
9	Pacific	1994/11/21	25.54	96.657	5.9	386.44	392.15	307.44	197.96	388.50	711.67	534.58	464.13	0.0006	0.0006	0.0012	0.0045	0.0006		0.0002	0.0003
10	Luocheng	1994/12/30	29.079	103.79	5.1	526.97	552.69	628.27	688.32	675.33	211.25	753.56	859.19						0.0003
11	Kamaing	1995/5/6	24.987	95.294	6.4	525.44	526.59	435.61	327.13	499.04	860.85	627.50	527.25	0.0012	0.0012	0.0022	0.0052	0.0014	0.0003	0.0007	0.0012
12	Menglian	1995/7/12	21.966	99.196	6.8	399.02	368.53	321.25	346.11	242.31	729.33	205.04	58.10	0.0109	0.0138	0.0210	0.0167	0.0495	0.0017	0.0823	3.8023
13	Wuding	1995/10/24	26.003	102.227	6.2	187.68	201.41	293.41	385.79	310.72	187.05	378.92	487.26	0.0145	0.0117	0.0037	0.0016	0.0031	0.0147	0.0017	0.0008
14	Lijiang	1996/2/3	27.291	100.276	6.6	216.98	250.37	281.62	306.24	368.59	324.85	505.48	554.86	0.0355	0.0230	0.0161	0.0125	0.0071	0.0104	0.0027	0.0020

Note: the blank value means the energy density less than 10⁻⁴ J/m³ and the bold value means the energy density greater than 10⁻³ J/m³.

.

4. Method

4.1. Wavelet Transform (WT)

We note that in previous studies using the CSD theory, some studies chose not to carry out data preprocessing, and some used filters to eliminate the trend information of time series and only retained the residual, i.e., random fluctuations, to observe the potential critical point warning of complex systems. However, we note that when the observation period is long, there may also be effective information in the trend information, no matter what filtering method is selected; thus, only retaining the residual may cause a loss of this effective information. In this study, we used the wavelet decomposition (WD) as the filtering method to split the time series of radon concentration into trend information (low-frequency information) and residual (high-frequency information), and further analyzed and compared them, respectively.

Wavelet analysis, which is composed of wavelet basis functions, is a method of signal analysis in both the time domain and the frequency domain. With the in-depth exploration of data analysis in recent years, the mathematical methods based on wavelet theory play an important role in extracting data information [7,9]. Compared with Fourier transforms, wavelet analysis methods including continuous wavelet transforms (CWTs) and discrete wavelet transforms (DWTs) have better accuracy in local time and frequency domains. Therefore, it is widely used in image, signal and other fields for data analysis, denoising, signal contrasts, etc.

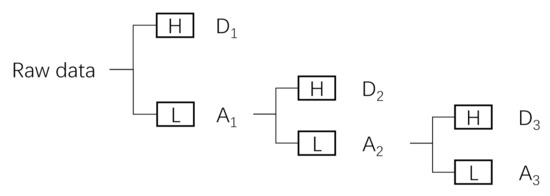

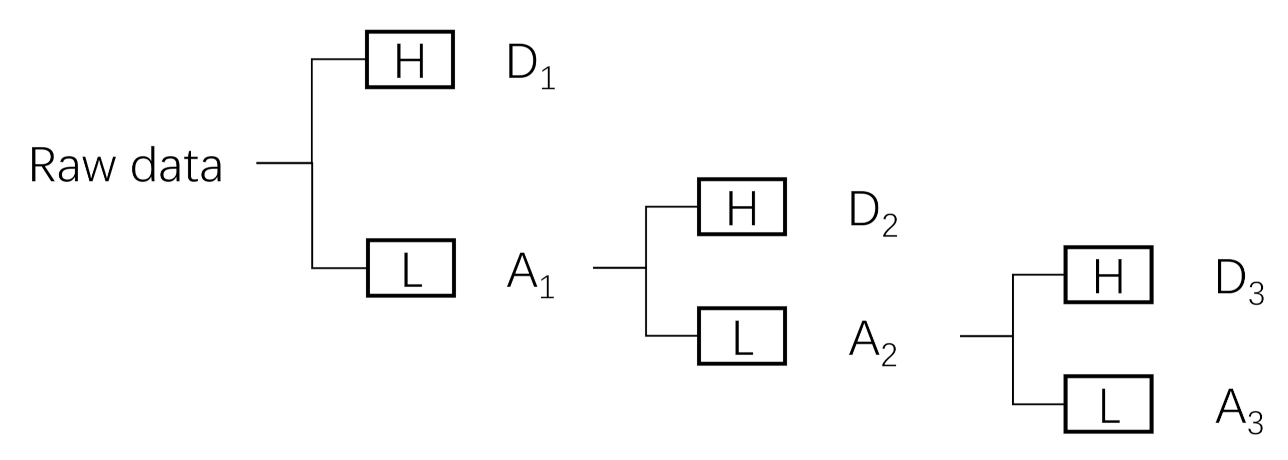

Wavelet decomposition (WD), as one of the methods of wavelet transforms, is based on the multi-resolution theory proposed by Malat [37]. It decomposes the original non-stationary signal into several detail coefficients and one approximation coefficient by using multi-resolution analysis, and the level of decomposition is the number of decomposition layers. The length of the signal is damaged every time, so it needs to be reconstructed by interpolation to obtain the high and low-frequency signals. Figure 2 is a schematic diagram of this process. By adjusting the number of decomposition layers, one can obtain the required high-frequency information (Residuals) and low-frequency information (Trend).

Wavelet coherence (WTC) is also a method of WT. It can effectively reveal the phase relationship between two time series. It is defined as follows [38]:

$${\mathrm{R}}^2\left(\mathrm{x},\mathrm{y}\right)=\frac{{\left|\mathrm{S}\left({\mathrm{s}}^{-1}\mathrm{W}\left(\mathrm{x},\mathrm{y}\right)\right)\right|}^2}{\mathrm{S}\left({\mathrm{s}}^{-1}\mathrm{W}\left(\mathrm{x}\right)\right)\mathrm{S}\left({\mathrm{s}}^{-1}\mathrm{W}\left(\mathrm{y}\right)\right)}$$

(4)

where $\mathrm{W}$ is an operator, $\mathrm{S}$ is a smoothing operator, $\mathrm{s}$ is wavelet scale, and ${\mathrm{R}}^2$ is the wavelet coherence of two time series, which resembles the traditional correlation coefficient. In this study, the statistical significance level of WTC is determined by Monte Carlo methods [39]. Edge effects caused by discontinuities at endpoints are evaluated by Cone of Influence (COI) [40].

4.2. CSD Theory

In 2009, Schaefer et al. proposed that critical slowing is related to three potential early warning indicators, namely disturbance recovery rate, autocorrelation and variance [24]. Vasilis et al. summarized the indicators that can indicate the critical slowing phenomenon, including autocorrelation at lag 1 (AR-1), return rate, variances, spectral density etc. [25]. For the autocorrelation and variance, they will increase rapidly when the CSD phenomenon occurs. The autocorrelation will tend to 1 and the variance will tend towards infinity. These early-warning signals are the result of CSD near the threshold value of the control parameter [24].

For the statistical variance and autocorrelation calculation of data, the following formula is used:

$$\mathrm{var}={\mathrm{s}}^2=\frac{1}{\mathrm{n}}{\displaystyle \sum }_{\mathrm{i}=1}^{\mathrm{n}}{\left({\mathrm{x}}_{\mathrm{i}}-\overline{\mathrm{x}}\right)}^2$$

(5)

$$\mathsf{\alpha }\left(\mathrm{j}\right)=\frac{1}{\mathrm{n}}{\displaystyle \sum }_{\mathrm{i}=1}^{\mathrm{n}-\mathrm{j}}\left(\frac{{\mathrm{x}}_{\mathrm{i}}-\overline{\mathrm{x}}}{\mathrm{s}}\right)\left(\frac{{\mathrm{x}}_{\mathrm{i}+\mathrm{j}}-\overline{\mathrm{x}}}{\mathrm{s}}\right)$$

(6)

where $\mathrm{j}$ is lag length. ${\mathrm{x}}_{\mathrm{i}}$ represents the ith data, $\overline{\mathrm{x}}$ is the mean, $\mathrm{n}$ is the number of data points in the sample, $\mathrm{s}$ is the standard deviation and ${\mathrm{s}}^2$ is the variance.

5. Parameter Selection

To explore the possible residual anomalies and trend anomalies in groundwater radon, this study extracts the high frequency information and low frequency information from the continuous monitoring radon data through WD, and then calculates their autocorrelation and variance, respectively. In the process, there are three main parameters affecting the results, namely, the level of WD, window length (WL) and window lag step. In this paper, the lag step is set as 1, and then the two scenarios of fixed window length adjusting WD level and fixed WD level adjusting WL are analyzed respectively (See Supplementary Material for detailed analysis of parameter selection). The results show that:

(1)

The change in parameters has less influence on the variance but greater influence on AR-1. The results of AR-1 are complex and changeable, which may be because the calculation of AR-1 requires high sampling frequency data.

(2)

The influence of parameter changes on results derived from the high-frequency information is less than that from low frequency information. In the results of high-frequency information, the AR-1′s and variance’s anomalies under different WL and different levels of WD all appear at the same time point. This shows that the changes in parameter values have little effect on the high frequency information calculation results. However, the low frequency information calculation results vary greatly under different parameter values. With the increase in WL, the abnormal points of low frequency are delayed gradually; with the increase in level of WD, the resulting curve of low frequency gradually changes from fluctuation to stability until it approaches a straight line.

Considering that the influence of different parameters on the high-frequency-information calculation results is not obvious, while the low-frequency calculation results are regular, we chose moderate parameters, level 5 for WD and 10 days for WL.

6. Results

We computed the autocorrelation and variance of high-frequency information and low-frequency information data on groundwater radon for each monitoring well. Due to the calculation results fluctuating sharply, it is difficult to obtain effective information (Figure 3a, taking LC monitoring well as an example). According to CSD theory, the closer the recovery rate of the system is to 0, the closer the autocorrelation coefficient is to 1; that is, the more significant the CSD phenomenon is [21]. We transformed the original AR-1 values with a power function to enlarge the value in order to make the anomalous values more visible. For the variance, in order to facilitate observation, we chose to normalize it, and substituted it into the power function as well. The functions of AR-1 and variance substitution are:

$${\mathrm{y}}_1={1000}^{\mathrm{AR}-1}$$

(7)

$${\mathrm{y}}_2=5^{\mathrm{Var}}$$

(8)

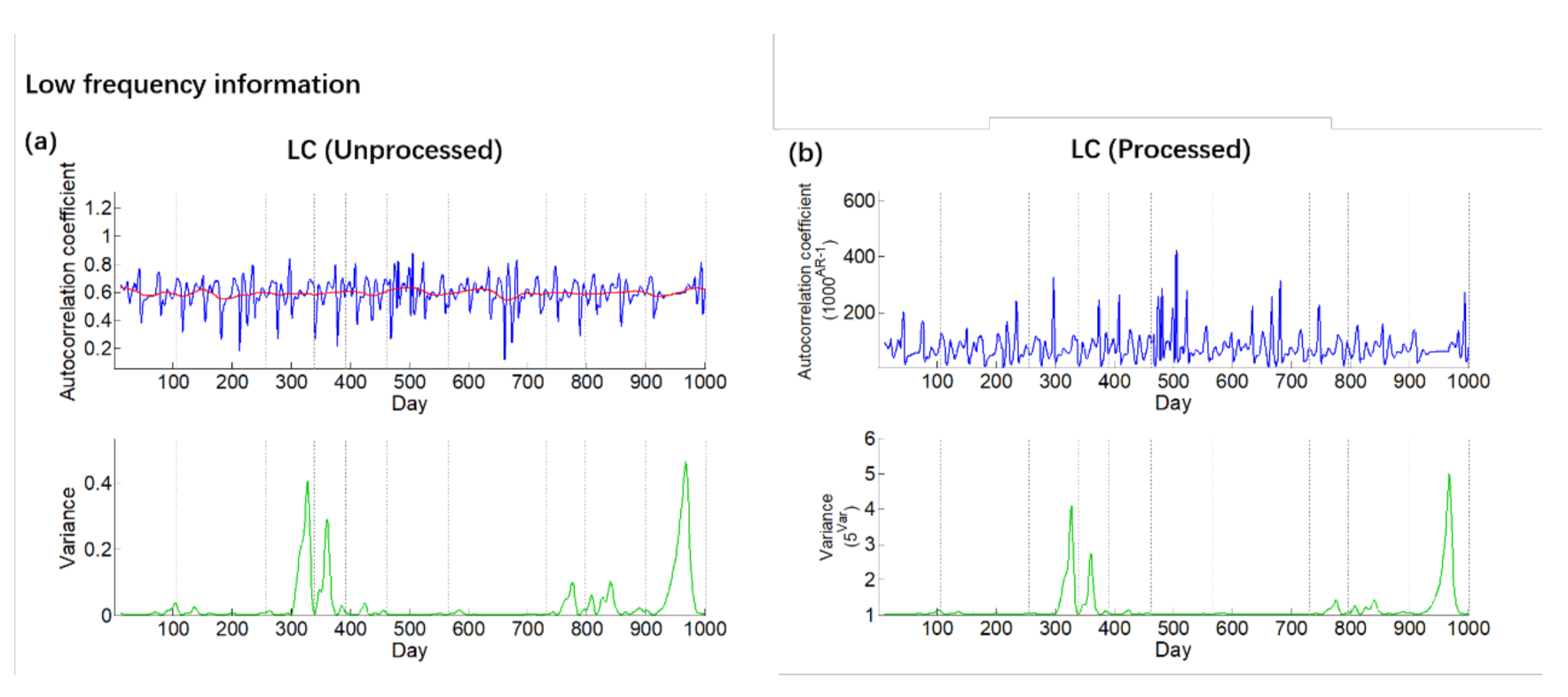

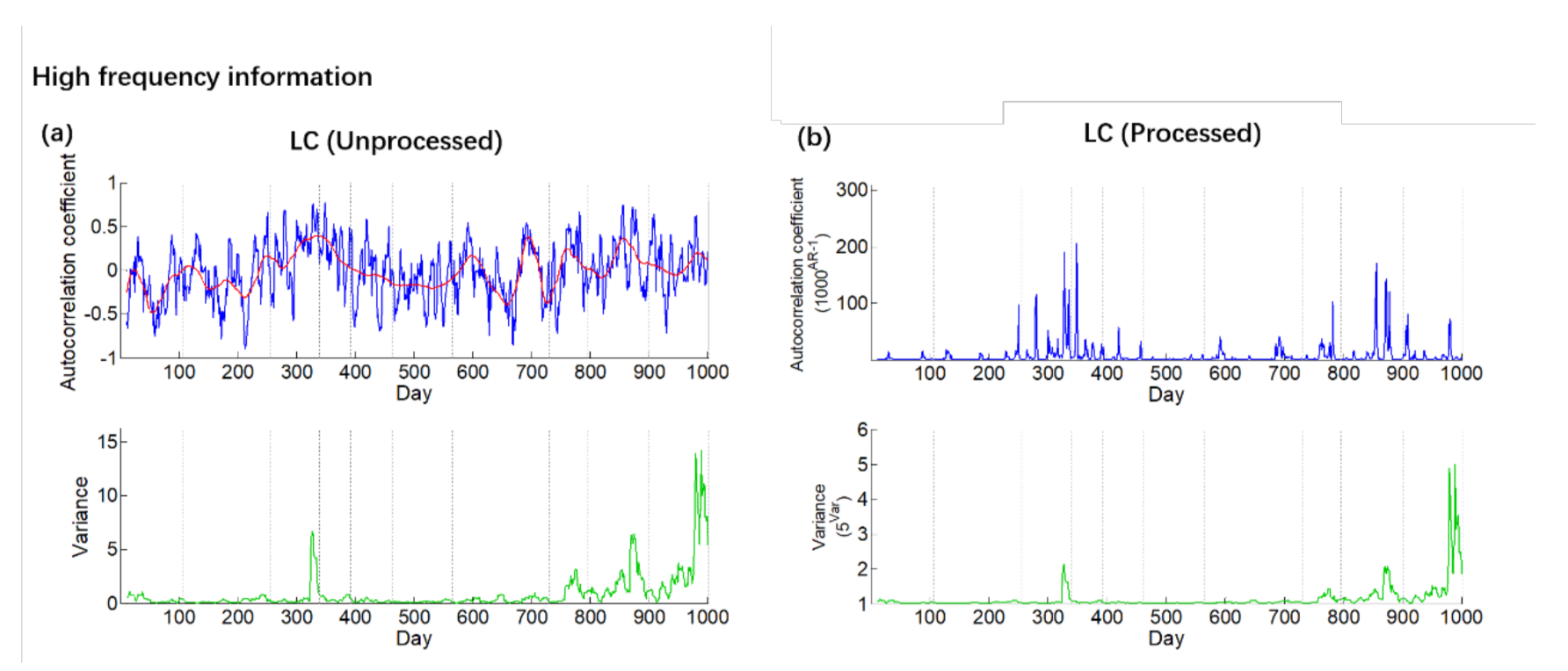

As shown in the Figure 3b, the uplift point of the AR-1 and of the variance is shown clearly after processing, and the peak points are basically consistent with Figure 3a. The similar situation can be seen in Figure 4a,b. Through such processing, we can distinguish the peak points and take them as the candidate anomalies in the groundwater radon data.

In this study, we conducted the above processing on the calculation results of all monitoring stations, and then we selected IQR (interquartile range) plus median as the anomaly standard to filter the anomaly values.

6.1. The Results of High-frequency Information (Residuals)

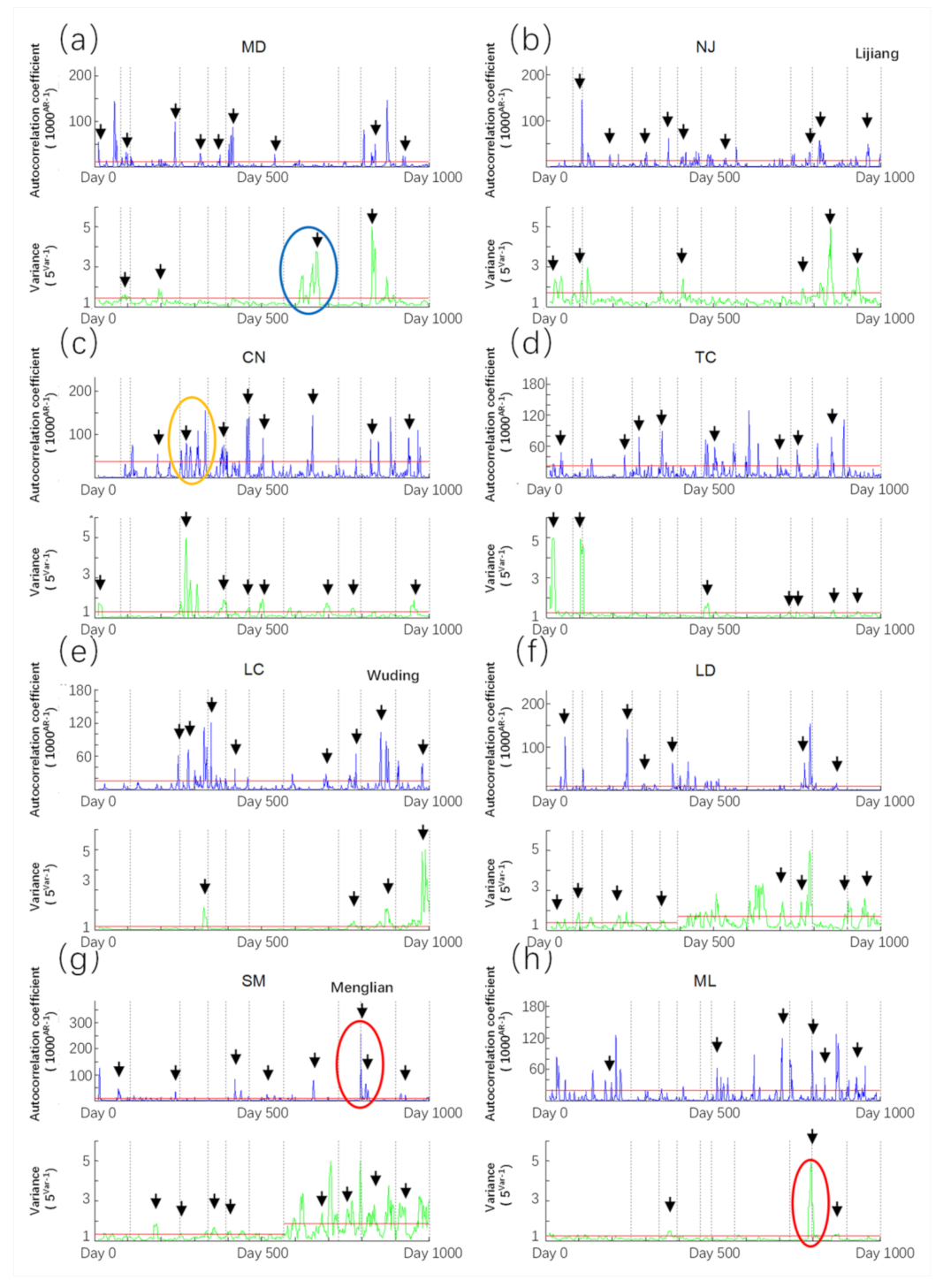

The calculation results of high-frequency information are shown in Figure 5. The anomaly characteristics can be divided into three categories: sudden jump anomalies, fluctuation anomalies and persistent anomalies. The sudden jump anomaly means an increase in value in a short time, with only one significant peak and duration less than 10 days (such as red circle in Figure 5g,h); the fluctuation anomaly is that it breaks through the anomaly threshold for many times in a short time, forming many peaks in a short time (such as yellow circle in Figure 5c); the persistent anomaly is one that remains above the anomaly threshold for more than 10 days (such as the blue circle in Figure 5a).

It is shown in Figure 5 that there are differences in the main anomaly characteristics of AR-1 at each station. In the stations of MD, LD and SM, there are mainly sudden jump anomalies (Figure 5a,f,g); Cn, TC, LC and ML are mainly fluctuation anomalies (Figure 5c–e,h); in the station of NJ, the three characteristic anomalies exist (Figure 5b). There are some persistent anomalies in AR-1, but the duration is short, the anomaly value is small, and the fluctuation is frequent, so it is difficult to strictly distinguish it from the other two anomaly characteristics. Generally speaking, the abnormal characteristics of AR-1 are mainly sudden jump anomalies and fluctuation anomalies.

The anomaly characteristics of variance are mainly sudden jump anomalies and persistent anomalies. The persistent anomalies in variance have obvious characteristics, long duration, and most peaks are obvious. Most of the sudden jump anomalies of variance are co-seismic anomalies with large values and significant characteristics. The fluctuation anomalies in most stations are not obvious, but the variance results of LD and SM show large fluctuations after an earthquake, forming a long-time-scale fluctuation anomaly (Figure 5f,g).

Some anomalies in AR-1 and the variance appeared synchronously in some wells. However, except for a few earthquakes, the synchronization of the two indexes in response to most earthquakes is poor. For example, the two indicators of LD, SM and ML have abnormal responses to earthquakes at the same time in the Menglian earthquake (day No. 800). The two indicators of LC are basically synchronized with the seismic response after the Wuding earthquake (day No. 700). In most cases, only one indicator responds to earthquakes. The number of anomalies of variance is less than that of AR-1.

The empirical formula for the relationship between the occurrence time of earthquakes and precursors is as follows:

$$\mathrm{lgRT}=0.63\mathrm{M}\pm 0.15$$

(9)

where $\mathrm{R}$ (km) is the epicenter distance, $\mathrm{T}$ (days) is the number of days before the earthquake when the earthquake precursor appears, and $\mathrm{M}$ is the earthquake magnitude [41]. According to the calculation, the maximum occurrence time of the precursor with less than 500 km epicenter distance is about 73 days before the earthquake.

We take the time between the occurrence of precursory anomalies at each station and that of the subsequent earthquakes as the number of abnormal days in advance. According to the CSD theory, the lifting point indicates that the complex system begins to enter the CSD state. However, in order to facilitate identification, we select the peak point as the abnormal point for the sudden jump and fluctuation anomalies, because the peak point and uplift point are very close. For the persistent anomaly with a long interval between the uplift point and the peak point, we still take the uplift point as the anomaly point. Considering the effect of the length of WL, we assume that the precursory anomaly point is the first peak point between the two earthquakes within 83 days (73 days plus 10 days) before the next earthquake. The results are shown in

Table 3. The AR-1 anomalies’ time of high-frequency information.

Earthquake No.	MD	NJ	CN	TC	LC	LD	SM	ML
1	12	nan	nan	44		56
2	94	106	nan	nan	nan	nan	72
3		nan				nan
4	241	190	189	234	251	242	242	197
5	317	299	275	277	281	292	nan	nan
6	375	365	387	346	349	377	nan	nan
7	414	417	462	nan	420		420	nan
8								nan
9	539	537	504	504	nan		516	513
10						nan
11	nan	nan	652	691	692	nan	655	707
12	nan	788	nan	750	782	772	796	797
13	875	817	826	853	856	868	817	834
14	922	962	939	nan	981	nan	930	930

Note: Blank indicates that the seismic energy density is <10⁻⁴ J/m³, bold indicates that the seismic energy density is >10⁻³ J/m³, and nan indicates that the seismic energy density is >10⁻⁴ J/m³, but there is no abnormality.

and

Table 4. The variance anomalies’ time of high-frequency information.

Earthquake No.	MD	NJ	CN	TC	LC	LD	SM	ML
1	nan	25	14	21		32
2	91	104	nan	107	nan	97	nan
3		nan				nan
4	192	nan	nan	nan	nan	216	186	nan
5	nan	nan	274	nan	327	nan	257	nan
6	nan	nan	386	nan	nan	350	358	373
7	nan	409	463	nan	nan		406	nan
8								nan
9	nan	nan	502	484	nan		nan	nan
10						nan
11	662	nan	694	726	nan	707	680	nan
12	nan	768	773	749	775	763	755	797
13	830	850	nan	860	875	893	nan	875
14	nan	932	955	930	980	951	930	nan

Note: Blank indicates that the seismic energy density is <10⁻⁴ J/m³, bold indicates that the seismic energy density is >10⁻³ J/m³, and nan indicates that the seismic energy density is >10⁻⁴ J/m³, but there is no abnormality.

. We take the ratio of the number of earthquakes with pre-earthquake anomalies at the station to the number of earthquakes with seismic energy density ≥ 10⁻⁴ J/m³ as the recognition rate. The results show that the recognition rate of AR-1 in MD station is the highest, which is 81.82%; the variance recognition rate of LD station is the highest, which is 80%. The average recognition rate of AR-1 in 8 stations is 72.78%, which is greater than the 55.34% of the variance (

Table 5. The recognition rate of each station’s high-frequency information data by two methods.

Recognition Rate	MD	NJ	CN	TC	LC	LD	SM	ML	Average
AR-1	81.82%	75.00%	72.73%	72.73%	80.00%	60.00%	80.00%	60.00%	72.78%
variance	36.36%	50.00%	72.73%	63.64%	40.00%	80.00%	70.00%	30.00%	55.34%

).

6.2. The Results of Low-frequency Information (Trend)

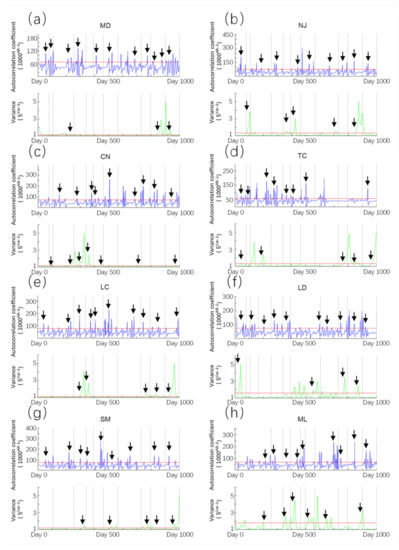

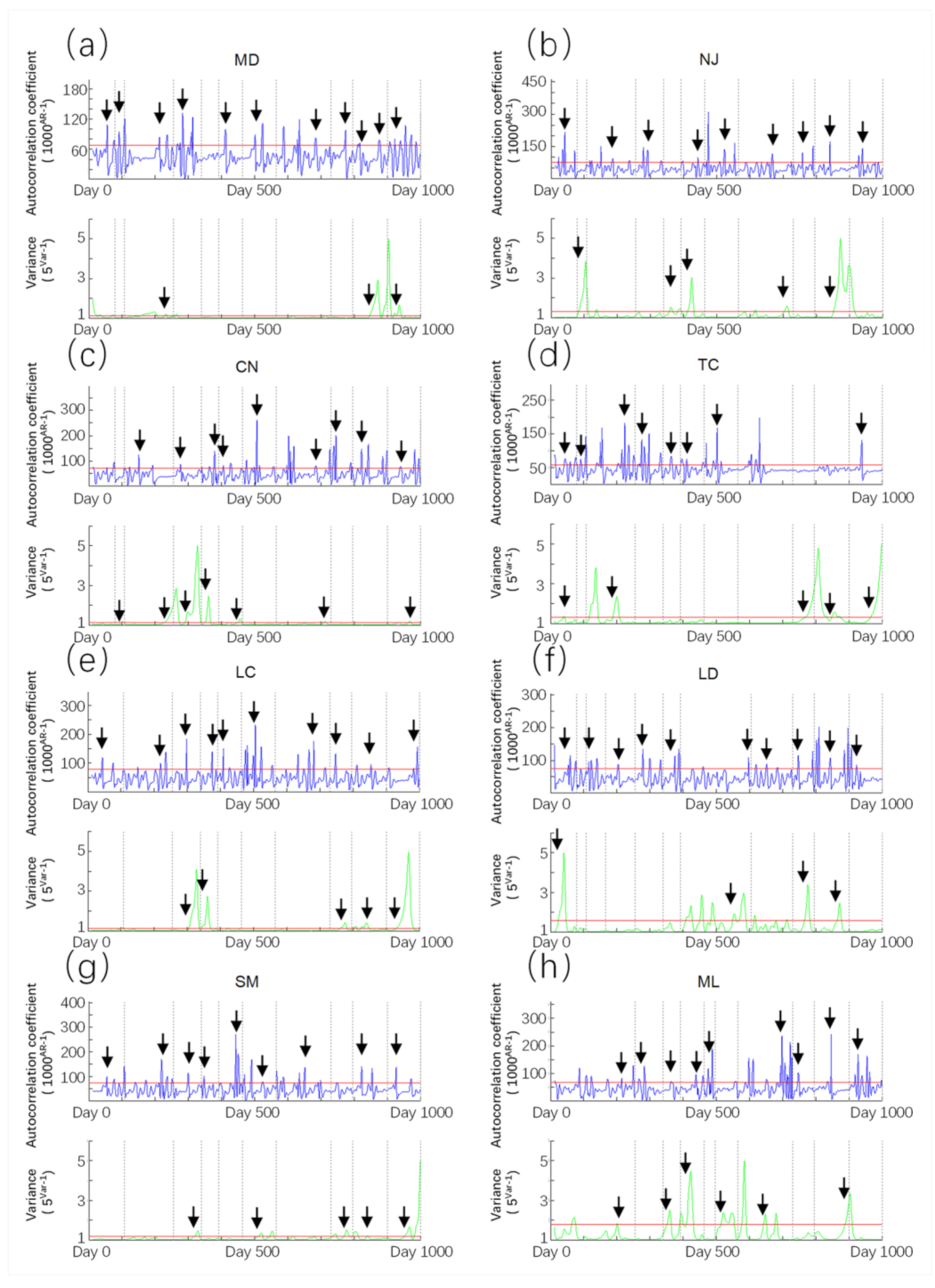

The calculated results from low-frequency information data of each station are shown in Figure 6. The results show that there are significant differences in the abnormal characteristics of low-frequency information AR-1 and variance. In the AR-1 results, the fluctuation anomaly is the main anomaly type, the sudden jump anomaly is the secondary anomaly type, and there is no persistent anomaly in the eight stations. In the variance results, persistent anomalies are the main anomaly feature. Compared with high-frequency information, the average value of low-frequency-information AR-1 is higher. The variance results show an obvious peak like protrusion, which is similar to the calculation results of high-frequency information, but they are smoother. The rising process of the variance curve can be clearly seen. There is a large interval between the date when the variance value breaks through the anomaly threshold (uplift point) and the date of the peak, showing obvious characteristics of persistent anomalies.

The peak of AR-1 results has less relationship with the peak of variance results. There is no co-seismic peak in AR-1 results, but the variance results in MD, NJ and ML stations have a co-seismic peak at the time of the Wuding earthquake. The variance anomaly in low-frequency information lasts longer, often breaks through the anomaly threshold some time before the earthquake, and finally reaches the peak before or a few days after the earthquake.

We selected the peak point of AR-1 results as the anomaly point, and the intersection of the variance curve and the anomaly standard line as the anomaly point (uplift point) for the variance results. The results are shown in

Table 6. The AR-1 anomalies’ time of low-frequency information.

Earthquake No.	MD	NJ	CN	TC	LC	LD	SM	ML
1	55	42	76	44		53
2	91	nan	nan	91	43	nan	54
3						115
4	213	186	192	215	219	204	219	215
5	283	279	277	275	298	279	300	267
6	nan	nan	379	364	375	375	347	364
7	412	443	406	411	409		443	439
8								475
9	501	523	507	503	506		524	nan
10						598
11	684	667	686	nan	667	653	652	699
12	774	759	739	nan	748	748	nan	748
13	876	842	822	nan	855	844	823	847
14	923	928	940	939	983	923	927	928

Note: The blank indicates that the seismic energy density is <10⁻⁴ J/m³, the bold indicates that the seismic energy density is >10⁻³ J/m³, and nan indicates that the seismic energy density is >10⁻⁴ J/m³, but there is no abnormality.

and

Table 7. The variance anomalies’ time of low-frequency information.

Earthquake No.	MD	NJ	CN	TC	LC	LD	SM	ML
1	nan	nan	nan	37		24
2	nan	83	nan	nan	nan	nan	nan
3						nan
4	229	nan	224	187	nan	nan	nan	200
5	nan	nan	289	nan	304	nan	315	nan
6	nan	356	351	nan	344	nan	nan	350
7	nan	411	448	nan	nan		nan	410
8								nan
9	nan	nan	nan	nan	nan		515	515
10						549
11	nan	704	708	nan	nan	nan	nan	677
12	nan	nan	nan	770	758	766	769	nan
13	848	852	nan	847	833	864	838	889
14	930	nan	932	964	933	nan	951	nan

Note: The blank indicates that the seismic energy density is <10⁻⁴ J/m³, the bold indicates that the seismic energy density is >10⁻³ J/m³, and nan indicates that the seismic energy density is >10⁻⁴ J/m³, but there is no abnormality.

. The AR-1 recognition rate of LC is the highest, which is 100%; ML has the highest variance recognition rate of 60%. The average recognition rate of low-frequency AR-1 is 88.24%, which is higher than that of high-frequency AR-1; the average recognition rate of variance is 45.08%, which is about 10% lower than that of high-frequency variance (

Table 8. The recognition rate of each station’s low-frequency information data by two methods.

Recognition Rate	MD	NJ	CN	TC	LC	LD	SM	ML	Average
AR-1	90.91%	81.82%	90.91%	72.73%	100%	90.91%	90%	90%	88.24%
Variance	27.27%	33.33%	54.55%	45.45%	50.00%	40.00%	50.00%	60.00%	45.08%

).

Comparing the calculation results of high-frequency information with those of low-frequency information, it can be seen that the variance recognition rate of high-frequency information is higher, and the AR-1 recognition rate of low-frequency information is higher. For the same earthquake, the synchronization of variance response in high-frequency results and low-frequency results is higher than that of AR-1.

7. Discussion

7.1. Interfering Factors

Previous studies showed that radon anomalies are not only affected by tectonic activities, but also affected by meteorological conditions such as air temperature, air pressure and precipitation. [4,7,42,43,44,45,46]. In this study, we collected atmospheric pressure (PRS), air temperature (T) and precipitation (PR) data of each station, and the missing data was supplemented by the monitoring data of nearby stations. We calculate the wavelet coherence (WTC) of atmospheric pressure, temperature and precipitation on radon concentration, and calculate the correlation between pressure, temperature and precipitation and raw radon data, low-frequency data and high-frequency data.

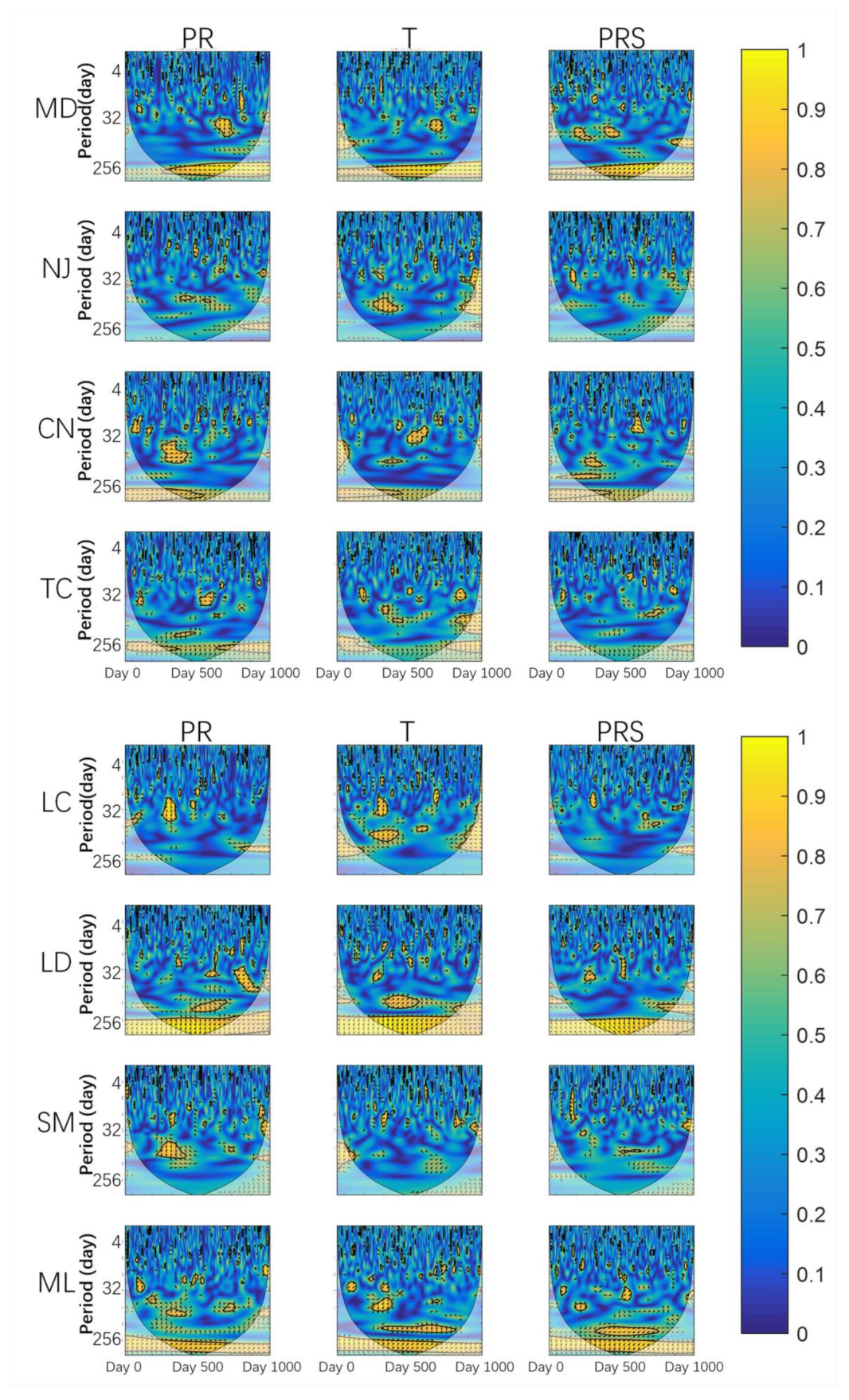

As shown in Figure 7, in the results of wavelet coherence in the whole observation time, the three WTC images of each station are similar. This may be due to the similar seasonal cycle period of air pressure, temperature and precipitation. Radon and air pressure, air temperature and precipitation of MD, CN, TC, LD and ML stations have coherence within the band of 1 year in the whole period; PRS, T and PR of CN and TC stations showed coherence with radon in some time periods. CN station showed correlation before September 1994 (about day No.500), and TC station showed a high coherence for a 1 year band in May 1993 to March 1994 and 1995 to 1996. The PRS, T and PR at NJ, LC and SM stations do not show correlation with radon within the band of 1 year. There was a correlation between radon and T and between radon and PR of ML station within the band of a half year in June 1994 to July 1995. For other bands, there are sporadic correlations in each station’s results, but the duration is short, mostly within 100 days.

In addition, we also calculated the correlation coefficients of air pressure, precipitation and temperature to the original radon data, high-frequency information data and low-frequency information data. The formula is as follows:

$$\mathrm{R}=\frac{{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{N}}\left({\mathrm{x}}_{\mathrm{i}}-\overline{\mathrm{x}}\right)\left({\mathrm{y}}_{\mathrm{i}}-\overline{\mathrm{y}}\right)}{\sqrt{{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{N}}{\left({\mathrm{x}}_{\mathrm{i}}-\overline{\mathrm{x}}\right)}^2{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{N}}{\left({\mathrm{y}}_{\mathrm{i}}-\overline{\mathrm{y}}\right)}^2}}$$

(10)

where $\mathrm{R}$ is correlation coefficients, $\mathrm{N}$ is the number of data, ${\mathrm{x}}_{\mathrm{i}}$ and ${\mathrm{y}}_{\mathrm{i}}$ mean the ith data of x and y respectively, and $\overline{\mathrm{x}}$ and $\overline{\mathrm{y}}$ mean the average value of x and y respectively. The calculation results are shown in

Table 9. R value of radon with precipitation (PR), air pressure (PRS), and air temperature (T).

	Raw-PR	L-PR	H-PR	Raw-T	L-T	H-T	Raw-PRS	L-PRS	H-PRS
MD	−0.1344	−0.1965	−0.0200	−0.2905	−0.5135	0.0239	0.1577	0.2931	−0.0239
NJ	−0.0439	−0.0827	0.0506	−0.4253	−0.4917	−0.0107	0.2800	0.3205	0.0122
CN	0.0619	0.0657	0.0268	0.1886	0.2836	0.0150	−0.0344	−0.0190	−0.0289
TC	0.0536	0.0484	0.0324	−0.0376	−0.0404	0.0123	0.1768	0.1775	0.0106
LC	0.0943	0.1282	−0.0198	0.0909	0.1018	0.0124	0.0968	0.1105	0.0101
LD	−0.0275	−0.0636	0.0227	−0.0886	−0.1502	0.0208	−0.1571	−0.2031	−0.0231
SM	0.0657	0.1145	0.0079	0.0676	0.1346	−0.0020	−0.0570	−0.0507	−0.0360
ML	0.1006	0.1579	−0.0169	0.1838	0.2640	−0.0058	−0.1528	−0.2423	0.0281

Note: Raw denotes raw radon data, L denotes low-frequency information and H denotes high-frequency information.

. There are nine results for each station. For the correlation coefficient, less than 0.3 is considered as no correlation, and 0.3 to 0.8 is considered as a weak correlation [47]. The results of the correlation coefficient show that PRS, T and PR have no significant correlation with radon.

The calculation results for R at each station show that radon concentration has no certain correlation with PR, while it can be seen from WTC that except for LD and ML stations, radon and PR of other stations have correlation only for part of the time or no correlation, which is similar to the result for R. We speculate that this may be related to the well depth. For deep groundwater, the response of groundwater dynamics to the infiltration recharge of precipitation is delayed, and precipitation signals may be smoothed, resulting in that the correlation between the two cannot be identified.

According to Feng’s study [48], the increase in air pressure will make the degassing effect worse and reduce the radon concentration in water, but the influence of air pressure on radon concentration in deep groundwater is small. That may be why the relationship between air pressure and radon concentration is not obvious in our calculation results.

The formula for radon dissolution is as follows [49]:

$$\mathrm{S}=0.1057+0.405\exp \left(0.0502\mathrm{T}\right)$$

(11)

where S is the solubility of radon and the T is the temperature. We can see that the increase in temperature will increase the solubility of radon, thus increasing the concentration of radon in water. However, there is no obvious correlation in R results, and there is even a negative correlation between temperature and radon concentration in NJ and MD.

According to the calculation results of WTC, meteorological factors have a certain impact (mainly periodic) on radon concentrations in water, which is consistent with the previous research conclusions. It is worth noting that in the results of WTC, there is a stable strong correlation (mainly periodic) between water radon concentration and meteorological factors in two stations (LD and ML); however, the calculation results of R show that there is no strong correlation between meteorological factors and water radon in eight stations. Overall, meteorological factors did not cause short-term radon concentration changes.

7.2. Possible Explanations for Different Anomaly Characteristics

In the results, we summarized three kinds of anomaly characteristics, namely sudden jump anomalies, fluctuation anomalies and persistent anomalies. Previous studies showed that radon concentrations in water are closely related to the state of the seismogenic system [4,5,50]. Therefore, if we regard the rock rupture as an “avalanche point” of the complex system of block motion on a micro level, the anomalies in AR-1 may indicate the micro fracturing process of rocks near the monitoring well. From the physical meaning of the index, the AR-1′s sudden jump anomaly indicates that the recovery speed of the system suddenly decreases and approaches the “avalanche point” in a certain moment within WL (10 days). Fluctuation anomalies in AR-1 mean that the state of the system changes sharply over a period of time. Persistent anomalies in AR-1 mean that the state of the system’s recovery speed keeps slowing down over a period, which is a typical sign of CSD in other studies. For variance, sudden jump anomalies mean that the sample data has changed greatly at a certain moment within 10 days. Fluctuation anomalies represent multiple numerical mutations with an interval of about 10 days over a period of time. Persistent anomalies indicate that the sample data are in a state of large fluctuation ranges for a period of time. The three types of anomaly characteristics may be caused by different water radon anomaly mechanisms.

Zhang et al. proposed that as an important carrier of radon migration, groundwater flow anomalies have an important impact on radon [7]. The precursory mechanism of water radon anomalies may be closely related to the change in permeability during earthquake preparation. In the process of earthquake preparation, the accumulation of stress and strain may cause changes in crustal permeability [51]. The continuous accumulation process constantly disrupts the mechanical balance between particles, moving each other, changes the porosity and groundwater flow, and finally leads to “avalanches” and forms new pore channels. In this process, the radon concentration in water changes continuously, which may provide an explanation for the persistent anomaly.

According to the theory of the “strong body earthquake-generating model” [52], when the crustal deformation process outside the nucleation area continues to develop, it may lead to frequent rock micro fractures for a period of time, resulting in frequent changes in hydrogeological conditions and radon concentrations, manifested by irregular and frequent fluctuations over a short time, forming fluctuation anomalies, until the rock mass in the nucleation area suddenly breaks when the pressure reaches the threshold, forming an earthquake. The frequent rock micro fracturing in this process may provide an explanation for the sudden jump anomalies and fluctuation anomalies.

In addition, the main anomaly characteristics in the results of different stations are different. Binda et al. revealed that the response of hydrogeochemistry to seismic activity is closely related to hydrogeological conditions. This indicates that different hydrogeological conditions may lead to different responses [53]. In the present study, in the high-frequency results of MD and LD, AR-1 mainly shows the sudden jump anomalies. MD is a thermal water well with a shallow well depth and LD is a spring. In terms of lithology, MD and LD are in sedimentary rocks with significant karstification that may lead to a good hydraulic connection among aquifers. It is possible that the mixing between shallow groundwater and deep fluid or gas will occur occasionally during earthquake preparation, thus causing a sudden jump anomaly. In contrast, high-frequency results of AR-1 in TC and LC mainly presented with fluctuation anomalies. The formation lithologies of TC and LC are magmatic rocks, and the well depth is relatively deep and groundwater is fissure water. We speculate that the change in groundwater radon concentration in the wells mostly result from the release of rock micro fracturing caused by crustal stress due to the poor hydraulic connection and relatively stable conditions. The relatively stable conditions may amplify the slight fluctuations of radon concentration in groundwater, making fluctuation anomalies the main anomaly feature of AR-1 at these two stations. On the whole, different hydrogeological conditions, along with regional stress and strain changes, could result in different responses of aquifers and the associated different anomalies in water radon concentration at each station, requiring further study.

7.3. Temporal and Spatial Characteristics of Radon Anomalies

7.3.1. Relationship between Epicenter Distance and Anomaly Occurrence Time at Each Station

Some previous studies suggest that there may be a spatio-temporal relationship between the occurrence of earthquakes and precursors. In the present study, we conducted the statistical analyses on the occurrence time of each earthquake and earthquake precursory anomalies, and calculated the time of precursory anomalies ahead of the earthquakes (Table 3, Table 4, Table 6 and Table 7). Then, we plotted the diagram of precursory time and epicentral distance to investigate the possible relationship between them. When we take the single station as the research object, most R² of the results are less than 0.1, reflecting that there is no certain linear correlation between the precursory time and epicentral distance. Considering that there may be too little data at a single station that may result in a great uncertainty of results, we drew a scatter diagram with all the stations’ data (Figure 8). Whether it is high-frequency or low-frequency data, or AR-1 or variance, the data points in the figures are randomly and irregularly distributed. R² of the correlation showed in the figures is far less than 0.1, indicating that there is almost no linear relationship between precursory time and epicentral distance.

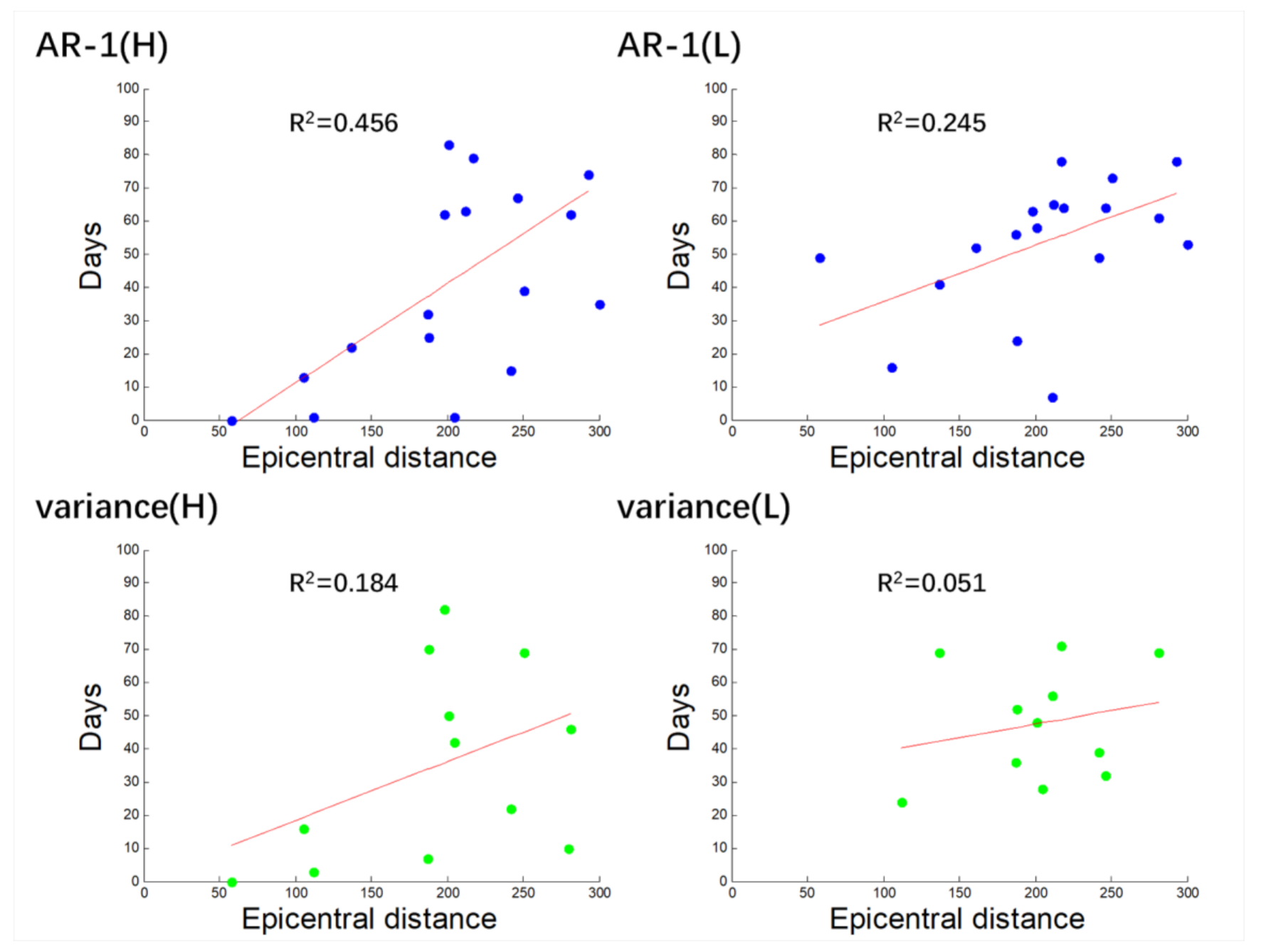

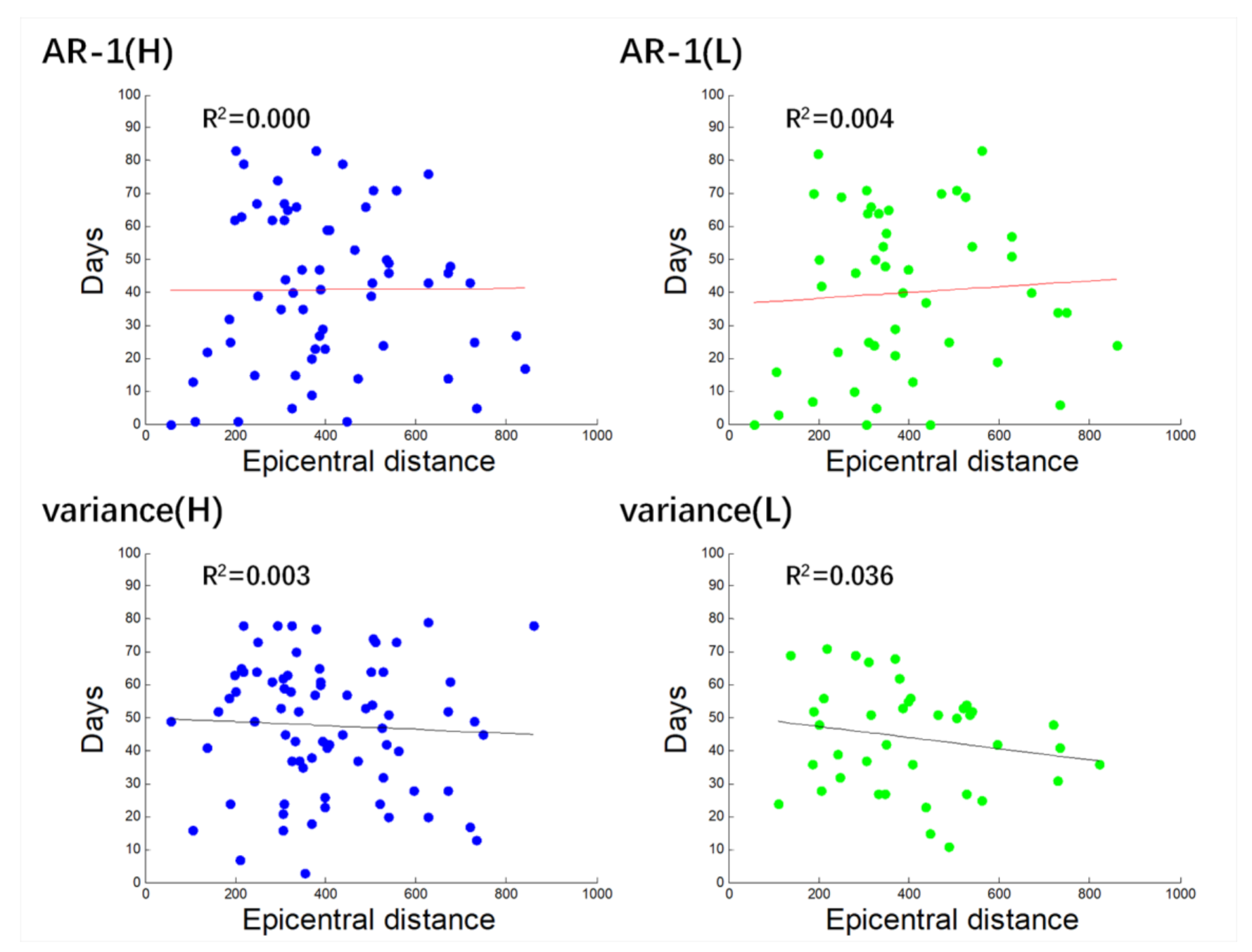

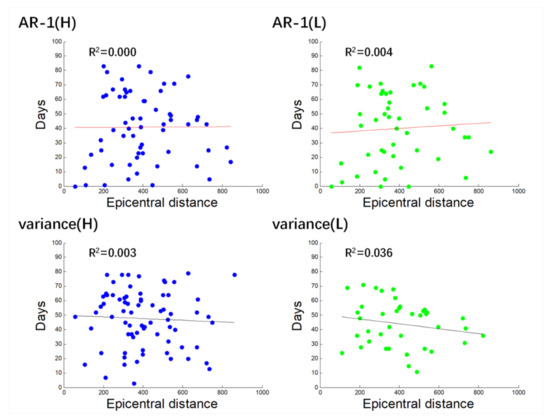

When we chose the earthquakes with the epicentral distance less than 300 km, the associated calculation results showed that the R² of correlation between the epicentral distance and precursory time of variance (L), AR-1 (L) and variance (H) ranges from 0.051 to 0.245 (Figure 9), indicating that there may be a very weak or no positive correlation. However, the R² of the epicentral distance and precursory time of AR-1 (H) is close to 0.5, showing an obvious positive correlation. This may indicate that within 300 km, the larger the epicenter distance is, the earlier the occurrence time of water radon precursor anomalies. This conclusion is consistent with that of some previous studies.

In some areas, there is also a positive correlation between the time of radon anomalies and the epicentral distance. According to the calculation results of the previous empirical formula (1), the seismogenic range of the M 5.7 earthquake is about 300 km. Considering that there is a high frequency of earthquakes with M 5–6 in the study area, we speculate that this phenomenon may be closely related to the earthquake preparation process. According to Mei’s “strong body earthquake generating model”, when the earthquake begins to prepare, a large number of small fractures will appear in the edge area with low fracturing strength, which leads to the earliest abnormal radon concentrations in peripheral groundwater. With the accumulation of stress, the fracturing gradually migrates to the epicenter, finally forming a phenomenon that the abnormal time is proportional to the epicenter distance. This may provide an explanation for such correlations.

7.3.2. Relationship between Epicentral Distance and Anomaly Time of Three Large Earthquakes

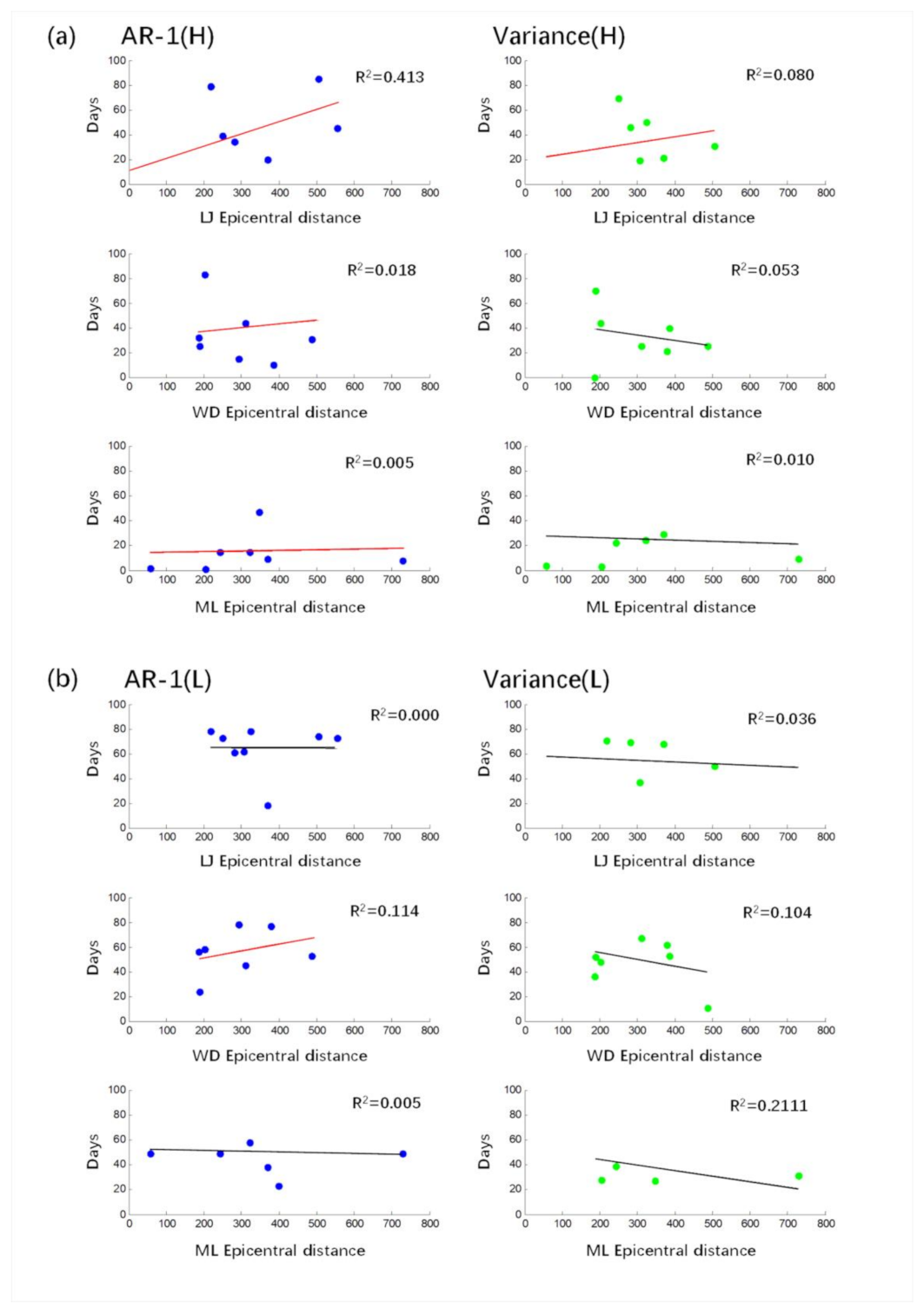

Taking the Lijiang, Wuding and Menglian earthquakes as the research objects, the relationship between the epicentral distance of eight stations and the anomaly days before the earthquake is calculated. The results show that only in the case of high-frequency information AR-1, there is a weak positive correlation between the epicentral distance of the LJ earthquake and the precursory time; that is, the precursory anomaly appears earlier with the increase in epicentral distance. In other results, R² values are less than 0.3, indicating that there is very weak or no significant correlation between them (Figure 10).

The above results may indicate that there may be no universal law in the temporal and spatial relationship of earthquake precursors. It may be related to the earthquake preparation process and the hydrogeological conditions around the monitoring stations. For the Lijiang earthquake, many studies have proposed that its seismogenic process conforms to the “strong body earthquake-generating model”. This is consistent with our results. There are different results for other earthquakes, which may be due to different seismogenic modes and hydrogeological conditions of stations.

We speculate that the water radon anomaly at each monitoring point is not the response of the critical point of the whole seismogenic system, but the “critical point” of each small system. The criticalities of these small systems are related to the critical state of the whole regional seismogenic system, but they cannot accurately indicate the critical state of the whole system. For the application of self-organized critical states of complex dynamic systems in earthquake preparation, we may need to find an index that can effectively indicate the whole regional crustal movements from spatial observations.

8. Conclusions

This paper draws the following conclusions:

(1)

When we selected earthquakes with seismic energy density greater than 10⁻⁴ J/m³ as the potential earthquakes with precursors, through the analysis and calculation of the data on 1000 days in the seismic active period in eight groundwater radon monitoring stations in the study area, the results were as follows: among the high-frequency information data results of the eight stations, the recognition rate of AR-1 of MD station is the highest, which is 81.82%; the variance recognition rate of LD station is the highest, which is 80%; the average seismic recognition rate of AR-1 in the eight stations is 72.78%, and the average recognition rate of variance is 55.34%. In the calculation results of low-frequency information, the AR-1 recognition rate of LC station is the highest, which is 100%; ML station has the highest variance recognition rate of 60%. The average recognition rate of AR-1 in the eight stations is 88.24%, and the average recognition rate of variance is 45.08%. In contrast, the variance recognition rate of high-frequency information is higher, and the AR-1 recognition rate of low-frequency information is higher.

(2)

The earthquake precursor anomalies of radon in groundwater can be divided into three categories according to their characteristics: sudden jump anomalies, persistent anomalies and fluctuation anomalies. The high-frequency information is dominated by sudden jump and fluctuation anomalies, and the low-frequency information is dominated by persistent and sudden jump anomalies. The autocorrelation is mainly sudden jump and fluctuation anomalies, and the variance is mainly persistent anomalies.

(3)

There was no correlation or weak correlation between radon concentration and meteorological factors in these stations in the selected period. This means that crustal movement is the main reason for the change in radon concentration in groundwater in the study area during the active period of earthquakes. In the process of earthquake preparation, the accumulation of stress and strain may cause changes in crustal permeability, which may provide an explanation for persistent anomalies. The development of the crustal deformation process outside the nucleation area leads to frequent rock micro fracturing for a period of time, which may provide an explanation for sudden jump anomalies and fluctuation anomalies. In addition, the difference in hydrogeological characteristics of each well (aquifer), and the differences in regional stress and strain changes of rock mass, may result in different responses of aquifers to block movements and anomalies in water radon concentration.

(4)

There was no correlation between precursory time and epicentral distance when taking all earthquakes studied into account. However, there was a good relationship between precursor time and epicentral distance if only earthquakes with an epicentral distance less than 300 km are considered. This may be related to different seismogenic modes, hydrological conditions and crustal movements in different regions.

Overall, the critical deceleration theory shows great potential for revealing whether the complex dynamic system will reach the critical “disaster point”. This study provides a reference for identifying earthquake precursory anomalies by mathematical methods of data analysis.
