Modeling of Sulfur and Iron Dynamics in Enclosed Bay Sediments and Evaluation of the Suppression Effect on Sulfide Release by Iron

Abstract

In eutrophic waters, such as Mikawa Bay, Japan, anoxic bottom water develops in summer. This causes H₂S release into seawater due to sulfate reduction in the sediment, leading to environmental problems. The addition of Fe to sediments is a method used to improve the sediment environment. However, this method, which was devised from a natural mechanism, has not yet been quantitatively evaluated. In this study, we aim to quantitatively evaluate the suppressive effect of Fe on H₂S release. First, we developed a sediment model that focuses on S and Fe. We then attempted to reproduce the observations and experiments on H₂S dynamics using the model. Consequently, the proposed model was able to reproduce field S and Fe dynamics in sediments even under anoxic conditions. Additionally, the model could describe the difference in H₂S release depending on the amount, type, and time of iron-based additives. Finally, we conducted predictive calculations for one year assuming 637 g/m² of iron materials, and quantitatively evaluated the effects of adding iron materials to the sediments in terms of S and Fe cycles. We found iron-based additives suppressed H₂S release by 14 mmol/m²/d compared to the case without additives.

1. Introduction

The release of sulfides (sum of H₂S-S, HS⁻-S, and S²⁻-S, hereafter referred to as H₂S), which occurs in summer in the anoxic bottom waters of semi-enclosed bays near large cities, severely damages fishery production, habitat, and the marine environment [1,2]. In such bays, eutrophication is caused by an increase in the organic matter (OM) and nutrient load from rivers, causing phytoplankton blooms and a decrease in tidal flats and shallow areas due to land reclamation [3]. Large amounts of particulate OM (POM) containing the corpses of phytoplankton result from the eutrophication of seafloor deposits. The deposited POM is decomposed by microbial decomposition, during which dissolved oxygen (DO) is consumed. If the consumption of DO exceeds its supply, anoxic water masses are generated in the bottom water. When DO is depleted, POM is decomposed by anaerobic processes and the electron acceptors are consumed in the following order: nitrate (NO₃⁻), manganese dioxide (MnO₂), iron hydroxide (FeOOH), and sulfate (SO₄²⁻) [4]. Because of the abundance of SO₄²⁻ in seawater and sediments, when electron acceptors other than SO₄²⁻ are depleted, all anaerobic processes in the sediments proceed via sulfate reduction, producing H₂S, which is released into the bottom water. H₂S is highly toxic to organisms and causes blue tides, resulting in the deaths of organisms and generation of foul smells. Thus, polluted sediments contribute to the occurrence of anoxic water masses, and it is necessary to develop methods to suppress H₂S release from sediments.

In the sediment, there is a natural phenomenon called the iron curtain, in which H₂S is removed by reacting with divalent iron ions (Fe²⁺) and depositing iron sulfide (FeS) generated at lower temperatures and pressures, then pyrite. [5]. Inspired by this phenomenon, a method for improving the sediment environment has been devised to suppress H₂S release into the bottom water by adding iron materials to the sediment, causing it to react with H₂S [6].

In a study on methods for improving the sediment environment, Ito et al. [7] examined the suppression of H₂S release from coastal marine sediments and the release of ammonium, nitrogen, and phosphorus by the application of steelmaking slag. They reported that this release could be suppressed by pH control. Kanaya and Kikuchi [8] confirmed that the accumulation of H₂S could be suppressed for at least 20 days by adding 10–20 g/L of iron to sediments containing high concentrations of hydrogen sulfide under strongly reducing conditions. Hagino et al. [9] and Yasser et al. [10] collected undisturbed sediments from the inner part of Mikawa Bay from June to September 2017, added various iron materials, and conducted H₂S release experiments four times to investigate the effects of iron materials in removing H₂S and the appropriate amount of iron materials to be added.

Some models address the early diagenetic processes in sediments, such as those proposed by Berg et al. [11] and Fossing et al. [5]. Kasih et al. [12] modified and applied them to the Ago Bay. Inoue et al. [13,14] studied Hakata and Yonago bays. These comprehensive sediment models incorporate OM decomposition processes in sediments and their interactions with metabolites. Further modeling studies coupling such sediment models with 3D, pelagic flow, and ecosystem models have been proposed [15,16,17,18]. However, it is still difficult to reproduce H₂S concentrations and seasonality.

Observational data are essential for validation in modeling studies. To contribute to future blue-tide countermeasures in Mikawa Bay, the Aichi Fisheries Research Institute (AFRI) conducted monthly observations and obtained vertical distributions of H₂S, Fe²⁺, and FeS in sediments, which are essential for understanding sulfur and Fe dynamics [19].

The purpose of this study is to quantitatively evaluate the suppression of H₂S release after the addition of iron materials to enclosed bay sediments. First, we developed a vertical 1D model that described the chemical and physical processes of various compounds in the early diagenetic processes, including H₂S dynamics. Second, our model was validated by reproducing field sediment data from Mikawa Bay (monthly observations by AFRI). Then, we attempted to reproduce experiments on H₂S release (Hagino et al. [9]) and production rates (Miyatsuji et al. [20]) using the abovementioned validated results, which represent the distribution of sediment compounds in each month, as the initial conditions for the analysis. Finally, we conducted predictive calculations by adding iron materials to the model to evaluate the sulfur and iron balances.

2. Materials and Methods

2.1. Study Area

Mikawa Bay, the study area, is an eutrophic enclosed bay in Japan with an average depth of 9 m and an area of 604 km² surrounded by the Chita and Atsumi Peninsulas (Figure 1). Within the watershed area of Mikawa Bay, there are some large cities such as Toyota, Okazaki, and Toyohashi, with a population of just under 3 million. The main land uses are forests and farms, which account for about 30% each, and residential area, which accounts for about 20%. The Mikawa Bay and Ise Bay coastal areas are Japan’s largest industrial areas, known as the Chukyo Industrial Area, where the automobile and textile industries are thriving. Although fishery production activities centered on clams are also active, anoxic water masses develop every year in the bottom waters, particularly in summer, and cause serious disturbance to the marine environment, including fishery production, habitat of organisms, and water quality. Mikawa Bay has a narrow mouth, and the exchange of seawater with the open sea is small compared to that of Ise Bay. Additionally, the presence of more than 40 rivers of various sizes, including the Yahagi and Toyokawa Rivers, provides a large supply of nutrients. Furthermore, depending on meteorological factors, such as wind, anoxic water masses frequently upwell to shallow coasts, causing severe damage to bivalves that inhabit tidal flats and adjoining shallow areas [21].

2.2. Experiments on Sulfide Release

In this section, we present the methodology of the H₂S-release experiment reproduced using this model. The undisturbed sediment cores used in the experiment were collected monthly from June to September 2017 from St. 9 (34°42′ N. 137°18′ E, C.D.L. = 10.2 m) in the inner part of Mikawa Bay (Figure 1). The core was collected by inserting a circular acrylic pipe (inner diameter: 10 cm; outer diameter: 11 cm; height: 50 cm) directly into the sediment to prevent disturbance.

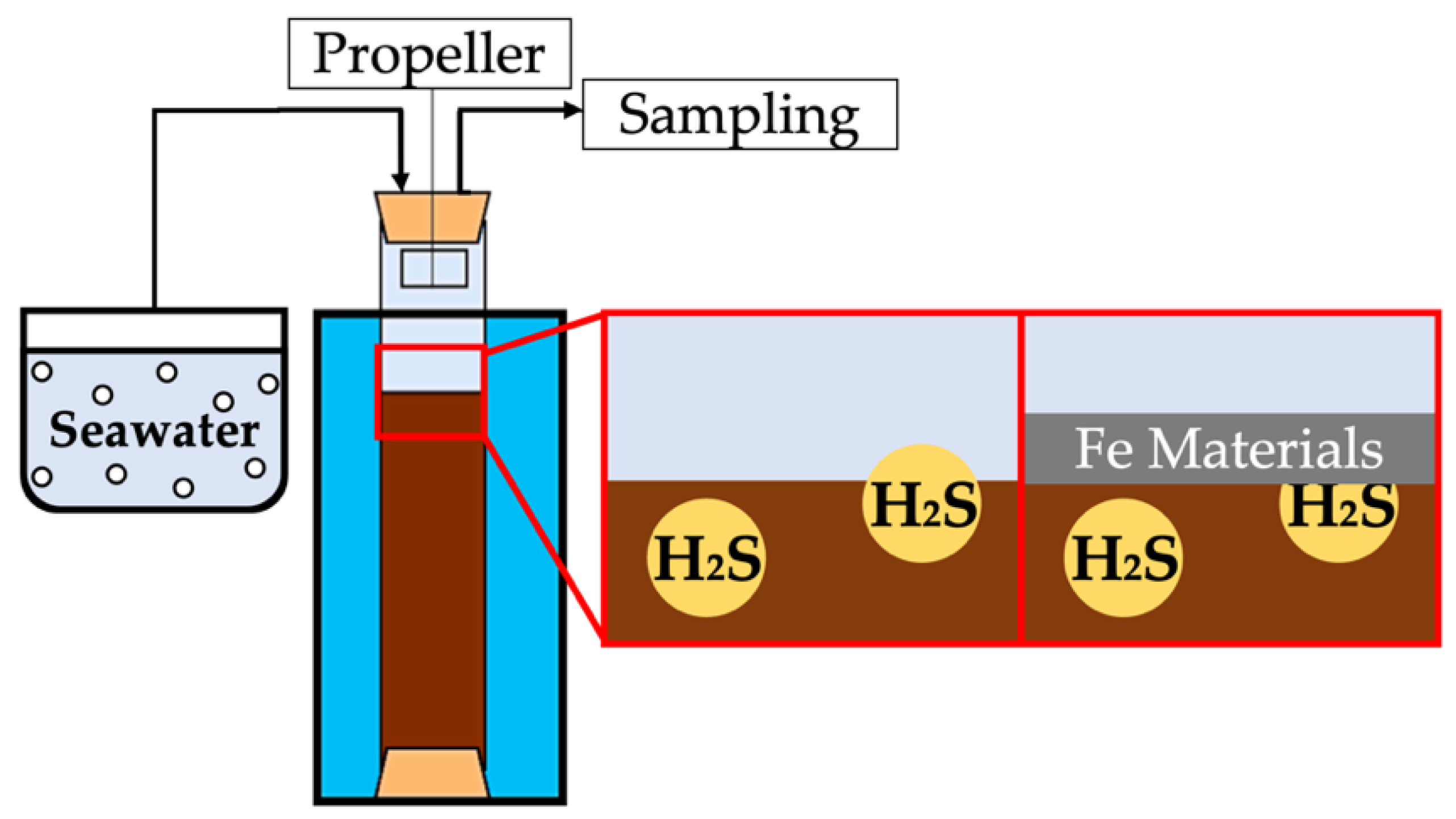

As shown in Figure 2, the cores were placed in a thermostatic tank and covered with a blackout curtain (to maintain dark conditions) to match the temperature and light conditions near the sampling site. After the seawater above the cores was discharged, the overlying water above the sediments was gently replaced with filtered seawater that was originally collected from the bottom layer near the sampling site. The water was nitrogen-aerated for at least 30 min and the cores were closed immediately to maintain anoxic conditions. The water in the cores was agitated by a plastic propeller with a stirring speed of 30 rpm to maintain gentle agitation adequate to avoid sediment resuspension.

Iron material was added softly and uniformly to the surface layer of the cores before the overlying water was poured. It was added in the form of iron powder of ferric oxide (Fe₂O₃) and ferric hydroxide (FeOOH) to ascertain the differences in suppressive effects between the forms (

Table 1. Types of experimental cores.

June	July	August	September
control (3) *	control (3)	control (3)	control (3)
Fe2O3 0.41 g (1) 0.85 g (1) 1.61 g (1)	Fe2O3 5 g (3)	Fe2O3 5 g (3)	Fe2O3 5 g (3) FeOOH 5.6 g (3)

Note: * The numbers in parentheses correspond to the number of cores.

). These amounts shown in Table 1 were set to equalize the Fe content (equivalent to 3.5 g of Fe). In the June experiment, the amount of Fe₂O₃ added was tentatively varied in three steps and the amount was decided in other months based on the June result.

Sulfide-release experiments using these cores were conducted for 21 days each month (June to September 2017), and water in the cores was sampled on the measurement days (Days 1, 2, 3, 4, 7, 8, 14, 20, and 21), with the initial measurement day being Day 0. Concentrations were measured using the methylene blue method on H₂S and phenanthroline method on Fe²⁺. After sampling, the same amount of water (filtered nitrogen-aerated bottom water near the sampling site) was added to each core. Compared with the model calculations described below, the concentrations were corrected for the effect of seawater replacement on the concentration measurements.

2.3. Experiment on Sulfide Production Rate

Along with the H₂S release experiments, experiments on H₂S production rates were conducted in parallel following the procedures described in [20]. In these experiments, we investigated the H₂S production rate due to chemical reactions in sediments by packing sediment into syringes, periodically sampling a small amount of sediment, and analyzing the H₂S concentration. Three sediment cores were used for the experimental samples, which were collected from July to September 2017 at the same point and date as the release experiments.

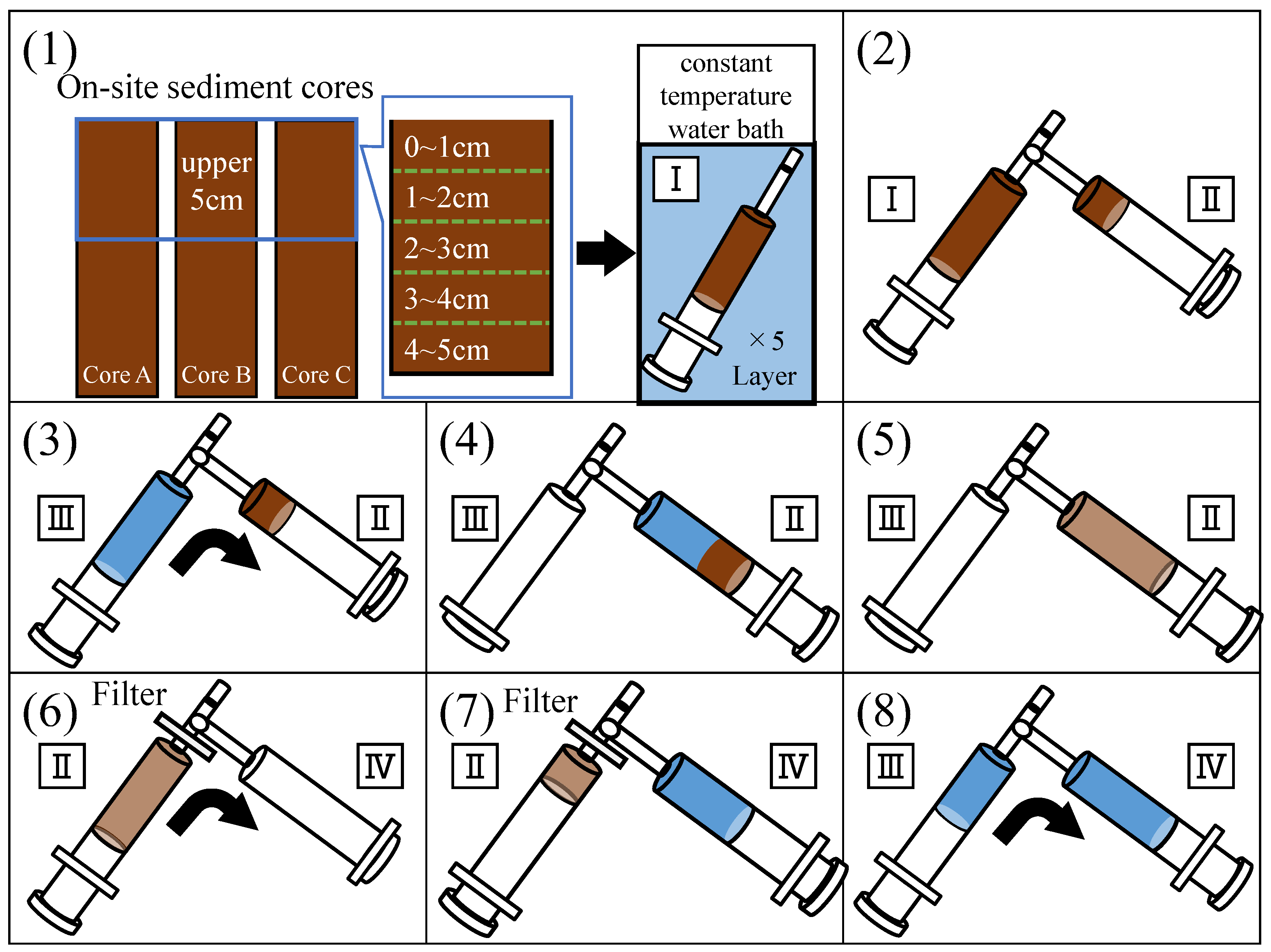

First, the top 0–5 cm of the sediment was sliced into five layers with 1 cm each. Then, each layer of the sediment sample was packed into a 30 mL glass syringe. The syringes were incubated for 21 d in a thermostatic tank maintained at the on-site water temperature (Figure 3(1)). The H₂S concentration in the sediment pore water was measured periodically using the methylene blue method, and the H₂S production rate based on the time variation in the concentration was calculated.

The H₂S concentration of pore water in the syringe was very high, although its volume was too small to measure. Using this characteristic, a dilution procedure was adopted to measure the concentration, as shown in Figure 3. The method was based on that of Sugahara et al. [22]. First, 2.5 mL of the sediment sample in the 30 mL glass syringe was transferred into a 20 mL sub-glass syringe (Figure 3(2)). Diluted water was added to the sub-syringe (Figure 3(3,4)) and mixed thoroughly (Figure 3(5)). To maintain anoxic conditions, nitrogen-aerated distilled water was used as the dilution water. Diluted water was injected using a glass syringe to prevent the entry of oxygen. For the final extraction of the pore water, we filtered at least 5 mL of the mixture into a 20 mL sub syringe (Figure 3(6,7)) and adjusted the volume to 10 mL with dilution water (Figure 3(8)). The dilution rate was measured in advance of the analysis to determine the exact concentration.

The measurement days were Days 1, 2, and 21 in July and August and Days 1, 2, 3, 7, 14, and 21 in September. In many of the results for July and August, the H₂S concentration temporarily decreased on Day 2 and increased on Day 21. Therefore, the H₂S production rate per day was calculated by dividing the H₂S concentration difference between Days 2 and 21 by the day interval.

2.4. Construction of Sediment Model

To construct the model, we referred to the vertical 1D model proposed by Fossing et al. [5] because variation with depth is by far the greatest compared with horizontal and it is a good approximation to consider depth alone. Thus, our model allows for finer layers in depth instead of horizontal divisions while its results should be seen as averages for a relatively large area of seabed. As shown in

Table 2. Form of the substance in the model.

Dissolved		Particulate
No Adsorption	Adsorption
DO	NH4+	S0	MnO2
NO3−	Mn2+	FeS2	FeOOH
H2S	Fe2+	FeS	FeOOH≡PO43−
SO42−	PO43−	POC

, the model classified all 15 sediment compounds into three types: dissolved (with and without adsorption) and particulate.

In this model, the upper 20 cm of the sediment is modeled as a diffuse boundary layer (DBL) of 0.03 cm and a 19.97 cm sediment layer with exponentially varying layer thickness, for a total of 100 layers. The calculations were performed with a time step of 5 s, and the basic equation of mass balance shown in Equation (1) was used for the iterative calculations.

$$\begin{array}{cc}\left(\xi \phi +\zeta {\rho }_s\left(1-\phi \right)K^{\prime }\right)\frac{\partial C}{\partial t}& =\frac{\partial }{\partial x}\left(\left(\xi \phi \left(D_{BW}+D_s\right)+\zeta {\rho }_s\left(1-\phi \right)D_{BS}{K}^{\prime }\right)\frac{\partial C}{\partial x}\right)\\ & -\frac{\partial }{\partial x}(\left(\xi \left(\phi w\right)+\zeta {\rho }_s\left(\left(1-\phi \right)w\right)K^{\prime })C\right)+R\hfill \end{array}$$

(1)

The definitions of each symbol are listed in

Table 3. List of symbols for the equation of the material balance.

Symbol	Parameter	Unit
$C$	concentration	dissolved: nmol/cm3 (wat) * particle: nmol/g (dry)
$\mathrm{t}$	time	s
$x$	vertical coordinates	cm (sed)
$\phi$	porosity	cm3 (wat)/cm3 (sed)
$w$	sedimentation rate	cm (sed)/s
${\rho }_s$	density	g (dry)/cm3 (dry)
$K^{\prime }$	adsorption coefficient	cm2 (wat)/g (dry)
$D_{BW}$	biodiffusivity of solutes	cm2 (sed)/s
$D_{BS}$	biodiffusivity of solids	cm2 (sed)/s
$D_s$	sediment diffusivity	cm2 (sed)/s
$R$	production and consumption	nmol/cm3 (sed)/s
$\xi$	particulate = 0, dissolved = 1
$\zeta$	particulate or dissolved with adsorption = 1 dissolved without adsorption = 0

Note: * Pore water (wat), dry soil (dry), and sediment (pore water and dry soil) (sed) are attached to the units.

. ξ and ζ are introduced to describe three types of sediment compounds (Table 2). The first term on the right-hand side of Equation (1) is the diffusion term, the second is the burial term, and the third is the net production and consumption term. Diffusion and sedimentation terms were calculated using equations proposed by Fossing et al. [5].

2.4.1. Production and Consumption

The net production and consumption terms reflect the reaction rate and stoichiometry of each chemical reaction involving the substance in question for all substances in all layers. The biochemical reactions considered in this model are listed in

Table 4. Biochemical reactions in the model. Reactions are referred from the study of Fossing et al. [5] (R1–19) and Kasih et al. [12] (R20,21).

Primary Reactions
O2 + CH2O → CO2 + H2O	(R1)
4NO3− + 5CH2O + 4H+ → 2N2 + 5CO2 + 7H2O	(R2)
2MnO2 + CH2O + 8H+ → 2Mn2+ +CO2 + 3H2O	(R3)
4FeOOH + CH2O + 8H+ → 4Fe2+ + CO2 +7 H2O	(R4)
SO42− + 2CH2O + 2H+ → H2S + 2CO2 + 2H2O	(R5)
Secondary Reactions
NH4+ + 2O2 → NO3− + H2O + 2H+	(R6)
FeOOH + PO43− → FeOOH≡PO43−	(R7)
2Fe2+ + MnO2 + 2H2O → 2FeOOH + Mn2+ + 2H+	(R8)
2Mn2+ + O2 + 2H2O → 2MnO2 + 4H+	(R9)
H2S + 2FeOOH≡PO43− + 4H+ → S0 + 2Fe2+ + 4H2O + 2PO43−	(R10a)
4Fe2+ + O2 + 6H2O → 4FeOOH + 8H+	(R11)
H2S + 2FeOOH + 4H+ → S0 + 2Fe2+ + 4H2O	(R10b)
H2S + MnO2 + 4H+ → S0 + Mn2+ + 2H2O	(R12)
H2S + Fe2+ → FeS + 2H+	(R13)
FeS + S0 → FeS2	(R14)
SO42− + 3H2S + 4FeS + 2H+ → 4FeS2 + 4H2O	(R15)
H2S + 2O2 → SO42− + 2H+	(R16)
FeS + 2O2 → Fe2+ + SO42−	(R17)
2FeS2 + 7O2 + 2H2O → 2Fe2+ + 4SO42 + 4H+	(R18)
4S0 + 4H2O → 3H2S + SO42− + 2H+	(R19)
MnO2A → MnO2B	(R20)
FeOOHA → FeOOHB	(R21)
FeSA → FeSB	(R22)

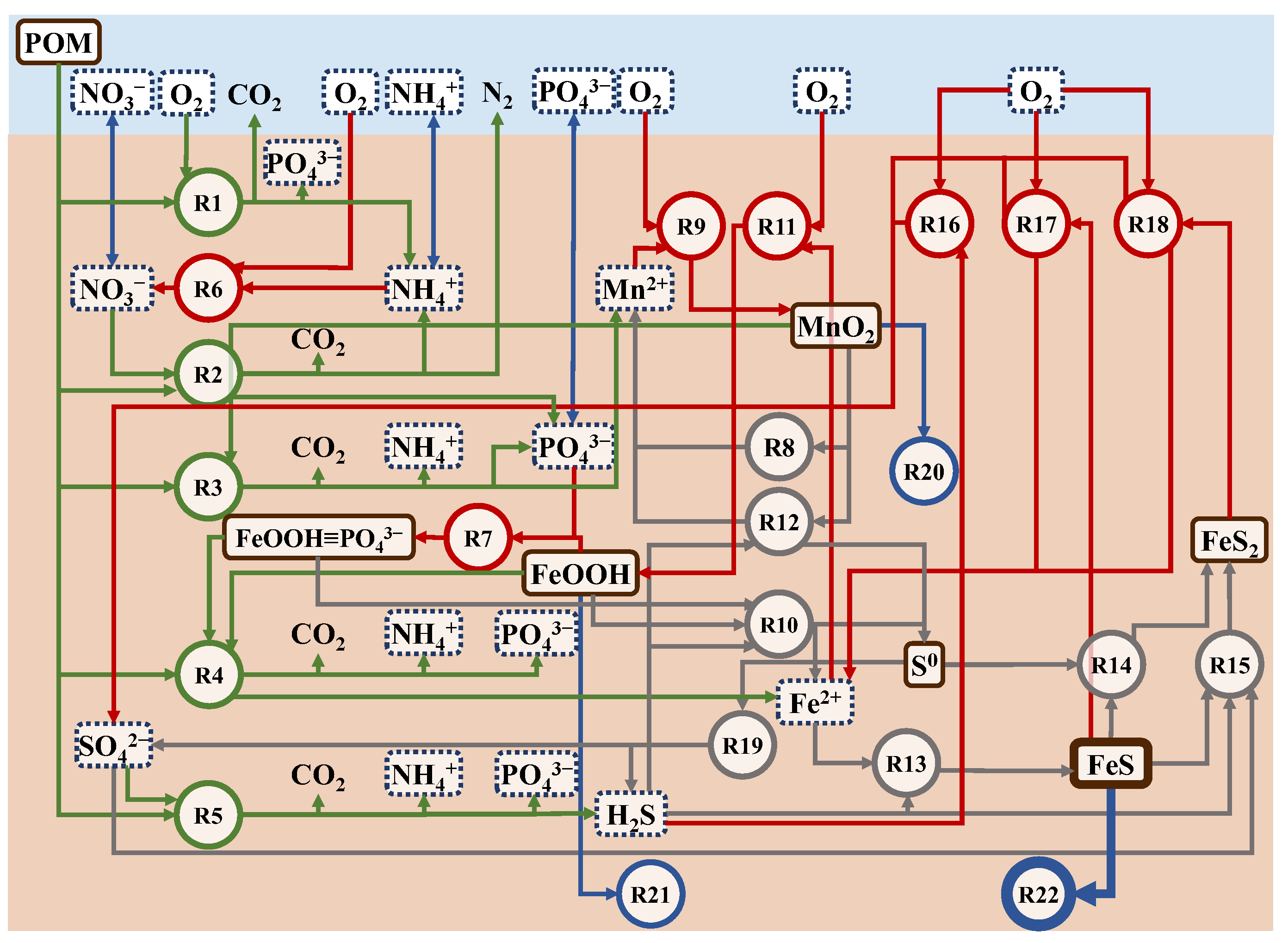

, and the substances and their cycles are shown in Figure 4. Biochemical reactions are divided into primary and secondary stages. The primary reaction is the decomposition of POC. The microbial decomposition produces metabolites (CO₂, NH₄⁺, PO₄³⁻, and H₂O) and by-products (N₂, Mn²⁺, Fe²⁺, and H₂S) from POC as reactants. The reactants, POC, are classified as fast- (f), slow- (s), and non (n)-decomposable according to their decomposition characteristics and are represented as CH₂O in the chemical reaction in Table 4.

The primary reactions were classified into five electron acceptors, consisting of DO (oxygen respiration), NO₃⁻ (denitrification), MnO₂ (manganese reduction), iron reduction (FeOOH), and SO₄²⁻ (sulfate reduction). In this model, the five electron acceptors were modeled in sequence, and the boundary between the aerobic and anaerobic layers was automatically determined based on the reactions. The electron acceptors are recovered in secondary reactions using the reaction products in the primary reaction (metabolites and byproducts) as reactants.

Additionally, our model introduces a new process in which FeS changes from reactive (A) to non-reactive (B) (R22 in Table 4 and Figure 4). Similar processes for MnO₂ and FeOOH were introduced by Kasih et al. [12]. The states of the reactants affect the production and consumption calculations.

2.4.2. Boundary Condition

As boundary conditions, particulate sediment compounds (POC, FeOOH, and MnO₂) at the sediment surface were considered as settling fluxes, and dissolved sediment compounds (DO, SO₄²⁻, NO₃⁻, NH₄⁺, PO₄³⁻) as concentrations in the water above the sediments. The boundary conditions for the dissolved and substances were assigned to the model as the concentrations at the top of the DBL and at the top layer of the sediments, respectively.

2.4.3. Reproduction of Field Observations

The sediment model has many variables, and because it is used as the initial condition to reproduce laboratory experiments, it is necessary to reasonably estimate all these values in advance. Therefore, we applied the sediment model constructed in Section 2.4 to Mikawa Bay and obtained a seasonal steady-state solution of the vertical distribution of sediment compound concentrations. Then, using this solution as the initial condition, we performed a reproductive calculation of the H₂S-release experiments for each month.

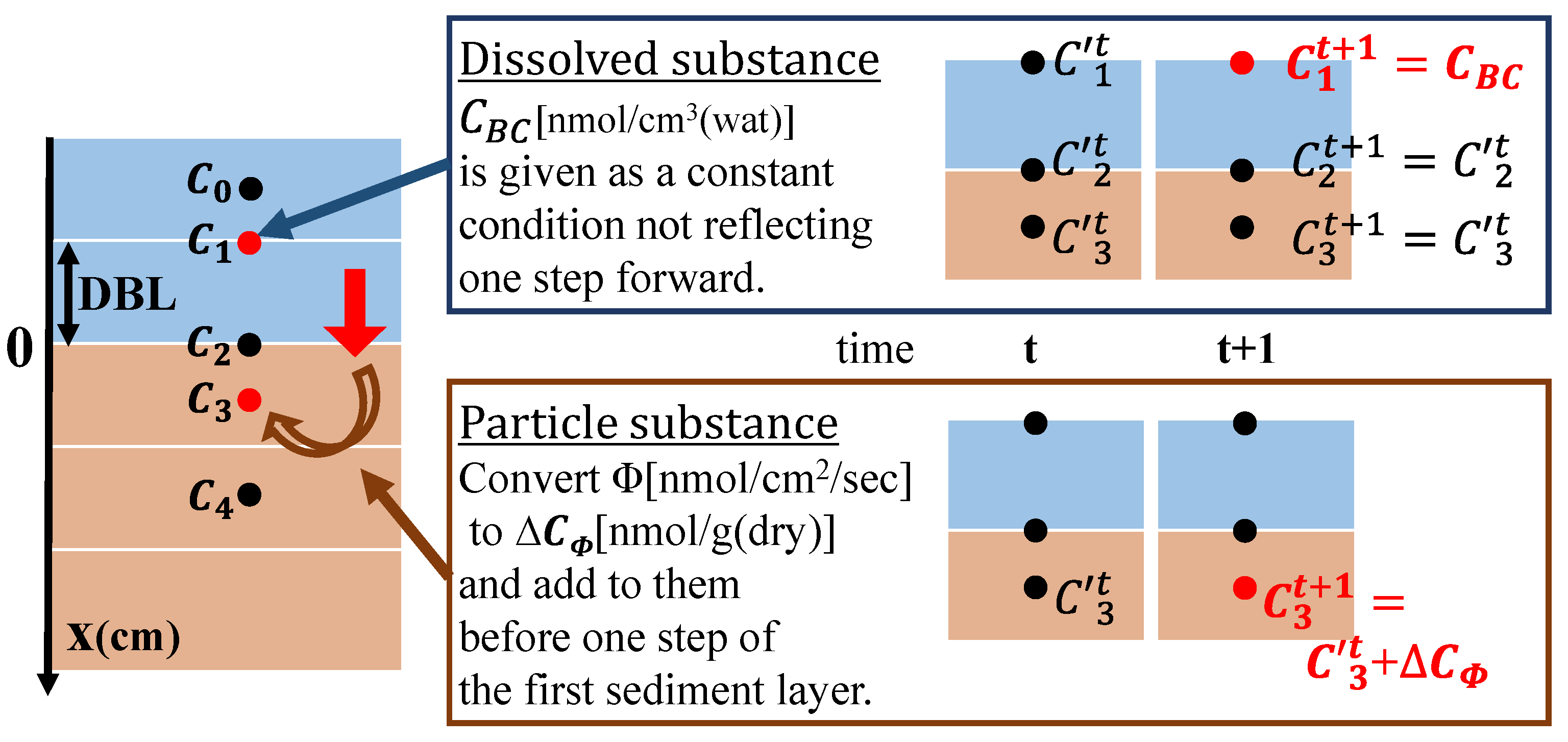

In the calculation to reproduce the on-site sediments, the boundary conditions were different depending on the state of the sediment compounds, as shown in Figure 5. The boundary condition for the dissolved substances was given to the model reflecting the DBL concentration of the previous step to represent the diffusion in water. The boundary condition for particulate substances was applied to the model by converting the flux to the concentration in the top layer of sediments and adding it to the concentration in the previous step. The flux of the particle substance was incorporated into the calculation after it was converted to a concentration using Equation (2):

$$∆C_{\Phi }=\frac{\Phi \times ∆t}{{\rho }_s\left(1-\phi \right)\times ∆x_3},$$

(2)

where Φ is the boundary condition (flux) given to the model per second, ∆C_Φ is the concentration changes with Φ in the first layer of sediments, ∆t is the time step, ∆x₃ is the thickness of the top layer of sediments, ρ_s is the soil particle density, and φ is the porosity.

We set certain conditions for reproducing the on-site sediments, as shown in

Table 5. Conditions for reproducing field observations.

Parameter		Value	Unit	Source *1
porosity		Figure 6a	-	19
density		2.69	g (dry)/cm3
sedimentation rate		0.5	cm (sed)/year
total POC flux		Figure 6b	mg/m2/d	23
POC ratio (f:s:n)		1:2:7	-
decomposition rate	POCf	1.4 × 10−7	/s	12
	POCs	1.4 × 10−8	/s	12
	POCn	1.4 × 10−10	/s	12
flux (B.C.) *2	MnO2	2.0 × 10−2	mmol/m2/d	11
	FeOOH	1.8	mmol/m2/d	11
MnO2A/MnO2B		0.5	-	5
FeOOHA/FeOOHB		0.5	-	5
concentration (B.C.)	SO42−	2500	mmol/cm3 (wat)	5
	H2S	0	mmol/cm3 (wat)	5
	DO	Figure 6b	mg/L (wat)	19
	NO3−	0.01	mmol/cm3 (wat)	5
	NH4+	0.09	mmol/cm3 (wat)	5
	PO4−P	Figure 6b	mg/L (wat)	24
	Mn2+	0	mmol/cm3 (wat)	5
	Fe2+	0	mmol/cm3 (wat)	5
reaction rate (R22)		2.5 × 10−9	/s
water temperature		Figure 6b	°C	19

Note: *¹ Numbers in the sources correspond to the references (blank cells are tuning values), *² (B.C.) is the boundary condition.

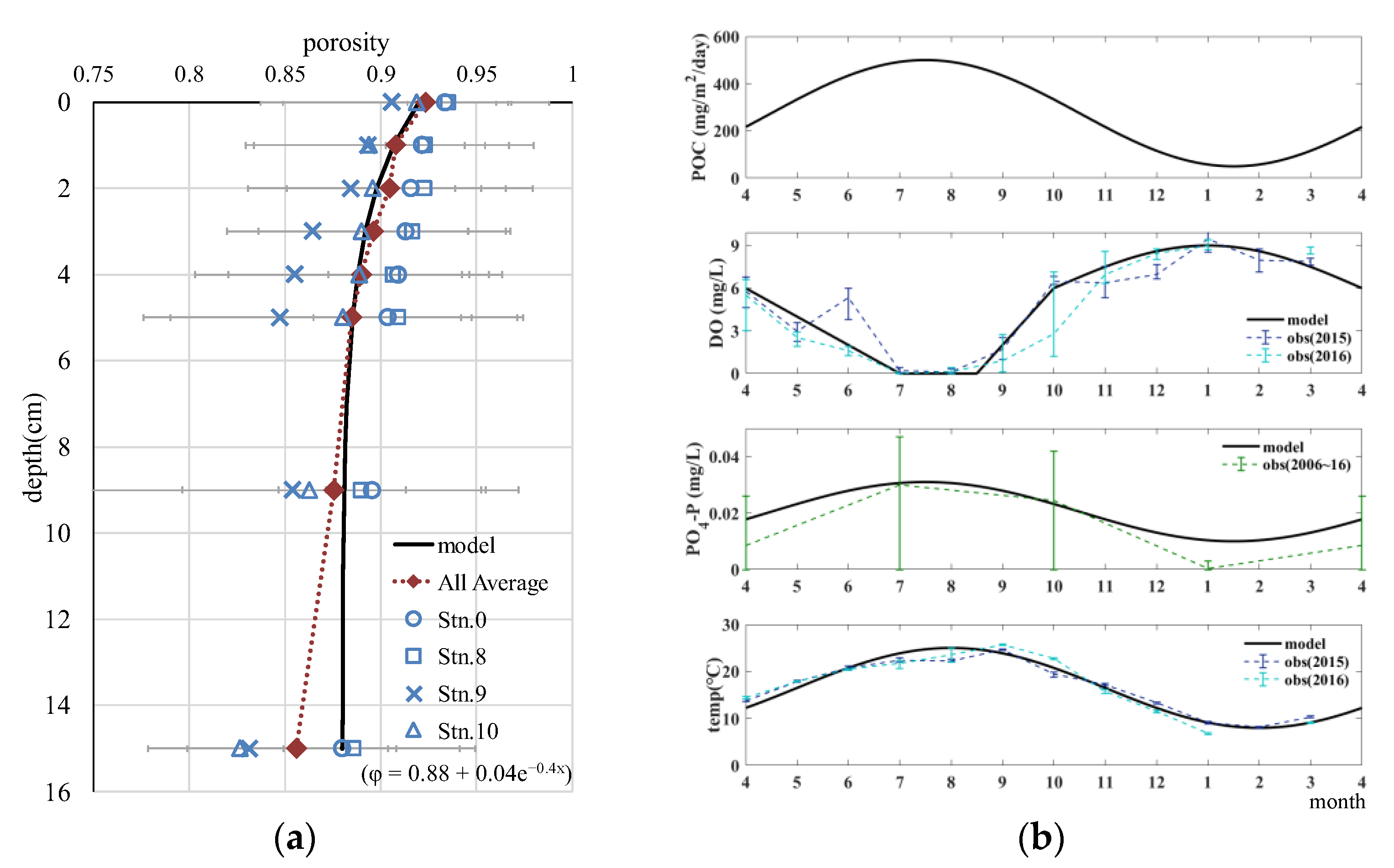

and Figure 6. The vertical distribution of porosity was set based on AFRI observations, as shown in Figure 6a. The boundary conditions of the model were given as the concentration in the upper part of the concentration boundary layer for dissolved substances and the sedimentation flux for particulate substances (Figure 6b and Table 5).

Regarding the seasonal cycle of the boundary conditions, the temperature and DO concentration were based on bottom-water observations by AFRI, which were observed on the same day and site as the sediment sampling. Phosphate–phosphorus (PO₄⁻P) was based on seasonal data from the Wide-area Comprehensive Water Quality Survey conducted by the Ministry of the Environment [23] (measurement site: Aichi Prefecture No. 61, reference period: 2006–2016). The seasonal variation in POC sedimentation flux is shown in Figure 10a of Yamamoto et al. [24]. At site A-10 in the figure (Water Quality Survey of Public Water Area by Aichi Prefecture), which is close to the observation site, the annual variation from 1978 to 1990 was estimated to be sinusoidally seasonal, with an annual maximum value of approximately 300–500 mg/m²/d in summer and a minimum value of almost 50 in winter. Based on these results, the proposed model approximates the seasonal variation with a sinusoidal function, with a maximum value of 500 in August and a minimum value of 50 in February. Parameters such as diffusion and temperature coefficients and the results of tuning the reaction rate coefficients are described in the Appendix A.

The calculations were performed with an initial condition of zero concentration of all sediment compounds and repeated under the boundary and temperature conditions. We obtained a seasonally steady solution by repeating the calculations over more than 40 years. To validate the model, the calculated results were compared with data from a sediment survey conducted by the AFRI in Mikawa Bay, Japan.

2.4.4. Reproduction of Experiment on Sulfide Release

As mentioned in Section 2.2, the period of the H₂S-release experiment was relatively short (21 d), and the experimental cores were kept airtight under anoxic conditions. Therefore, we assumed zero DO concentration and no particle substance flux in the boundary conditions for reproducing the release experiment, and all concentrations in the previous step were reflected. Burial owing to sedimentation from seawater was also ignored. The input values for the water temperature were the values measured in the experiment.

Additionally, we considered a bulk water layer with homogeneous solute concentrations above the DBL to describe temporal concentration changes in the overlying water of the experimental cores. The thickness of the bulk water layer was set based on the diameter of the experimental core and the amount of water, and C₀ was calculated by considering only the diffusion from C₁ (C is shown in Figure 5).

As the first step in the calculation procedure, we utilized the calculated results described in Section 2.4.2 as the initial distribution of the substance concentrations for each month from June to September. Second, for the initial conditions of iron, we set the concentrations of iron in the upper layer of the sediments to correspond to the amount of iron materials added. The range of addition was assumed to be the top three layers (total 0.1 cm thickness), and the concentration was inversely proportional to the thickness of the three layers. Calculations were performed for the duration of the experiment (21 days) to reproduce the change in H₂S concentration in the overlying water.

The reaction pathways of the iron materials were assumed to be the same as those of the naturally occurring FeOOH and H₂S (R10 in Table 4 and Figure 4). The reaction rate coefficients with Fe₂O₃ and FeOOH (added in the experiment) were set to R23 and R24, respectively, and these values were tuned based on the reaction rate coefficient of R10 to consider the difference in the reaction rate of each iron material (

Table 6. Initial conditions for reproduction of H₂S release experiment.

Parameter		Value	Unit	Source *
Reaction rate	(R23)	2.5 × 10−9	µM/s	-
	(R24)	2.5 × 10−8	µM/s	-
Water temperature	(June)	20.3	°C	9,10
	(July)	21.7	°C	9,10
	(August)	25.7	°C	9,10
	(September)	24.0	°C	9,10

Note: * Numbers in the sources correspond to references (blank cells are tuning values).

).

3. Results

3.1. Reproduction of Field Observations

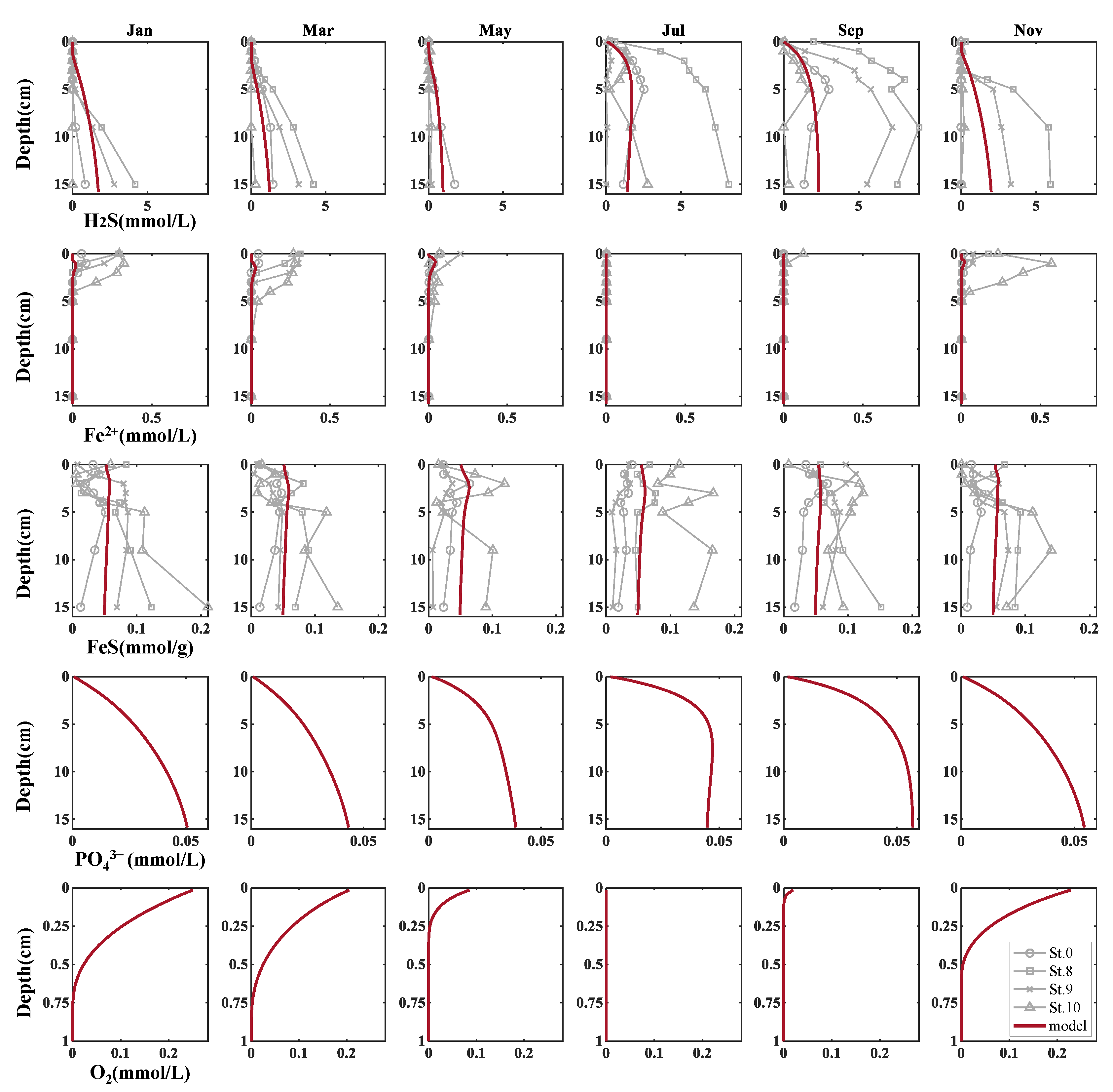

Figure 7 shows the seasonal variations in the vertical distribution of the major chemical concentrations (H₂S, Fe²⁺, FeS, PO₄³⁻, and DO). The distributions of H₂S, Fe²⁺, and FeS were compared with those observed at four sites (St. 0, 8, 9, and 10), as shown in Figure 1. St. 9 was the closest to the sampling points of the two experiments; therefore, its reproducibility was particularly important.

Observations from May to November, including the experimental period (June to September), revealed that H₂S reached the near-water-sediment interface from May to September, and the H₂S concentration near the interface decreased from September to November. This trend was also observed in the calculated values. Moreover, DO penetrated approximately 0.5 cm into the upper layer of the sediments in May, disappeared from July to August, and began to recover in September. As shown by the observed DO values in Figure 6b, this is thought to be due to the anoxic conditions in water during summer.

The calculated seasonal variations in H₂S, Fe²⁺, and FeS were also compared with the observations. Although slightly underestimated throughout the year, we could reproduce the disappearance of Fe²⁺ during summer due to consumption by reaction with H₂S or OM degradation. Additionally, for H₂S, it was possible to reproduce seasonal changes and orders of magnitude in the sediments of Mikawa Bay, particularly in the upper layers.

3.2. Reproduction of Sulfide Release Experiment

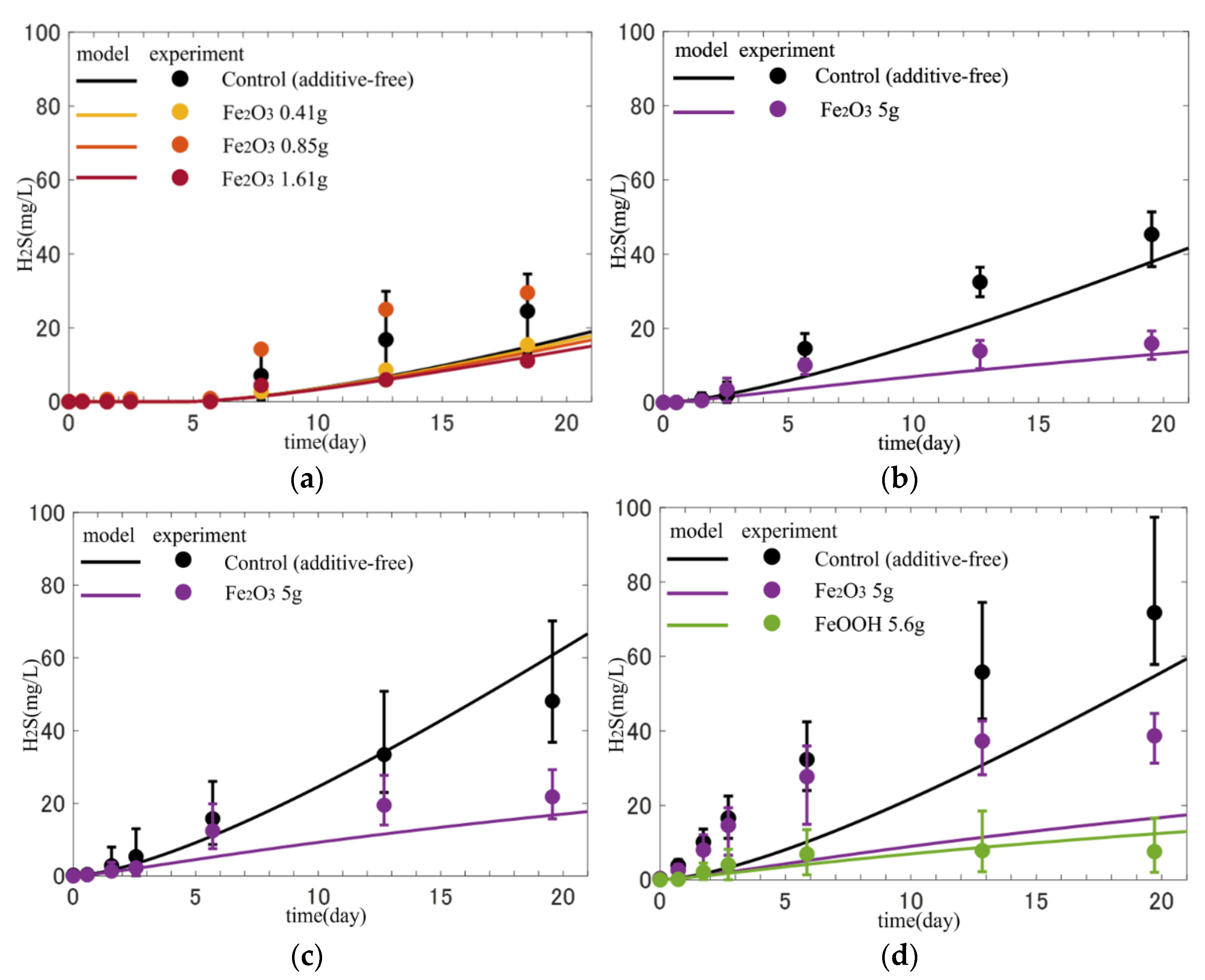

Figure 8 shows a comparison between the experimental and model-calculated H₂S concentrations for the H₂S release experiments for each month (June to September). The error ranges of the experimental values were due to differences in the cores, and the dots indicate the average concentrations.

In the experimental data for June, there was a delay in the start of H₂S release into the water overlying the cores. The concentrations of electron acceptors (DO, NO₃⁻, MnO₂, FeOOH, and SO₄²⁻) are shown in Figure 9 as initial conditions for each month were nonzero in June but were almost zero from July to September, which is consistent with the lag time. The model calculations also quantitatively described the lag time of H₂S release due to the remaining electron acceptors, i.e., the process whereby oxidants are consumed in the sediments in the early phase of the experiment, and H₂S is released with a delay.

The experimental results for the control (additive-free) cores from July to September showed an almost constant increase rate of concentrations during the experiment after a short time lag when H₂S release started. This tendency is reproduced well by the model. In contrast, the rate gradually decreased during the experiment for the cores with iron additives, indicating that the iron materials suppressed H₂S release, but the effect was delayed. In the June results, there was no correlation between the amount of iron added and the amount of H₂S released, and a trend was not observed. In addition, the differences between cases were included in the range of the control, suggesting that the addition was too small to make a difference. The model calculations also reproduced the increasing trend of H₂S concentration in the control cores and the delay in the suppression effect of H₂S release in the cores with iron additives. However, the concentrations in the control cores were still underestimated.

3.3. Experiment on Sulfide Production Rate

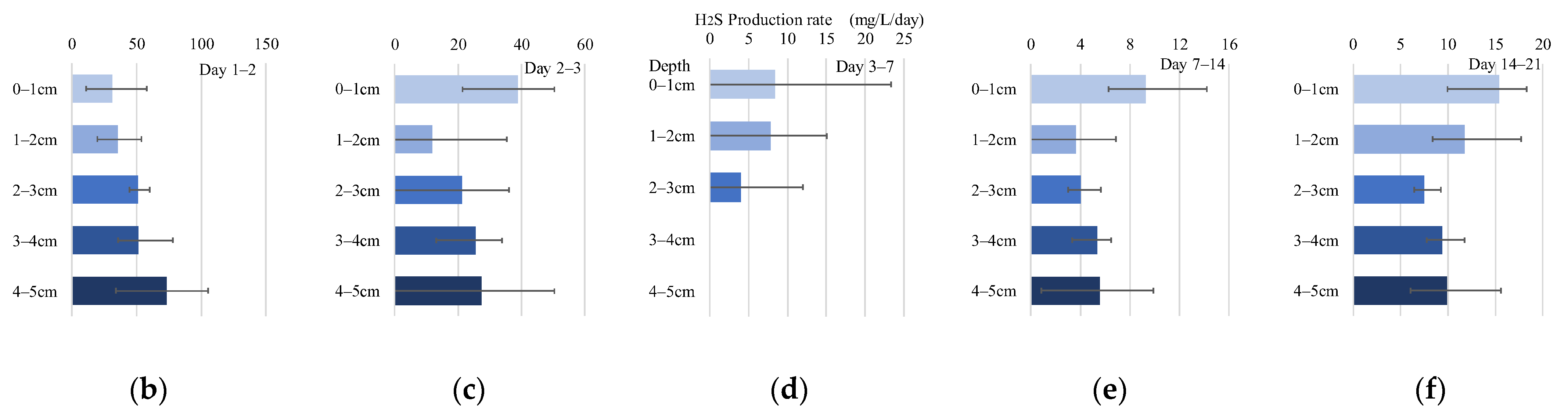

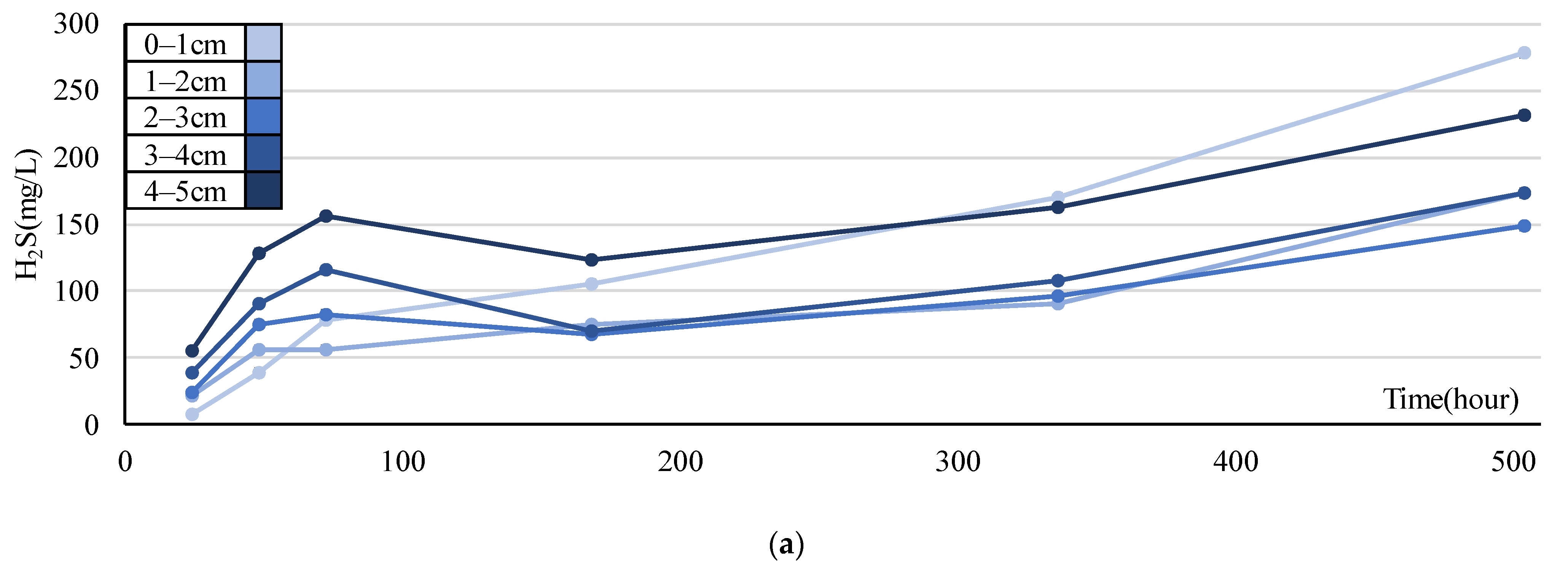

Figure 10 and Figure 11 show the experimental results for the H₂S production rate in July, August, and September. In July, the H₂S concentrations in all layers of all the cores temporarily decreased on the second day and then increased. This trend is also observed in August. The mean H₂S production rate estimated from the experiments in July and August was calculated from the values obtained on Days 2 and 21. The rate of all cores by depth, in July, shows that in the 0–1 cm layer and 2–3 cm layer H₂S production rates were relatively large (4.00 and 4.31 mg/L/d, respectively), while that in the 4–5 cm layer was small (1.86 mg/L/d). These mean rates obtained in August were slightly lower than those obtained in July, with a maximum of 3.01 mg/L/d (0–1 cm layer). The production rate was higher in the upper layer in both months, suggesting that all electron acceptors other than SO₄²⁻ (DO, NO₃⁻, MnO₂, and FeOOH) were exhausted during the primary reactions.

In contrast, in the September experiment, the concentrations in each layer of all cores temporarily decreased from days 3–7 and then increased (Figure 11a). The mean H₂S production rate estimated from the experiment in September was calculated for each period (day 1–2, 2–3, 3–7, 7–14, 14–21) (Figure 11b–f). Compared to August, the order of the rate increased, with the highest rate in the 0–1 cm layer (13.56 mg/L/d). Unlike in July and August, the 4–5 cm layer had a relatively high rate of 8.80 mg/L/d.

4. Discussion

4.1. Analysis of Sulfide Production Rate

As mentioned in Section 3.3, the H₂S concentration in all layers of all cores temporarily decreased on the second day and then increased in July and August. A possible cause of this trend is that oxygen may have been contaminated while the concentration was being measured on Day 1. Another factor could be that the reaction of H₂S with iron or manganese compounds was delayed.

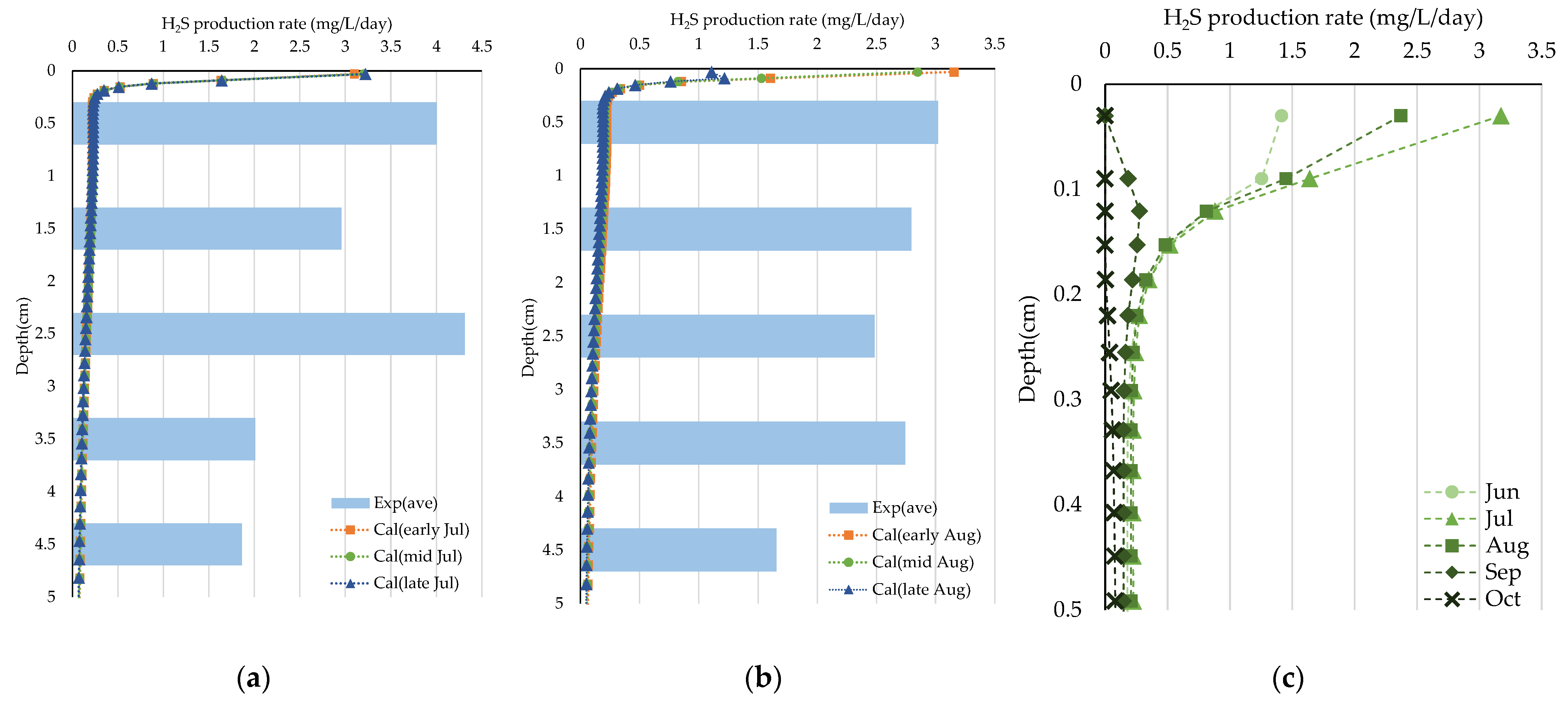

Figure 12 shows the vertical distribution of the H₂S production rate in each layer in the experiment (5 layers) and calculation (field-reproduced, 100 layers). The rate in the calculation was considered equal to R5 in Figure 4. In the model, H₂S production mostly occurred in the upper 0.5 cm, with little production in the lower layers. There are several possible explanations for the discrepancy. First, in field reproduction, phenomena such as molecular diffusion, biodiffusion, sedimentation, and burial were observed. However, these phenomena were not observed in the experiment. Second, there was an inhibition term for H₂S in the model, and the production rate was inhibited beyond a certain concentration. It can be inferred that, in the reproduction calculation, the inhibition of H₂S is enabled at the bottom, while in the upper part, H₂S is released to water at every step and the inhibition is disabled. Therefore, the thresholds that limit the inhibition term in the model must be recalibrated.

Additionally, sulfate reduction is known to be controlled by the availability of electron acceptors, availability of decomposable OM, and the pH [25,26,27], which may not be fully considered in this model.

Figure 12c shows the seasonal variations in the production rate (averaged, as in the experimental layers) and the monthly averaged vertical distribution in the calculation. There are discrepancies in the distributions between the experimental and calculated values; however, our model could reproduce the trend of H₂S production becoming more inactive in all layers (especially the upper), with hypoxic conditions in summer and inactive with the recovery of DO.

4.2. Annual Cycle of Iron and Sulfur

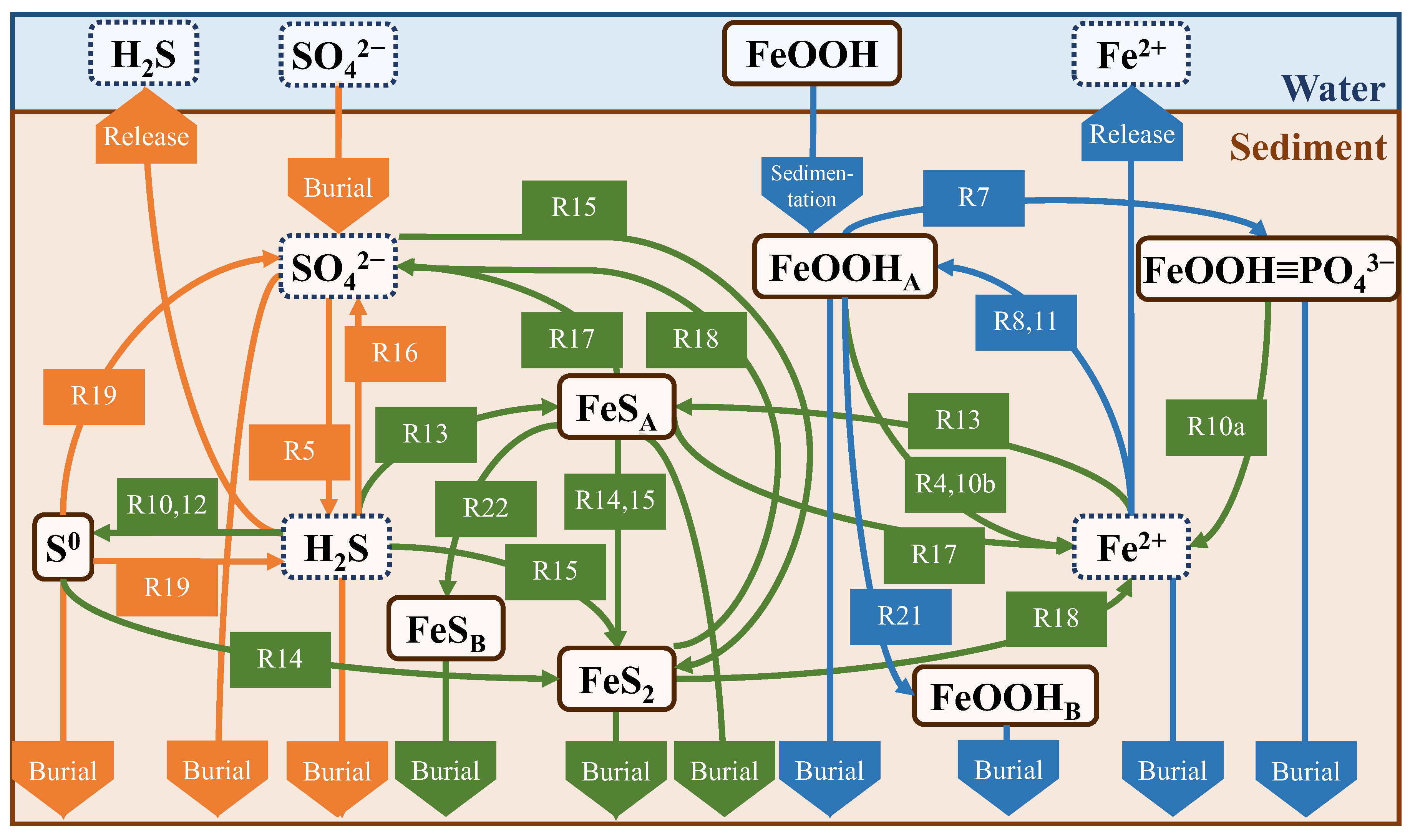

We created a diagram of the average fluxes to discuss the sulfur and iron cycles and the suppression effect on H₂S release by iron (Figure 13). First, all values input to the diagram were calculated in units of mmol/cm²/d, with the direction of the arrow being positive. Arrows between the sediments and water connecting the same compounds represent release or sedimentation fluxes, whereas arrows pointing to the bottom of the sediments represent burial fluxes. The arrows connecting the different compounds represent the fluxes due to changes in the form of the reaction pathways shown in Table 4.

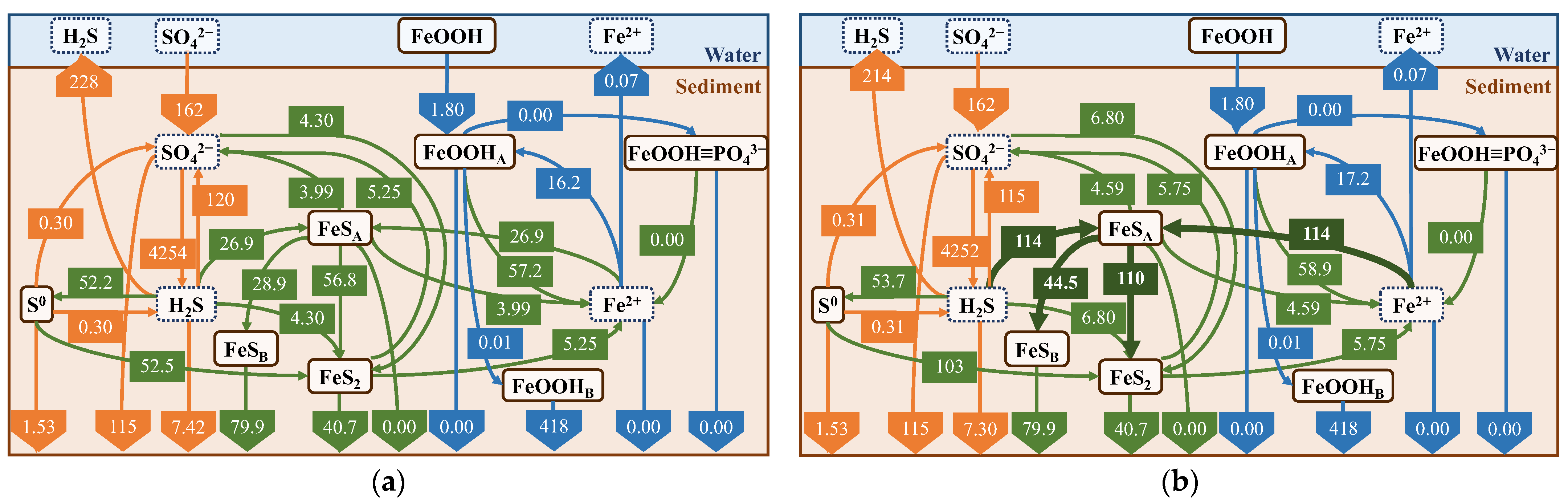

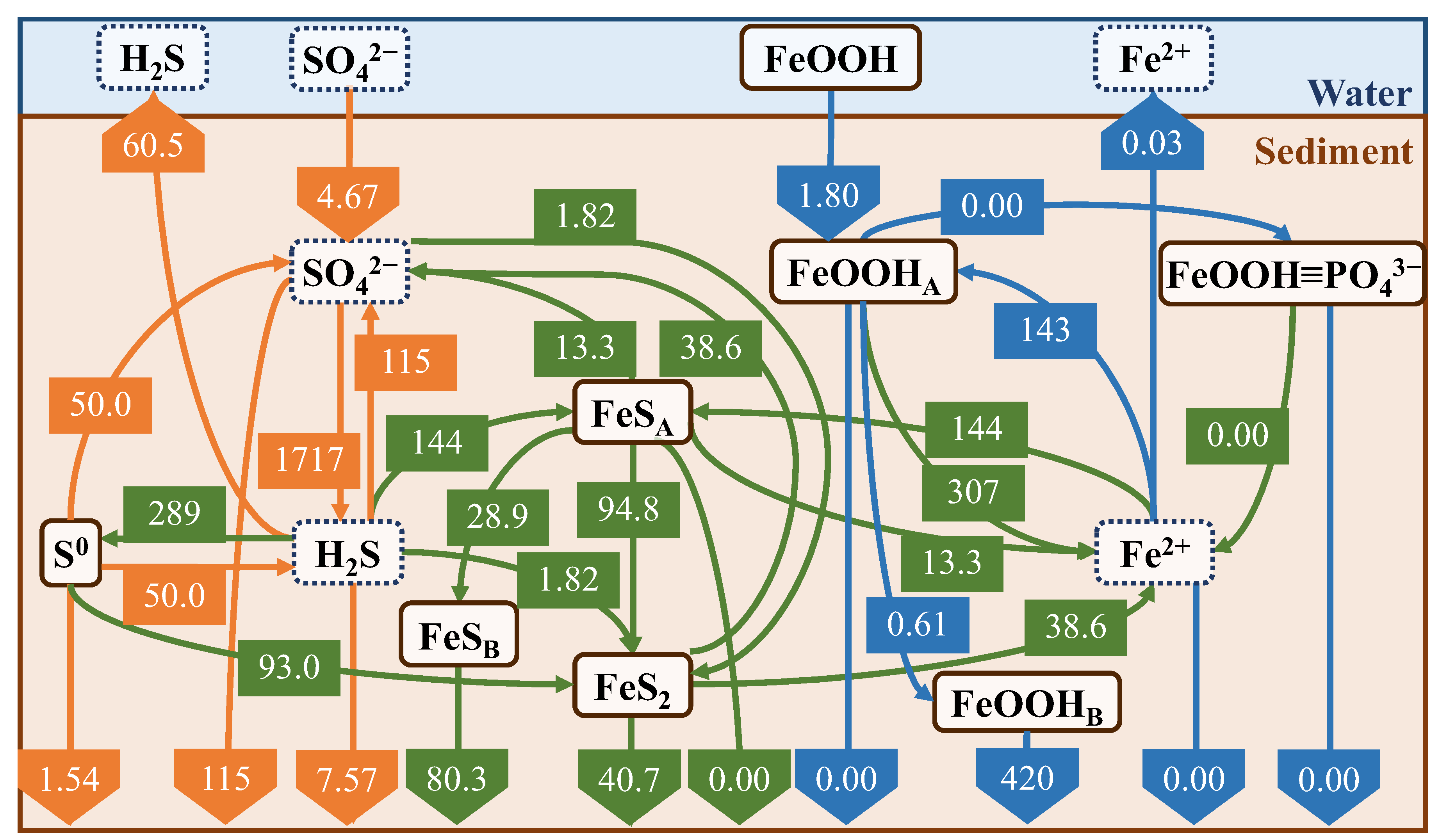

The annual and seasonal mean fluxes are shown in Figure 14 and Figure 15, respectively. Both the fluxes were averaged over a depth of 15 cm. The seasonal fluxes were averaged from March to May (spring), June to August (summer), September to November (autumn), and December to February (winter). Seasonal cycle diagrams were discussed based on the annual cycle. The POM decomposition fluxes due to SO₄²⁻ (R5) and H₂S release were relatively small in spring, reached a maximum in summer, and then decreased in fall and winter. As shown in Figure 9, the results indicate that the electron acceptors in POM decomposition, except for SO₄²⁻, are consumed during spring and summer, causing the production and release of a large amount of H₂S. The R5 and H₂S release fluxes during the summer months accounted for 70% and 93% of the annual fluxes, respectively.

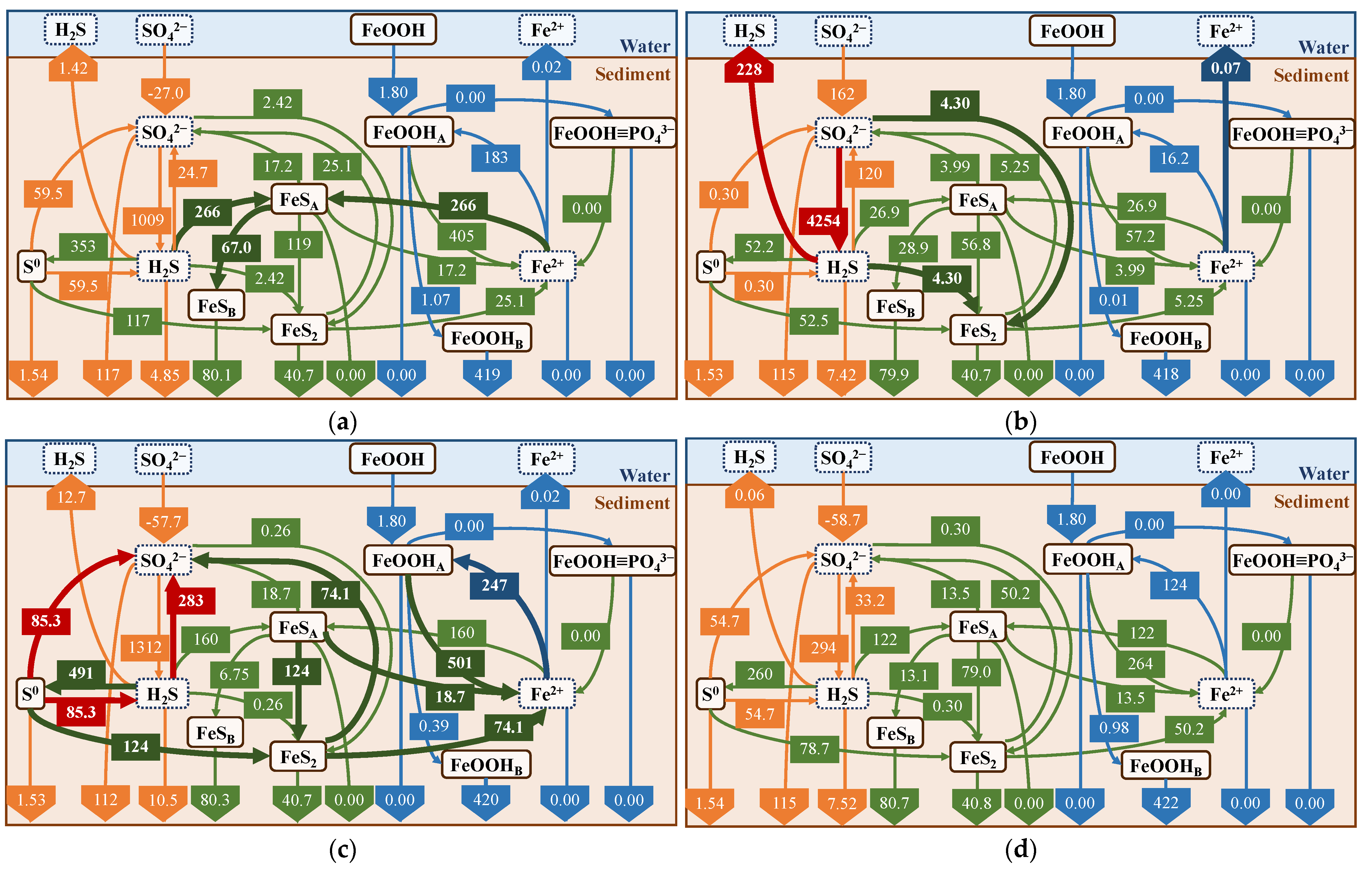

Each reaction pathway with a seasonal maximum value is shown in Figure 16. For example, during spring, the FeS formation rate (R13) reached its maximum, whereas the H₂S release rate was significantly suppressed. The sulfate reduction (R5) and H₂S release were at maximum during summer. The trend during autumn was similar to that of spring, but the cycling of FeOOH and Fe²⁺ (R4, R8), pyrite (FeS₂) production (R14) and its consumption (R18), and S⁰ production (R10) and disproportionation (R19) were maximized. In winter, almost all reactions were suppressed because of the lower temperature.

4.3. Effect of Iron Curtain

As mentioned previously, iron curtains are a phenomenon in which iron reacts with H₂S. This reaction causes H₂S to settle as FeS, thereby suppressing H₂S release into the seawater. This effect was explained in terms of the reaction pathway. Equations (3) and (4) are the reaction equations for oxygen and H₂S, respectively, obtained by unifying the number of moles of O₂.

9H₂S + 18O₂ → 9SO₄²⁻ + 18H⁺

(3)

12H₂S + 8FeOOH → 8FeS+4S⁰ + 16H₂O
8FeS + 18O₂ + 12H₂O → 8FeOOH + 8SO₄²⁻ + 16H⁺

(4)

In the absence of Fe, 18 mol of O₂ reacted with 9 mol of H₂S, whereas in the presence of Fe, the same amount of O₂ reacted with 12 mol of H₂S, as shown in the equation, indicating that H₂S could be removed approximately 1.3 times more. Furthermore, because Fe returns to its original form, FeS regains its oxidizing power. An advantage of iron curtains is that FeOOH acts catalytically and maintains its ability to remove H₂S. Furthermore, because Fe is a part of the OM decomposition process (R4 in Figure 4), it may delay the generation of H₂S by extending the period during which electron acceptors in the OM decomposition process are converted to sulfates.

In the simulation of iron material addition to the field, we calculated the results for one year using the results of the field reproduction and assumed that 637 g/m² of iron material (Fe₂O₃, equivalent to 5 g in the experimental system) was added once to the upper three layers on 1 June without any further additions. By comparing the cases with and without the addition of iron material (Figure 16), we found that the addition of iron material suppressed H₂S release by 14 mmol/m²/d and increased the reaction with FeOOH_A by 87.1 mmol/m²/d. This indicates that the main pathways related to FeS production and consumption are larger and clearly indicates that the iron material reacts with H₂S, but the suppression of H₂S release is not as significant. This is considered to be due to its smaller suppression effect compared to H₂S production. In terms of the suppression of H₂S release, R13 is as important a reaction as R10; however, the values of R13 and R10 are smaller than those of R5. Therefore, the added amount of iron was insufficient to completely suppress H₂S release. A comparison of Figure 16b with the seasonal results (Figure 16) suggests that the result is similar to the spring result, owing to the relatively larger production rate of FeS (R13) using iron materials.

4.4. Model Setting Conditions

Future research should focus on improving the accuracy of field sediment reproduction and optimizing the reaction paths and rates between iron materials and H₂S.

4.4.1. Improvement in the Reproduction Accuracy of Field Sediments

The boundary conditions of DBL significantly influence the internal composition and material cycle of sediments in the reproduction calculations of field sediments. For example, setting the sedimentation flux of FeOOH as an oxidant is considered important, as are the DO and NO₃⁻ concentrations. However, in previous models, including ours, FeOOH was assigned seasonally constant values. In contrast, in an ecosystem model, P loading is usually given in the form of an LQ equation that depends on the river flow rate. The run-off characteristics of Fe are similar to those of phosphorus [28,29], and a similar LQ equation can be used in the analysis. Wijsman et al. [30] constructed a sediment model with the Black Sea as the target water body and suggested that large rivers are the primary source of reactive iron (e.g., FeOOH) to the continental shelf. In this study, in the area around the station, there are several rivers, such as the Toyo, Shio, Kamita, Umeda, and Yahagi rivers. It is possible that reactive iron from these rivers affects the sediment compounds. A future prospect would be to consider the seasonal variations in the boundary conditions to consider the inflow of iron from the rivers and to evaluate the effect of this change.

4.4.2. Reaction of Iron Materials with Sulfides

For the reaction rate between the iron materials and H₂S, the model calculations assumed the same reaction pathway as that of naturally occurring FeOOH and H₂S, and the reaction rate was tuned. The reaction rate between FeOOH and H₂S can be expressed by first-order reaction kinetics, which are affected by several factors, such as pH, common ion species, and the crystal structure of ferric oxide [31,32]. The pH is yet to be reproduced in the model, as observed in the field and laboratory experiments. There are many unclear points regarding the rate equations for the reaction of H₂S with iron and other candidate materials (e.g., steel slag) used in the experiments and the dependence of the rate constants on the reaction conditions. This issue needs to be addressed in future studies.

5. Conclusions

In this study, we developed a sediment model based on the work of Fossing et al. [5] and adapted it to Mikawa Bay. Additionally, we attempted to reproduce the concentration distribution of major substances in field sediments and experimental results using field sediment cores. Moreover, we predicted the addition of Fe to the field sediments.

The following results were obtained:

• In the sulfide production-rate experiment, we calculated the rate based on its concentration in the sediment cores during the summer months. This rate tends to increase in the upper layers over time. However, the reproducibility of the model remains an issue.
• Our model, which was developed by focusing on sulfur and iron dynamics, was able to reproduce the vertical concentration distributions of the major substances in the sediments and their seasonal trends.
• By reproducing the sulfide-release experiment, our model could reproduce the effects of and differences in the amount, type, and time of addition of iron materials.
• Predictive calculations for the addition of iron materials to the sediments, particularly during the summer season when the release was most prevalent, allowed us to quantify the difference in the amount of H₂S released with and without the addition of iron materials in terms of fluxes.
• Comparing the cases with and without the addition of iron material, the addition of iron material suppressed H₂S release by 14 mmol/m²/d and increased the reaction with FeOOH_A by 87.1 mmol/m²/d.
• There are some prospects for this work, such as the seasonal variations in the boundary conditions, inflow of iron from the rivers, the rate equations for the reaction of H₂S with iron and other candidate materials used in the experiments, and the dependence of the rate constants on the reaction conditions.
