Capillary Imbibition in Layered Sandstone

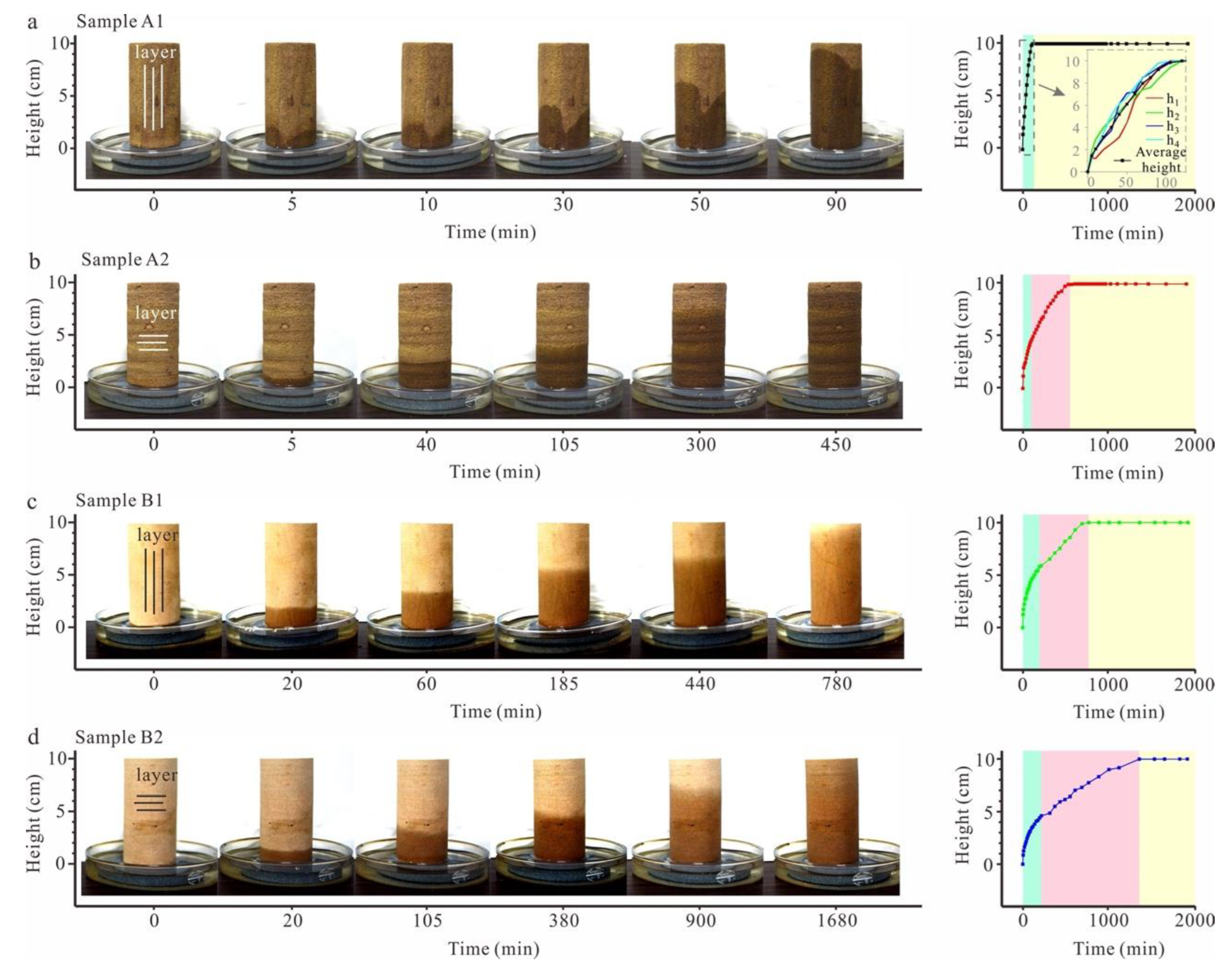

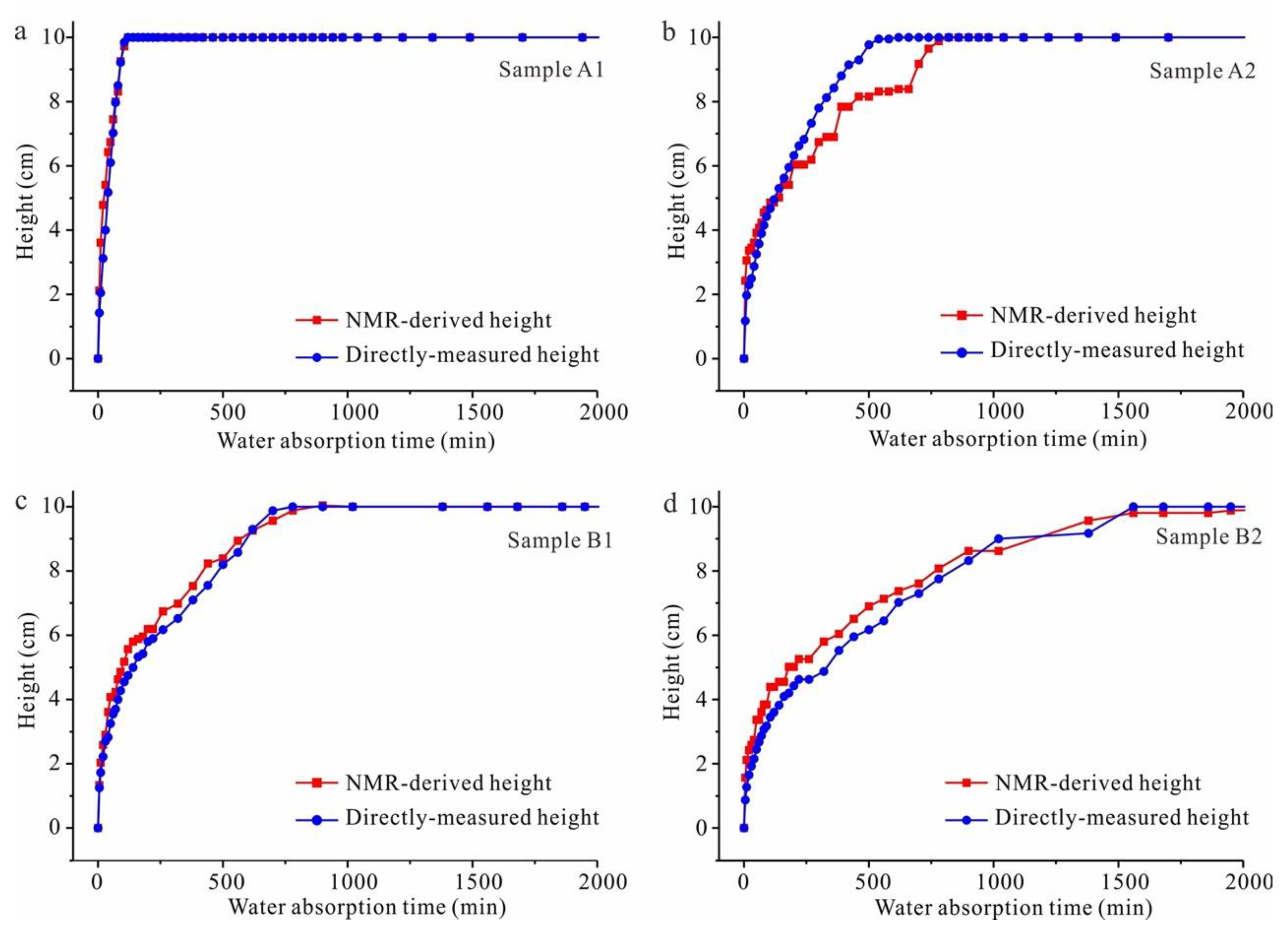

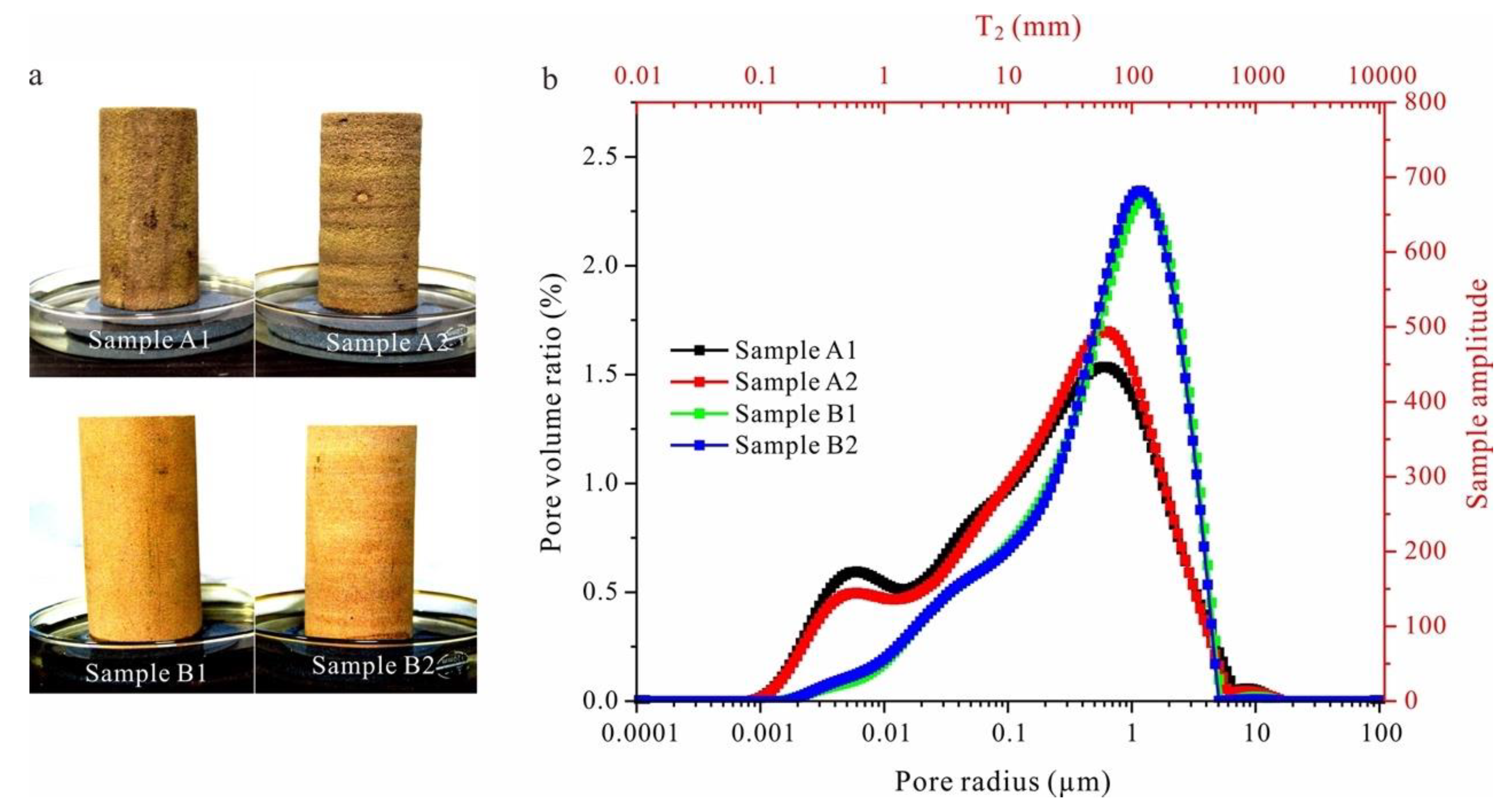

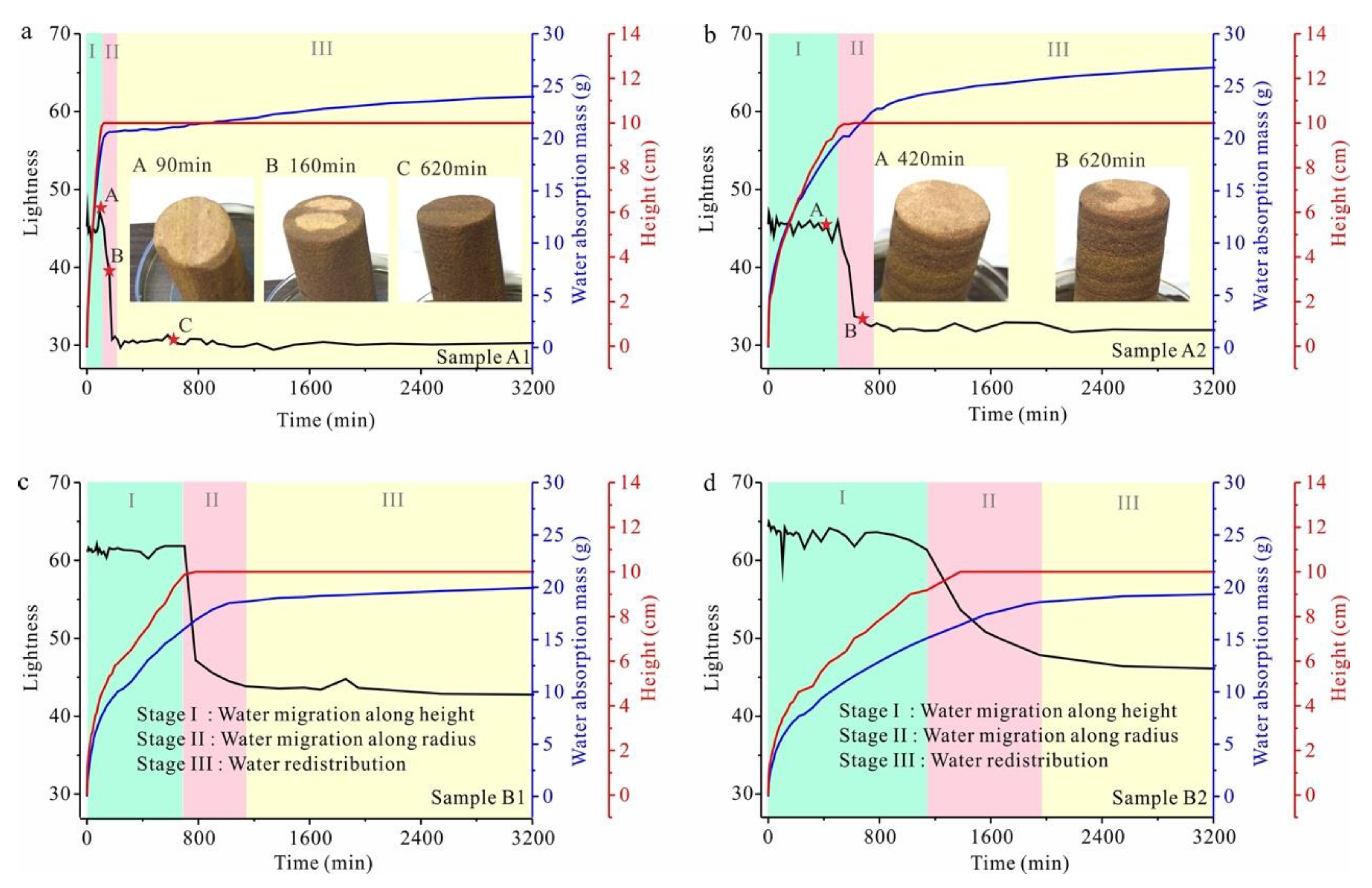

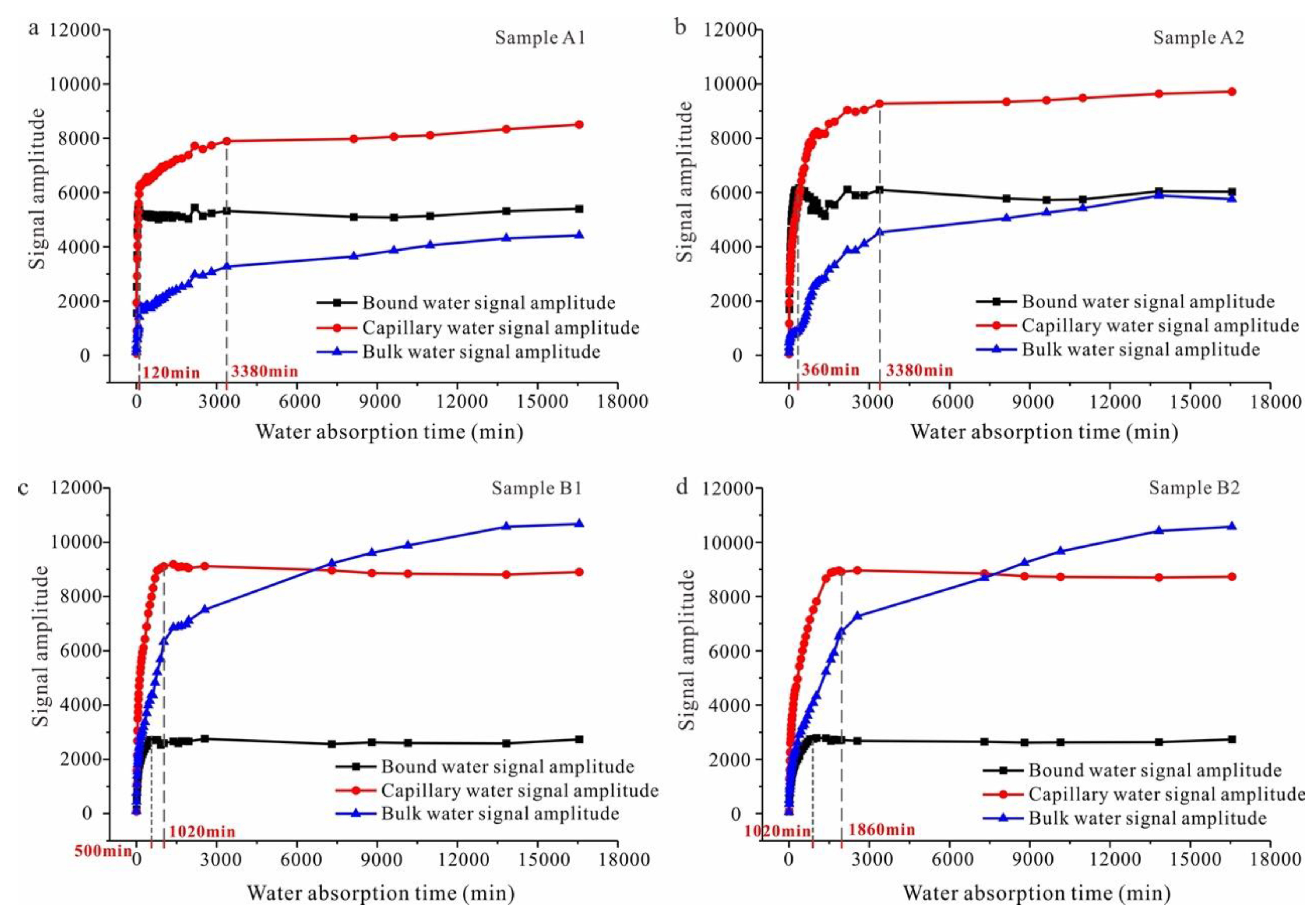

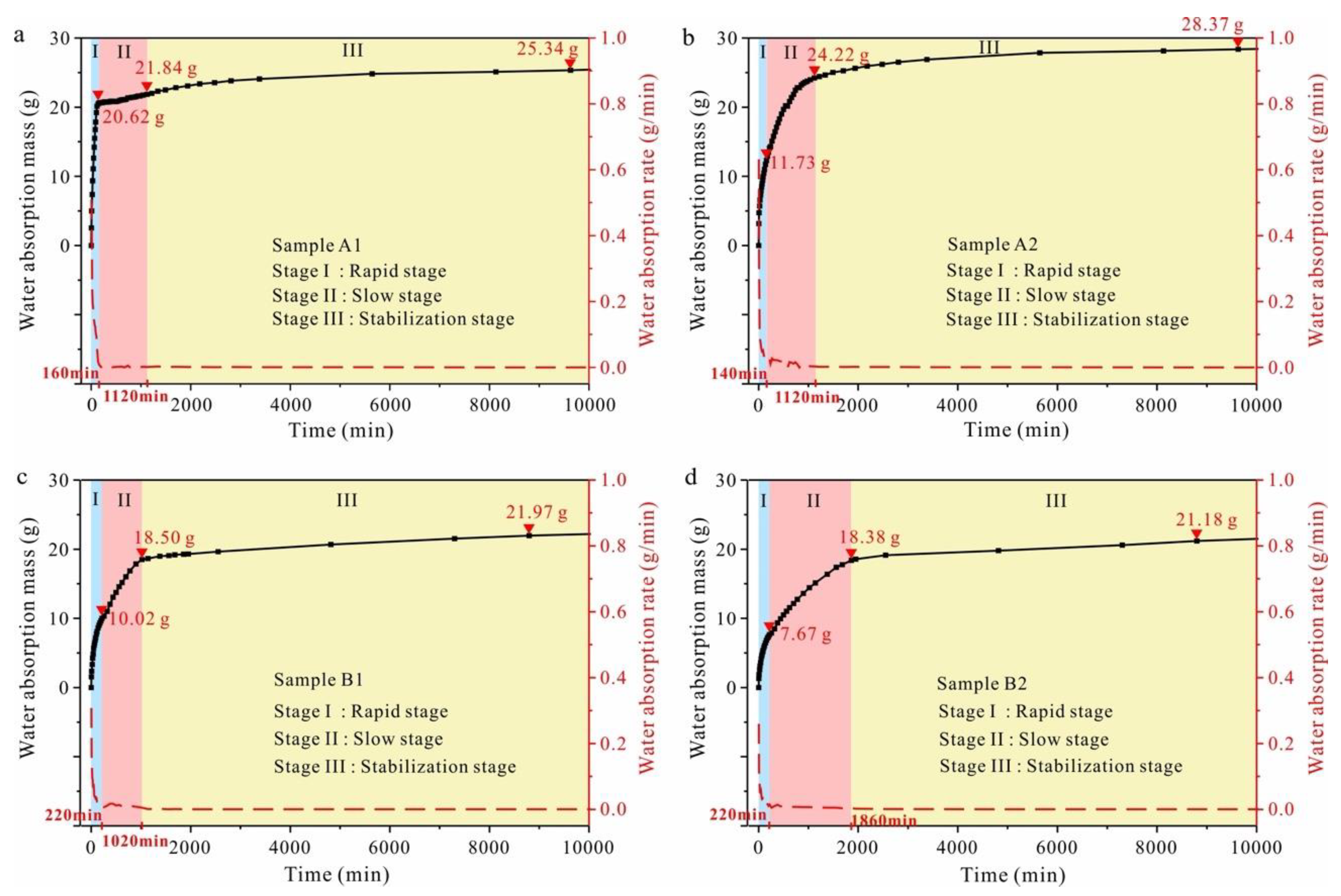

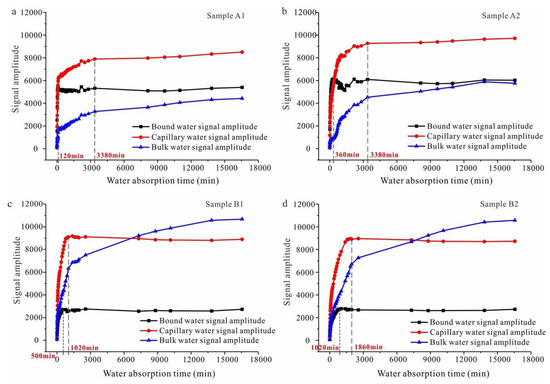

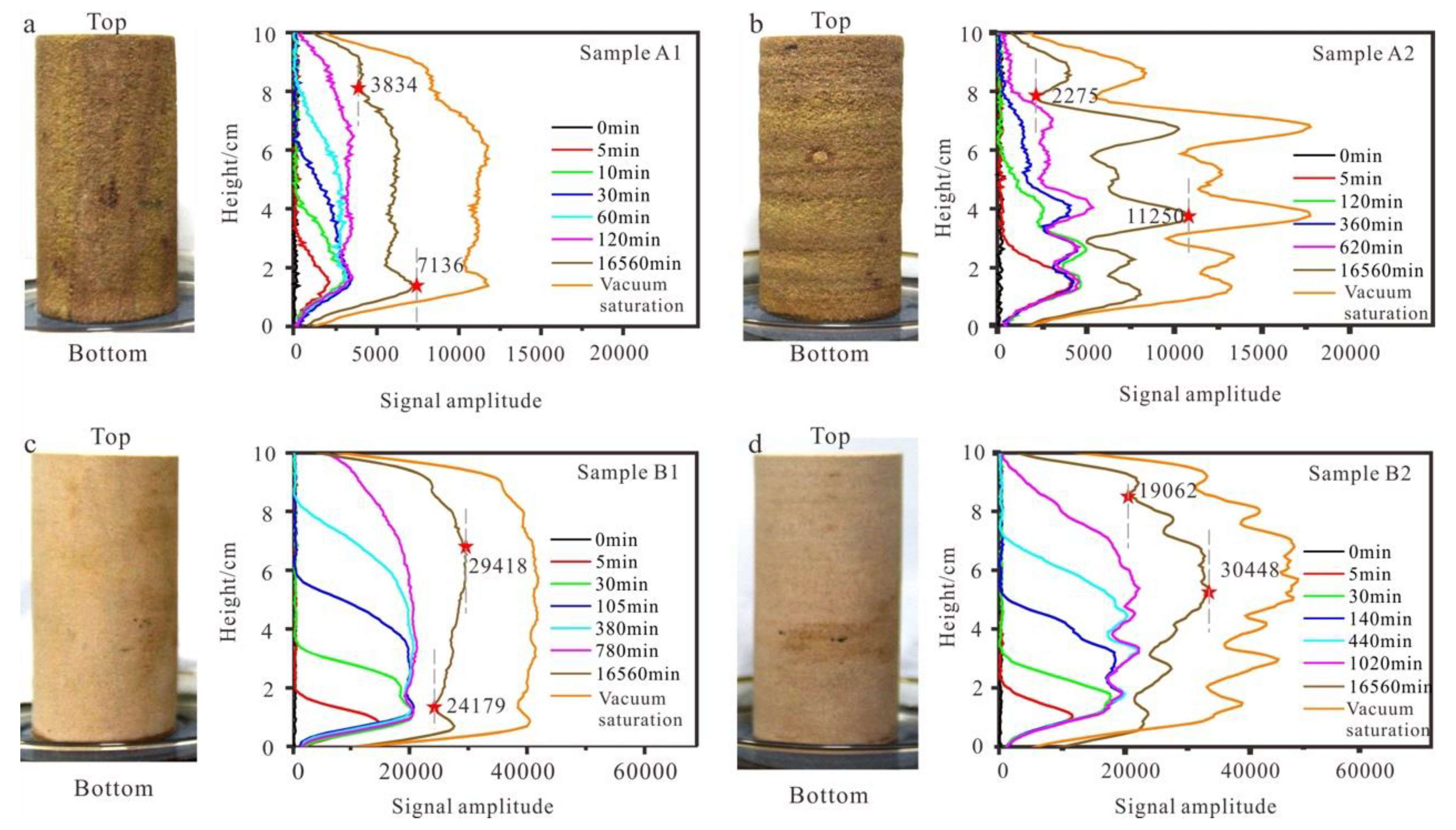

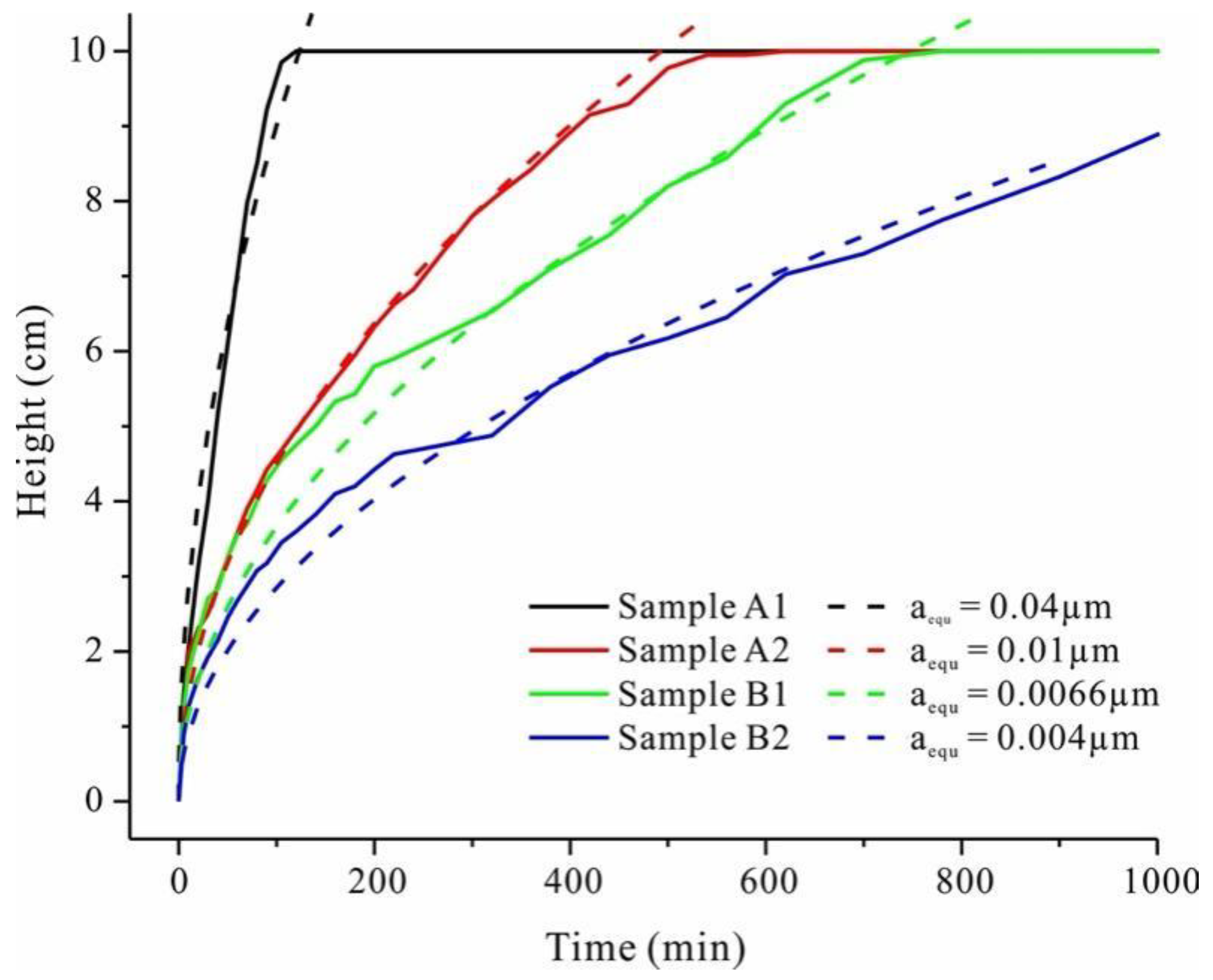

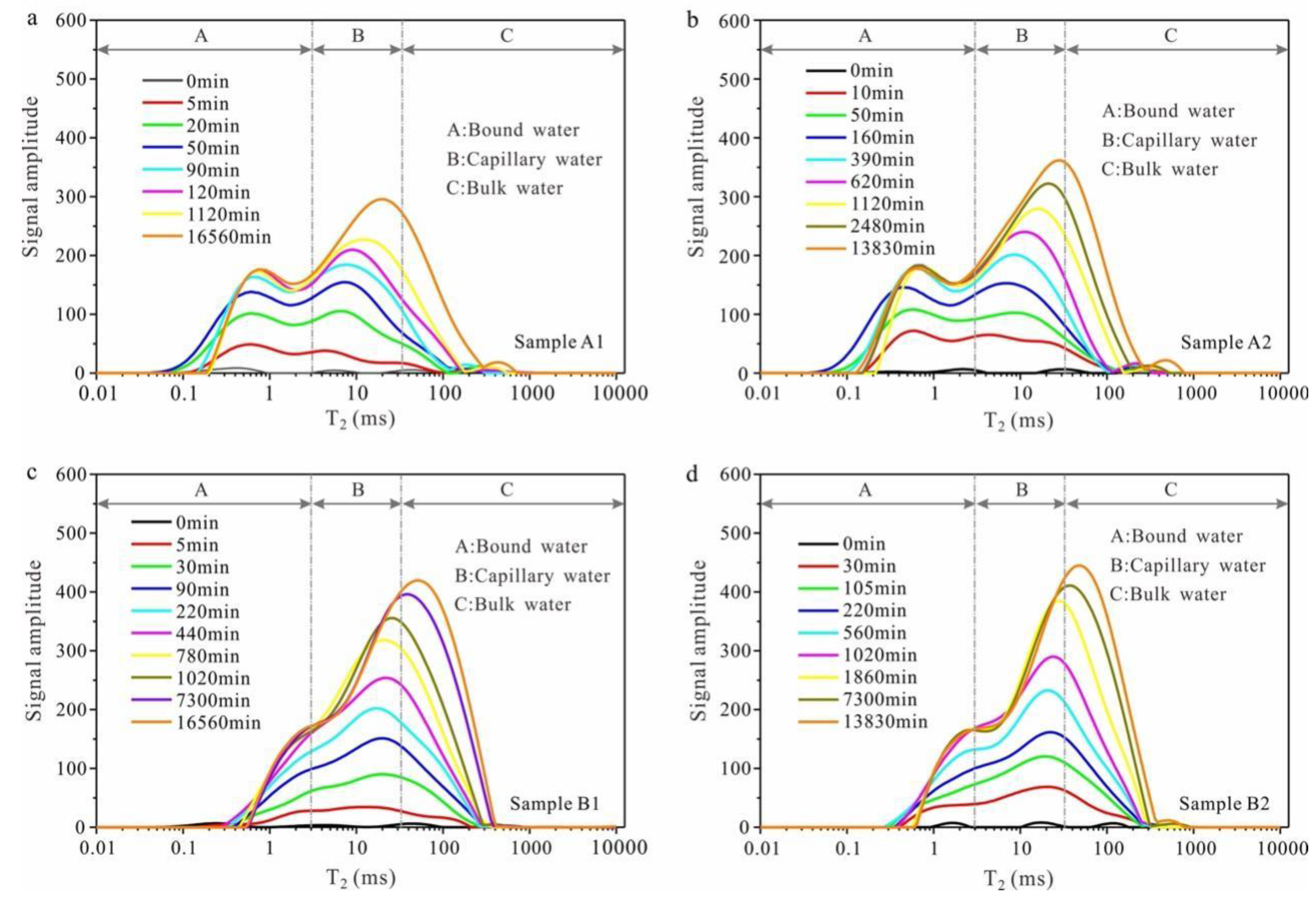

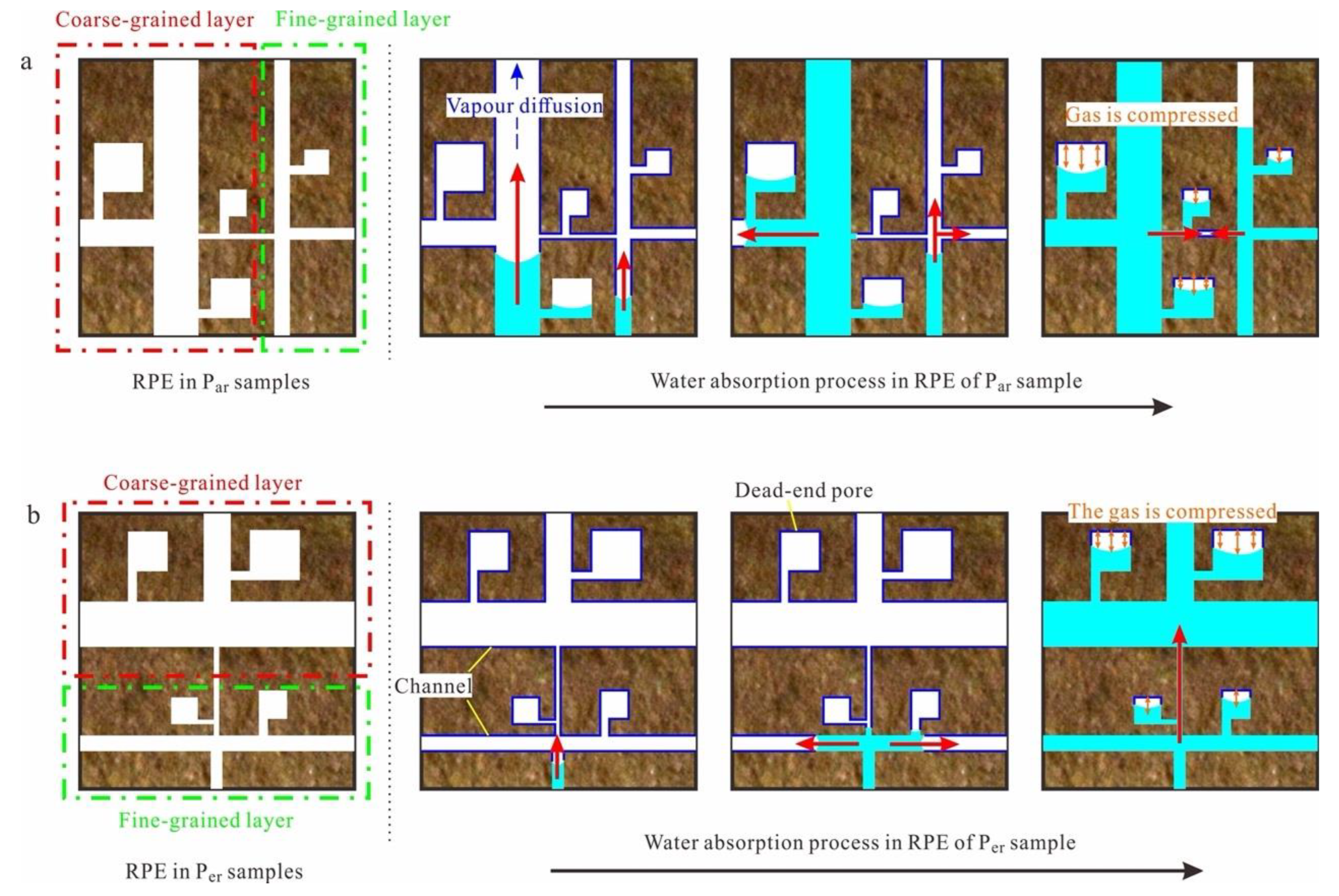

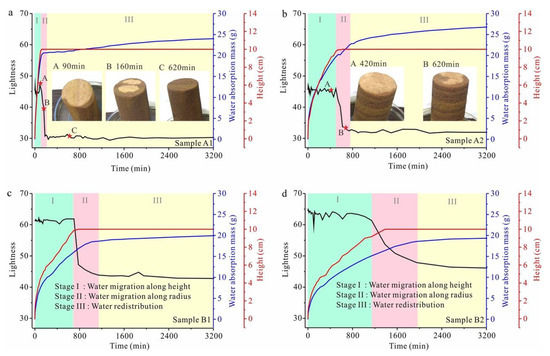

Spontaneous capillary imbibition in rocks is fundamental to numerous geomorphological processes and has caused numerous engineering problems. Sedimentary rocks are widely distributed across the Earth’s surface and usually bear layer structures that make the pore structure anisotropic. Understanding the effects of the anisotropic pore structure on capillary imbibition in sedimentary rocks is crucially important but remains inadequate, especially on larger scales than a single tube. In this study, the capillary imbibition process in sandstone was monitored by measuring the water absorption mass, height of the water absorption front, NMR (nuclear magnetic resonance) T₂ spectra, and stratified moisture distribution. The results demonstrate that (1) the layer structure had a significant effect on the capillary imbibition process by altering water absorption rate and water redistribution mode, as the time of the water front reaching the top of Sample A1 lagged behind Sample A2 by 500 min; (2) vapor diffusion and condensation occurred ahead of the water-absorption front, which was more obvious in samples with well-developed beddings; (3) in sandstone samples with bedding planes perpendicular to the height (P_er samples), internal water migration lagged behind superficial water migration and was longer in sandstones with well-developed beddings, such as the case of Sample A2, for which the time lag was as large as 280min. Based on a combination of observations of the sandstone structure at pore scale and layer scale with results calculated from the Lucas–Washburn equation, we propose the concept of the representative pore-structure element (RPE). Based on analysis on water migration in RPEs, we suggest that the effects of the layer structure on capillary imbibition in sandstone are embedded in the different water migration modes in P_ar (samples with bedding planes parallel to the height) and P_er samples. The water migration mode in P_ar samples can be simplified as primary upward intra-layer migration followed by intra-layer horizontal migration, while that in P_er samples is primary intra-layer horizontal migration followed by intra-layer upward migration.
