Biotic Integrity, Water Quality, and Landscape Characteristics of a Subtropical River

by
Luis Fernando Gudiño-Sosa
1,
Rodrigo Moncayo-Estrada
2,*,
Martha Alicia Velázquez-Machuca
1,*,
Gustavo Cruz-Cárdenas
1,
Luis Arturo Ávila-Meléndez
1 and
José Luis Pimentel-Equihua
3
1
Instituto Politécnico Nacional, Centro Interdisciplinario de Investigación para el Desarrollo Integral Regional, Unidad Michoacán, Justo Sierra No. 28, Jiquilpan 59510, Michoacán, Mexico
2
Instituto Politécnico Nacional, Centro Interdisciplinario de Ciencias Marinas, Av. Instituto Politécnico Nacional s/n Col. Playa Palo de Santa Rita, Apdo. Postal 592, La Paz 23096, Baja California Sur, Mexico
3
Colegio de Postgraduados-Campus Montecillo, Carretera Federal México-Texcoco Km 36.5, Montecillo 56230, Estado de México, Mexico
*
Authors to whom correspondence should be addressed.
Water 2023, 15(9), 1748; https://doi.org/10.3390/w15091748
Submission received: 30 March 2023 / Revised: 23 April 2023 / Accepted: 28 April 2023 / Published: 1 May 2023
(This article belongs to the Special Issue Water Quality and Ecological Risk Assessment in Surface Waters)
Browse Figures
Review Reports Versions Notes

Abstract

:
The integrity of rivers is affected by anthropogenic activities at different spatial scales, from basin and landscape levels to the direct effects on the river and aquatic life. Our objective was to study these effects on the subtropical La Pasión River, analyzing environmental, geomorphological, habitat and water quality, and macroinvertebrates. We sampled the dry season (March 2022) because the river presented stable conditions. We selected the most influential variables in each spatial scale and determined their relationship with the indexes of quality characteristics and aquatic life in the river using multivariate statistics. Most sites (≈65%) had medium water and suboptimal habitat quality status, meanwhile half the sites had regular biotic integrity status; without finding coincidence in the quality of the different indexes applied, all sites indicated a high gradient of degradation from the origin to the mouth of the river. The presence of some families (e.g., Culicidae, Chironomidae, Lumbriculidae) indicated organic matter contamination. The main variables that significantly classified the river quality and integrity structure were water flow, turbidity, habitat embeddedness, and sulfates (χ2 = 0.1145, p < 0.01). It is concluded that the affected sites received wastewater without prior treatment and presented physical barriers such as irrigation channels.

1. Introduction

Due to a continuous and growing process of pollution and degradation, rivers stand out as the aquatic ecosystems most affected by anthropogenic activities [1,2,3]. Therefore, there is a loss of environmental services and biodiversity [4,5,6]. In addition, the water quality of the river depends on the ecosystem’s interaction with its surroundings, both at the landscape and basin levels. Changes in land use and productive activities (e.g., livestock, dairy industry, and agriculture) promote pollution and habitat deterioration and the decrease of resource availability. Additionally, the development of urban and rural areas where a wide variety of activities are carried out, including industrial ones, impacts rivers due to mixed untreated wastewater discharges [7,8].
In this context, it is essential to have different ways to identify, quantify, and value the quality of the resource, the habitats, and their biotic integrity. On the one hand, monitoring has been implemented through physicochemical variables and the application of water quality indices to understand the characteristics and condition of the resource mathematically [9,10]. On the other hand, there is biomonitoring, in which aquatic organisms are used as a surrogate to understand the water and habitat quality [11]. Biotic integrity indices, such as the Biological Monitoring Working Party index (BMWP) and other ecological indices that work with macroinvertebrates have been used as descriptive tools [12]. Aquatic macroinvertebrates are used as bioindicators because of their ability to reflect the real conditions of the water bodies, habitat quality, channel alterations, hydromorphological characteristics, ecosystem quality, and ecosystem services.
In this study we selected the subtropical La Pasión river because it presents a distinctive punctual and diffuse pollution from the interaction of productive activities, urban and industrial development, and continuous change in land use. Furthermore, this river is an important tributary for Lake Chapala, which is the largest natural lake in Mexico and a RAMSAR site (n° 1973 with a surface of 114,659 ha). The main aim was to analyze the impacts presented from the riverbed to the landscape and basin levels in an integral manner, using both abiotic (water and habitat quality) and biotic (biological integrity and indicator species) indices. Moreover, we implemented a protocol of different statistical analysis to better describe the community and its relationship with the environment. We hypothesized, first, that a greater impact on water quality and the macroinvertebrate community is expected for the middle part of the river due to activities related to agriculture and the dairy industry and that towards the end of the river there will be impacts on the quality of the habitat due to urban development, which will generate a gradient from better (origin) to worse (river mouth) in terms of water quality and loss of biodiversity [13]. Second, the impacts are directly reflected successively from a larger scale (basin) to local characteristics within the river channel (water and habitat quality and macroinvertebrates).

2. Materials and Methods

2.1. Study Area

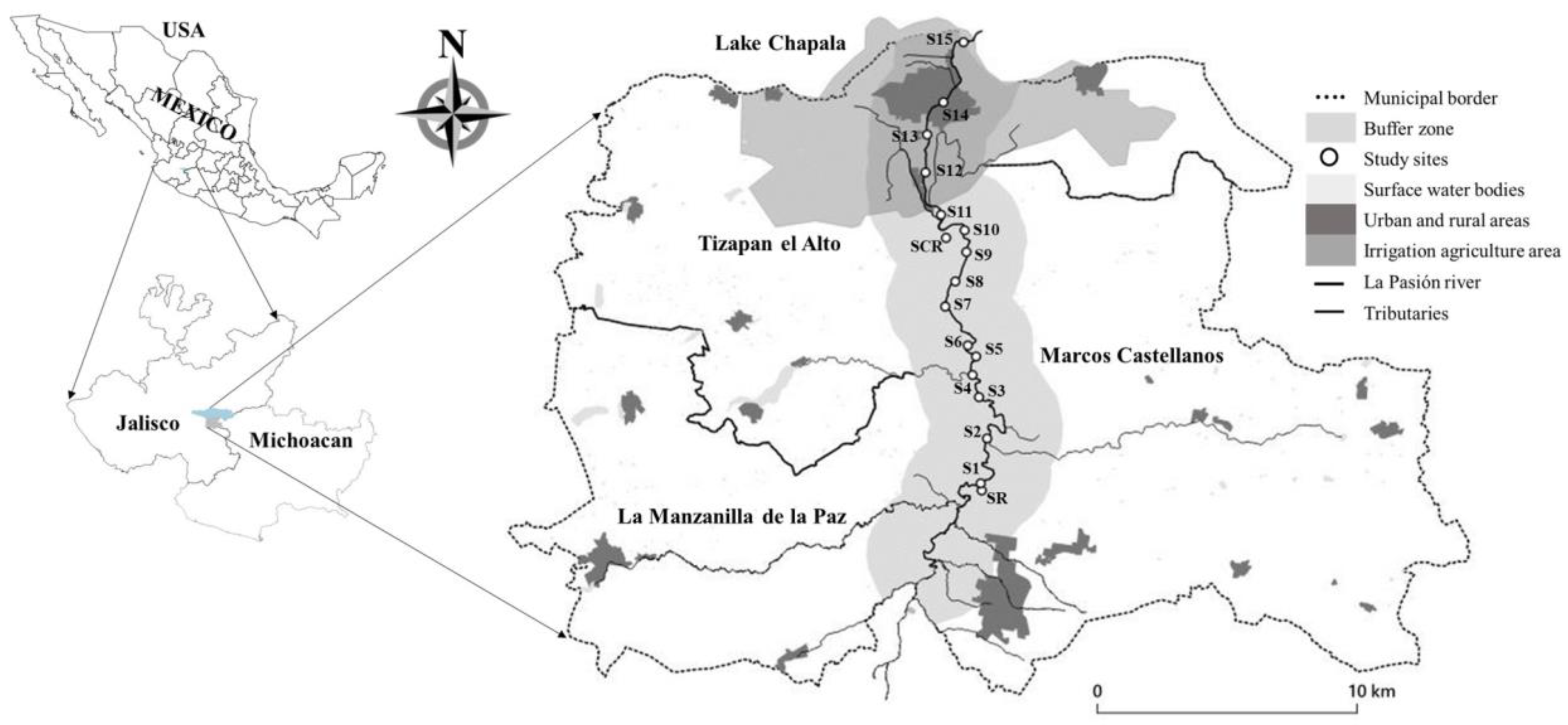

The La Pasión river basin is located within parallels 19°57′ and 20°11′ N and the meridians 102°51′ and 103°12′ W in Mexico, within an altitude that oscillates between 1500 and 2400 m a.s.l., and has an area of 560,909 km2. The river is considered one of the main currents in the basin, with a length of 29.56 linear km. The La Pasión river runs through three municipalities, Marcos Castellanos, Tizapán el Alto, and La Manzanilla de la Paz, and flows into the south shore of Lake Chapala [14]. The basin is located within the Lerma-Chapala-Pacífico administrative region, in the Lerma hydrological region number 7 or Lerma-Chapala sub-basin (Figure 1). We defined the basin with the QGIS program (QGIS Development Team, 2021) [15] by applying four algorithms to a digital elevation model obtained from the geographic information systems platform at INEGI [16]: (1) fill sinks, (2) Strahler order, (3) defining channel networks, and (4) calculating upslope and downslope areas [17,18].

2.2. Fieldwork and Sample Analysis

Eighteen sites with a regular distribution were sampled on the main course of the river and on adjacent channels, including natural features (e.g., tributaries inflow and river mouth), anthropogenic impacts (e.g., domestic and industrial wastewater inputs), and reference sites with little impacted conditions to make comparisons among different water qualities [19]. Sampling was carried out in the dry season (March 2022) since it represented the low flow phase in the river when macroinvertebrate sampling is most effective. There is also hydrological connectivity between the sampling sites in the river because, at the peak of the dry season (end of May and early June), intensive water use for irrigation can isolate parts of the main channel [20]. Finally, human impacts are magnified by low flows, creating spatial variation throughout the river system that reflects organism responses to different stressors [21,22,23].
Water physicochemical parameters such as temperature, percentage of dissolved oxygen saturation, pH, electrical conductivity, and salinity were recorded at each sampling site with a multisensor YSI Pro1030 (YSI Incorporated, Yellow Springs, OH, USA). Transparency was measured with a Secchi disk and the discharge with a Flowatch flowmeter AMI0608 (JDC Electronic SA, Yverdon-les-Bains, Switzerland). In addition, water samples were collected at each site in wide-mouth amber glass bottles of 500 mL capacity and amber polypropylene bottles of 1000 mL capacity. In the laboratory, oils and grease (O and G in mg/L) were determined by Soxhlet extraction [24], and microbiological analyzes for total and fecal coliforms and Escherichia coli were determined by the most probable number technique (MPN/100 mL) [25]. Likewise, acidity–alkalinity (CO3 and HCO3 in mg/L), hardness (CaCO3 in mg/L), chlorides (Cl− in mg/L), boron (B in mg/L), chemical and biochemical oxygen demand (micro COD and BOD5 in mg/L), total phosphate (PO43−; TP in mg/L), nitrogenous compounds such as ammoniacal nitrogen, nitrates, and nitrites (NH4, NO3, and NO2 in mg/L), and sulphates (SO42− in mg/L) were all determined with the methodologies proposed by APHA [22] and current Mexican Norms. Major cations (Ca2+, K+, Mg2+ and Na+) and total dissolved metals (Cd, Cr, Cu, Fe, Mn, Ni, Pb and Zn) were measured with atomic absorption spectrometry [26].
The aquatic macroinvertebrates were captured with a Surber-type net (mesh size of 500 µm) within a 100 m section of the river at each site [23,27]. We sampled different hydromorphological units (pools, riffles, and rapids) and habitats (floating material, aquatic and riparian plants, sediment, and other bed substrates) [14,27,28]. The organisms were preserved in 2 L bottles with 70% alcohol. The samples were washed in a bucket with a 420 µm sieve bottom to remove most of the clay and silt. Aquatic organisms were separated by density difference in a supersaturated sugar solution, recovering the supernatant with a 420 µm mesh opening net for manual separation, quantification, and classification with the help of a stereomicroscope, dichotomous keys, and a specialized bibliography [22,29,30].

2.3. Hydrogeomorphological Characteristics and Indices

We analyzed the landscape characteristics by establishing an area of 2 km × 2 km (buffer zone) around each sampling site (the site in the middle point) [31]. The land use and vegetation in the riverbanks were described from the land use series maps of the National Institute of Statistical and Geography at a scale of 1:250,000 (INEGI; shapefiles format). We characterized the habitat quality describing the 10 parameters related to the riverbed and riverbank following the protocol proposed by Cornejo et al. [32]. Additionally, the geomorphological characteristics of the river were defined with the classification proposed by Rosgen [33]. We quantified the land use and vegetation cover using the supervised classification of satellite images using the machine learning regression algorithm (MLR) with a p-value of 0.8814 and kappa index of 0.783 (Lansat8 OLI TIRS from the USGS platform) [34,35]). The normalized difference vegetation index (NDVI) [21,36] was applied to discover the state of the vegetation surrounding the river, and the erosion index (E), through the universal soil loss equation [37], was used to determine the degree of erosivity. Finally, data regarding the main productive activities in the municipalities was obtained from the National Institute of Statistical and Geography municipal records [38].

2.4. Abiotic and Biotic Indices

We applied the National Sanitation Foundation index of water quality (NSF-WQI; https://www.nsf.org (accessed on 20 March 2022) [11,39,40,41], which includes nine physicochemical parameters (dissolved oxygen, fecal coliform, pH, BOD5, temperature change, total phosphate, nitrate, turbidity, and total solids), to assess the quality of the water. All parameters are classified in a water quality range and multiplied by a weighting factor, and the results are classified into five categories from very bad to excellent on a scale of 0 to 100 [40]. The diversity of macroinvertebrates was evaluated among sites by implementing rarefaction to standardize the odd number of samples and extrapolation to predict the actual diversity with respect to the expected number of species not obtained within the sampling effort [42]. Hill’s number (three Hill number) is proposed by [43] and based on both methods: q = 0 (species richness), q = 1 (Shannon–Wiener index), and q = 2 (inverse Simpson index). Other biological indices selected for the analysis were the percentage of Ephemeroptera (minus Baetidae), Plecoptera, and Trichoptera (EPT-B %) [44] and the Biomonitoring Working Party (BMWP) index adapted for subtropical rivers, which considered the sensitivity or tolerance to pollution of macroinvertebrate families [45,46].

2.5. Statistical Analyses

We screened the abiotic variables for redundancy with Pearson’s correlation to eliminate highly redundant variables (correlations > 0.95) [47]. Moreover, a multi-factor analysis, not presented here, was used to determine those variables that accounted for the greatest proportion of variance (≥0.4 of cos2) [48]. We discarded site 16 (S16) from these analyses because it had outliers in several physicochemical parameters. Since data distribution significantly differed from normality (Shapiro test), the non-parametric Kruskal–Wallis analysis of variance with the Dunn test (as an posteriori test) was adopted to test for differences between densities in the sampling sites.
We used two analyses to describe the macroinvertebrate community across the different sets of environmental variables. First, we applied a non-metric multidimensional scaling (NMDS) with a Bray–Curtis dissimilarity matrix to examine variation in the families [49,50]. A three-dimensional solution was calculated using 250 random starts of real data and 1000 iterations to evaluate stability (final stress of 0.08). We integrated the environmental variables as vectors in the ordination plot; this information is not part of the NMDS analysis (vectors are scaled by their correlation with the axes). Secondly, we used a multivariate regression tree analysis (MRT) [51,52,53] based on the Bray–Curtis dissimilarity matrix. This is a prediction model to examine patterns between the variation of the macroinvertebrate’s abundance and biotic indices as dependent variables and the different independent quantitative environmental variables (there are 48 including water quality, basin, geomorphology, and habitat). The MRT helps to identify the variable interactions because the information is partitioned into smaller sections and creates a tree of dichotomies. Each dichotomy minimizes the dissimilarity of samples within each tree branch. The tree with the lowest cross-validated relative error was reported according to the 1-SE rule [54]. Kruskal–Wallis tests were performed with the ‘dunn.test’ package (v. 1.3.5) [55], NMDS was computed using the vegan package (v. 2.5-7) [56], and the MRT was calculated using the ‘mvpart’ package (v. 1.6-2) [57], all in the R language [58].

3. Results

3.1. Landscape Characteristics

Regarding landscape characteristics, semideciduous forest, grassland, and agriculture showed higher surface usage, whereas human settlements covered less of the land (Table 1). Sites located in the lower basin had more human settlement coverage and S14 presented 100% coverage because it belonged to an urban park in the Tizapan town. The agricultural use was also located in the lower zone of the fluvial landscape close to the outflow, and five sites had coverages greater than 50%. The main crops produced were corn, green beans, sorghum, onion, cabbage, broccoli, oats, peas, tomato, squash (pumpkin), and berries. Induced grassland was located mainly in the upper zone of the fluvial landscape, and four sites showed coverage values greater than 50%. The lowland semi-deciduous forest was the most representative cover in six sites in the middle of the fluvial landscape, with values from 40 to 98%. This vegetation also had some important species of columnar cacti (Table 1).

3.2. Water and Habitat Characteristics

According to the physicochemical characteristics, some sites presented low variable values with small variances, such as BOD5, PO4, and SO4 in SR and S1, and have better environmental characteristics than sites with greater variability, with values even up to two orders of magnitude and extreme data (e.g., S6, S13, S16) that have punctual impacts on untreated water discharges (Table 2 and the complete variables in Table A1).
Concurrently, the results of the water quality index contrast between sites. There was a maximum value of 86, which means good quality (12%), and values of bad and very bad quality (23%); however, most of the sites were classified as medium quality (65%; Table 3). Regarding the habitat characteristics (habitat quality index, HQI), most of the sites were suboptimal (67%) and the fewest were marginal (11%).

3.3. Macroinvertebrates Characteristics

The diversity of aquatic macroinvertebrates consisted of a total of 14,829 individuals, represented by 67 families classified into 24 orders, 10 classes, and 5 phyla. The most frequent and abundant aquatic macroinvertebrates were Culicidae (27.4%), Chironomidae (15.11%), Lumbriculidae (9.05%), Baetidae (5.72%), Polycentropodidae (4.89%), and Physidae (3.27%) (Table 4); the remaining types accounted for 35% of the total.
There was a significant difference in the macroinvertebrate’s abundance among sampling sites (χ2 = 146.73, p < 2.2 × 10−16). For instance, the reference site is significantly different from the rest of the sites and site one was only similar to site 10 (S10), which also had optimum habitat condition and excellent biotic integrity (Table 3). Although site 16 (S16) is highly contaminated, it was similar in terms of dominant species to the other sites. According to the results of the BMWP biological index, the quality of the largest number of sites is regular and 33% of the sites had an excellent level, including the reference sites and at the beginning of the sampling (SR and S1; Table 3).

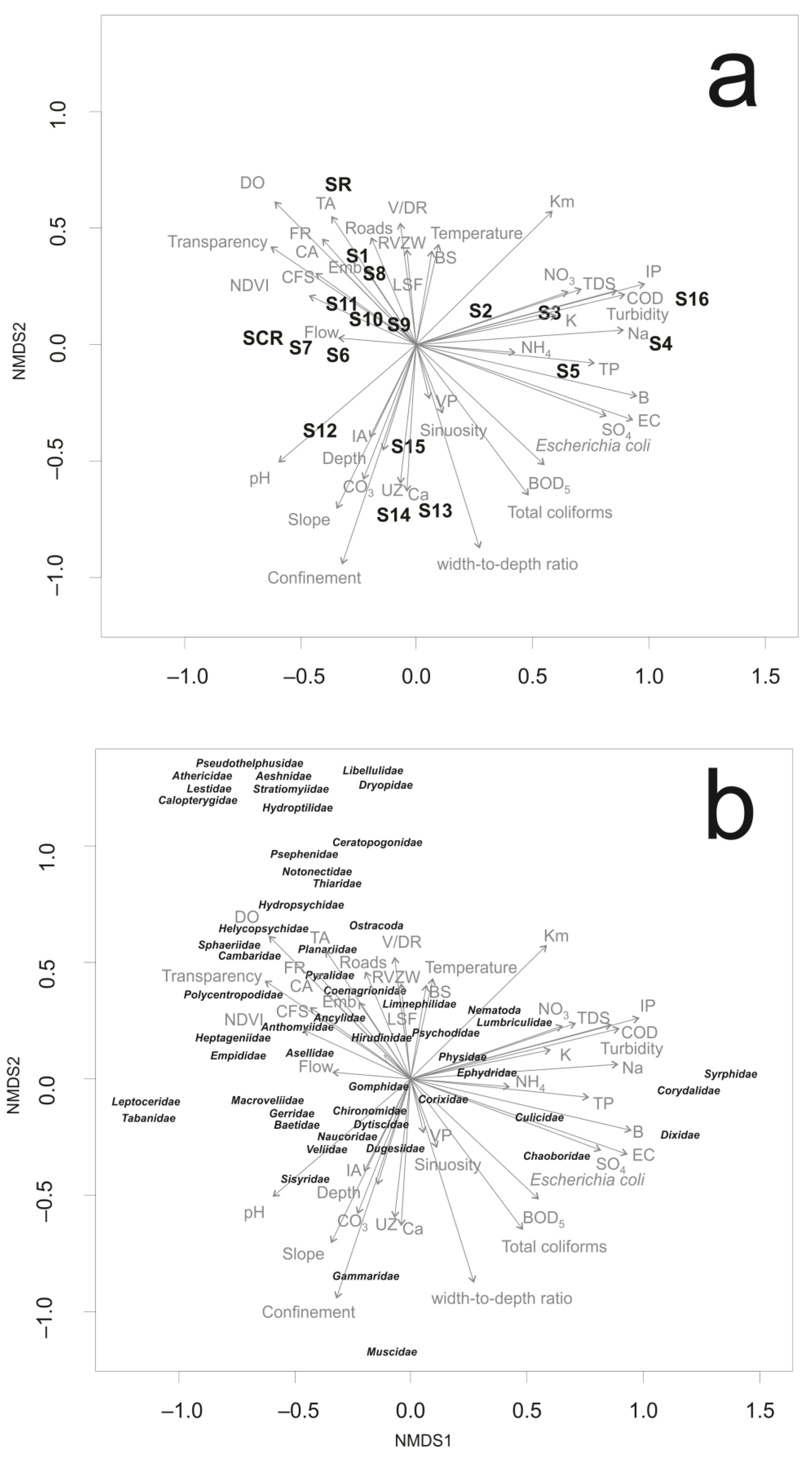

In the description of the biological community, the NMDS analysis showed the relationship between the different environmental variables and the presence of the macroinvertebrate families at different sites. The first axis at the top left shows the sites with the best water quality (higher dissolved oxygen concentration and transparency), some aspects of the basin (higher NDVI and irrigation agriculture), and good geomorphological (lower depth and higher flow) and habitat characteristics (rapids, less channel disturbance, more stable shores) (Figure 2).
The families found usually occur in clean waters with little organic pollution, such as Athericidae, Hydropsychidae, Planariidae, Helycopsychidae, Pyralidae, Calopterygidae, and Thiaridae. On the other hand, to the right, there are higher values for parameters that indicate lower water quality with the presence of organic pollution (oils and grease, biochemical oxygen demand, total phosphate, NO3, NH4, and E. coli), there is more grassland induced, and a lower habitat quality. In these sites, we capture tolerant families such as Syrphidae, Culicidae, Lumbriculidae, Nematoda, Physidae, Dixidae, and Chironomidae. In the lower part of the ordination space, the vectors were related to higher values for total Coliforms and carbonates, as well as the deepest and widest part of the river, and a large part of the urban settlements and irrigated agriculture in addition to a lower slope. Close to the mouth of the river, we found detritivorous families such as Gammaridae and Muscidae.

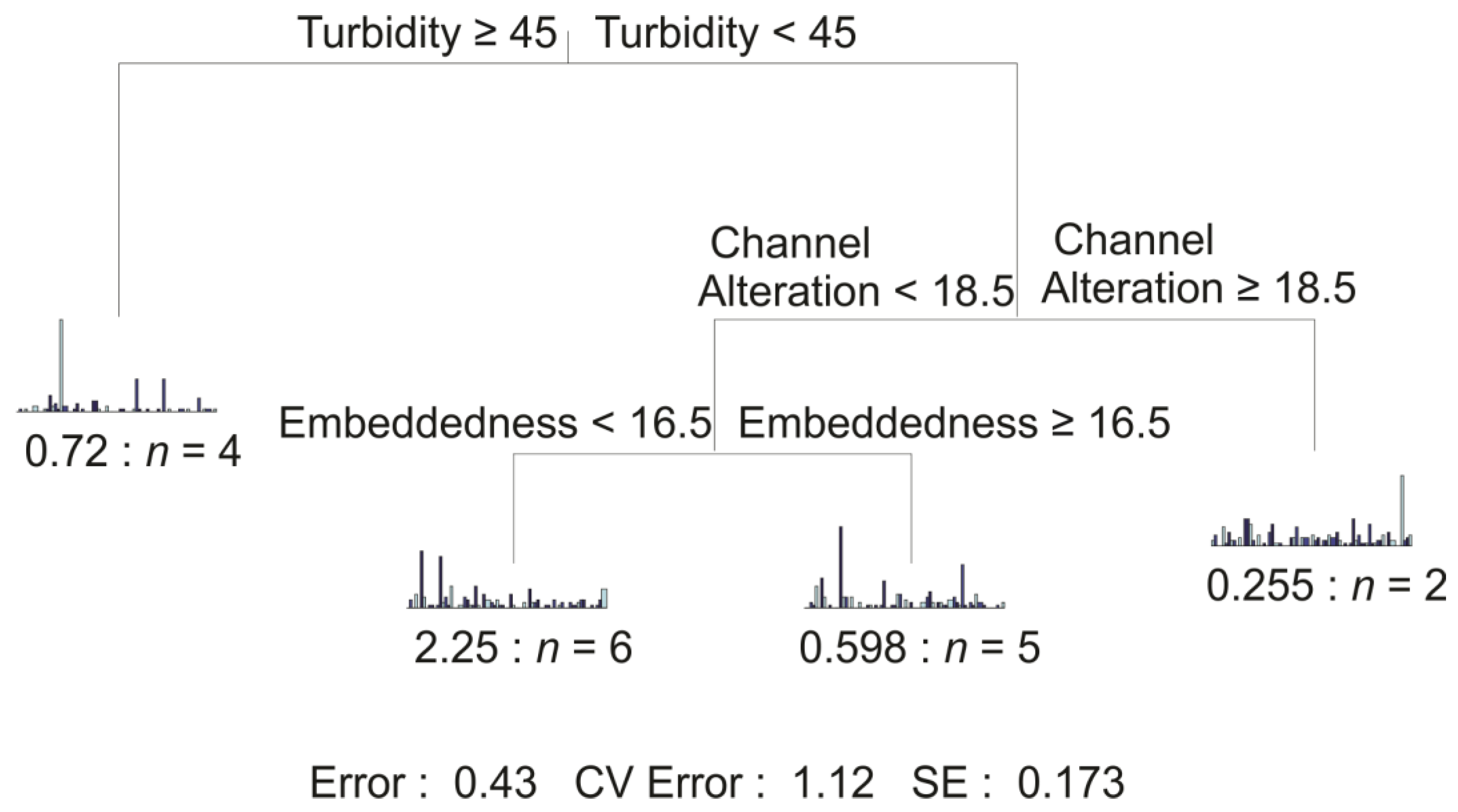

The MRT related the macroinvertebrate diversity (Families) to physicochemical variables and hydromorphological and habitat characteristics (Figure 3). The main divisions were according to turbidity, channel alteration, and embeddedness, as shown in three groups and two classification nodes and supported by a significant outcome of the χ2-test (χ2 = 0.1145, p < 0.01, based on 100 multiple cross-validations).

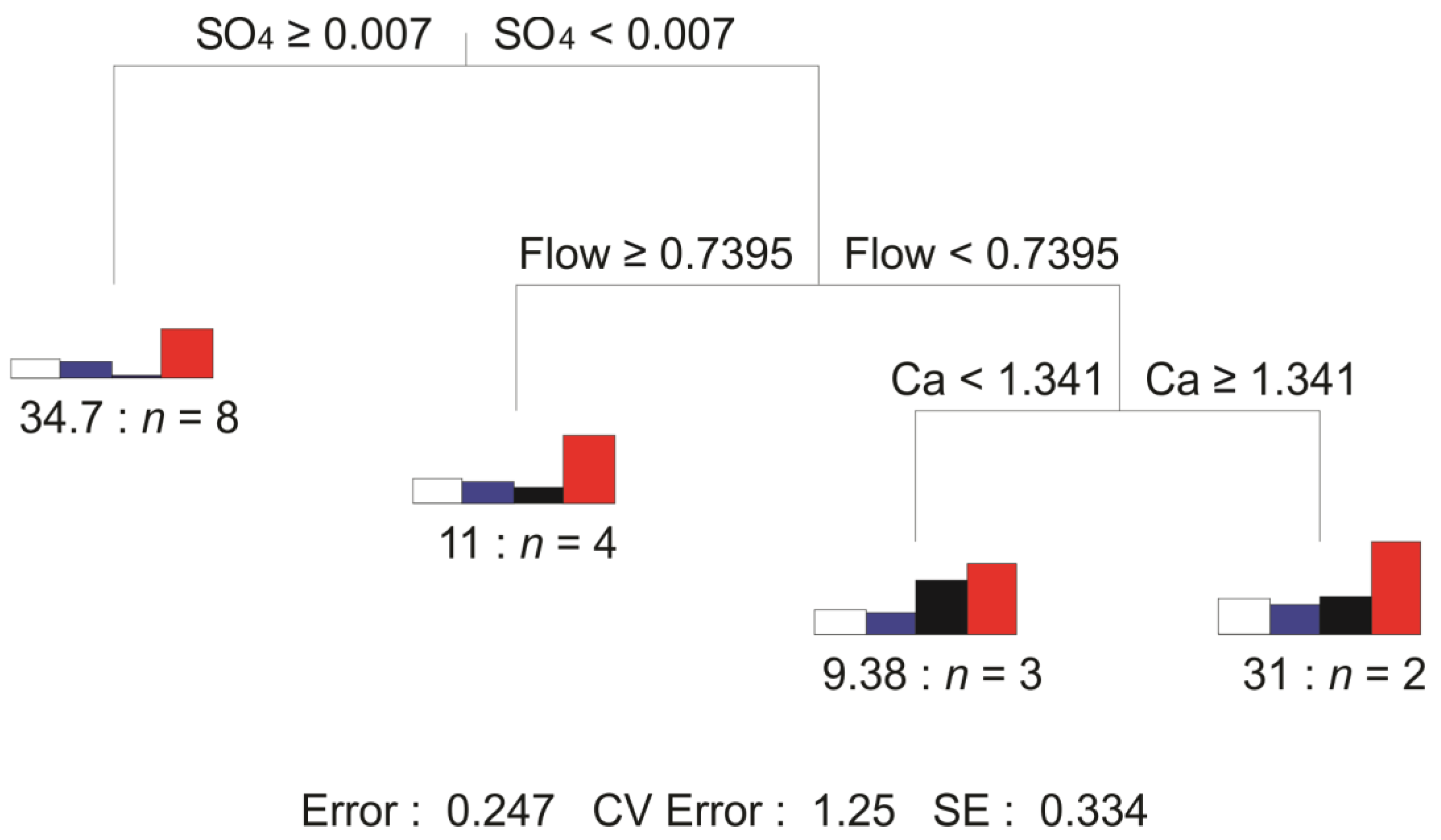

When we used the biotic indices as dependent variables, sulphates were the most important aspect to separate the sites as well as flow and Ca2+. The BMWP index was the most representative and a better indicator of the different splits, as well as the % EPT when lower SO42− values were found (Figure 4), as is shown in three groups and two classification nodes and supported by a significant outcome of the χ2-test (χ2 = 0.2648, p < 0.01, based on 100 multiple cross-validations).

4. Discussion

The biotic integrity and water quality were defined according to the macroinvertebrate community structure and the river’s environmental conditions at the in situ level and fluvial landscape. We analyzed physicochemical characteristics, geomorphological aspects, and habitat quality, as well as basin features to determine their relationship with the river ecosystem. We studied the main course of the La Pasión river and detected only a few sections with optimal water, habitat, and biotic conditions; most of the river presented different impacts related to economic activities and human settlements. Consequently, there is the discharge of domestic and industrial wastewater without treatment and the proximity of activities such as livestock and temporal and irrigation agriculture impose a diffuse impact on the river, an aspect better reflected by the water quality index (NFS-WQI). There are also modifications of the channel such as the canalization to take advantage of the resource in irrigated agriculture and the rectification of the river in the urban area, aspects identified according to the suboptimal and marginal values of the habitat quality (S13 to S15). However, there are recreational areas with better water and biotic quality close to site S3, where spring water and two tributaries with clean waters enter the river (SR and S1).
The results obtained in the biological indices corroborate the first hypothesis proposed since there is a recovery of the quality of the river towards the outflow. This is related to the entry of clean water, where greater diversity is related to higher values of physicochemical parameters such as dissolved oxygen, water temperature, and transparency [59]. Different studies have described significant differences and important changes from the upper to the lower basin in the aquatic macroinvertebrate taxa, which could be related to changes in the physicochemical characteristics of the water by wastewater inputs, changes in habitats, and physical modifications to the channel, including nearby roads [60,61,62]. The values of the BMWP and the % EPT-B indices better reflected the general quality of the river, an aspect also described in other studies [45,63,64,65]. In terms of composition, families such as Polycentropodidae, Hydrophilidae, Philopotamidae, Helycopsychidae, Heptageniidae, Libellulidae, Sisyridae Ceratopogonidae, and Dugesiidae require high concentrations of dissolved oxygen and, therefore, were found in sites with good quality [5]. In contrast, some families of snails (Physidae and Planorbidae), Odonata (Coenagrionidae, Gomphidae, Hydroptilidae, Libellulidae, Calopterygidae, and Lestidae), the tolerant families of mayflies (Baetidae), and caddisflies (Limnephilidae, Hydropsychidae, and Polycentropodidae), as well as some beetles (Corixidae, Naucoridae, Noteridae, and Dytiscidae) are related to lentic habitats [66], with physical modifications in the riverbed and activities such as irrigated agriculture, as occurred in different sites located in the middle and lower basin [20,67].
Regarding landscape aspects, open areas related to agricultural land use impose ecological and physiological restrictions on the dispersal of species from families such as Diptera, Coleoptera, Ephemeroptera, and Trichoptera, whereas odonates are favored [20]. In addition, sites closely related to irrigated agriculture are characterized by high levels of electrical conductivity and nutrients (nitrogenous compounds, total phosphate, and sulphates), increased water temperature, increased chemical and biochemical oxygen demand, and a greater presence of suspended solids and organic matter, aspects that could induce eutrophication [68,69,70], thus affecting transparency, decreasing sunlight entry and primary production, as well as increasing turbidity. On the other hand, the heterogeneity and complexity of the habitats presents a greater richness [71,72]. The maximum biodiversity is maintained at intermediate disturbance and resource availability, levels typically found in conserved riverine areas or those with less anthropogenic influence and different substrate types [67,73]. The most frequent families with the largest number of individuals indicate the presence of organic pollution, mainly those related to the consumption of detritus such as Gammaridae, Baetidae, Chironomidae, Hydrachnidia, Asellidae, and Physidae, which were also abundant in altered ecosystems such as urban rivers [45,74]. In relation to habitat quality, the influence of this productive activity results in suboptimal to marginal results, which determine the presence of tolerant macroinvertebrate families [22].
A particular aspect is that while the results of the habitat characterization protocol provided results from suboptimal to marginal that were related to physical modifications (SCR), medium and good values can be found from the biotic quality due to the presence of aquatic plants, aspects related to morpho-group diversity and richness in rivers in Europe [75,76]. Aquatic plants, including introduced species such as the water hyacinth (Eichhornia crassipes), provide different habitats for macroinvertebrates; accordingly, sites that have poor water and habitat quality (e.g., S15) had high values in the BMWP index [46].
Regarding our second hypothesis, the analysis (MRT) only identified the main variables that describe the macroinvertebrates’ structure and some parameters of the water and habitat quality. Although this is to be expected because they describe the environment where the organisms directly develop [46], they also indirectly reflect the impacts of the activities that occur at a larger scale around the river such as agricultural activities and (in some other rivers) coal mining [77,78]. This has been described in other studies where the physicochemical variables in the water and the river characteristics are analyzed [5,79]

5. Conclusions

In this study we conclude with the results obtained in the water quality index, biological indices, and environmental and habitat characteristics that the spatial and temporal variation of aquatic macroinvertebrates is mainly affected by changes in the physicochemical characteristics in water due to the entry of domestic and industrial wastewater without prior treatment in the La Pasión river. A noticeable change is observed starting at site three (S3); however, at site 11 (S11) the most significant modification occurs in the river, an irrigation channel through which most of the water resource is captured for the irrigated agriculture area during the drier season. The relationship between environmental variables and macroinvertebrate diversity is a key point for understanding processes in aquatic ecosystems and adjacent activities and is the basis for evaluating possible methods for river restoration and pollution mitigation.
We show that different land use variables (lowland semi-deciduous forest, pasture, cultivated land, and human settlements), hydromorphological variables, environmental characteristics, and habitat quality have different impacts on different macroinvertebrate indicator groups at the family level. Specifically, we found that the distribution of macroinvertebrates such as EPT (a sensitive species) is clearly different from that of other macroinvertebrate families. However, the life cycle of aquatic organisms and their distribution in different habitats must be considered. Our finding is reinforced by the independent responses of species (individual families) to changes in environmental gradients.

Author Contributions

Investigation and writing—original draft, L.F.G.-S.; formal analysis, methodology and writing—review and editing, R.M.-E. and M.A.V.-M.; software and validation, G.C.-C.; resources and supervision, L.A.Á.-M. and J.L.P.-E. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Instituto Politécnico Nacional (SIP 20211058).

Data Availability Statement

Not applicable.

Acknowledgments

Special thanks to CONACyT and the Instituto Politécnico Nacional for the financial support. We thank Estanislao Martínez-Bravo for his help with the hard field work.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

MLRMachine learning regression algorithm
NDVINormalized difference vegetation index
NSF-WQINational Sanitation Foundation index of water quality
EPT-B %Percentage of Ephemeroptera, Plecoptera, and Trichoptera (minus Baetidae)
BMWPBiological Monitoring Working Party index
NMDSNon-metric multidimensional scaling
MRTMultivariate regression tree analysis
HQIHabitat quality index
BBoron
BSBank Stability
CAChannel alteration
CFSChannel flow status
EmbEmbeddedness
FEFrequency of riffles
IAIrrigated agriculture
IPInduced pastureland
LSFLowland semideciduous forest
RVZWRiparian vegetative zone width
RARainfed agriculture
UZUrban zone
VPVegetative protection
V/DRVelocity/depth regime

Appendix A

Table
Table A1. Physicochemical variables determined in the different sites of the La Pasión river.
Table A1. Physicochemical variables determined in the different sites of the La Pasión river.
SitespHEC
(µS/cm)		Ca2+
(mg/L)		Mg2+
(mg/L)		Na+
(mg/L)		K+
(mg/L)		CO3
(mg/L)		HCO3
(mg/L)		Cl
(mg/L)		SO42−
(mg/L)		B
(mg/L)
S17.73264.31.443.321.772.950.133.1315.090.00020
S27.984231.492.282.023.3304.2026.410.0110.249
S38.245021.642.252.124.4804.8533.950.0080.21
S46.8716642.213.007.185.6509.51192.390.0730.843
S57.686901.123.831.223.3104.3518.860.0470
S67.183681.243.582.053.8103.6222.630.0060
S77.643211.040.490.802.6903.4918.860.00030
S87.653401.690.741.053.8203.5418.860.0020
S97.653471.321.362.473.2703.5618.860.00180
S107.573411.541.151.263.8803.5618.860.0040
S118.043321.113.941.824.760.253.5418.860.0060
S128.08360.21.990.561.154.0803.6215.090.0080
S138.494643.513.361.863.280.565.1826.410.0120.2235
S148.295463.933.882.893.830.335.5930.180.0150.275
S157.7110040.085.223.392.7309.5849.040.1020.468
SR7.73264.31.443.321.772.950.133.1315.090.00020
SCR8.043321.113.941.824.760.253.5418.860.0060
SitesNH4 (mg/L)PO43−TP (mg/L)Hardness
(mg/L CaCO3)		NO3
(mg/L)		COD
(mg/L)		O and G
(mg/L)		BOD5
(mg/L)		TN
(mg/L)		ET
(°C)		WT
(°C)		DOPS
(%)
S14.710.12100012.3302.124.7117.725.895.9
S21.171.231150.0415.670.252.71.21182561.7
S31.420.551600.321490.0427.211.7417.317.947.3
S42.3825.873402.161065.670.27477.194.5516.718.144.2
S51.250.18130042.330369.051.2517.318.239.8
S611.573.651300.1012.330188.5411.6619.218.746.4
S72.390.001350.10159027.42.5019.118.538.9
S82.043.331100185.670.2481.92.0419.418.651.5
S93.253.011250.10290.1362.833.351918.559.2
S101.880.3712502.330.2425.041.8819.218.754.6
S113.102.831250.7212.330.01107.33.8219.218.760.5
S122.043.201300.35390596.362.3923.119.759.7
S136.590.122100.1012.330188.546.6824.719.744.3
S142.271.282300.01190.22165.652.2923.22153.6
S1513.9622.073050.44142.330.03667.0214.4028.721.145.9
SR4.710.12100012.3302.124.7117.725.895.9
SCR3.102.831250.7212.330.01107.33.8219.218.760.5
SitesDO
(mg/L)		Sal
(‰)		Trans
(cm)		Turb
(NTU)		TDS
(mg/L)		TotCol
(MPN 100 mL)		FecCol
(MPN 100 mL)		E. coli
(MPN 100 mL)		Flow (m3/s)
S16.270.130.6119166.44030300.27
S24.110.110.1365147.22301501000.64
S33.640.140.05100205.821004301100.69
S43.390.140.2550205.8930280400.70
S53.040.130.1150198.4515009302801.19
S63.520.120.1640183.75240015001500.49
S72.970.130.1635198.45930150900.69
S83.920.090.3813132.3280210900.95
S94.520.110.5514169.05230110300.79
S104.160.120.6510176.4210110901.01
S114.630.090.3911139.6543090400.69
S124.50.110.559169.05210110700.30
S133.340.100.563014746001500900.62
S143.950.100.2424154.3515002301100.51
S153.380.110.1324169.0521009302800.64
SR6.270.130.9319166.44030300.27
SCR4.630.090.5411139.6543090406.97

References

  1. Best, J. Anthropogenic stresses on the world’s big rivers. Nat. Geosci. 2019, 12, 7–21. [Google Scholar] [CrossRef]
  2. Anderson, E.P.; Jackson, S.; Tharme, R.E.; Douglas, M.; Flotemersch, J.E.; Zwarteveen, M.; Lokgariwar, C.; Montoya, M.; Wali, A.; Tipa, G.T.; et al. Understanding rivers and their social relations: A critical step to advance environmental water management. WIREs Water 2019, 6, 1–32. [Google Scholar] [CrossRef] [PubMed]
  3. Tickner, D.; Parker, H.; Moncrieff, C.R.; Oates, N.E.; Ludi, E.; Acreman, M. Managing rivers for multiple benefits–a coherent approach to research, policy and planning. Front. Environ. Sci. 2017, 5, 1–8. [Google Scholar] [CrossRef]
  4. Moyle, P.B.; Leidy, R.A. Loss of Biodiversity in Aquatic Ecosystems: Evidence from Fish Faunas. In Conservation Biology; Fiedler, P.L., Jain, S.K., Eds.; Springer: Boston, MA, USA, 1992; pp. 127–169. [Google Scholar] [CrossRef]
  5. Rico-Sánchez, A.E.; Rodríguez-Romero, A.J.; Sedeño-Díaz, J.E.; López-López, E.; Sundermann, A. Aquatic macroinvertebrate assemblages in rivers influenced by mining activities. Sci. Rep. 2022, 12, 3209. [Google Scholar] [CrossRef]
  6. Roe, D.; Seddon, N.; Elliott, J. Biodiversity Loss is a Development Issue: A Rapid Review of Evidence; IIED: London, UK, 2019; pp. 1–23. [Google Scholar]
  7. Dopelt, K.; Radon, P.; Davidovitch, N. Environmental effects of the livestock industry: The relationship between knowledge, attitudes, and behavior among students in Israel. Int. J. Environ. 2019, 16, 1359. [Google Scholar] [CrossRef]
  8. Landrigan, P.J.; Fuller, R. Global health and environmental pollution. Int. J. Public Health 2015, 60, 761–762. [Google Scholar] [CrossRef]
  9. Chen, F.L.; Yang, B.C.; Peng, S.Y.; Lin, T.C. Applying a deployment strategy and data analysis model for water quality continuous monitoring and management. IJDSN 2020, 16, 1–15. [Google Scholar] [CrossRef]
  10. Soltani, A.A.; Oukil, A.; Boutaghane, H.; Bermad, A.; Boulassel, M.R. A new methodology for assessing water quality based on data envelopment analysis: Application to Algerian dams. Ecol. Indic. 2021, 121, 106952. [Google Scholar] [CrossRef]
  11. Sumudumali, R.G.I.; Jayawardana, J.M.C.K. A review of biological monitoring of aquatic ecosystems approaches: With special reference to macroinvertebrates and pesticide pollution. Environ. Manag. 2021, 67, 263–276. [Google Scholar] [CrossRef]
  12. Cruz-García, L.M.; Arreola-Lizarraga, J.A.; Mendoza-Salgado, R.A.; Galina-Tessaro, P.; Beltrán-Morales, L.F.; Ortega-Rubio, A. Applying ecological diversity indices with ecosystem approach at ecoregional level and prioritizing the decree of new protected natural areas. Interciencia 2015, 40, 179–184. [Google Scholar]
  13. Liquete, C.; Cid, N.; Lanzanova, D.; Grizzetti, B.; Reynaud, A. Perspectives on the link between ecosystem services and biodiversity: The assessment of the nursery function. Ecol. Indic. 2016, 63, 249–257. [Google Scholar] [CrossRef]
  14. Hernández-García, A.; Sandoval-Moreno, A. Regionalización y cambios territoriales en las Ciénegas de Jalisco-Michoacán, México (1990–2015). Agua y Territ. 2018, 12, 49–58. [Google Scholar] [CrossRef]
  15. QGIS Development Team. QGIS Geographic Information System. Open Source Geospatial Foundation Project. Available online: http://qgis.osgeo.org (accessed on 10 October 2021).
  16. INEGI Digital Elevation Model Archives (DEM). Available online: https://www.inegi.org.mx/app/geo2/elevacionesmex/ (accessed on 9 February 2020).
  17. Wang, L.; Liu, H. An efficient method for identifying and filling surface depressions in digital elevation models for hydrologic analysis and modelling. Int. J. Geogr. Inf. Syst. 2006, 20, 193–213. [Google Scholar] [CrossRef]
  18. Wu, T.; Li, J.; Li, T.; Sivakumar, B.; Zhang, G.; Wang, G. High-efficient extraction of drainage networks from digital elevation models constrained by enhanced flow enforcement from known river maps. Geomorphology 2019, 340, 184–201. [Google Scholar] [CrossRef]
  19. Barbour, M.T.; Gerritsen, J.; Snyder, B.D.; Stribling, J.B. Rapid Bioassessment Protocols for Use in Streams and Wadeable Rivers: Periphyton, Benthic Macroinvertebrates and Fish, 2nd ed.; US Environmental Protection Agency, Office of Water: Washington, DC, USA, 1999; pp. 1–337. [Google Scholar]
  20. Stenert, C.; de Mello, Í.C.; Pires, M.M.; Knauth, D.S.; Katayama, N.; Maltchik, L. Responses of macroinvertebrate communities to pesticide application in irrigated rice fields. Environ. Monit. Assess. 2018, 190, 1–13. [Google Scholar] [CrossRef]
  21. Arabameri, A.; Pradhan, B.; Pourghasemi, H.R.; Rezaei, K.; Kerle, N. Spatial Modelling of Gully Erosion Using GIS and R Programing: A Comparison among Three Data Mining Algorithms. Appl. Sci. 2018, 8, 1369. [Google Scholar] [CrossRef]
  22. Baird, R.B.; Eaton, A.D.; Rice, E.W. Methods for the Examination of Water and Wastewater, 23rd ed.; American Public Health Association (APHA), AWWA & WEF: Washington, DC, USA, 2017; pp. 43–1537. [Google Scholar]
  23. Barbour, M.T.; Stribling, J.B.; Verdonschot, P.F.M. The multihabitat approach of USEPA’s rapid bioassessment protocols: Benthic macroinvertebrates. Limnetica 2006, 25, 839–850. [Google Scholar] [CrossRef]
  24. Norma DOF Para Análisis de Agua (NMX-AA-005-SCFI-2013). Medición de Grasas y Aceites Recuperables en Aguas Naturales, Residuales y Residuales Tratadas. Método de Prueba. Available online: https://www.gob.mx/cms/uploads/attachment/file/166764/nmx-aa-005-scfi-2013.pdf (accessed on 22 November 2020).
  25. Norma DOF Para Análisis de Agua (NOM-112-SSA1-1994). Determinación de Bacterias Coliformes por la Técnica del Número Más Probable. Available online: http://www.ordenjuridico.gob.mx/Documentos/Federal/wo69535.pdf (accessed on 15 October 2020).
  26. Velázquez-Machuca, M.A.; Pimentel-Equihua, J.L.; Ortega-Escobar, M. Variaciones longitudinales y temporales en la hidroquímica del río Duero. Agrociencia 2010, 44, 599–609. [Google Scholar]
  27. Pineda-López, R.; Pérez-Munguia, R.M.; Mathuriau, C.; Villalobos-Hiriart, J.L.; Barba-Álvarez, R.; Bernal, T.; Barba-Macías, E. Protocolo de Muestreo de Macroinvertebrados en Aguas Continentales para la Aplicación de la Norma de Caudal Ecológico (NMX-AA-159-SCFI-2012). 2014, PNRA, México. Available online: https://agua.org.mx/biblioteca/protocolo-de-muestreo-de-macroinvertebrados-en-aguas-continentales-para-la-aplicacion-de-la-norma-de-caudal-ecologico-nmx%E2%80%90aa%E2%80%90159%E2%80%90scfi%E2%80%902012/ (accessed on 2 October 2022).
  28. Flotemersch, J.E.; Saavedra, J.M.; Laffitte, L.; Laurenzano, B.; Bonardi, M.A.; Blocksom, K.A. Benthic macroinvertebrate field sampling effort required to produce a sample adequate for the assessment of rivers and streams of Neuquén Province, Argentina. Limnologica 2017, 65, 55–60. [Google Scholar] [CrossRef] [PubMed]
  29. Oscoz, J.; Galicia, D.; Miranda, R. Identification Guide of Freshwater Macroinvertebrates of Spain; Springer Science & Business Media: Dordrecht, The Netherlands, 2011; pp. 1–140. ISBN 978-94-007-1554-7. [Google Scholar]
  30. Pennak, R.W. Fresh-Water Invertebrates of United States, 2nd ed.; Wiley-Interscience Pub.: New York, NY, USA, 1978; pp. 1–782. [Google Scholar]
  31. Rodríguez-Romero, A.J.; Rico-Sánchez, A.E.; Mendoza-Martínez, E.; Gómez-Ruiz, A.; Sedeño-Díaz, J.E.; López-López, E. Impact of Changes of Land Use on Water Quality, from Tropical Forest to Anthropogenic Occupation: A Multivariate Approach. Water 2018, 10, 1518. [Google Scholar] [CrossRef]
  32. Cornejo, A.; López-López, E.; Bernal, J. Protocolo de Biomonitoreo para la Vigilancia de la Calidad del Agua en Afluentes Superficiales de Panama; Instituto Conmemorativo Gorgas de Estudios de la Salud: Panamá, Panamá, 2019; pp. 1–81. [Google Scholar]
  33. Rosgen, D.L. A classification of natural rivers. Catena 1994, 22, 169–199. [Google Scholar] [CrossRef]
  34. Dhingra, S.; Kumar, D. A review of remotely sensed satellite image classification. IJECE 2019, 9, 1720–1731. [Google Scholar] [CrossRef]
  35. Li, M.; Zang, S.; Zhang, B.; Li, S.; Wu, C. A Review of Remote Sensing Image Classification Techniques: The Role of Spatio-contextual Information. Eur. J. Remote Sens. 2014, 47, 389–411. [Google Scholar] [CrossRef]
  36. Salinas-Zavala, M.V.; Martínez-Rincón, R.O.; Morales-Zárate, M.V. Tendencia en el siglo XXI del Índice de Diferencias Normalizadas de Vegetación (NDVI) en la parte sur de la península de Baja California. Investig. Geogr. 2017, 94, 82–90. [Google Scholar] [CrossRef]
  37. Luvai, A.; Obiero, J.; Omuto, C. Soil Loss Assessment Using the Revised Universal Soil Loss Equation (RUSLE) Model. Appl. Environ. Soil. Sci. 2022, 2022, 2122554. [Google Scholar] [CrossRef]
  38. Prontuarios Municipales INEGI. Available online: https://www.inegi.org.mx/app/areasgeograficas/#collapse-Resumen (accessed on 17 January 2020).
  39. Kachroud, M.; Trolard, F.; Kefi, M.; Jebari, S.; Bourrié, G. Water quality indices: Challenges and application limits in the literature. Water 2019, 11, 361. [Google Scholar] [CrossRef]
  40. Noori, R.; Berndtsson, R.; Hosseinzadeh, M.; Adamowski, J.F.; Abyaneh, M.R. A critical review on the application of the National Sanitation Foundation Water Quality Index. Environ. Pollut. 2019, 244, 575–587. [Google Scholar] [CrossRef]
  41. Water Quality Index. Field Manual for Water Quality Monitoring, the National Sanitation Foundation. Available online: https://www.knowyourh2o.com/outdoor-3/water-quality-index-calculator-for-surface-water (accessed on 20 March 2022).
  42. Budka, A.; Łacka, A.; Szoszkiewicz, K. The use of rarefaction and extrapolation as methods of estimating the effects of river eutrophication on macrophyte diversity. Biodivers. Conserv. 2019, 28, 385–400. [Google Scholar] [CrossRef]
  43. Chao, A.; Gotelli, N.J.; Hsieh, T.C.; Sander, E.L.; Ma, K.H.; Colwell, R.K.; Ellison, A.M. Rarefaction and extrapolation with Hill numbers: A framework for sampling and estimation in species diversity studies. Ecol. Monogr. 2014, 84, 45–67. [Google Scholar] [CrossRef]
  44. Masese, F.O.; Raburu, P.O. Improving the performance of the EPT Index to accommodate multiple stressors in Afrotropical streams. Afr. J. Aquat. Sci. 2017, 42, 219–233. [Google Scholar] [CrossRef]
  45. Magallón-Ortega, G.; Escalera-Gallardo, C.; López-López, E.; Sedeño-Díaz, J.E.; López-Hernández, M.; Arroyo-Damián, M.; Moncayo-Estrada, R. Water Quality Analysis in a Subtropical River with an Adapted Biomonitoring Working Party (BMWP) Index. Diversity 2021, 13, 606. [Google Scholar] [CrossRef]
  46. Ruiz-Picos, R.A.; Sedeño-Díaz, J.E.; López-López, E. Calibrating and validating the Biomonitoring Working Party (BMWP) index for the Bioassessment of water quality in neotropical streams. Water Qual. 2017, 3, 39–58. [Google Scholar] [CrossRef]
  47. Kennen, J.G.; Sullivan, D.J.; May, J.T.; Bell, A.H.; Beaulieu, K.M.; Rice, D.E. Temporal changes in aquatic-invertebrate and fish assemblages in streams of the north-central and northeastern US. Ecol. Indic. 2012, 18, 312–329. [Google Scholar] [CrossRef]
  48. Jia, Y.; Sui, X.; Chen, Y. Development of a Fish-Based Index of Biotic Integrity for Wadeable Streams in Southern China. Environ. Manag. 2013, 52, 995–1008. [Google Scholar] [CrossRef]
  49. Borcard, D.; Gillet, F.; Legendre, P. Numerical Ecology with R, 2nd ed.; Springer: New York, NY, USA, 2011; pp. 1–292. [Google Scholar] [CrossRef]
  50. McCune, B.; Grace, J.; Urban, D. Analysis of Ecological Communities; MjM Software Design: Gleneden Beach, OR, USA, 2002; pp. 1–304. ISBN 0-9721290-0-6. [Google Scholar]
  51. De’ath, G. Multivariate regression trees: A new technique for modeling species-environment relationships. Ecology 2002, 83, 1105–1117. [Google Scholar]
  52. McCune, B.; Mefford, M.J. PC-ORD. Multivariate Analysis of Ecological Data. Available online: www.bockytech.com.tw/PDF-File/PC-ORD.pdf (accessed on 5 January 2021).
  53. Peck, J.E. Multivariate Analysis for Ecologists: Step-by-Step, 2nd ed.; MjM Software Design: Gleneden Beach, OR, USA, 2016; pp. 1–192. [Google Scholar]
  54. Breiman, L. Random forests. Mach. Learn. 2001, 45, 5–32. [Google Scholar] [CrossRef]
  55. Dinno, A. Dunn. Test: Dunn’s Test of Multiple Comparisons Using Rank Sums. R Package Version 1.3.5. Available online: http://cran.stat.unipd.it/web/packages/dunn.test/dunn.test.pdf (accessed on 15 October 2020).
  56. Oksanen, J.; Blanchet, F.G.; Kindt, R.; Legendre, P.; O’Hara, R.B.; Simpson, G.L.; Solymos, P.; Stevens, M.H.H.; Wagner, H. Vegan: Community Ecology Package. R Package Version 2.5-7. Available online: https://cran.r-project.org/web/packages/vegan/index.html (accessed on 7 October 2021).
  57. De’ath, G.; Therneau, T.M.; Atkinson, B.; Ripley, B.; Oksanen, J. Mvpart: Multivariate Partitioning. Available online: https://mran.microsoft.com/snapshot/2014-12-11/web/packages/mvpart/index.html (accessed on 12 March 2020).
  58. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2021; Available online: https://www.R-project.or.rg/ (accessed on 16 August 2021).
  59. Aazami, J.; Esmaili-Sari, A.; Abdoli, A.; Sohrabi, H.; Van den Brink, P.J. Monitoring and assessment of water health quality in the Tajan River, Iran using physicochemical, fish and macroinvertebrates indices. J. Environ. Health Sci. Eng. 2015, 13, 1–12. [Google Scholar] [CrossRef]
  60. Englert, D.; Zubrop, J.P.; Schulz, R.; Bundschun, M. Variability in ecosystem structure and functioning in a low order strem: Implications of land use and season. Sci. Total Environ. 2015, 538, 341–349. [Google Scholar] [CrossRef]
  61. López-López, E.; Sedeño-Díaz, J.E.; Mendoza-Martínez, E.; Gómez-Ruiz, A.; Martínez-Ramírez, E. Water quality and macroinvertebrate community in dryland streams: The case of the Tehuacán-Cuicatlán Biosphere Reserve (México) facing climate change. Water 2019, 11, 1376. [Google Scholar] [CrossRef]
  62. El Sayed, S.M.; Hegab, M.H.; Mola, H.R.A.; Ahmed, N.M.; Goher, M.E. An integrated water quality assessment of Damietta and Rosetta branches (Nile River, Egypt) using chemical and biological indices. Environ. Monit. Assess. 2020, 192, 228. [Google Scholar] [CrossRef]
  63. Kaelin, K.; Altermatt, F. Landscape-level predictions of diversity in river networks reveal opposing patterns for different groups of macroinvertebrates. Aquat. Ecol. 2016, 50, 283–295. [Google Scholar] [CrossRef]
  64. Robinson, C.T.; Schweizer, P.; Larsen, A.; Schubert, C.J.; Siebers, A.R. Beaver effects on macroinvertebrate assemblages in two streams with contrasting morphology. Sci. Total Environ. 2020, 722, 137899. [Google Scholar] [CrossRef]
  65. Upadhyay, K.D.; Mainali, J.; Ghimire, N.P. Diversity of aquatic plants and macroinvertebrates and their spatial patterns in a Himalayan Watershed, Central Nepal. Aquat. Bot. 2022, 180, 103529. [Google Scholar] [CrossRef]
  66. Niculae, M.I.; Avram, S.; Corpade, A.M.; Dedu, S.; Gheorghe, C.A.; Pascu, I.S.; Ontel, I.; Rodino, S. Evaluation of the quality of lentic ecosystems in Romania by a GIS based WRASTIC model. Sci. Rep. 2021, 11, 5361. [Google Scholar] [CrossRef] [PubMed]
  67. Robinson, C.T.; Tockner, K.; Ward, J.V. The fauna of dynamic riverine landscapes. Freshw. Biol. 2002, 47, 661–677. [Google Scholar] [CrossRef]
  68. Calderón-Cendejas, J.; Madrid-Ramírez, L.; Ramírez-Zierold, J.; Díaz-Valenzuela, J.; Merino-Ibarra, M.; Morató-Sánchez de Tagle, S.; Chino-Téllez, A. Evaluation of the impacts of land use in water quality and the role of nature-based solutions: A citizen science-based study. Sustainability 2021, 13, 10519. [Google Scholar] [CrossRef]
  69. Crooks, E.C.; Harris, I.M.; Patil, S.D. Influence of Land Use Land Cover on River Water Quality in Rural North Wales, UK. JAWRA 2021, 57, 357–373. [Google Scholar] [CrossRef]
  70. Fierro, P.; Bertrán, C.; Tapia, J.; Hauenstein, E.; Peña-Cortés, F.; Vergara, C.; Cerna, C.; Vargas-Chacoff, L. Effects of local land-use on riparian vegetation, water quality, and the functional organization of macroinvertebrate assemblages. Sci. Total Environ. 2017, 609, 724–734. [Google Scholar] [CrossRef]
  71. Árva, D.; Specziár, A.; Erős, T.; Tóth, M. Effects of habitat types and within lake environmental gradients on the diversity of chironomid assemblages. Limnologica 2015, 53, 26–34. [Google Scholar] [CrossRef]
  72. Gething, K.J.; Ripley, M.C.; Mathers, K.L.; Chadd, R.P.; Wood, P.J. The influence of substrate type on macroinvertebrate assemblages within agricultural drainage ditches. Hydrobiologia 2020, 847, 4273–4284. [Google Scholar] [CrossRef]
  73. Porst, G.; Brauns, M.; Irvine, K.; Solimini, A.; Sandin, L.; Pusch, M.; Miler, O. Effects of shoreline alteration and habitat heterogeneity on macroinvertebrate community composition across European lakes. Ecol. Ind. 2019, 98, 285–296. [Google Scholar] [CrossRef]
  74. Medupin, C. Spatial and temporal variation of benthic macroinvertebrate communities along an urban river in Greater Manchester, UK. Environ. Monit. Assess. 2020, 192, 84. [Google Scholar] [CrossRef] [PubMed]
  75. Humphries, P. Aquatic macrophytes, macroinvertebrate associations and levels in a lowland Tasmanian river. Hydrobiologia 1996, 321, 219–233. [Google Scholar] [CrossRef]
  76. Law, A.; Baker, A.; Sayer, C.; Foster, G.; Gunn, I.D.M.; Taylor, P.; Pattison, Z.; Blaikie, J.; Willby, N.J. The effectiveness of aquatic plants as surrogates for wider biodiversity in standing fresh waters. Fresh. Biol. 2019, 64, 1664–1675. [Google Scholar] [CrossRef]
  77. Heino, J.; Ilmonen, J.; Paasivirta, L. Continuous variation of macroinvertebrate communities along environmental gradients in northern streams. BER 2014, 19, 21–38. [Google Scholar]
  78. Bartošová, M.; Schenková, J.; Polášková, V.; Bojková, J.; Šorfová, V.; Horsák, M. Macroinvertebrate assemblages of the post-mining calcareous stream habitats: Are they similar to those inhabiting the natural calcareous springs? Ecol. Eng. 2019, 136, 38–45. [Google Scholar] [CrossRef]
  79. Moncayo-Estrada, R.; Escalera-Gallardo, C.; Arroyo-Damián, M.; Campos-Campos, O.; Silva-García, J.T. Nitrogen nutrients in a subtropical river: Temporal variation and analysis at different spatial scales. Mar. Freshw. Res. 2017, 68, 1935–1949. [Google Scholar] [CrossRef]
Water 15 01748 g001 550
Figure 1. Location and sample sites (SR, SCR, and S1 to S15) in the La Pasión River basin, Mexico. Lake Chapala, the largest in the country, is represented in blue.
Figure 1. Location and sample sites (SR, SCR, and S1 to S15) in the La Pasión River basin, Mexico. Lake Chapala, the largest in the country, is represented in blue.
Water 15 01748 g001
Water 15 01748 g002 550
Figure 2. Non-metric multidimensional scaling of (a) sites and (b) macroinvertebrate families. Different environmental variables were included as vectors.
Figure 2. Non-metric multidimensional scaling of (a) sites and (b) macroinvertebrate families. Different environmental variables were included as vectors.
Water 15 01748 g002
Water 15 01748 g003 550
Figure 3. Multivariate regression tree (MRT) for the abundance data of macroinvertebrates, using 48 different explanatory variables related to water quality, basin aspects, geomorphology, and habitat quality (<less than; ≥greater than or equal; n number of sites).
Figure 3. Multivariate regression tree (MRT) for the abundance data of macroinvertebrates, using 48 different explanatory variables related to water quality, basin aspects, geomorphology, and habitat quality (<less than; ≥greater than or equal; n number of sites).
Water 15 01748 g003
Water 15 01748 g004 550
Figure 4. MRT for the biotic indices of Shannon (white), Simpson (blue), % EPT (black), and BMWP (red) using 48 different explanatory variables related to water quality, basin aspects, geomorphology, and habitat quality.
Figure 4. MRT for the biotic indices of Shannon (white), Simpson (blue), % EPT (black), and BMWP (red) using 48 different explanatory variables related to water quality, basin aspects, geomorphology, and habitat quality.
Water 15 01748 g004
Table
Table 1. Main land use and vegetation cover (km2) in the different sites of the La Pasión river fluvial landscape.
Table 1. Main land use and vegetation cover (km2) in the different sites of the La Pasión river fluvial landscape.
SitesHuman SettlementsAgricultureGrasslandSemideciduous Forest
SR002.190
S1002.190
S200218.530
S300999.740
S400639.02218.68
S500639.02218.68
S60081.22487.37
S700210.17639.19
S800114.49885.27
S900.0723.67975.27
S100502.680409.96
S1192.73626.820144.46
S1216.9593.0700.57
S130543.850455.83
S14999.77000
S150.08378.5400
SCR16.9593.0700.57
Total1126.482238.14109.332930.24
Table
Table 2. Most important physicochemical variables influencing the water quality index and the habitat quality index in the different sites of the La Pasión river.
Table 2. Most important physicochemical variables influencing the water quality index and the habitat quality index in the different sites of the La Pasión river.
SitespHCO3
(mg/L)		HCO3
(mg/L)		SO42−
(mg/L)		PO43−TP
(mg/L)		NH4
(mg/L)		NO3
(mg/L)		COD
(mg/L)		BOD5
(mg/L)		Turb
(NTU)		Flow
(m3/s)
S17.730.133.130.00020.124.71012.332.12190.27
S27.9804.200.0111.231.170.0415.672.7650.64
S38.2404.850.0080.551.420.3214927.211000.69
S46.8709.510.07325.872.382.161065.67477.19500.70
S57.6804.350.0470.181.25042.33369.05501.19
S67.1803.620.0063.6511.570.1012.33188.54400.49
S77.6403.490.00030.002.390.1015927.4350.69
S87.6503.540.0023.332.040185.6781.9130.95
S97.6503.560.00183.013.250.102962.83140.79
S107.5703.560.0040.371.8802.3325.04101.01
S118.040.253.540.0062.833.100.7212.33107.3110.69
S128.0803.620.0083.202.040.3539596.3690.30
S138.490.565.180.0120.126.590.1012.33188.54300.62
S148.290.335.590.0151.282.270.0119165.65240.51
S157.7109.580.10222.0713.960.44142.33667.02240.64
SR7.730.133.130.00020.124.71012.332.12190.27
SCR8.040.253.540.0062.833.100.7212.33107.3116.97
Table
Table 3. Values of the water quality index (NSF-WQI), the habitat quality index (HQI), the Ephemeroptera, Plecoptera, and Trichoptera index minus Baetidae (EPT-B %), and the BMWP, including their interpretation. SR = Reference site; SCR = Site into a channel.
Table 3. Values of the water quality index (NSF-WQI), the habitat quality index (HQI), the Ephemeroptera, Plecoptera, and Trichoptera index minus Baetidae (EPT-B %), and the BMWP, including their interpretation. SR = Reference site; SCR = Site into a channel.
SitesNSF-WQISignificanceHQISignificanceEPT%BMWPSignificance
SR86Good179Optimum88.5269Excellent
S186Good173Optimum6.2172Excellent
S264Medium163Suboptimum068Regular
S349Bad157Suboptimum070Regular
S448Bad160Suboptimum015Very polluted
S556Medium156Suboptimum054Polluted
S650Medium152Suboptimum107.1139Excellent
S760Medium155Suboptimum63.988Regular
S857Medium155Suboptimum11.1127Excellent
S959Medium167Optimum6.9106Good
S1064Medium172Optimum5.9154Excellent
S1159Medium163Suboptimum51.5135Excellent
S1258Medium152Suboptimum1.995Regular
S1356Medium127Suboptimum2.369Regular
S1455Medium140Suboptimum067Regular
S1550Medium132Suboptimum0104Good
S1622Very bad54Marginal022Very polluted
SCR59Medium74Marginal6.871Regular
Table
Table 4. The most frequent and abundant aquatic macroinvertebrates in the different sites of the La Pasión river.
Table 4. The most frequent and abundant aquatic macroinvertebrates in the different sites of the La Pasión river.
SitesCulicidaeChironomidaeLumbriculidaeBaetidaePolycentropodidaePhysidaeAsellidae
S1102778151272617
S220181549291694
S32230170002190
S46334112540071
S57863500360
S62762627001300
S715902201756
S801661418428
S93231204538726
S101753301539323
S11631063028641
S124270684378137
S13441014103
S141839026000
S1548480196000
SR8950201014
SCR0670112140
S1615020000
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gudiño-Sosa, L.F.; Moncayo-Estrada, R.; Velázquez-Machuca, M.A.; Cruz-Cárdenas, G.; Ávila-Meléndez, L.A.; Pimentel-Equihua, J.L. Biotic Integrity, Water Quality, and Landscape Characteristics of a Subtropical River. Water 2023, 15, 1748. https://doi.org/10.3390/w15091748

AMA Style

Gudiño-Sosa LF, Moncayo-Estrada R, Velázquez-Machuca MA, Cruz-Cárdenas G, Ávila-Meléndez LA, Pimentel-Equihua JL. Biotic Integrity, Water Quality, and Landscape Characteristics of a Subtropical River. Water. 2023; 15(9):1748. https://doi.org/10.3390/w15091748

Chicago/Turabian Style

Gudiño-Sosa, Luis Fernando, Rodrigo Moncayo-Estrada, Martha Alicia Velázquez-Machuca, Gustavo Cruz-Cárdenas, Luis Arturo Ávila-Meléndez, and José Luis Pimentel-Equihua. 2023. "Biotic Integrity, Water Quality, and Landscape Characteristics of a Subtropical River" Water 15, no. 9: 1748. https://doi.org/10.3390/w15091748

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
